Jumper Harness - Charge Port Inlet (Busbar Type) (Remove and Replace)
171069020.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.
- 2023 年 7 月 11 日:添加了充电接口电压检查步骤、后备箱地毯释放步骤,并根据最新验证对步骤进行了重新排序。
- 2023 年 10 月 10 日:添加了“请勿手动关闭充电接口盖板”的注意事项。
拆卸
- 打开所有车门,降下所有车窗。
- 打开前备箱盖、后备箱和充电接口盖板。
- 拆卸第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
- 拆卸前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
- 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
- 执行充电接口电压检查程序。请参阅Charge Port Voltage Check。
- 拆卸第二排左侧座椅靠背。请参阅Seat Back - 2nd Row - LH (Remove and Replace)。

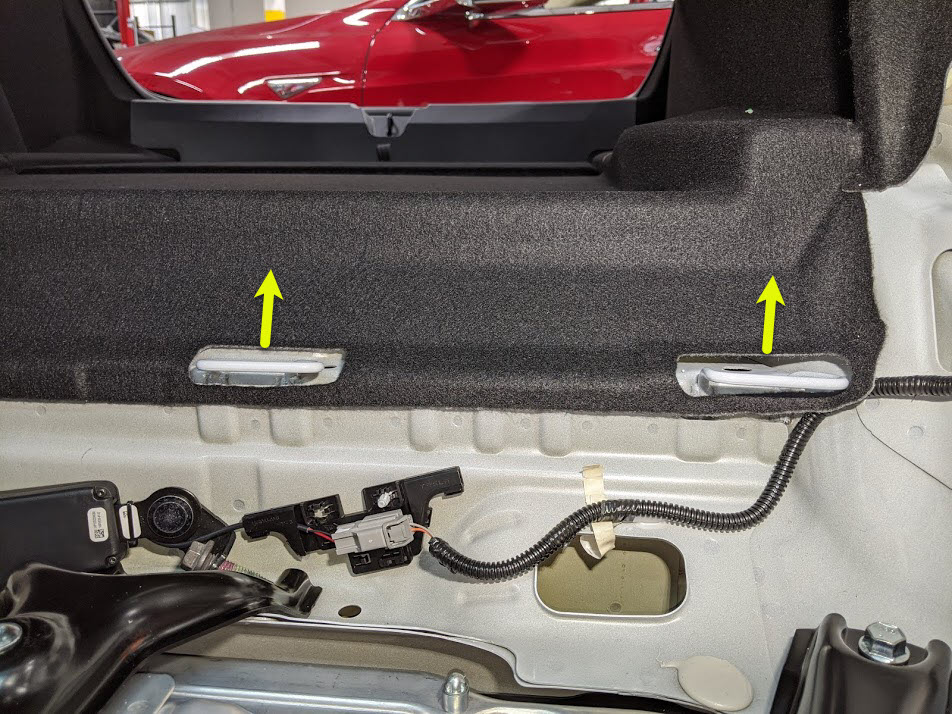

- 从左侧的 isofix 横梁上松开后备箱地毯。
- 拆卸后备箱饰板。请参阅Garnish - Trunk (Remove and Replace)。
- 拆卸后备箱底板饰板。请参阅Trim - Floor - Trunk (Remove and Replace)。
- 拆卸后备箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。
- 拆卸后备箱左侧饰板。请参阅Trim - Side - Trunk - LH (Remove and Replace)。
-

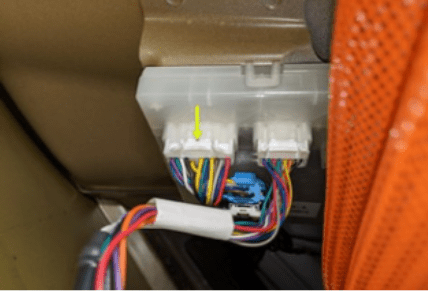

松开充电接口低压连接器(2 个)上的锁片,然后将连接器(2 个)从充电接口上断开。
警告DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.TIp轻轻提起黑色连接器锁片,以便从 12 针低压连接器上拆下白色锁片。
- 松开将充电接口跳线电缆连接到充电接口母排的卡子。

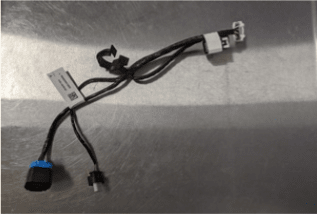

- 断开 ECU 上的充电接口跳线电缆,然后从车辆上拆下线束。
安装
- 将充电接口跳线电缆连接到 ECU。
- 紧固将充电接口跳线电缆连接到充电接口母排的卡子。
- 连接充电接口低压连接器(2 个),然后固定锁片。
- 安装后备箱左侧饰板。请参阅Trim - Side - Trunk - LH (Remove and Replace)。
- 安装后备箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。
- 安装后备箱底板饰板。请参阅Trim - Floor - Trunk (Remove and Replace)。
- 安装后备箱饰板。请参阅Garnish - Trunk (Remove and Replace)。
- 将后备箱地毯固定到左侧 isofix 横梁上。
- 安装左侧第二排座椅靠背。请参阅Seat Back - 2nd Row - LH (Remove and Replace)。
- 连接 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
- 安装前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
- 安装第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
-
升起所有车窗,关闭所有车门。
警告请勿尝试手动关闭充电端口盖板。
