传感器 - 环境空气温度（带加热泵款）（拆卸和更换）

校正代码 18107212 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下前备箱储物单元。请参阅前备箱储物单元（拆卸和更换）。

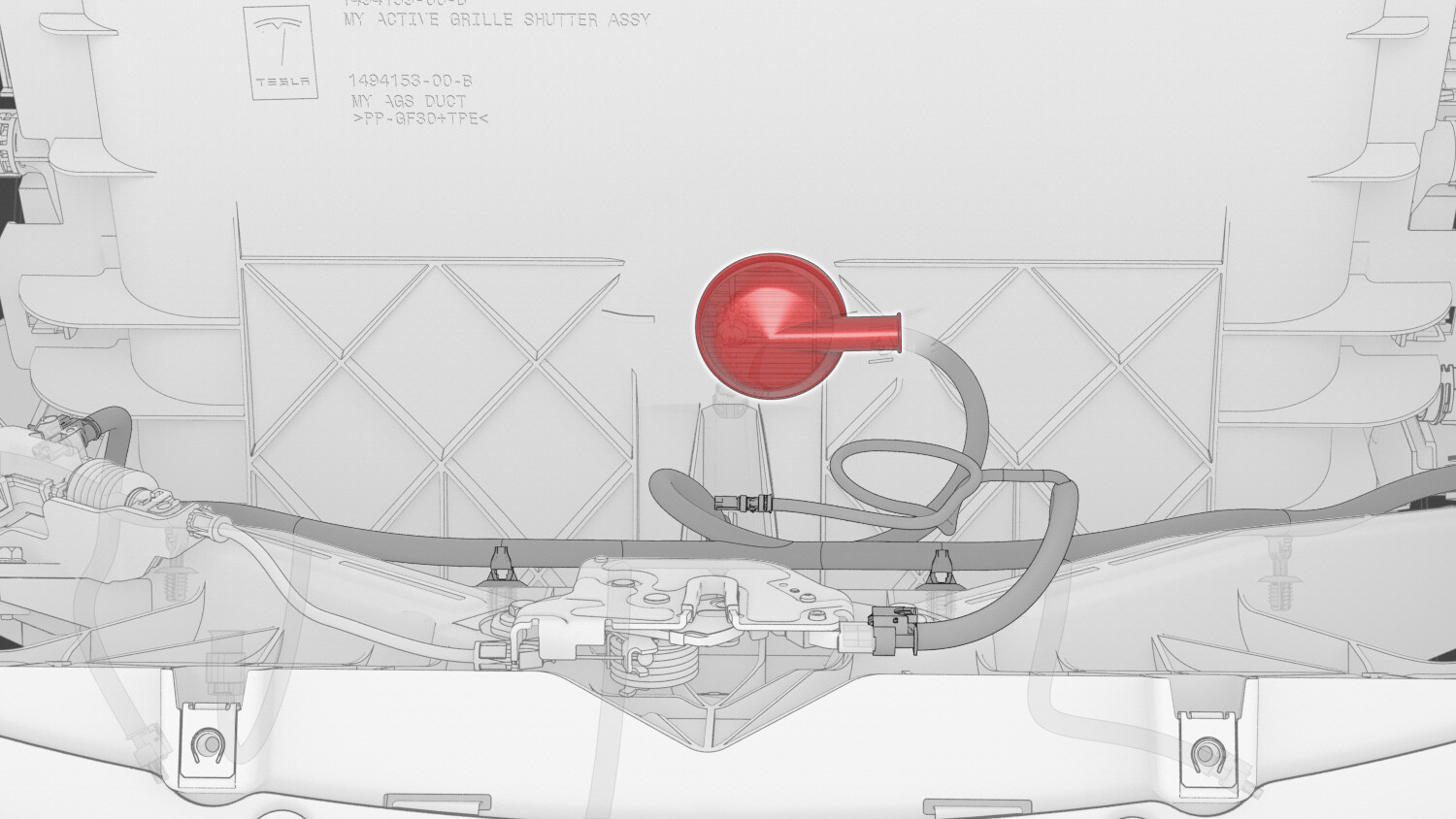

  2. 使用小型平刃工具，小心将环境温度传感器盖板从主动进气格栅上松开。

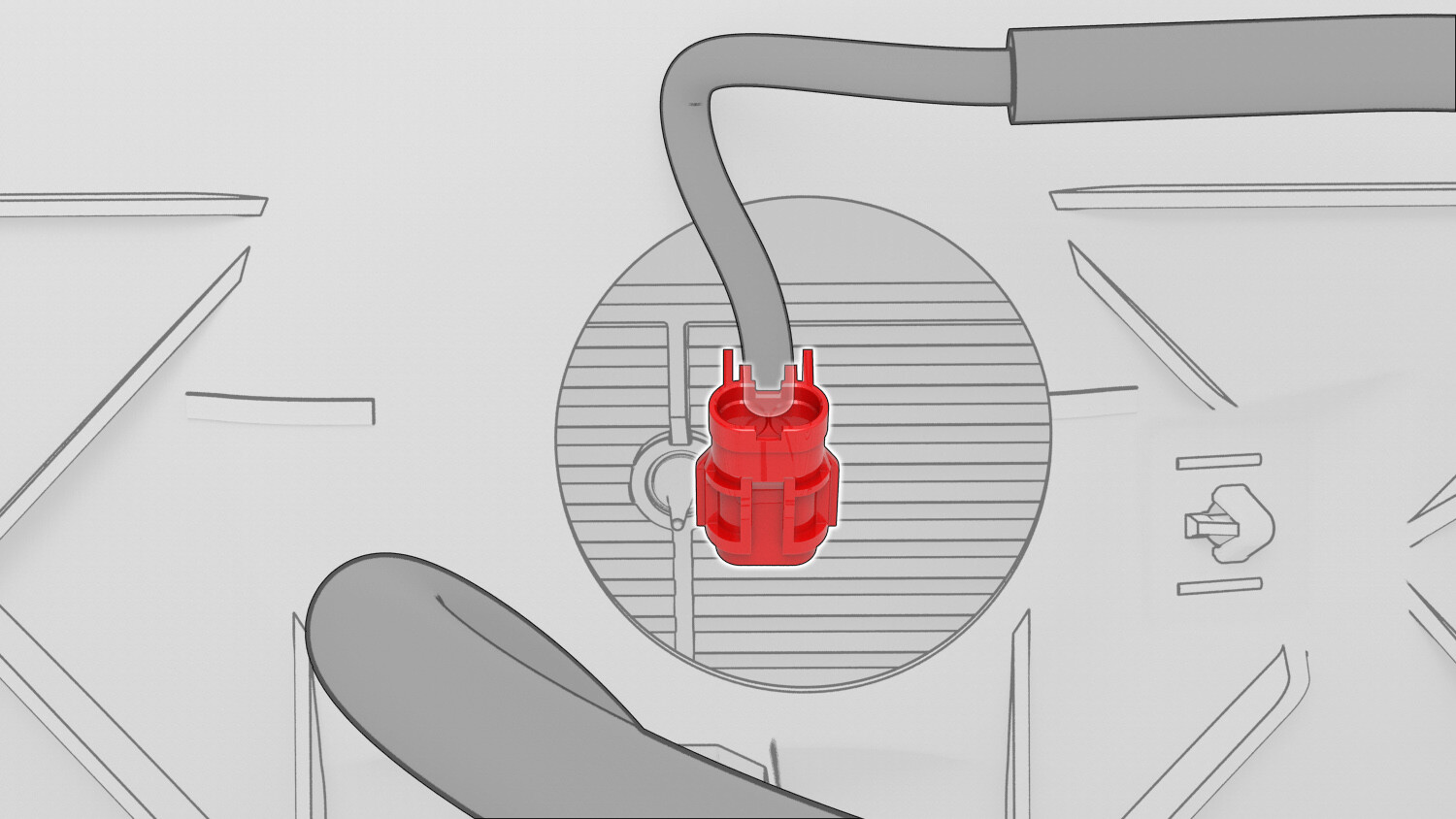

  3. 断开环境温度传感器电气连接器。

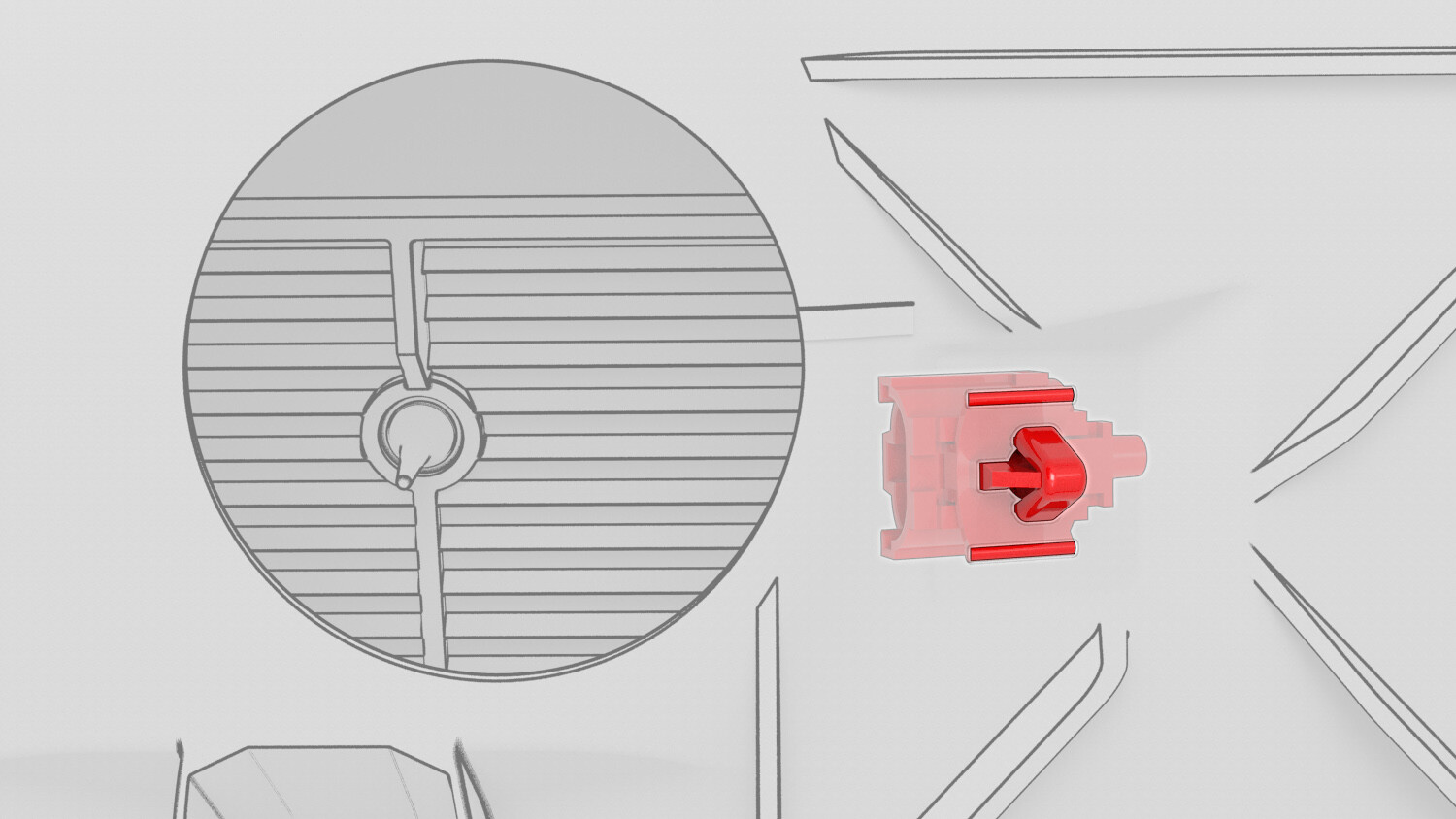

  4. 松开将环境温度传感器固定到主动进气格栅的卡子。
  5. 将环境温度传感器从车上拆下。

安装

  1. 安装将环境温度传感器固定到主动进气格栅的卡子。
  2. 连接环境温度传感器电气连接器。
  3. 将环境温度传感器盖板安装到主动进气格栅。
  4. 安装前备箱储物单元。请参阅前备箱储物单元（拆卸和更换）。
