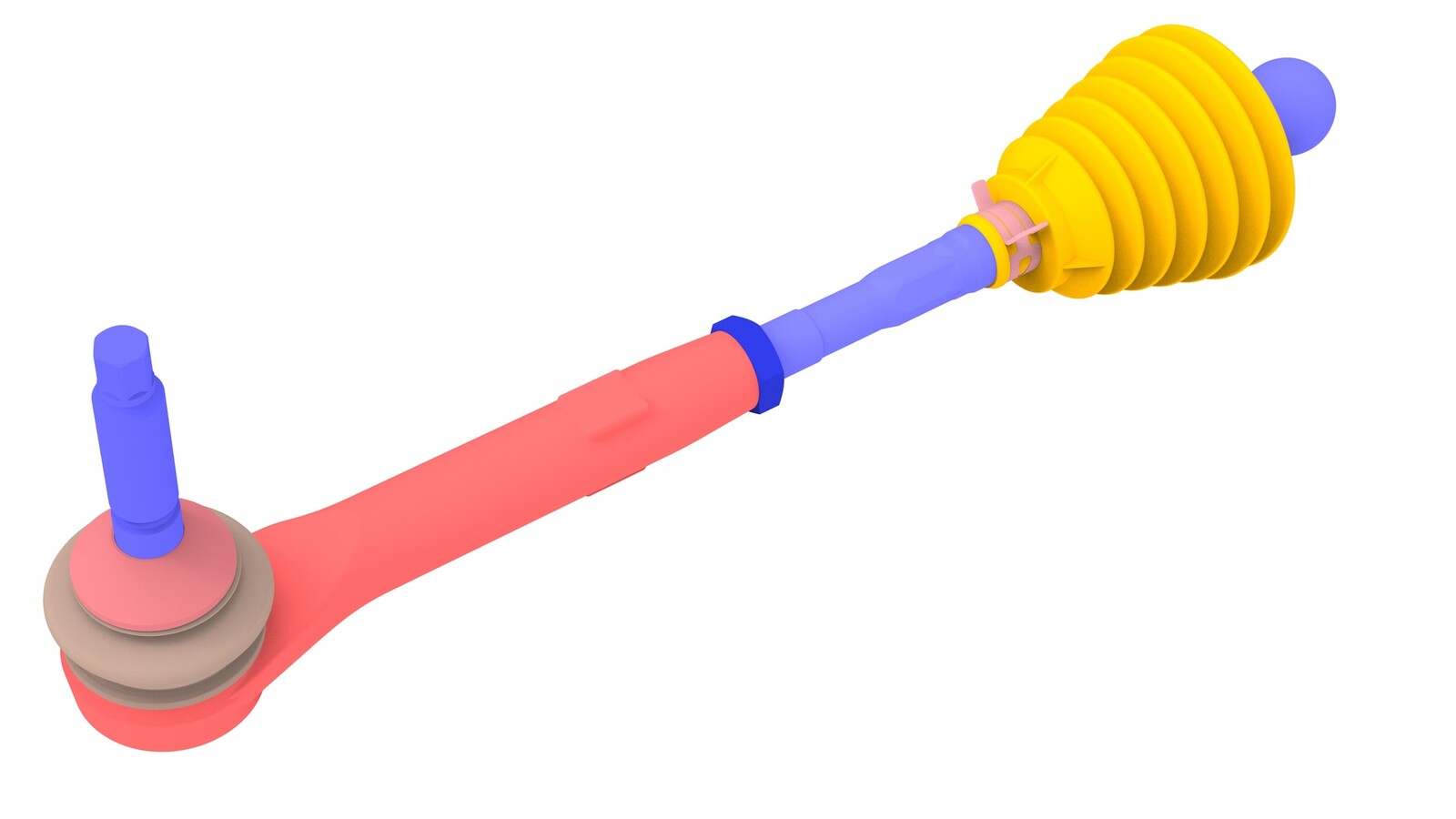

Tie Rod End - LH (Remove and Replace)

校正代码 32010302 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

扭矩规格

表 1. 扭矩规格: Tie Rod End - LH (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Nut that attaches the tie rod to the knuckle
180 Nm (132.7 lbs-ft)
  • 22 毫米套筒
  • 10 mm 12pt combination wrench
更换 1109263-00-B
Jamb nut at the LH tie rod end
80 Nm (59.0 lbs-ft)
  • 21 mm 12pt combination wrench
重复使用

拆卸

  1. 举升并支撑车辆。请参阅Raise Vehicle - 2 Post Lift。
  2. 拆卸左前轮毂。请参阅Wheel Assembly (Remove and Install)。
  3. 用油性记号笔在横拉杆和止动螺母上标出证示标记，以便稍后在左横拉杆球头安装期间重新对齐两者。
  4. 松开左横拉杆球头处的止动螺母。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 21 mm 12pt combination wrench

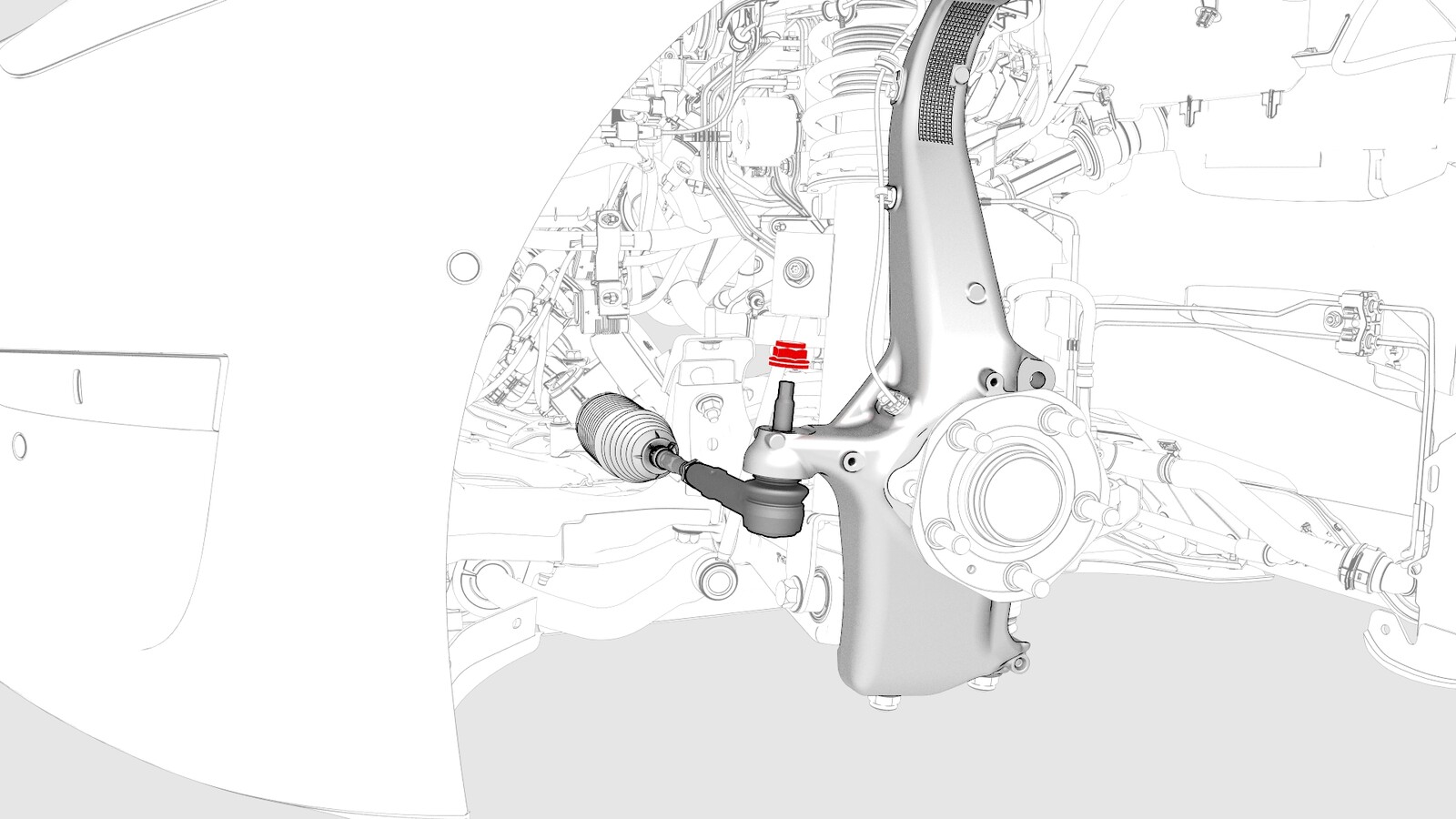

  5. 拆卸并弃置将横拉杆固定到转向节的螺母。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 22 毫米套筒
    • 10 mm 12pt combination wrench
  6. 使用橡胶锤将左横拉杆球头从转向节上拆下。
  7. 逆时针转动横拉杆，将横拉杆从转向连杆上拆下。
    Informational PurposesAn informational icon, calling your attention
    注
    记录将横拉杆从转向连杆上拆下时的旋转圈数。

安装

  1. 顺时针转动横拉杆球头，旋转圈数与拆卸时所记录圈数一致，以将横拉杆球头安装到转向连杆上。
  2. 安装将横拉杆球头固定到转向节的新螺母。
    180 Nm (132.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 22 毫米套筒
    • 10 mm 12pt combination wrench
  3. 根据证示标记将横拉杆与止动螺母对齐，并拧紧螺母以将横拉杆球头固定在适当位置。
    80 Nm (59.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 21 mm 12pt combination wrench
  4. 安装左前轮毂。请参阅Wheel Assembly (Remove and Install)。
  5. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See Alignment Requirement - Suspension.
