警报器 - 电池供电(拆卸和更换)
校正代码
17451002 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
注
仅部分车辆上装配了该零件。如果车辆上装配了该零件,请使用 1120111-00-A 更换报警器。
警报器 - 电池供电(拆卸和更换)
- 拆卸前备箱储物单元。请参阅 前备箱储物单元(拆卸和更换)。
-

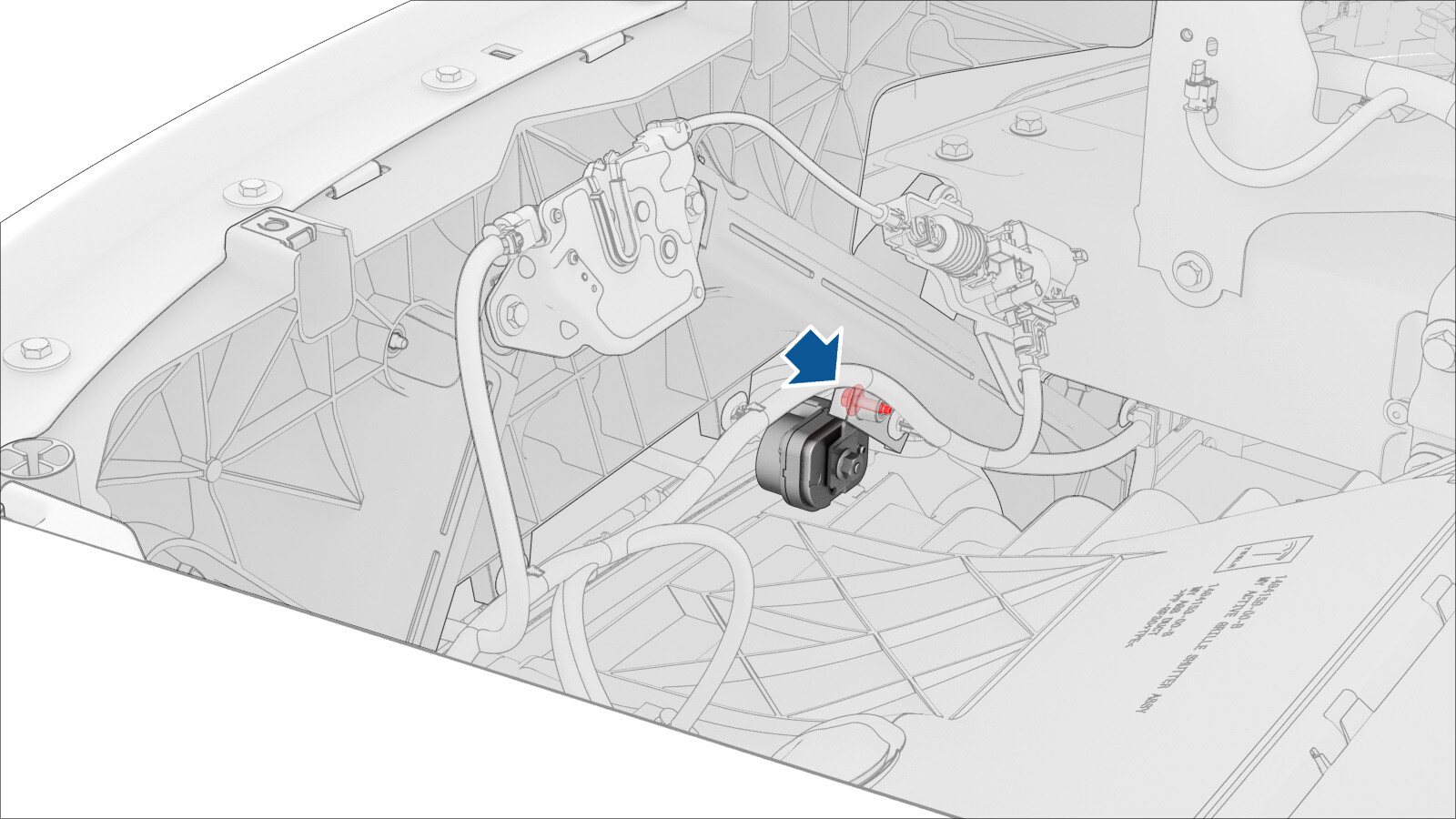

拆下将电池供电警报器支架固定到车辆的螺栓。
8 Nm (5.9 lbs-ft)提示Use of the following tool(s) is recommended:- 10 mm socket
- 从支架上拆下电池供电警报器。
- 断开电池供电警报器连接器,然后从车上拆下电池供电警报器。
安装
安装程序与拆卸程序相反。
