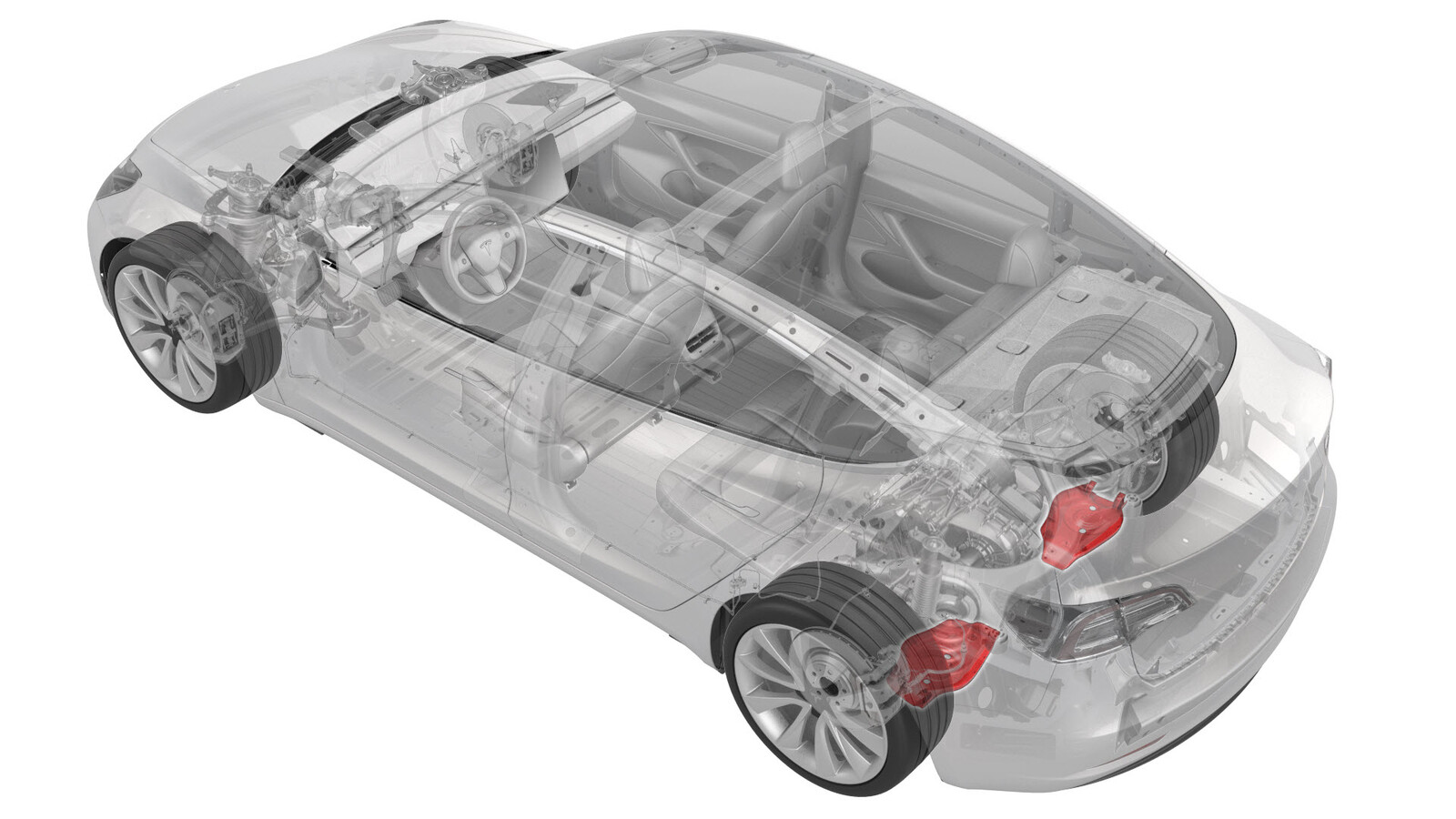

护罩 - 后悬架 - 左侧(拆卸和更换)

校正代码 31032012 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

扭矩规格

表 1. 扭矩规格: 护罩 - 后悬架 - 左侧(拆卸和更换)
描述 扭矩值 推荐工具 重复使用/更换 备注
将后悬架护罩固定到后下方控制臂总成的螺栓
6 Nm (4.4 lbs-ft)
  • 10 毫米套筒扳手
重复使用

拆卸

  1. 举升并支撑车辆请参阅 举升车辆 - 双柱举升机。
  2. 拆下将后悬架护罩固定到左后下方控制臂总成的螺栓。
    6 Nm (4.4 lbs-ft)
    提示
    推荐使用以下工具
    • 10 毫米套筒扳手

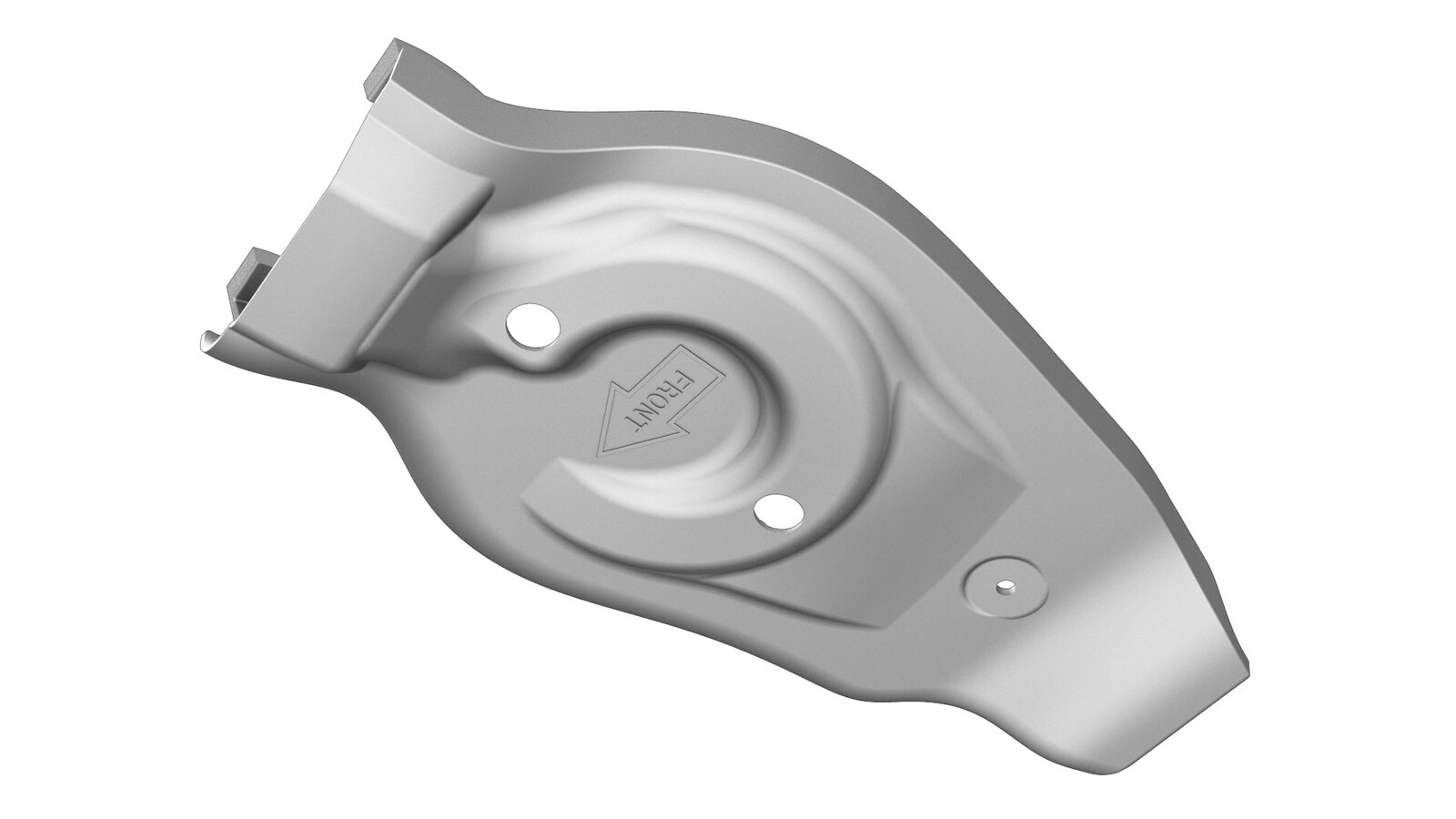

  3. 松开将后悬架护板固定到 LH 后下方控制臂总成的锁片 (x2),然后从车上拆下后悬架护板。

安装

安装程序与拆卸程序相反。
