侧护板 - 外侧 - 驾驶位座椅（拆卸和更换）

校正代码 13074202 0.17 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-11-02: Added information about the tab that attaches the side shield to the front seat.
  • 2026-07-29: Added skills of releasing the side shield clip, and added images and notes for side shields with different clip versions.
  • 2023-06-12: Updated notes on adjusting seat height for access to the seat belt and side shield fastener.
Equipment:
  • 1133787-00-A 安全带释放按键，Model 3

拆卸

Figure 1. Animated demonstration
  1. Open the LH doors and lower the LH windows.
  2. Move the driver's seat fully forward.
  3. 将安全带释放钥匙 (1133787-00-A) 插入到安全带预紧装置耦合的底部，以从预紧装置中松开安全带。
    Tip
    Lower/raise the seat as needed for access.
    CAUTION
    Do not allow the seat headrest to compress the sun visor as it might crack the mirror.
  4. Raise the LH front seat cushion to the maximum height.
    CAUTION
    Adjust the seat back if needed to avoid contacting the headliner.
    CAUTION
    Do not allow the seat headrest to compress the sun visor as it might crack the mirror.
  5. Remove the screw that attaches the driver seat outboard side shield to the seat frame, and then pull outward to release the seat outboard side shield assembly tab from front seat assembly
    Note
    Some vehicles may equip with 8mm bolt with a torque of 5 Nm.
    Tip
    推荐使用以下工具
    • 梅花 T20 套筒
  6. Use a clip prytool to release the clip tabs (x2) from the seat bottom, and then pull the driver seat outboard side shield away from the seat frame to release the clip that attaches the side shield to the center of the seat frame.
    CAUTION
    Do not forcefully release the trim clip, as this may damage the clip.
    CAUTION

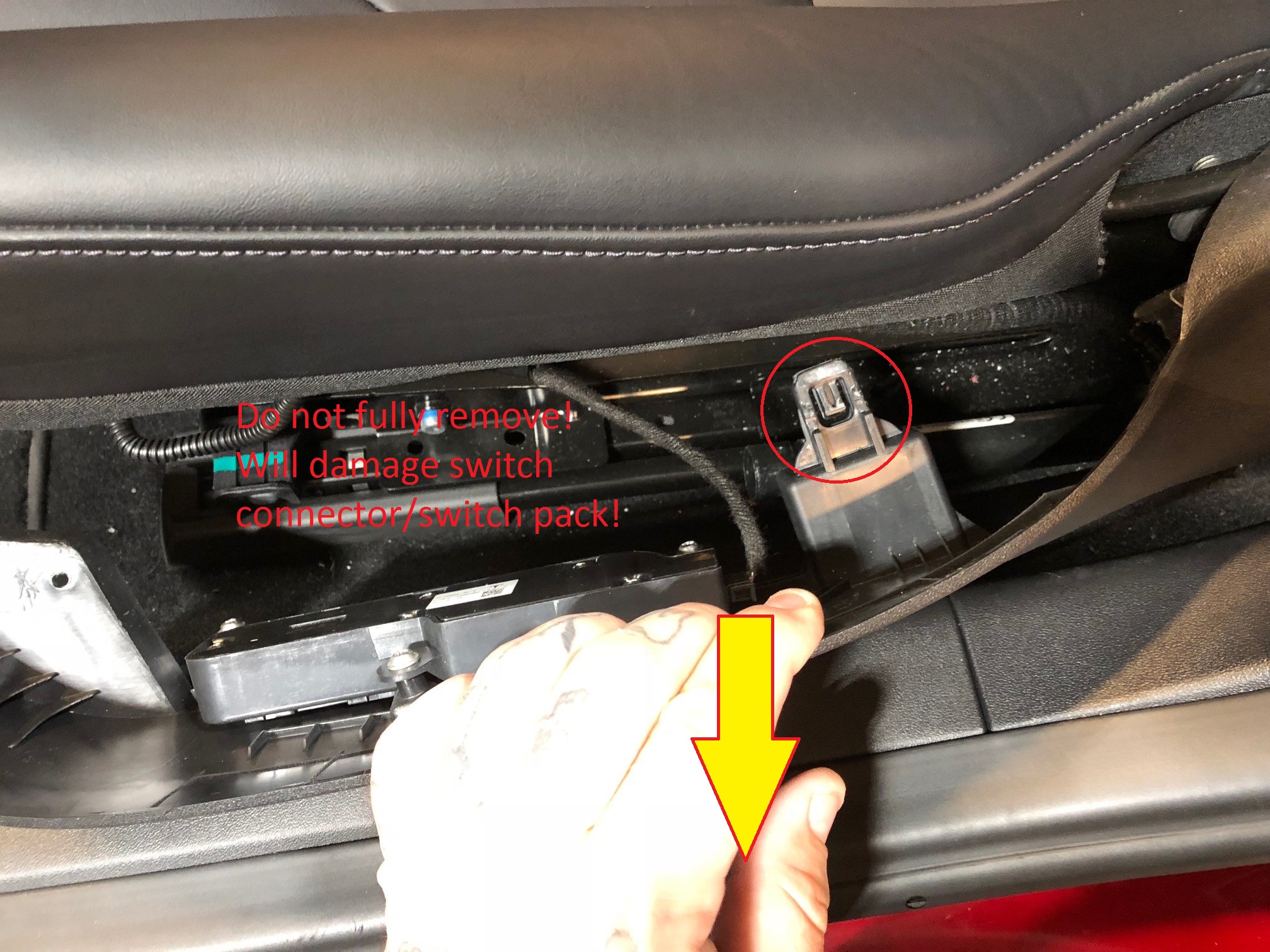

    Do not fully remove the side shield at this time as this might damage the trim, switch pack or and/or harness.
    Note

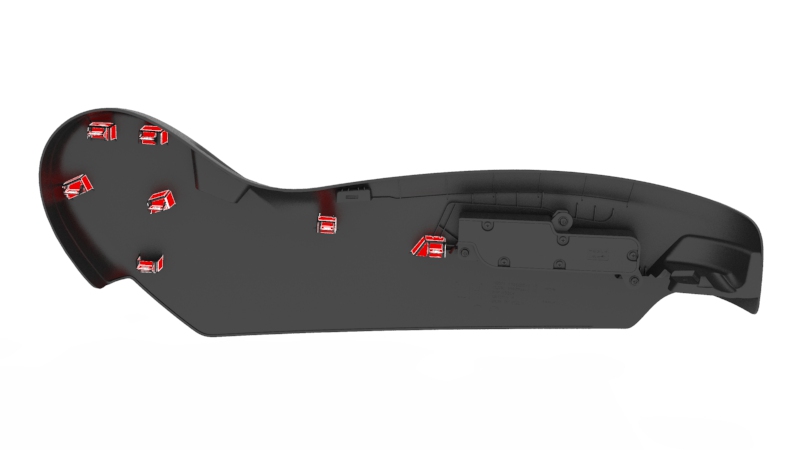

    Vehicles built after 2023.6.30 have side shields with 7 clips.
    Figure 2. For vehicles built on 2023.6.30 or before
    Figure 3. For vehicles built after 2023.6.30
  7. Disconnect the electrical harness from the backrest and cushion adjust switch connector, if so equipped.
  8. Pull the driver seat outboard side shield outward and lift it off from the vehicle.
  9. If the driver seat outboard side shield is being replaced, remove the back rest and cushion adjust switch from the outboard side shield. See 开关 - 靠背和座垫调节 - 驾驶位座椅（拆卸和更换）.

安装

  1. If a new driver seat outboard side shield is being installed, install the back rest and cushion adjust switch to the outboard side shield. See 开关 - 靠背和座垫调节 - 驾驶位座椅（拆卸和更换）.
  2. Connect the electrical harness to the backrest and cushion adjust switch connector, if so equipped.
  3. Push the driver seat outboard side shield into the seat frame to fasten the clip that attaches the side shield to the center of the seat frame.
    Note
    Vehicles built after 2023.6.30 have side shields with 7 clips.
    Figure 4. For vehicles built on 2023.6.30 or before
    Figure 5. For vehicles built after 2023.6.30
  4. Push inward to secure the outboard side shield assembly tab to the front seat assembly, and then install the screw that attaches the driver seat outboard side shield to the seat frame.
    4 Nm (2.9 lbs-ft)
    CAUTION
    Carefully push the outboard side shield assembly to avoid damage.
    Note
    Some vehicles may equip with 8mm bolt with a torque of 5 Nm.
    Tip
    推荐使用以下工具
    • 梅花 T20 套筒
  5. Move the LH front seat to its original position.
  6. Install the LH front seat belt pretensioner coupling onto the LH front seat pretensioner.
    Note
    Perform a pull-push-pull test to verify the pretensioner and coupling are fully engaged.
  7. Raise the LH windows and close the LH doors.
