前轮罩 NVH 降噪衬垫 - LH(拆卸和更换)

校正代码 15306090 0.50 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2023-10-10: Added a caution to not manually close the charge port door.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com
  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Tilt 7s 2nd row 60 seat forward
    Informational PurposesAn informational icon, calling your attention
    Hold 2nd row 60 seat LH shoulder switch, Slide seat all the way forward and tit up
  5. Partially remove LH rear door seal
  6. Remove LH 7s Lower C-Pillar Trim
    Informational PurposesAn informational icon, calling your attention
    8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
  7. Move RH front seat forward
  8. Position 40 seat into easy entry mode
    Informational PurposesAn informational icon, calling your attention
    Press shoulder switch and push 40 seat forward to position into easy entry mode
  9. Remove 3rd row seat cushion and disconnect harness
    Informational PurposesAn informational icon, calling your attention
    1x connector, Pull LH and RH release lever under 3rd row seat cushion to release seat cushion
  10. Remove 3rd row LH seat cushion bolster
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 13mm, 37 Nm, Slide LH seat cushion bolster towards front of vehicle to remove
  11. Open liftgate
  12. Remove rear load floor
  13. Remove trunk sill trim
    Informational PurposesAn informational icon, calling your attention
    4x clips
  14. Remove 7s LH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    2x clips
  15. Remove LH trunk pocket bracket
    Informational PurposesAn informational icon, calling your attention
    1x push clip, 5x alignment tabs
  16. Release 3rd row LH seat backrest
    Informational PurposesAn informational icon, calling your attention
    Front switch at LH trunk trim panel
  17. Open charge port door
  18. Open the hood.
  19. Power off the vehicle using the touchscreen.
  20. Remove the rear apron.
  21. Disconnect the 12V negative battery cable and First Responder Loop.
  22. Empty all pockets and remove all metal objects such as watches and jewelery.
  23. Inspect the HV insulating gloves for any damage.
  24. Put on the HV insulating gloves and leather over gloves.
  25. Verify there is no high voltage present at the charge port
    Informational PurposesAn informational icon, calling your attention
    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage components, Measure B+ to B-, B- to Ground, and B+ to Ground (use rear left door striker as a ground for the test), If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
  26. Remove HV insulating gloves
  27. Release top edge of LH 7s trunk side trim and disconnect 12V outlet and trunk switch connectors
    Informational PurposesAn informational icon, calling your attention
    6x clips, 2x connectors
  28. Release remaining clips and remove LH 7s trunk side trim
    Informational PurposesAn informational icon, calling your attention
    1x push clip, 5x clips, Guide front clip stanchions around LH C-pillar, Pull the top of the trunk side trim all the way down flat so it clears the edge of the folded down LH 3rd row seatback and pull straight out
  29. Remove LH upper C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    6x clips, Guide front upper corner groove out from headliner and place trim aside
  30. Remove LH C-pillar bracket
    Informational PurposesAn informational icon, calling your attention
    3x clips, 1x manual release cable, 1x harness clip
  31. Release connectors from charge port assembly
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Remove white locking tab, Depress tab to release connection from the charge port, Continue to pull off connector, The charge port connection is intended to disengage safety cap when released, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector
  32. Remove charge port safety cap
    Informational PurposesAn informational icon, calling your attention
    2x tabs
  33. Remove fasteners securing charge port busbar to charge port and remove busbar leads from studs
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 10mm, 9 Nm, Nuts have captured washers
  34. Release harness guide from body at LH rear door sill
    Informational PurposesAn informational icon, calling your attention
    3x clips

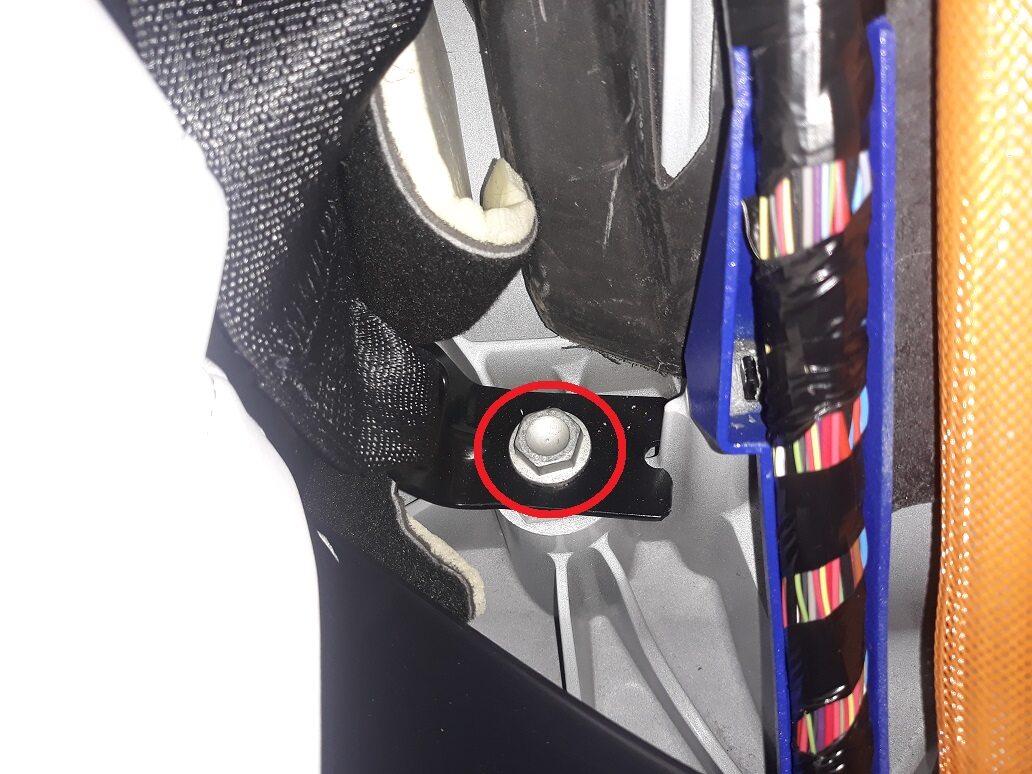

  35. Remove bolt securing lower LH 2nd row retractor anchor to body
    Informational PurposesAn informational icon, calling your attention
    1x patch bolt, 15mm, 35 Nm, Discard after removal
  36. Release LH front wheelhouse NVH insulator from wheelhouse
    Informational PurposesAn informational icon, calling your attention
    Maneuver busbar to assist with clearing space for the wheelhouse to remove
  37. Secure LH front wheelhouse NVH insulator onto wheelhouse
    Informational PurposesAn informational icon, calling your attention
    Maneuver the busbar to successfully tuck insulator onto wheelhouse
  38. Install bolt securing lower LH 2nd row retractor anchor to body
    Informational PurposesAn informational icon, calling your attention
    1x patch bolt, 15mm, 35 Nm, Install new patch bolt
  39. Secure harness guide to body at LH rear door sill
    Informational PurposesAn informational icon, calling your attention
    3x clips
  40. Clean charge port assembly busbar contact surface of residual penetrox
    Informational PurposesAn informational icon, calling your attention
    Use plastic trim tool to push IPA wipe down between plastic divider, Allow 1 minute dry time
  41. Verify charge port studs are torqued to specification
    Informational PurposesAn informational icon, calling your attention
    2x studs, T10, 2 Nm
  42. Apply Penetrox to backside of busbar leads
    Informational PurposesAn informational icon, calling your attention
    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered
  43. Install charge port busbar leads to charge port assembly
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 10mm, 9 Nm, Nuts have captured washers, If excessive force is required to seat busbars, they may have been bent. Inspect for damage and replace if necessary
  44. Inspect HV insulating gloves
    Informational PurposesAn informational icon, calling your attention
    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf
  45. Put on HV insulating gloves and leather over gloves
    Informational PurposesAn informational icon, calling your attention
    Make sure to wear Electrical Protective Gloves any time Hioki tester is used
  46. Perform Hioki resistance test at each HV joint from HV busbar lead to charge port stud
    Informational PurposesAn informational icon, calling your attention
    2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.270 mΩ (270 μΩ).If the resistance is greater than 0.270 mΩ (270 μΩ), there is too much resistance in the High Voltage joint. Remove the fastener, clean areas with isopropyl alcohol, install fastener back and test again.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step.
  47. Remove HV insulating gloves
  48. Install charge port safety cap
    Informational PurposesAn informational icon, calling your attention
    2x tabs
  49. Secure connectors onto charge port assembly
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Install white locking tab, Engage red locking tab
  50. Install LH C-pillar bracket
    Informational PurposesAn informational icon, calling your attention
    3x clips, 1x manual release cable, 1x harness clip
  51. Install LH upper C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim
  52. Position LH 7s trunk side trim and install lower clips
    Informational PurposesAn informational icon, calling your attention
    1x push clips, 5x clips, Start by tucking the lower portion of the trunk side trim around the edge of the 3rd row LH backrest so it slides in and seats properly, Guide front clip stanchions around LH C-pillar
  53. Connect 12V outlet and trunk switch connectors then install top edge of LH 7s trunk side trim
    Informational PurposesAn informational icon, calling your attention
    6x clips, 2x connectors
  54. Install LH trunk pocket bracket
    Informational PurposesAn informational icon, calling your attention
    1x push clip, 5x alignment tabs
  55. Install 7s LH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    2x clips
  56. Install trunk sill trim
    Informational PurposesAn informational icon, calling your attention
    4x clips, Seat seal around edge of trim
  57. Install rear load floor
  58. Connect the First Responder Loop and 12V negative battery cable.
  59. Close charge port door.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    请勿尝试手动关闭充电端口盖板。
  60. Raise 3rd row LH seat backrest to its original position
    Informational PurposesAn informational icon, calling your attention
    Manually raise backrest up to its original position until it locks into place
  61. Close liftgate
  62. Install LH 7s Lower C-Pillar Trim
    Informational PurposesAn informational icon, calling your attention
    8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
  63. Reseat LH rear door seal
    Informational PurposesAn informational icon, calling your attention
    Seat pillar and sill trim tabs underneath seal
  64. Install 3rd row LH seat cushion bolster
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 13mm, 37 Nm, Slide LH seat cushion bolster into seat frame assembly
  65. Install 3rd row seat cushion and connect harness
    Informational PurposesAn informational icon, calling your attention
    1x connector, Secure 3rd row seat cushion into RH and LH latches
  66. Move 40 seat to original position
  67. Move the RH front seat to its original position.
  68. Position 7s 2nd row 60 seat back to its original position
    Informational PurposesAn informational icon, calling your attention
    Tilt 2nd row 60 seat down, Press LH shoulder switch and slide back into original position
  69. Move LH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    This can also be achieved by selecting driver profile via UI
  70. Raise all four windows
  71. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    If 12V is powered up, Unlatch rear doors before closing
