锁扣 - 第二排 - LH（七座）（拆卸和更换）

校正代码 20057022 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2024-11-26: Add a note to clarify that harness should not be around bolt when install the buckle to seat assembly.

拆卸

  1. Open the LH rear door.
  2. Move the LH 2nd row seat back assembly forward.
    Informational PurposesAn informational icon, calling your attention
    注
    Press the EZ entry button, slide the seat forward, release the button, and then lift the seat upward.

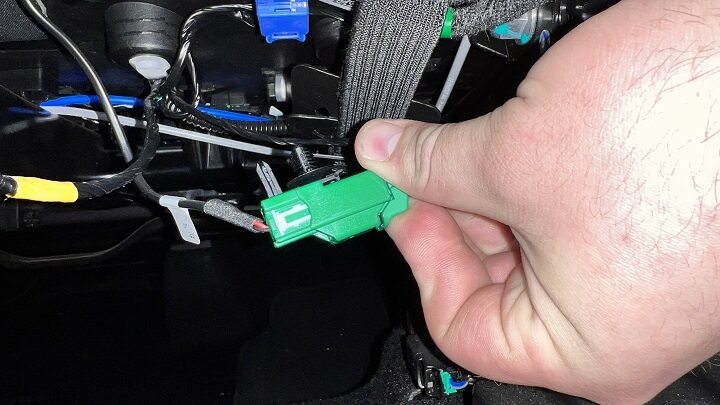

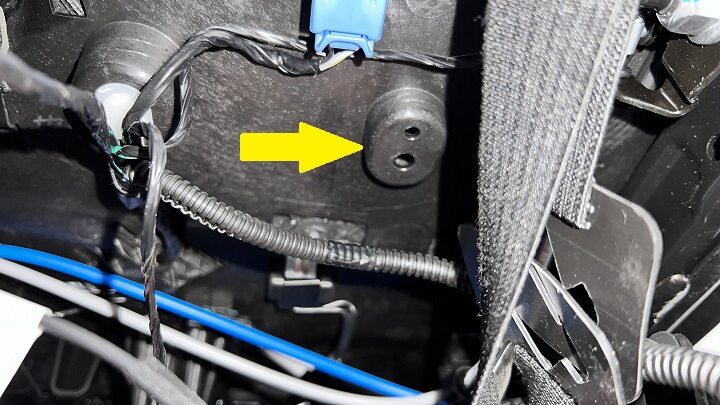

  3. Disconnect LH 2nd row buckle connector, and then release the clip that attaches the connect to the vehicle.

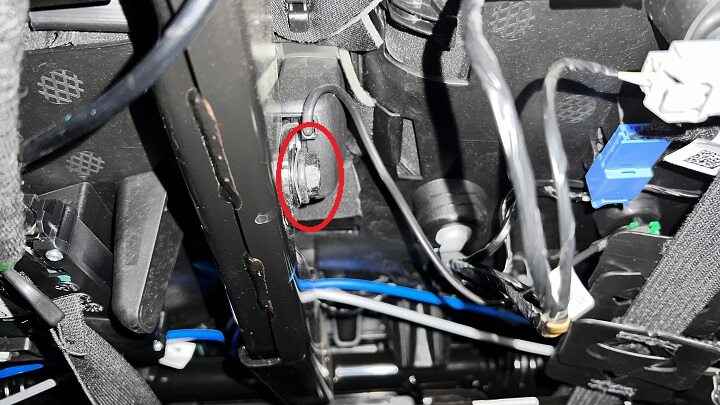

  4. Remove and discard the bolt that attaches the LH 2nd row buckle to the seat frame, and then remove the buckle from the vehicle.
    40 Nm (29.5 lbs-ft)
    提示： 推荐使用以下工具：
    • 15 毫米套筒

安装

  1. Position the LH 2nd row buckle into the LH 2nd row seat, and then install a new bolt that attaches the buckle to the seat frame.
    40 Nm (29.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    Make sure to not pinch the wire between the bolt and the buckle bracket. Harness should not be around bolt.
    提示： 推荐使用以下工具：
    • 15 毫米套筒
  2. Secure the LH 2nd row buckle connector to the seat, and then connect the electrical connector.
  3. Move the LH 2nd row seat back assembly to the original position.
