校正代码 16301102 2.04 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Open all four doors
2. Lower all four windows
3. Place vehicle in service mode with touchscreen
   注

   Hold Tesla T icon at top of center display for four seconds and then type "service" into dialog box
4. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
5. Remove bolt securing frunk to washer fluid reservoir neck
   注

   1x bolt, 10mm, 5 Nm



6. Remove the HEPA filter assembly. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和安装）.
7. Move LH front seat forward
8. Move RH front seat forward
9. Remove the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
10. Remove the LH and RH lower c-pillar trims. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
11. Remove the RH 2nd row seat back. See 座椅靠背 - 第二排 - RH（拆卸和更换）.
12. Remove the LH 2nd row seat back. See 座椅靠背 - 第二排 - LH（拆卸和更换）.
13. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
14. Disconnect LV battery connector and First Responder Loop
    注

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge







15. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals





16. Raise and support vehicle
    注

    Ensure vehicle is not charging before lifting it off the ground
17. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
18. Remove push clips at left and right wheel house liner to mid aero shield
    注

    2x clips





19. Remove mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack will have one less bolt and one extra clip



20. Remove all items from pockets and ensure not wearing metal items





21. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



22. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used



23. Install amp clamp to RDU HV harness
    注

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.

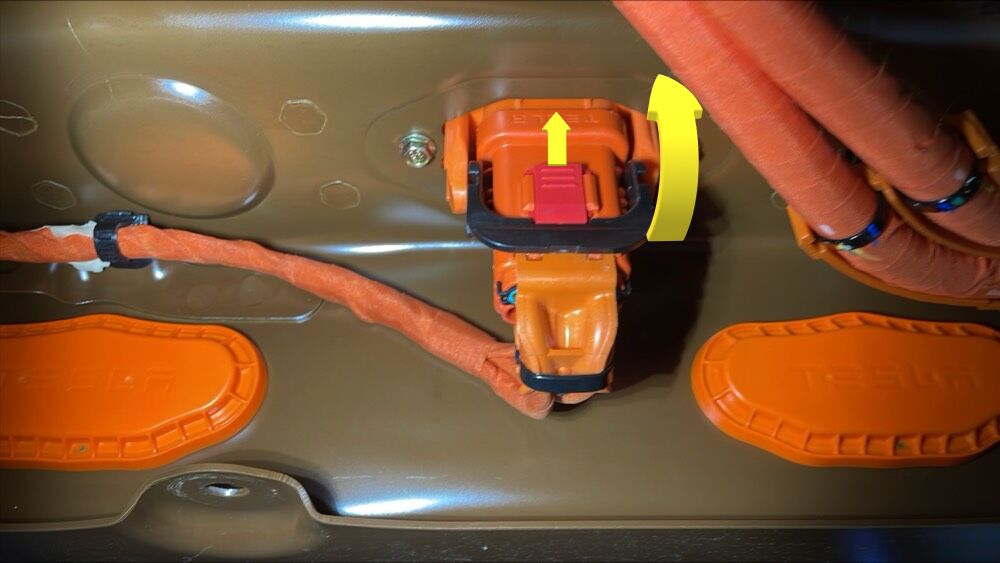

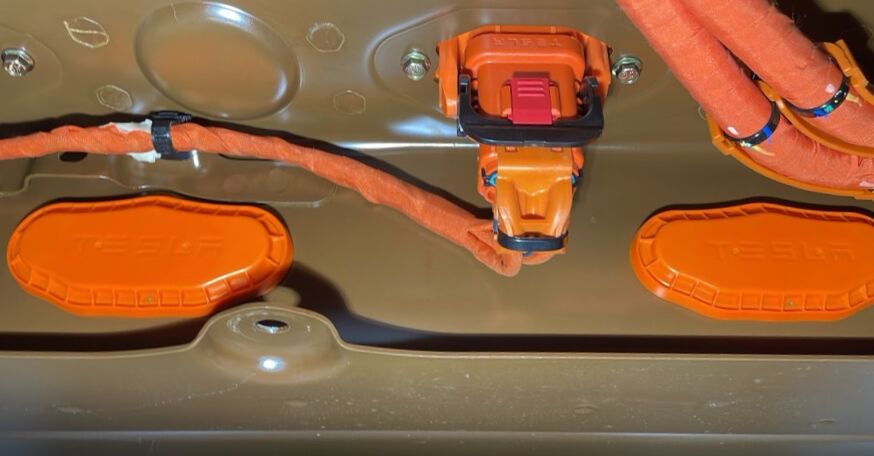

24. Release RDU HV harness from HV battery
    注

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged



25. Verify no high voltage at RDU HV header
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering









26. Release compressor HV harness connection from HV battery
    注

    1x locking connector, Hold down red locking tab and disengage the release lever, Do not force the release lever up





27. Remove bolts securing HV header connector to HV battery
    注

    2x bolts, 8mm, 6 Nm



28. Lower vehicle until tires are touching the ground
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
29. Disconnect HVC logic connector and install logic cap
    注

    1x connector, 1x cap, Release locking tab then pivot handle downward to release connector



30. Disconnect power connector to HV battery
    注

    1x connector, Pull locking tab upward then release connection



31. Remove bolt securing busbar cover access door
    注

    1x bolt, 10mm, 9 Nm



32. Remove bolts securing charge port busbar kit to HV header
    注

    2x bolts, 10mm, 9 Nm



33. Disengage LH body harness from rear body and move aside
    注

    1x clip





34. Lift busbar kit connector to remove from HV header
    注

    Use inflatable air bag to suspend busbar away from HV header during removal and installation







35. Remove NVH insulation from ancillary bay cover
    注

    Move insulation aside





36. Remove fasteners securing ancillary bay cover to high voltage controller
    注

    3x bolts, E10, 10 Nm



37. Release fasteners securing PCS LVDC header to ancillary bay cover
    注

    3x bolts, T20, 2.5 Nm



38. Release fasteners securing charge port header to ancillary bay cover and remove doubler
    注

    2x bolts, 10 EPL, 10 Nm, Release charge port header from ancillary bay and remove plastic doubler, Take note of small tabs on shielding







39. Release perimeter bolts securing ancillary bay to HV battery
    注

    22x captured bolts, EPL 10, 5 Nm



40. Remove ancillary bay cover from HV battery
    注

    Recommend assistance, Lift up on the RH side and pivot the cover, Maneuver away from body casting and charge port components





41. 拆下烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
42. Remove 63A fuse cover
    注

    2x securing tabs



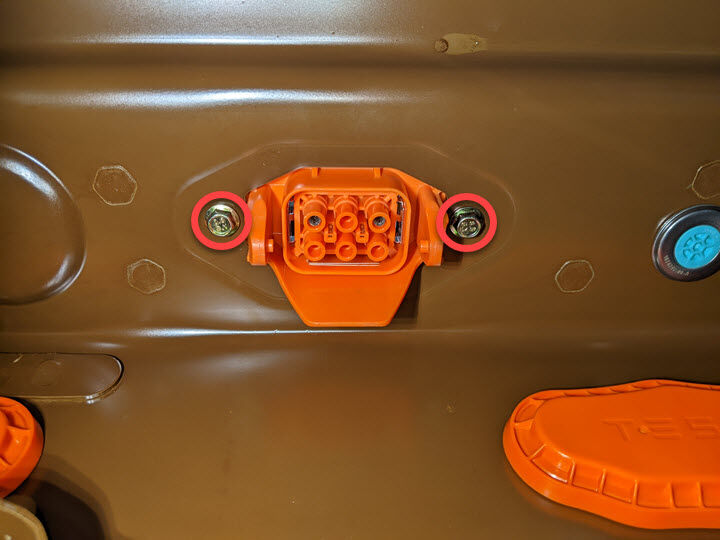

43. Remove 63A fuse from ancillary bay
    注

    2x nuts, 8mm, 2.5 Nm, Discard after removal



44. Remove 63A fuse from ancillary bay
    注

    2x nuts, 8mm, 2.5 Nm, Discard after removal

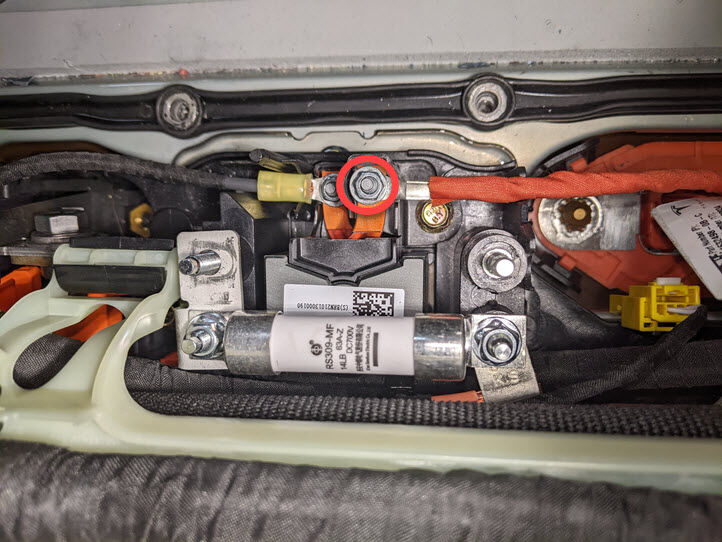

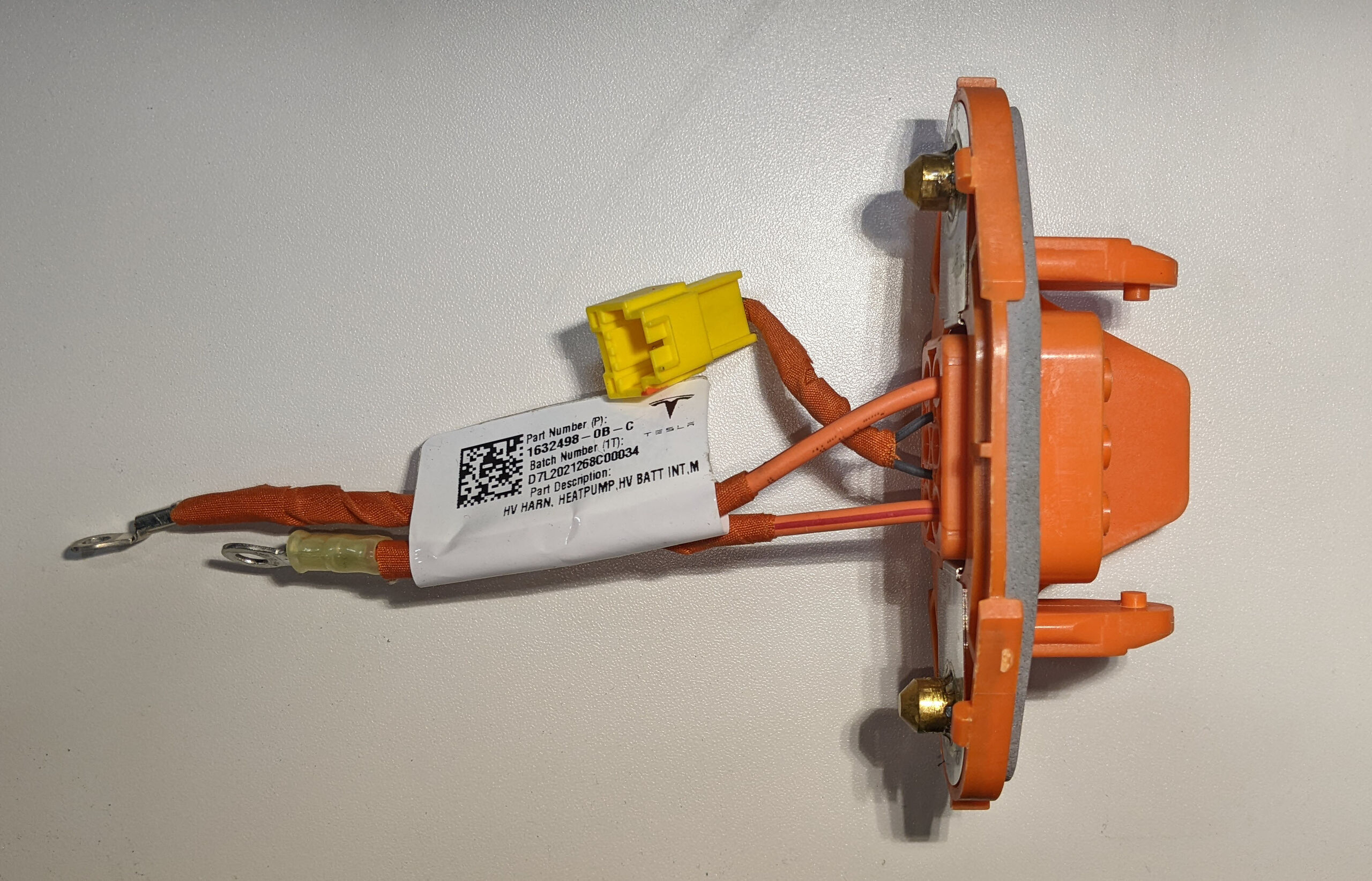

45. Remove HV battery heat pump HV harness from tray stud



46. Remove HV battery heat pump HV harness from plastic bobbin stud
    注

    1x nut, 7mm, 1.5 Nm, 1x washer

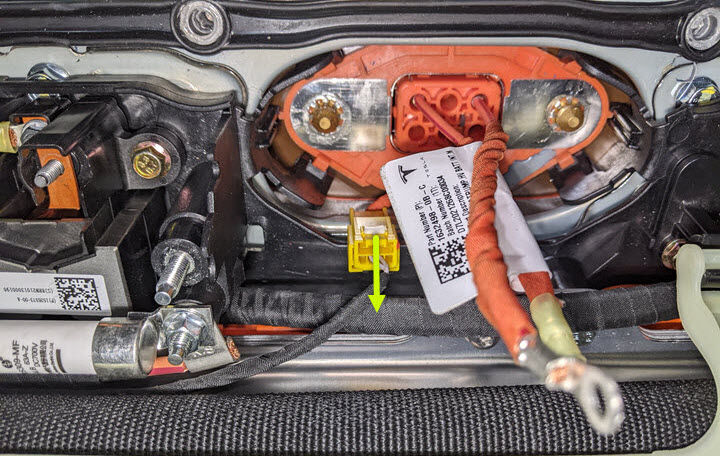

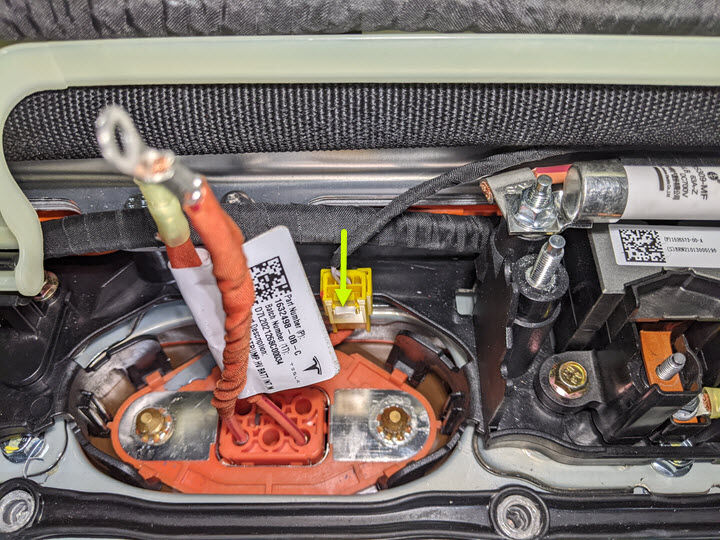

47. Disconnect HVIL connector from HV heatpump harness
    注

    1x connector

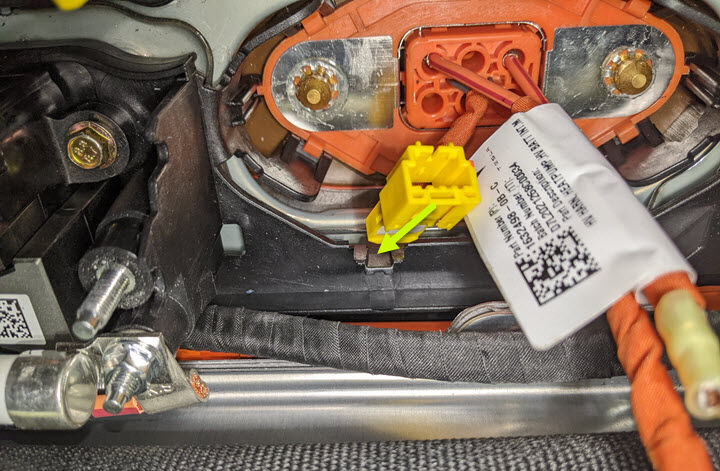

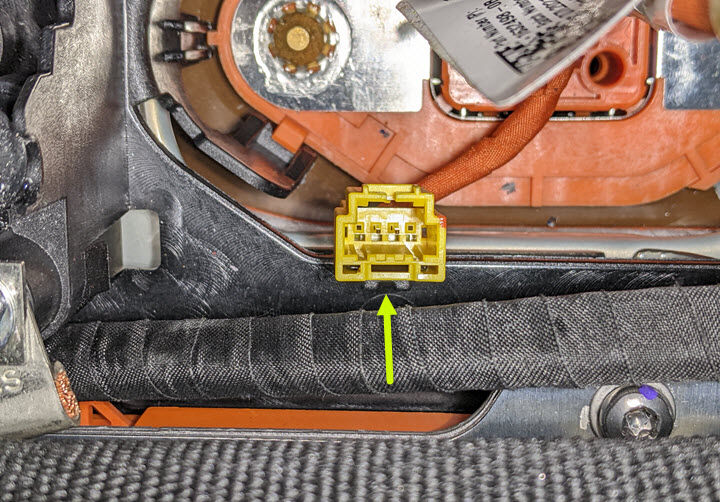

48. Release HVIL assembly connector from tray
    注

    1x tab, Slide connector upward to release from tray

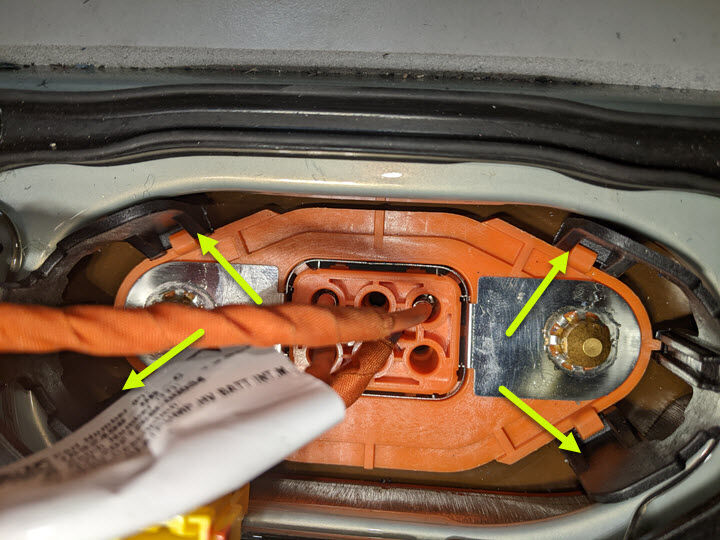

49. Remove heat pump internal HV harness from ancillary bay
    注

    4x securing tabs, Gently release tabs and raise upward to remove





50. Secure heat pump internal HV harness
    注

    4x securing tabs, Push down to engage locking tabs





51. Secure HVIL connector onto tray
    注

    1x tab, Slide connector downward





52. Connect HVIL connector onto tray
    注

    1x connector



53. Install HV battery heat pump HV harness onto plastic bobbin stud
    注

    1x nut, 7mm, 1.5 Nm, 1x washer



54. Position HV battery heat pump HV harness onto tray stud



55. Install 63A fuse into ancillary bay
    注

    2x nuts, 8mm, 2.5 Nm, Install new nuts





56. Install 63A fuse into ancillary bay
    注

    2x nuts, 8mm, 2.5 Nm, Install new nuts





57. Install 63A fuse cover
    注

    2x securing tabs



58. 测量烟火电池隔离开关安装点间的电压，然后安装烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
59. Inspect ancillary bay phantom seal to verify no damage is present
    注

    If damage is present, Replace ancillary bay phantom seal







60. Install ancillary bay cover onto HV battery
    注

    Recommend assistance, Guide LH side in, Maneuver cover past body casting and into position with charge port components





61. Install perimeter bolts securing ancillary bay to HV battery
    注

    22x captured bolts, EPL 10, 5 Nm, Thread bolts in evenly and torque



62. Secure doubler and install fasteners securing charge port header to ancillary bay cover
    注

    2x bolts, 10 EPL, 10 Nm, Secure doubler onto header and install bolts, Take note of small tabs on shielding







63. Install fasteners securing PCS LVDC header to ancillary bay cover
    注

    3x bolts, T20, 2.5 Nm



64. Install fasteners securing ancillary bay cover to high voltage controller
    注

    3x bolts, E10, 10 Nm



65. Install NVH insulation onto ancillary bay cover





66. Connect power connector to HV battery
    注

    1x connector, Push red locking tab down to secure connection



67. Connect HVC logic connector
    注

    1x connector, Pivot handle upward to engage connector and secure locking tab, Remove cap if needed



68. Clean busbar HV connector contact surface of residual Penetrox
    注

    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



69. Clean HV connector contact surface of residual Penetrox
    注

    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



70. Apply Penetrox onto HV connector joints
    注

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered





71. Position busbar kit connector and lower onto HV header



72. Install bolts securing charge port busbar kit to HV Header
    注

    2x bolts, 10mm, 9 Nm



73. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    注

    2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), there is too much resistance in the High Voltage joint. Remove the fastener, clean areas with isopropyl alcohol, install fastener back and test again.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step



74. Install fastener securing busbar cover access door
    注

    1x bolt, 10mm, 9 Nm



75. Remove HV insulating gloves
76. Engage LH body harness onto rear body
    注

    1x clip





77. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
78. Install bolts securing HV header connector to HV battery
    注

    2x bolts, 8mm, 6 Nm



79. Secure HV compressor connection to HV battery
    注

    1x locking connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked





80. Secure RDU HV harness onto HV battery
    注

    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



81. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack will one less bolt and one extra clip



82. Install push clips at left and right wheel house liner to mid aero shield
    注

    2x clips





83. Lower vehicle fully
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
84. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







85. Install the HEPA filter assembly. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和安装）.
86. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
87. Install the RH 2nd row seat back. See 座椅靠背 - 第二排 - RH（拆卸和更换）.
88. Install the RH lower c-pillar trim. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
89. Install the LH 2nd row seat back. See 座椅靠背 - 第二排 - LH（拆卸和更换）.
90. Install the LH lower c-pillar trim. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
91. Install the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
92. Move LH front seat to original position
93. Move RH front seat to original position
94. Exit Service Mode through UI
    注

    Controls > Service Mode > Exit Service Mode
95. Remove vehicle from lift
    注

    Lower rack arms fully and remove from under vehicle
96. Raise all four windows
97. Close all four doors
    注

    If 12V is powered up, Unlatch rear doors before closing
