毛巾杆 - 第二排座椅 - LH（七座）（拆卸和更换）
校正代码
13023702 0.78 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
拆卸
- Remove the LH 2nd row seat assembly from the vehicle. See 座椅总成 - 第二排 - LH（七座）（拆卸和更换）.
-
Remove the push clip from the front of
the LH 2nd row seat outer sideshield assembly.
提示： Use a pick to remove the push clip from the bottom side of the outboard cover.
-
Release the clip that attaches the LH
2nd row seat outer sideshield to the seat assembly, disconnect the electrical connector,
and then remove the sideshield from the seat assembly.
注Release the outer sideshield assembly by pulling outwards and up at the front portion of the trim, and then releasing the remaining clip.
-
Release the clips (x3) that attach the
LH 2nd row seat inboard outer trim to the seat assembly, and then remove the trim from
the seat assembly.
- Remove the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.
- Remove the LH 2nd row seat back panel. See 背板 - 第二排座椅 - LH（拆卸和更换）.
- Remove the center 2nd row seat back panel. See 背板 - 第二排座椅 - 中间/20 百分比（五座）（拆卸和更换）.
-
Disconnect the LH 2nd row seat harness
electrical connectors (x7), and then release the clip that attaches the harness to the
seat frame.
-
Release the seat cables (x4) from the
LH 2nd row seat EZ entry actuator.
-
Remove the push clips (x2) from the LH
2nd row seat cushion pan.
- Remove the center 2nd row lumbar bun. See 腰部支撑块 - 第二排 - 中间/20 百分比（拆卸和更换）.
- Remove the center 2nd row seat back pivot clamps. See 枢轴卡夹 - 座椅靠背 - 第二排 - 中间/20 百分比（拆卸和更换）.
-
Lift the center 2nd row seat back
upward to remove it from the seat assembly.
-
Remove the fasteners (x4) that attach
the LH 2nd row seat seat pan to the seat frame.
6 Nm (4.4 lbs-ft)1.5 Nm (1.1 lbs-ft)提示： 推荐使用以下工具：- 10 毫米套筒
- 梅花 T25 套筒
- Remove the LH 2nd row seat headrest trim. See 头枕 - 第二排 - 外侧 - LH（拆卸和更换）.
-
Release the clips (x4) that attach the
LH 2nd row seat back to the seat assembly, and then lift the seat back to remove it from
the assembly.
- Remove the LH 2nd row headrest adjustment guide. See 调节导件 - 头枕 - 第二排（拆卸和更换）
- Remove the LH 2nd row seat headrest guide lock. See 导锁 - 头枕 - 第二排（拆卸和更换）.
-
Lift the rear of the LH 2nd row seat
cushion assembly, and then slide the cushion toward the front of the seat to remove it
from the seat assembly.
-
Use a pick to manually move the LH 2nd
row seat into easy entry position.
-

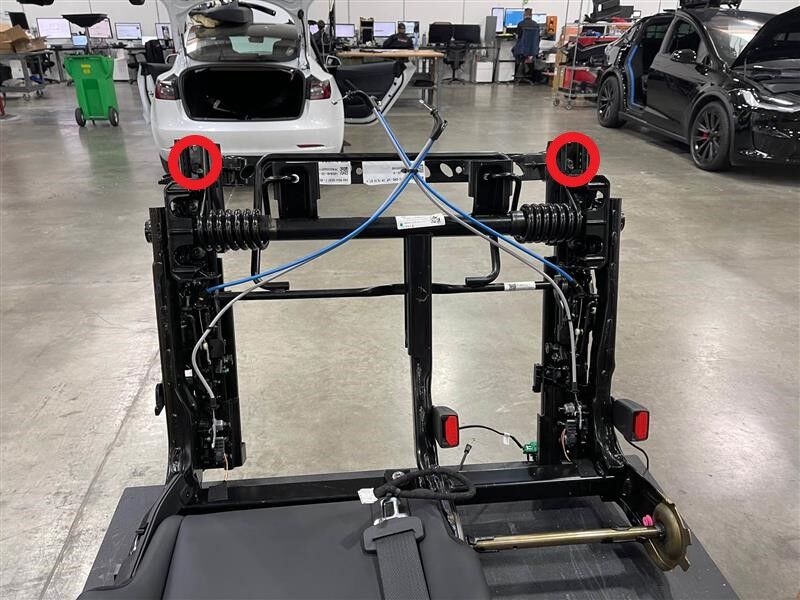

Remove and discard the bolts (x2) that
attach the LH 2nd row seat podium to the seat tracks.37 Nm (27.3 lbs-ft)提示： 推荐使用以下工具：
- 11 毫米套筒
-

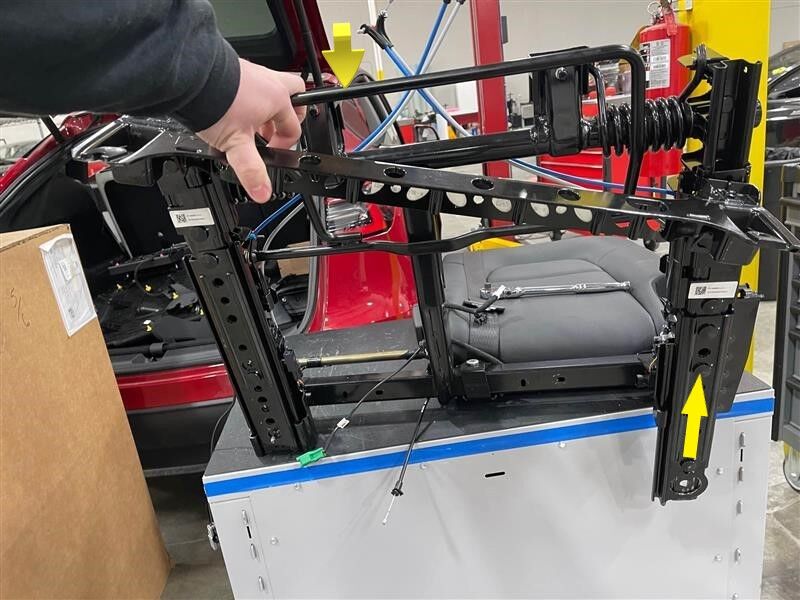

With one hand, engage the towel bar,
move the outer seat track rearward with the other hand until the groove on the LH seat
podium releases from the outer seat track, and then lift the LH 2nd row seat podium
upward while removing it from the inner seat track.
-

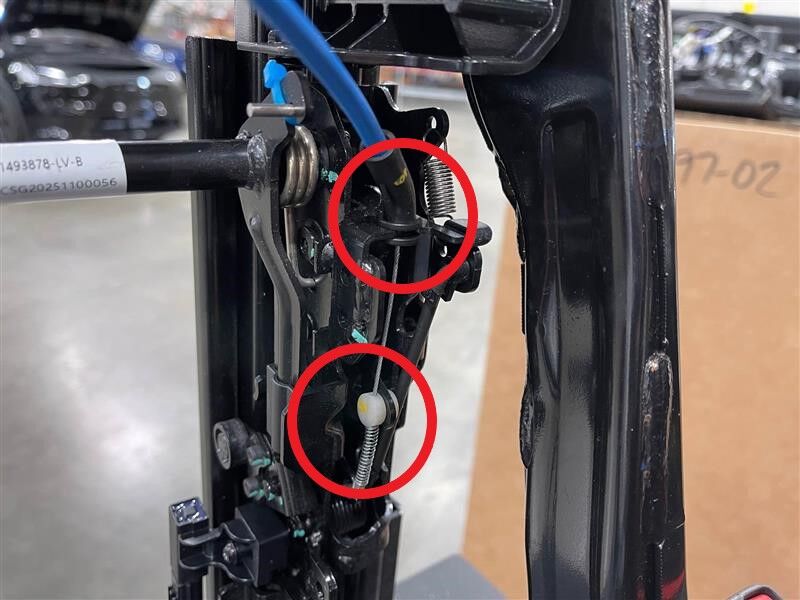

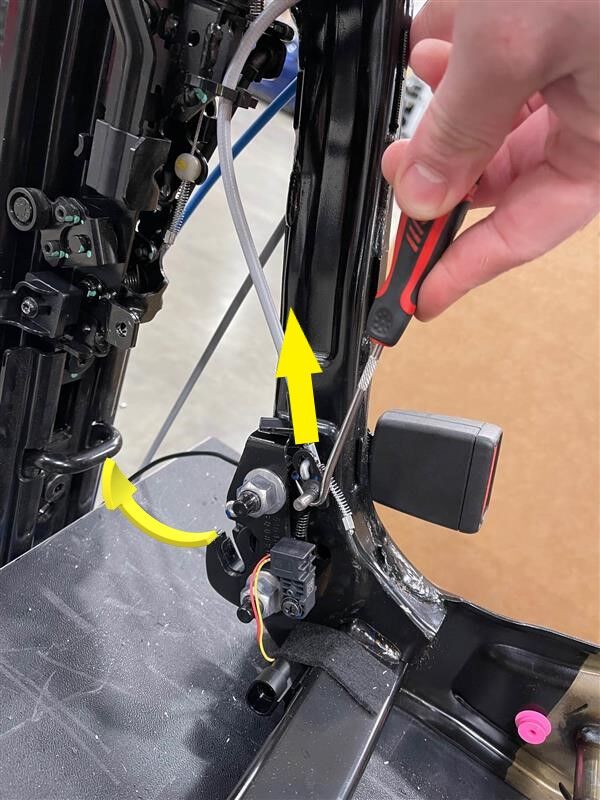

Release the clips (x2) that attach the
LH 2nd row EZ entry actuator cable to the RH easy entry latch, and then release the
cable from the latch.
-

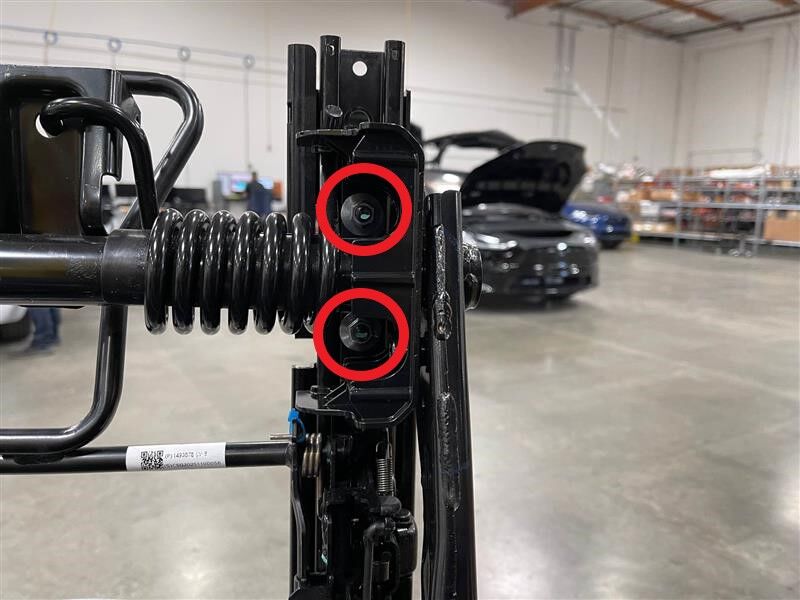

Remove the nuts that attach the LH 2nd
row seat inner seat track to the seat frame assembly.37 Nm (27.3 lbs-ft)提示： 推荐使用以下工具：
- 13 毫米套筒
-
Remove the LH 2nd row seat inner seat
track from the seat assembly.
注Slide the outer seat track outwards away from the towel bar.
安装
-

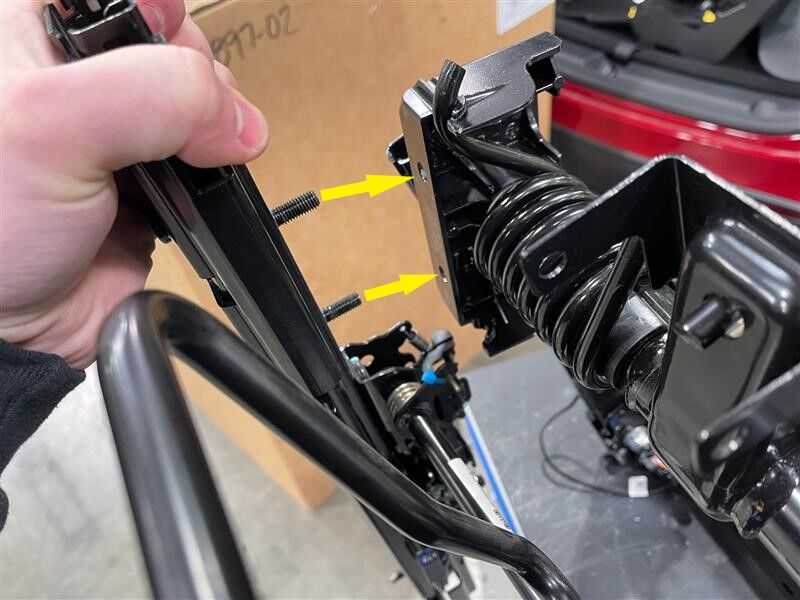

Position the LH 2nd row seat inner seat track and towel bar into the seat
assembly.
注Make sure the towel bar spring is in place and the bar is sitting between the tabs.
-

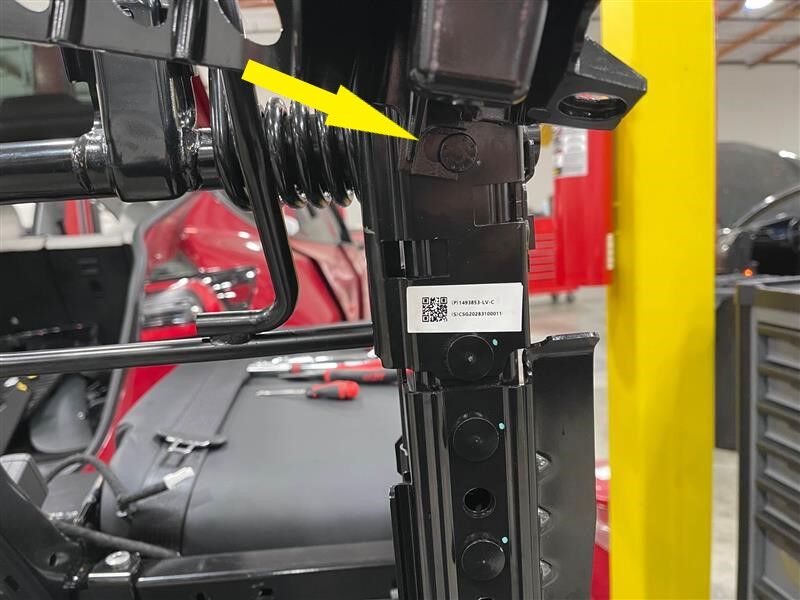

Install the nuts that attach the LH
2nd row seat inner seat track to the seat frame assembly.37 Nm (27.3 lbs-ft)注Install outer seat track to seat frame提示： 推荐使用以下工具：
- 13 毫米套筒
-
Secure the clips (x2) that attach the
LH 2nd row EZ entry actuator cable to the RH easy entry latch.
-
Install the groove on the LH 2nd row
seat podium to the inner seat track, and then align the groove on the podium to the
outer seat track. Engage the towel bar with one hand, and then move the outer seat track
inward until the groove on the podium engages to the seat track.
-
Install new the bolts (x2) that attach
the LH 2nd row seat podium to the seat tracks.37 Nm (27.3 lbs-ft)提示： 推荐使用以下工具：
- 11 mm socket
-
Position the LH 2nd row seat onto the
seat tracks, and then push the seat downward to latch the floor latches.
-
Starting at the rear of the seat,
position the LH 2nd row seat pan onto the seat frame.
-
Secure 60 seat bottom to seat
frame
注4x fasteners, 3x 10mm, 6 Nm, 1x T25, 1.5 Nm, 1x clip, Install remaining bolts attaching seat pan to seat frame
-
Position the LH 2nd row seat back to
the seat assembly, and then install the clips (x4) that attach the seat back to the
assembly.
注Make sure the bottom retainers slide into position.
- Install the LH 2nd row seat headrest guide lock. See 导锁 - 头枕 - 第二排（拆卸和更换）.
- Install the LH 2nd row headrest adjustment guide. See 调节导件 - 头枕 - 第二排（拆卸和更换）.
- Install the LH 2nd row seat headrest trim. See 头枕 - 第二排 - 外侧 - LH（拆卸和更换）.
- Install the center 2nd row seat back pivot clamps. See 枢轴卡夹 - 座椅靠背 - 第二排 - 中间/20 百分比（拆卸和更换）.
- Install the center 2nd row lumbar bun. See 腰部支撑块 - 第二排 - 中间/20 百分比（拆卸和更换）.
-
Position the LH 2nd row seat outer
sideshield to the seat assembly, connect the electrical connector, and then secure the
clip.
注Release the outer sideshield assembly by pulling outwards and up at the front portion of the trim, and then releasing the remaining clip.
-
Install the push clip to the front of
the LH 2nd row seat outer sideshield assembly.
-
Install the clips (x3) that attach the
LH 2nd row seat inboard outer trim to the LH 2nd row seat.
- Install the center 2nd row seat back panel. See 背板 - 第二排座椅 - 中间/20 百分比（五座）（拆卸和更换）.
- Install the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.
- Install the LH 2nd row seat back panel. See 背板 - 第二排座椅 - LH（拆卸和更换）.
- Install the LH 2nd row seat assembly. See 座椅总成 - 第二排 - LH（七座）（拆卸和更换）.
