执行常规检查(北美） (Inspection)

校正代码 00030700 FRT 0.90 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-06-18: Released new procedure.
注
本程序详细说明了执行“基本车辆检查”的方法。执行本程序时请填写SC-26-00-006。

拆卸

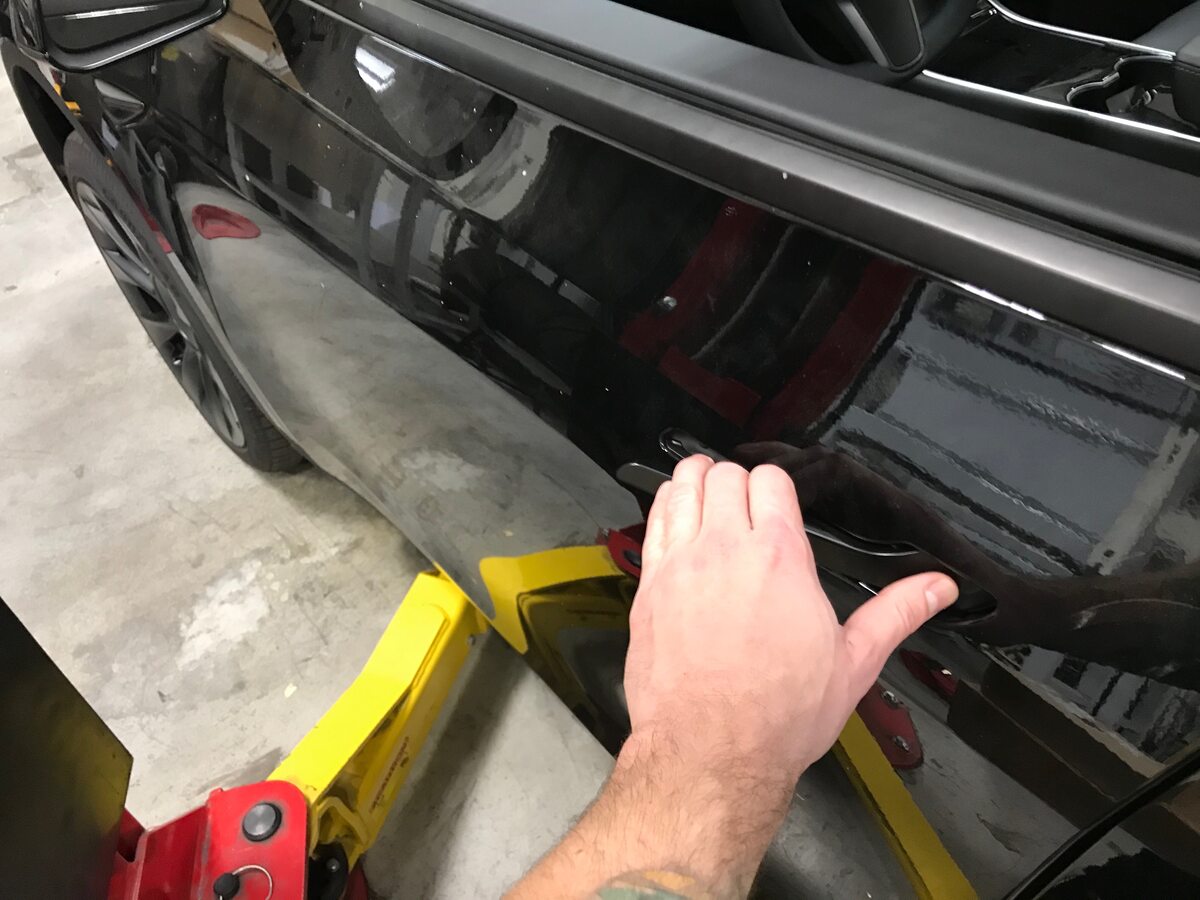

  1. Open all doors from the exterior. Verify that the door operates normally and does not do any of the following:
    • Collide with the body or brightwork
    • Produce unusual noises such as creaks, groans, or clicks
    • Pause or fail to fully open

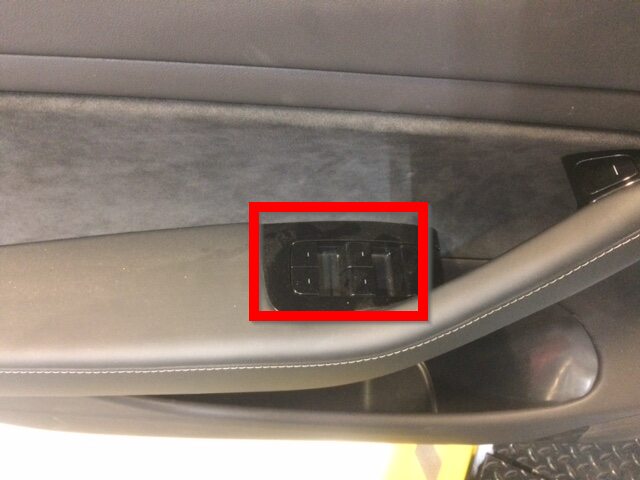

  2. Function check all windows from the LH front switch. Document any abnormal operation or noises.

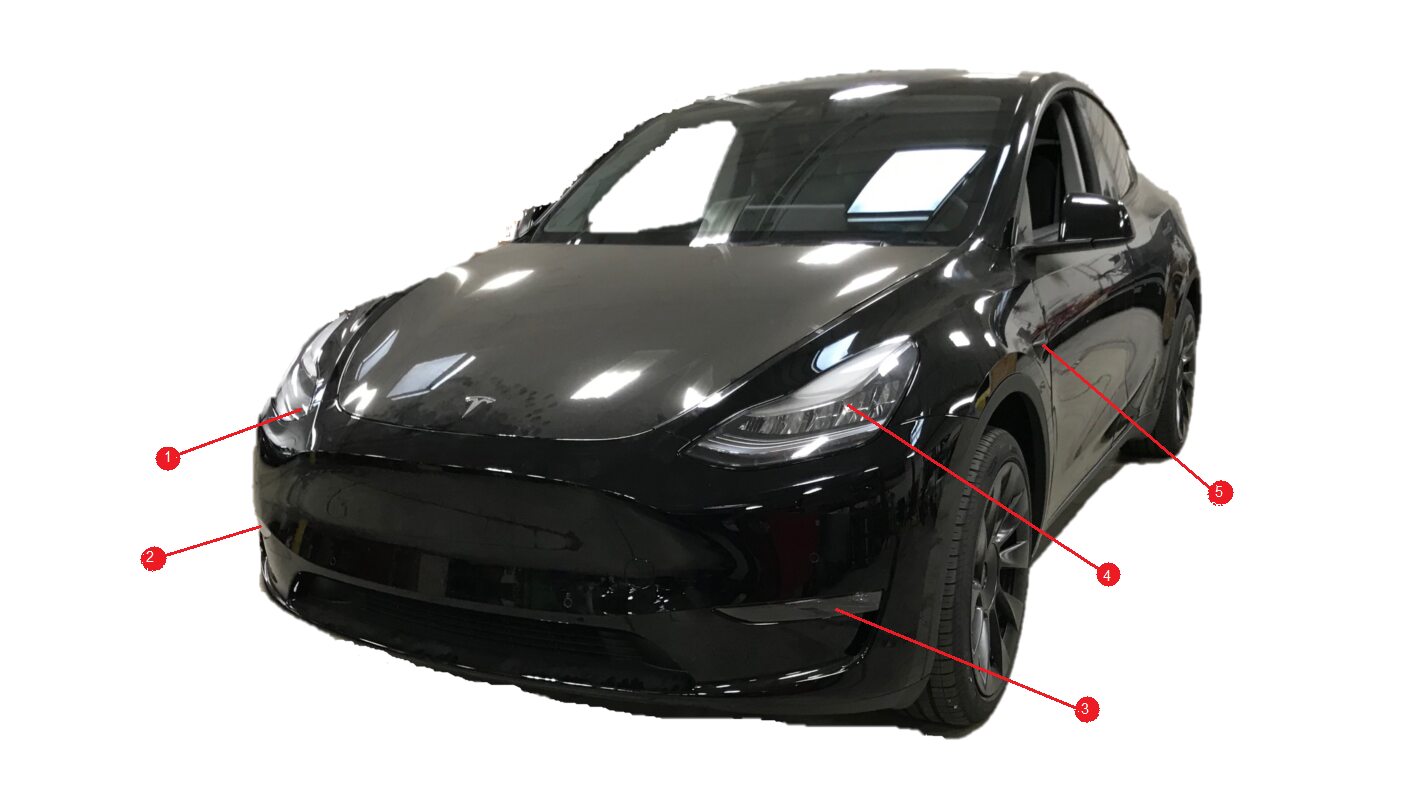

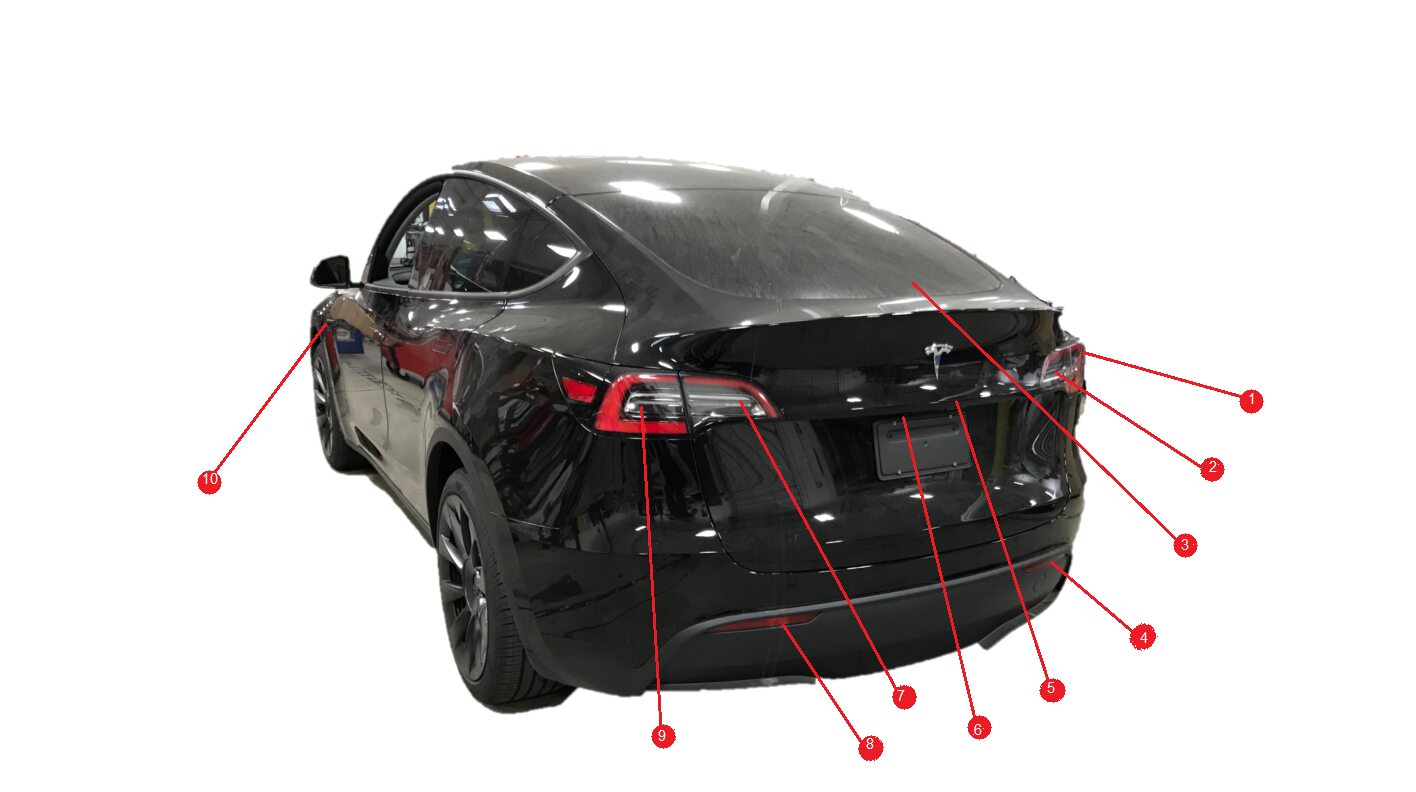

  3. Function check exterior lights. Verify that the following lights operate normally:
    • Headlights (LH and RH)
    • Fog lights (LH and RH)
    • Taillights (LH and RH)
    • Center high mount stopping light (third brake light)
    • Reverse lights (LH and RH)
    • Side repeaters (LH and RH)
    • Front turn signals (LH and RH)
    • Rear turn signals (LH and RH)

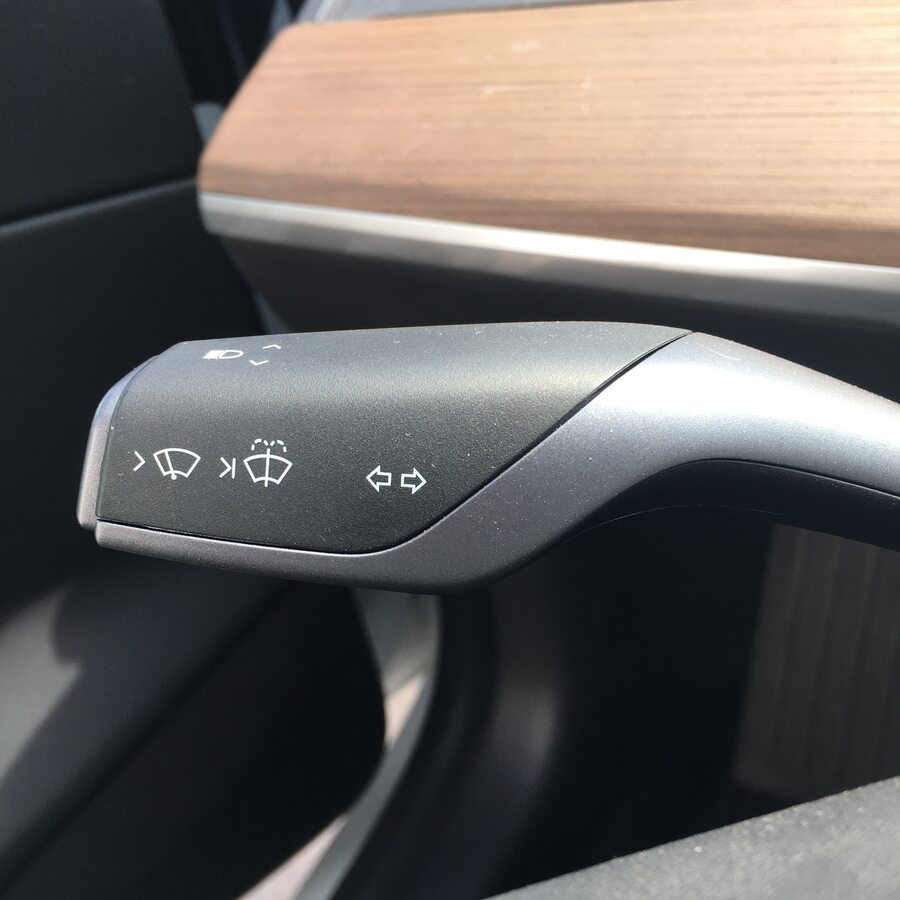

  4. Close the door and hood, then function check the windshield wipers and spray jets. Verify the following:
    • The wipers and jets function
    • The wipers move in a full range of motion
    • The wipers move at all speeds
    • The wipers do not interfere with other components
    • The wipers do not produce abnormal noises such as creaks, groans, and clicks
    • The wipers do not pause

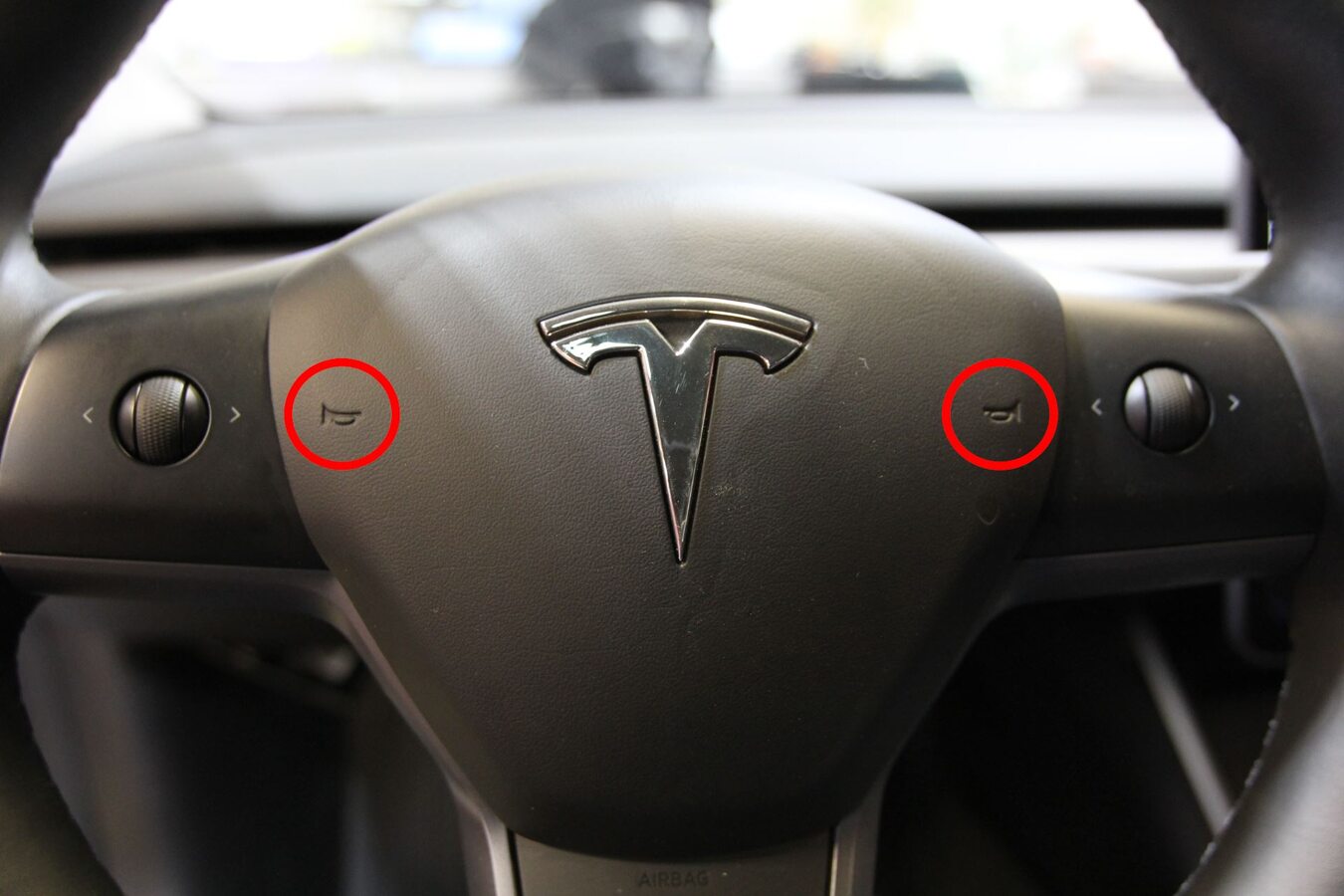

  5. Honk the horn. Verify that both high- and low-tone horns produce sound.

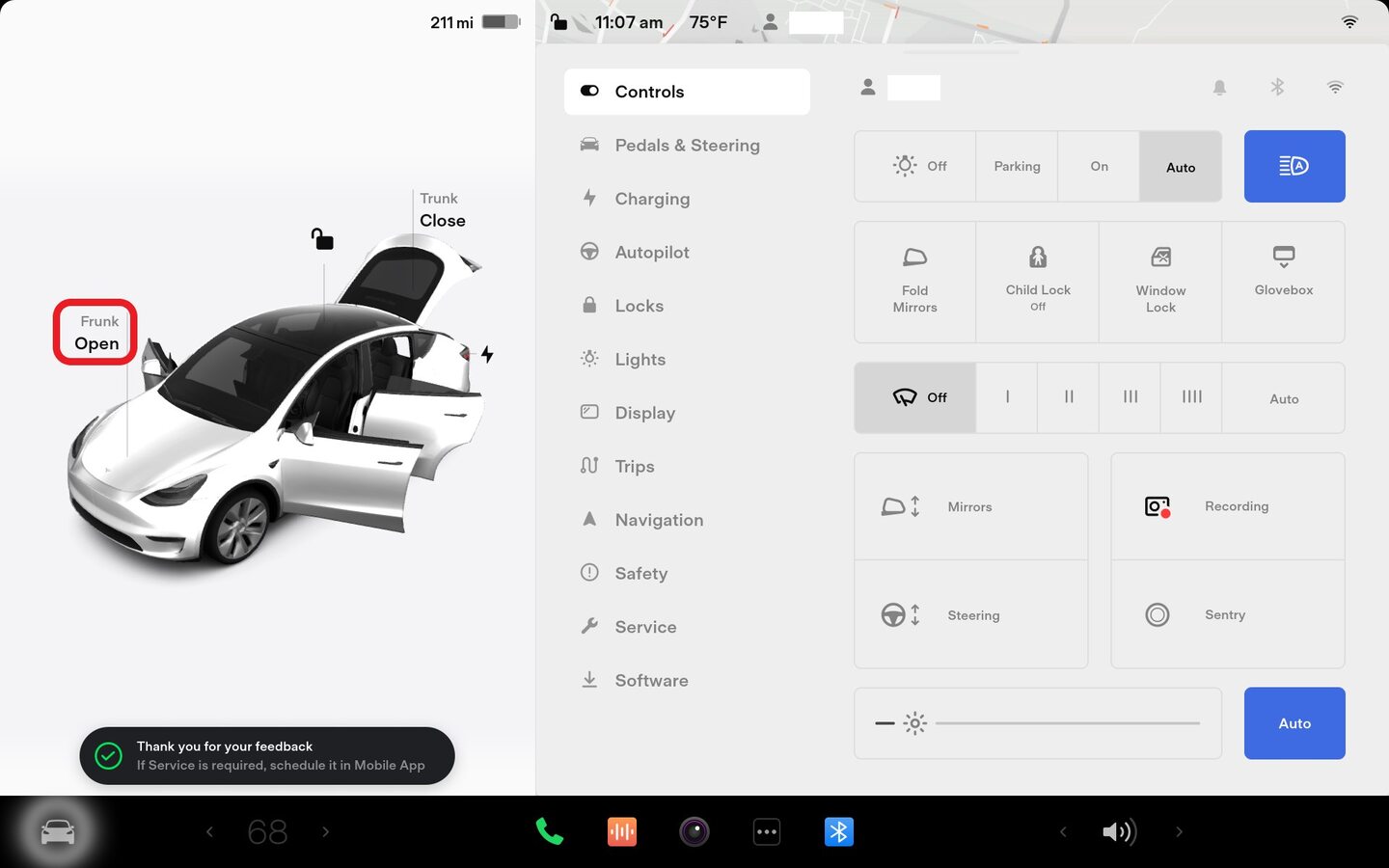

  6. Open the hood.

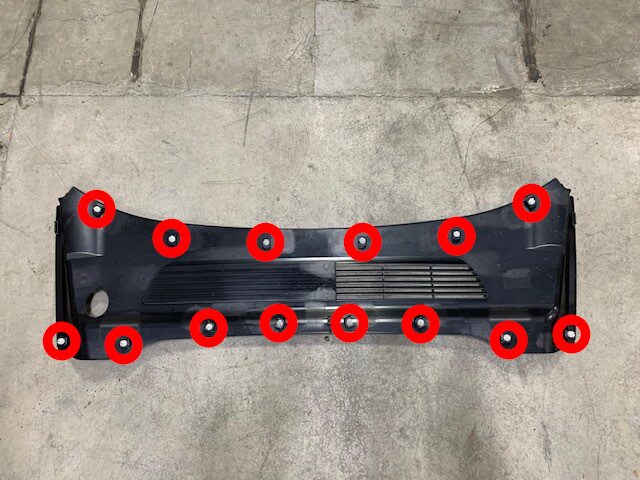

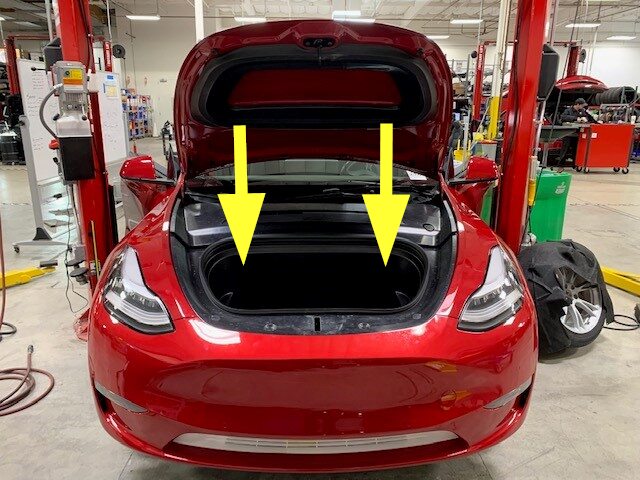

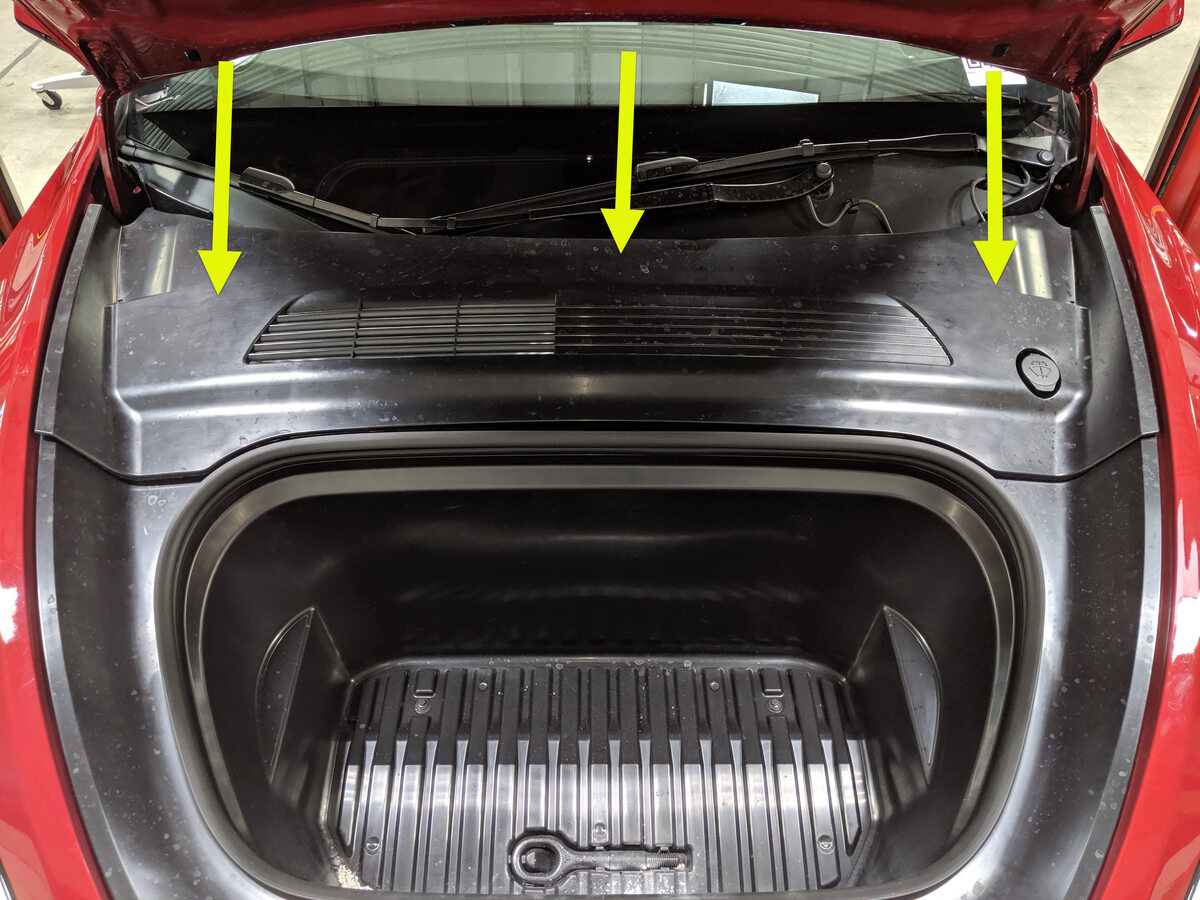

  7. Remove the rear apron
    注
    14x clips
  8. Visually inspect the brake fluid level.

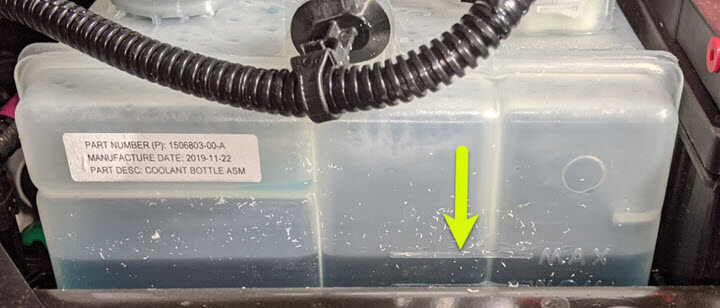

  9. Visually inspect the coolant level. Ensure that the fluid level is at the Max line. Top off as necessary.
  10. Remove the front aeroshield. See 面板 - 流线型护板 - 前部（结构化电池组）（拆卸和更换） or 面板 - 流线型护板 - 前（非结构化电池组）（拆卸和更换）.

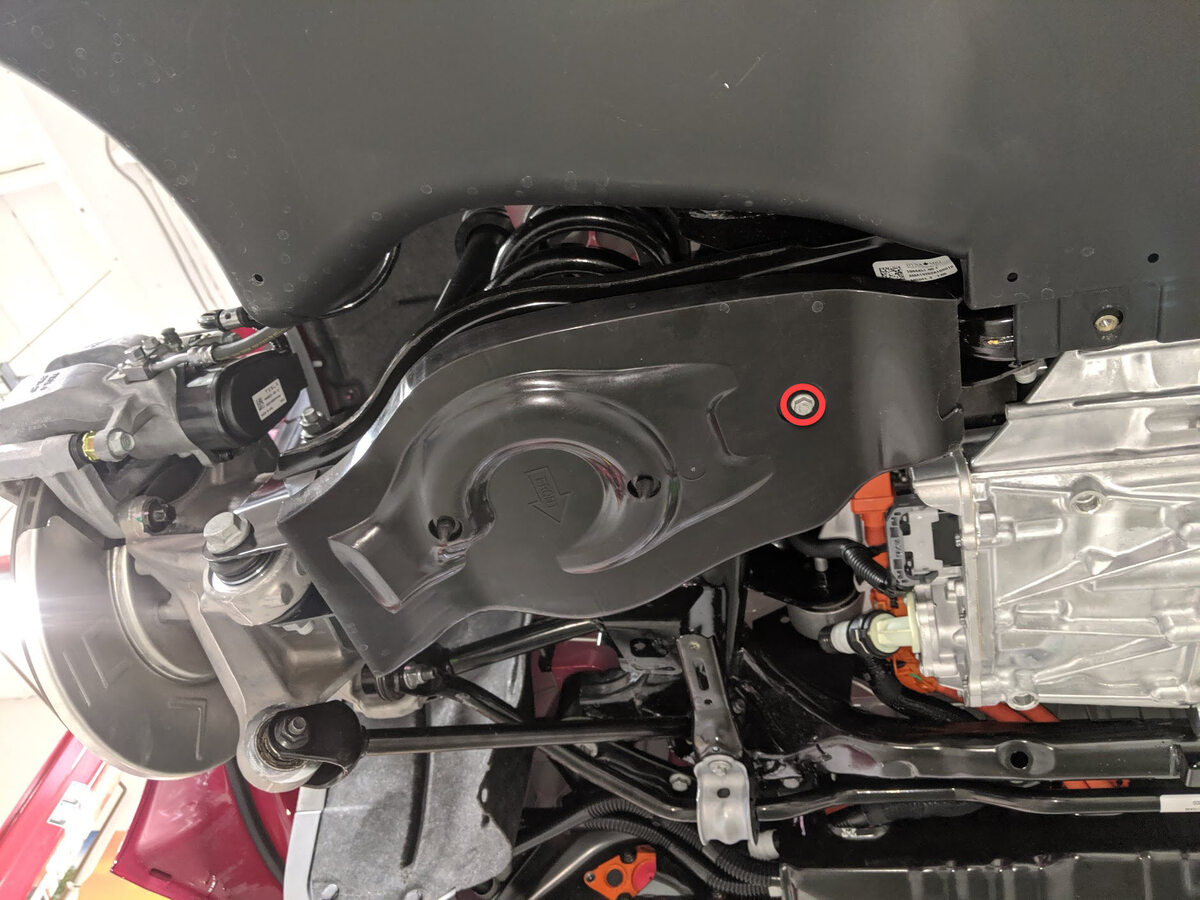

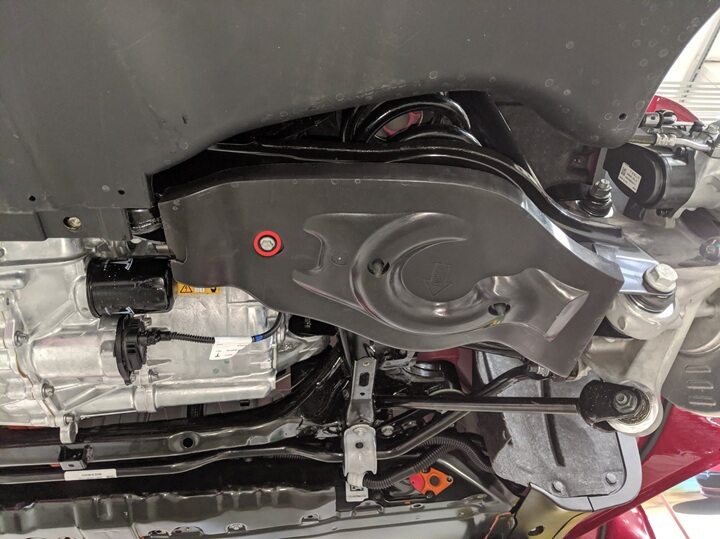

  11. Install the LH and RH suspension covers. See 护罩 - 后悬架 - 左侧（拆卸和更换）.
  12. Remove the rear aeroshield. See 面板 - 流线型护板 - 后部（拆卸和更换）.
  13. Check tire pressures and adjust to specification as necessary. Inspect tires and wheels for damage or deformities.
    注
    Refer to the "Tire and Loading Information" label located on the driver side B-pillar.

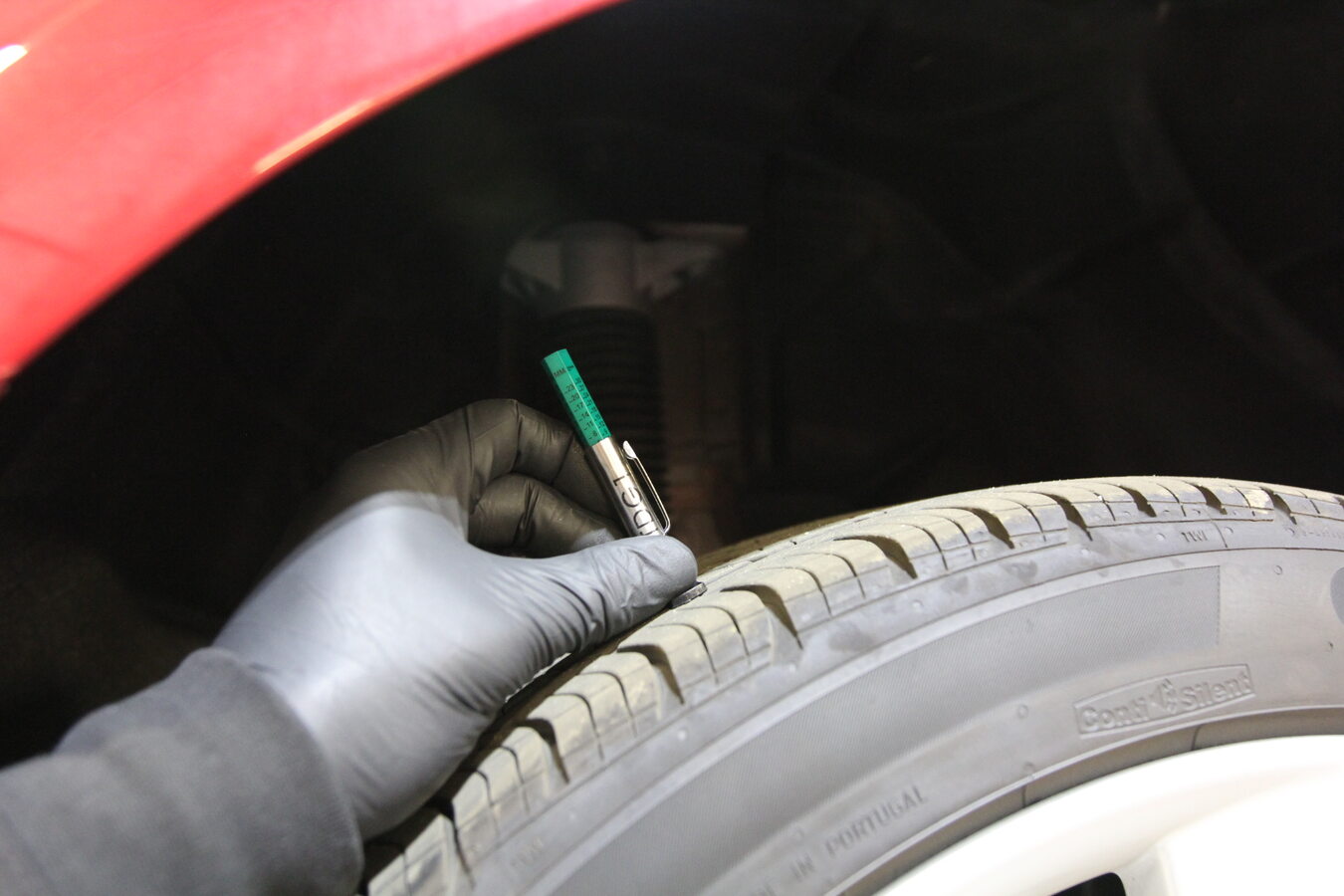

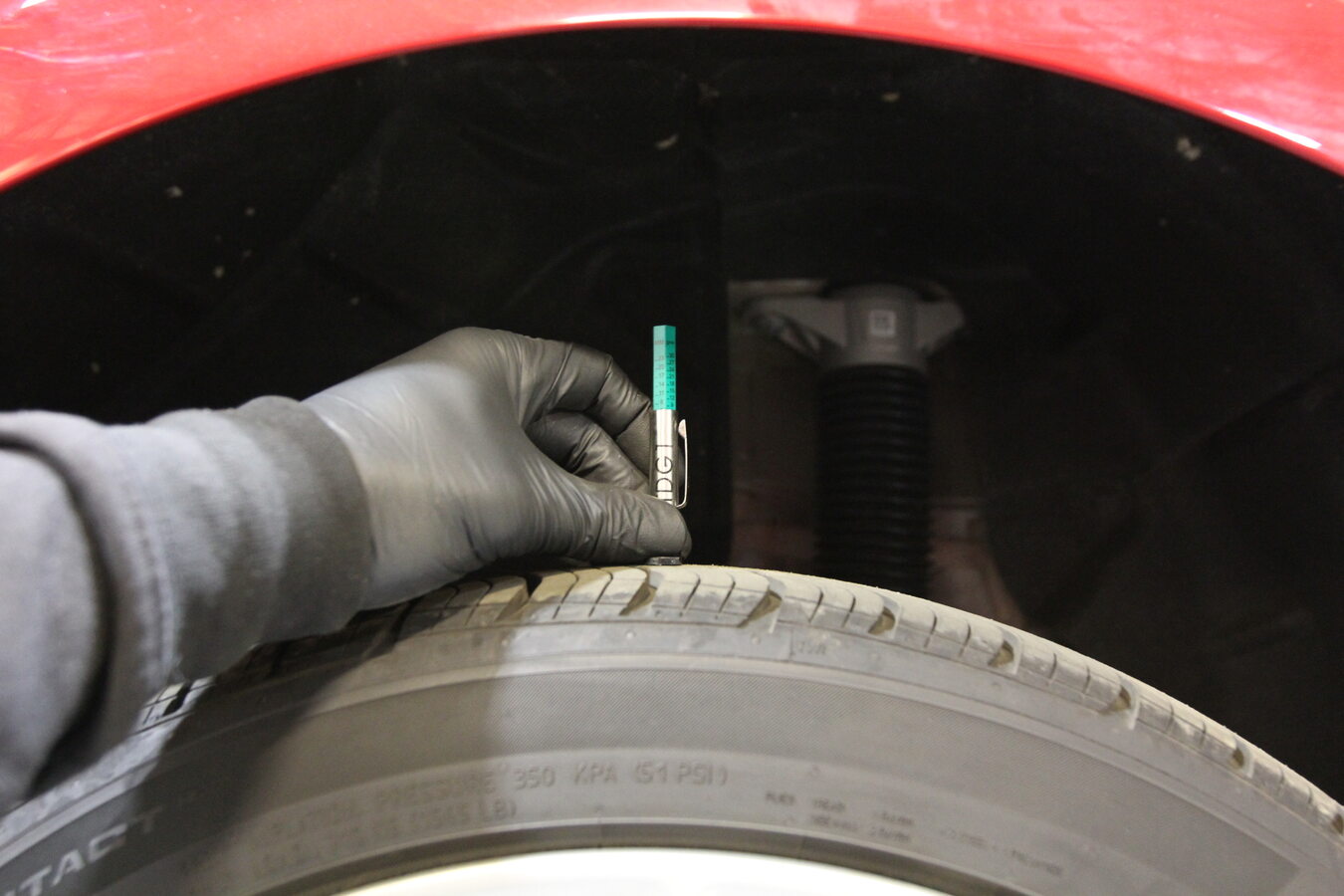

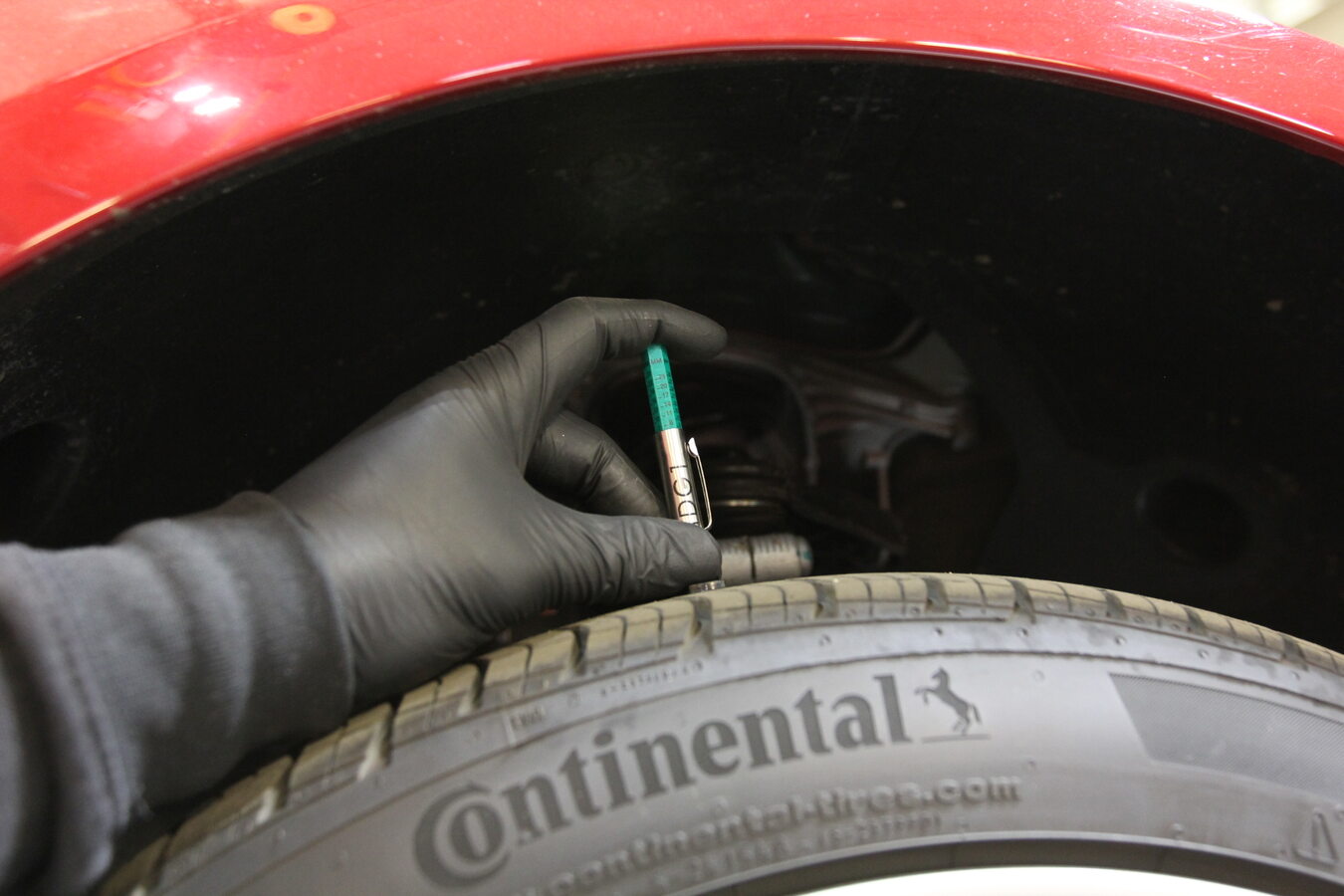

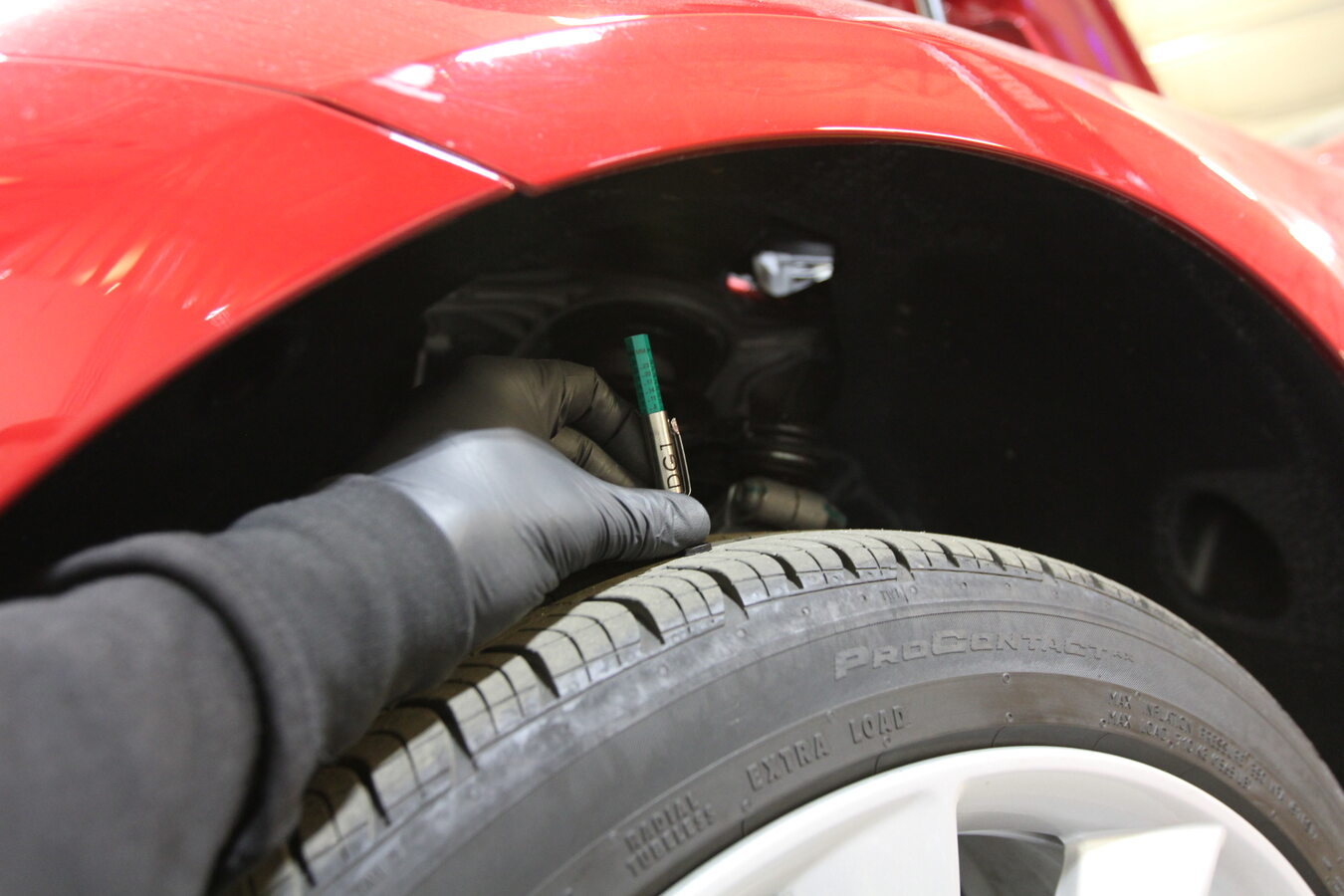

  14. Record outer, center, and inner tread depths for all tires.
    警告
    Measure the circumferential tire grooves only. Do not place the tire tread gauge probe on the molded treadwear indicators. Recommend replacement if tread depth is 4/32in (3mm) or less.
    注

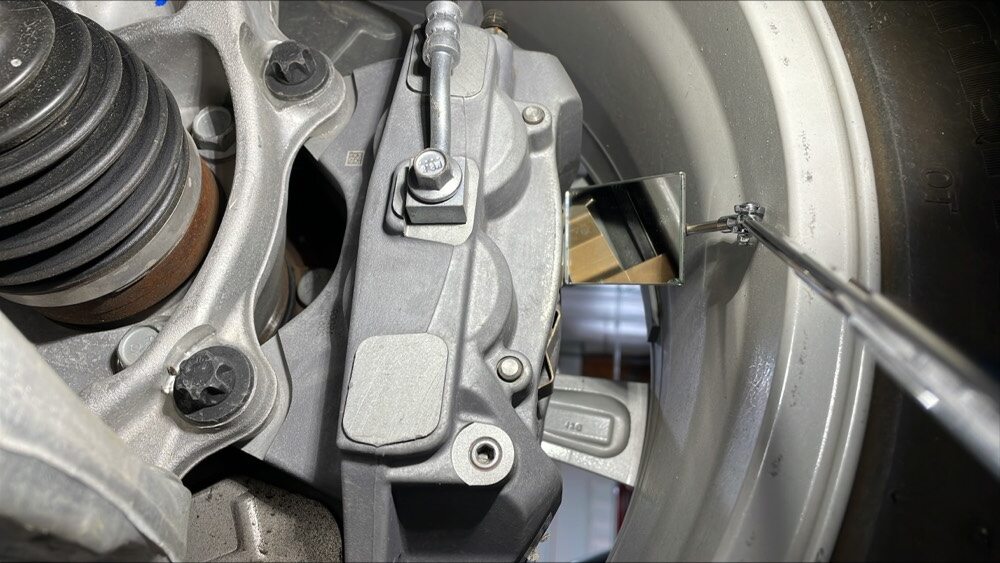

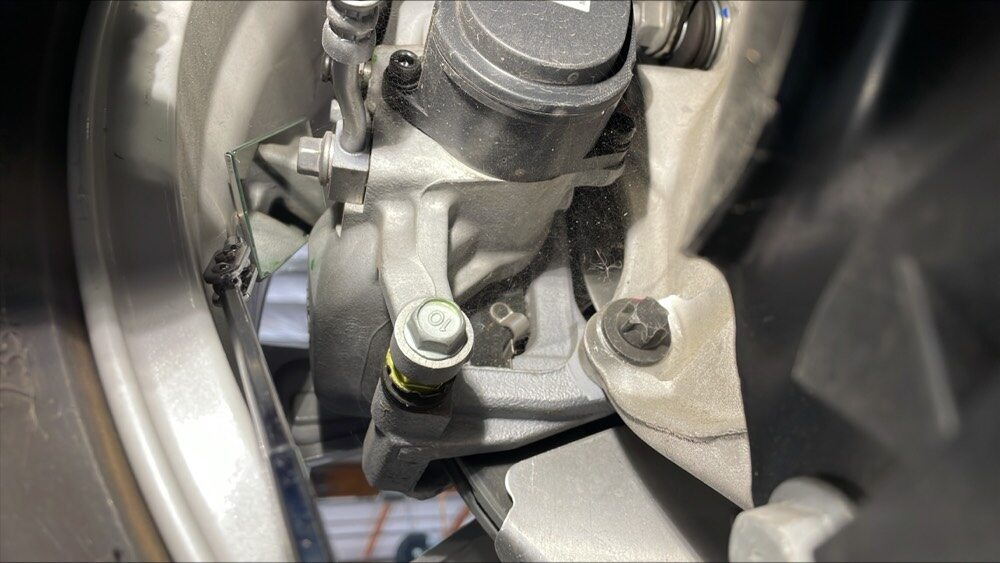

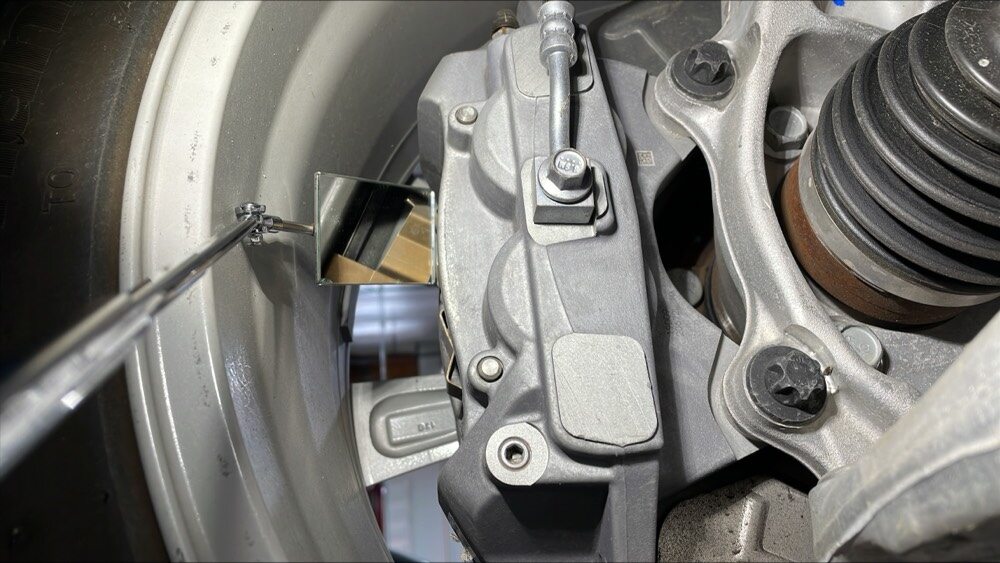

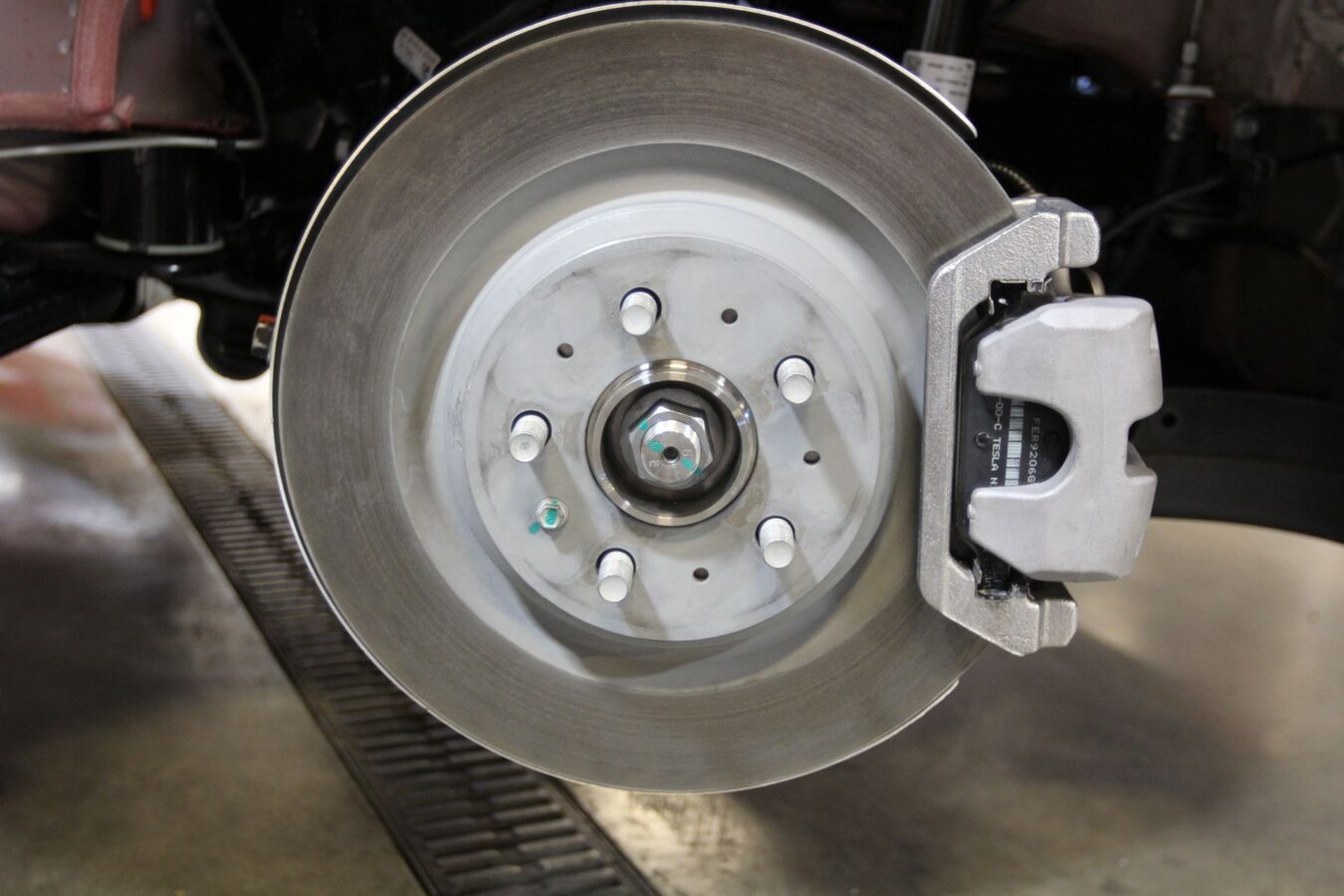

  15. Inspect all brake pads.
    注
    Recommend replacement if 2mm or less. Check both inboard and outboard pads

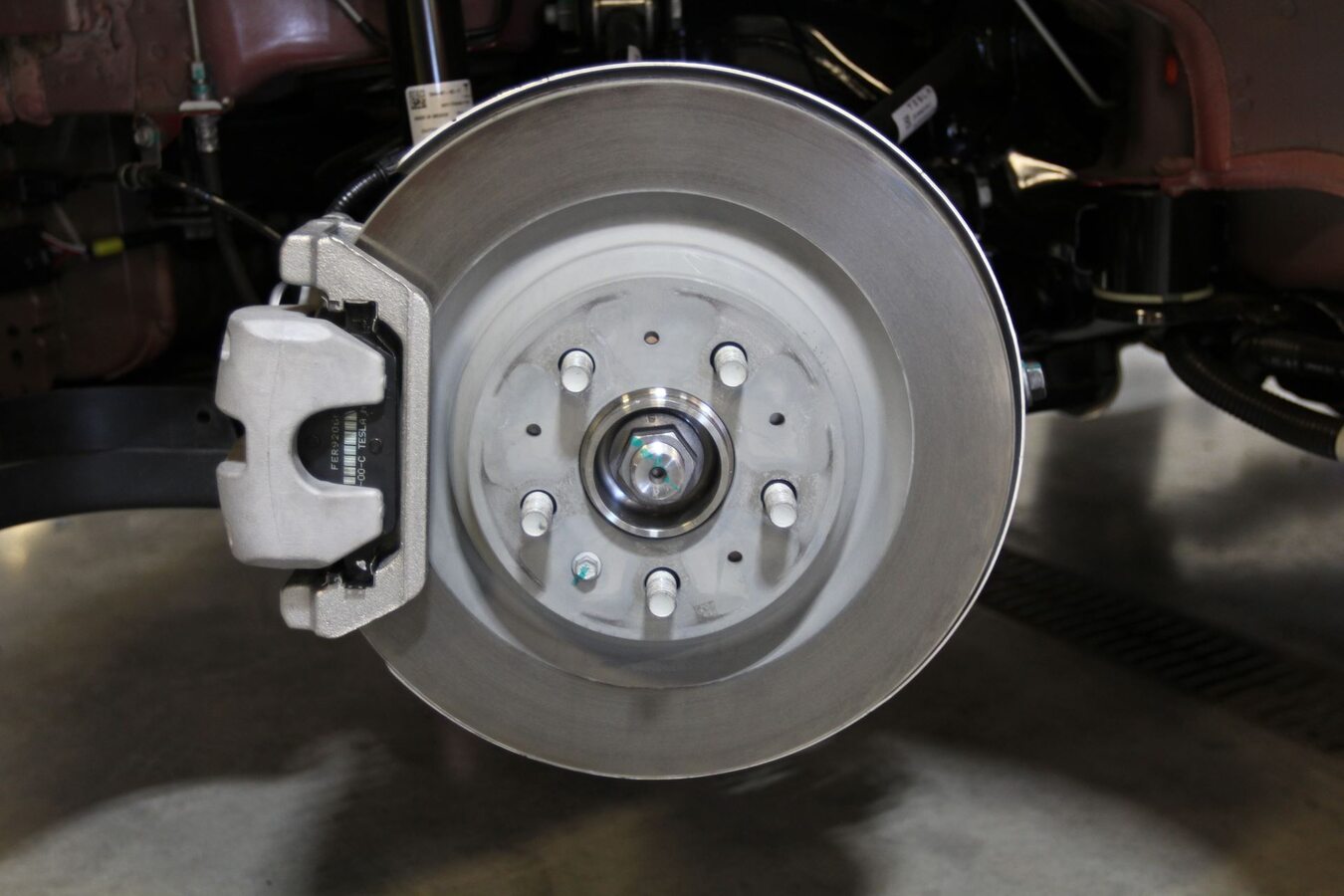

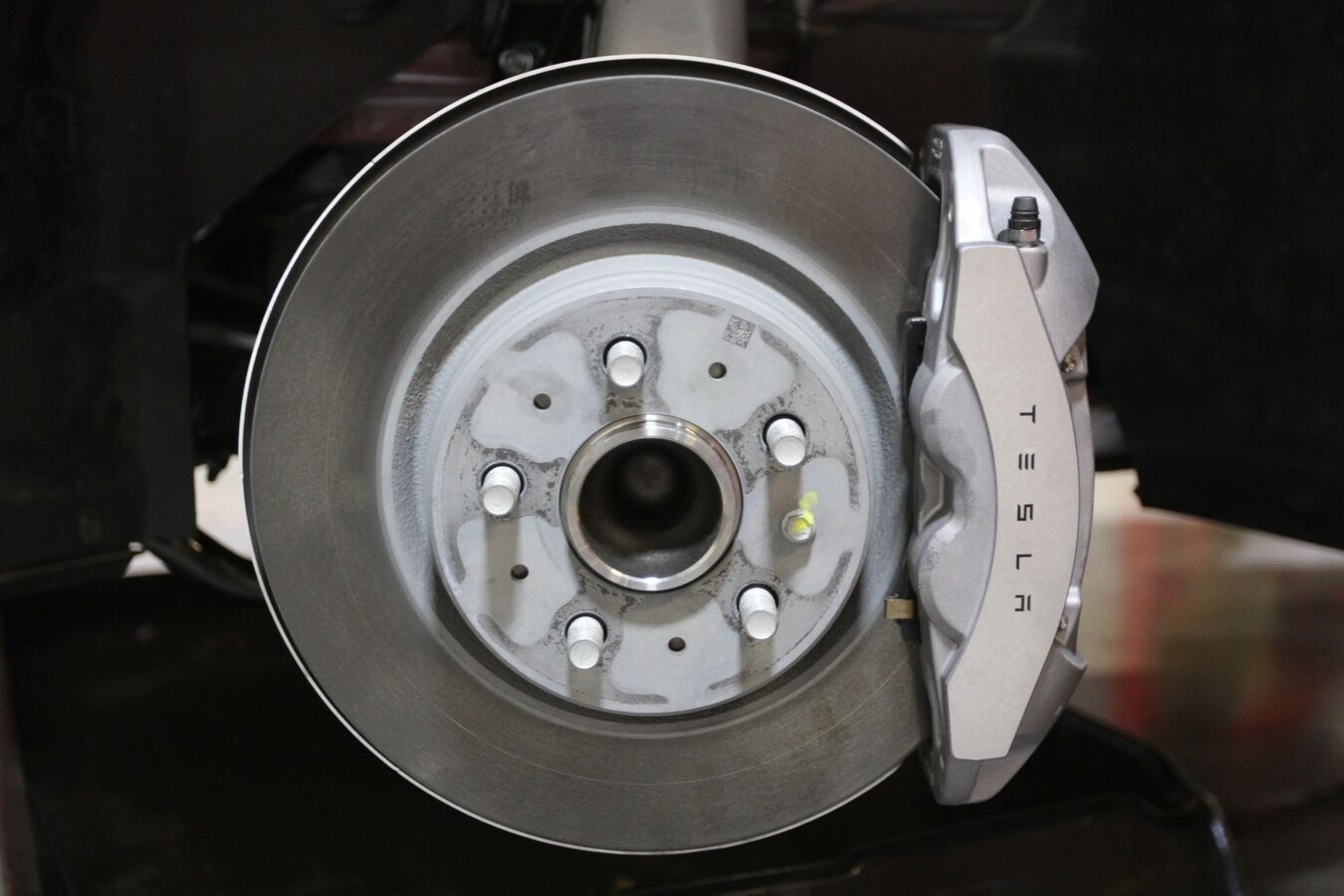

  16. Inspect all brake rotors for excessive wear or rust. See 制动器 for minimum specs.
  17. Perform visual inspection of all brake pipes and hoses
    注
    Pay special attention to brake junction points

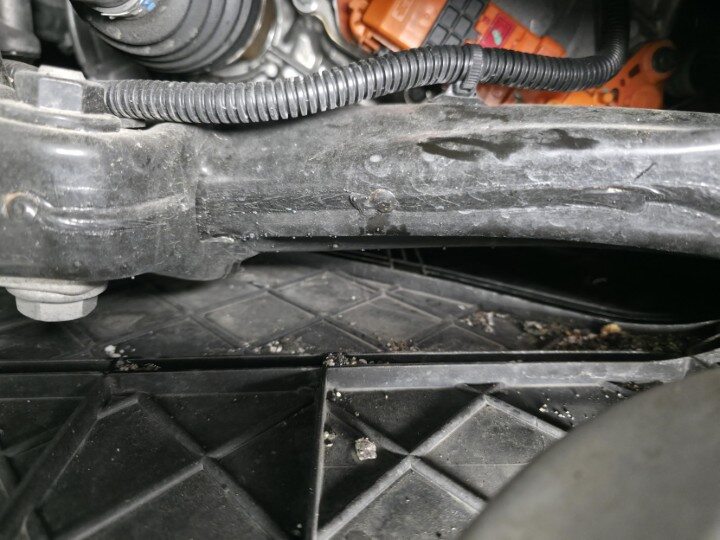

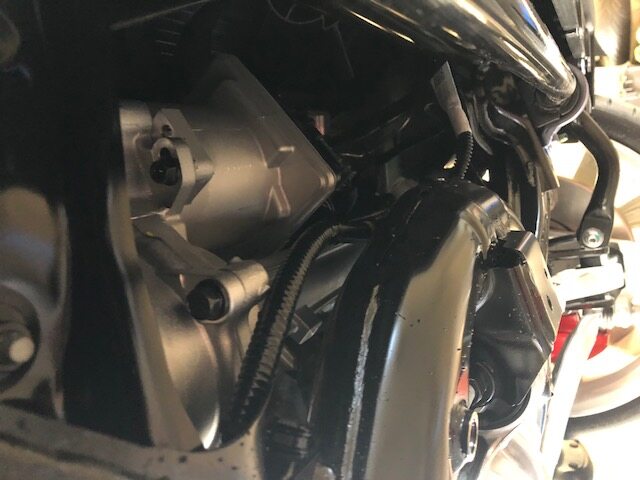

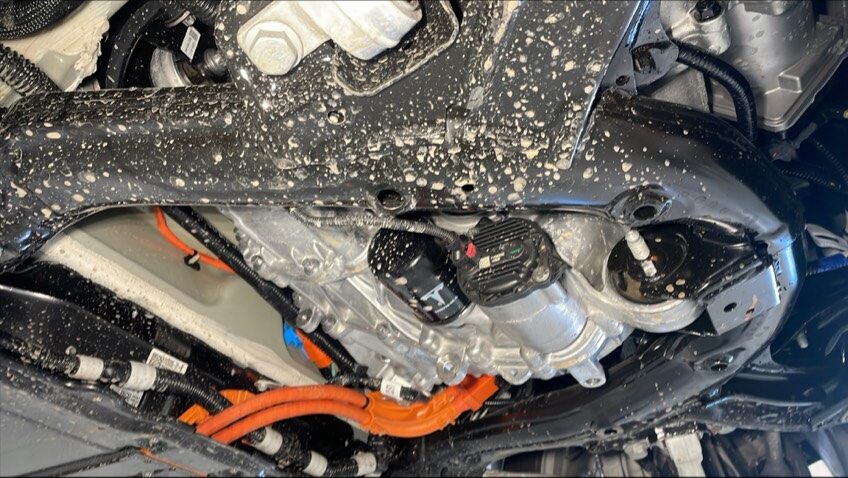

  18. Inspect the front and rear vehicle underside components.
    注
    Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance
  19. Inspect the underside of vehicle for fluid leaks.

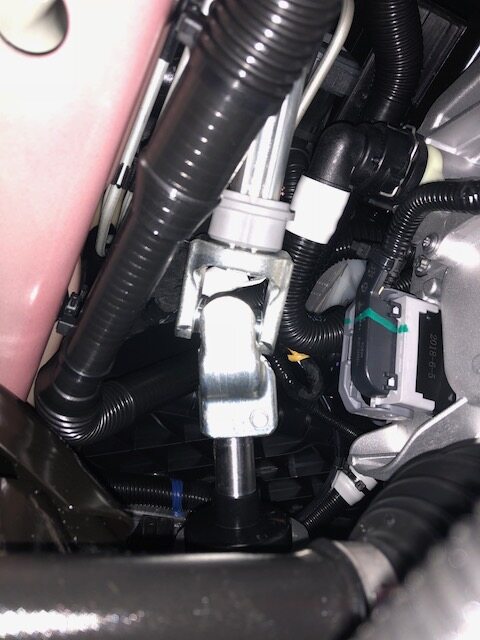

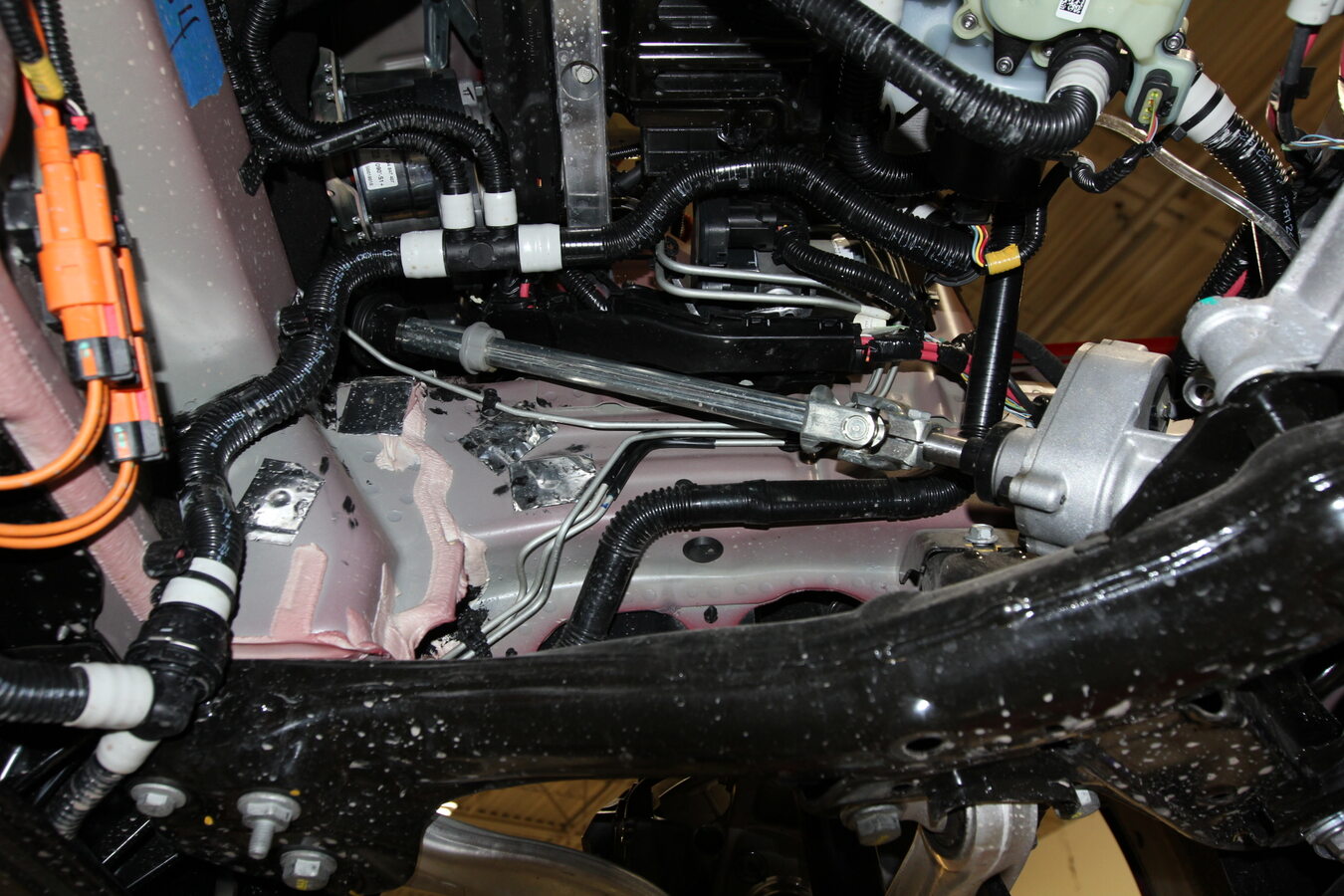

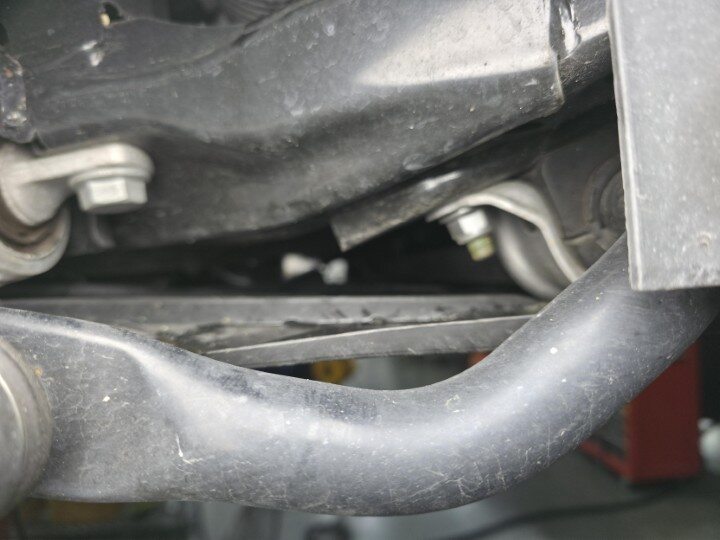

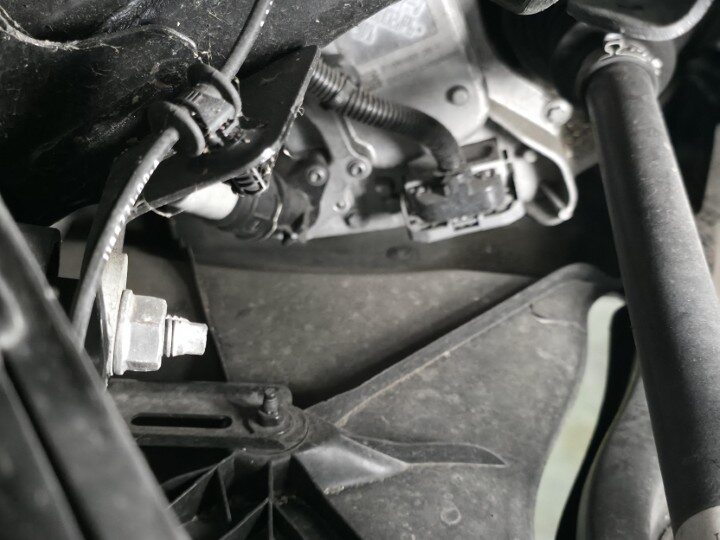

  20. Inspect the steering components.
    注
    Check steering gear joints and electrical connections. Verify components are not bent or damaged
  21. Visually inspect the HV battery enclosure.
    注
    Check for any dents, scrapes, or other damage

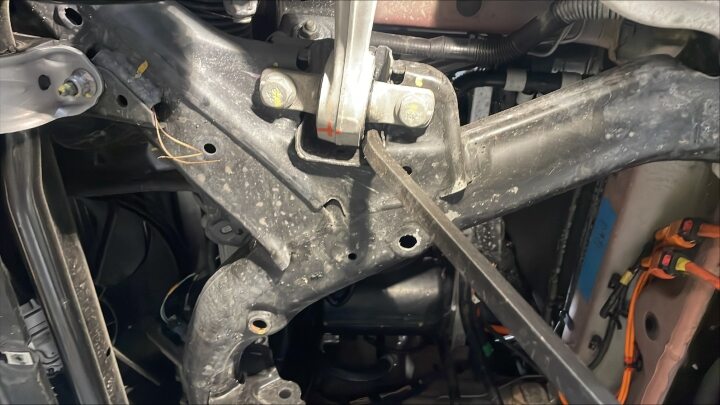

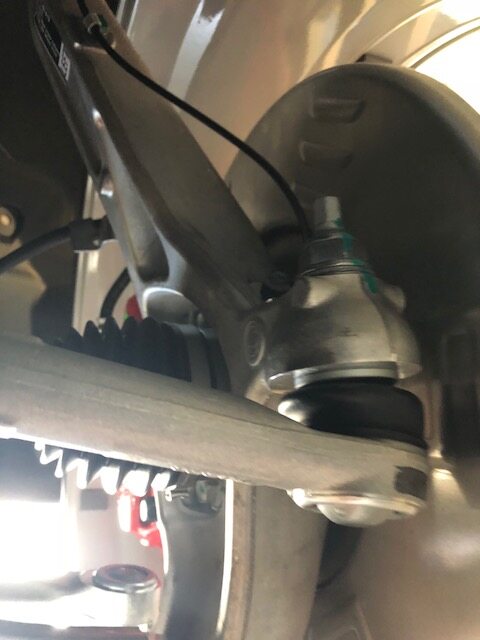

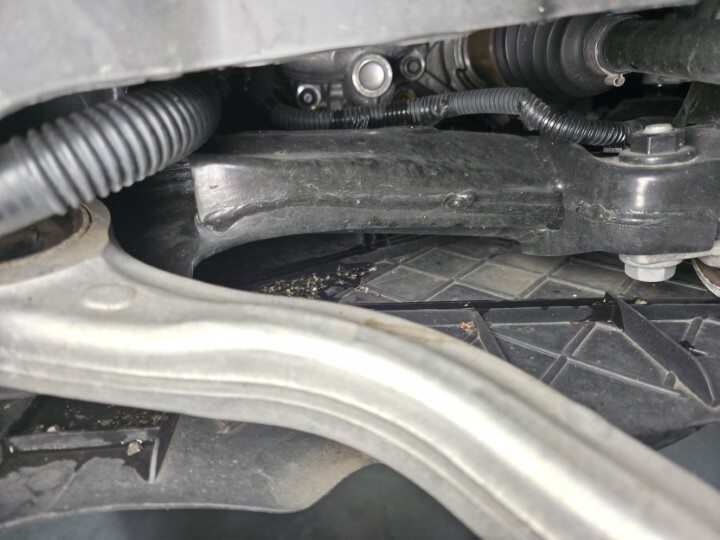

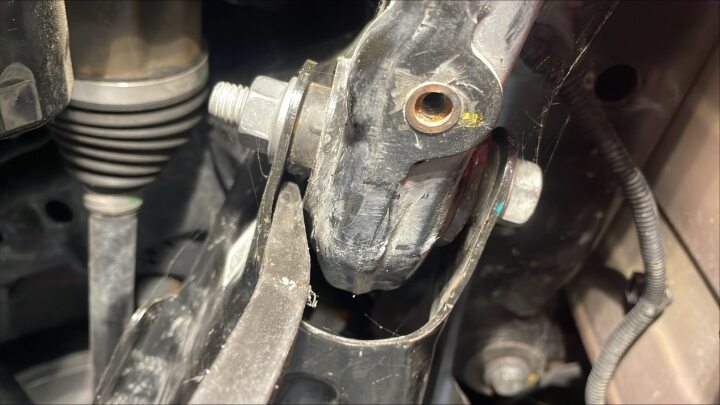

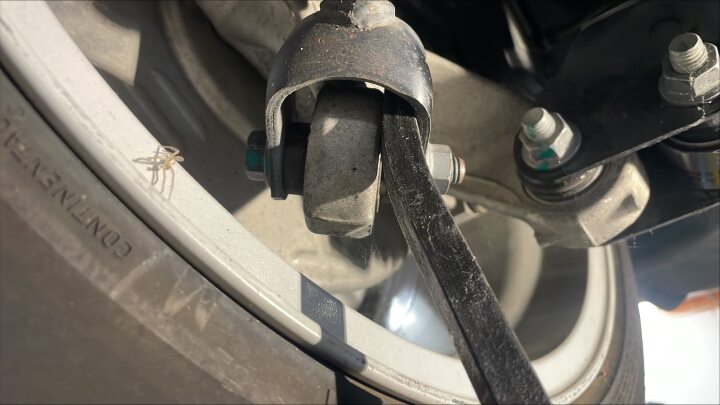

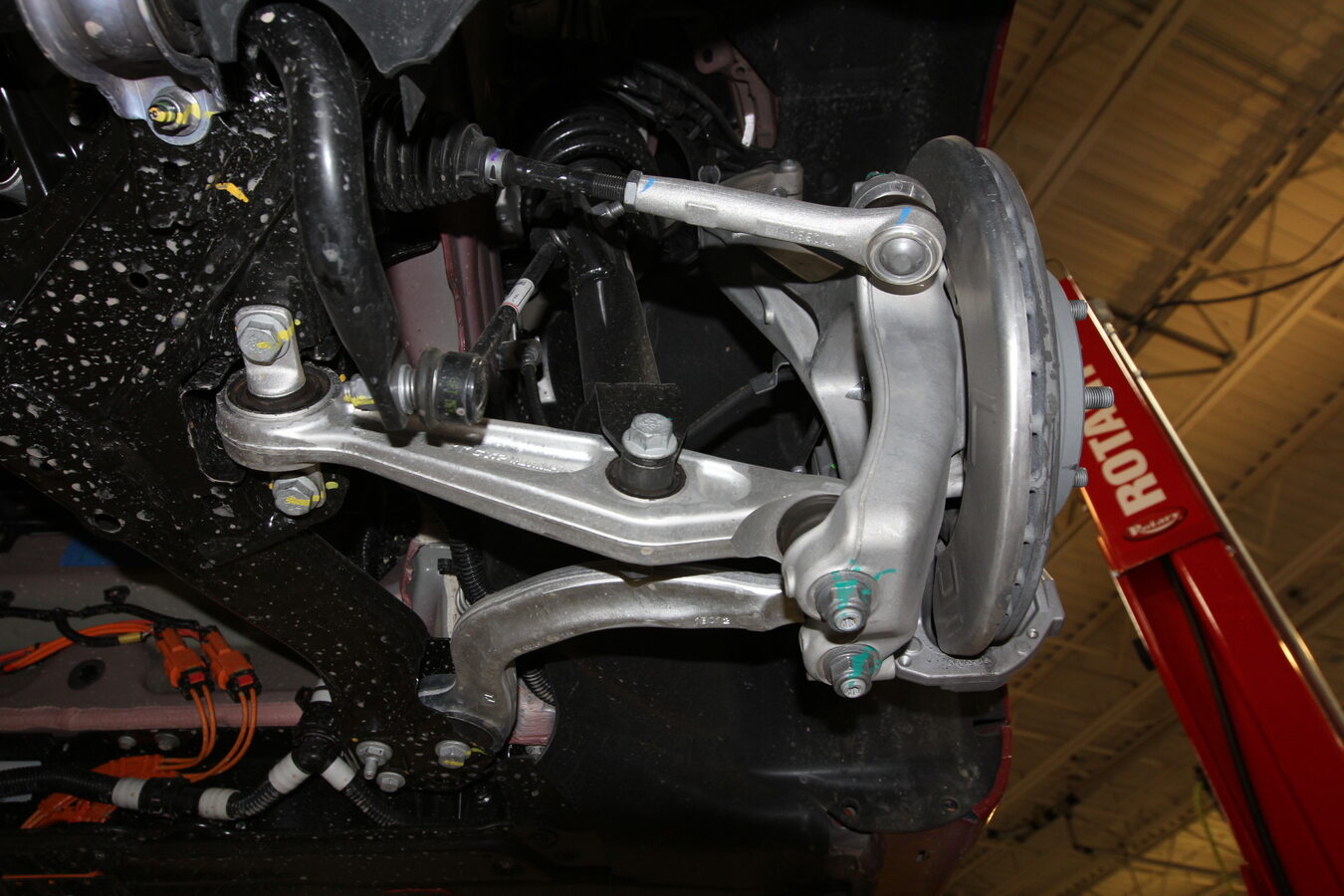

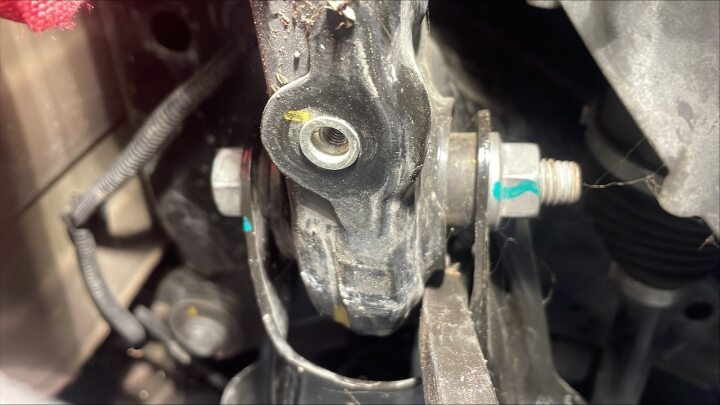

  22. Inspect the front suspension components
    注

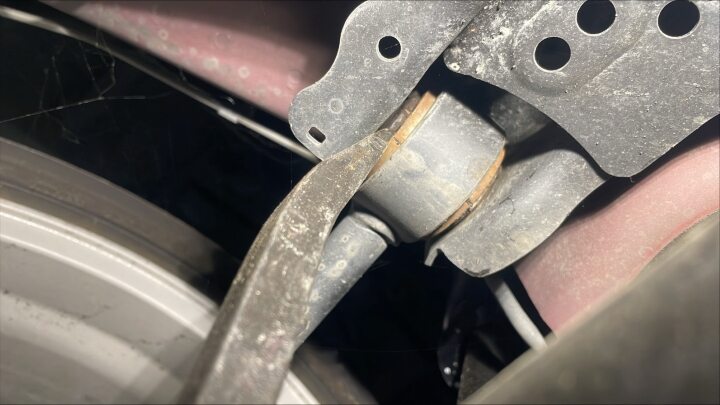

    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

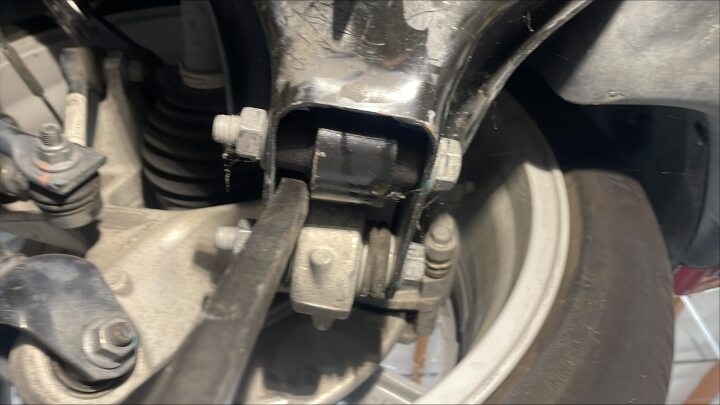

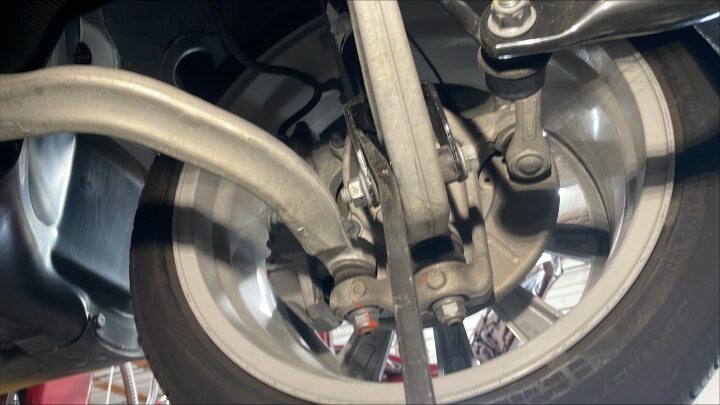

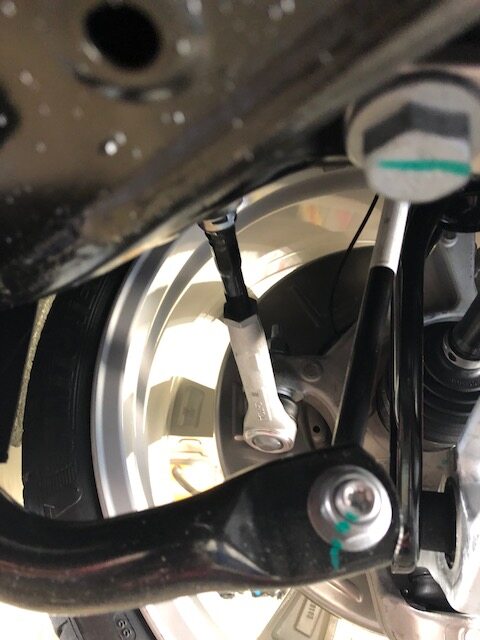

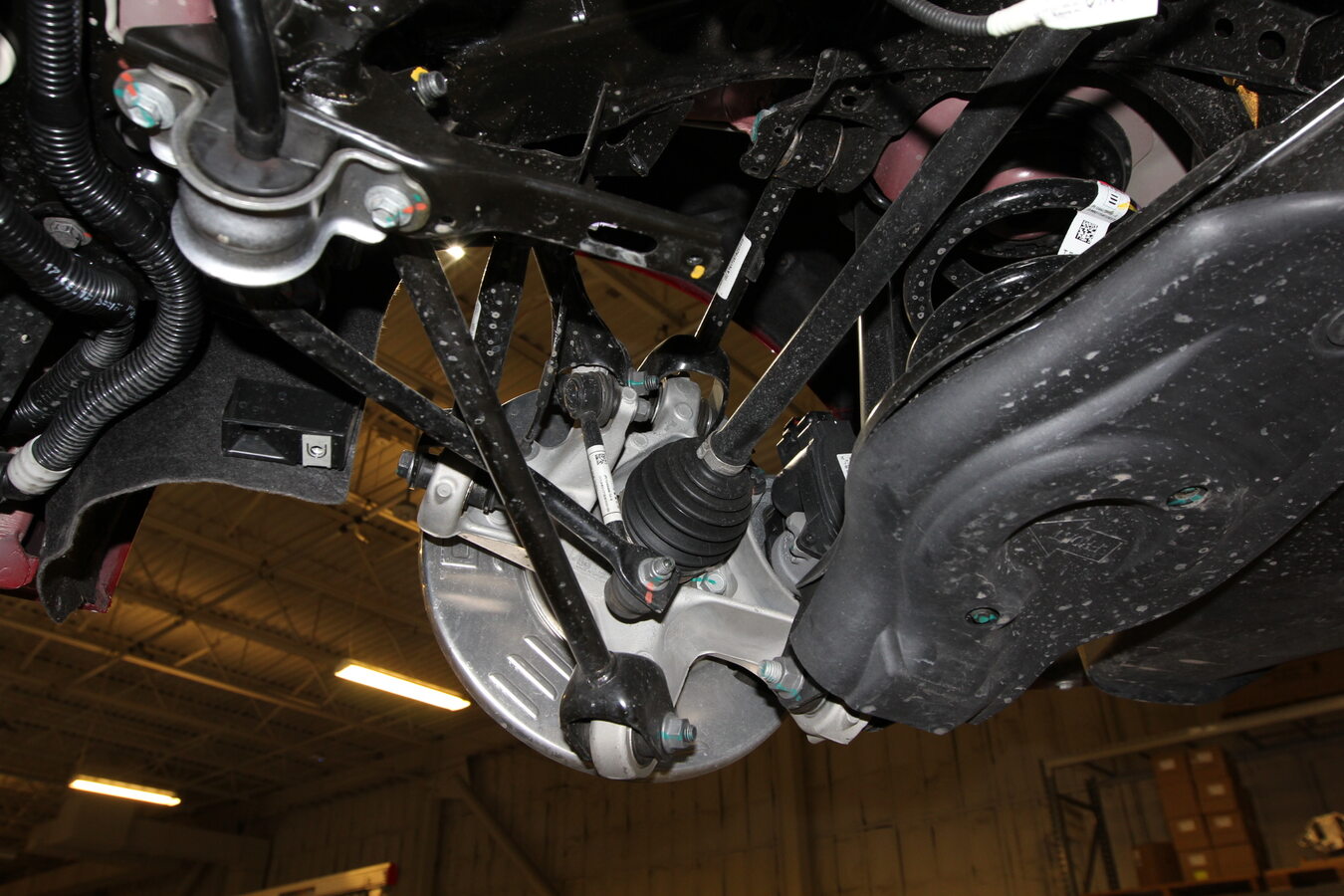

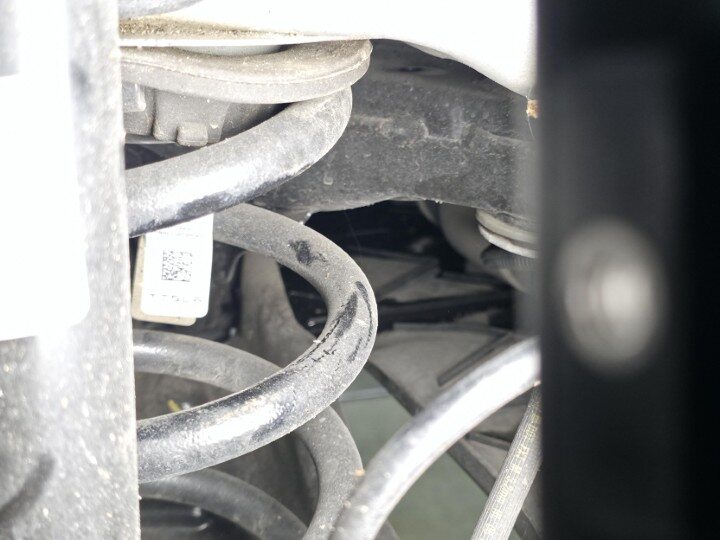

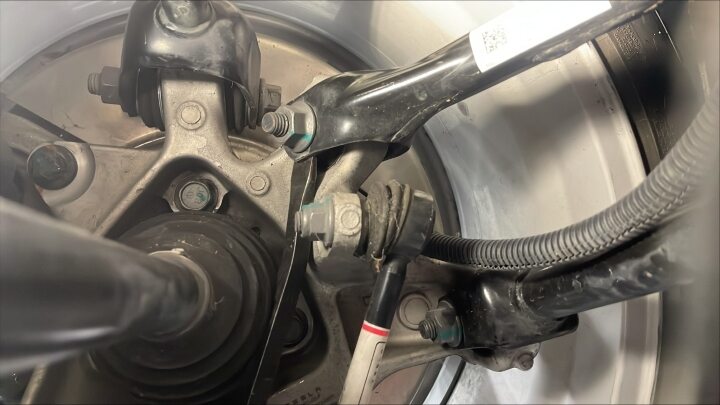

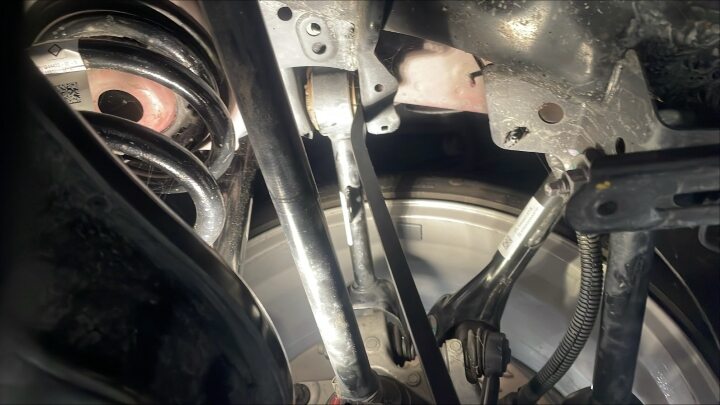

  23. Inspect the rear suspension components
    注
    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed
  24. Install the rear aeroshield. See 面板 - 流线型护板 - 后部（拆卸和更换）.
  25. Install the LH and RH suspension covers. See 护罩 - 后悬架 - 左侧（拆卸和更换）.
  26. Install the front aeroshield. See 面板 - 流线型护板 - 前部（结构化电池组）（拆卸和更换） or 面板 - 流线型护板 - 前（非结构化电池组）（拆卸和更换）.
  27. Lower the vehicle fully.
    注
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  28. Remove the vehicle from the lift.
    注
    Lower the rack arms fully and remove them from under vehicle.

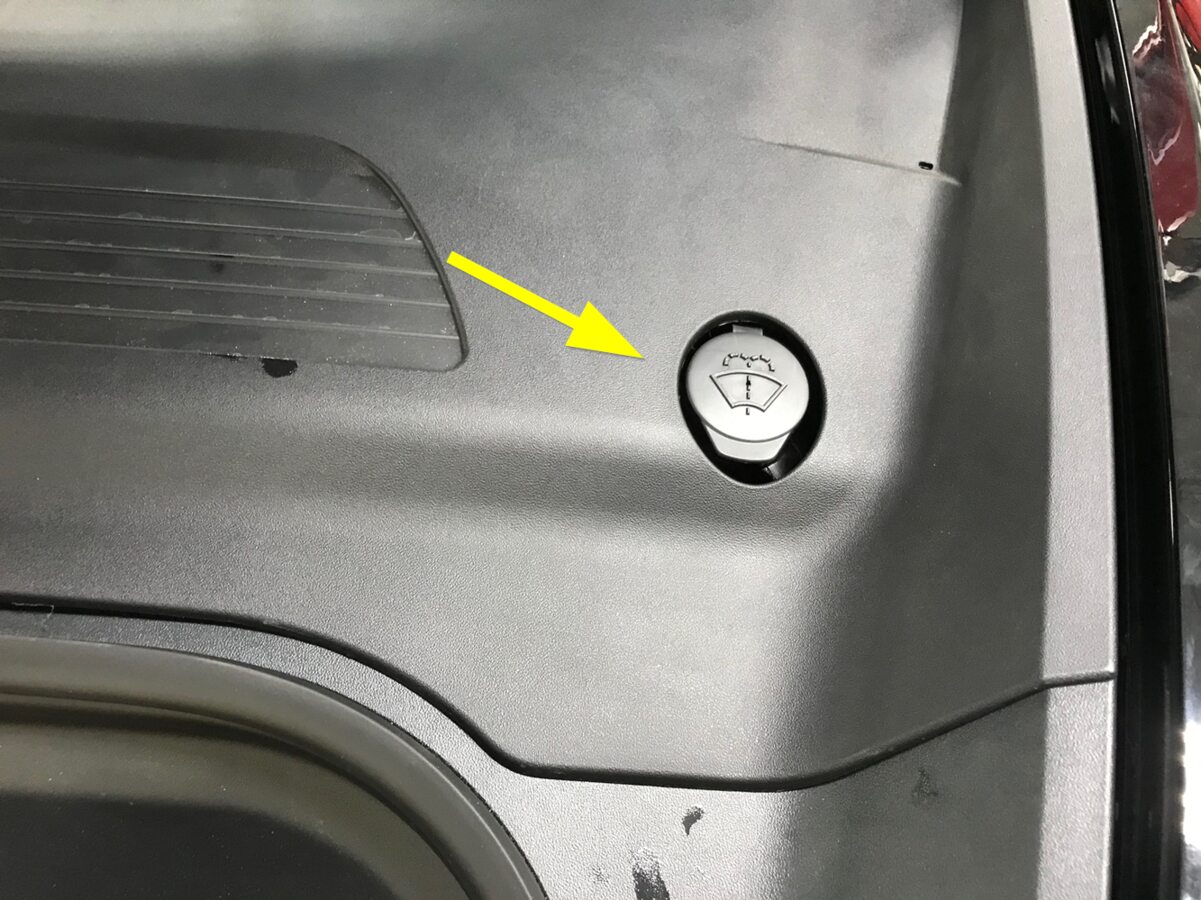

  29. Fill the washer reservoir with fluid.

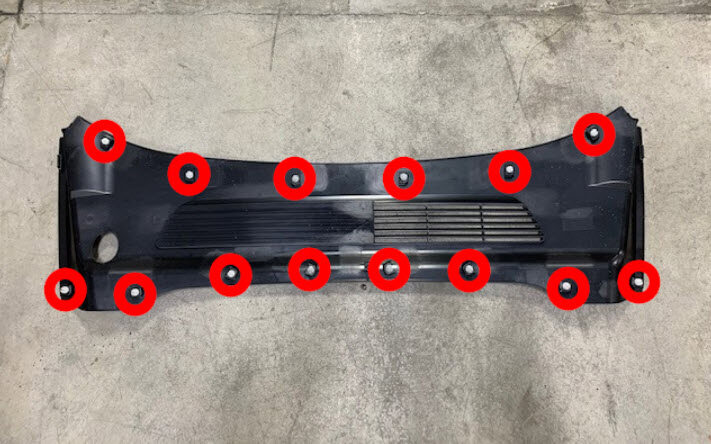

  30. Install the rear apron
    注
    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips

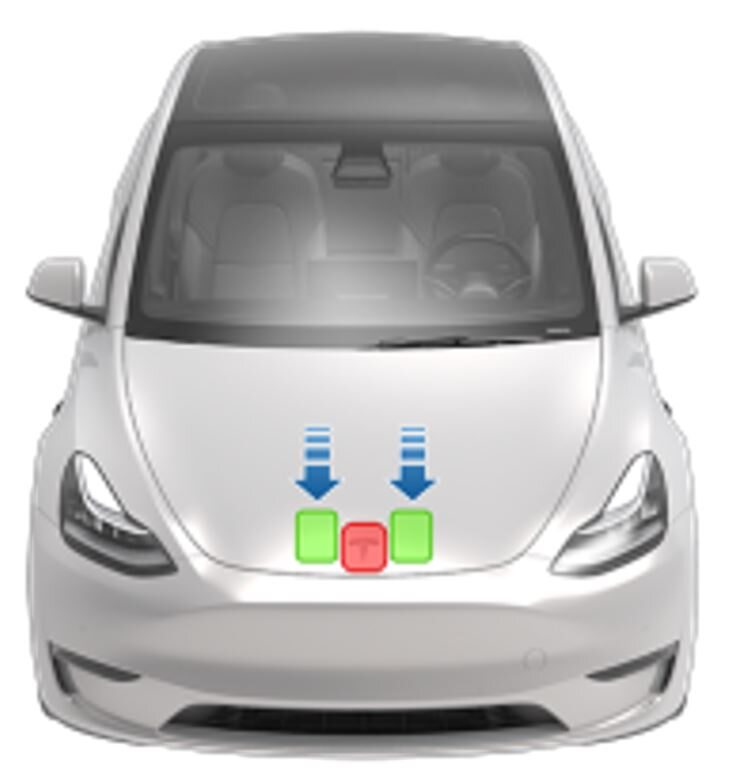

  31. Close the hood.
  32. Perform a road test.
    1. Perform a series of ABS-active stops and ensure proper brake pedal feel and performance.
      注
      The vehicle must stop completely within 25 feet (7.6 meters) at 20 mph (32 kph), Confirm that no excessive vibration or noise is present.

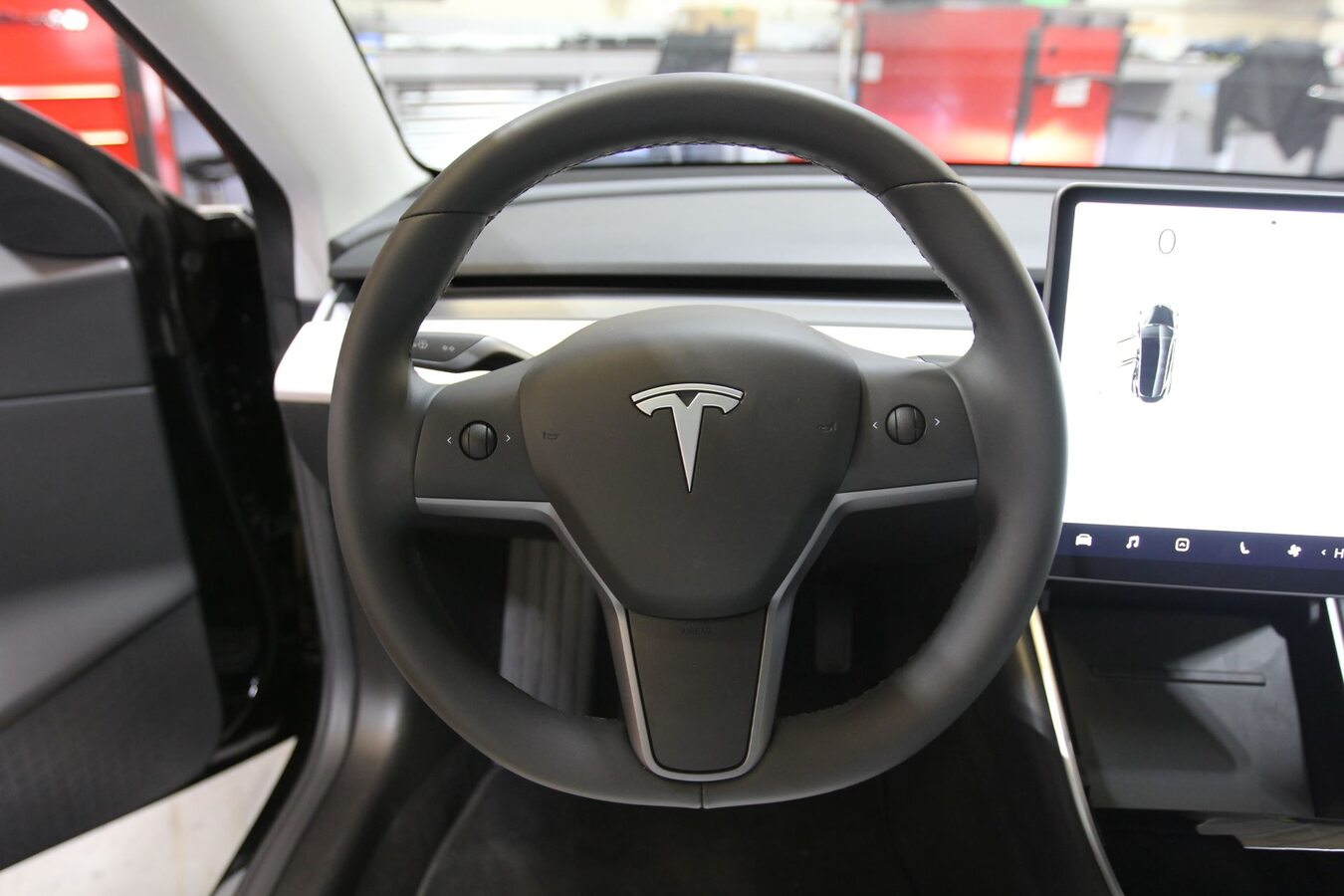

    2. Check the vehicle alignment.
      注
      Confirm steering wheel is straight and no vibrations or noises are felt or heard from the suspension. On a flat road, at 35 mph (56 kph), the vehicle should not pull in either direction.
