Tire Rotation (Mobile Only)

校正代码 34020105 FRT 0.48 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-08-27: Released new procedure.
注
本程序适用于配备非前后异宽轮毂和非定向型轮胎的车辆。如果需要换位的是前后异宽轮毂或定向型轮胎，请参阅以下操作指导：
  • 配备非定向型轮胎的前后异宽轮毂。举升车辆左前部和右前部，交换两个前轮胎，或者举升车辆的左后和右后部，交换两个后轮胎：
  • 配备定向型轮胎的非前后异宽轮毂。举升车辆左前部和左后部，交换两个左侧轮胎，或者举升车辆的右前和右后部，交换两个右侧轮胎。

Vehicle ride quality and handling are maximized when all 4 tires are the same age, model, and tread depth. Rotating tires regularly allows them to wear at the same rate and increases the service life. Tesla recommends tire rotation every 6,250 miles (10,000 km) or if tread depth difference is 2/32 in (1.5mm) or greater, whichever comes first.

注
Tesla recommends replacing tires in pairs unless the other tires are within 2/32 in (1.5 mm) of tread depth of the new tire.
注
If only 2 new tires are installed, the new tires must be installed on the rear of the vehicle. In wet conditions, the tires that have less tread have less traction than the new tires. Reduced traction at the front of the vehicle leads to understeer, which most drivers are better able to react to than the oversteer that would result if the worn tires were on the rear of the vehicle.
注
Tesla recommends replacing a tire if any of the tread depths are 4/32 in (3 mm) or less.
注
Model Y is pictured, but this procedure can be performed on .

程序

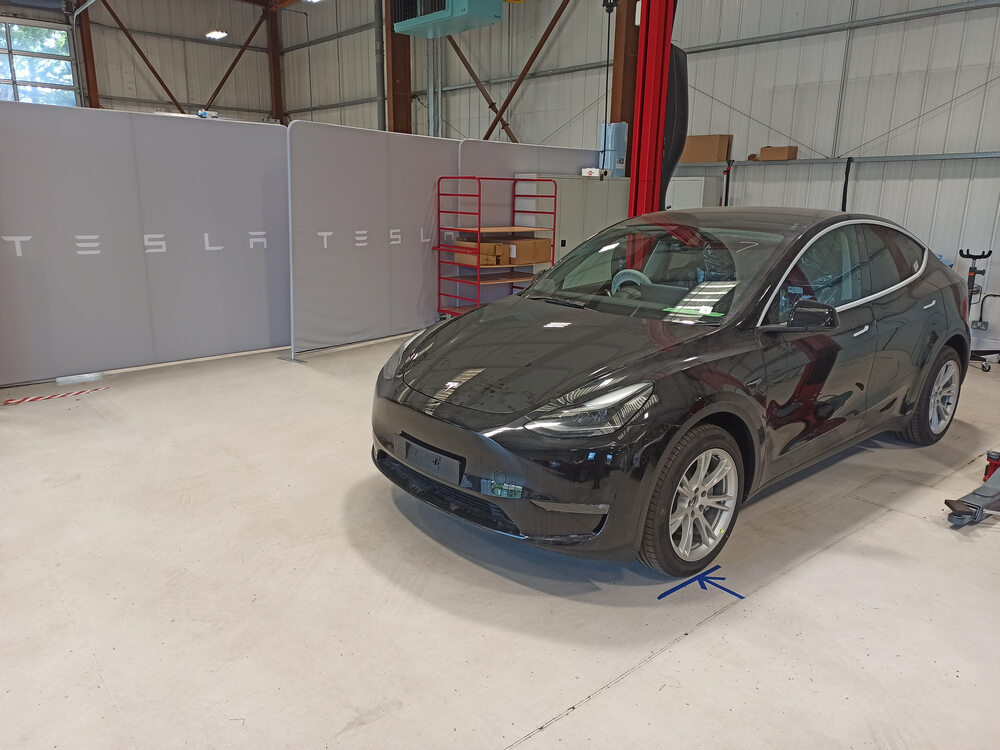

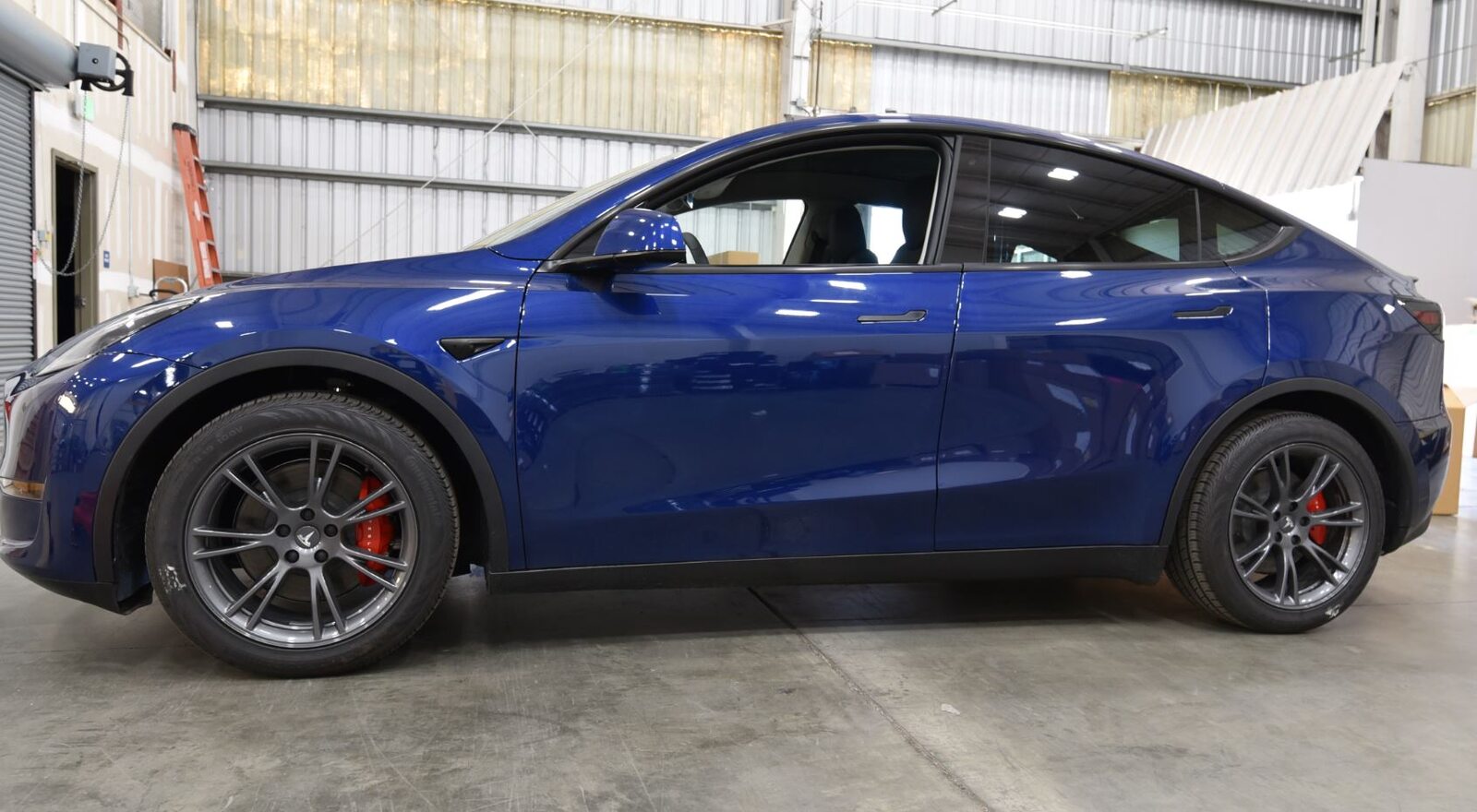

  1. Ensure the vehicle is parked on a level surface.

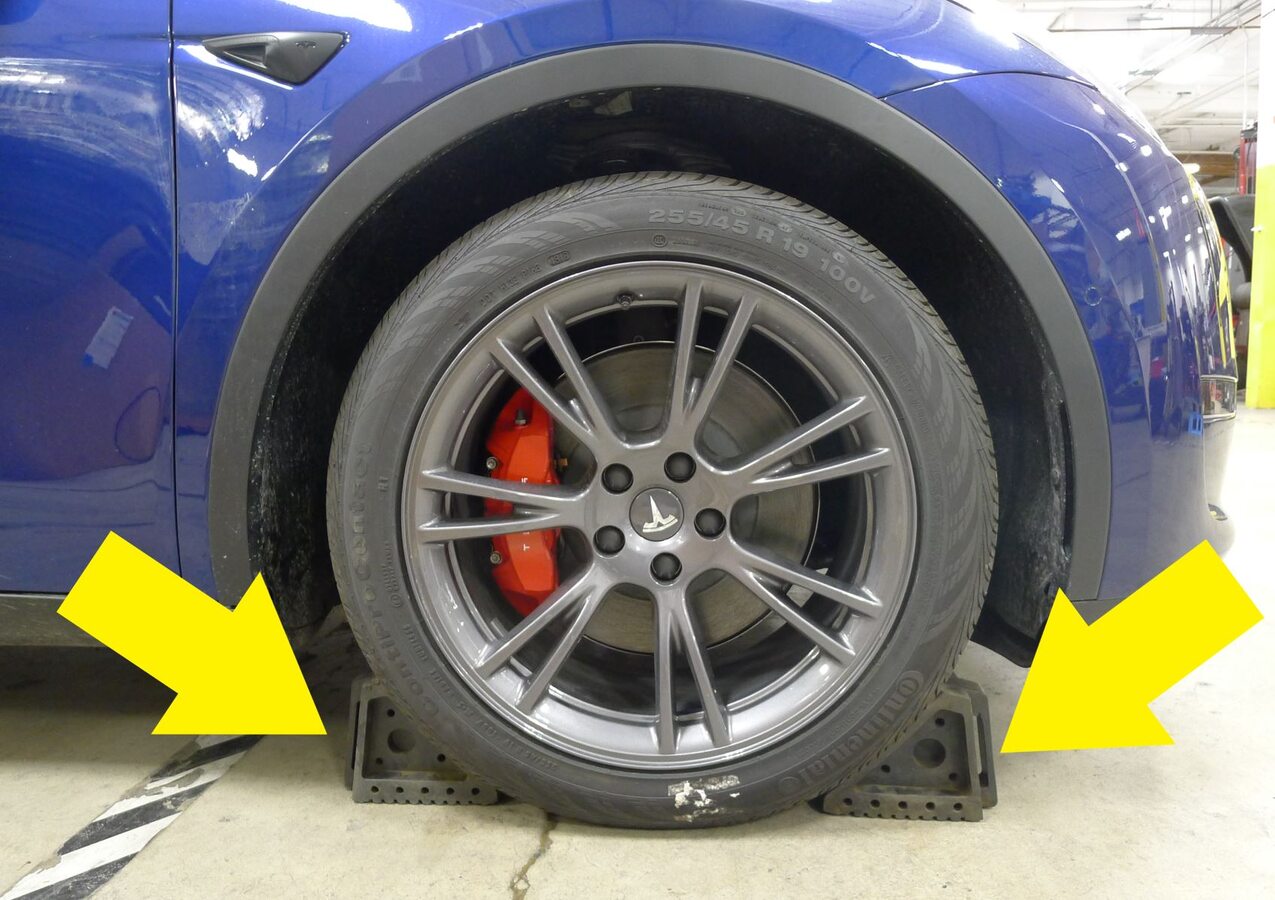

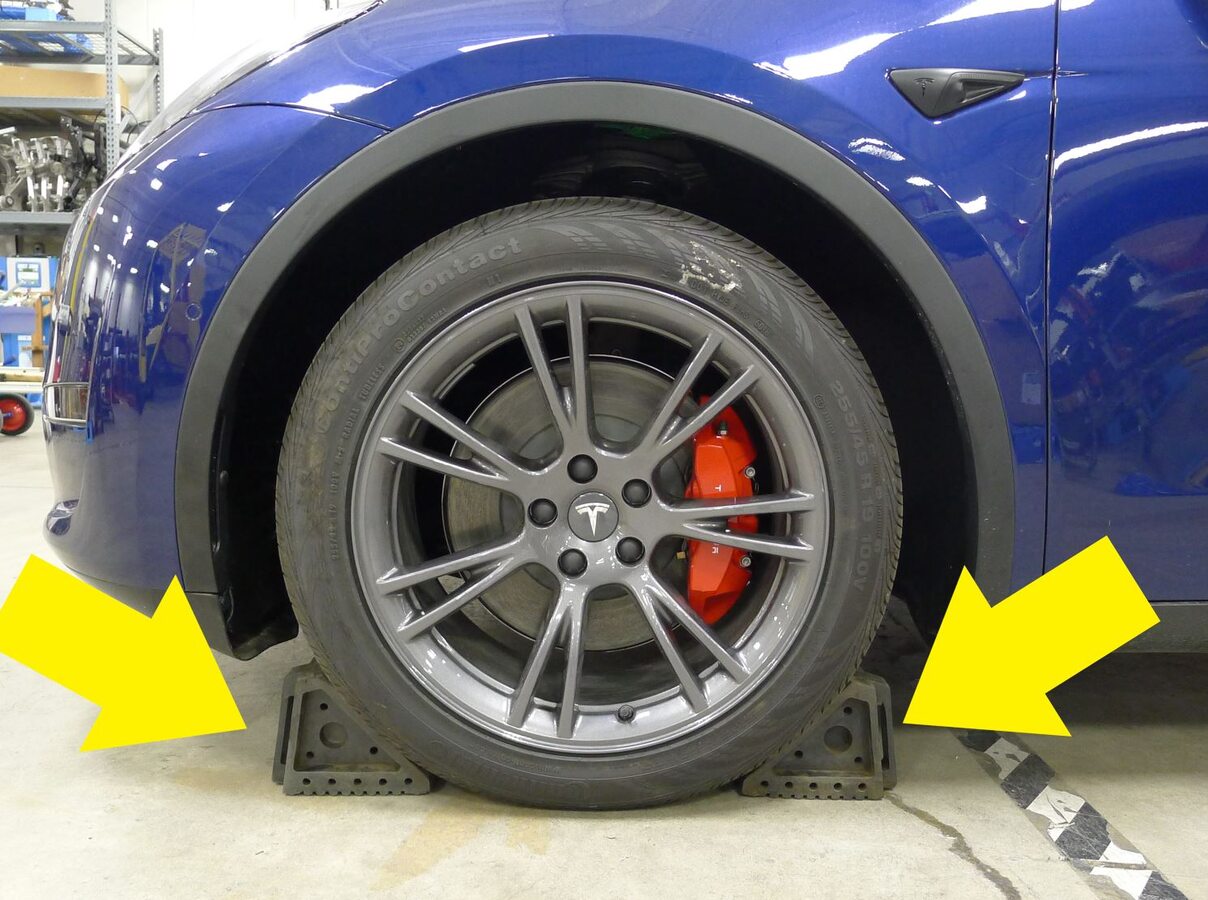

  2. Install wheel chocks on the RH front wheel.

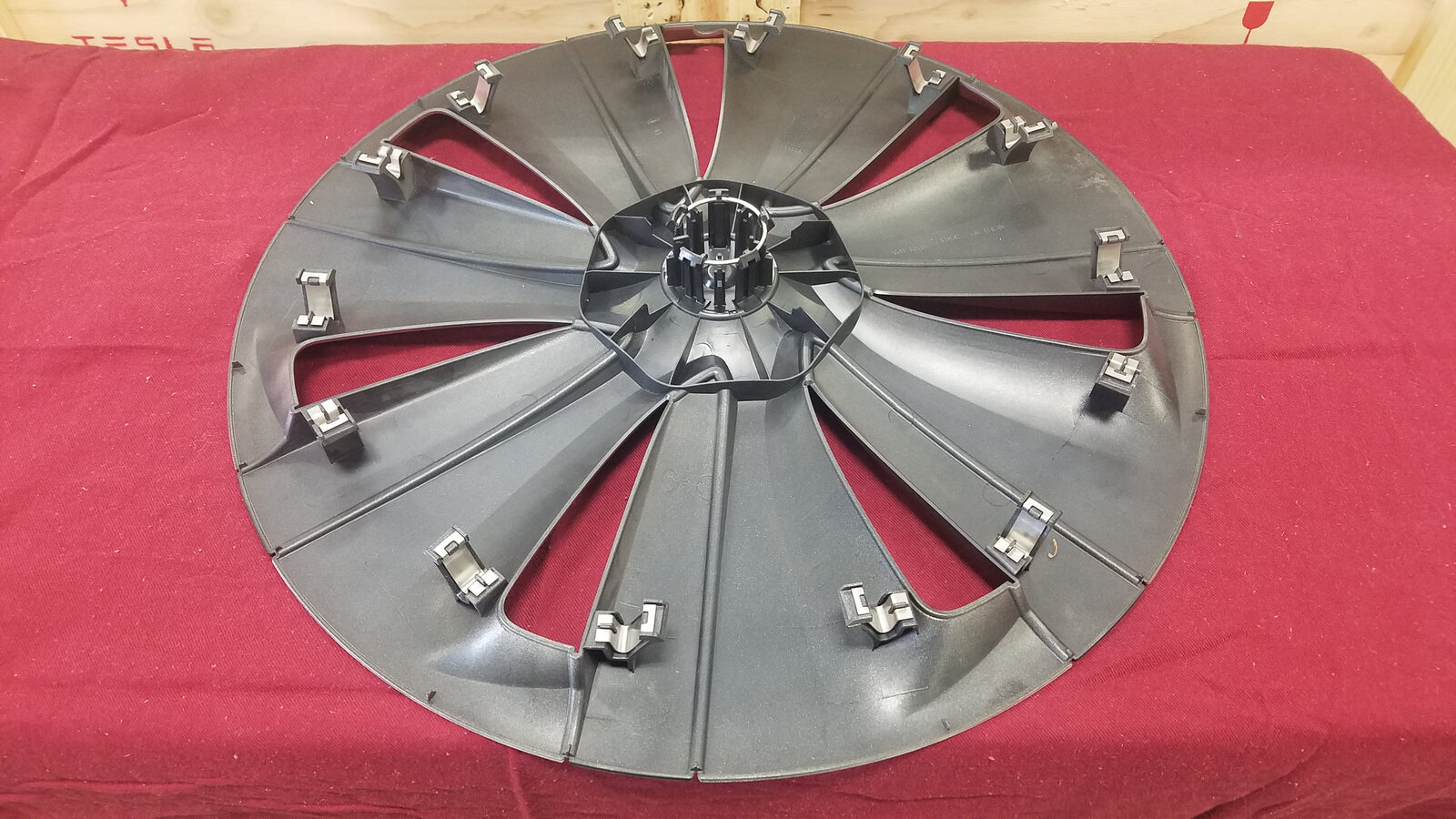

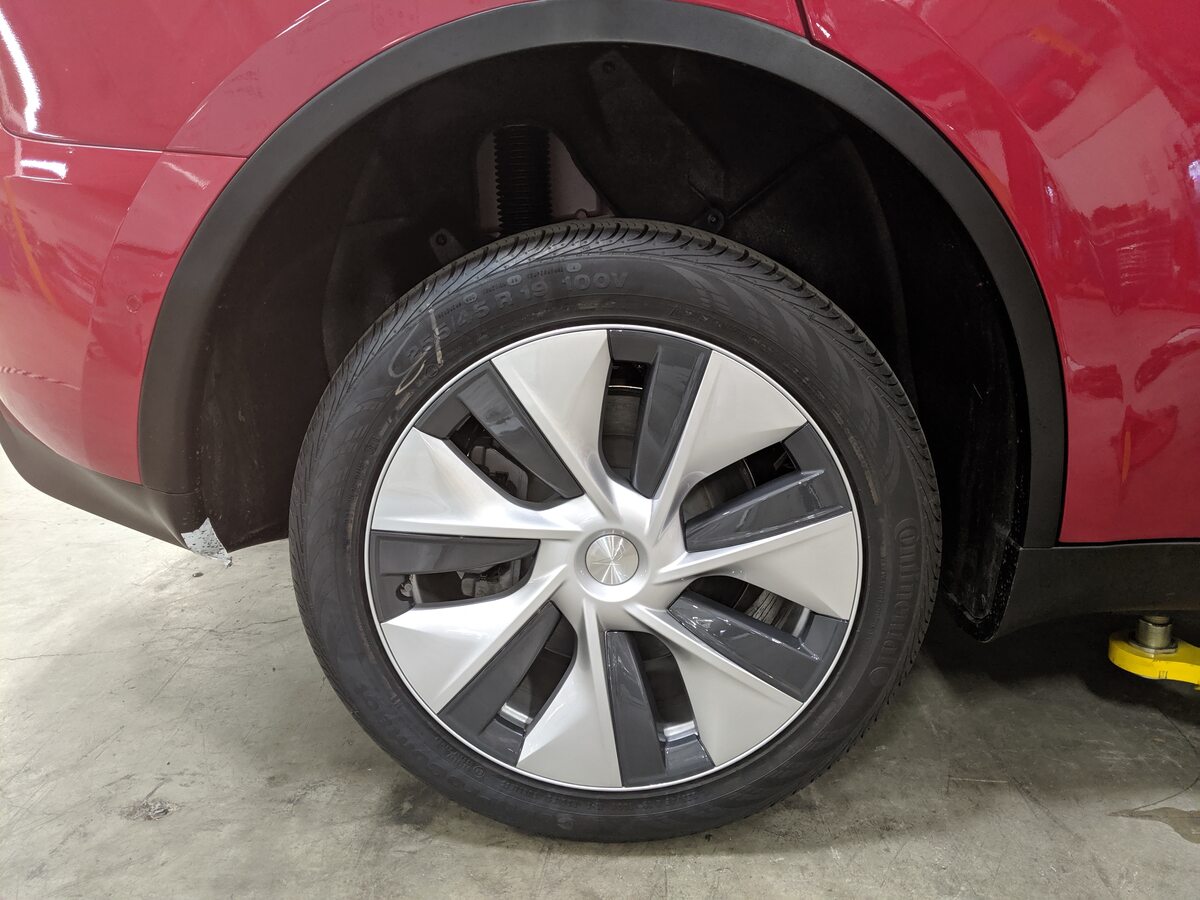

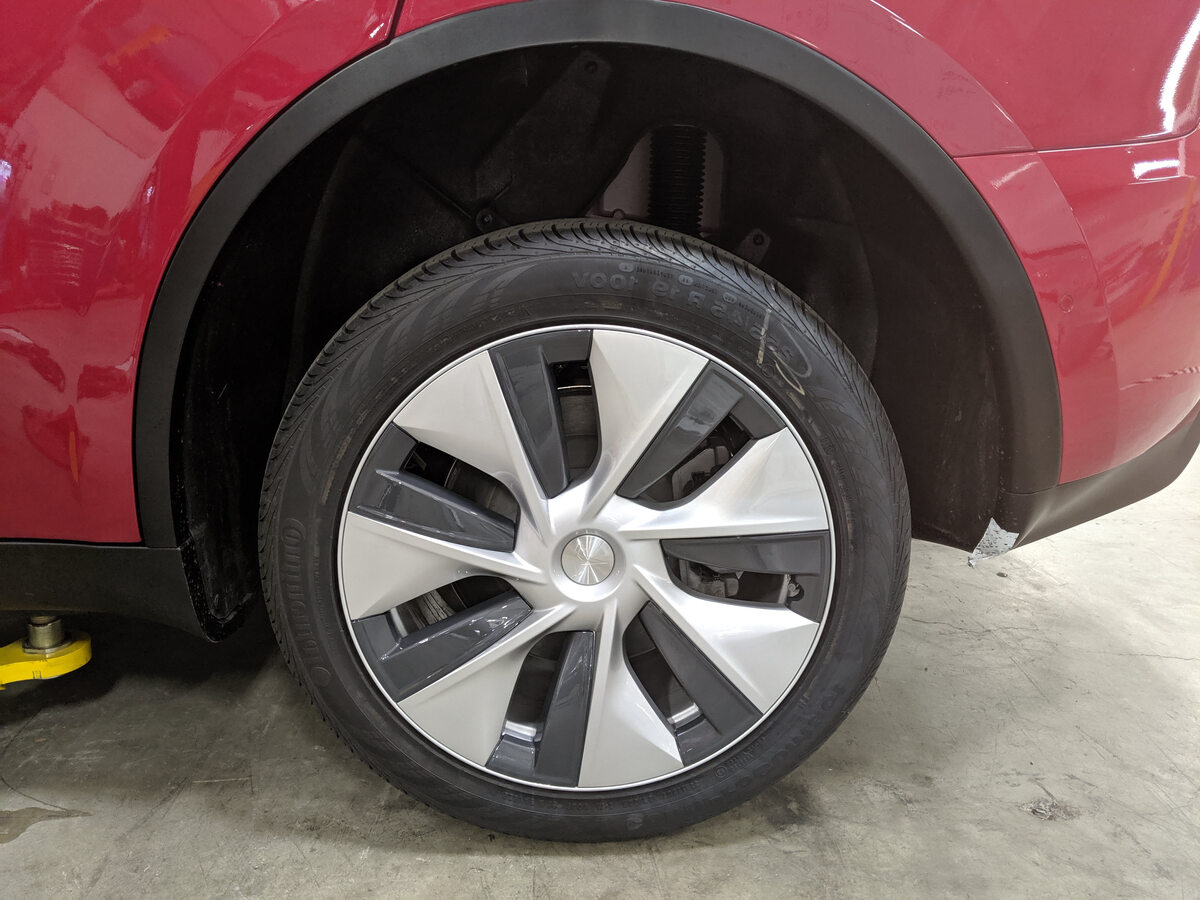

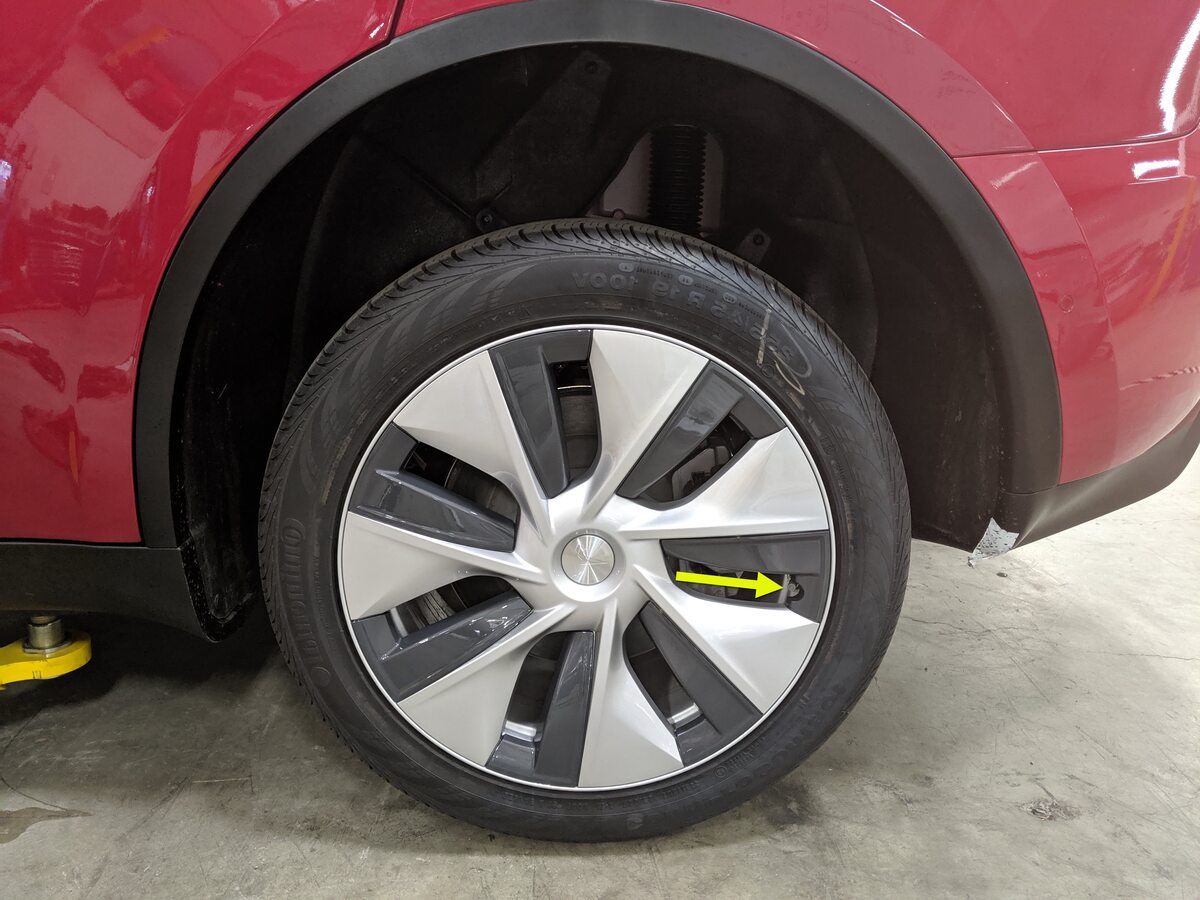

  3. Remove the LH rear wheel cap, if equipped. See 盖 - 车轮（拆卸和更换）.

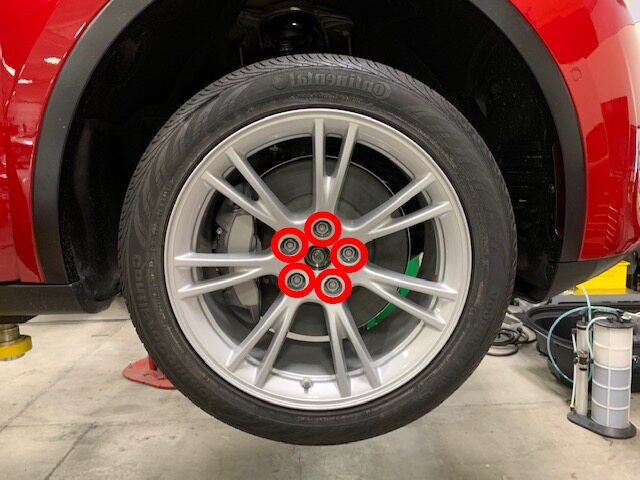

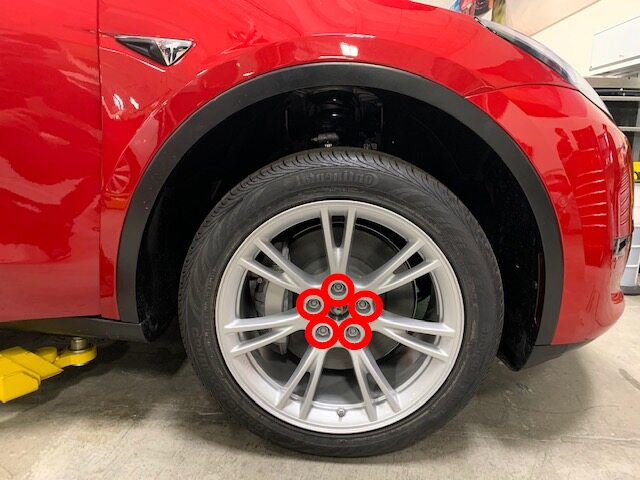

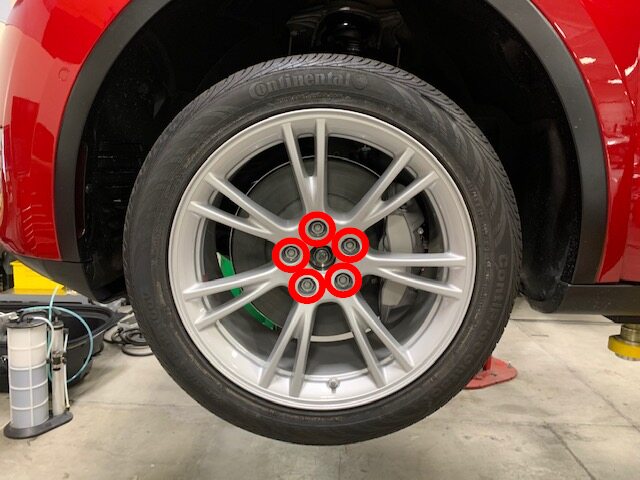

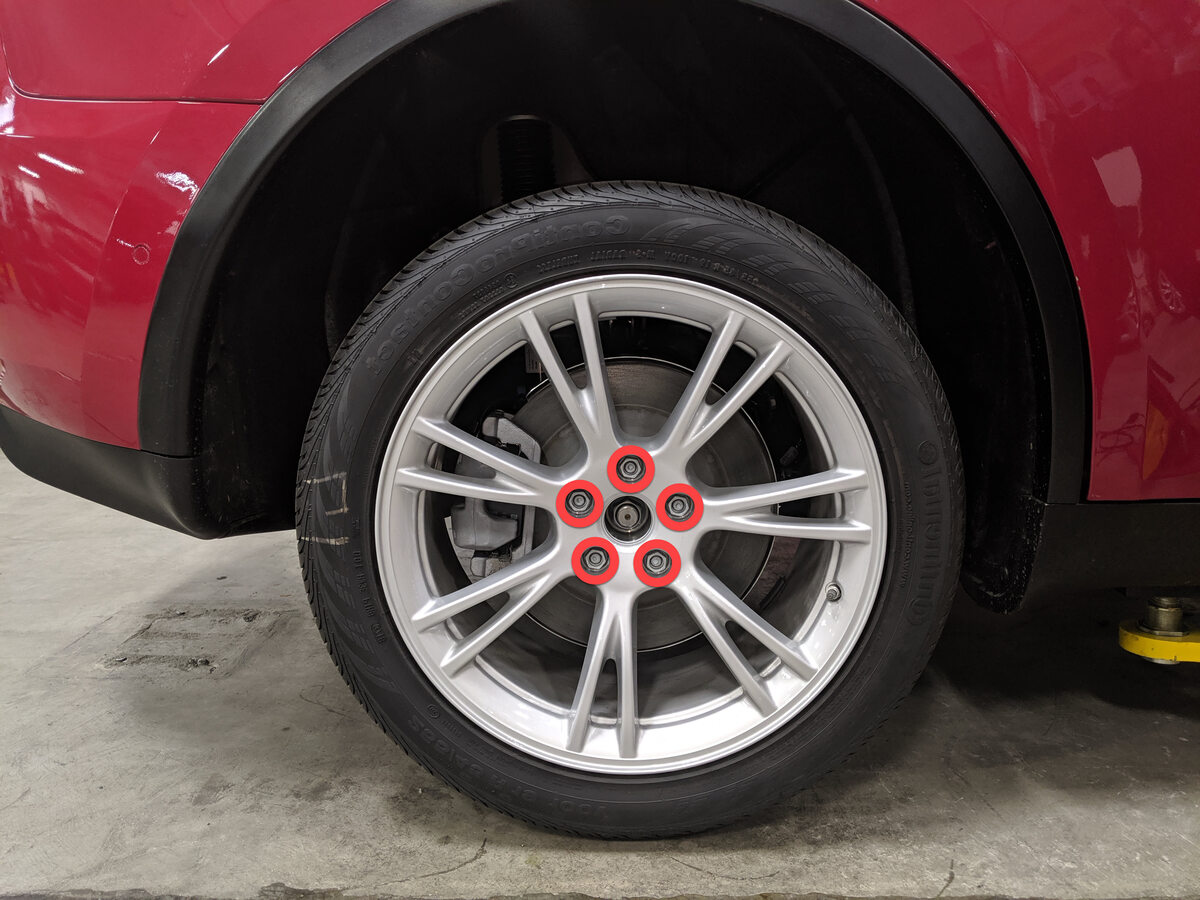

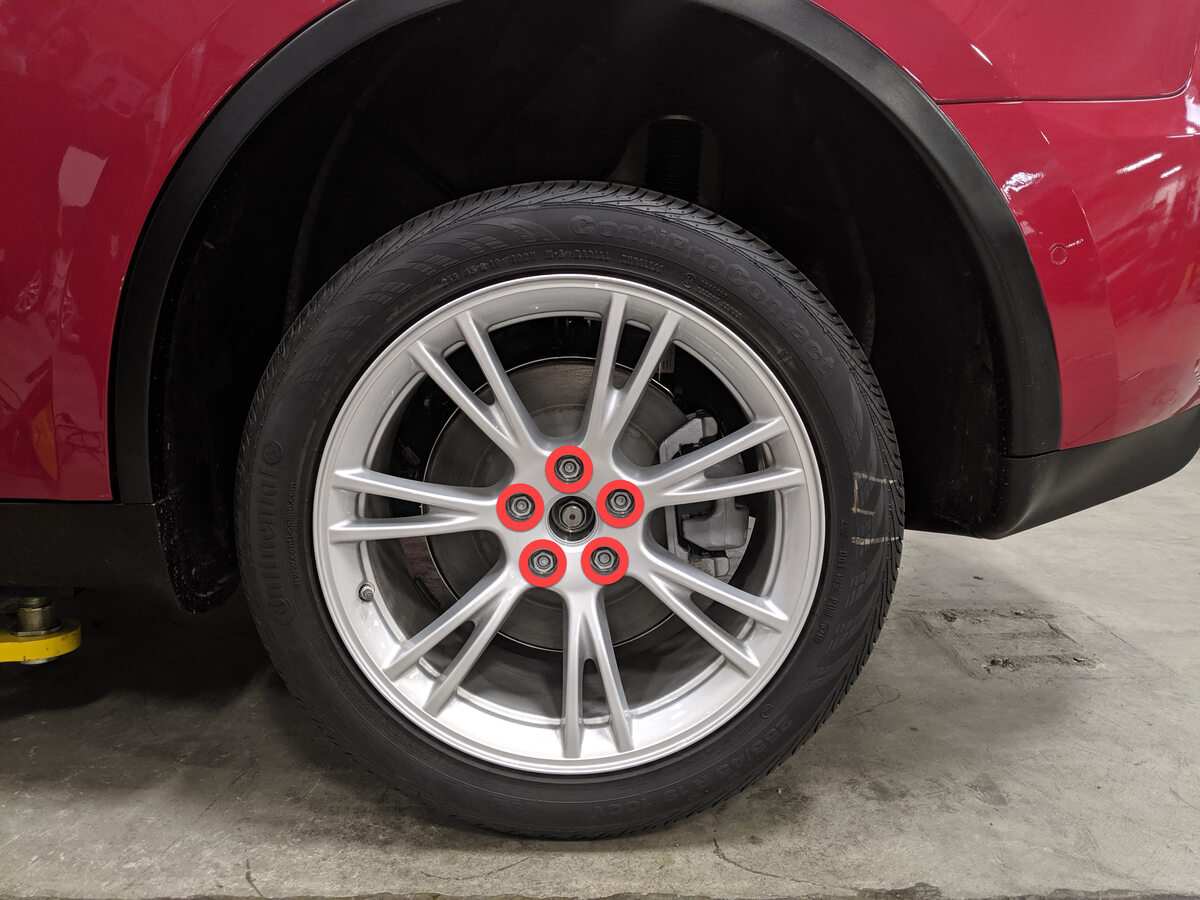

  4. Loosen LH rear wheel lug nuts (x5)
    注
    5x nuts, 21mm, 175 Nm
    警告
    Use only hand tools to break the lug nuts loose. Power tools should only be used to remove the lug nuts after they have been loosened.

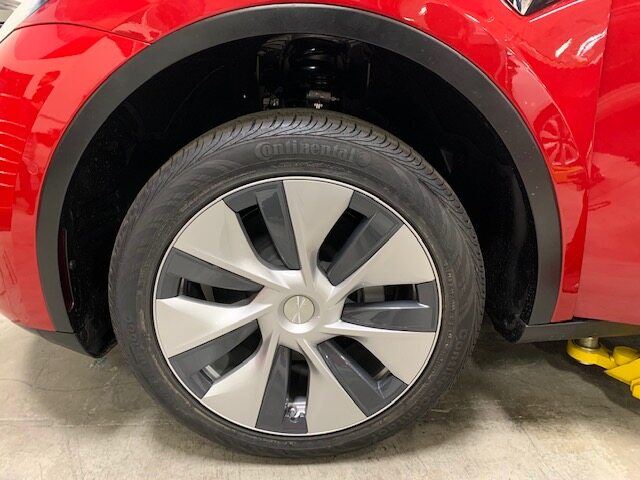

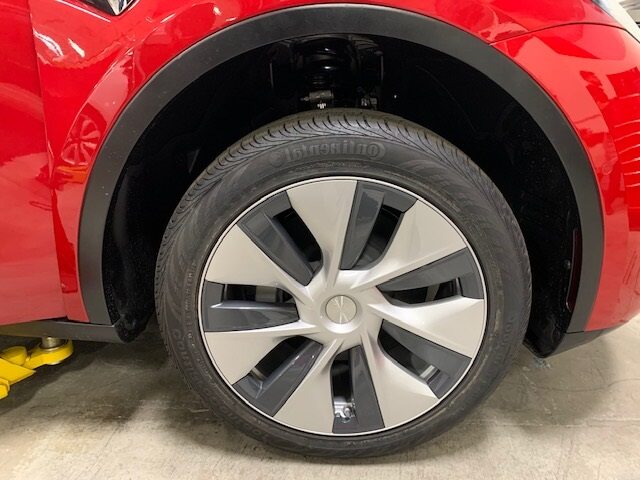

  5. Remove the LH front wheel cap. See 盖 - 车轮（拆卸和更换）.

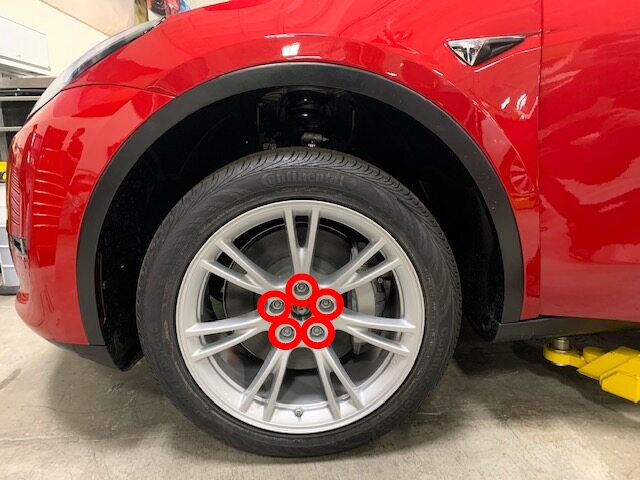

  6. Loosen LH front wheel lug nuts (x5).
    注
    5x nuts, 21mm, 175 Nm
    警告
    Use only hand tools to break the lug nuts loose. Power tools should only be used to remove the lug nuts after they have been loosened.

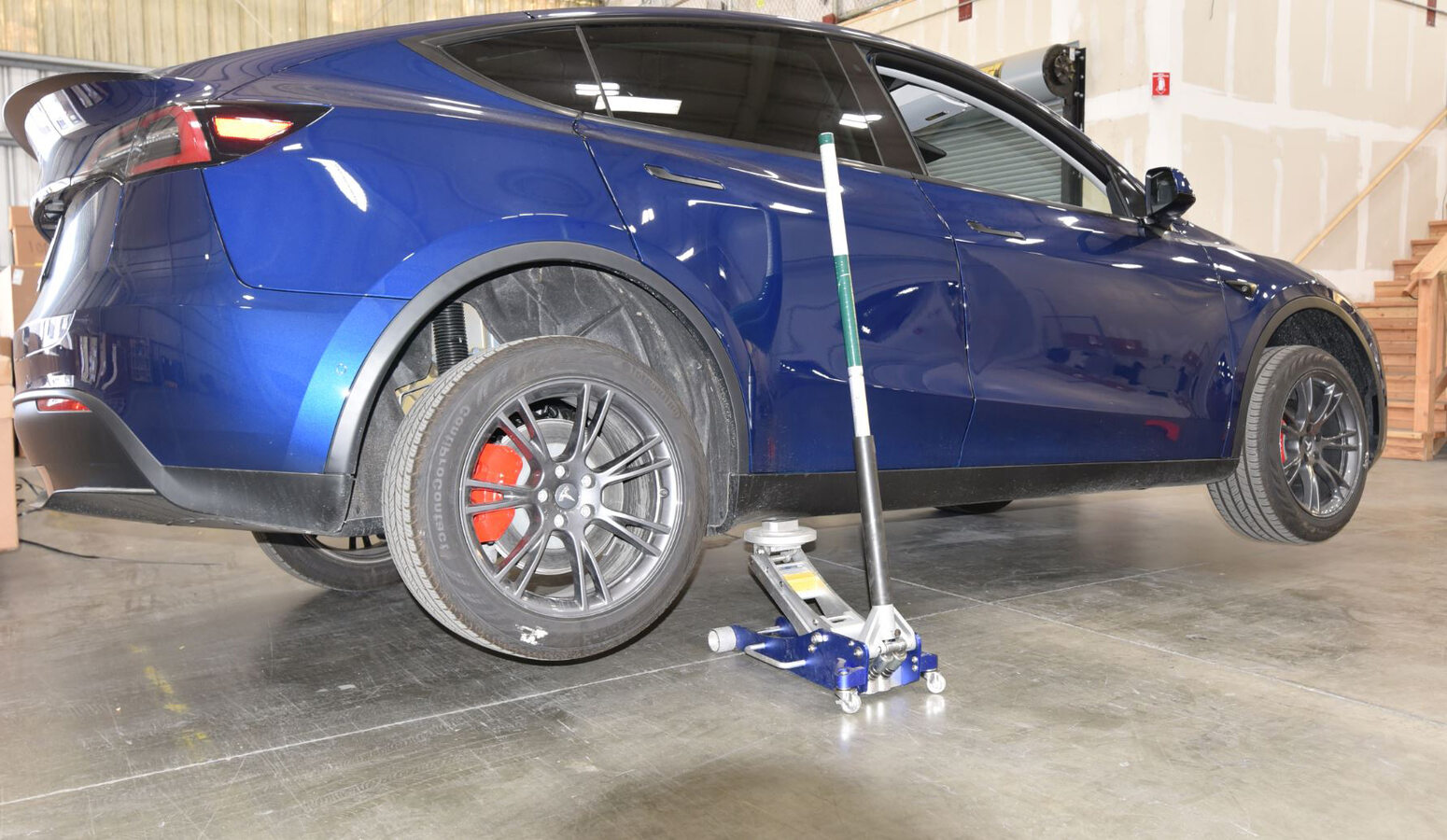

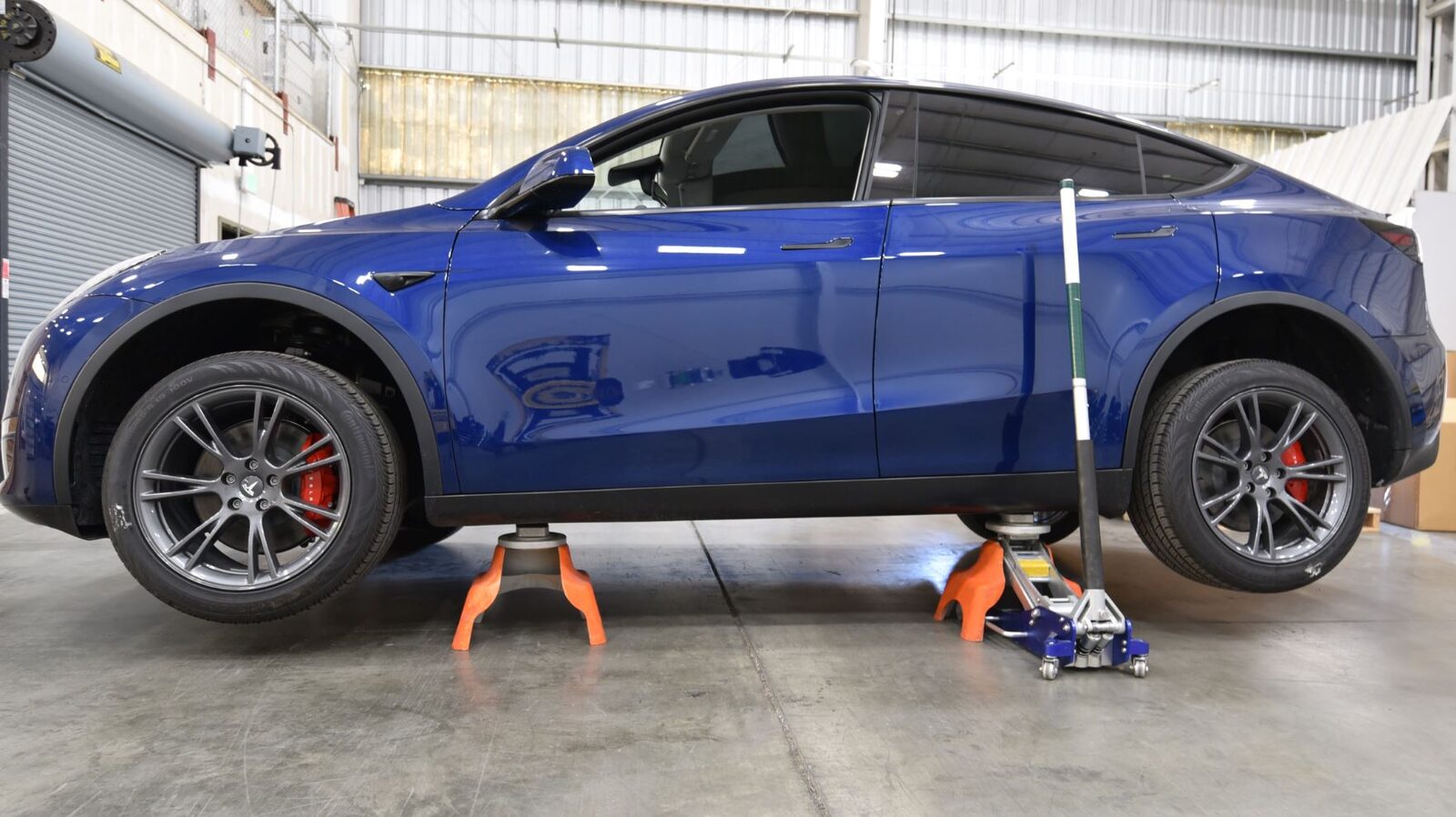

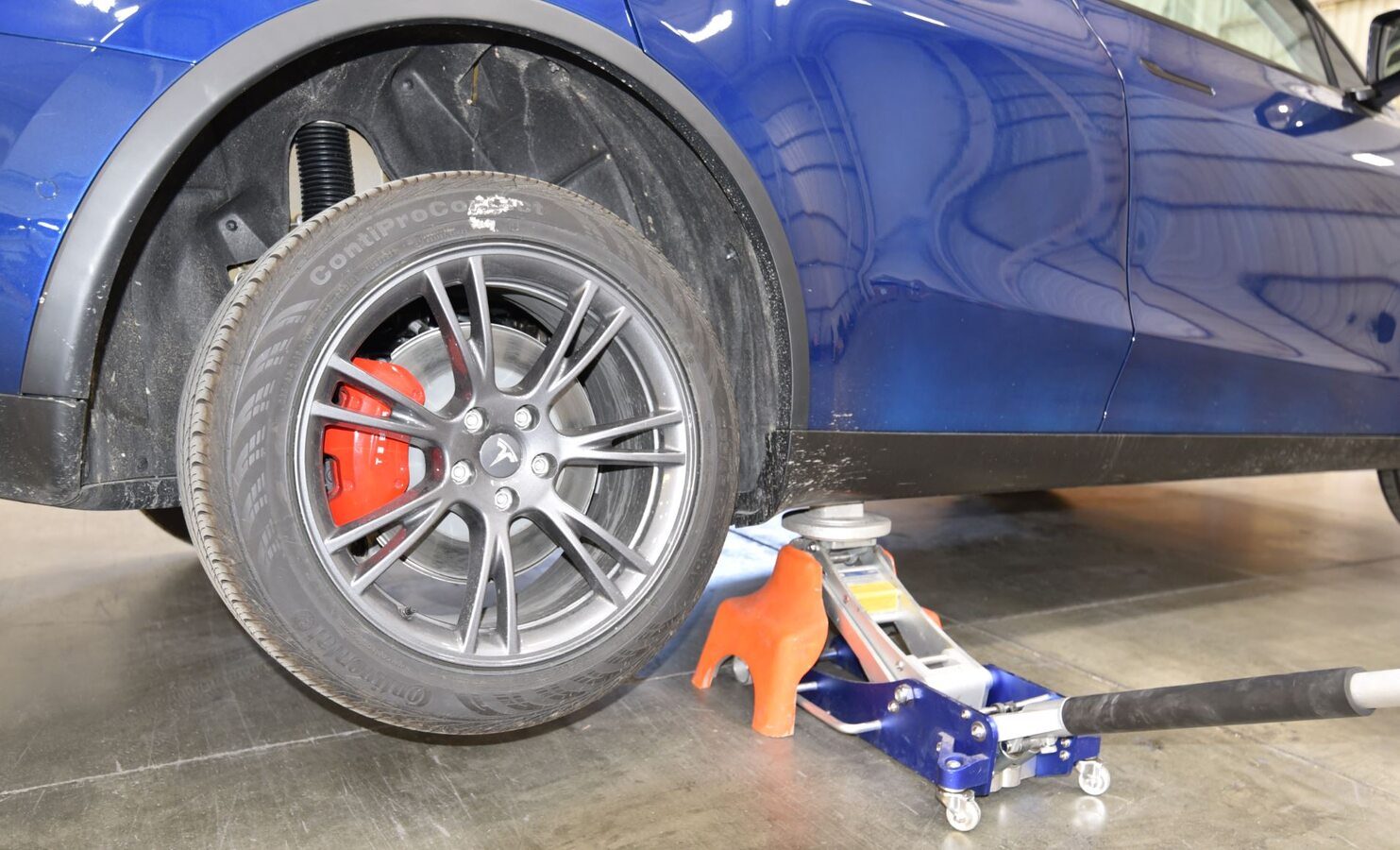

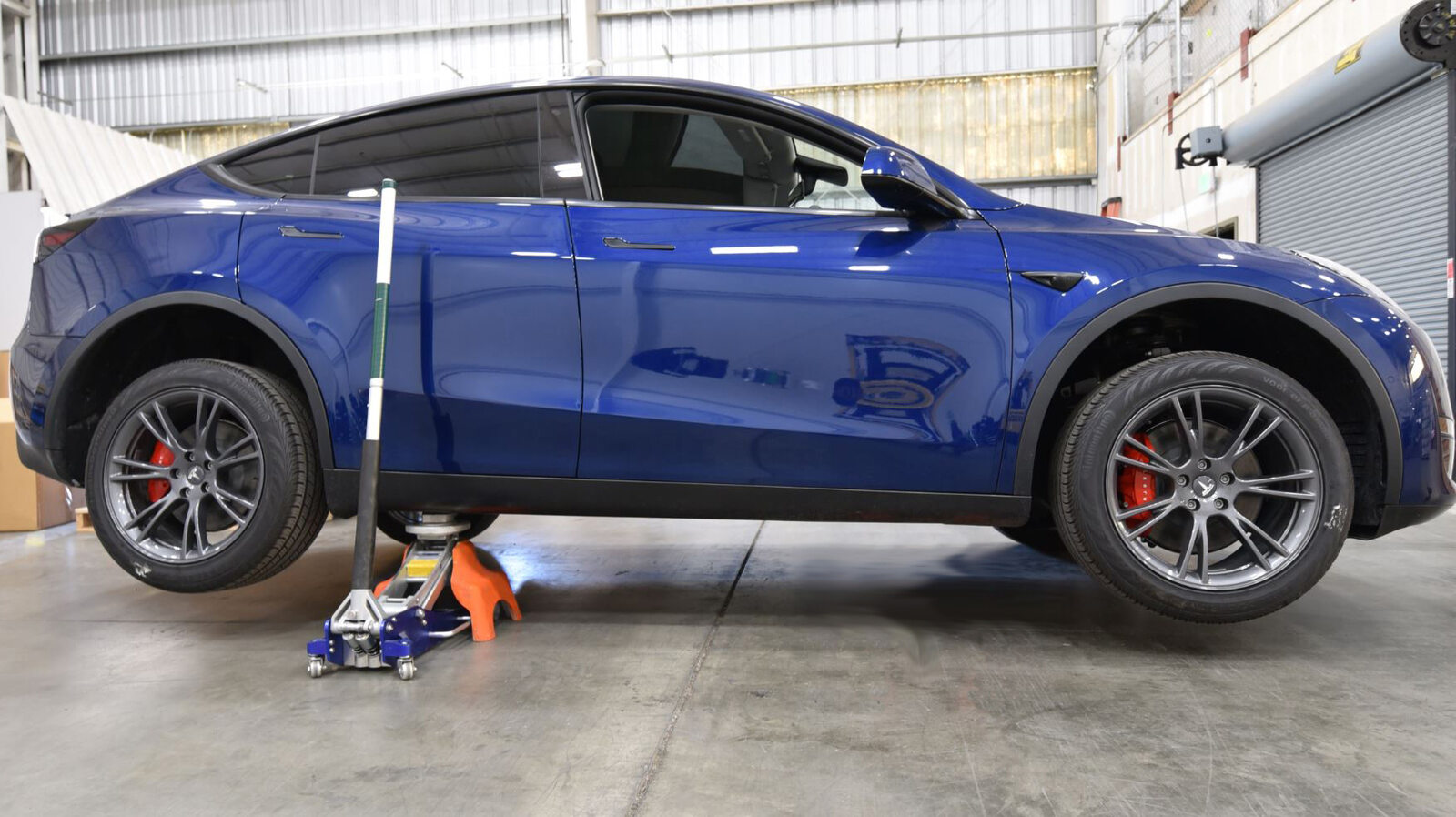

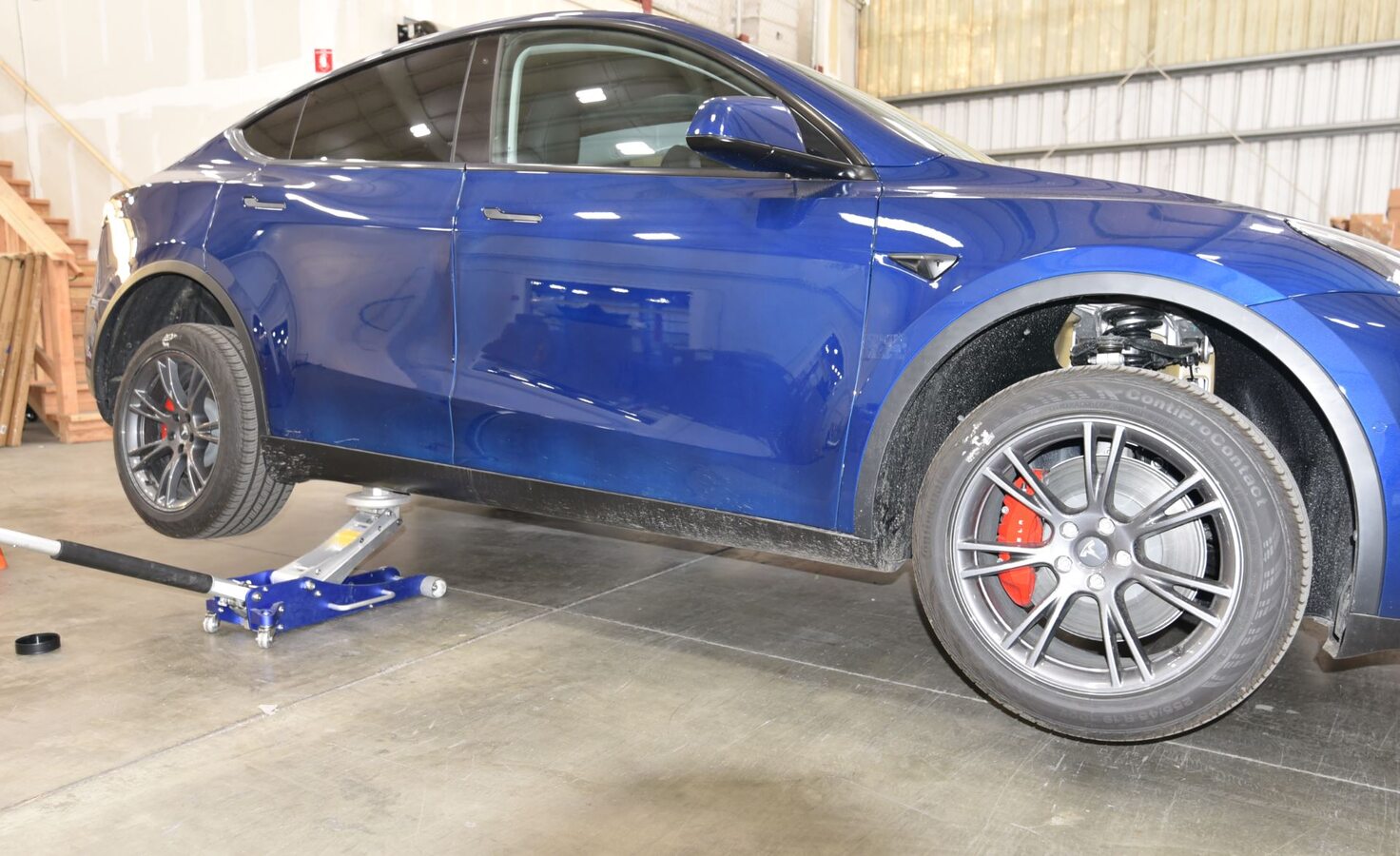

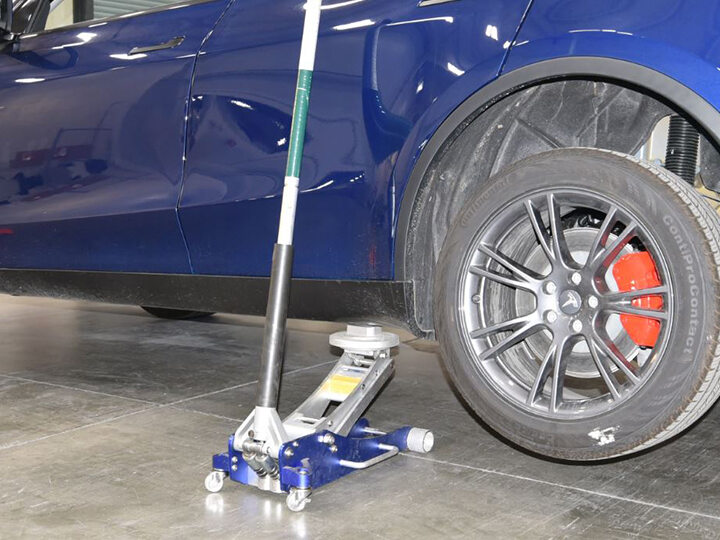

  7. Jack up the LH rear of the vehicle.
    注

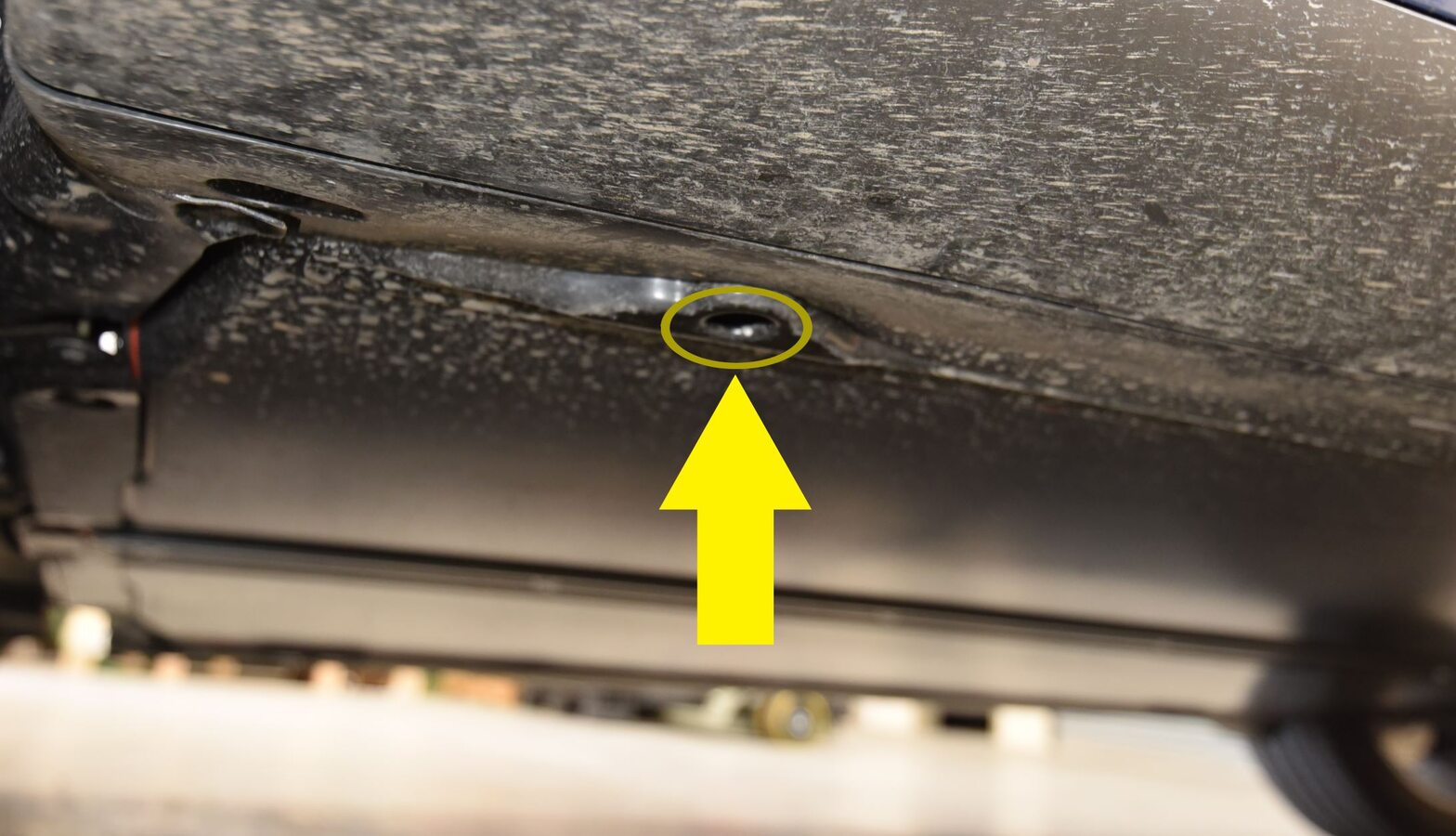

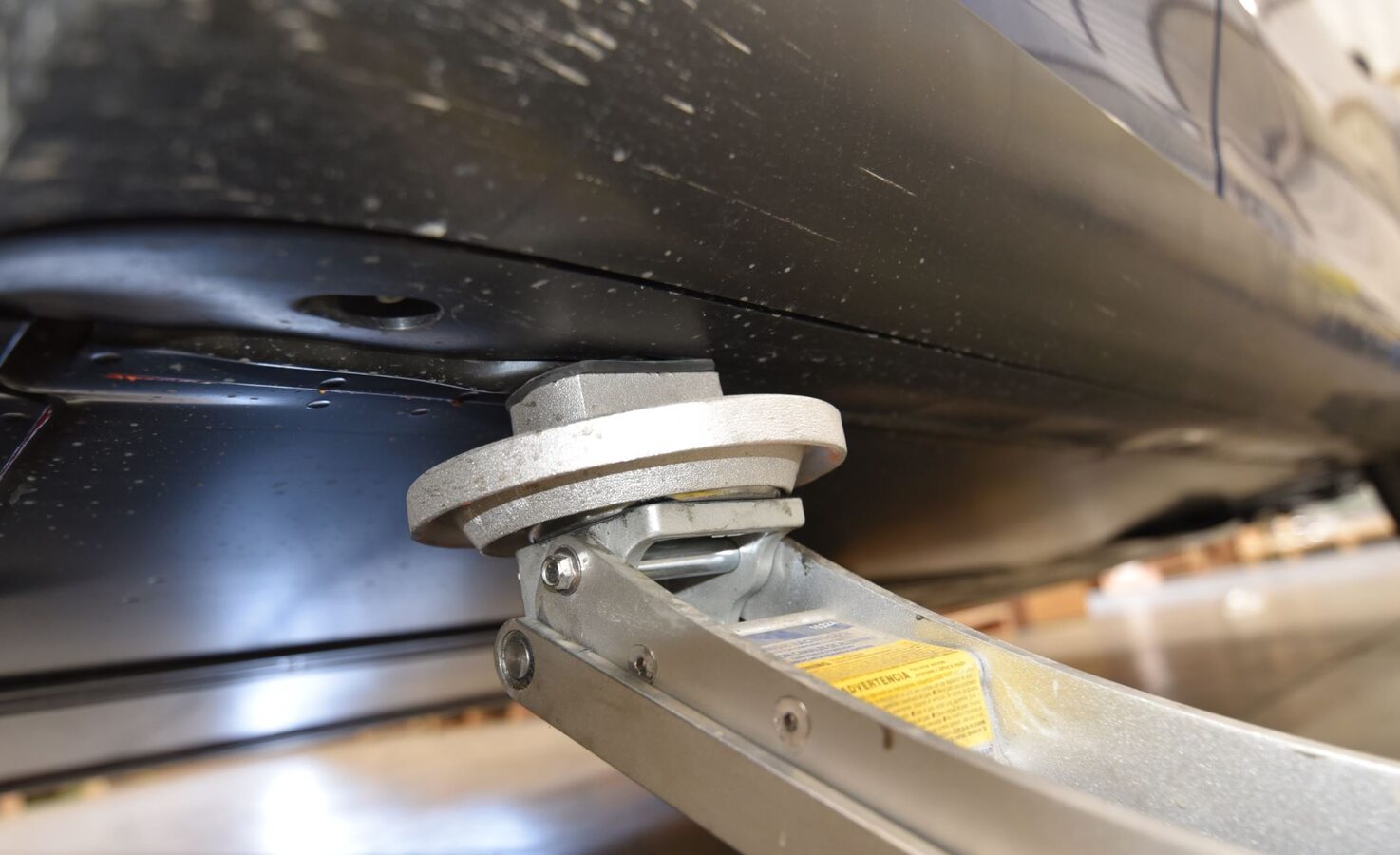

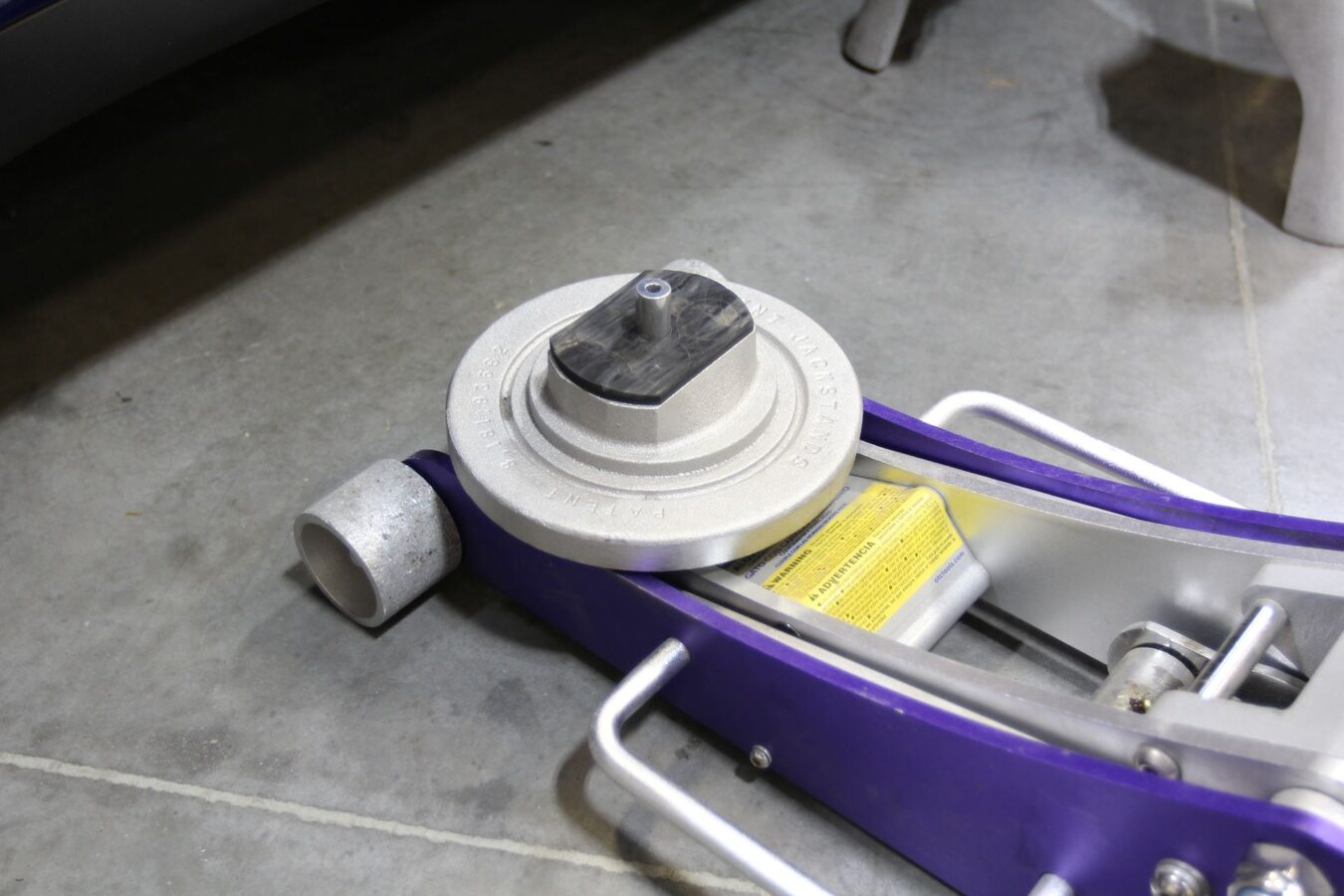

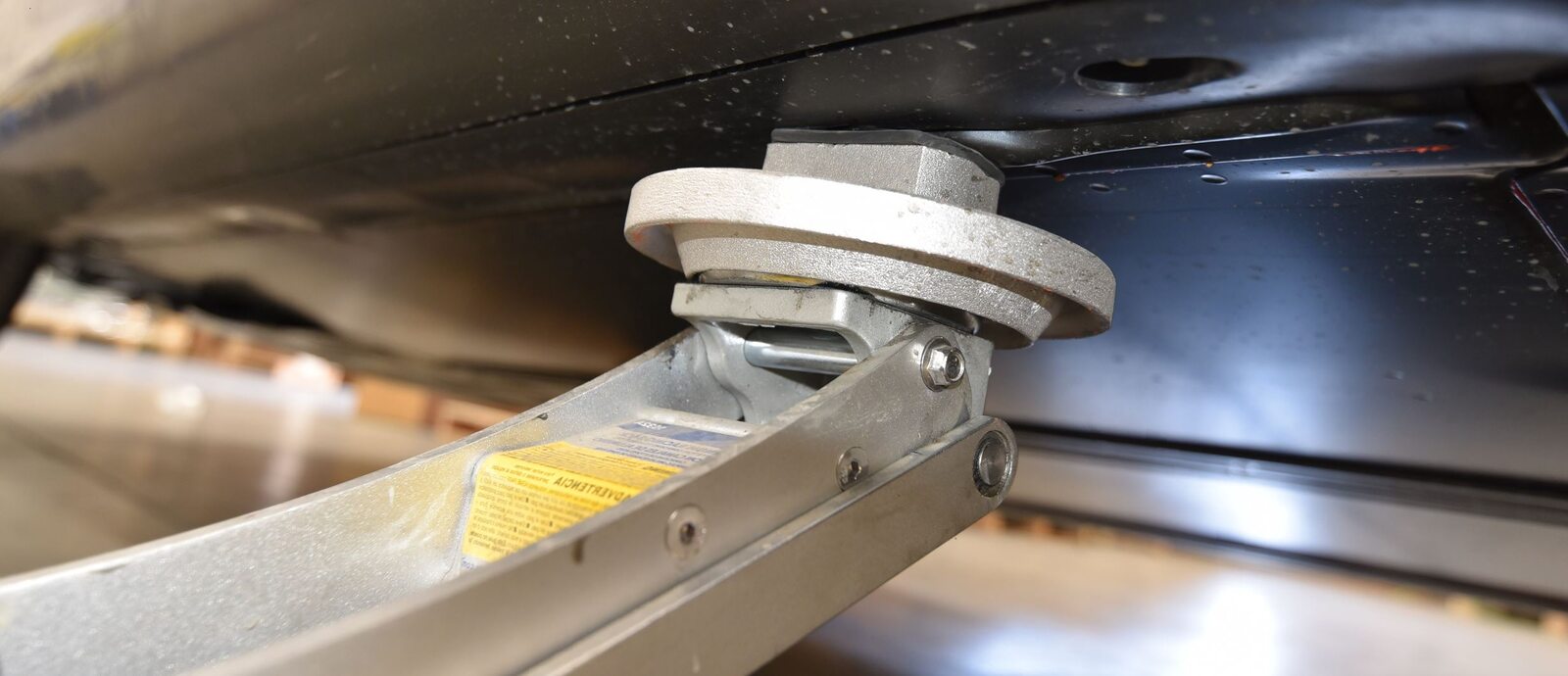

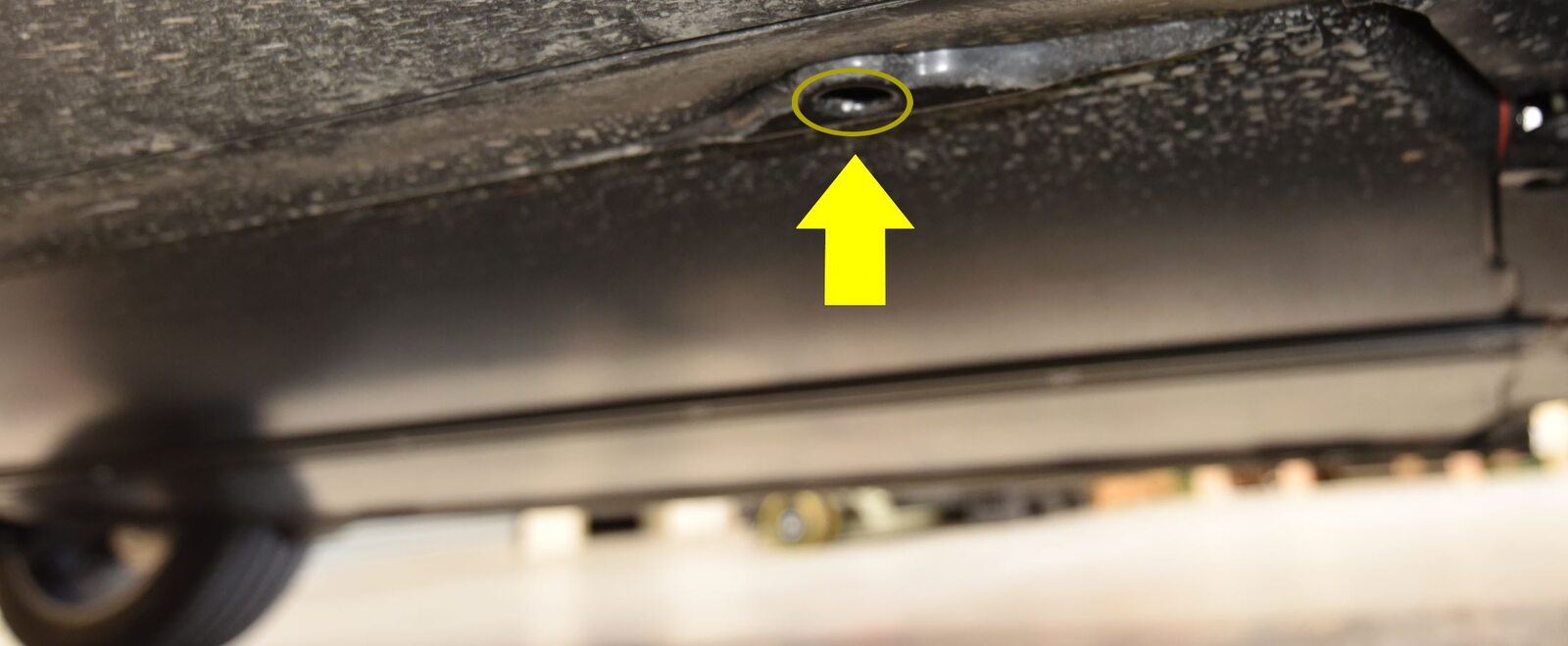

    Position the jack stand adapter onto the floor jack, position the floor jack under the vehicle lift point, and then carefully raise the floor jack, aligning the jack stand adapter locating pin with the hole at the vehicle lift point.
    注

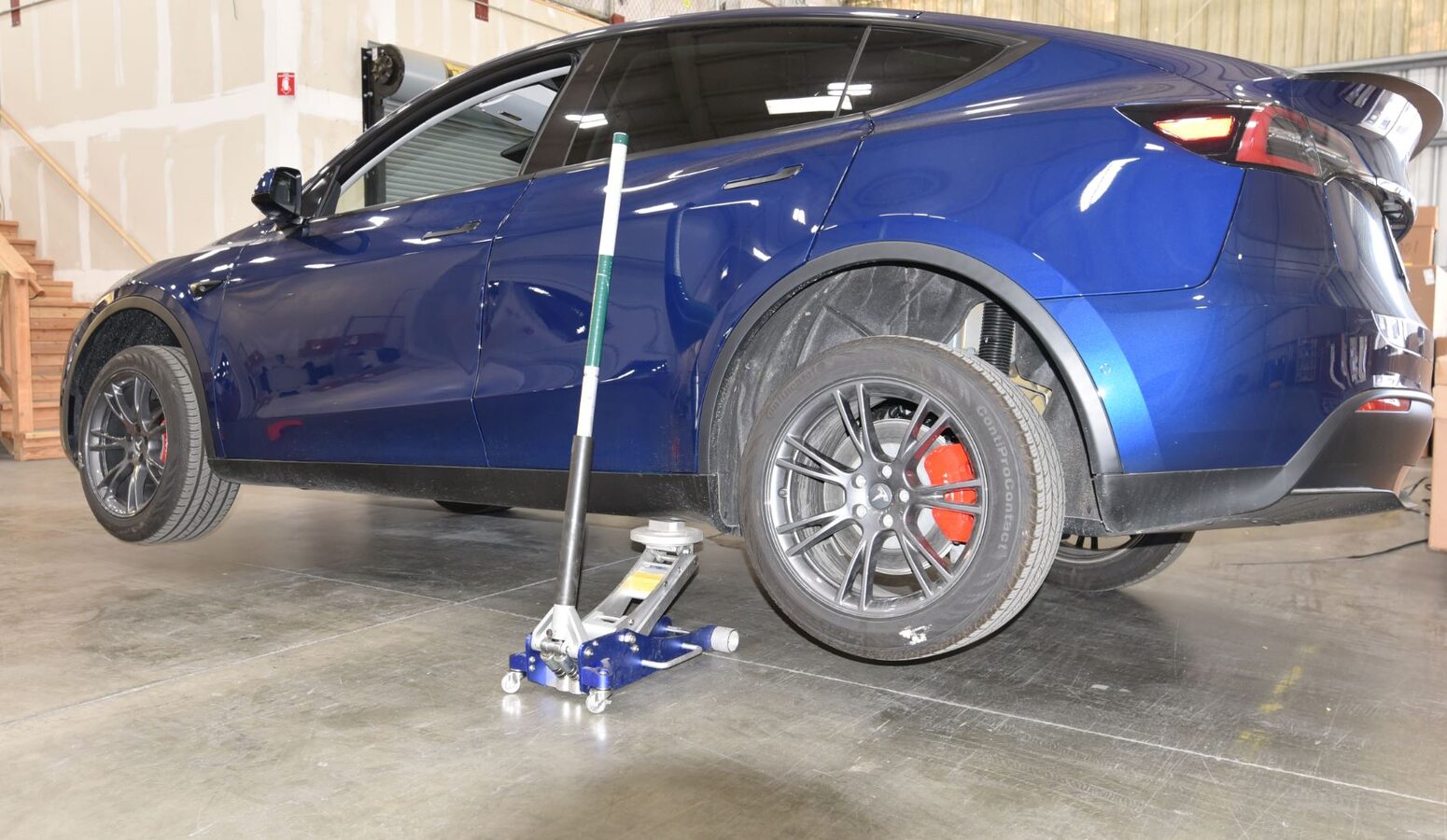

    Raise the vehicle until the LH front wheel is off the ground.

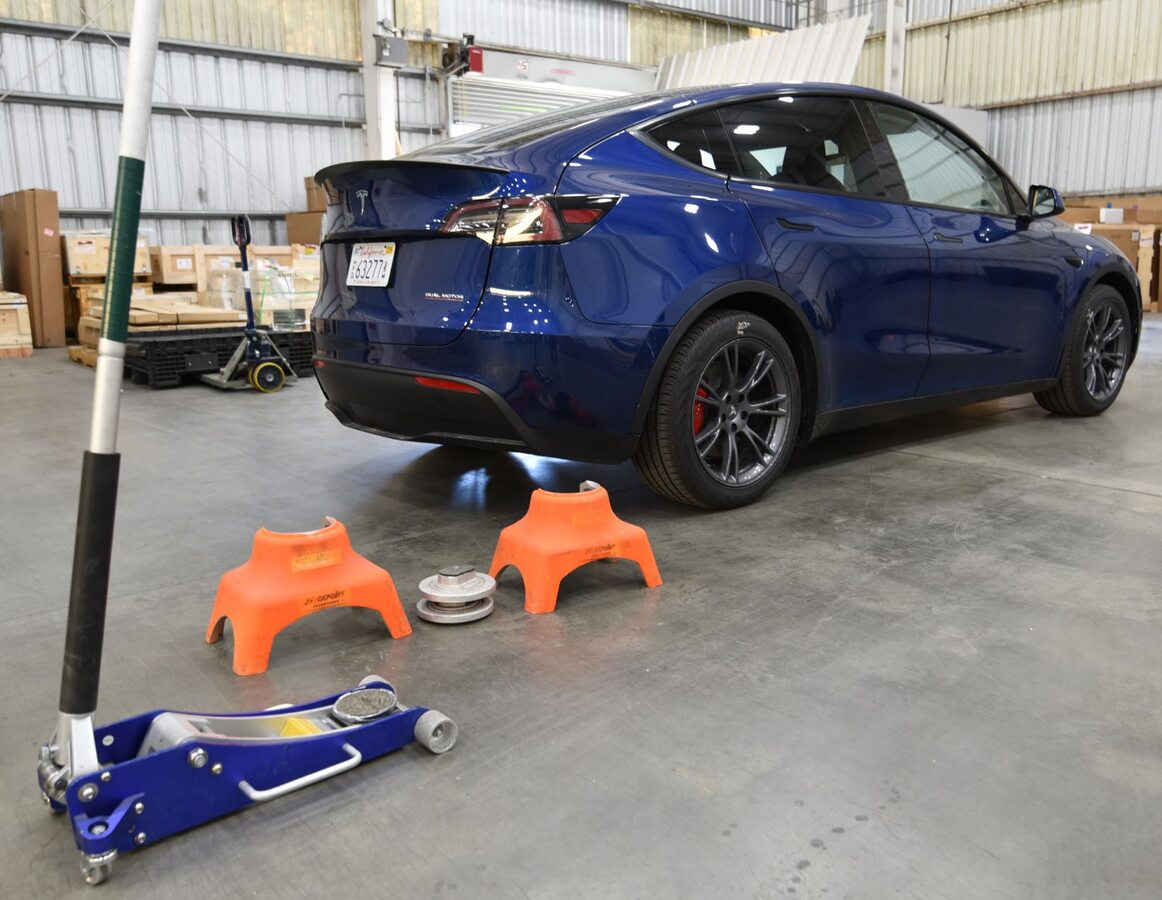

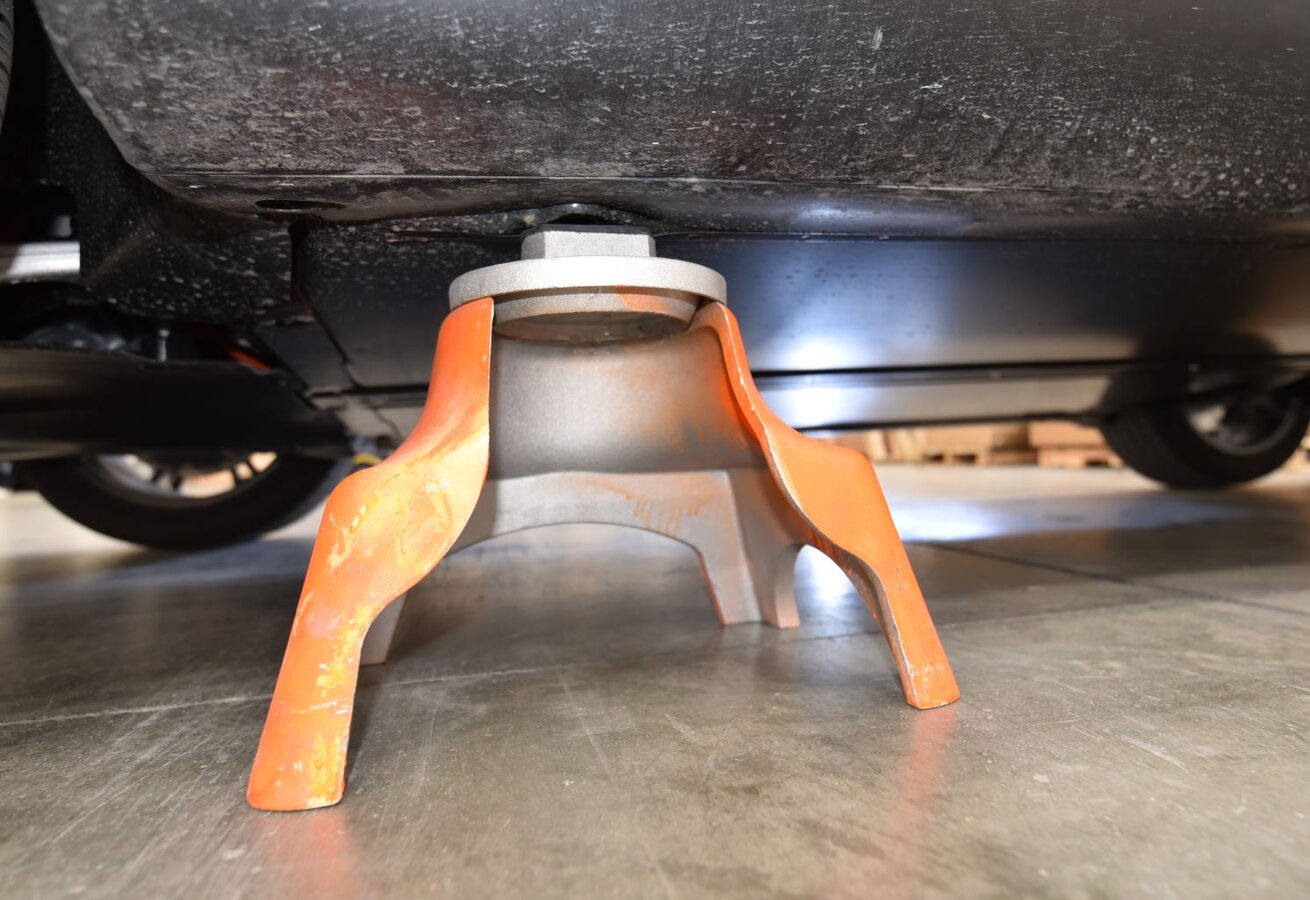

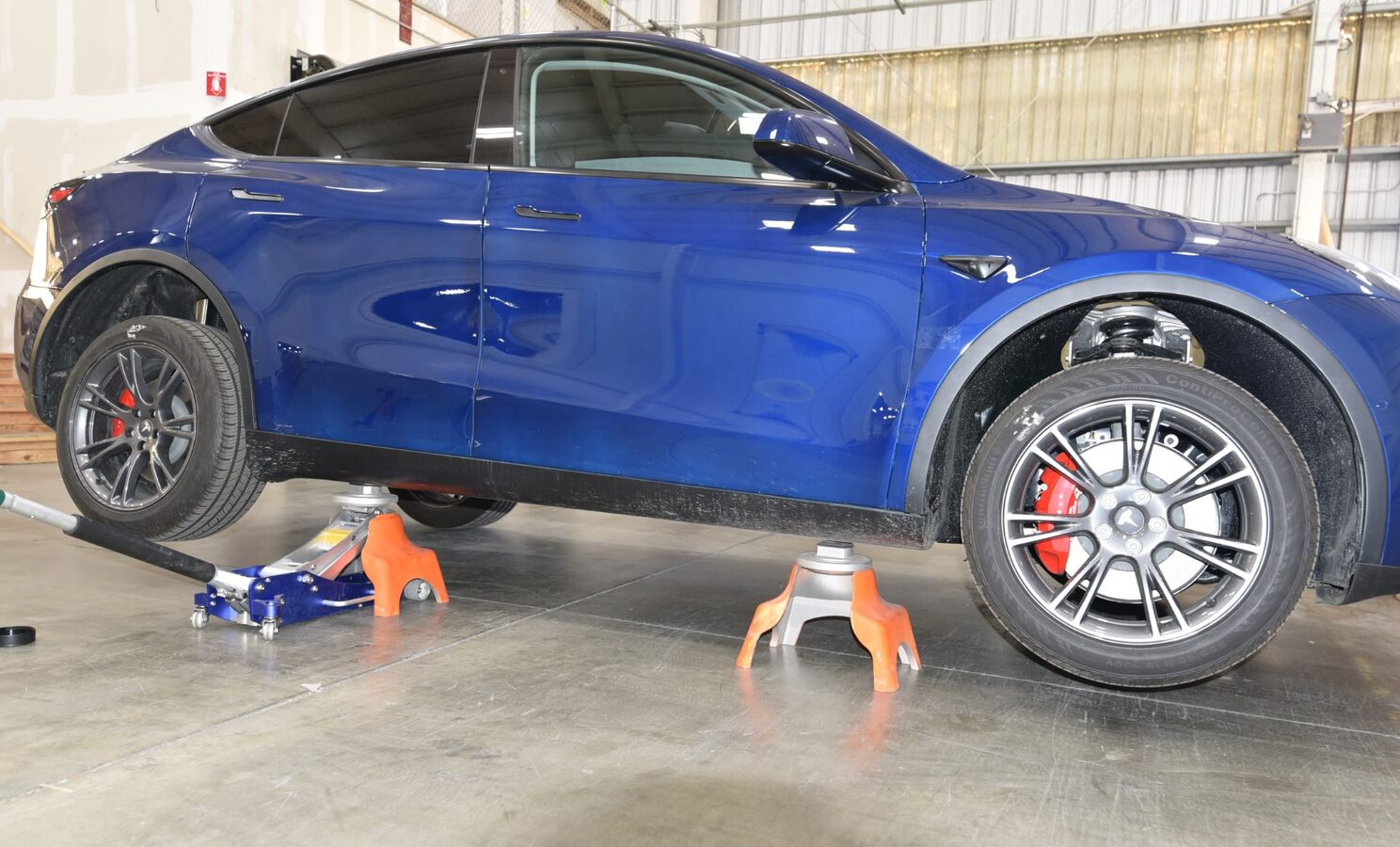

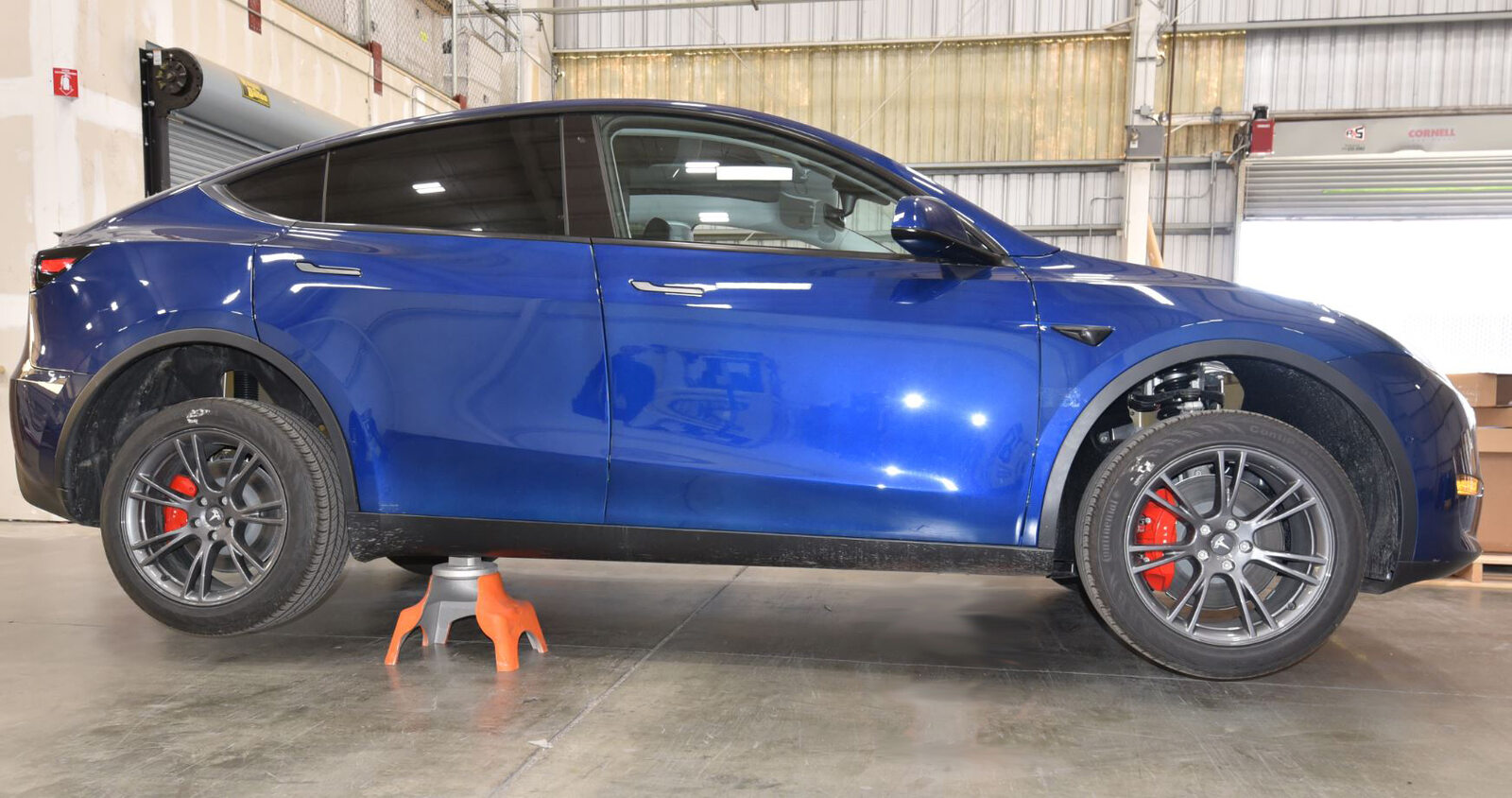

  8. Position jack stands underneath the LH front and LH rear of the vehicle.
    警告
    如果使用了电动千斤顶或气动千斤顶，举升车辆前请远离车辆，以免受伤。
    注

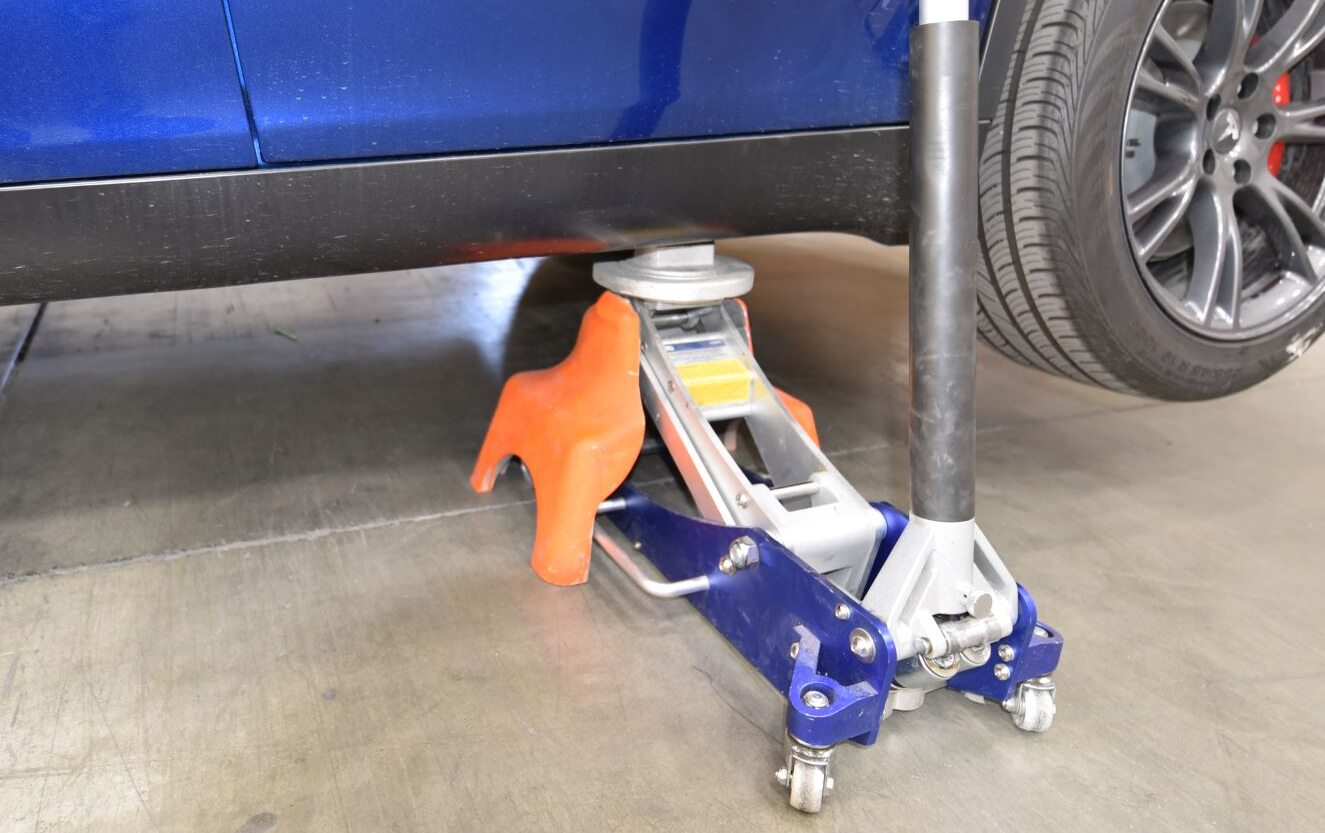

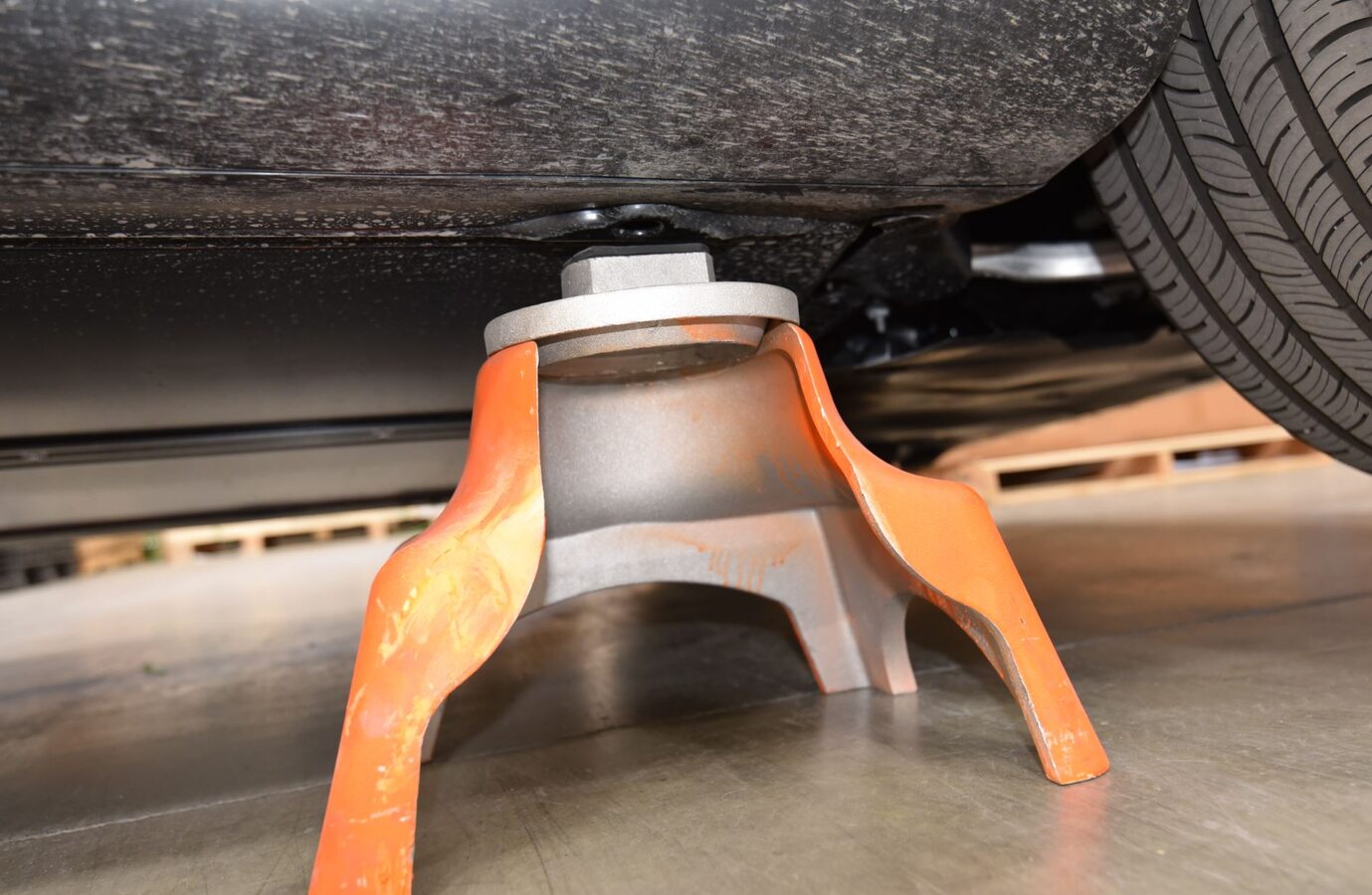

    Align the jack stand cutout with the floor jack.
    注

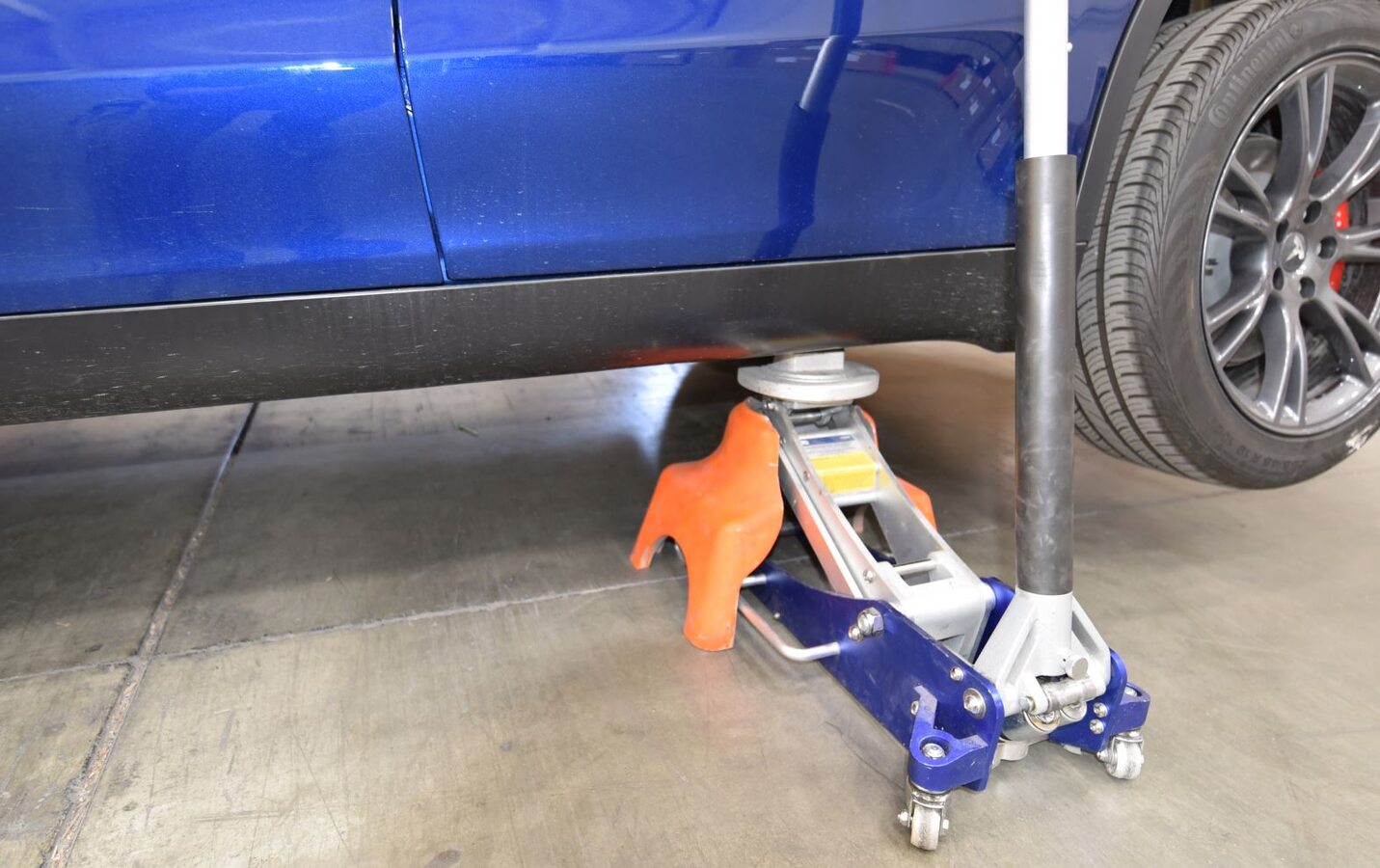

    Align the top opening of the jack stand with the bottom of the jack stand adapter.
  9. Slowly lower the floor jacks, making sure the LH front and rear jack stands are aligned with the jack stand adapters.
    注
    Perform a shake test to verify stability.

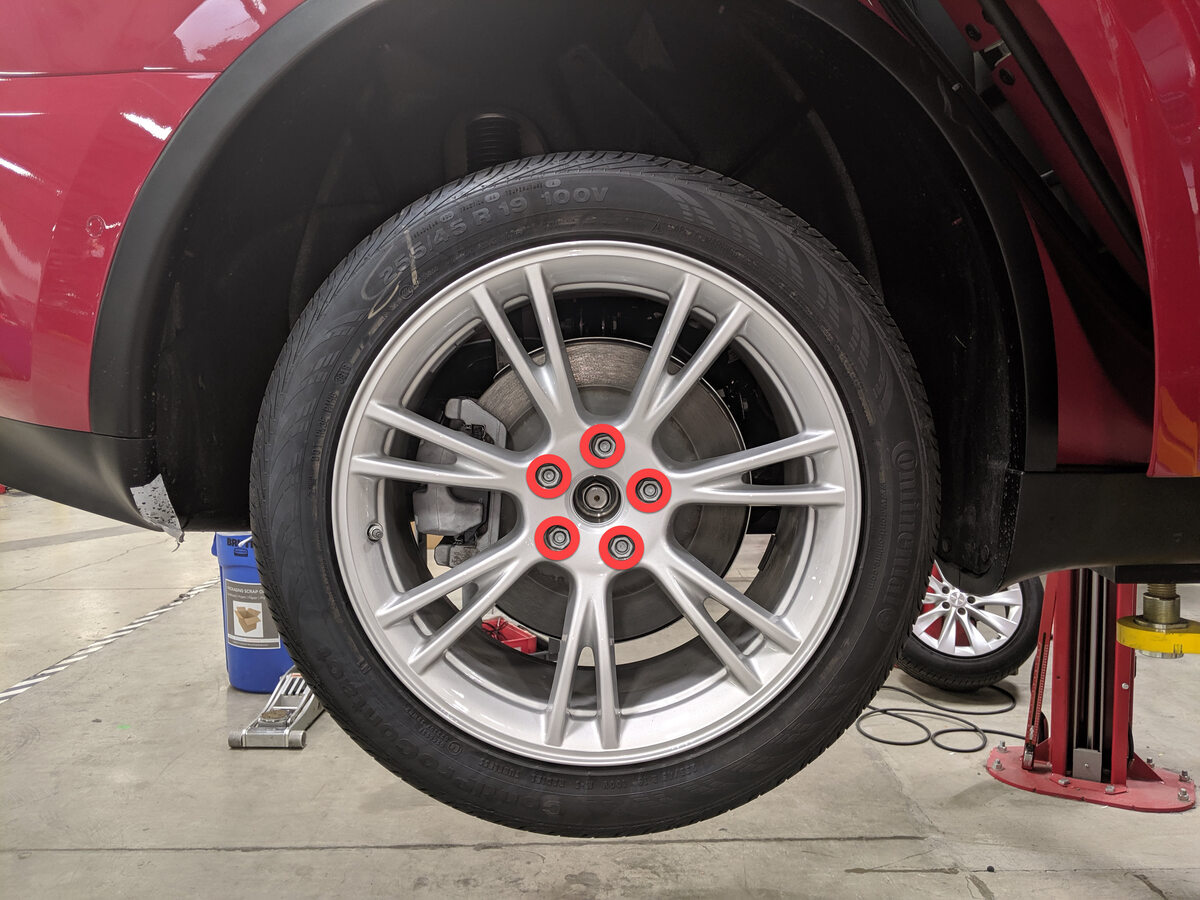

  10. Remove the lug nuts from the wheel, and then remove the LH rear wheel from the vehicle.
    注
    5x nuts, 21mm, 175 Nm
  11. Remove the lug nuts from the wheel, and then remove the LH front wheel from the vehicle.
    注
    5x nuts, 21mm, 175 Nm

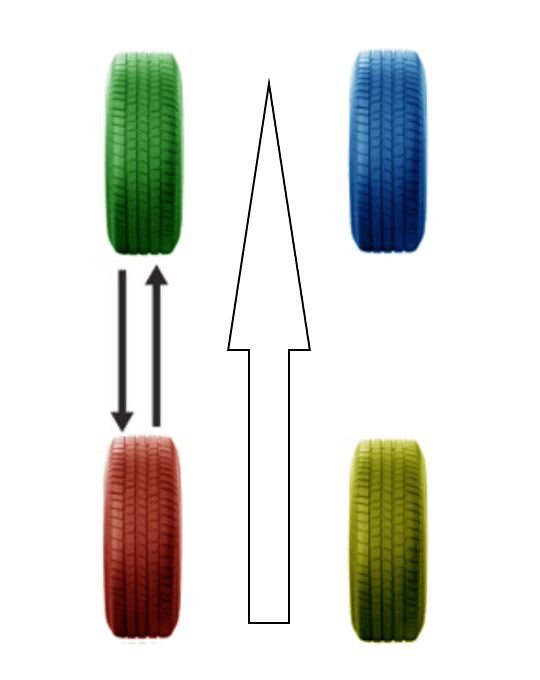

  12. Swap the LH rear wheel with the LH front wheel and install the LH wheels.
    注
    2x wheels, 10x nuts, 21mm. Install the lug nuts by hand first and then use power tools; torque them in a later step.
    警告
    Wear appropriate personal protective equipment (PPE) when performing this procedure to prevent personal injury.
  13. Raise the vehicle off the LH rear and LH front jack stands.
    注
    Jack up the LH rear of the vehicle until the LH front wheel is off the jack stand.
  14. Remove the LH front and LH rear jack stands (x2), and then lower the vehicle.
  15. Remove the chocks from the RH front wheel.
  16. Install wheel chocks on the LH front wheel.
  17. Remove the RH rear wheel cap. See 盖 - 车轮（拆卸和更换）.
  18. Loosen RH rear wheel lug nuts (x5).
    注
    5x nuts, 21mm, 175 Nm
    警告
    Use only hand tools to break the lug nuts loose. Power tools should only be used to remove the lug nuts after they have been loosened.
  19. Remove the RH front wheel cap. See 盖 - 车轮（拆卸和更换）.
  20. Loosen RH front wheel lug nuts (x5).
    注
    5x nuts, 21mm, 175 Nm
    警告
    Use only hand tools to break the lug nuts loose. Power tools should only be used to remove the lug nuts after they have been loosened.
  21. Jack up the RH rear of the vehicle.
    注
    Position the jack stand adapter onto the floor jack, position the floor jack under the vehicle lift point, and then carefully raise the floor jack, aligning the jack stand adapter locating pin with the hole at the vehicle lift point.
    注
    Raise the vehicle until the RH front wheel is off the ground.
  22. Position jack stands underneath the RH front and RH rear of the vehicle.
    警告
    如果使用了电动千斤顶或气动千斤顶，举升车辆前请远离车辆，以免受伤。
    注
    Align the jack stand cutout with the floor jack.
    注
    Align the top opening of the jack stand with the bottom of the jack stand adapter.
  23. Slowly lower the floor jacks, making sure the RH front and rear jack stands are aligned with the jack stand adapters.
    注
    Perform a shake test to verify stability.
  24. Remove the lug nuts from the wheel, and then remove the RH rear wheel from the vehicle.
    注
    5x nuts, 21mm, 175 Nm
  25. Remove the lug nuts from the wheel, and then remove the RH front wheel from the vehicle.
    注
    5x nuts, 21mm, 175 Nm
  26. Swap the RH rear wheel with the RH front wheel and install the RH wheels.
    注
    2x wheels, 10x nuts, 21mm. Install the lug nuts by hand first and then use power tools; torque them in a later step.
    警告
    Wear appropriate personal protective equipment (PPE) when performing this procedure to prevent personal injury.
  27. Raise the vehicle off the RH rear and RH front jack stands.
    注
    Jack up the RH rear of the vehicle until the RH front wheel is off the jack stand.
  28. Remove the RH front jack stand, and then lower the vehicle.
  29. Jack up the LH rear of the vehicle.
    注
    Position the jack stand adapter onto the floor jack, position the floor jack under the vehicle lift point, and then carefully raise the floor jack, aligning the jack stand adapter locating pin with the hole at the vehicle lift point.
  30. Slowly lower the floor jack, making sure the LH rear jack stand is aligned with the jack stand adapter.
    注
    Perform a shake test to verify stability.

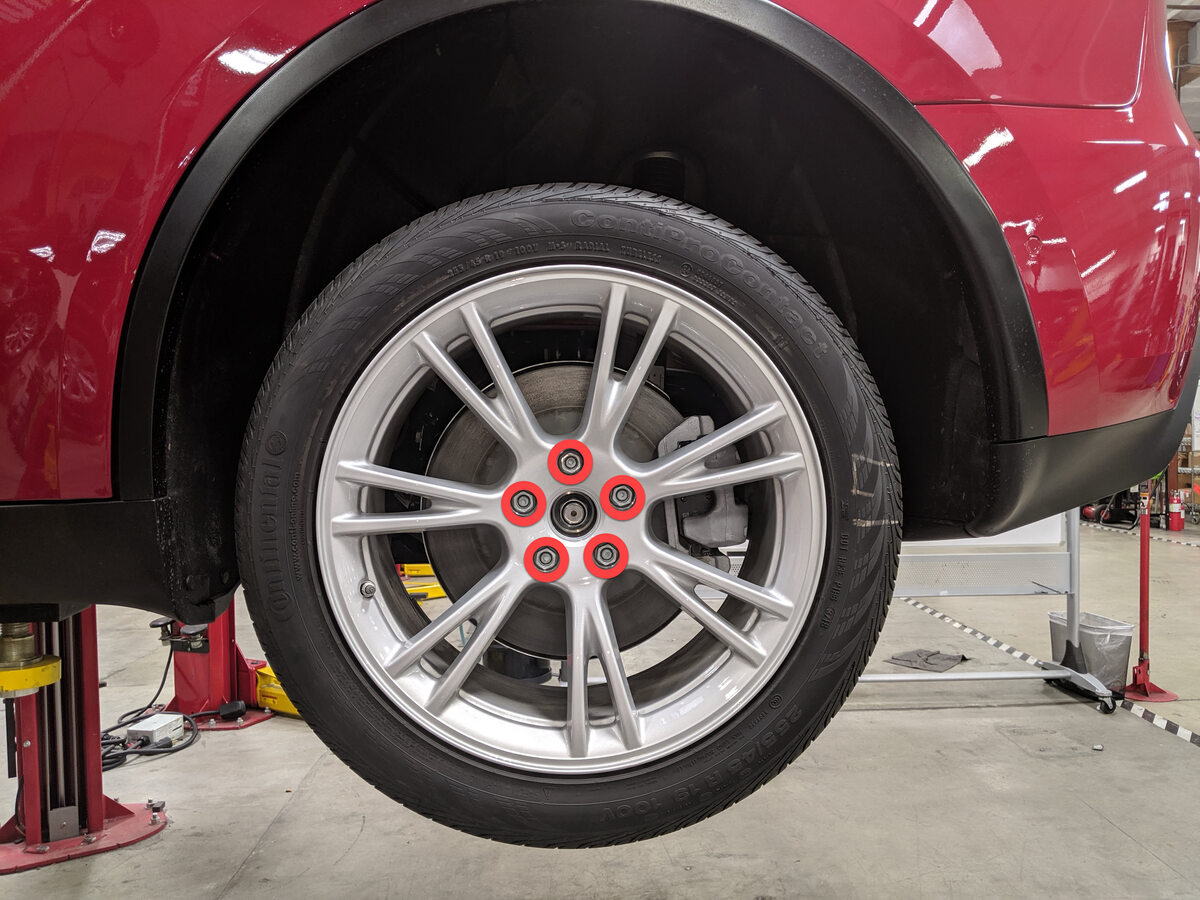

  31. Remove the lug nuts from the wheel, and then remove the LH rear wheel from the vehicle.
    注
    5x nuts, 21mm, 175 Nm
  32. Remove the lug nuts from the wheel, and then remove the RH rear wheel from the vehicle.
    注
    5x nuts, 21mm, 175 Nm

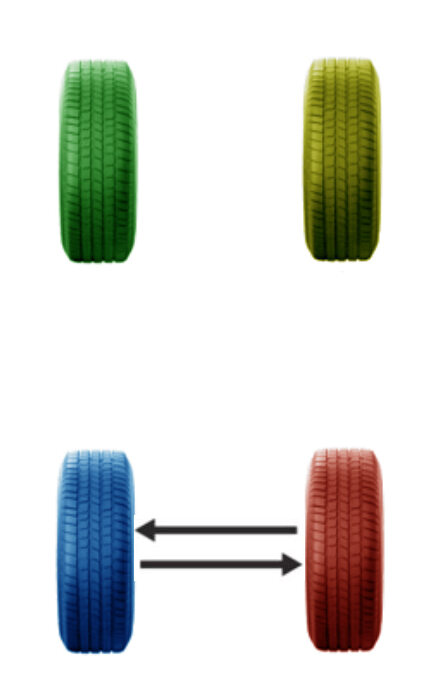

  33. Swap the RH rear wheel with the LH rear wheel and install the rear wheels.
    注
    2x wheels, 10x nuts, 21mm. Install the lug nuts by hand first and then use power tools; torque them in a later step.
    警告
    Wear appropriate personal protective equipment (PPE) when performing this procedure to prevent personal injury.
  34. Remove the LH rear jack stand, and then lower the vehicle.
  35. Remove the RH rear jack stand and then lower the vehicle.
  36. Torque all 4 rear wheels.
    注
    5x nuts, 21mm, 175 Nm
  37. Install all 4 wheel caps. See 盖 - 车轮（拆卸和更换）.
  38. Remove the chocks from the LH front wheel.
  39. Open the LH front door.
  40. Unlock vehicle gateway. See 网关（解锁）.
  41. Tap Controls > Chassis > Alignment & Tire > Reset Learned Tire Values, and click Run.
    注
    Click Close once the routine is completed.
  42. Tap Controls > Service > Wheel & Tire > Tires, choose the tire season and click Reset. After resetting, check if the Tire Service Mileage in the upper right corner is displayed as Less than 500 km ago.
  43. Exit Service Mode.
  44. Close the LH Front door.
  45. Inform the customers that a short calibration drive cycle might be required.
