校正代码 15300401 15300402 FRT 0.96 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅 人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

1. Open all four doors

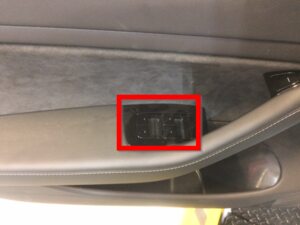

2. Lower all four windows



3. Open the hood.



4. Remove the rear apron.





5. Release washer fluid reservoir neck from frunk
   注

   1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



6. Release washer tank neck from washer tank and set aside
   注

   1x O-ring, No need to remove hose from neck





7. Remove HEPA filter assembly
   注

   2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly, Note: Not all Model Y vehicles have a HEPA filter assembly installed

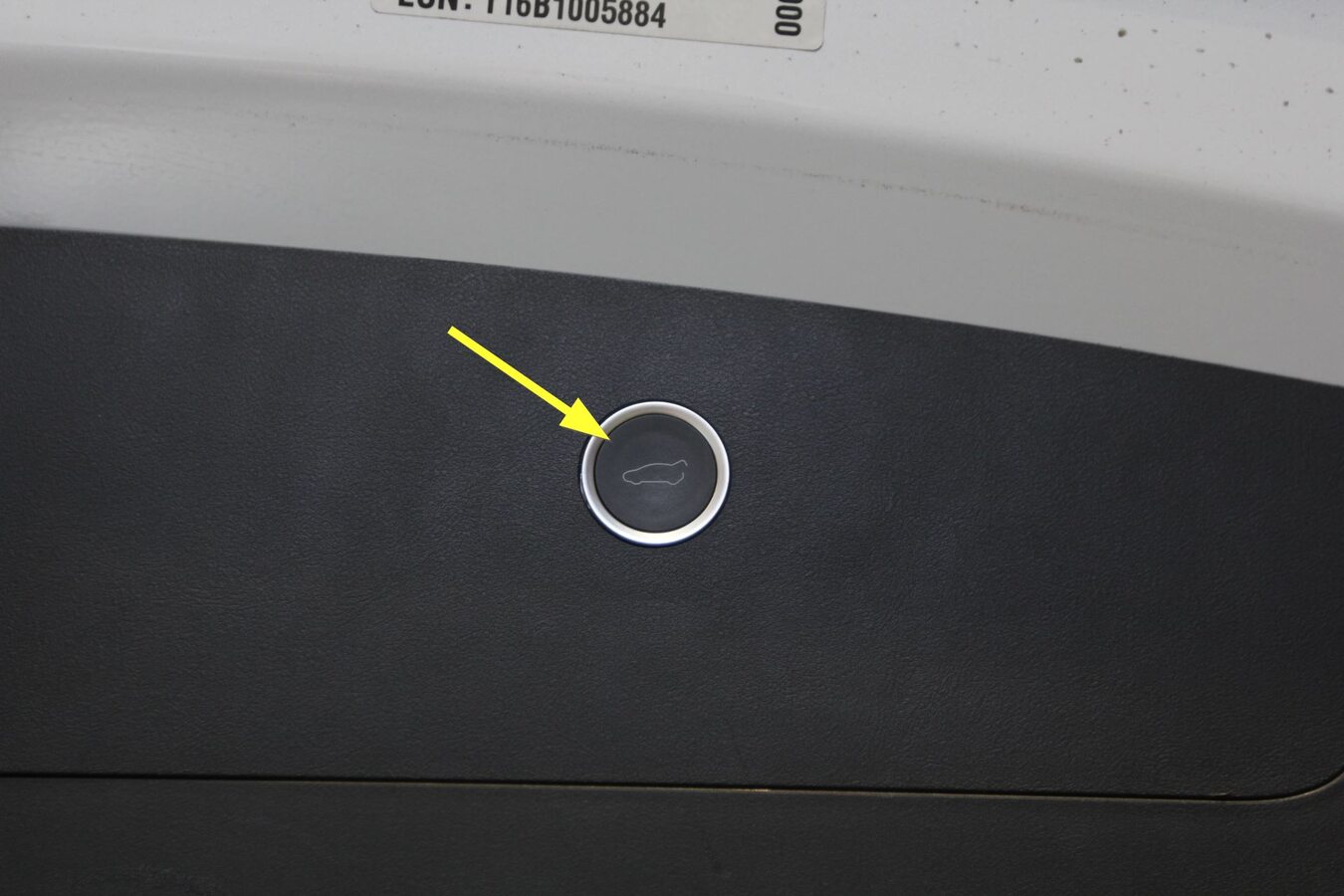

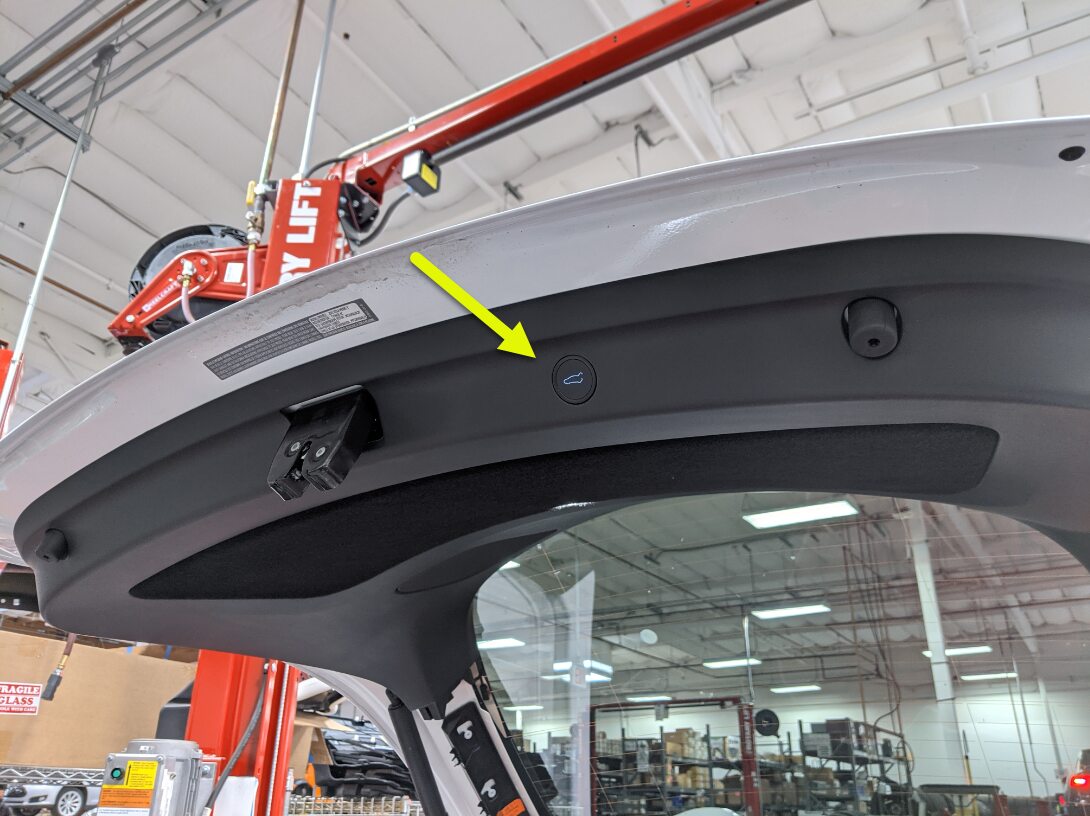

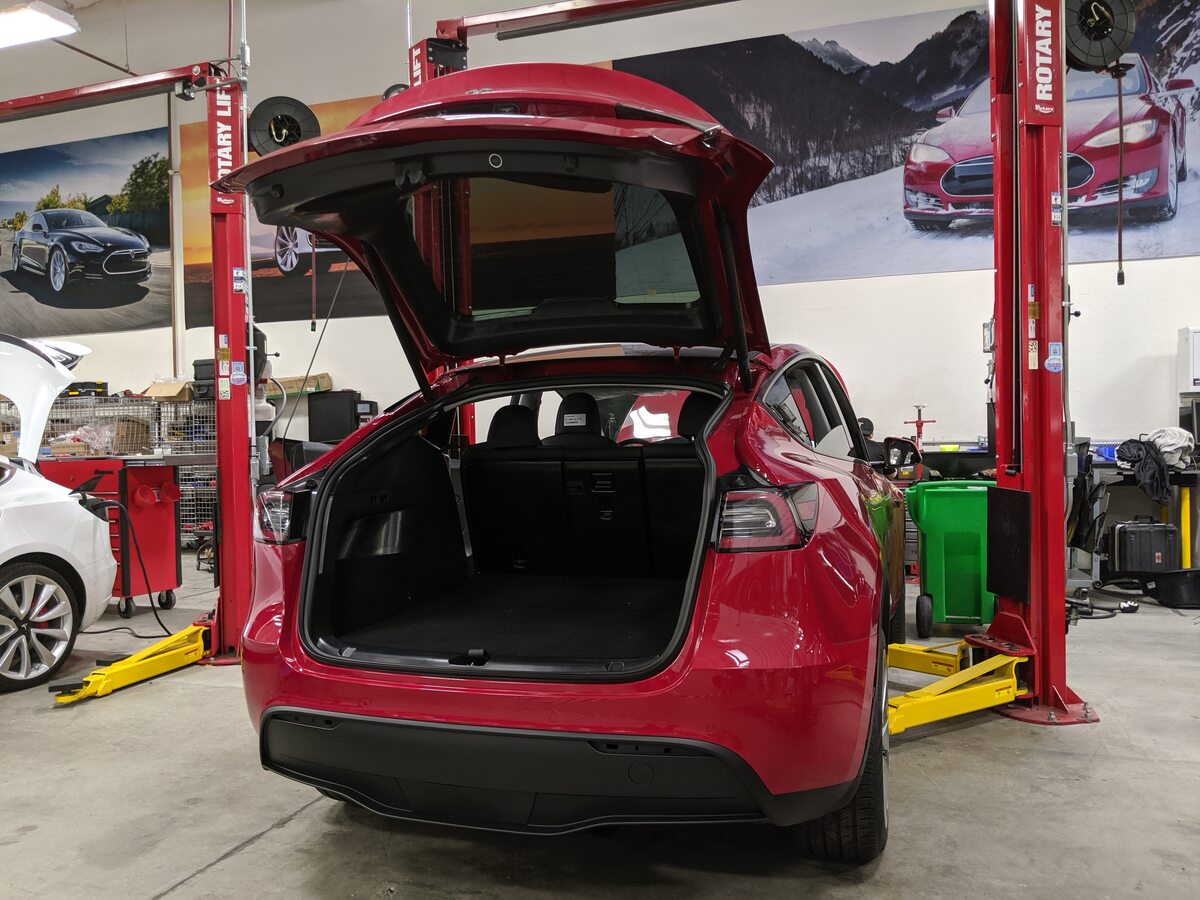

8. Open liftgate

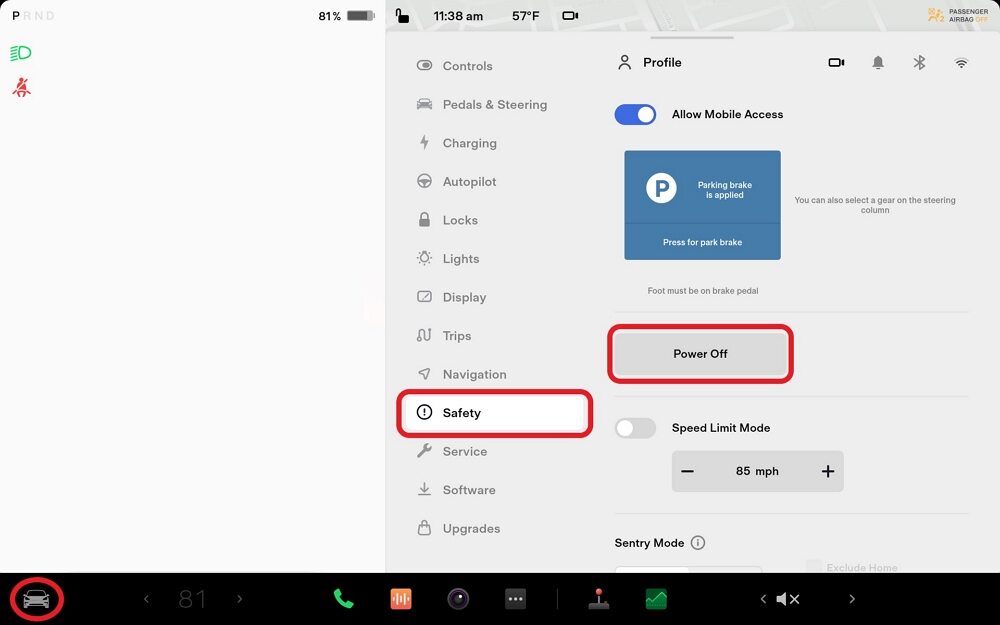

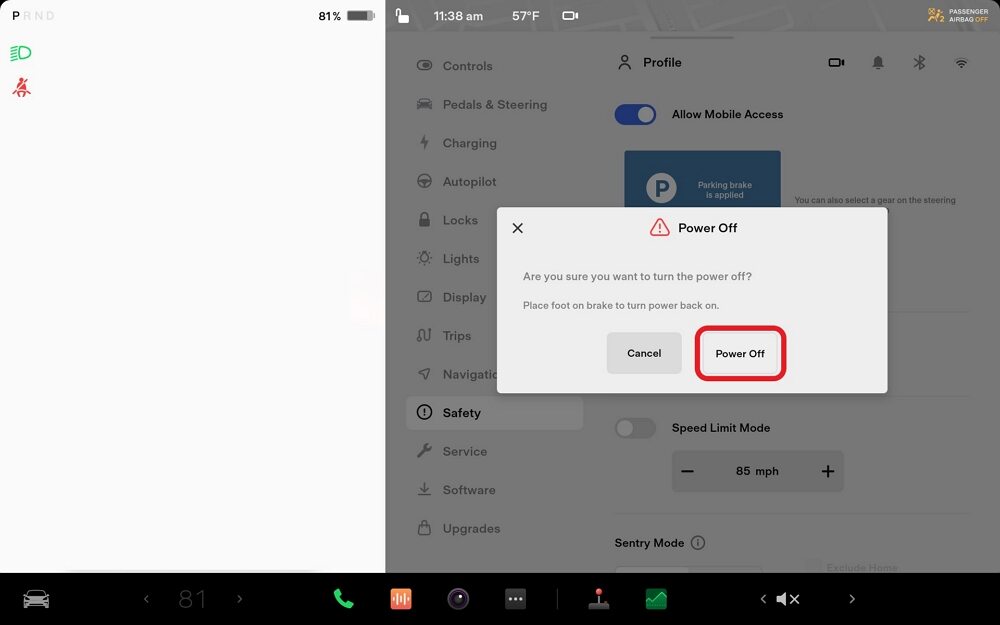

9. Power off vehicle from center display
   注

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box





10. Disconnect the 12V negative battery cable and First Responder Loop.

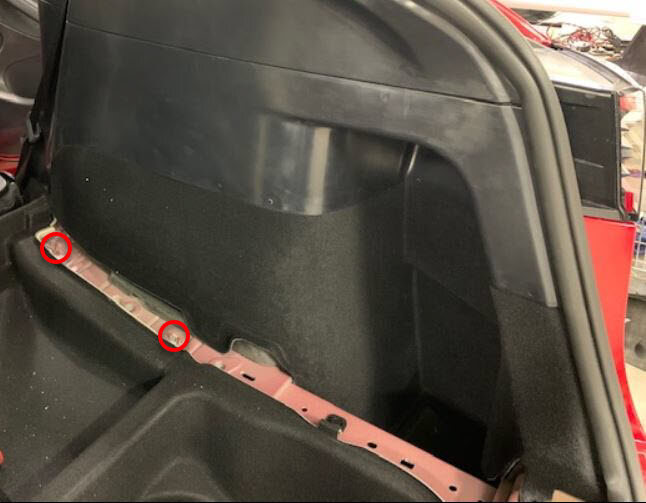

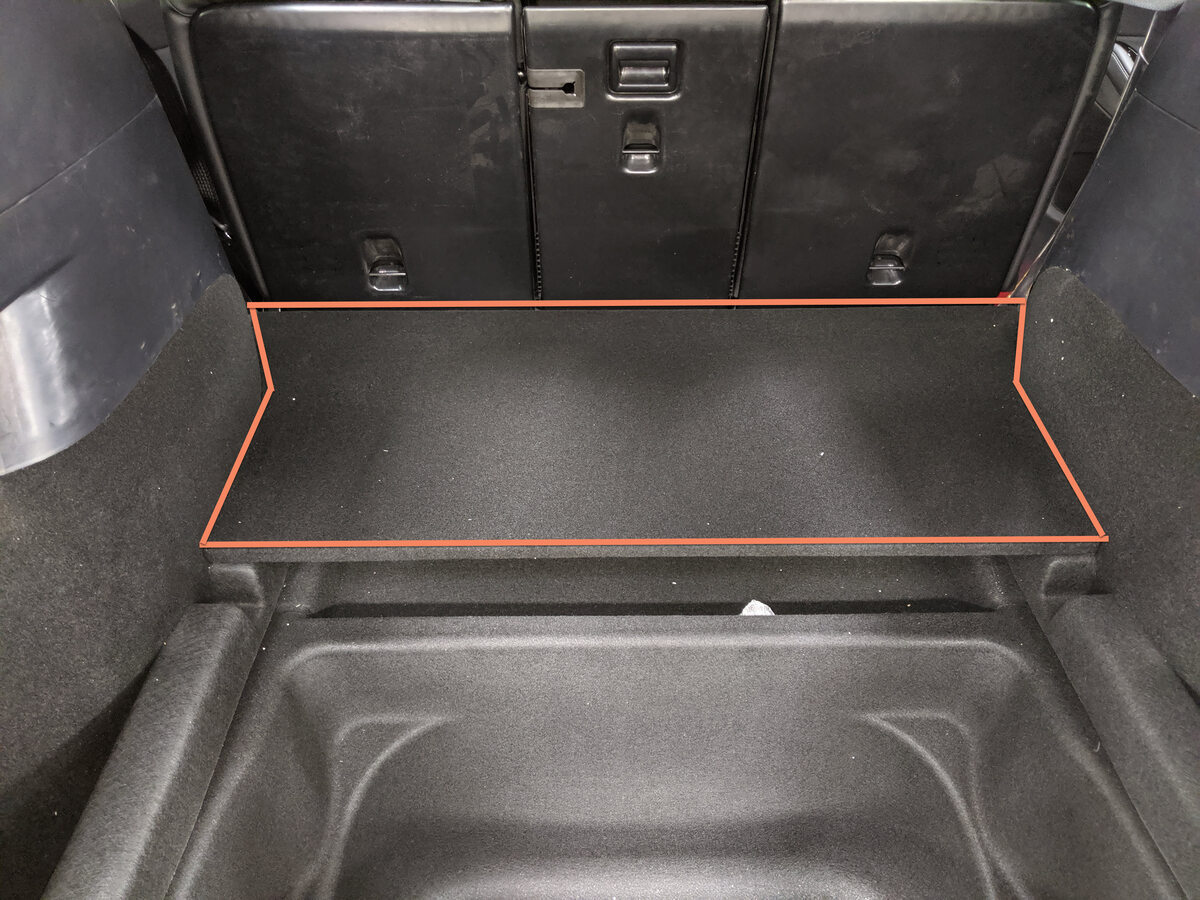

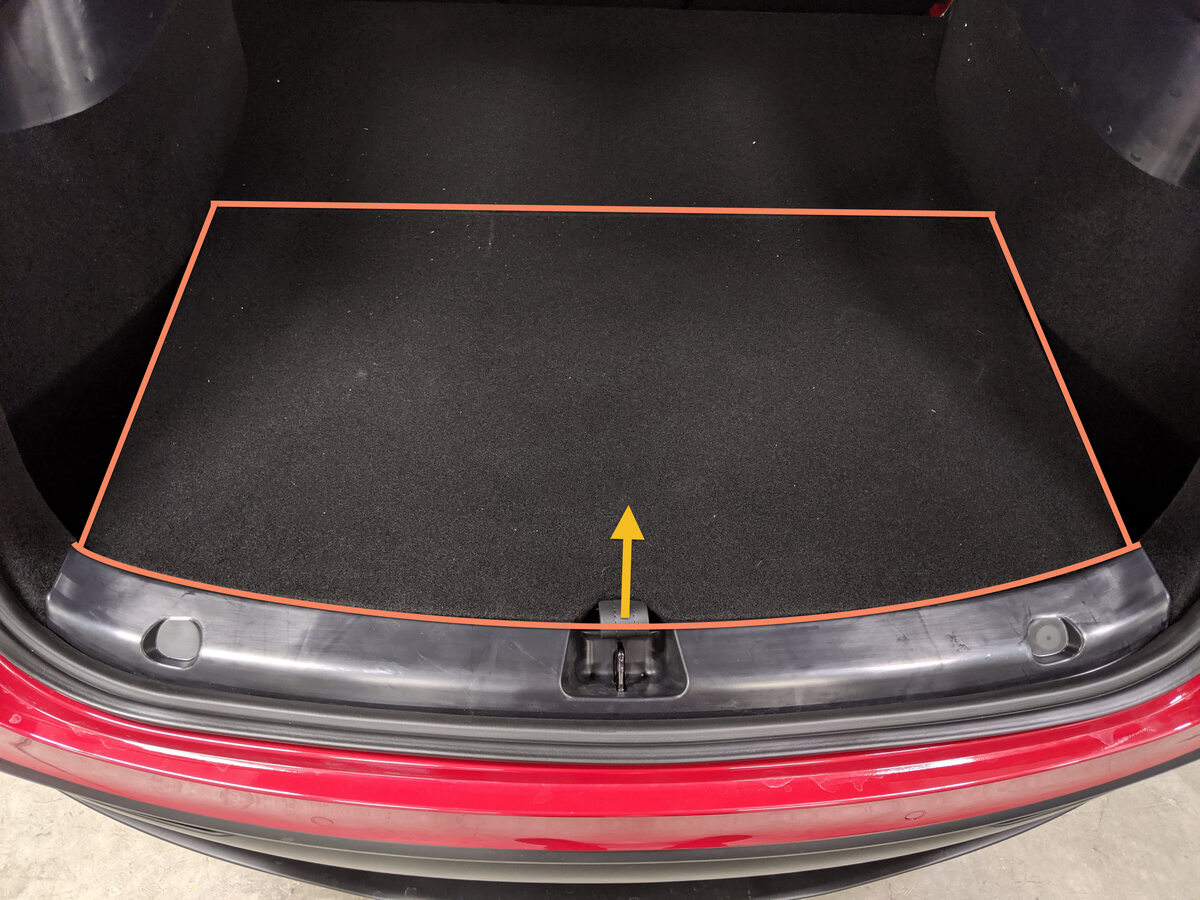

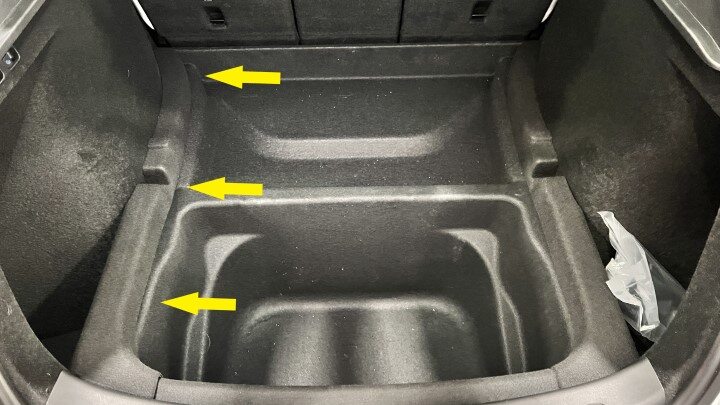

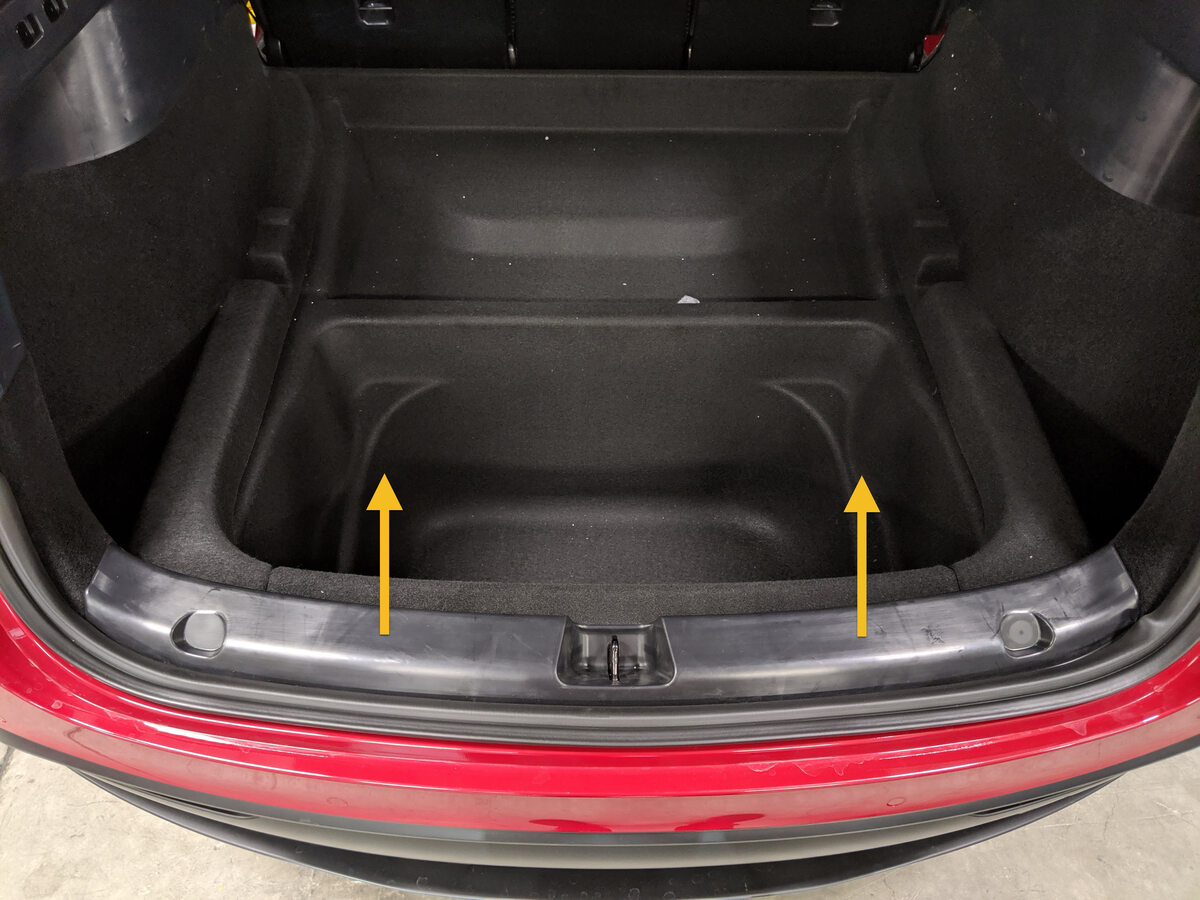

11. Remove rear load floor



12. Remove front load floor

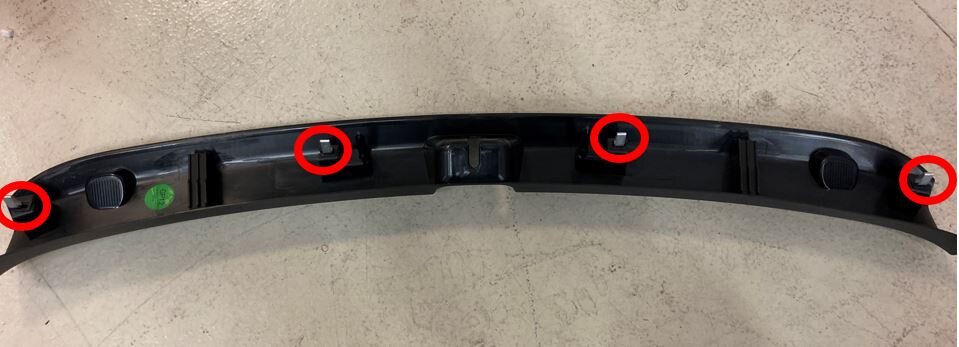

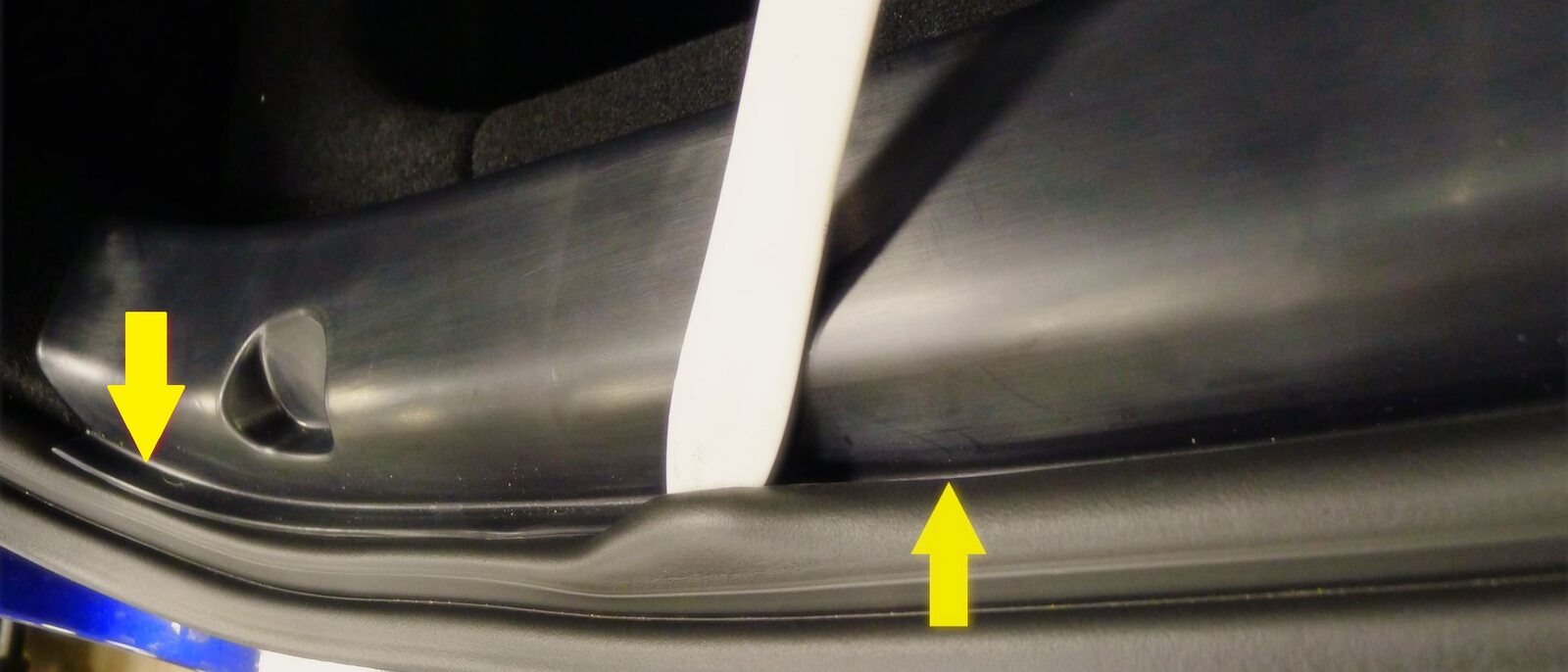

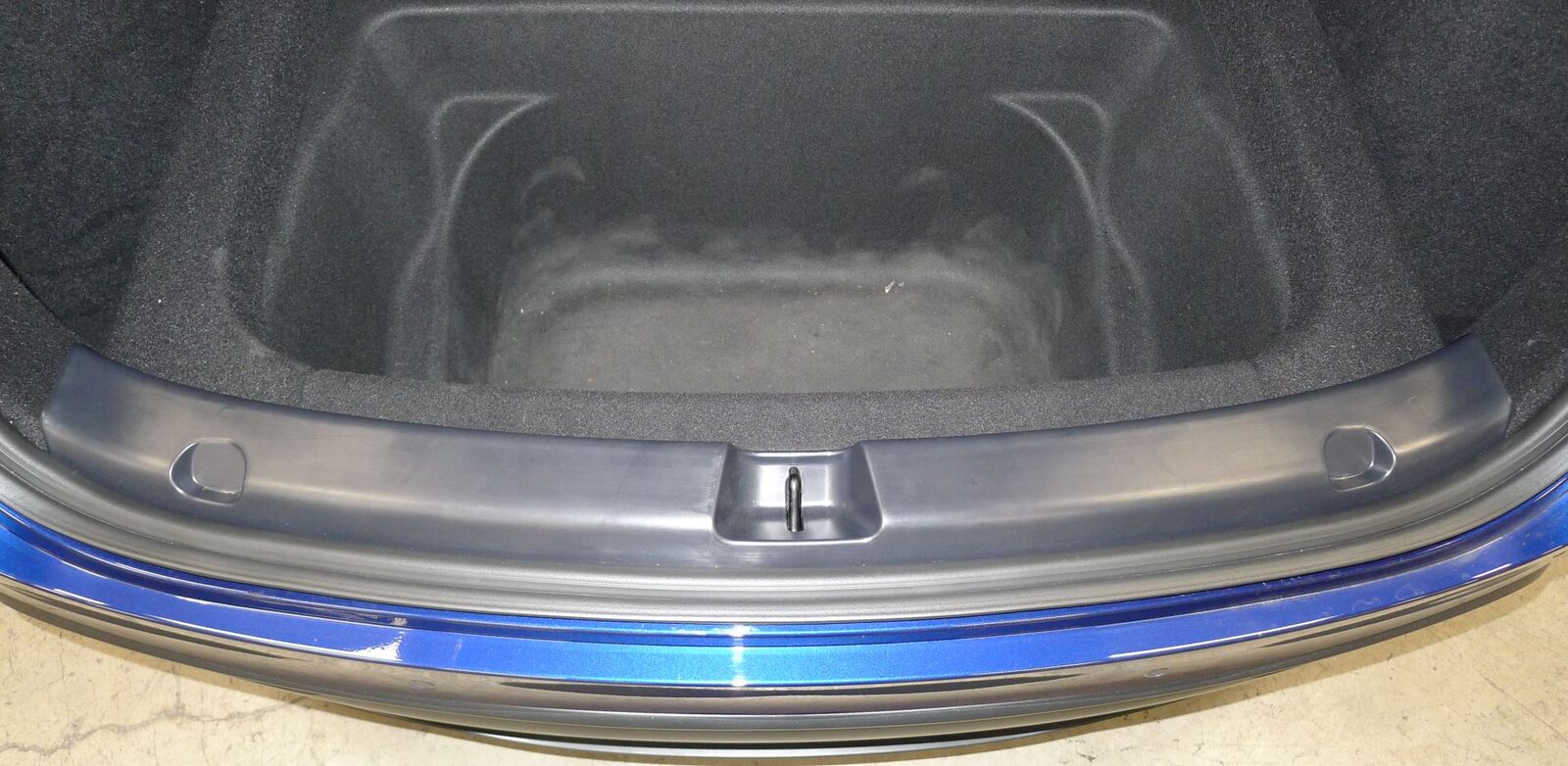

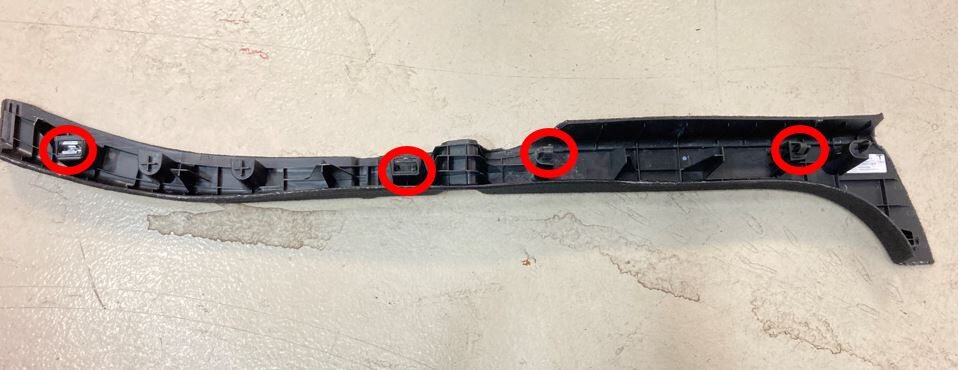

13. Remove trunk sill trim
    注

    4x clips

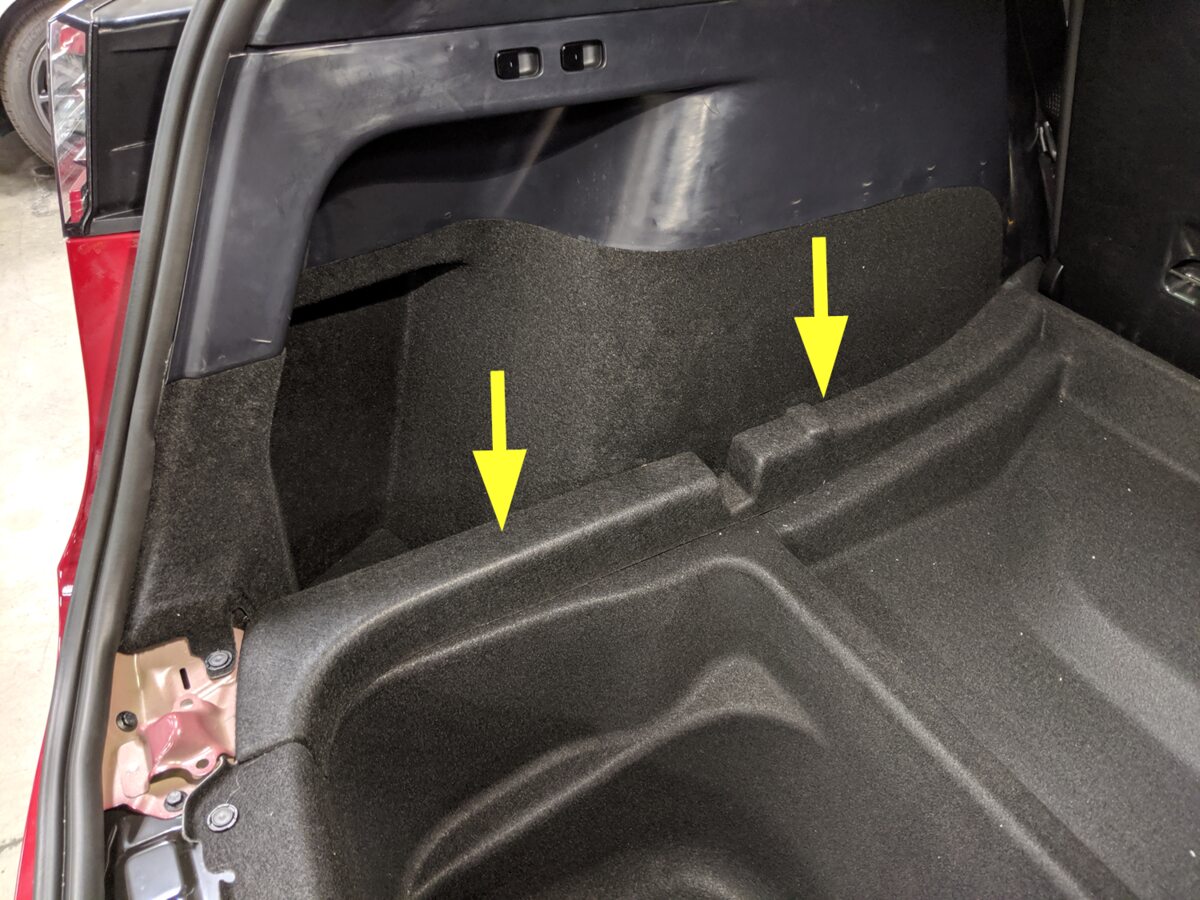

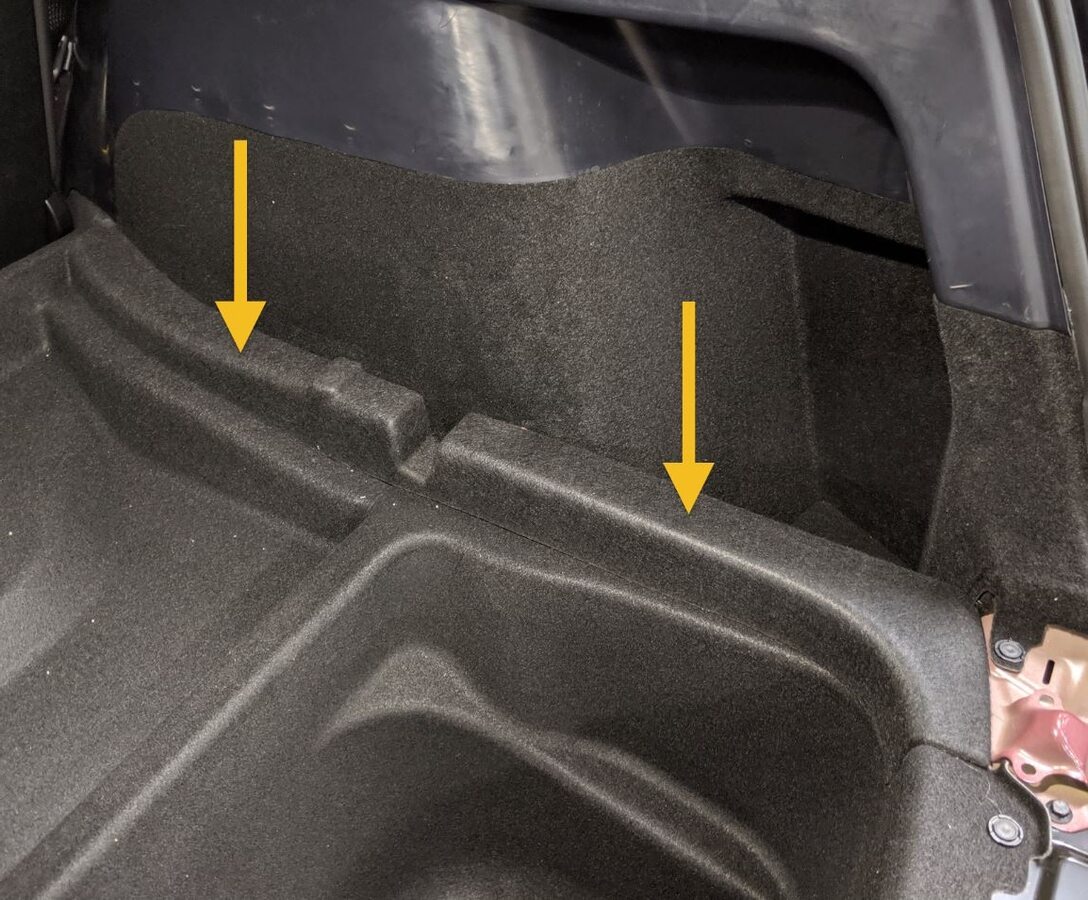

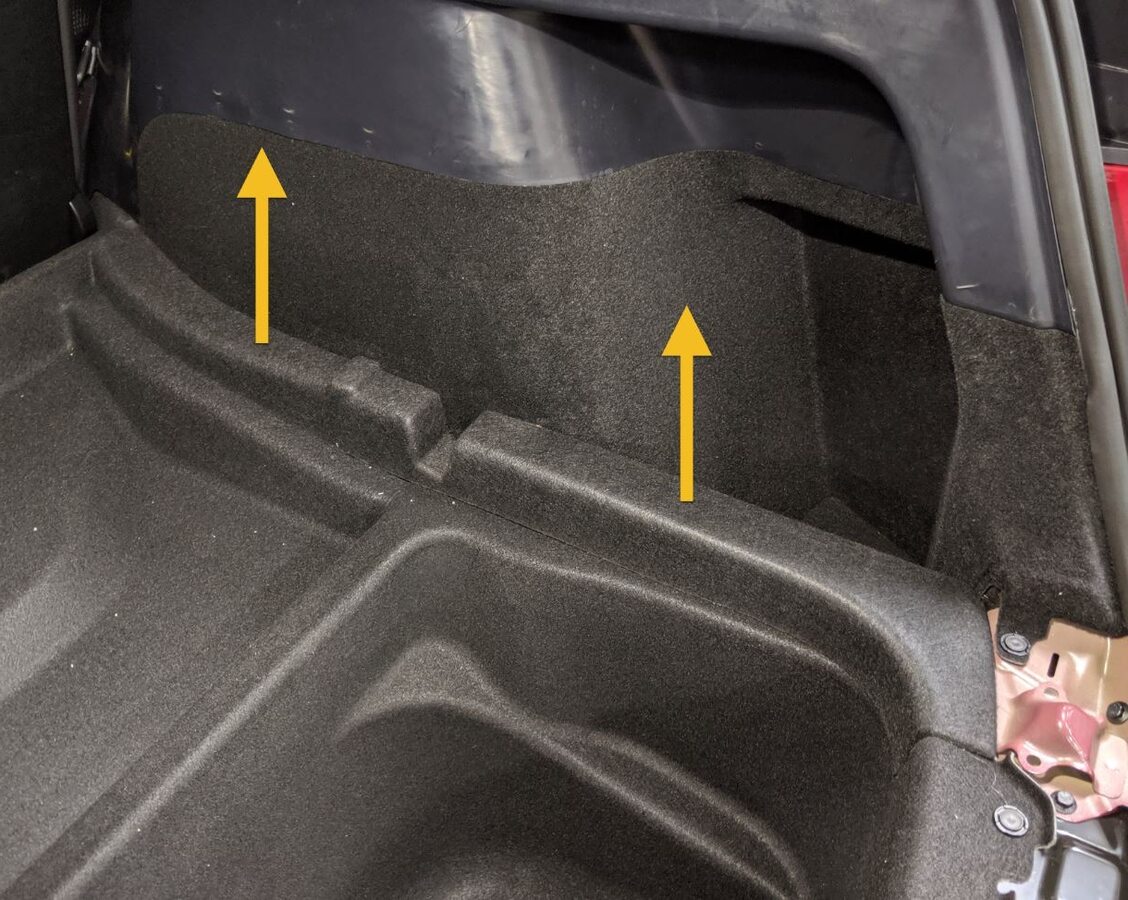

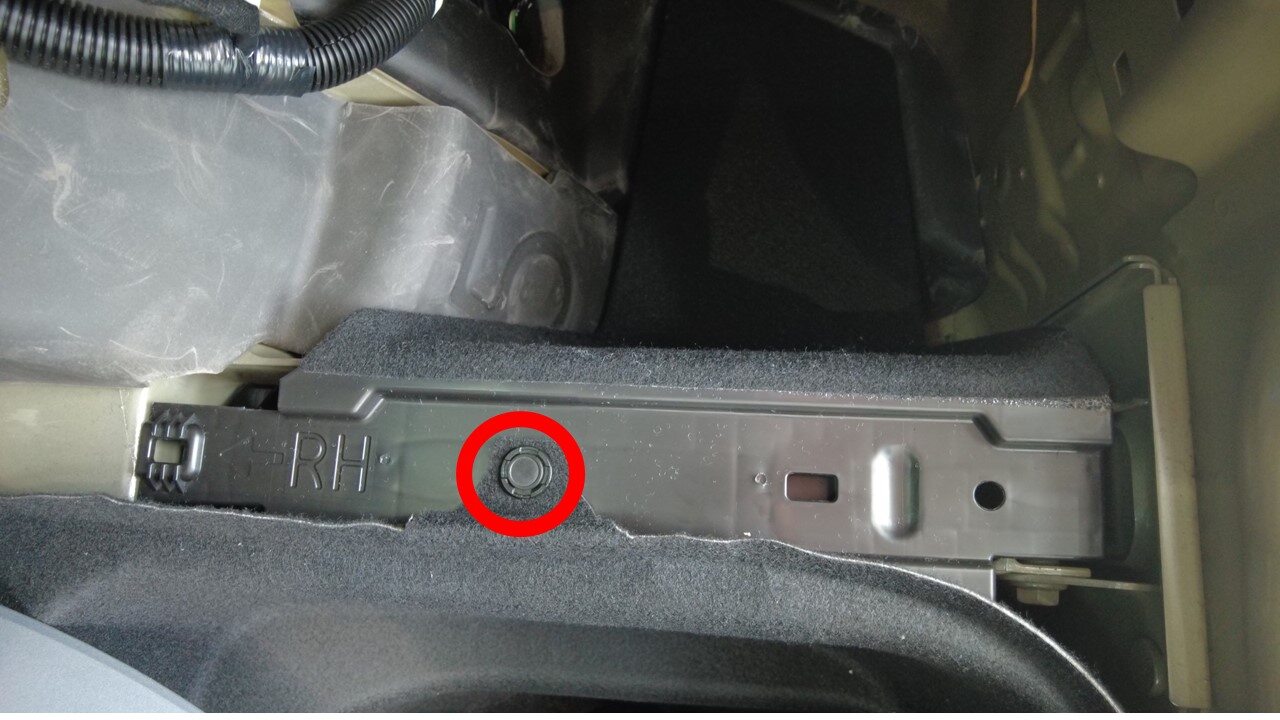

14. Remove RH load floor bracket
    注

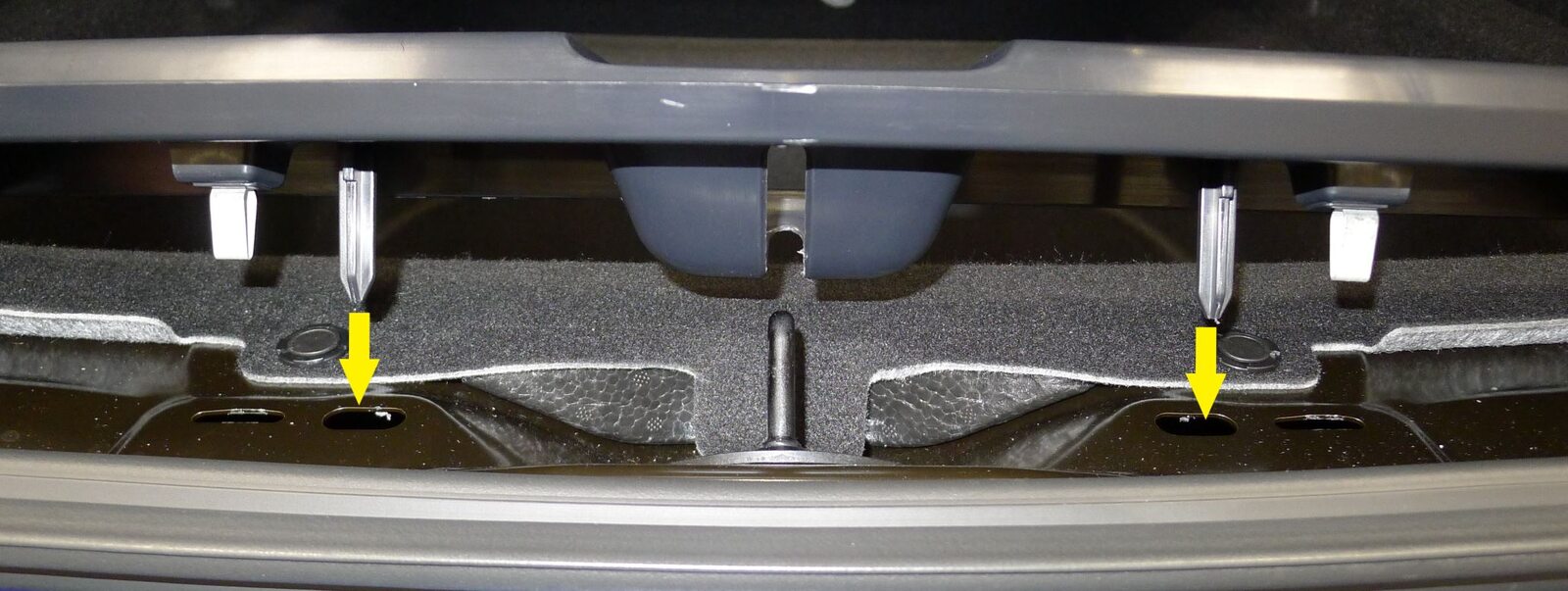

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall

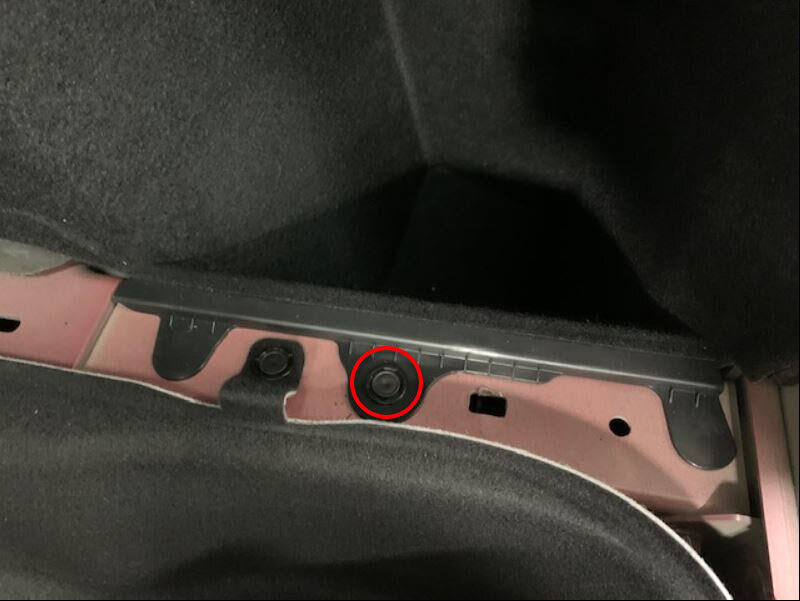

15. Remove RH trunk pocket bracket
    注

    1x push clip, 5x alignment tabs

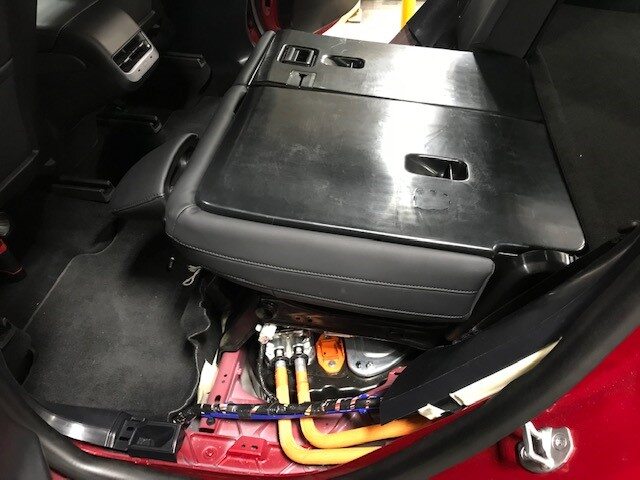

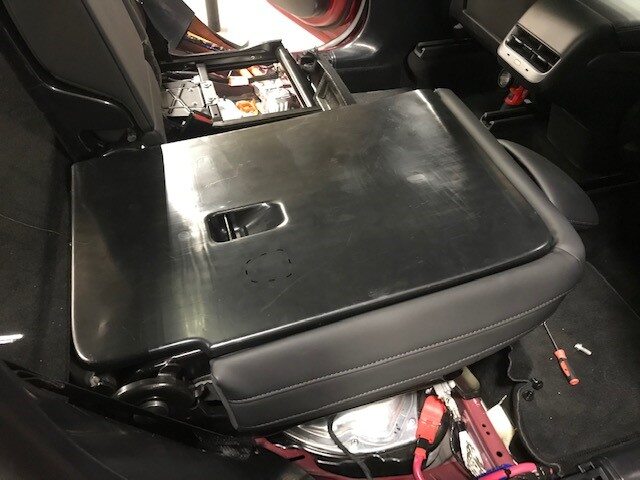

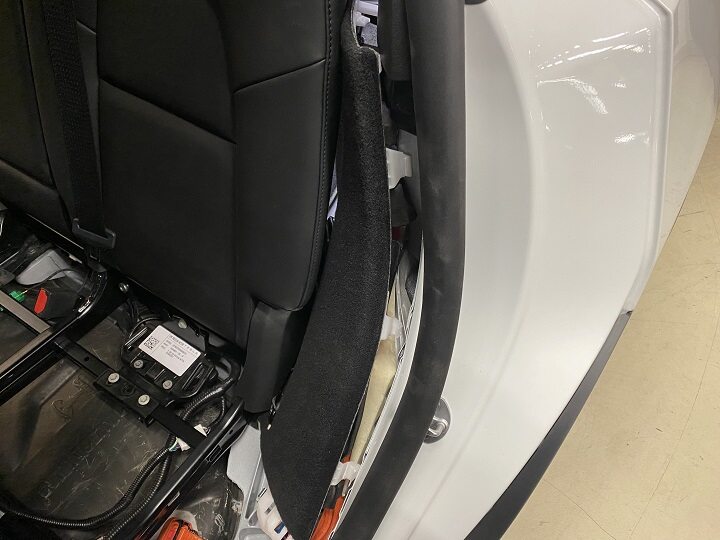

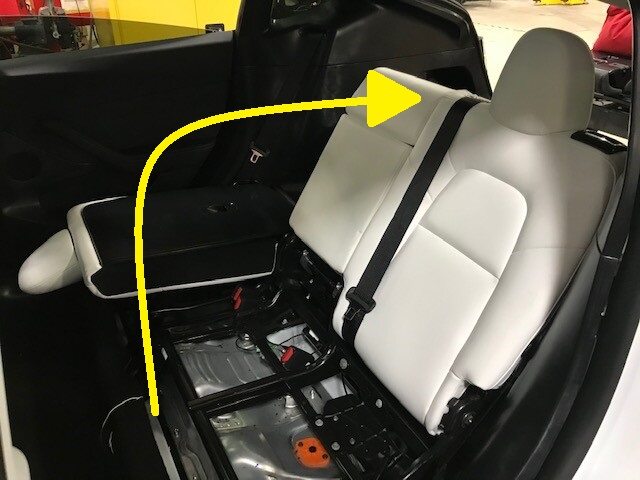

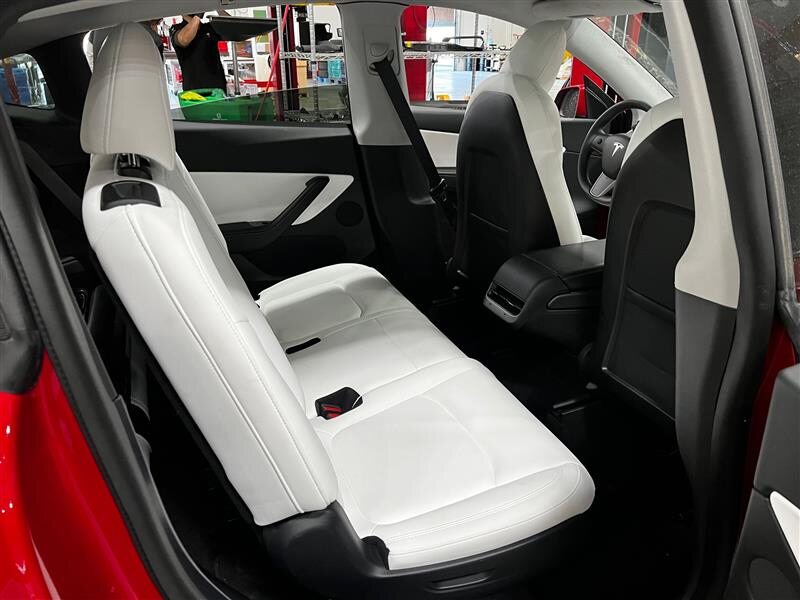

16. Fold 2nd row 40 seatback down
    注

    Protect seat cushion, Do not put weight on seat in folded position without cushion present due to risk of bending locator tab on frame



17. Fold 2nd row 60 seatback down
    注

    Protect seat back upholstery if necessary, Do not put weight on seat in folded position without cushion present due to risk of bending locator tab on frame

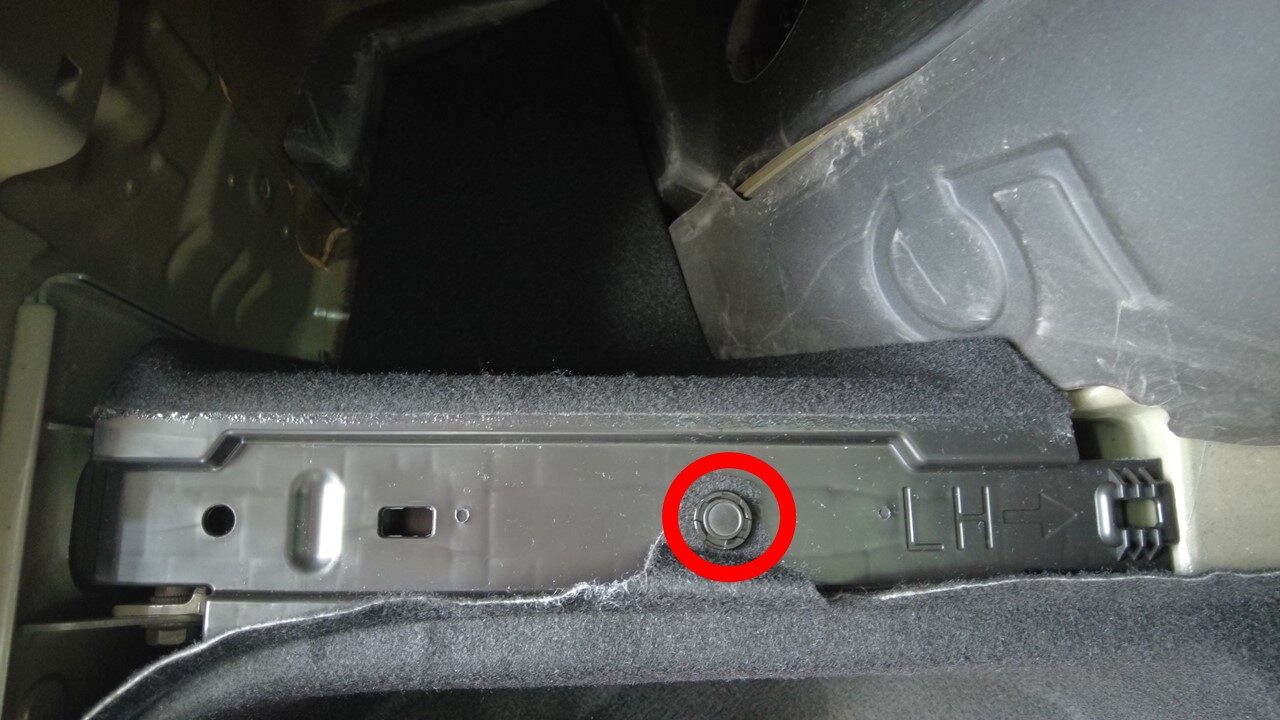

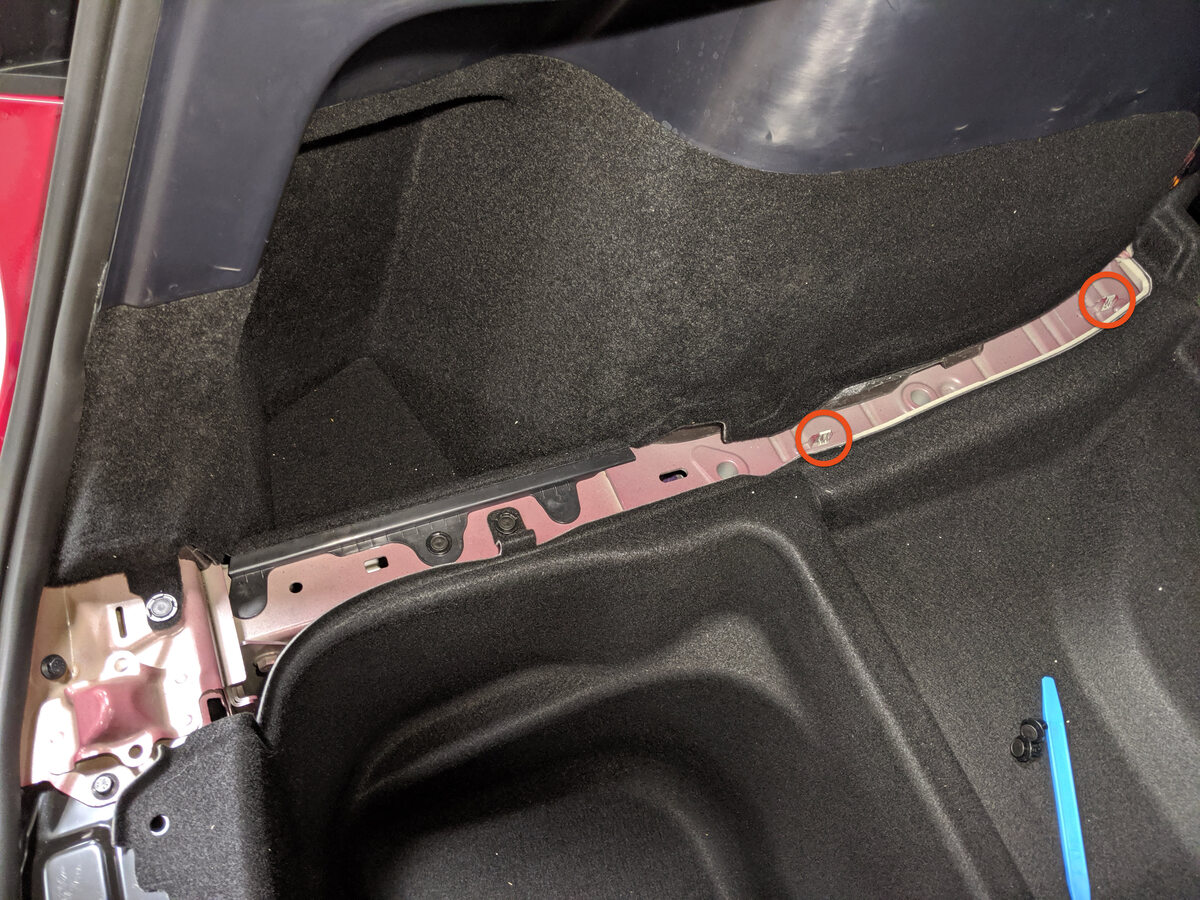

18. Remove LH load floor bracket
    注

    2x tabs, 2x clips, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later

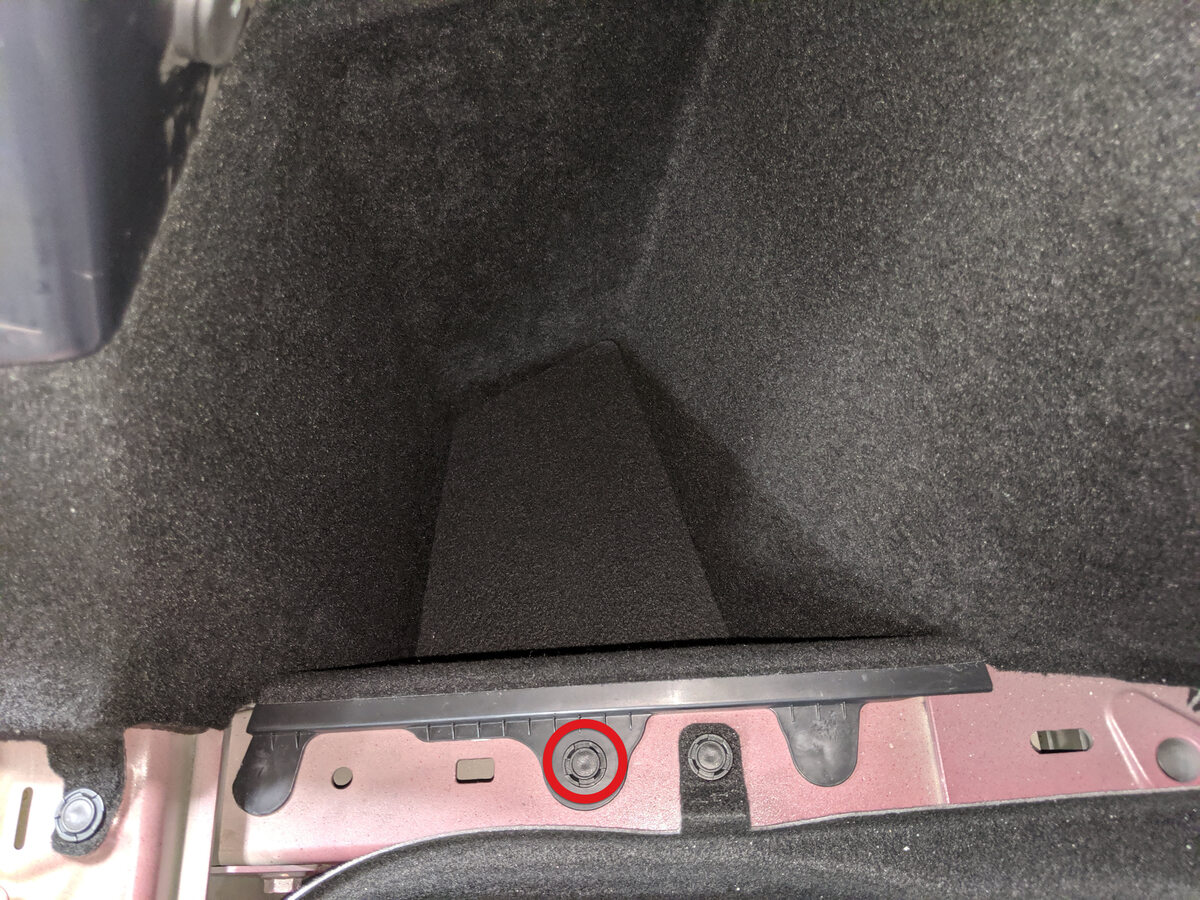

19. Remove LH trunk pocket bracket
    注

    1x push clip, 5x alignment tabs

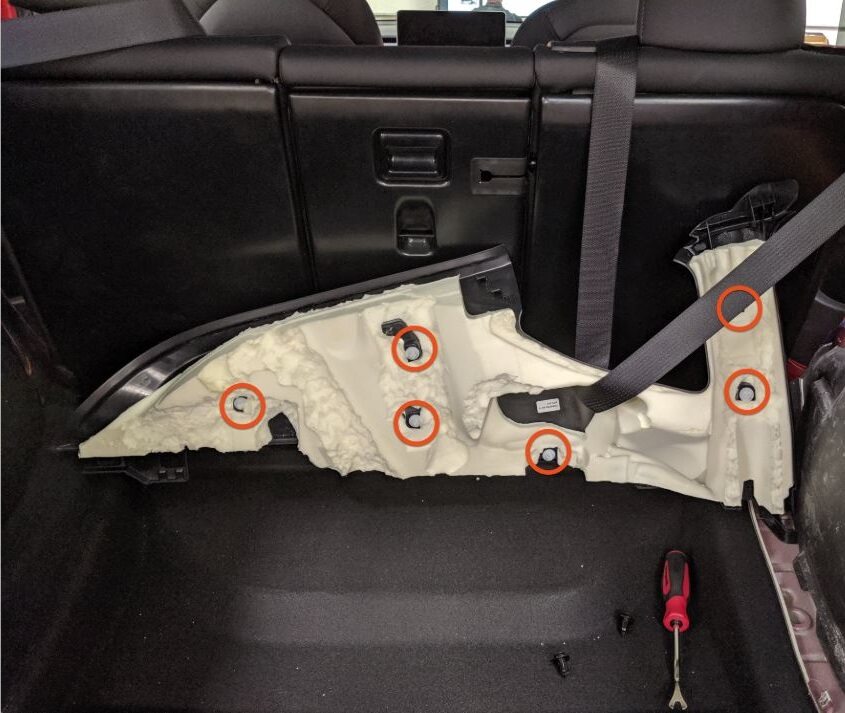

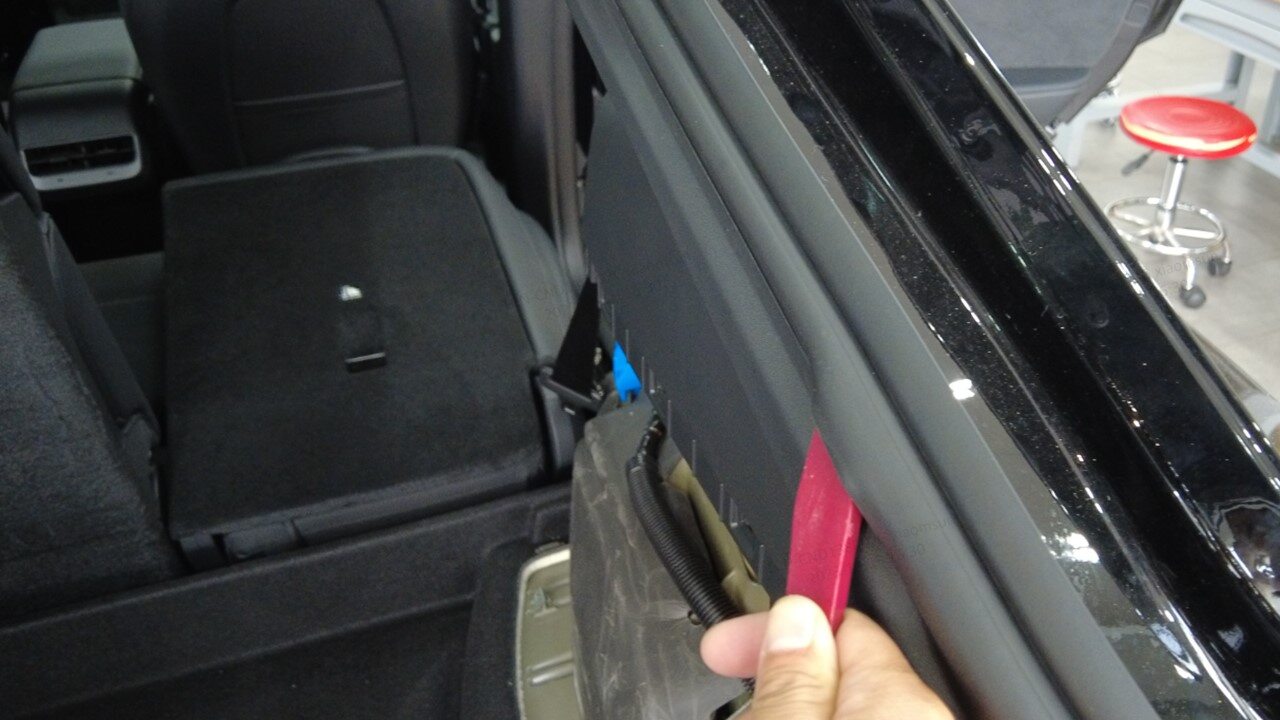

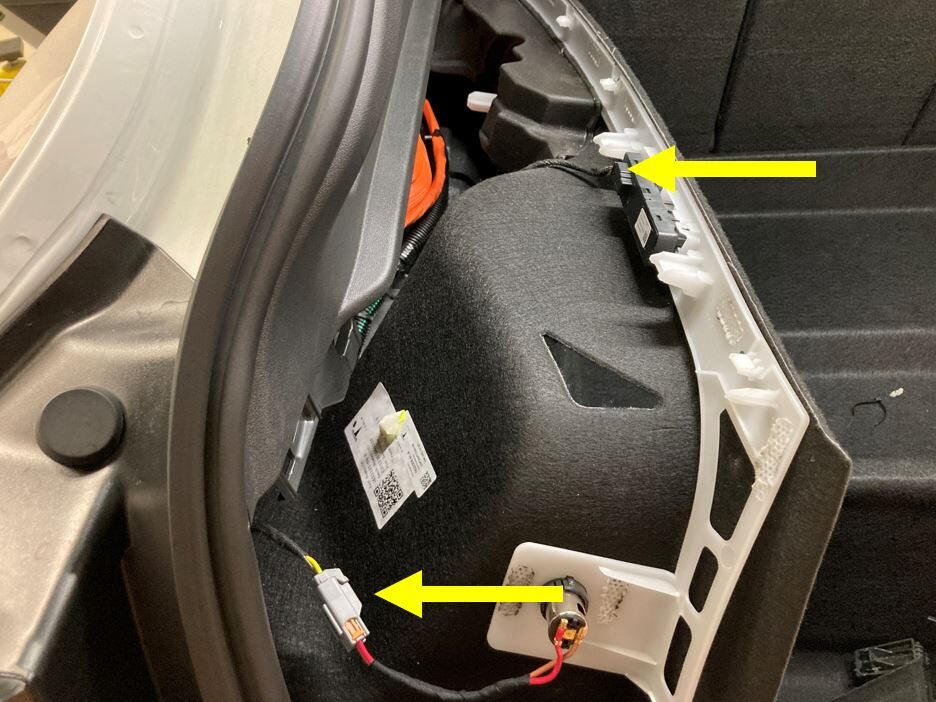

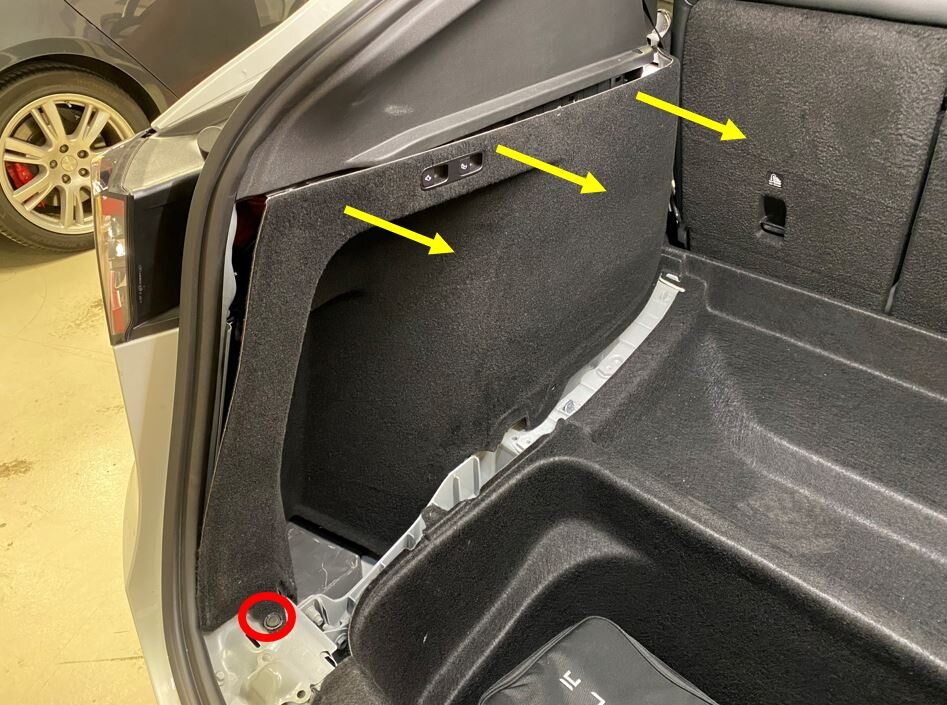

20. Remove LH trunk side trim
    注

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ by vehicle build location, and the number of clips may also vary

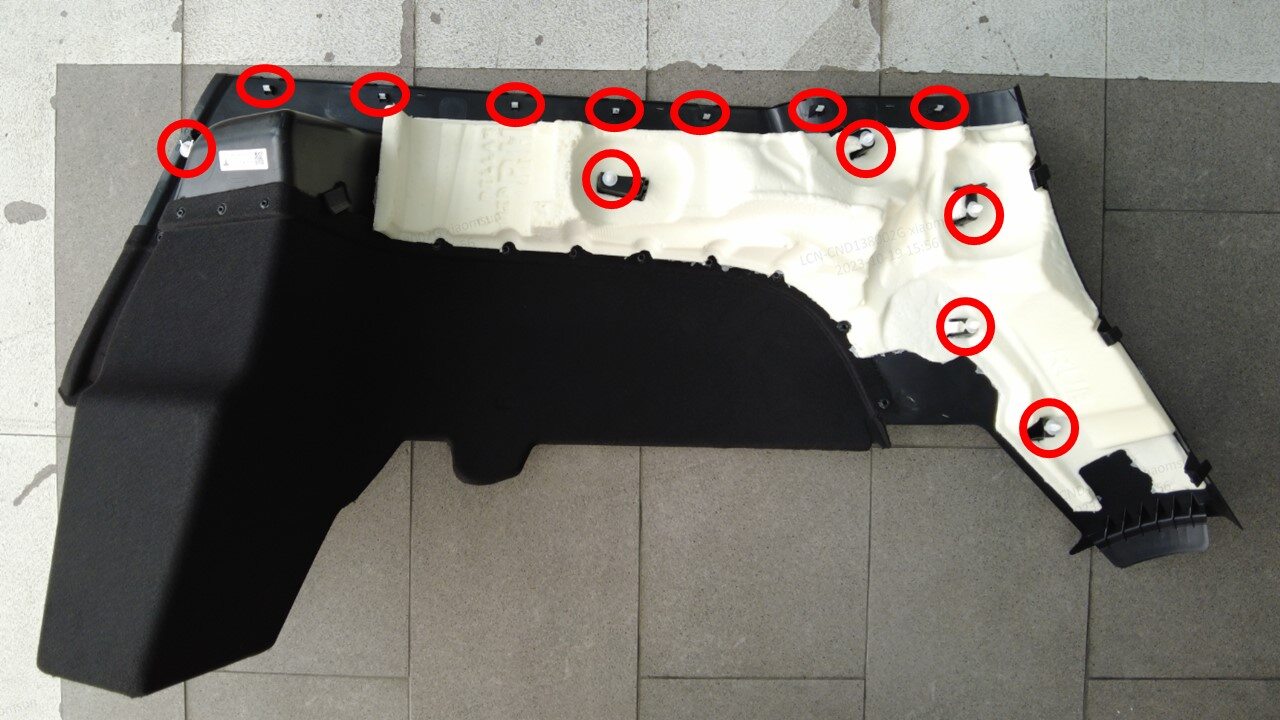

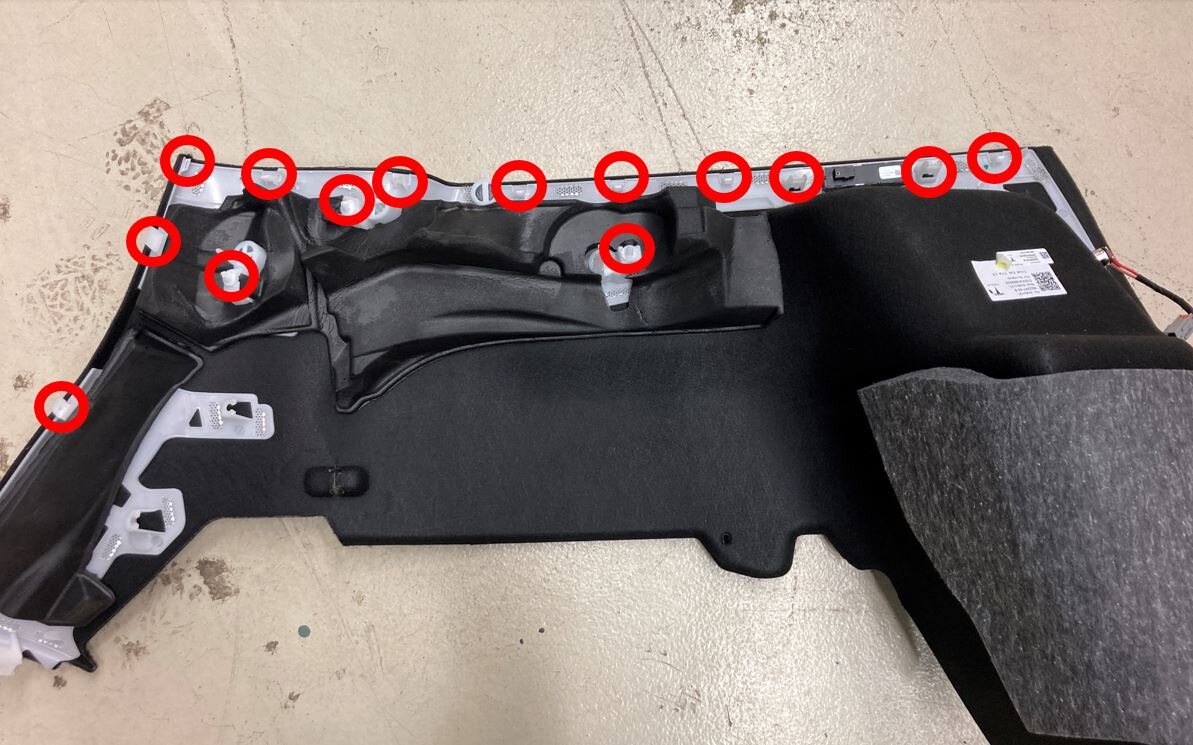

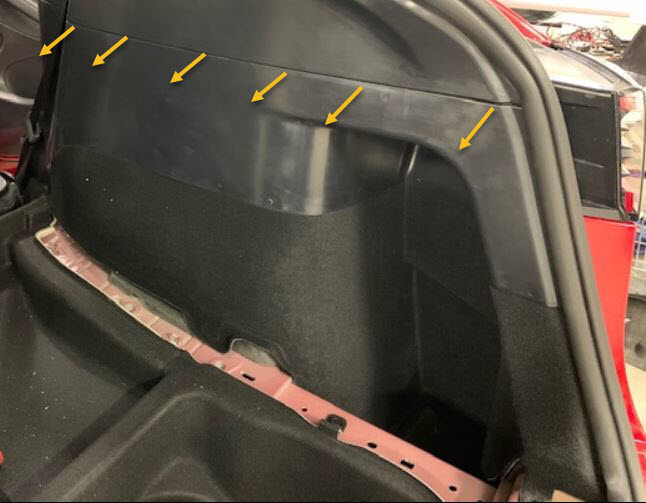

21. Release top edge of RH trunk side trim
    注

    1x push clip, 13x clips, trim part may slightly differ by vehicle build location, and the number of clips may also vary

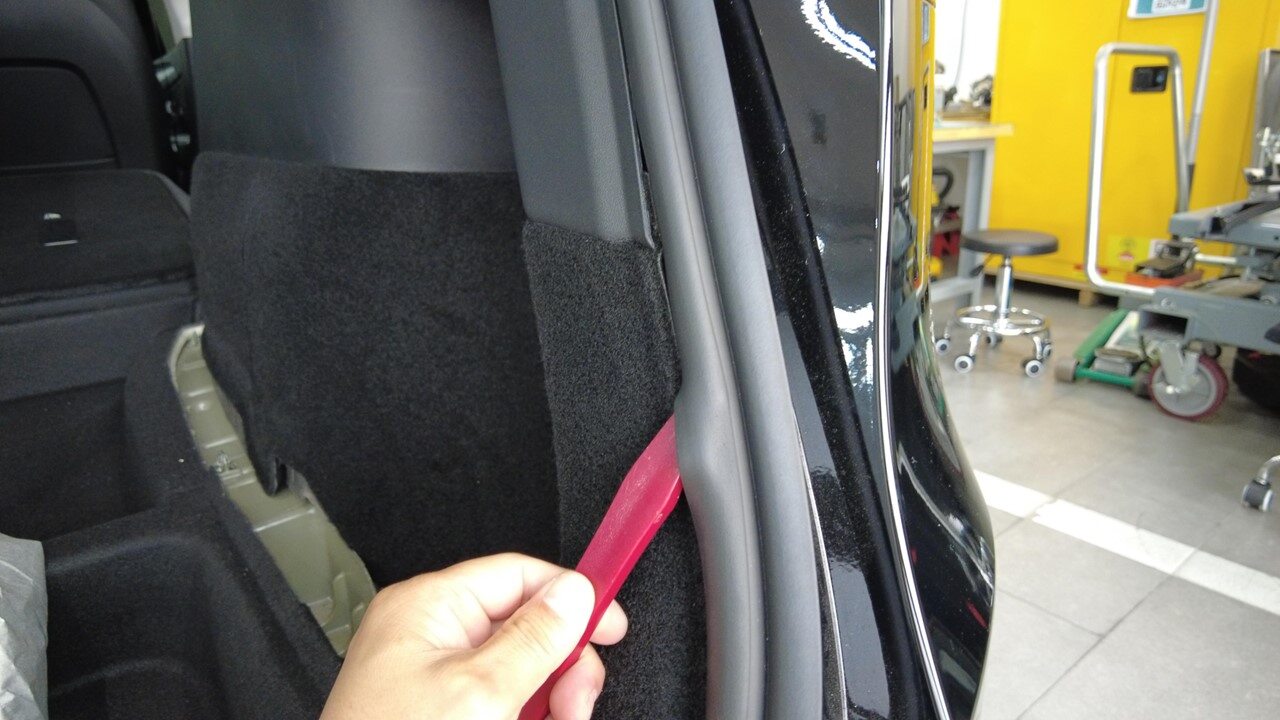

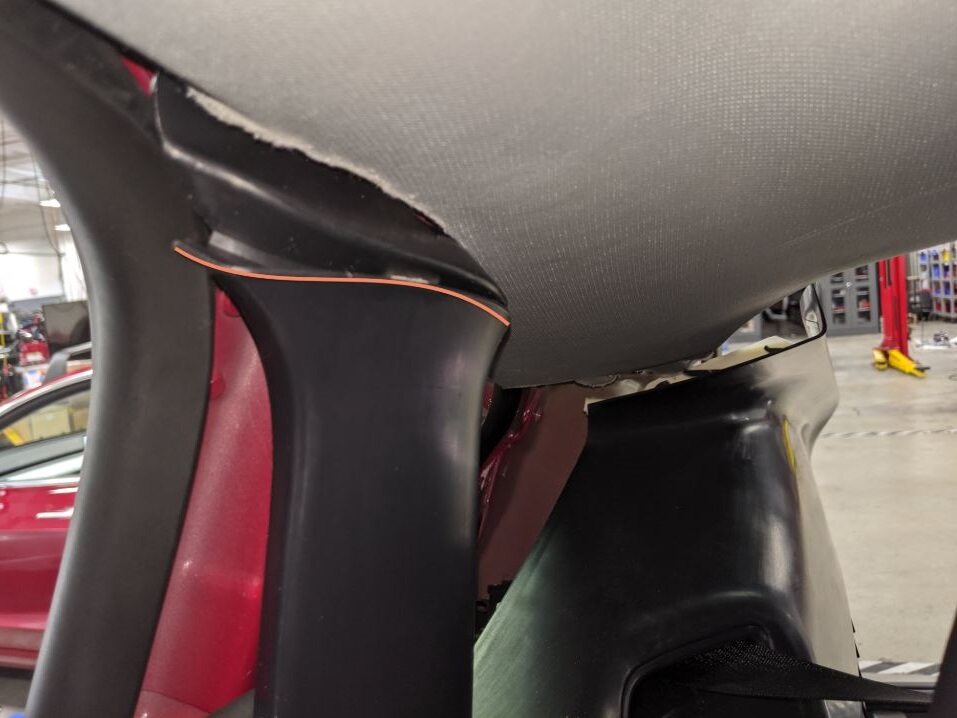

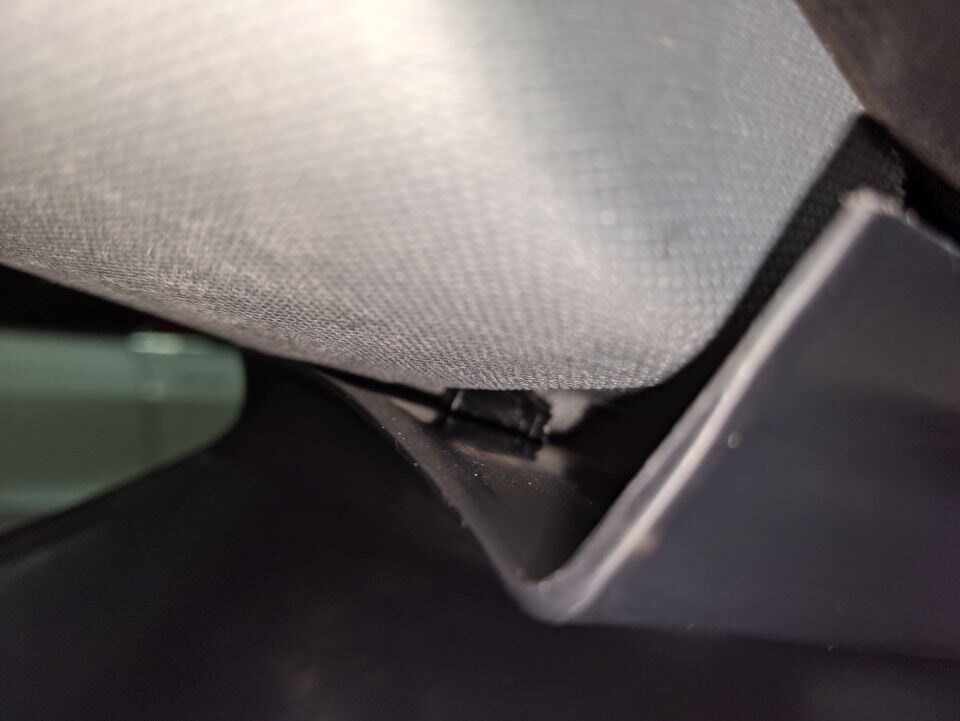

22. Remove RH upper C-pillar trim
    注

    6x clips, Guide front upper corner groove out from headliner and place trim aside, trim part may slightly differ by vehicle build location, and the number of clips may also vary

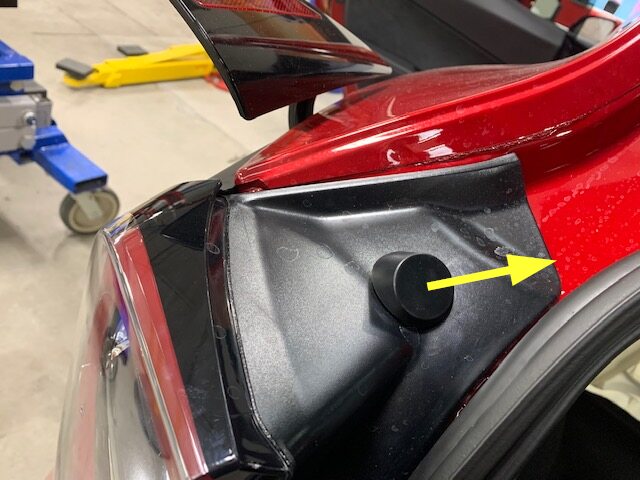

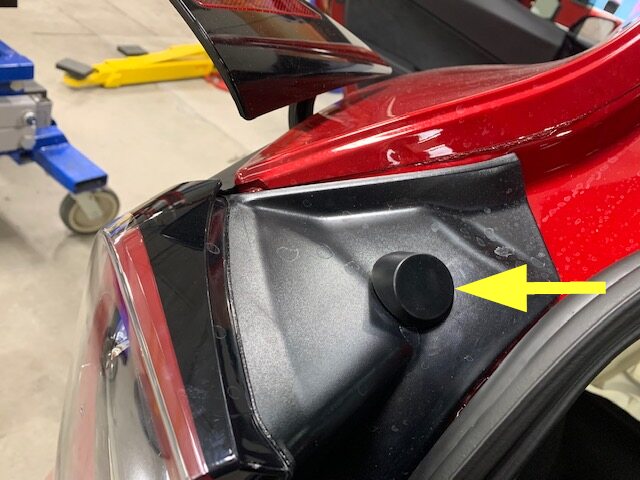

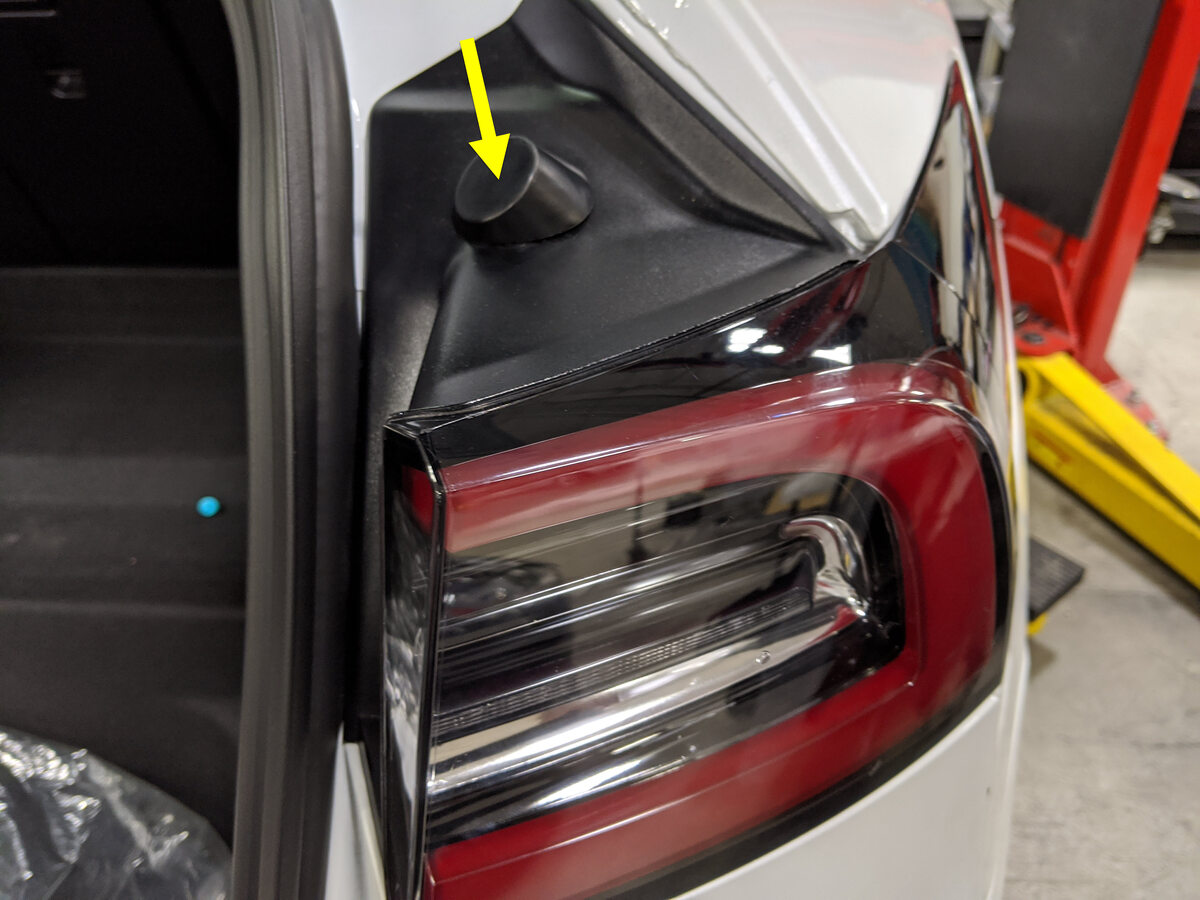

23. Remove LH liftgate stop
    注

    1x liftgate stop, Pull up to remove

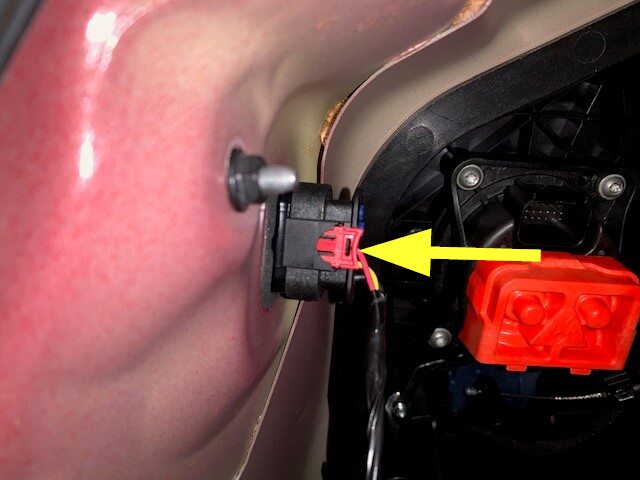

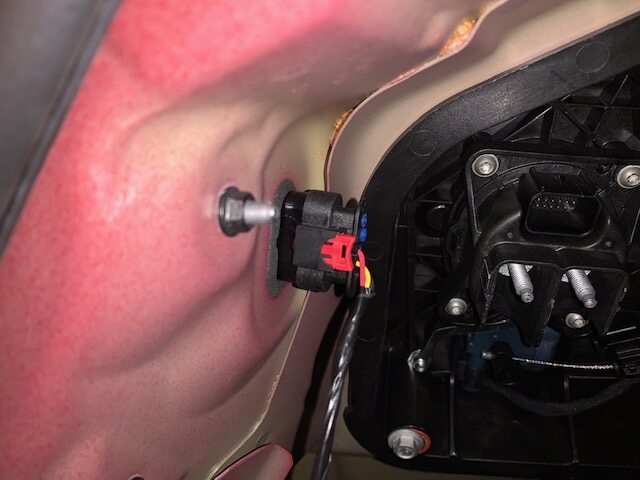

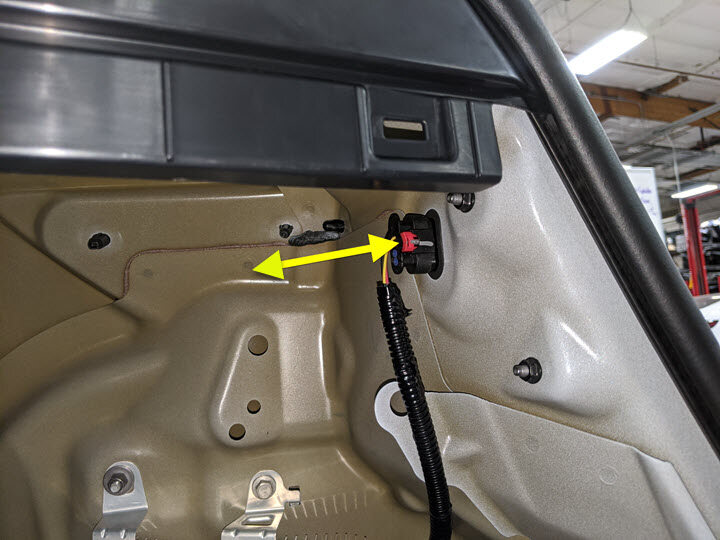

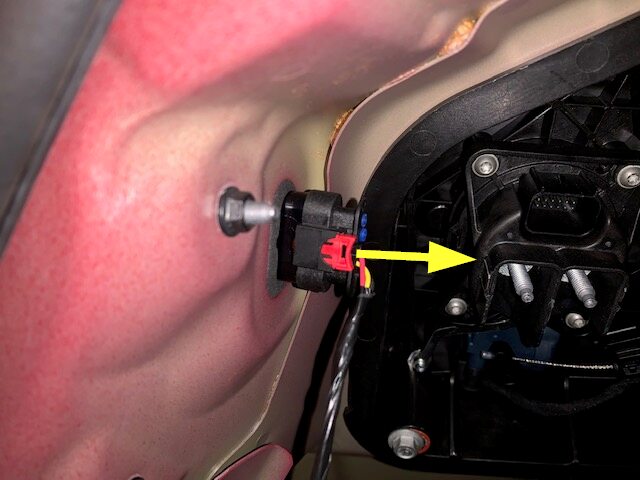

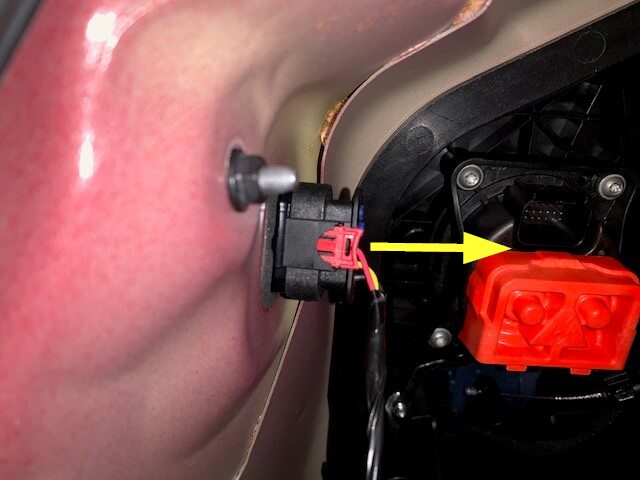

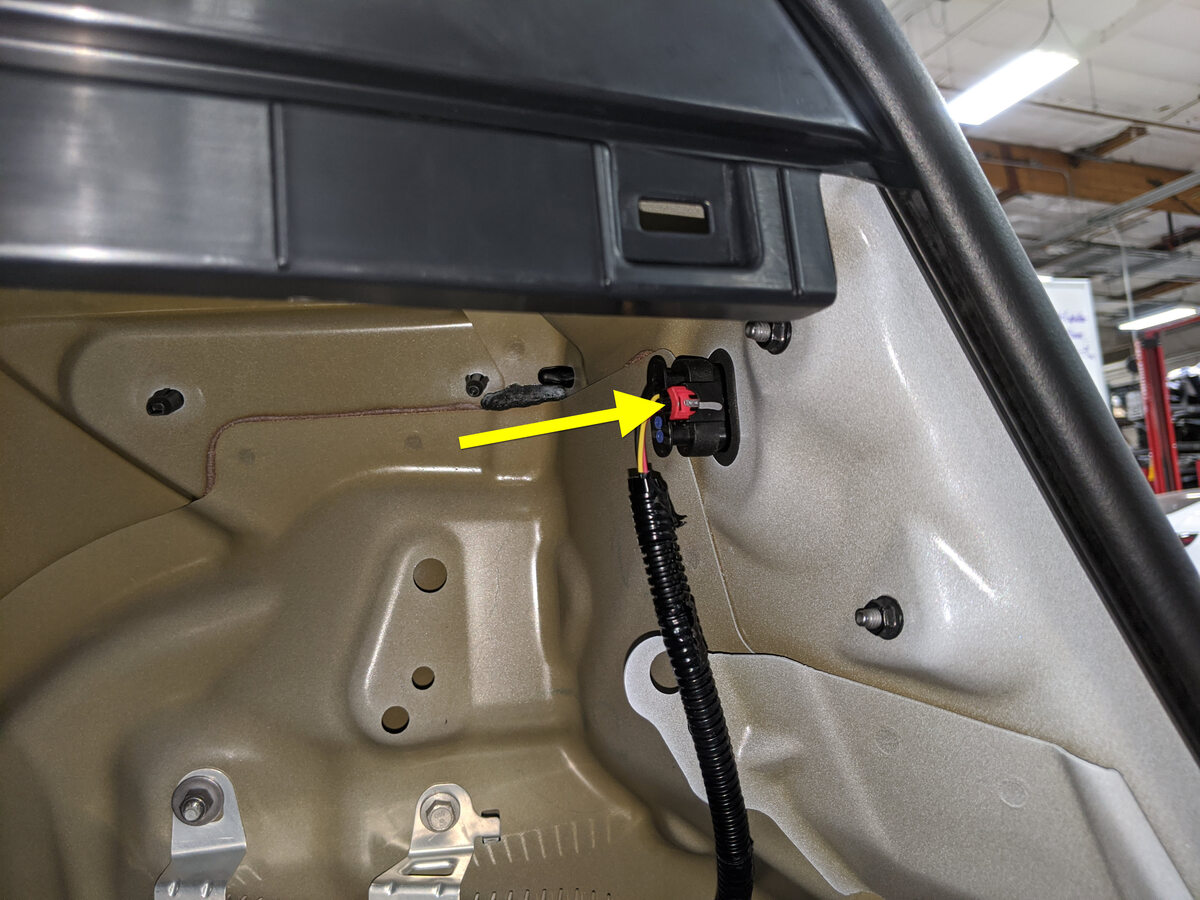

24. Disconnect LH rear bodyside tail lamp assembly
    注

    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector

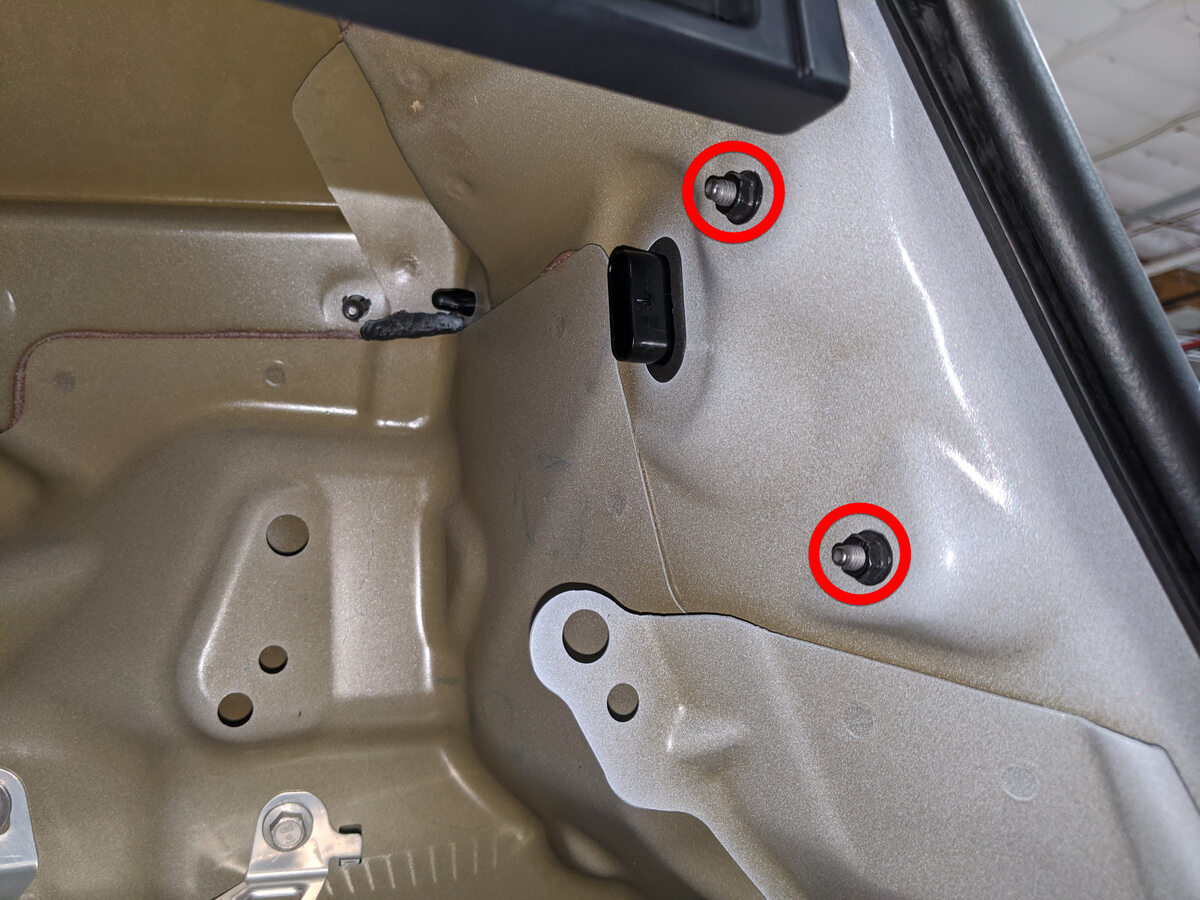

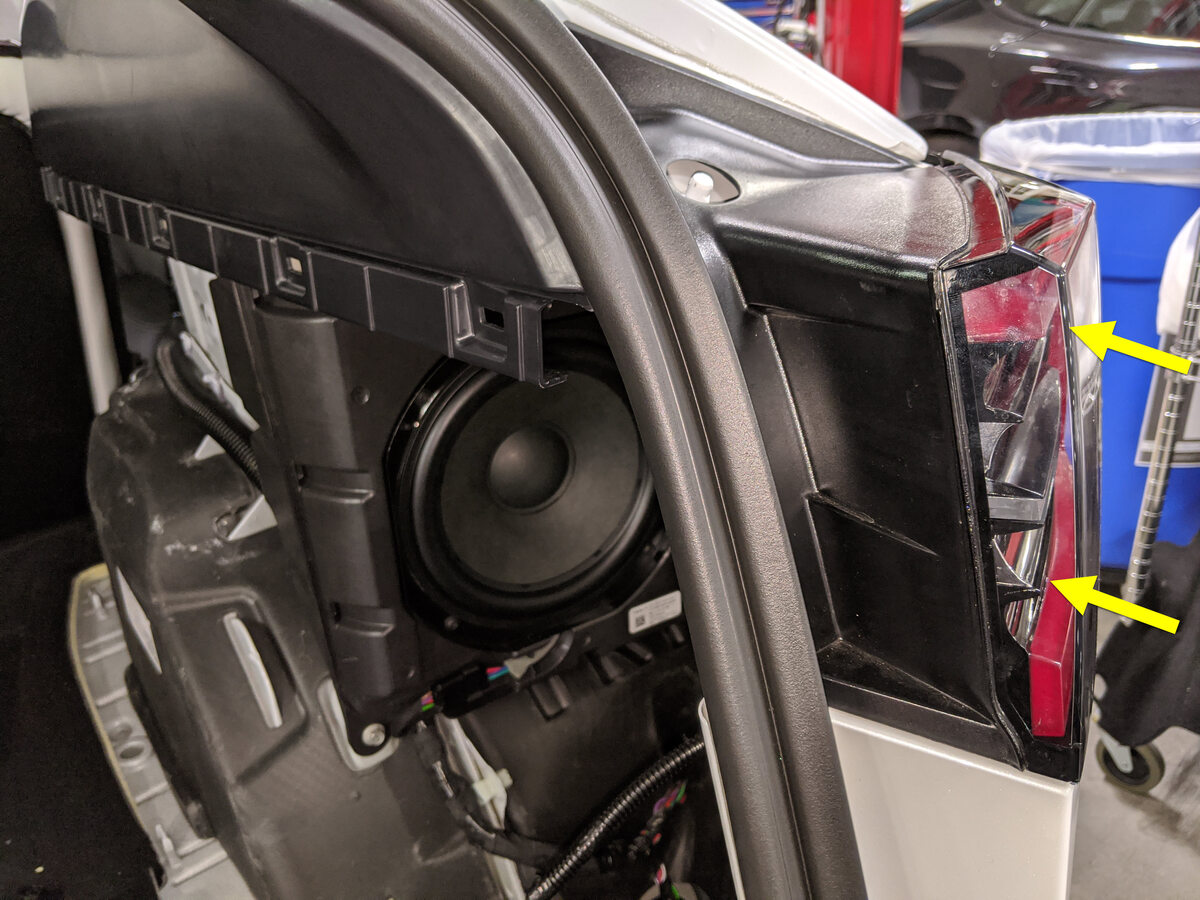

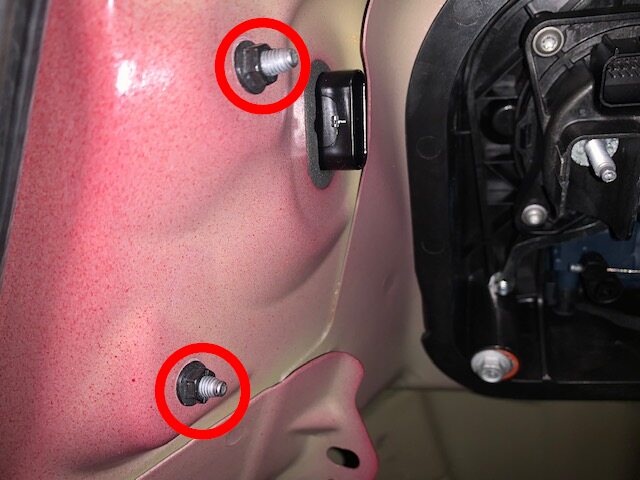

25. Release LH rear bodyside tail lamp assembly
    注

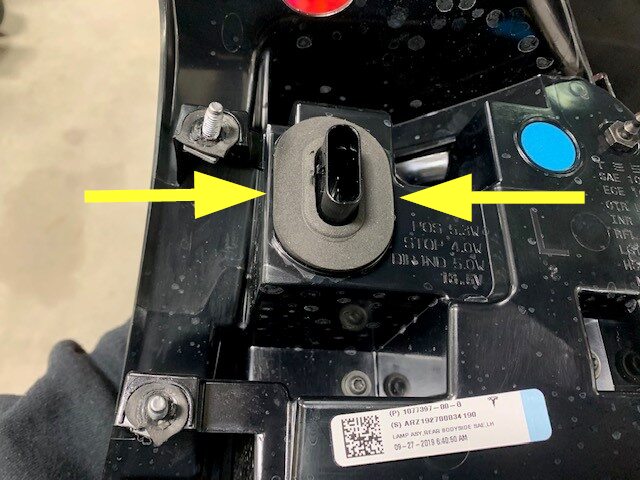

    2x nuts, 8mm, 3.2 Nm

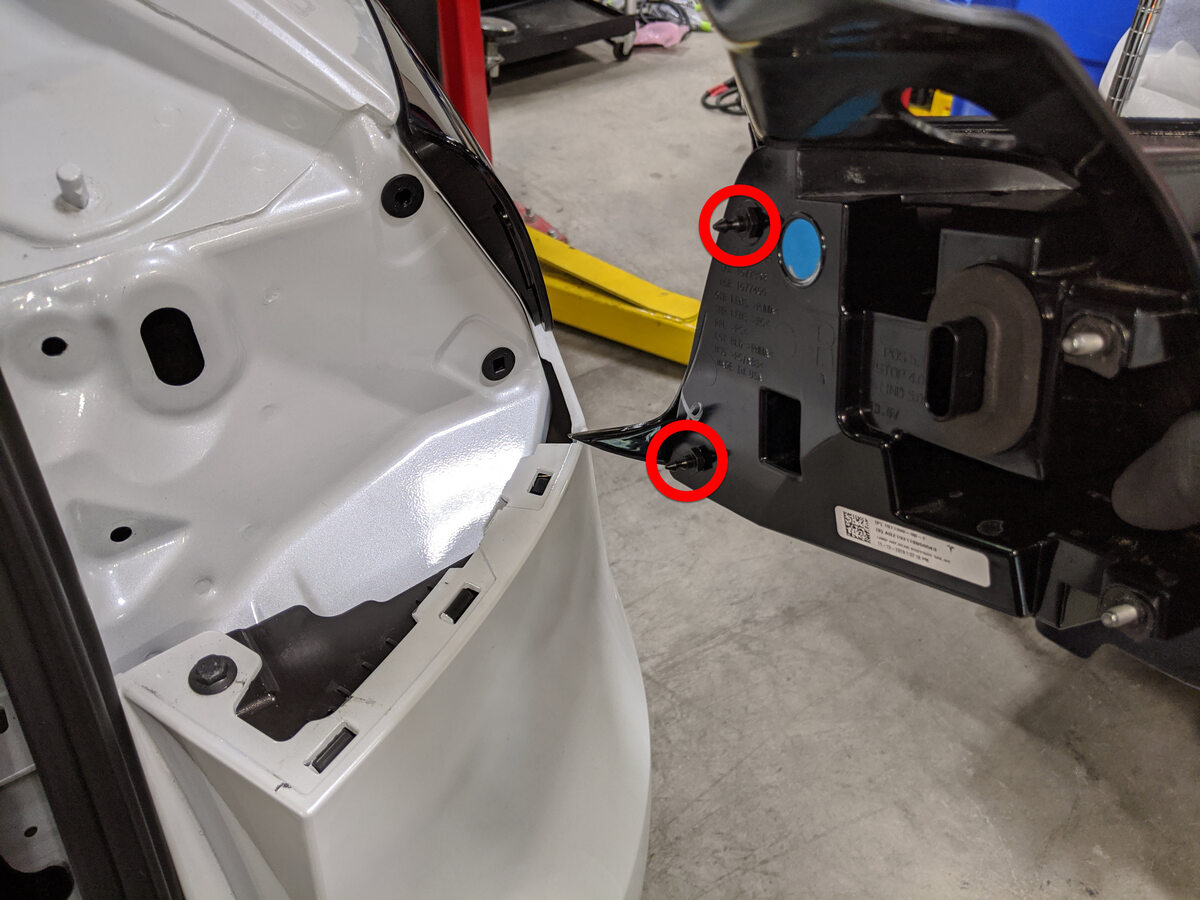

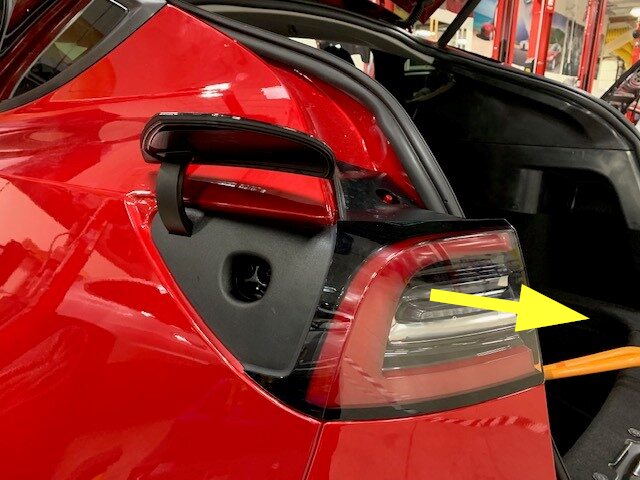

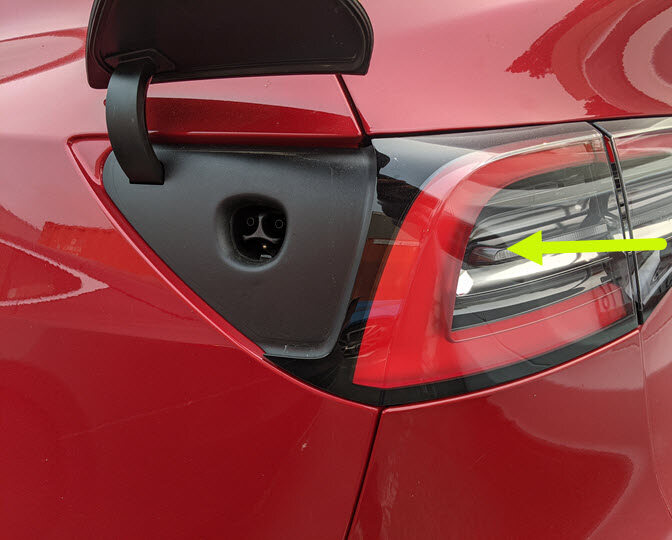

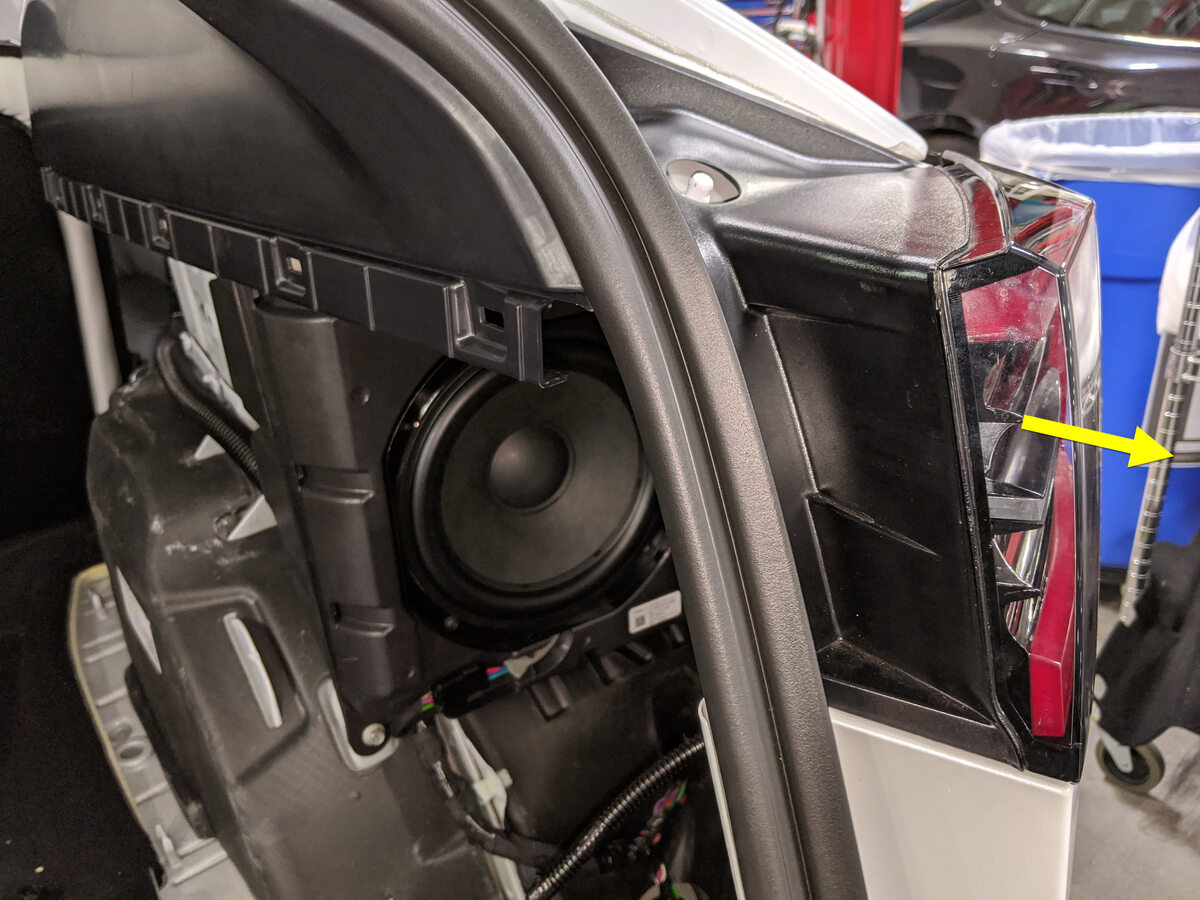

26. Remove LH rear bodyside tail lamp assembly from vehicle

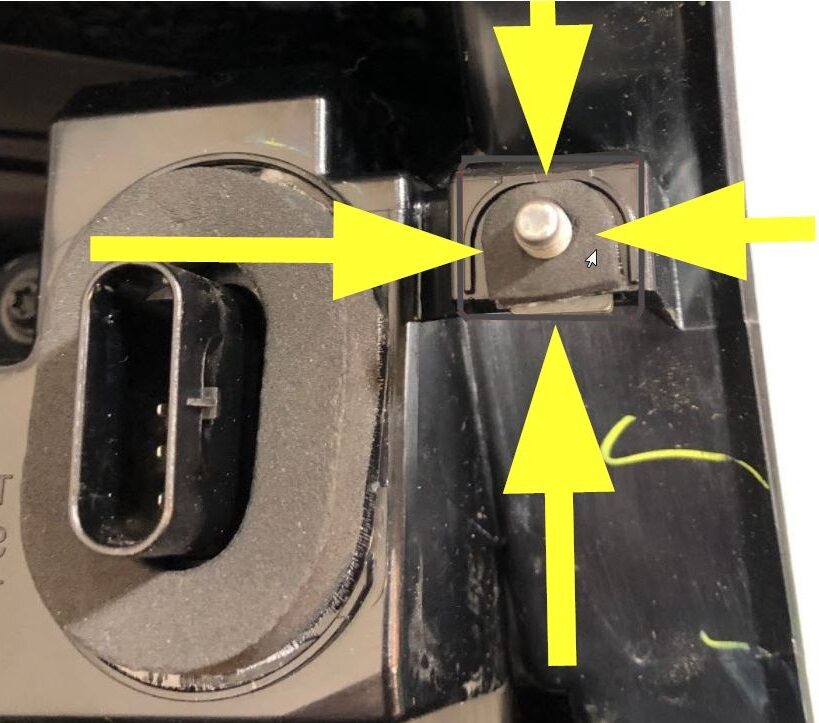

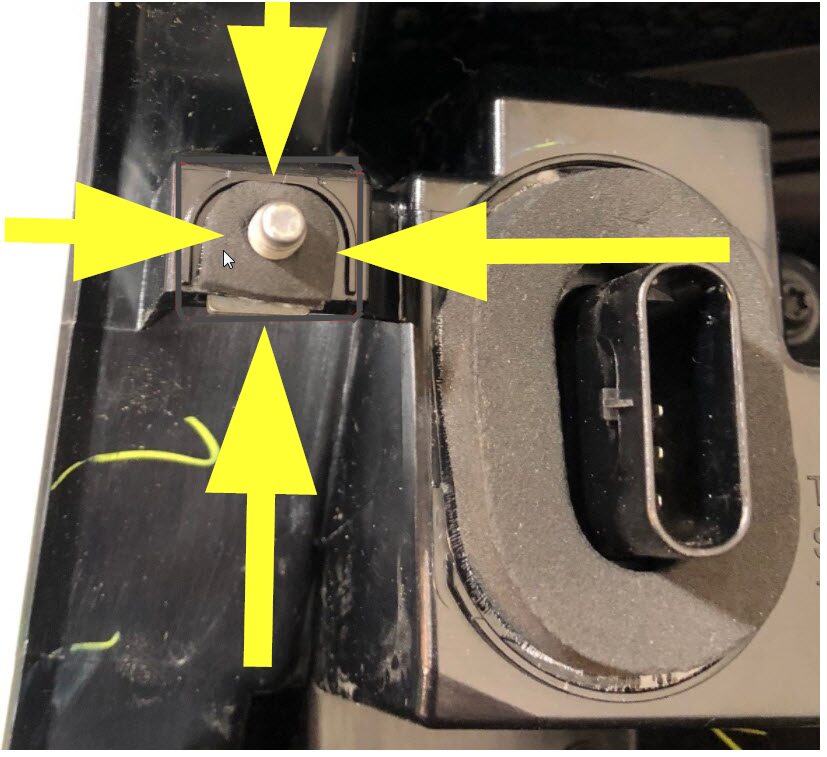

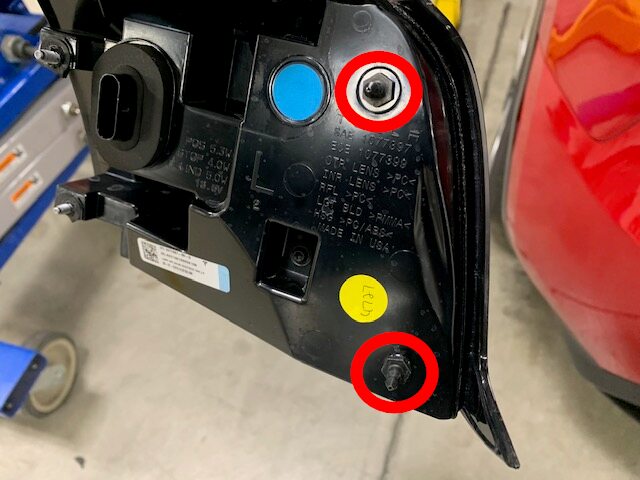

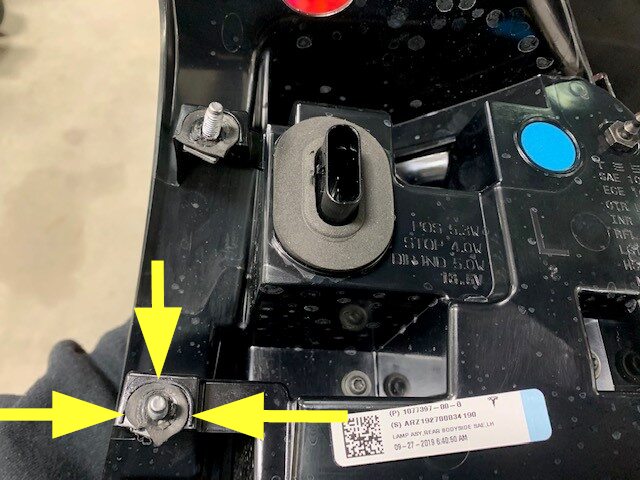

    注

    2x studs, To ease removal use trim tool to release lamp from body near each stud. While releasing studs, Pull from opposite end of lamp.

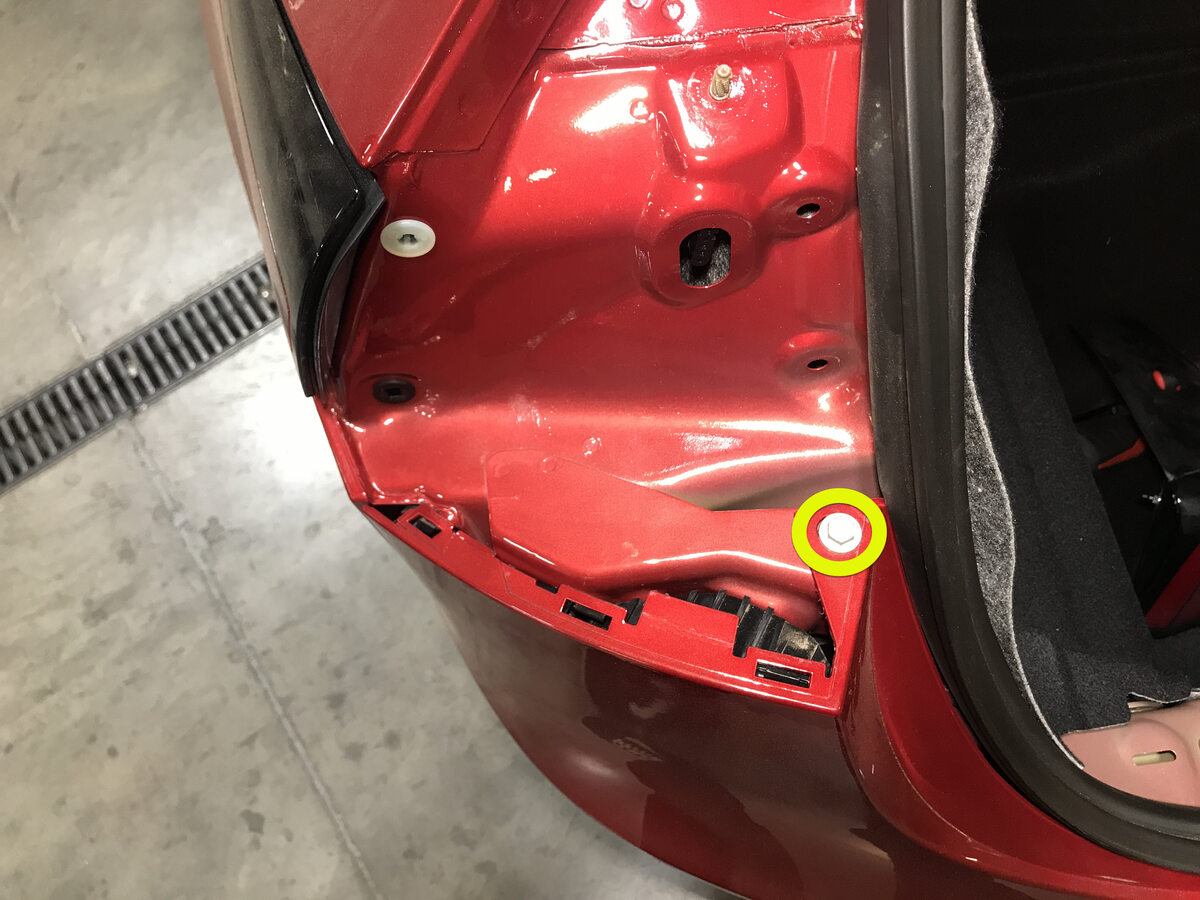

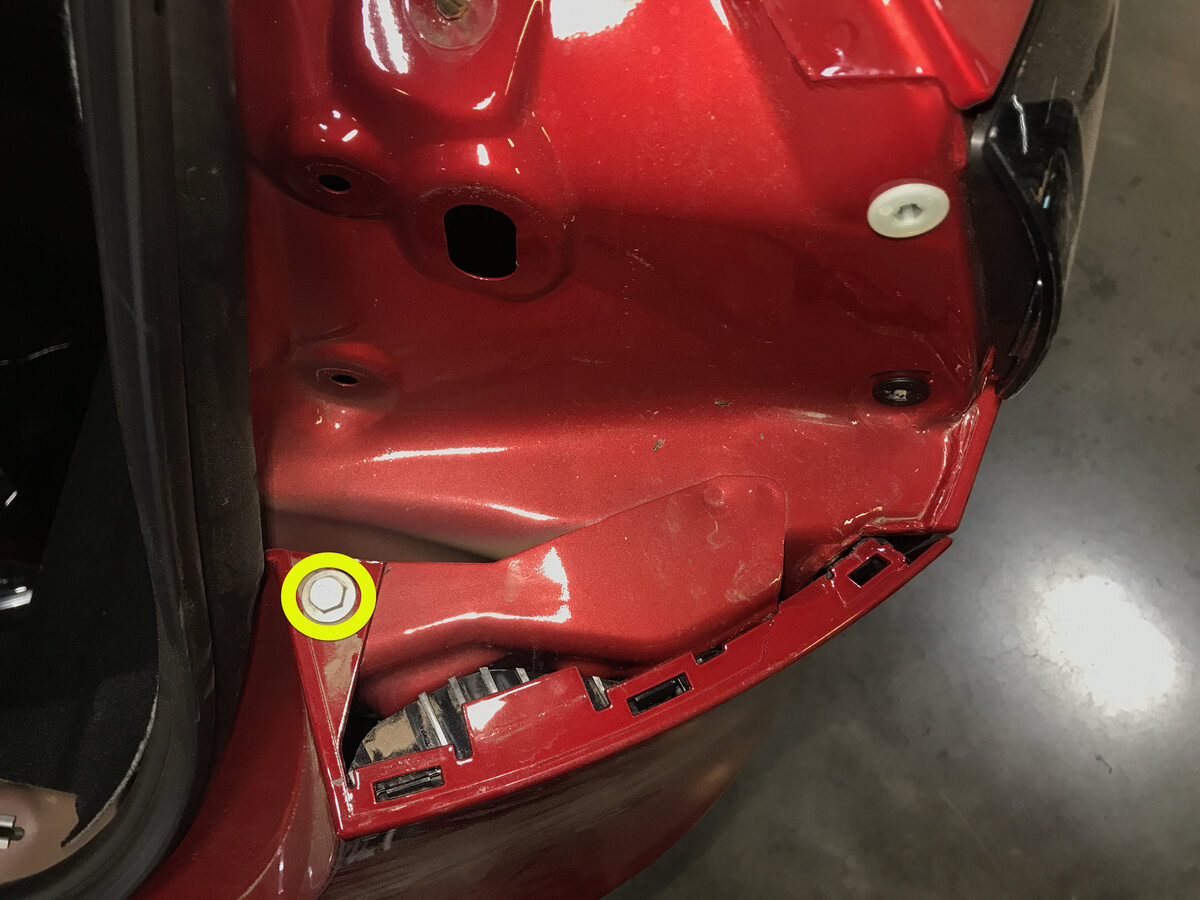

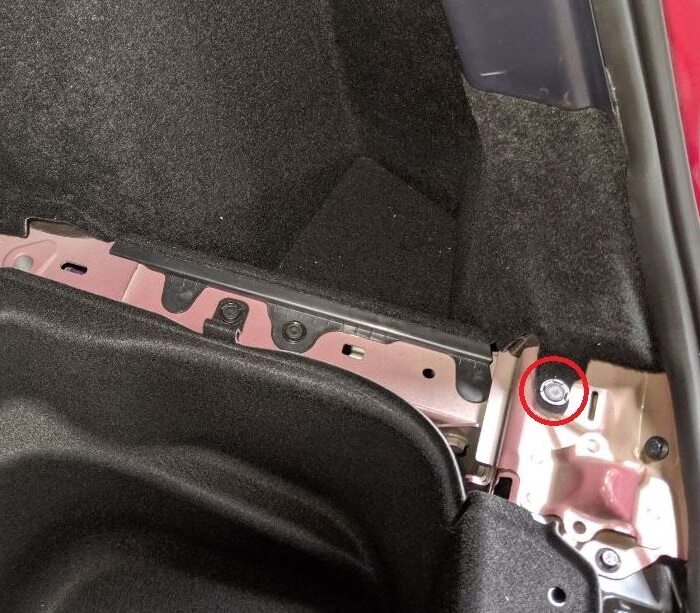

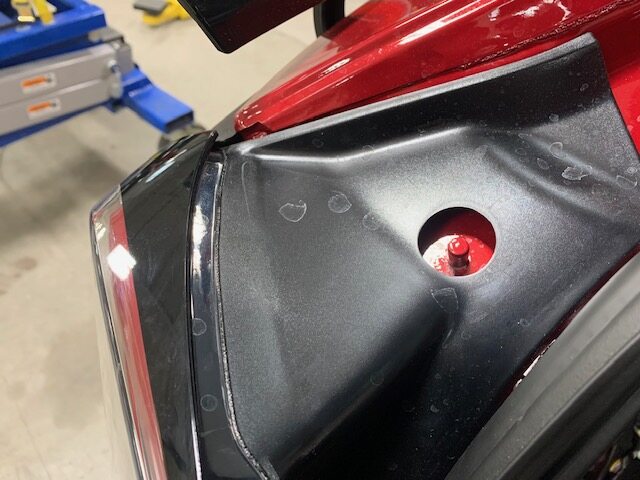

27. Remove bolt securing LH corner of rear fascia to body
    注

    1x bolt, 10mm, 4 Nm



28. Remove RH liftgate stop
    注

    1x liftgate stop, Pull up to remove



29. Disconnect RH rear bodyside tail lamp assembly connector
    注

    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector



30. Remove nuts securing RH rear bodyside tail lamp assembly to vehicle
    注

    2x nuts, 8mm, 3.2 Nm



31. Remove RH rear bodyside tail lamp assembly from vehicle
    注

    2x studs





32. Remove bolt securing RH corner of rear fascia to body
    注

    1x bolt, 10mm, 4 Nm

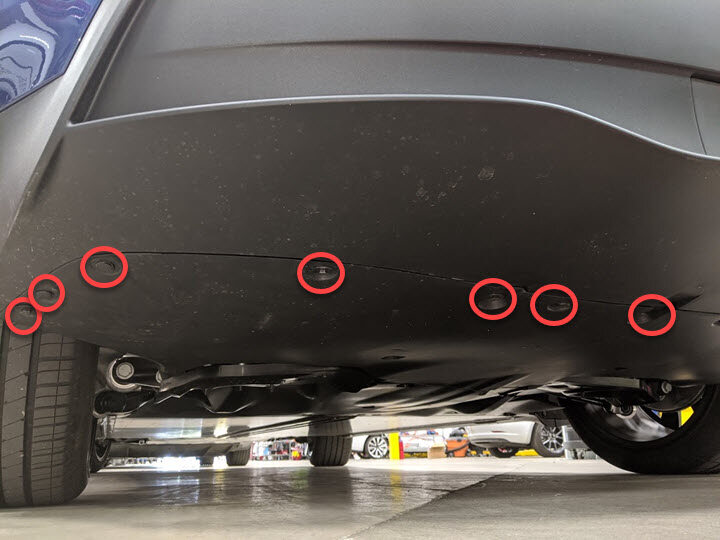

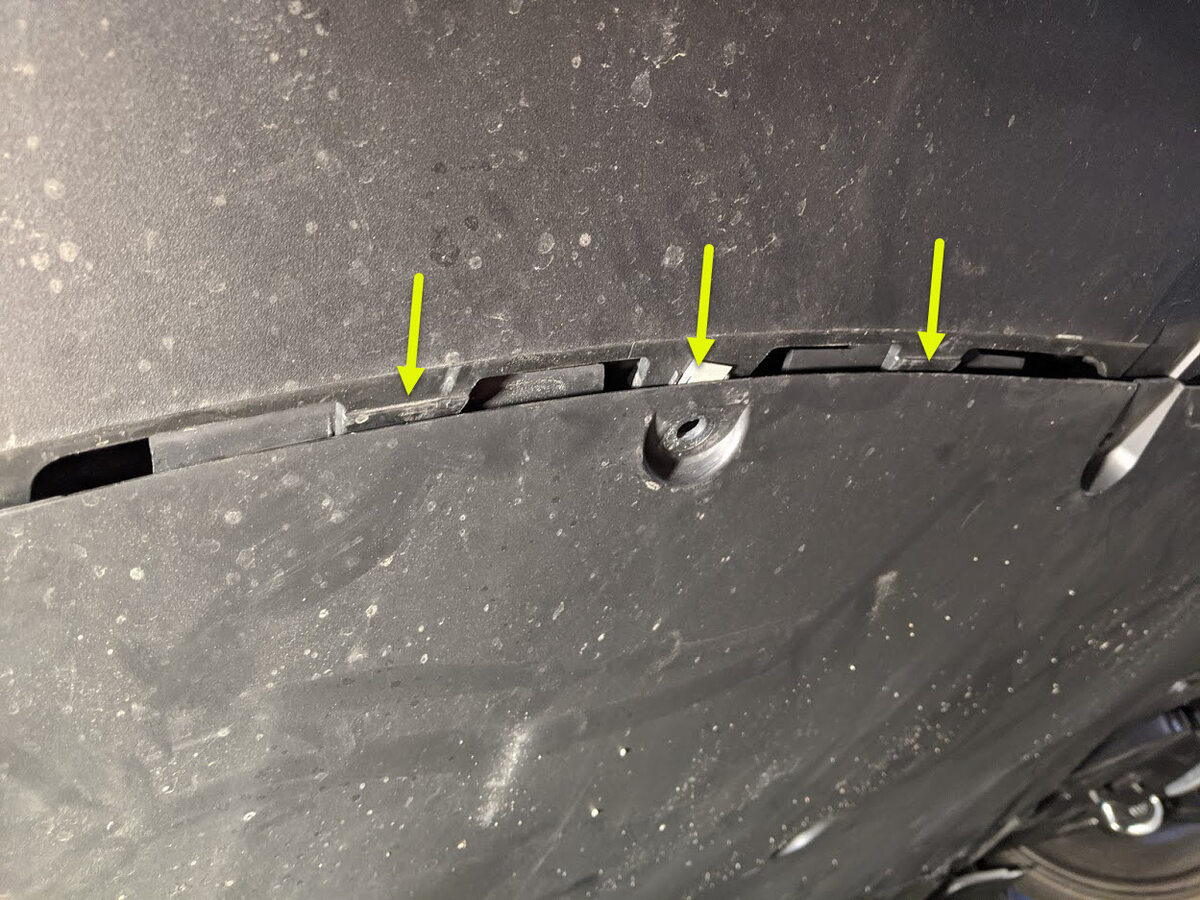

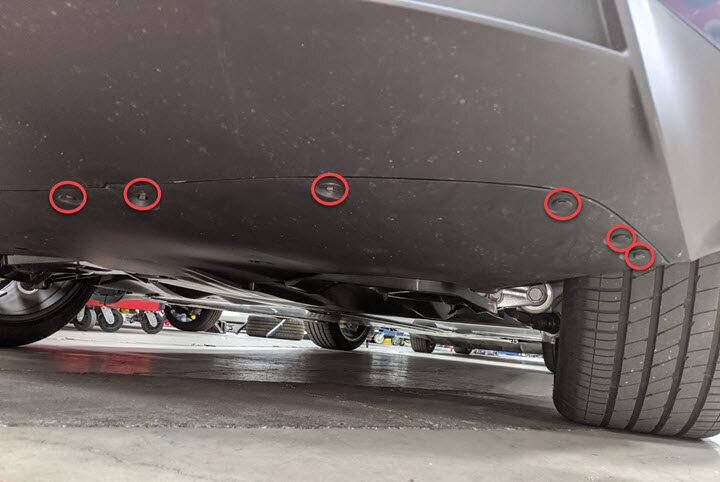

33. Release rear fascia from rear diffuser
    注

    6x clips, 7x bolts, 10mm, 4 Nm

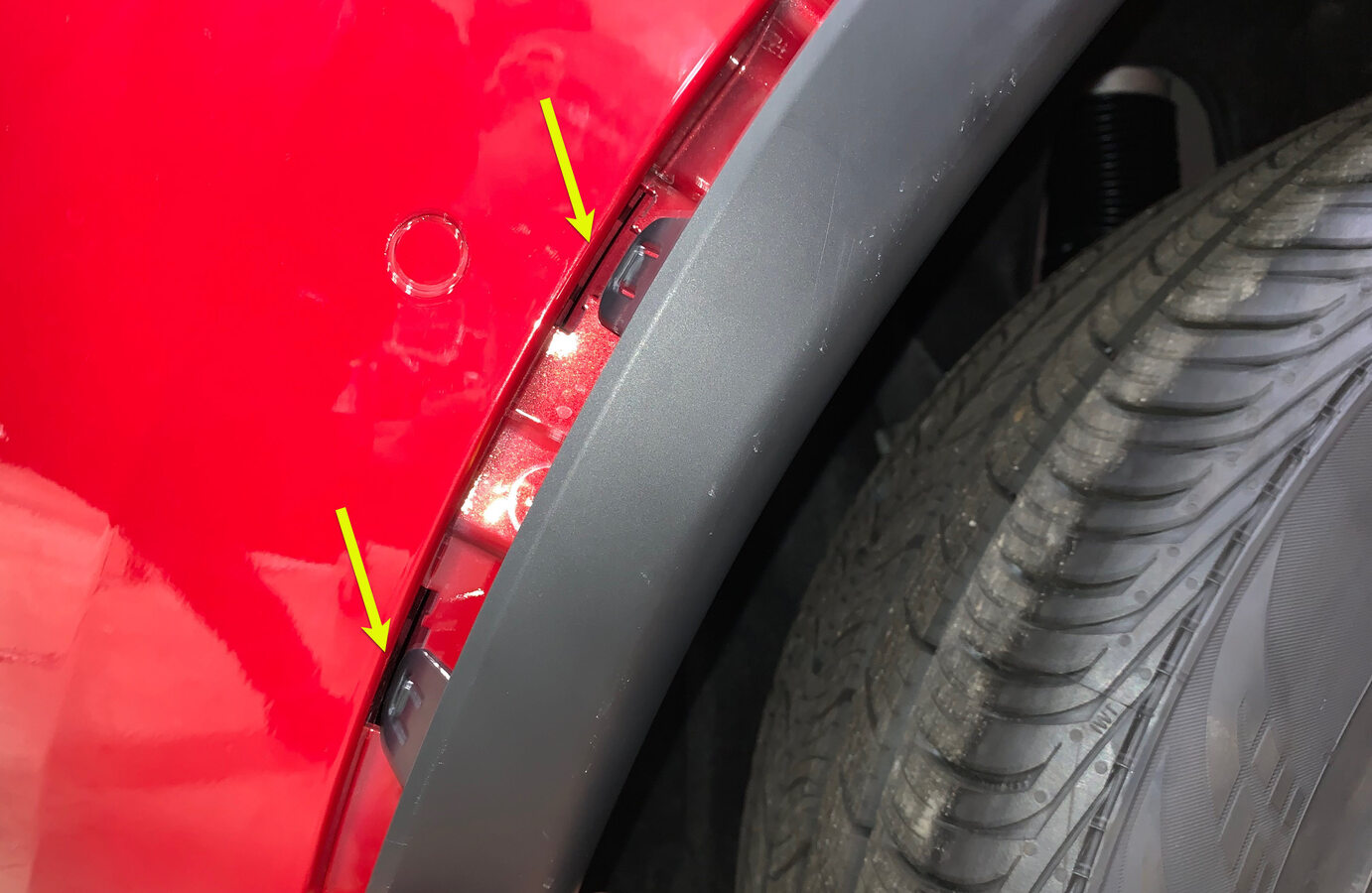

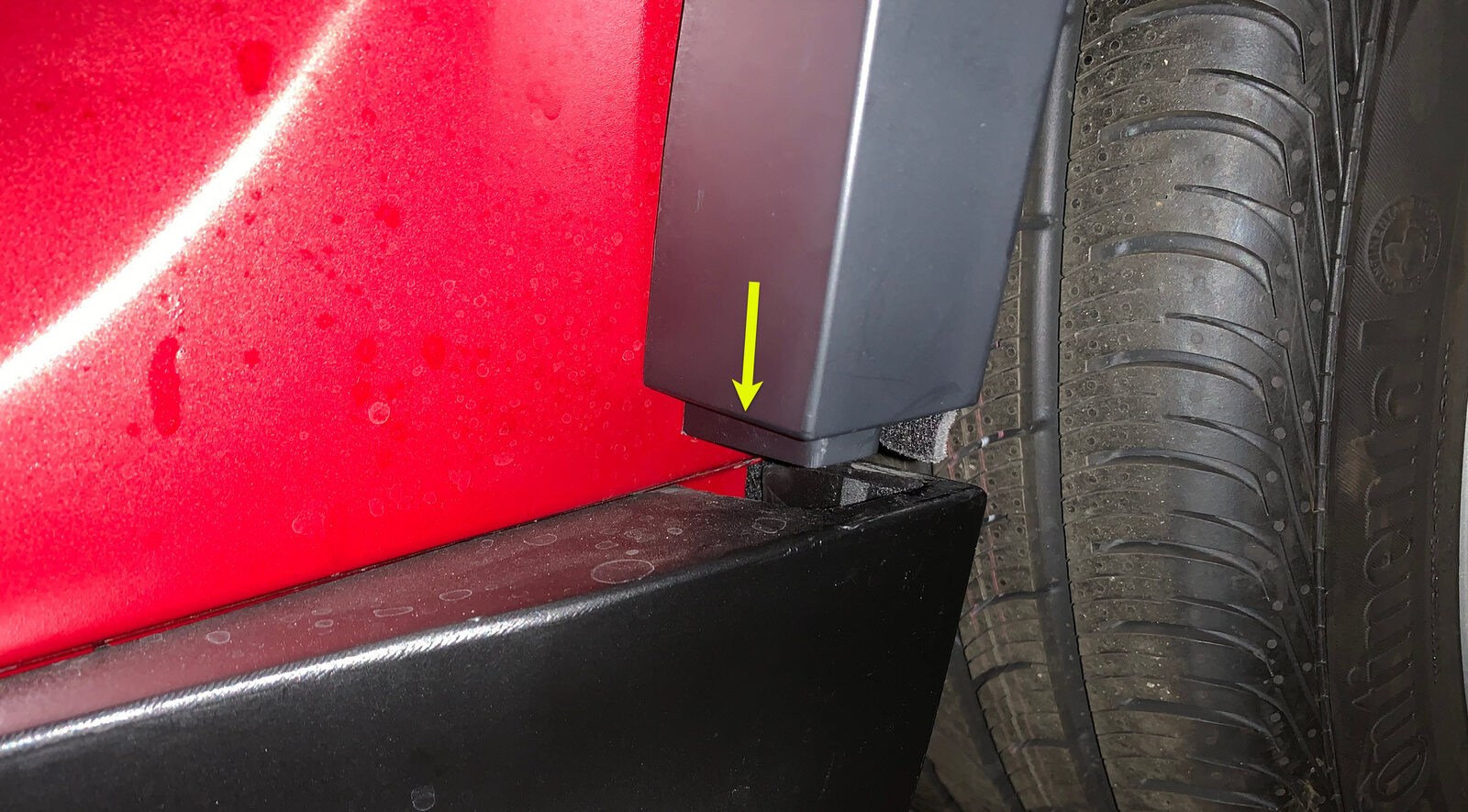

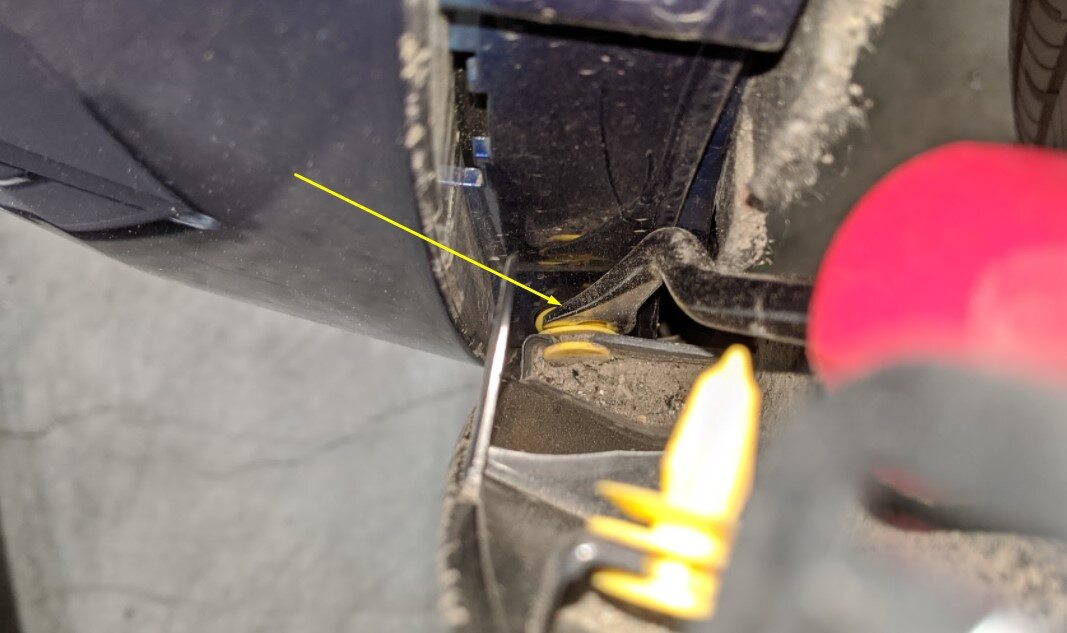

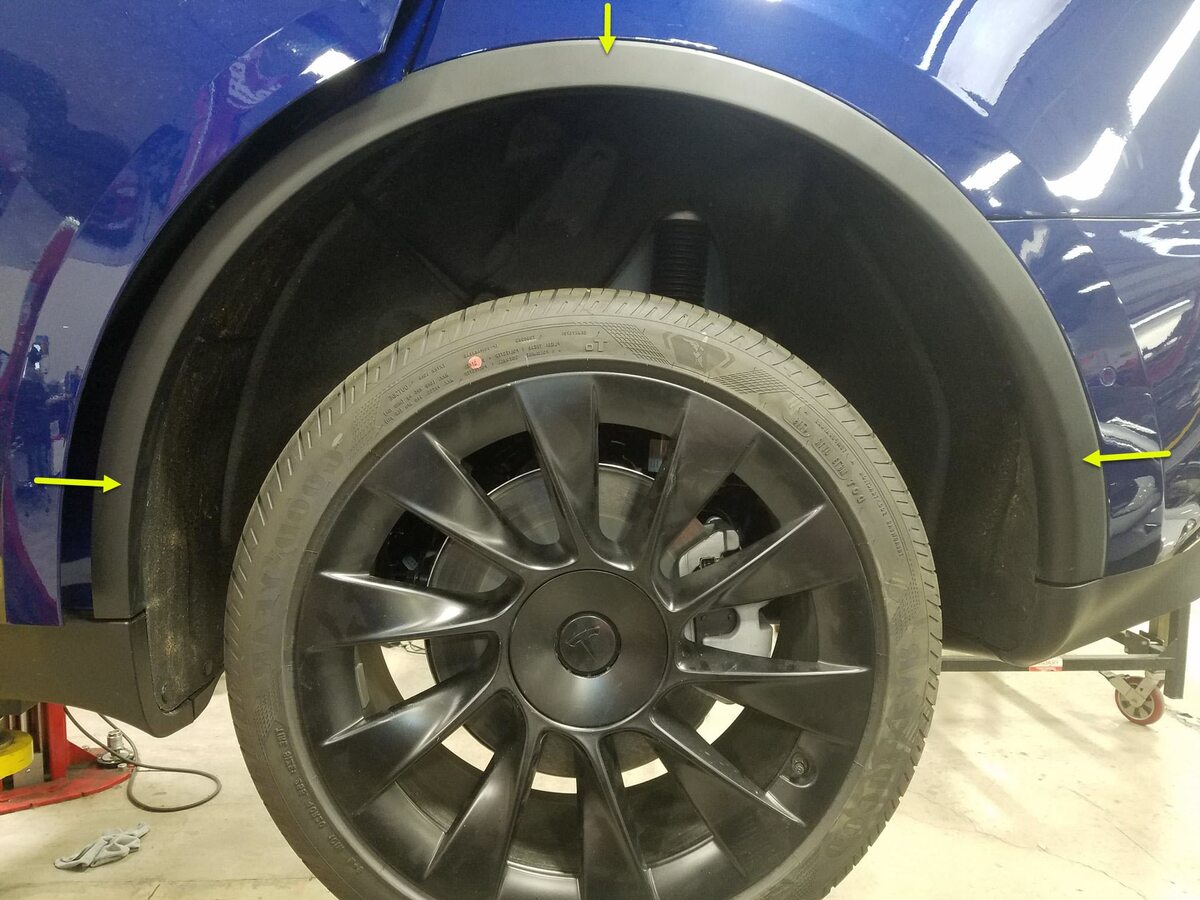

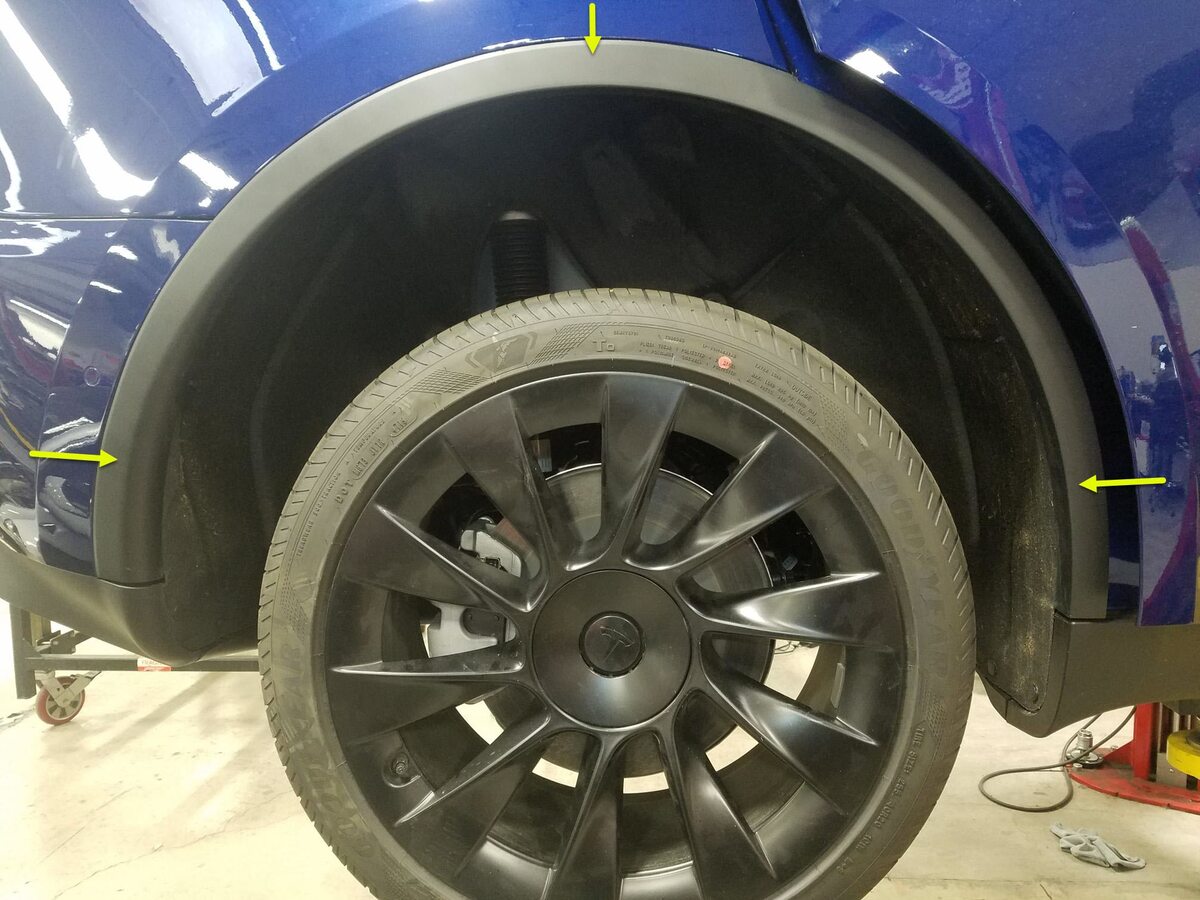

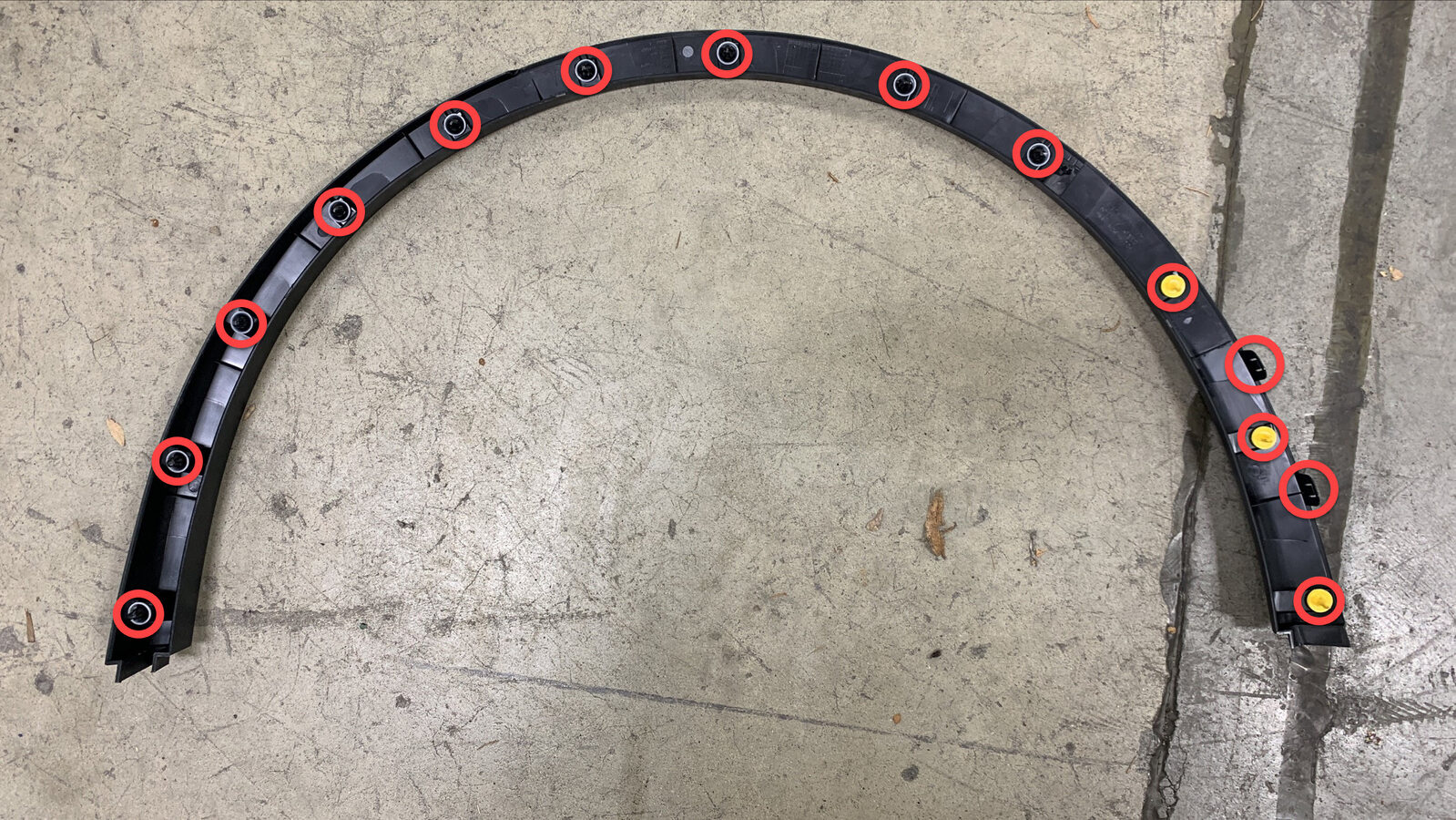

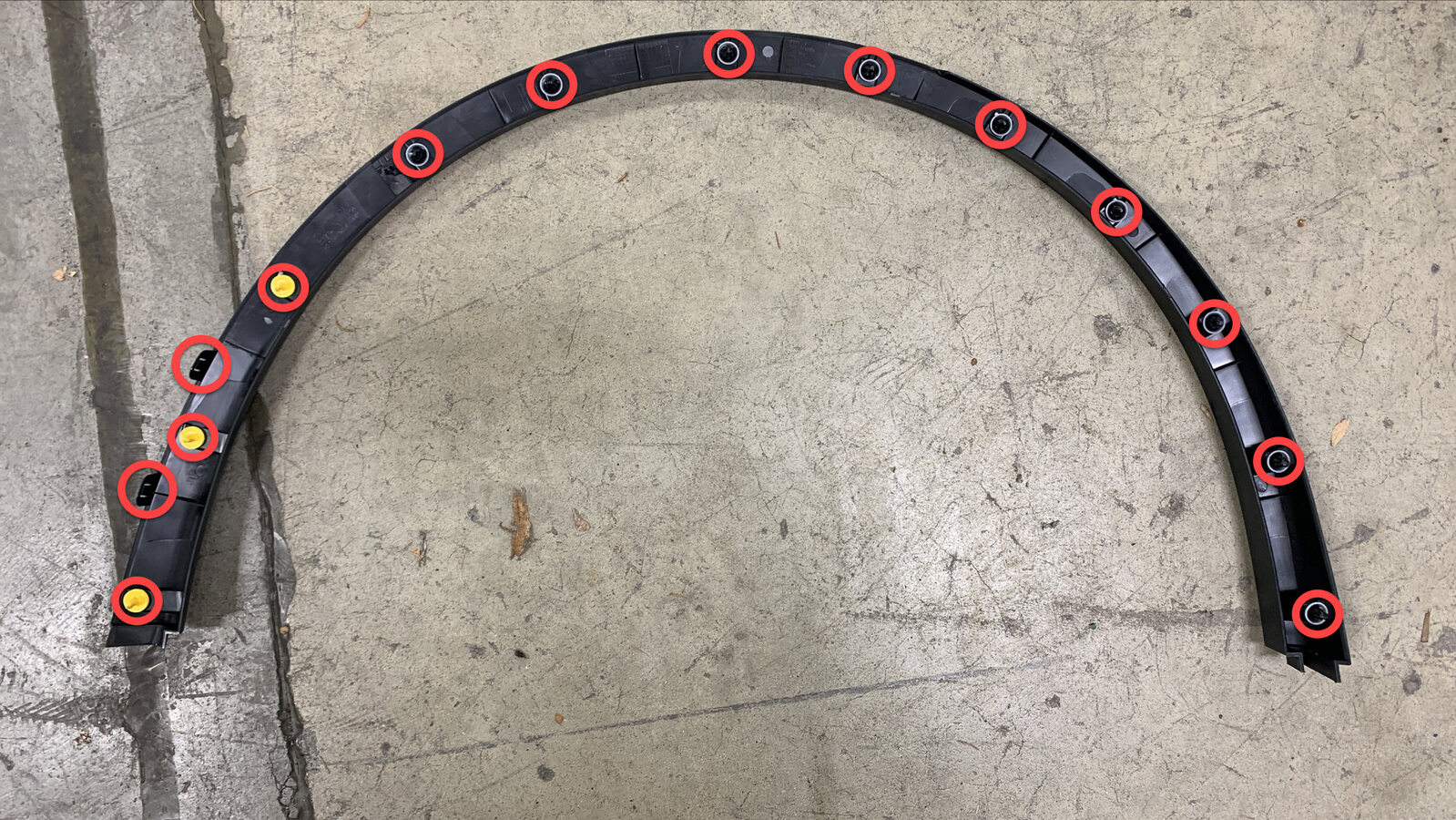

34. Remove LH rear fender garnish from vehicle
    注

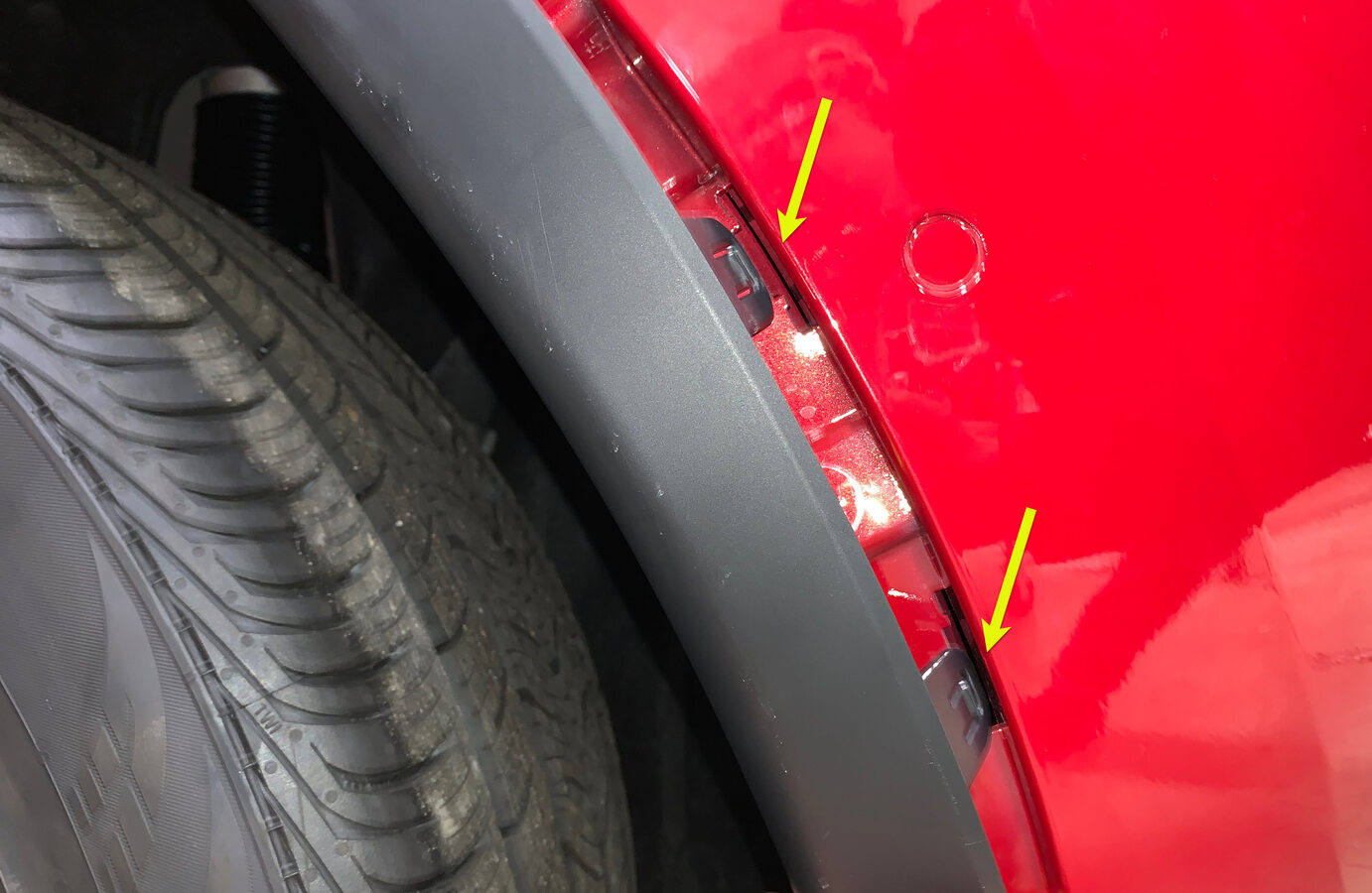

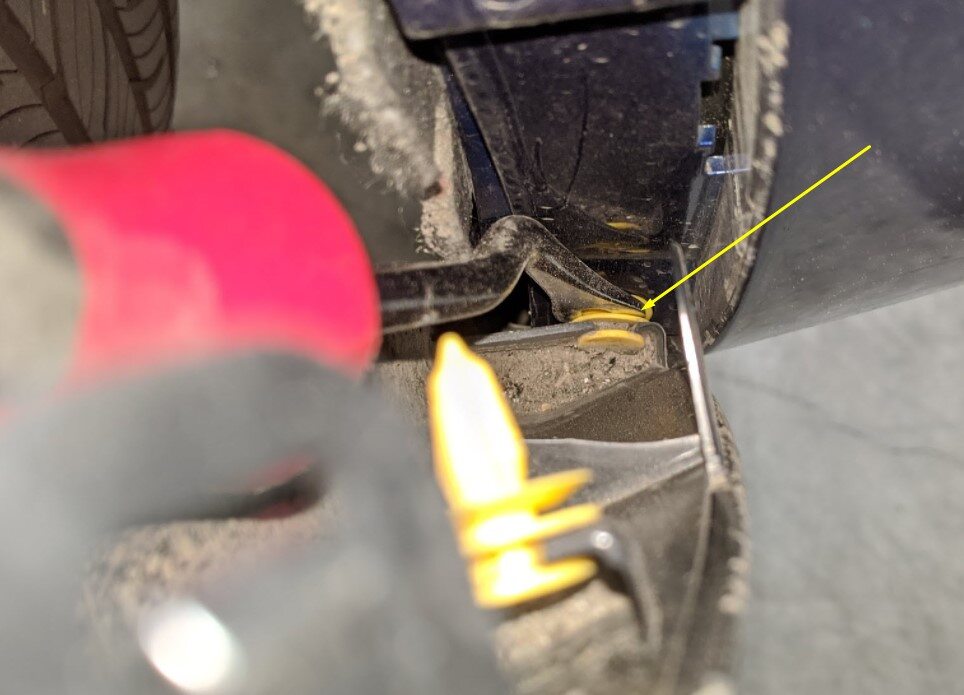

    14x clips, Release from center of garnish and work your way outward towards both ends, Using clip prytool release yellow clips at rear of fascia to avoid damage to garnish

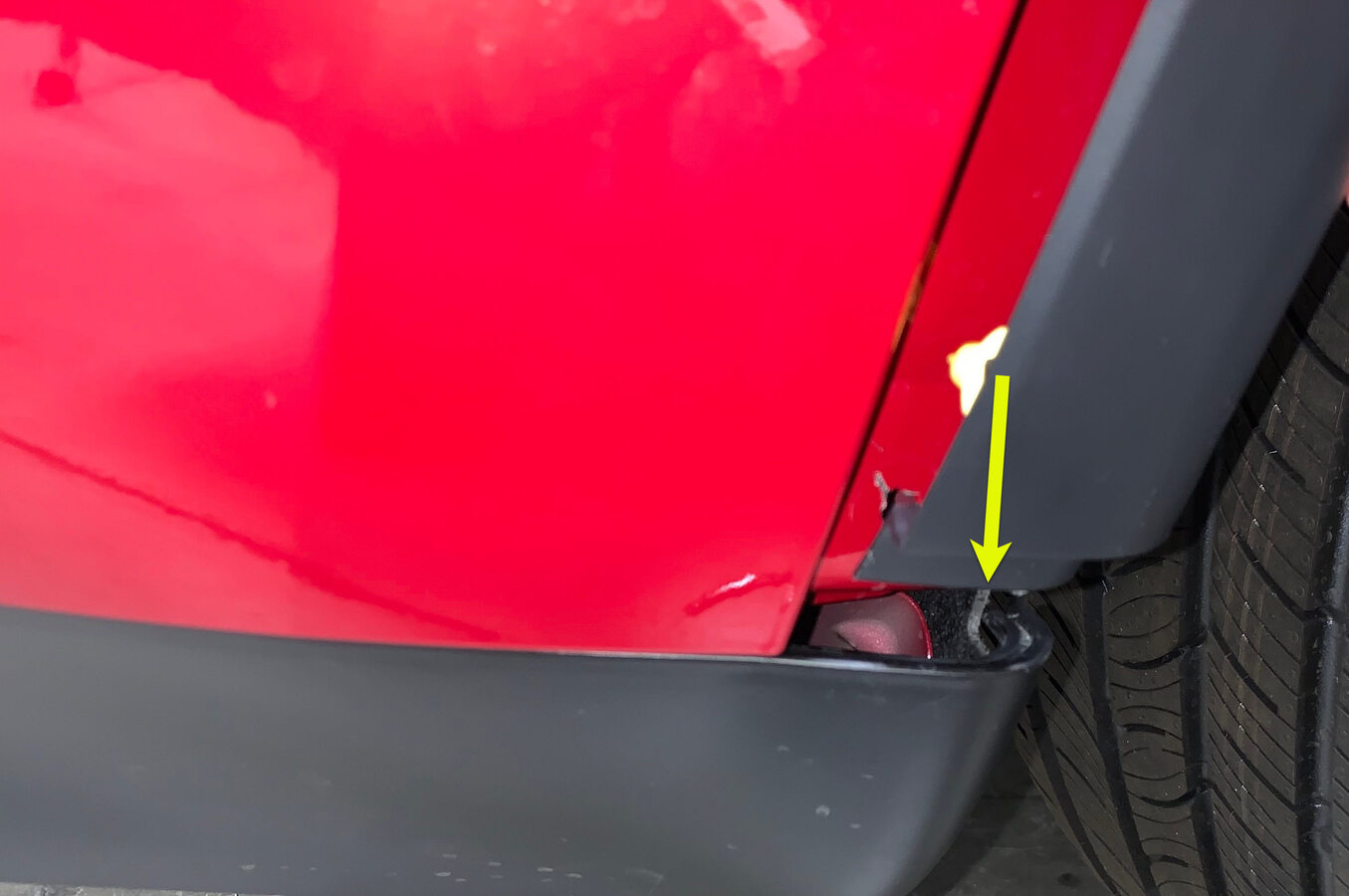

35. Remove bolt securing LH rear fascia to body
    注

    1x bolt, 8mm, 4 Nm



36. Remove RH rear fender garnish from vehicle
    注

    14x clips, Release from center of garnish and work your way outward towards both ends, Using clip prytool release yellow clips at rear of fascia to avoid damage to garnish









37. Remove bolt securing RH rear fascia to body
    注

    1x bolt, 8mm, 4 Nm

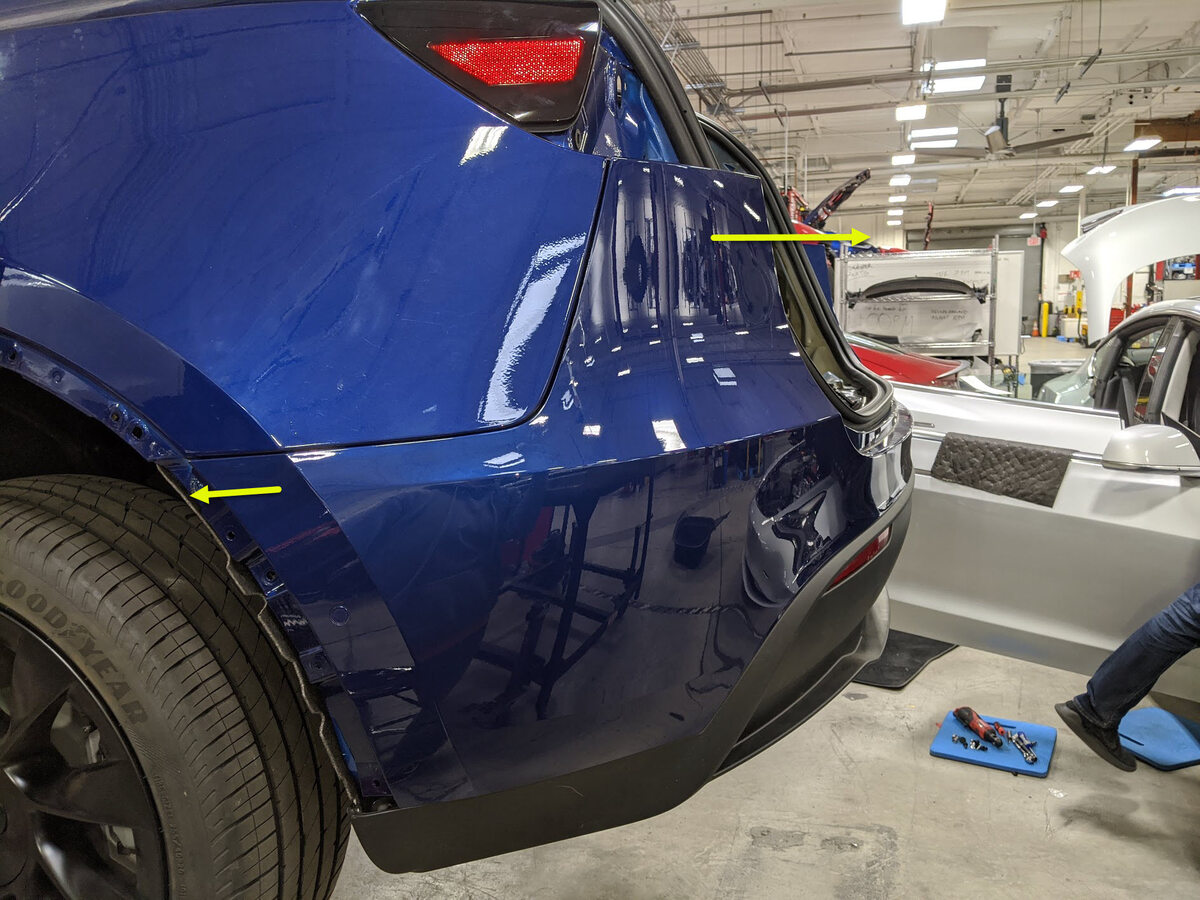

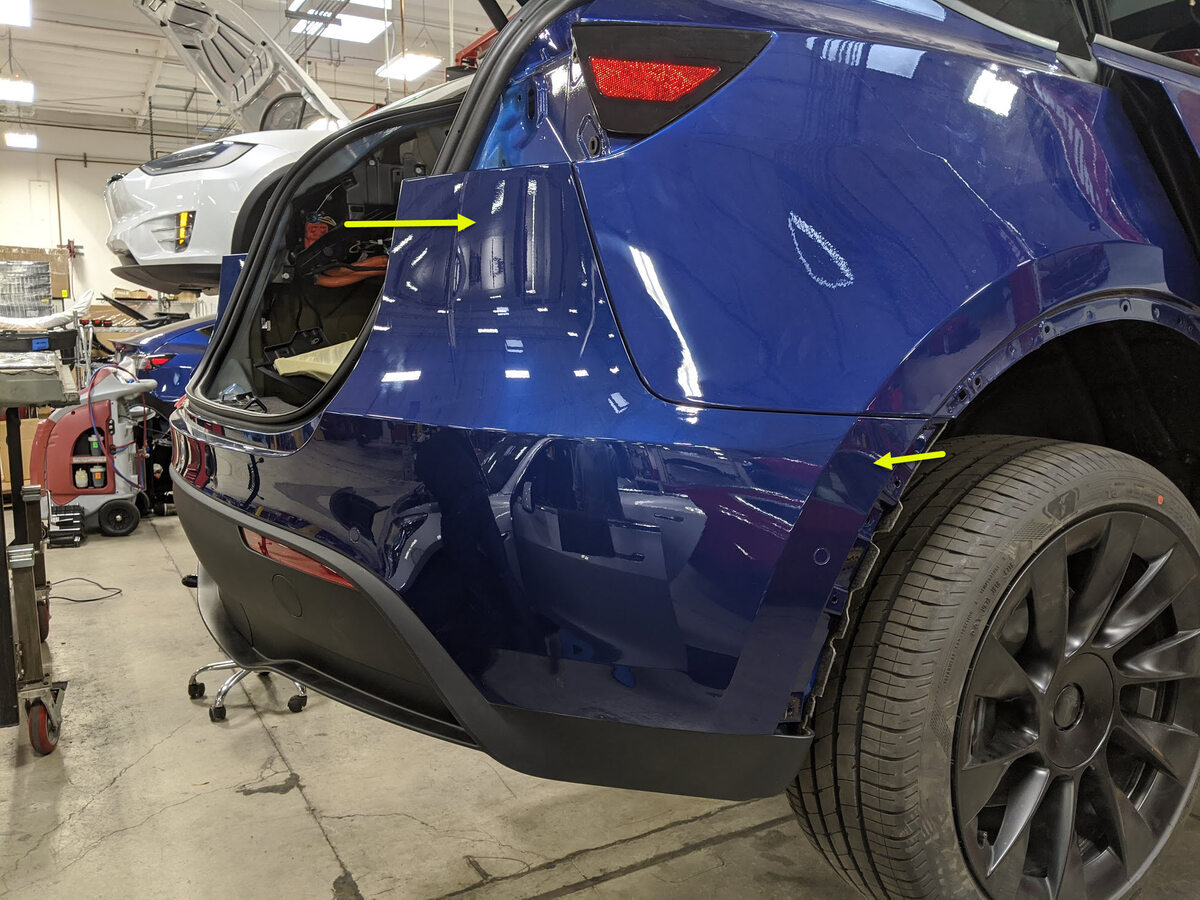

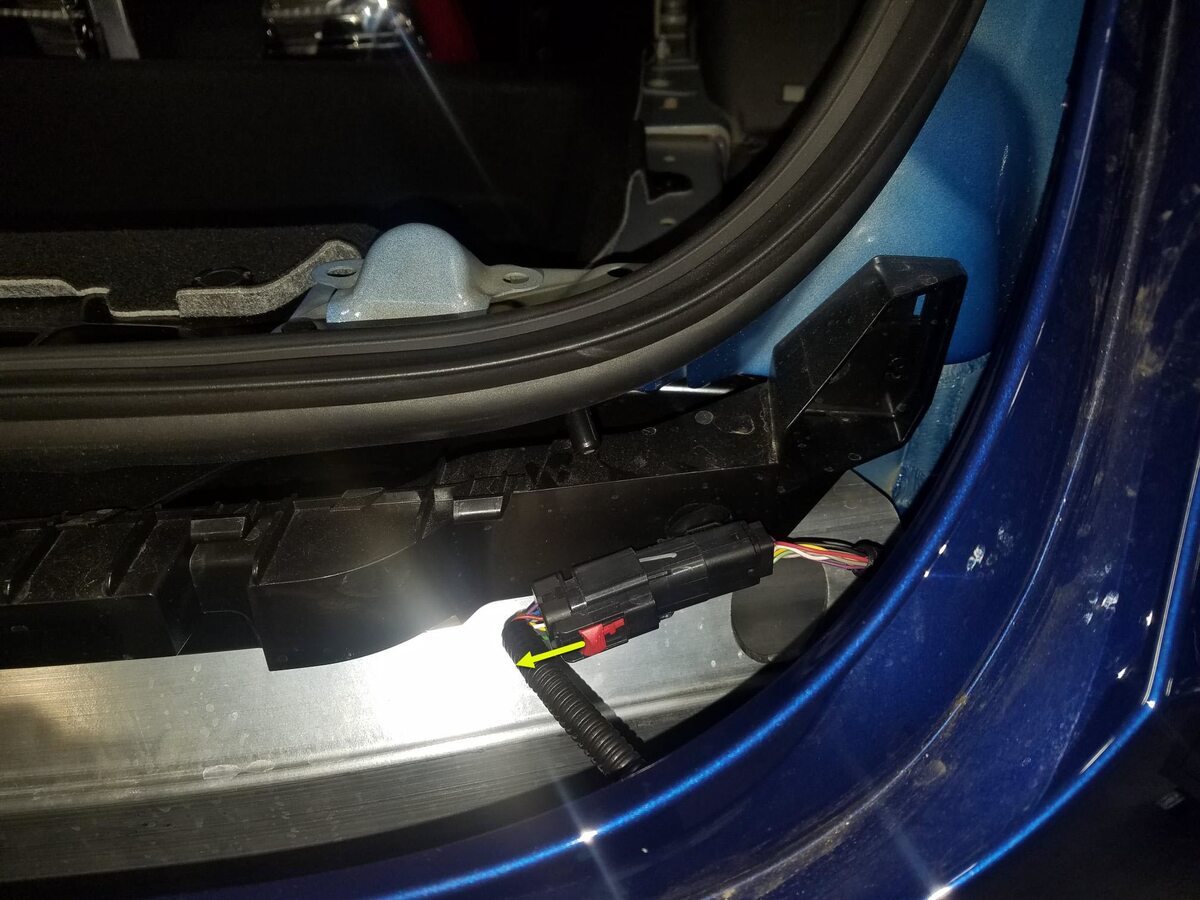

38. Release rear fascia from body and disconnect rear fascia harness then remove assembly from vehicle
    注

    1x connector, Slide red locking tab away from connector, Then depress black locking tab to release the connector. Recommend assistance, Place rear fascia on padded surface to avoid damage. Not need to disconnect rear fascia connector for AP4.

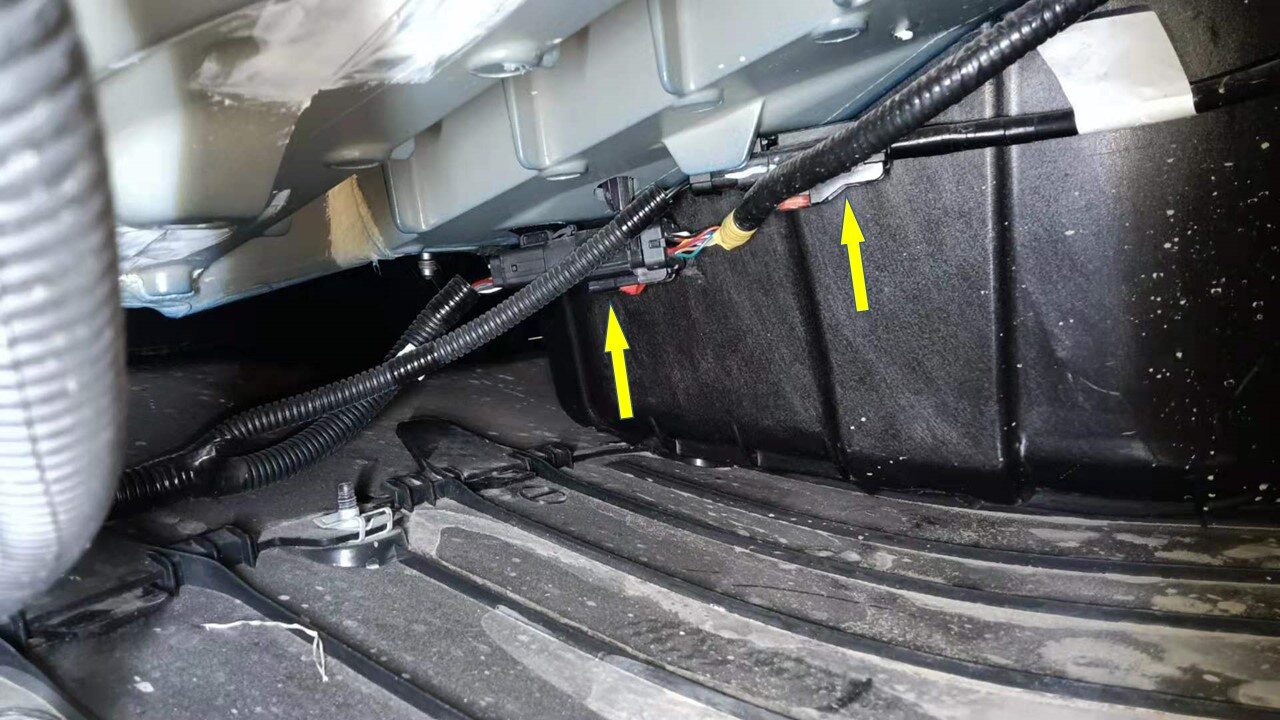

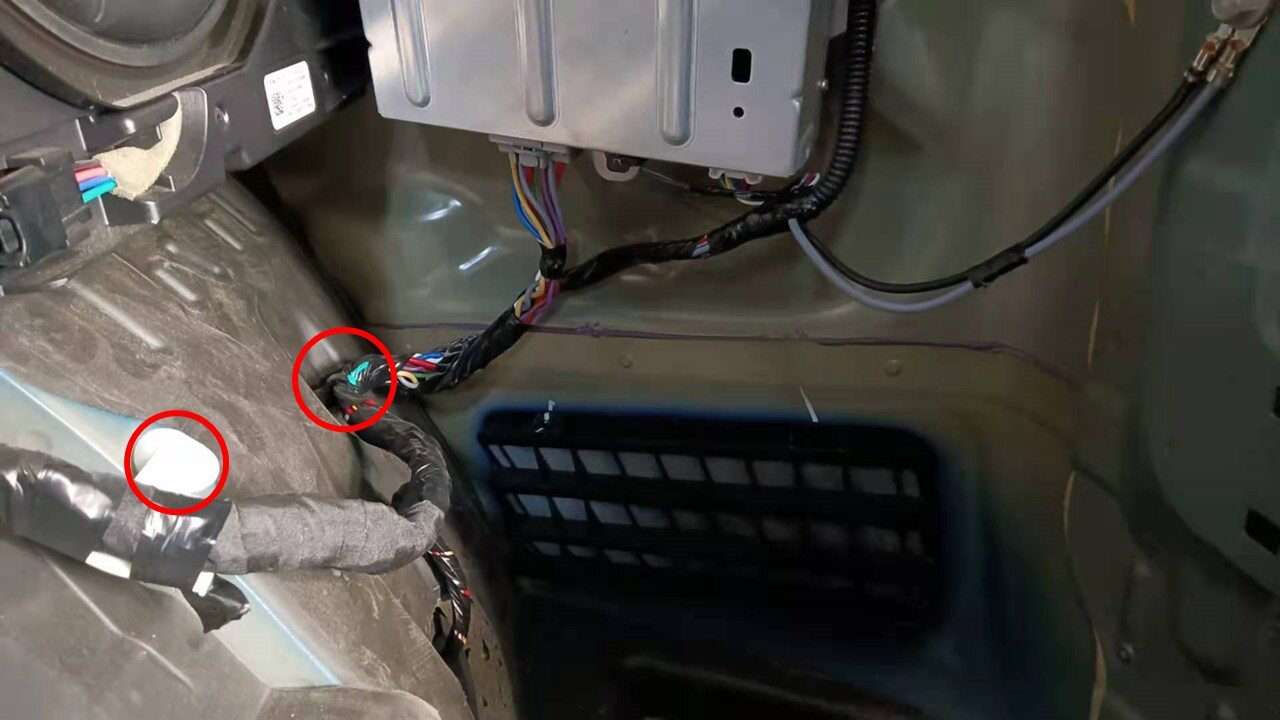

39. Disconnect the RH body harness from rear subframe and RH rear EPB connector
    注

    2x connectors

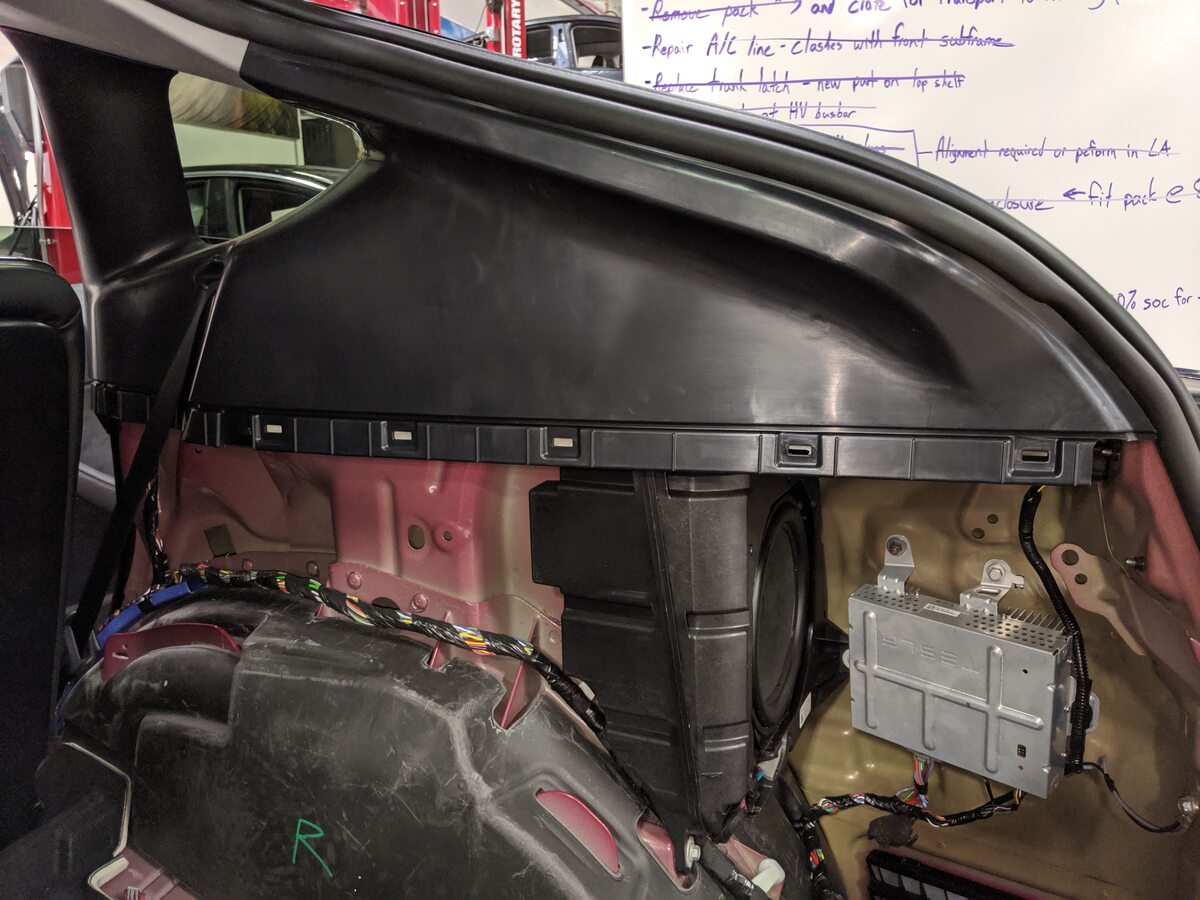

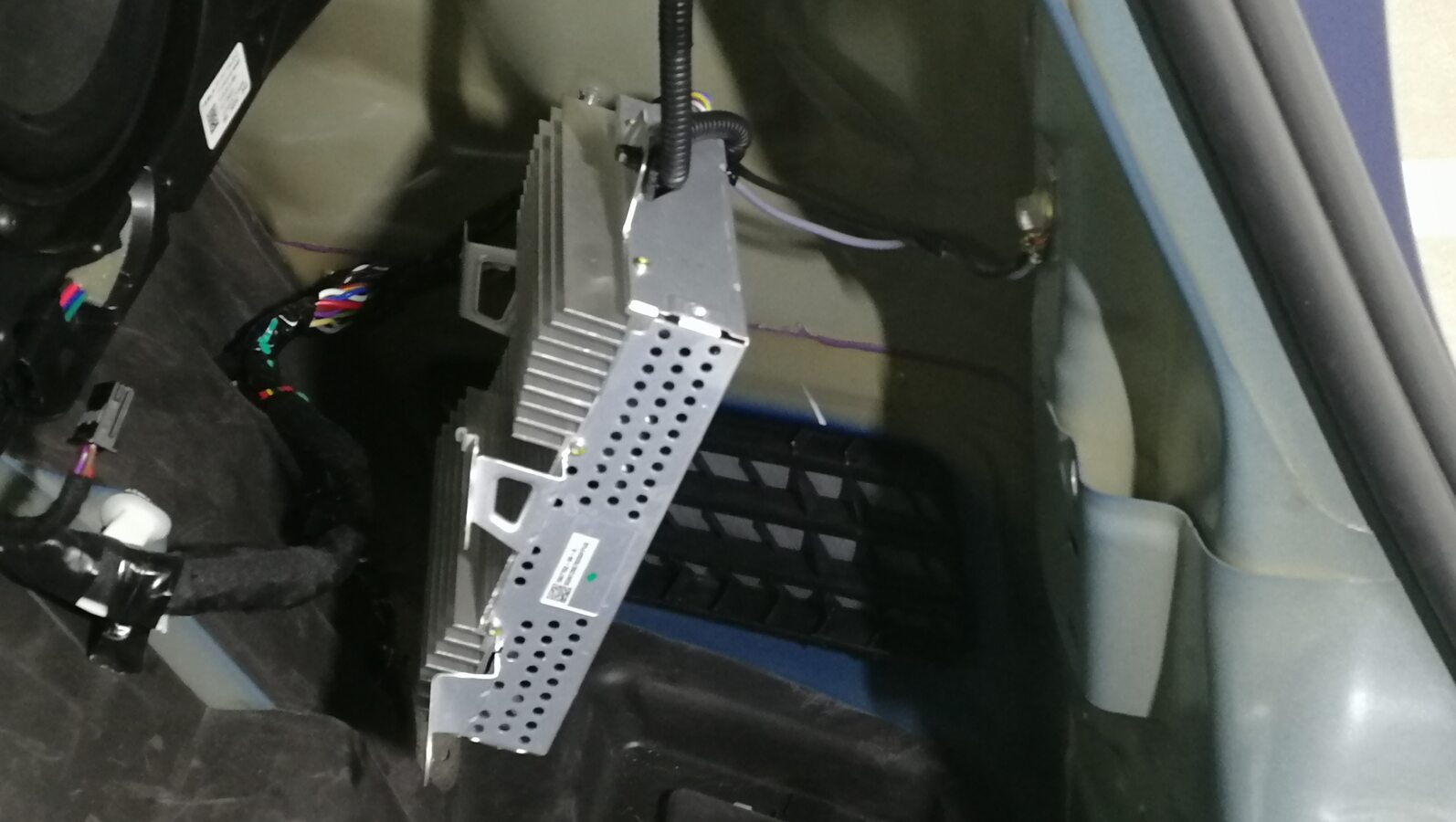

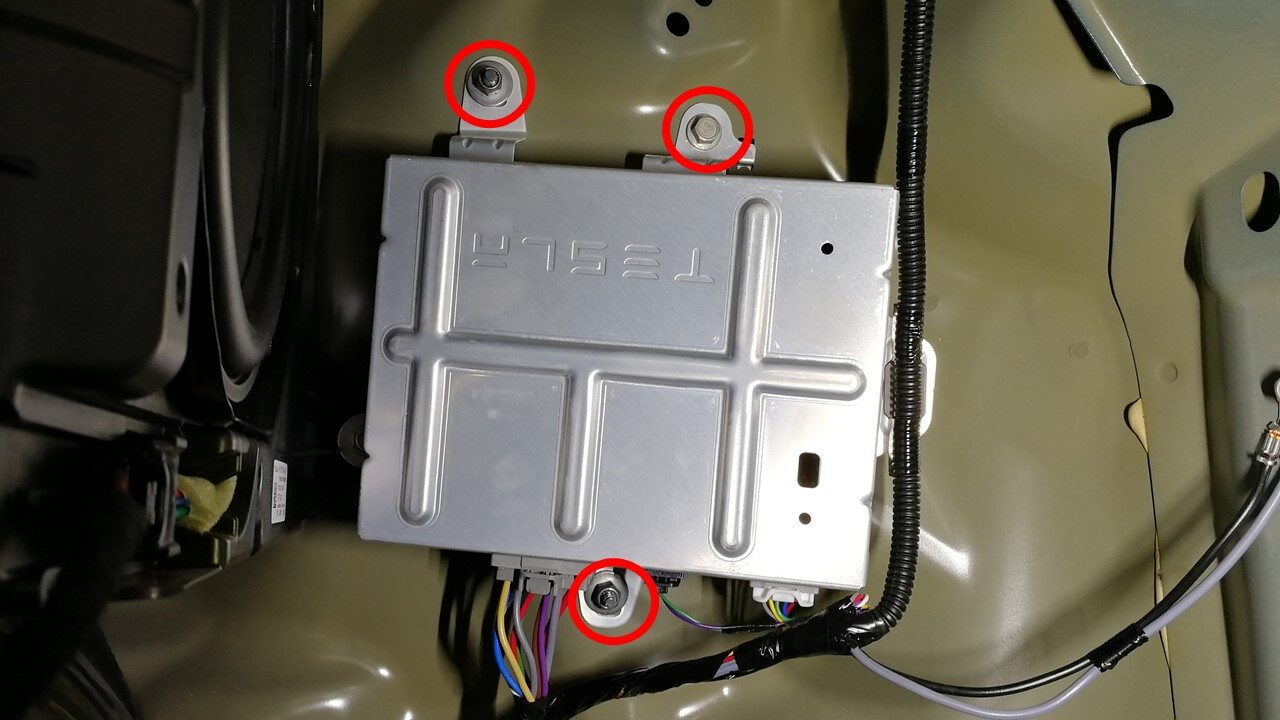

40. Remove bolts securing amplifier to body and remove amplifier
    注

    2x nuts, 10mm, 1x bolt,10mm, Set amplifier aside, be cautious not to apply excessive tension to harness

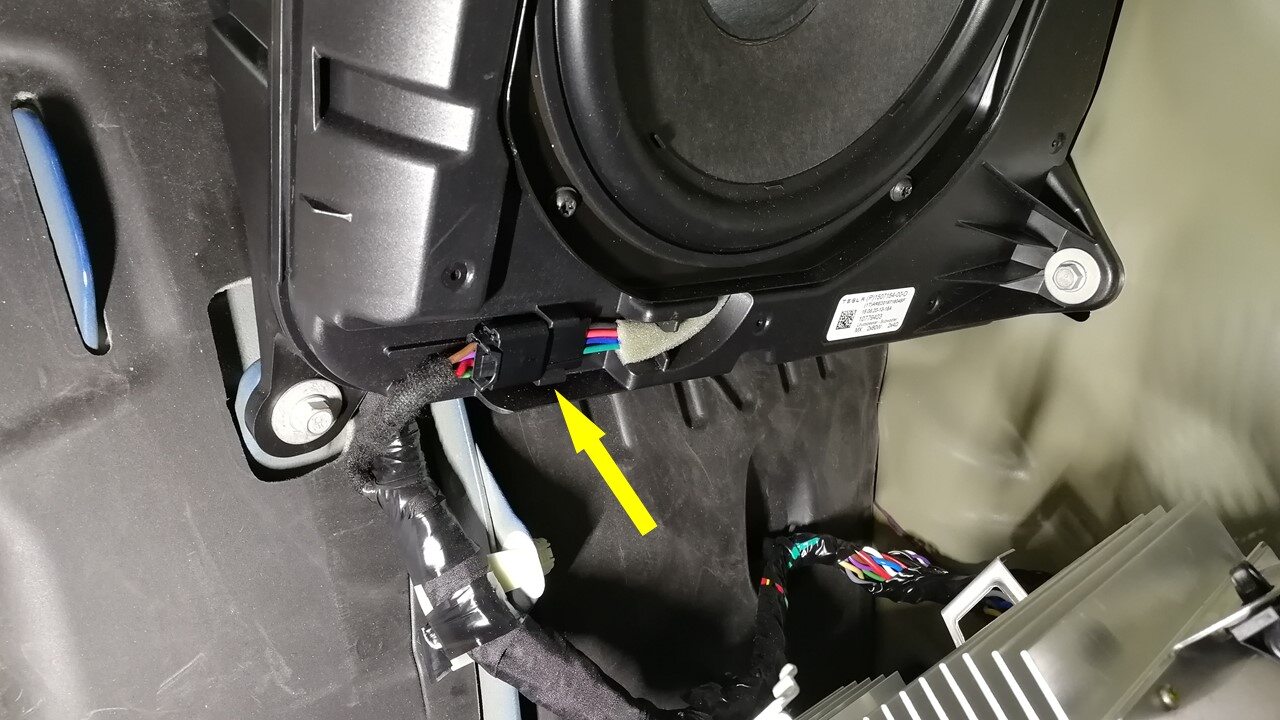

41. Disconnect subwoofer assembly
    注

    1x connector

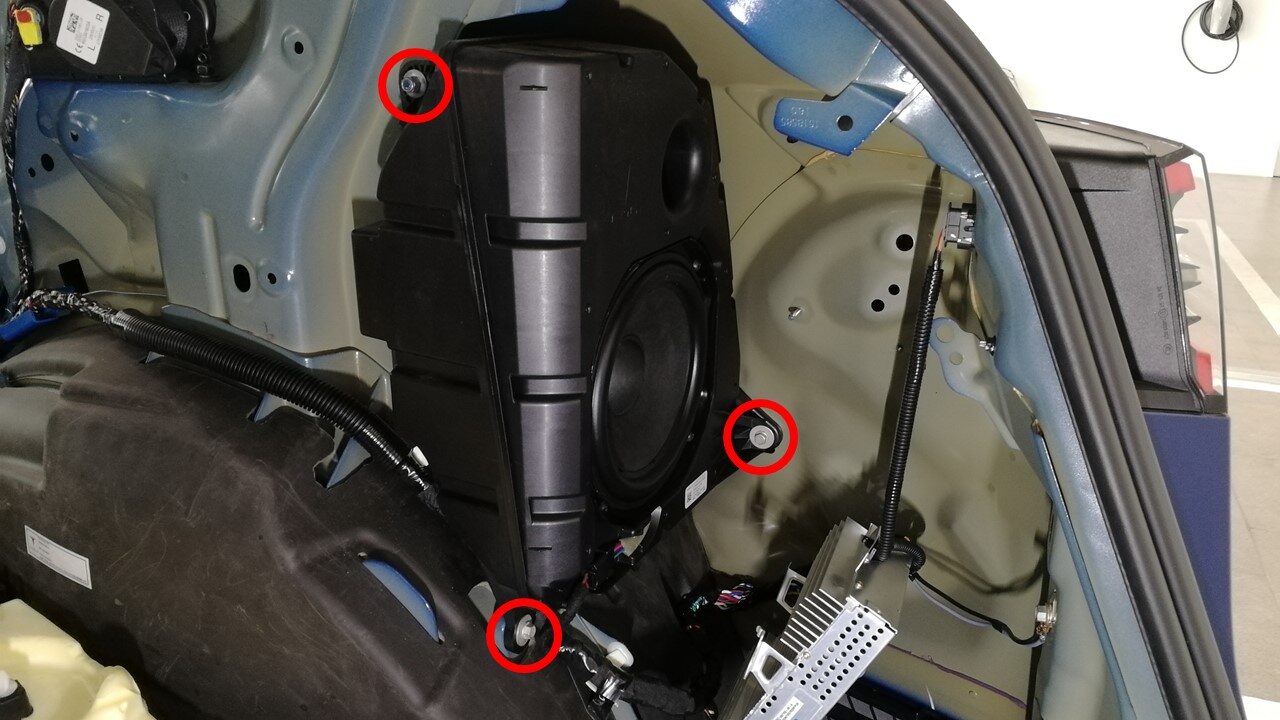

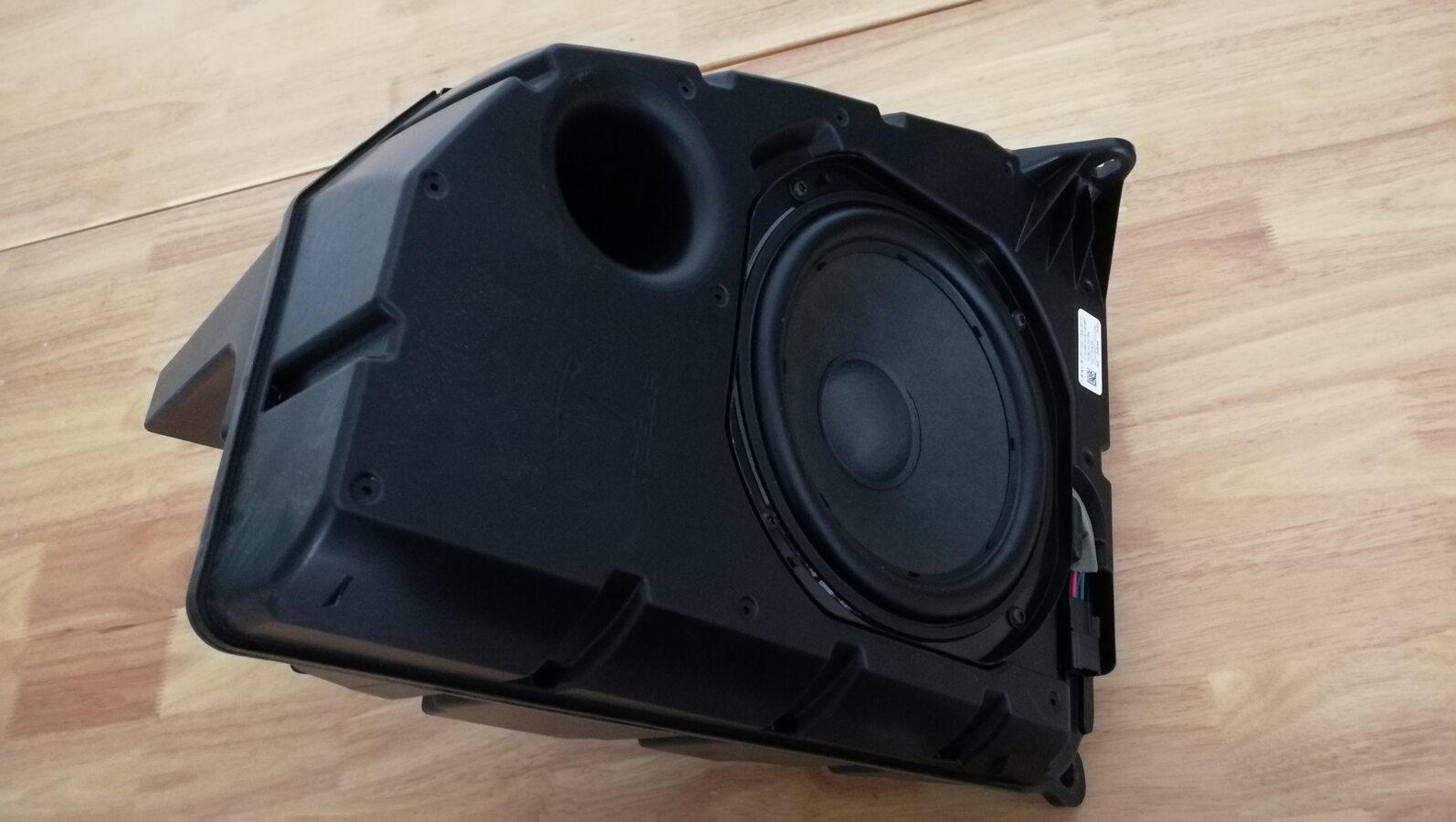

42. Remove subwoofer assembly
    注

    1x nut, 10mm, 5.4 Nm, 2x bolts, 10mm, 5.4 Nm





43. Release clips securing RH body harness from RH side trunk bulkhead
    注

    2x clips

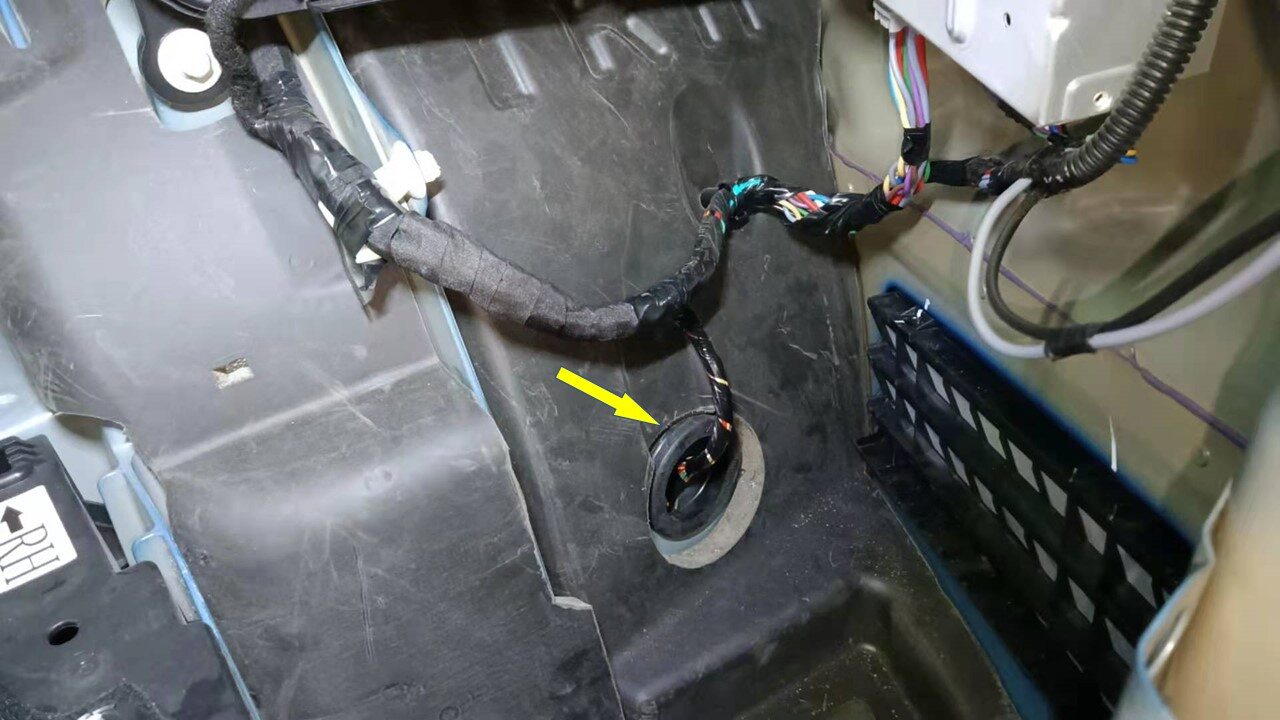

44. Push grommet through RH side trunk bulkhead and feed harness through
    注

    1x grommet

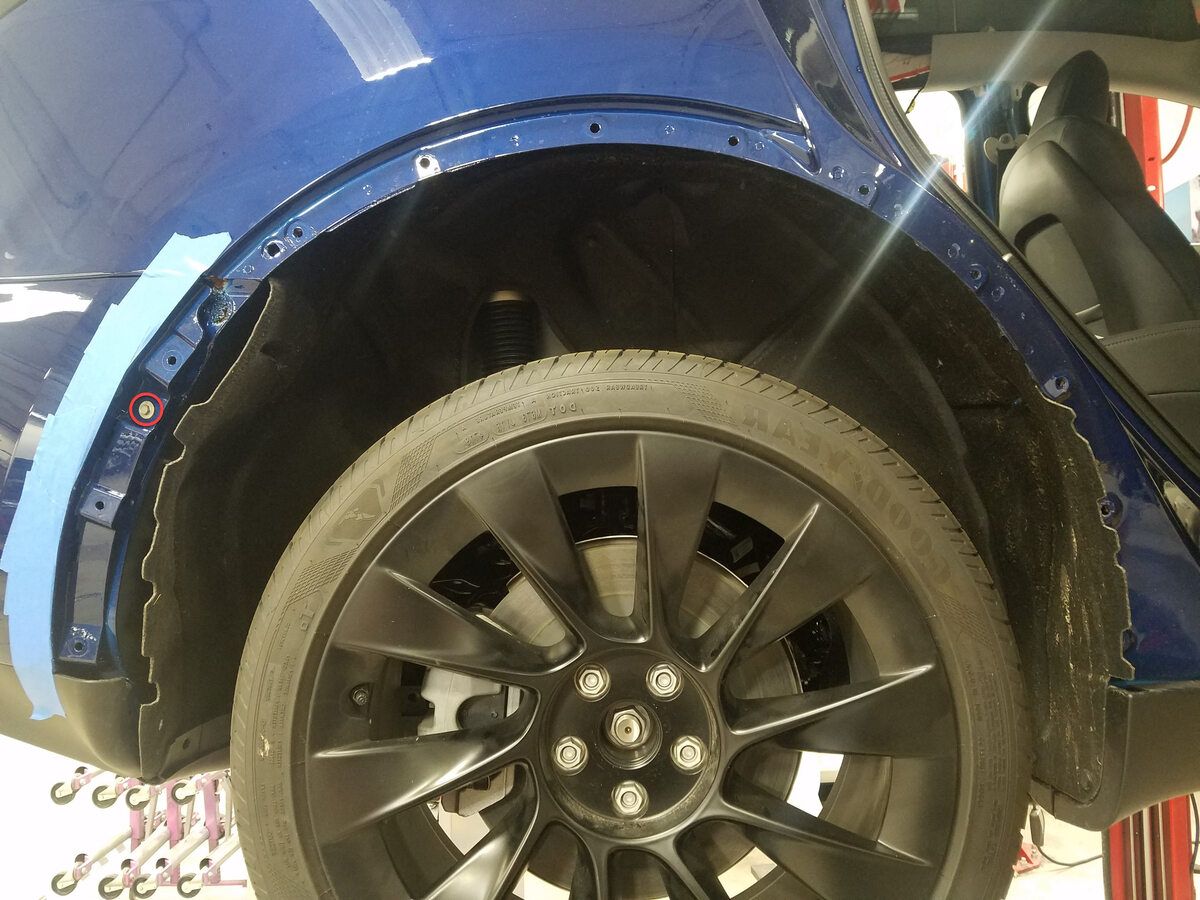

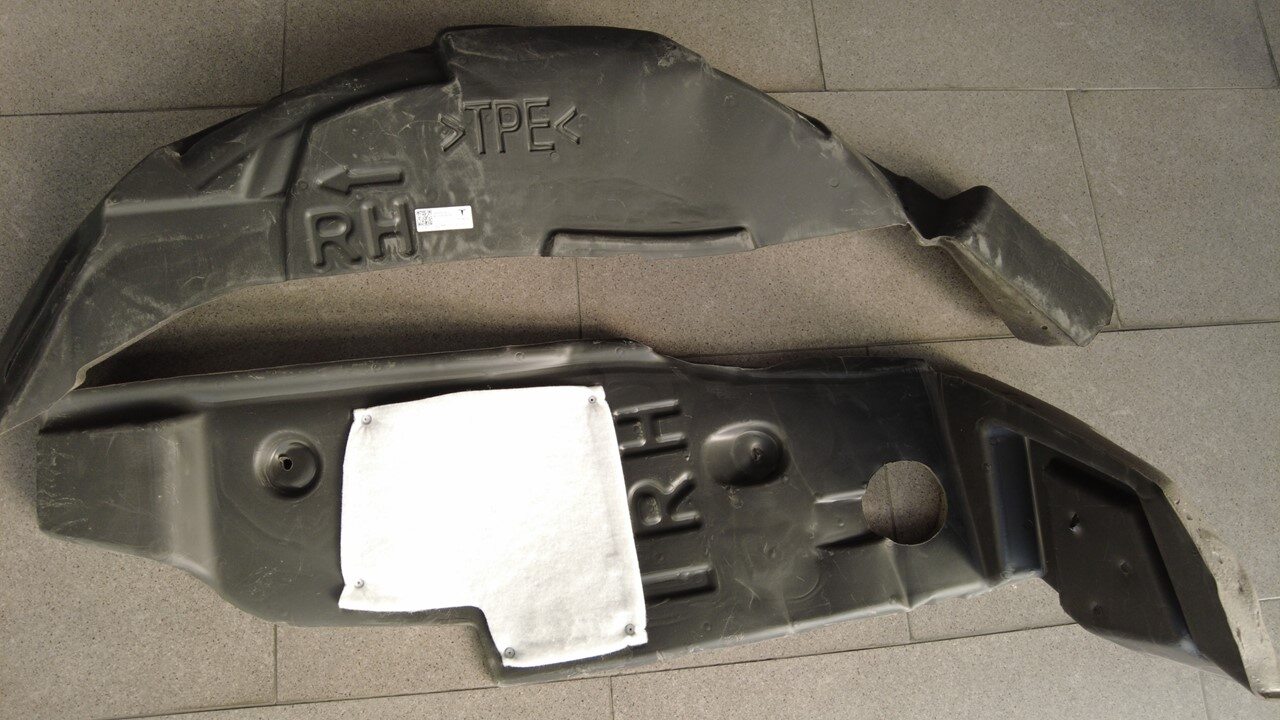

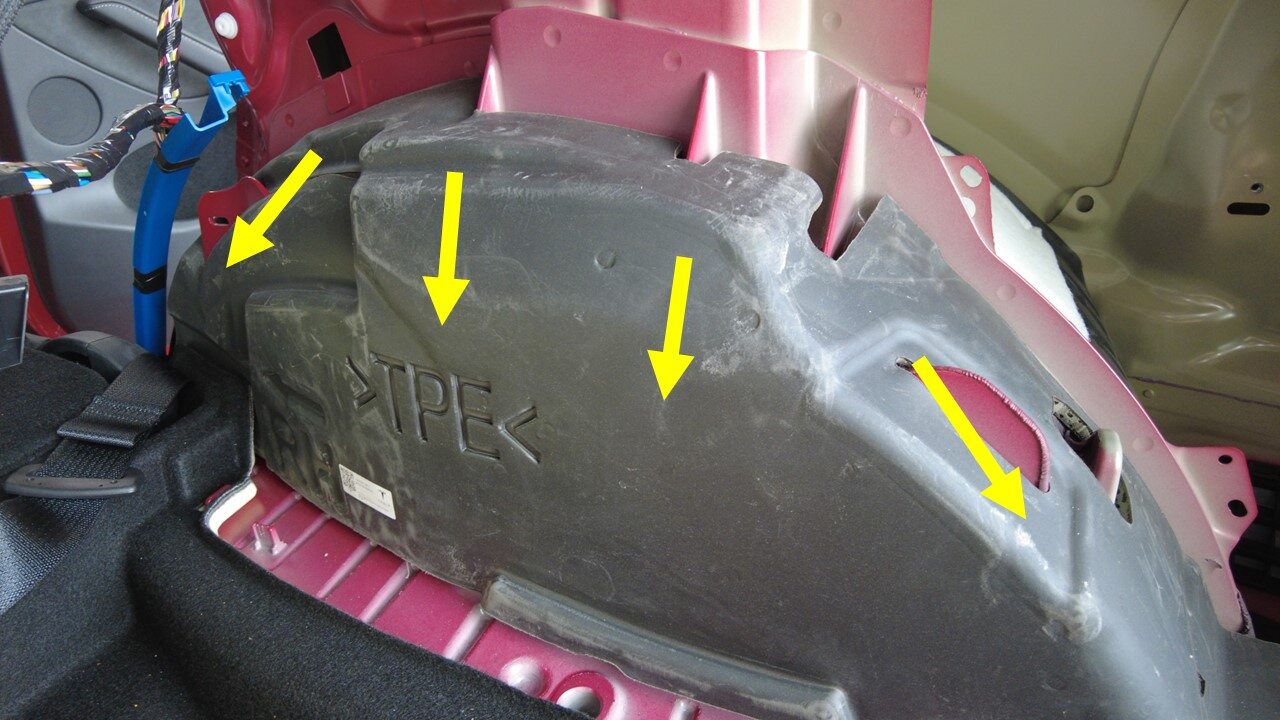

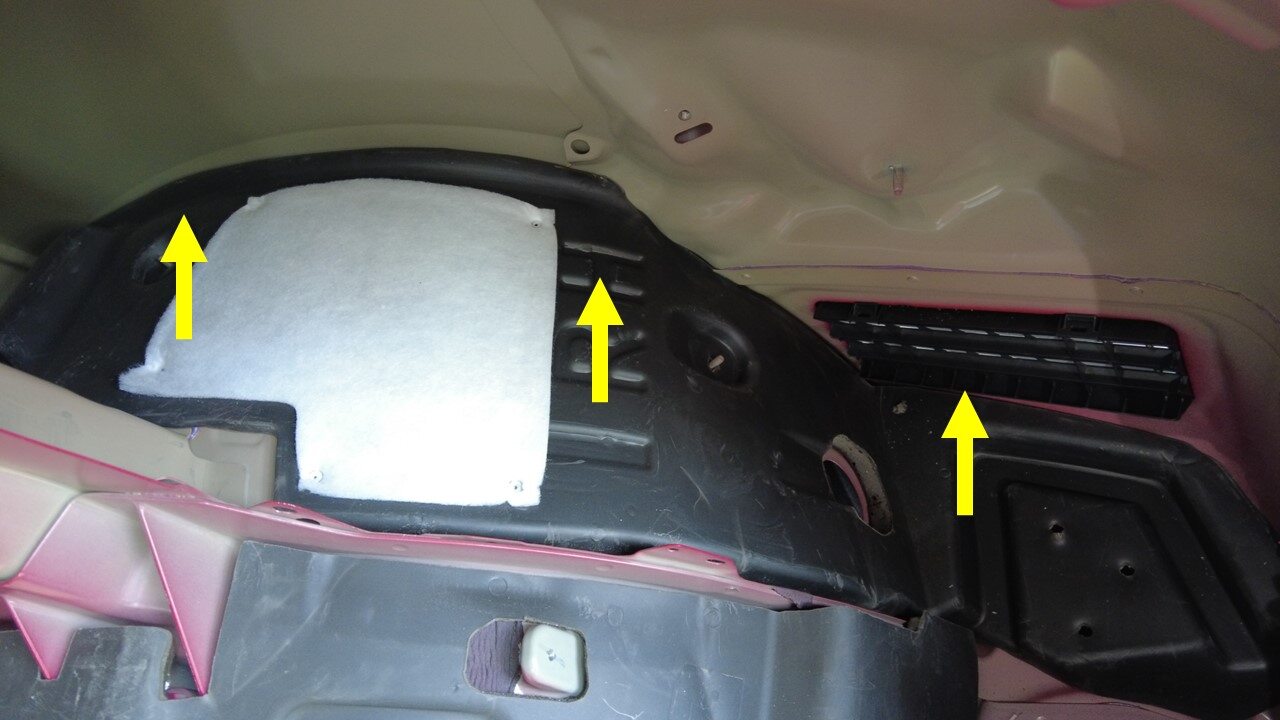

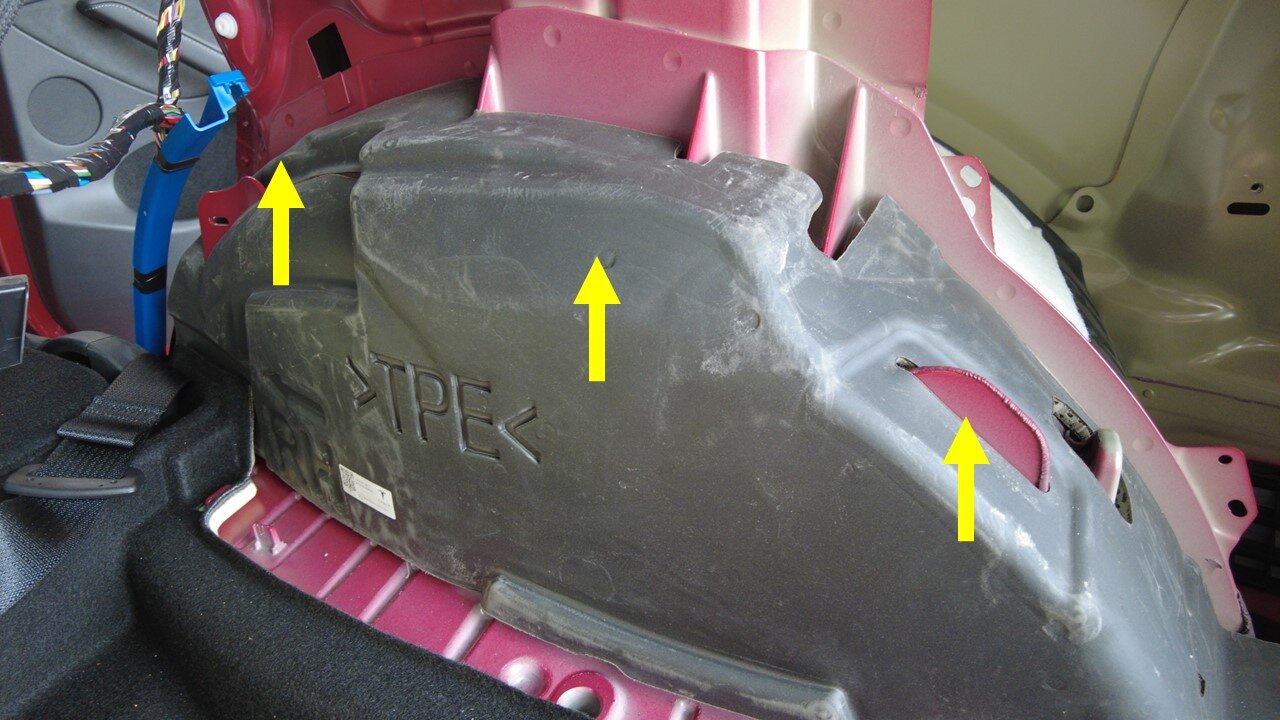

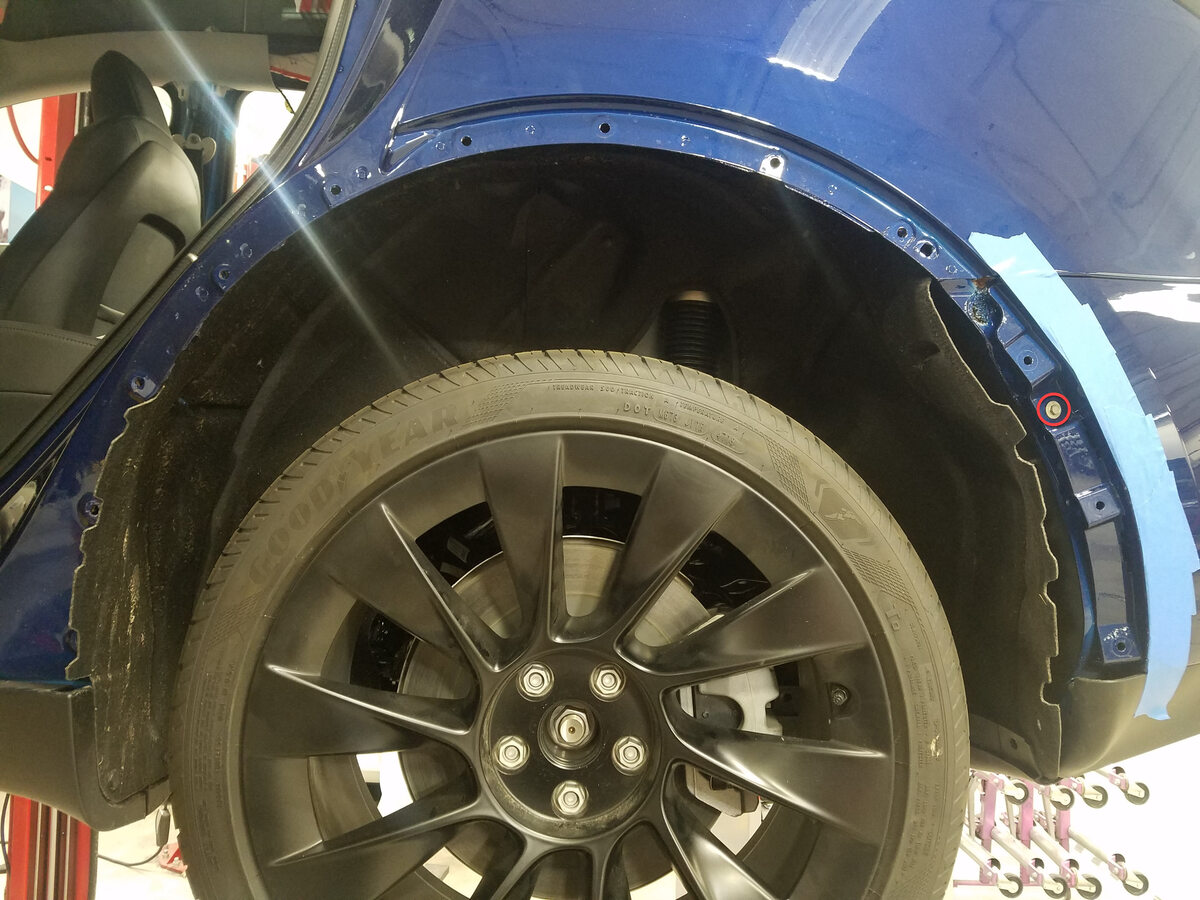

45. Remove RH rear wheelhouse Insulator from body

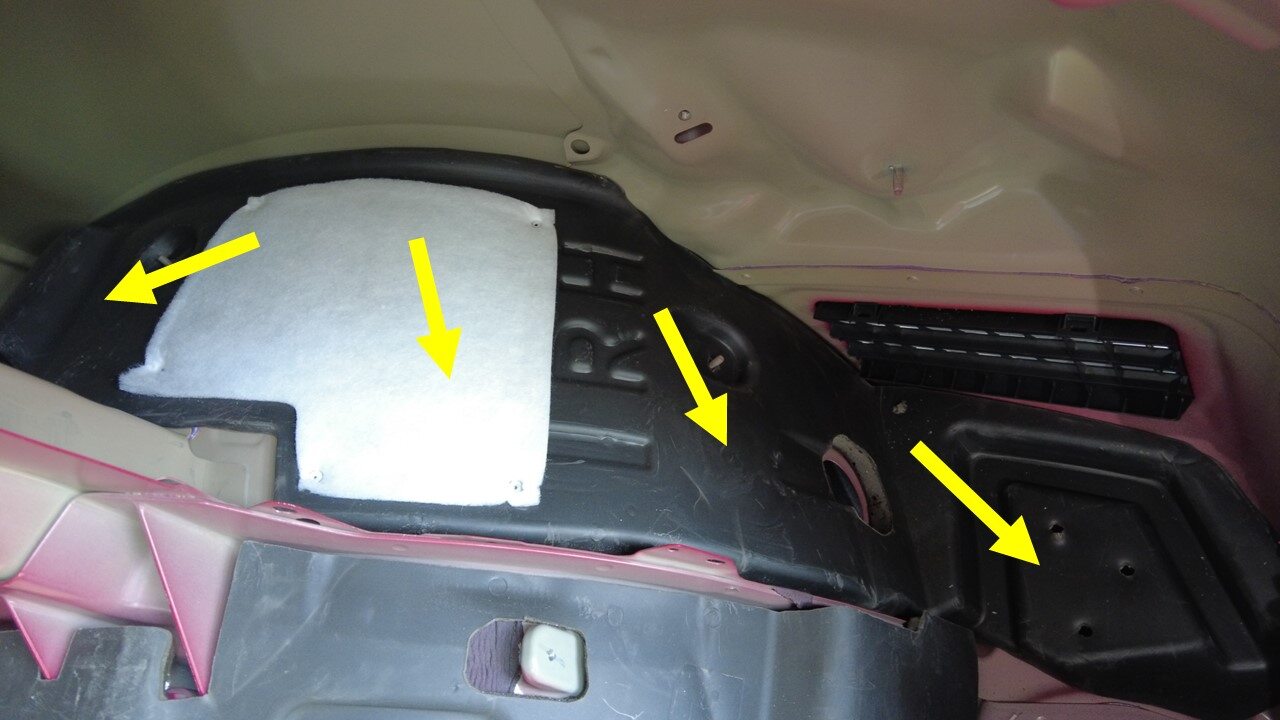

46. Install RH rear wheelhouse Insulator to body







47. Install subwoofer assembly
    注

    1x nut, 10mm, 5.4 Nm, 2x bolts, 10mm, 5.4 Nm



48. Connect subwoofer assembly



49. Install amplifier on body
    注

    2x nuts, 10mm, 1x bolt,10mm



50. Install securing clips RH body harness on RH side trunk bulkhead
    注

    2x clips



51. Install grommet to RH side trunk bulkhead
    注

    1x grommet



52. Connect the RH body harness from rear subframe and RH rear EPB connector
    注

    2x connectors



53. Connect and install rear fascia onto vehicle
    注

    1x connector, Engage red locking tab, Recommend assistance, Verify lower portion aligns with rear diffuser. Not need to connect rear fascia connector for AP4.









54. Apply Loctite 222 onto rear diffuser bolts and secure rear fascia to rear diffuser
    注

    6x clips, 7x bolts, 10mm, 4 Nm





55. Install bolt securing RH rear fascia to body
    注

    1x bolt, 8mm, 4 Nm

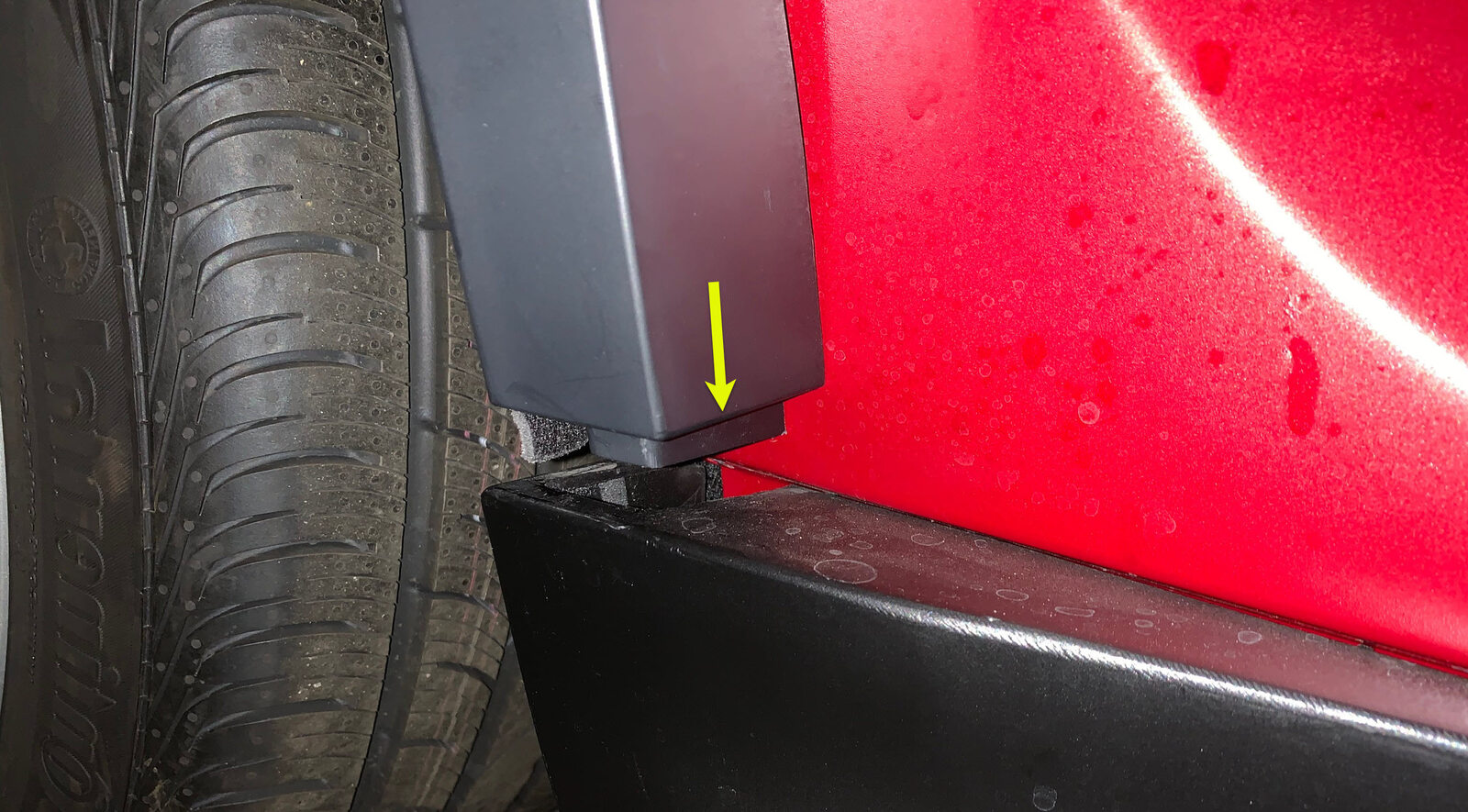

56. Install RH rear fender garnish
    注

    14x clips, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish









57. Install bolt securing LH rear fascia to body
    注

    1x bolt, 8mm, 4 Nm



58. Install LH rear fender garnish
    注

    14x clips, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish









59. Install bolt securing RH corner of rear fascia
    注

    1x bolt, 10mm, 4 Nm

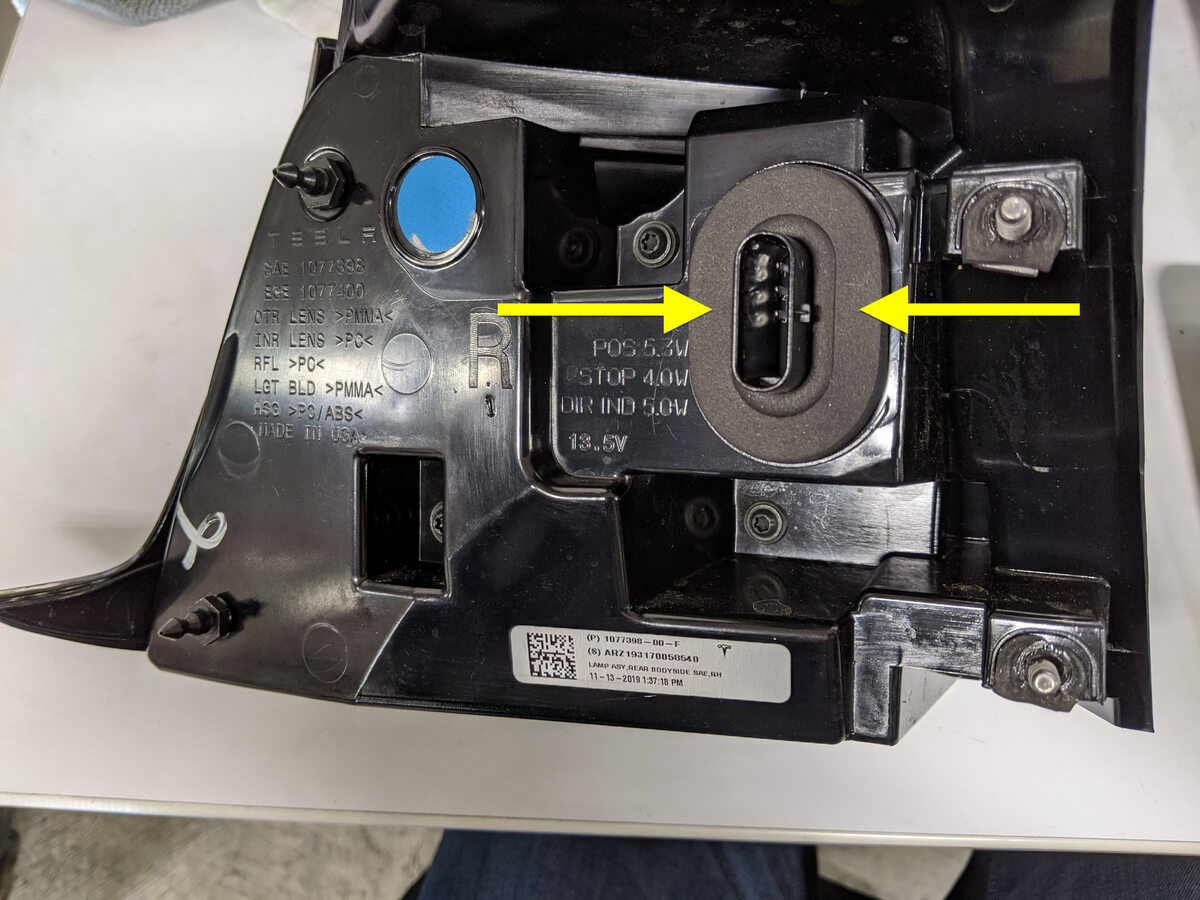

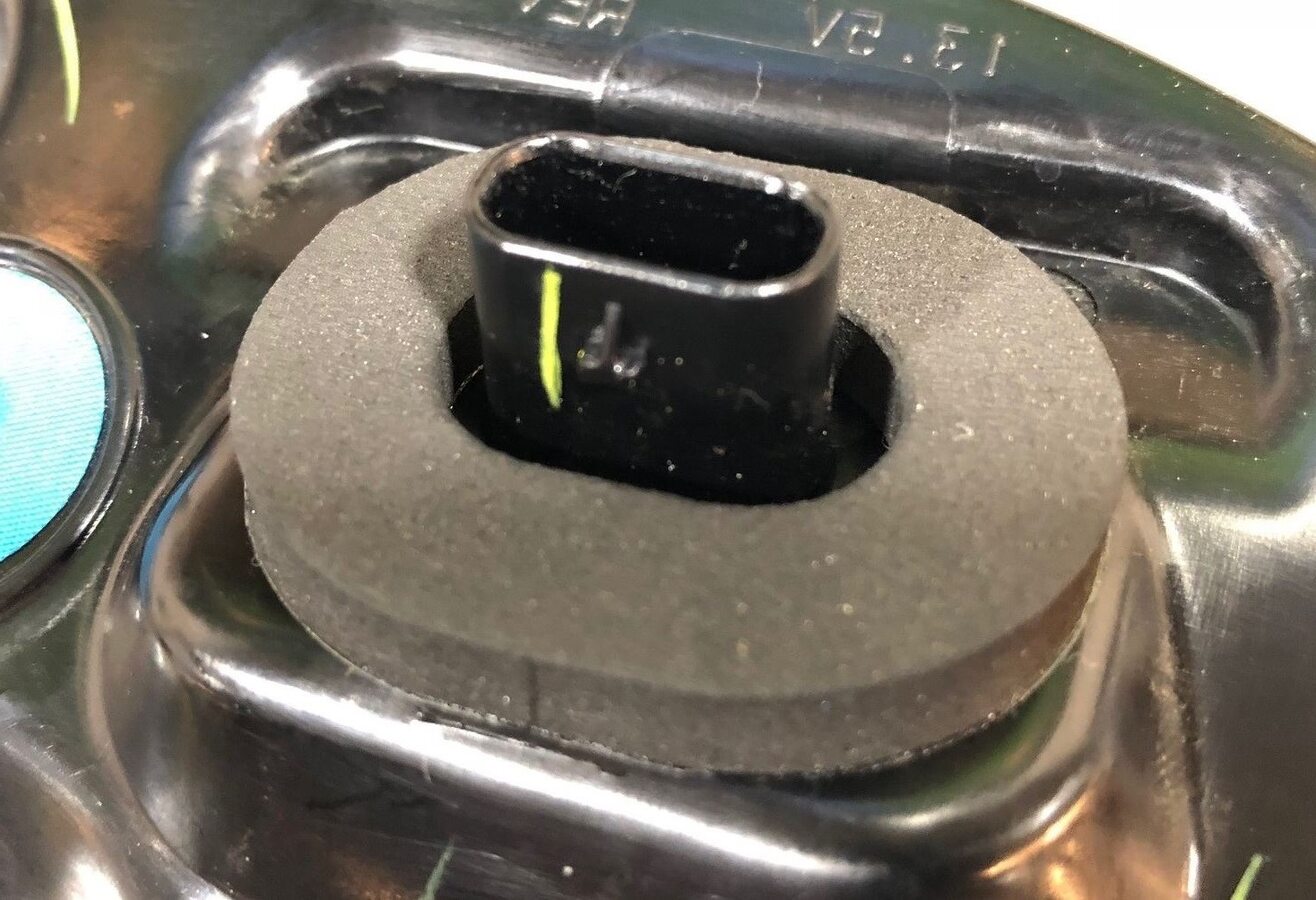

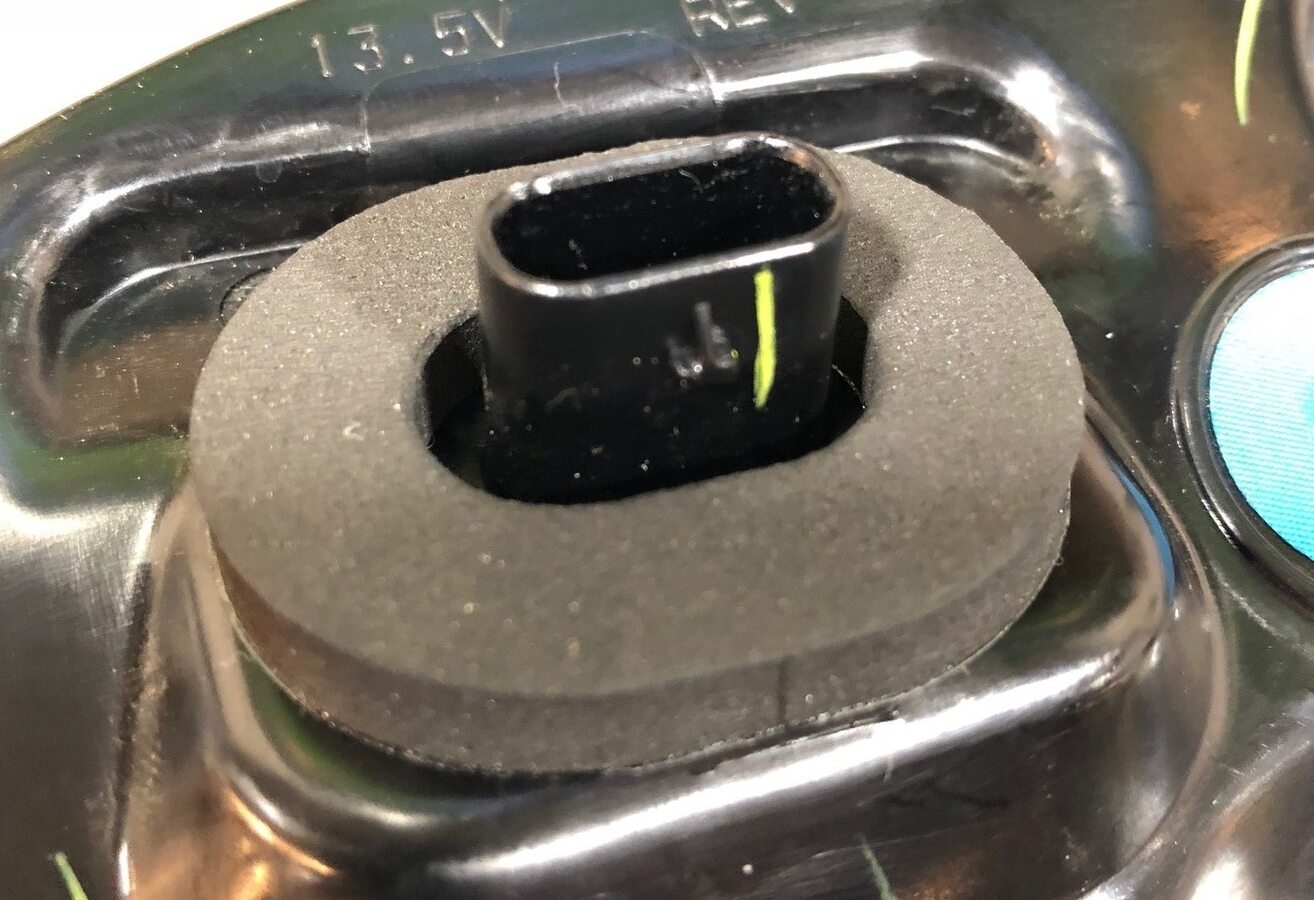

60. Remove RH bodyside lamp connector gasket
    注

    1x gasket



61. Install RH bodyside lamp connector gasket
    注

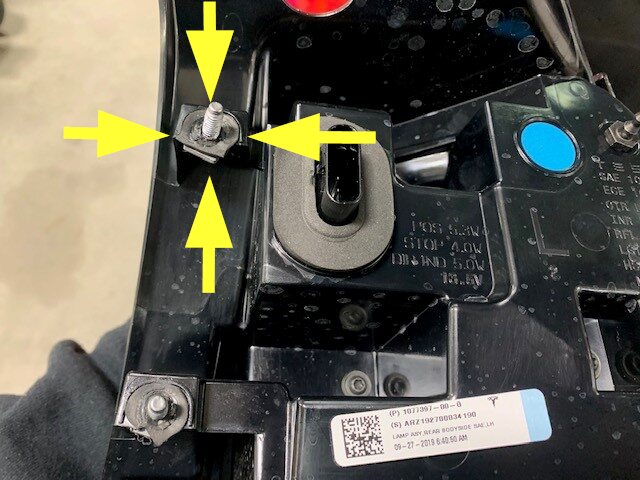

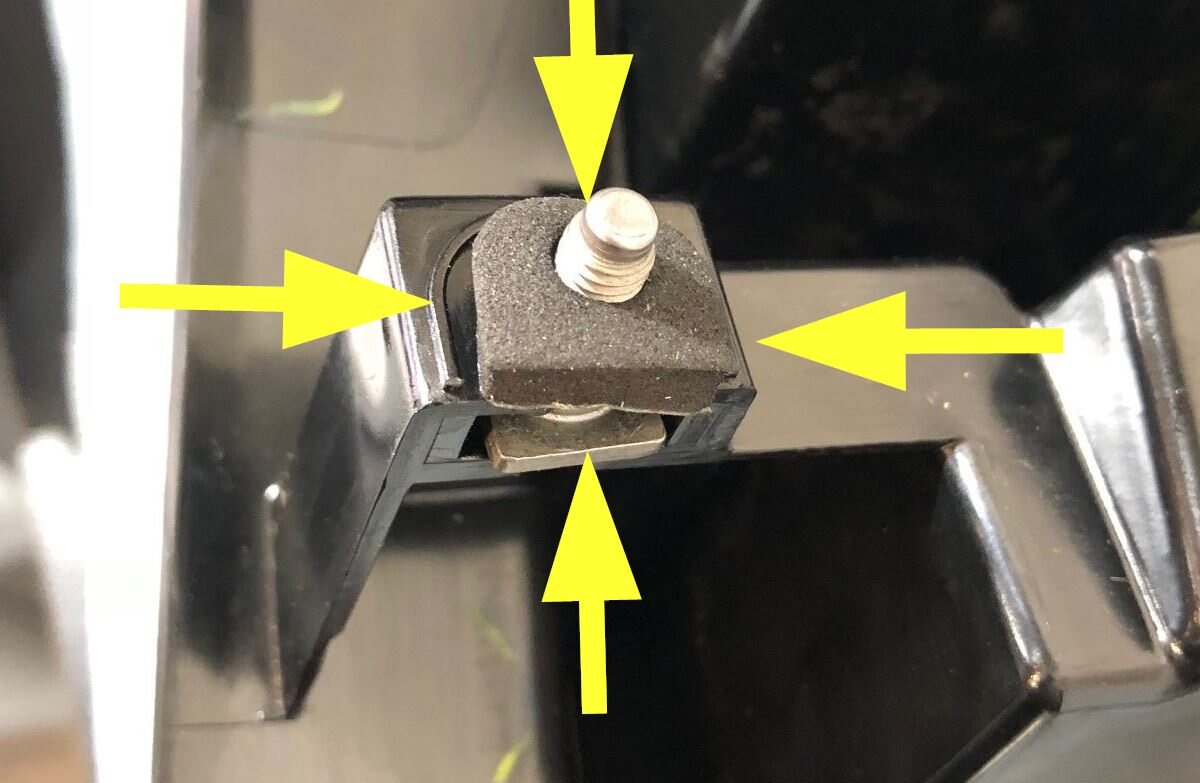

    1x gasket



62. Remove upper T-stud gasket from RH bodyside lamp

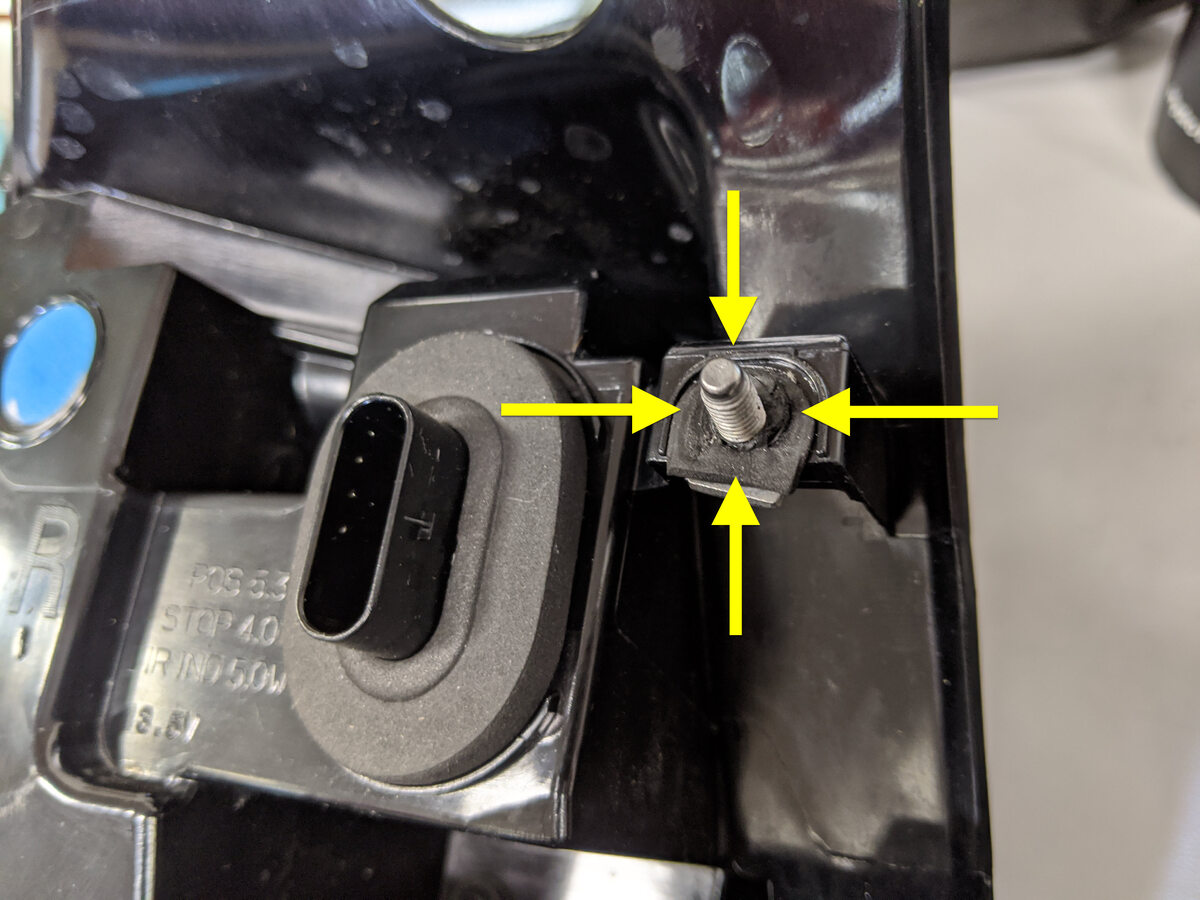

    注

    1x gasket



63. Install upper T-stud gasket to RH bodyside lamp
    注

    1x gasket

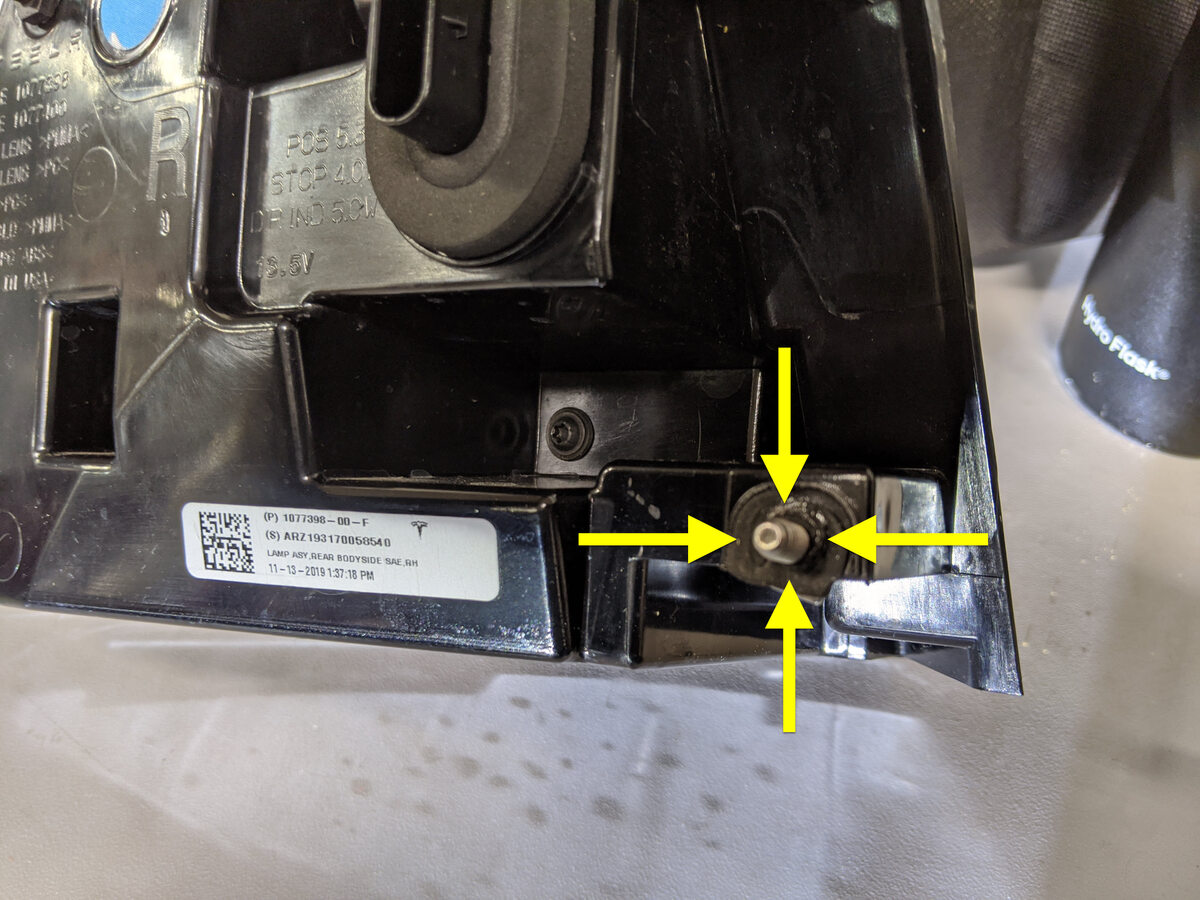

64. Remove lower T-stud gasket from RH bodyside lamp
    注

    1x gasket



65. Install lower T-stud gasket to RH bodyside lamp
    注

    1x gasket



66. Install RH rear bodyside tail lamp assembly into vehicle
    注

    2x studs





67. Install nuts securing RH rear bodyside tail lamp assembly to vehicle
    注

    2x nuts, 8mm, 3.2 Nm



68. Connect RH rear bodyside tail lamp assembly
    注

    1x connector, Engage locking tab



69. Install RH liftgate stop
    注

    1x liftgate stop, Align tab and push down to secure



70. Install bolt securing LH corner of rear fascia
    注

    1x bolt, 10mm, 4 Nm



71. Remove LH bodyside lamp connector gasket
    注

    1x gasket



72. Install LH bodyside lamp connector gasket
    注

    1x gasket

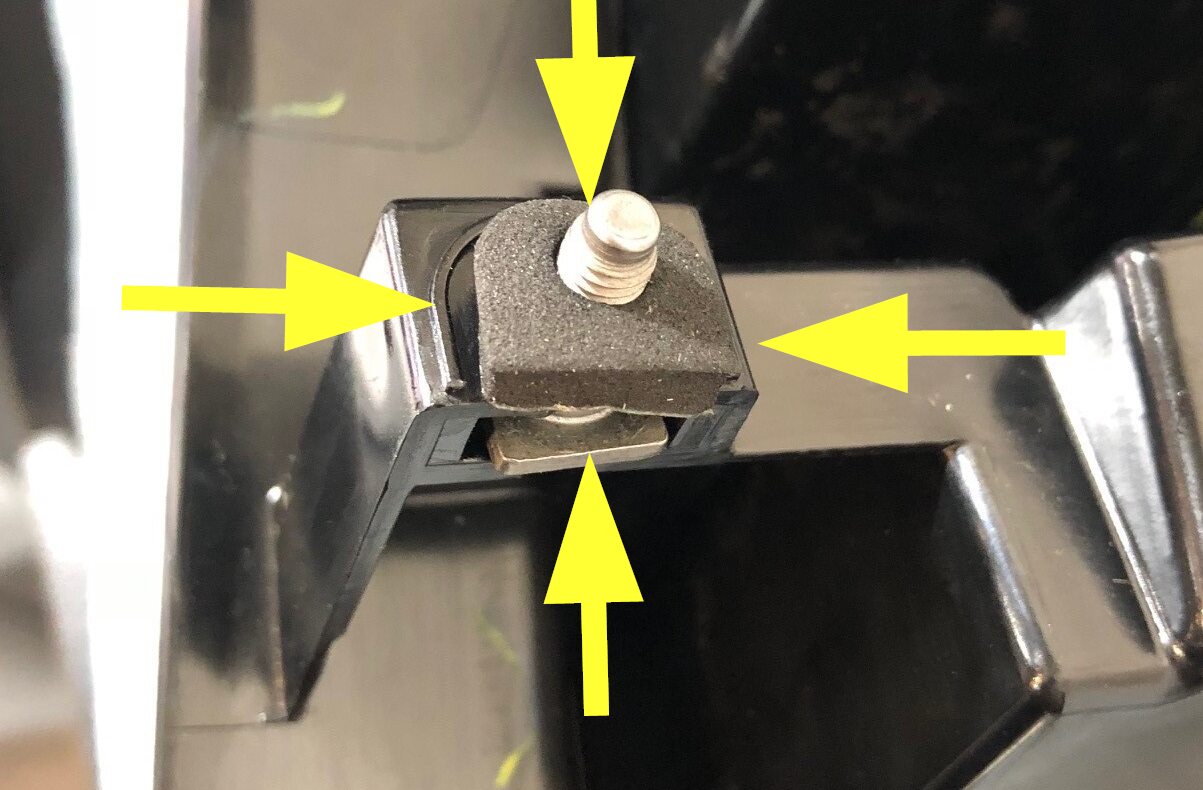

73. Remove upper T-stud gasket from LH bodyside lamp
    注

    1x gasket



74. Install upper T-stud gasket to LH bodyside lamp
    注

    1x gasket



75. Remove lower T-stud gasket from LH bodyside lamp
    注

    1x gasket



76. Install lower T-stud gasket to LH bodyside lamp
    注

    1x gasket



77. Install LH rear bodyside tail lamp assembly into vehicle
    注

    2x studs





78. Install LH rear bodyside tail lamp assembly to vehicle
    注

    2x nuts, 8mm, 3.2 Nm



79. Connect LH rear bodyside tail lamp assembly
    注

    1x connector, Engage locking tab





80. Install LH liftgate stop
    注

    1x liftgate stop, Align tab and push down to secure



81. Install RH upper C-pillar trim
    注

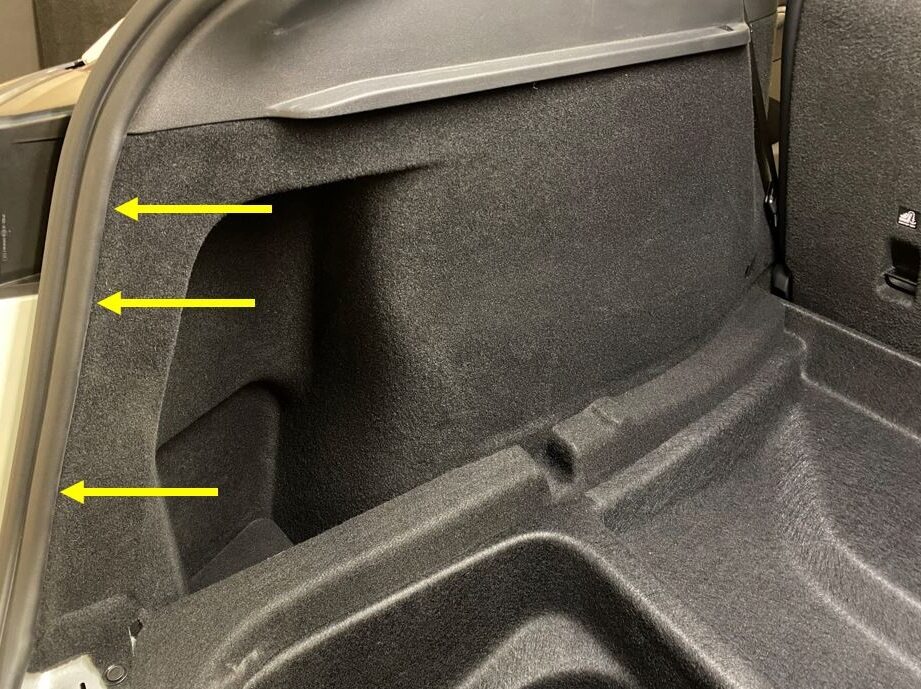

    6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim, trim part may slightly differ by vehicle build location, and the number of clips may also vary











82. Install RH trunk side trim
    注

    1x push clip, 13x clips, Guide front clip stanchions around RH C-pillar, trunk seal to edge of trim, trim part may slightly differ by vehicle build location, and the number of clips may also vary









83. Install RH trunk pocket bracket
    注

    1x push clip, 5x alignment tabs





84. Install RH load floor bracket
    注

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





85. Install LH trunk side trim
    注

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ, by vehicle build location











86. Install LH trunk pocket bracket
    注

    1x push clip, 5x alignment tabs





87. Install LH load floor bracket
    注

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





88. Install trunk sill trim
    注

    4x clips, Seat seal around edge of trim









89. Install front load floor



90. Install rear load floor



91. Move 2nd row 40 seatback to vertical position
    注

    Remove seat cushion protection



92. Move 2nd row 60 seatback to vertical position
    注

    Remove seat back protection if necessary



93. Connect the First Responder Loop and 12V negative battery cable.





94. Install HEPA filter assembly
    注

    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Note: Not all Model Y vehicles have a HEPA filter assembly installed









95. Secure washer tank neck onto washer tank
    注

    1x O-ring, Ensure washer hose is properly routed



96. Secure washer fluid reservoir neck to frunk
    注

    1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



97. Install the rear apron.





98. Close the hood.



99. Close liftgate





100. Raise all four windows



101. Close all four doors
     注

     If LV is powered up, Unlatch rear doors before closing
