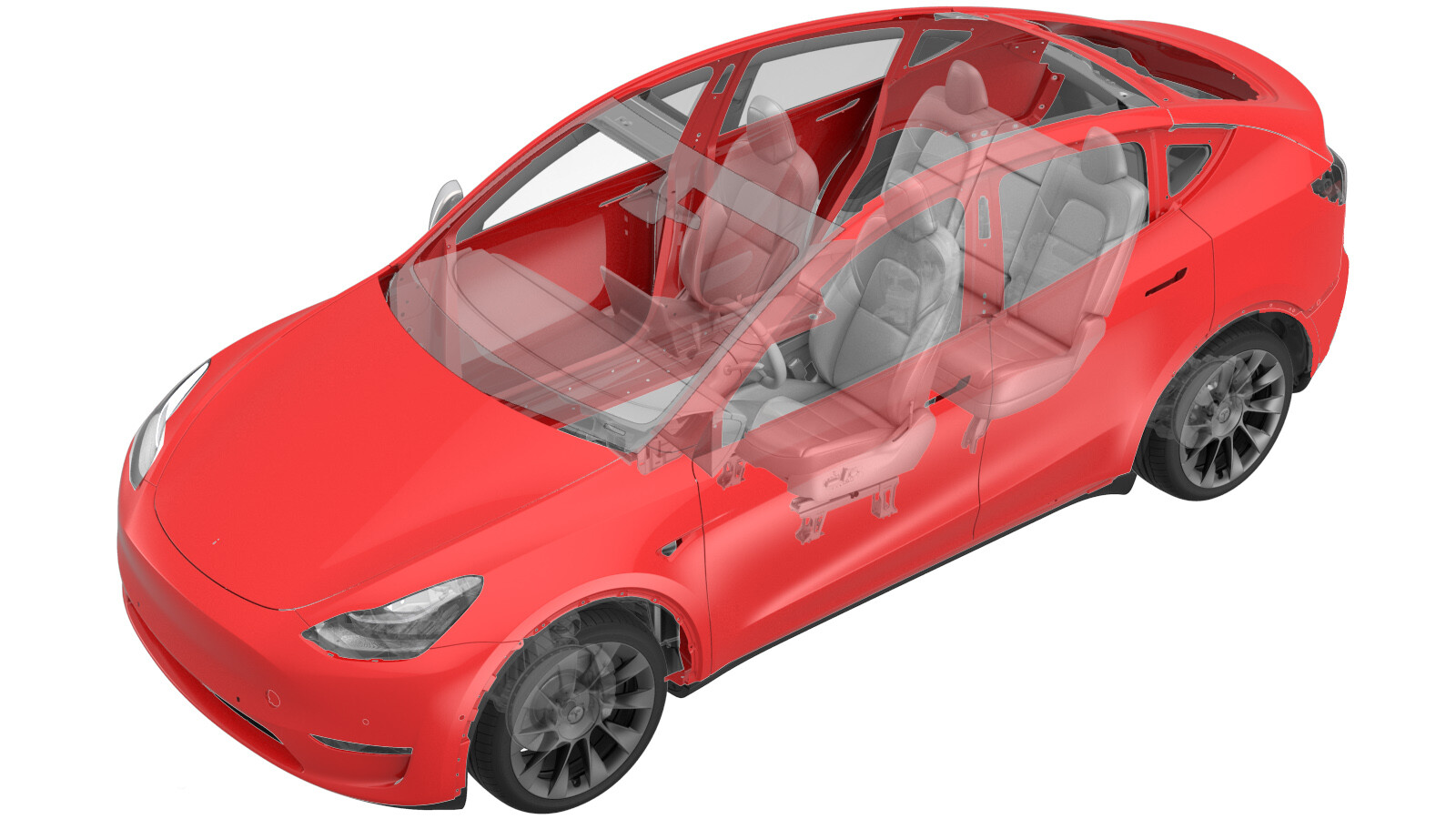

10 - 车身
相关链接
扭矩规格 - 车身
1000 - 车辆举升
1001 - 保险杠/饰板
1010 - 车身板件
1020 - 挡风玻璃和车身玻璃
1030 - 车漆
面板定位
Crowsfoot or Offset Wrench Extension Calculator
Change to Metric
Torque Calculator Values
T1 (Original torque spec)
L (Distance from center of wrench grip to center of square drive tang)
E (Horizontal distance from center of square drive tang to center of fastener)
Note
If the angle from the extension to the torque wrench is greater than 90° (Figure 2), input E as a positive number.
If the angle from the extension to the torque wrench is less than 90° (Figure 3), input E as a negative number.
If the angle from the extension to the torque wrench is exactly 90°, this calculator is not needed. Torque the fastener to T1.
T2 (Final torque setting)
Figure 1
Figure 2
Figure 3
