校正代码 17100802 2.64 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Open all four doors
2. Lower all four windows

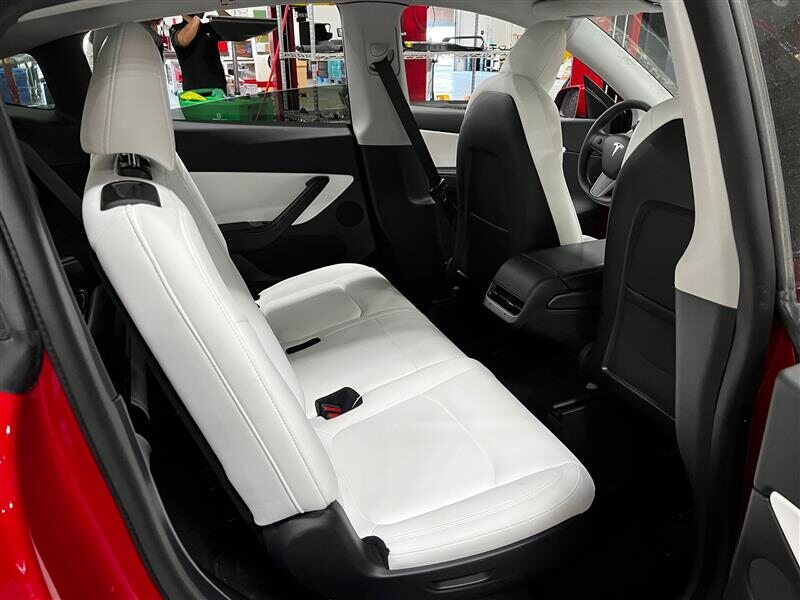

3. Open liftgate

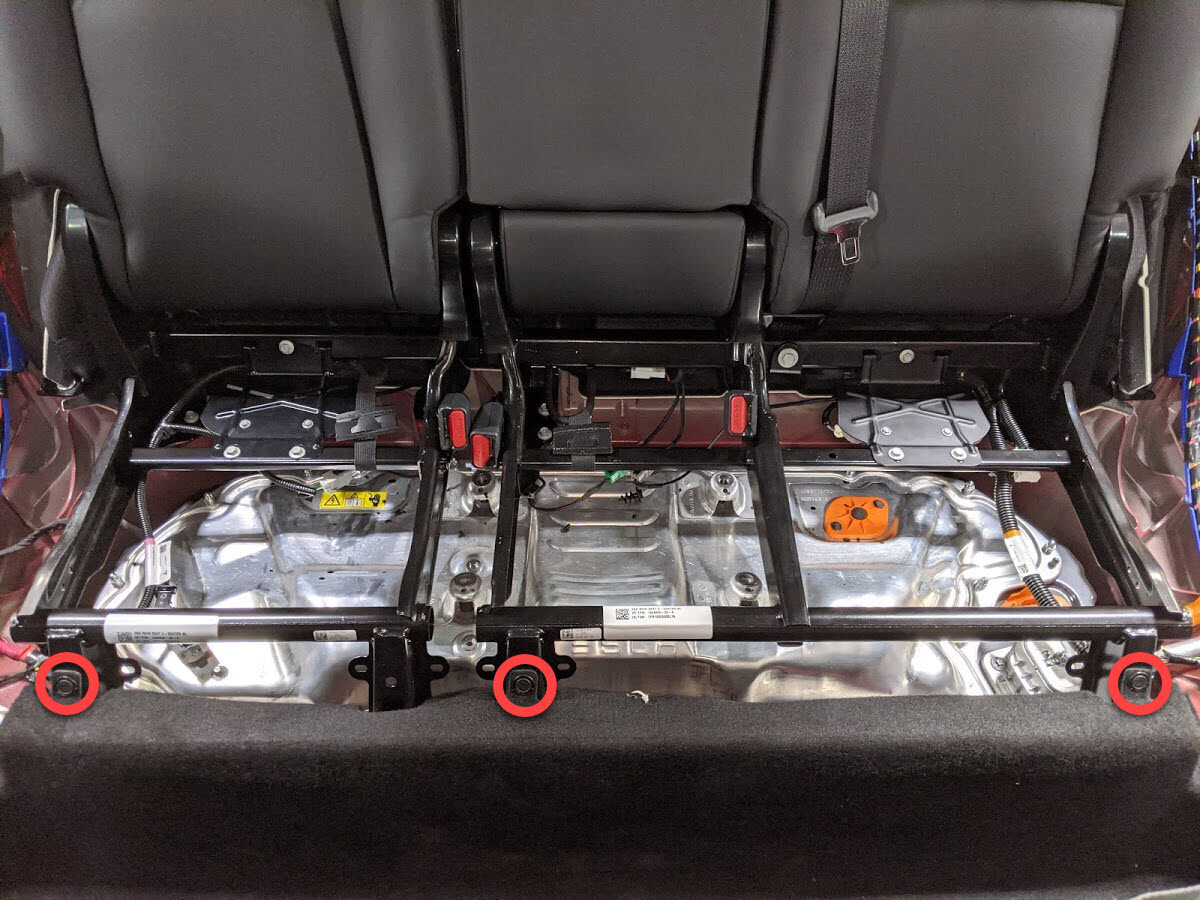

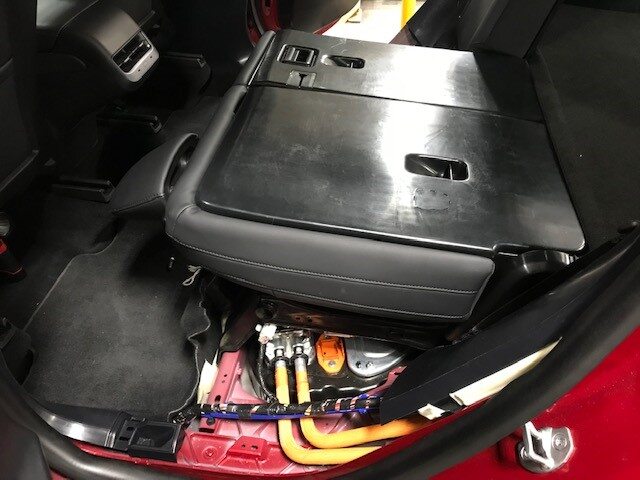

4. Release 2nd row seat cushion
   注

   Lift front edge of seat cushion upward to release foam from frame, Pull towards front of vehicle then tilt bench against 40/60 back

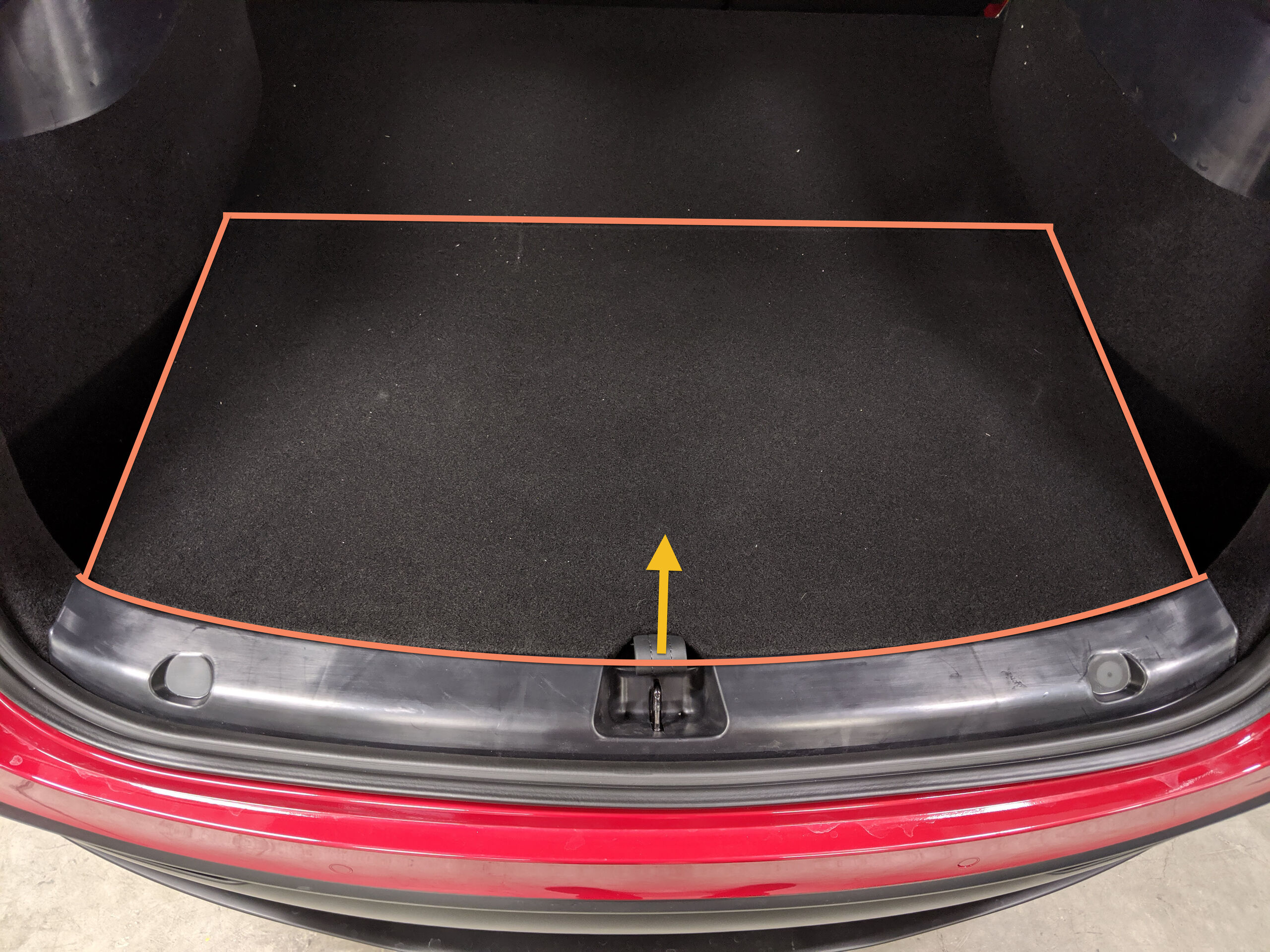

5. Remove rear load floor



6. Remove front load floor



7. Remove trunk sill trim
   注

   4x clips



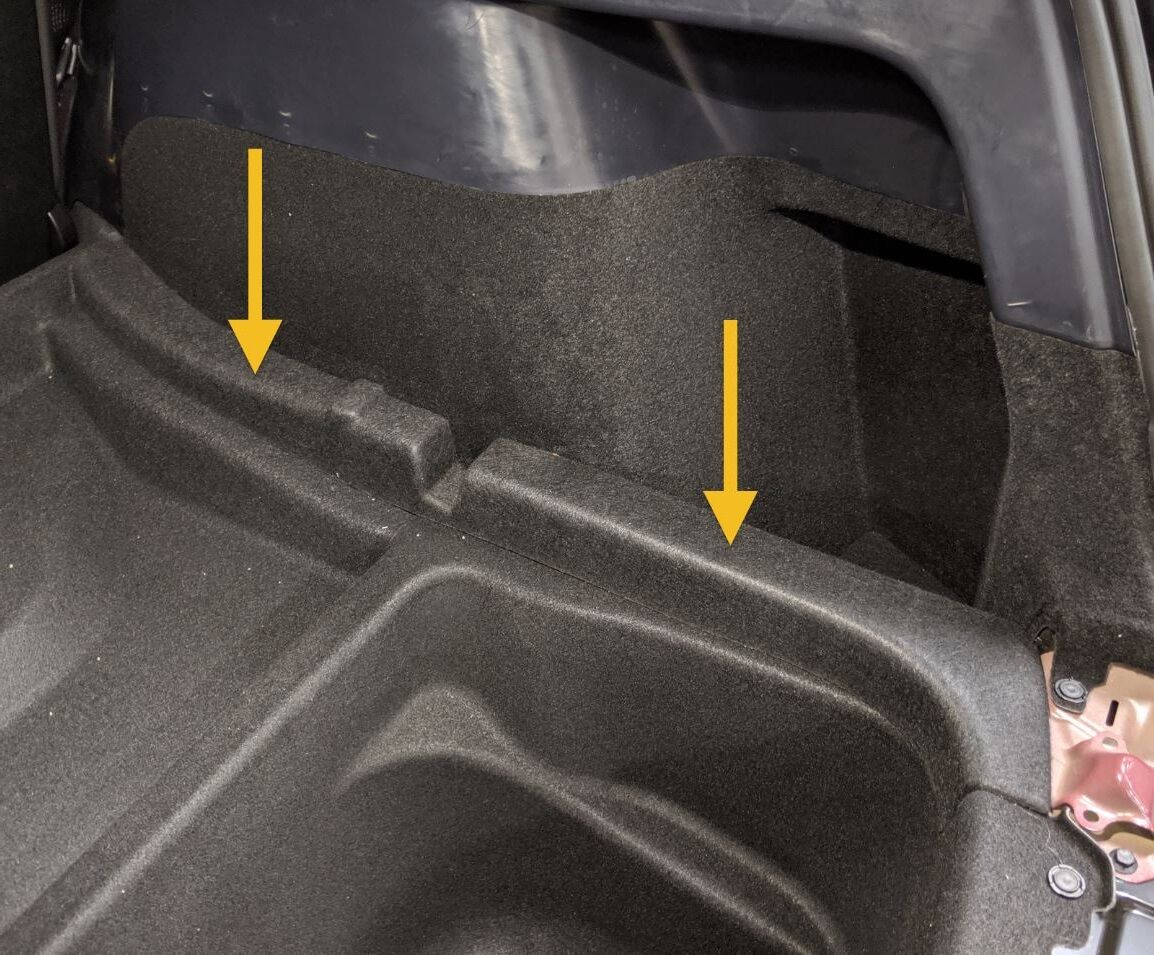

8. Remove LH load floor bracket
   注

   3x tabs, 2x clips





9. Remove LH trunk pocket bracket
   注

   1x push clip, 5x alignment tabs

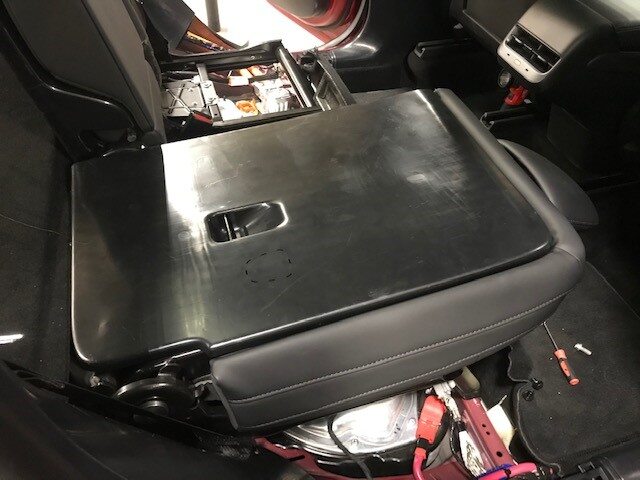

10. Fold the 60 seat in down position
    注

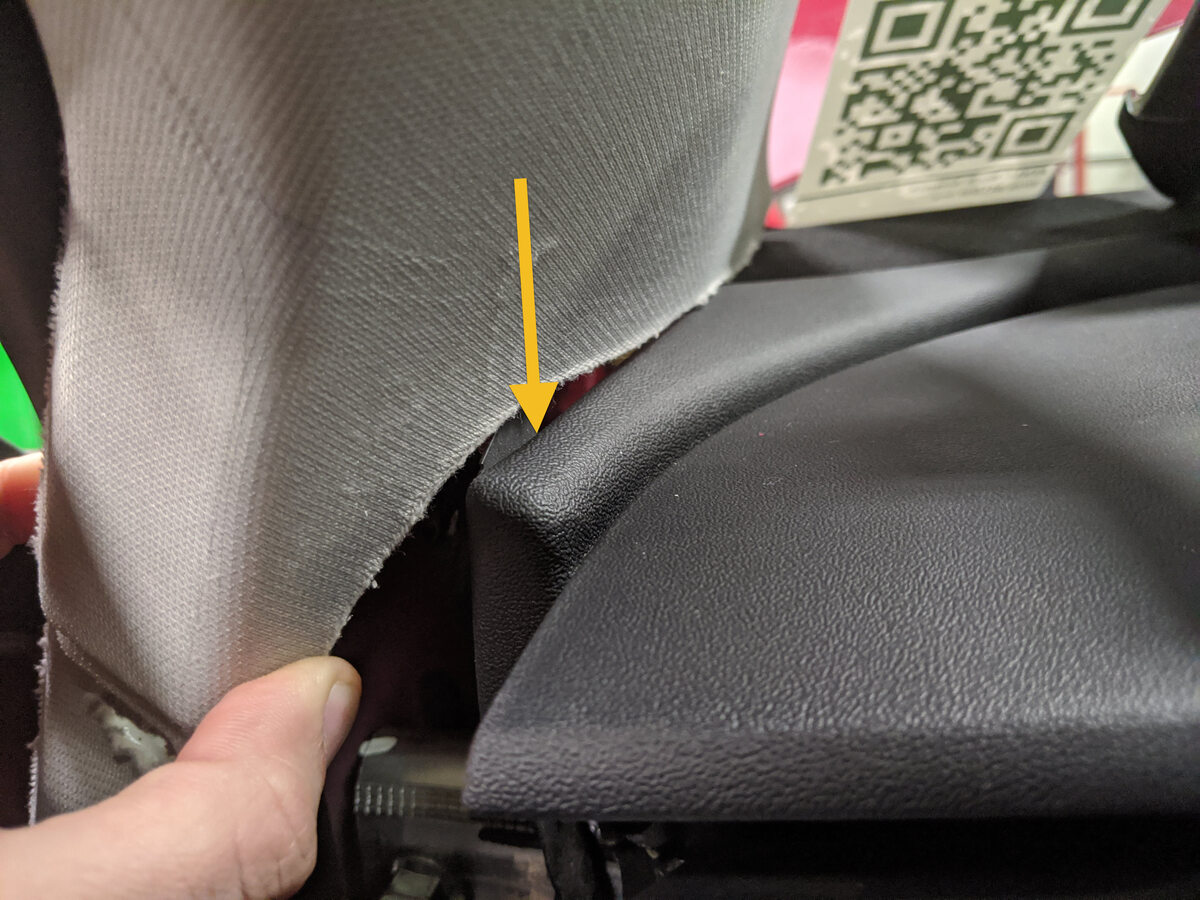

    Protect the seat back upholstery if necessary, Do not put weight on seat in folded position without cushion present due to risk of bending the locator tab on the frame

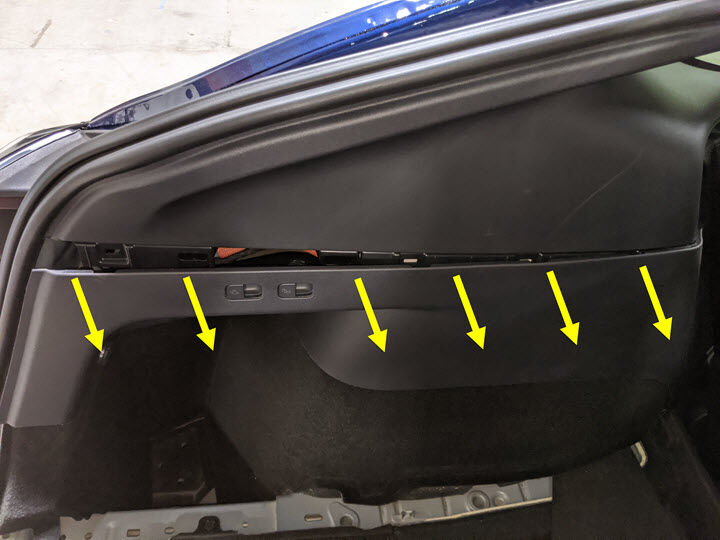

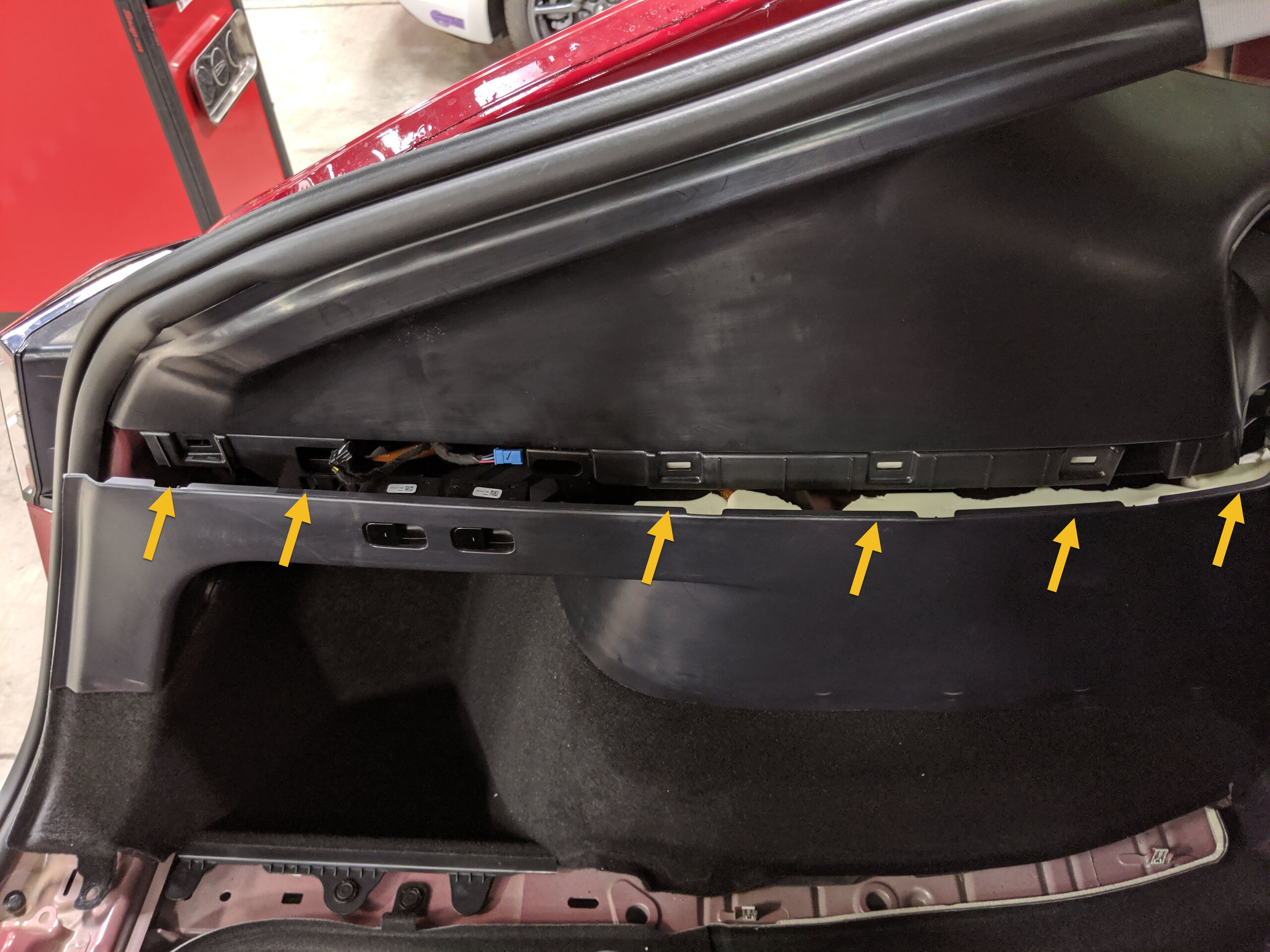

11. Release top edge of LH trunk side trim and disconnect 12V outlet and trunk switch connectors
    注

    6x clips, 2x connectors, Trim part may slightly differ, by vehicle build location





12. Release remaining clips and remove LH trunk side trim
    注

    1x push clip, 5x clips, Guide front clip stanchions around LH C-pillar





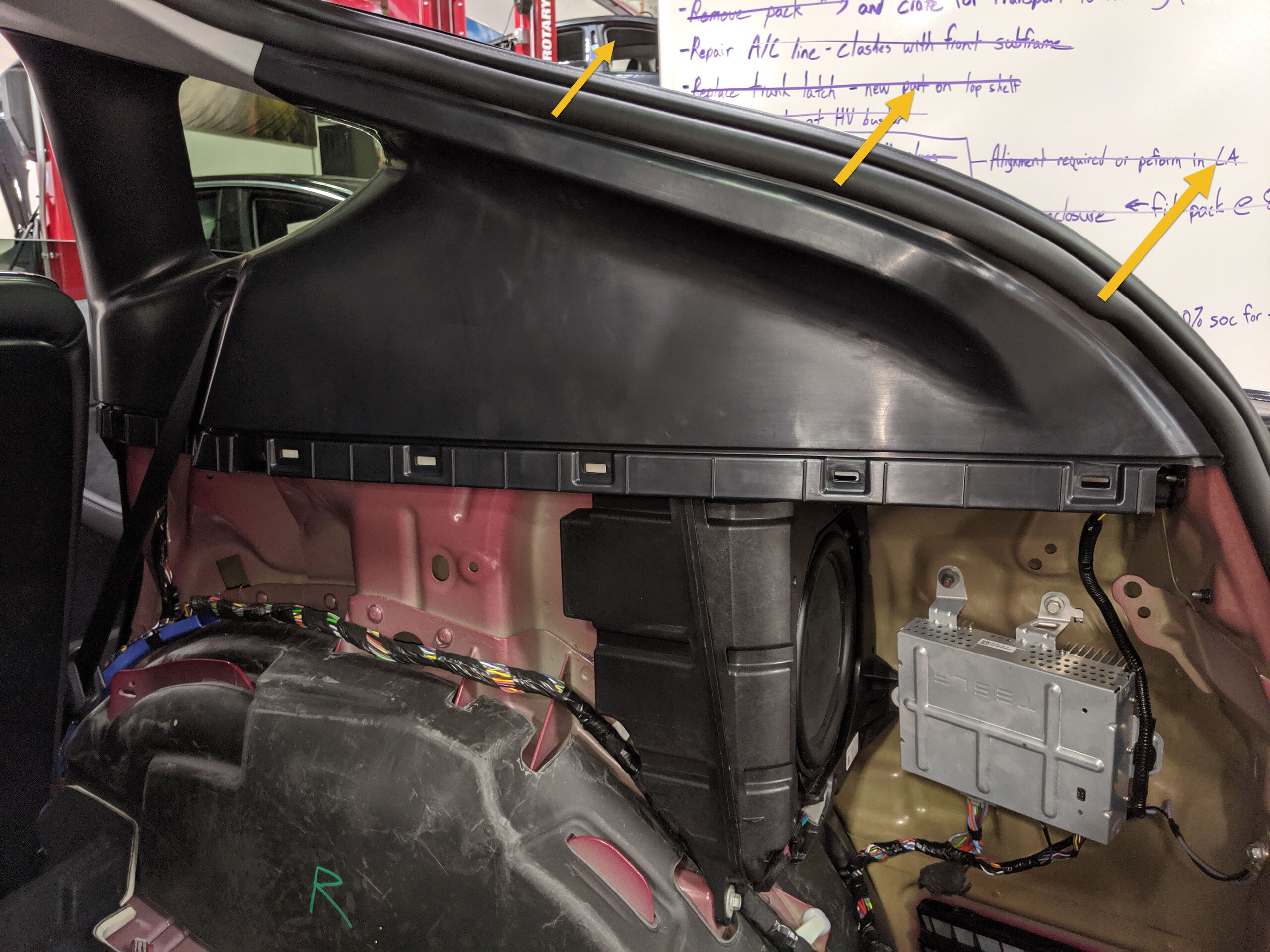

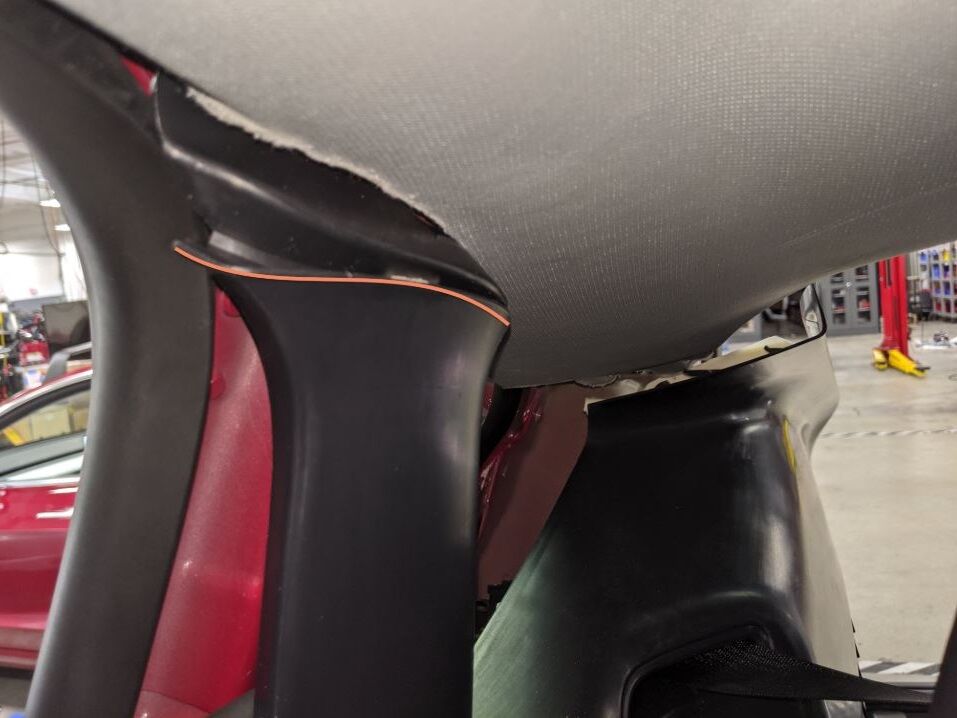

13. Remove LH upper C-pillar trim
    注

    6x clips, Guide front upper corner groove out from headliner and place trim aside



14. Remove RH load floor bracket
    注

    3x tabs, 2x clips





15. Remove RH trunk pocket bracket
    注

    1x push clip, 5x alignment tabs



16. Fold the 40 seat in down position
    注

    Protect the seat cushion, Do not put weight on seat in folded position without cushion present due to risk of bending the locator tab on the frame

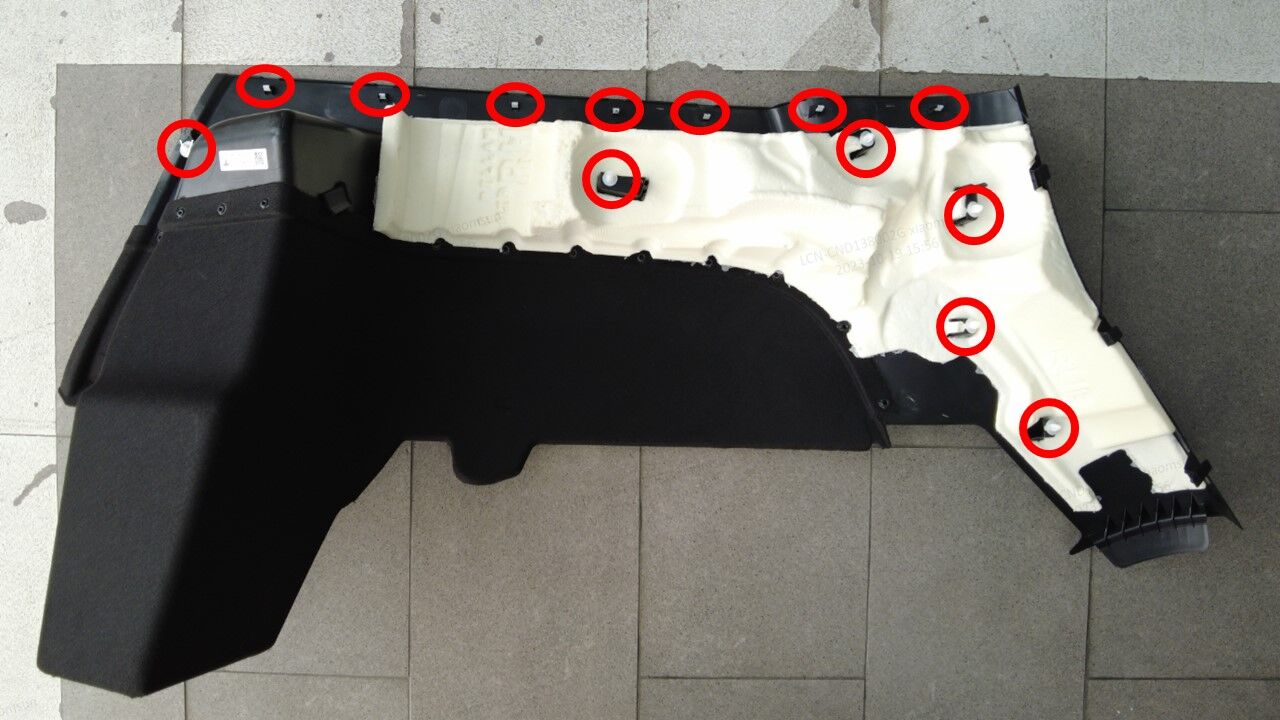

17. Release clips and remove RH trunk side trim
    注

    1x push clip, 11x clips, Guide front clip stanchions around RH C-pillar







18. Remove RH upper C-pillar trim
    注

    6x clips, Guide front upper corner groove out from headliner and place trim aside

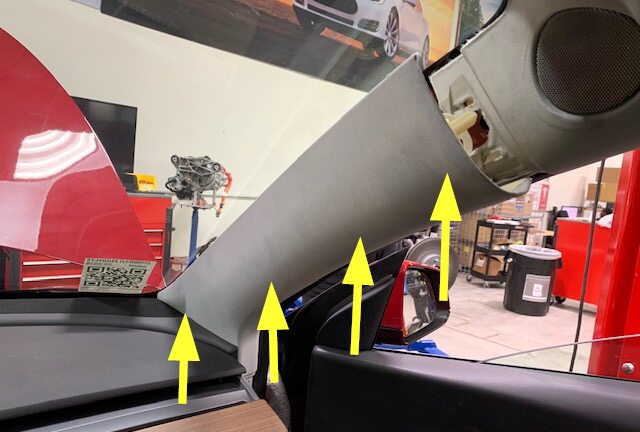

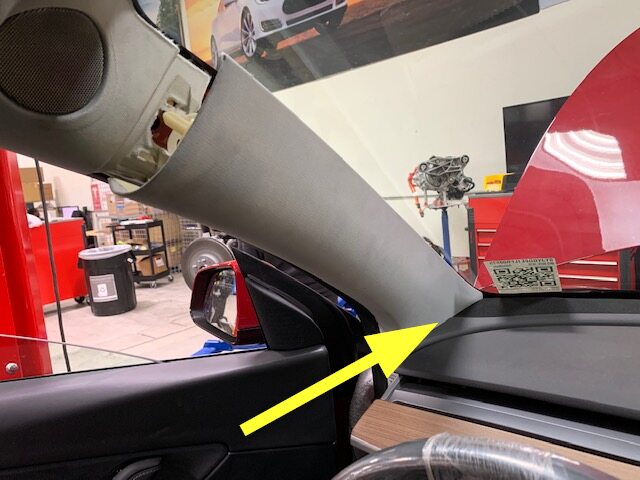

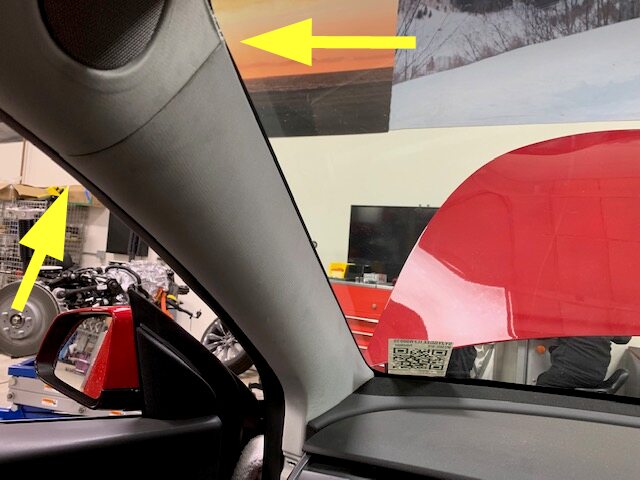

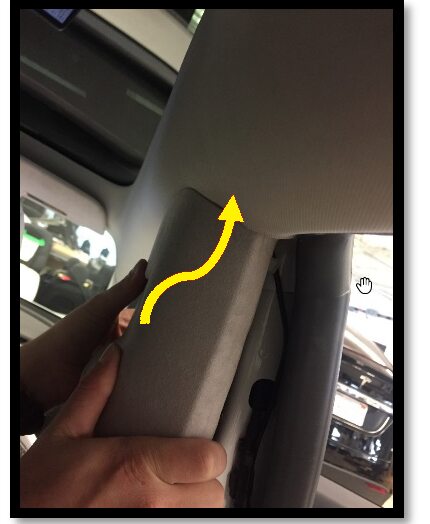

19. Remove LH mid A-pillar assembly
    注

    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove



20. Remove clip securing LH lower A-pillar trim
    注

    1x push clip



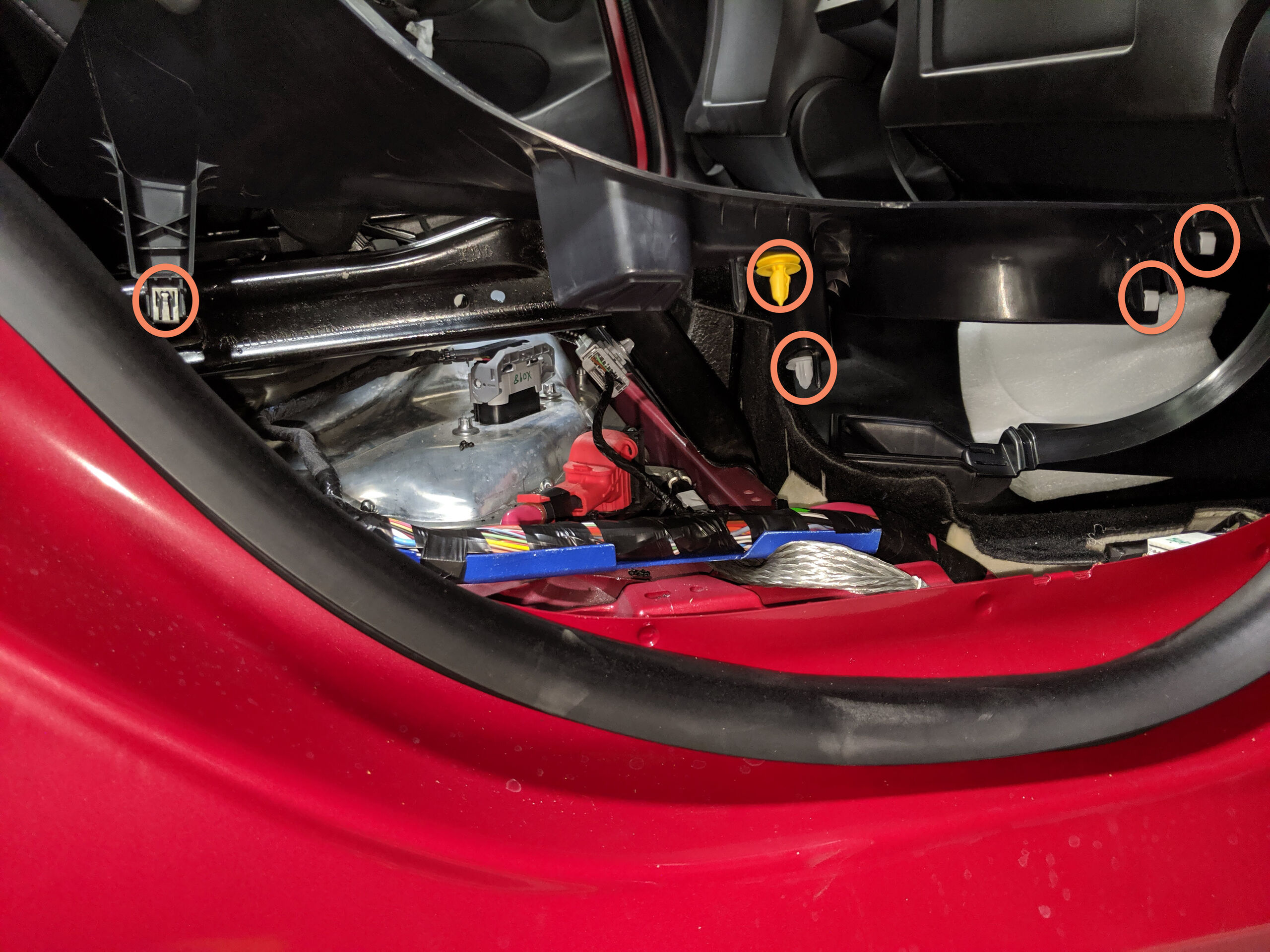

21. Remove LH lower A-pillar trim
    注

    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel



22. Release LH front door seal from body

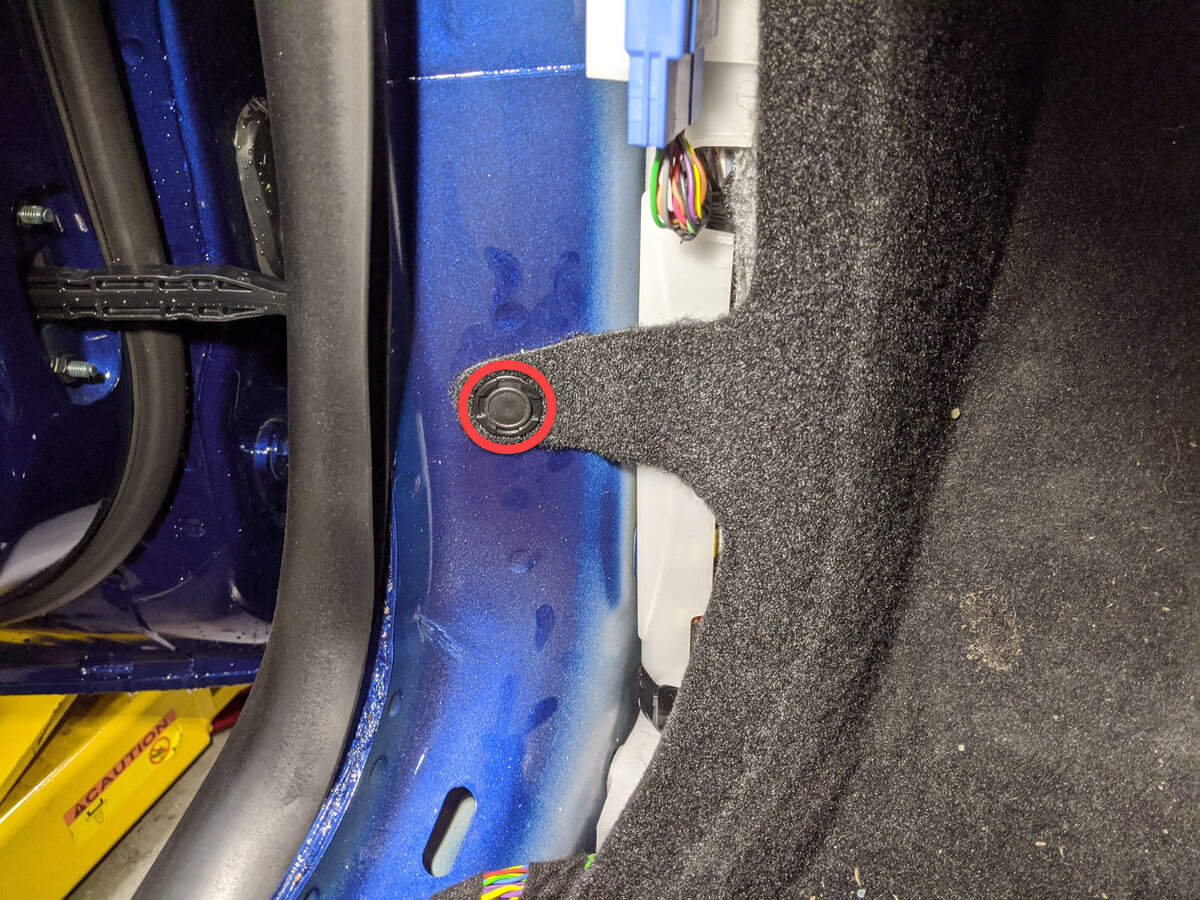

23. Remove clip securing LH front cabin carpet to body
    注

    1x clip



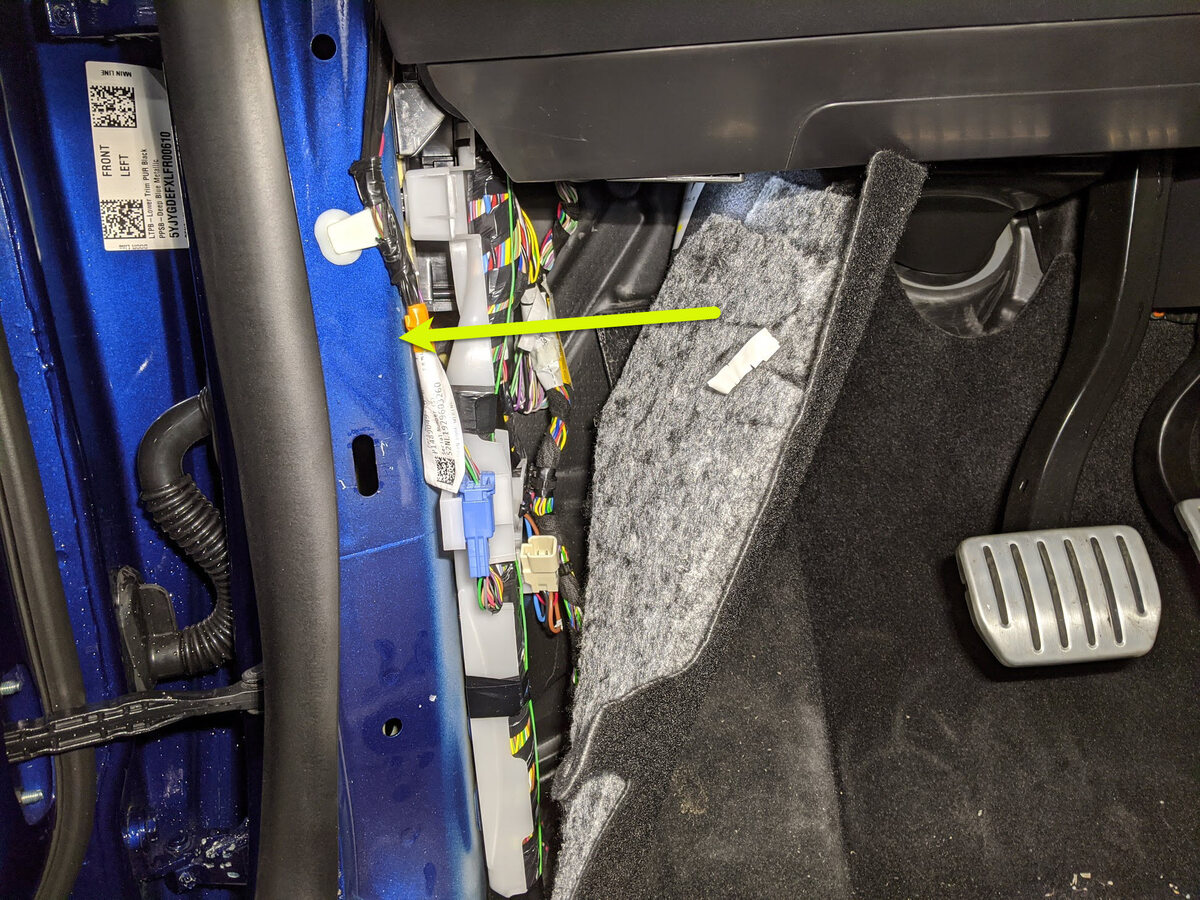

24. Pull LH front cabin carpet away from A-pillar to access LH front seat connector



25. Move LH front seat forward
26. Remove RH mid A-pillar assembly
    注

    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove



27. Remove clip securing RH lower A-pillar trim
    注

    1x push clip



28. Remove RH lower A-pillar trim
    注

    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel



29. Release RH front door seal from body



30. Remove clip securing RH front cabin carpet to body
    注

    1x clip



31. Pull RH front cabin carpet away from A-pillar to access RH front seat connector



32. Move RH front seat forward

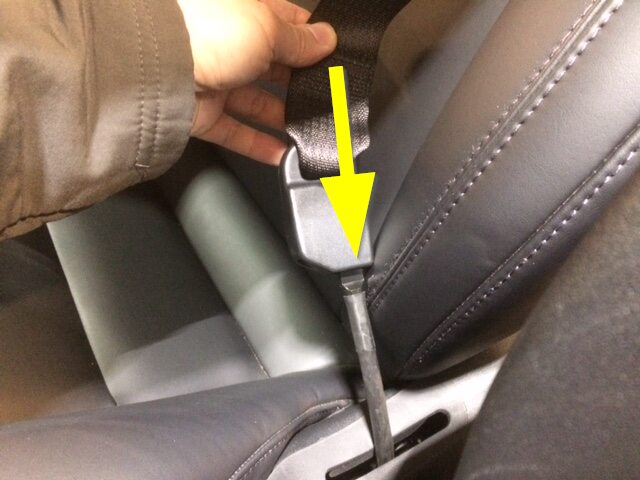

33. Release seat belt retractor from RH front seat
    注

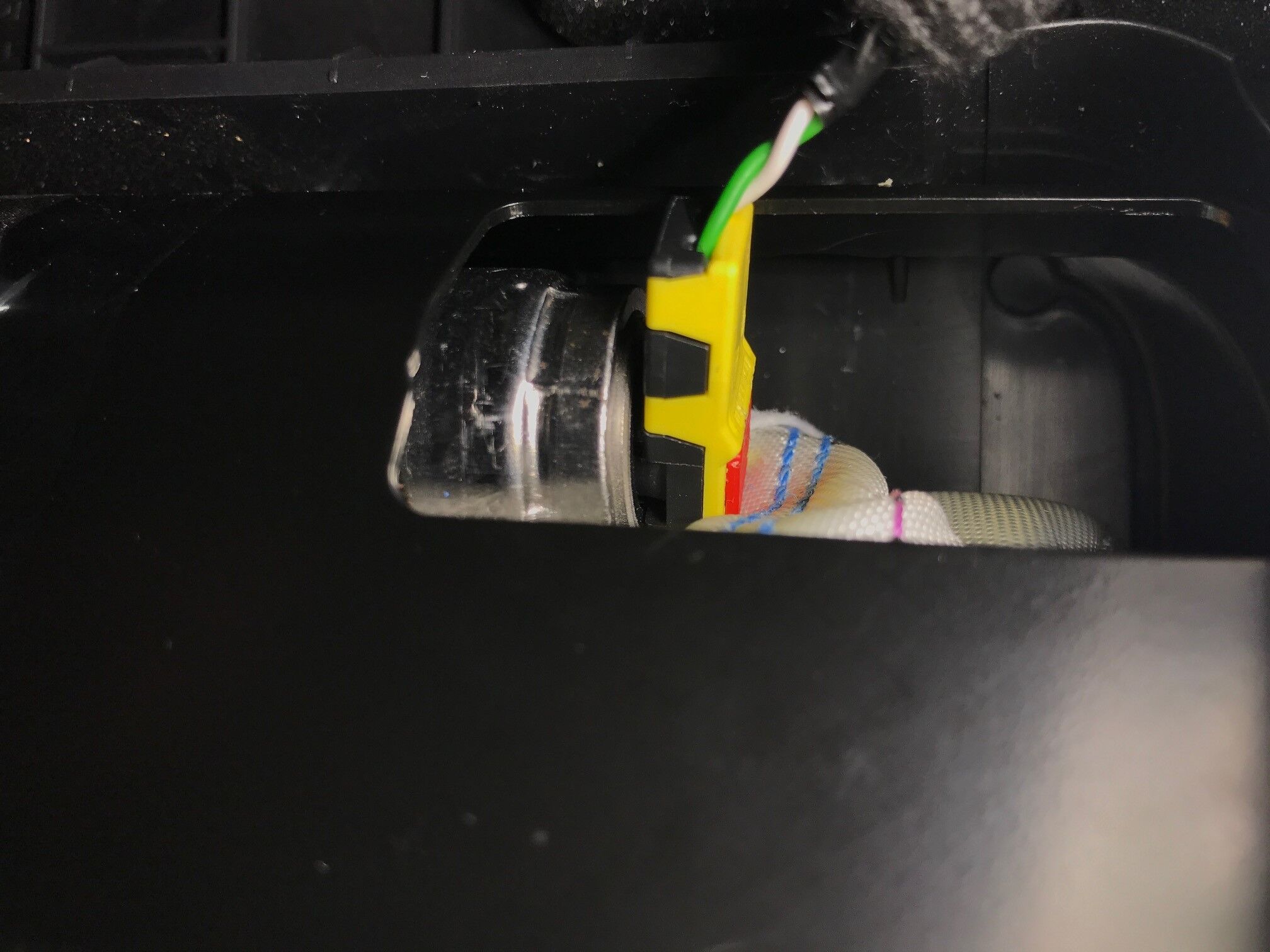

    Insert special removal tool into the bottom of the retractor to release



34. Release seat belt retractor from LH front seat
    注

    Insert special removal tool into the bottom of the retractor to release



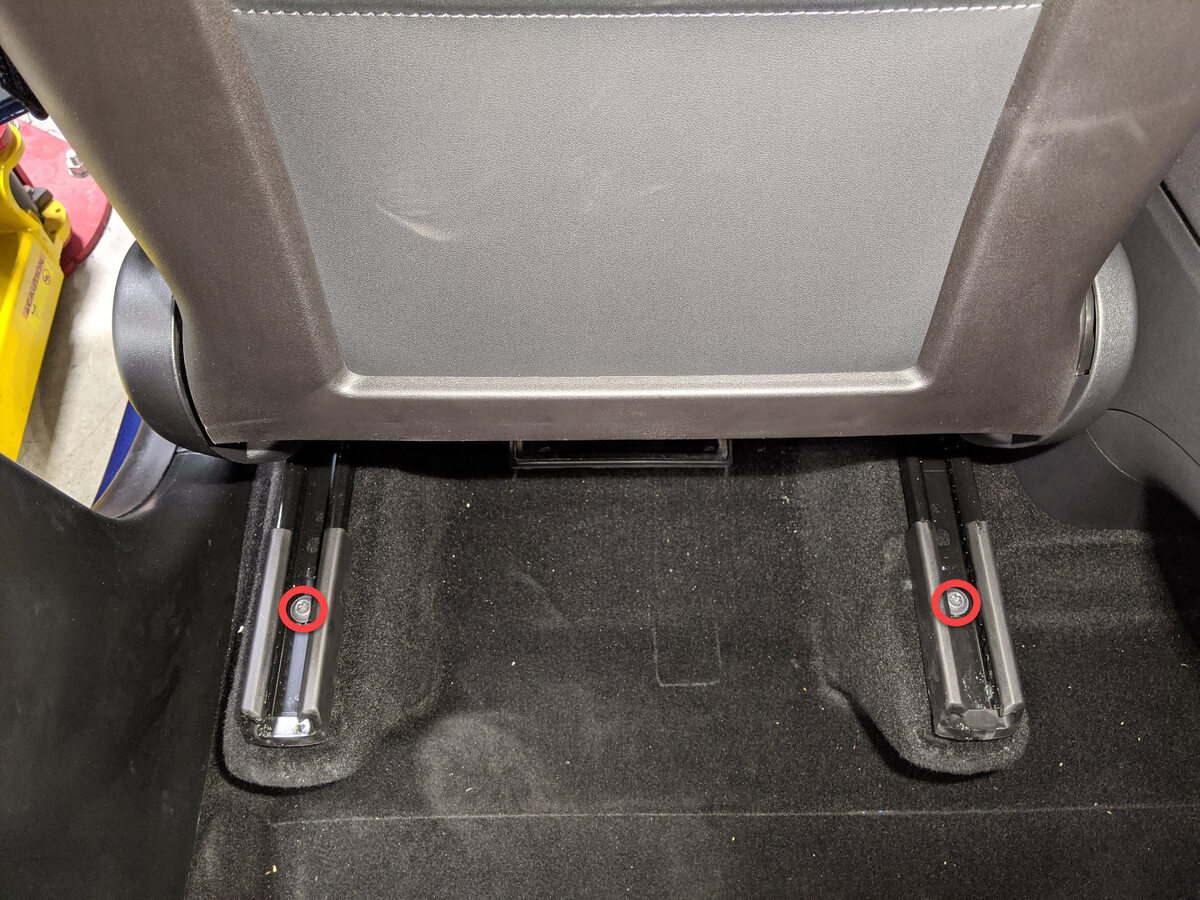

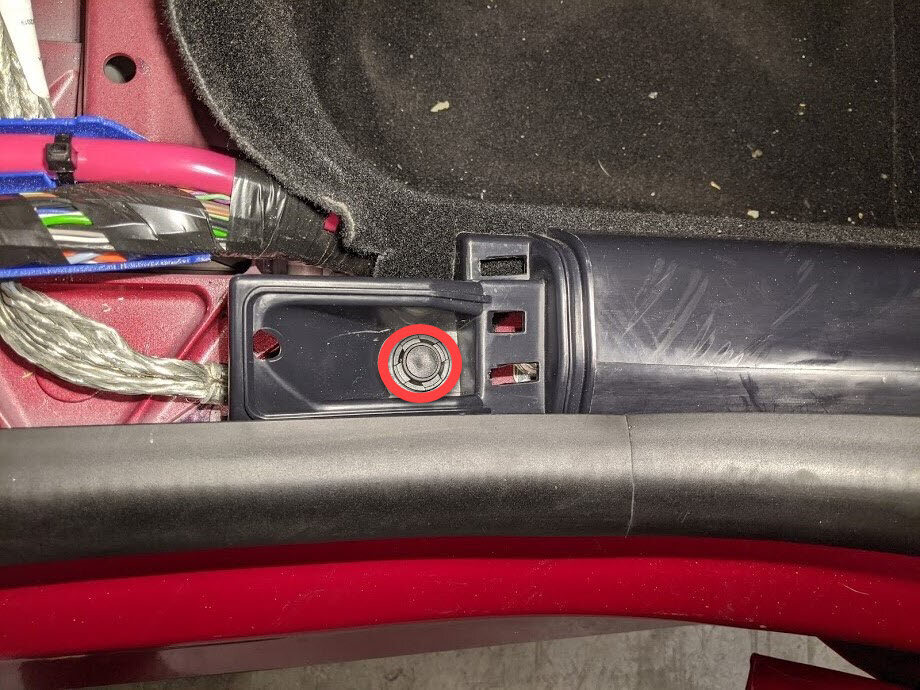

35. Remove LH front seat rear fasteners
    注

    2x patch bolts, T45P, 33.5 Nm, Discard after removal



36. Move LH front seat backward

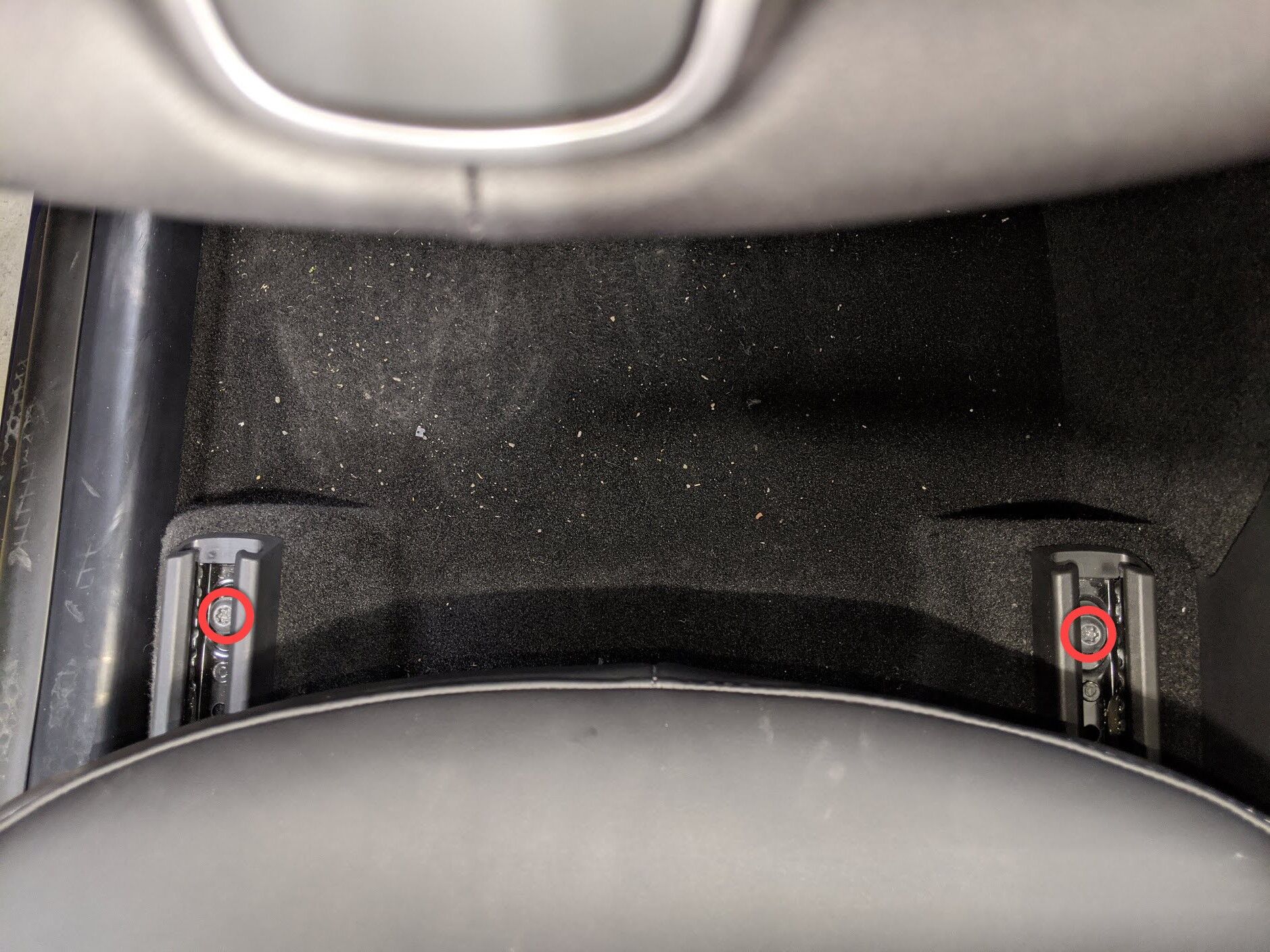

37. Remove LH front seat front fasteners
    注

    2x patch bolts, T45P, 33.5 Nm, Discard after removal



38. Adjust position of LH front seat for easy removal
    注

    Move seat to middle of track at most upright position
39. Remove RH front seat rear fasteners
    注

    2x patch bolts, T45P, 33.5 Nm, Discard after removal



40. Move RH front seat backward
41. Remove RH front seat front fasteners
    注

    2x patch bolts, T45P, 33.5 Nm, Discard after removal



42. Adjust position of RH front seat for easy removal
    注

    Move seat to middle of track at most upright position
43. Open hood

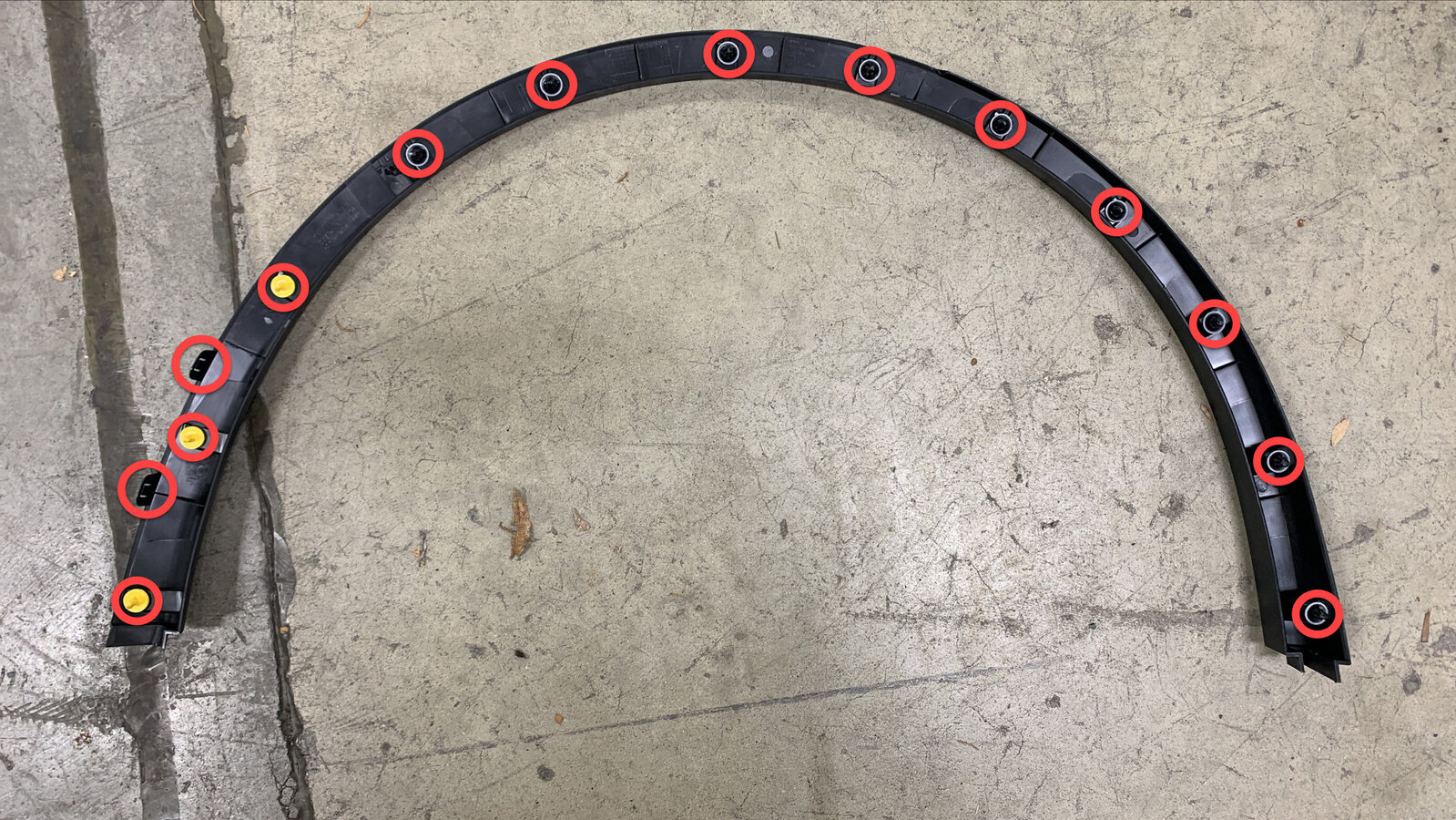

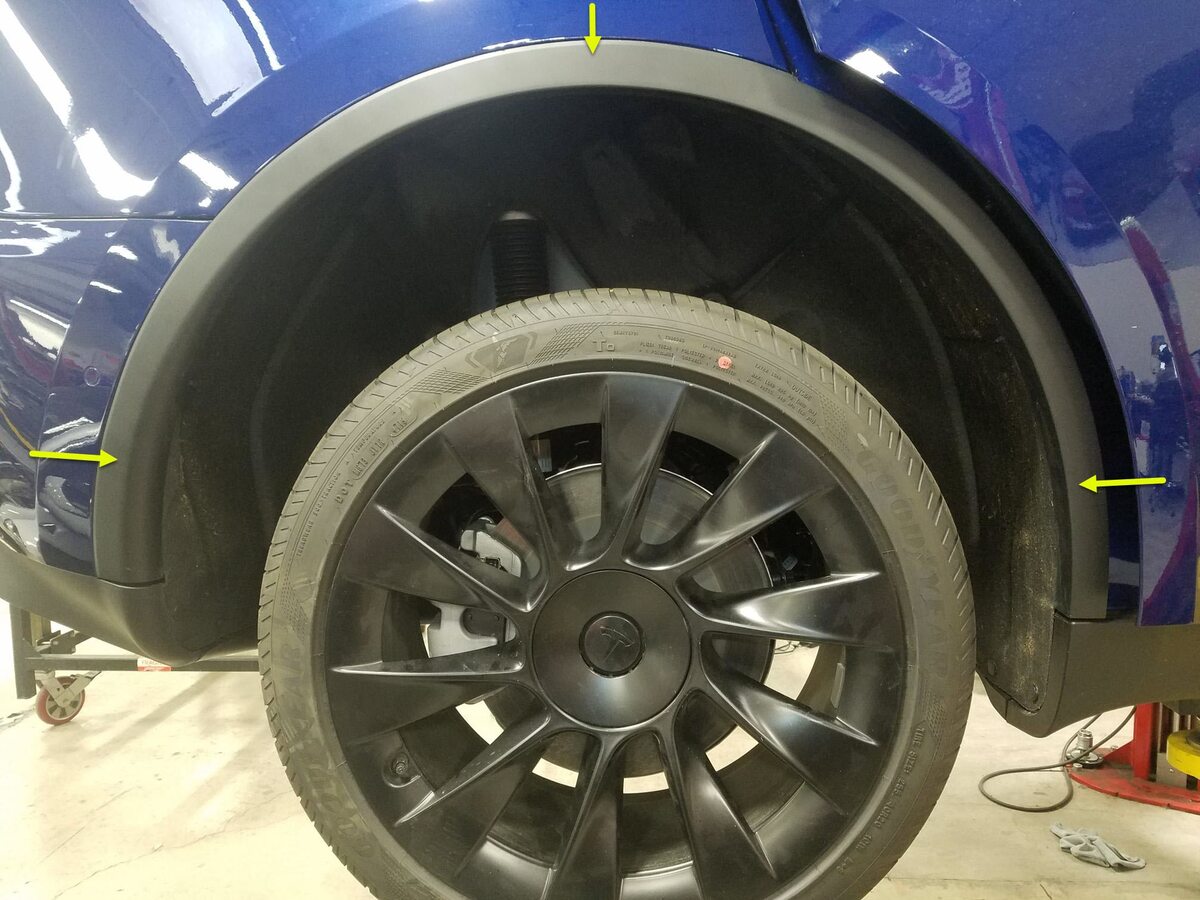

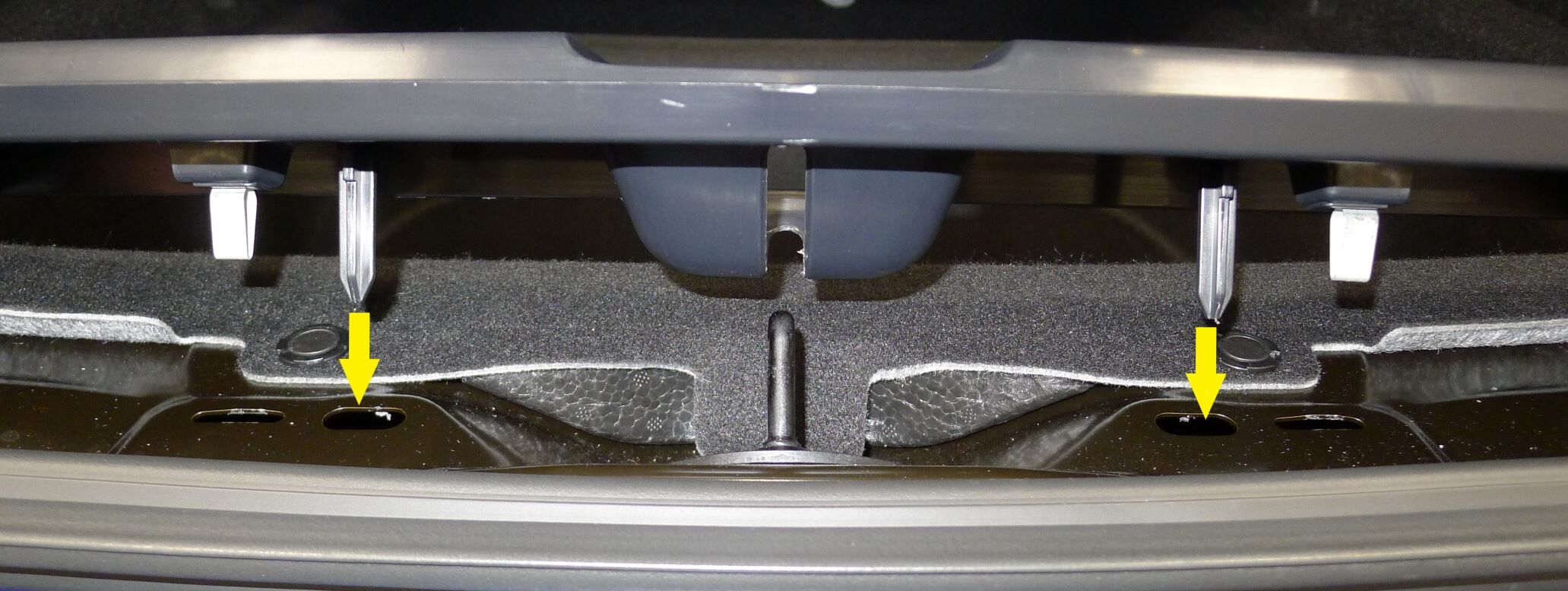

44. Remove rear apron
    注

    14x clips





45. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
46. Disconnect 12V negative terminal and first responders loop
    注

    1x nut, 10mm, 6 Nm, 1x connector, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V, Negative terminal should be disconnected before FRL, Allow 2 minutes for all electrical circuits to fully discharge

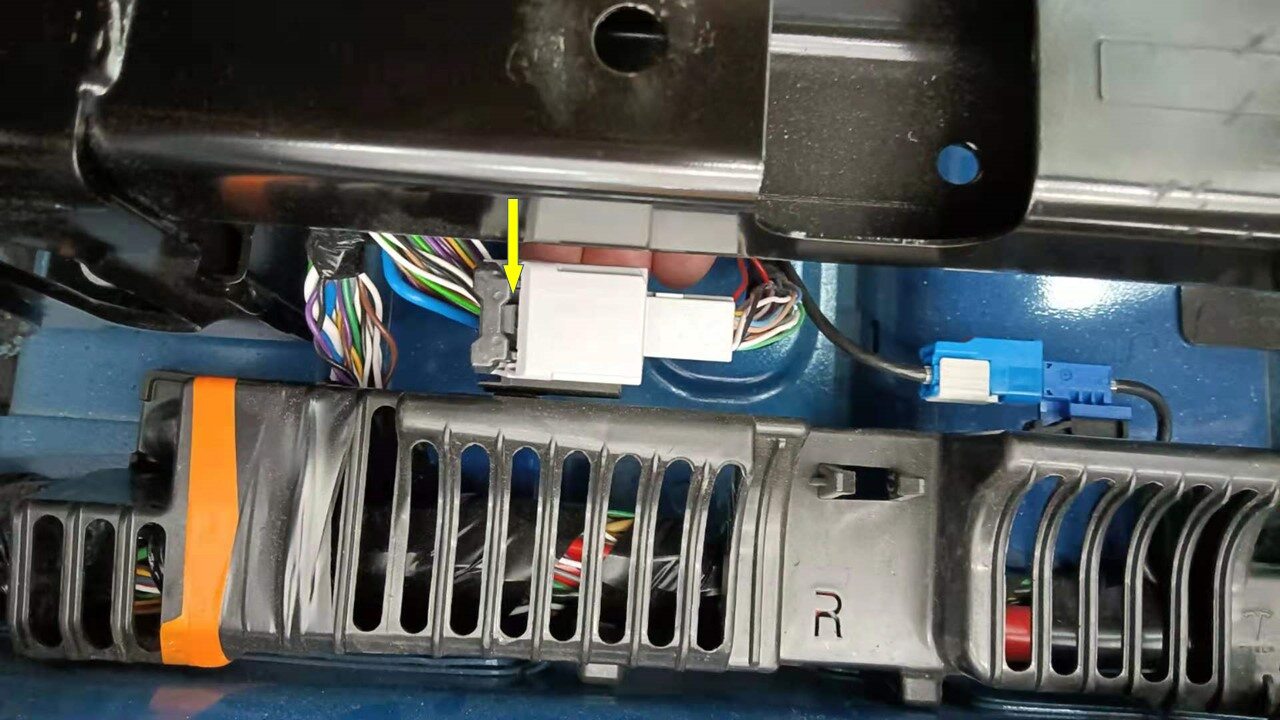

47. Disconnect LH front seat harness from VC left
    注

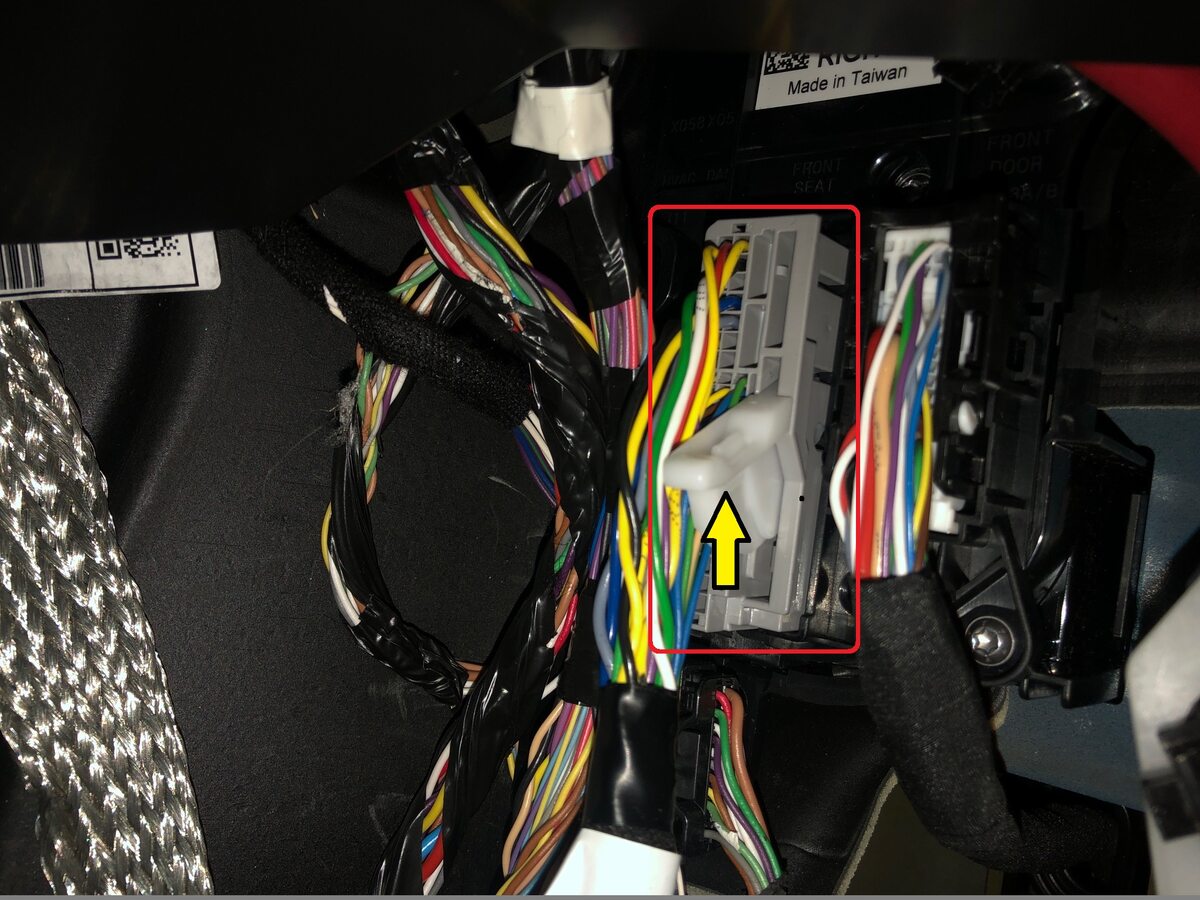

    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC left, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged





48. Remove LH front seat harness from LH footwell support bracket
    注

    2x retaining clips





49. Release LH front seat harness from LH front sill panel harness bracket
    注

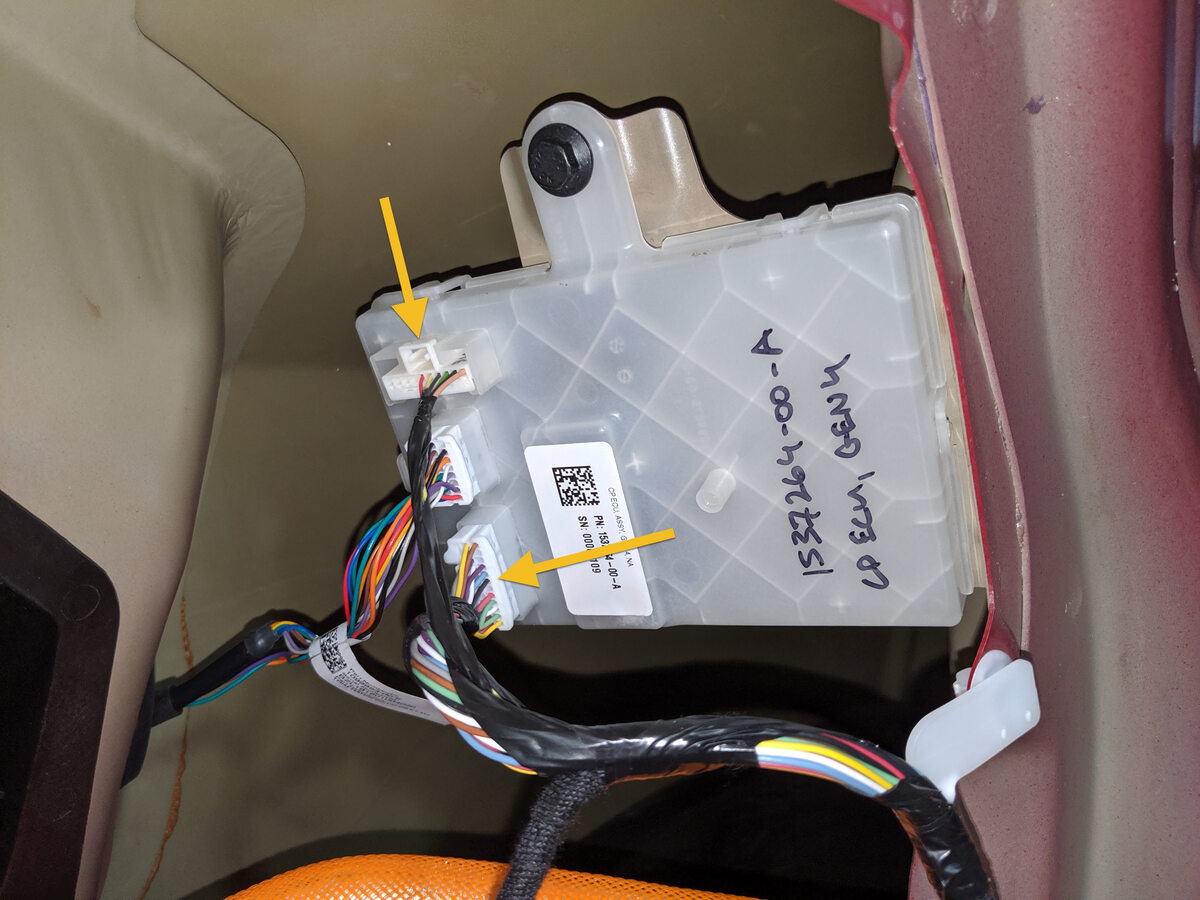

    5x clips



50. Pull LH front seat harness from under LH front cabin carpet



51. Remove LH front seat from vehicle
    注

    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim



52. Disconnect RH front seat harness from VC right
    注

    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC right, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged





53. Remove RH front seat harness from RH footwell support bracket

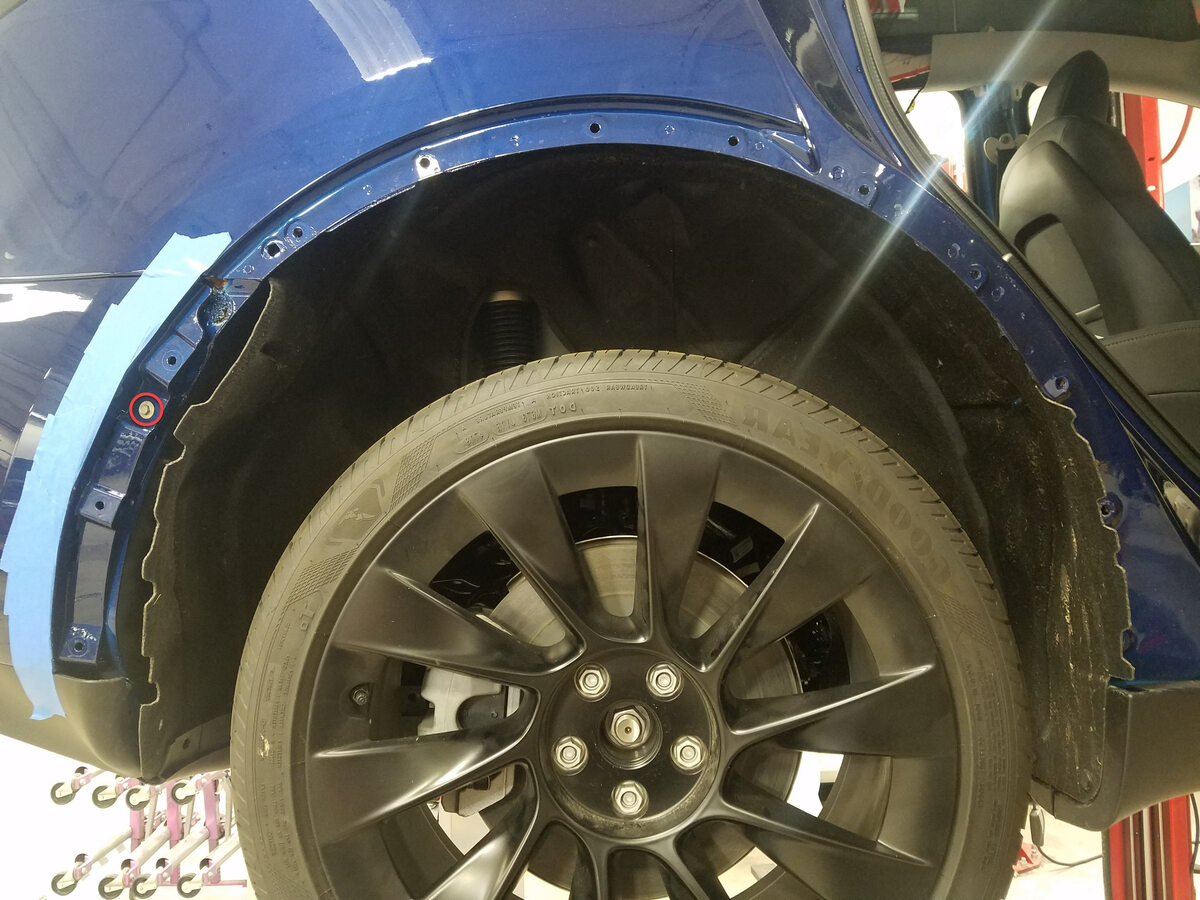

    注

    2x retaining clips





54. Release RH front seat harness from lower A 12V bracket
    注

    5x clips



55. Pull RH front seat harness from under RH front cabin carpet



56. Remove RH front seat from vehicle
    注

    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim

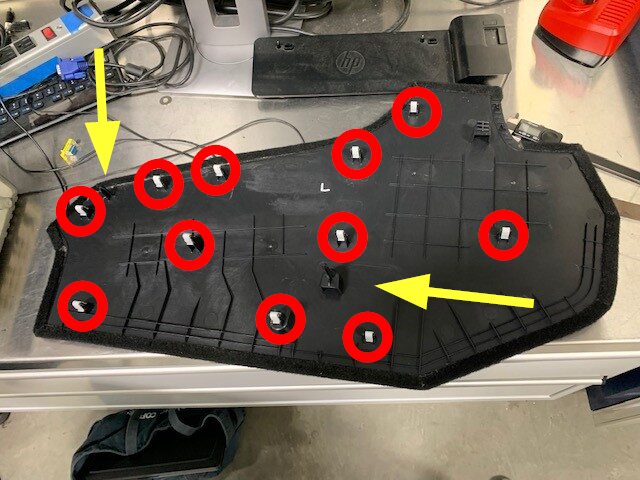

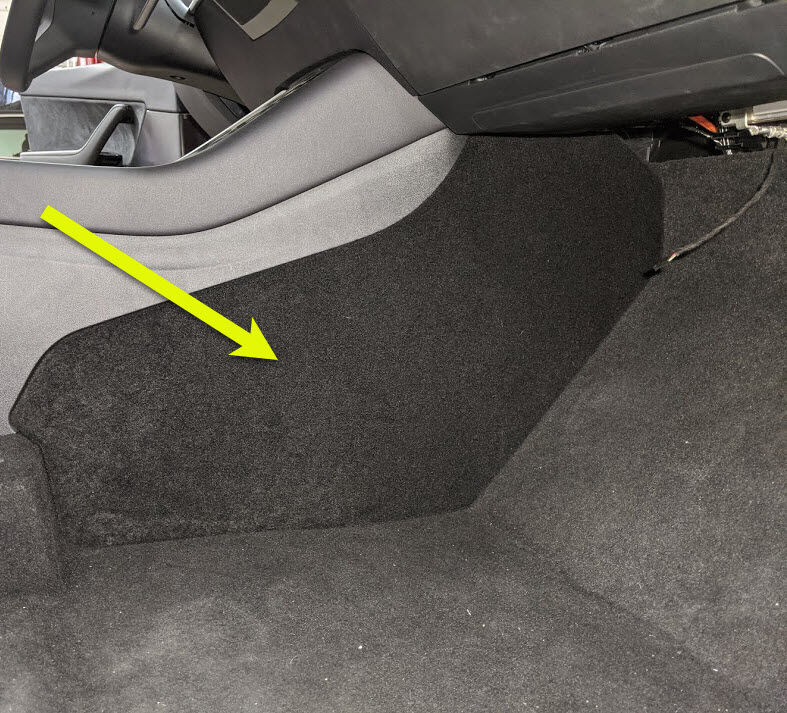

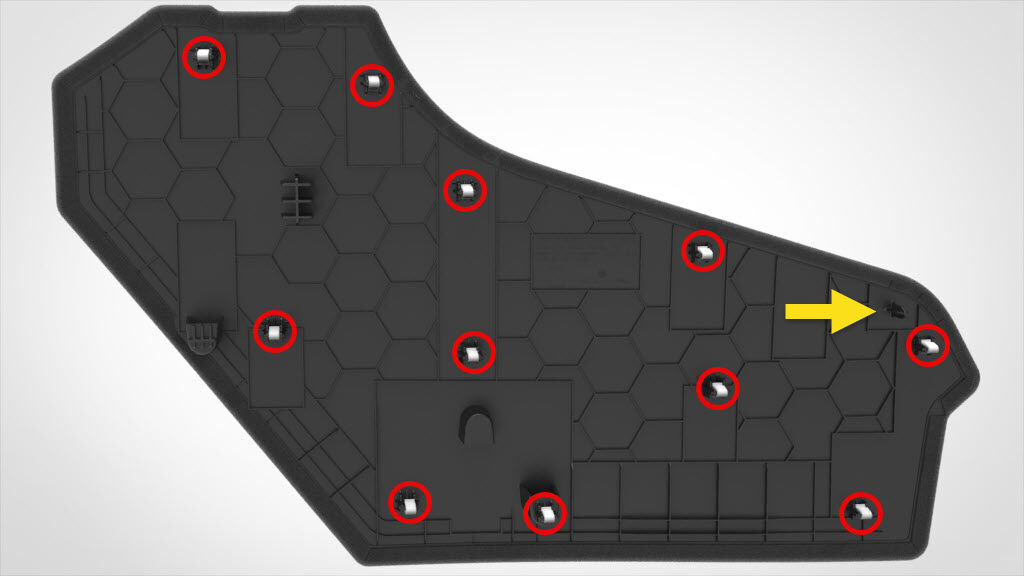

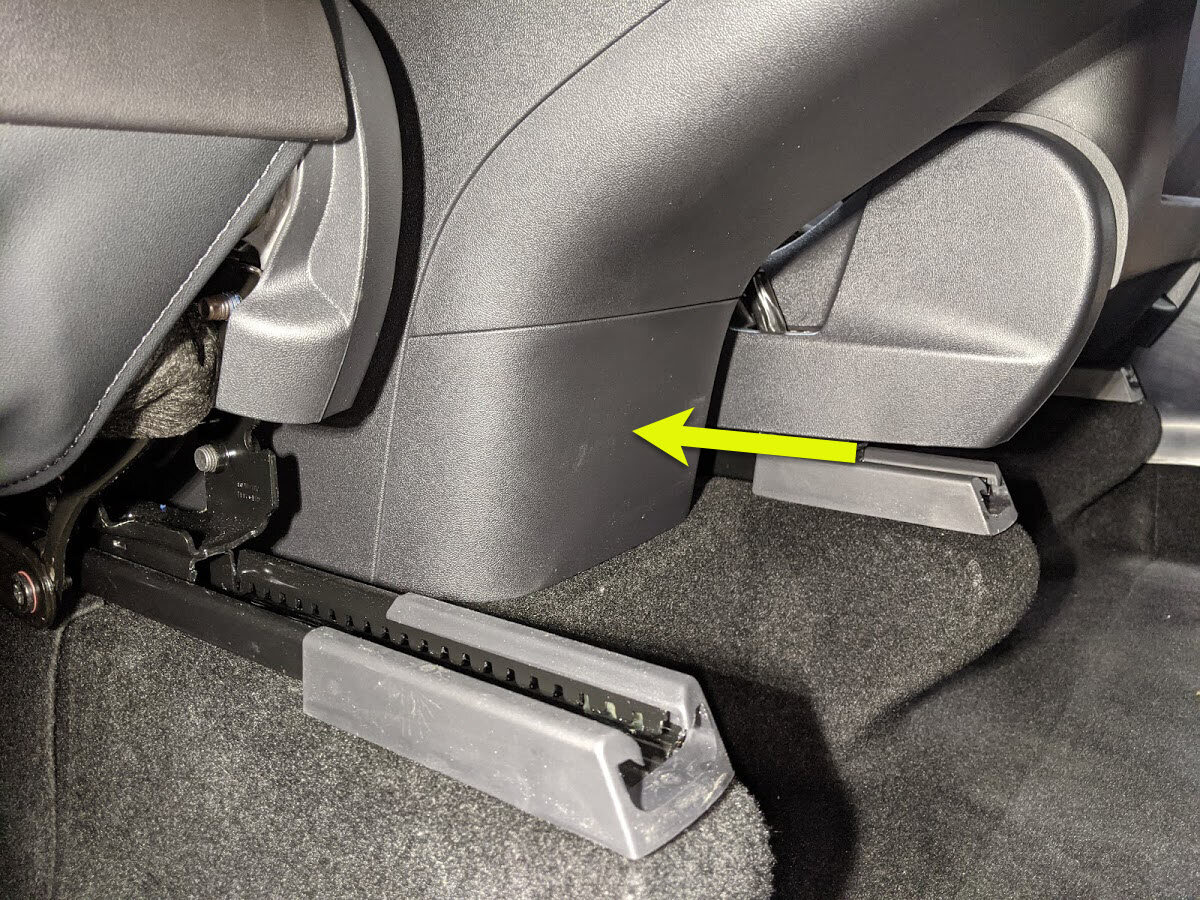

57. Remove LH console side panel carpet
    注

    11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged

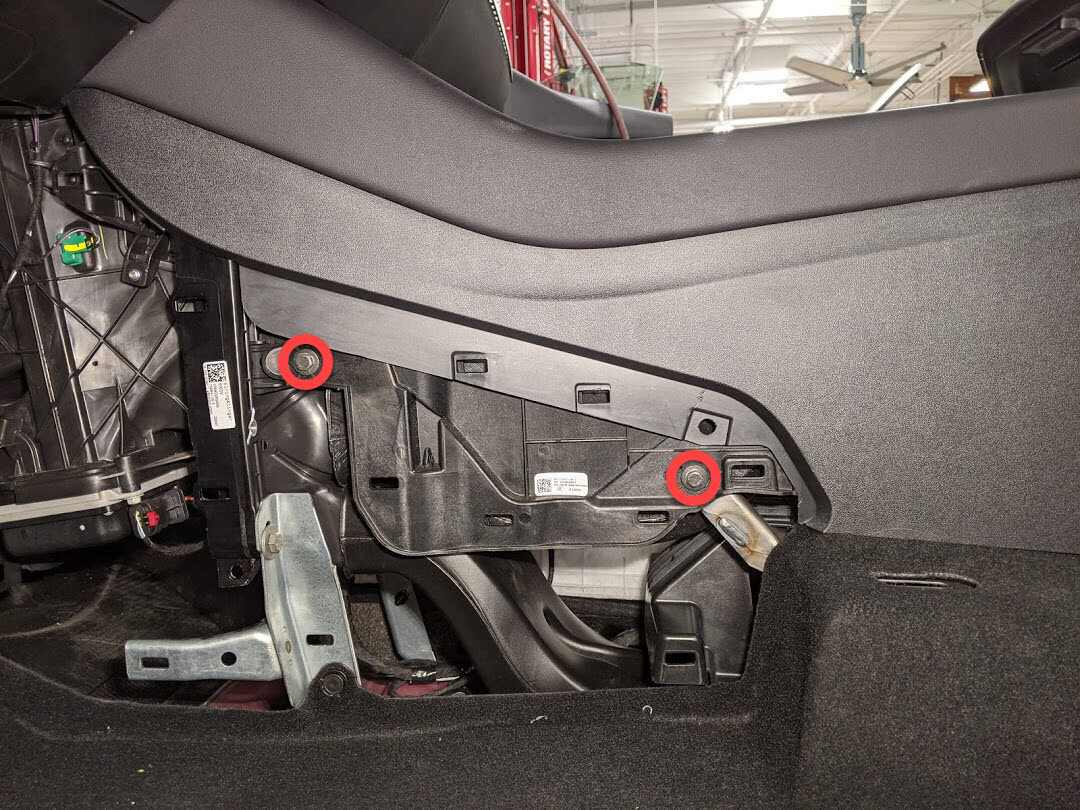

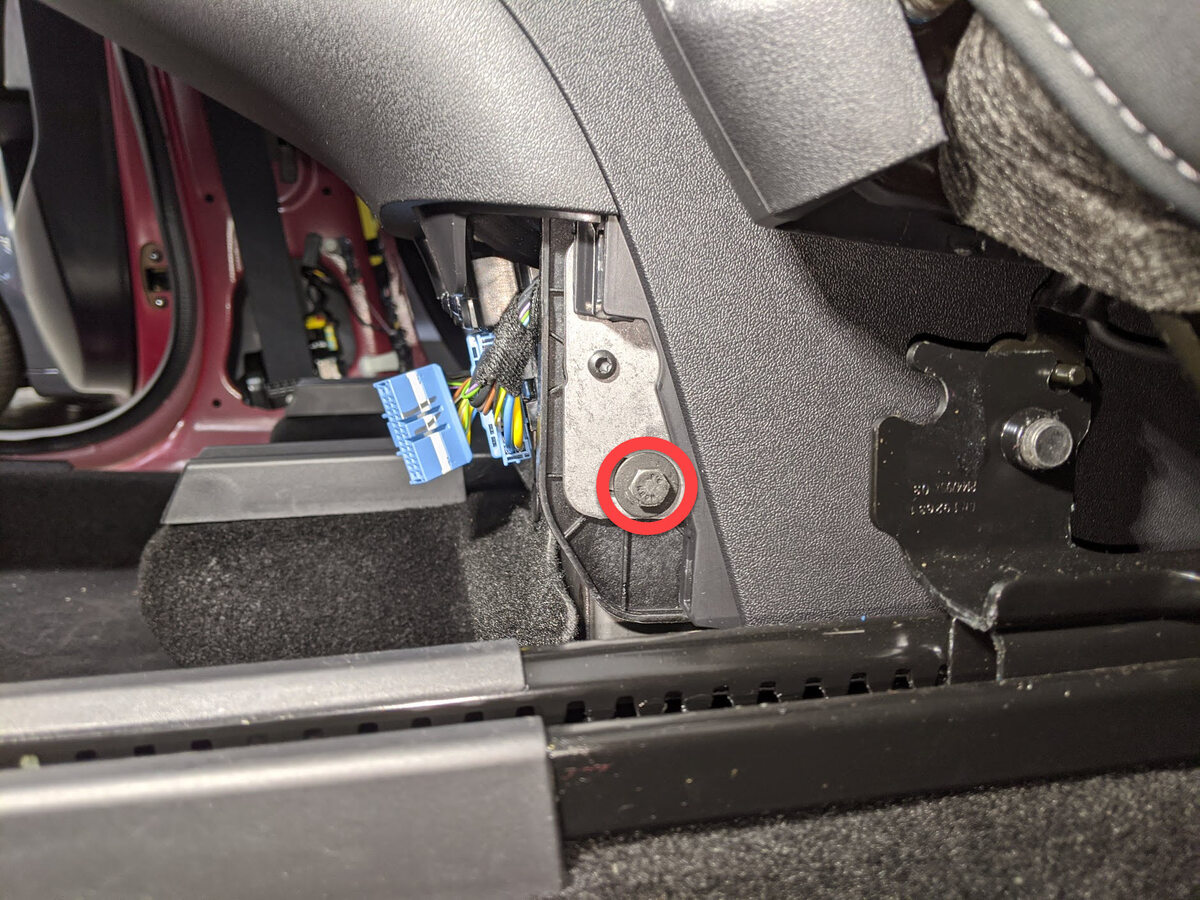

58. Remove LH front exterior hardware from center console
    注

    2x bolts, 10mm, 7 Nm



59. Remove console lower rear panel
    注

    5x clips



60. Remove LH rear exterior hardware from center console
    注

    1x bolt, 10mm, 7 Nm



61. Remove RH rear exterior hardware from center console
    注

    1x bolt, 10mm, 7 Nm



62. Remove RH console side panel carpet
    注

    12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged

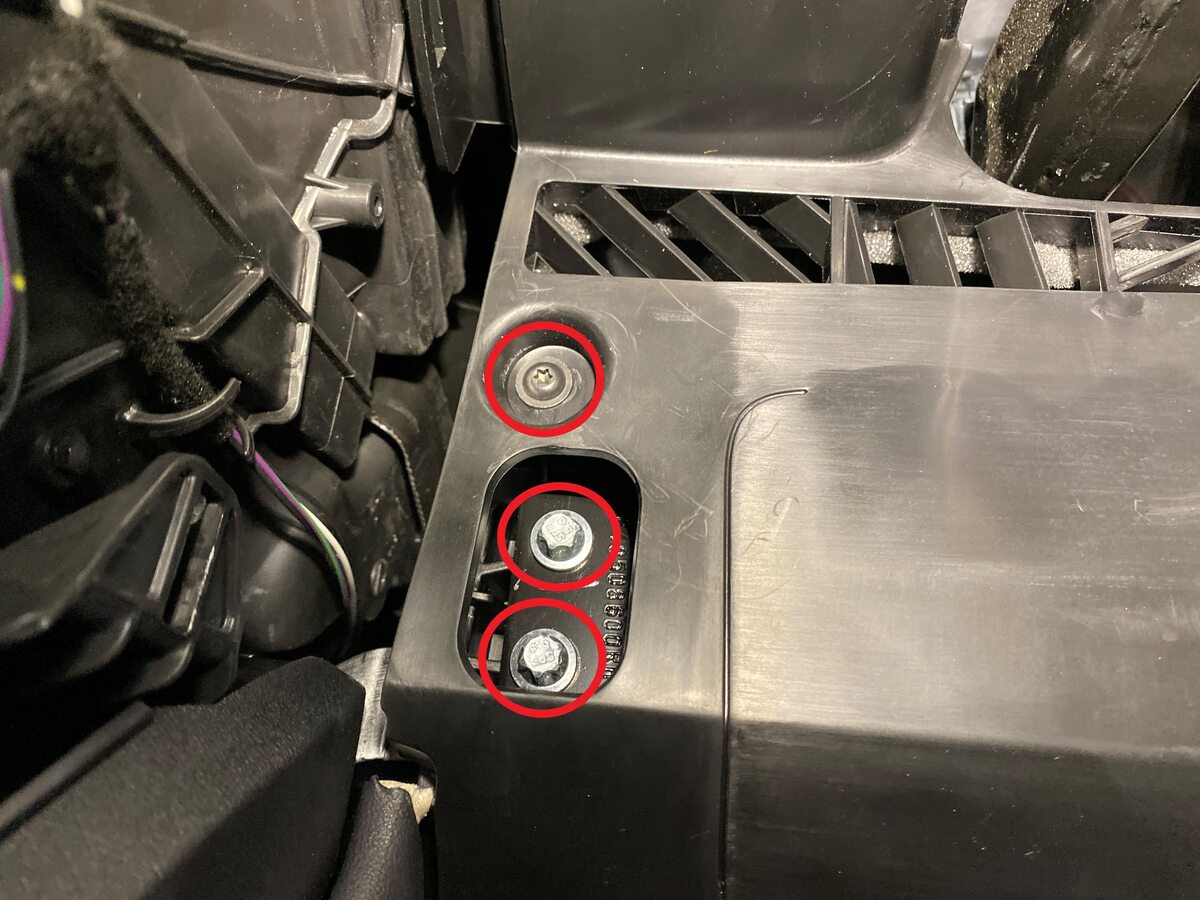

63. Remove RH front exterior hardware from center console
    注

    2x bolts, 10mm, 7 Nm



64. Disconnect harness from rear of center console
    注

    1x connector



65. Disconnect USB harness at right front of center console
    注

    1x USB connector

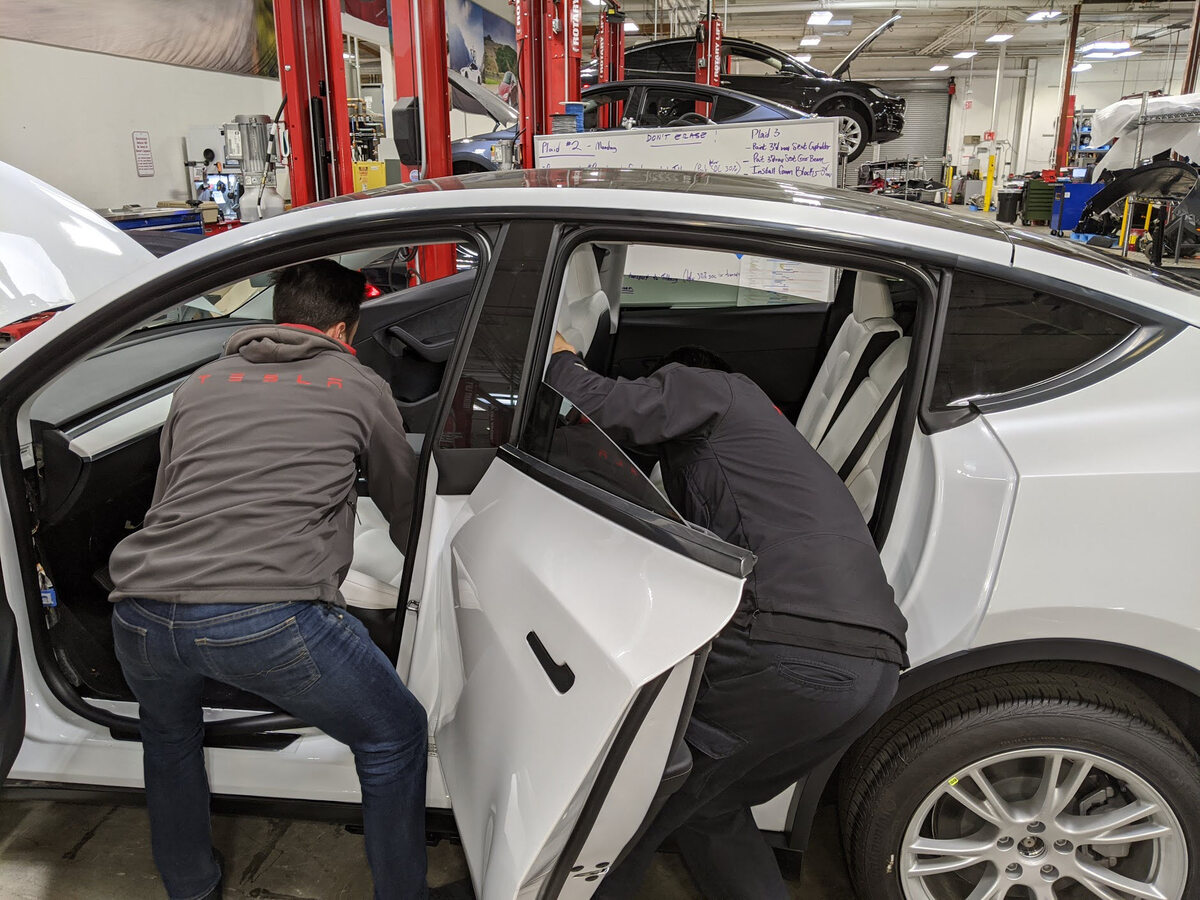

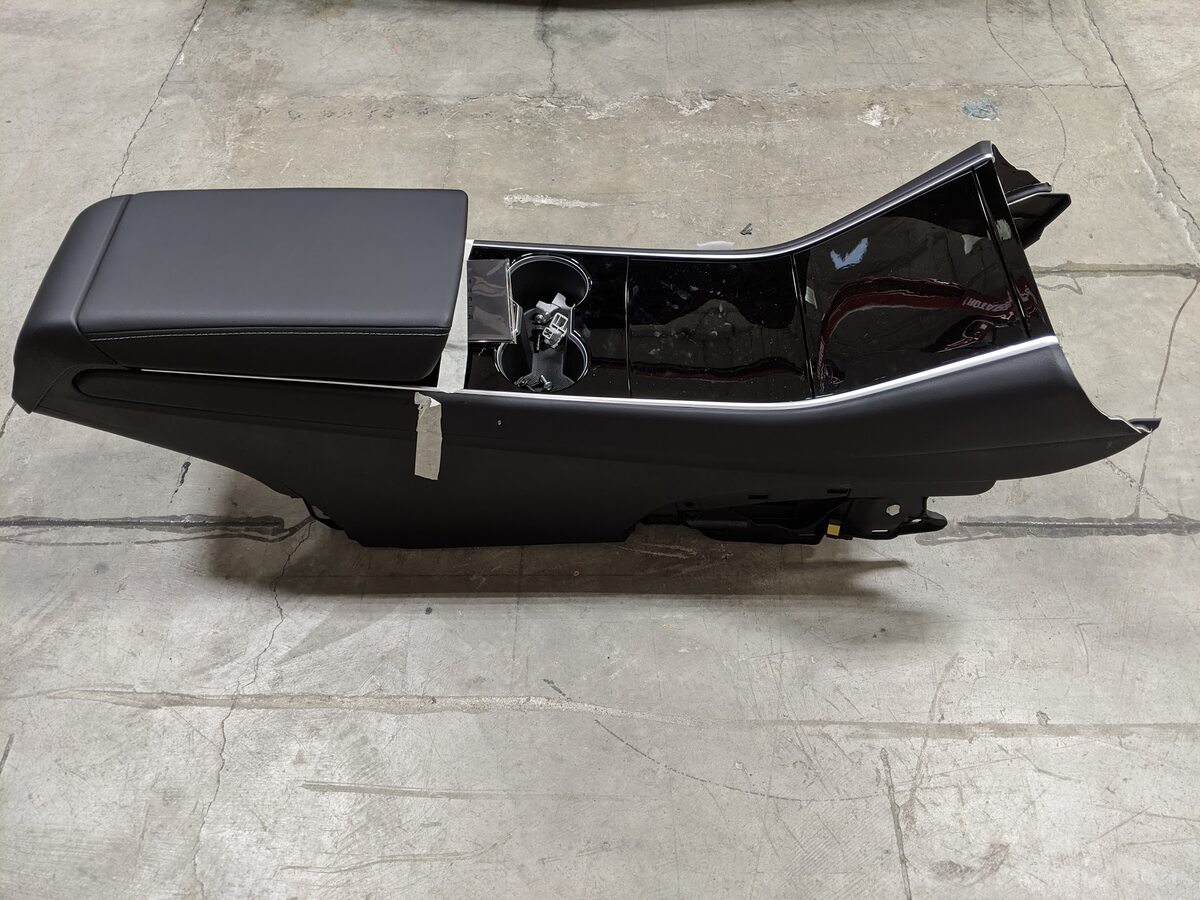

66. Remove center console from vehicle
    注

    Verify rotating lids are in closed position, Recommend assistance, Tilt rear of console upward, Pull assembly towards rear of vehicle

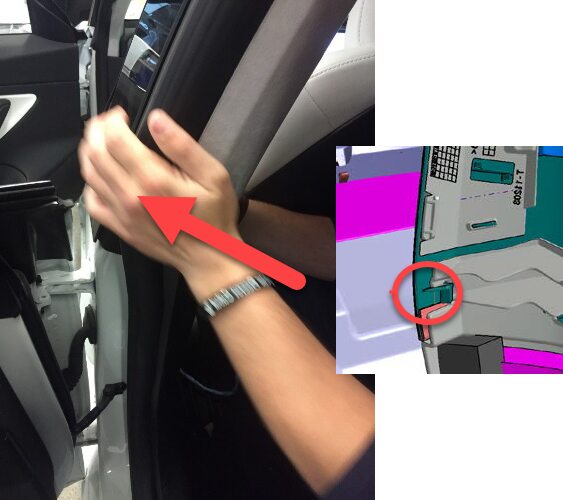

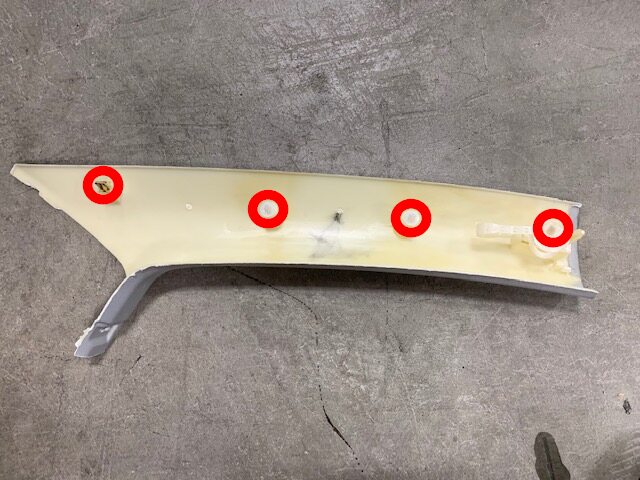

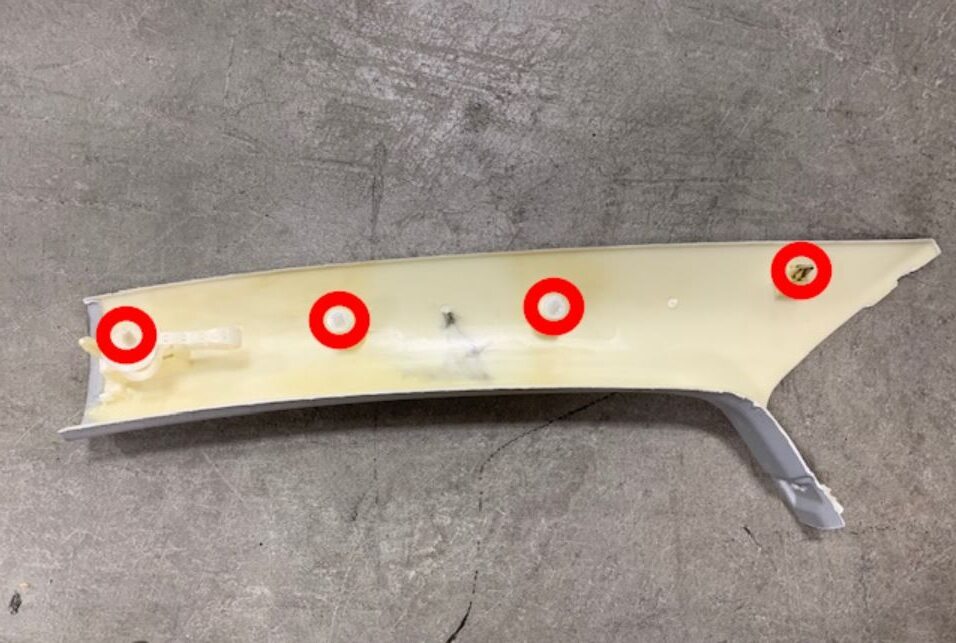

67. Release LH upper B-pillar assembly and move aside
    注

    4x clips, Pull the bottom of the upper B-pillar toward inside of the vehicle then pull the top to release the remaining clips



68. Partially remove LH rear door seal



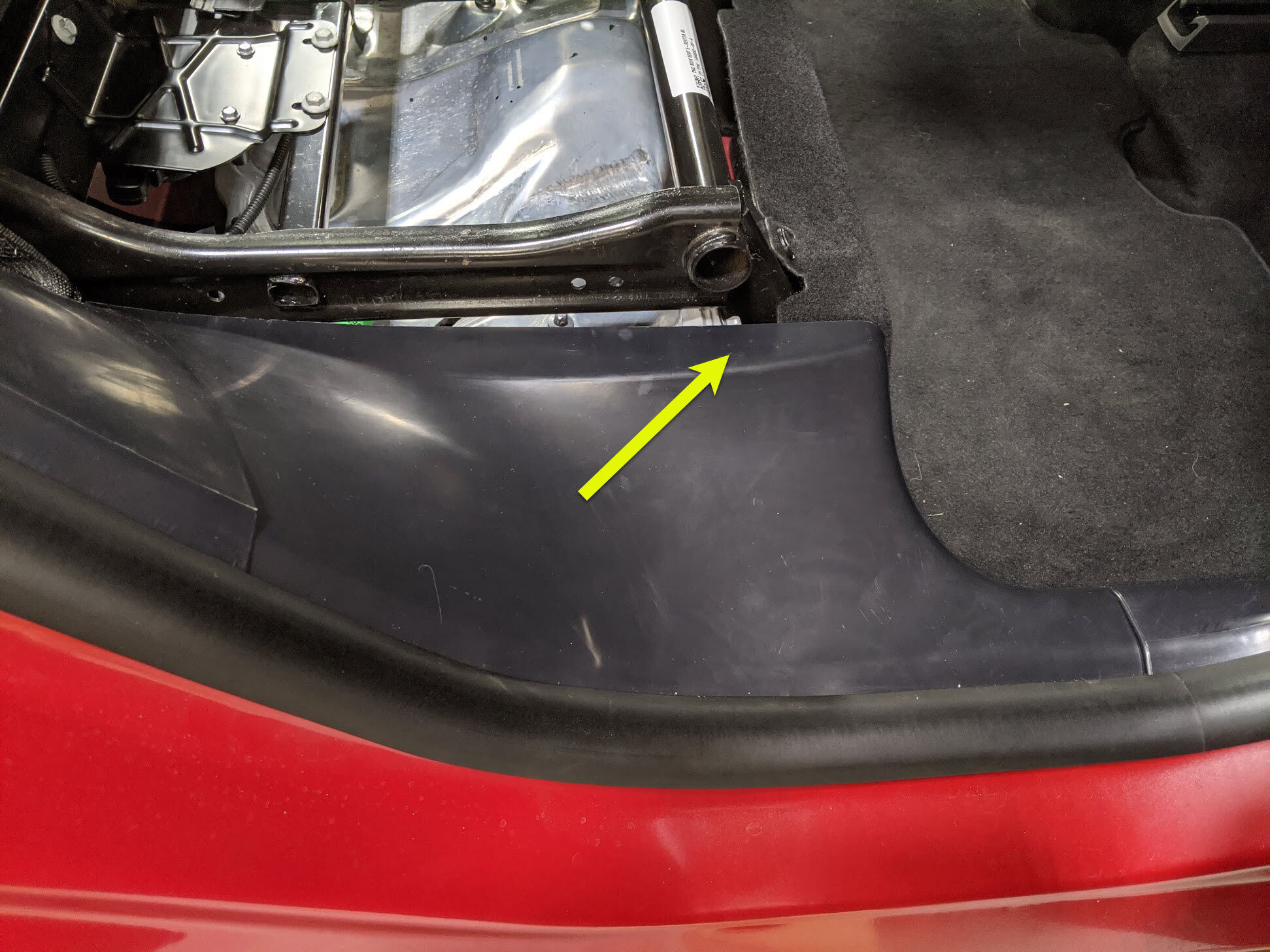

69. Remove LH rear sill trim
    注

    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim, Trim part may slightly differ, by vehicle build location

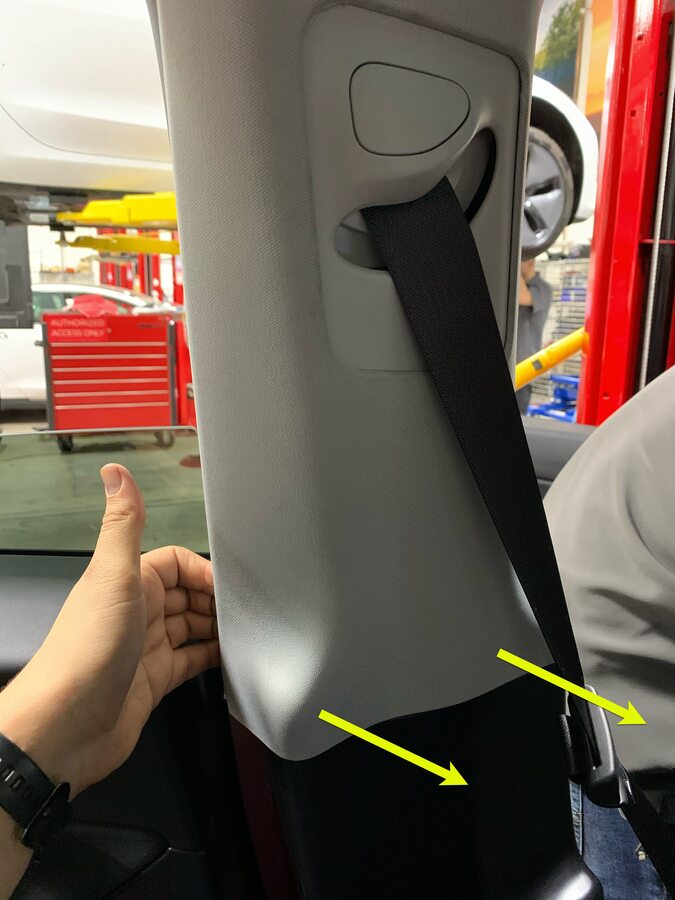

70. Remove clip securing LH lower B-pillar to body
    注

    1x push clip, Clip secures lower B-pillar and rear cabin carpet to body

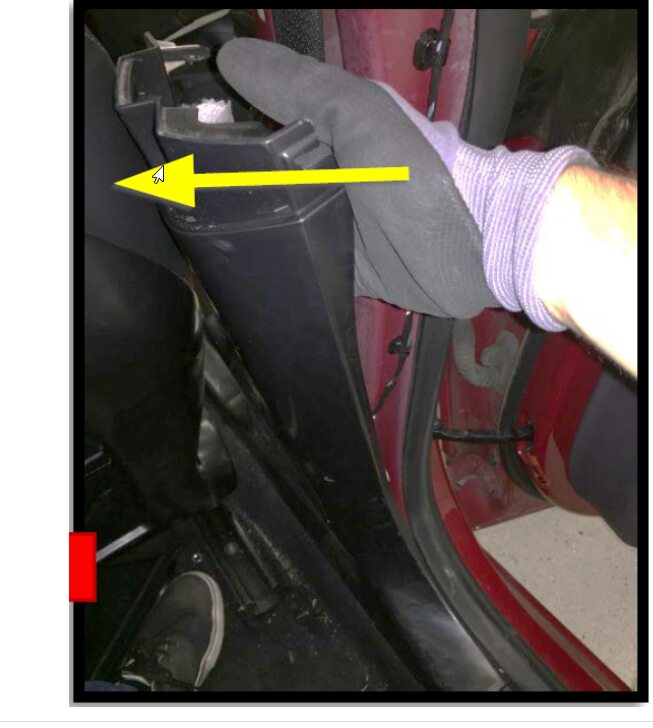

71. Remove the LH lower B-pillar assembly
    注

    6x clips, Pull the top of B-pillar to release top clips then work your way to bottom clips



72. Release clips securing the RH upper B-pillar assembly and move aside
    注

    4x clips, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips





73. Partially remove RH rear door seal
    注

    Pillar and sill trim have tabs seated underneath seal



74. Remove RH rear sill trim
    注

    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of RH rear sill trim working your way back towards rear of sill trim





75. Remove clip securing RH lower B-pillar to body
    注

    1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



76. Remove the RH lower B-pillar assembly
    注

    6x clips, Pull the top of B-pillar to release top clips then work your way to bottom clips

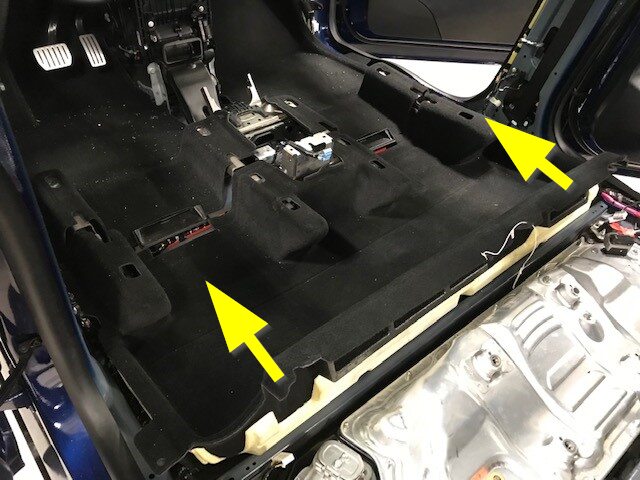

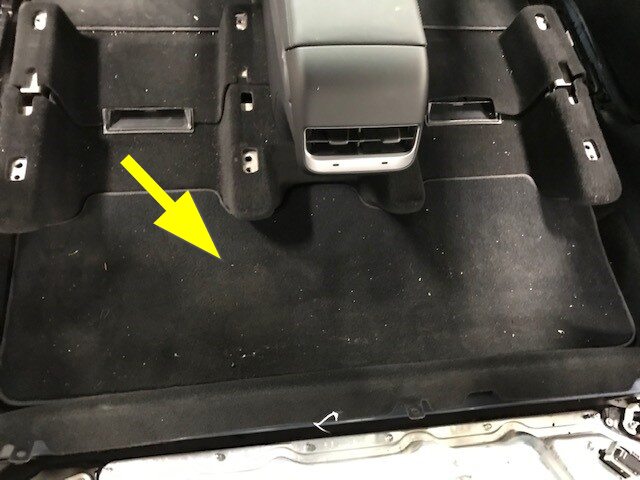

77. Remove rear floormat



78. Remove clips securing rear main cabin carpet to vehicle
    注

    3x push clips



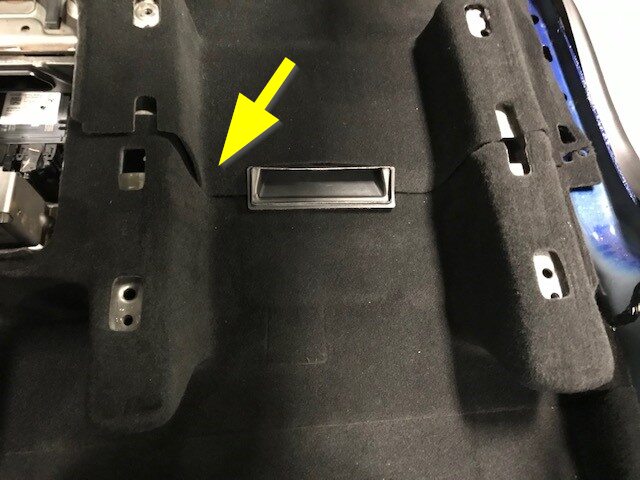

79. Remove rear main cabin carpet from vehicle

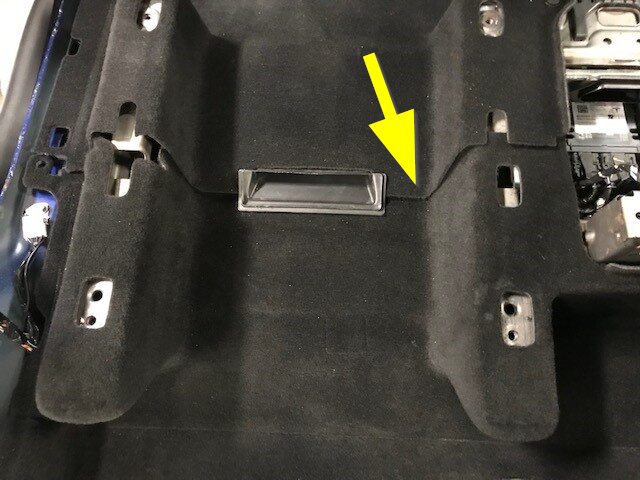

    注

    Pull up at the rear of rear main carpet and slide back, Remove from LH rear door









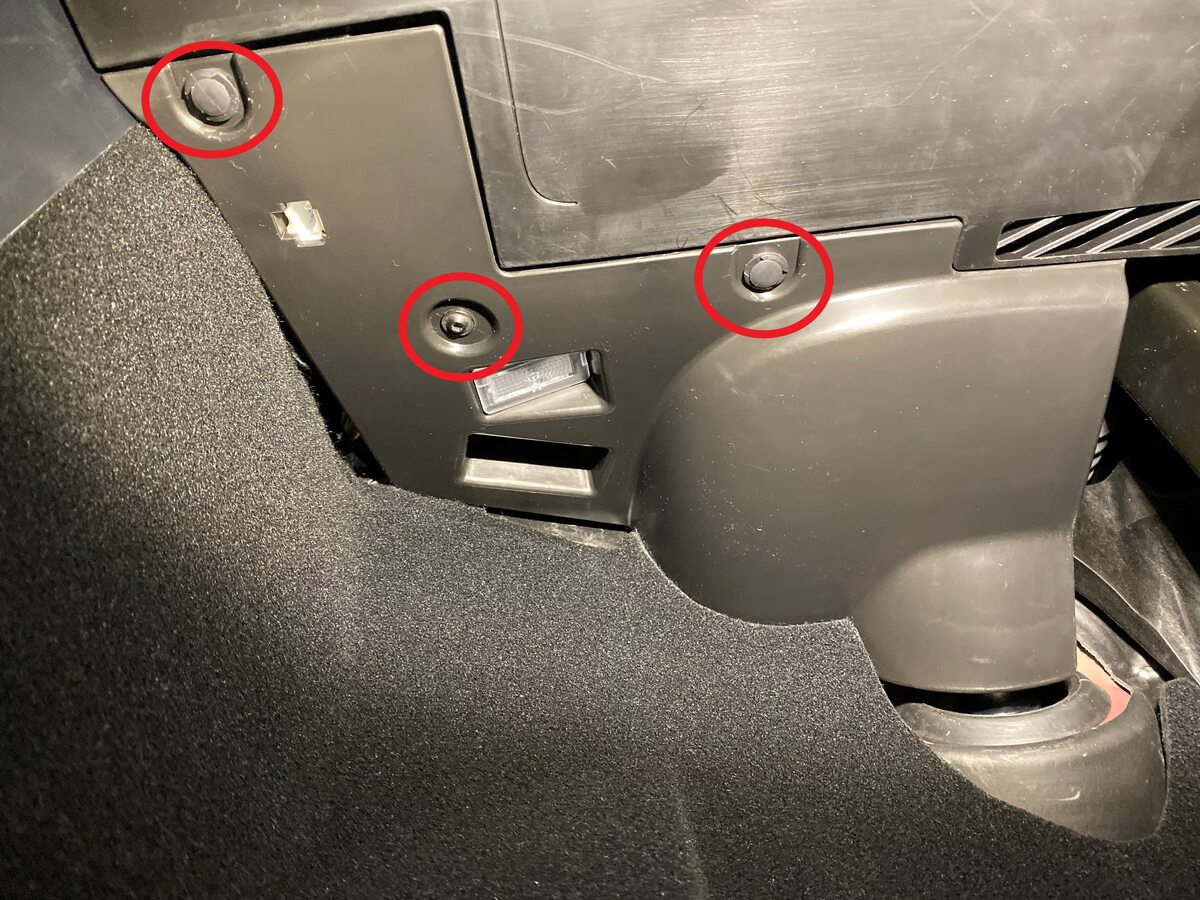

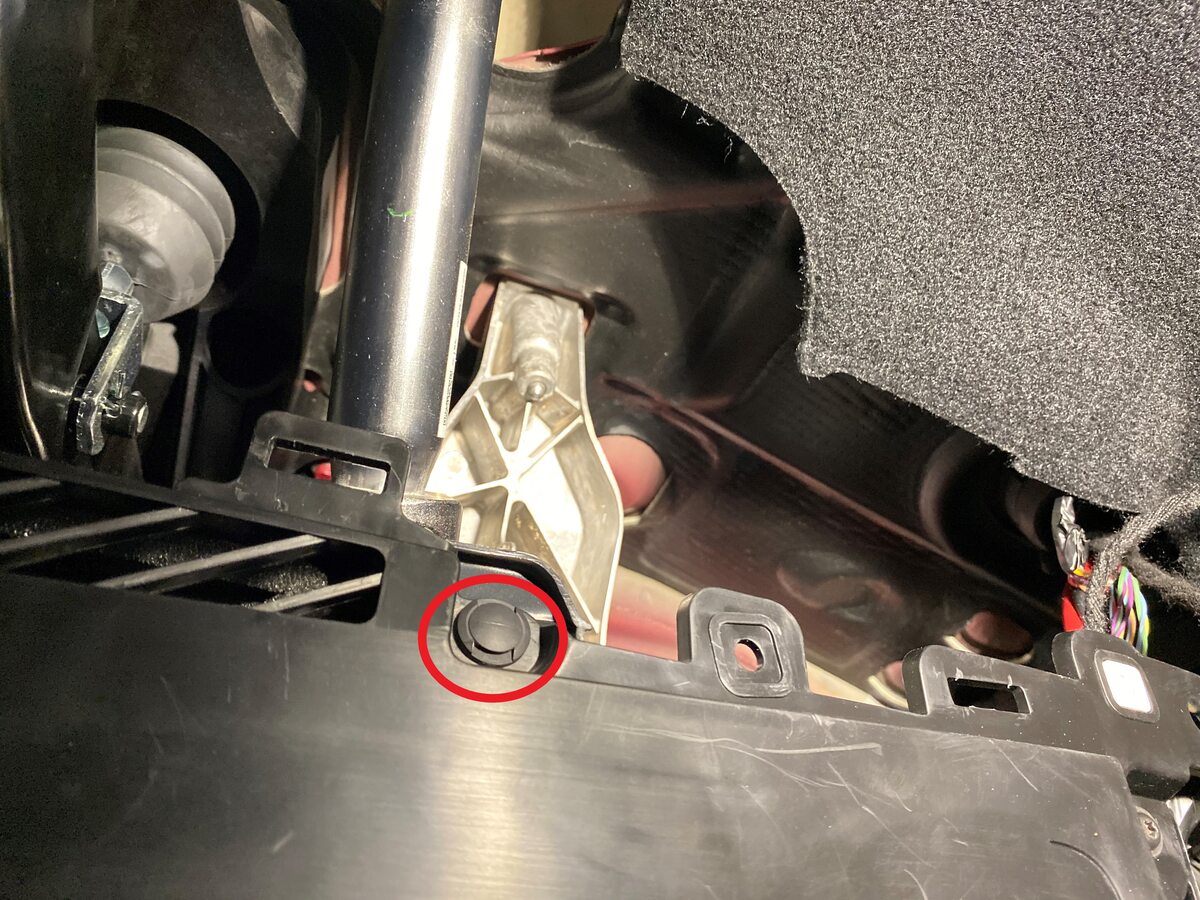

80. Remove screw and clips securing LH footwell cover
    注

    2x push clips, 1x screw, T20, 2.5 Nm



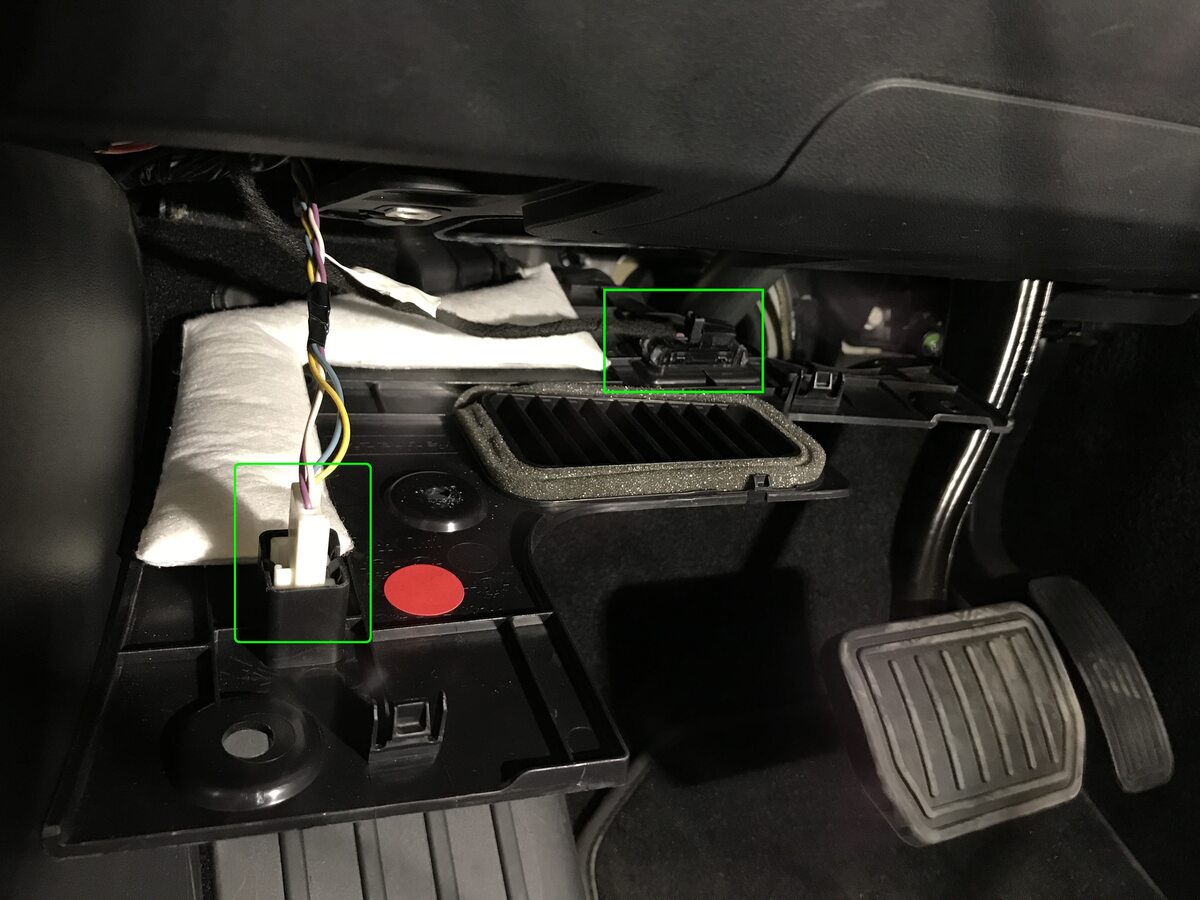

81. Remove connectors from LH footwell cover and remove from vehicle
    注

    3x tabs, 1x Ethernet connector, 1x puddle light connector

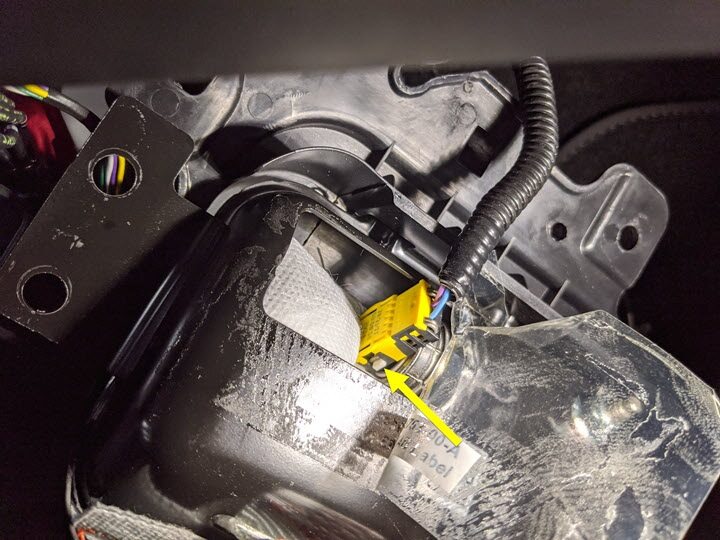

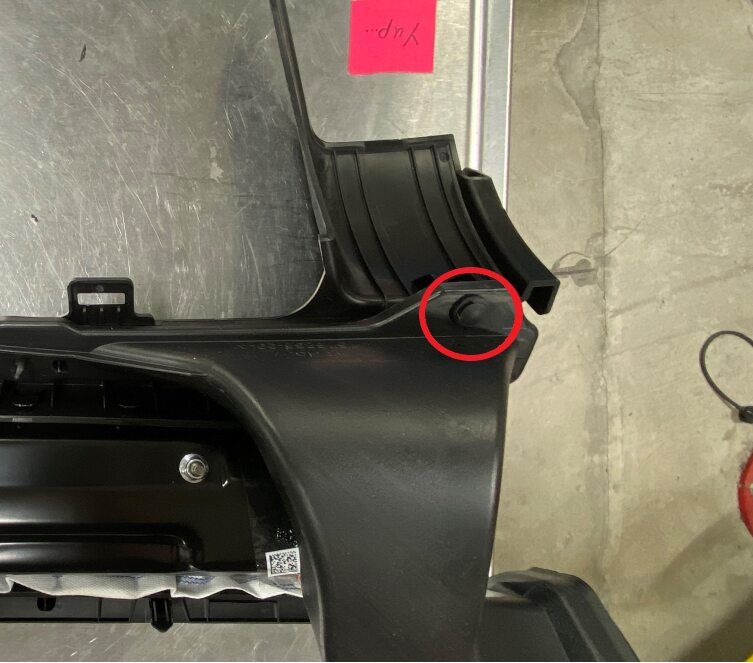

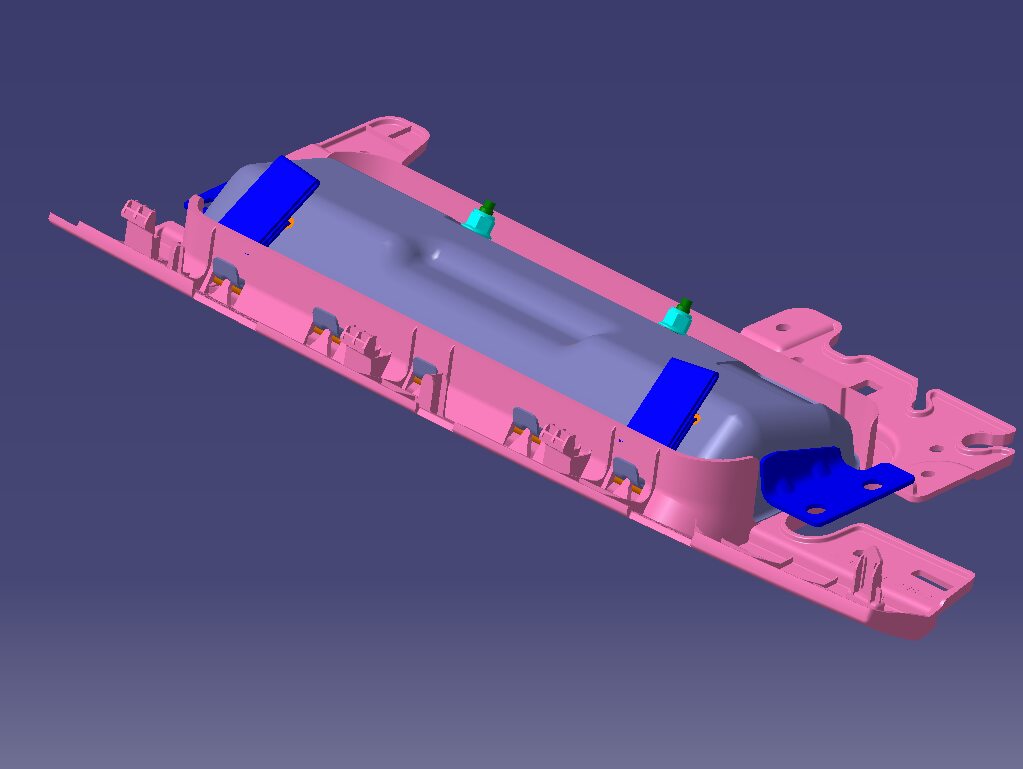

82. Remove fasteners securing driver knee air bag to vehicle
    注

    2x push clips, 2x screws, T20, 2 Nm, 4x patch bolts, E10, 8 Nm, Discard after removal, Support the knee air bag while lowering, The connector / harness length is very short









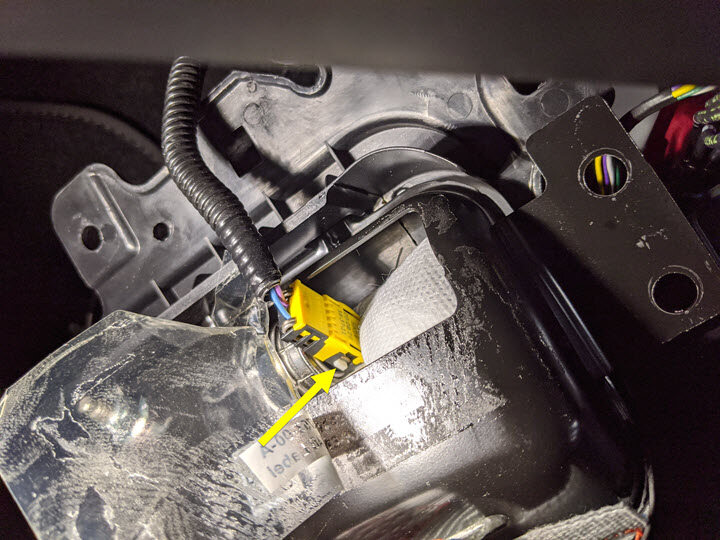

83. Disconnect the driver knee air bag and remove from vehicle
    注

    1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary

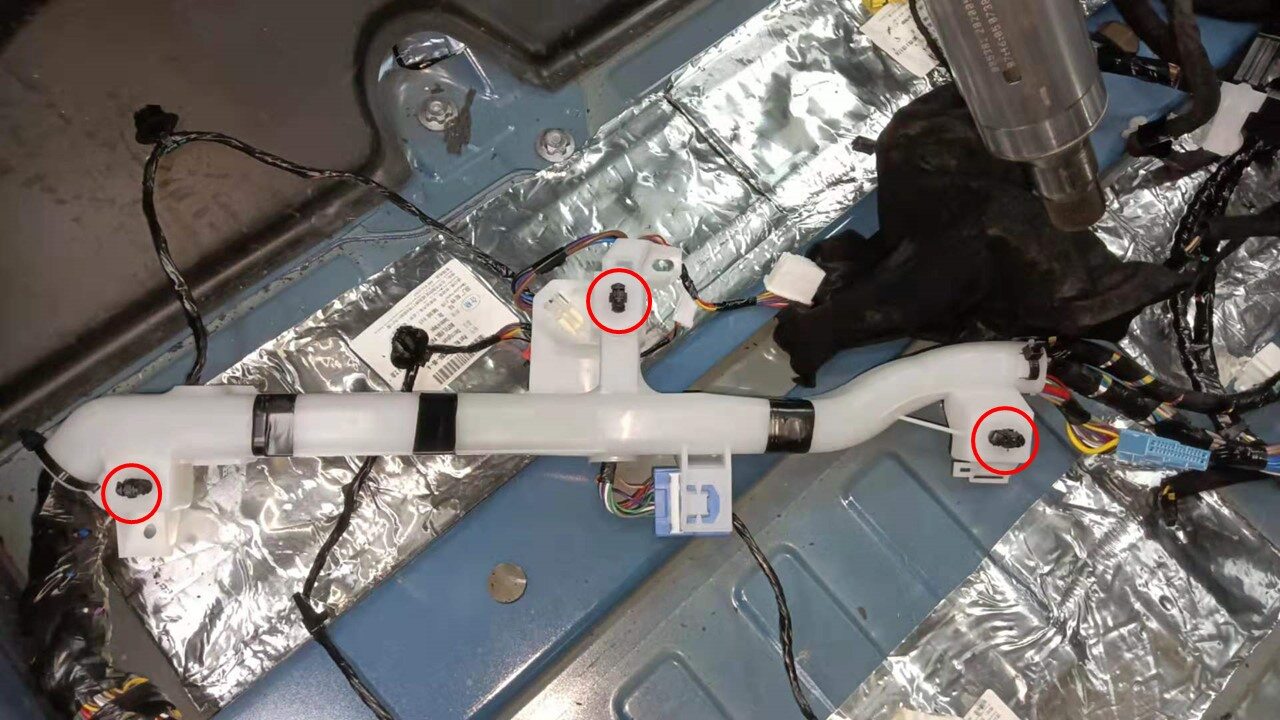

84. Remove the LH footwell air duct





85. Remove LH front floormat



86. Remove clips securing LH front cabin carpet to vehicle
    注

    2x clips



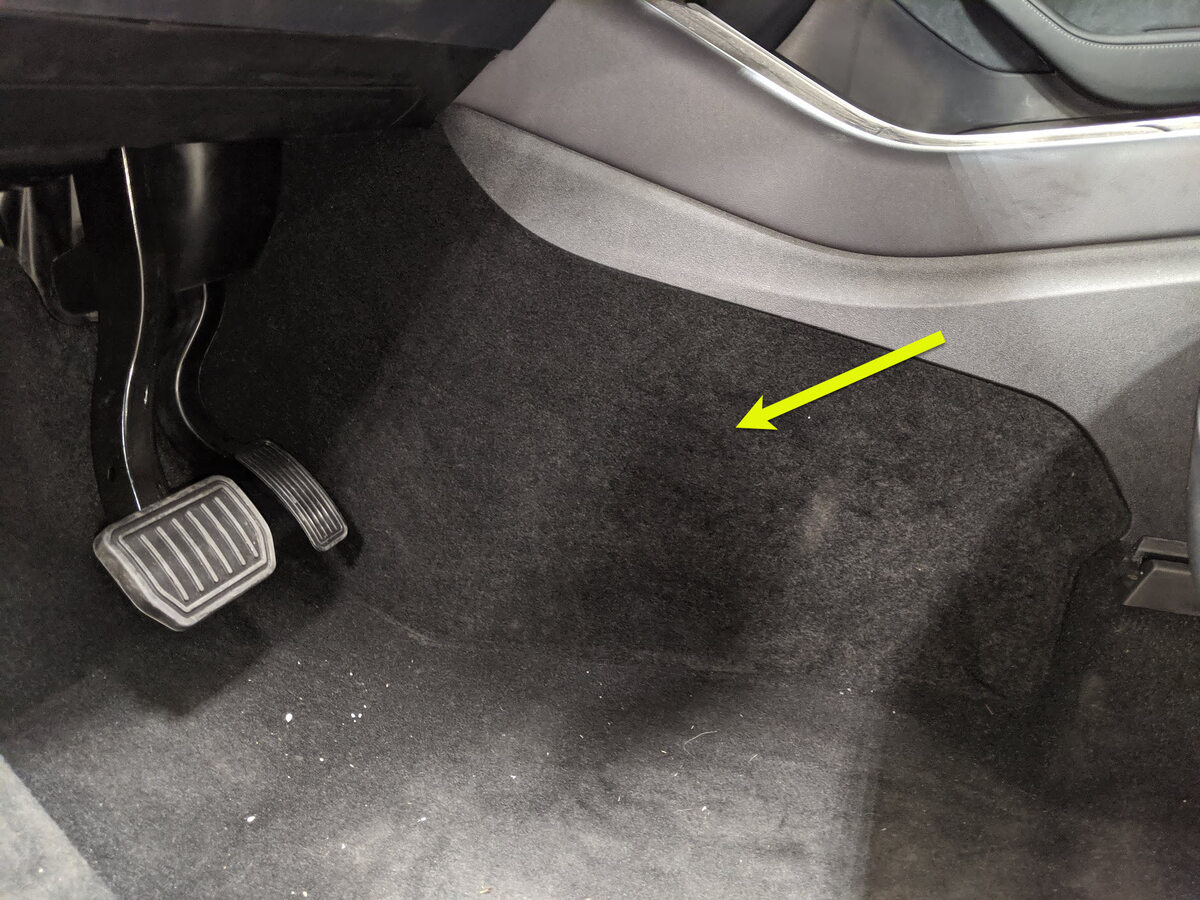

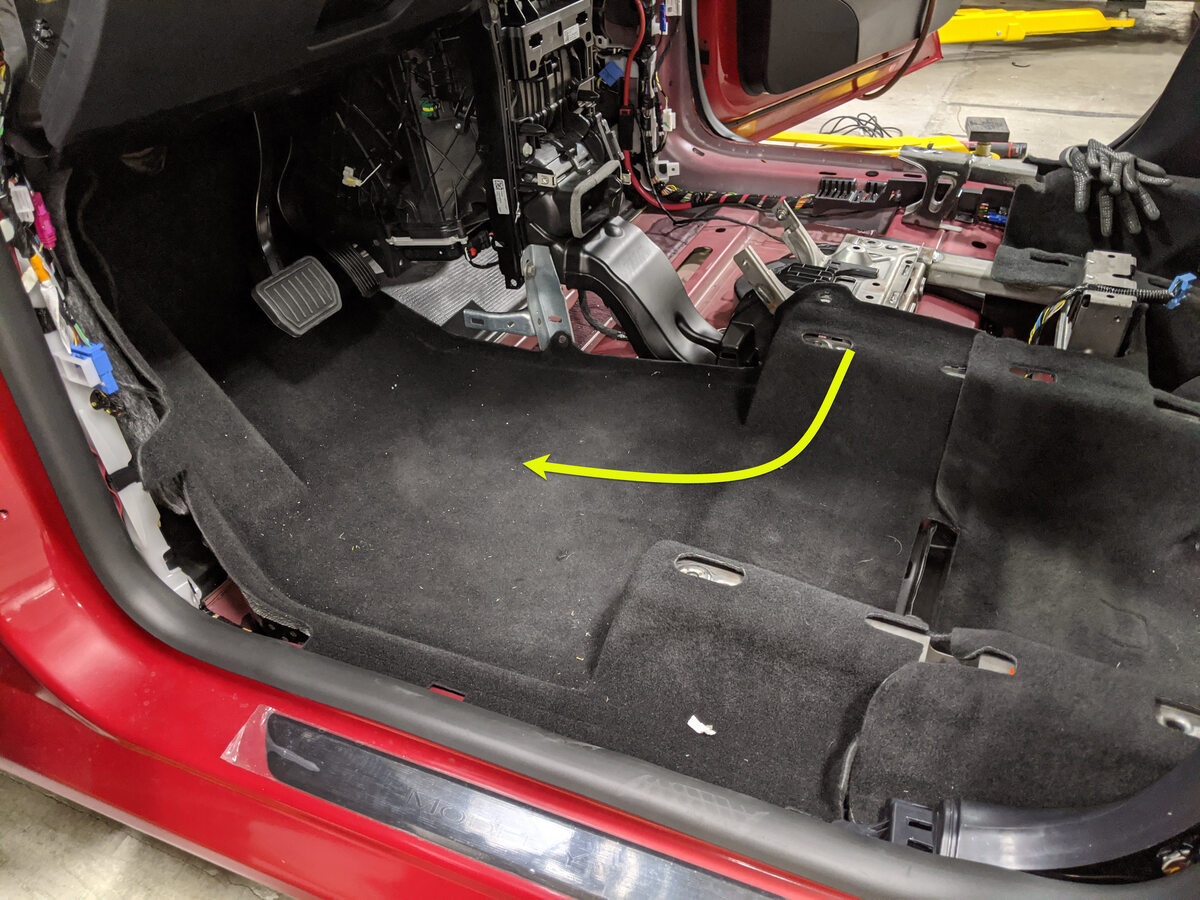

87. Remove LH front cabin carpet from vehicle
    注

    Lift up rear edge of carpet then slide out towards rear of vehicle, be cautious and avoid foam below catching on seat risers

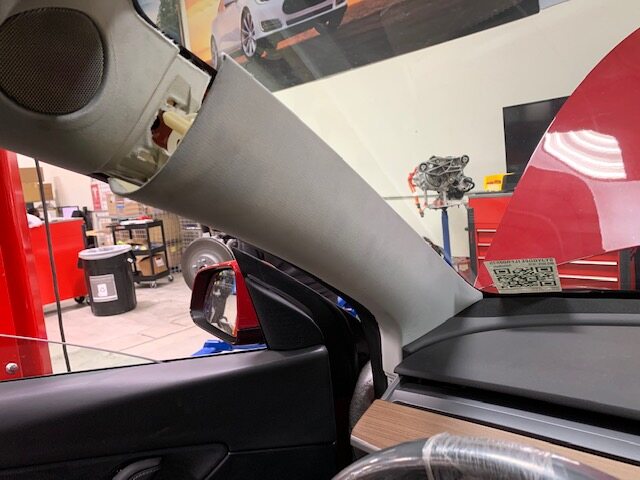

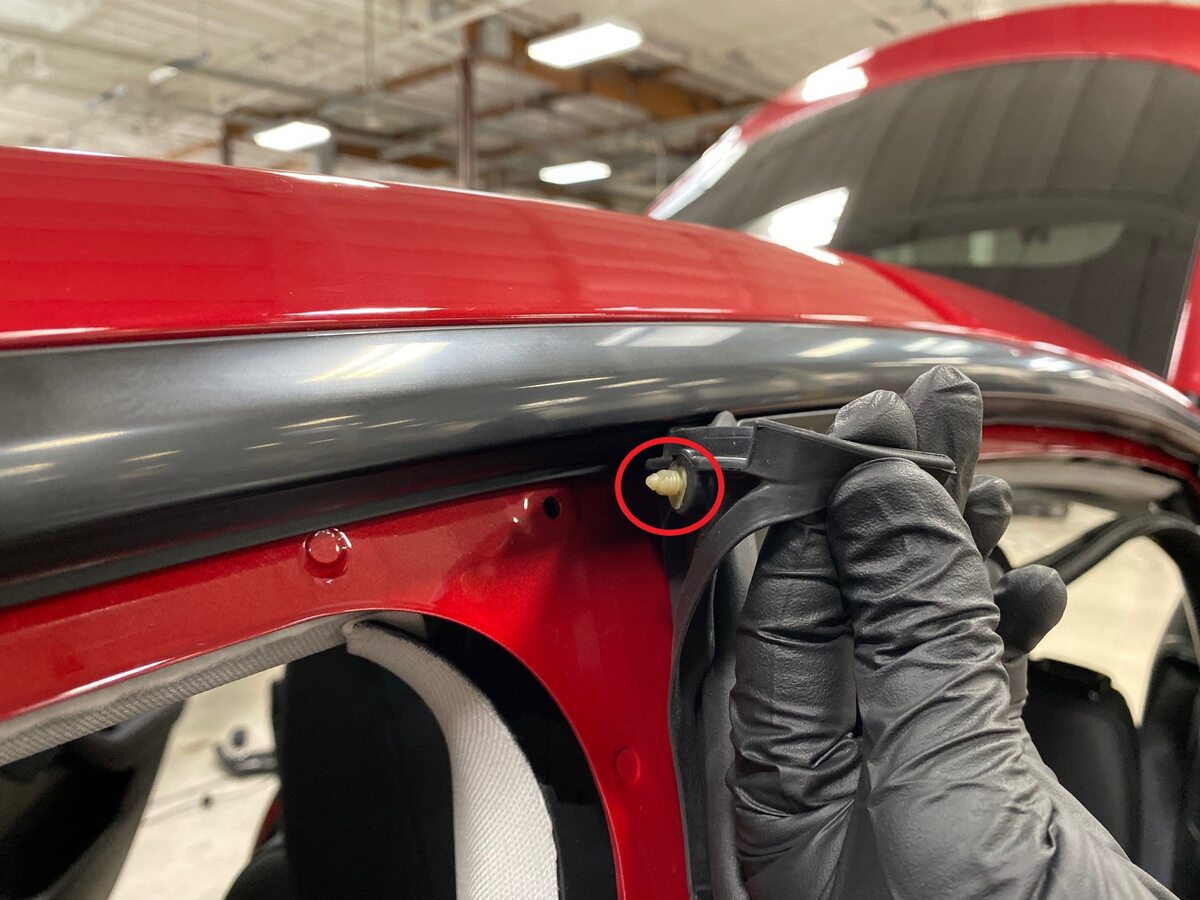

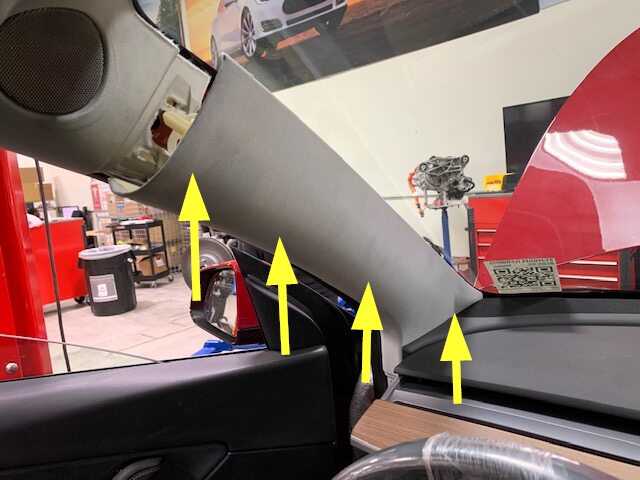

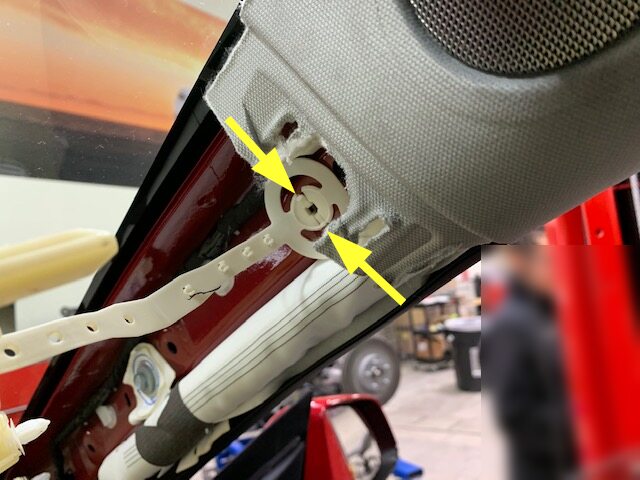

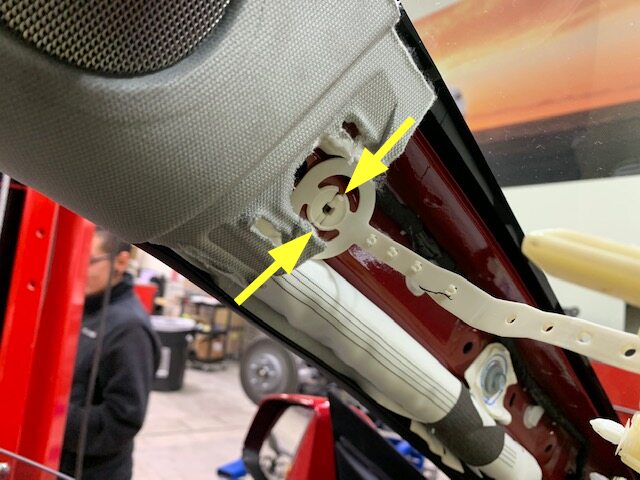

88. Remove LH upper A-pillar trim
    注

    3x clips, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove









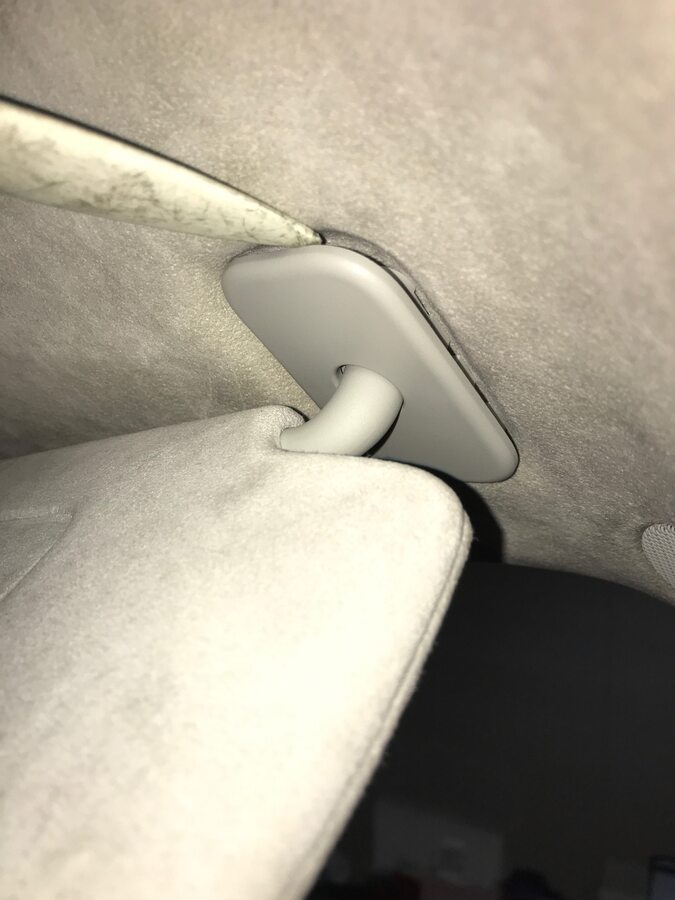

89. Remove LH sun visor bracket cover
    注

    4x clips, Extending the sun visor may allow for extra working room



90. Remove LH sun visor fastener
    注

    1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room



91. Remove LH sun visor from headliner area
    注

    Fold sun visor to the closed and folded down position but do not latch in place



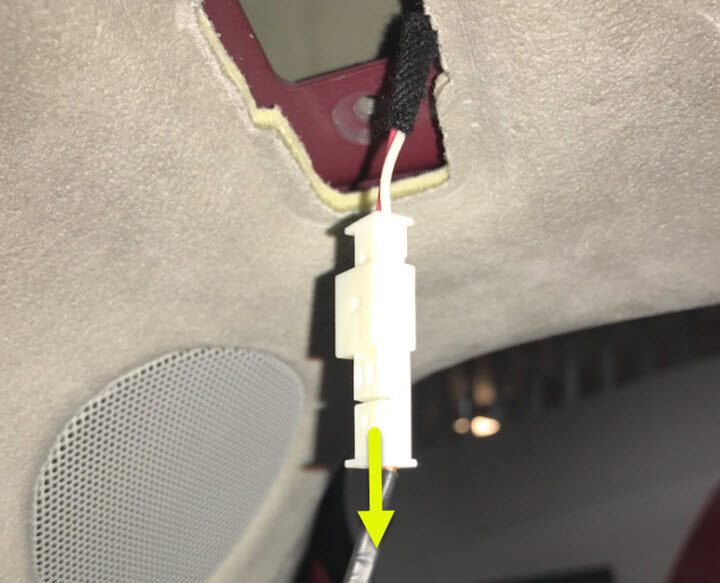

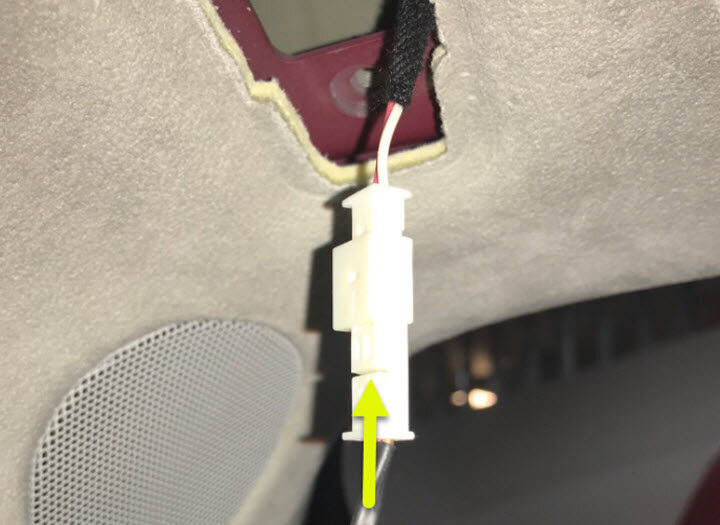

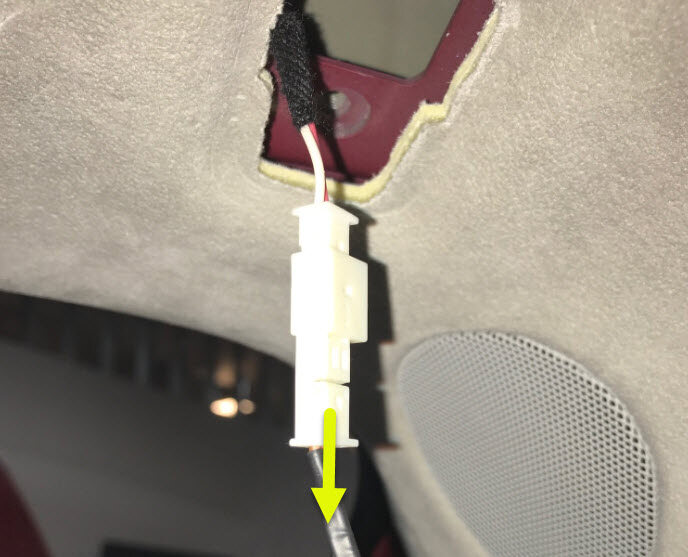

92. Disconnect LH sun visor connector
    注

    1x connector



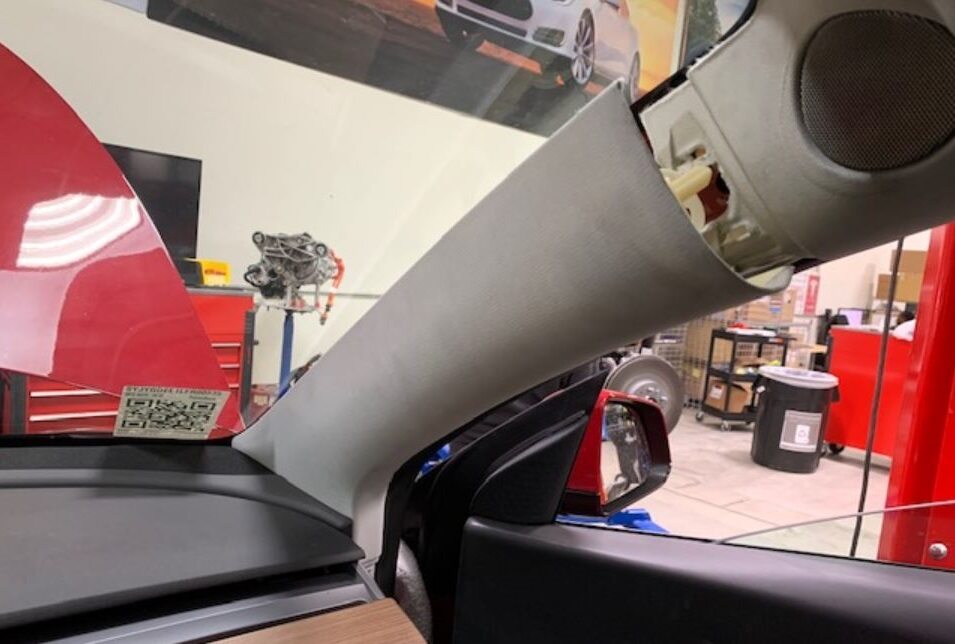

93. Remove RH upper A-pillar trim
    注

    3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove









94. Remove RH sun visor bracket cover
    注

    4x clips, Extending the sun visor may allow for extra working room



95. Remove RH sun visor fastener
    注

    1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room



96. Remove RH sun visor from headliner area
    注

    Fold sun visor to the closed and folded down position but do not latch in place



97. Disconnect RH sun visor connector
    注

    1x connector



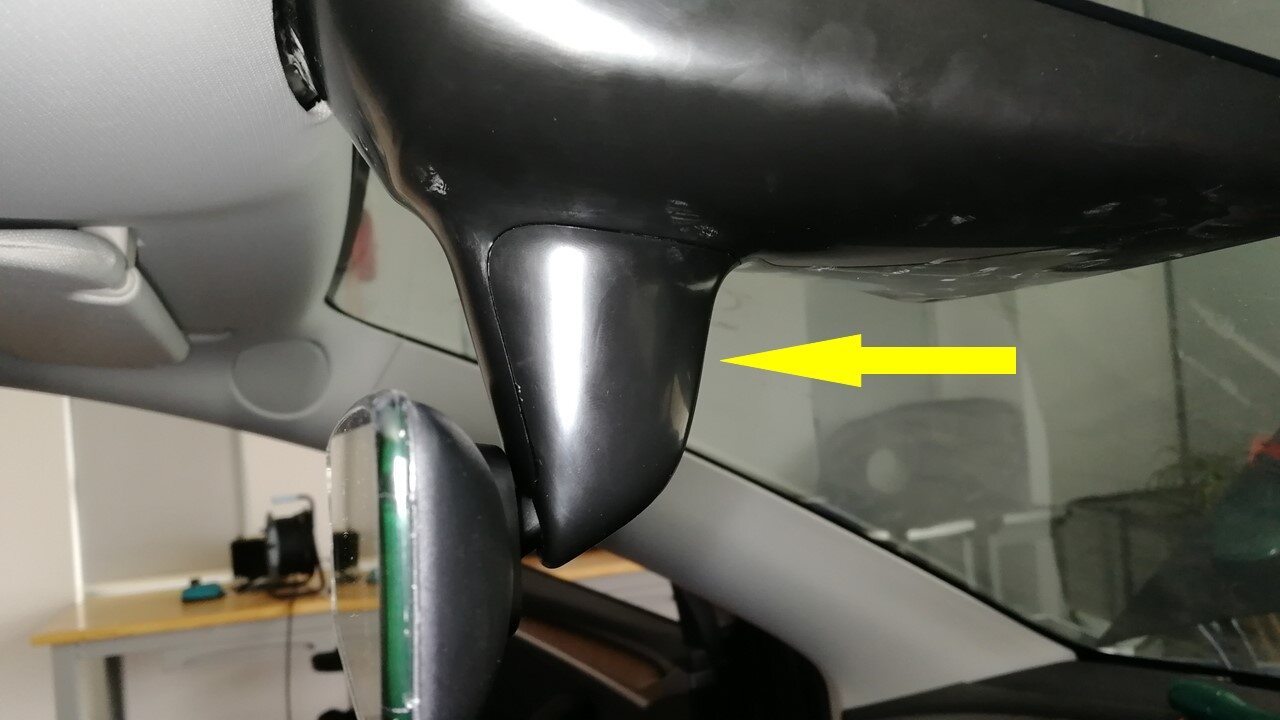

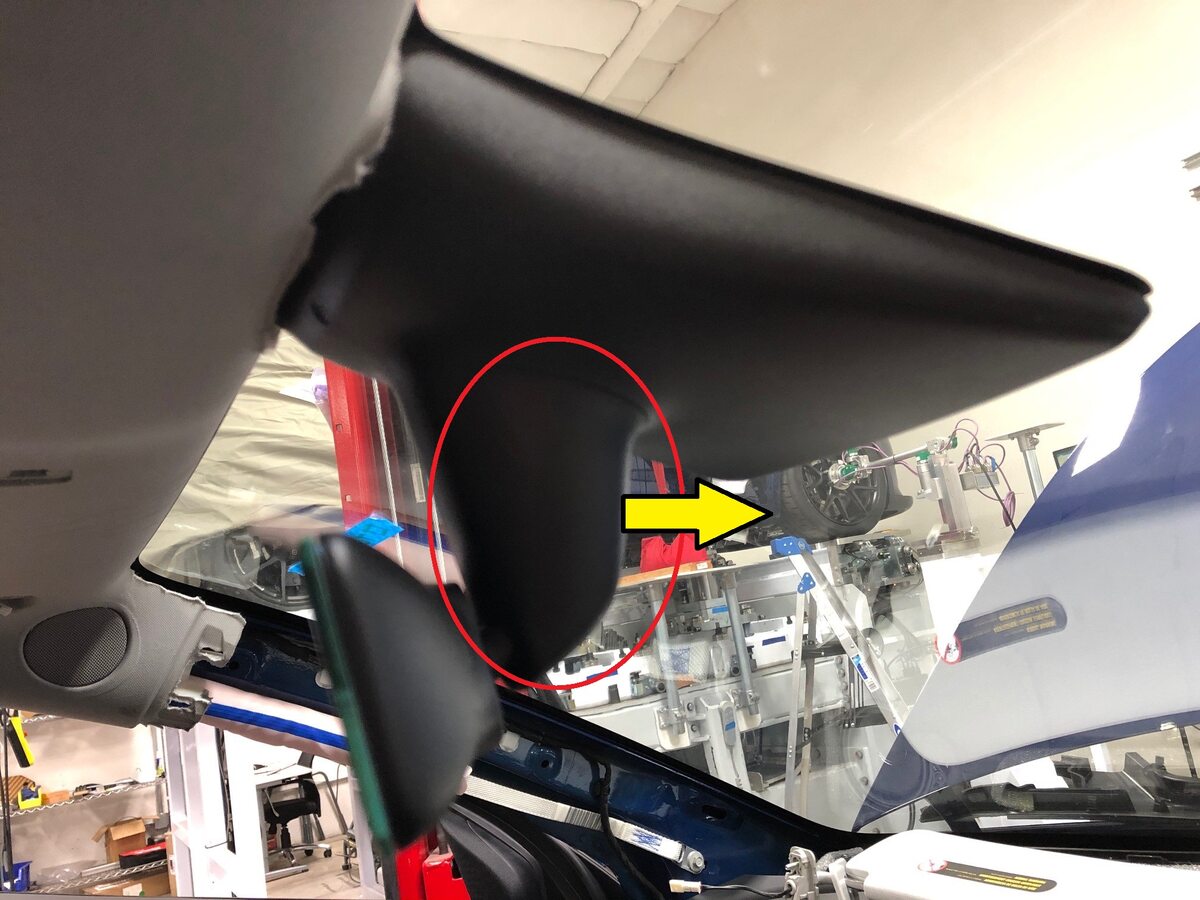

98. Remove lower quad cam cover
    注

    4x tabs, Press on the side of the cover with a trim tool to release some of the tabs

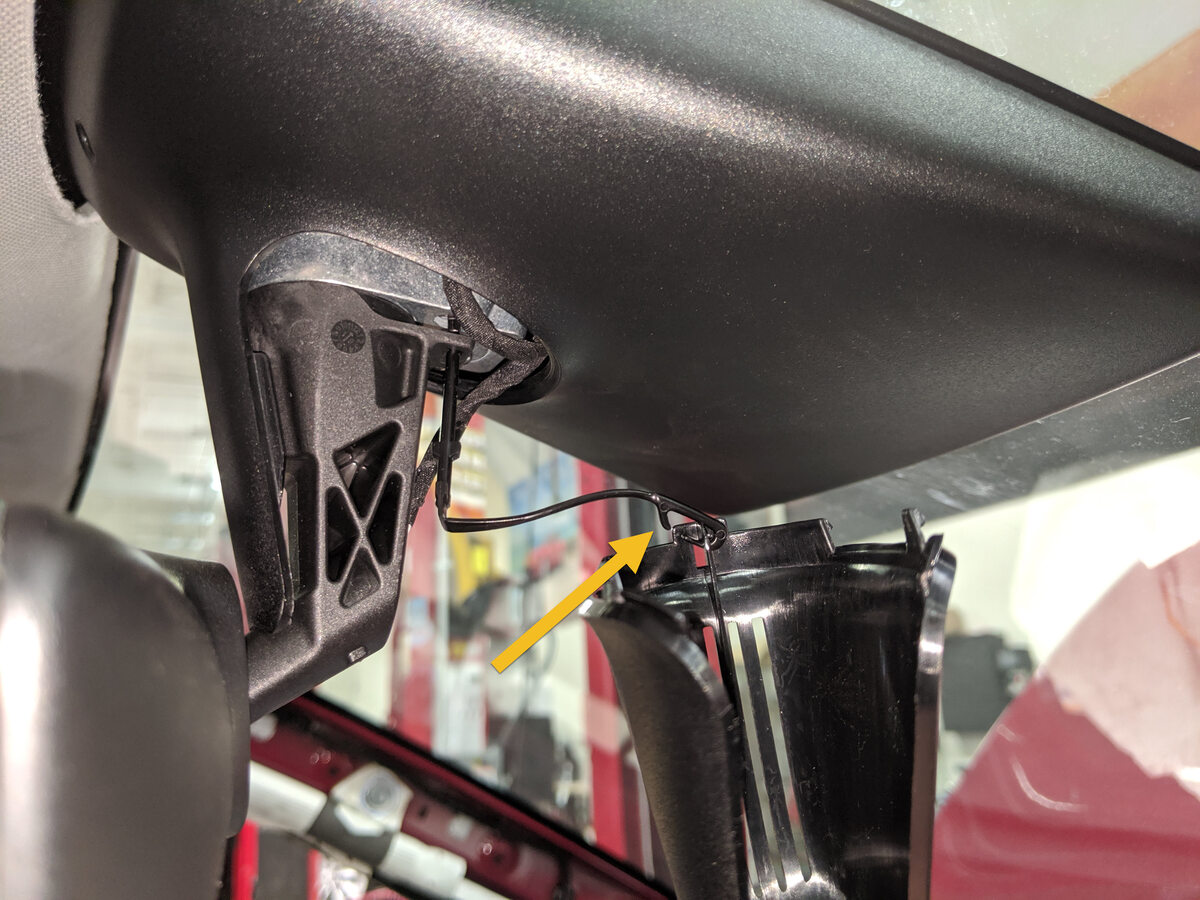

99. Remove tether from lower quad cam cover
    注

    1x hook, Guide hook through anchor on quad cam cover



100. Disconnect rear view mirror connector
     注

     1x connector

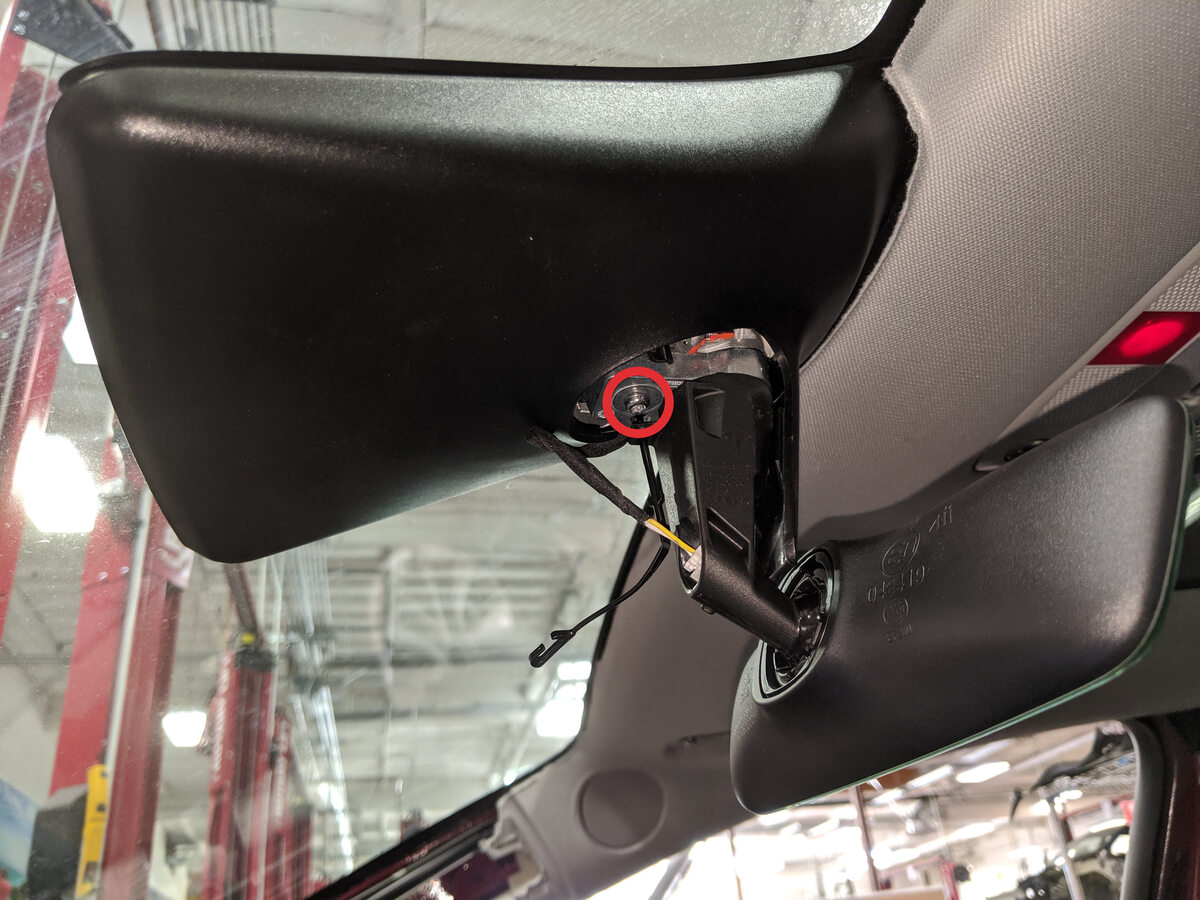

101. Remove rear view mirror
     注

     1x bolt, T20, 2.5 Nm

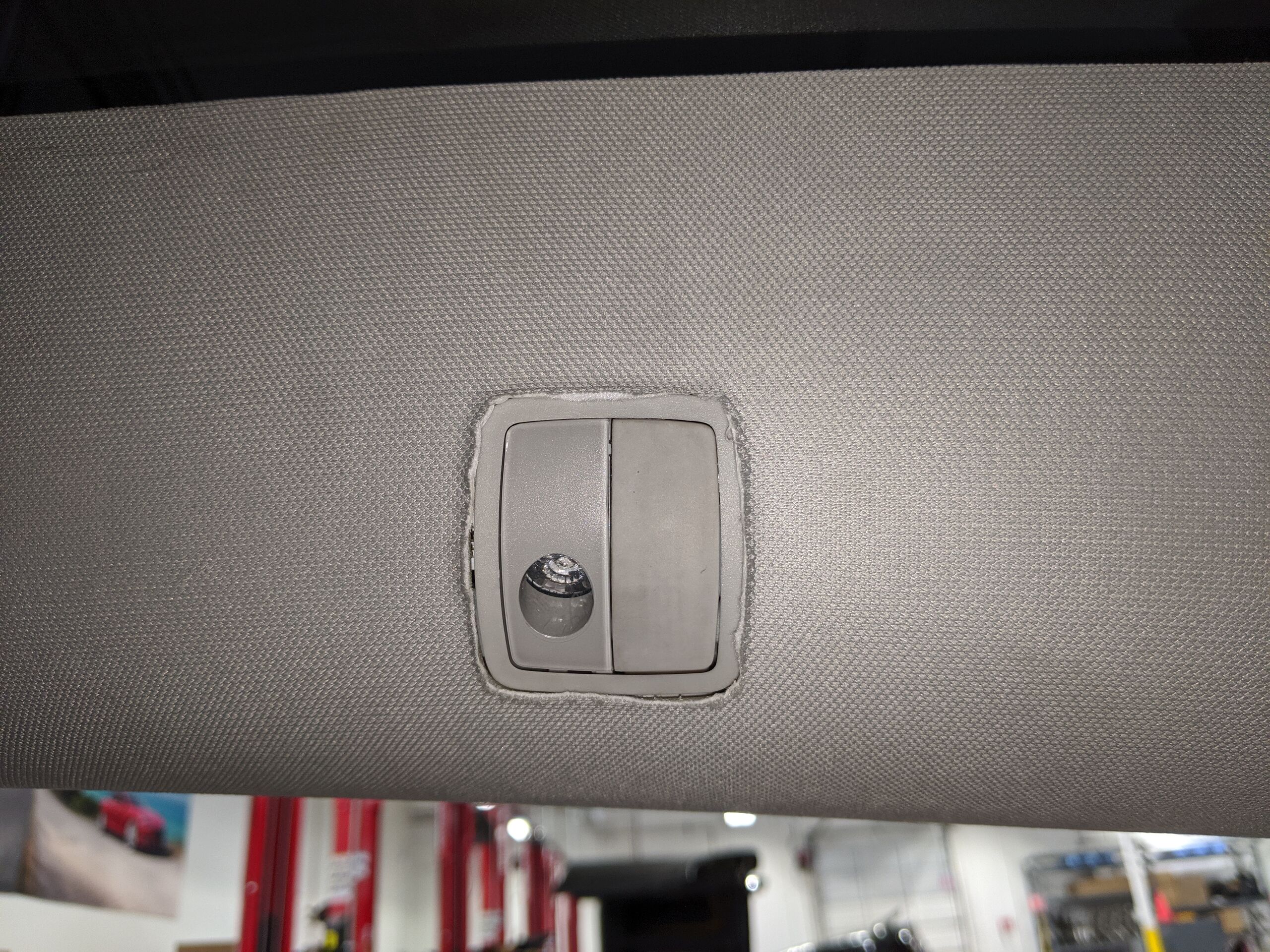

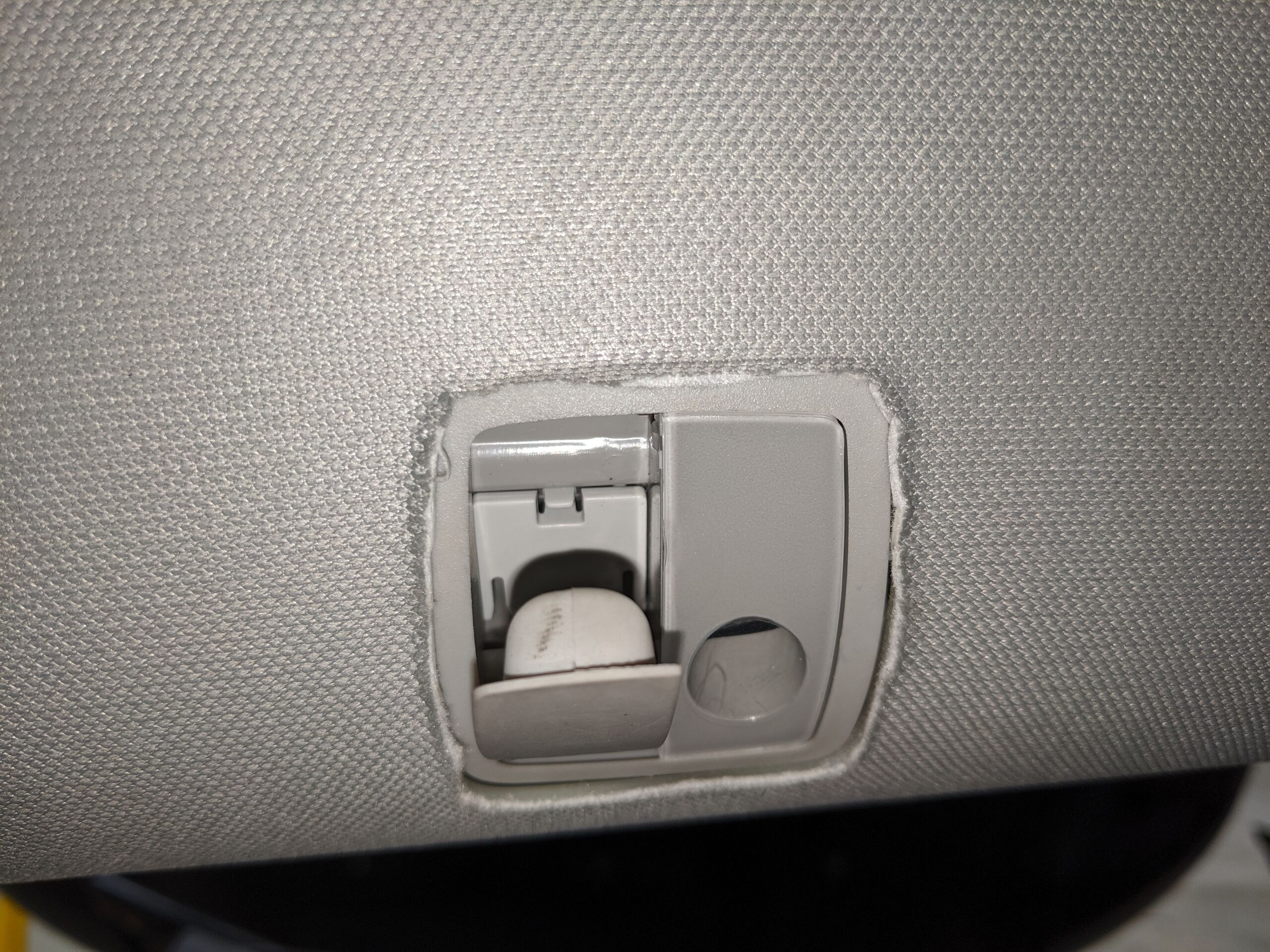

102. Push open LH coat hook





103. Open LH coat hook screw cover
     注

     1x locking tab



104. Remove LH coat hook screw
     注

     1x screw, T20, 1.0 Nm



105. Push open RH coat hook





106. Open RH coat hook screw cover
     注

     1x locking tab





107. Remove RH coat hook screw
     注

     1x screw, T20, 1.0 Nm



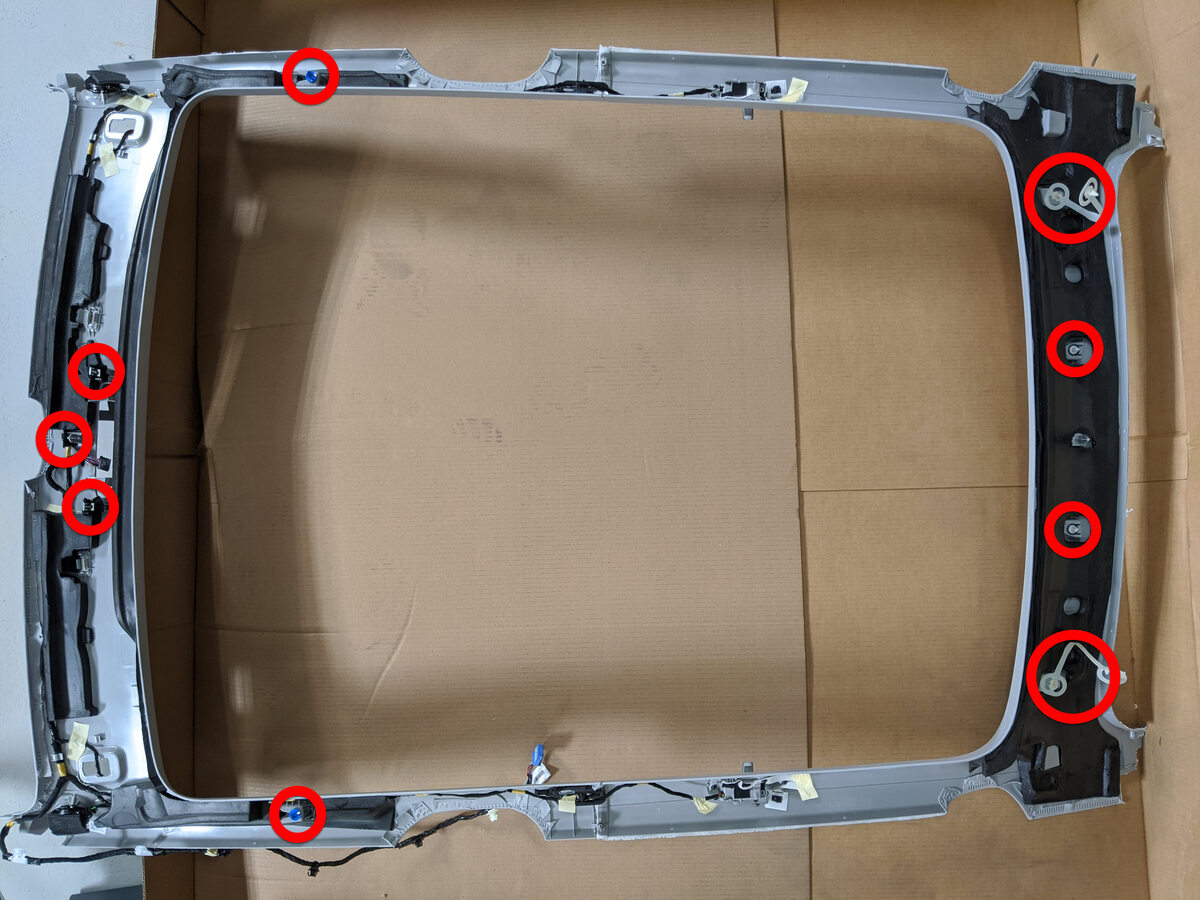

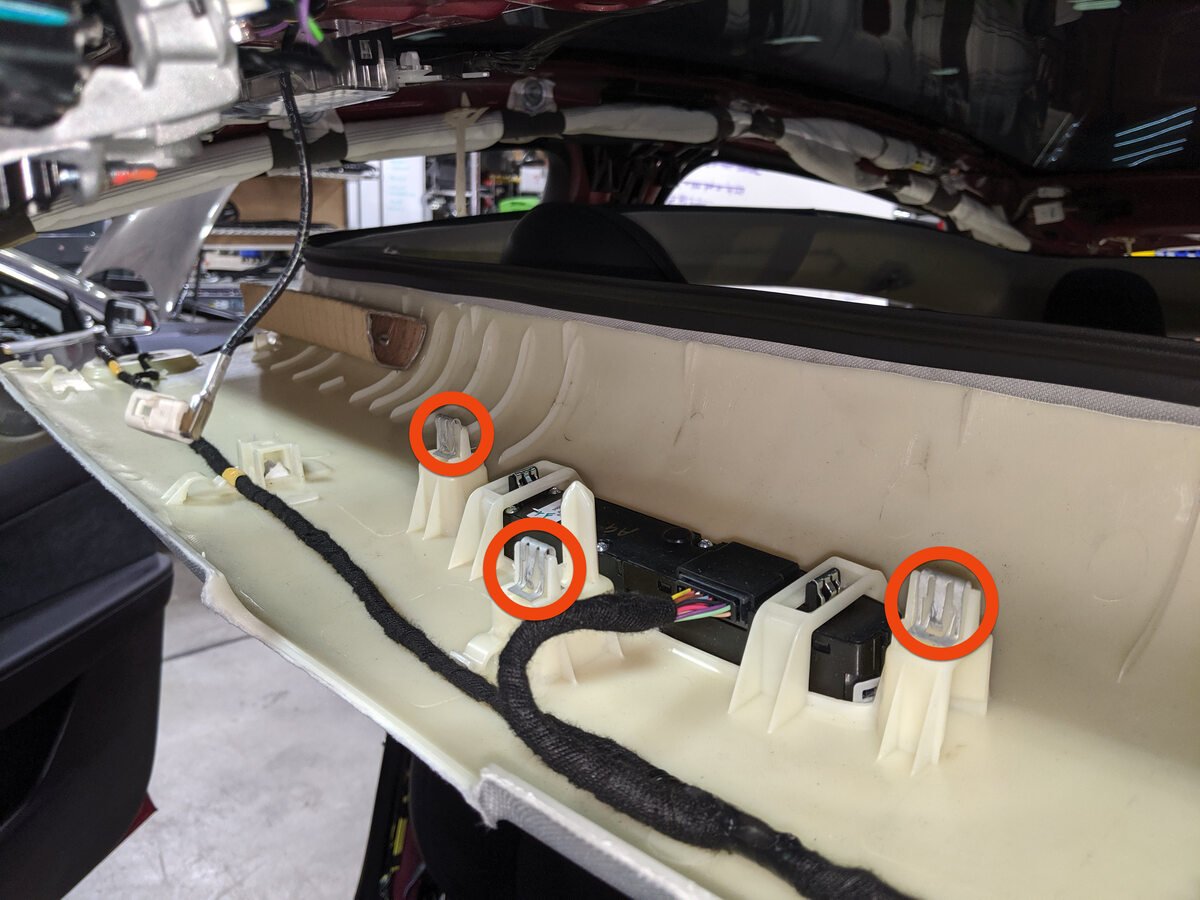

108. Release headliner from body
     注

     11x clips, Recommend assistance, Headliner will be partially supported by safety tethers at B-pillars and 2x tether clips at rear corners





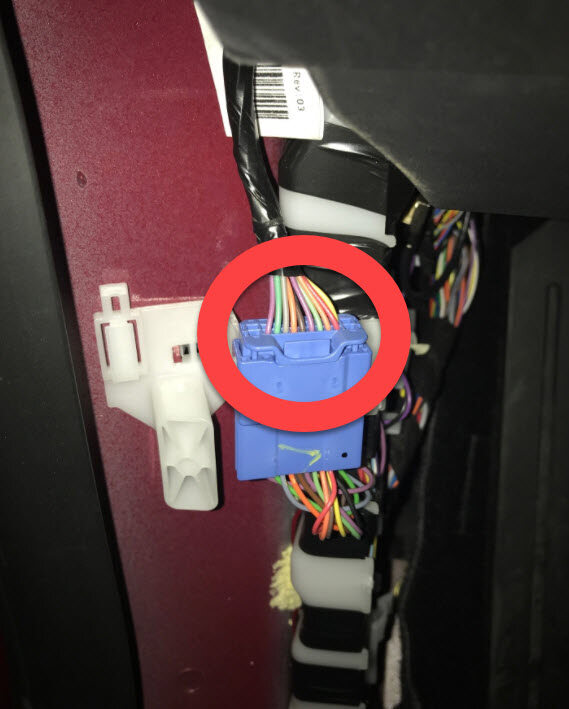

109. Disconnect J5 body connector
     注

     1x connector, Release lock then remove



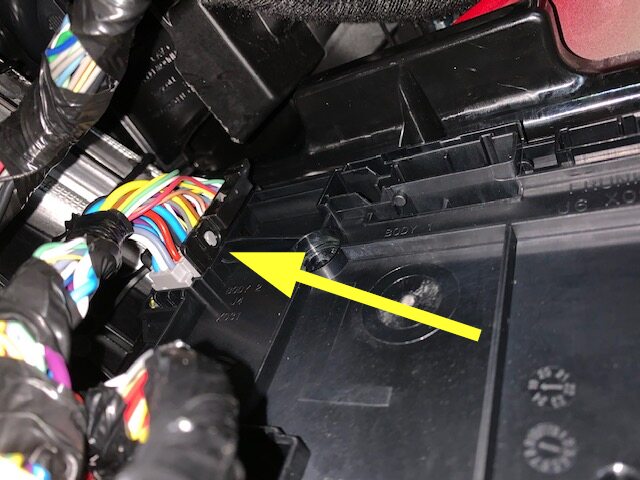

110. Disconnect J2 body connector
     注

     1x connector, Release lock then remove



111. Disconnect J4 body connector
     注

     1x connector, Release lock then remove



112. Disconnect brake switch
     注

     1x connector



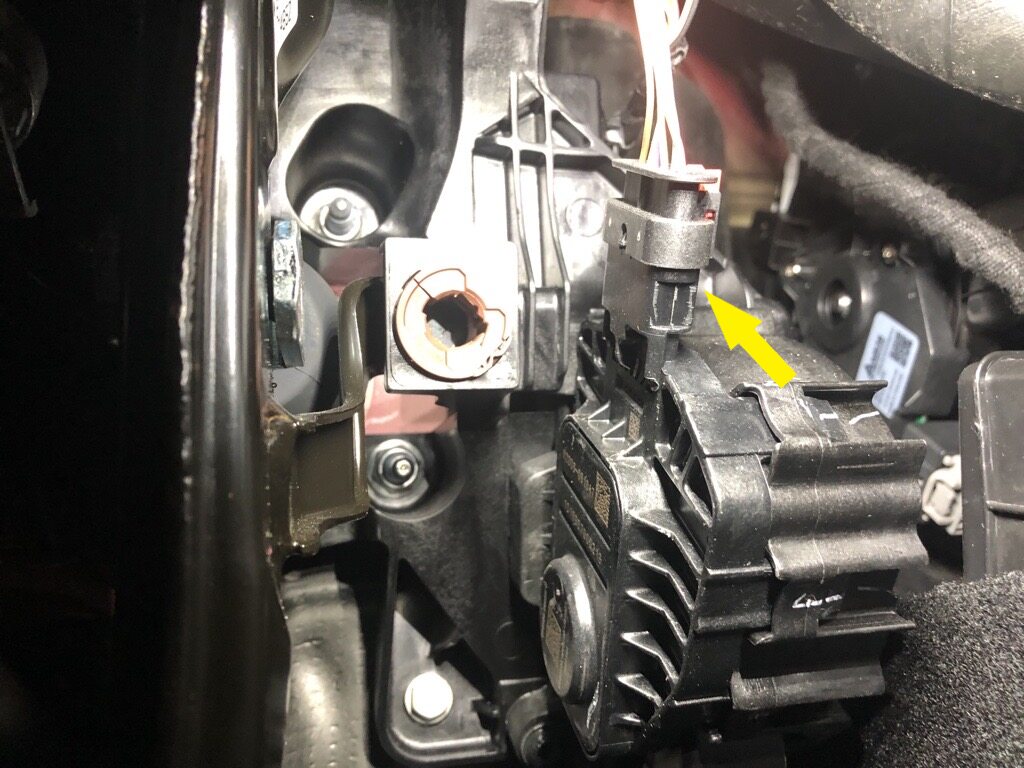

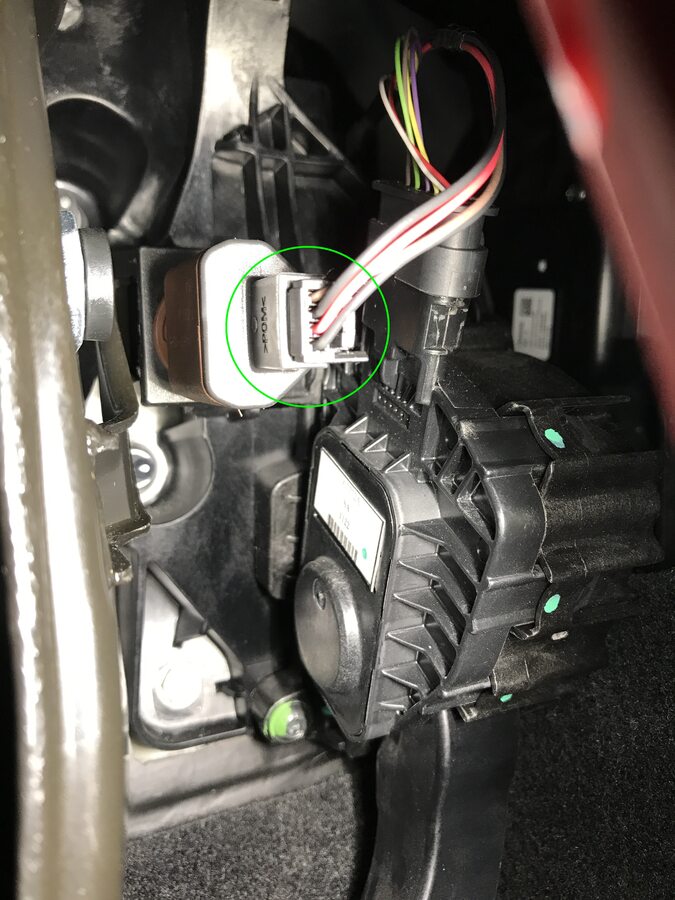

113. Disconnect accelerator pedal connector
     注

     1x connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector

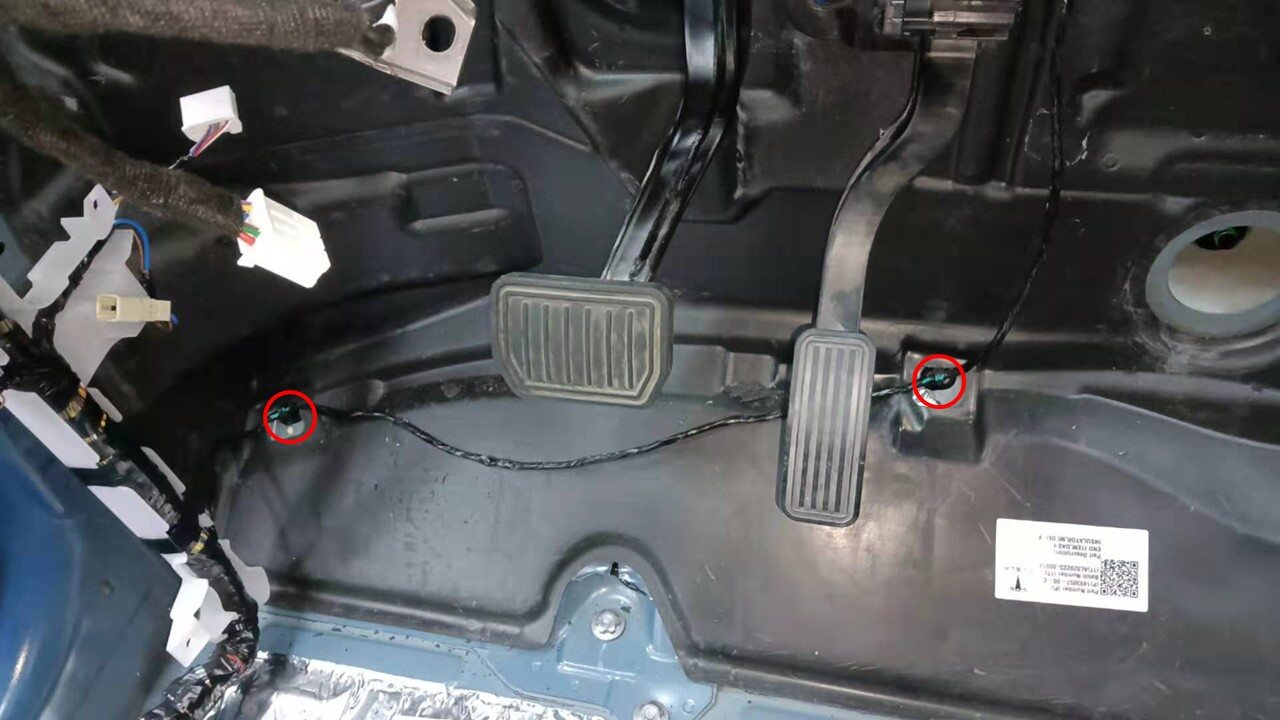

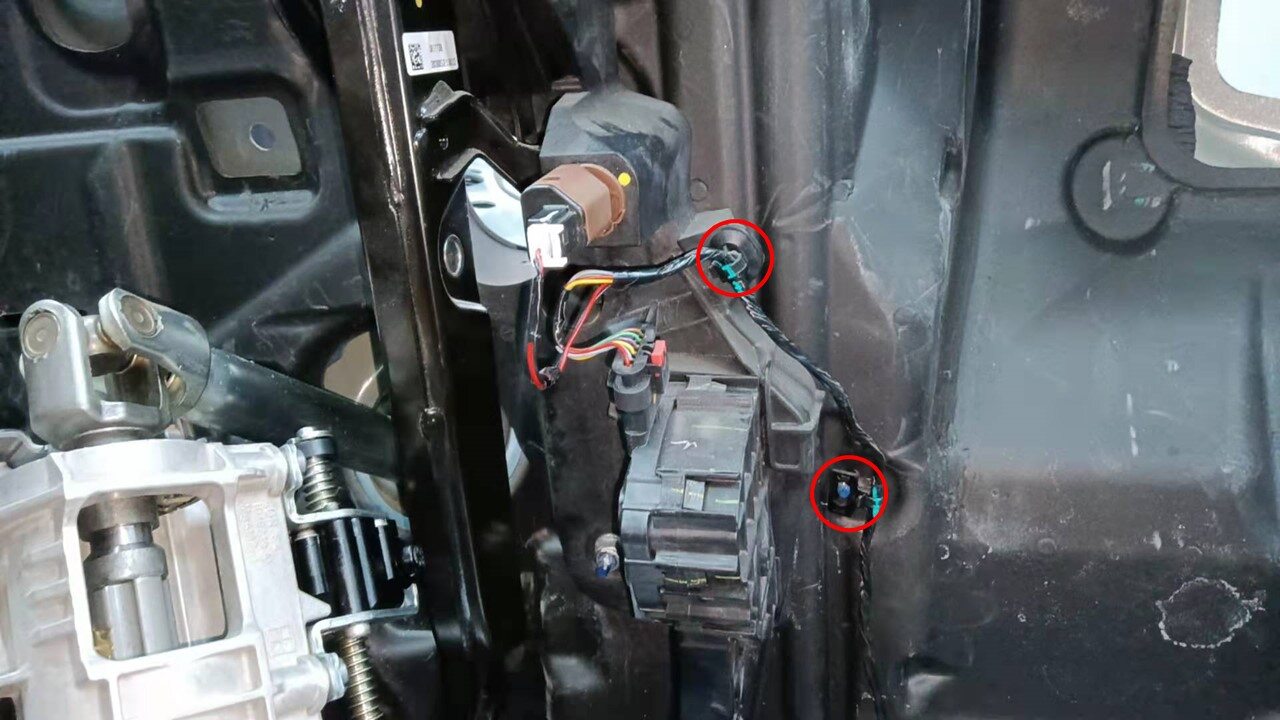

114. Remove accelerator and brake pedal harness clips
     注

     4x clips





115. Disconnect headliner harness
     注

     1x connector



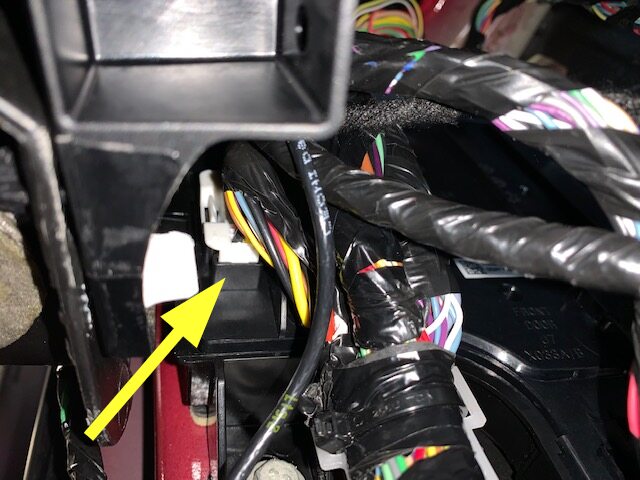

116. Disconnect white connector X909 from front harness
     注

     1x connector

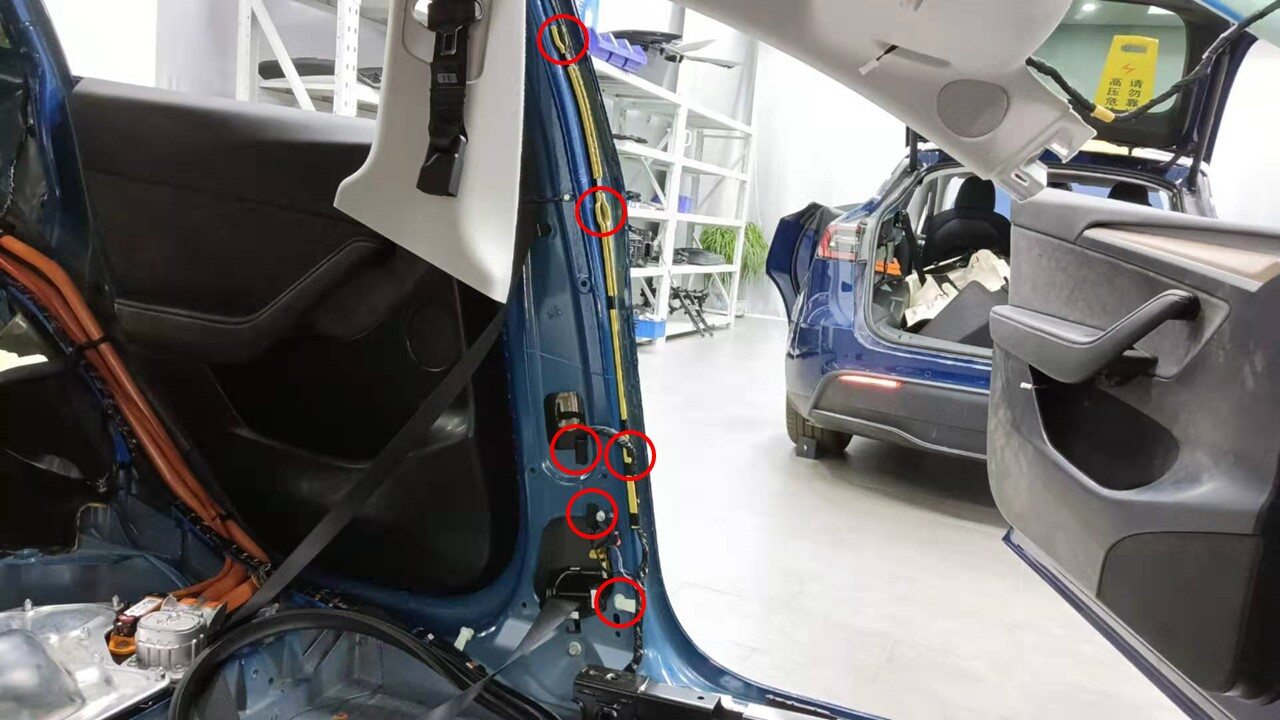

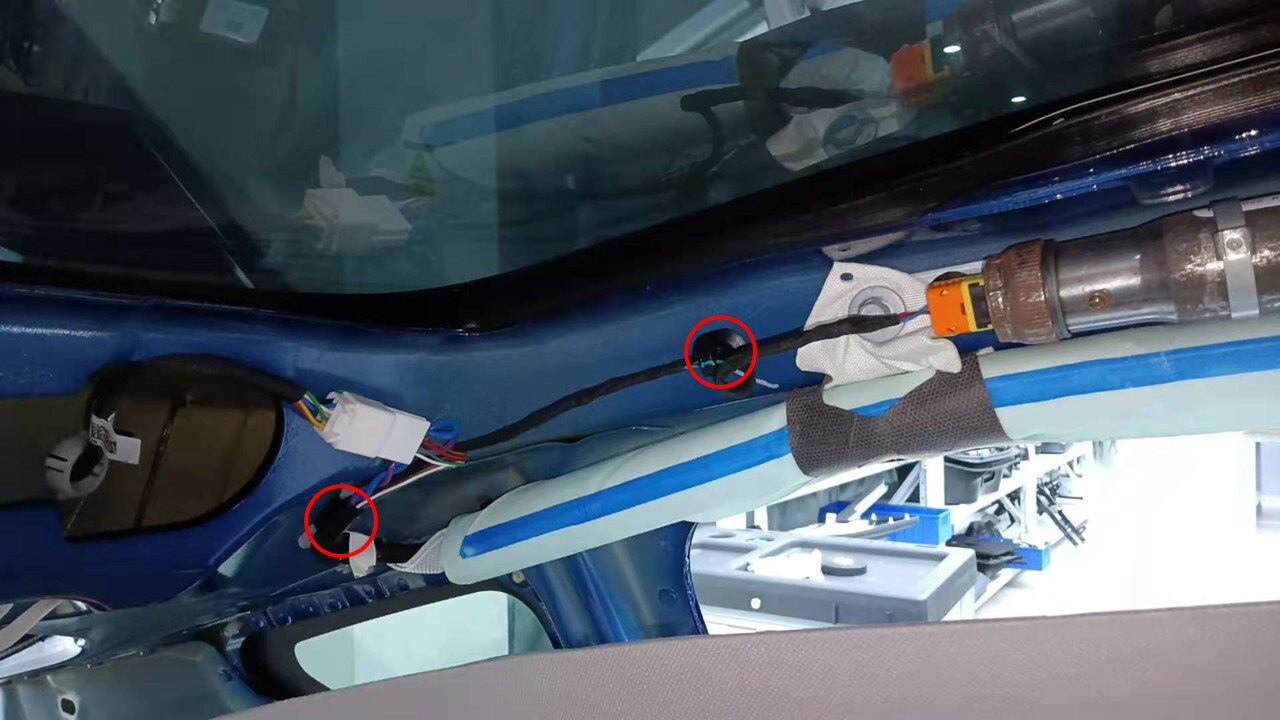

117. Remove LH body harness clips from LH A-pillar
     注

     3x clips



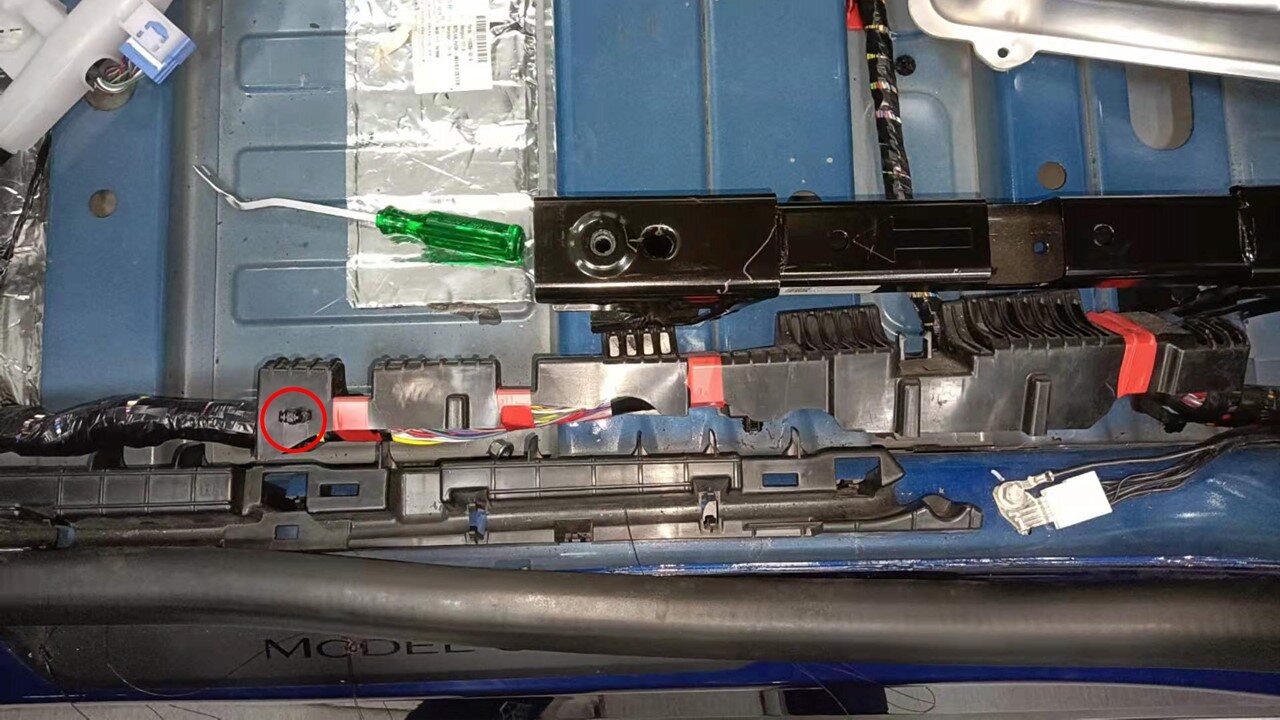

118. Release clips securing for LH body harness from below LH front seat
     注

     3x clips





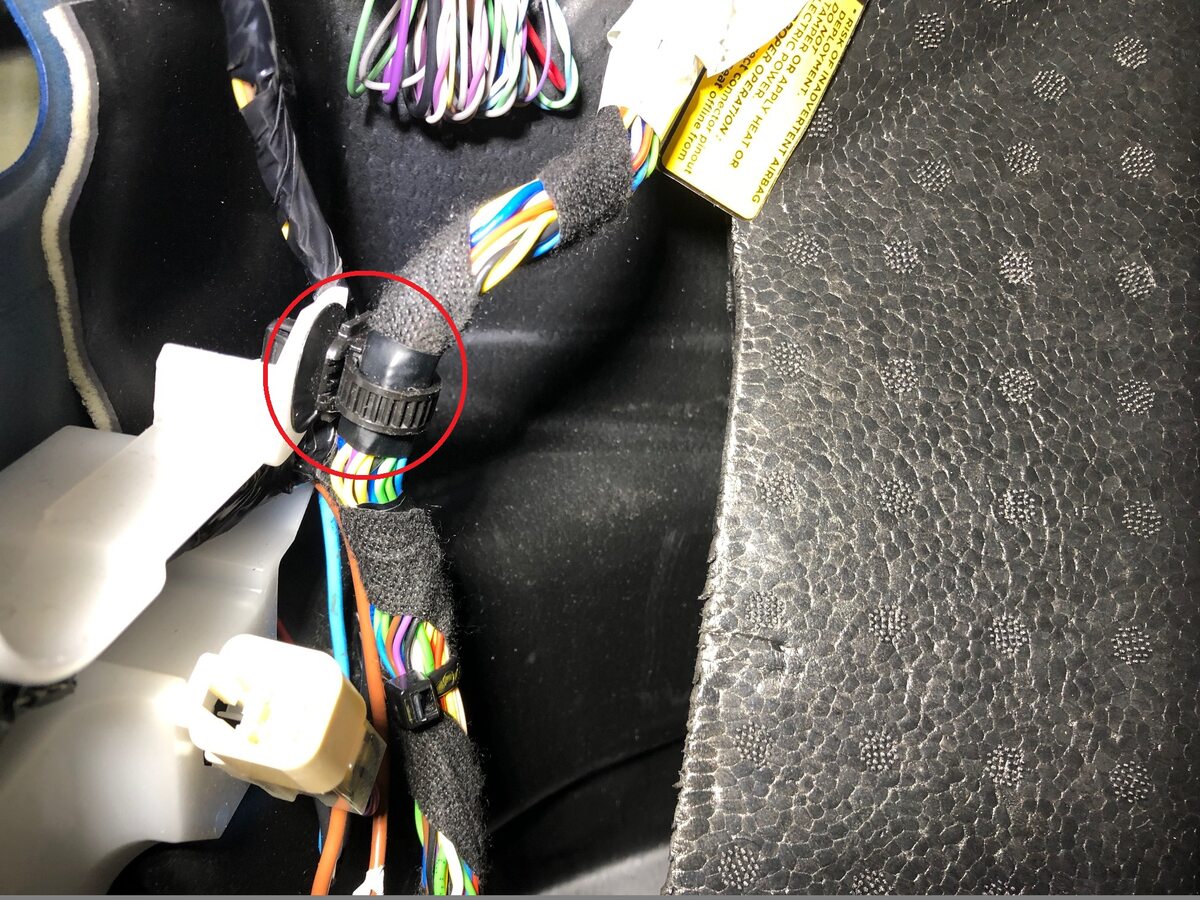

119. Remove LH harness clips under front seats and center console
     注

     3x clips



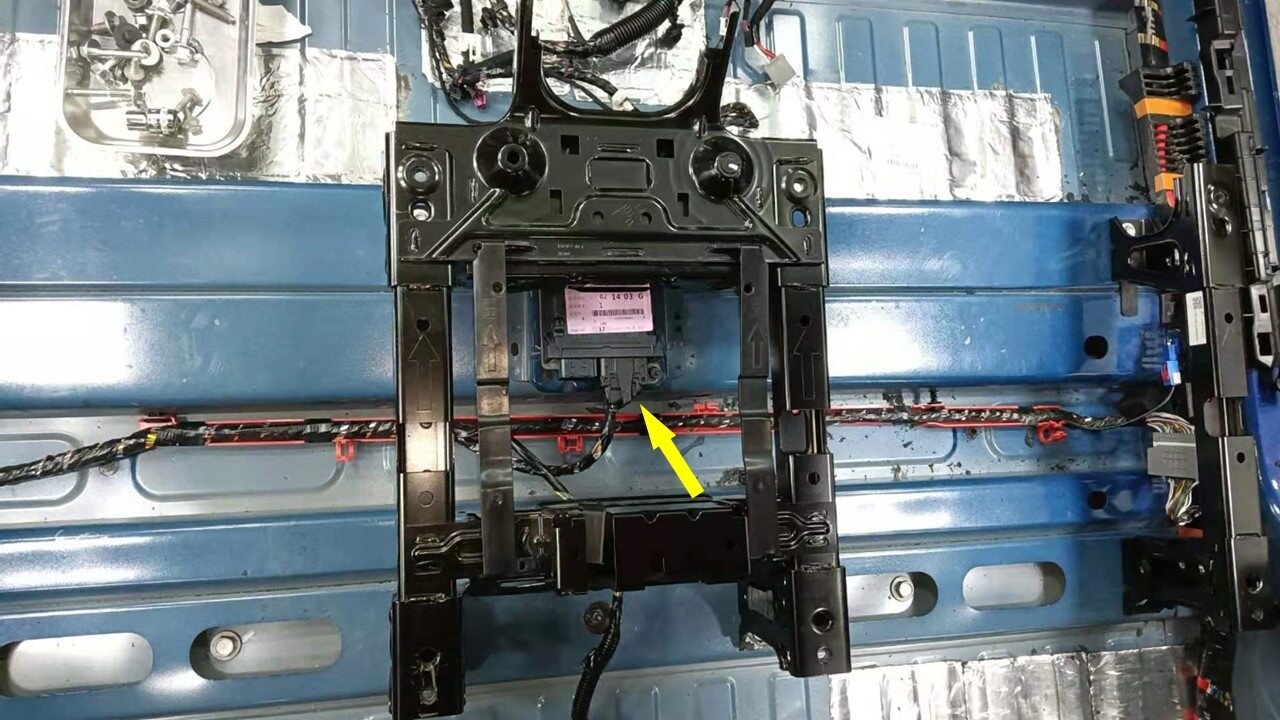

120. Disconnect LH body harness from RCM
     注

     1x connector



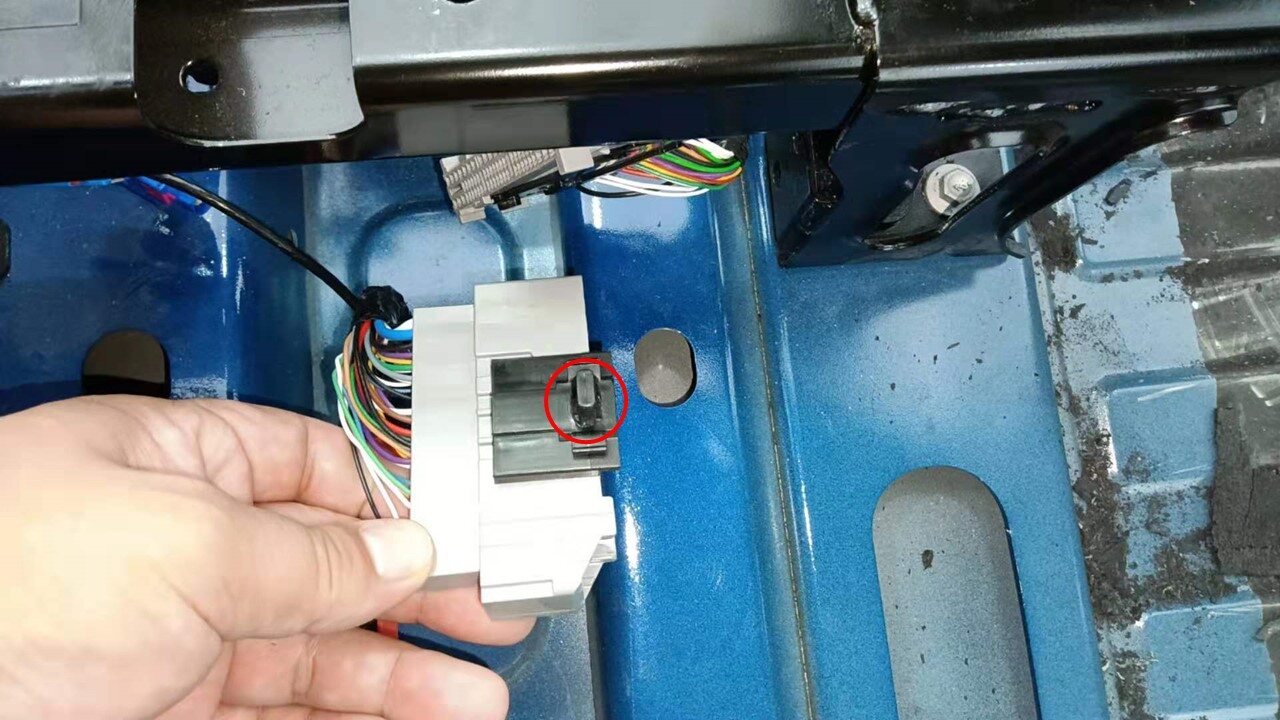

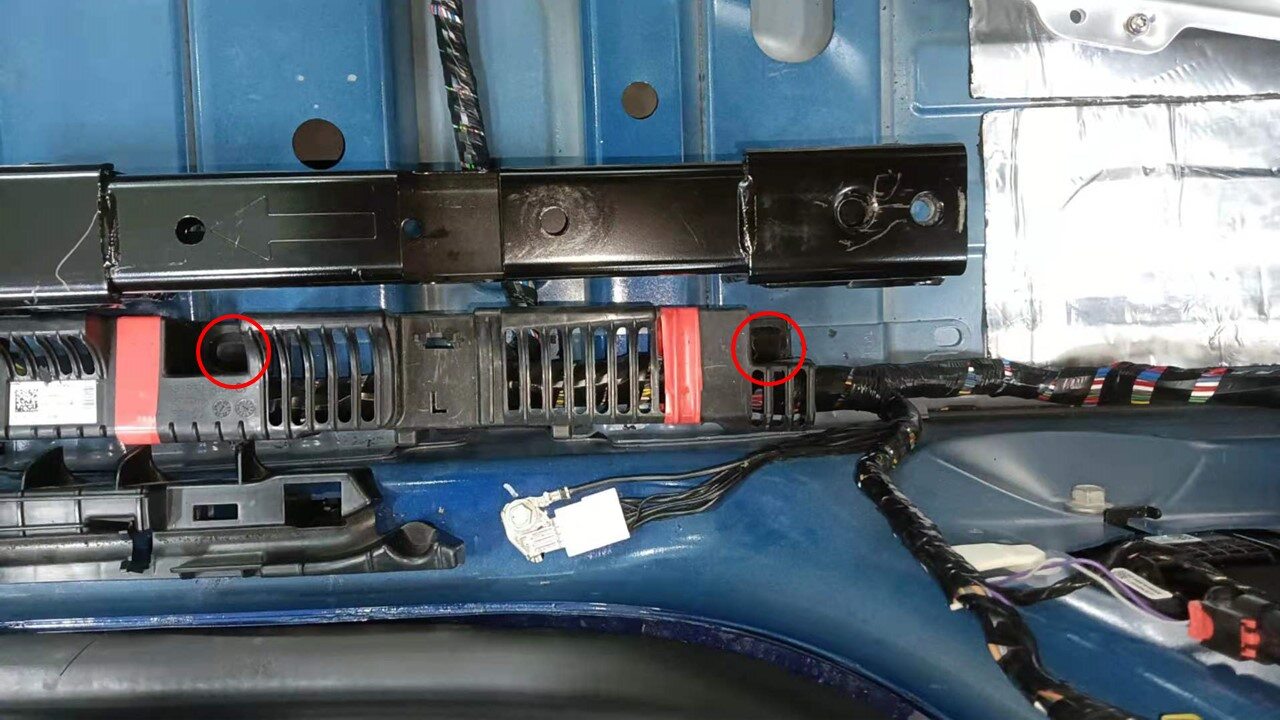

121. Disconnect LH harness from RH body Harness
     注

     2x connectors,1x clip,Release red locking tabs







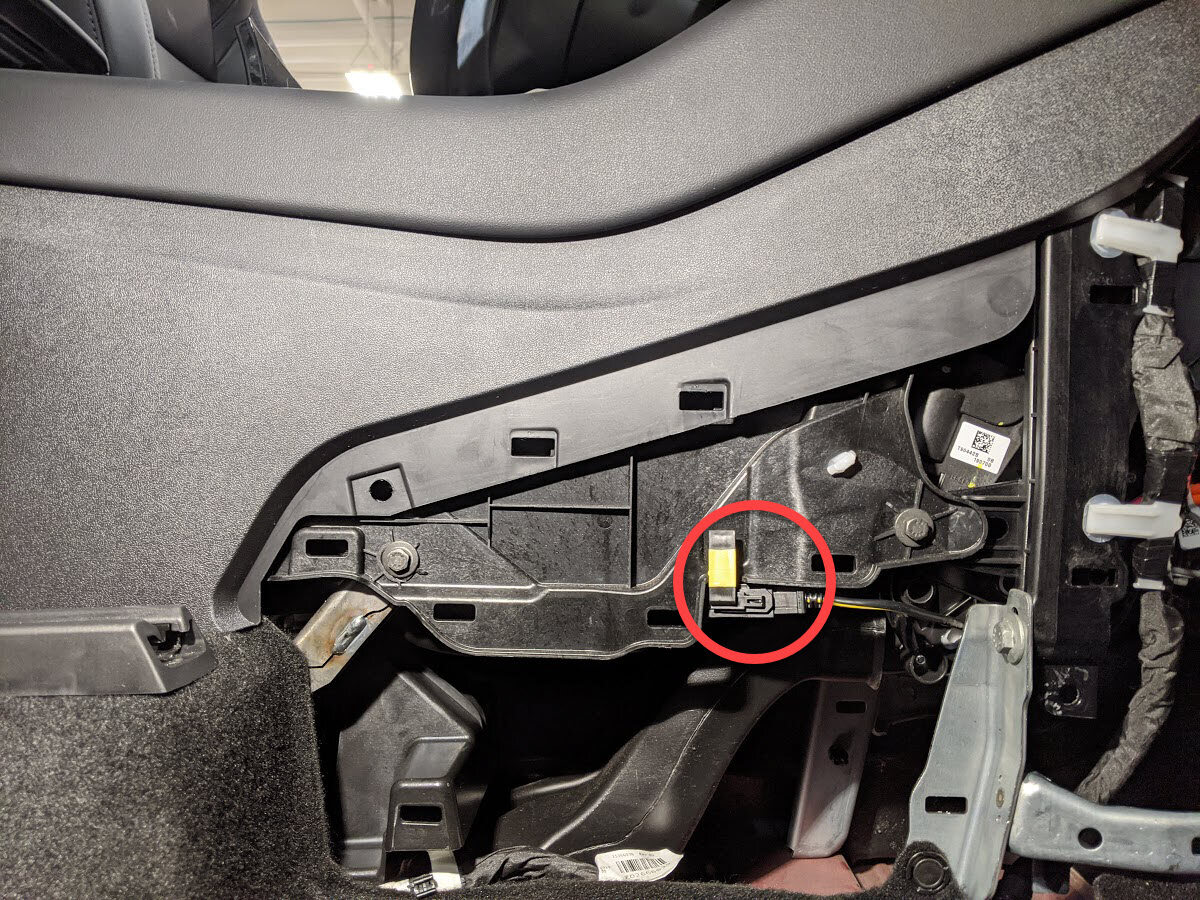

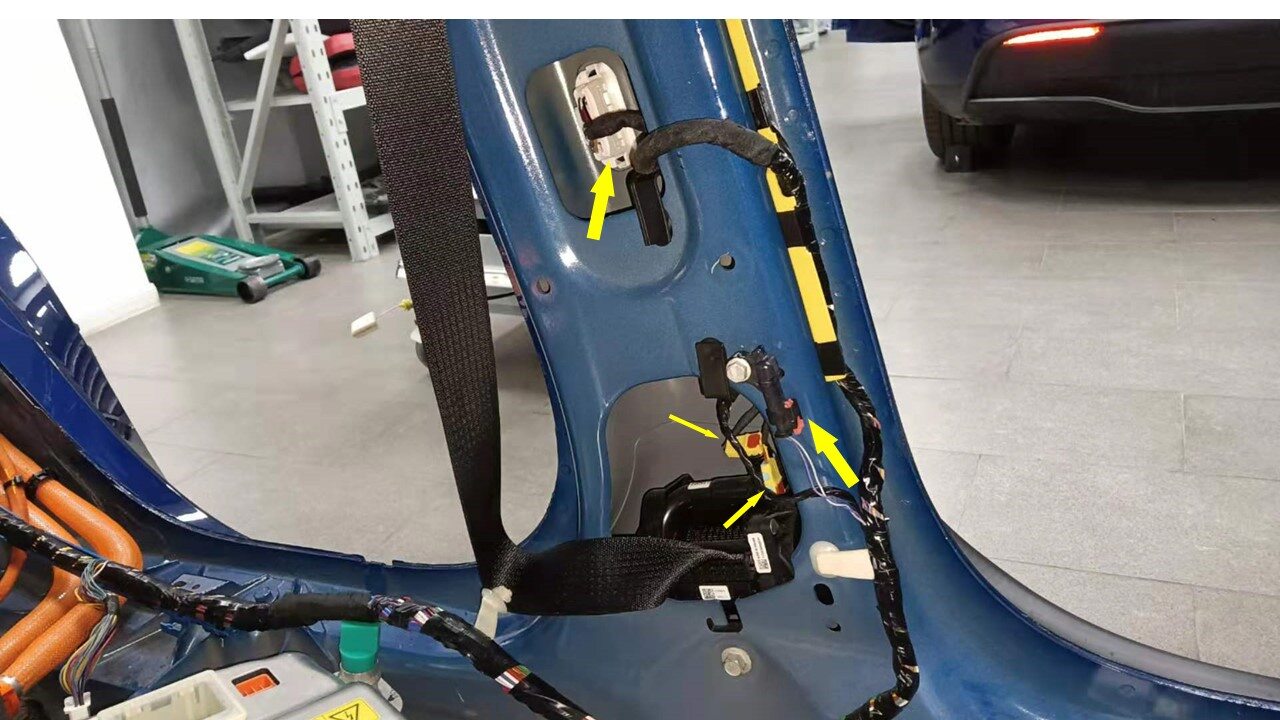

122. Disconnect the LH body harness connectors around lower B-pillar area
     注

     4x connectors, LH rear door harness, acceleration sensor, and LH seat belt

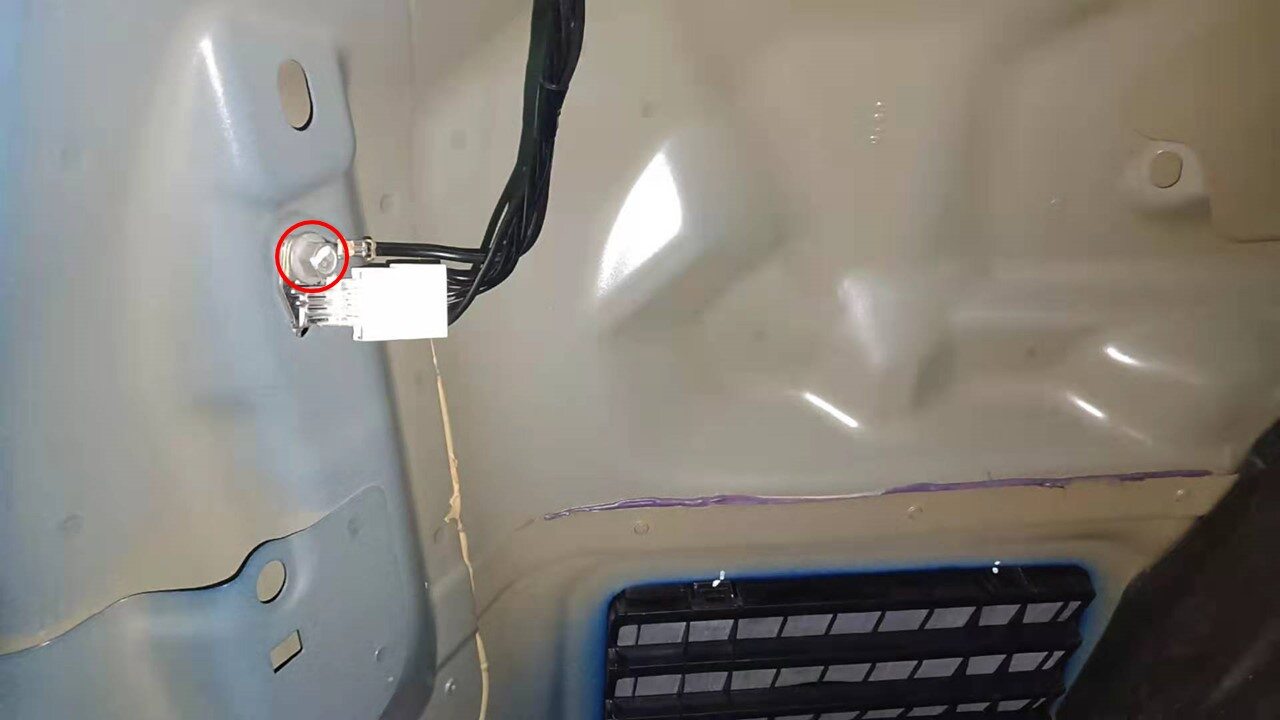

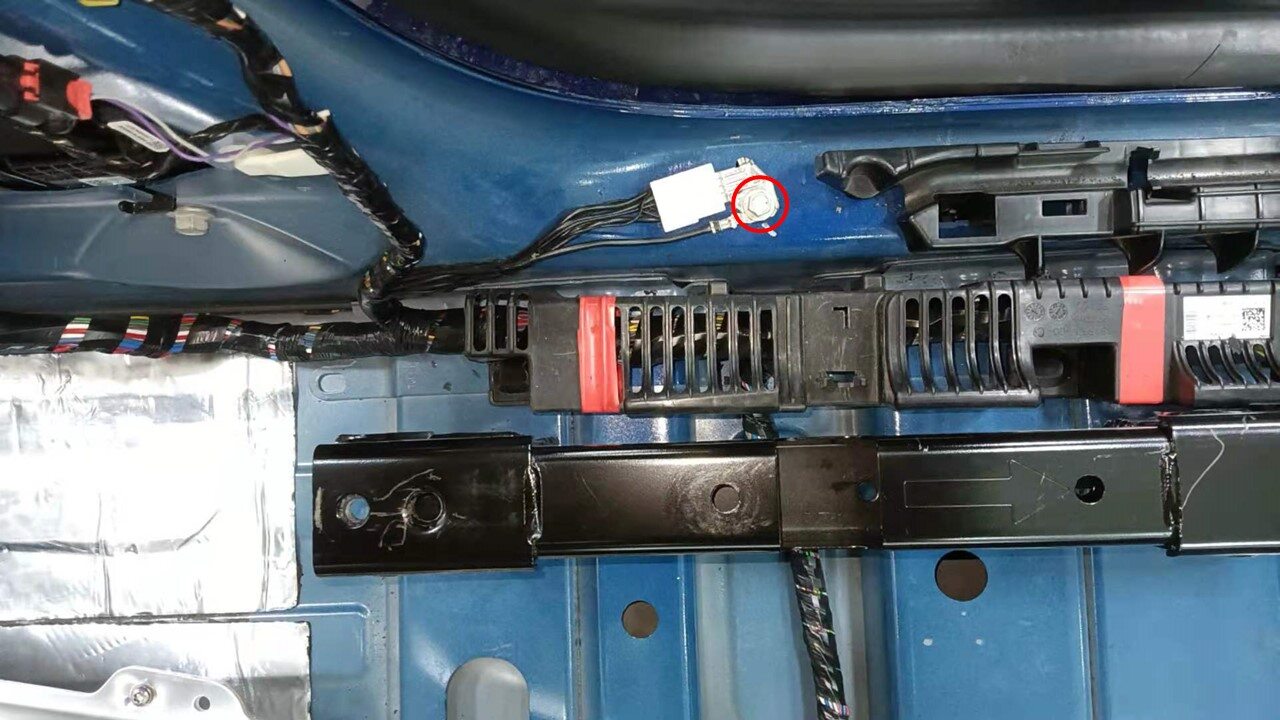

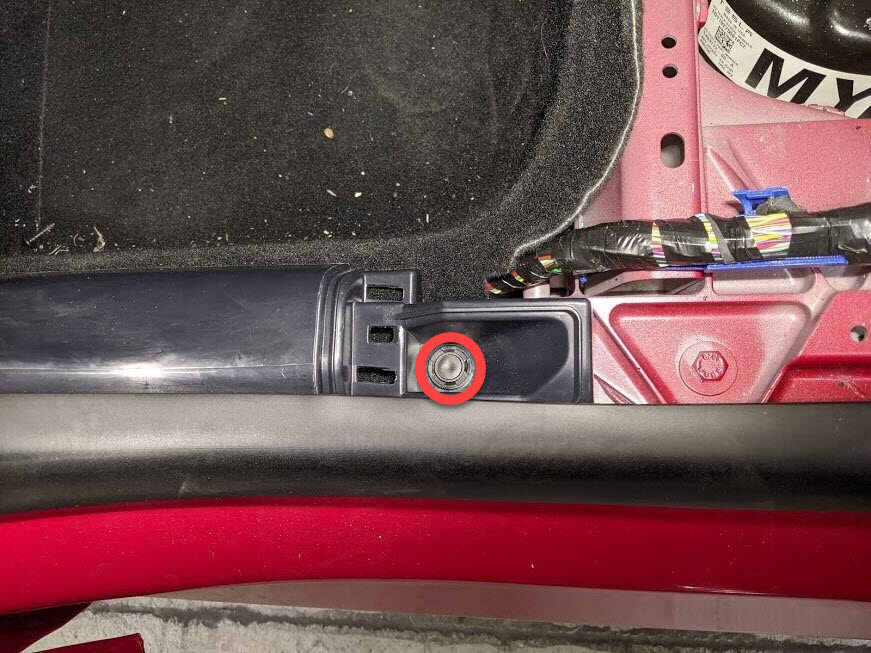

123. Remove the LH harness ground strap around LH lower B-pillar area
     注

     1x bolt, 10mm, 10 Nm



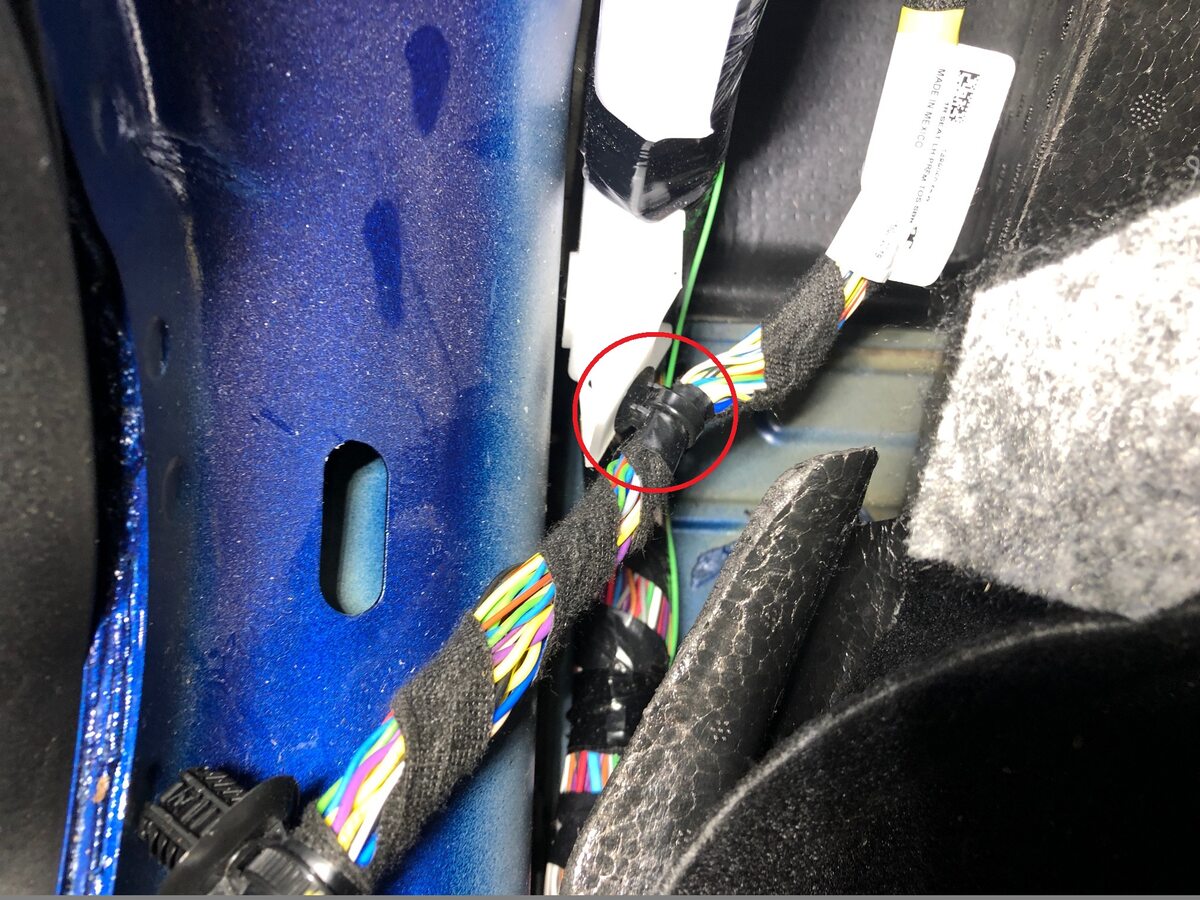

124. Remove LH harness clips from B-pillar area
     注

     6x clips

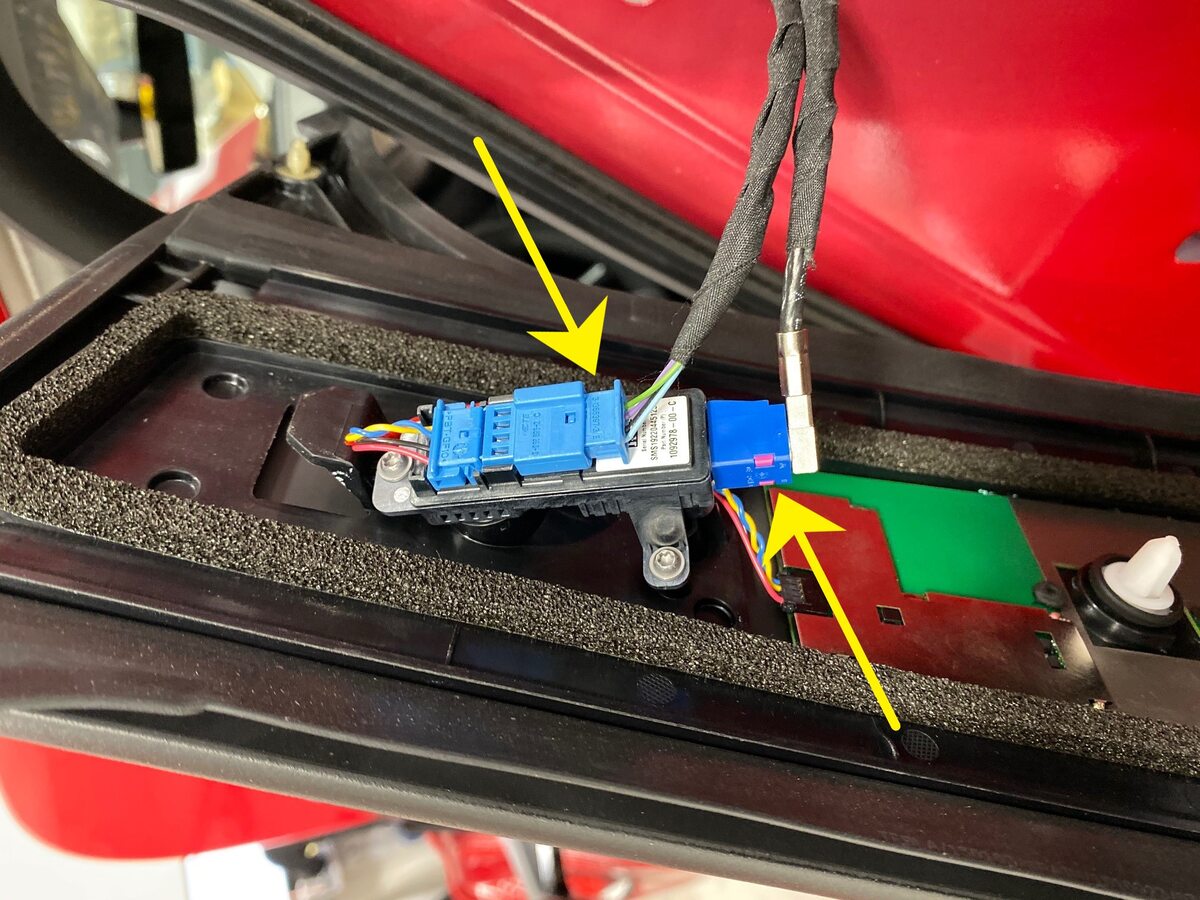

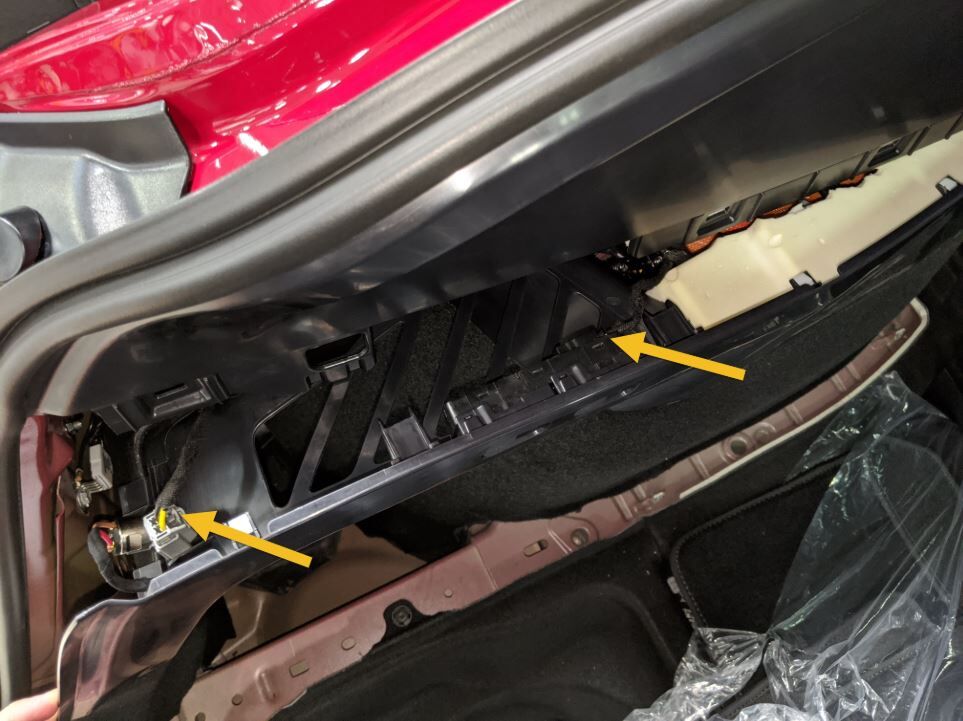

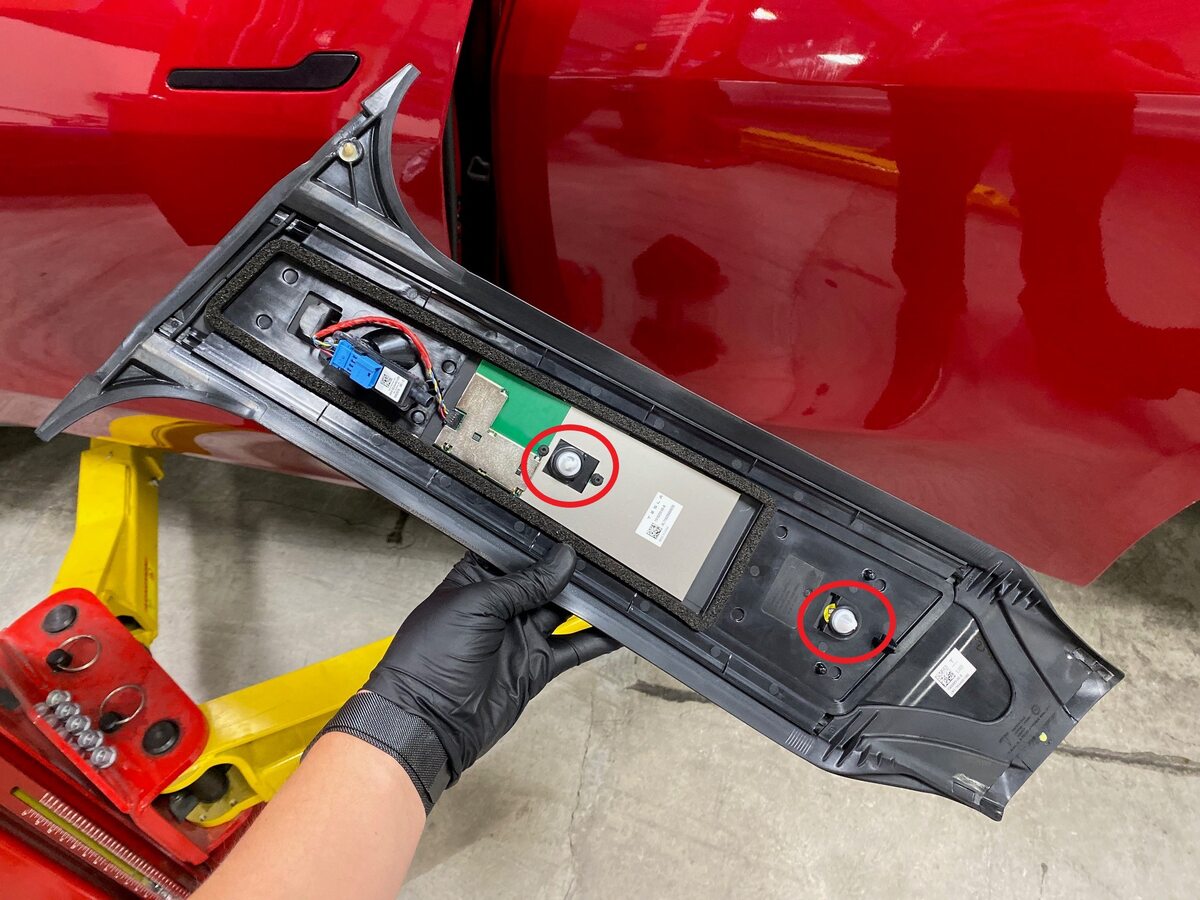

125. Release LH B-pillar applique from body to disconnect camera connector then remove from vehicle
     注

     1x fir tree clip, 2x clips, 2x connectors, Pull straight outwards to release from B-Pillar, Use caution not to damage the connectors







126. Remove the LH body harness clips around the below C-pillar area
     注

     4x clips

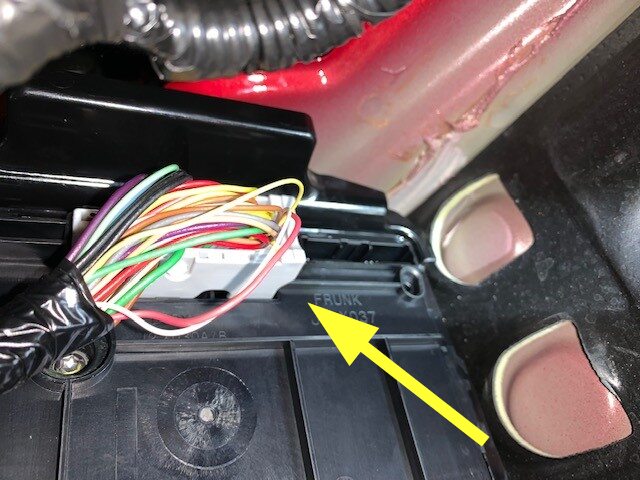

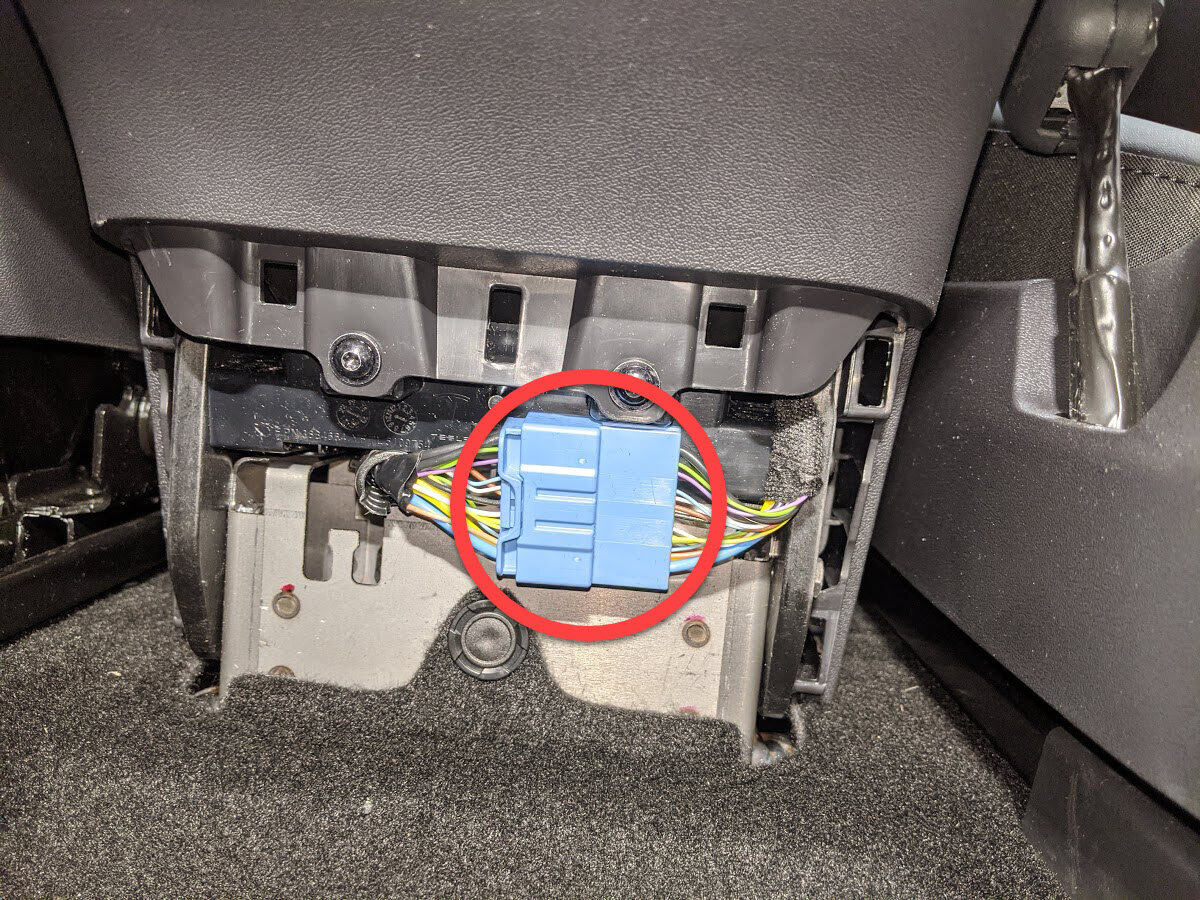

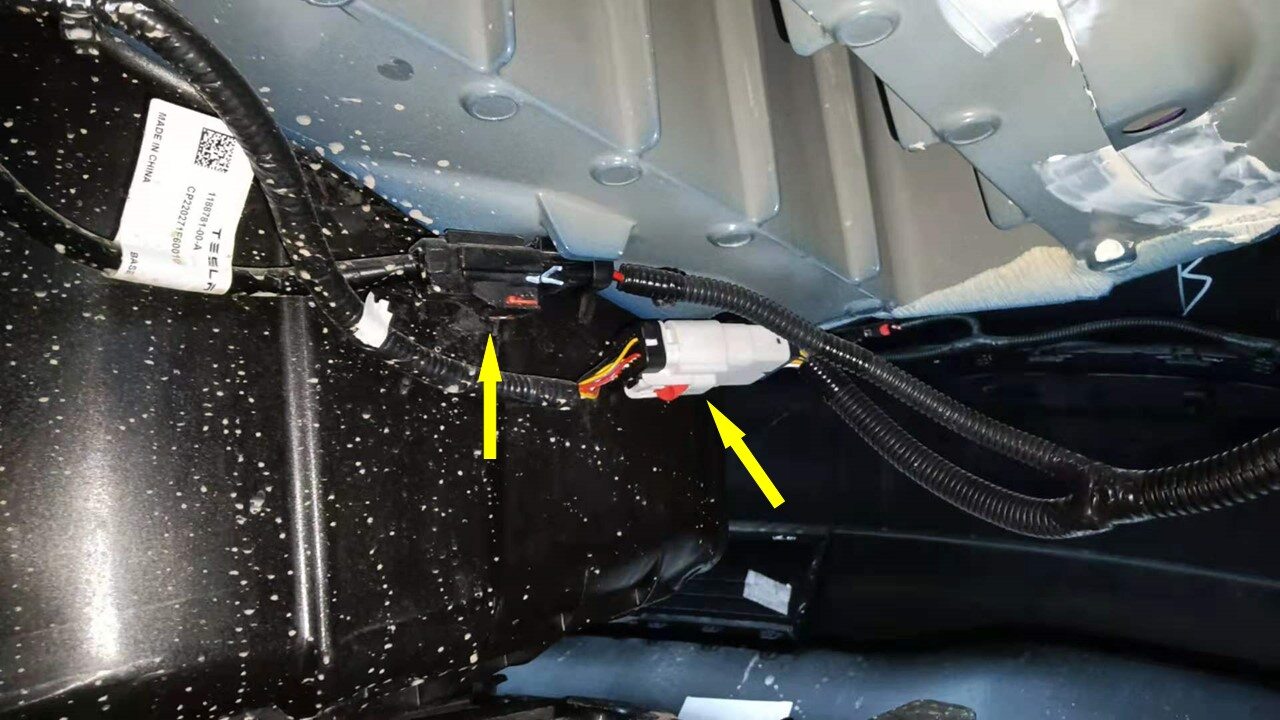

127. Disconnect logic connector at LH seat frame
     注

     1x connector



128. Disconnect LH 2nd row retractor connector
     注

     1x connector, 2 stage locking connector, Lift the red locking tab then release the connector



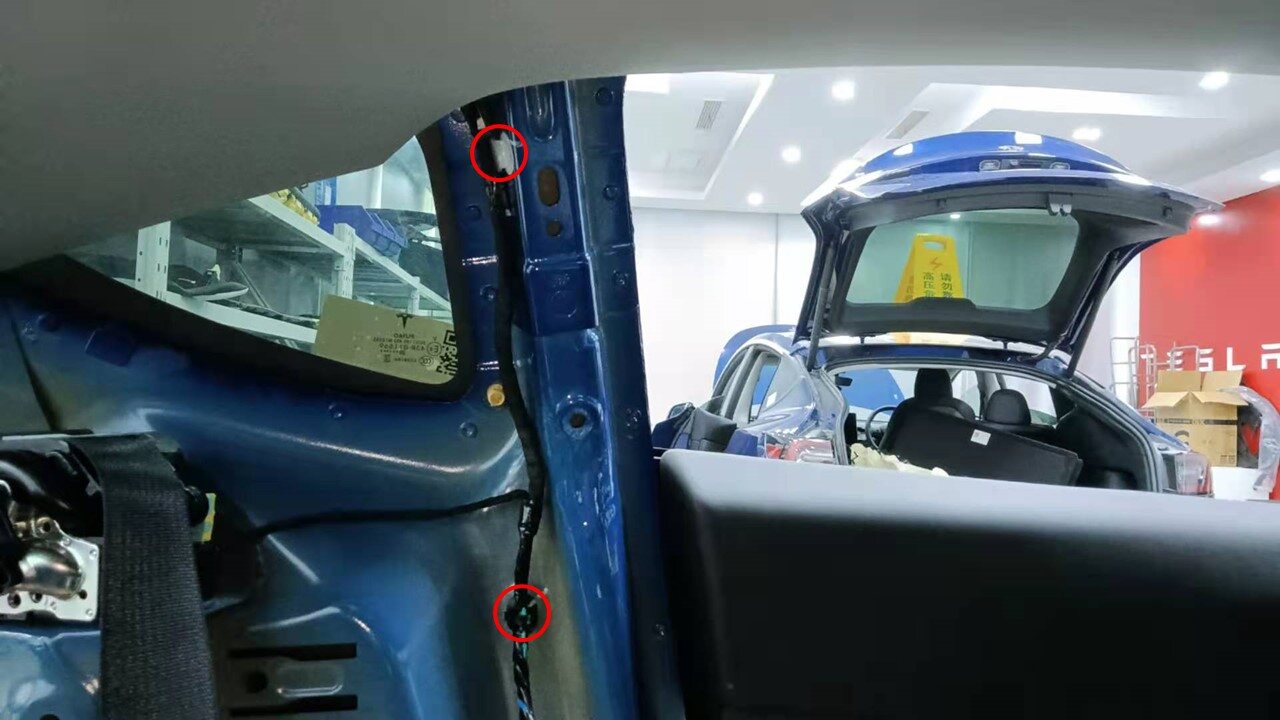

129. Remove the LH body harness clips around C-pillar area
     注

     4x clips





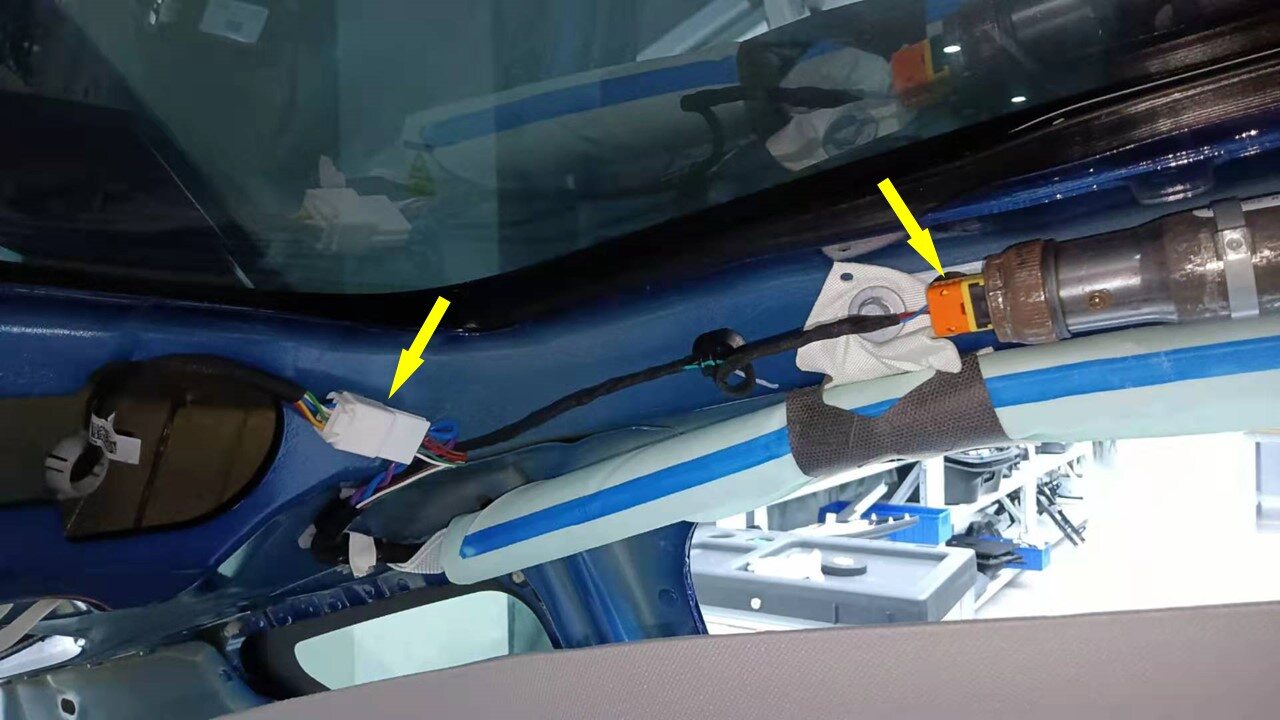

130. Disconnect LH side curtain air bag and liftgate power strut electrical connector from LH body harness
     注

     2x connectors



131. Release connectors from LH body harness to charge port ECU
     注

     2x connectors



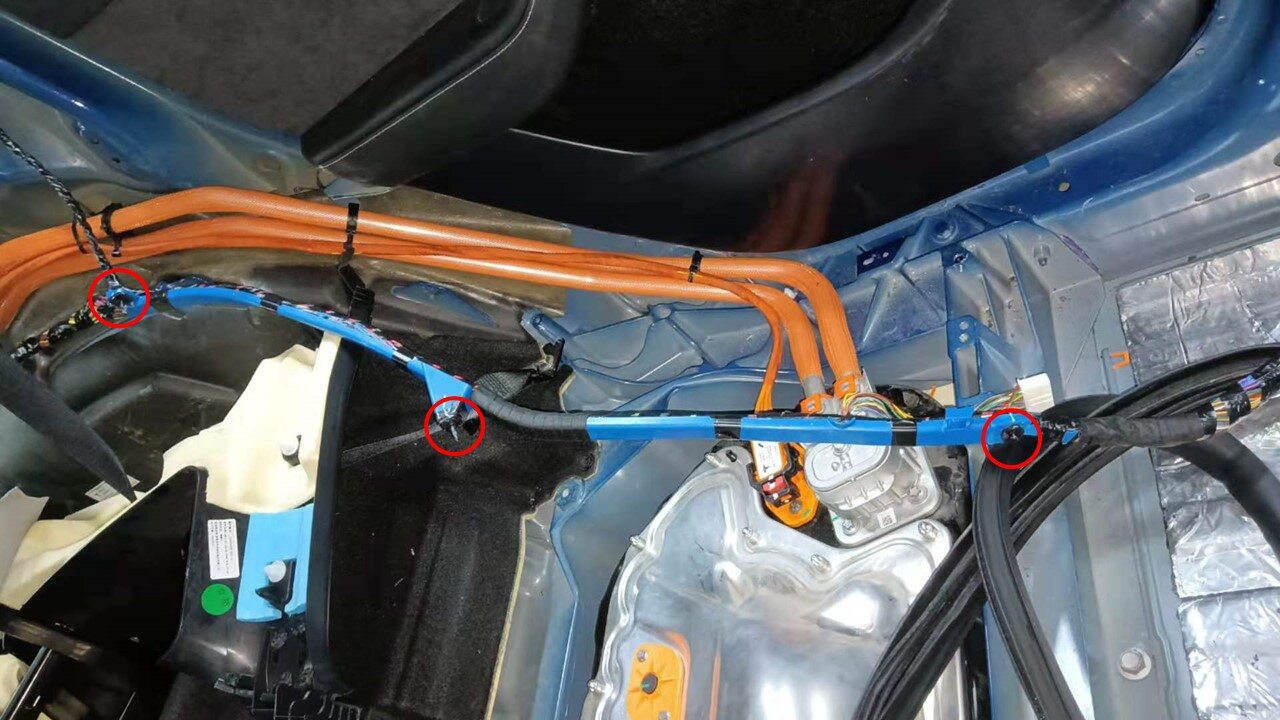

132. Remove LH body harness clips around LH side trunk area
     注

     3x clips



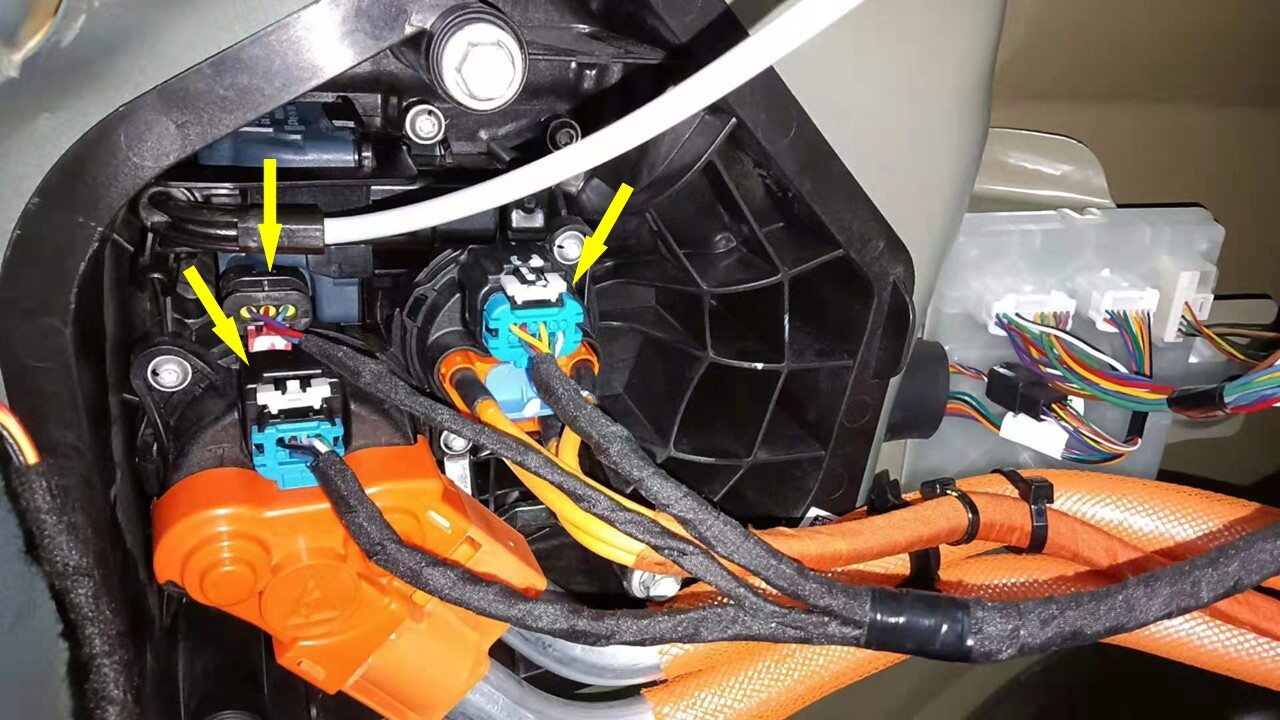

133. Disconnect connectors from chargeport assembly
     注

     3x connectors, 1x red locking tab, 2x white locking tab



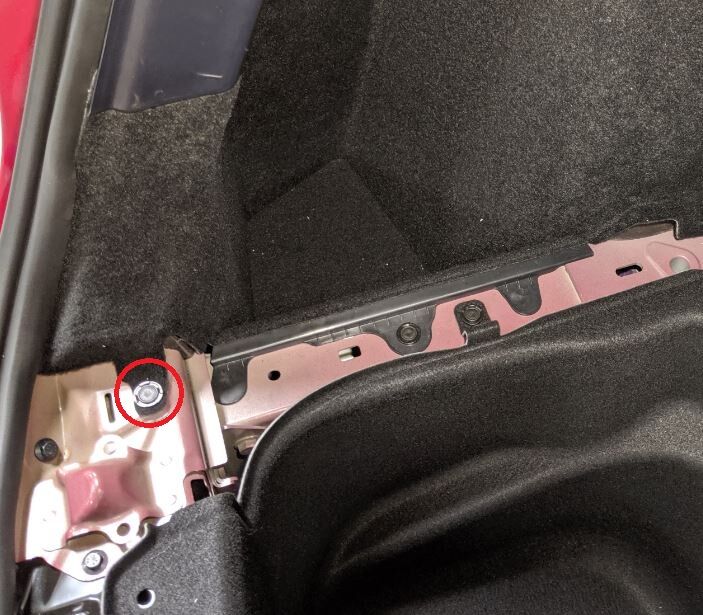

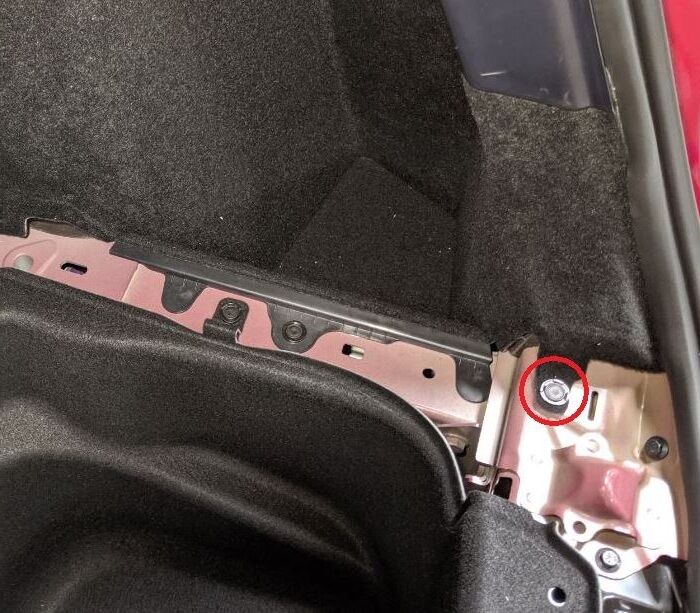

134. Remove the LH body harness ground strap below LH tail lamp
     注

     1x bolt, 10mm, 10 Nm



135. Remove LH liftgate stop
     注

     1x liftgate stop, Pull up to remove





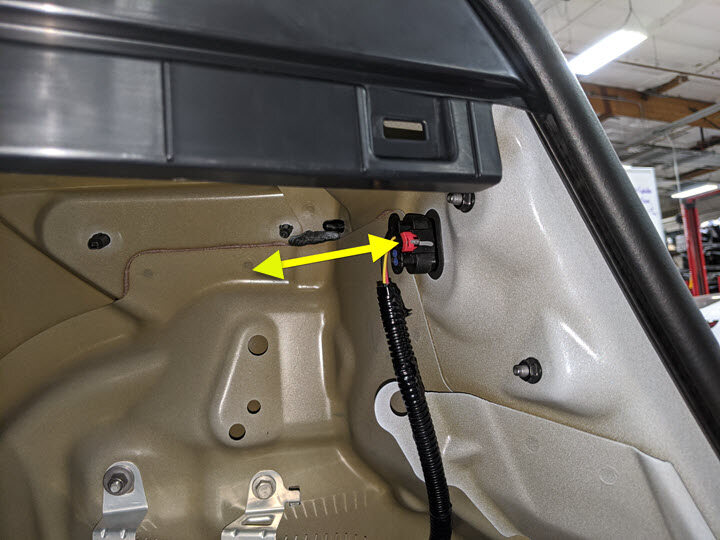

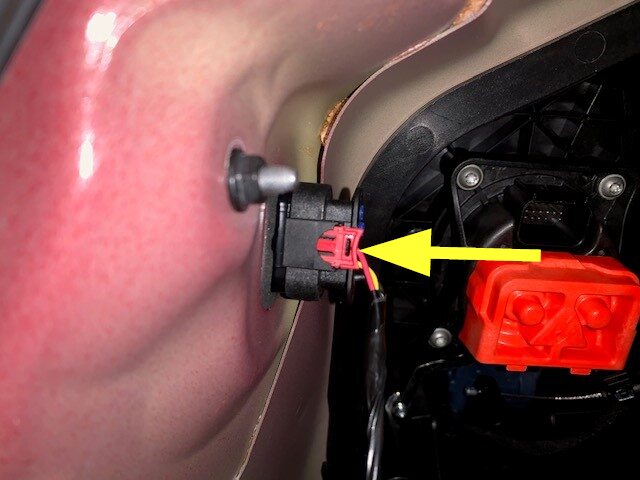

136. Disconnect LH rear bodyside tail lamp assembly connector
     注

     1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector

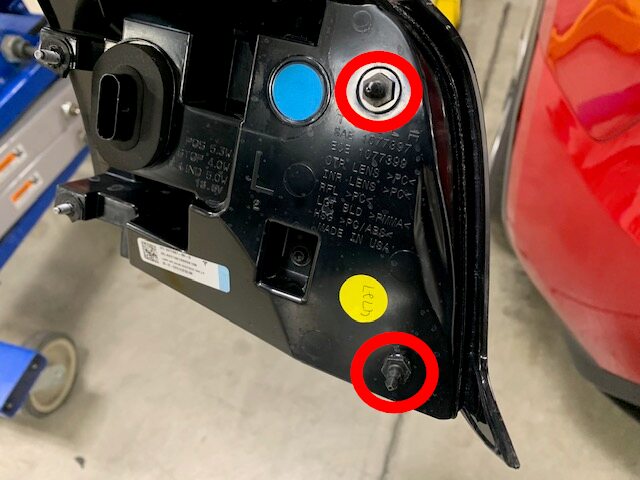

137. Remove nuts securing LH rear bodyside tail lamp assembly to vehicle
     注

     2x nuts, 8mm, 3.2 Nm

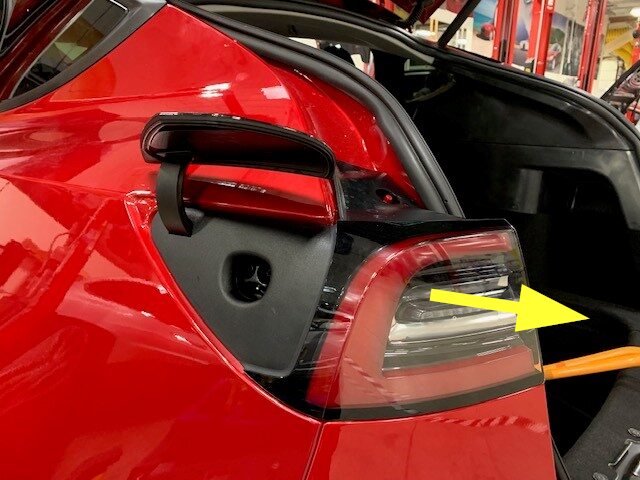

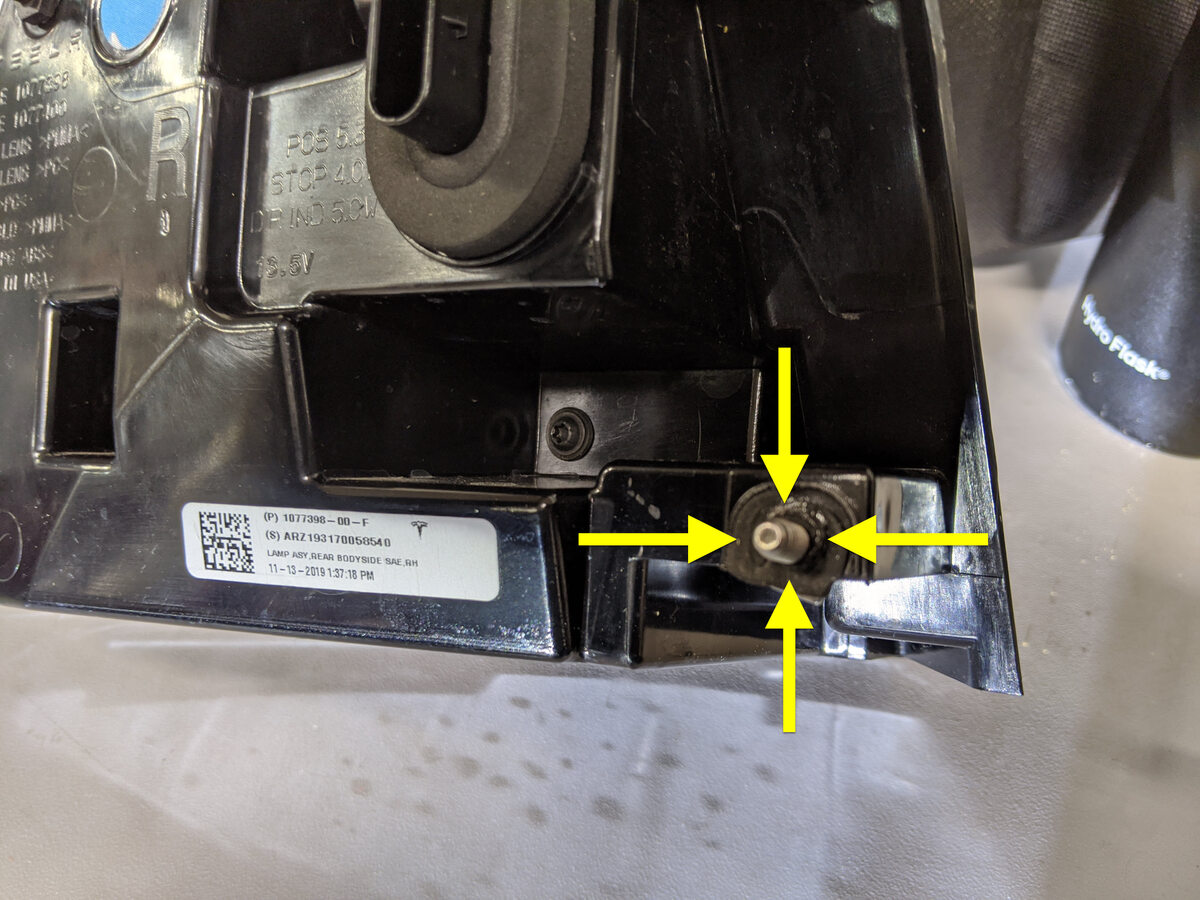

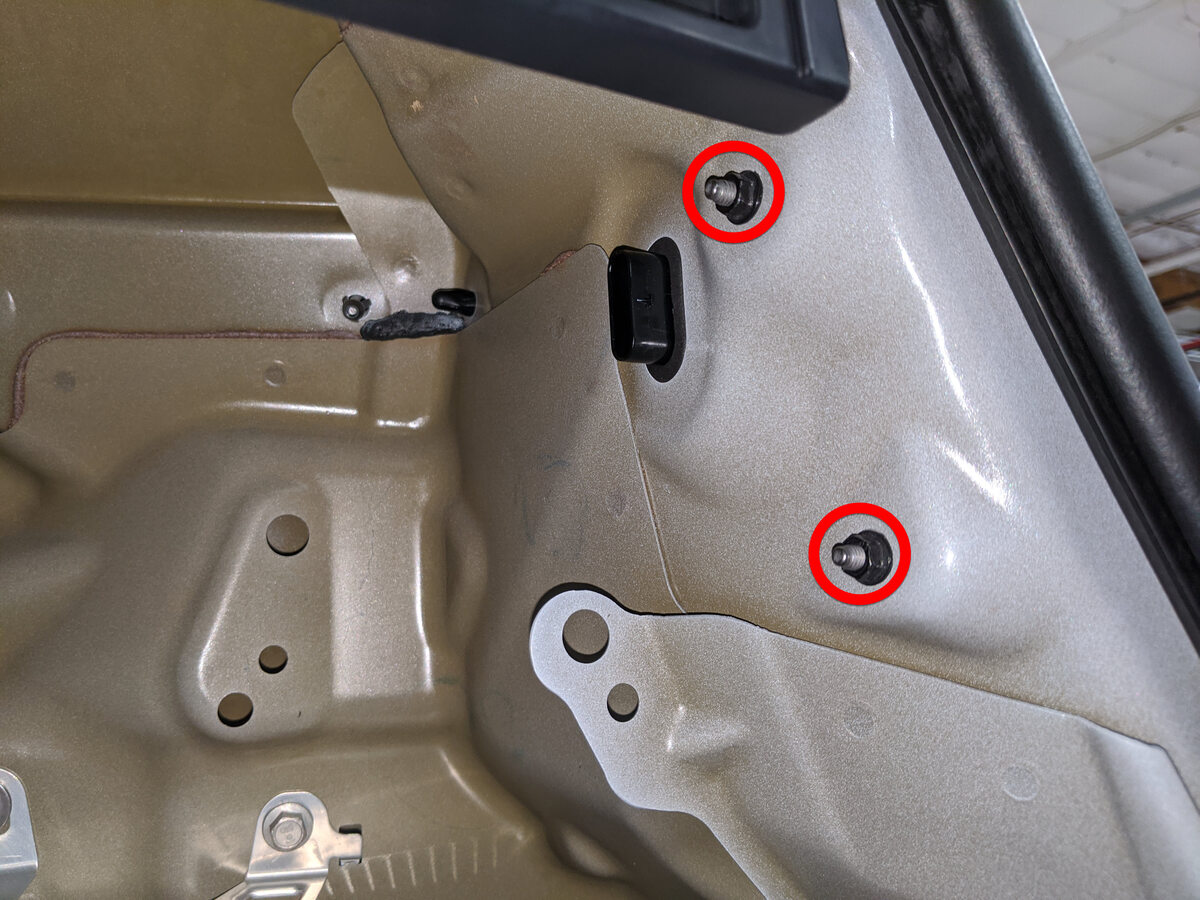

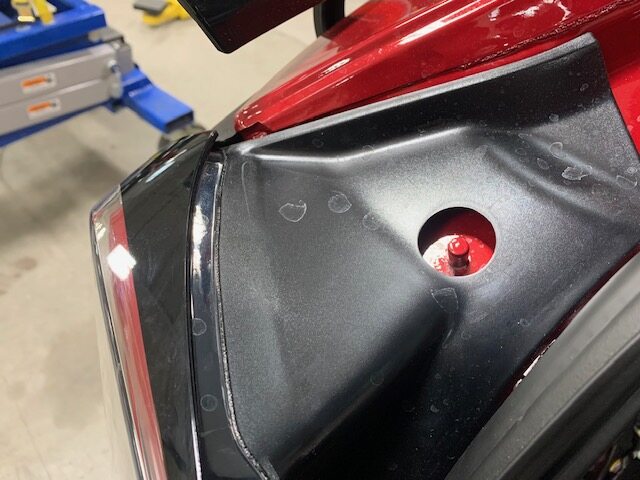

138. Remove LH rear bodyside tail lamp assembly from vehicle
     注

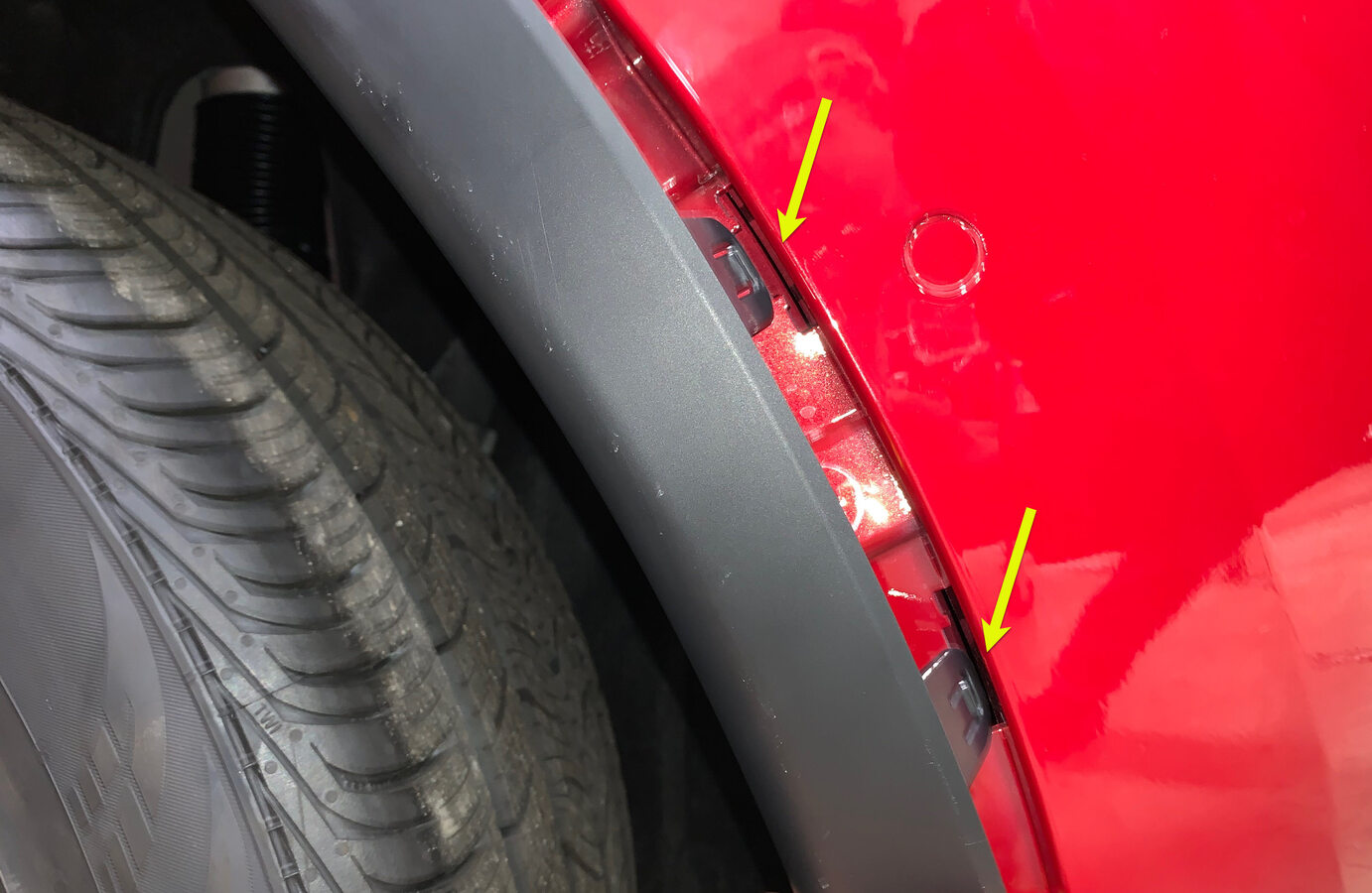

     2x studs, To ease removal use trim tool to release lamp from body near each stud. While releasing studs, Pull from opposite end of lamp.

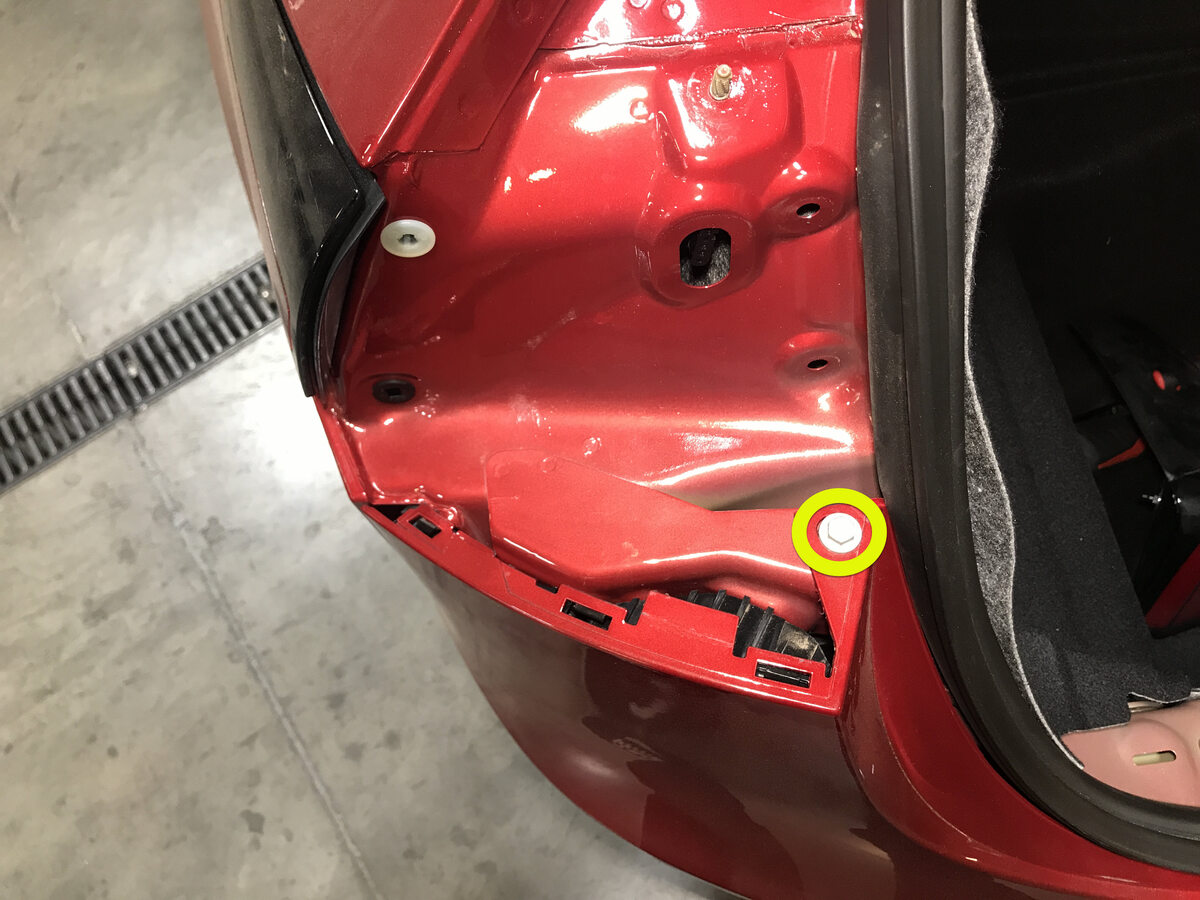

139. Remove bolt securing LH corner of rear fascia to body
     注

     1x bolt, 10mm, 4 Nm



140. Remove RH liftgate stop
     注

     1x liftgate stop, Pull up to remove



141. Disconnect RH rear bodyside tail lamp assembly connector
     注

     1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector



142. Remove nuts securing RH rear bodyside tail lamp assembly to vehicle
     注

     2x nuts, 8mm, 3.2 Nm



143. Remove RH rear bodyside tail lamp assembly from vehicle
     注

     2x studs





144. Remove bolt securing RH corner of rear fascia to body
     注

     1x bolt, 10mm, 4 Nm



145. Release rear fascia from rear diffuser
     注

     6x clips, 7x bolts, 10mm, 4 Nm

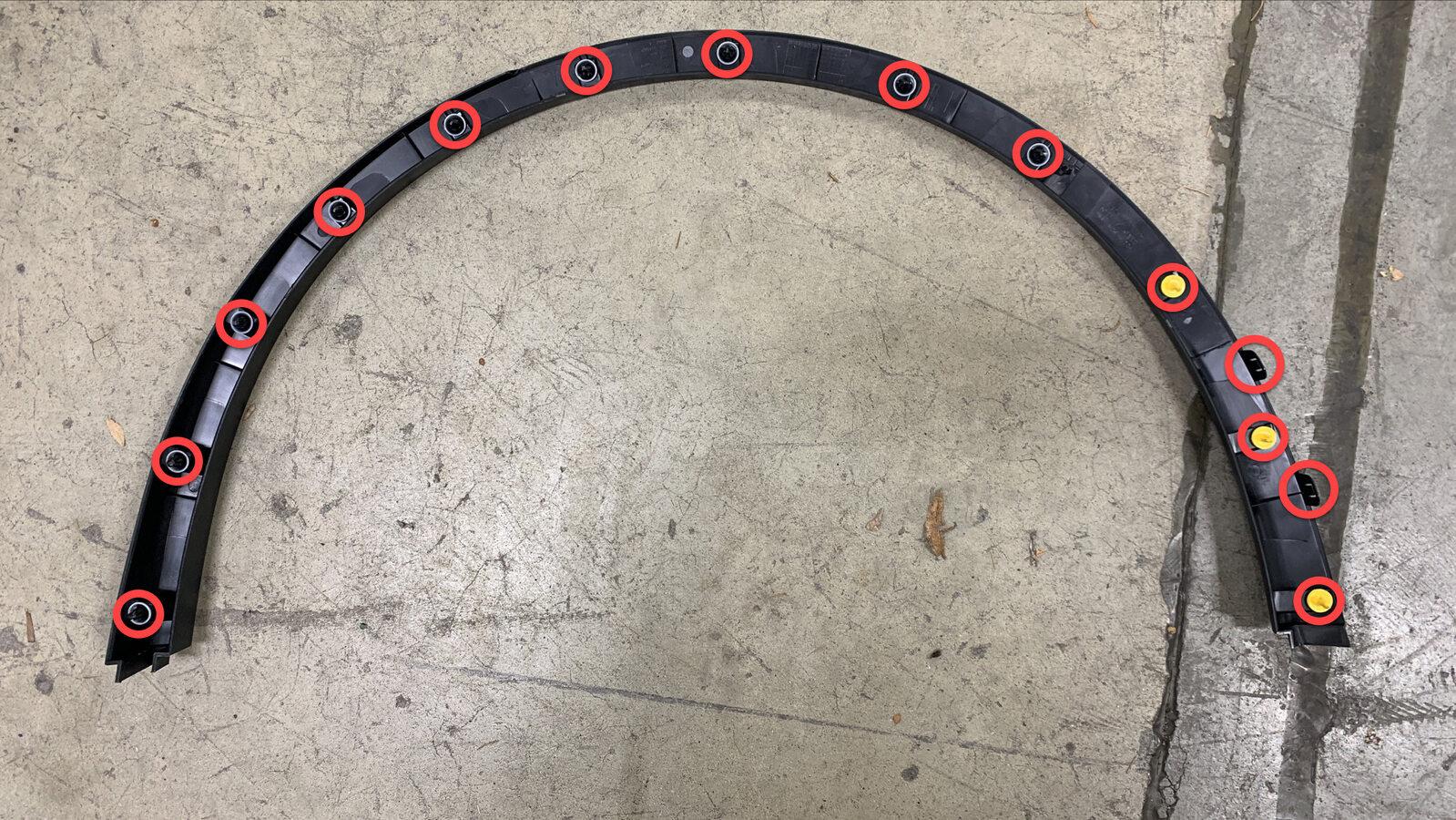

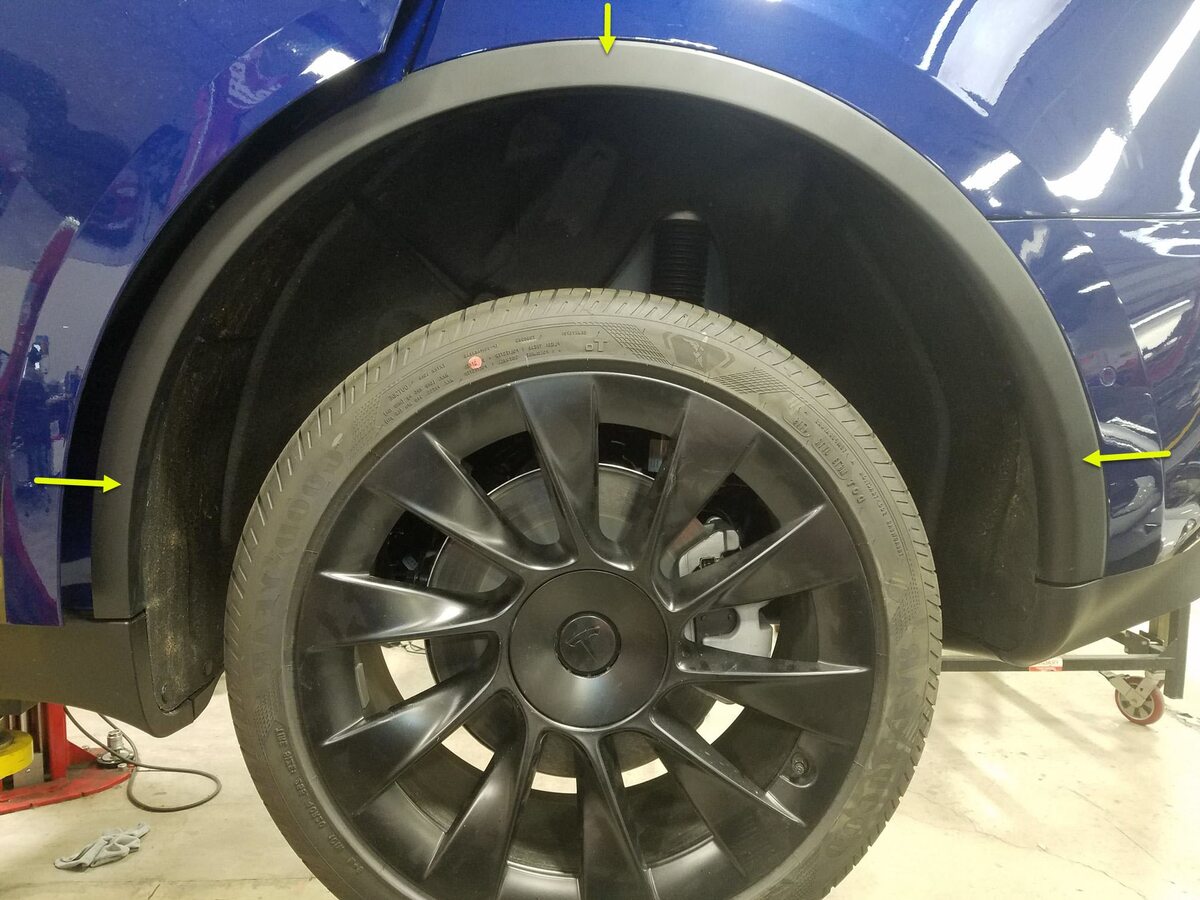

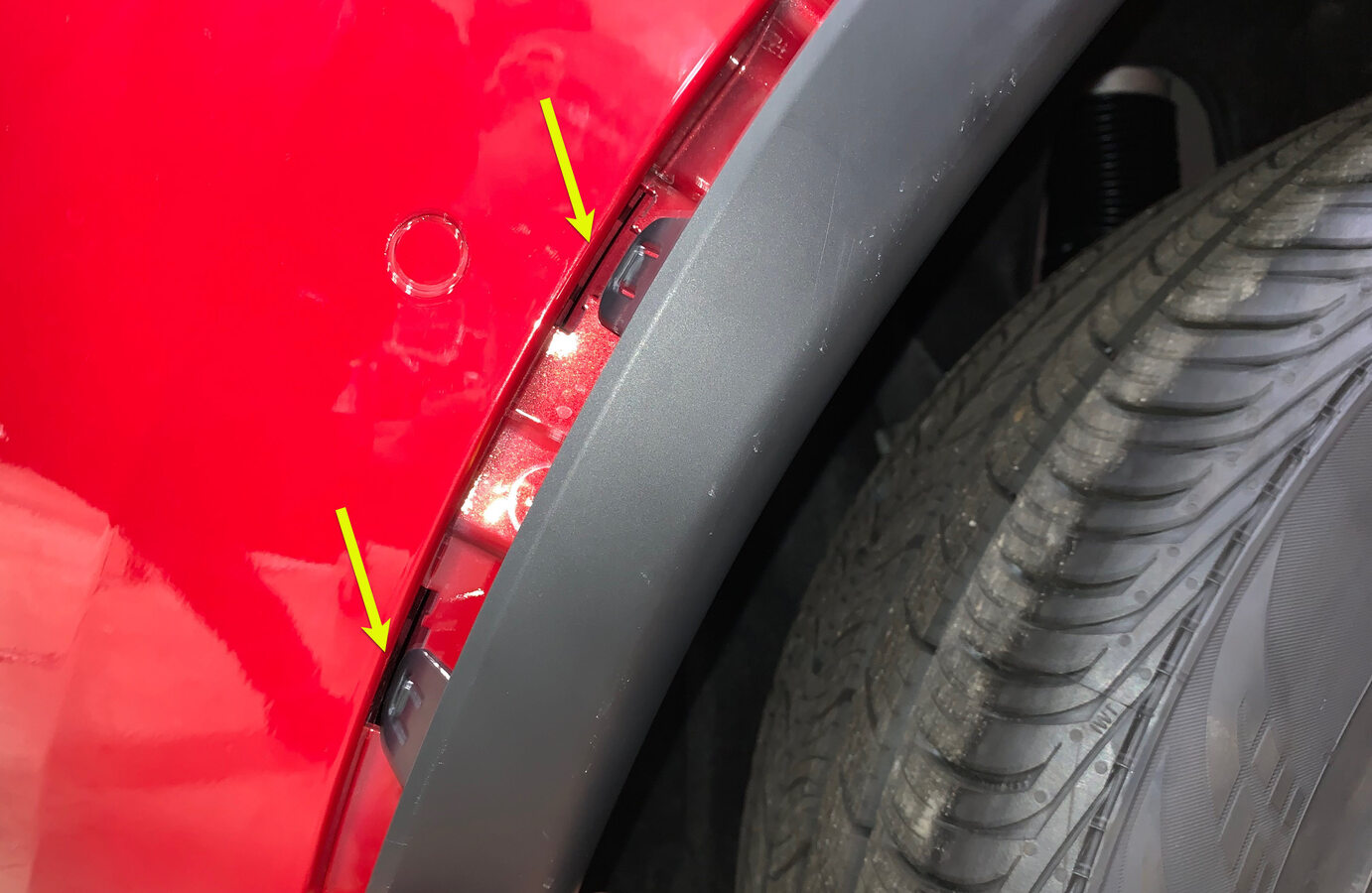

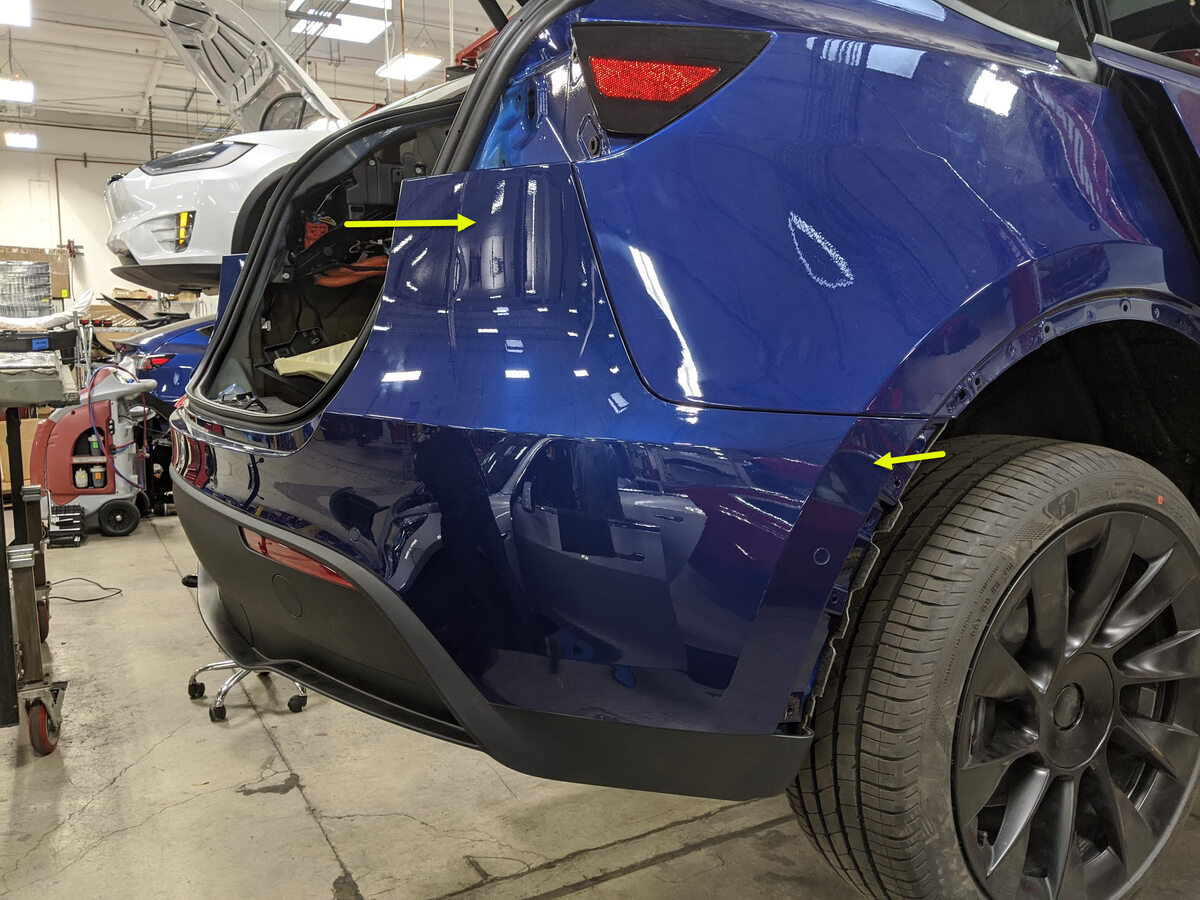

146. Remove LH rear fender garnish from vehicle
     注

     14x clips, Release from center of garnish and work your way outward towards both ends, Using clip prytool release yellow clips at rear of fascia to avoid damage to garnish









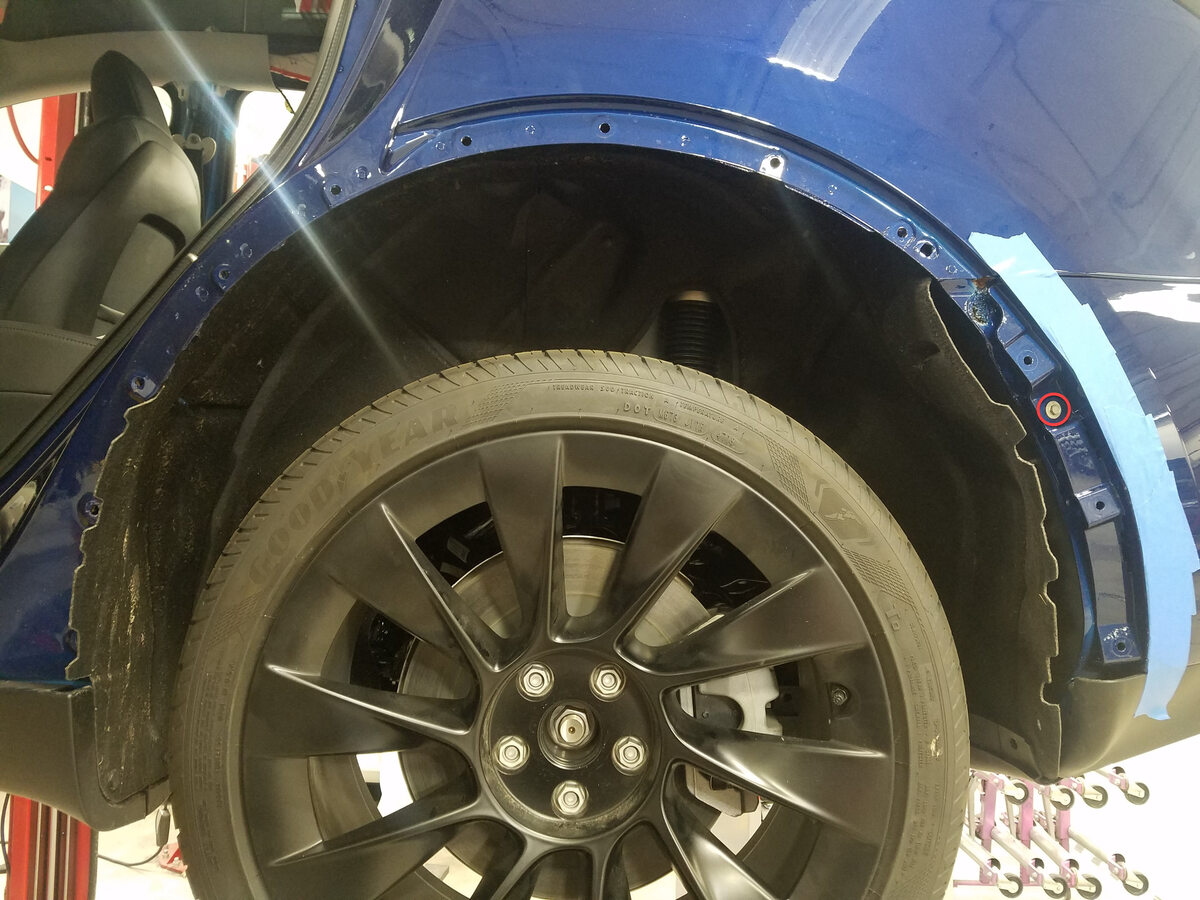

147. Remove bolt securing LH rear fascia to body
     注

     1x bolt, 8mm, 4 Nm



148. Remove RH rear fender garnish from vehicle
     注

     14x clips, Release from center of garnish and work your way outward towards both ends, Using clip prytool release yellow clips at rear of fascia to avoid damage to garnish









149. Remove bolt securing RH rear fascia to body
     注

     1x bolt, 8mm, 4 Nm

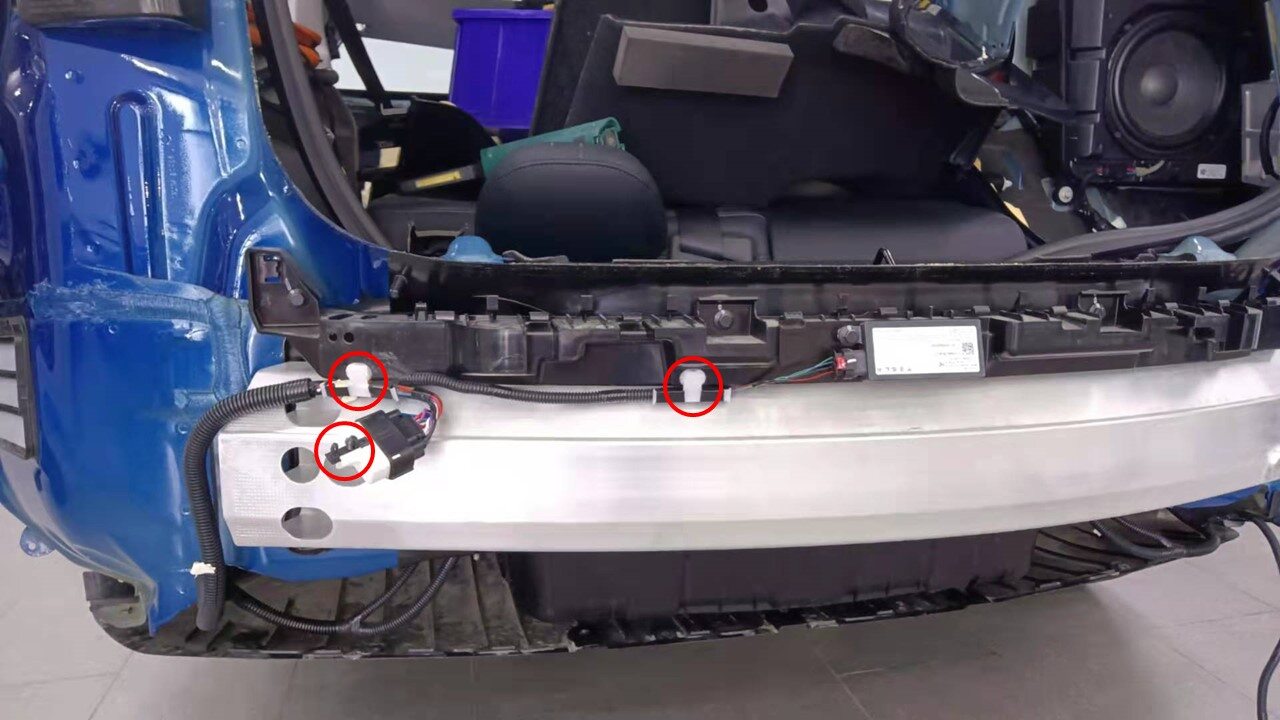

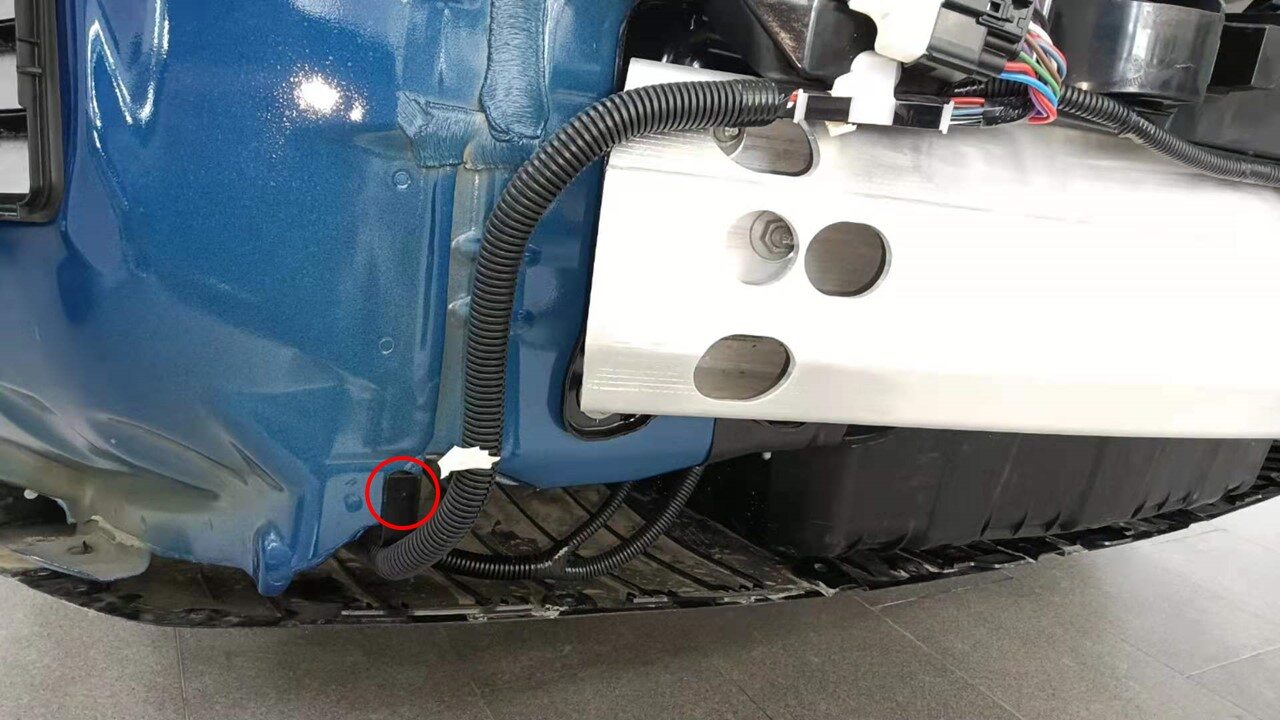

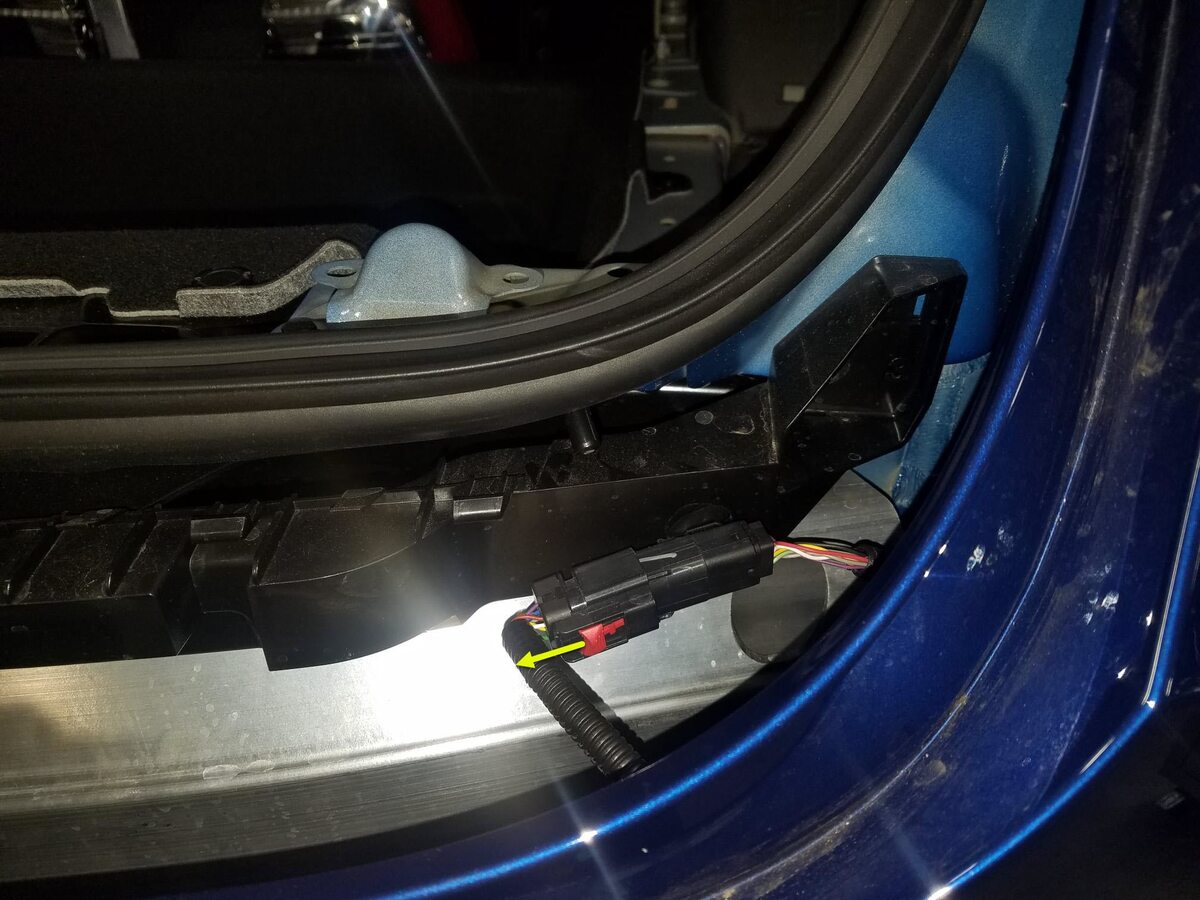

150. Release rear fascia from body and disconnect rear fascia harness then remove assembly from vehicle
     注

     1x connector, Slide red locking tab away from connector, Then depress black locking tab to release the connector. Recommend assistance, Place rear fascia on padded surface to avoid damage







151. Remove rear body harness from rear fascia center bracket
     注

     4x clips





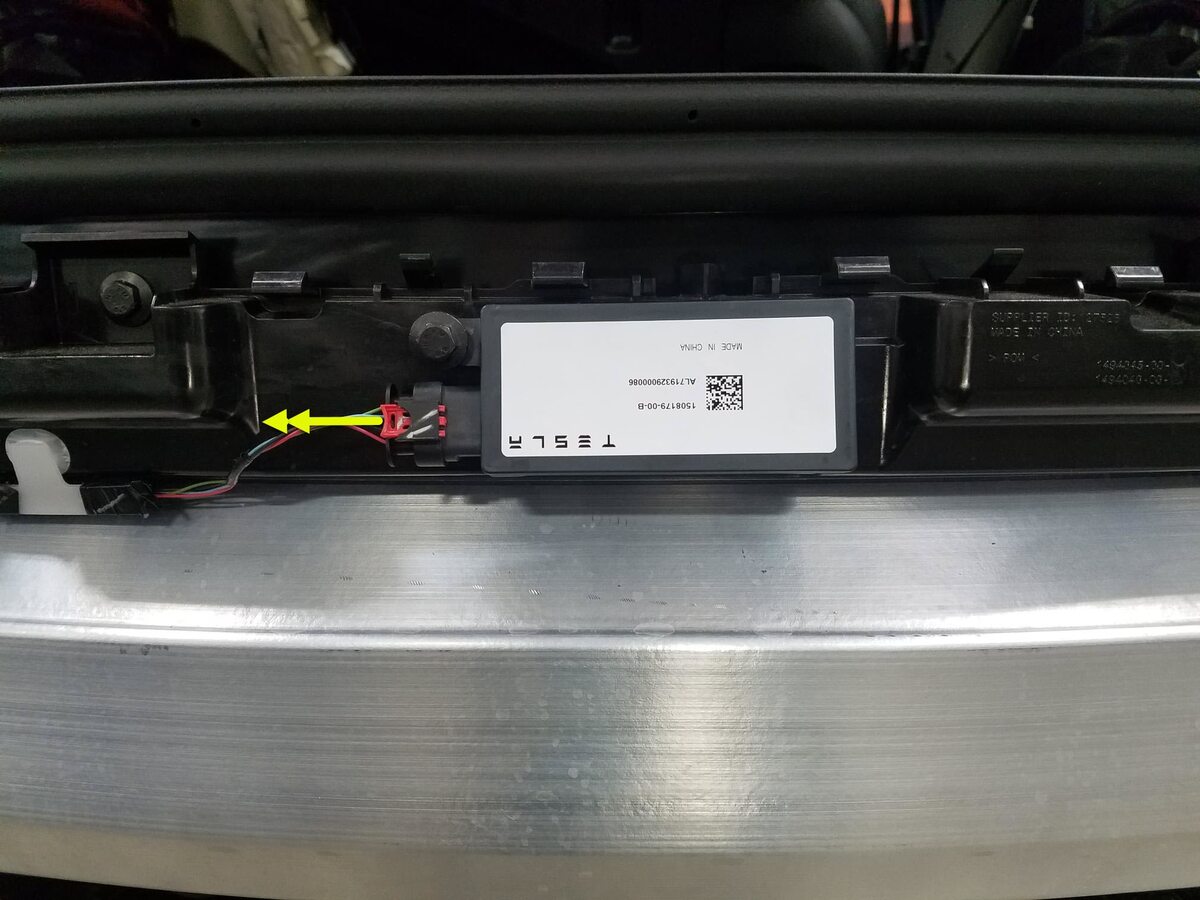

152. Disconnect rear BLE
     注

     1x connector, 2 stage locking connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector



153. Disconnect rear subframe and LH rear EPB connectors
     注

     2x connectors



154. Push the rear subframe portion of the LH body harness through the LH side trunk bulkhead
     注

     Harness passes through into trunk near rear section of LH rear wheel liner area



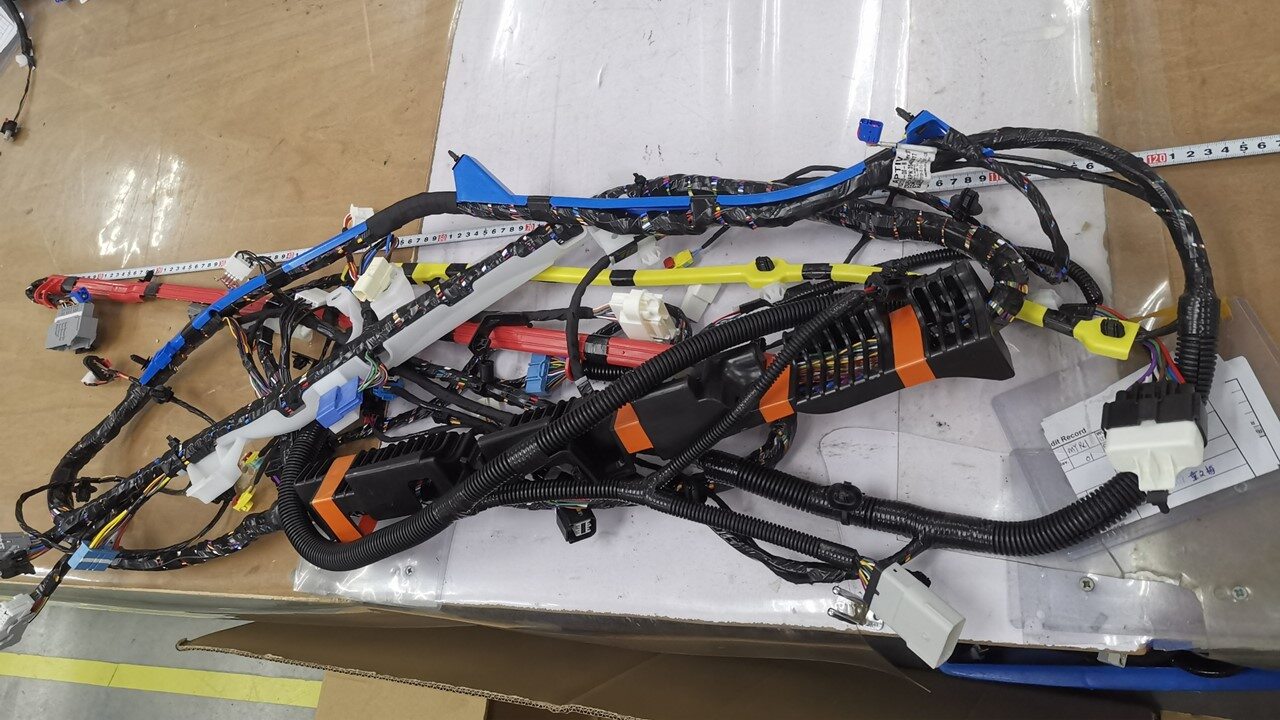

155. Remove the LH body harness from vehicle



156. Position the LH body harness into vehicle for installation



157. Push the rear harness seal through body and fully seat
     注

     Harness passes through into trunk near rear section of LH rear wheel liner area



158. Connect rear subframe and LH rear EPB connector
     注

     2x connectors



159. Connect rear BLE
     注

     1x connector, Engage locking tab



160. Install rear body harness onto rear fascia center bracket
     注

     4x clips





161. Connect and install rear fascia onto vehicle
     注

     1x connector, Engage red locking tab, Recommend assistance, Verify lower portion aligns with rear diffuser









162. Apply Loctite 222 onto rear diffuser bolts and secure rear fascia to rear diffuser
     注

     6x clips, 7x bolts, 10mm, 4 Nm





163. Install bolt securing RH rear fascia to body
     注

     1x bolt, 8mm, 4 Nm



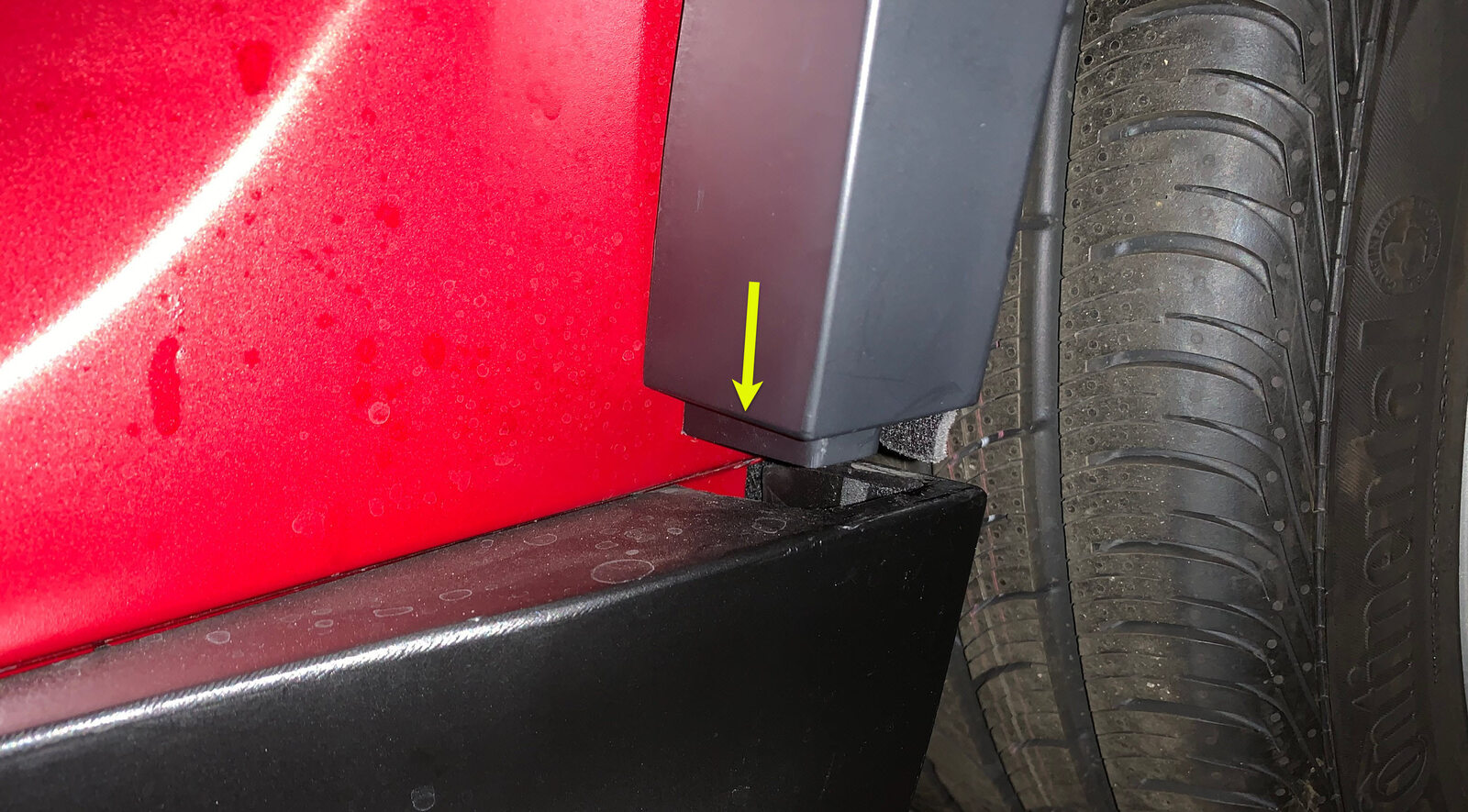

164. Install RH rear fender garnish
     注

     14x clips, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish









165. Install bolt securing LH rear fascia to body
     注

     1x bolt, 8mm, 4 Nm



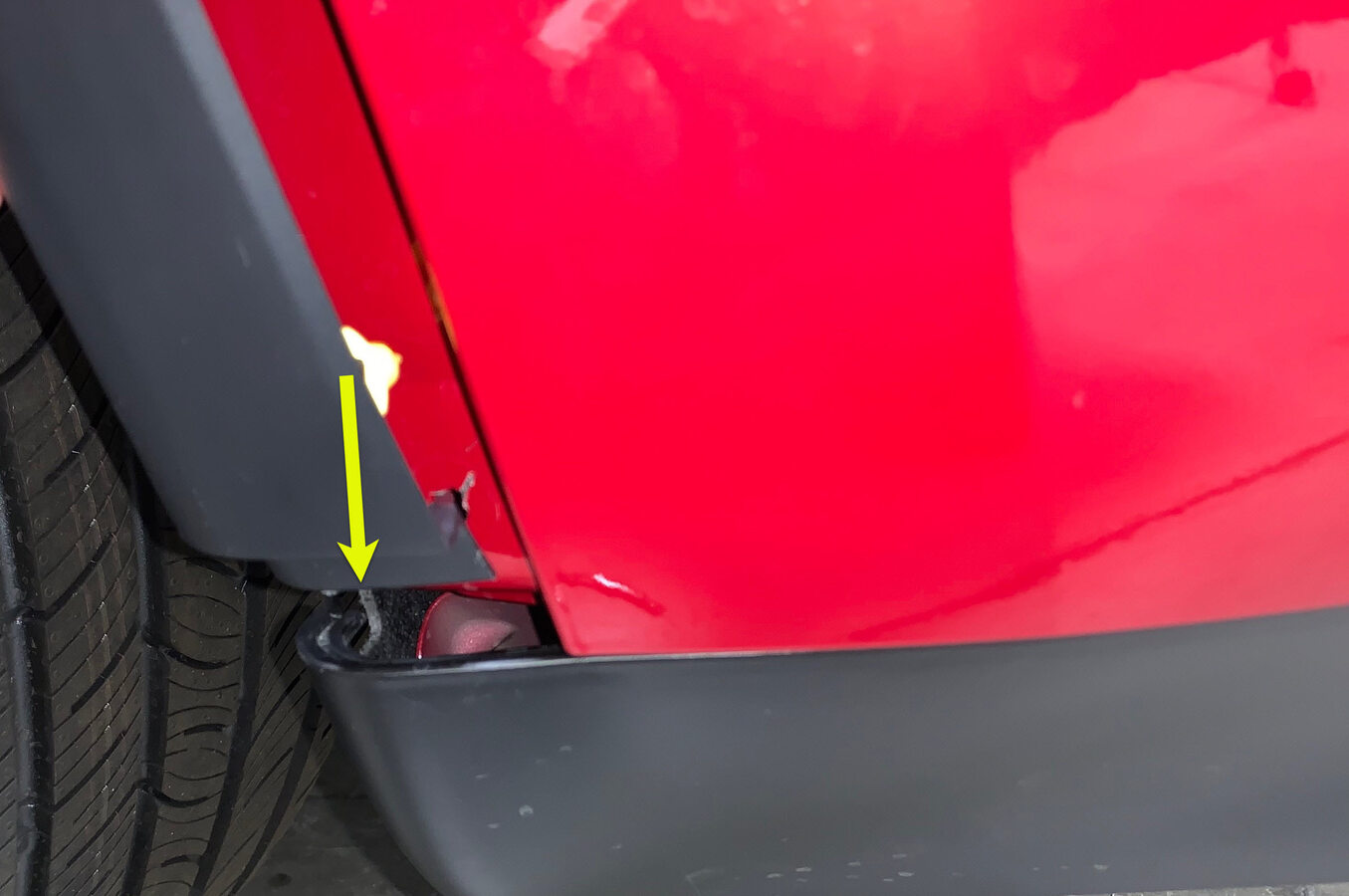

166. Install LH rear fender garnsih
     注

     14x clips, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish









167. Install bolt securing RH corner of rear fascia
     注

     1x bolt, 10mm, 4 Nm

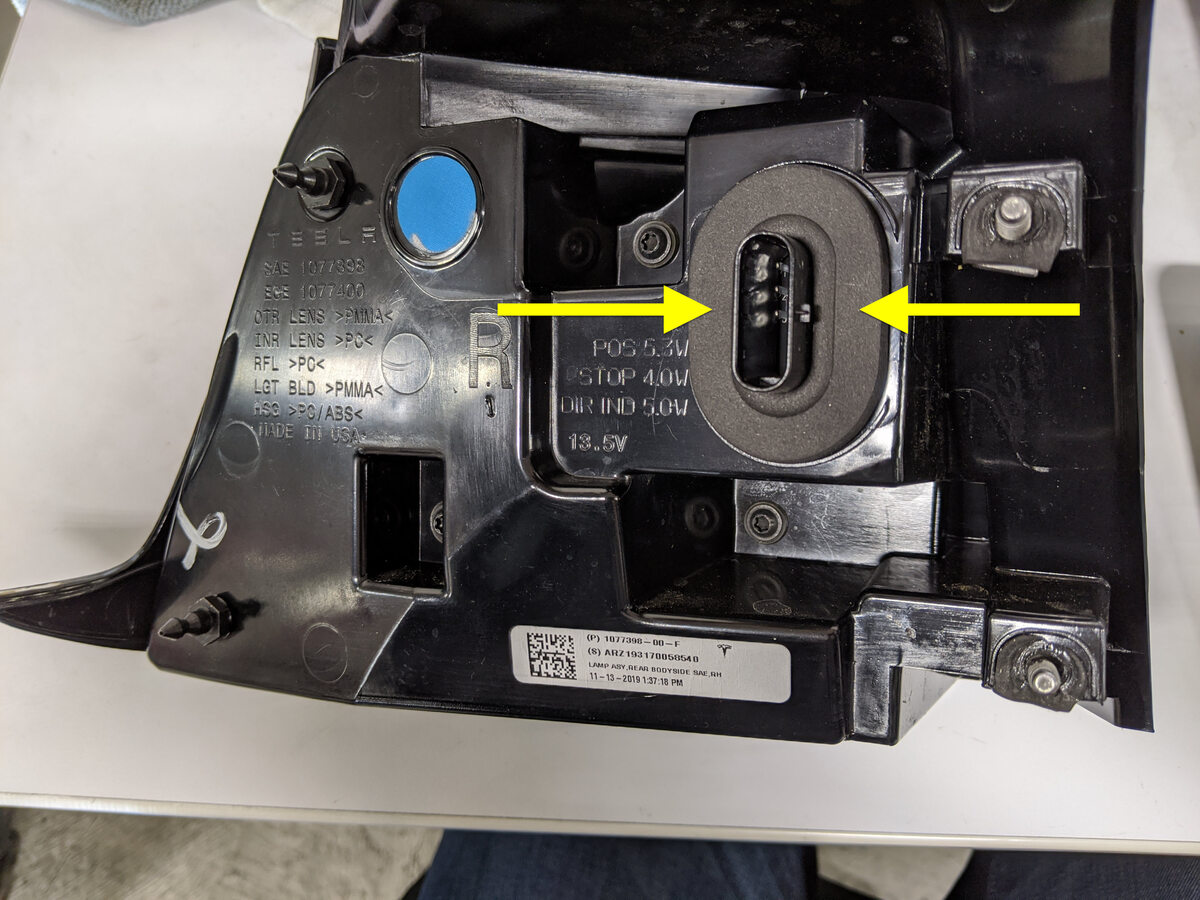

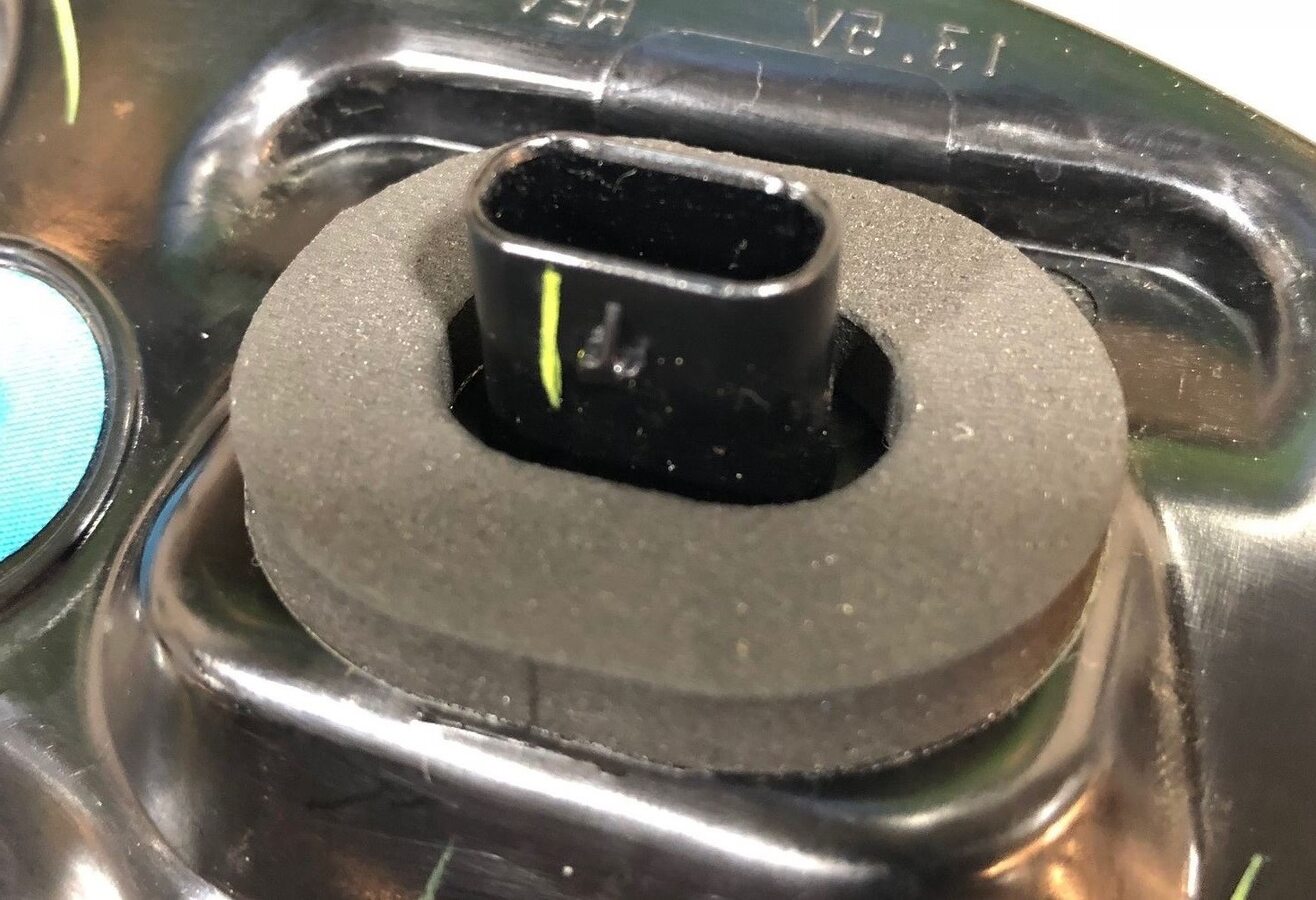

168. Remove RH bodyside lamp connector gasket
     注

     1x gasket



169. Install RH bodyside lamp connector gasket
     注

     1x gasket

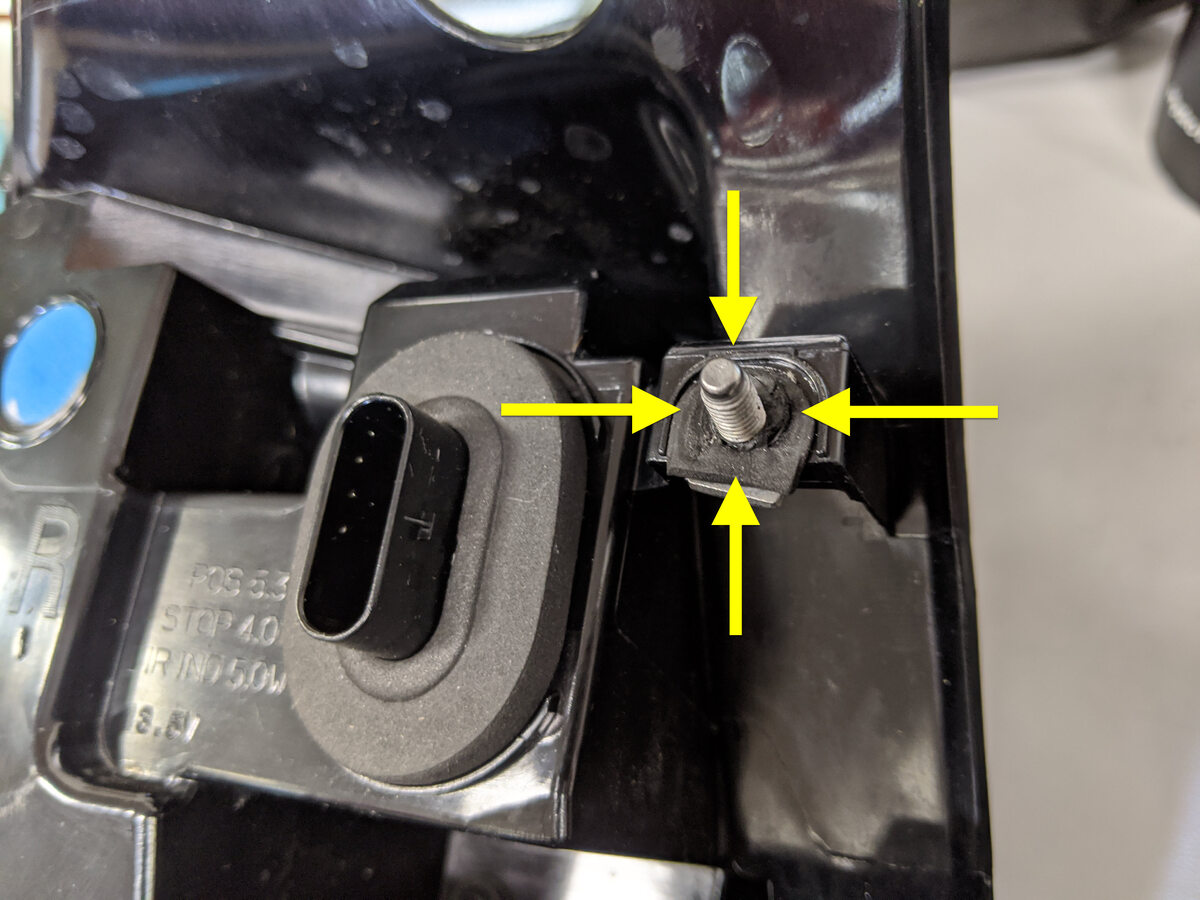

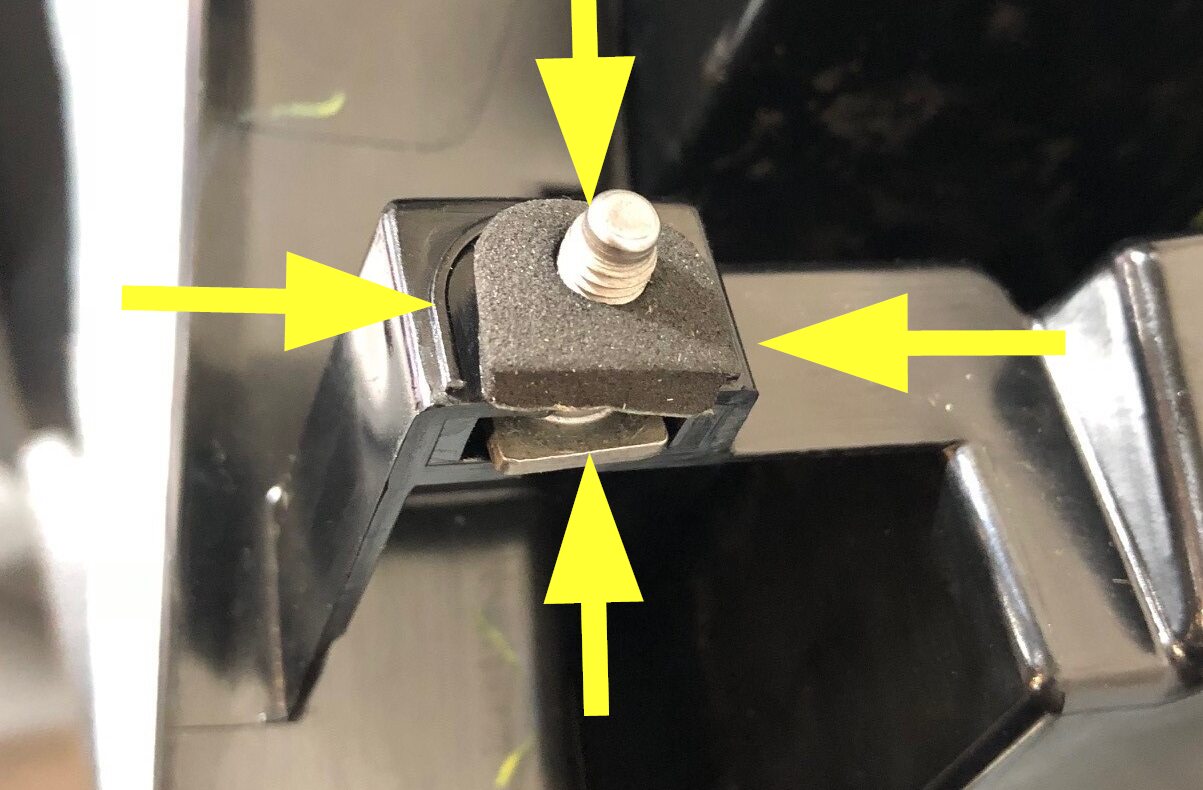

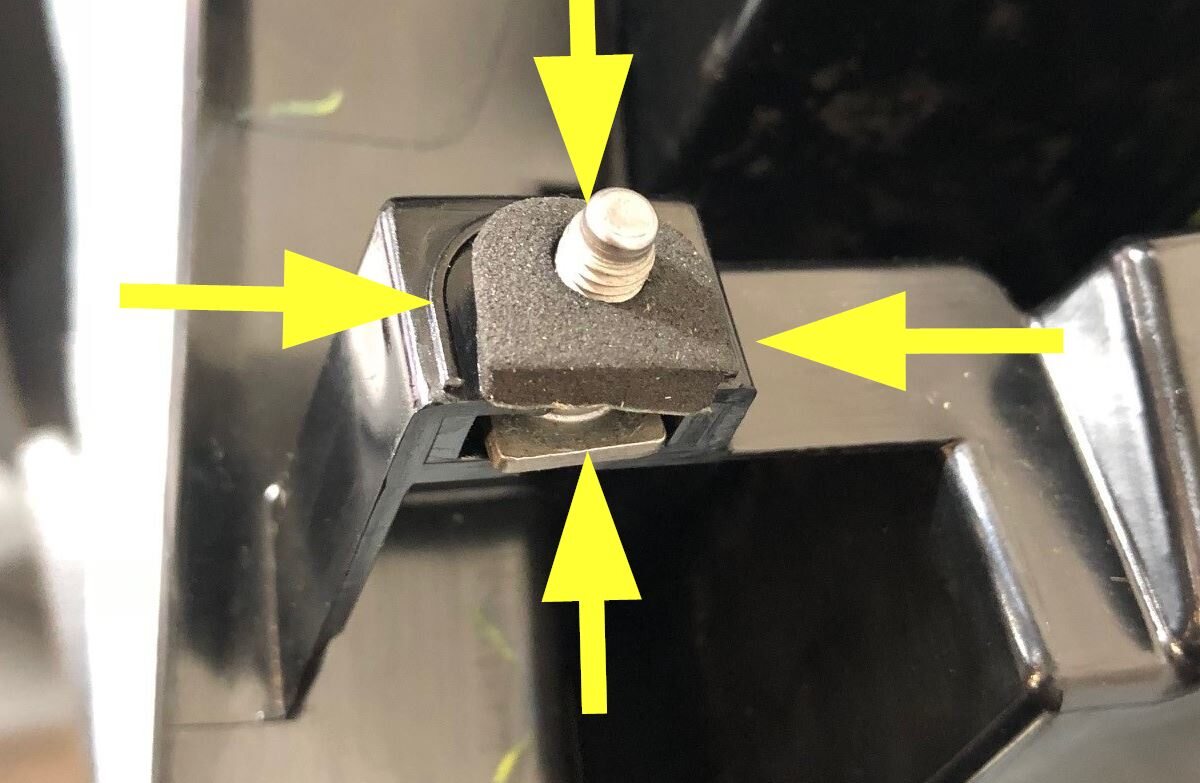

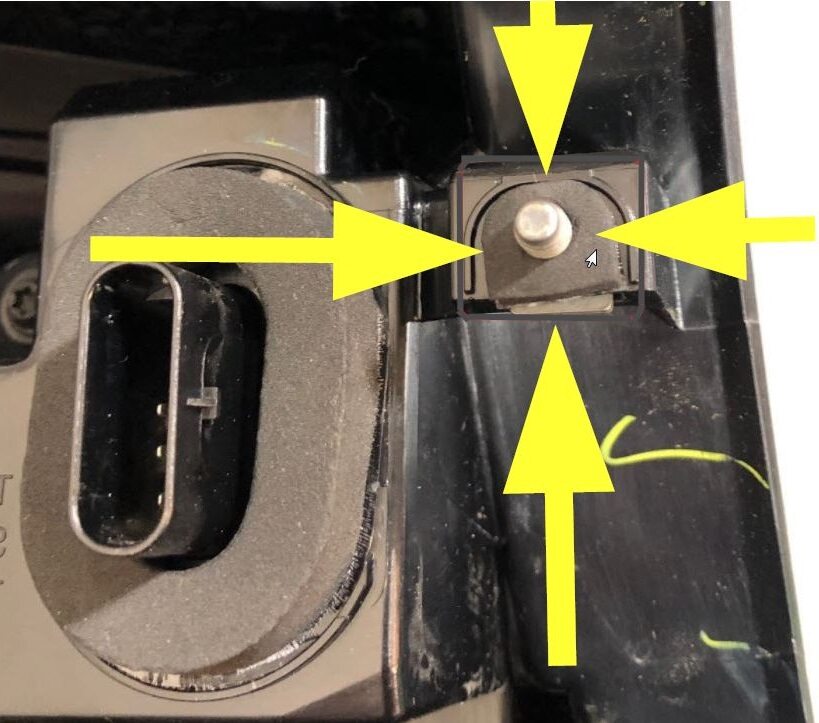

170. Remove upper T-stud gasket from RH bodyside lamp
     注

     1x gasket



171. Install upper T-stud gasket to RH bodyside lamp
     注

     1x gasket



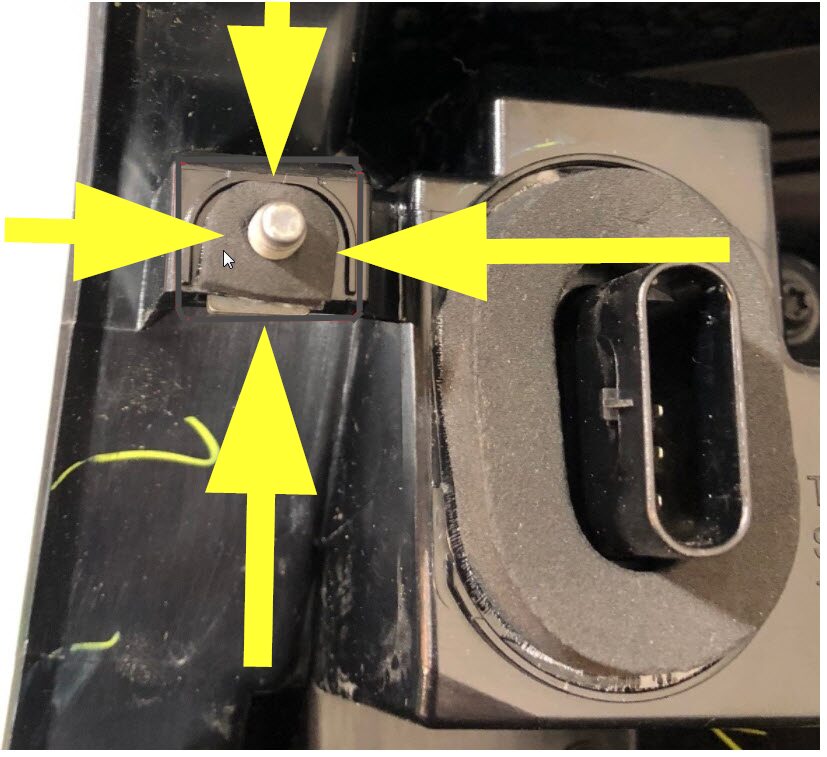

172. Remove lower T-stud gasket from RH bodyside lamp
     注

     1x gasket



173. Install lower T-stud gasket to RH bodyside lamp
     注

     1x gasket

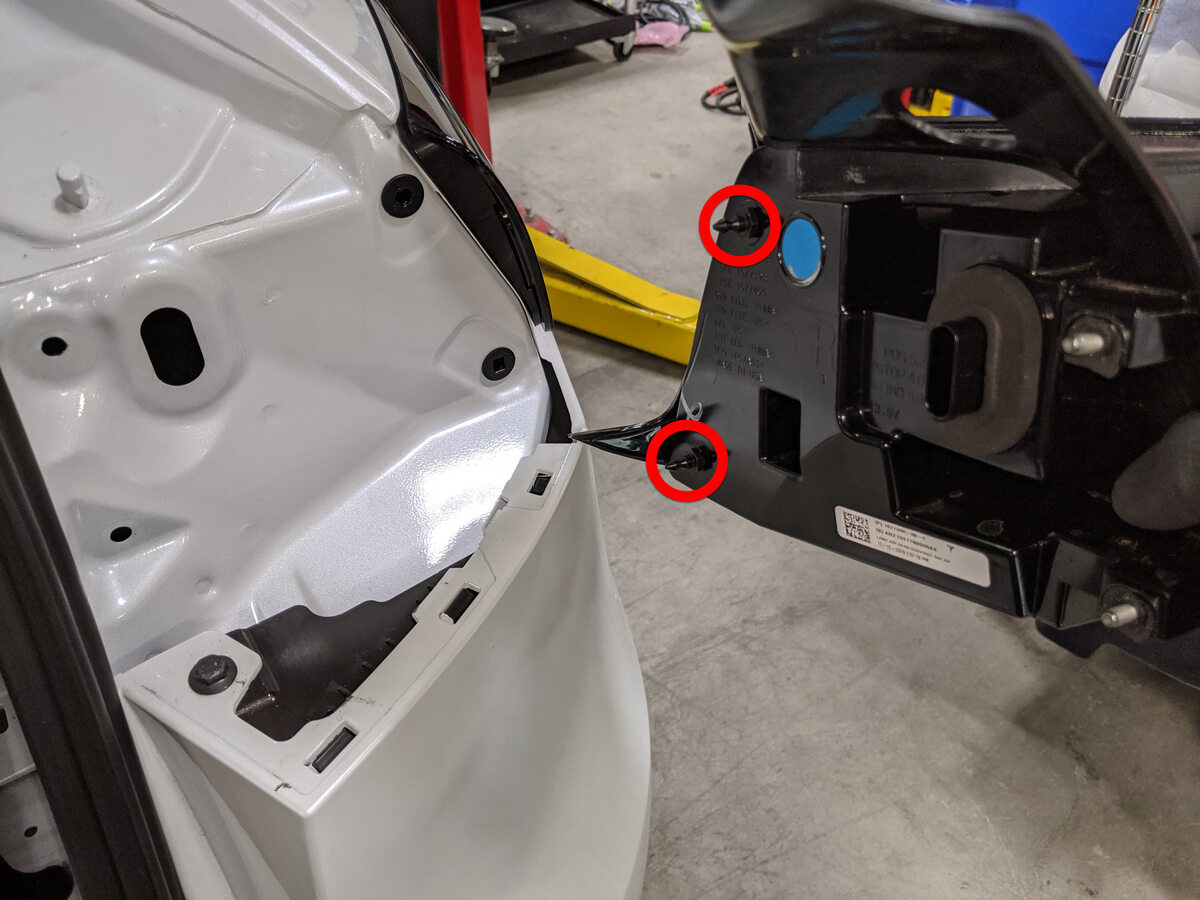

174. Install RH rear bodyside tail lamp assembly into vehicle
     注

     2x studs





175. Install nuts securing RH rear bodyside tail lamp assembly to vehicle
     注

     2x nuts, 8mm, 3.2 Nm



176. Connect the RH rear bodyside tail lamp assembly
     注

     1x connector, Engage locking tab



177. Install RH liftgate stop
     注

     1x liftgate stop, Align tab and push down to secure



178. Install bolt securing LH corner of rear fascia
     注

     1x bolt, 10mm, 4 Nm



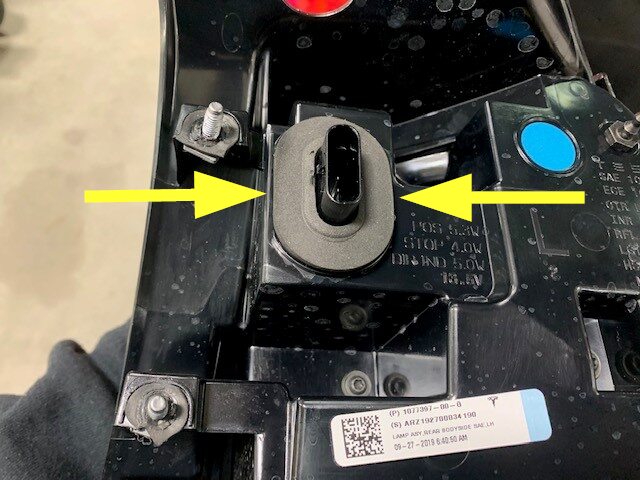

179. Remove LH bodyside lamp connector gasket
     注

     1x gasket



180. Install LH bodyside lamp connector gasket
     注

     1x gasket



181. Remove upper T-stud gasket from LH bodyside lamp
     注

     1x gasket



182. Install upper T-stud gasket to LH bodyside lamp
     注

     1x gasket



183. Remove lower T-stud gasket from LH bodyside lamp
     注

     1x gasket



184. Install lower T-stud gasket to LH bodyside lamp
     注

     1x gasket



185. Install LH rear bodyside tail lamp assembly into vehicle
     注

     2x studs





186. Install nuts securing LH rear bodyside tail lamp assembly to vehicle
     注

     2x nuts, 8mm, 3.2 Nm



187. Connect the LH rear bodyside tail lamp assembly
     注

     1x connector, Engage locking tab





188. Install LH liftgate stop
     注

     1x liftgate stop, Align tab and push down to secure



189. Install the LH body harness ground strap below LH tail lamp
     注

     1x bolt, 10mm, 10 Nm



190. Install logic connectors to charge port assembly
     注

     3x connectors, 1x red locking tab, 2x white locking tab
191. Install LH body harness clips around LH side trunk area
     注

     3x clips



192. Install connectors from LH body harness to charge port ECU
     注

     2x connectors



193. Connect LH side curtain air bag and liftgate power strut electrical connector to LH body harness
     注

     2x connectors



194. Install the LH body harness clips around upper C-pillar area
     注

     4x clips





195. Connect LH 2nd row retractor connector
     注

     1x connector, 2 stage locking connector, Engage the red locking tab when the connector is fully seated



196. Connect logic connector at LH 60 seat frame
     注

     1x connector



197. Install the LH body harness clips around the below C-pillar area
     注

     4x clips





198. Connect camera connector then install LH B-pillar applique to vehicle
     注

     2x connectors, 1x fir tree clip, 2x clips, Align B-Pillar applique into position and secure clips into body, Use caution not to damage the connectors







199. Install LH harness clips onto B-pillar area
     注

     6x clips



200. Connect the LH body harness connectors around lower B-pillar area
     注

     4x connectors, LH rear door harness, acceleration sensor, and LH seat belt



201. Install the LH harness ground strap around LH lower B-pillar area
     注

     1x bolt, 10mm, 10 Nm



202. Connect LH harness to RH body Harness
     注

     2x connector,1x clip,Engage locking tabs







203. Install LH body harness to RCM
     注

     1x connector



204. Install LH harness clips under LH front seat and RH lower B-pillar area
     注

     3x clips



205. Install securing clips LH body harness beiow LH front seat
     注

     3x clips





206. Install LH body harness clips to LH A-pillar
     注

     3x clips



207. Connect J5 body connector
     注

     1x connector, Fully seat connector then engage lock



208. Connect J2 body connector
     注

     1x connector, Fully seat connector then engage lock



209. Connect J4 body connector
     注

     1x connector, Fully seat connector then engage lock



210. Connect white connector X909 to front harness
     注

     1x connector



211. Connect headliner harness
     注

     1x connector



212. Install accelerator and brake pedal harness clips
     注

     4x clips

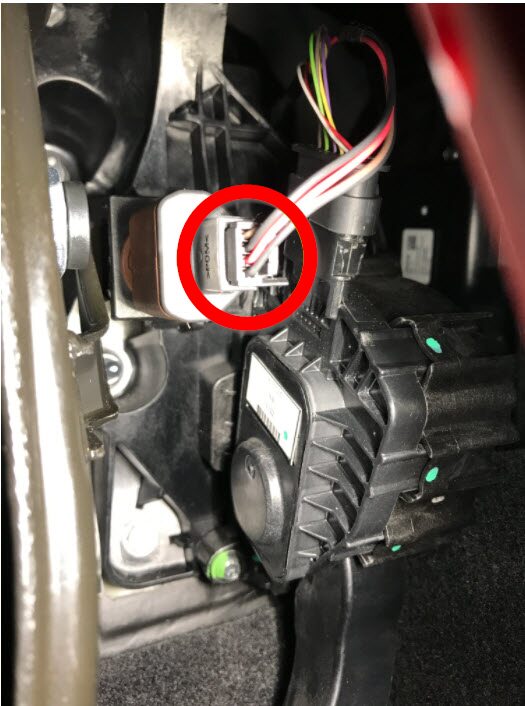

213. Connect accelerator pedal connector
     注

     1x connector, Engage locking tab



214. Connect brake switch connector
     注

     1x connector



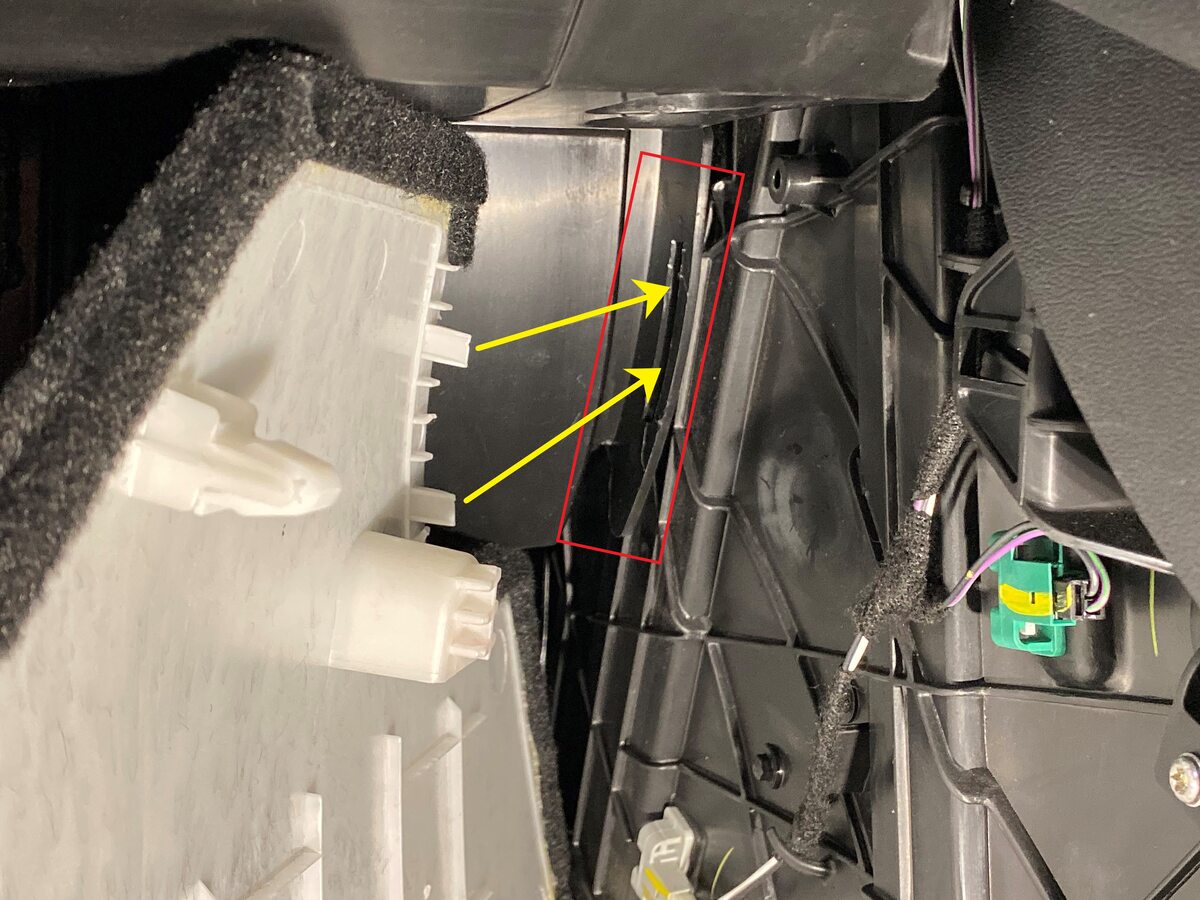

215. Install the LH footwell duct into HVAC module



216. Connect the driver knee air bag and install into vehicle
     注

     1x connector, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector





217. Install fasteners securing driver knee air bag to vehicle
     注

     4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 2x push clips









218. Install headliner to body
     注

     11x clips, Recommend assistance, Seat 2x clips at coat hooks when replacing headliner, Reseat primary seal at doors and liftgate to headliner





219. Install rear view mirror
     注

     1x bolt, T20, 2.5 Nm



220. Connect rear view mirror connector
     注

     1x connector



221. Install tether onto lower quad cam cover
     注

     1x hook, Guide hook through anchor on quad cam cover



222. Install quad camera lower cover
     注

     4x tabs, Install the tabs closest to the rearview mirror assembly and push the cover up to secure

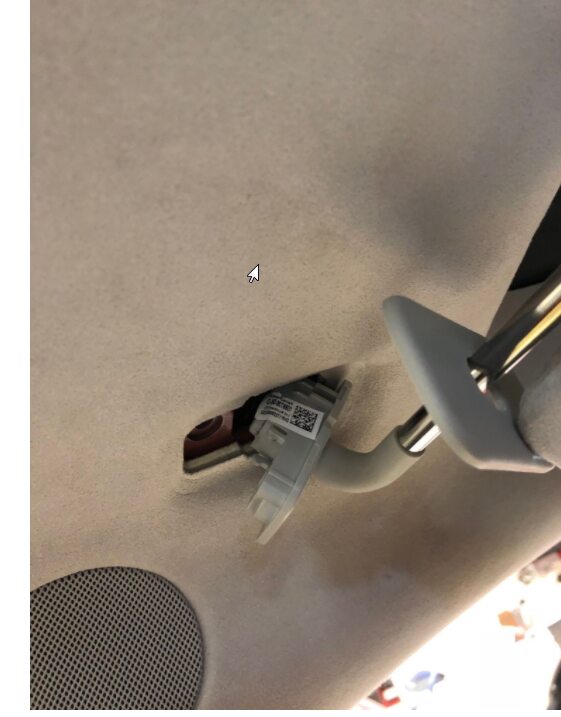

223. Connect RH sun visor connector
     注

     1x connector



224. Install RH sun visor into headliner area

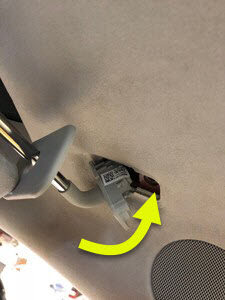

     注

     Fold sun visor to the closed and folded down position but do not latch in place



225. Install RH sun visor fastener
     注

     1x screw, T25, 3.5 Nm



226. Install RH sun visor bracket cover
     注

     4x clips



227. Install RH upper A-pillar trim
     注

     3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









228. Connect LH sunvisor connector
     注

     1x connector



229. Install LH sun visor into headliner area
     注

     Fold sun visor to the closed and folded down position but do not latch in place



230. Install LH sun visor fastener
     注

     1x screw, T25, 3.5 Nm



231. Install LH sun visor bracket cover
     注

     4x clips



232. Install LH upper A-pillar trim
     注

     3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









233. Install LH coat hook screw
     注

     1x screw, T20, 1.0 Nm



234. Close LH coat hook screw cover
     注

     1x locking tab



235. Push LH coat hook closed



236. Install RH coat hook screw
     注

     1x screw, T20, 1.0 Nm



237. Close RH coat hook screw cover
     注

     1x locking tab



238. Push RH coat hook closed





239. Install LH upper C-pillar trim
     注

     6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim









240. Position LH trunk side trim and install lower clips
     注

     1x push clips, 5x clips, Guide front clip stanchions around LH C-pillar





241. Connect 12V outlet and trunk switch connector and seat top edge of LH trunk side trim
     注

     6x clips, 2x connectors





242. Install LH trunk pocket bracket
     注

     1x push clip, 5x alignment tabs



243. Install LH load floor bracket
     注

     3x tabs, 2x clips





244. Install RH upper C-pillar trim
     注

     6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarterglass, Seat trunk seal to edge of trim









245. Install RH trunk side trim
     注

     1x push clip, 11x clips, Guide front clip stanchions around RH C-pillar







246. Install RH trunk pocket bracket
     注

     1x push clip, 5x alignment tabs



247. Install RH load floor bracket
     注

     3x tabs, 2x clips





248. Install front load floor

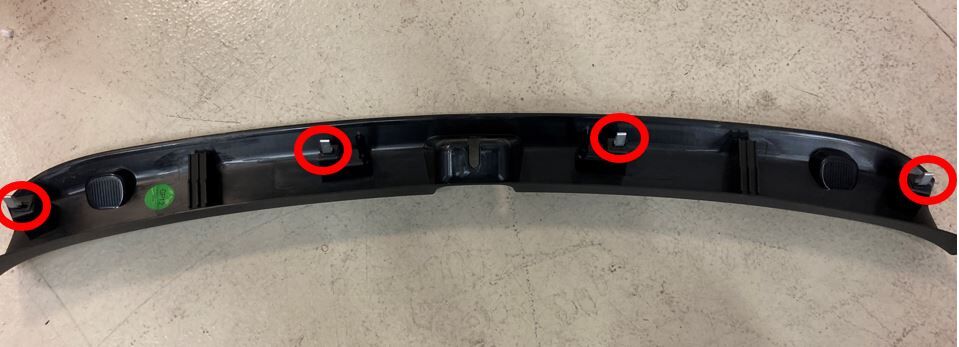

249. Install rear load floor



250. Install trunk sill trim
     注

     4x clips, Seat seal around edge of trim







251. Fold the 60 seat into vertical position
     注

     Remove seat back protection if necessary



252. Fold 40 seat into vertical position
     注

     Remove seat cushion protection

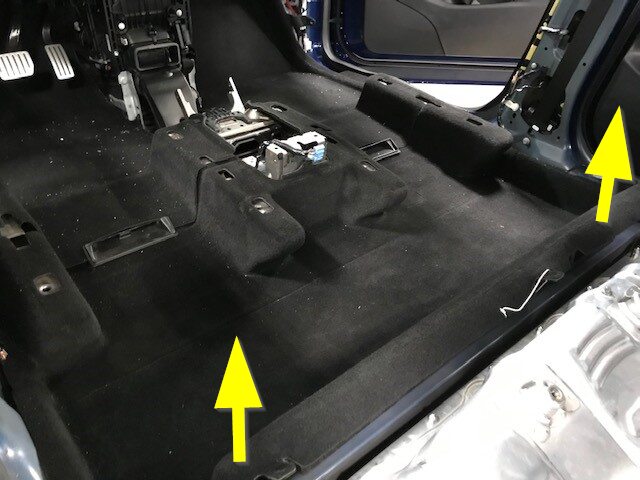

253. Install rear main cabin carpet to vehicle
     注

     Position rear main carpet to floorboard and slide forward, Ensure rear main carpet tucks beneath front main carpet and air duct









254. Install clips securing rear main cabin carpet to vehicle
     注

     3x push clips



255. Install rear floormat



256. Install LH front cabin carpet



257. Install clips securing the LH front cabin carpet to vehicle
     注

     2x clips

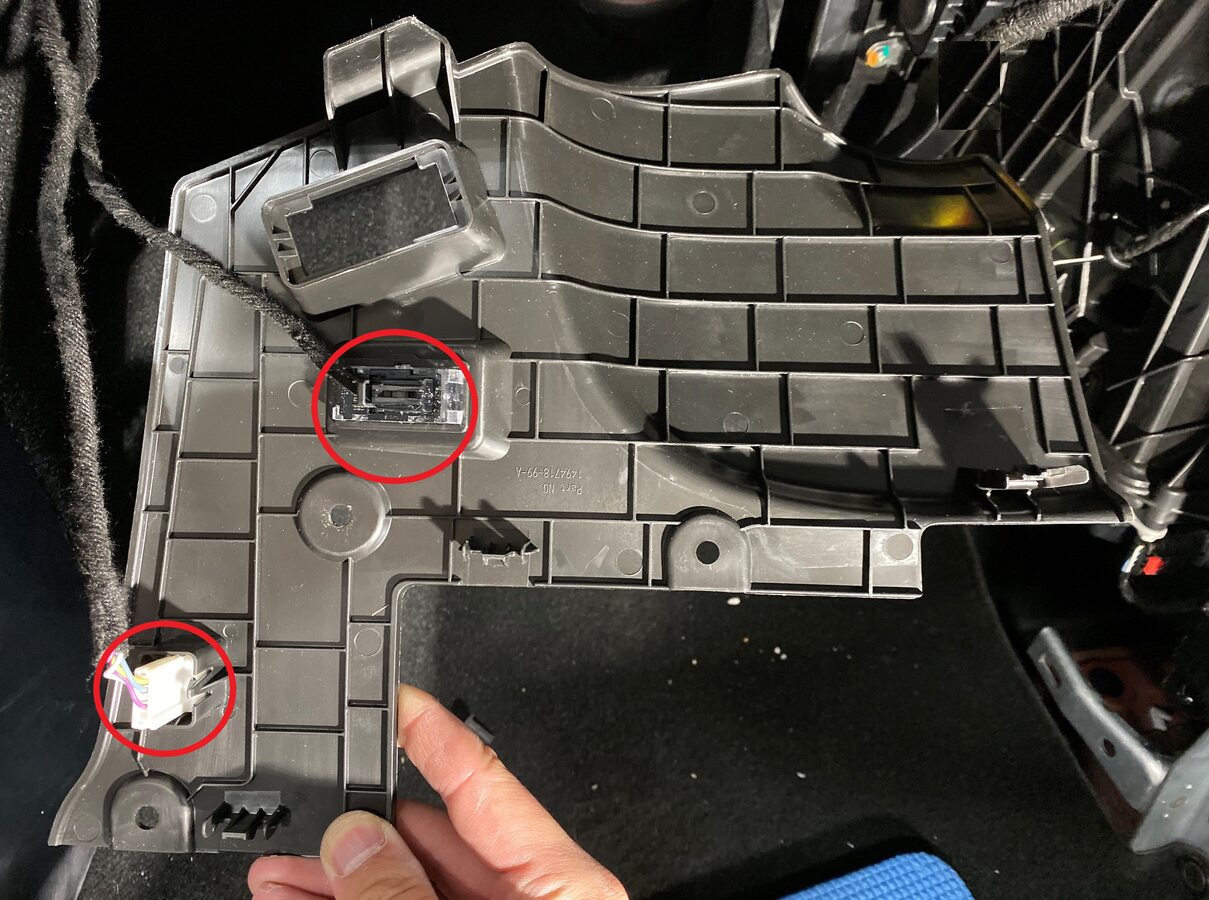

258. Install connectors to LH footwell cover and position for installation
     注

     3x tabs, 1x Ethernet connector, 1x puddle light connector







259. Install screw and clips securing LH footwell cover
     注

     1x screw, T20, 2.5 Nm, 2x push clips



260. Install the RH lower B-pillar assembly
     注

     6x clips, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips



261. Install clip securing RH lower B-pillar to body
     注

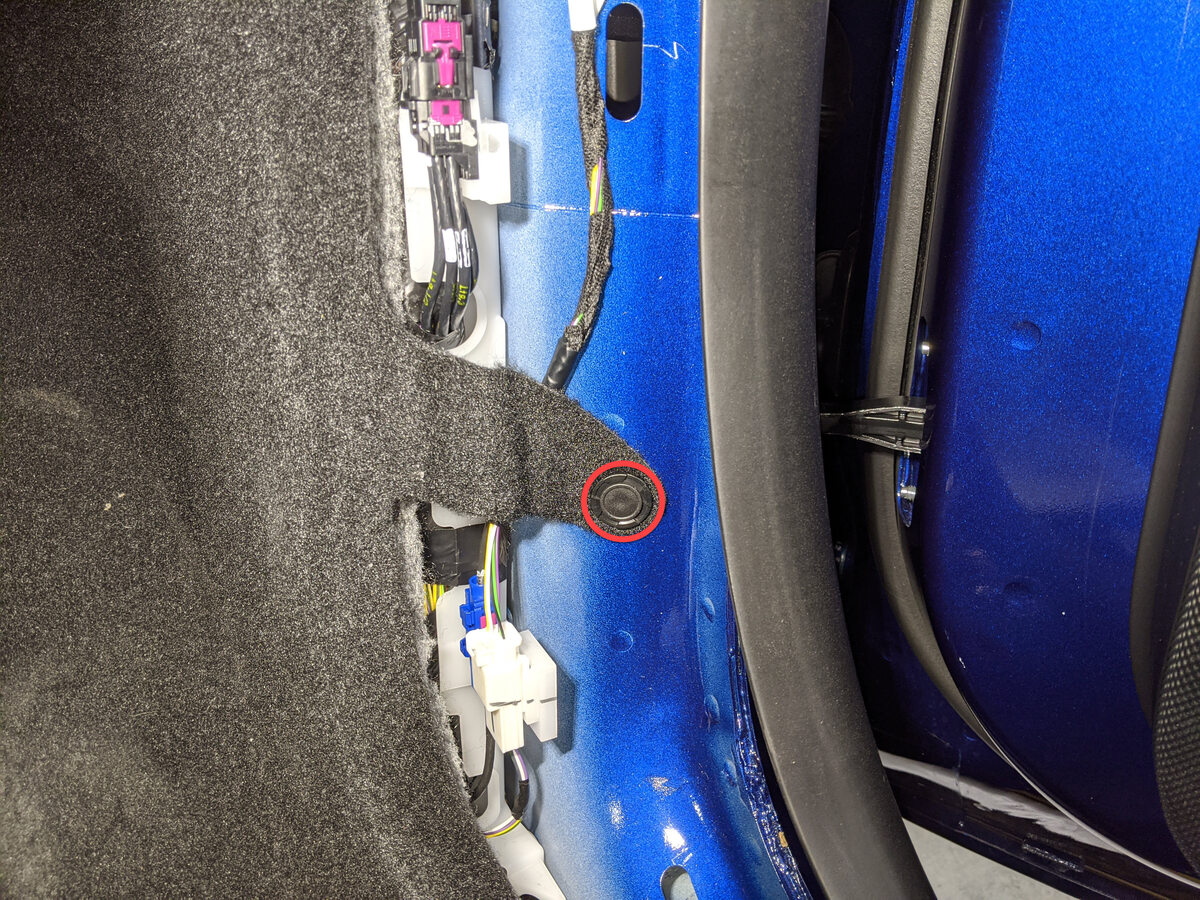

     1x push clip, Clip goes through B-pillar and rear cabin carpet



262. Install RH rear sill trim
     注

     5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of RH rear sill trim into trunk side trim and work your way forward securing clips





263. Install the RH upper B-pillar assembly
     注

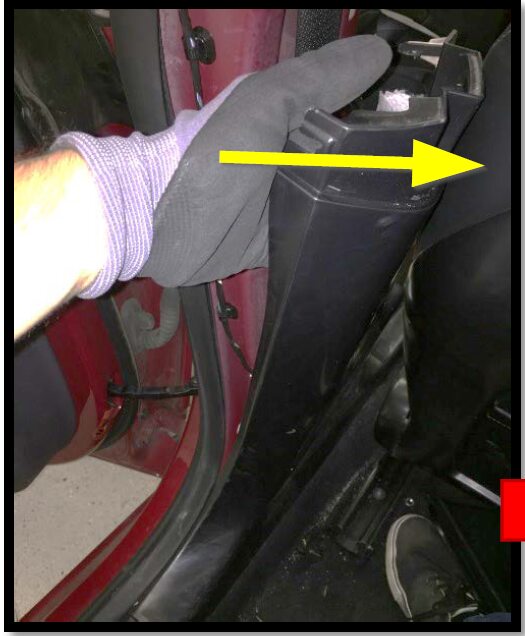

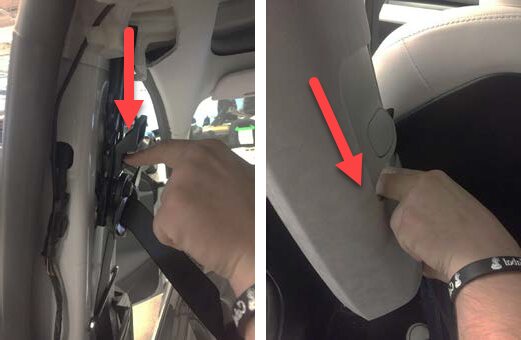

     4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim







264. Install the LH lower B-pillar assembly
     注

     6x clips, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips



265. Install clip securing LH lower B-pillar to body
     注

     1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



266. Install LH rear sill trim
     注

     5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of LH rear sill trim into trunk side trim and work your way forward securing clips, Trim part may slightly differ, by vehicle build location





267. Reseat LH rear door seal
     注

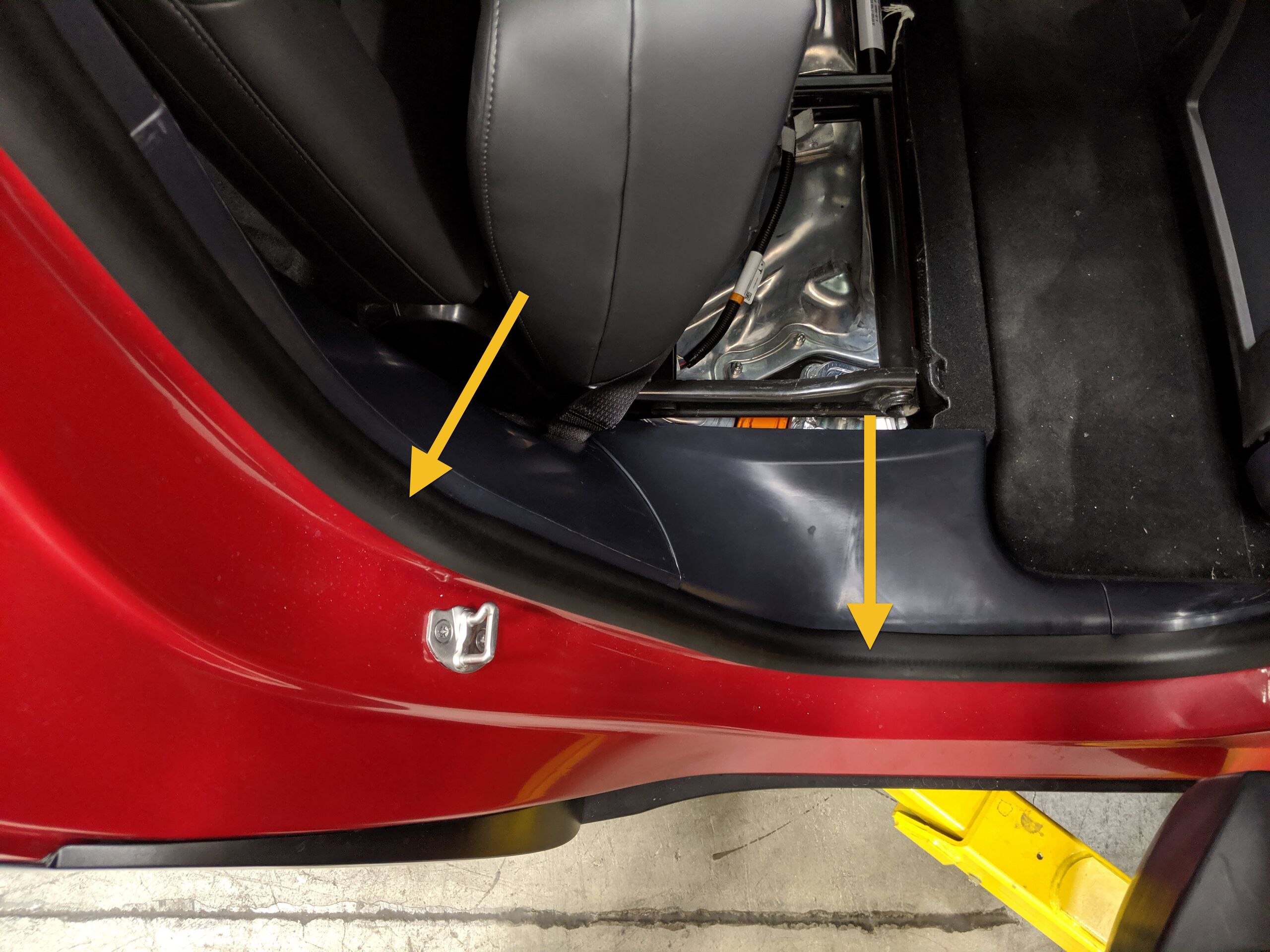

     Seat pillar and sill trim tabs underneath seal



268. Reposition 2nd row seat cushion
     注

     Slide cushion rearward then align with buckles and foam with seat rail, Make sure cushion is fully seated with push & pull test



269. Install the LH upper B-pillar assembly
     注

     4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim







270. Install center console onto vehicle
     注

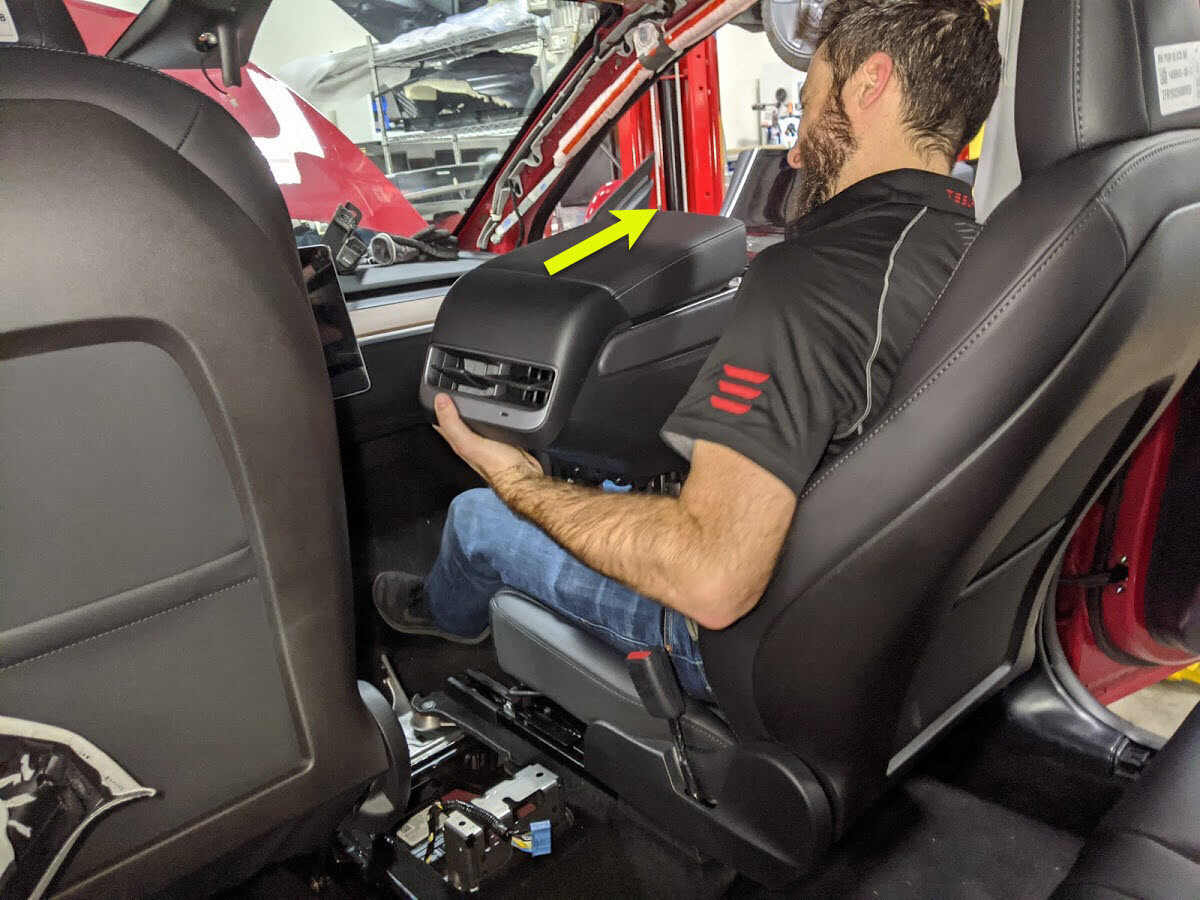

     Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place



271. Connect harness at right front of center console
     注

     1x USB connector



272. Connect harness to rear of center console
     注

     1x connector



273. Install RH front exterior hardware to center console
     注

     2x bolts, 10mm, 7 Nm



274. Install RH console side panel carpet
     注

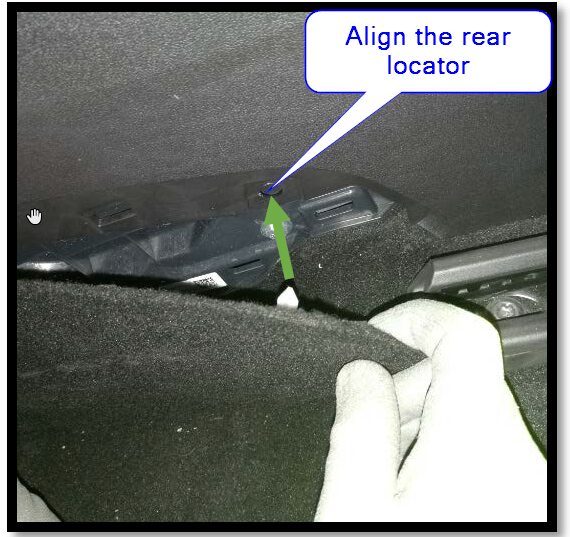

     12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install





275. Install RH rear exterior hardware to center console
     注

     1x bolt, 10mm, 7 Nm



276. Install LH rear exterior hardware to center console
     注

     1x bolt, 10mm, 7 Nm



277. Install console lower rear panel
     注

     5x clips



278. Install LH front exterior hardware to center console
     注

     2x bolts, 10mm, 7 Nm



279. Install LH console side panel carpet
     注

     11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install









280. Install LH front seat into vehicle
     注

     Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim





281. Secure LH front seat harness under LH front cabin carpet



282. Install LH front seat harness along LH front sill panel harness bracket
     注

     5x clips



283. Install LH front seat harness onto LH footwell support bracket
     注

     2x clips





284. Connect LH front seat harness to VC left
     注

     1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated





285. Fully seat LH front cabin carpet



286. Install clip securing LH front cabin carpet to body



287. Install LH lower A-pillar trim
     注

     6x clips, 2 locating pins, Align front locating pin first



288. Install clip securing LH lower A-pillar trim
     注

     1x push clip



289. Install LH mid A-pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim



290. Reseat LH front door seal along lower A-pillar trim



291. Install RH front seat into vehicle
     注

     Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim





292. Secure RH front seat harness under RH front cabin carpet



293. Install RH front seat harness along plastic guide
     注

     5x clips



294. Install RH front seat harness onto RH footwell support bracket
     注

     2x retaining clips





295. Connect RH front seat harness to VC right
     注

     1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated





296. Fully seat RH front cabin carpet



297. Install clip securing RH front cabin carpet to body
     注

     1x clip



298. Install RH lower A-pillar trim
     注

     6x clips, 2x locating pins, Align front locating pin first



299. Install clip securing RH lower A-pillar trim
     注

     1x clip



300. Install RH mid A-pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim



301. Reseat RH front door seal along lower A-pillar trim



302. Connect first responder loop and 12V negative terminal
     注

     1x nut, 10mm, 6 Nm, 1x connector, Engage locking tab, Connect FRL first before connecting 12V to avoid damage to car computer





303. Install rear apron
     注

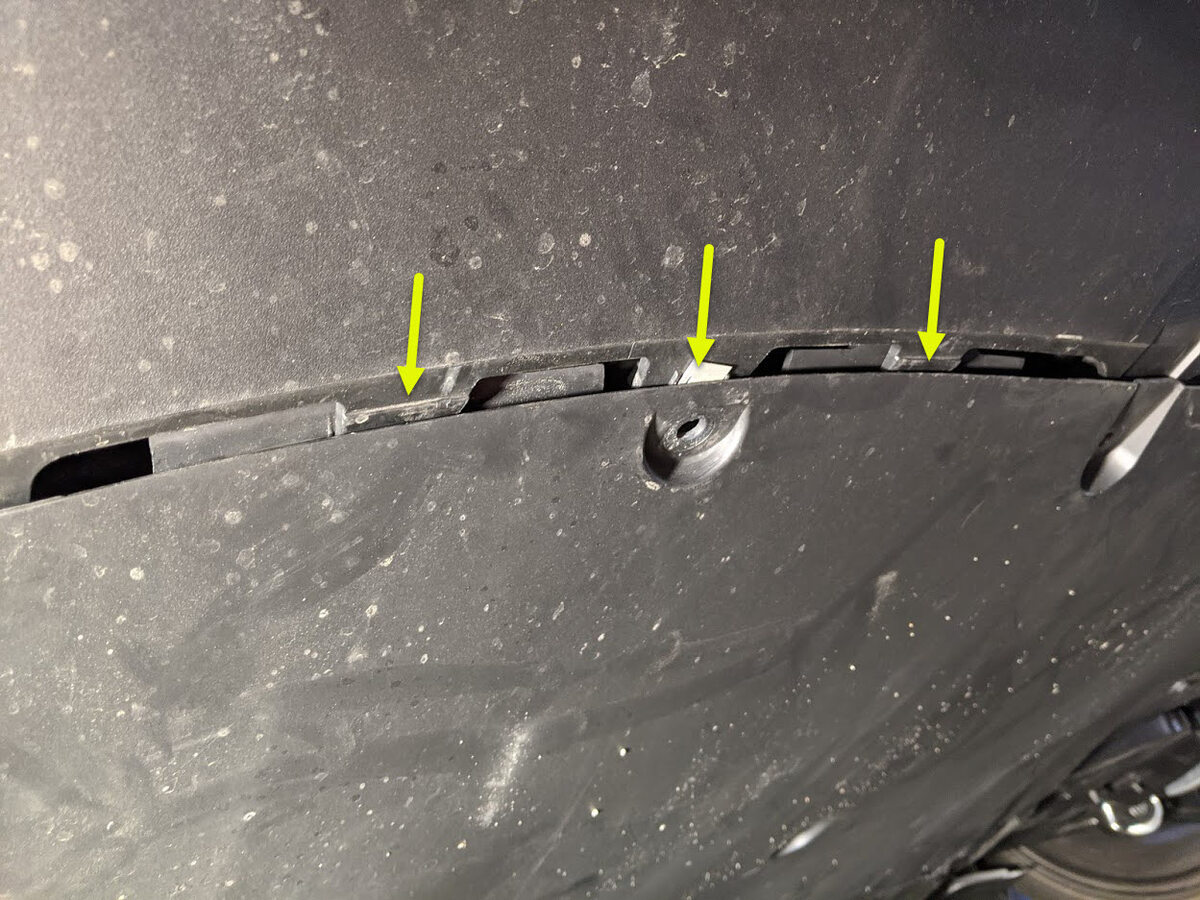

     14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





304. Close hood
305. Move LH front seat backward
306. Install LH front seat front fasteners
     注

     2x patch bolts, T45P, 33.5 Nm, Install new patch bolts



307. Move LH front seat forward
308. Install LH front seat belt retractor to seat
     注

     Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test



309. Install LH front seat rear fasteners
     注

     2x patch bolts, T45P, 33.5 Nm, Install new patch bolts



310. Move LH front seat to original position
311. Move RH front seat backward
312. Install RH front seat front fasteners
     注

     2x patch bolts, T45P, 33.5 Nm, Install new patch bolts



313. Move RH front seat forward
314. Install RH front seat belt retractor to seat
     注

     Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test



315. Install RH front seat rear fasteners
     注

     2x patch bolts, T45P, 33.5 Nm, Install new patch bolts



316. Move RH front seat to original position
317. Close liftgate
318. Raise all four windows
319. Close all four doors
     注

     If 12V is powered up, Unlatch rear doors before closing
