饰板 - C 柱 - 下 - LH(七座)(拆卸和更换)

校正代码 15180522 0.06 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open the LH doors and lower all the windows.
  2. Move the driver seat fully forward.
  3. Slide and tilt the LH 2nd row seat fully forward.
  4. Partially remove the lower portion of the LH rear door seal.
  5. Release the clips (x8) that attach the LH lower C-pillar trim to the vehicle, and then remove the trim from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    The rear edge is mated with a groove in the trunk side trim.
    Informational PurposesAn informational icon, calling your attention

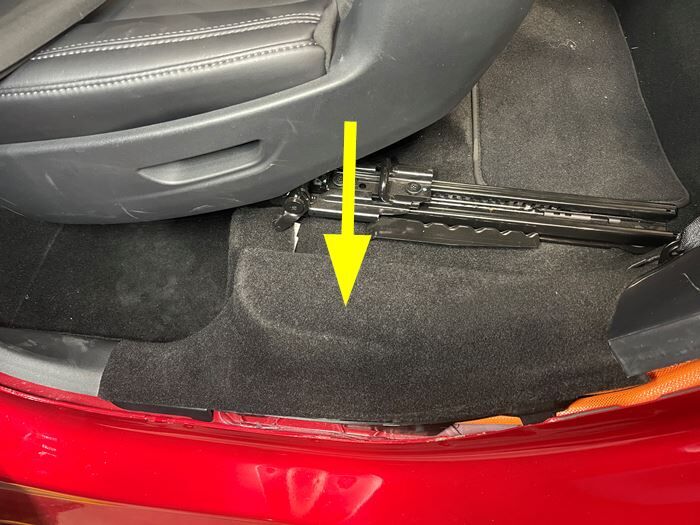

    Release the clips at the front of the LH rear sill trim, and then work towards the rear of sill trim.

安装

  1. Position the LH lower C-pillar trim to the vehicle, and then install the clips (x8) that attach the trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    The rear edge is mated with a groove in the trunk side trim.

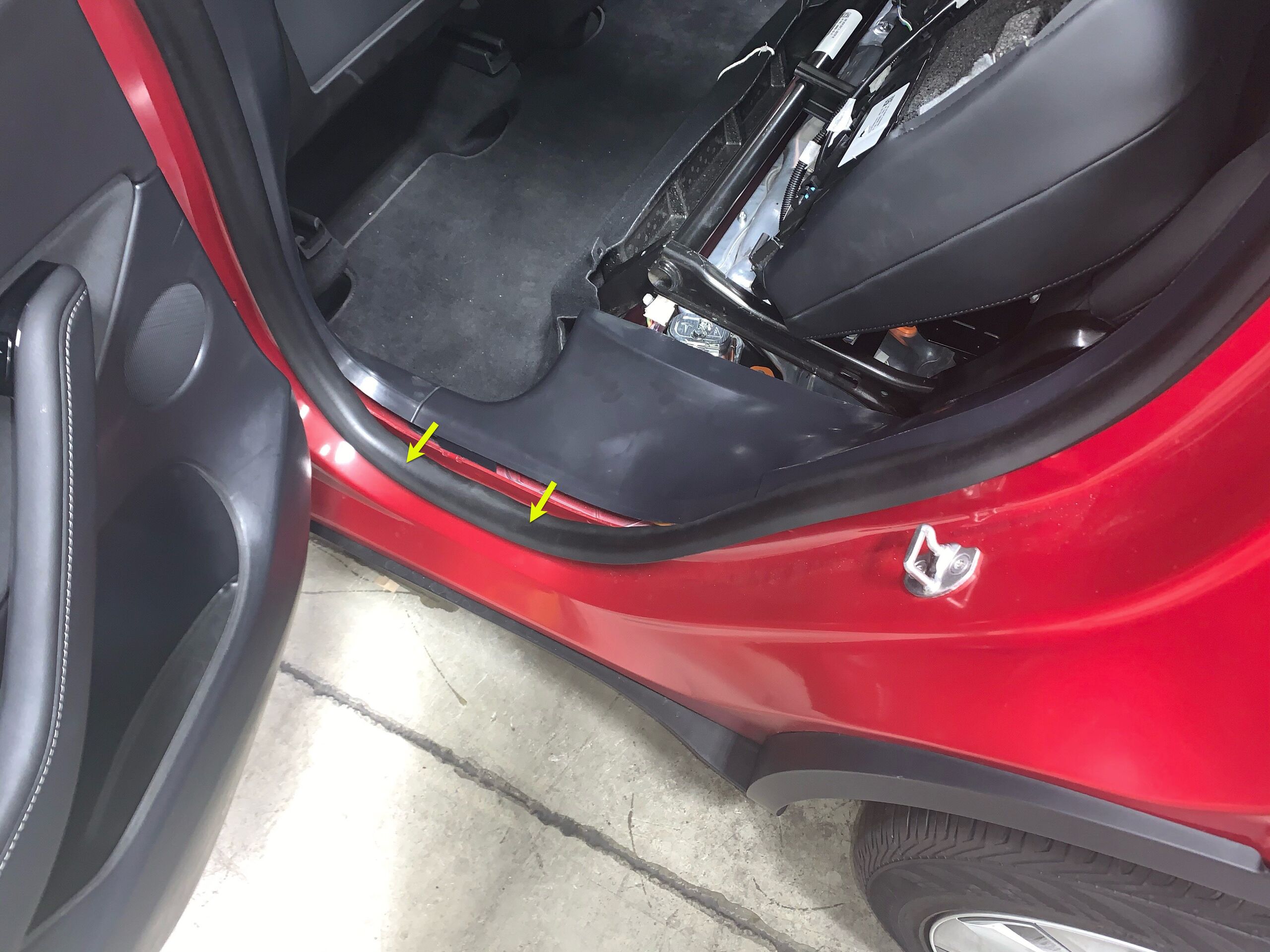

  2. Reseat the LH rear door seal.
    Informational PurposesAn informational icon, calling your attention
    Seat the pillar and sill trim tabs underneath the seal.
  3. Move the LH 2nd row seat to the original position.
  4. Move the driver seat to the original position.
  5. Raise all the windows and close the LH doors.
