校正代码 16102120 0.65 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Open all four doors
2. Lower all four windows
3. Open hood

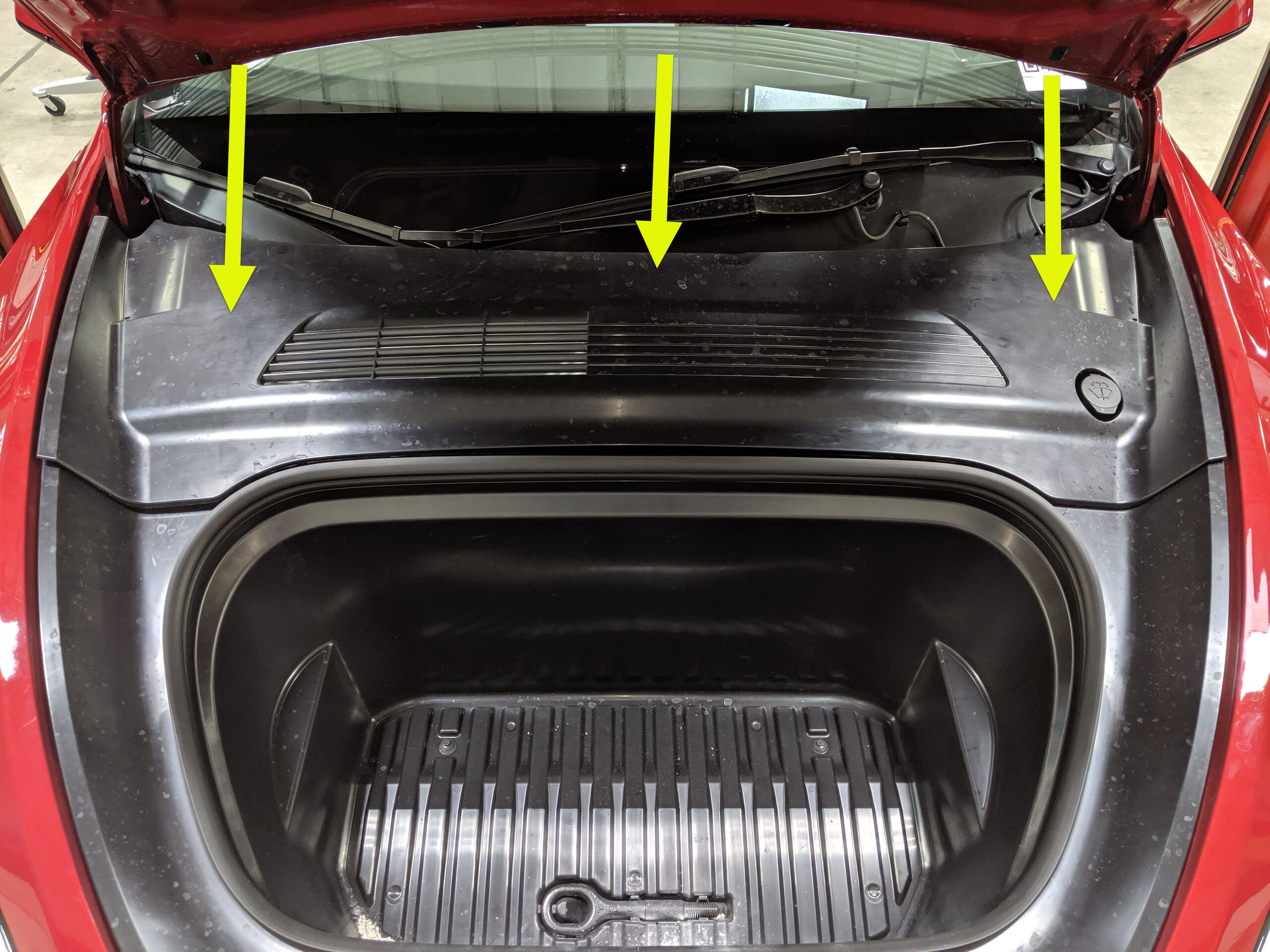

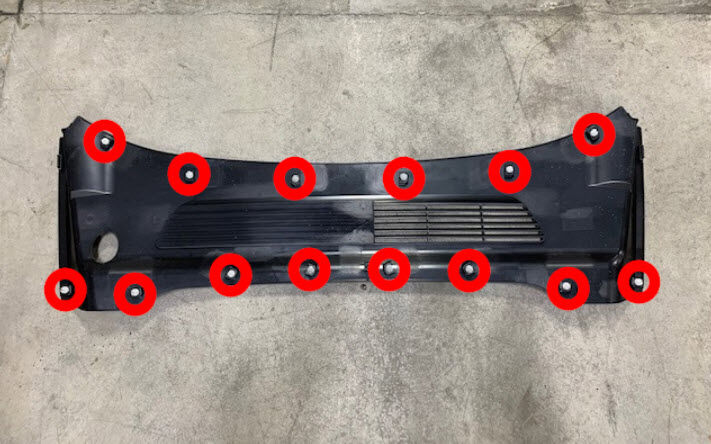

4. Remove rear apron
   注

   14x clips

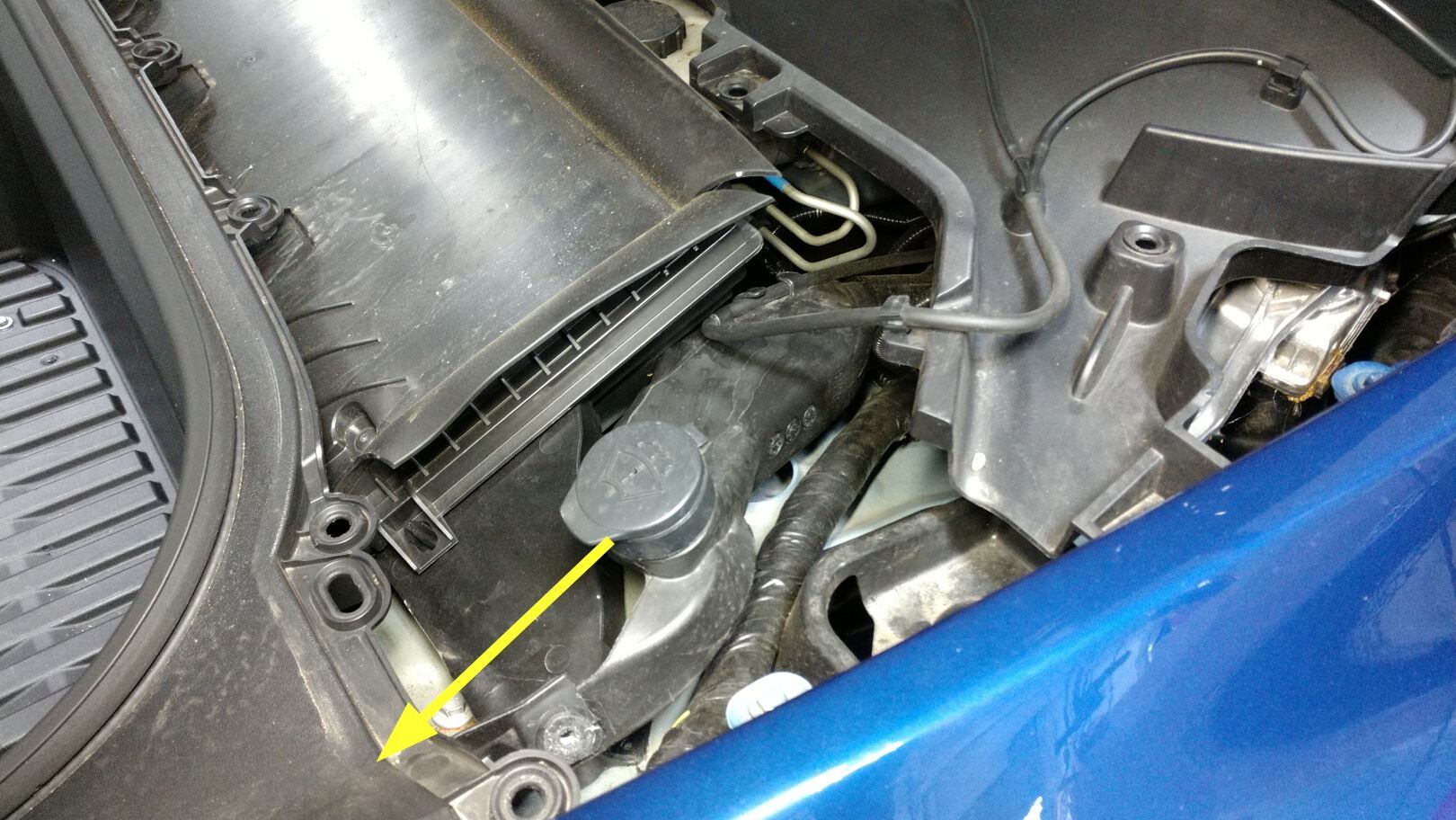

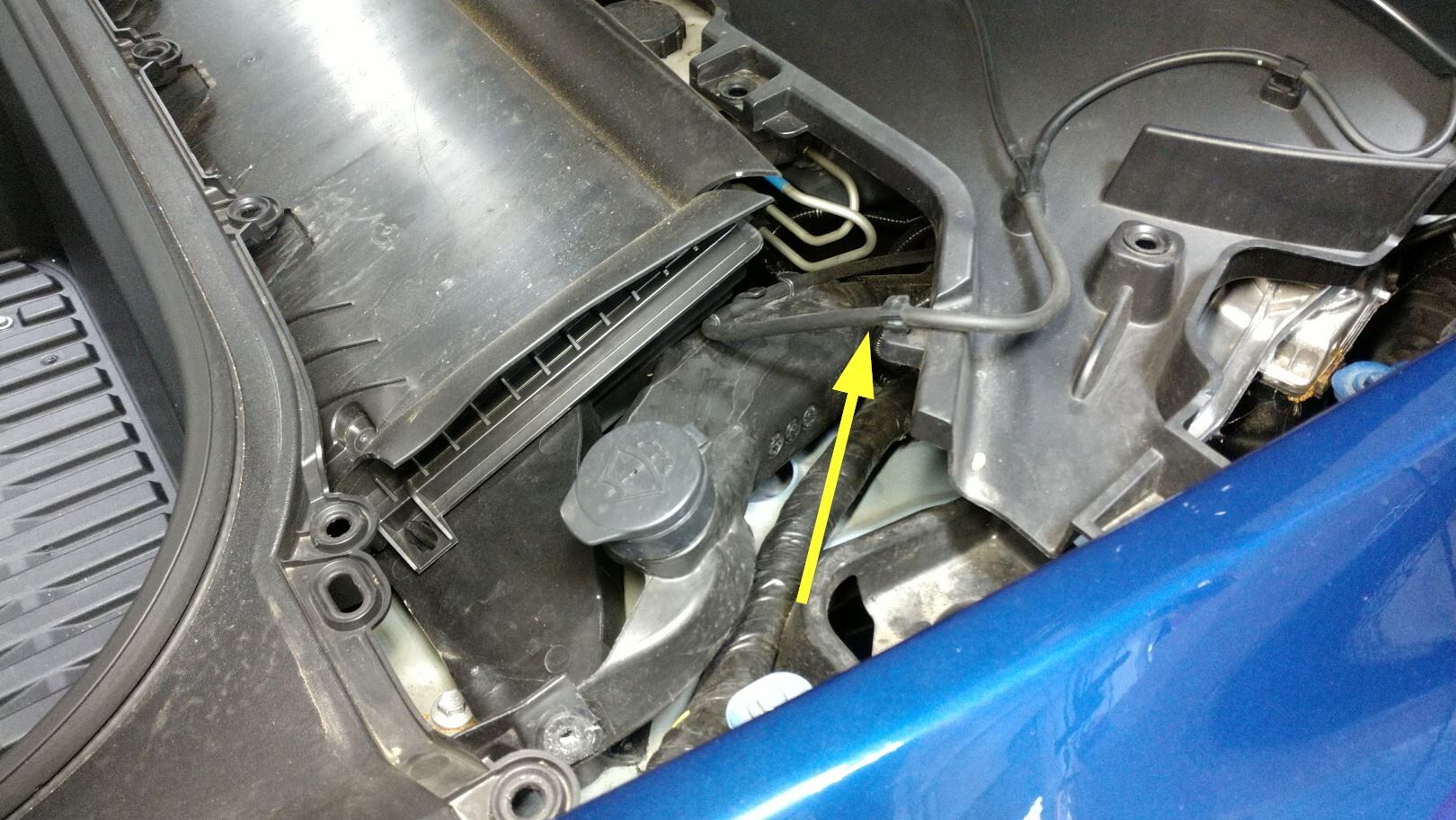

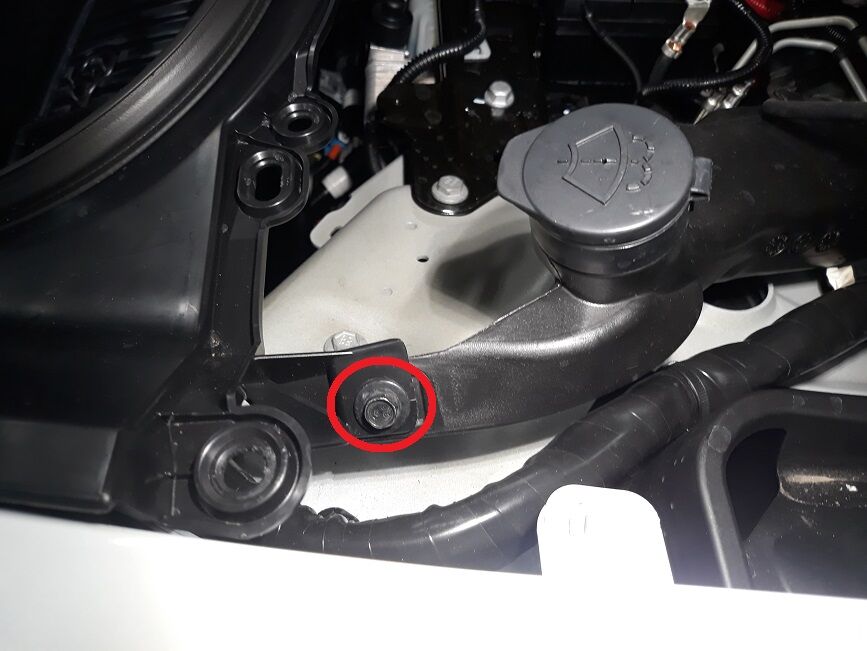

5. Remove bolt securing frunk to washer fluid reservoir neck
   注

   1x bolt, 10mm, 5 Nm

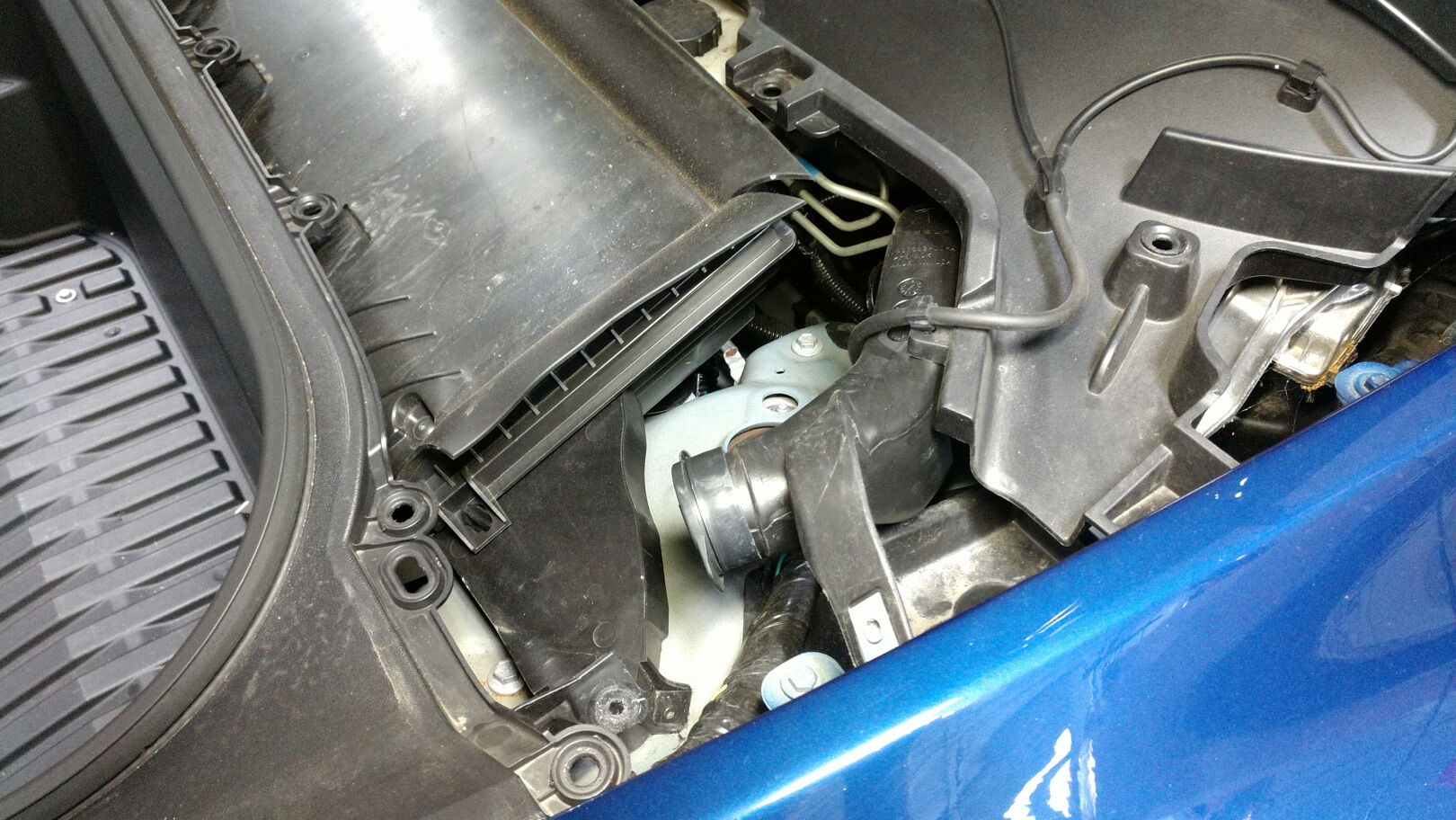

6. Release washer tank neck from washer tank and set aside
   注

   1x O-ring, No need to remove hose from neck





7. Remove HEPA filter assembly
   注

   2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, then lift up to clear frunk assembly







8. Move LH front seat forward
9. Move RH front seat forward

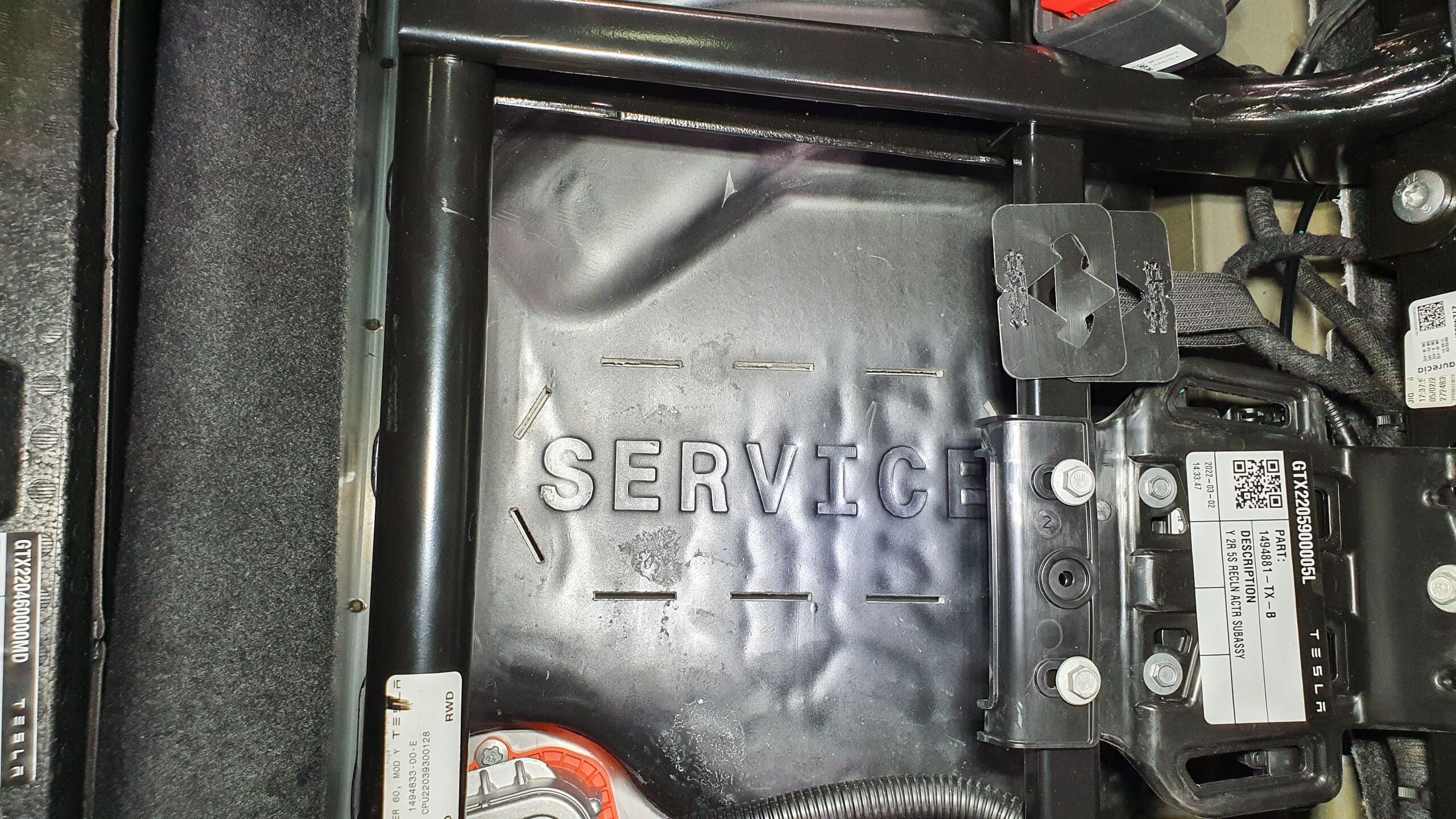

10. Remove 2nd row seat cushion
    注

    1x connector, Lift front edge of seat cushion upward to release foam from frame

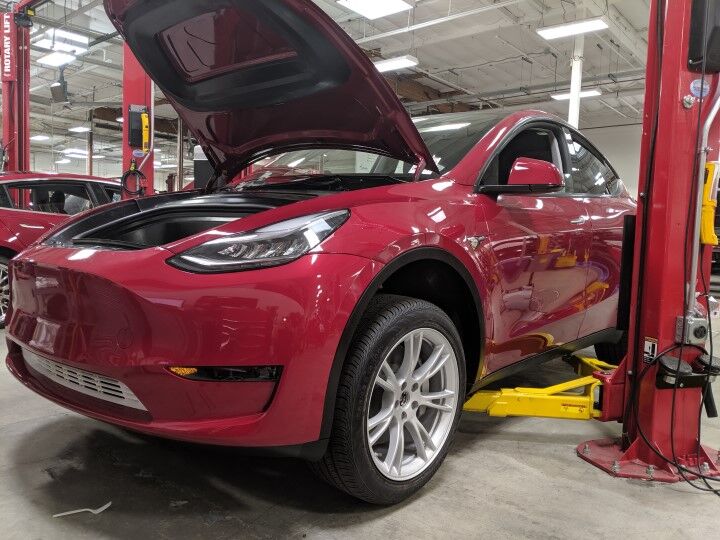

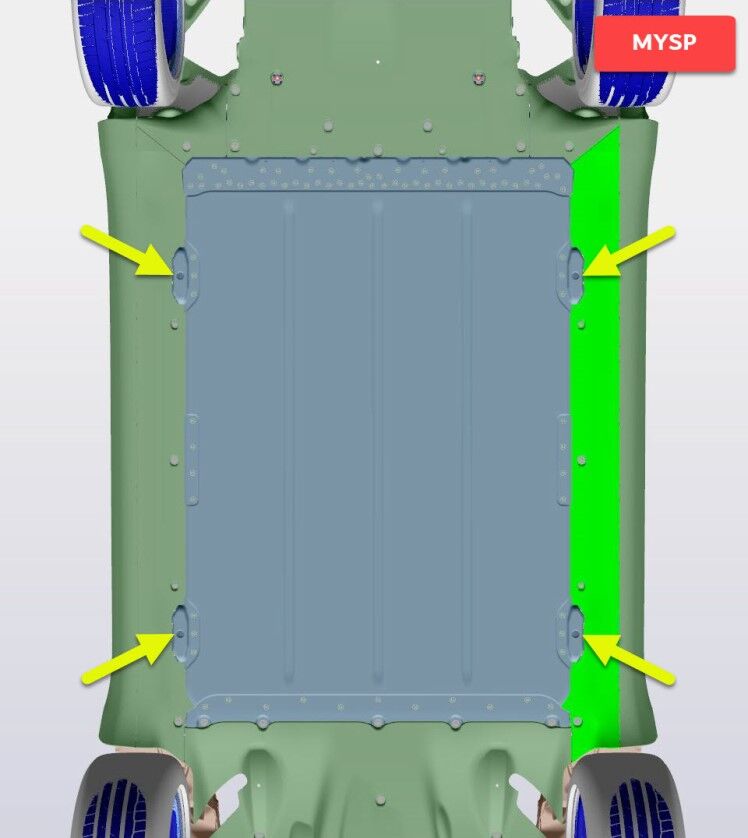

11. Raise and support vehicle
    注

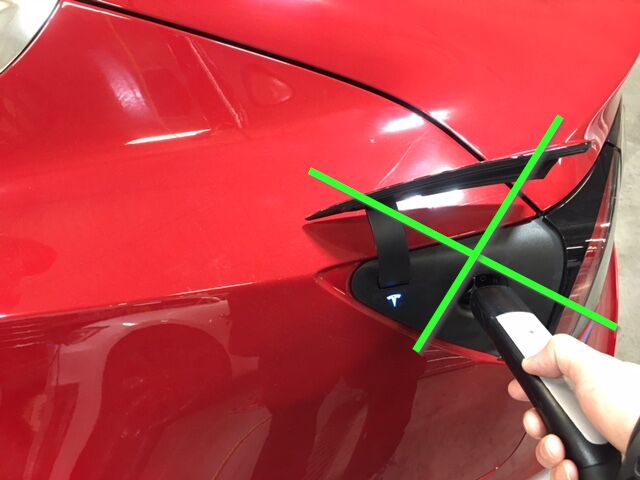

    Ensure vehicle is not charging, Note the MYSP lifting points are more narrow than the MY









12. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

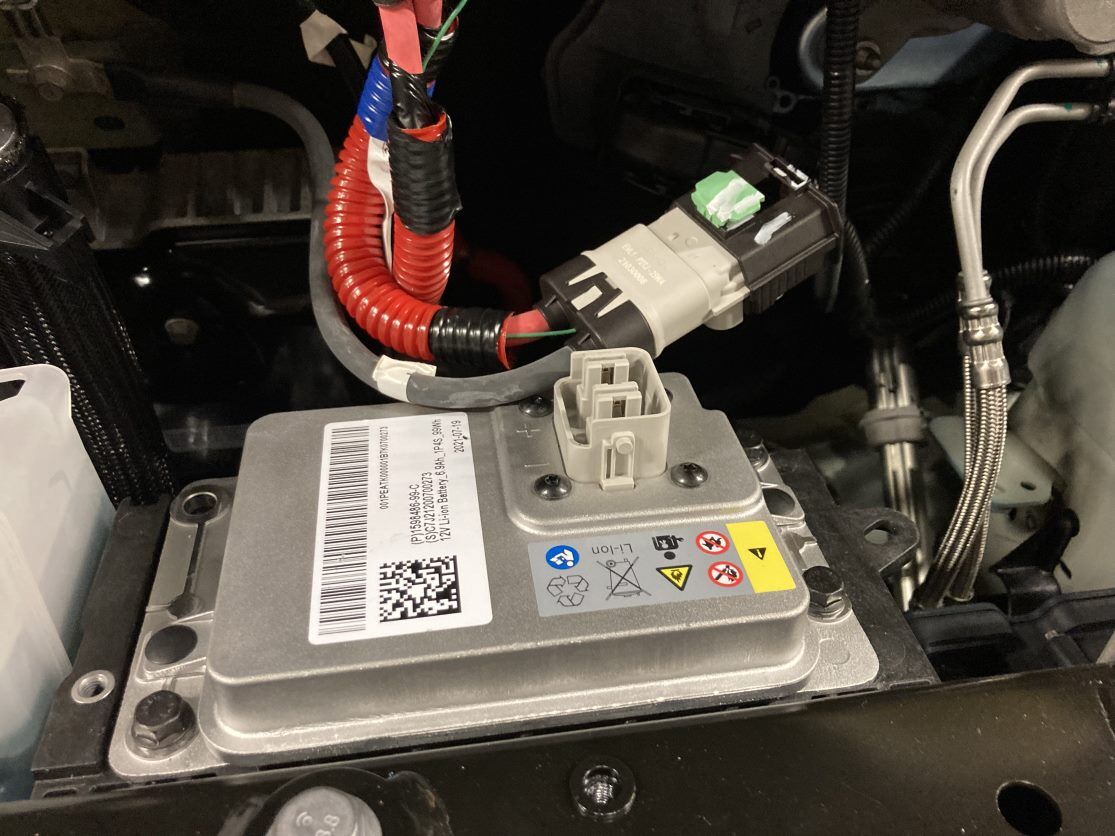

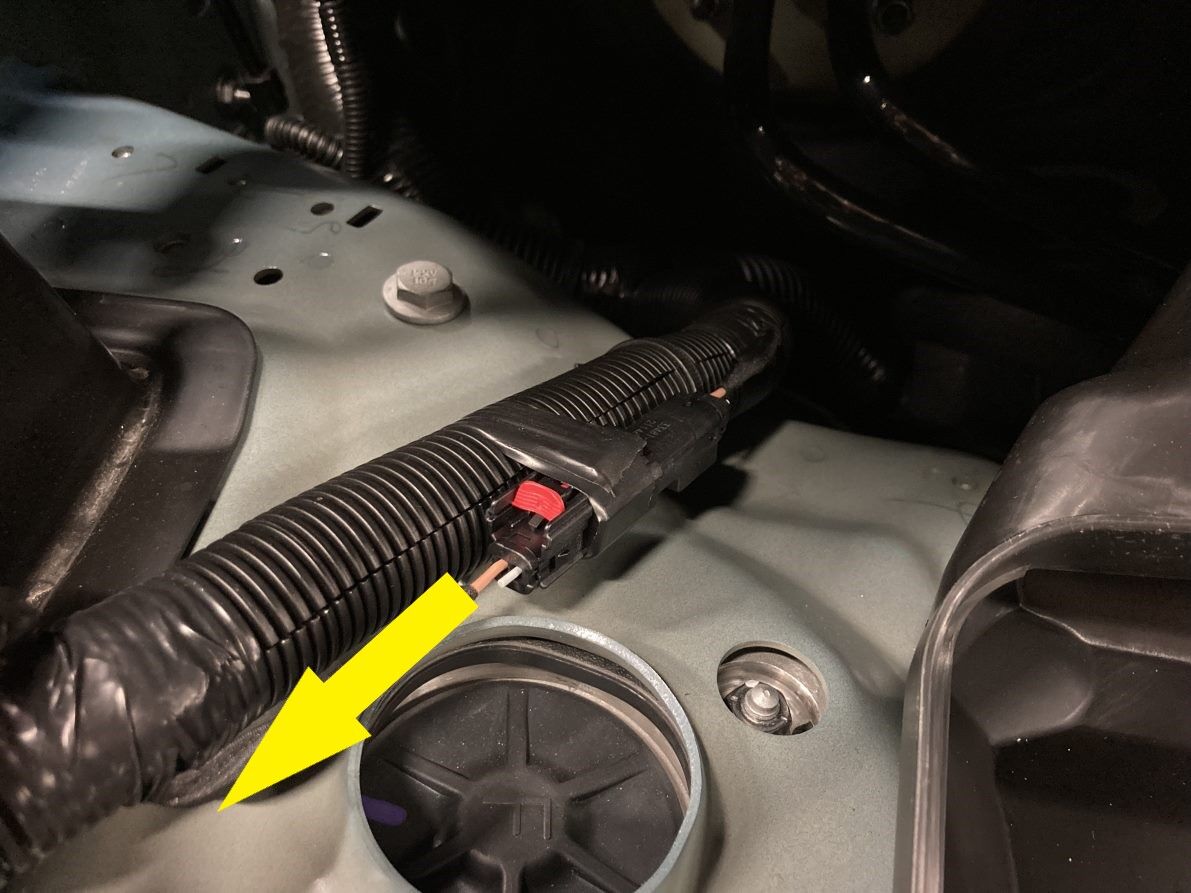

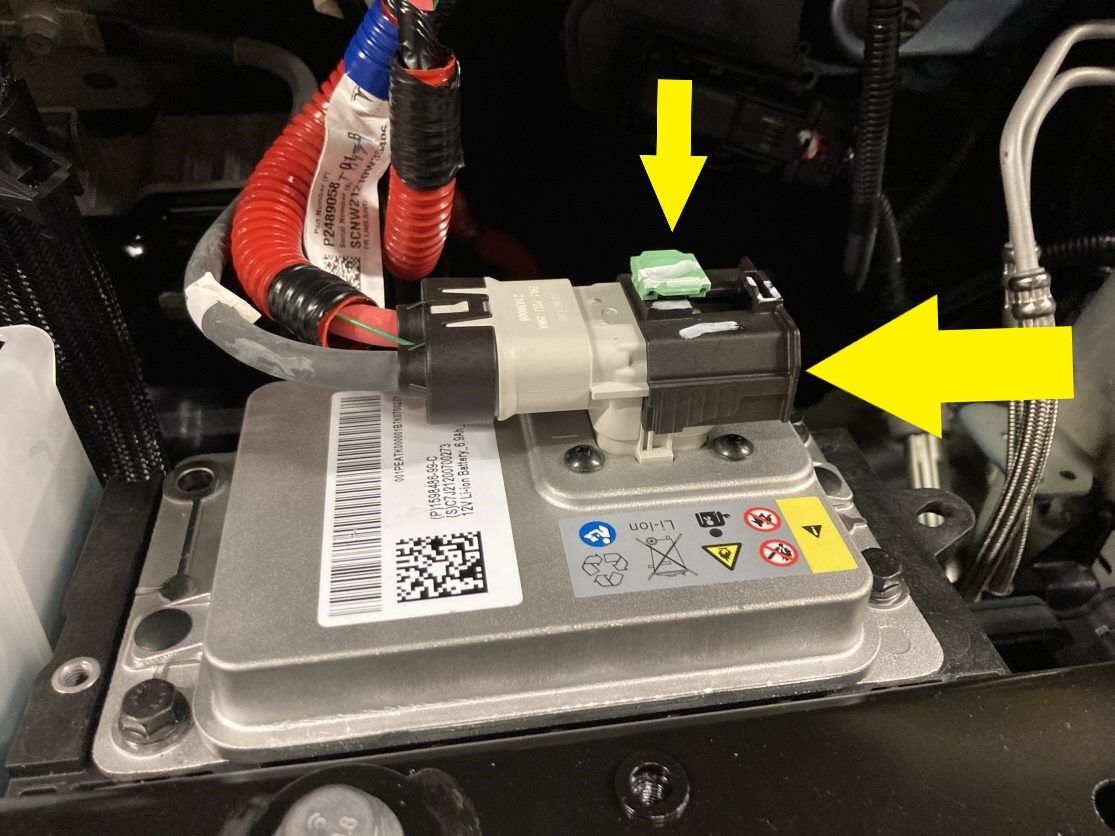

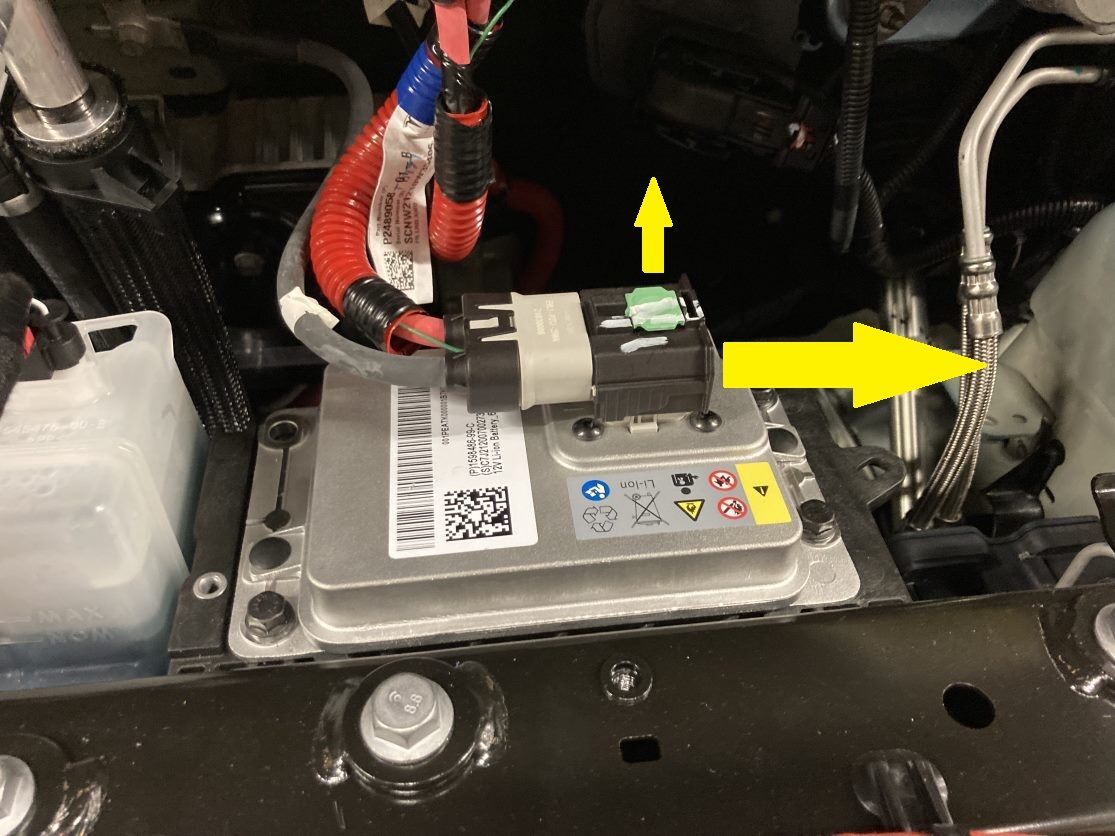

13. Disconnect LV battery connector and First Responder Loop
    注

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

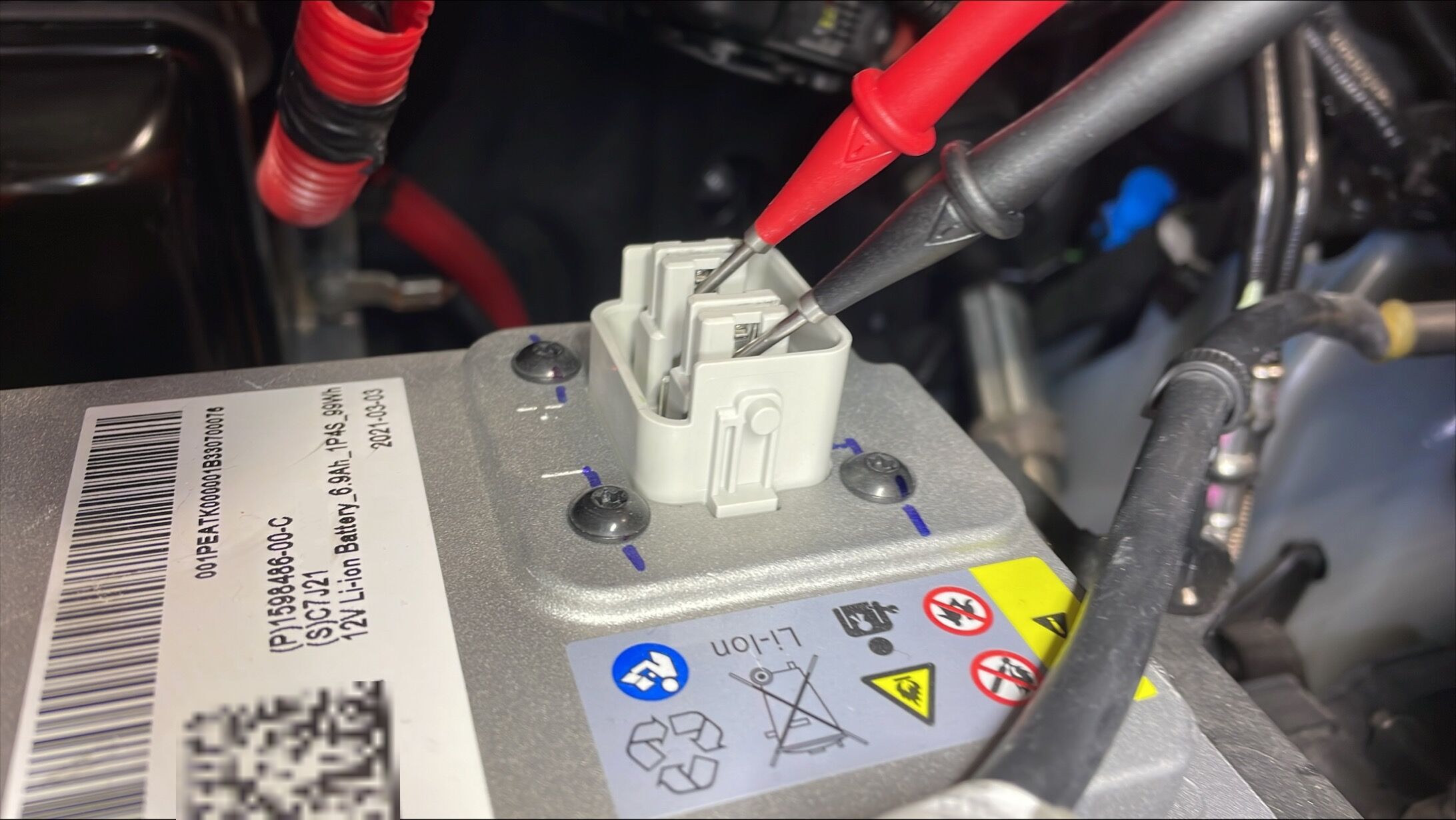

14. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals





15. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

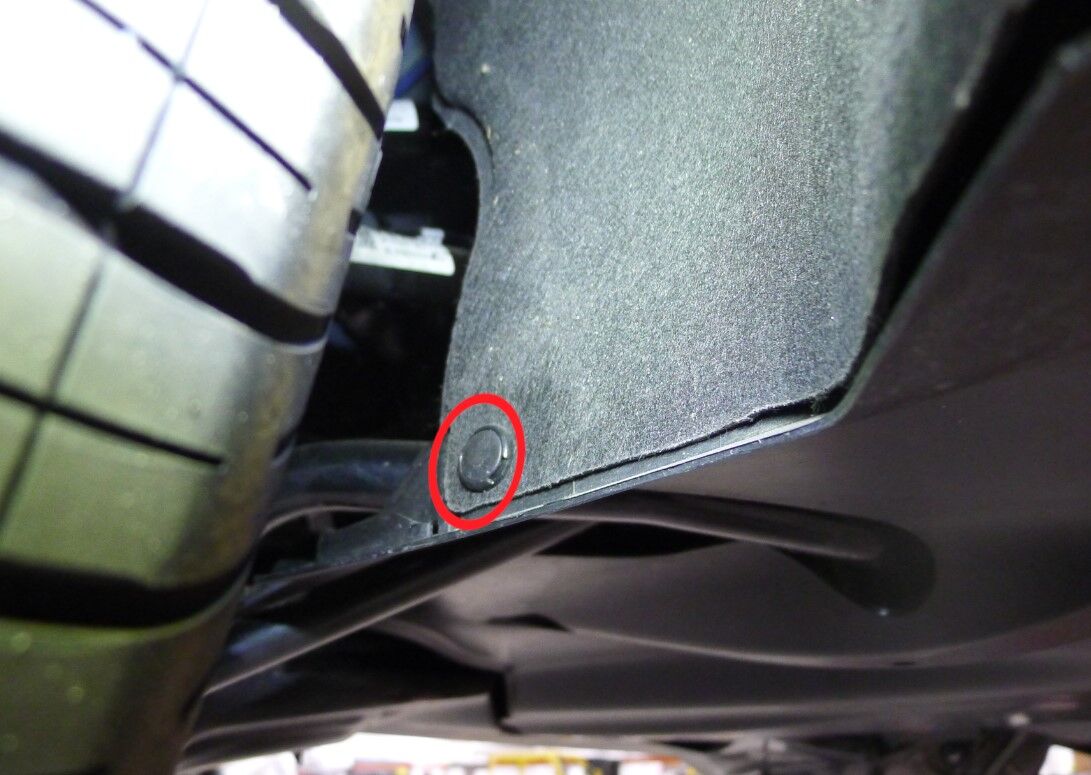

16. Remove push clips at left and right wheel house liner to mid aero shield
    注

    2x clips

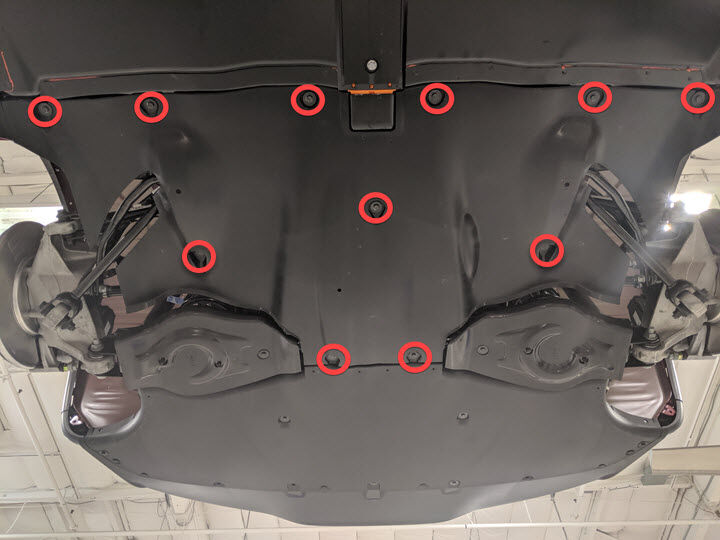

17. Remove mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, MYSP will have one less bolt and an extra clip



18. Remove all items from pockets and ensure not wearing metal items





19. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf

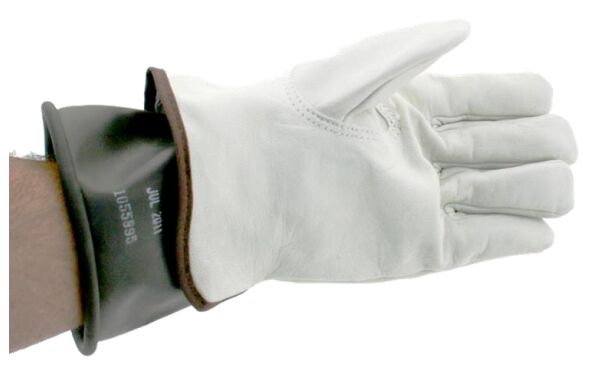

20. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used

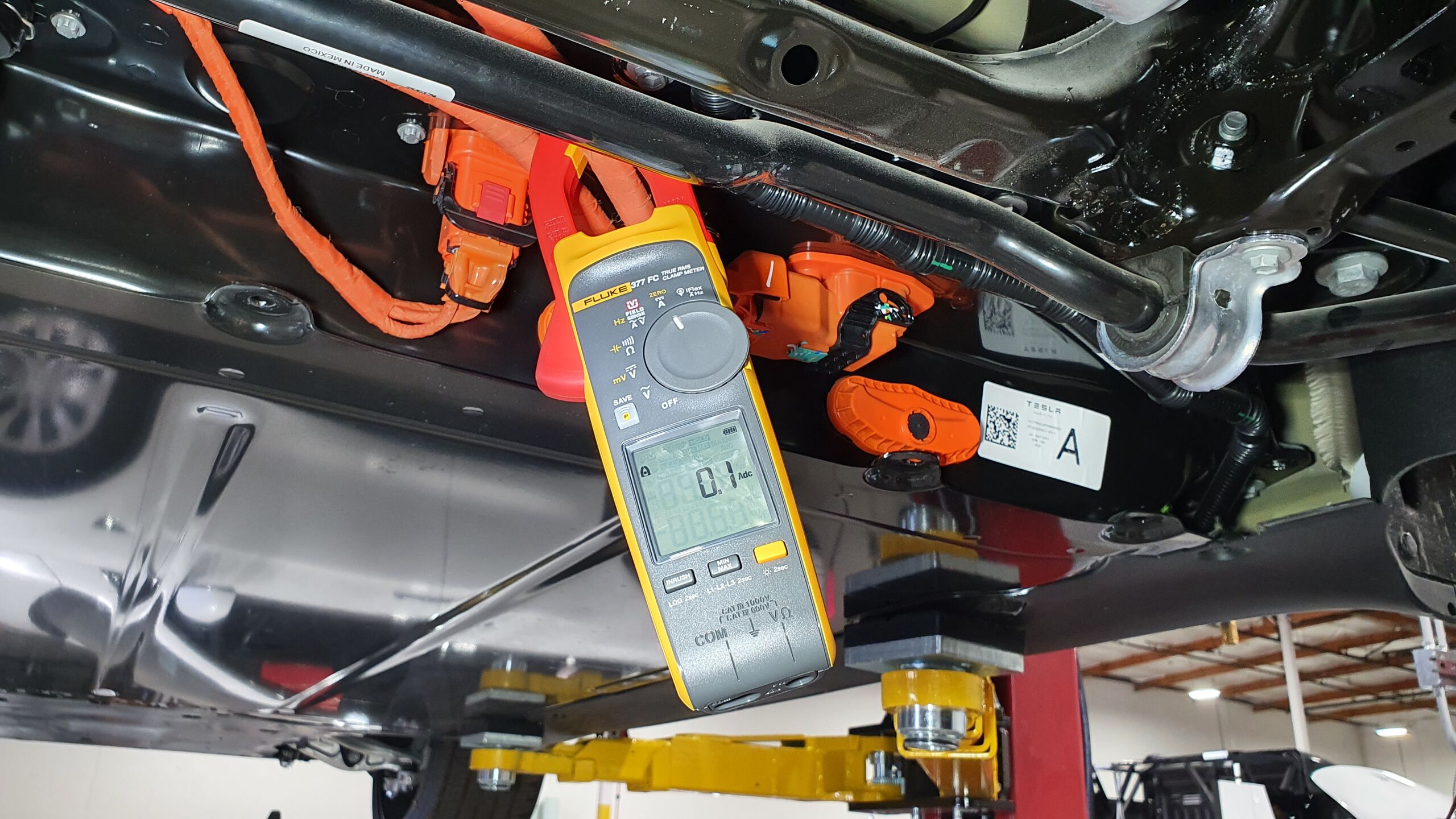

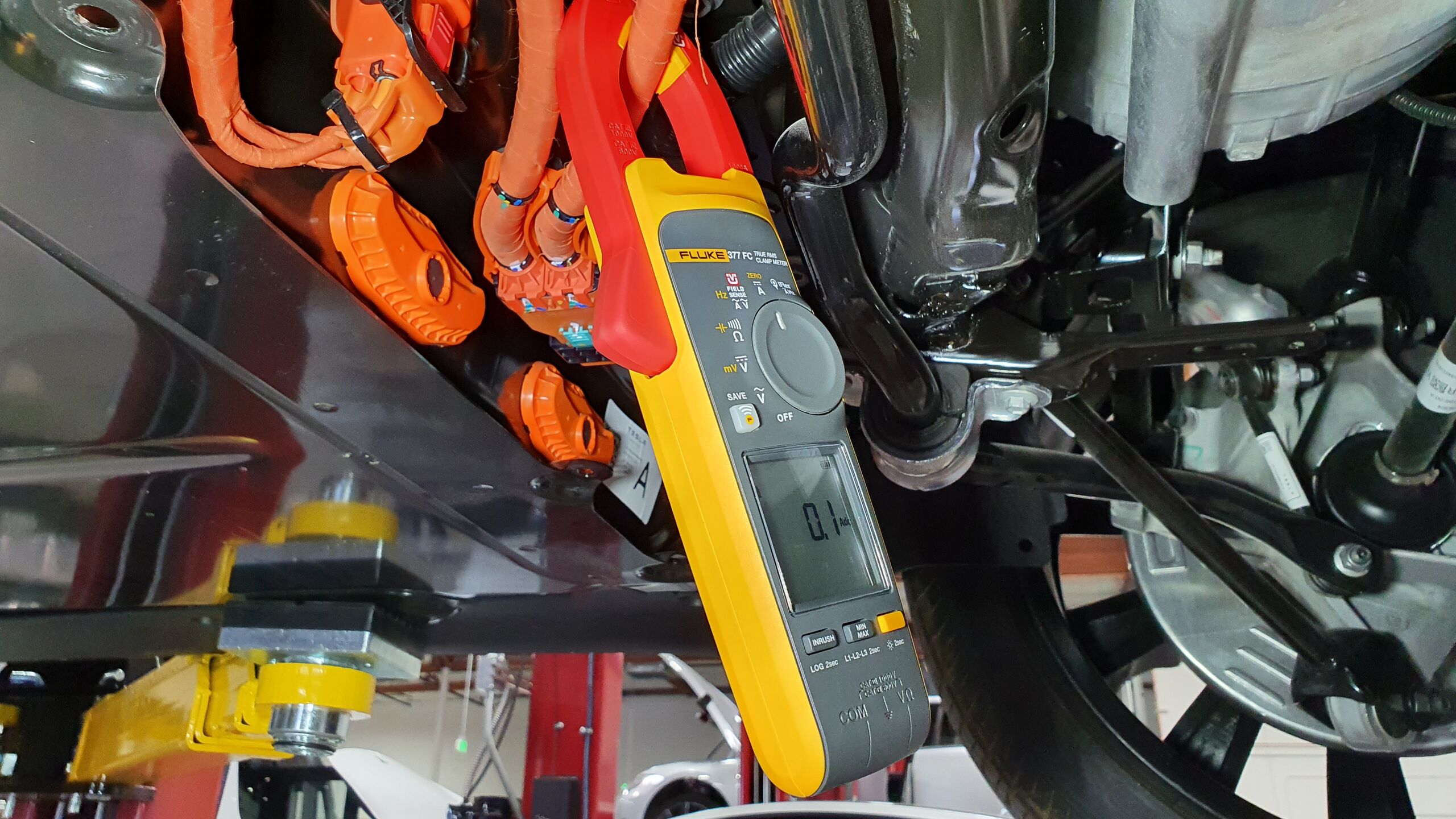

21. Install amp clamp to RDU HV harness
    注

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.

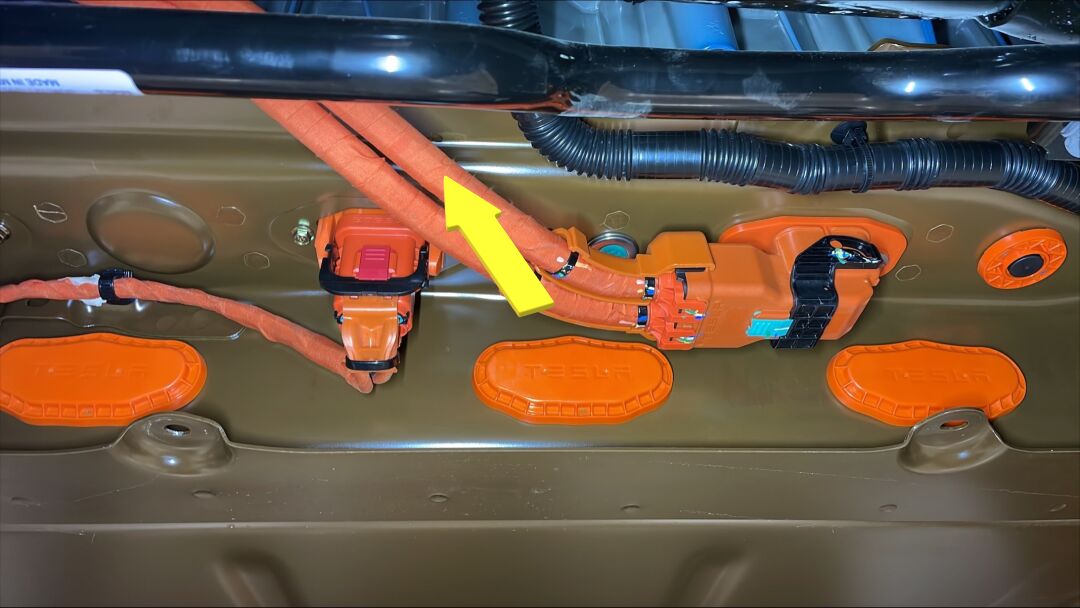

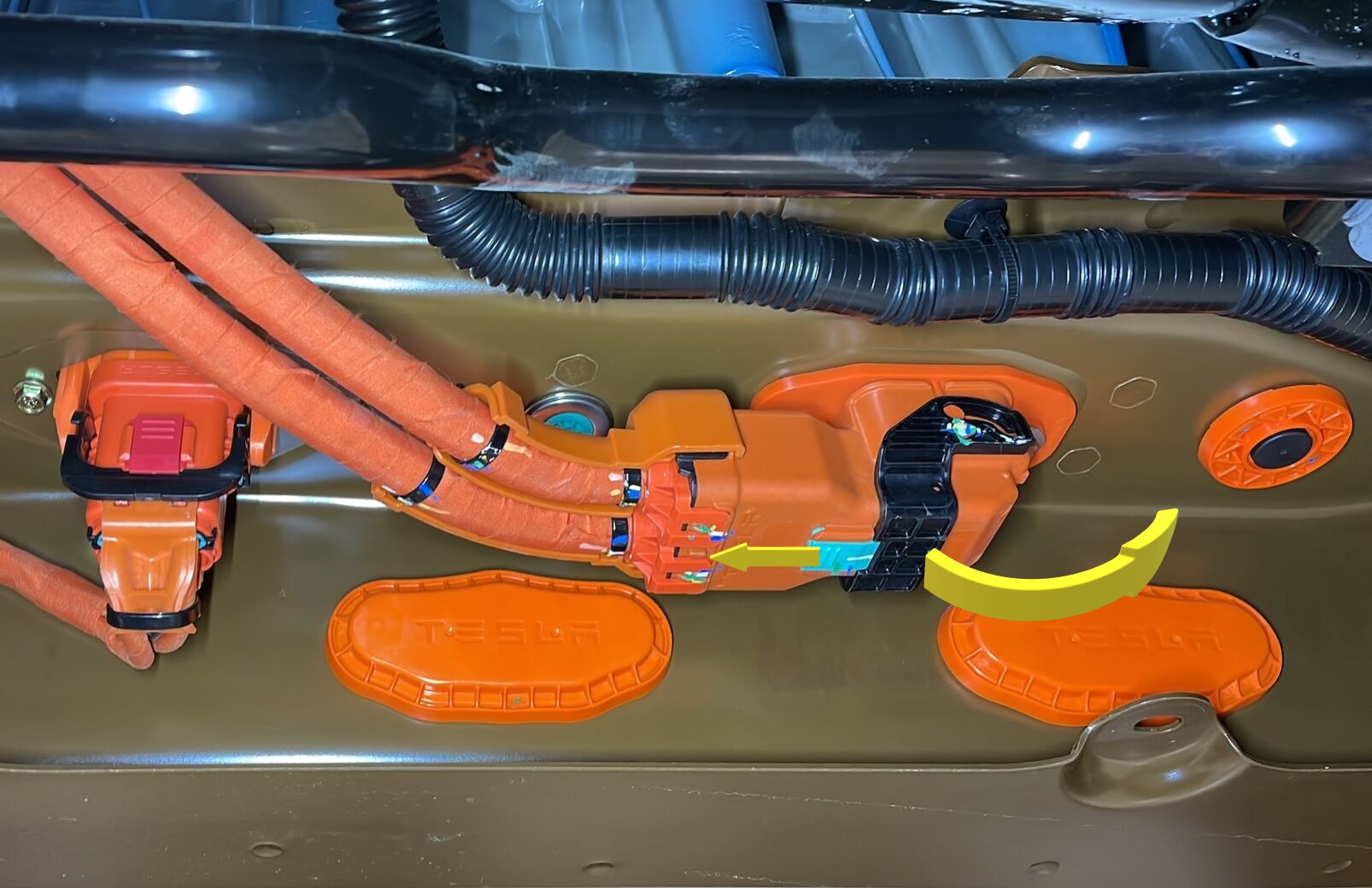

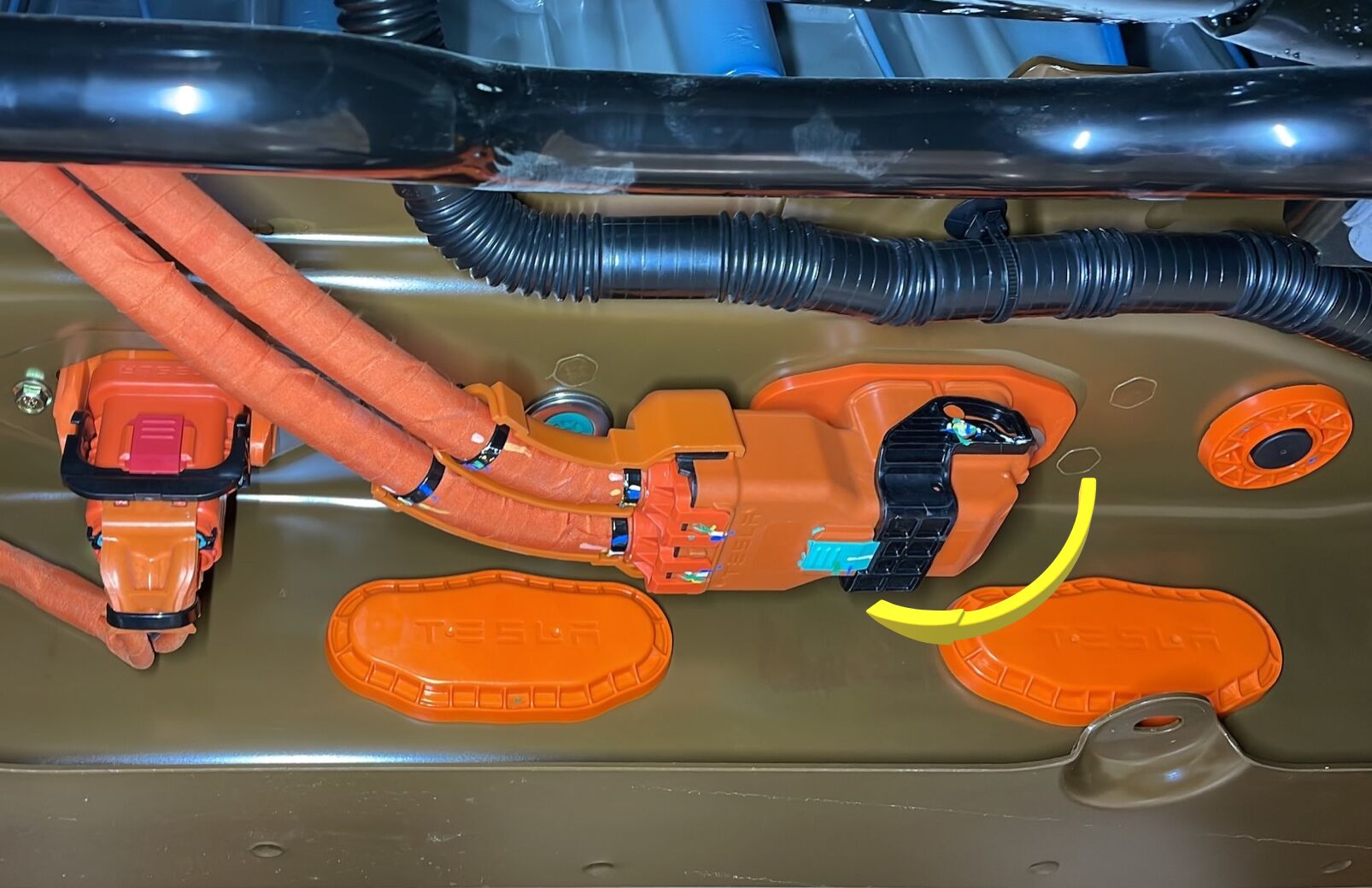

22. Release RDU HV harness from HV battery
    注

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged

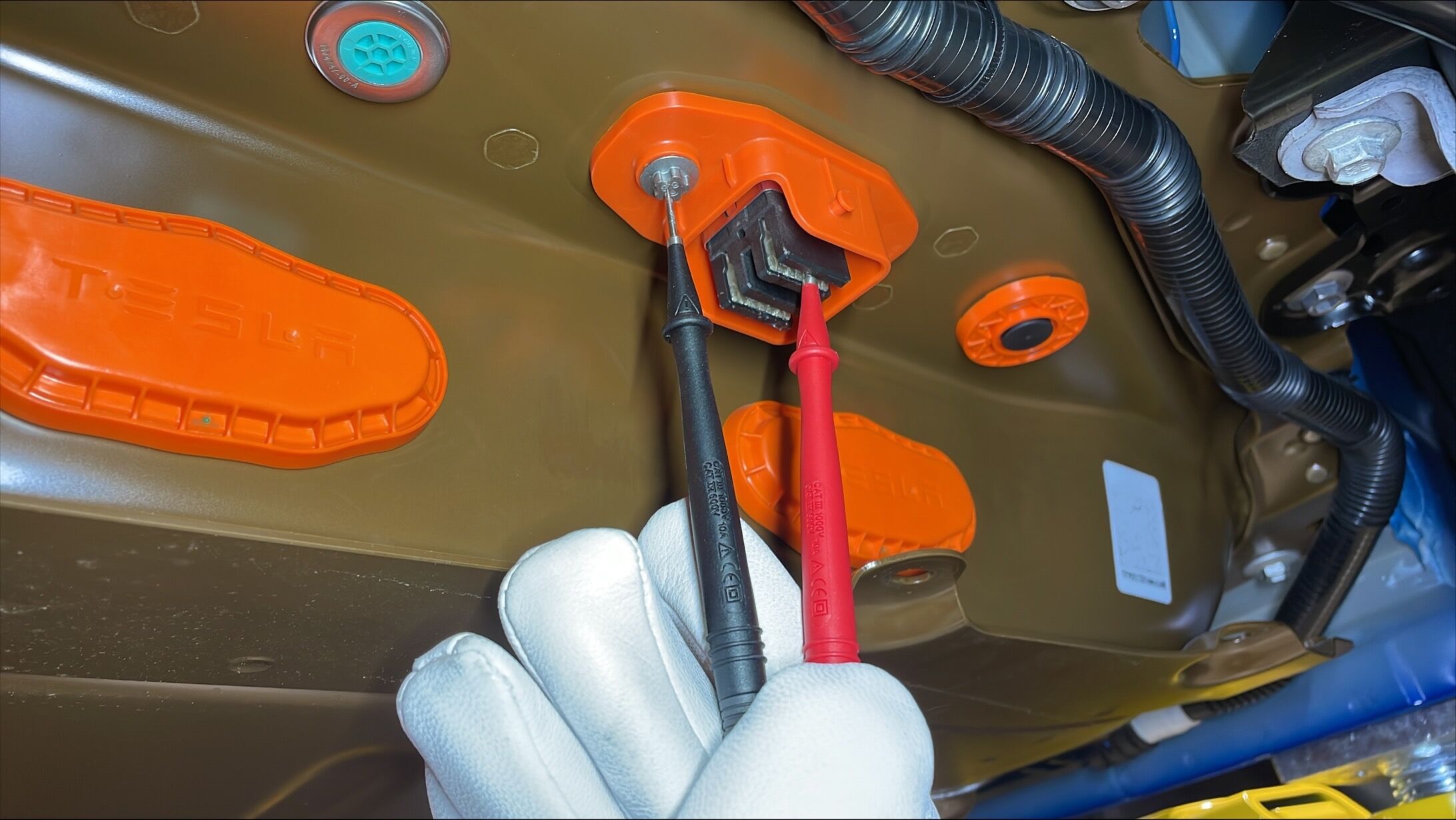

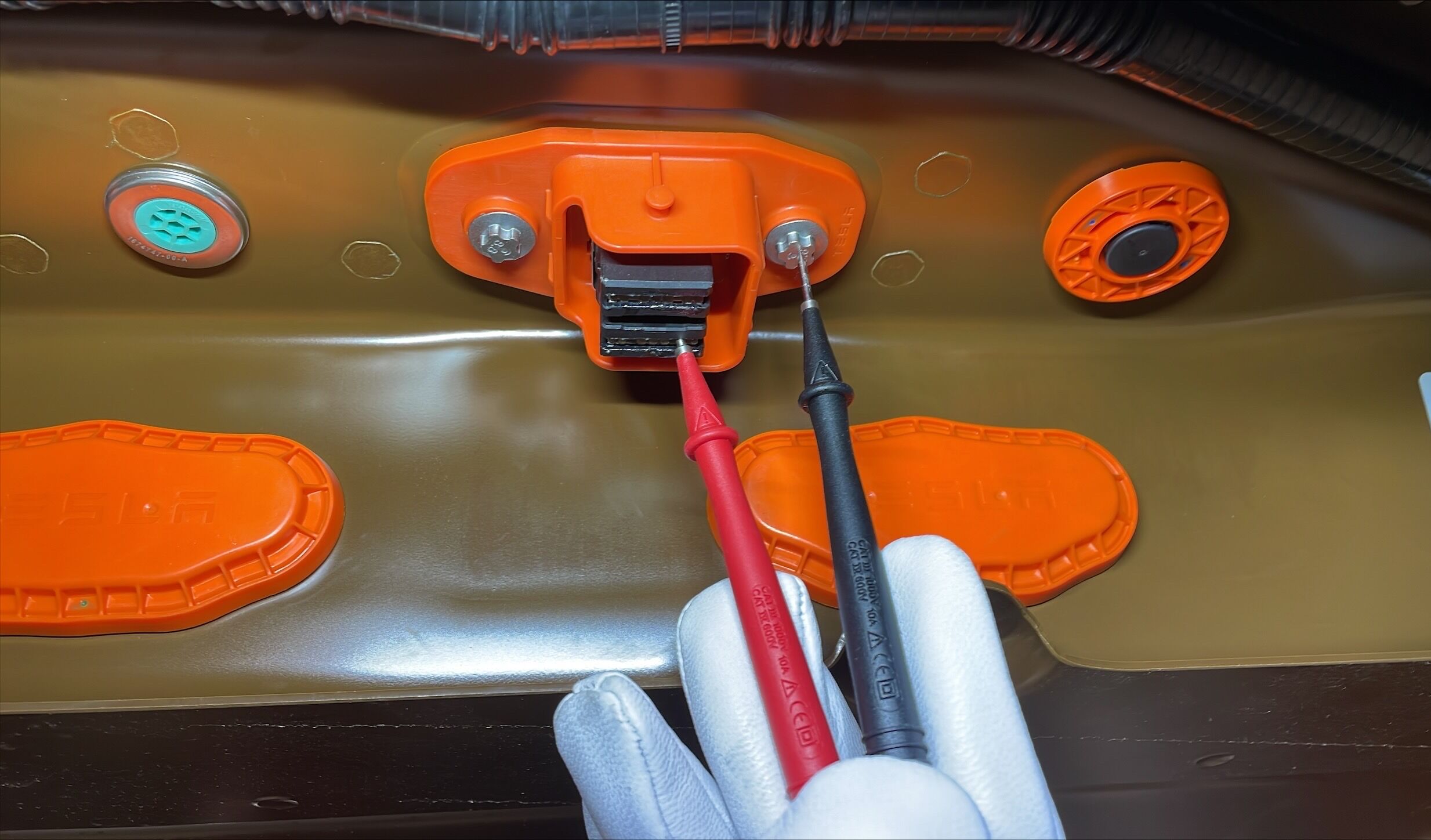

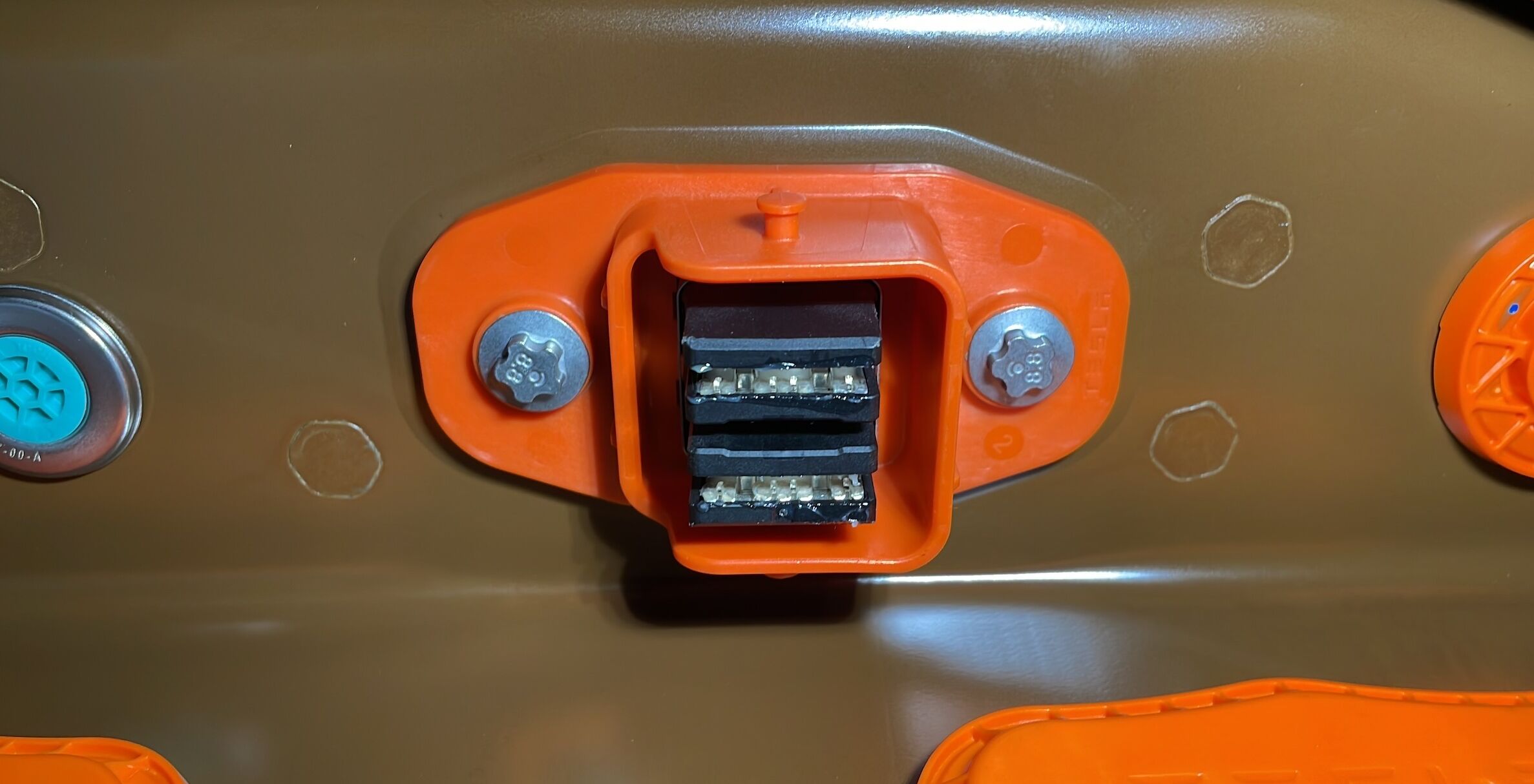

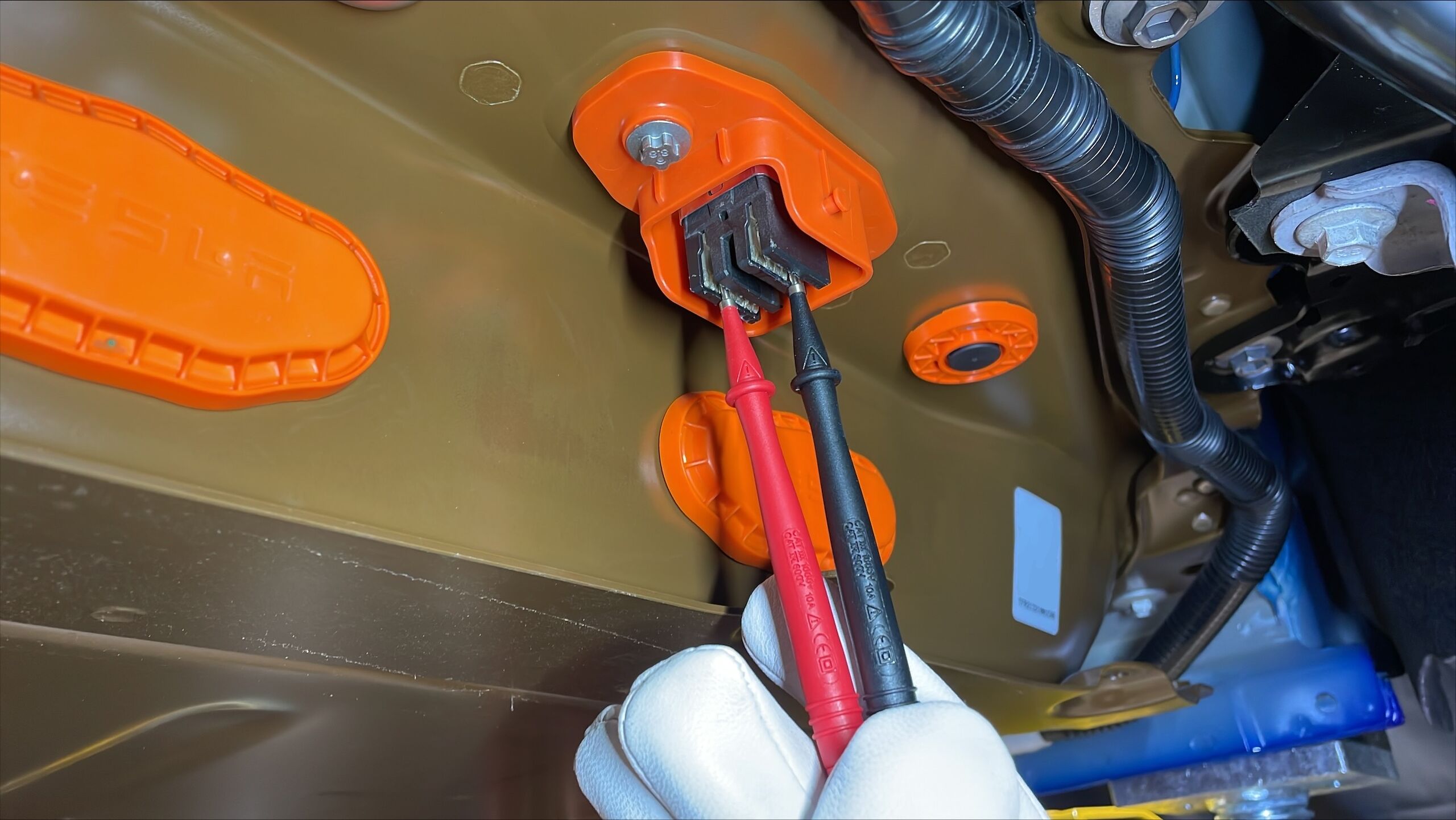

23. Verify no high voltage at RDU HV header
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering









24. Remove HV insulating gloves

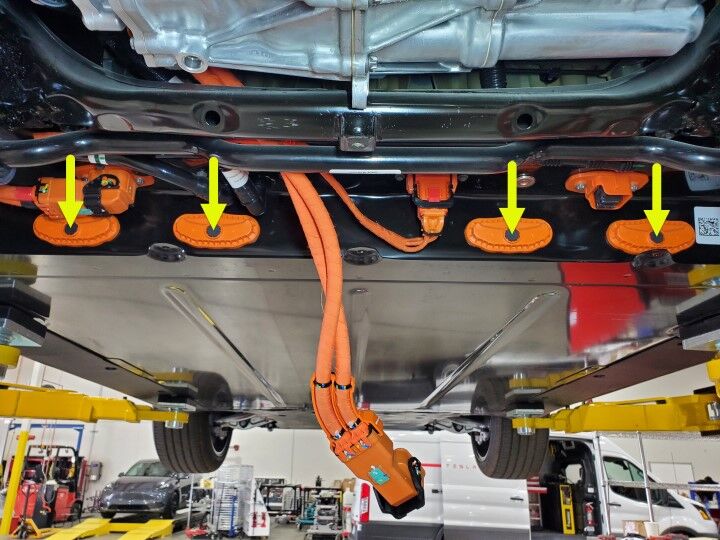

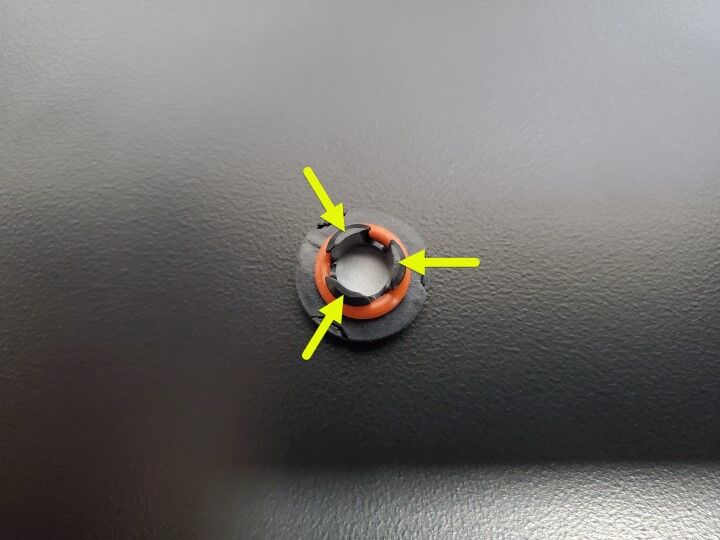

25. Remove breather plugs from thermal vents
    注

    4x plugs, 3x tabs per plug, Discard after removal

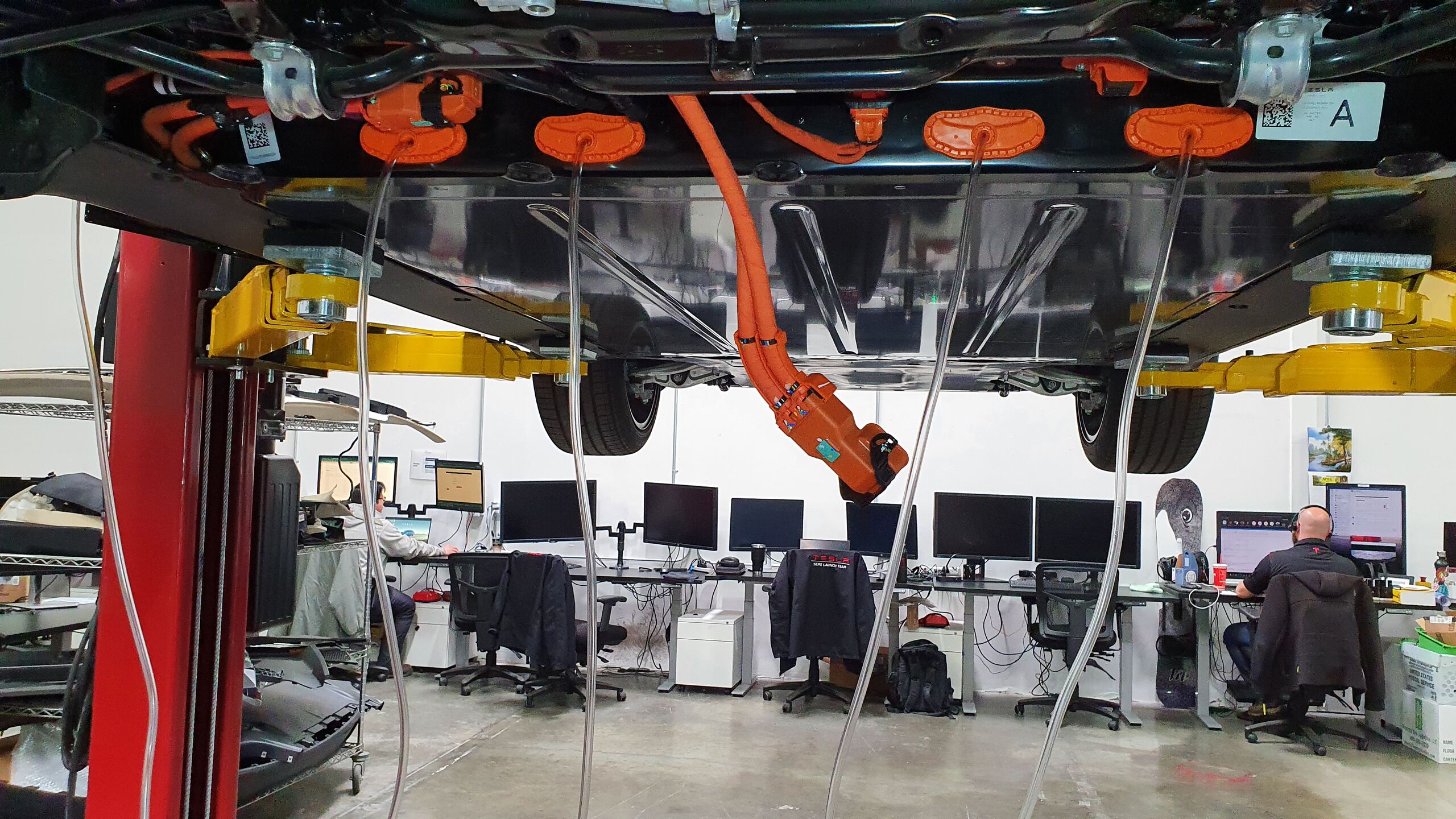

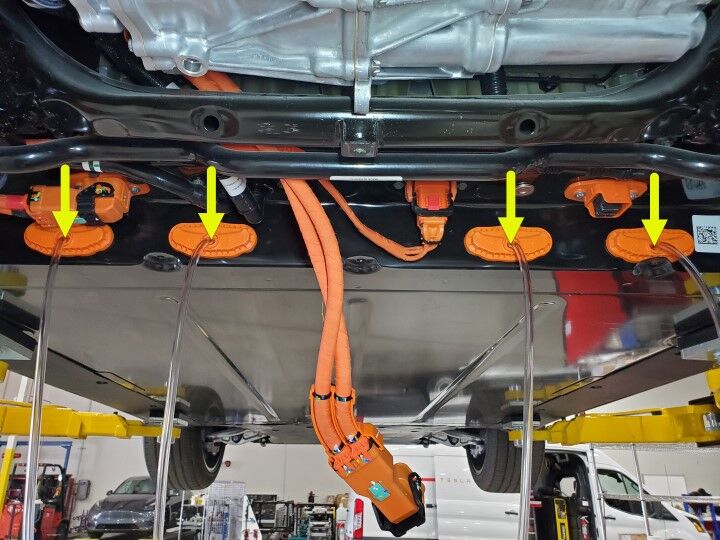

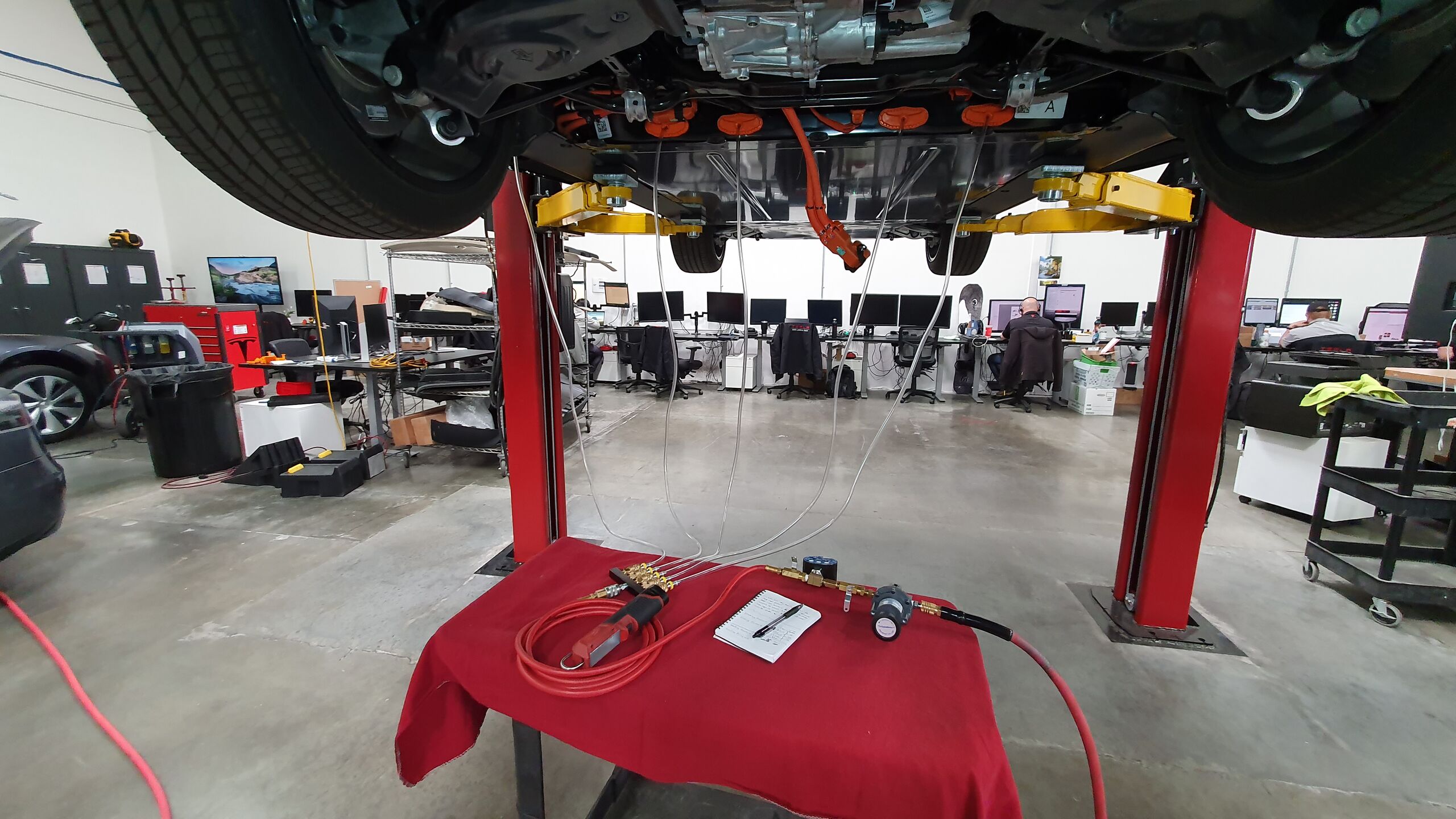

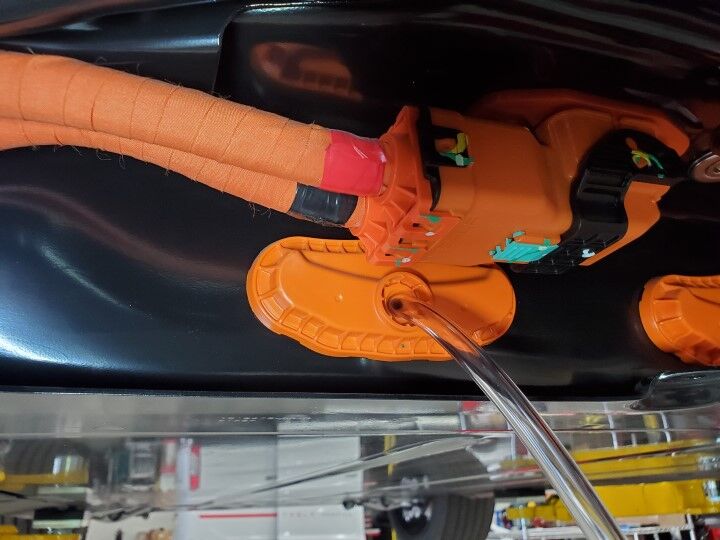

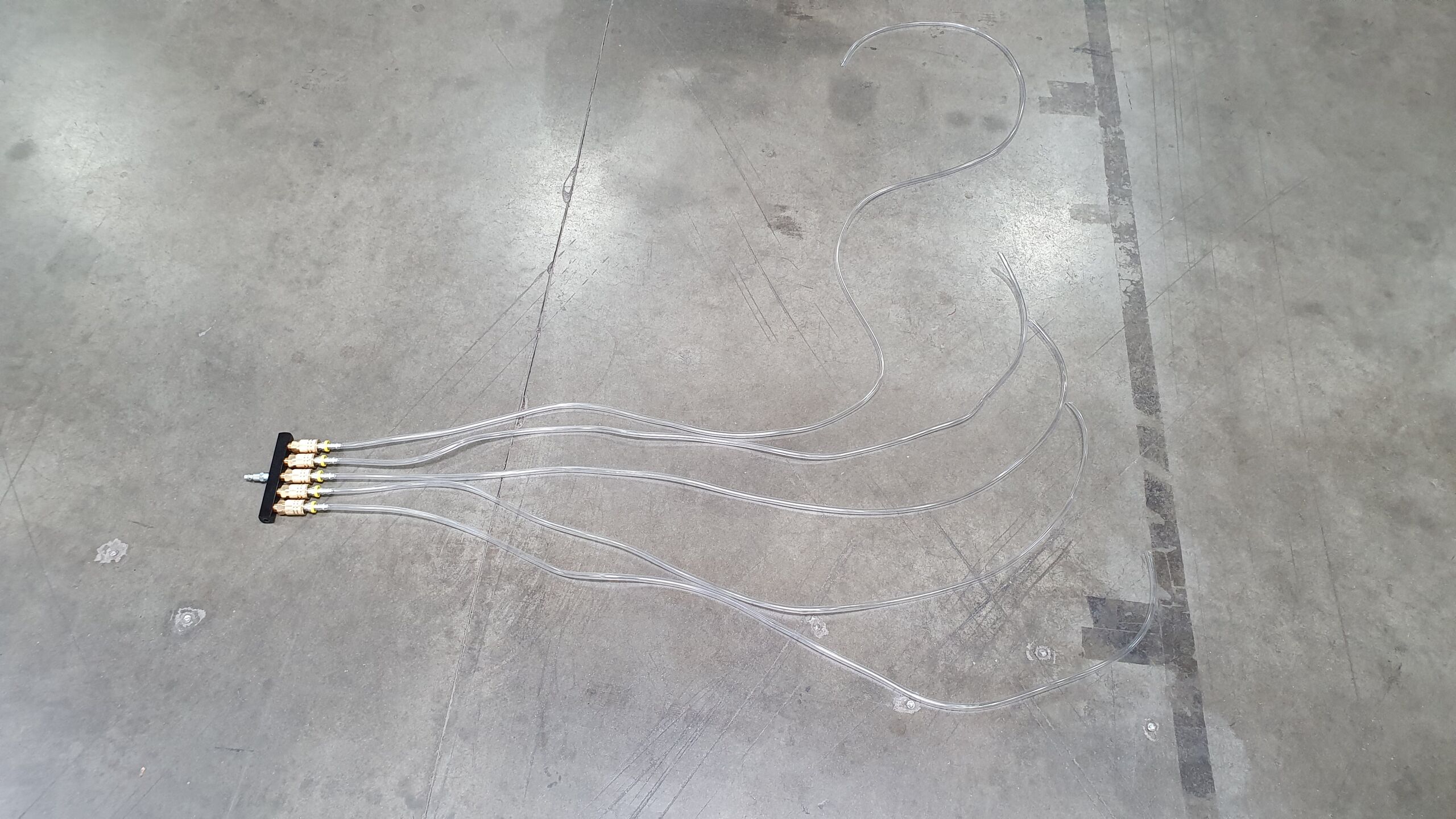

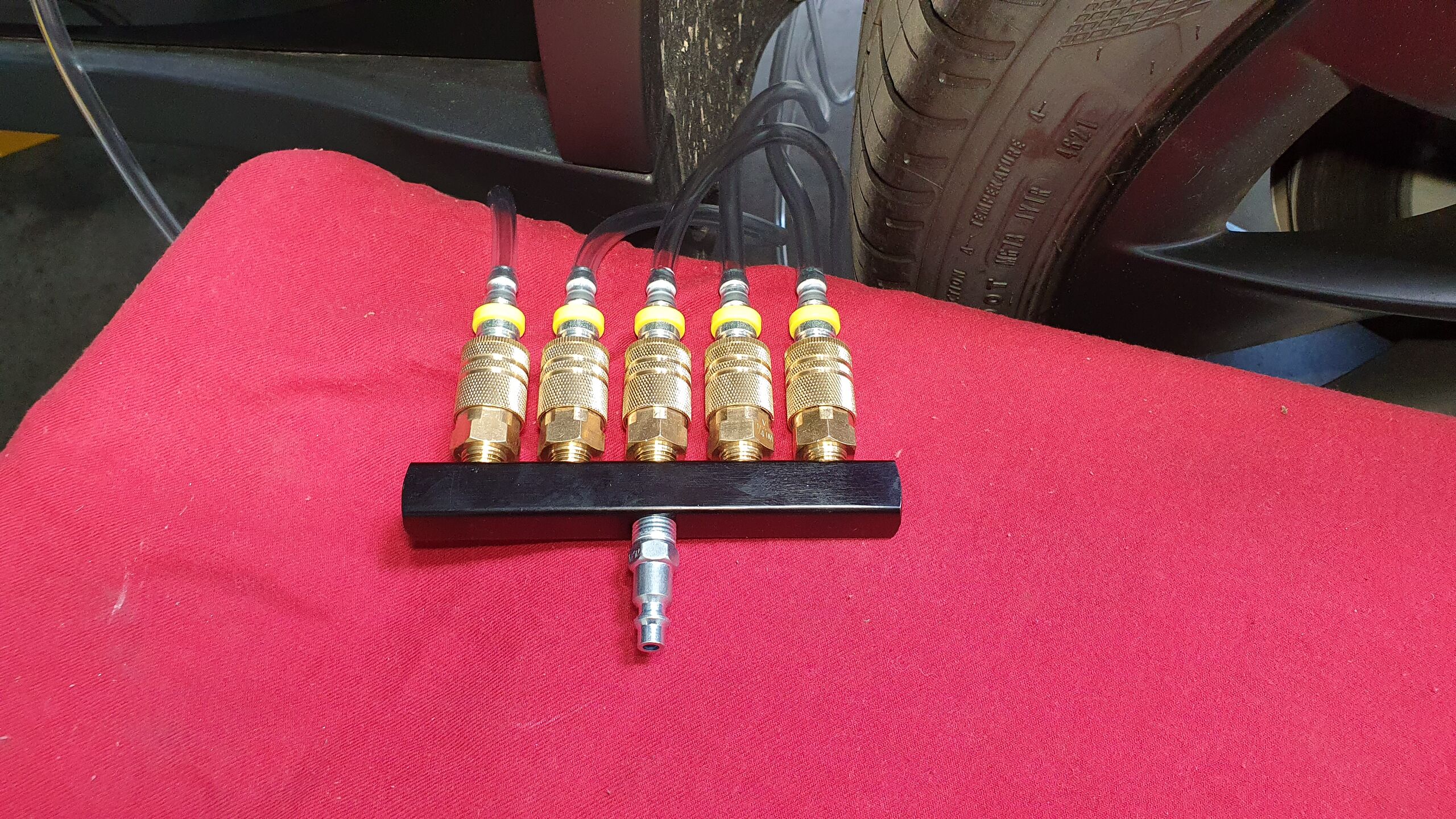

26. Install air splitter hoses onto thermal vents
    注

    5x hoses, Splitter still in development











27. Lower vehicle partially and set lift onto locks
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
28. Cut away insulation covering pyro cover
    注

    If insulation is present then cut away

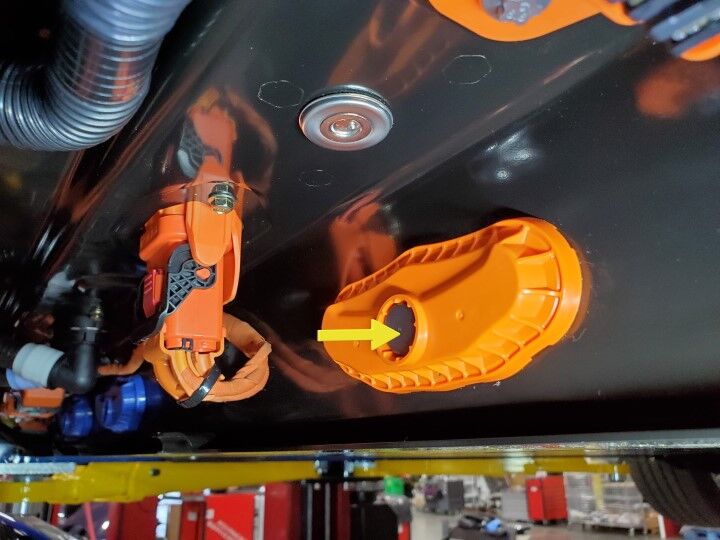

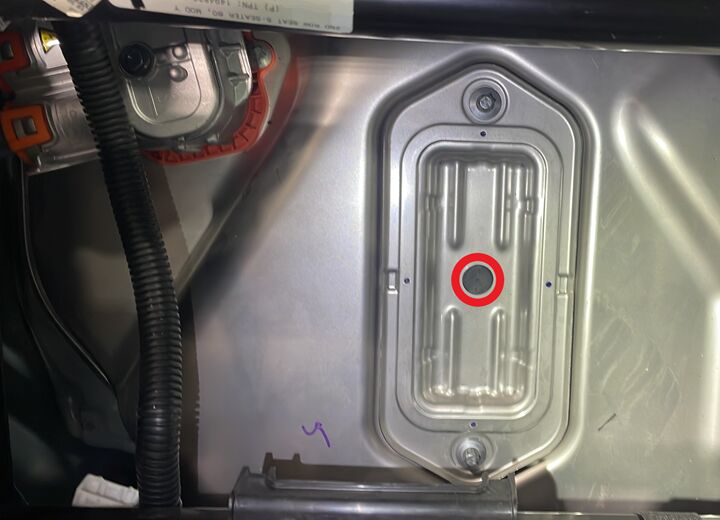

29. Remove breather from pyro cover
    注

    1x breather, Discard after removal

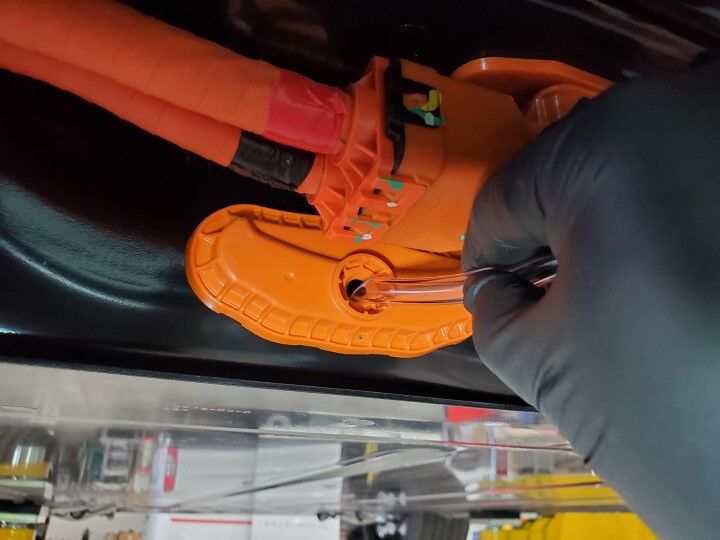

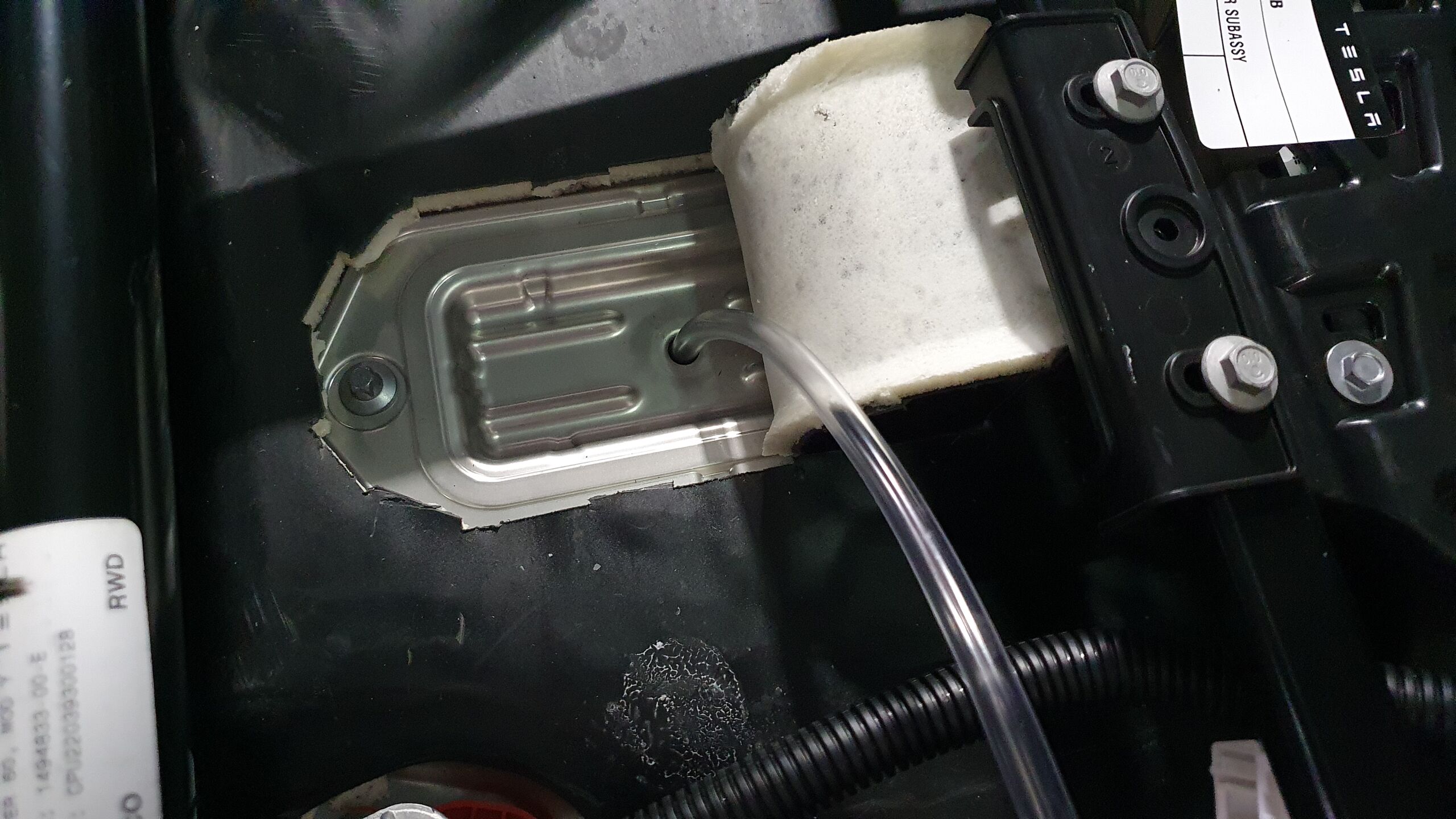

30. Install air splitter hose onto pyro cover
    注

    1x hose, Splitter still in development

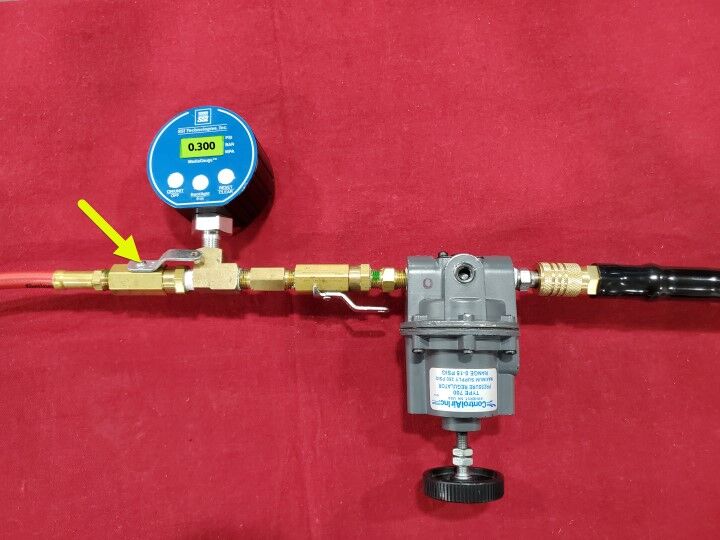

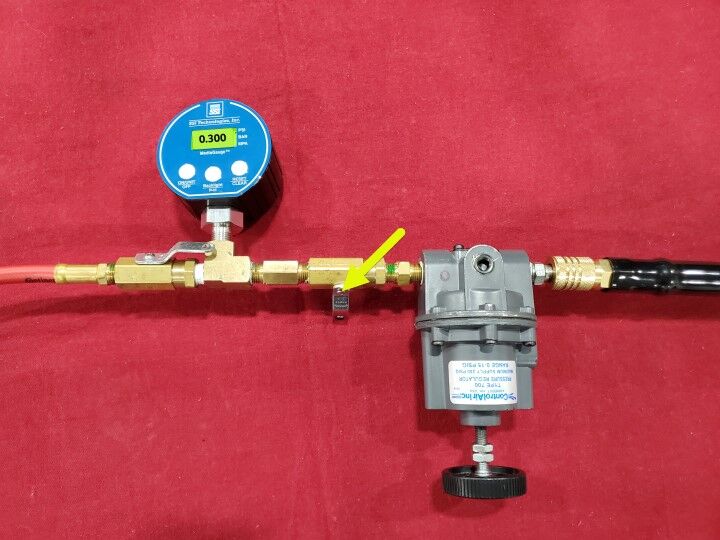

31. Close both valves on the regulator test tool



32. Connect regulator to air supply



33. Turn right side regulator valve to the open position
    注

    By turning the valve knob to a horizontal position, The valve is fully open

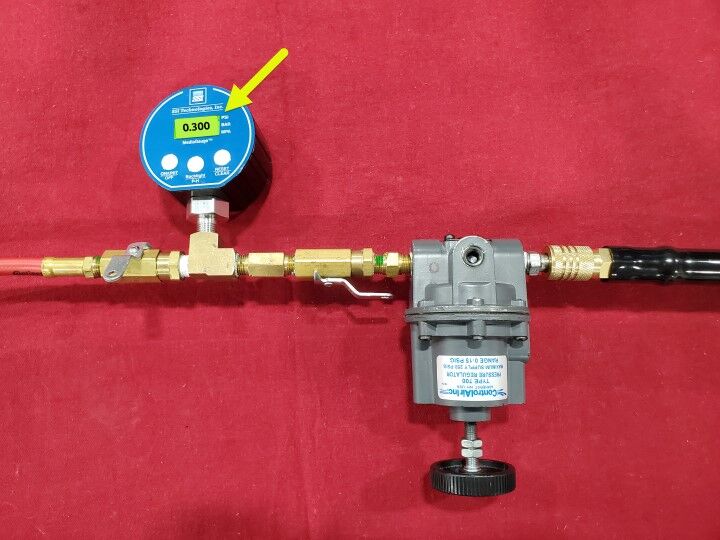

34. Set regulator to 0.3 psi



35. Open left side regulator valve to inject air into ancillary bay
    注

    Allow 50 seconds fill time, Close right side regulator valve when pressure reaches 0.3 psi







36. Wait 30 seconds for pressure to settle
37. Record value of starting pressure
38. Wait 60 seconds to test pressure
39. Record value of end pressure
    注

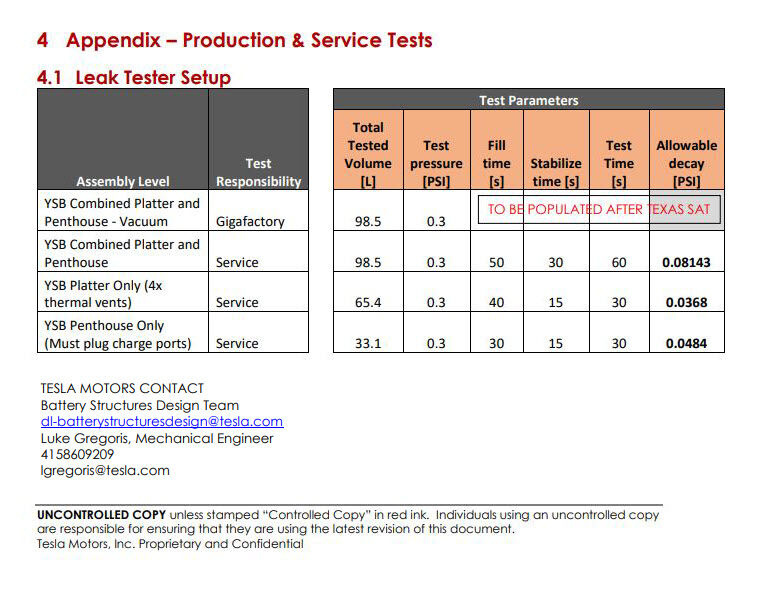

    Subtract ending pressure from starting pressure, If difference is greater than 0.08143 psi then inspect tools and retest, If difference is still greater than 0.08143 psi then escalate a Toolbox session, If difference is 0.08143 psi or less then proceed with current procedure
40. Disconnect air supply from regulator tool



41. Remove air splitter hose from pyro cover
    注

    1x hose, Splitter still in development



42. Install breather onto pyro cover
    注

    1x breather, Install new breather



43. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
44. Disconnect enclosure leak tester from air splitter



45. Remove air splitter hoses from thermal vents
    注

    5x hoses, Splitter still in development











46. Install breather plugs onto thermal vents
    注

    4x plugs, 3x tabs per plug, Install new plugs, Press plug evenly, Make sure tabs are fully engaged and plug is flush with vent







47. Secure RDU HV harness onto HV battery
    注

    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



48. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack will one less bolt and one extra clip

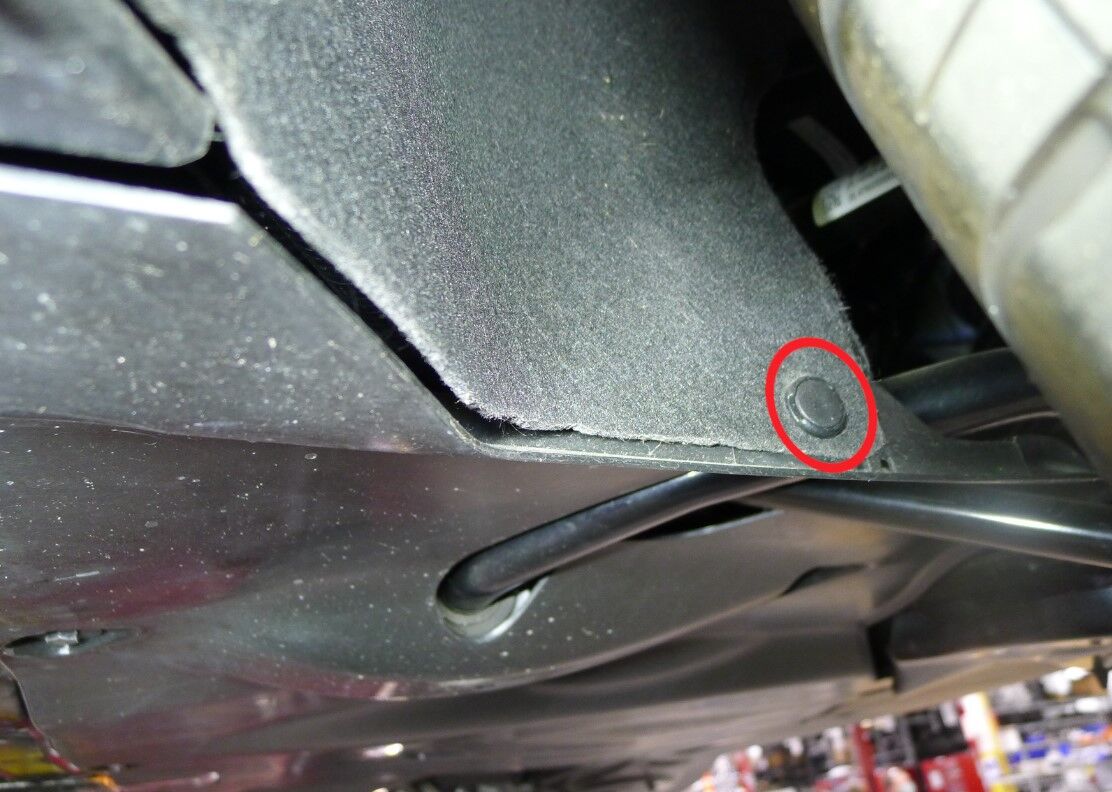

49. Install push clips at left and right wheel house liner to mid aero shield
    注

    2x clips





50. Lower vehicle fully
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
51. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

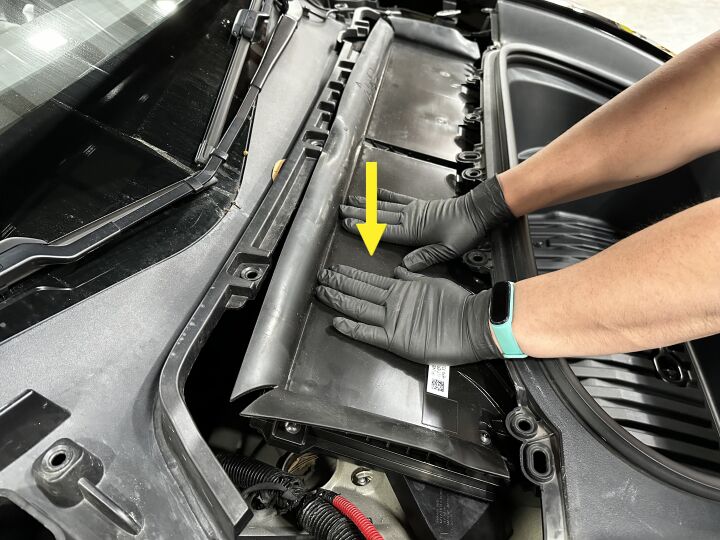

52. Install HEPA filter assembly
    注

    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, then carefully move rear edge past brake reservoir and into position







53. Secure washer tank neck onto washer tank
    注

    1x O-ring, Ensure washer hose is properly routed



54. Install bolt securing frunk to washer fluid reservoir neck
    注

    1x bolt, 10mm, 5 Nm

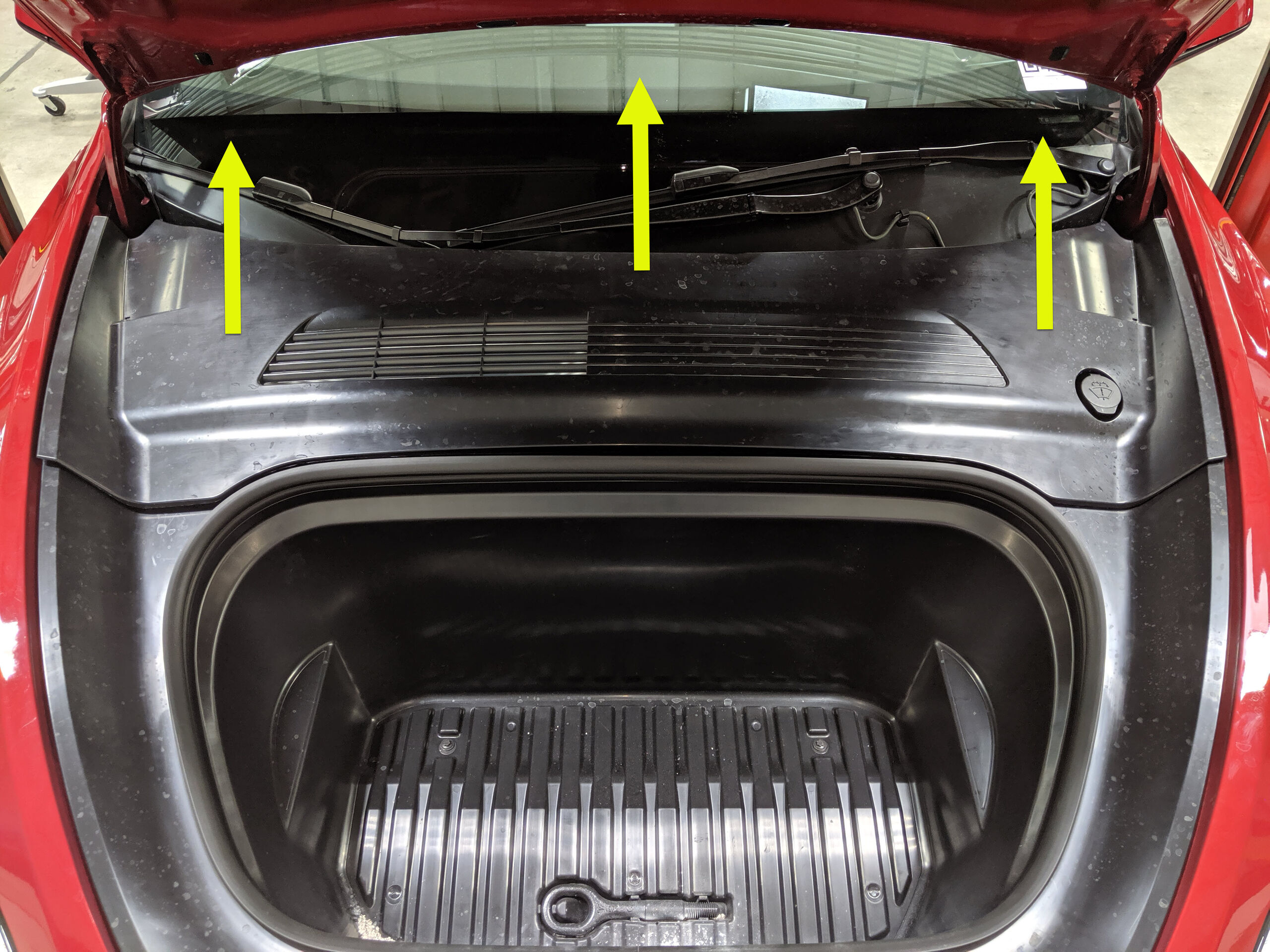

55. Install rear apron
    注

    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





56. Close hood
57. Install 2nd row seat cushion
    注

    1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test







58. Move LH front seat to original position
59. Move RH front seat to original position
60. Remove vehicle from lift
    注

    Lower rack arms fully and remove from under vehicle
61. Raise all four windows
62. Close all four doors
    注

    If 12V is powered up, Unlatch rear doors before closing
