校正代码 16102722 0.90 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

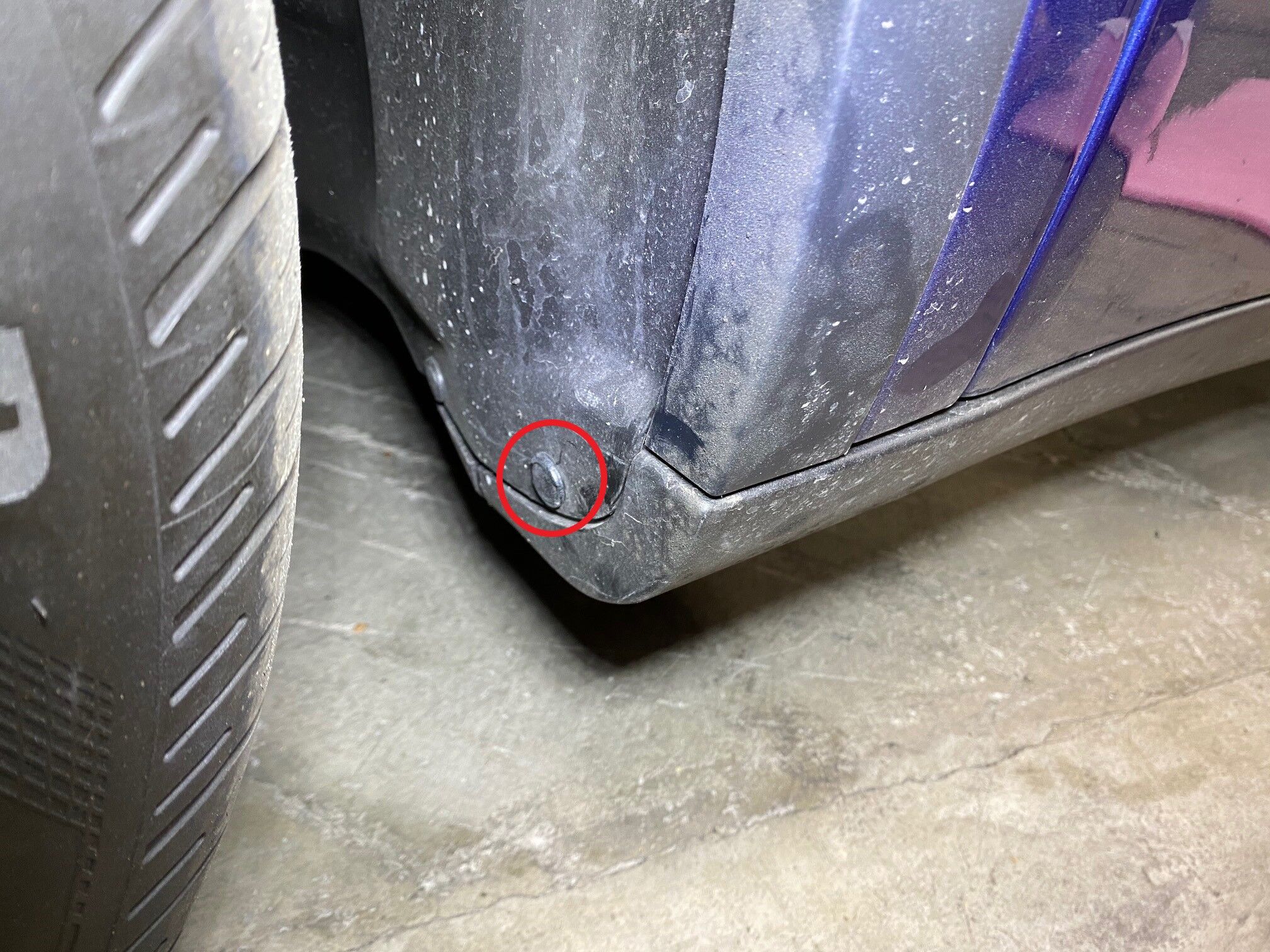

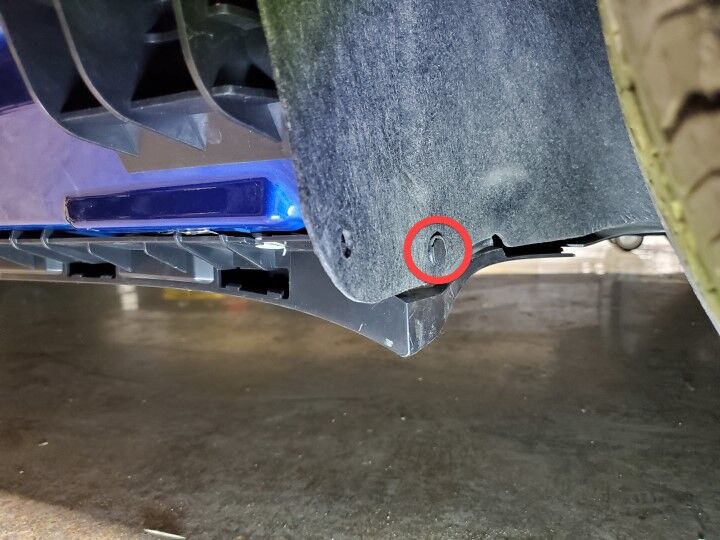

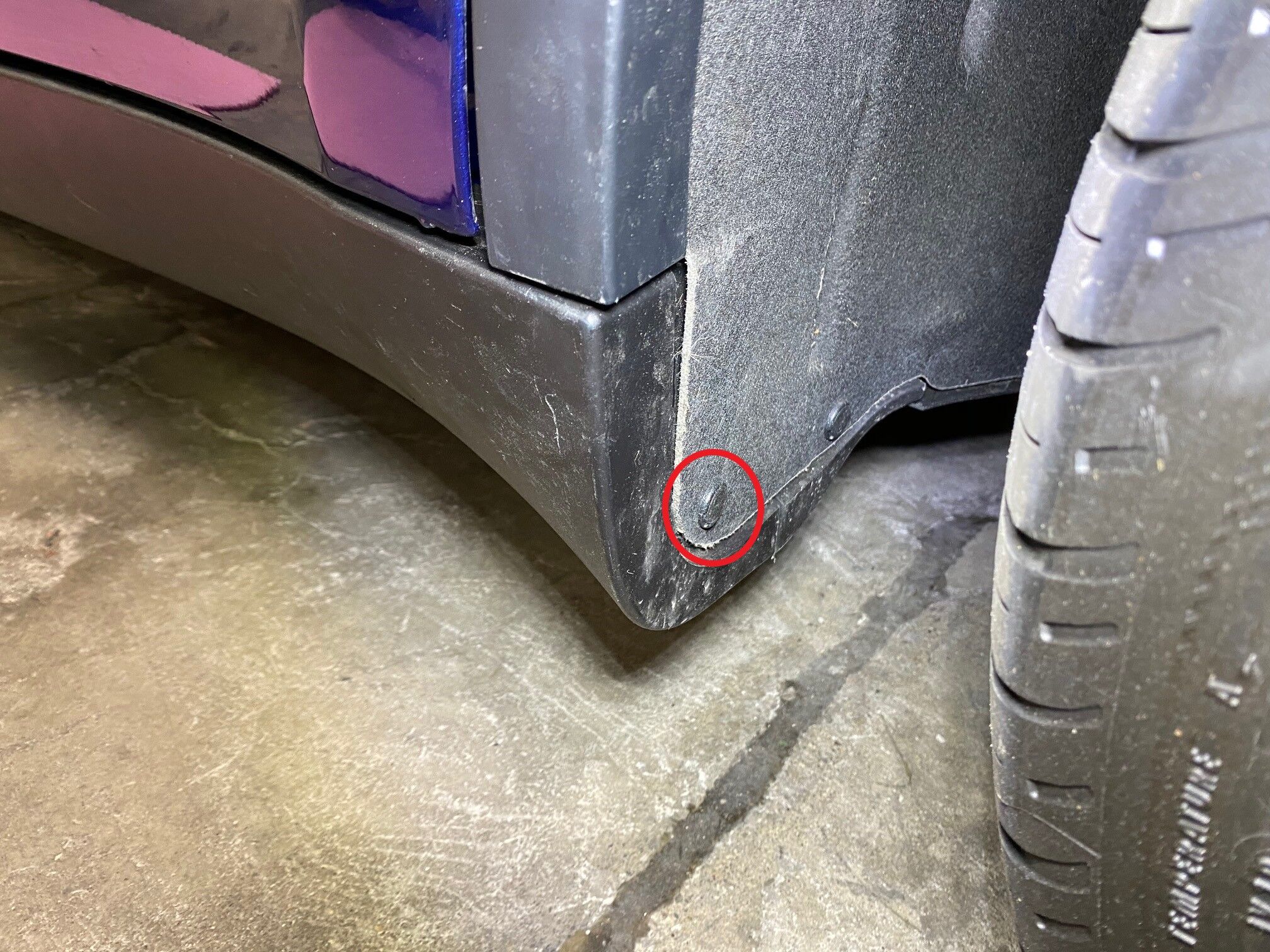

1. Remove clips securing LH rocker cover to front and rear wheel liner
   注

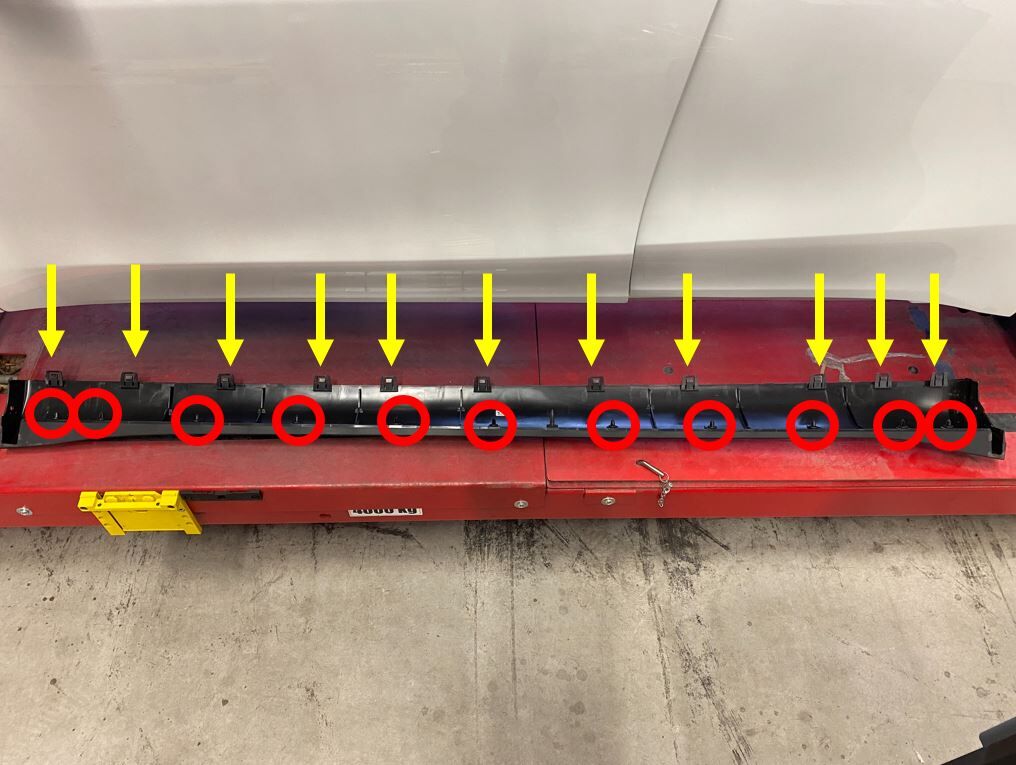

   2x clips





2. Remove LH rocker cover from rocker carrier
   注

   11x clips, 11x tabs, Work a plastic trim tool between door panel and rocker cover to release tabs

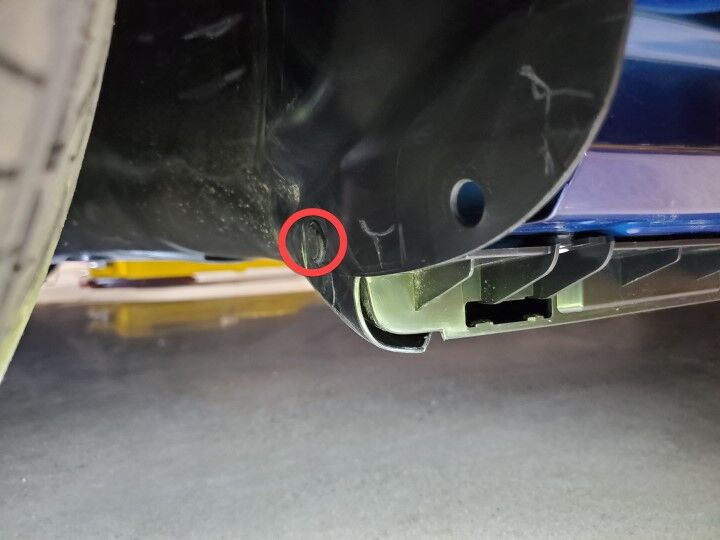

3. Remove fasteners securing LH rocker carrier to body and wheel liners
   注

   3x bolts, 10mm, 12 Nm, 4x clips

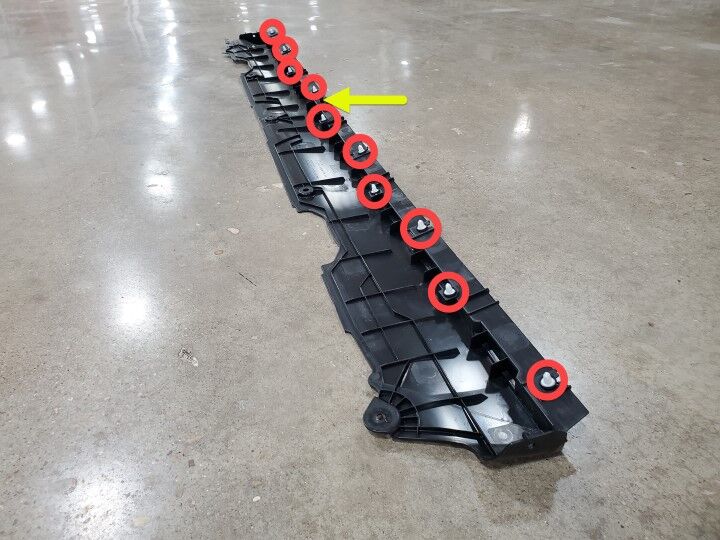

4. Remove LH rocker carrier
   注

   10x clips, 1x datum, Use pry tool to release clips and prevent damage to carrier, Negotiate carrier around rear wheel liner then front wheel liner









5. Raise and support vehicle
   注

   Ensure vehicle is not charging, Note the MYSP lifting points are more narrow than the MY
6. Open LH front door
7. Lower LH front window
8. Open hood

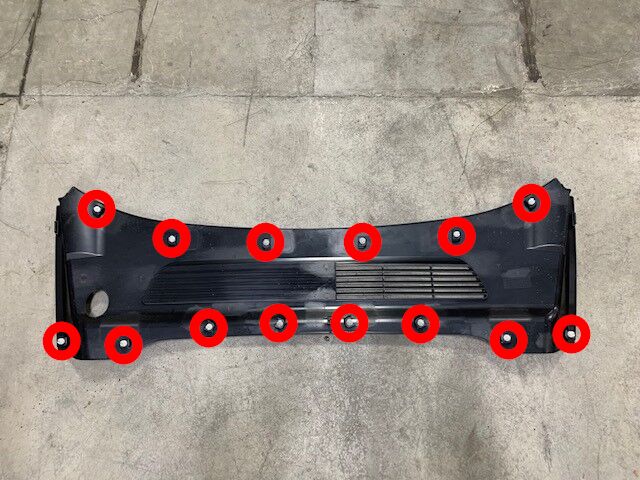

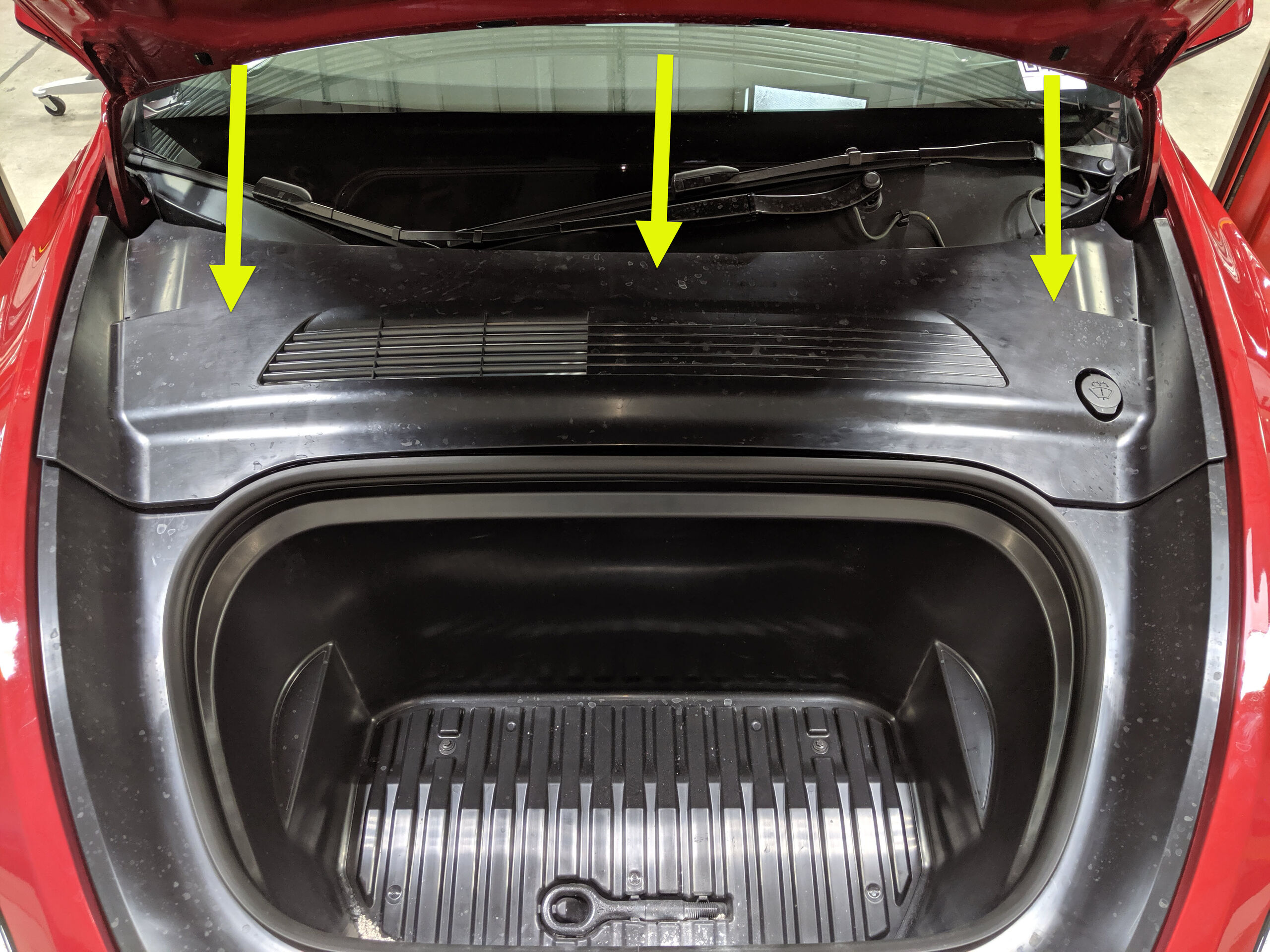

9. Remove rear apron
   注

   14x clips

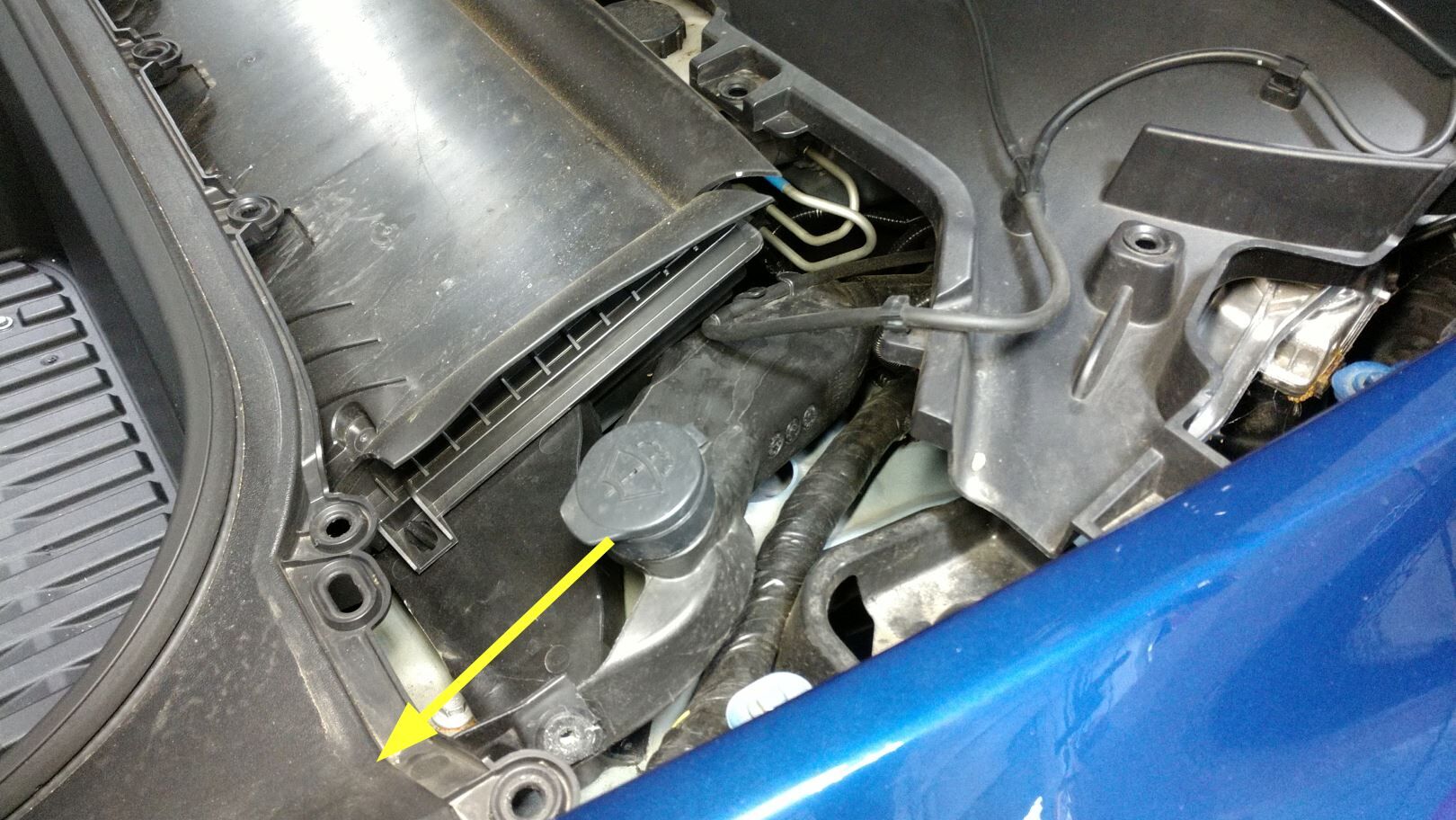

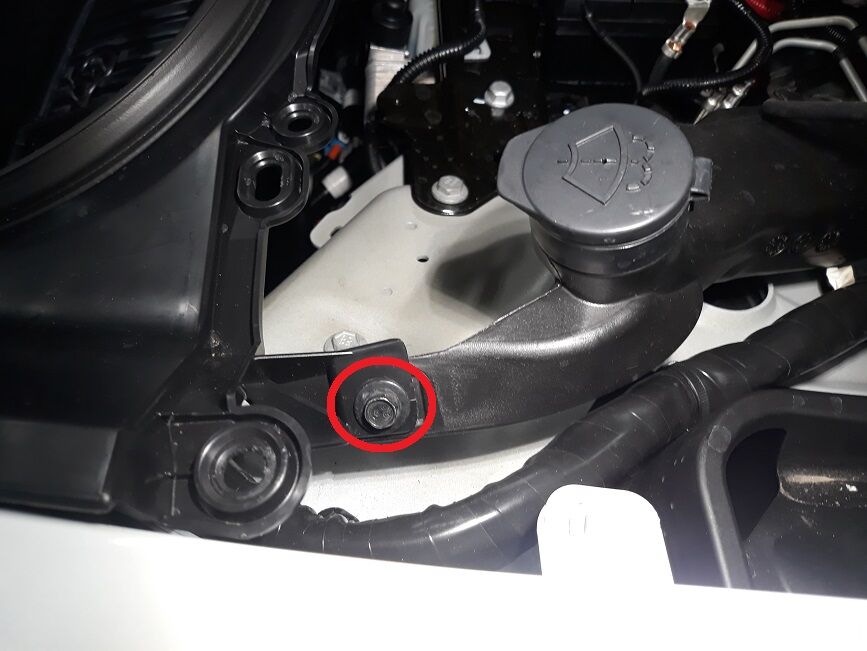

10. Remove bolt securing frunk to washer fluid reservoir neck
    注

    1x bolt, 10mm, 5 Nm

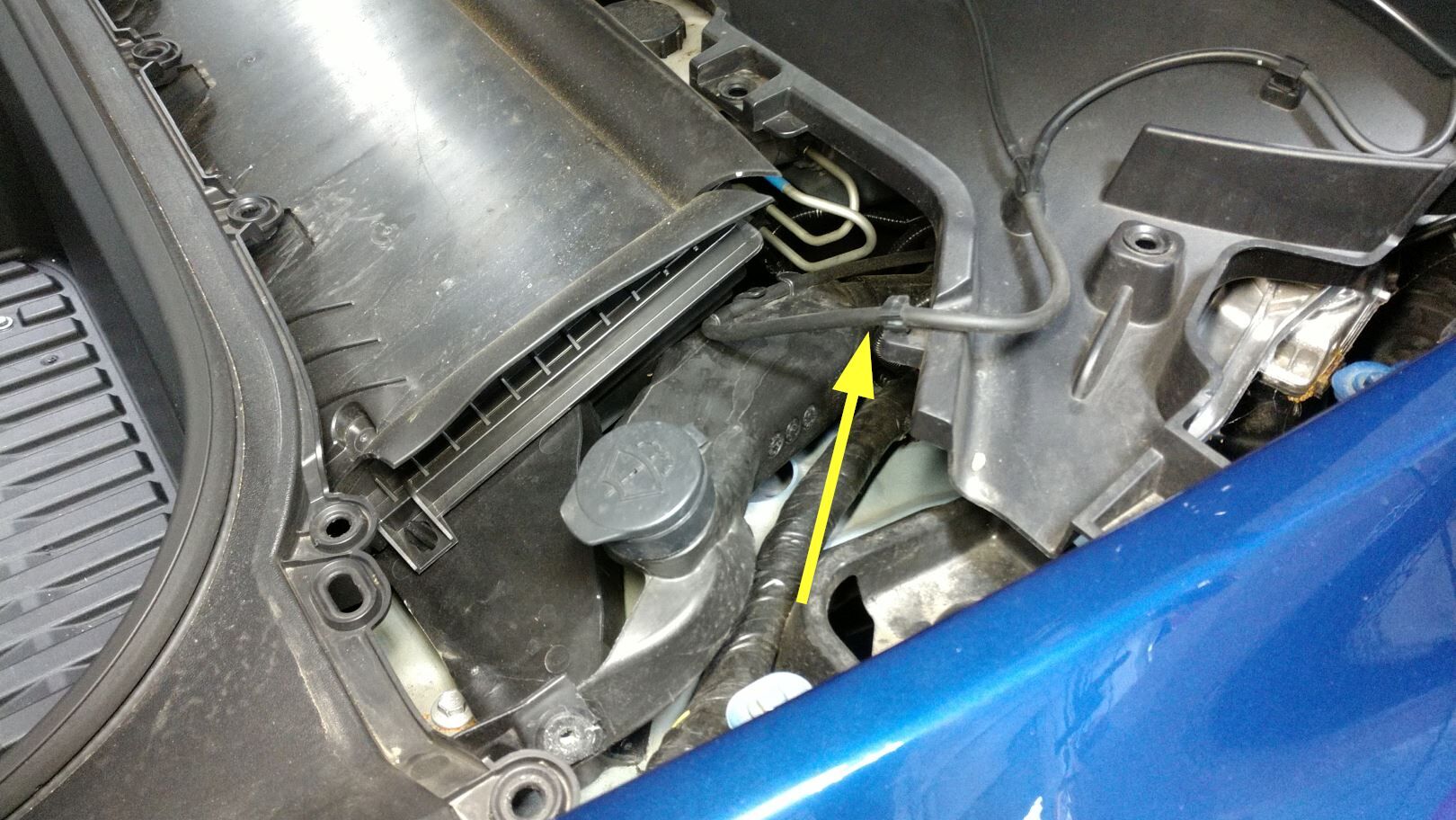

11. Release washer tank neck from washer tank and set aside
    注

    1x O-ring, No need to remove hose from neck

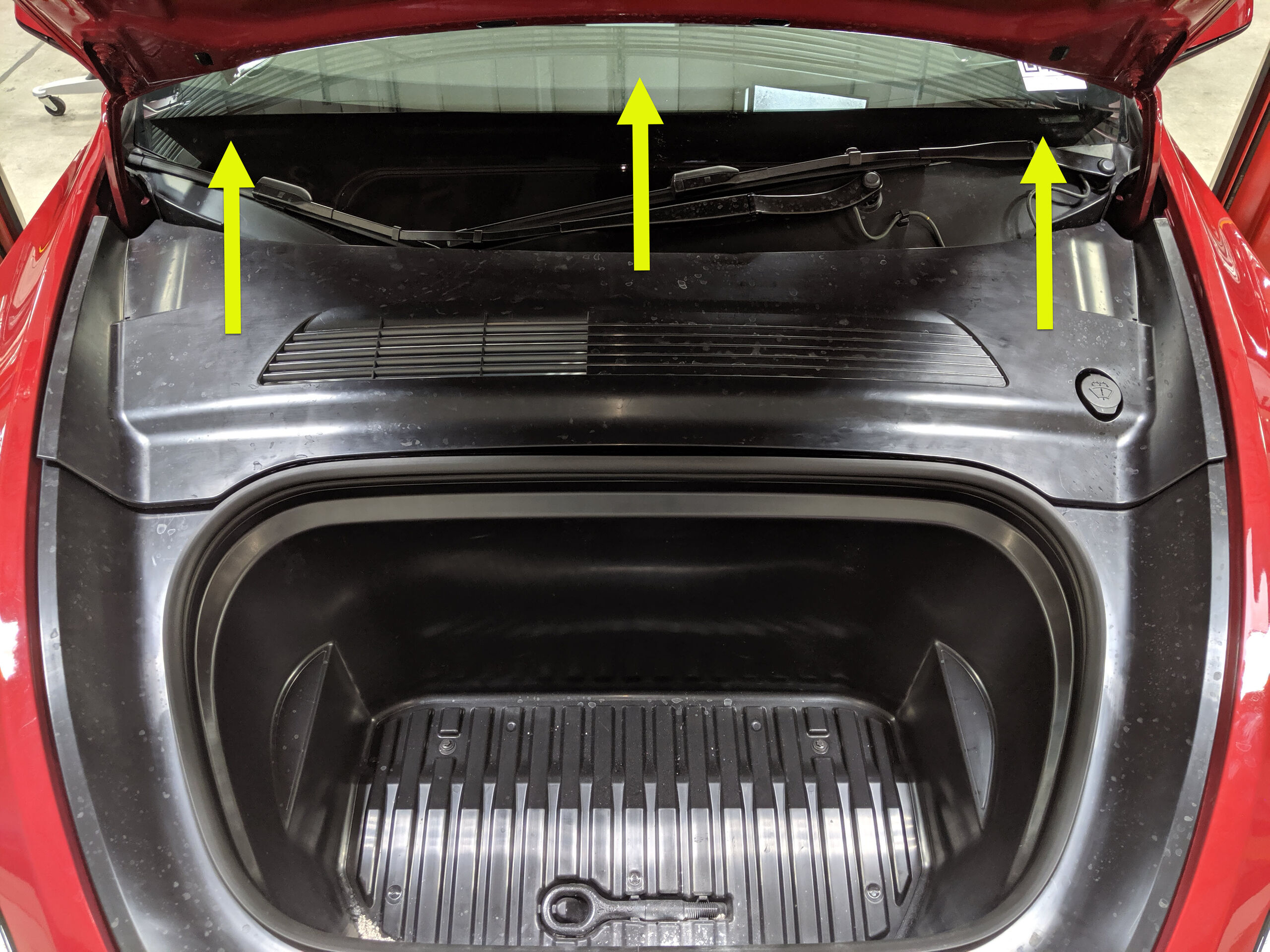

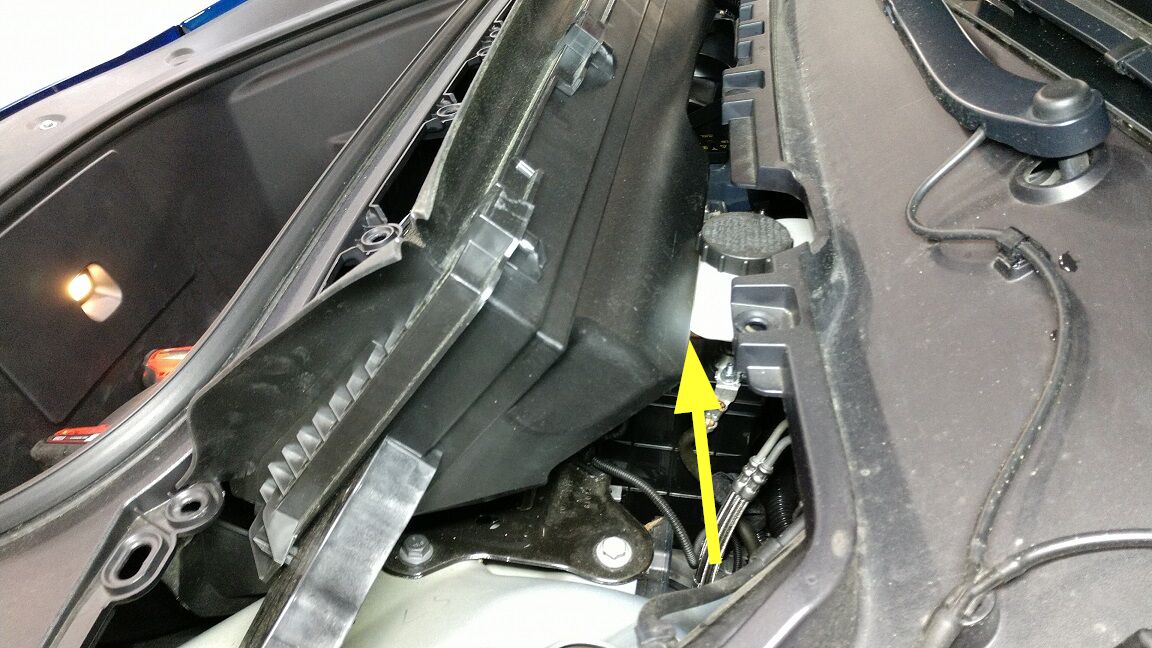

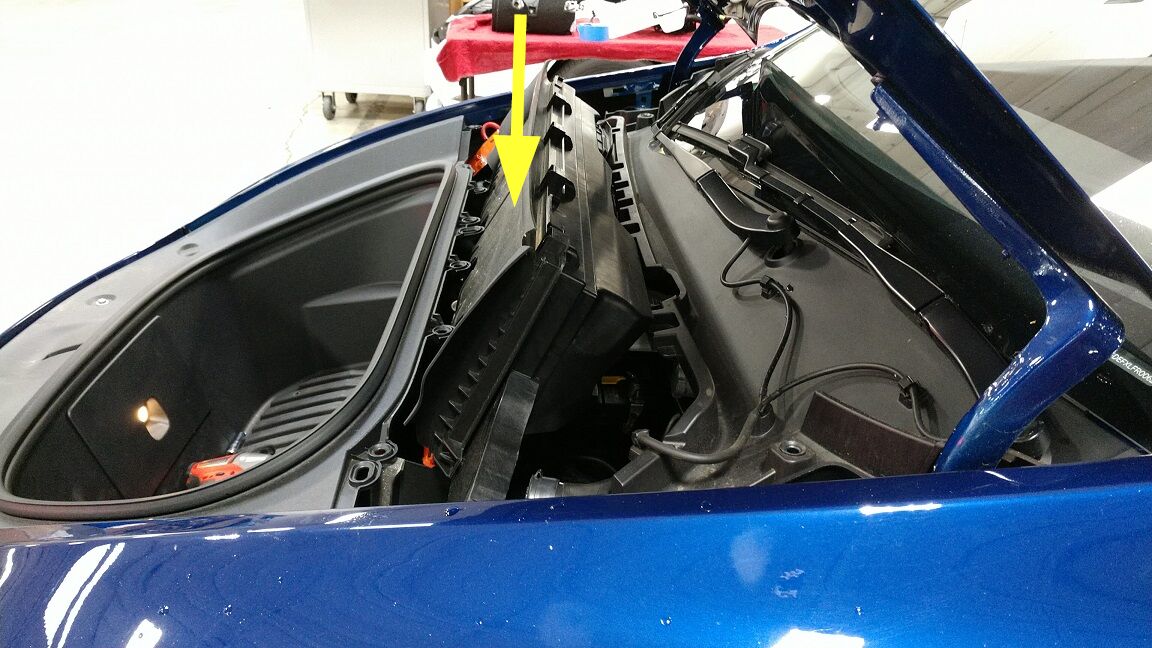

12. Remove HEPA filter assembly
    注

    2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, then lift up to clear frunk assembly







13. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

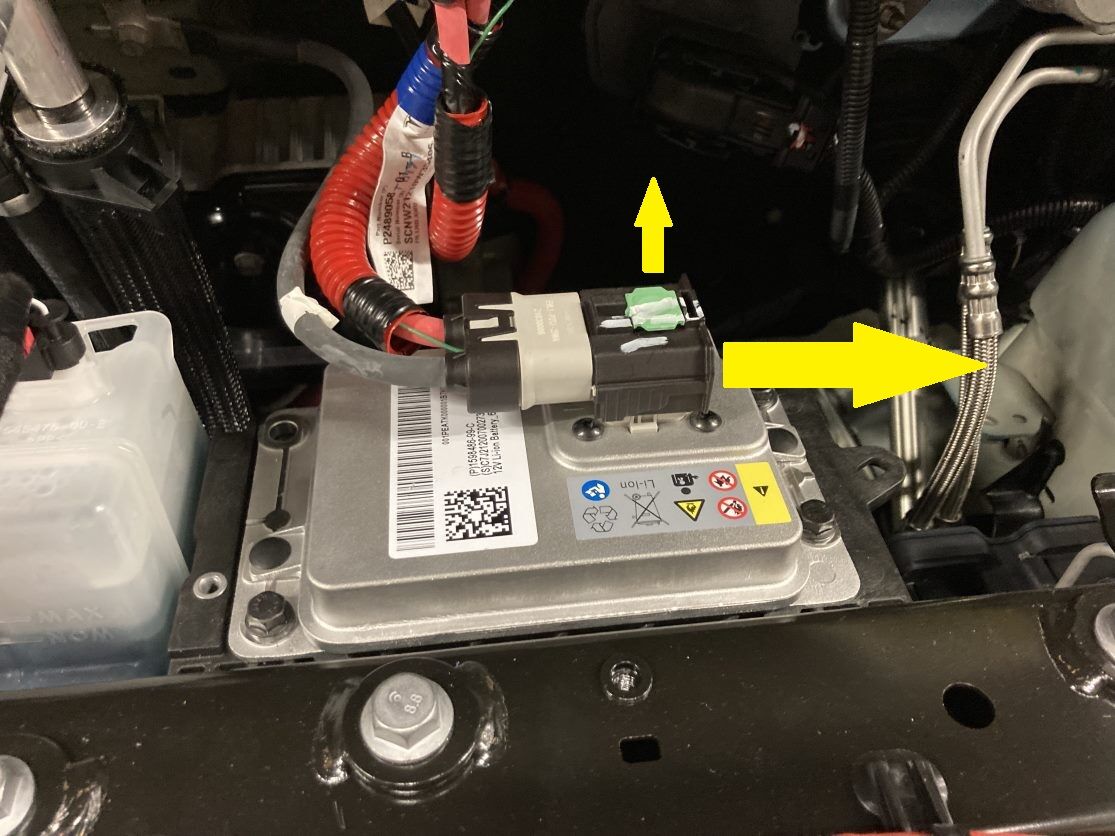

14. Disconnect LV battery connector and First Responder Loop
    注

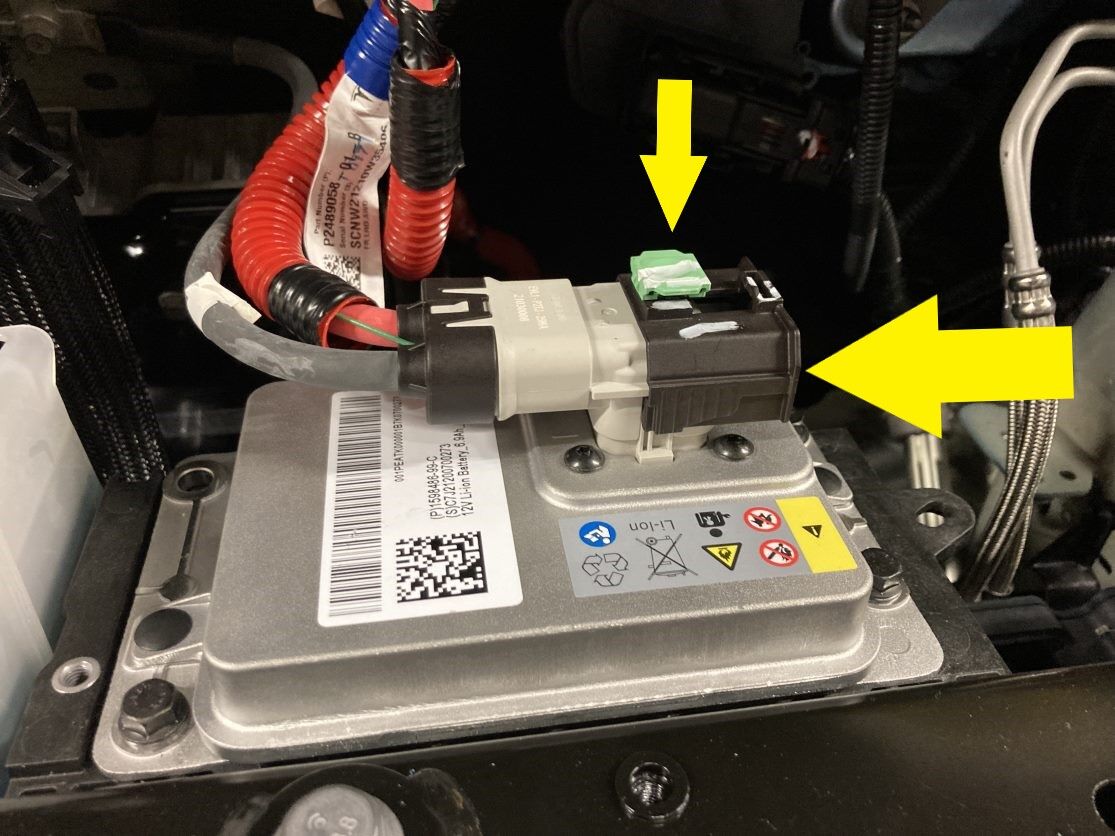

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge







15. Verify operation of multimeter
    注

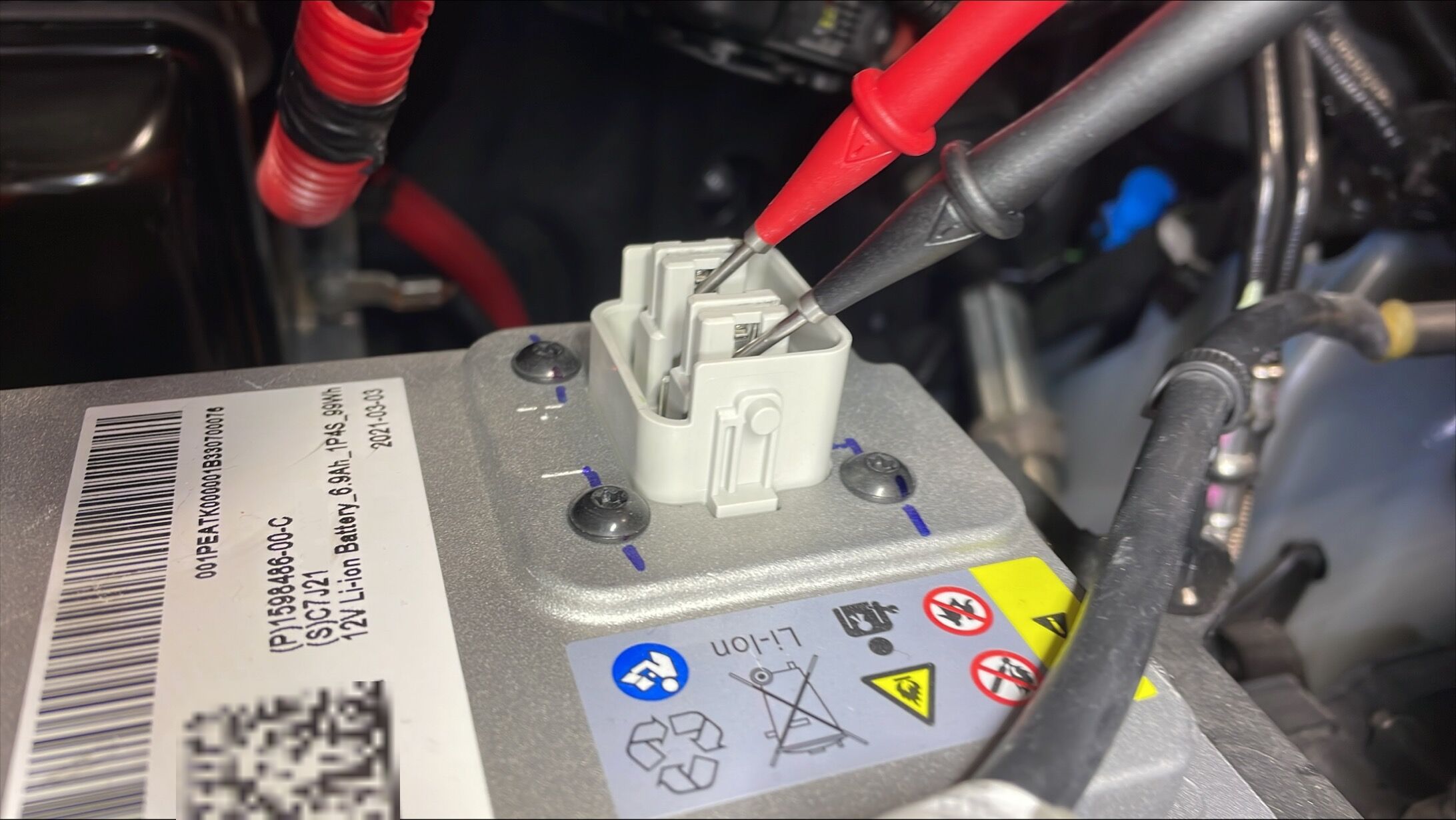

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals





16. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

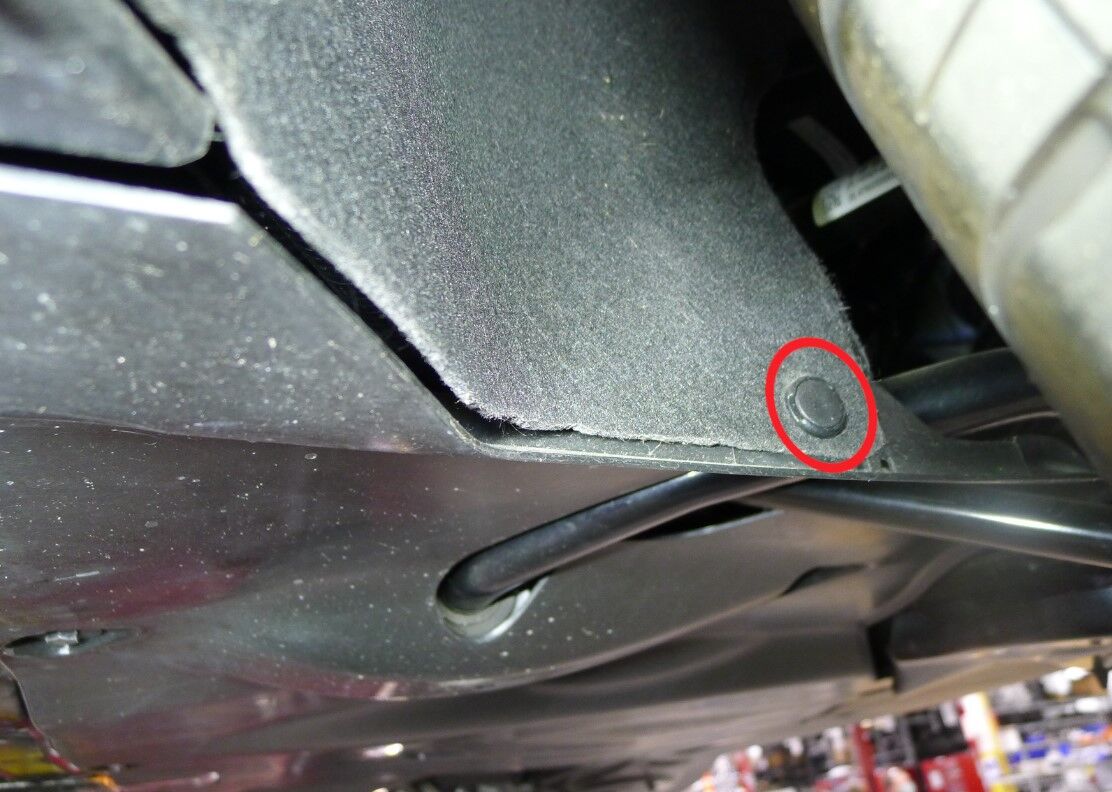

17. Remove push clips at left and right wheel house liner to mid aero shield
    注

    2x clips

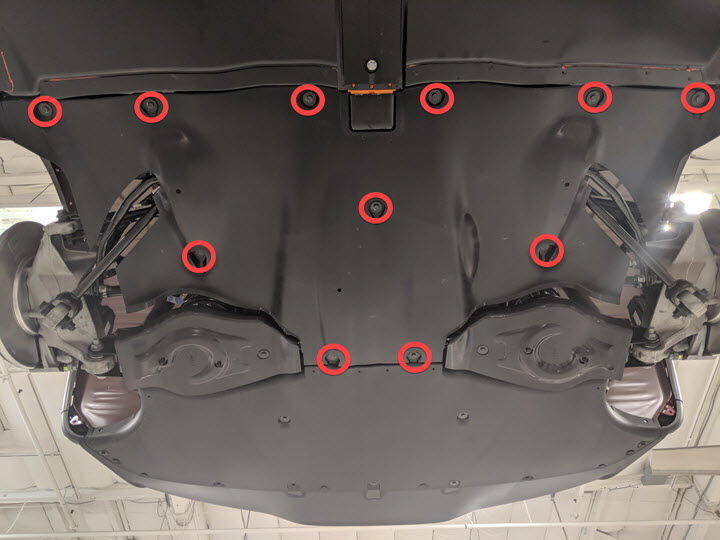

18. Remove mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, MYSP will have one less bolt and an extra clip



19. Remove all items from pockets and ensure not wearing metal items

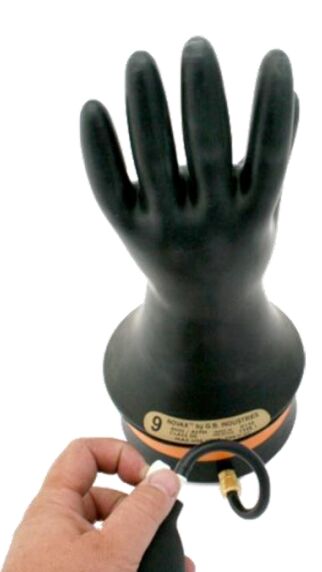

20. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



21. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used

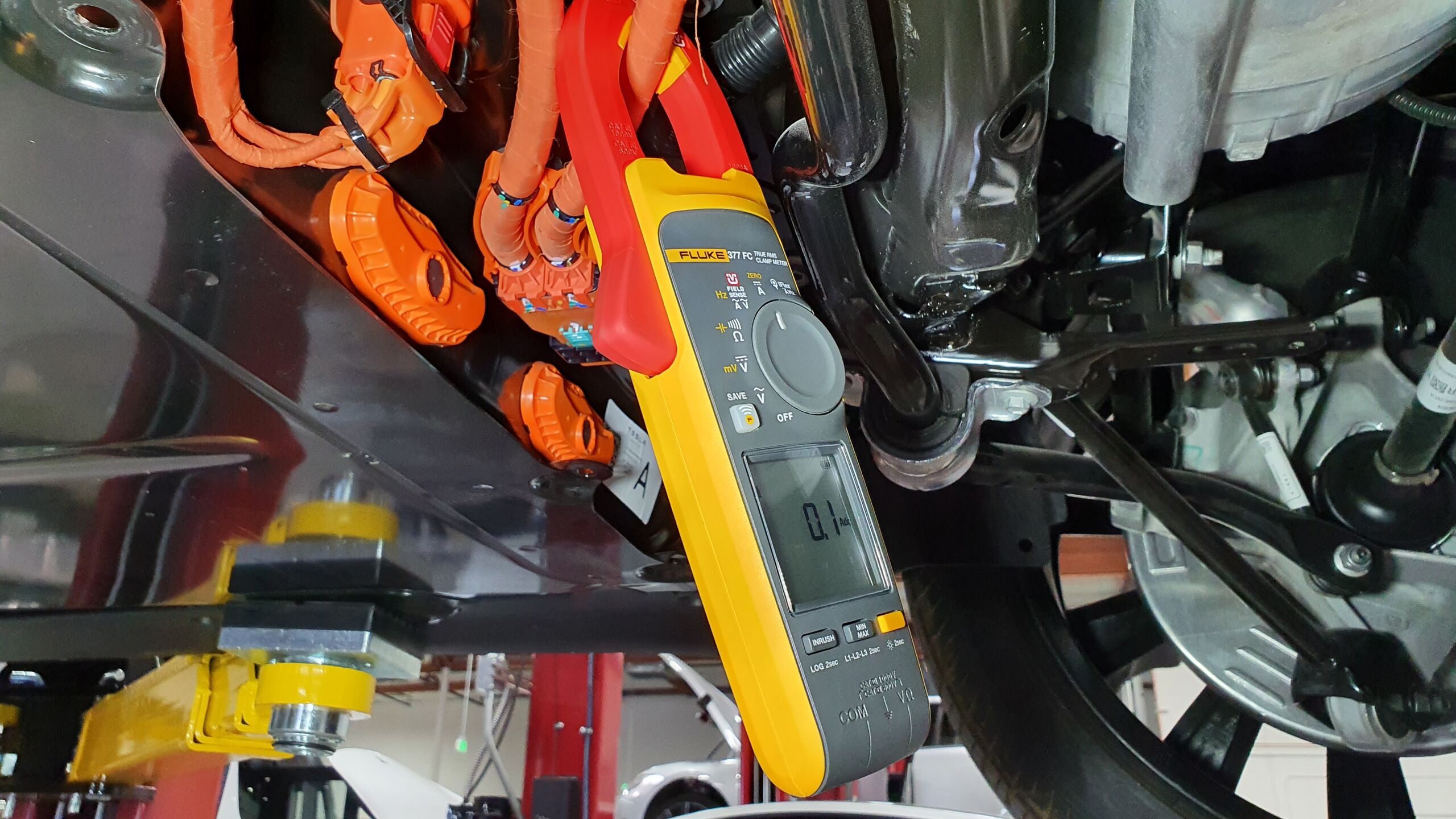

22. Install amp clamp to RDU HV harness
    注

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.

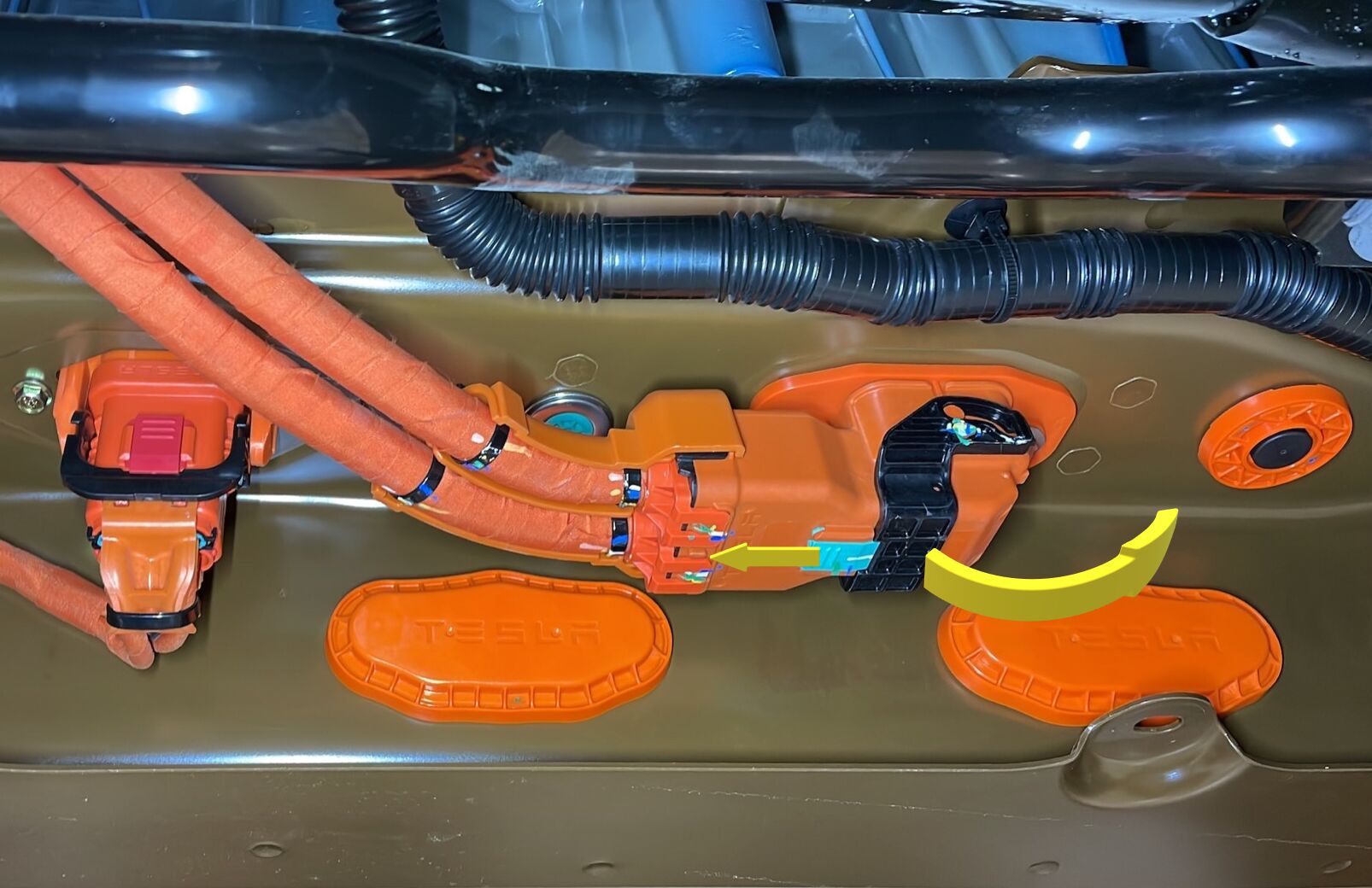

23. Release RDU HV harness from HV battery
    注

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged

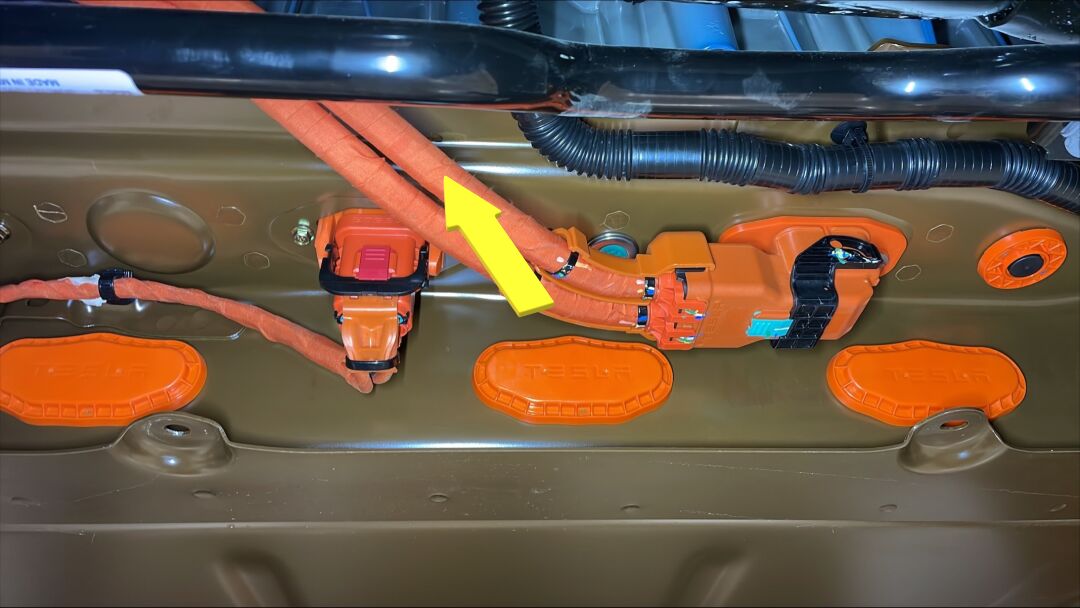

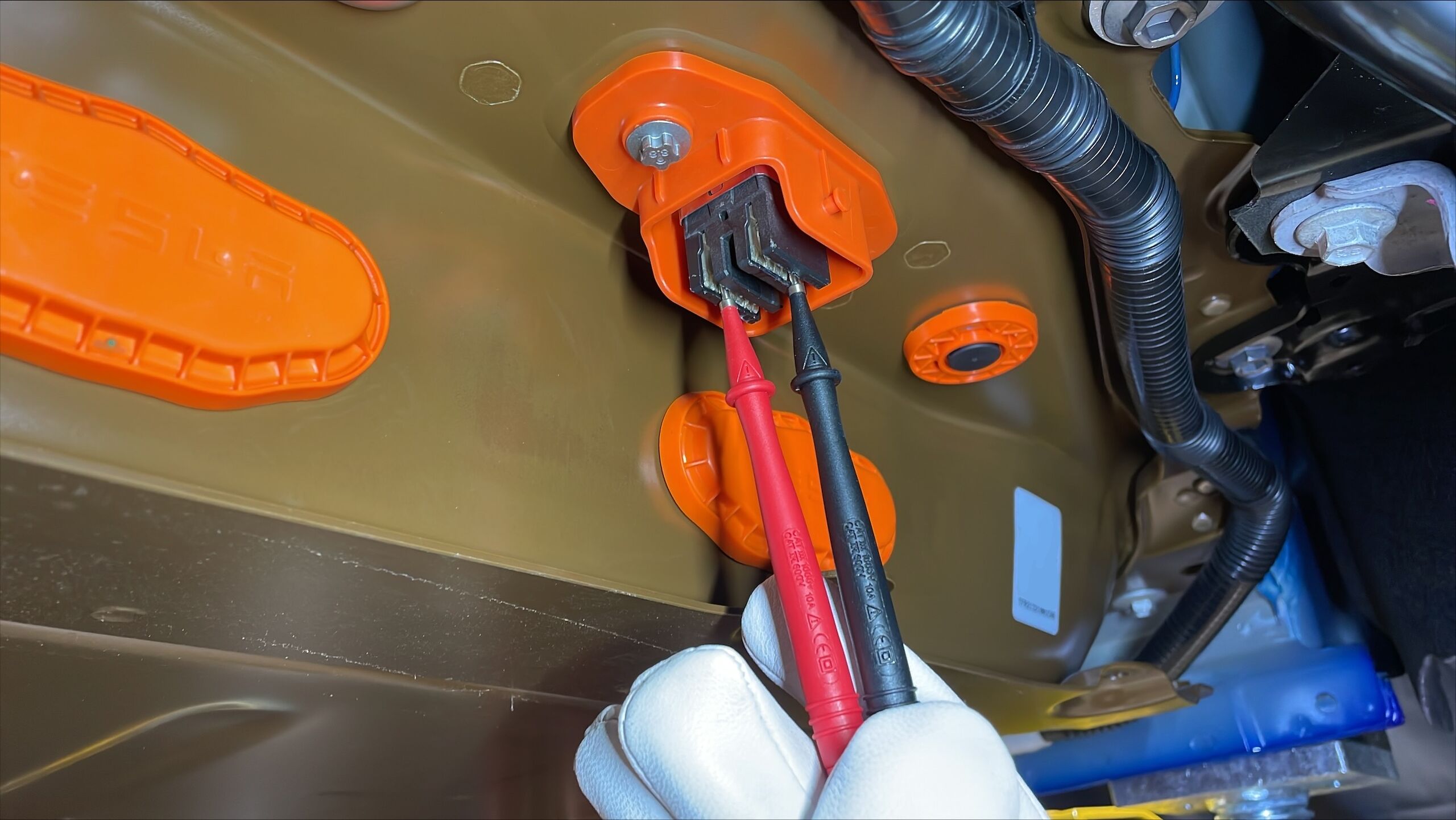

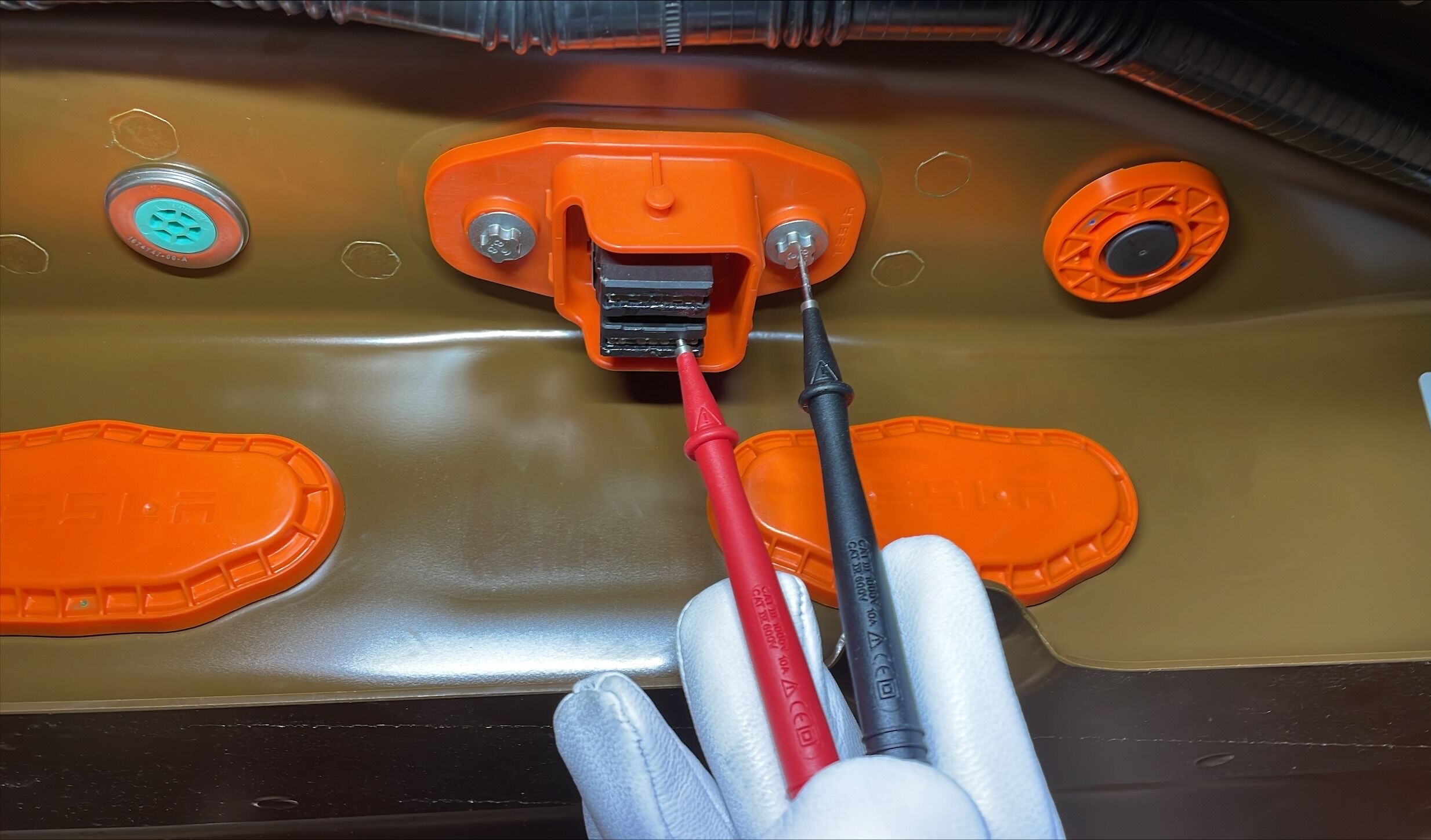

24. Verify no high voltage at RDU HV header
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

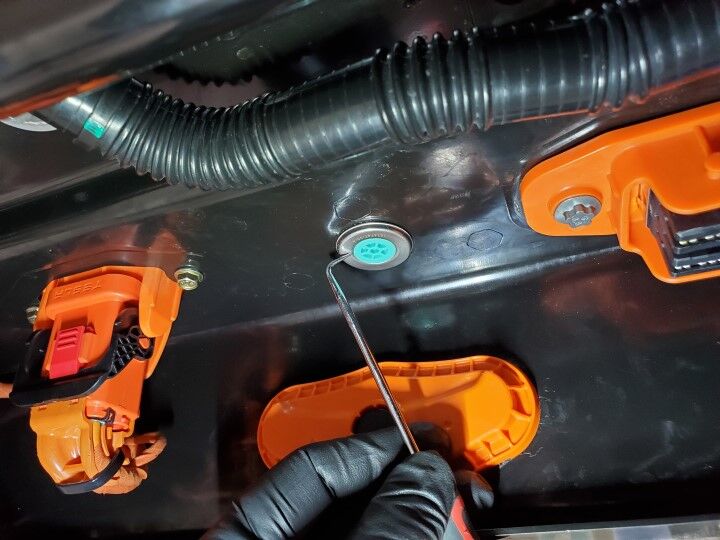

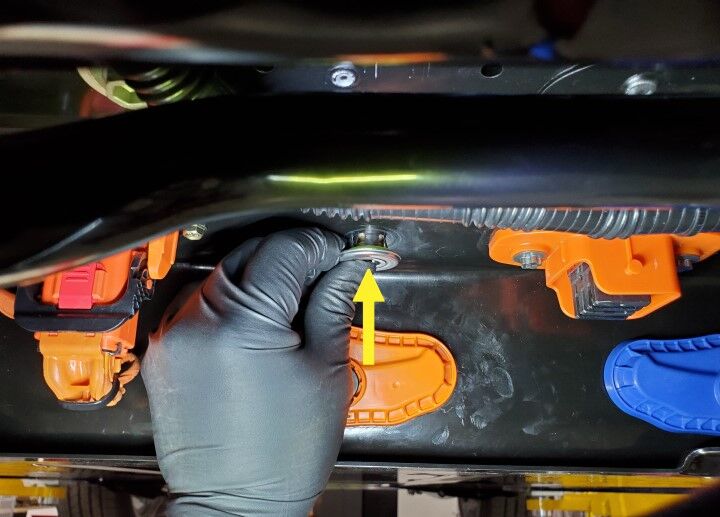

25. Remove LH rear flood port
    注

    3x tabs, Remove plastic plunger then release tabs, Internal components will fall out after plunger removal, Discard port and internal components after removal







26. Install LH rear flood port
    注

    3x tabs, Install new port, Make sure tabs are fully engaged and port is flush with battery

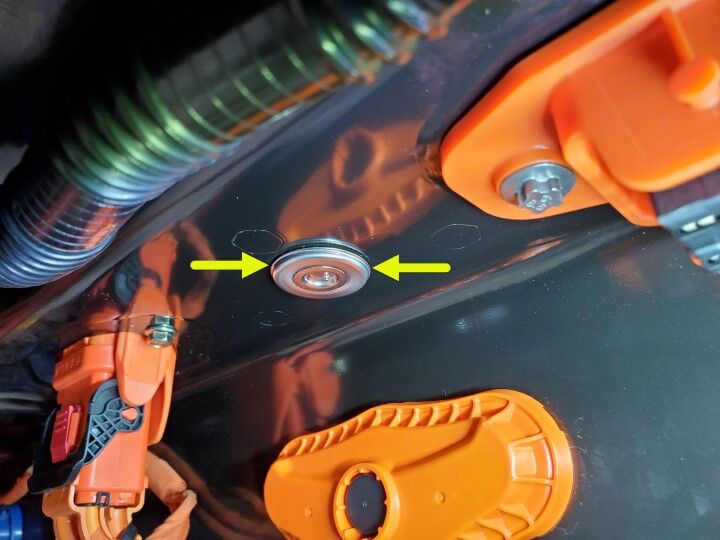

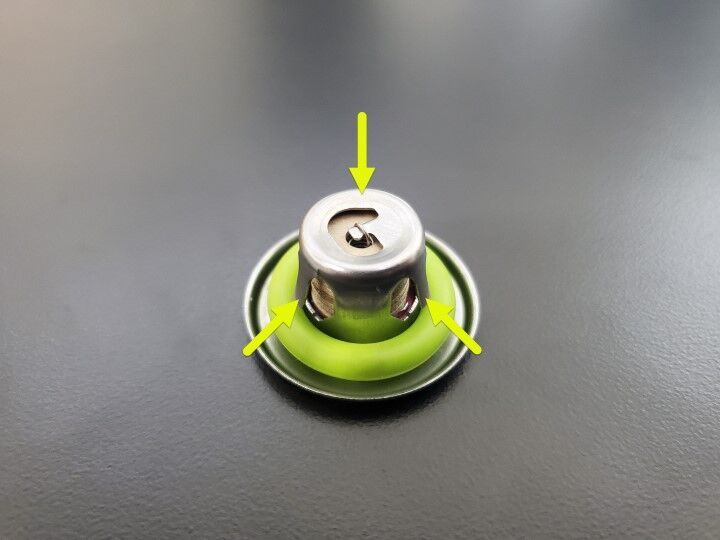

27. Remove breather plugs from thermal vents
    注

    4x plugs, 3x tabs per plug, Discard after removal





28. Install air splitter hoses onto thermal vents
    注

    4x hoses









29. Connect enclosure leak tester onto air splitter

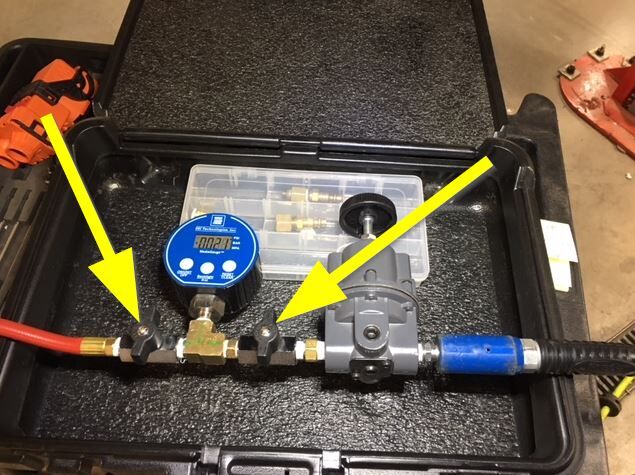

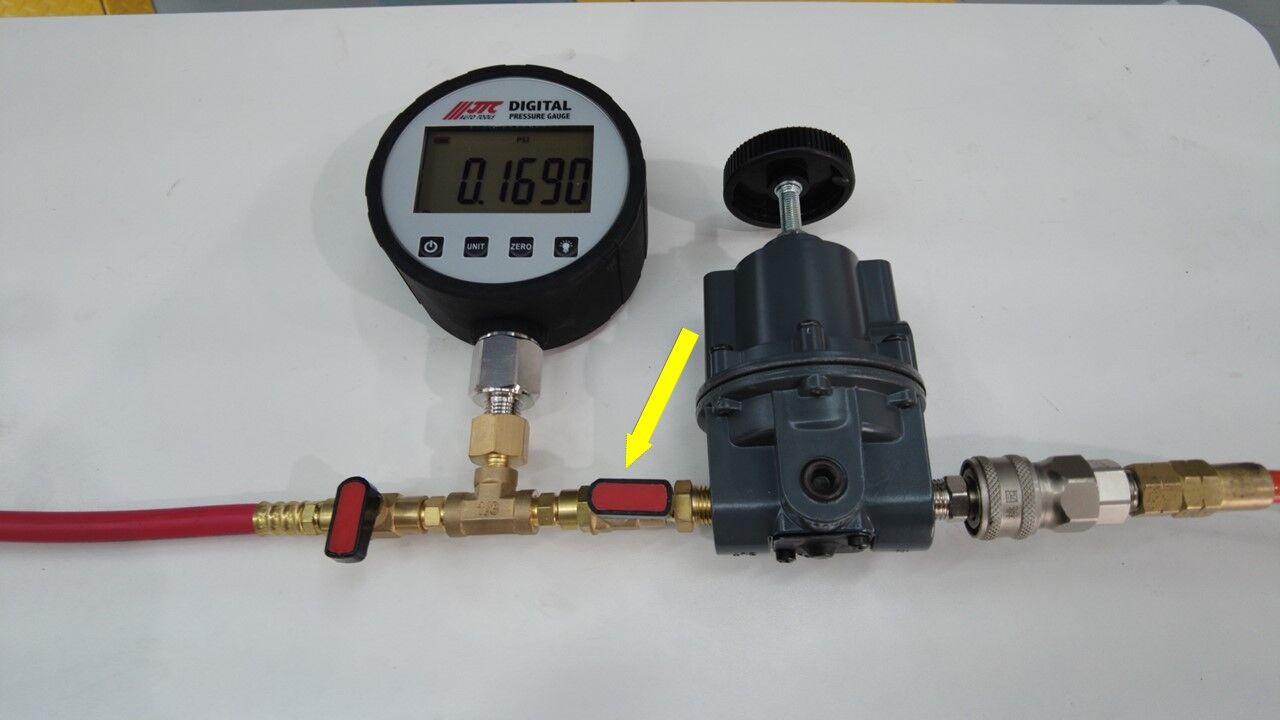

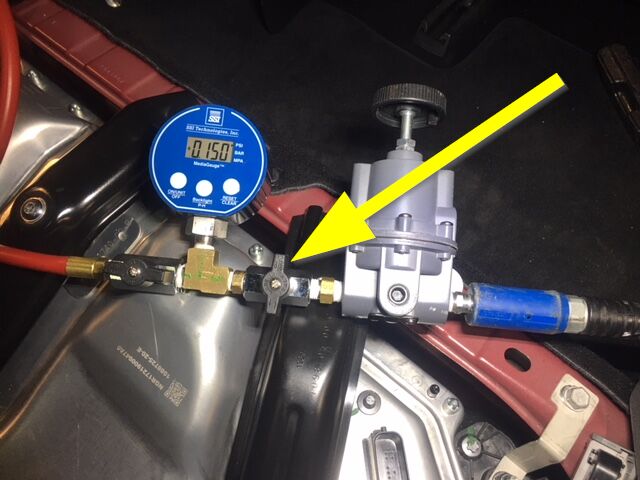

30. Close both valves on the regulator test tool



31. Connect regulator to air supply



32. Turn right side regulator valve to the open position
    注

    By turning the valve knob to a horizontal position, The valve is fully open



33. Set regulator to 0.150 psi



34. Open the left side regulator valve to inject air into the ancillary bay
    注

    Close right side regulator valve when the pressure reaches 0.150 psi and stabilizes







35. Wait 45 seconds for pressure to settle
36. Record value of starting pressure
37. Wait 60 seconds to test pressure
38. Record value of end pressure
    注

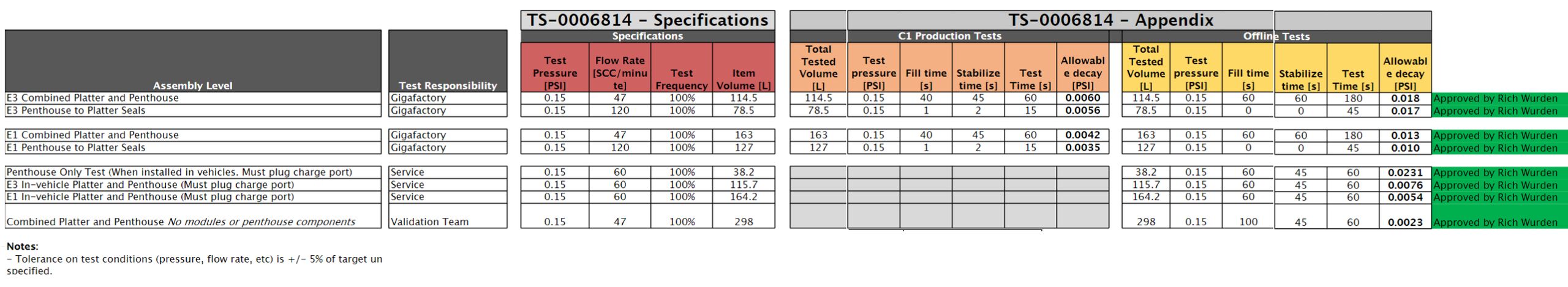

    Subtract the ending pressure from the starting pressure: If the difference is greater than 0.0054 psi, check the hose, adapter, plug fittings, and check the regulator pressure, then retest. If the difference is still greater than 0.0054 psi, escalate a Toolbox session. If the difference is 0.0054 psi or less, continue the procedure.
39. Disconnect air supply from regulator tool



40. Disconnect enclosure leak tester from air splitter



41. Remove air splitter hoses from thermal vents
    注

    4x hoses







42. Install breather plugs onto thermal vents
    注

    4x plugs, 3x tabs per plug, Install new plugs, Press plug evenly, Make sure tabs are fully engaged and plug is flush with vent







43. Secure RDU HV harness onto HV battery
    注

    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



44. Remove HV insulating gloves
45. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack will one less bolt and one extra clip



46. Install push clips at left and right wheel house liner to mid aero shield
    注

    2x clips





47. Lower vehicle fully
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

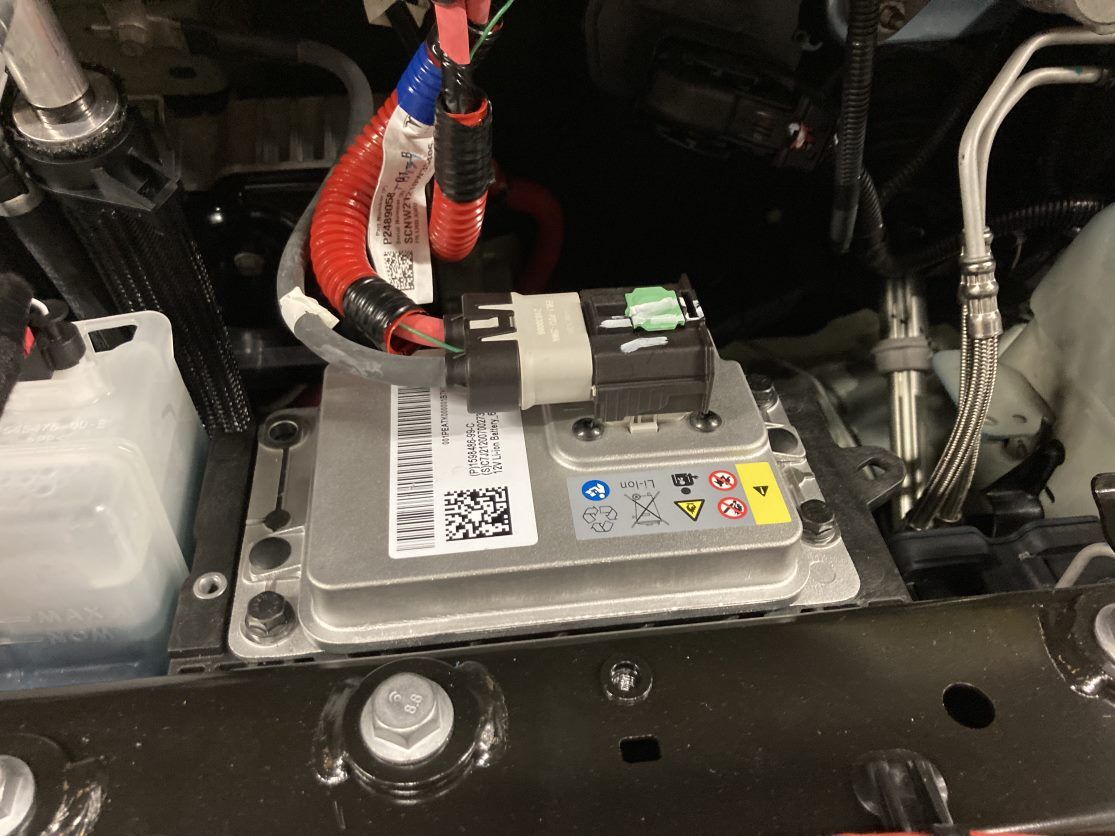

48. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







49. Install HEPA filter assembly
    注

    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, then carefully move rear edge past brake reservoir and into position







50. Install washer tank neck to washer tank
    注

    1x O-ring, Ensure washer hose is properly routed after installation



51. Secure frunk to washer fluid reservoir neck
    注

    1x bolt, 10mm, 5 Nm



52. Install rear apron
    注

    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





53. Close hood
54. Remove vehicle from lift
    注

    Lower rack arms fully and remove from under vehicle
55. Raise LH front window
56. Close LH front door

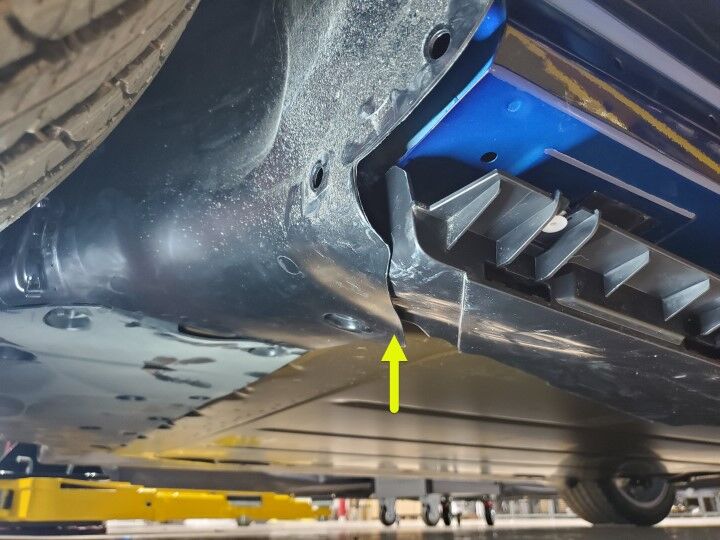

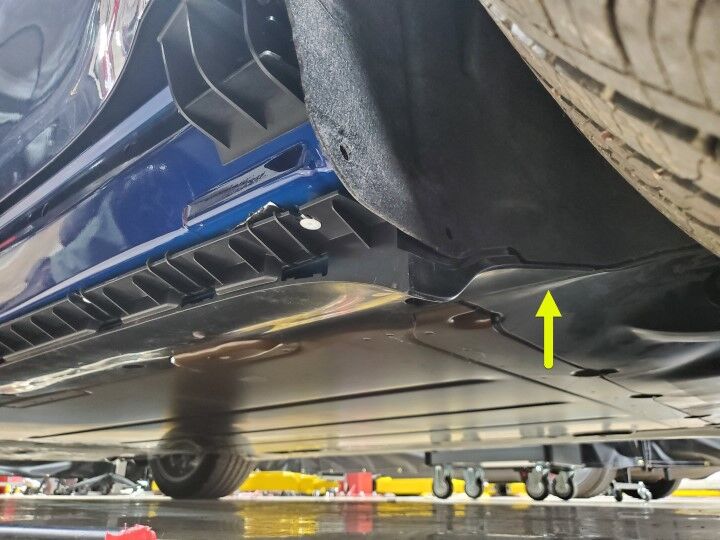

57. Install LH rocker carrier
    注

    10x clips, 1x datum, Maneuver carrier around front wheel liner then rear wheel liner







58. Install fasteners securing LH rocker carrier to body and wheel liners
    注

    3x bolts, 10mm, 12 Nm, 4x clips









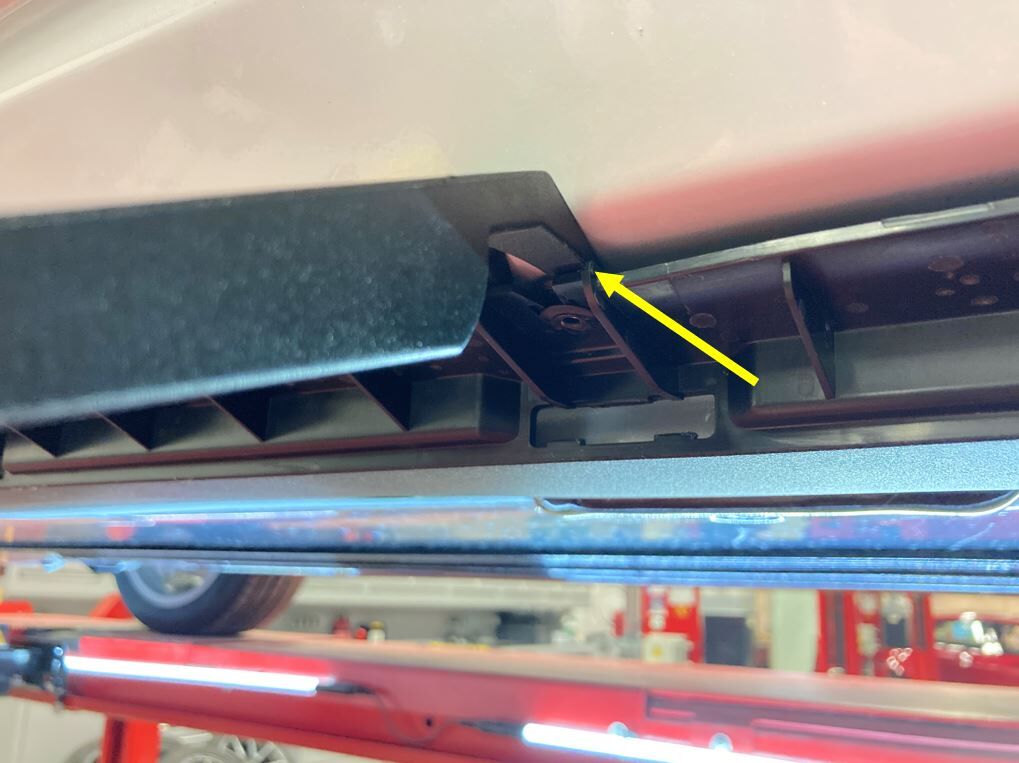

59. Install LH rocker cover onto rocker carrier
    注

    11x clips, 11x tabs, Recommend assistance, Tabs go into cavities on rocker carrier and cannot be accessed from outer side of cover



60. Install clips securing LH rocker cover to front and rear wheel liner
    注

    2x clips
