Rim - Steering Wheel (Remove and Replace)

校正代码 32051102 0.30 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-11-03: Updated the specification of the bolts (x4) that attach the bright surround to the steering wheel.
  • 2026-08-10: Added batch information about the bolts (x4) that attach the bright surround to the steering wheel.
  • 2026-01-15: Added steps about the steering wheel ground connection screw and the airbag retaining spring.

扭矩规格

Table 1. 扭矩规格: Rim - Steering Wheel (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Steering wheel ground connection bolt
1.8 Nm (1.3 lbs-ft)
  • PH1 Stubby Phillips Screwdriver
  • Torque wrench 1/4" hexagon (0.2Nm-4Nm)
 重复使用
Bolts (x4) that attach the bright surround to the steering wheel
2.5 Nm (1.8 lbs-ft)
1.8 Nm (1.3 lbs-ft)
  • Torx T25 bit
  • PH1 Stubby Phillips Screwdriver
 重复使用

T25 bolts: 2.5 Nm

PH1 bolts: 1.8 Nm
Bolt that attaches the steering wheel to the steering column
80 Nm (59.0 lbs-ft)
  • 10 毫米套筒扳手
更换 1036655-00-A

拆卸

  1. Disconnect LV power. See 12V/低压电源（断开和连接）.
  2. Remove the driver airbag. See 气囊 - 驾驶位（拆卸和更换）.
  3. Disconnect the steering wheel electrical wiring harness connector.
  4. Disconnect the steering wheel heating element connector.

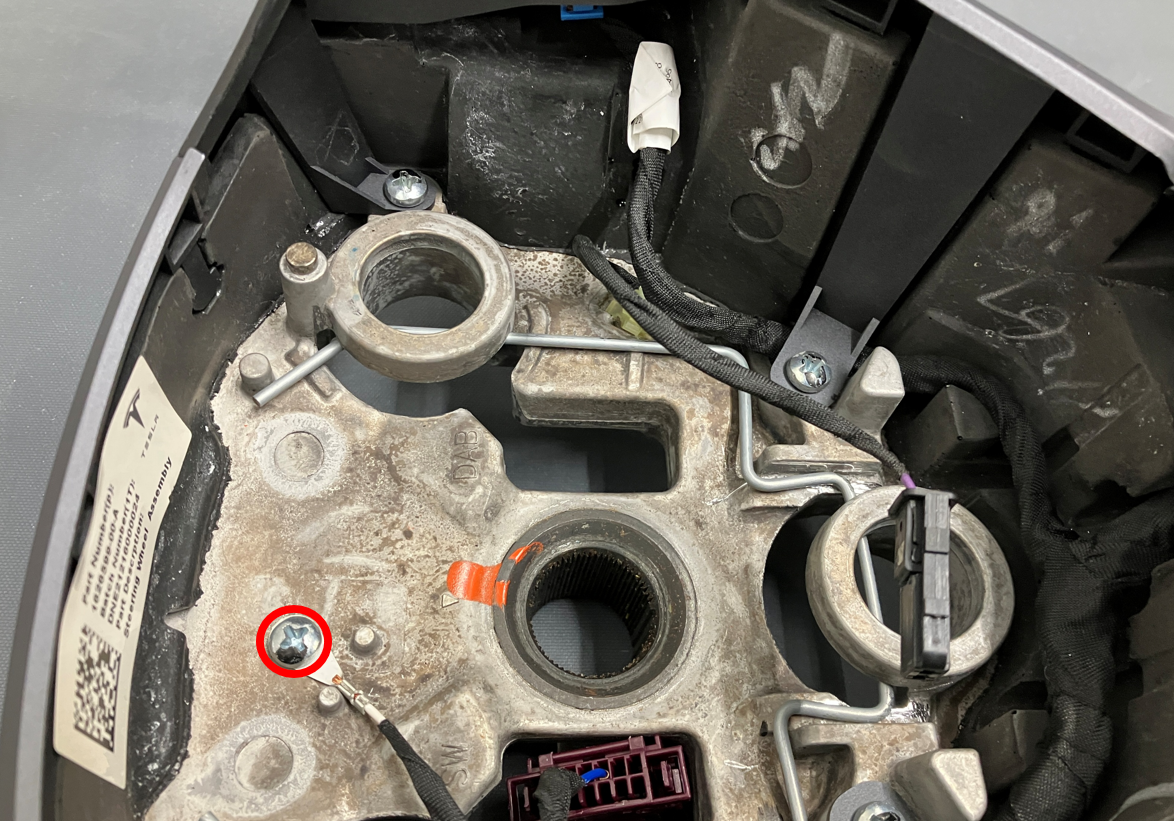

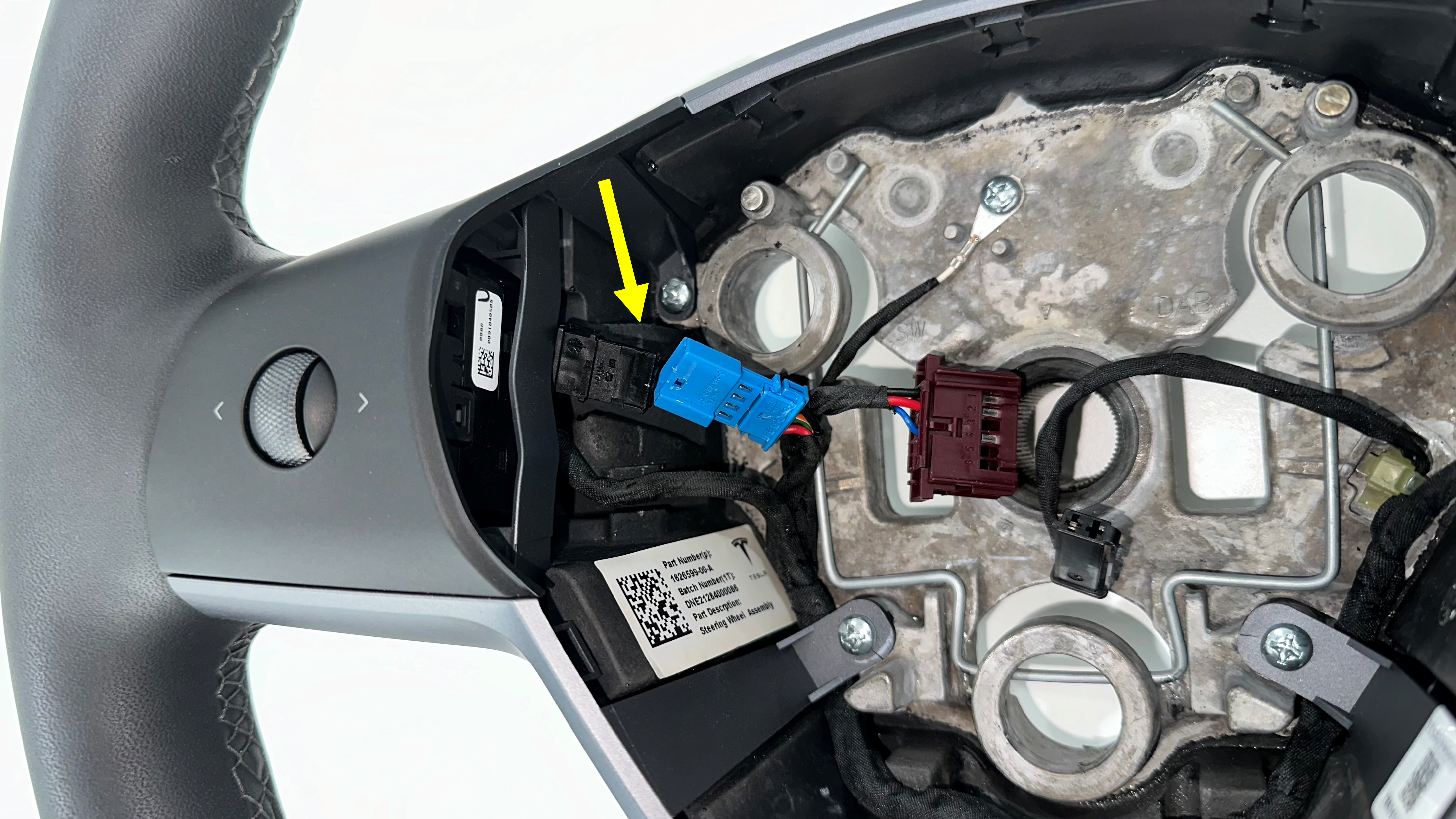

  5. Remove the steering wheel ground connection bolt.
    Tip
    Use of the following tool(s) is recommended:
    • PH1 Stubby Phillips Screwdriver
    • Torque wrench 1/4" hexagon (0.2Nm-4Nm)

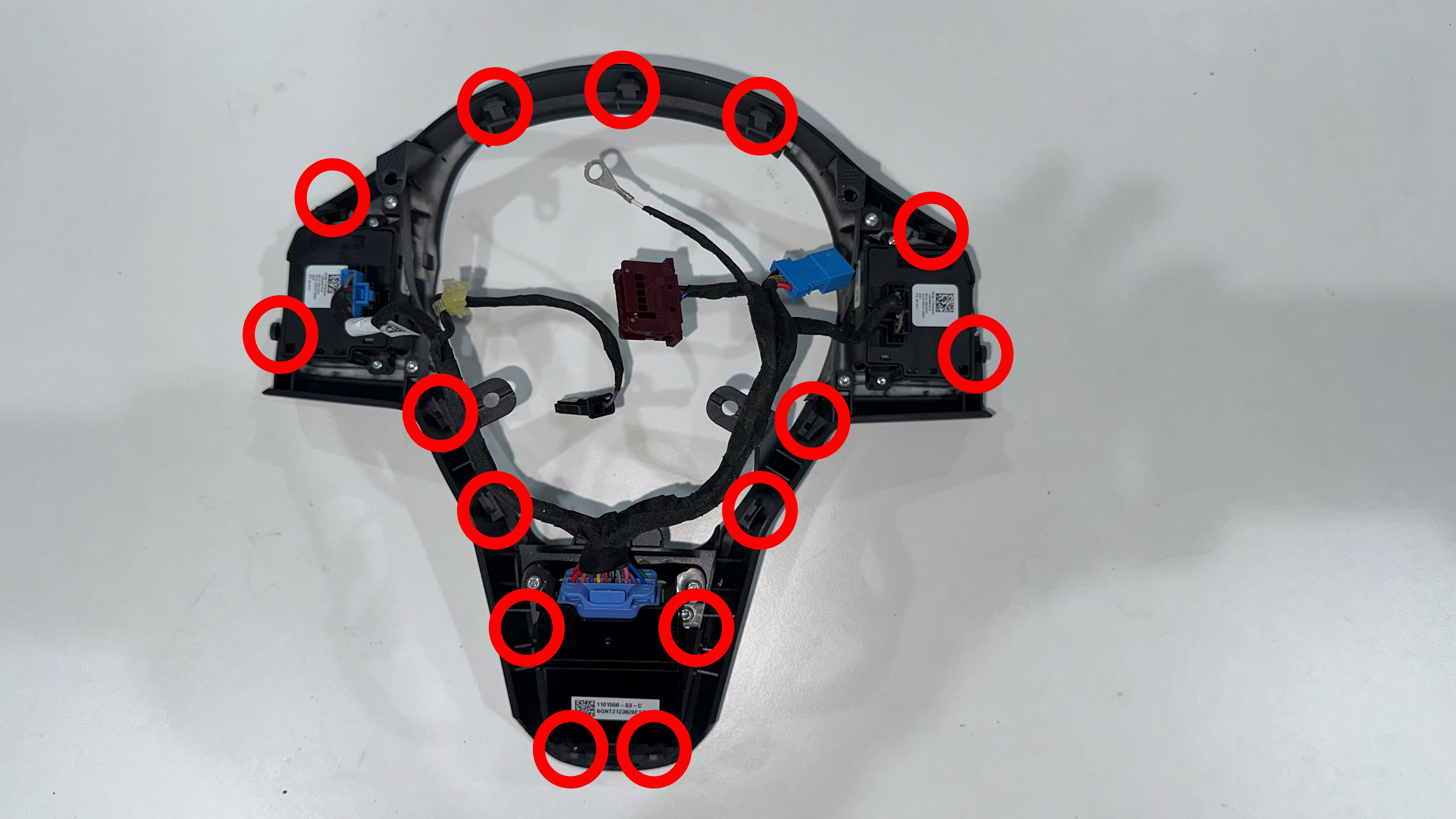

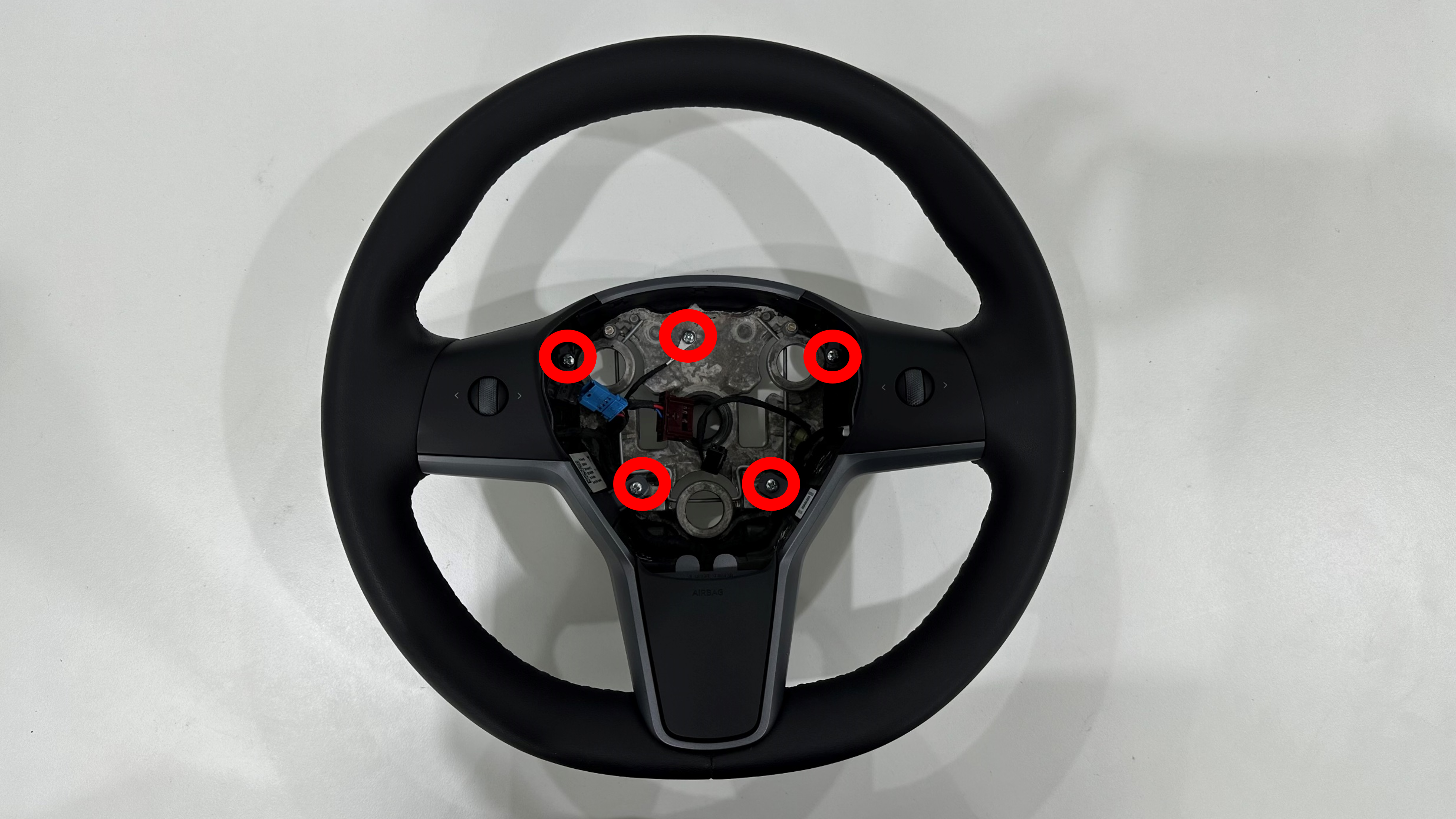

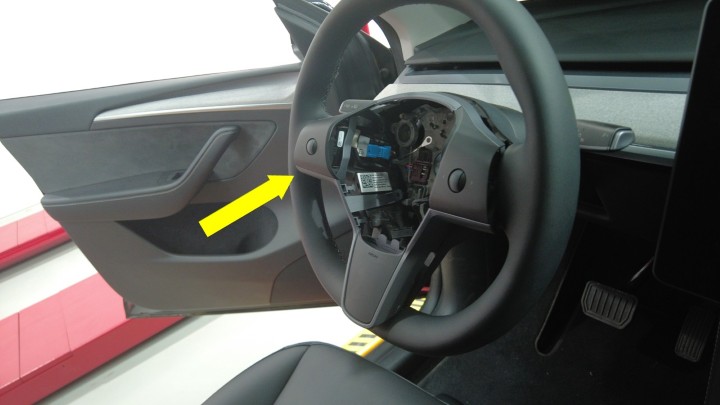

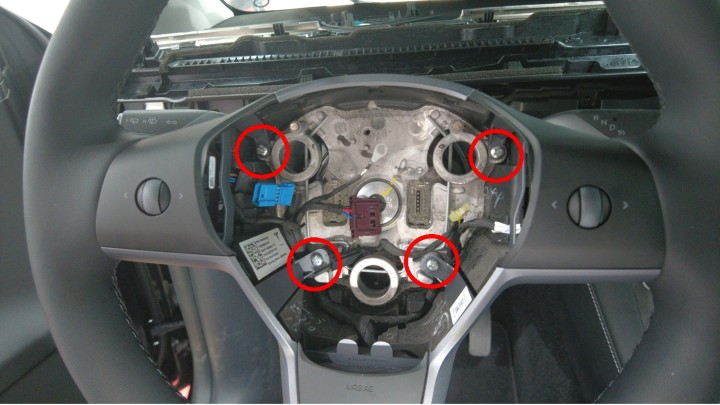

  6. Remove the bolts (x4) that attach the bright surround to the steering wheel, and then release the bright surround and switches assembly from the steering wheel.
    Note
    Depending on the vehicle batch, some vehicles are equipped with T25 bolts while others are equipped with PH1 bolts.
    Note
    Pry the lower portion of the bright surround assembly away from the steering wheel, and then work your way around. Do not remove it now. Wait until the steering wheel is removed.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 bit
    • PH1 Stubby Phillips Screwdriver

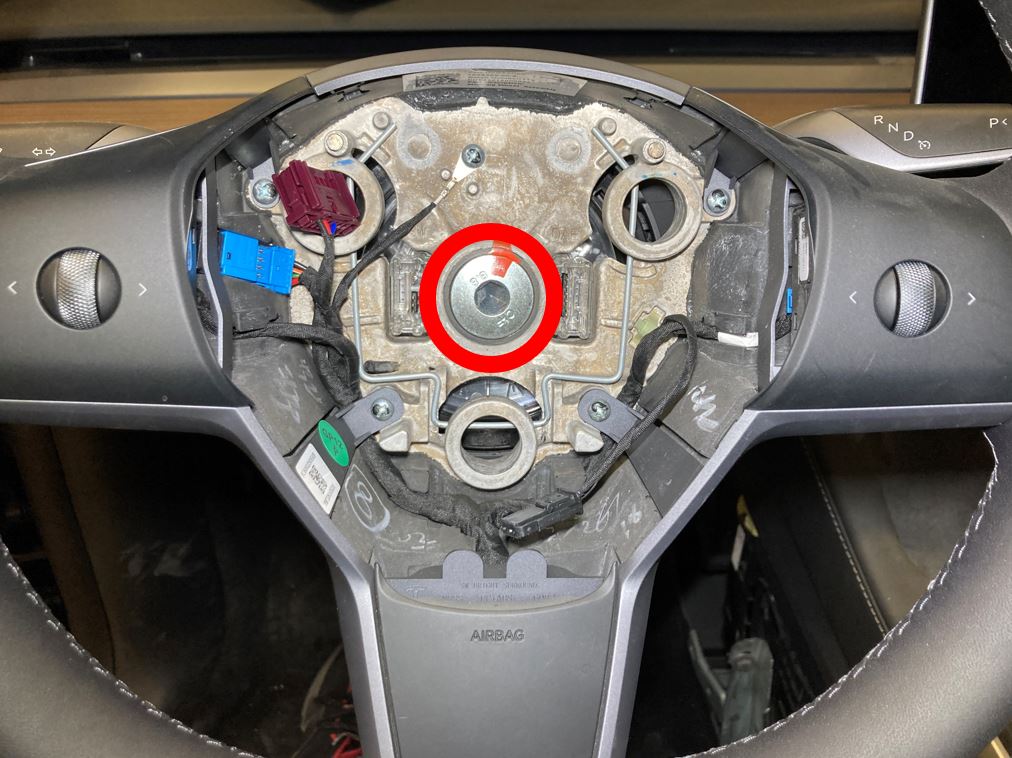

  7. Remove and discard the bolt that attaches the steering wheel to the steering column.
    Tip
    推荐使用以下工具
    • 10 毫米套筒扳手

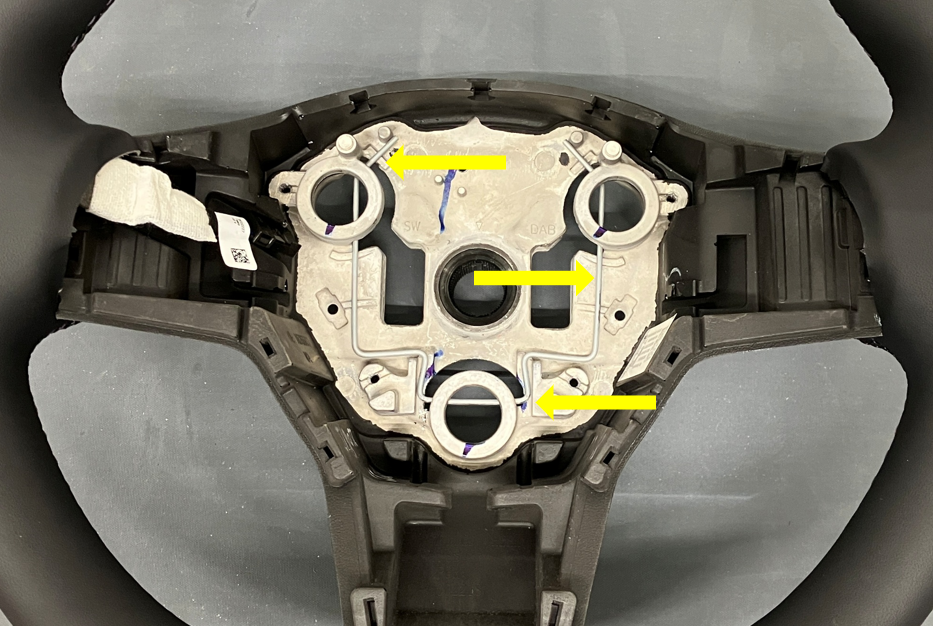

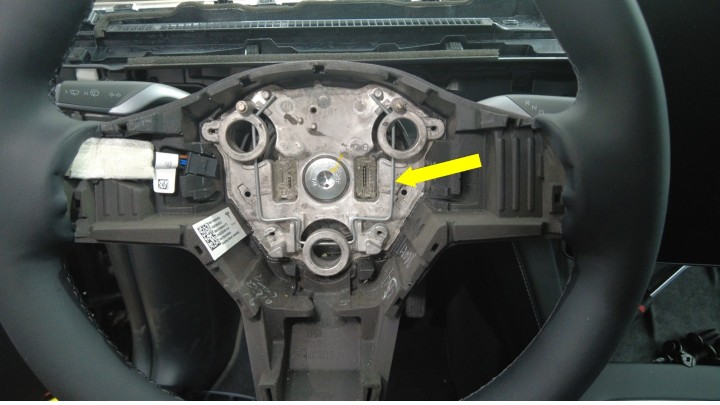

  8. If the new steering wheel rim comes without an airbag retention wire: Squeeze the wire towards the middle and remove the airbag retention wire upwards for reuse.

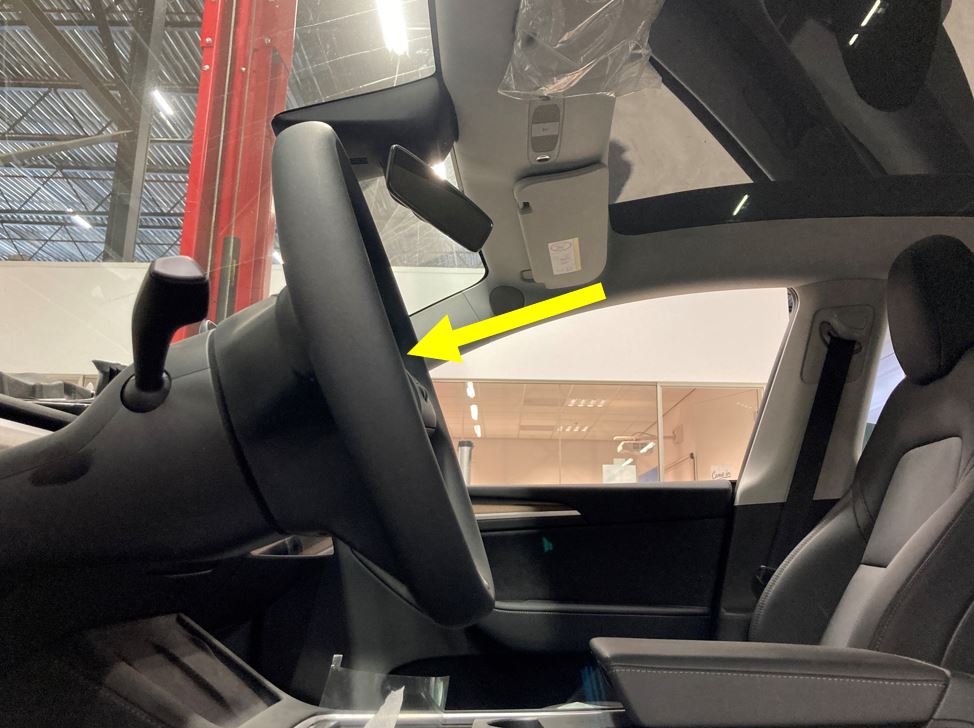

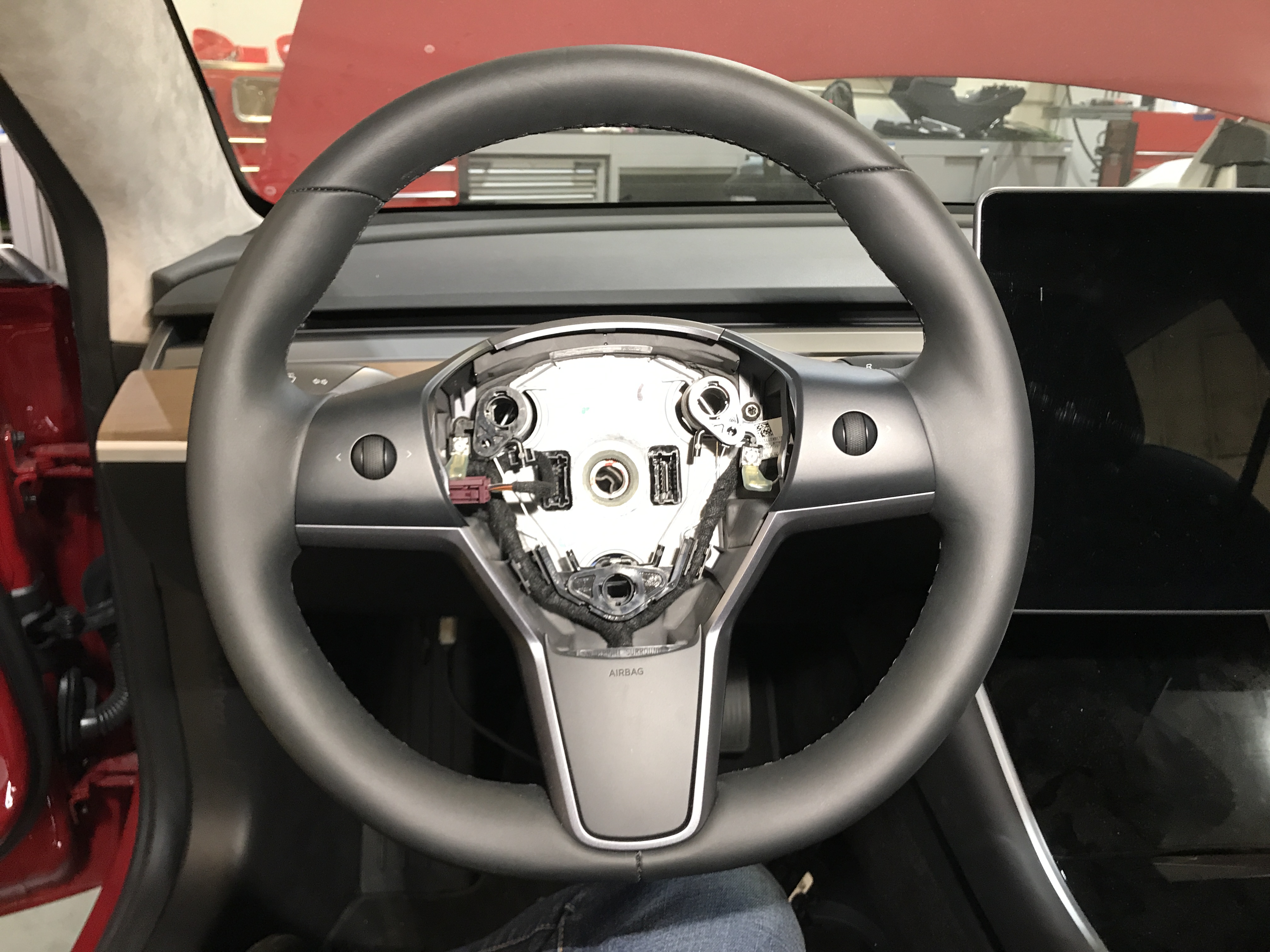

  9. Remove the steering wheel from the steering column.

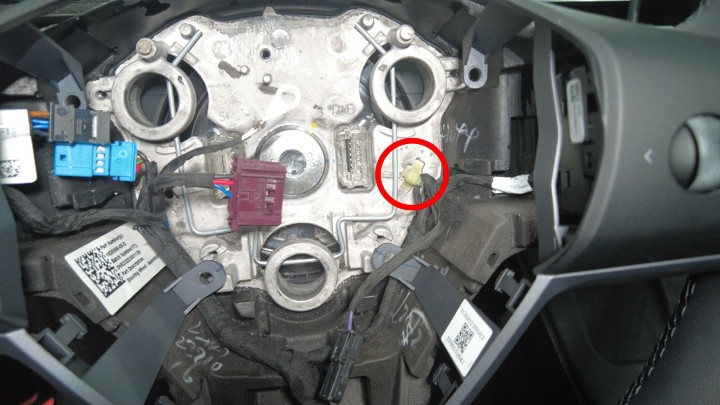

  10. Remove steering wheel wiring harness clip.
    Note
    This clip must be easily removable from the back side after the steering wheel is removed, otherwise, it can easily become damaged.

安装

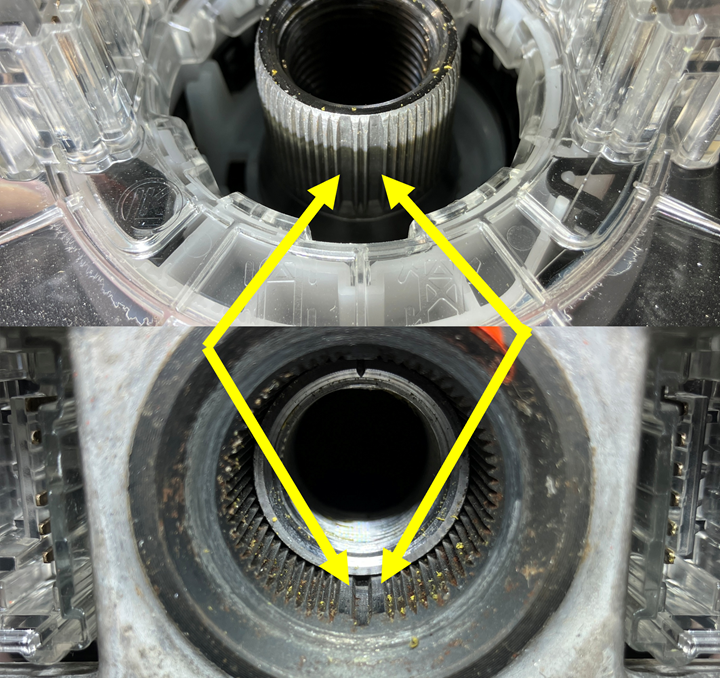

  1. Align the keyed parts of steering wheel and column.
  2. Install a new bolt that attaches the steering wheel to the steering column.
    80 Nm (59.0 lbs-ft)
    Tip
    推荐使用以下工具
    • 10 毫米套筒扳手
  3. If the new steering wheel rim comes without an airbag retention wire, install the wire removed from the old rim to the new rim.
  4. Install the bolts (x4) that attach the bright surround to the steering wheel.
    2.5 Nm (1.8 lbs-ft)
    1.8 Nm (1.3 lbs-ft)
    Note
    Depending on the vehicle batch, some vehicles are equipped with T25 bolts while others are equipped with PH1 bolts.
    Note
    Torque the T25 bolts to 2.5 Nm; torque the PH1 bolts to 1.8 Nm.
    Tip
    推荐使用以下工具
    • Torx T25 bit
    • PH1 Stubby Phillips Screwdriver

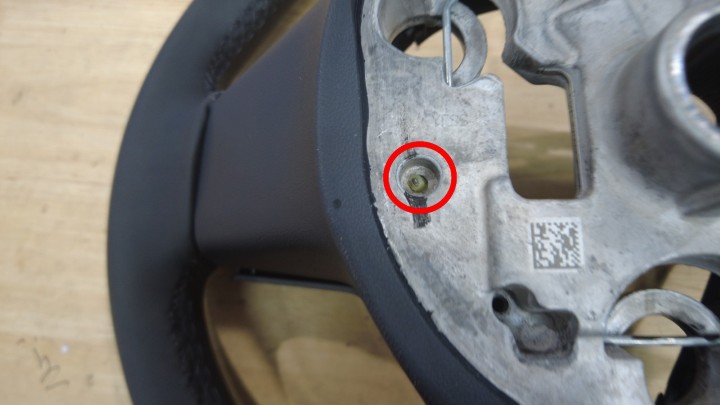

  5. Install steering wheel ground connection bolt.
    1.8 Nm (1.3 lbs-ft)
    Tip
    推荐使用以下工具
    • PH1 Stubby Phillips Screwdriver
    • Torque wrench 1/4" hexagon (0.2Nm-4Nm)
  6. Connect the steering wheel heating element connector.
  7. Connect the steering wheel electrical wiring harness connector.
  8. Install the driver airbag. See 气囊 - 驾驶位（拆卸和更换）.
  9. Connect LV power. See 12V/低压电源（断开和连接）.
