车载电脑 (HW4)（拆卸和安装）

校正代码 21151031 0.84 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2024-04-02: Added torque specification for the bolts that attach the car computer to the bulkhead, and added a step for the installation of such bolts.
  • For HW3 car computer, use correction code 21151001
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“小心”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。

拆卸

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open the RH front door.
  4. Lower the RH front window.
  5. Open the hood.
  6. Remove the rear apron.
  7. Power off the vehicle using the touchscreen.
  8. Remove HEPA filter assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly
  9. Disconnect the LV battery connector and First Responder Loop.
  10. Remove fresh air intake duct
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, 10mm, 4 Nm, 2x clips, 1x pin, Remove bolt, Gently pry pin out from thermal beam, then remove from bulkhead studs
  11. Place absorbent material below car computer coolant hose connection points to collect any spilled coolant

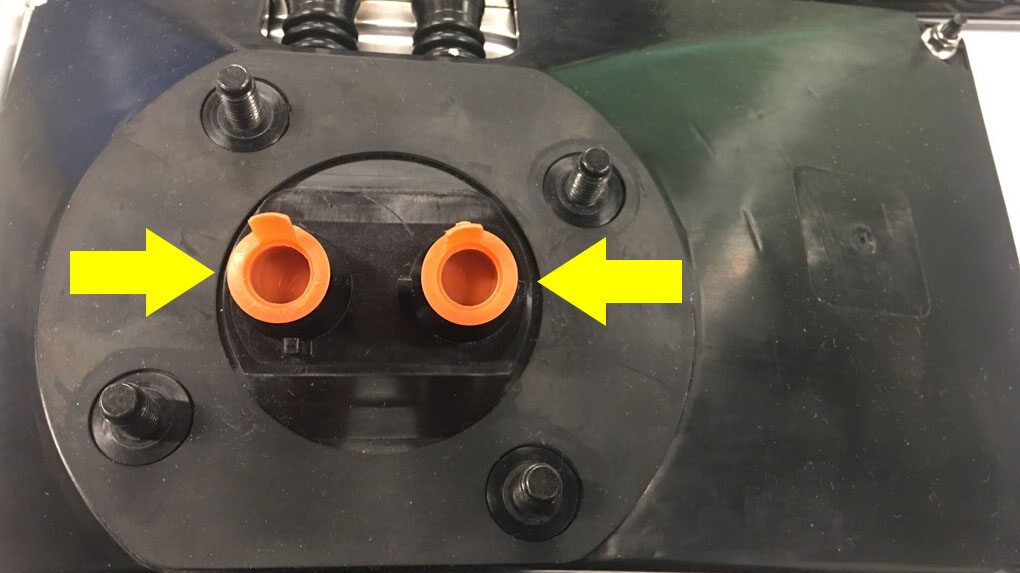

  12. Remove car computer coolant plugs from new car computer
    Informational PurposesAn informational icon, calling your attention
    注
    2x coolant plugs

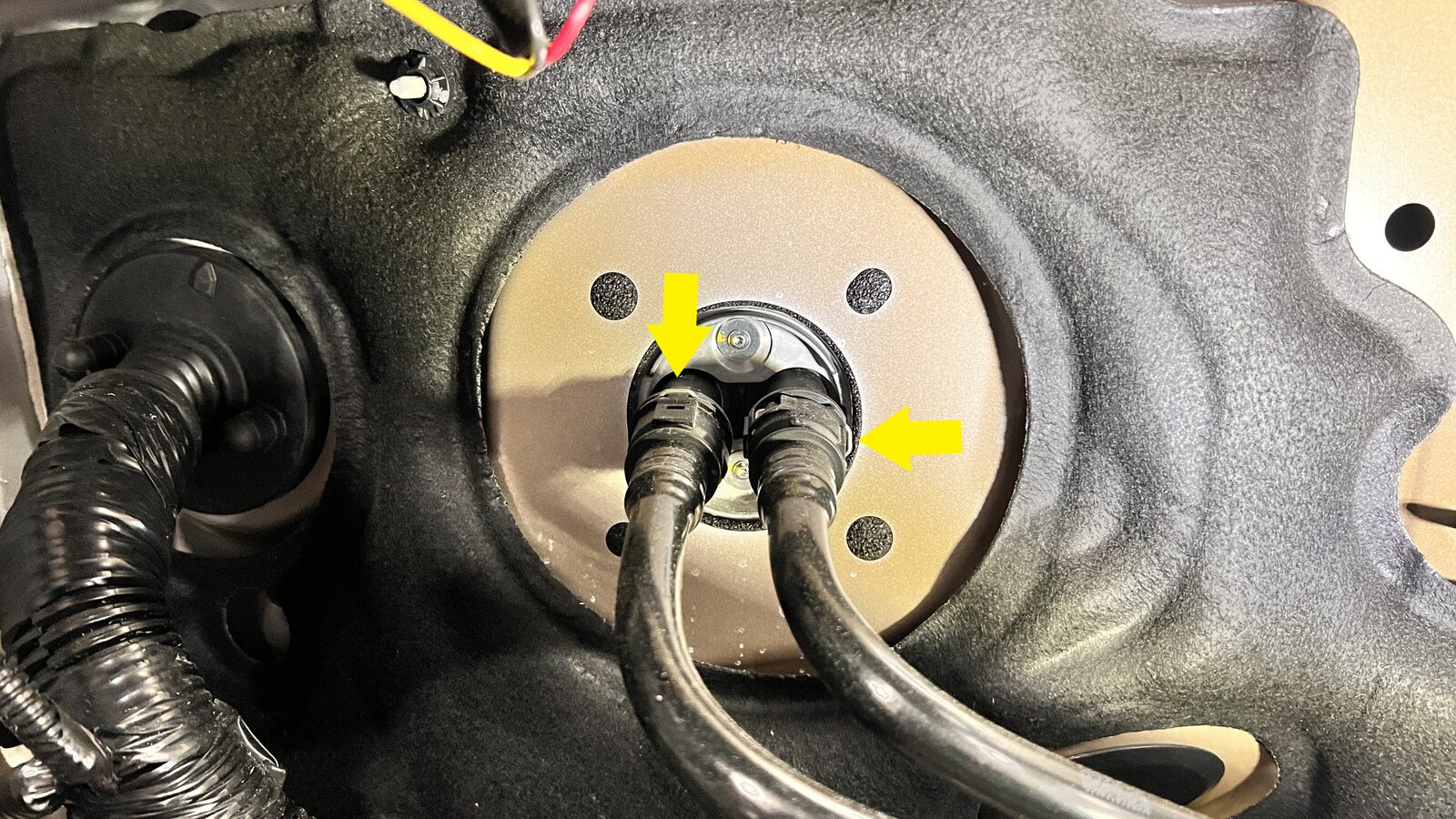

  13. Release coolant hoses from car computer
    Informational PurposesAn informational icon, calling your attention
    注
    2x spring clips

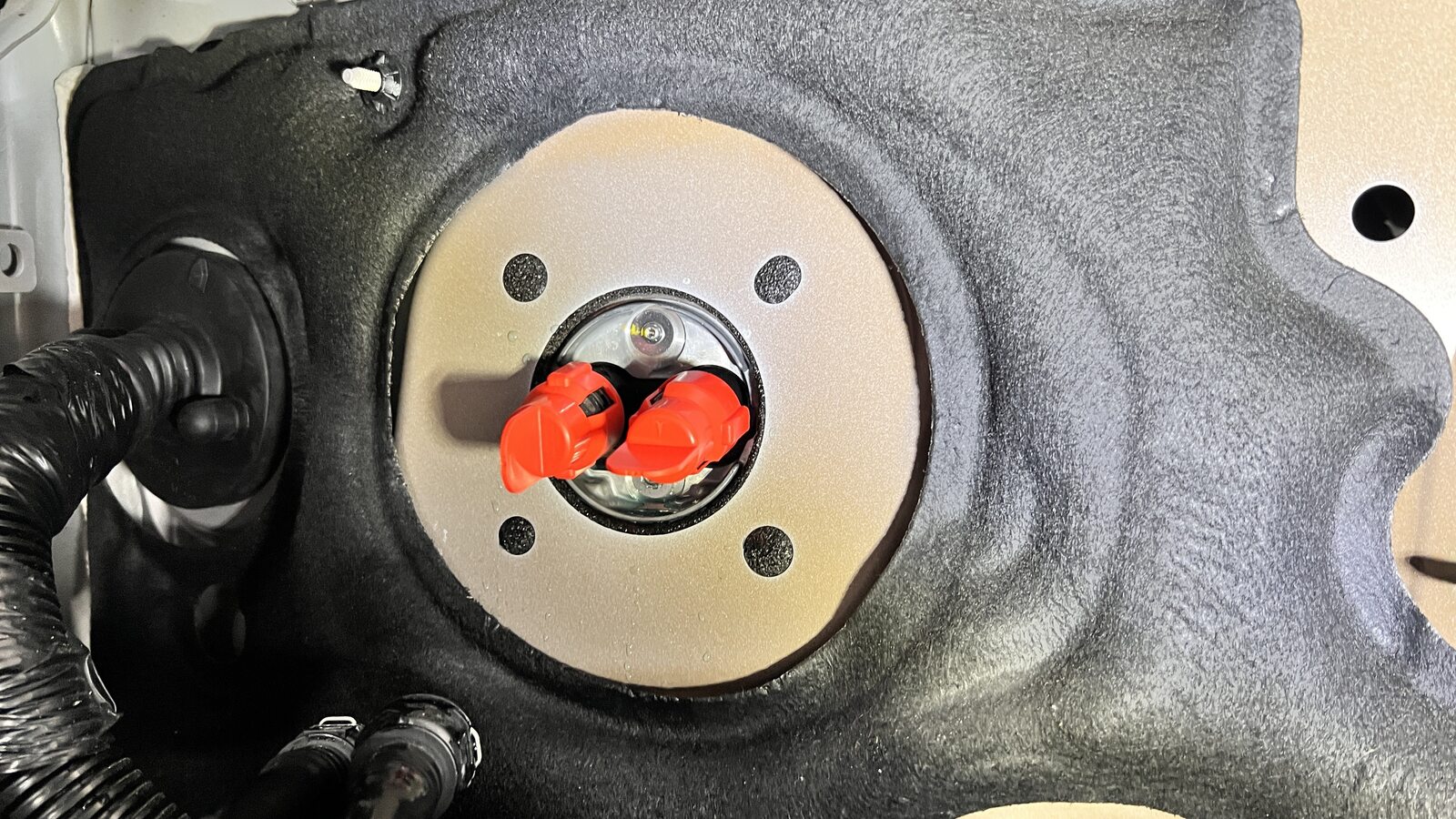

  14. Install coolant plugs into coolant outlets of car computer that is being removed from vehicle
  15. Install plugs to car computer coolant hoses
    Informational PurposesAn informational icon, calling your attention
    注
    2x plugs, Do not need to engage spring clips

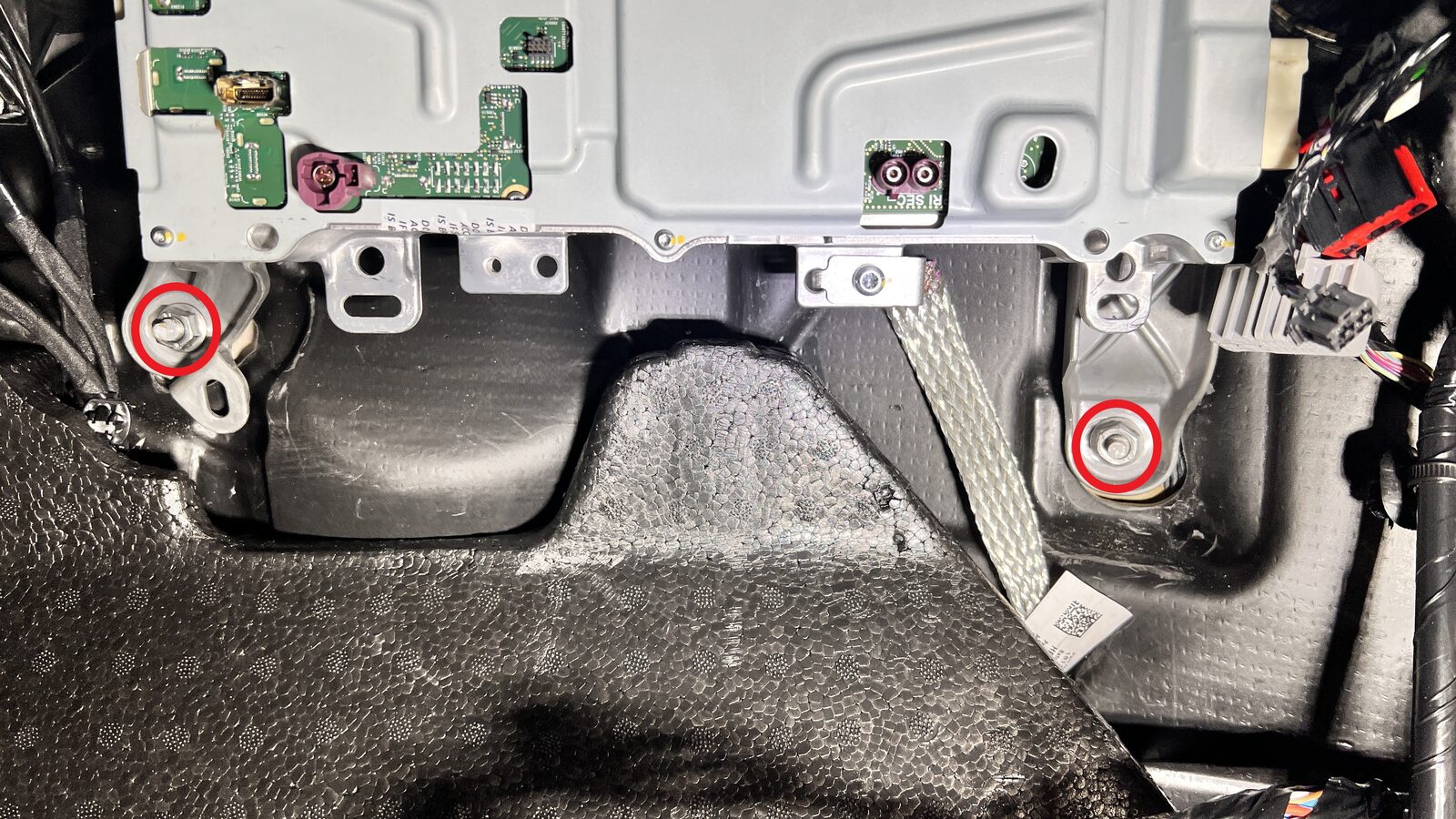

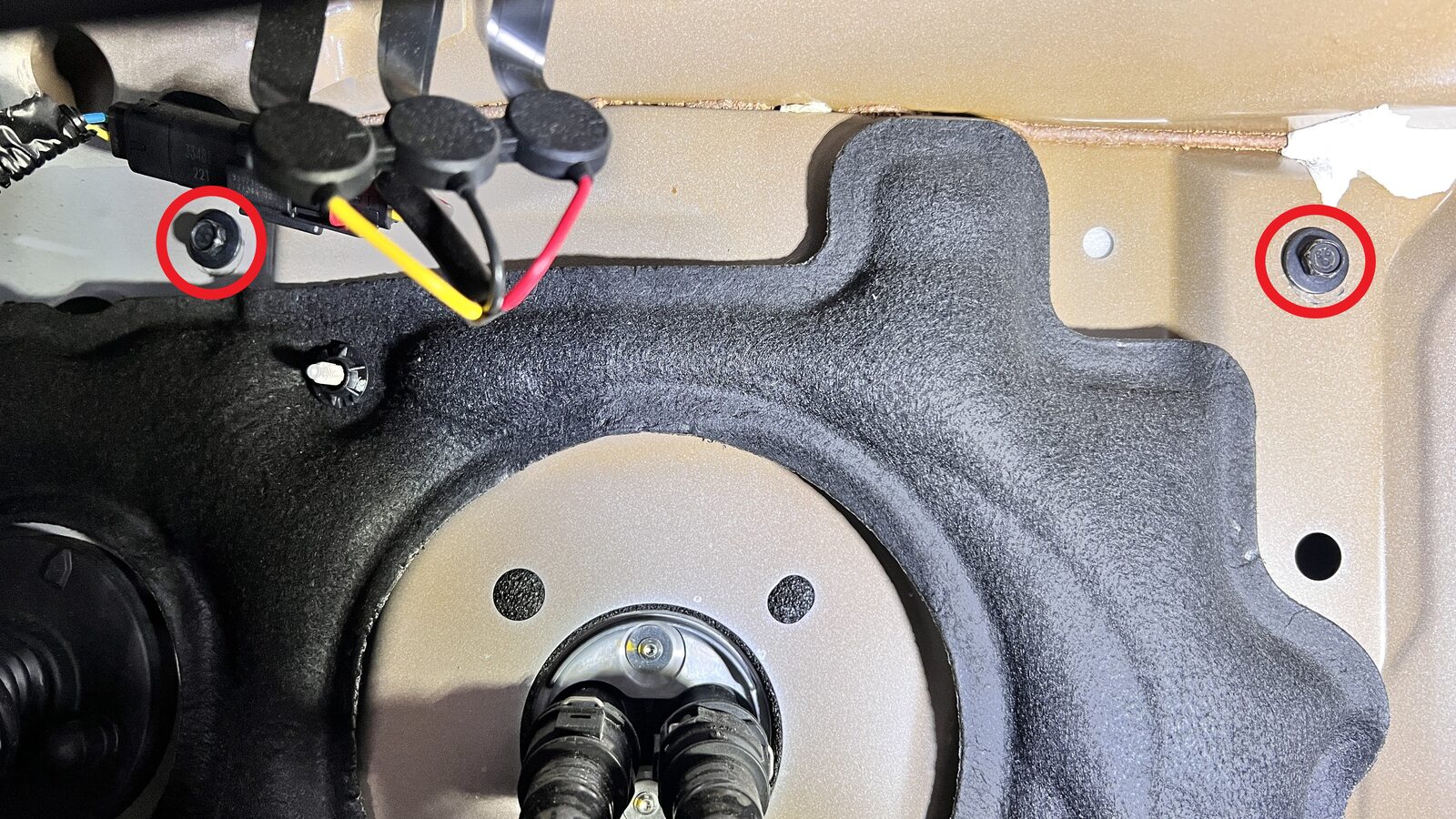

  16. Remove the bolts (x2) that attach the car computer to the bulkhead.
    Informational PurposesAn informational icon, calling your attention
    注
    13 mm, 15 Nm
  17. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  18. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  19. Remove RH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
  20. Remove clip securing RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    1x push clip
  21. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel
  22. Move the RH front seat back.
  23. Remove RH front floormat
  24. Remove main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x screws, T20, 2.3 Nm, 15x clips, 1x center clip, Replace securing clips as needed
  25. Release RH footwell assembly from IP
    Informational PurposesAn informational icon, calling your attention
    注
    1x screw, T20, 1.2 Nm, 1x push clip, 8x tabs, carefully pull out to release tabs
  26. Remove RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x connectors
  27. Remove fasteners securing passenger knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    注
    2x screws, T20, 2 Nm, 1x push clip, 4x patch bolts, E10, 8 Nm, Discard patch bolts after removal, Support the knee air bag while lowering, The connector / harness length is very short
  28. Remove passenger knee air bag
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary
  29. Disconnect glove box USB cable from car computer
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer.
  30. Remove screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    6x screws, T20, 2.3 Nm
  31. Disconnect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    注
    3x connectors
  32. Remove the glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  33. Remove RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    注
    12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
  34. Remove clip securing RH front cabin carpet to body
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip

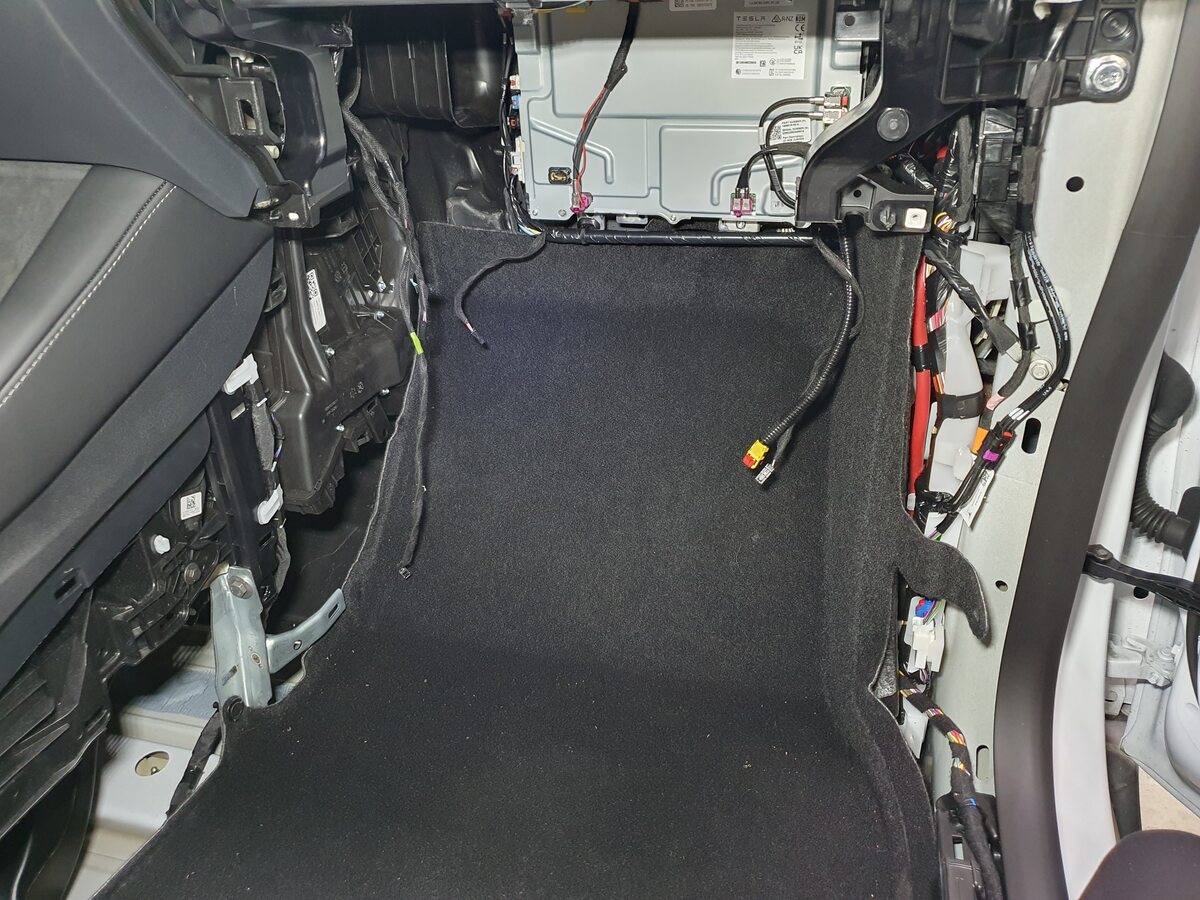

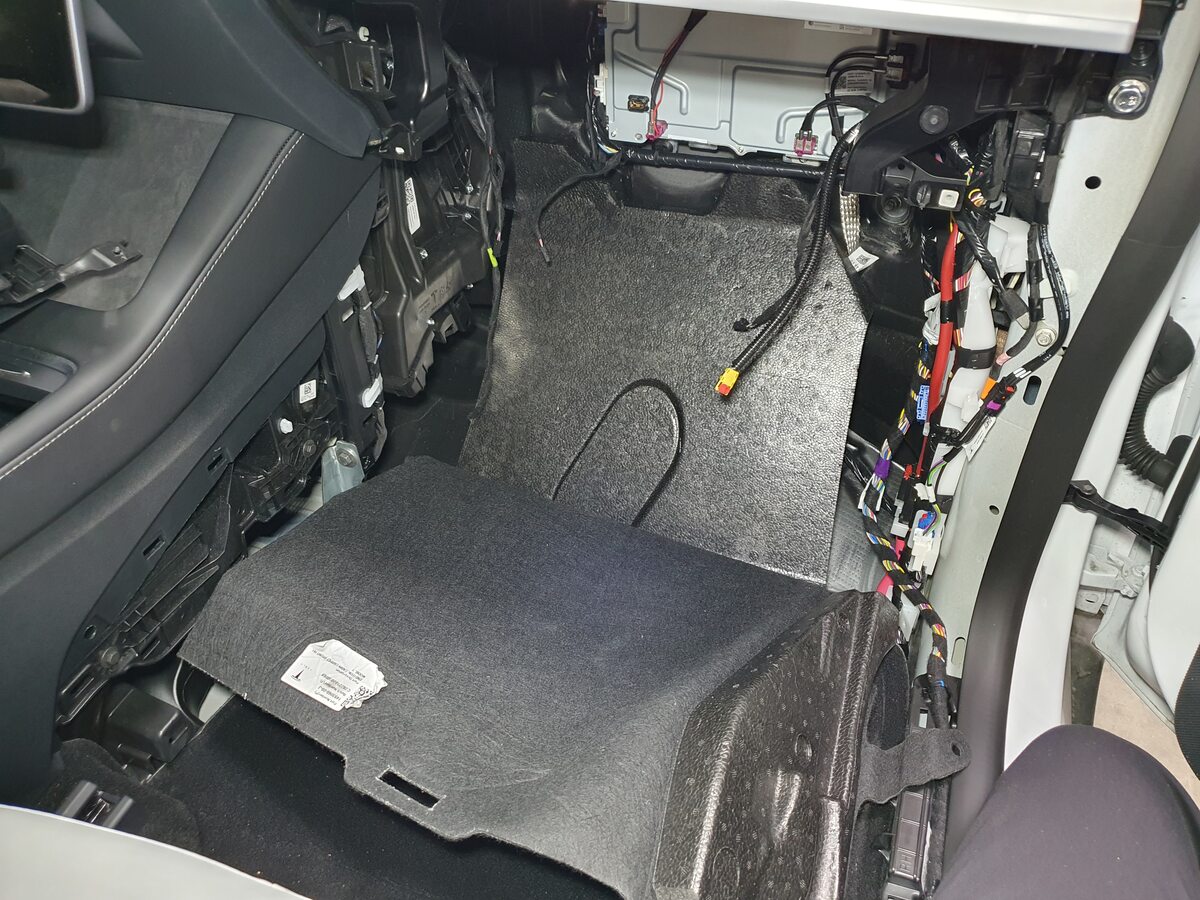

  35. Fold RH front cabin carpet rearward
    Informational PurposesAn informational icon, calling your attention
    注
    Newer VINs may be equipped with additional foam installed below carpet
  36. Remove the passenger footwell air duct
    Informational PurposesAn informational icon, calling your attention
    注
    1x push clip
  37. Remove the RH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    注
    2x push clips

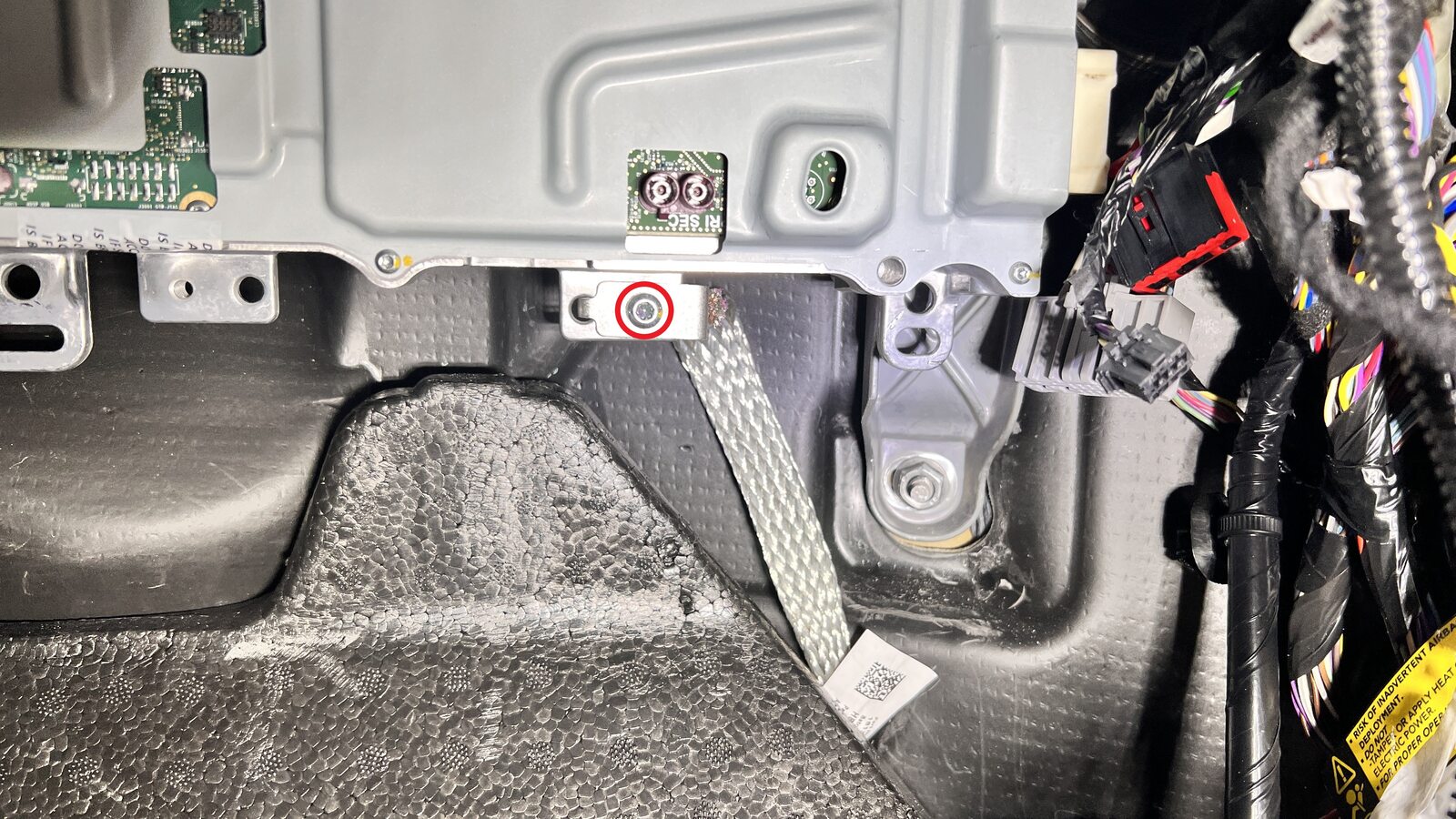

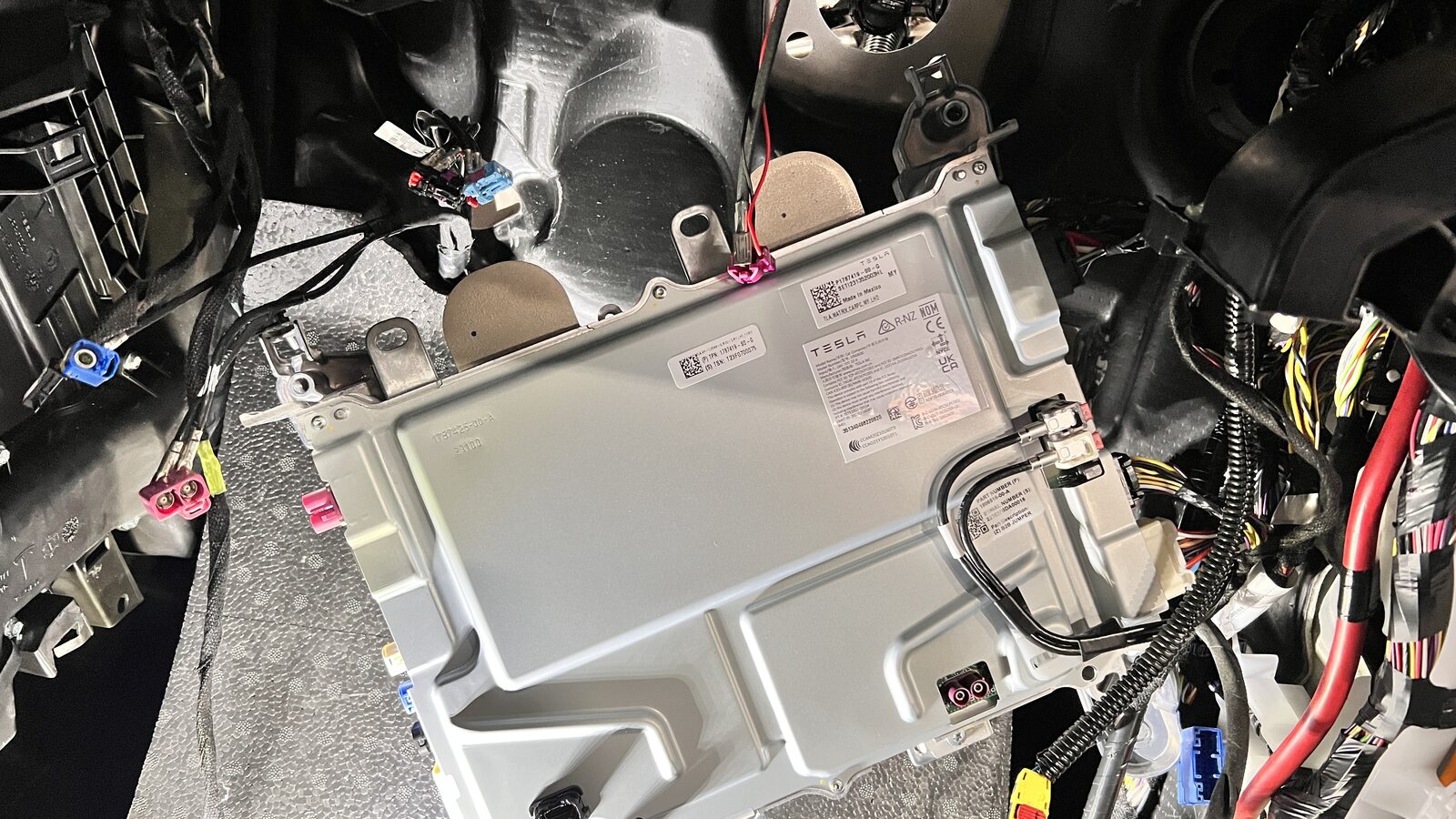

  38. Release ground strap from car computer
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, T25, 4 Nm, Bolt located, Discard bolt after removal

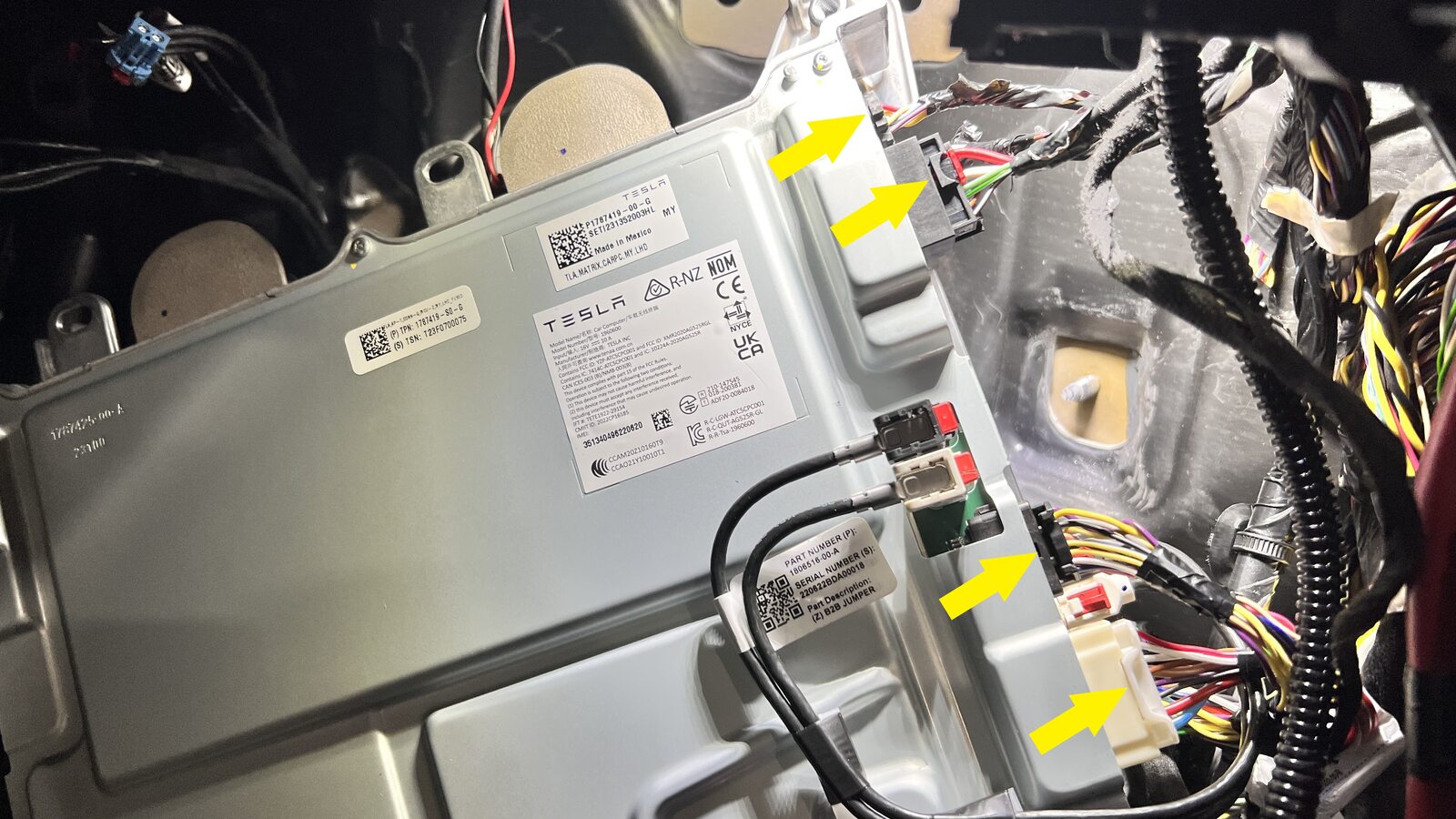

  39. Release connections at LH side of car computer
    Informational PurposesAn informational icon, calling your attention
    注
    5x connectors, Release locks on connectors before removal

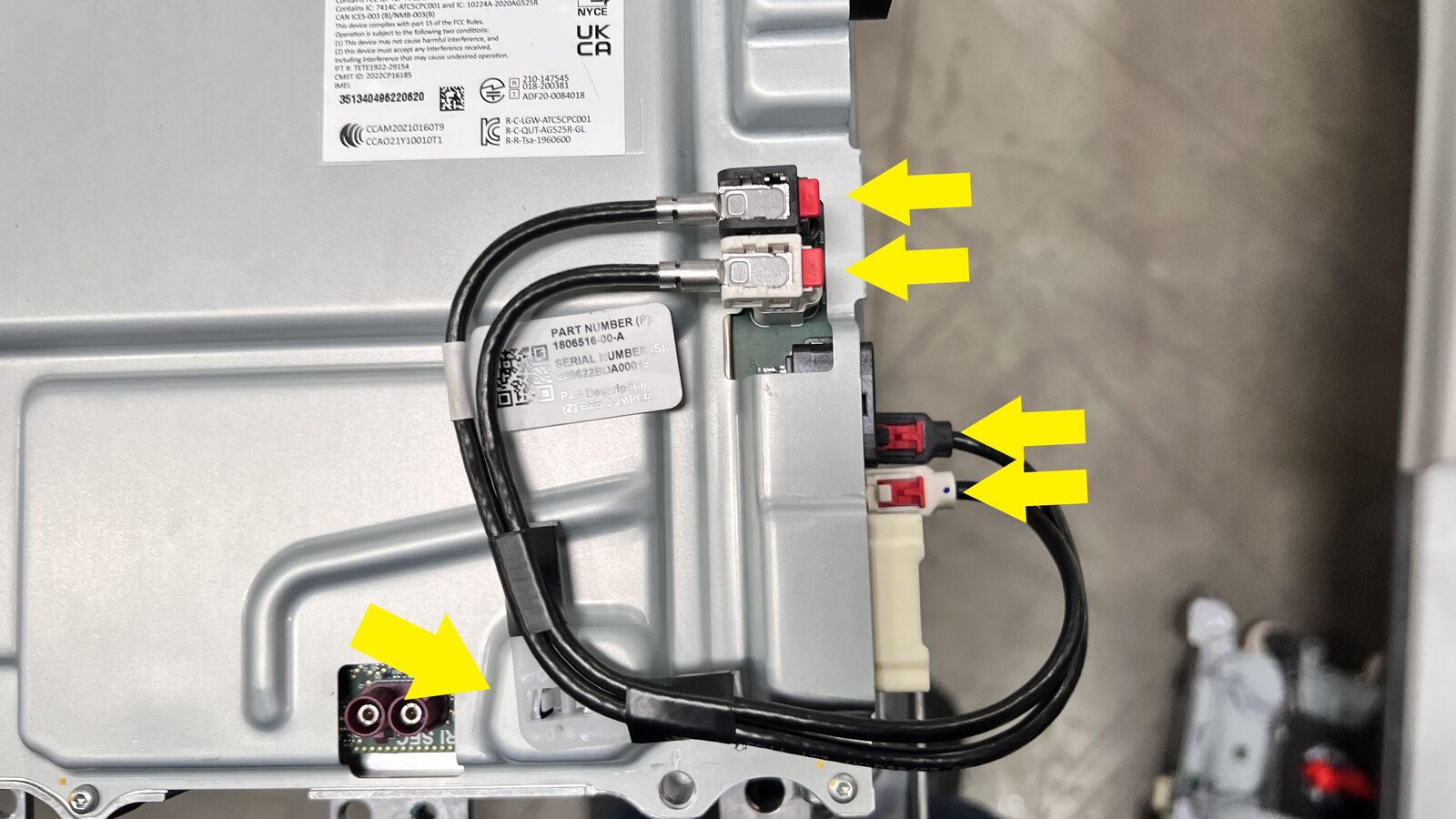

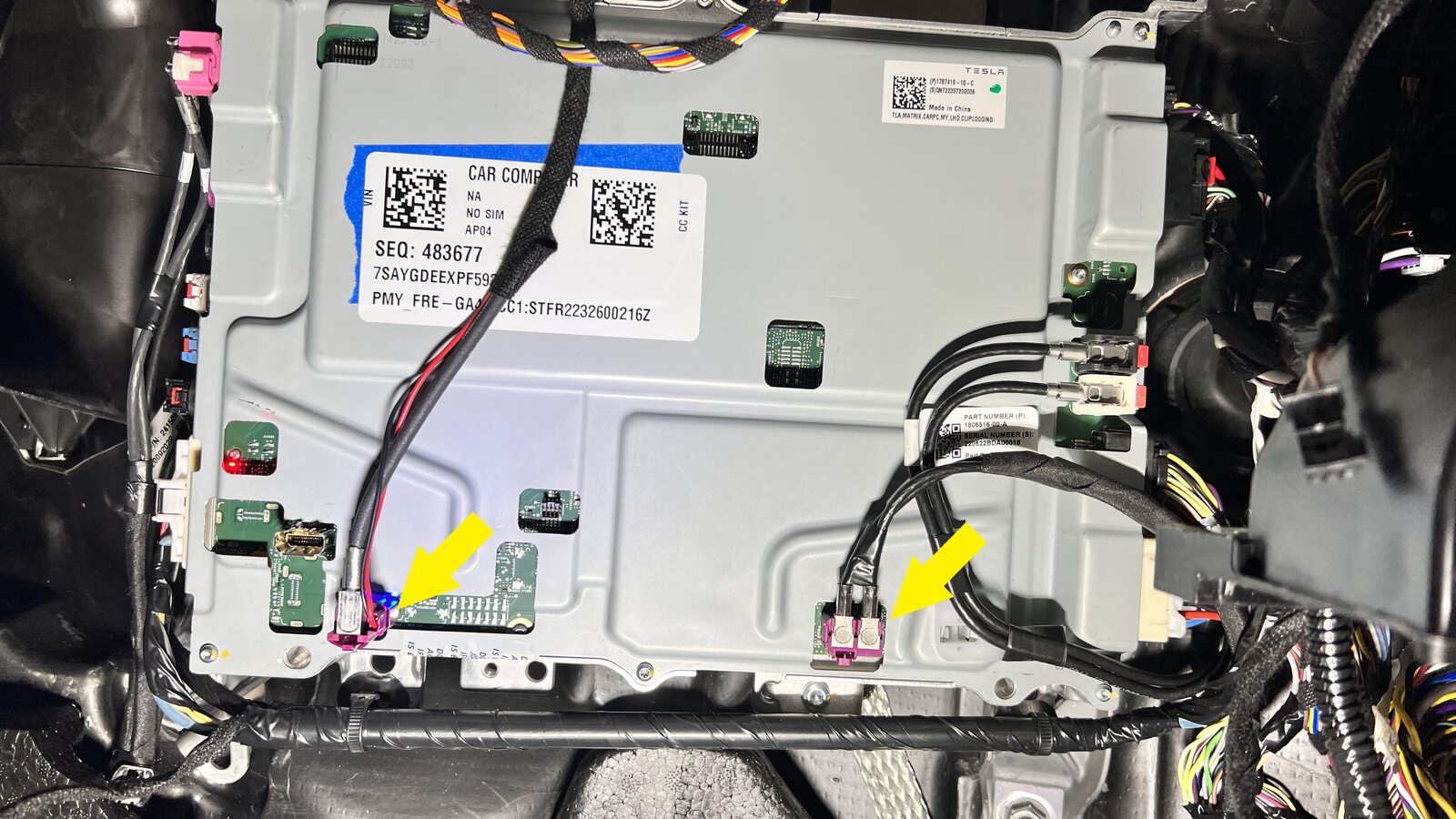

  40. Disconnect connectors on front side of car computer
    Informational PurposesAn informational icon, calling your attention
    注
    2x connectors
  41. Remove car computer mounting fasteners
    Informational PurposesAn informational icon, calling your attention
    注
    2x nuts, 13mm, 8 Nm
  42. Partially remove car computer to access RH connectors
    Informational PurposesAn informational icon, calling your attention
    注
    Avoid straining harness

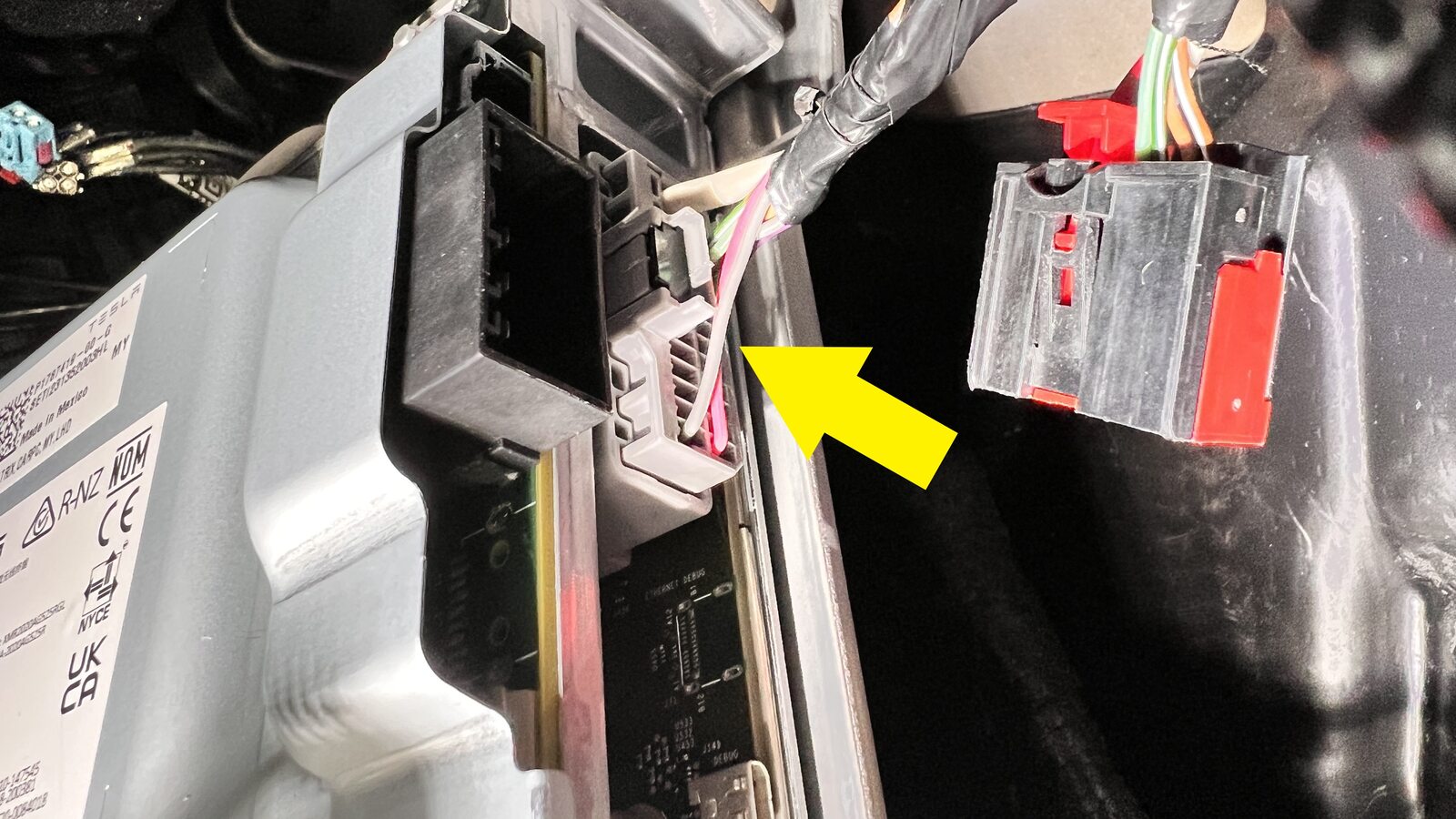

  43. Release connectors at RH side of car computer
    Informational PurposesAn informational icon, calling your attention
    注
    5x connectors, Release locks on connectors if equipped before removal
  44. Remove board to board jumper
    Informational PurposesAn informational icon, calling your attention
    注
    4x connectors, 1x harness clip, This will be installed on new car computer

安装

  1. Install board to board jumper on the car computer
    Informational PurposesAn informational icon, calling your attention
    注
    4x connectors, 1x harness clip, Engage locking tabs
  2. Secure connectors at RH side of car computer
    Informational PurposesAn informational icon, calling your attention
    注
    5x connectors, Engage locks on connectors if equipped
  3. Install car computer to mounting studs
    Informational PurposesAn informational icon, calling your attention
    注
    2x nuts, 13mm, 8 Nm
  4. Install connectors on front side of car computer
    Informational PurposesAn informational icon, calling your attention
    注
    2x connectors
  5. Install connectors at LH side of car computer
    Informational PurposesAn informational icon, calling your attention
    注
    5x connectors, Engage locking tabs if equipped
  6. Secure ground strap to car computer
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, T25, 4 Nm, Bolt located, Install new bolt
  7. Install the bolts (x2) that attach the car computer to the bulkhead.
    Informational PurposesAn informational icon, calling your attention
    注
    13 mm, 15 Nm
  8. Remove plugs from car computer coolant hoses
    Informational PurposesAn informational icon, calling your attention
    注
    2x plugs, Engage spring clips after removal

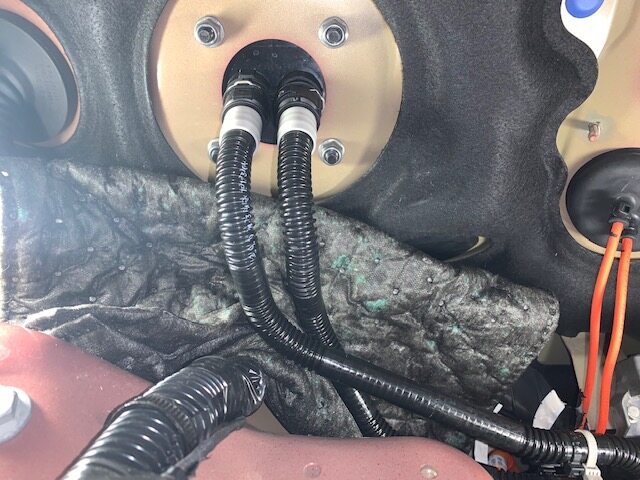

  9. Secure hoses to car computer coolant inlet/outlet
    Informational PurposesAn informational icon, calling your attention
    注
    2x spring clips, Perform push-pull-push test to ensure the hoses are fully seated
  10. Remove coolant bottle cap
  11. Fill coolant bottle to base of neck as indicated
  12. Remove absorbent material from below car computer coolant hose connection points
  13. Fold RH main carpet back in place
  14. Install clip securing RH front cabin carpet to body
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip
  15. Place vehicle in service mode through UI
    Informational PurposesAn informational icon, calling your attention
    注
    Select vehicle's badge icon in Controls > Software for four seconds and then type "service" into dialog box And then touch "OK"At last Select ‘X’ at top left of window to close once complete
  16. Select "Start Coolant Air Purge" using the UI
    Informational PurposesAn informational icon, calling your attention
    注
    Touch time only, wait until coolant pumps stop running (audible noise), Routine Passed will appear, but pumps will run for 10 minutes, If you start next another routine during this time, it will fail, Make sure vehicle is not in "Drive", Routine is still running despite the completed message, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valves between SERIES and PARALLEL, Putting vehicle into "Drive" will stop this routine, If speeds hover at 7000 RPM, this indicates the pumps are air locked, perform a vacuum fill, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle
  17. Install coolant bottle cap
  18. Install fresh air intake duct
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, 10mm bolt, 4 Nm, 2x clips, 1x pin, Set clips on bulkhead studs, Secure to thermal bar
  19. Install HEPA filter assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Rework requires new bolts
  20. Install the rear apron.
  21. Close the hood.
  22. Install the RH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    注
    2x push clips
  23. Install the passenger footwell air duct
    Informational PurposesAn informational icon, calling your attention
    注
    1x push clip
  24. Install RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    注
    12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install
  25. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    注
    3x connectors, Puddle lamp harness routing prevent blocking movement of pawls
  26. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  27. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    6x screws, T20, 2.3 Nm
  28. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Connector count may vary depending from config
  29. Install passenger knee air bag
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Engage locking tab, Use caution not to damage connector/harness, Support air bag while connecting connector
  30. Install fasteners securing passenger knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    注
    4x patch bolts, E10, 8 Nm, 2x screws, T20, 2 Nm, 1x push clip, Install new patch bolts
  31. Position RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x connectors
  32. Secure RH footwell assembly onto IP
    Informational PurposesAn informational icon, calling your attention
    注
    1x screw, T20, 1.2 Nm, 1x push clip, 8x tabs, carefully align tabs and push to secure in place
  33. Install main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x screws, T20, 2.3 Nm, 15x clips, 1x center clip, Replace securing clips as needed
  34. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  35. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    6x clips, 2x locating pins, Align front locating pin first
  36. Install clip securing RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip
  37. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  38. Install RH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim
  39. Install RH front floor mat
  40. Move the RH front seat to its original position.
  41. Raise all four windows
  42. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    注
    If 12V is powered up, Unlatch rear doors before closing
