铰链 - 掀背尾门 - LH（拆卸和更换）

校正代码 11335612 0.90 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2023-06-21: Added the Telescoping Hood Prop to the tool list.
  • 2023-12-20: Reorganized the procedure.

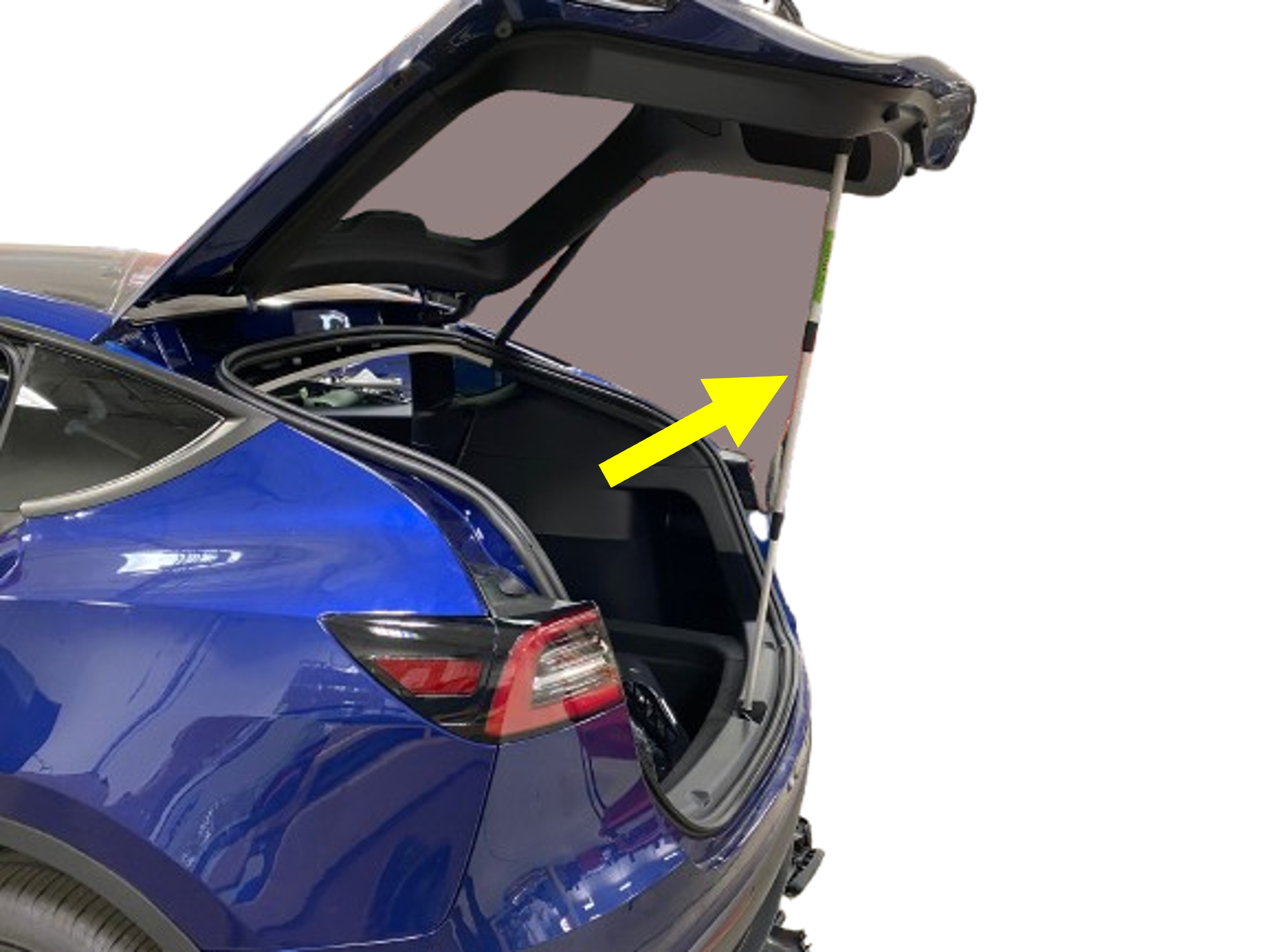

  • 1080562-00-A 伸缩式前备箱盖支柱

拆卸

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“小心”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。
  1. Open all the doors and lower all the windows.
  2. Open the liftgate.
  3. Move the front seats forward.
  4. Remove the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
  5. Remove the LH and RH lower C-pillar trims. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.

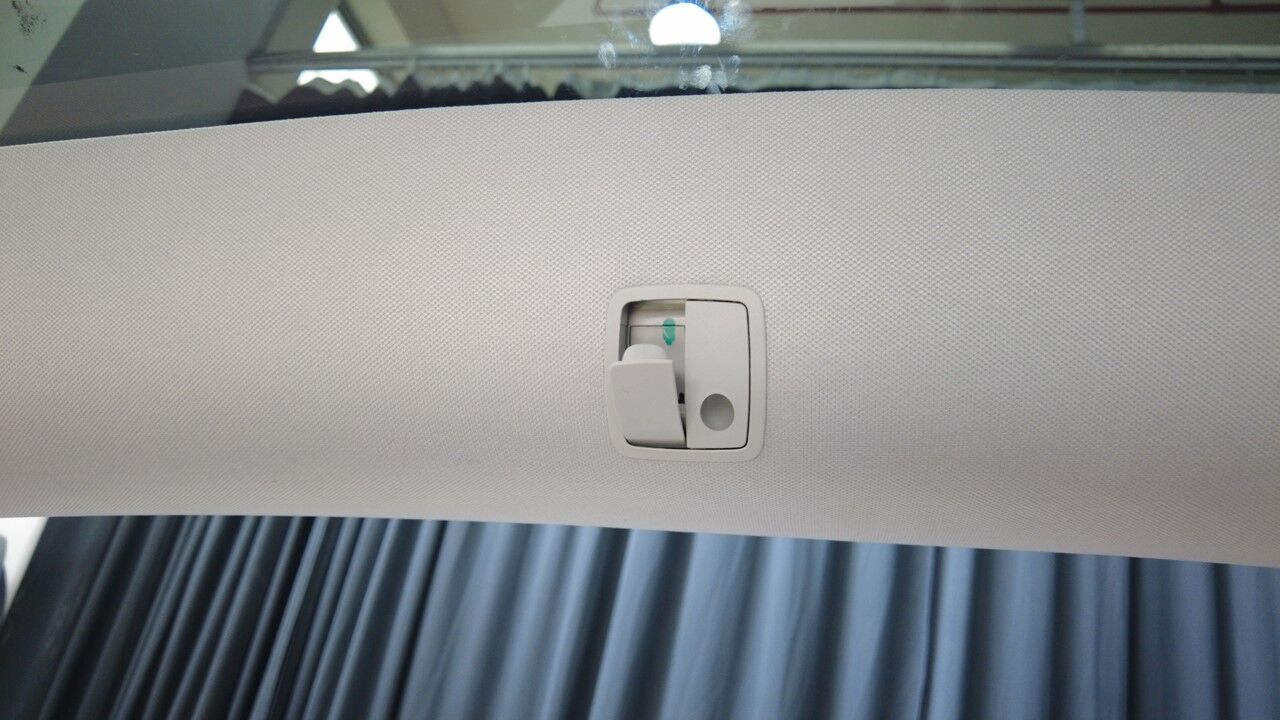

  6. Push to open the LH coat hook.
  7. Release the locking tab to open the LH coat hook screw cover.

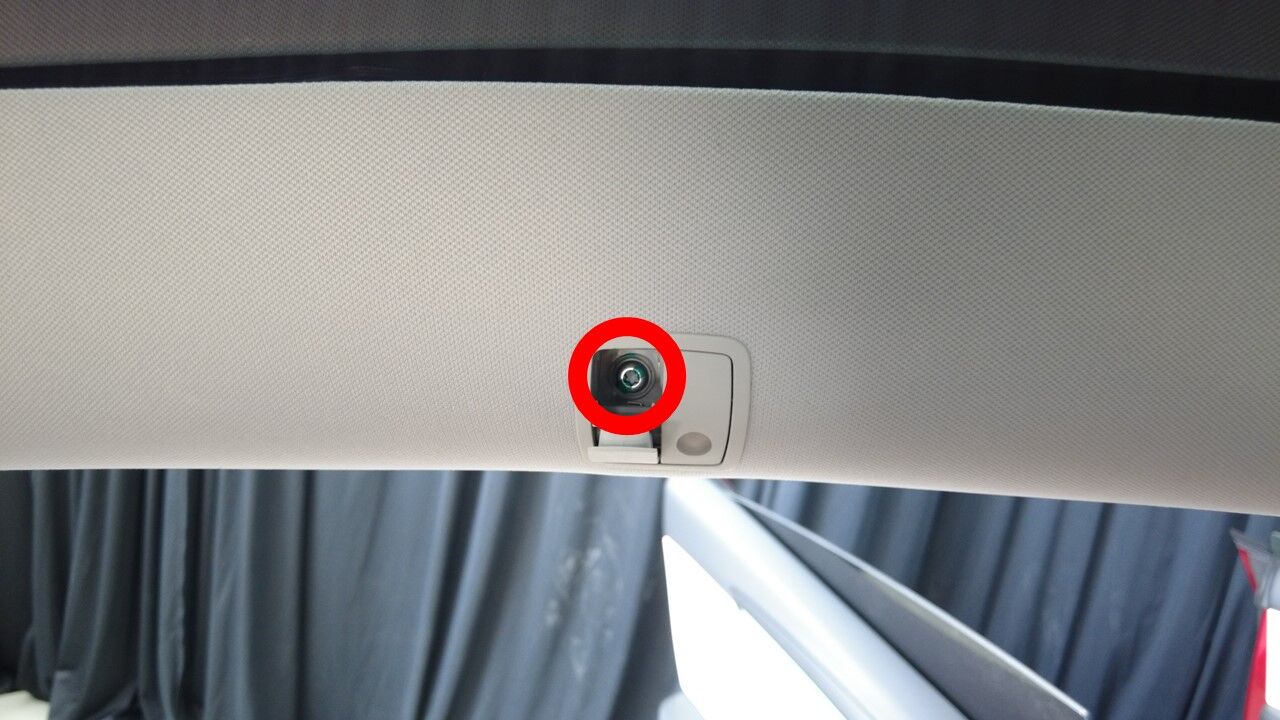

  8. Remove the LH coat hook screw.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 T20 批头
  9. Repeat step 5 through step 8 for the RH coat hook.
  10. Remove the rear trunk load floor. See 后备箱负重底板 - 后部（拆卸和更换）.
  11. Remove the front trunk load floor. See 后备箱负重底板 - 前部（拆卸和更换）.
  12. Remove the trunk sill trim. See 饰板 - 门槛 - 后备箱（拆卸和更换）.
  13. Remove the LH trunk load floor bracket. See 支架 - 后备箱负重底板- LH（拆卸和更换）.
  14. Remove the LH trunk pocket bracket. See 支架 - 后备箱挂袋 - LH（拆卸和更换）.
  15. Remove the LH trunk side trim. See 饰板 - 侧 - 后备箱 - LH（拆卸和更换）.
  16. Remove the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH（拆卸和更换）.
  17. Repeat step 13 through step 16 for the RH side of the vehicle.

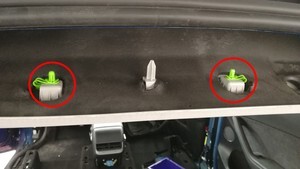

  18. Release the clips that attach the rear edge of the rear headliner to the vehicle.

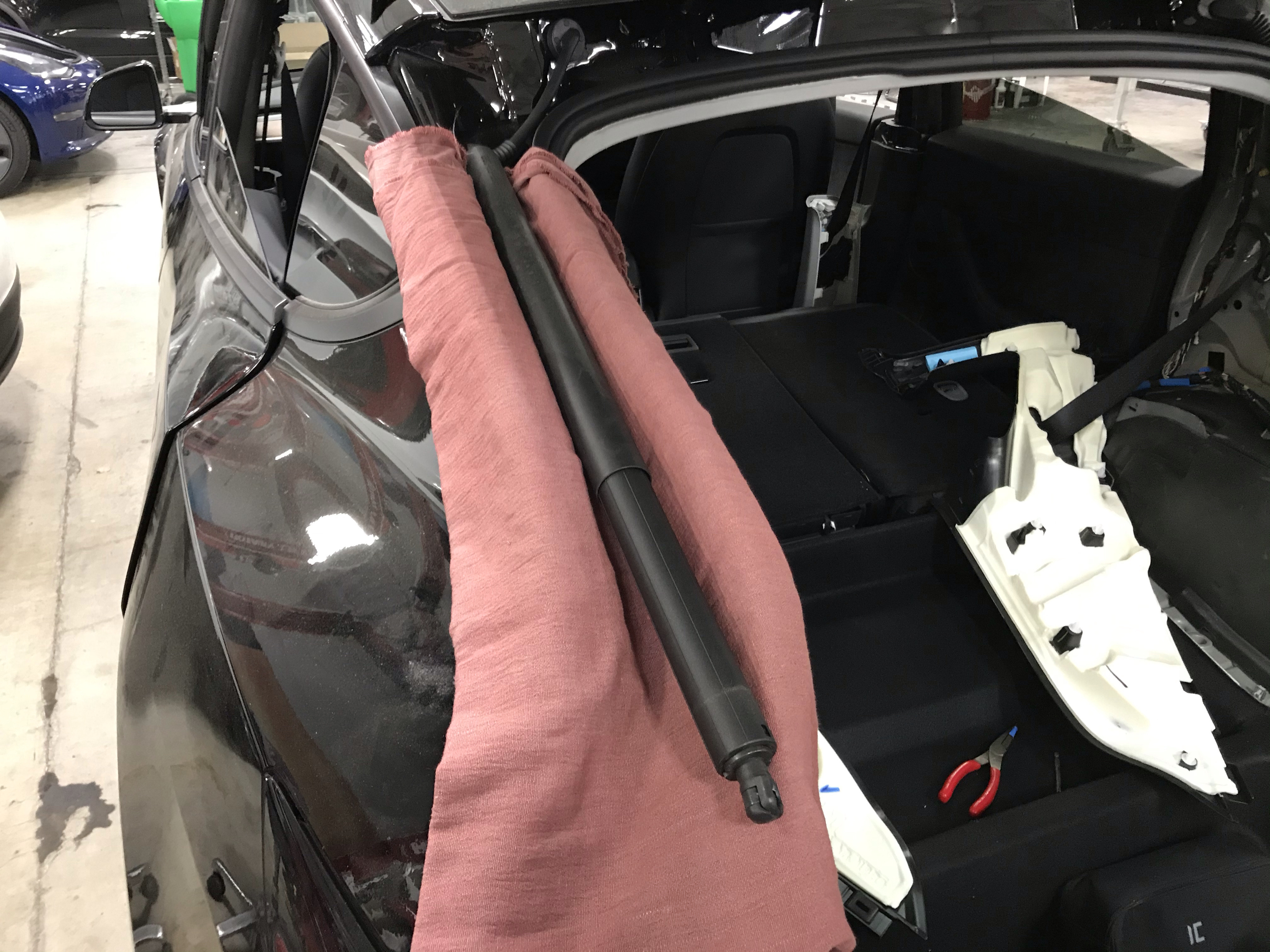

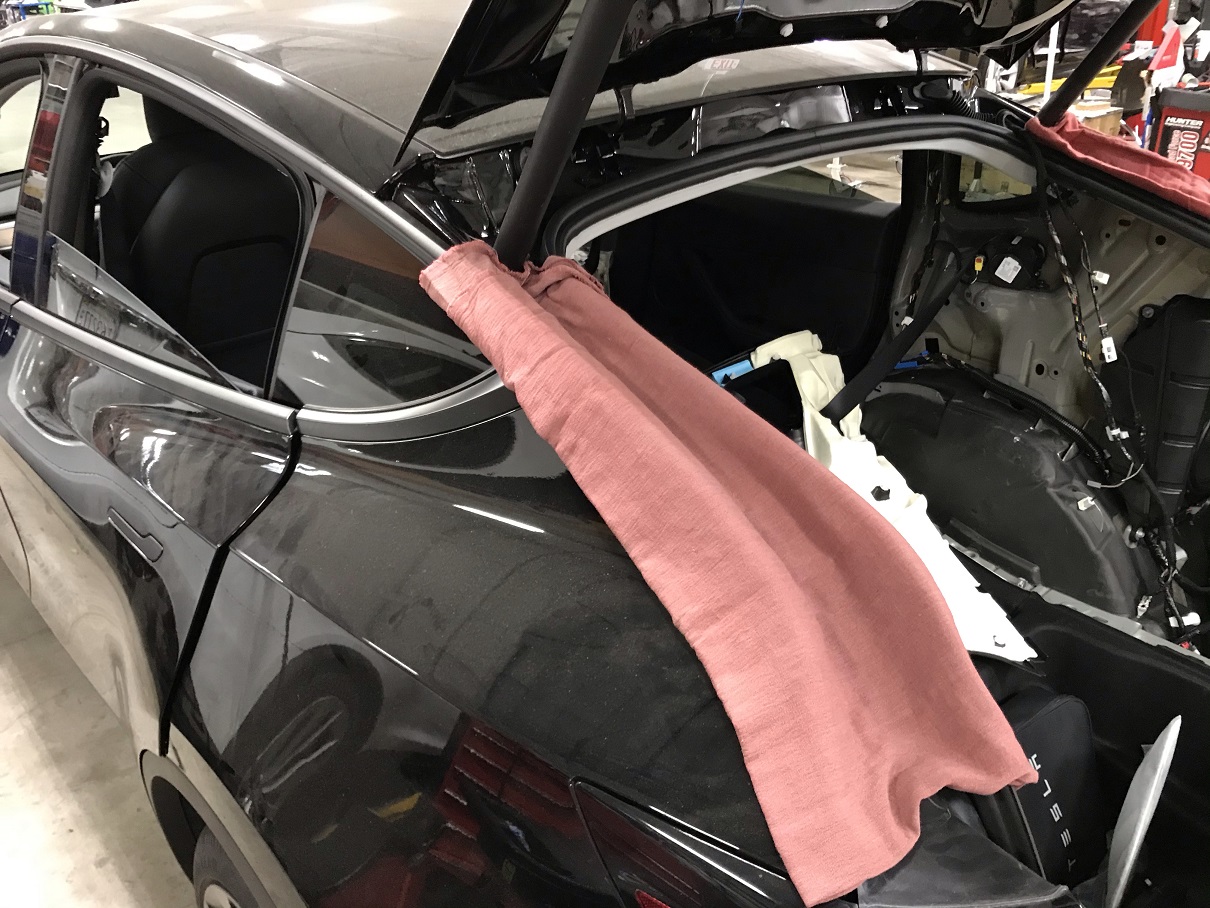

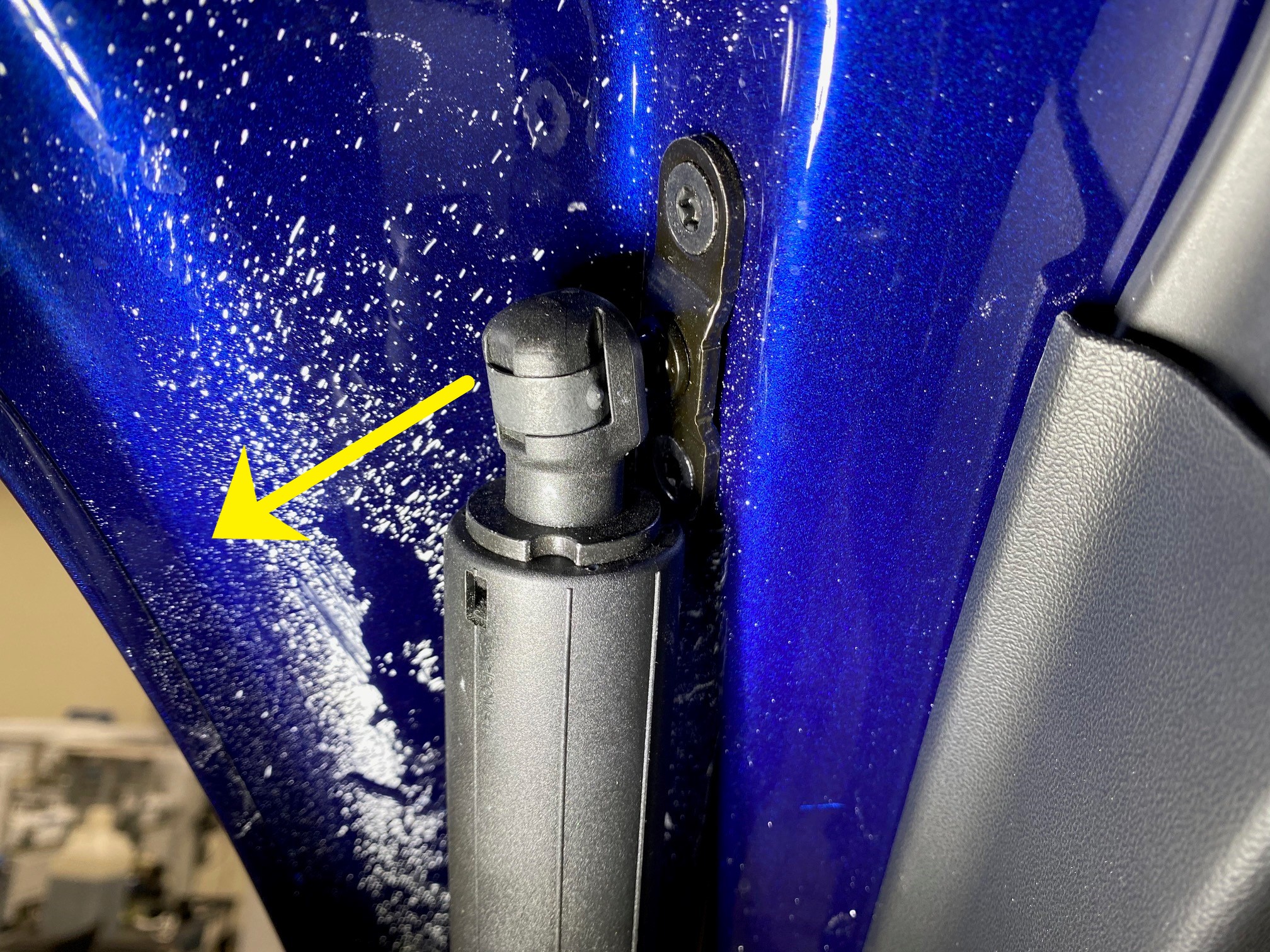

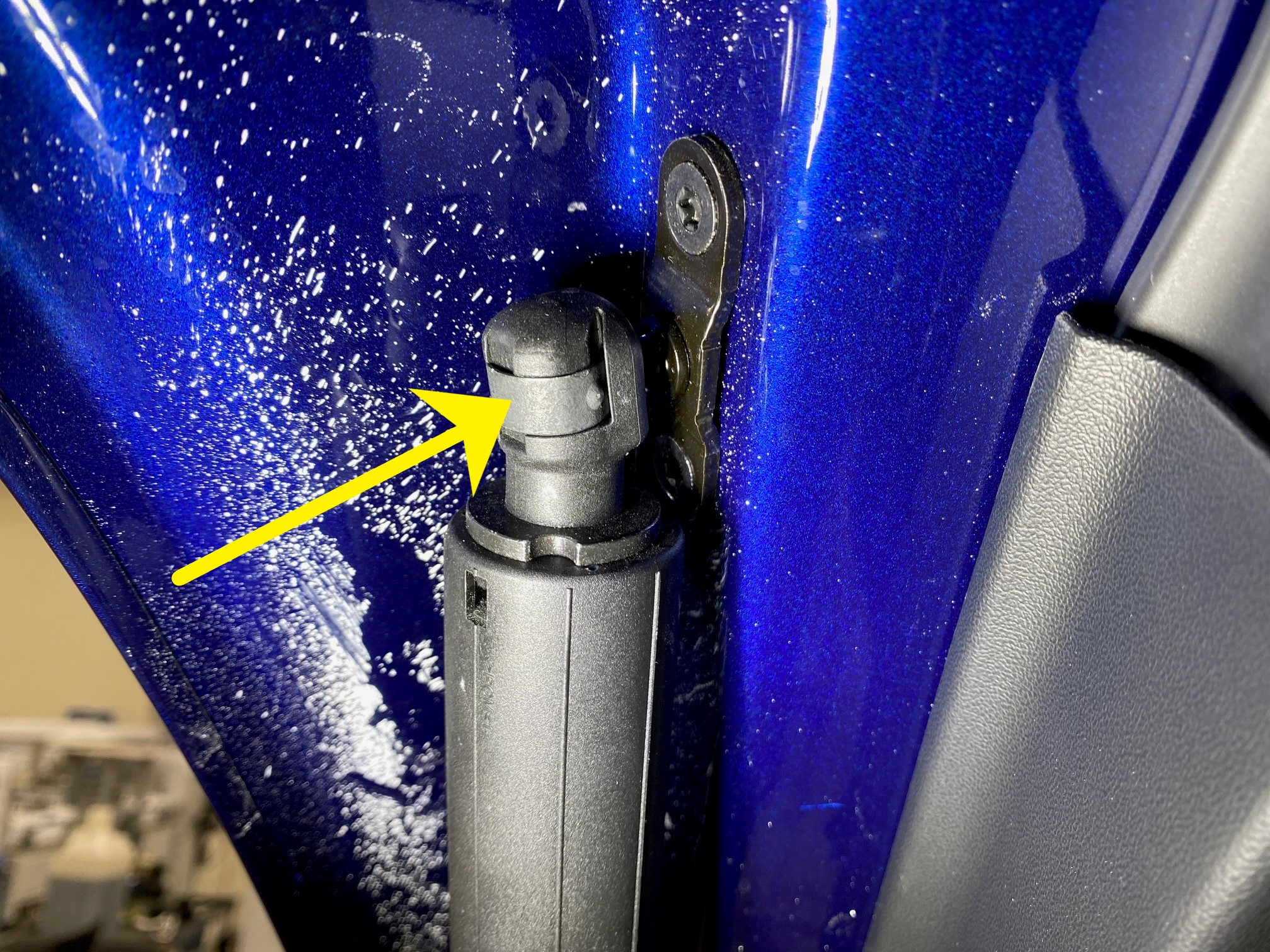

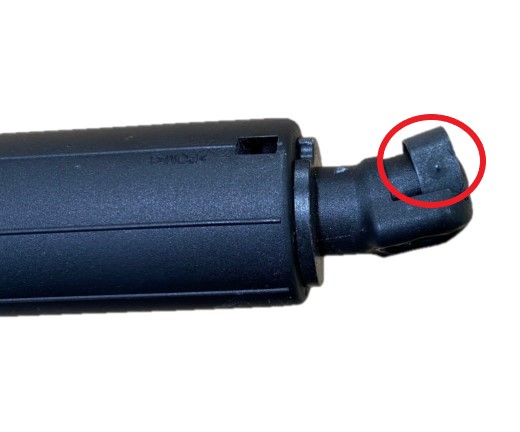

  19. Remove the liftgate assembly. See 掀背尾门总成（拆卸和安装）.

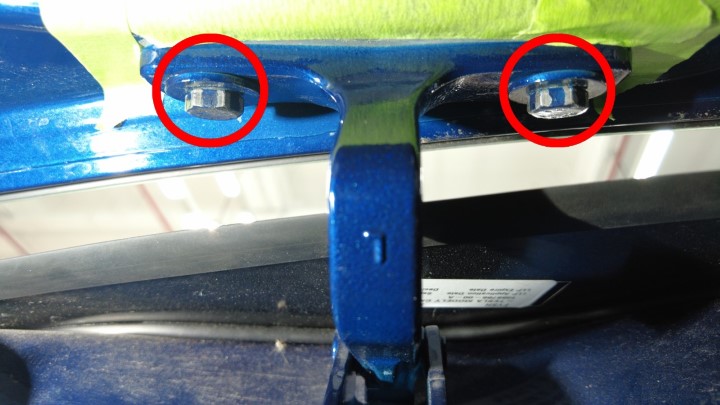

  20. Remove the bolt that attaches the liftgate hinge to the vehicle.
    12 Nm (8.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 10 毫米套筒

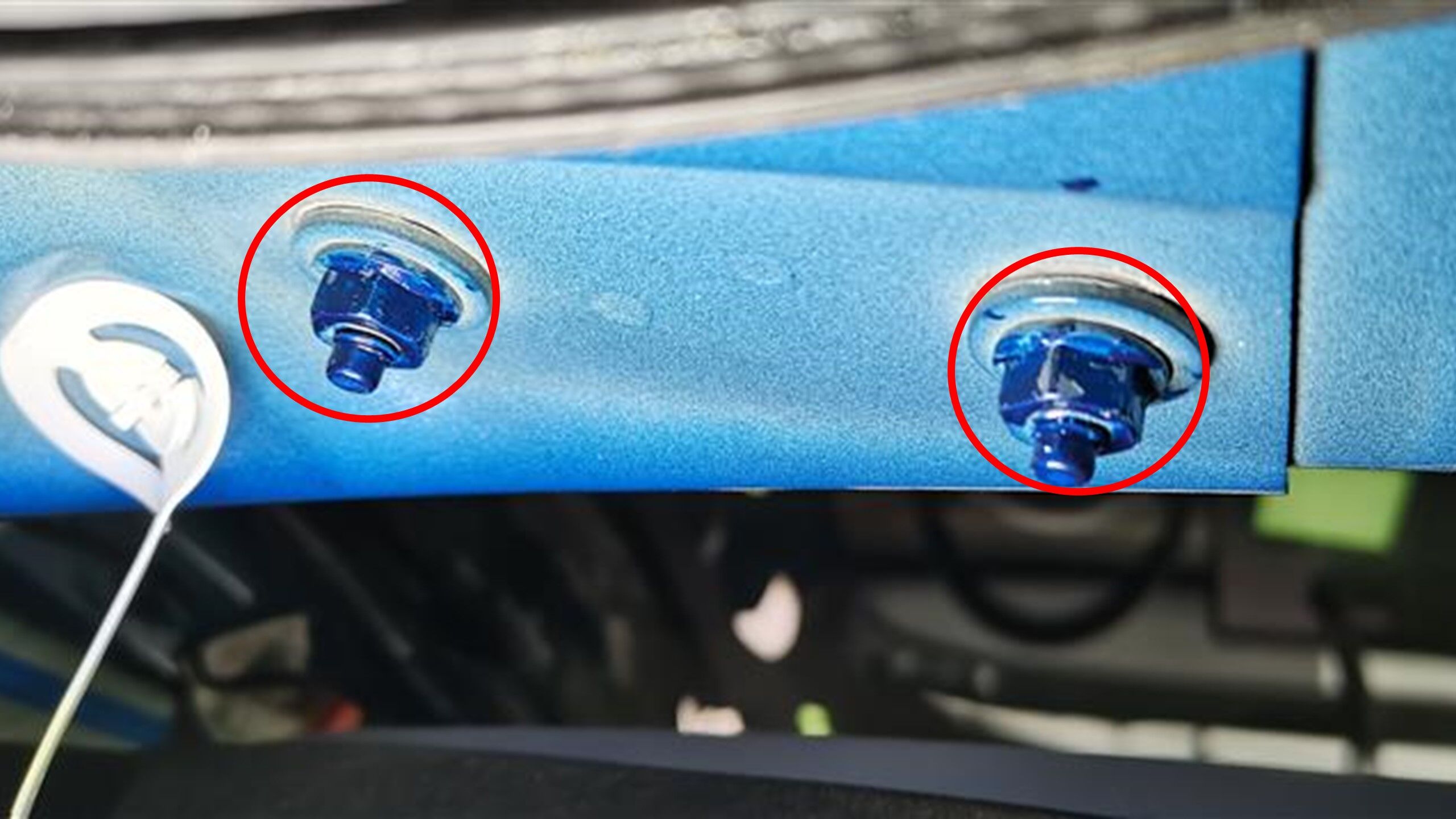

  21. Remove the nuts (x2) that attach the LH liftgate hinge to the vehicle.
    30 Nm (22.1 lbs-ft)
    提示： 推荐使用以下工具：
    • 13 毫米套筒

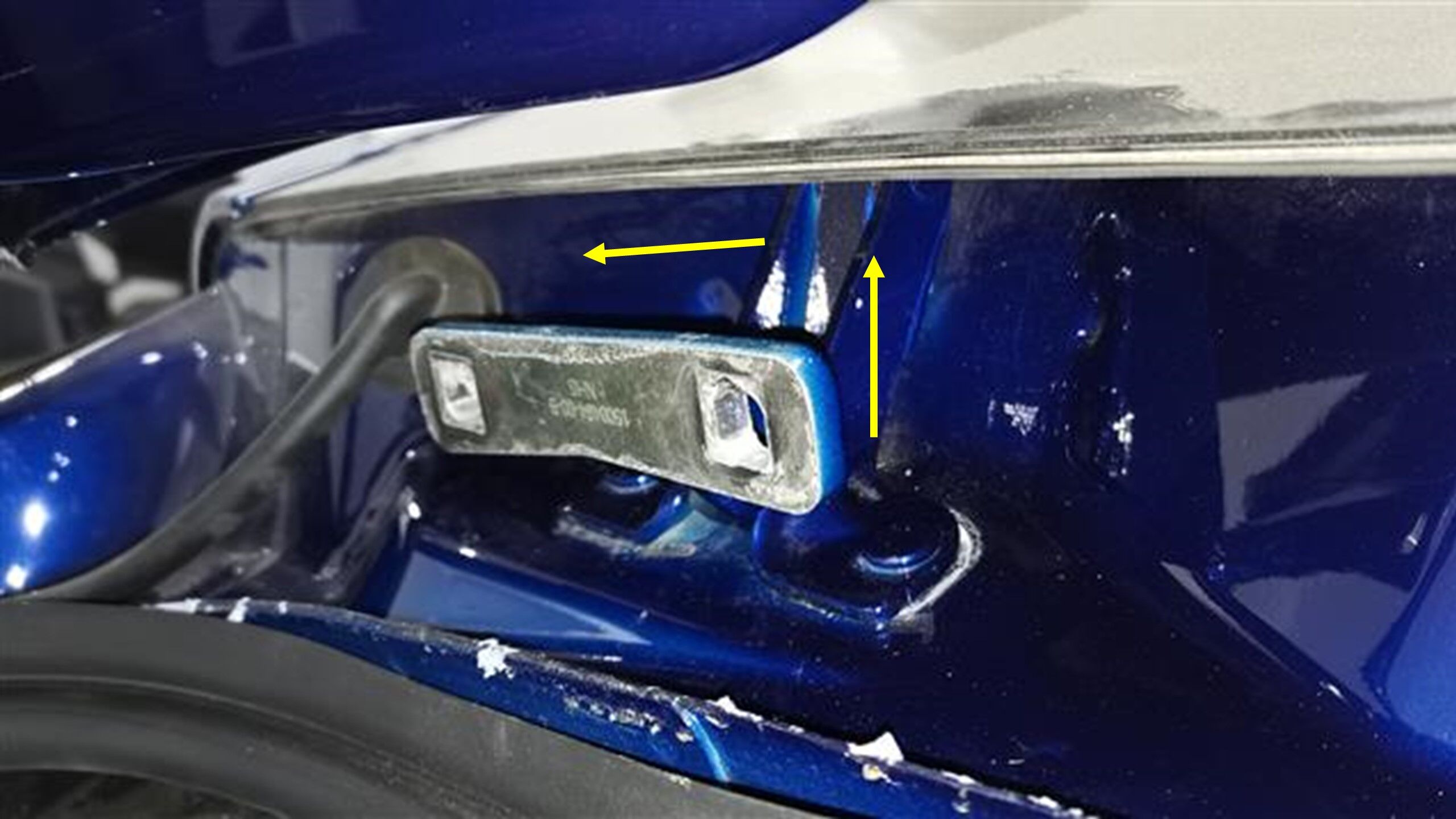

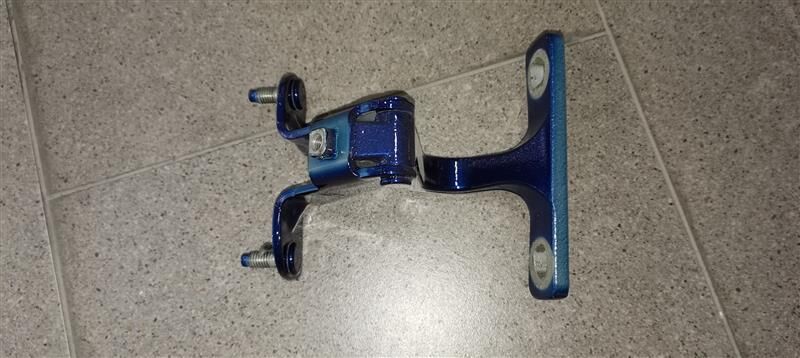

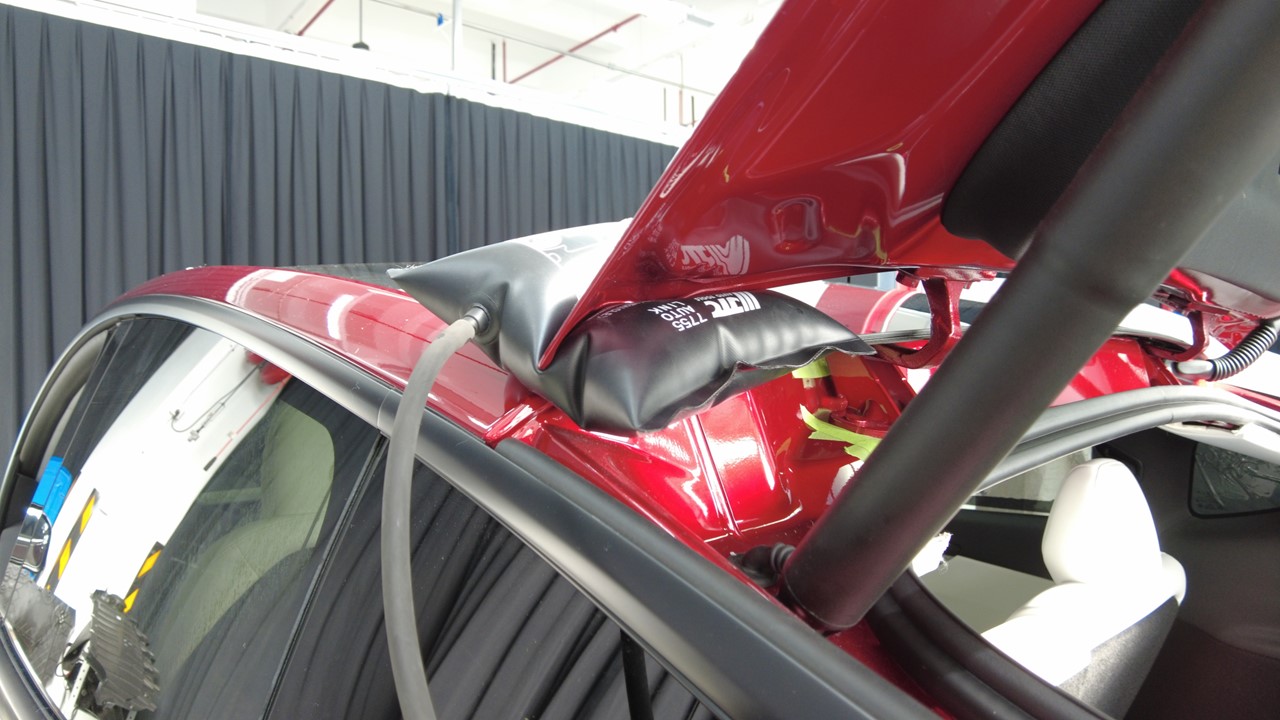

  22. Remove the LH liftgate hinge from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Be careful not to damage the glass roof.

安装

  1. Position the LH liftgate hinge into the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Be careful not to damage the glass roof.
  2. Install and hand tighten the bolt that attaches the liftgate hinge to the vehicle.
    提示： 推荐使用以下工具：
    • 10 毫米套筒
  3. Install and hand tighten the nuts (x2) that attach the LH liftgate hinge to the vehicle.
    提示： 推荐使用以下工具：
    • 13 毫米套筒
  4. Install the liftgate assembly. See 掀背尾门总成（拆卸和安装）.
  5. Tighten the nuts (x2) that attach the LH liftgate hinge to the vehicle.
    30 Nm (22.1 lbs-ft)
    提示： 推荐使用以下工具：
    • 13 毫米套筒
  6. Tighten the bolt that attaches the liftgate hinge to the vehicle.
    12 Nm (8.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 10 毫米套筒
  7. Install the clips that attach the rear edge of the rear headliner to the vehicle.
  8. Install the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH（拆卸和更换）.
  9. Install the LH trunk side trim. See 饰板 - 侧 - 后备箱 - LH（拆卸和更换）.
  10. Install the LH trunk pocket bracket. See 支架 - 后备箱挂袋 - LH（拆卸和更换）.
  11. Install the LH trunk load floor bracket. See 支架 - 后备箱负重底板- LH（拆卸和更换）.
  12. Repeat step 8 through step 11 for the RH side of the vehicle.
  13. Install the trunk sill trim. See 饰板 - 门槛 - 后备箱（拆卸和更换）.
  14. Install the front trunk load floor. See 后备箱负重底板 - 前部（拆卸和更换）.
  15. Install the rear trunk load floor. See 后备箱负重底板 - 后部（拆卸和更换）.
  16. Install the LH and RH lower C-pillar trims. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
  17. Install the LH coat hook screw.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 T20 批头
  18. Close the LH coat hook screw cover.
  19. Push to close the LH coat hook.
  20. Repeat step 17 through step 19 for the RH coat hook.
  21. Install the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
  22. Close the liftgate.
  23. Move front seats to original position.
  24. Raise all windows and close all the doors.
