地毯 - 前 - LH（结构化电池组）（拆卸和更换）

校正代码 15301132 0.30 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
座椅底座的边缘很锋利，可能会造成人身伤害。将座椅从车辆上拆下时，以及在座椅底座上或其附近执行相关操作时，请佩戴防割手套。

拆卸

  1. Remove the LH mid A-pillar trim. See 饰板 - A 柱 - 中部 - LH（拆卸和更换）.
  2. Remove the LH lower A-pillar trim. See 饰板 - A 柱 - 下 - LH（拆卸和更换）.
  3. Remove the LH center console side panel. See 侧板 - 中控台 - LH（拆卸和更换）.

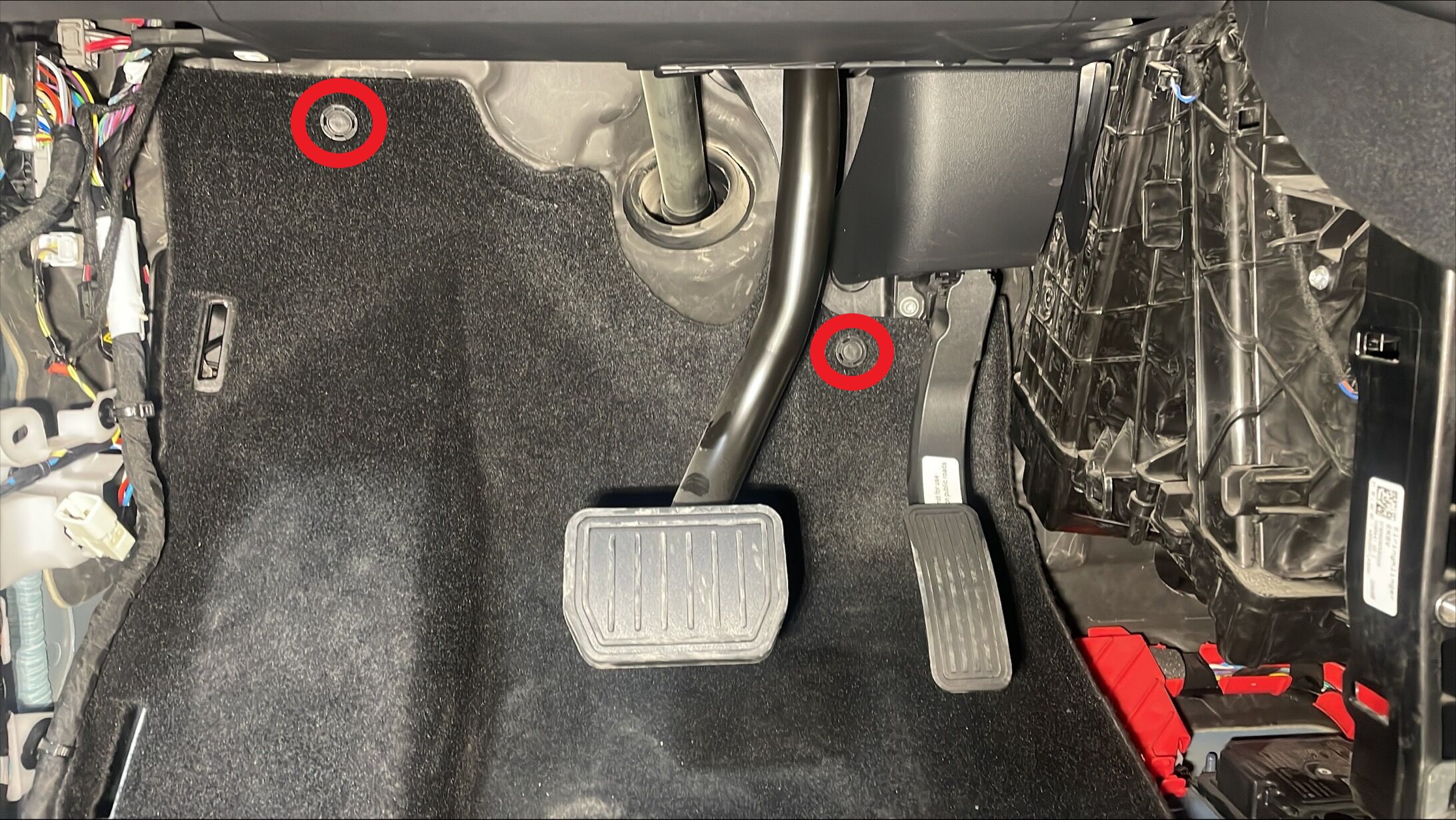

  4. Remove screw and clips (x2) that attach the driver footwell cover to the instrument panel.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 梅花 T20 套筒

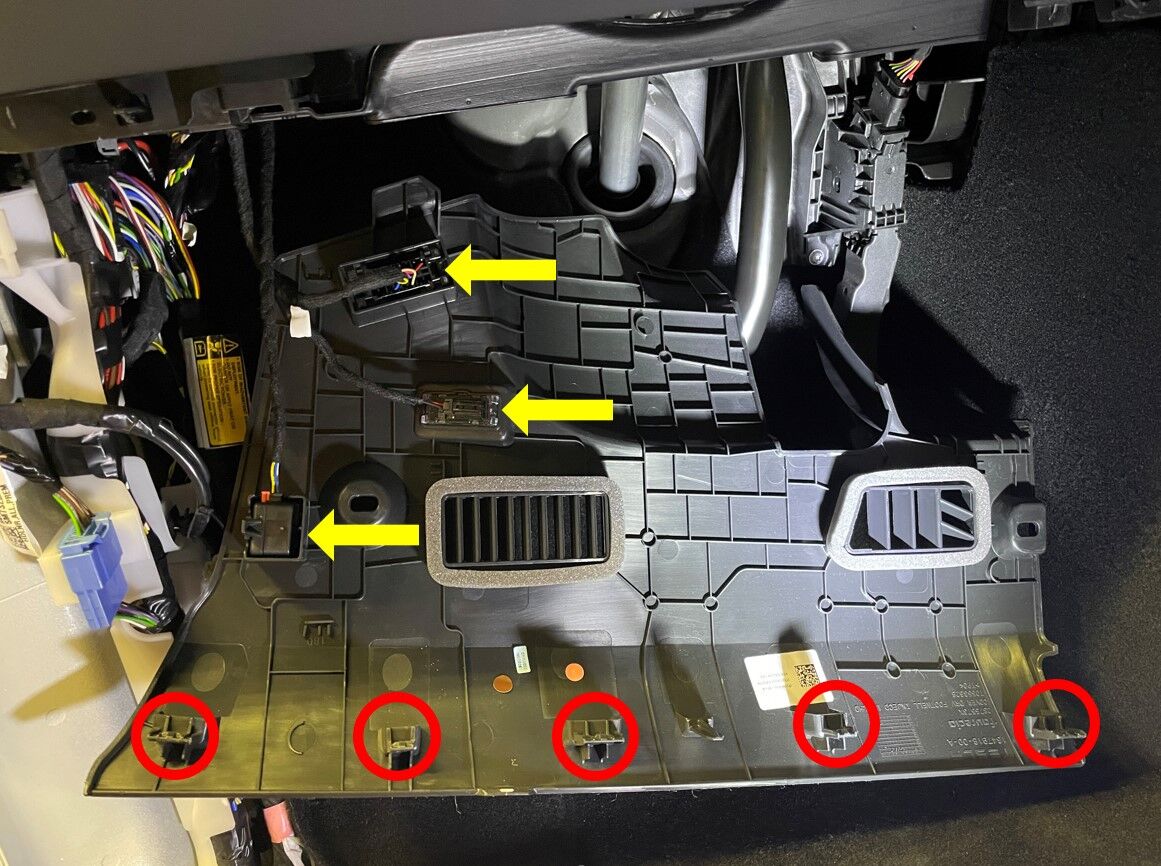

  5. Disconnect the connectors (x2), and then release the tabs (x3) to remove the driver footwell cover from the vehicle.
  6. Move the LH front seat fully forward.
  7. Remove and discard the bolts (x2) that attach the rear of the 1st row LH seat to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to remove the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  8. Move the seat fully rearward.

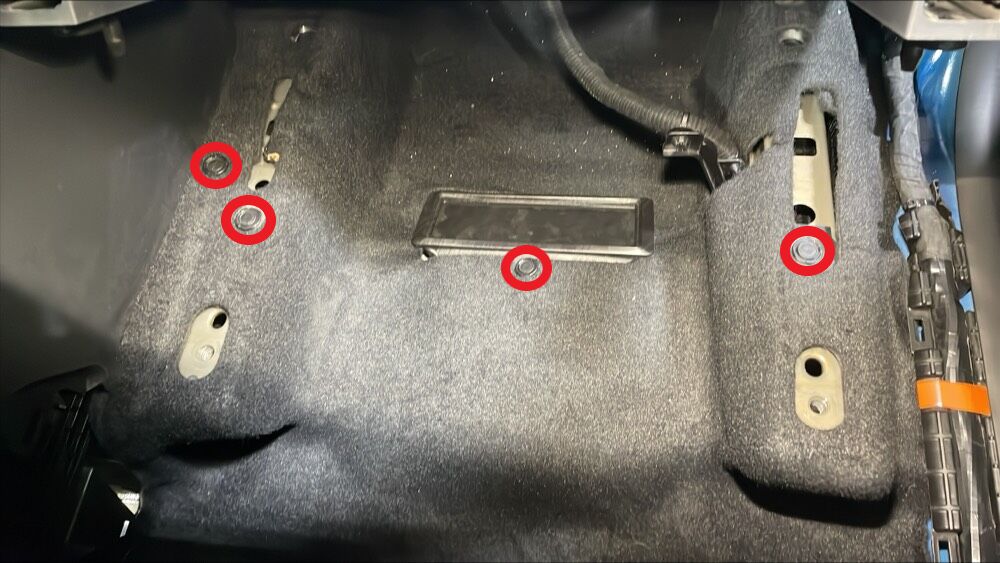

  9. Remove and discard the bolts (x2) that attach the front of the 1st row LH seat to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to remove the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）

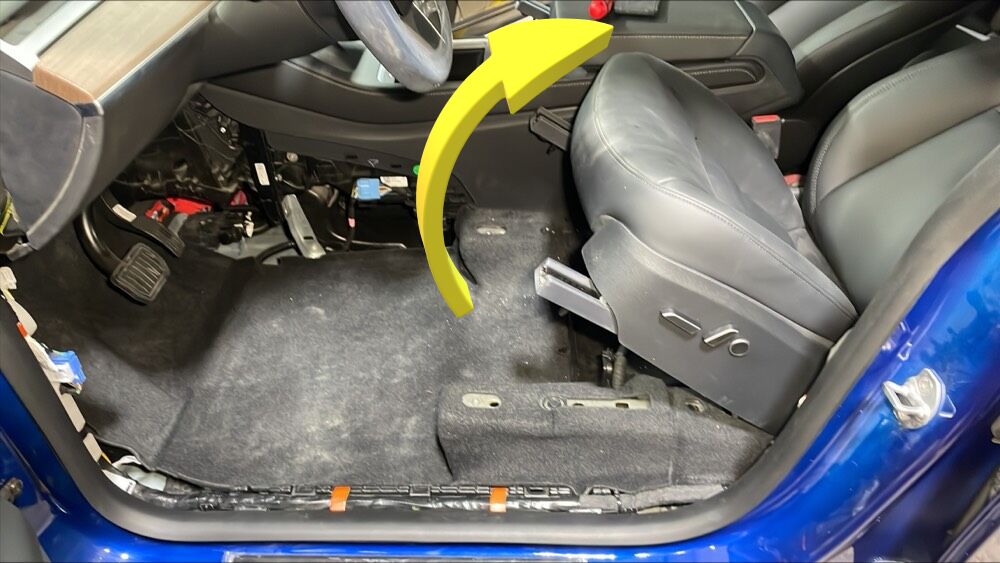

  10. Position the LH front seat up and carefully lean it backwards.

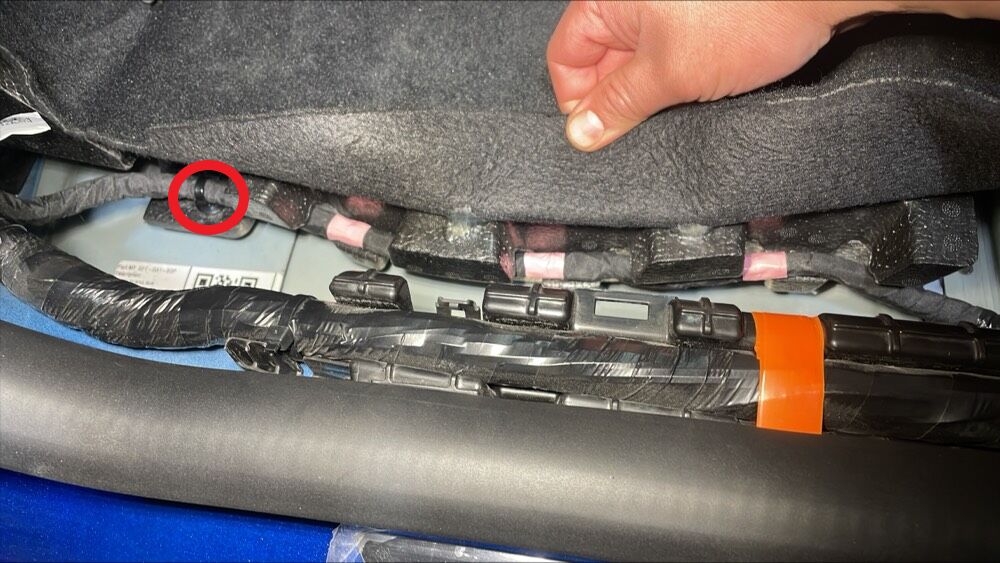

  11. Release the push clips (x2) and vertical clip that attach the LH front carpet to the cabin support.

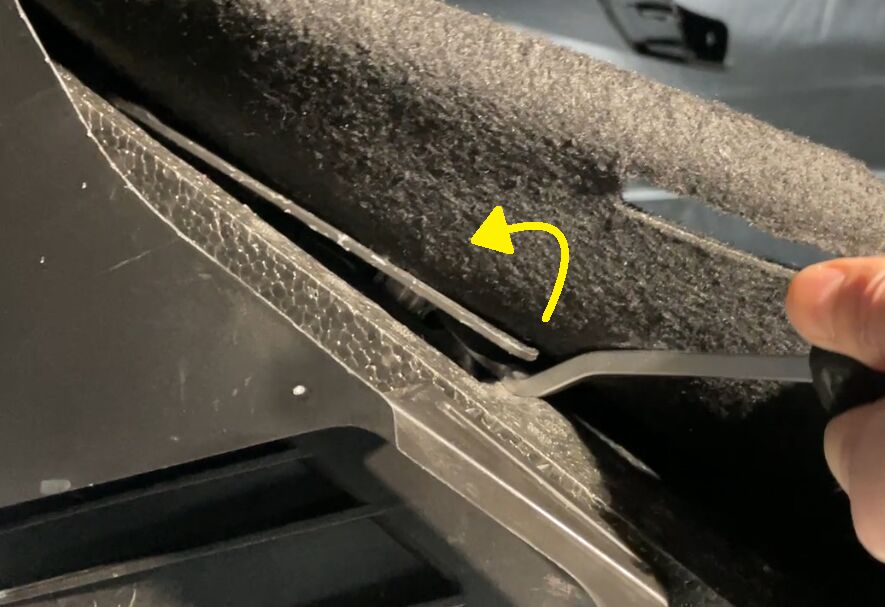

    提示： Insert a clip pry tool on the outboard side of the clip, and then rotate to the right to release one side of clip. Move the clip pry tool inboard of clip and rotate to left to fully release the carpet clip from cabin support.
  12. Release the clips (x4) that attach the LH front carpet underneath the seat.

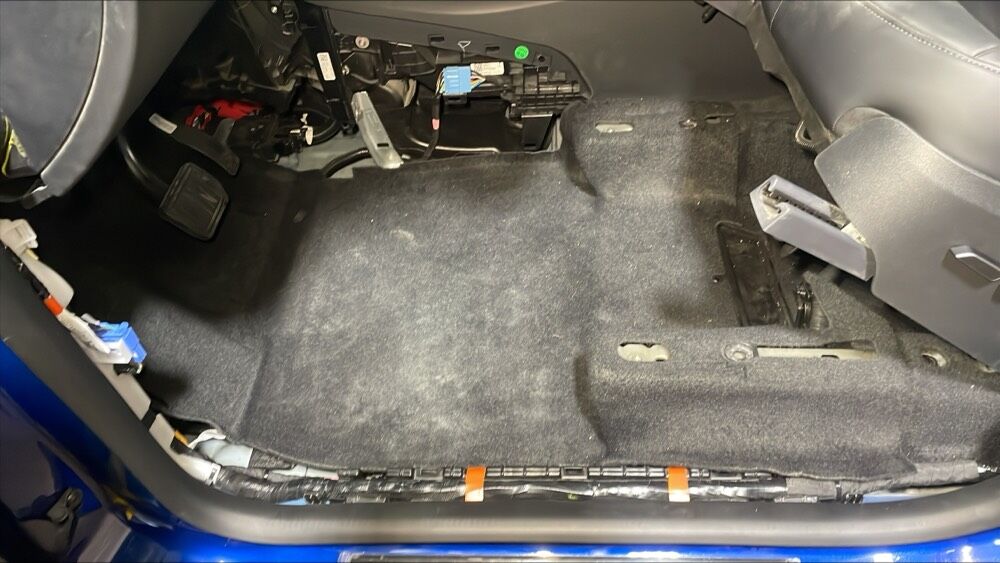

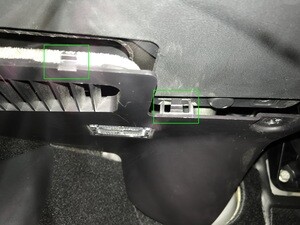

    图 1. Seat removed for clarity

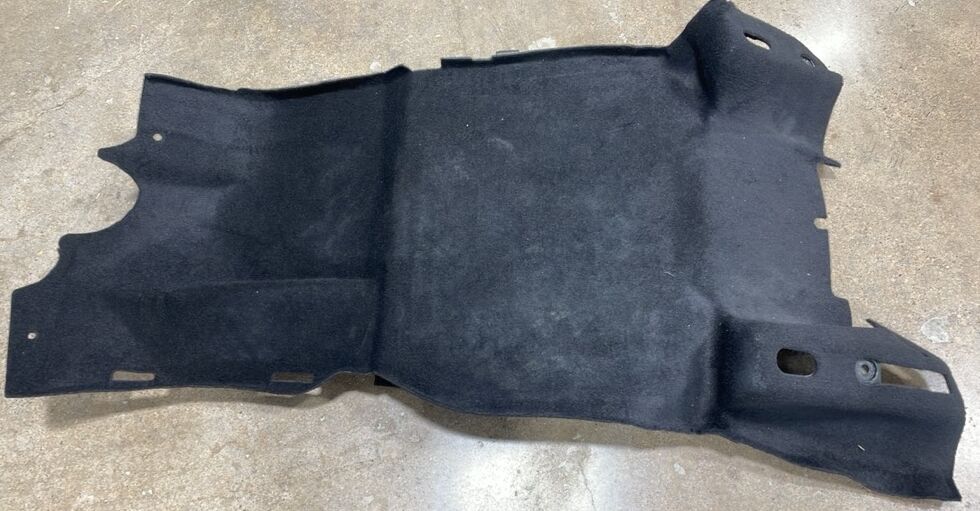

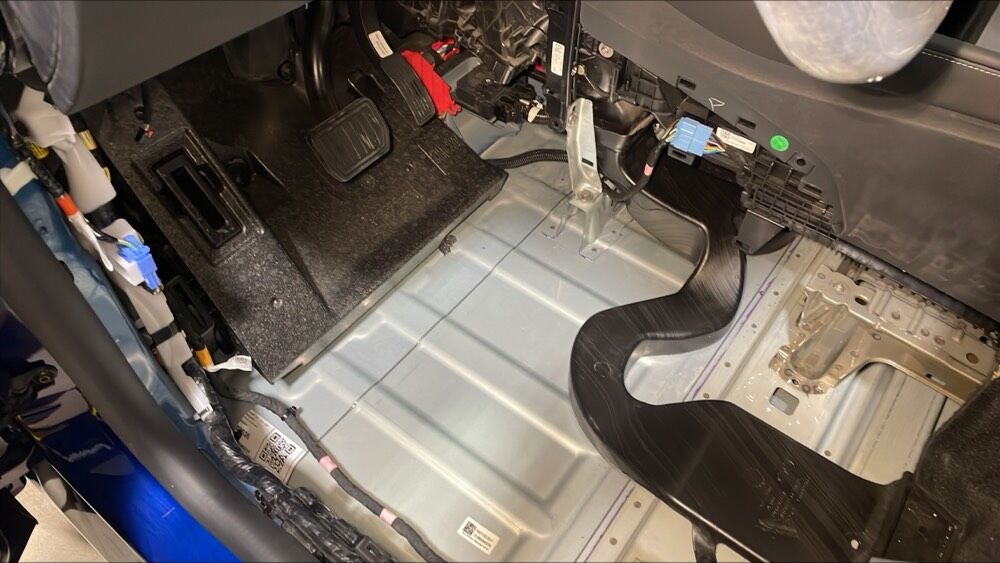

  13. Release the harness clip and harness, release all edges, and then remove the LH front carpet from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    Take note of the short edge under the center console.

安装

  1. Position the LH front carpet into the vehicle, and then secure the harness clip and harness and all edges.
    Informational PurposesAn informational icon, calling your attention
    注
    Tuck the short edge underneath the center console.
  2. Install the clips (x4) that attach the LH front carpet underneath the seat.

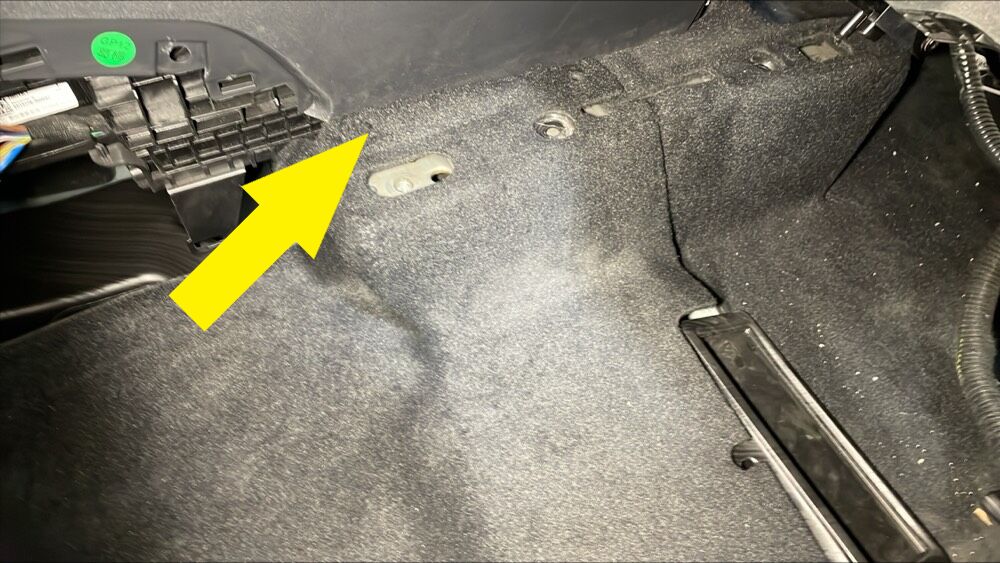

    图 2. Seat removed for clarity
  3. Install the vertical clip and push clips (x2) that attach the LH front carpet to the cabin support.
    提示： Secure the vertical clip into place first.
  4. Position the LH front seat down and carefully tilt it forwards.
  5. 33.5 Nm (24.7 lbs-ft)
    安装将第一排 LH 座椅的前部固定到车身的新螺栓 (x2)。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to install the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  6. Move the LH front seat fully forward.
  7. 33.5 Nm (24.7 lbs-ft)
    安装将第一排 LH 座椅的后部固定到车身的新螺栓 (x2)。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to install the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  8. Move the LH front seat to the original position.
  9. Position the driver footwell cover into the vehicle, and then connect the connectors (x2) and then secure the tabs (x3).
  10. Install screw and clips (x2) that attach the driver footwell cover to the instrument panel.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 梅花 T20 套筒
  11. Install the LH center console side panel. See 侧板 - 中控台 - LH（拆卸和更换）.
  12. Install the LH lower A-pillar trim. See 饰板 - A 柱 - 下 - LH（拆卸和更换）.
  13. Install the LH mid A-pillar trim. See 饰板 - A 柱 - 中部 - LH（拆卸和更换）.
  14. Close the LH front door.
