地毯 - 前 - LH（七座）（拆卸和更换）

校正代码 15301152 0.72 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open all the doors and lower all the windows.
  2. Move the LH front seat fully rearward.
  3. Remove screw and clips (x2) that attach the driver footwell cover to the instrument panel.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 梅花 T20 套筒
  4. Disconnect the connectors (x2), and then release the tabs (x3) to remove the driver footwell cover from the vehicle.
  5. Remove the LH center console side panel carpet. See 侧板 - 中控台 - LH（拆卸和更换）.
  6. Remove the bolts that attach the LH front of the center console to the body.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  7. Remove the LH mid A-Pillar trim. See 饰板 - A 柱 - 中部 - LH（拆卸和更换）.
  8. Remove the LH lower A-Pillar trim. See 饰板 - A 柱 - 下 - LH（拆卸和更换）.
  9. Release the LH front door seal from the body.

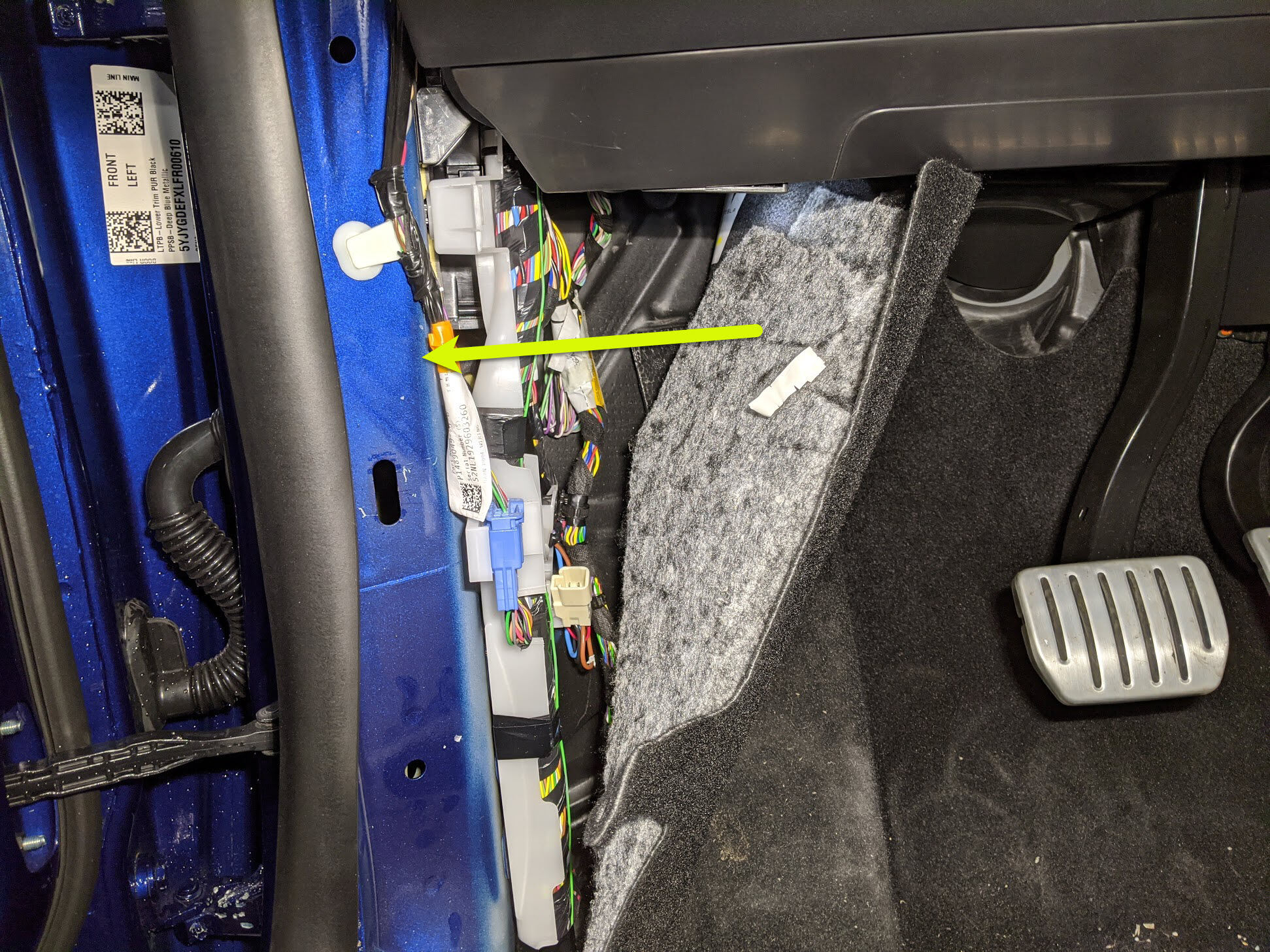

  10. Release the clip that attaches the LH front carpet to the body near the front of the LH door opening.
  11. Fold the front of the LH front carpet rearward so that the LH body controller module and its surrounding connectors are exposed.
  12. Remove and discard the bolts (x2) that attach the front of the 1st row LH seat to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to remove the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  13. Move the seat fully forward.
  14. 将安全带释放钥匙 (1133787-00-A) 插入到安全带预紧装置耦合的底部，以从预紧装置中松开安全带。
  15. Raise the LH front seat cushion to the maximum height.
    Informational PurposesAn informational icon, calling your attention
    注
    Adjust the seat back if needed to avoid contacting the headliner.
  16. Remove the center console lower rear panel. See 面板 - 下后部 - 中控台（拆卸和更换）.
  17. Remove the bolt that attaches the LH rear of the center console to the body.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  18. Move the RH front seat fully forward.
  19. Raise the RH front seat cushion to the maximum height.
    Informational PurposesAn informational icon, calling your attention
    注
    Adjust the seat back if needed to avoid contacting the headliner.
  20. Remove the bolt that attaches the RH rear of the center console to the body.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  21. Move the RH front seat fully rearward and to the lowest position.
  22. Remove the RH center console side panel carpet. See 侧板 - 中控台 - LH（拆卸和更换）.
  23. Remove the bolts that attach the RH front of the center console to the body.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  24. Remove and discard the bolts (x2) that attach the rear of the 1st row LH seat to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to remove the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  25. Adjust the LH front seat to the middle of the seat tracks, and then raise the seat fully.
    提示： Performing this step will aide in removing the seat.
  26. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  27. Remove the HEPA filter assembly. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和安装）.
  28. Disconnect LV power. See 12V/低压电源（断开和连接）.
  29. Locate the LH front seat electrical connector on the LH body controller module.
  30. Release the LH front seat connector lock, and then remove the connector from the LH body controller.
    Informational PurposesAn informational icon, calling your attention
    注
    Squeeze the release tab on the LH front seat connector lock, and then swing the lock away from the connector to release the lock.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not pull on the connector too hard. If the connector does not easily disconnect from the LH body controller, the lock is still engaged.
  31. Release the clips (x2) that attach the LH front seat harness to the LH footwell support bracket near the LH side of the LH footwell.
  32. Release the clips that attach the LH front seat harness to the LH front seat harness guide.
  33. Pull the LH front seat harness out from under the LH front carpet.
  34. With assistance, remove the seat from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    Lift the seat, tilt the seat back, rotate the cushion toward the front door, and remove the seat from the vehicle, cushion first.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Take care not to damage the upholstery or trim while removing the seat.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    If reinstalling the seat, place the seat in an area where it is not likely to be tipped over or otherwise damaged.
  35. Disconnect the electrical connector from the rear of the center console.
  36. Disconnect the electrical connector that is located at the RH front of the center console.
  37. With an assistant, remove the center console from the vehicle as follows:
    1. Tilt the rear of the center console upwards.
    2. Pull the center console towards the rear of the vehicle.
    3. Tilt the front of the center console upwards.
    4. Remove the center console through the passenger front door.

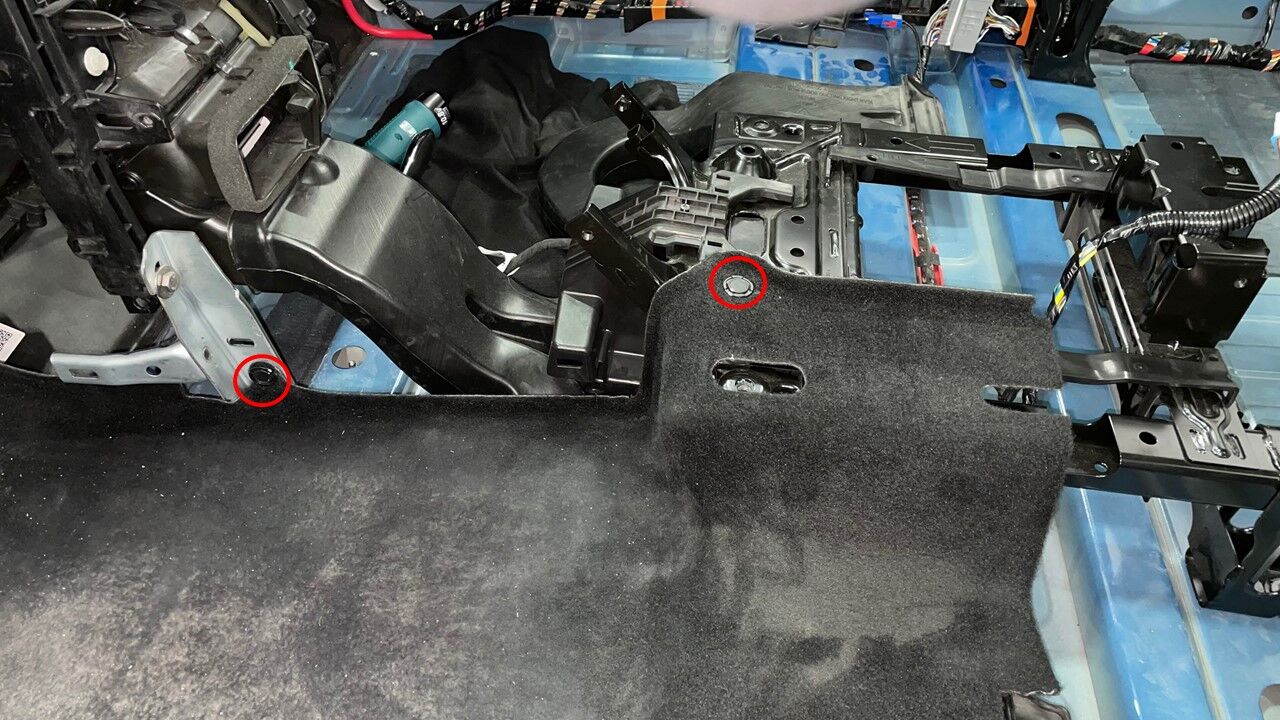

  38. Remove the clips (x2) that attach the LH front carpet to the vehicle.

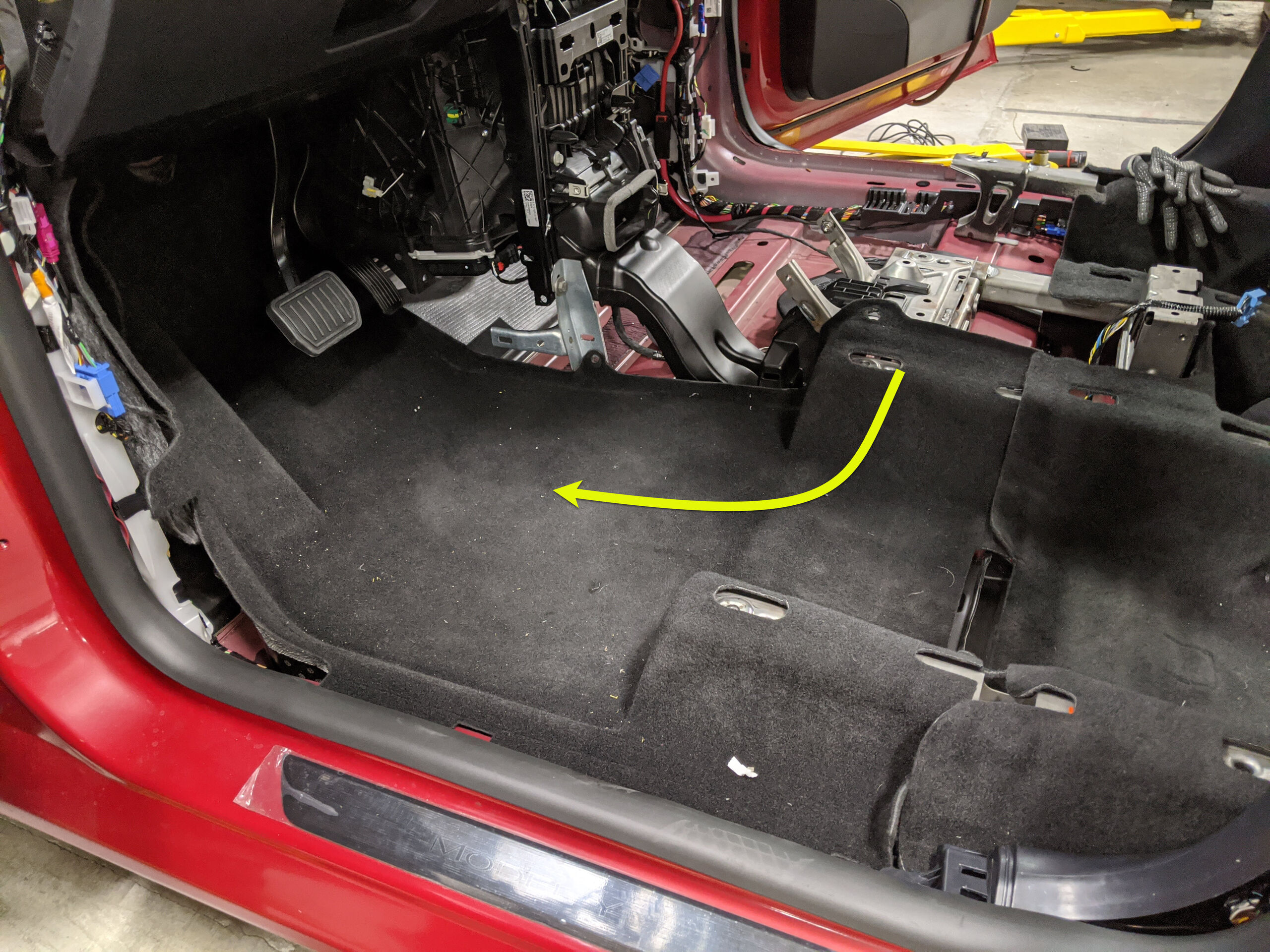

  39. Lift up on the rear edge of the LH front carpet, and then slide the carpet towards the rear of vehicle to remove it.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Be careful to avoid the foam underneath the carpet catching on the seat risers.

安装

  1. Position the LH front carpet into the vehicle.
  2. Install the clips (x2) that attach the LH front carpet to the vehicle.
  3. With an assistant, install the center console into the vehicle as follows:
    1. Tilt the front of the center console downwards.
    2. Slide the center console towards the front of the vehicle.
    3. Tilt the rear of the center console downwards until it is in place.
  4. Connect the electrical connector that is located at the RH front of the center console.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.
  5. 7 Nm (5.2 lbs-ft)
    安装将中控台 RH 前部固定到车身的螺栓。
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  6. Install the RH center console side panel carpet. See 侧板 - 中控台 - LH（拆卸和更换）.
  7. Connect the electrical connector in the rear of the center console.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.
  8. 7 Nm (5.2 lbs-ft)
    安装将中控台 LH 后部固定到车身的螺栓。
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  9. 7 Nm (5.2 lbs-ft)
    安装将中控台 LH 前部固定到车身的螺栓。
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  10. Install the LH center console side panel carpet. See 侧板 - 中控台 - LH（拆卸和更换）.
  11. With assistance, position the 1st row LH seat in the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Take care not to damage the upholstery or trim while positioning the seat.
  12. Route the 1st row LH seat harness under the LH front carpet, position the harness in the harness guide, and then install the clips that attach the harness to the harness guide.
  13. Install the clips (x2) that attach the LH front seat harness to the LH footwell support bracket near the LH side of the LH footwell.
  14. Install the LH front seat harness connector on the LH body controller, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    注
    Perform a push-pull test to ensure that the connector is fully seated and locked.
  15. Fully seat the LH front carpet.
  16. Unfold the LH front carpet back into position, and then install the clip that attaches the carpet to the body near the front of the LH door opening.
  17. Install the LH lower A-Pillar trim. See 饰板 - A 柱 - 下 - LH（拆卸和更换）.
  18. Install the LH mid A-Pillar trim. See 饰板 - A 柱 - 中部 - LH（拆卸和更换）.
  19. Reseat the LH front door seal along the lower A-pillar trim.
  20. Connect 12V/LV power. See 12V/低压电源（断开和连接）.
  21. Install the HEPA filter assembly. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和安装）.
  22. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  23. Move the LH front seat fully forward.
  24. Install the LH 1st row seatbelt retractor onto the pretensioner.
    Informational PurposesAn informational icon, calling your attention
    注
    在将安全带预紧装置重新安装到安全带预紧装置耦合中后，执行拉力测试以确保安全带和预紧装置已牢牢接合
  25. 33.5 Nm (24.7 lbs-ft)
    安装将第一排 LH 座椅的后部固定到车身的新螺栓 (x2)。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to install the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  26. Move the RH front seat fully forward.
  27. Raise the RH front seat cushion to the maximum height.
    Informational PurposesAn informational icon, calling your attention
    注
    Adjust the seat back if needed to avoid contacting the headliner.
  28. 7 Nm (5.2 lbs-ft)
    安装将中控台 RH 后部固定到车身的螺栓。
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手（仅适用于安装程序）
  29. Install the center console lower rear panel. See 面板 - 下后部 - 中控台（拆卸和更换）.
  30. Move the RH front seat to the original position.
  31. Move the LH front seat fully rearward.
  32. 33.5 Nm (24.7 lbs-ft)
    安装将第一排 LH 座椅的前部固定到车身的新螺栓 (x2)。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only the Torx Plus T45 bit to install the seat bolts.
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 3/8 英寸标准回旋头棘轮
    • 3/8 英寸回旋头扭矩扳手（仅适用于安装程序）
  33. Position the driver footwell cover into the vehicle, and then connect the connectors (x2) and then secure the tabs (x3).
  34. Install screw and clips (x2) that attach the driver footwell cover to the instrument panel.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    T20
    提示： 推荐使用以下工具：
    • 梅花 T20 套筒
  35. Move the LH front seat to the original position.
  36. Raise all the windows and close all the doors.
