安全带 - 第二排 - LH(七座)(拆卸和更换)

校正代码 20056122 0.30 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat forward.
  3. Open the LH rear door and lower the LH rear window.
  4. Move the LH 2nd row seat back assembly forward.
  5. Open the liftgate.
  6. Remove the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  7. Disconnect 12V power. See 12V/低压电源(断开和连接).
  8. Remove the rear load floor. See 后备箱负重底板 - 后部(拆卸和更换).
  9. Release the clips (x4) that attach the LH side of the trunk sill trim to the vehicle, and then partially release the LH side of the trunk sill trim.
  10. Remove the LH load floor bracket. See 支架 - 后备箱负重底板- LH(拆卸和更换).
  11. Remove the LH trunk pocket bracket. See 支架 - 后备箱挂袋 - LH(拆卸和更换).

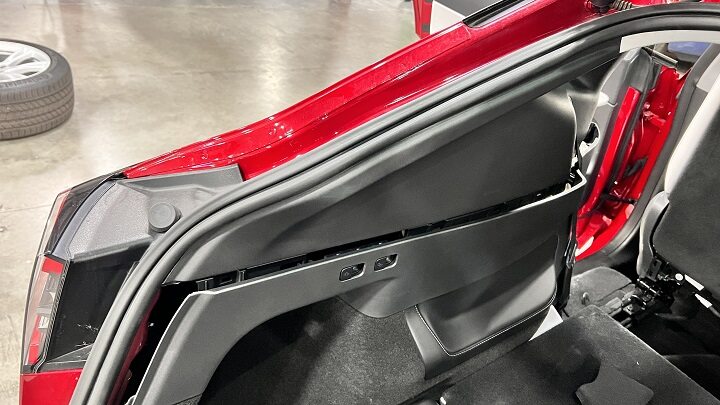

  12. Release the upper portion of the LH trunk side trim.

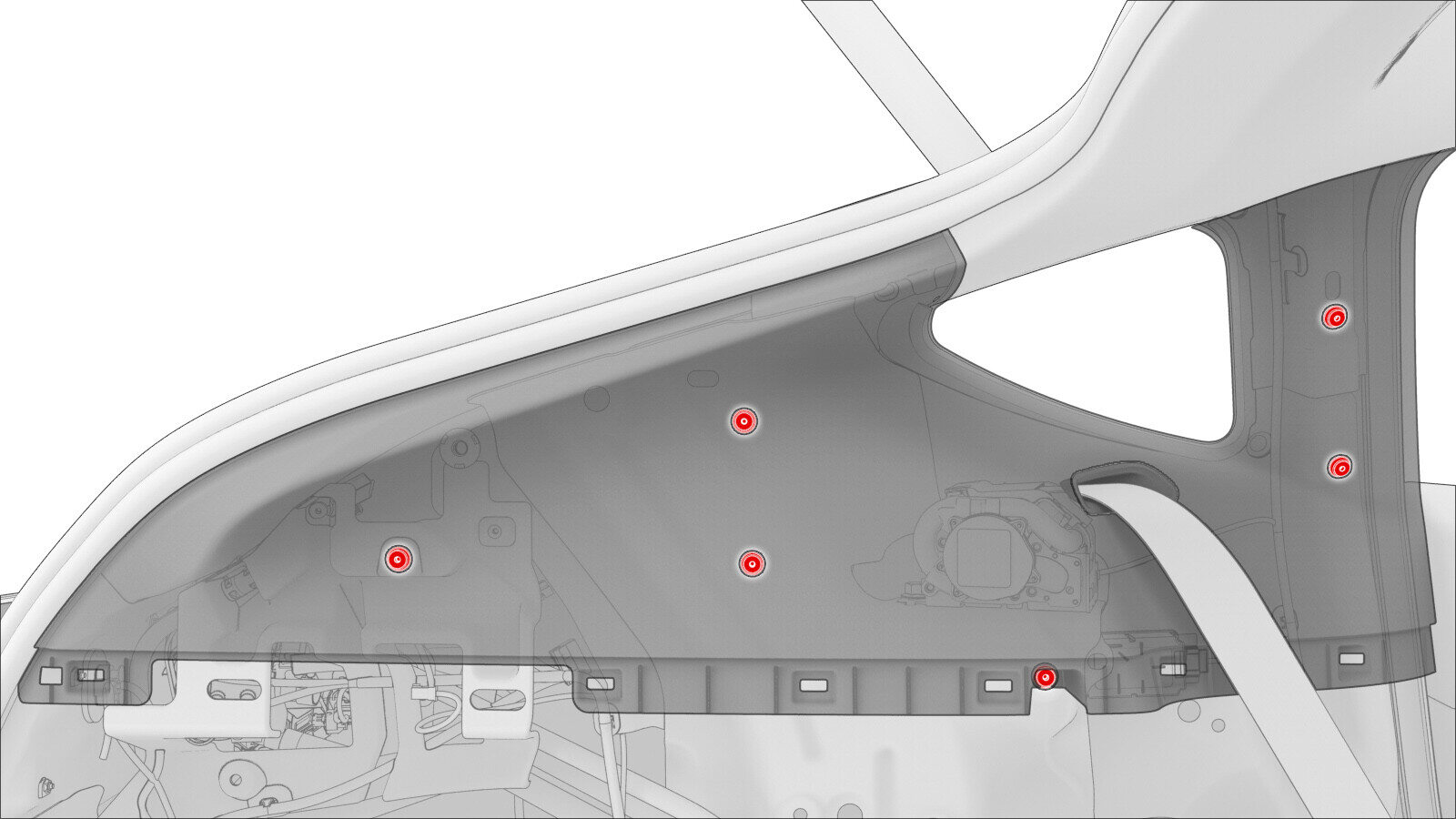

  13. Release the clips (x6) that attach the upper C-pillar trim, and then set the trim aside.

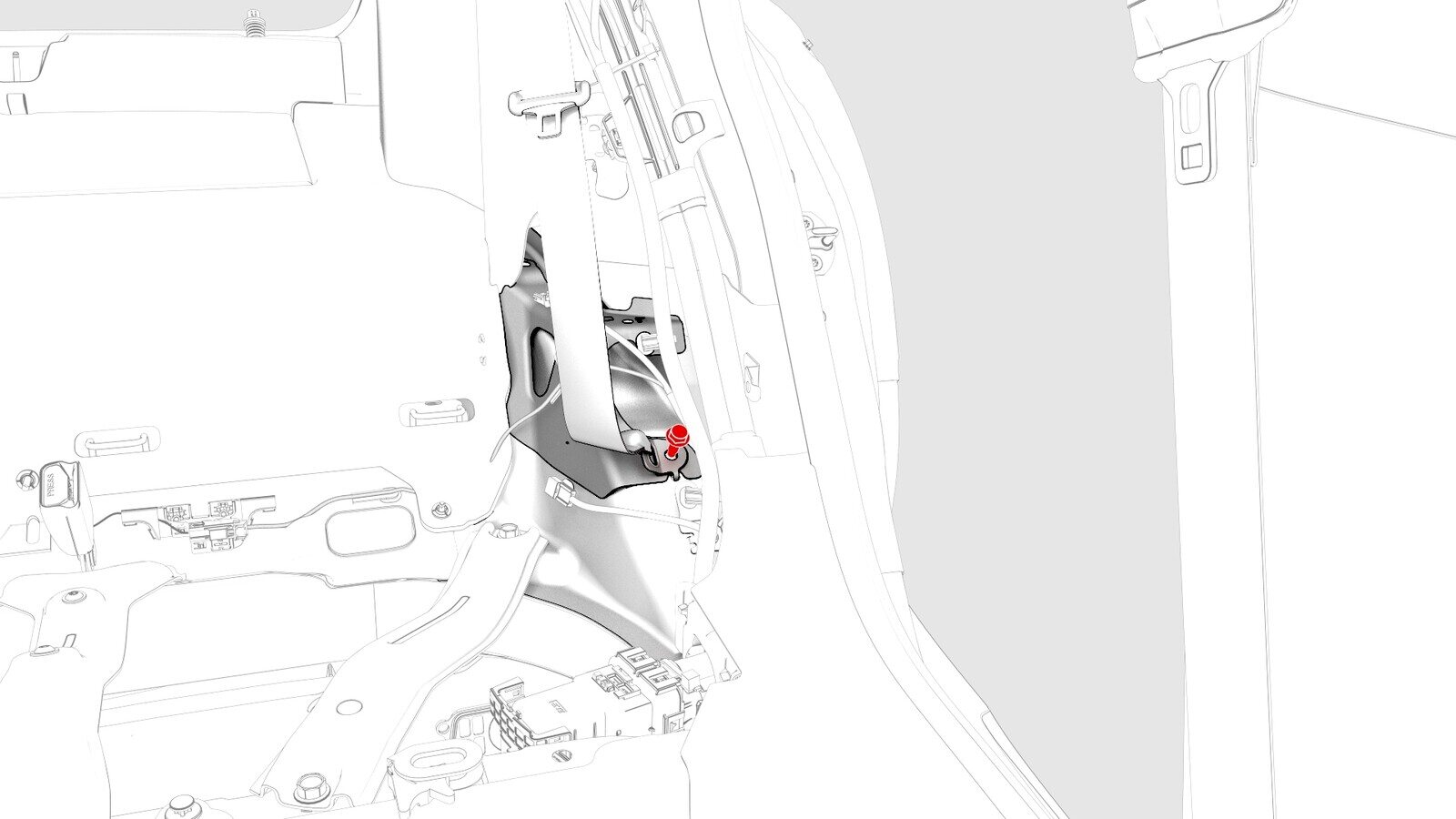

    Informational PurposesAn informational icon, calling your attention
    Guide the front upper corner groove out of the headliner.
  14. 拆下并弃用将第二排 LH 下部座椅安全带锚固件固定到车身的螺栓。
    提示: 推荐使用以下工具:
    • 15 毫米套筒
    • 3 英寸加长件
  15. Release the clips that attach the guide bezel to the LH upper C-pillar trim, and then separate the bezel from the seat belt.
  16. Feed the seat belt through the LH upper C-pillar trim, and then remove the trim.

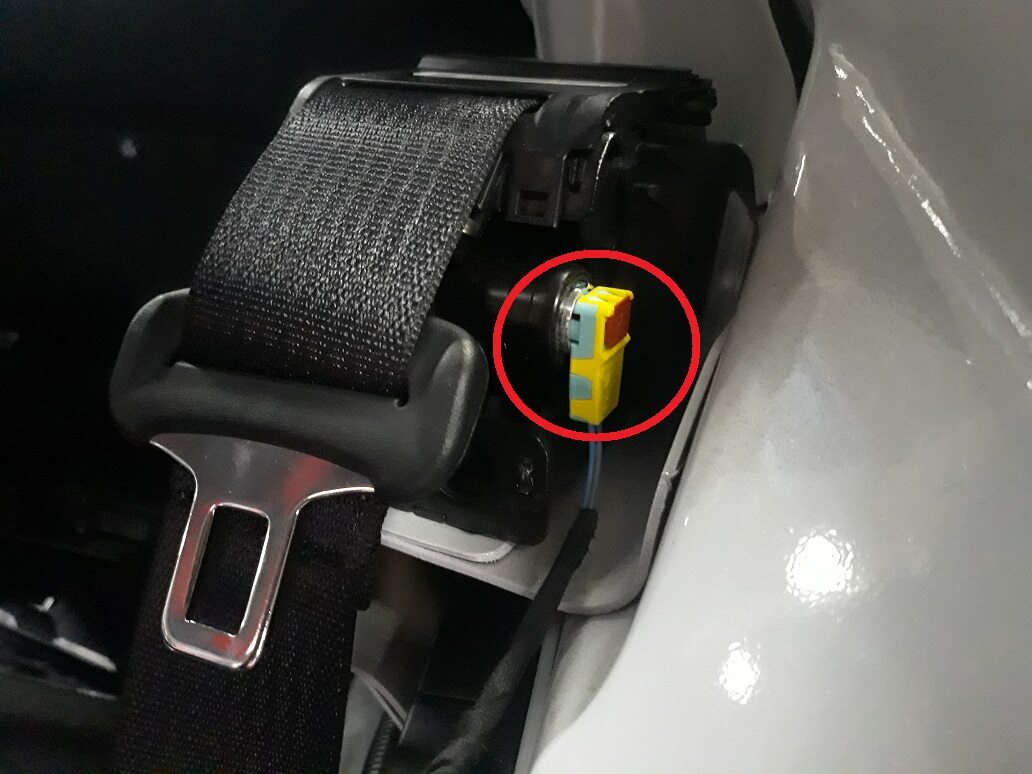

  17. Release the connector lock, and then disconnect the LH 2nd row seat belt connector.
    Informational PurposesAn informational icon, calling your attention
    Lift the red locking tab, and then release the connector.

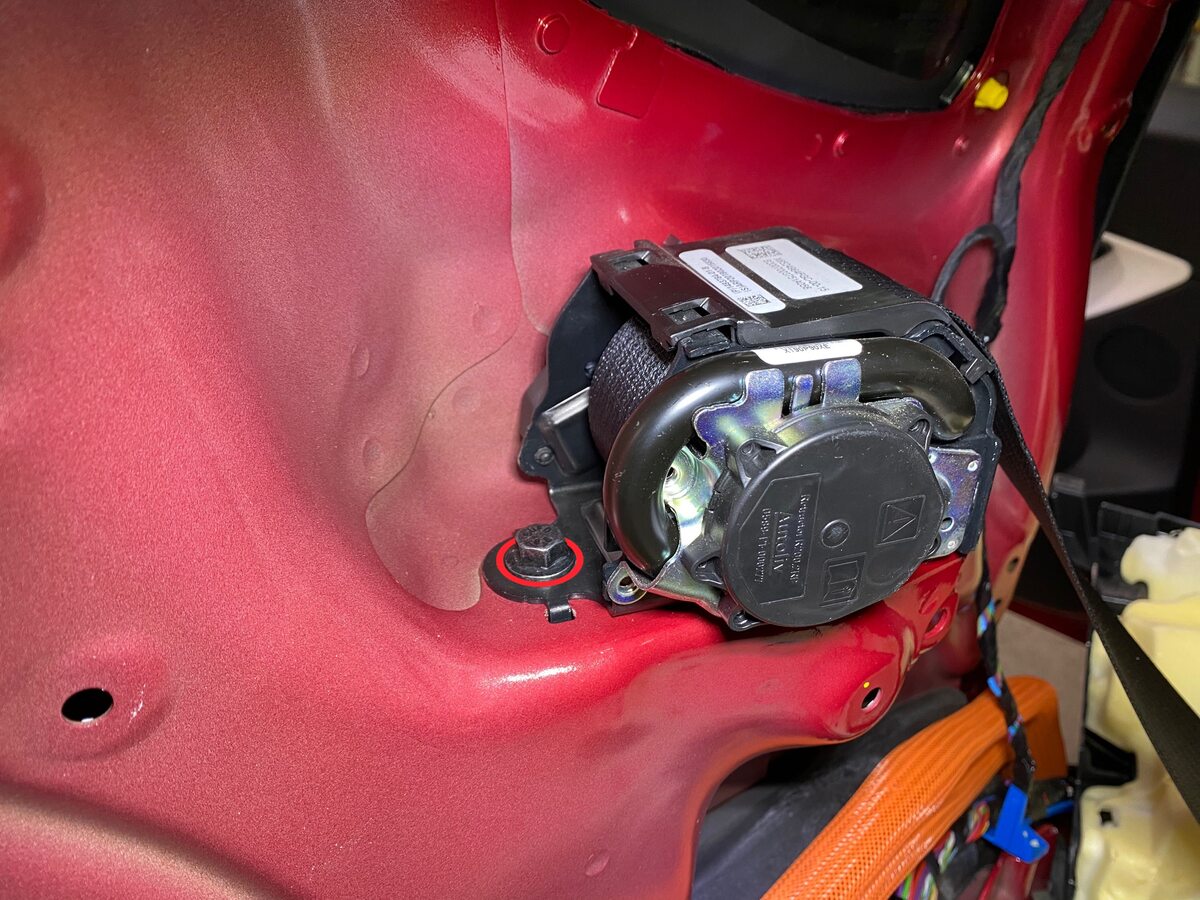

  18. Remove and discard the bolt that attaches the LH 2nd row seatbelt to the body, and then remove the seatbelt from the vehicle.
    30 Nm (22.1 lbs-ft)
    提示: 推荐使用以下工具:
    • 13 毫米套筒

安装

  1. Position the LH 2nd row seatbelt into the vehicle, and then install a new bolt that attaches the seatbelt to the body.
    30 Nm (22.1 lbs-ft)

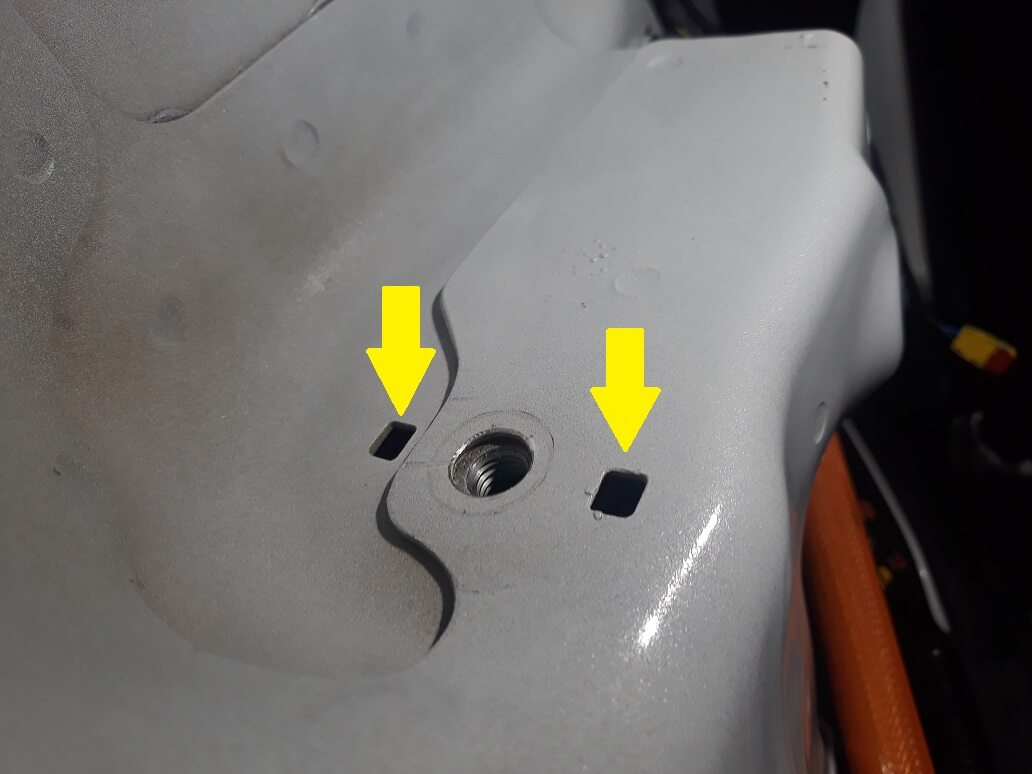

    Informational PurposesAn informational icon, calling your attention
    Note the position of the locating tabs.
    提示: 推荐使用以下工具:
    • 13 毫米套筒
  2. Connect the LH 2nd row seat belt connector, and then engage the connector lock.
  3. Install the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH(拆卸和更换).
  4. Connect 12V power. See 12V/低压电源(断开和连接).
  5. Install the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  6. Move the driver seat to the original position.
  7. Raise the LH front window and close the LH front door.
  8. Move LH 2nd row seat back to the original position.
  9. Raise the LH rear window and close the LH rear door.
  10. Close the liftgate.
