支架 - 车牌 - 后(北美)(拆卸和更换)

校正代码 12072312 0.06 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

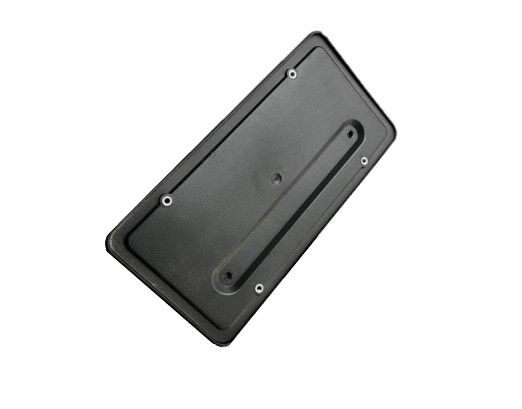

  1. Remove the screws (x2) that attach the rear license plate bracket to the vehicle, and then remove the bracket from the liftgate.
    1.2 Nm (.9 lbs-ft)
    提示: 推荐使用以下工具:
    • T20 梅花套筒

安装

  1. Inspect and clean the install area on liftgate.
    Informational PurposesAn informational icon, calling your attention
    Verify that thread inserts were not damaged during removal, and clean off the surface area from any dirt and debris.

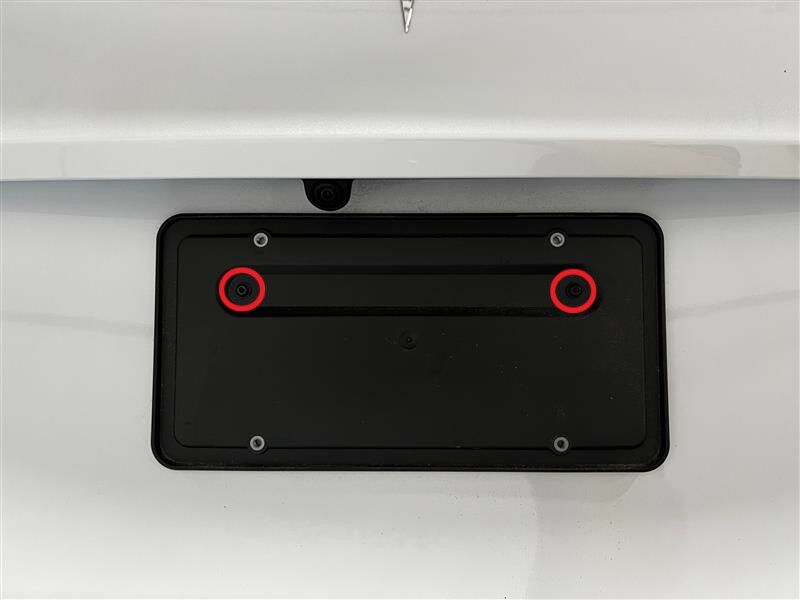

  2. Position the rear license plate bracket to the liftgate, and then install the screws (x2) that attach the bracket to the liftgate.
    1.2 Nm (.9 lbs-ft)
    提示: 推荐使用以下工具:
    • T20 梅花套筒
