高频扬声器总成 - 前车门 - LH(带系带)(拆卸和更换)

校正代码 21212732 0.24 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open the LH front door and lower the LH front window.

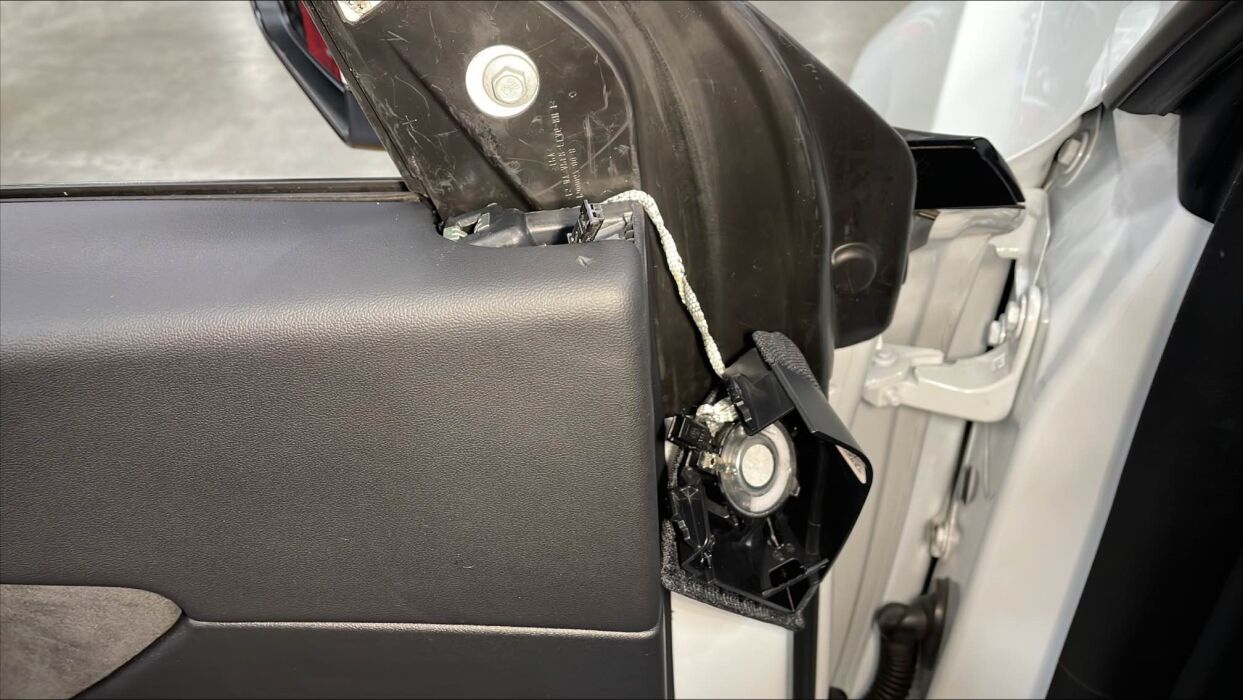

  2. Carefully release the clips (x2) and body hook that attach the LH front door tweeter assembly to the door trim panel and body, disconnect the connector, and then hang the assembly aside.
    Informational PurposesAn informational icon, calling your attention
    Release the tweeter assembly upwards to release the clips.
    Informational PurposesAn informational icon, calling your attention
    The tether will still be connected.
    Informational PurposesAn informational icon, calling your attention
    Tethered units can be used to replaced non-tethered tweeters. However, if the vehicle is equipped with a tethered tweeter, then it must be replaced with a tethered unit in all instances.
  3. Remove the LH front door trim panel. See 面板 - 车门饰板 - 前 - LH(拆卸和安装).

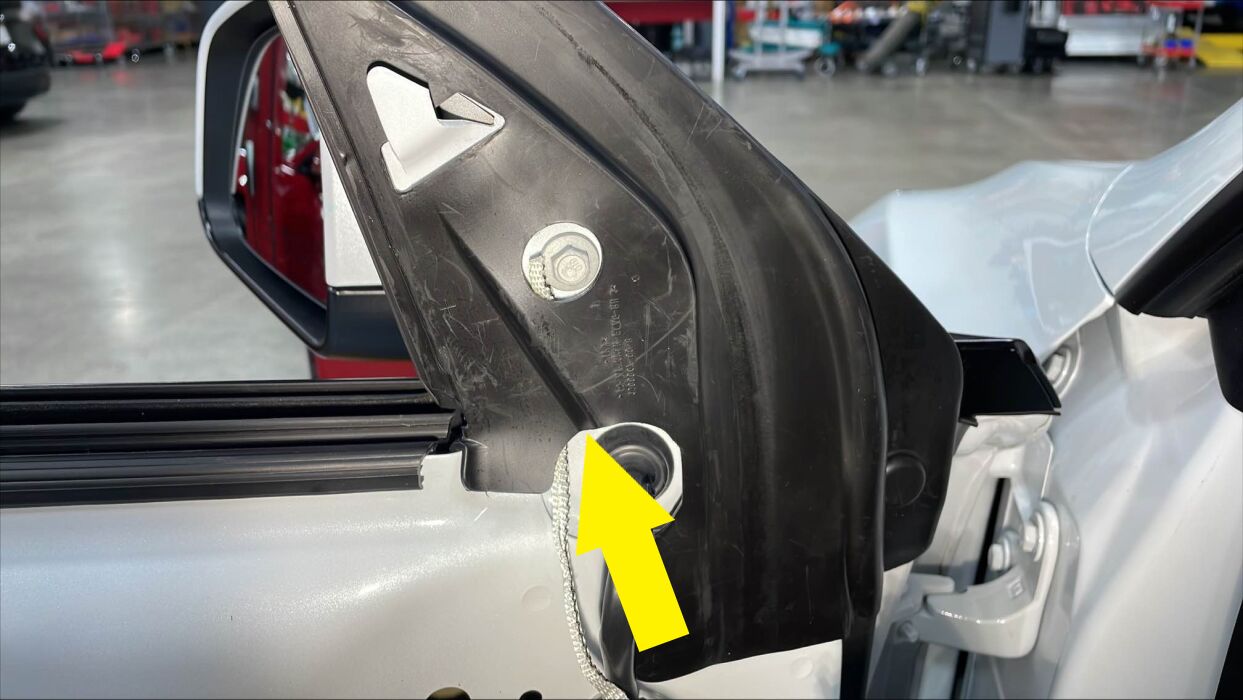

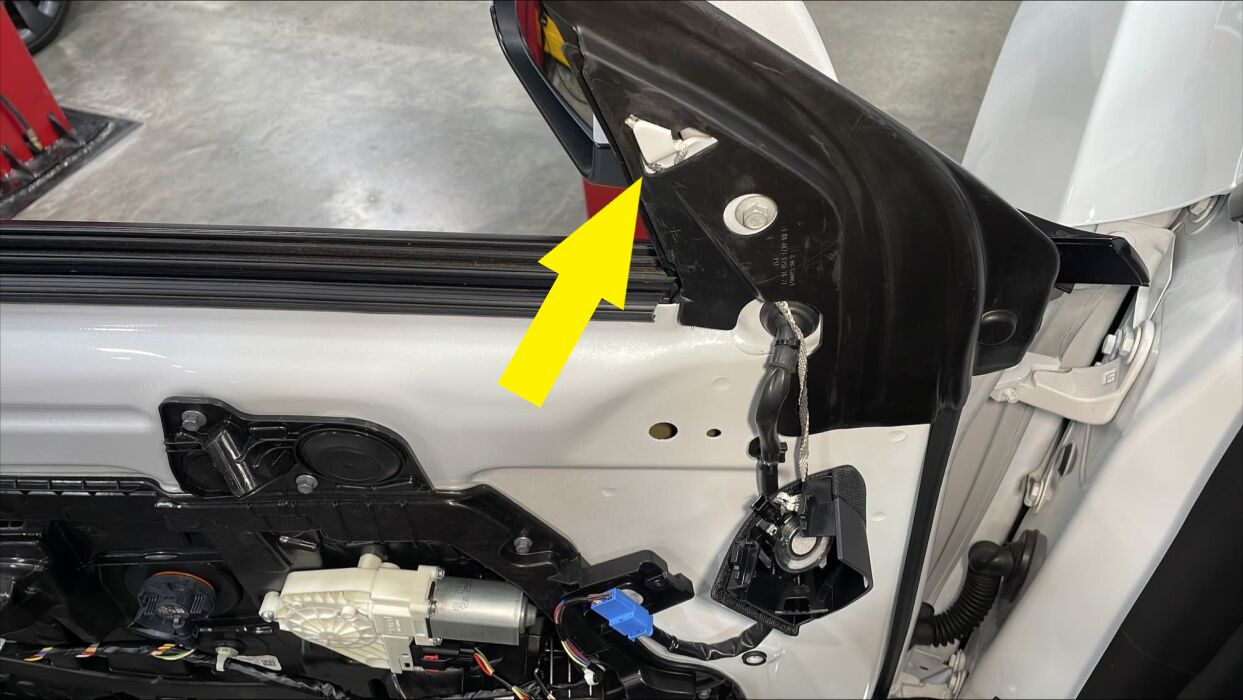

  4. Take note of the tether routing, and then unhook the tether to remove the LH front door tweeter assembly from the door assembly.

安装

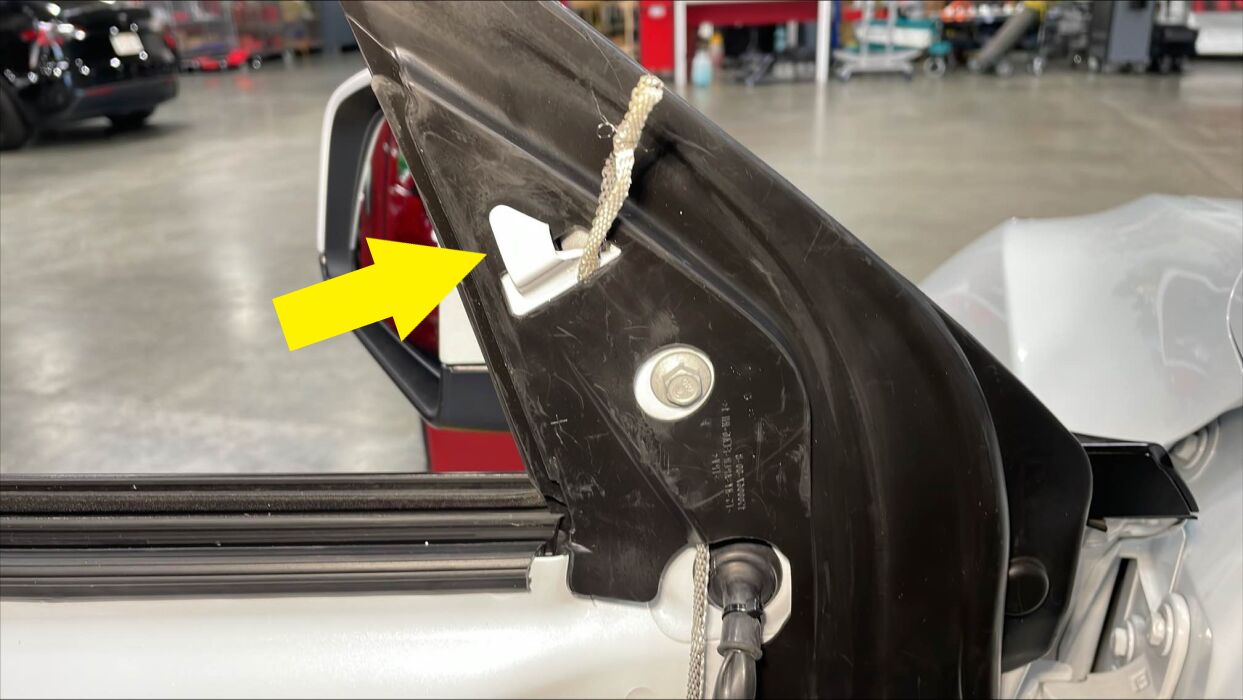

  1. Position the LH front door tweeter onto the door assembly, feed the strap in, secure it over the body hook, and then hang the tweeter assembly aside.
    Informational PurposesAn informational icon, calling your attention

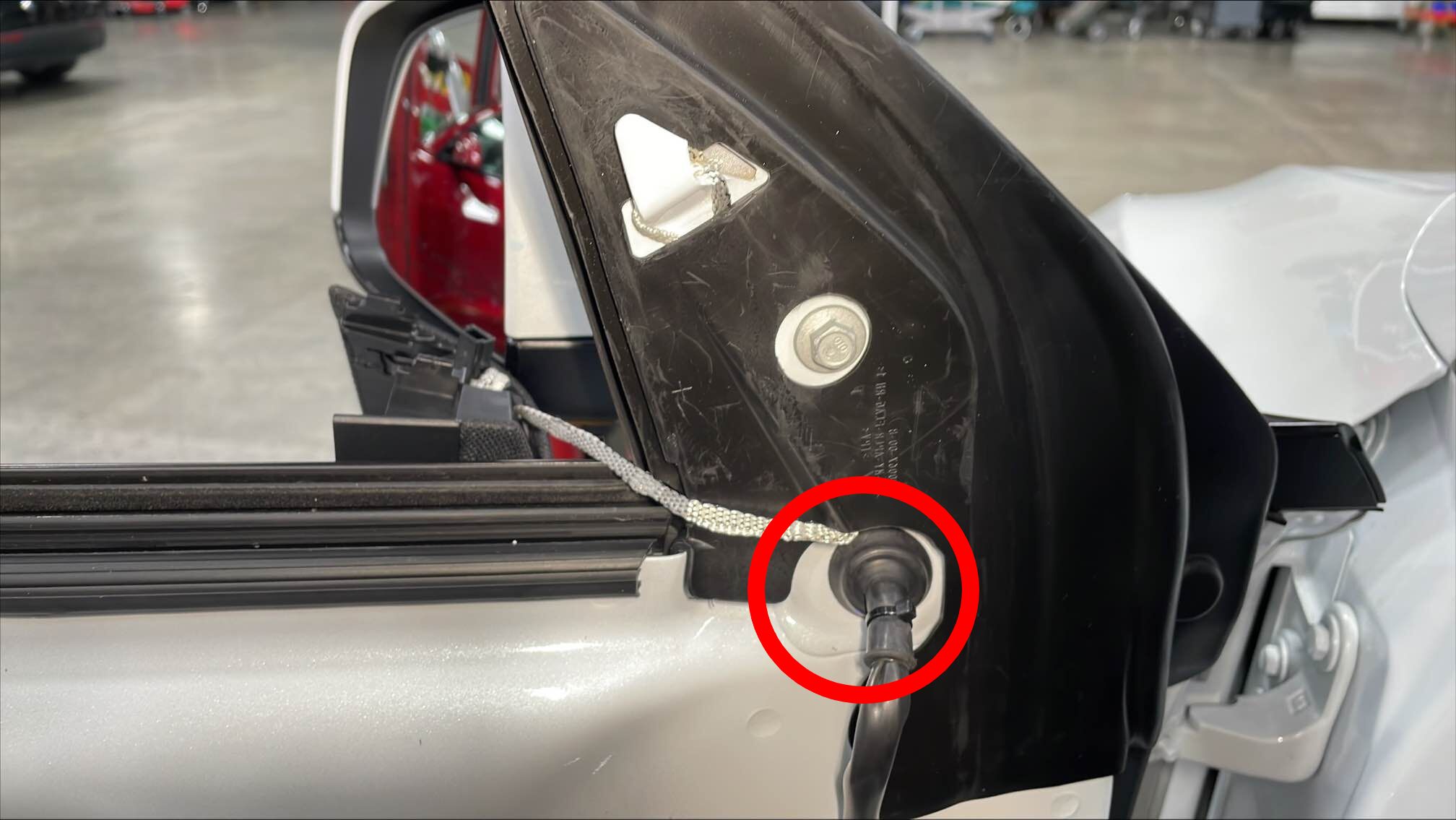

    Make sure the tether stays in the position circled in red.
    Informational PurposesAn informational icon, calling your attention
    Install the tether using the routing noted during removal.
    提示: Use a trim to aid in installation if needed.
  2. Install the LH front door trim panel. See 面板 - 车门饰板 - 前 - LH(拆卸和安装).

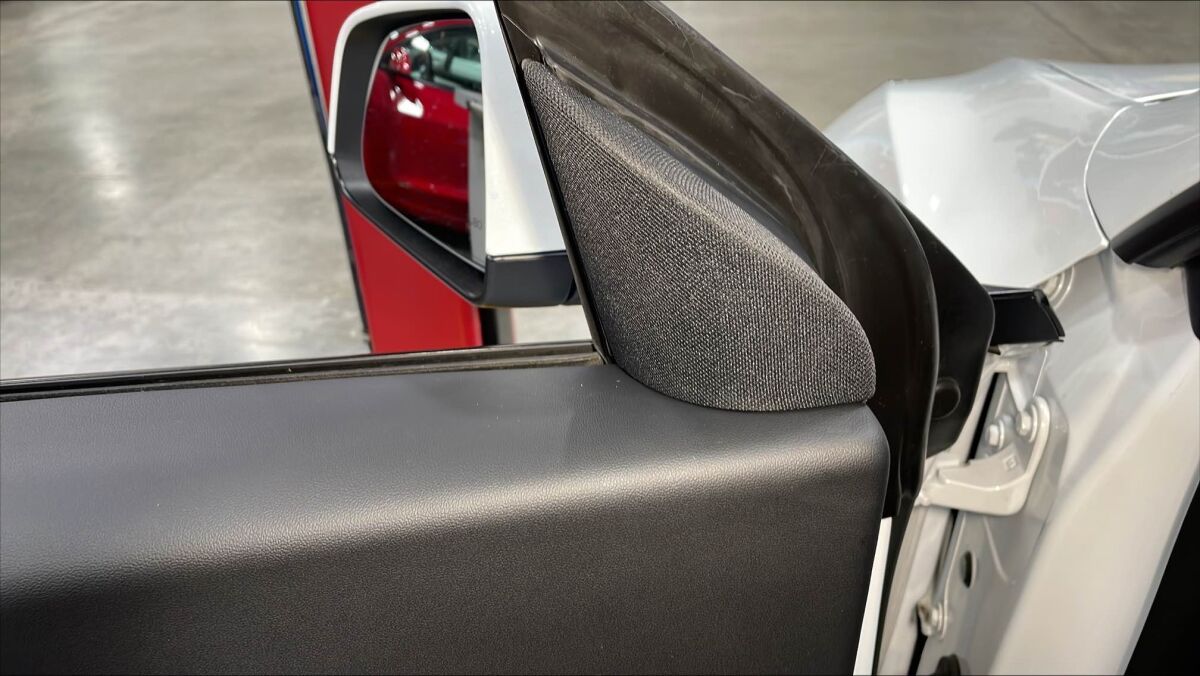

  3. Position the LH front door tweeter assembly onto the door panel, connect the connector, and then secure the clips (x2) and hook that attach the assembly to the door panel and body.
    Informational PurposesAn informational icon, calling your attention
    Make sure the component is fully engaged and the tether is not exposed from under the trim.
  4. Raise the LH front window and close the LH front door.
