校正代码 30011032 0.84 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

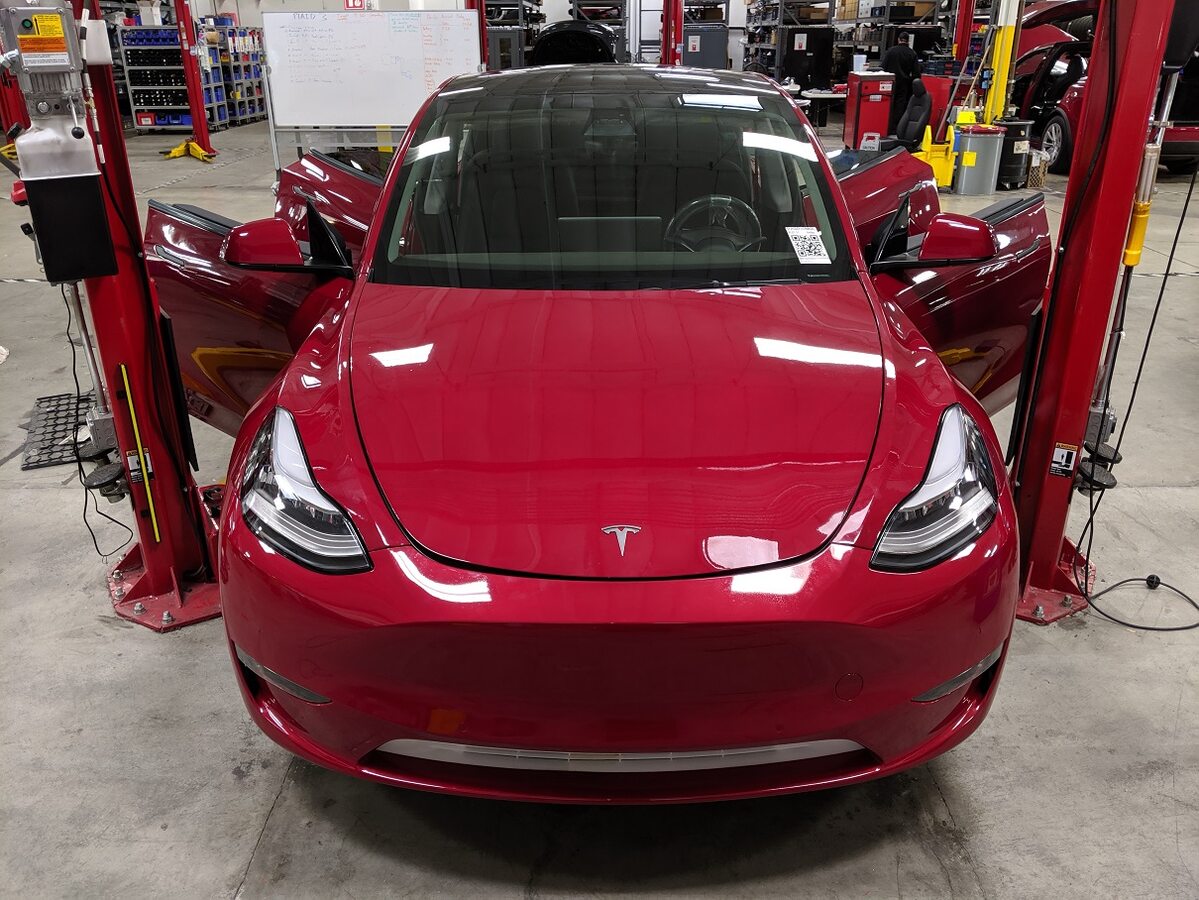

1. Open all four doors

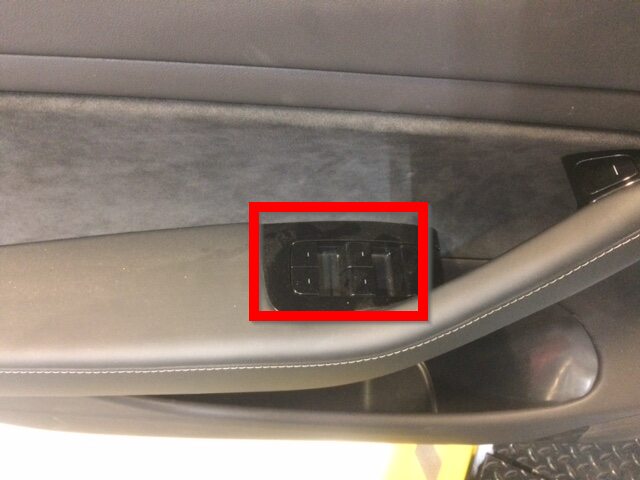

2. Lower all four windows

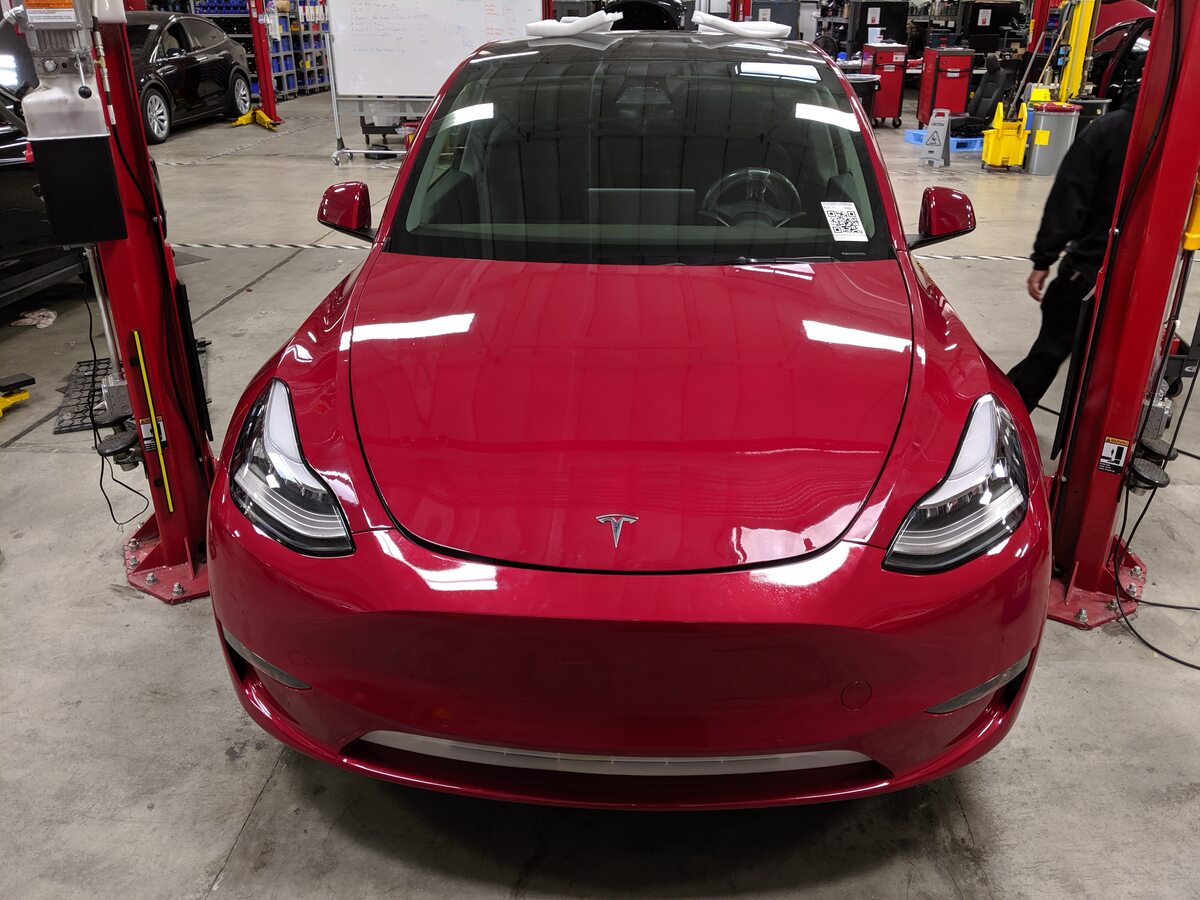

3. Raise and support the vehicle.









4. Open the hood.

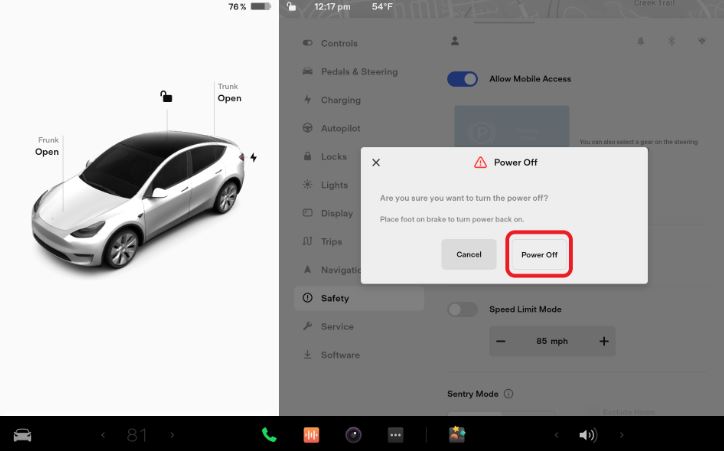

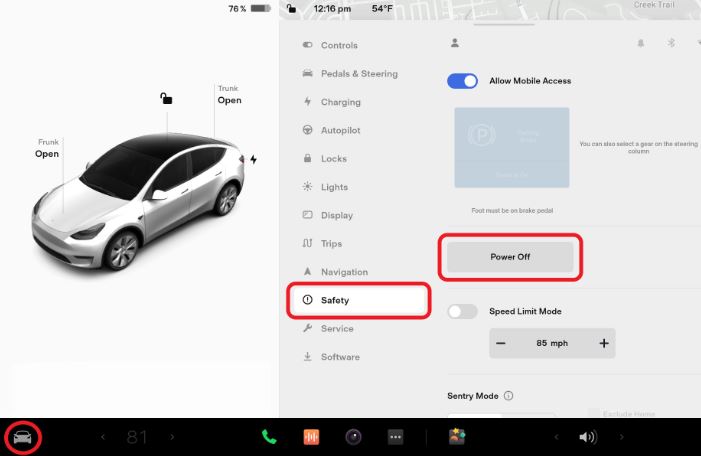

5. Power off the vehicle using the touchscreen.





6. Remove the rear apron.

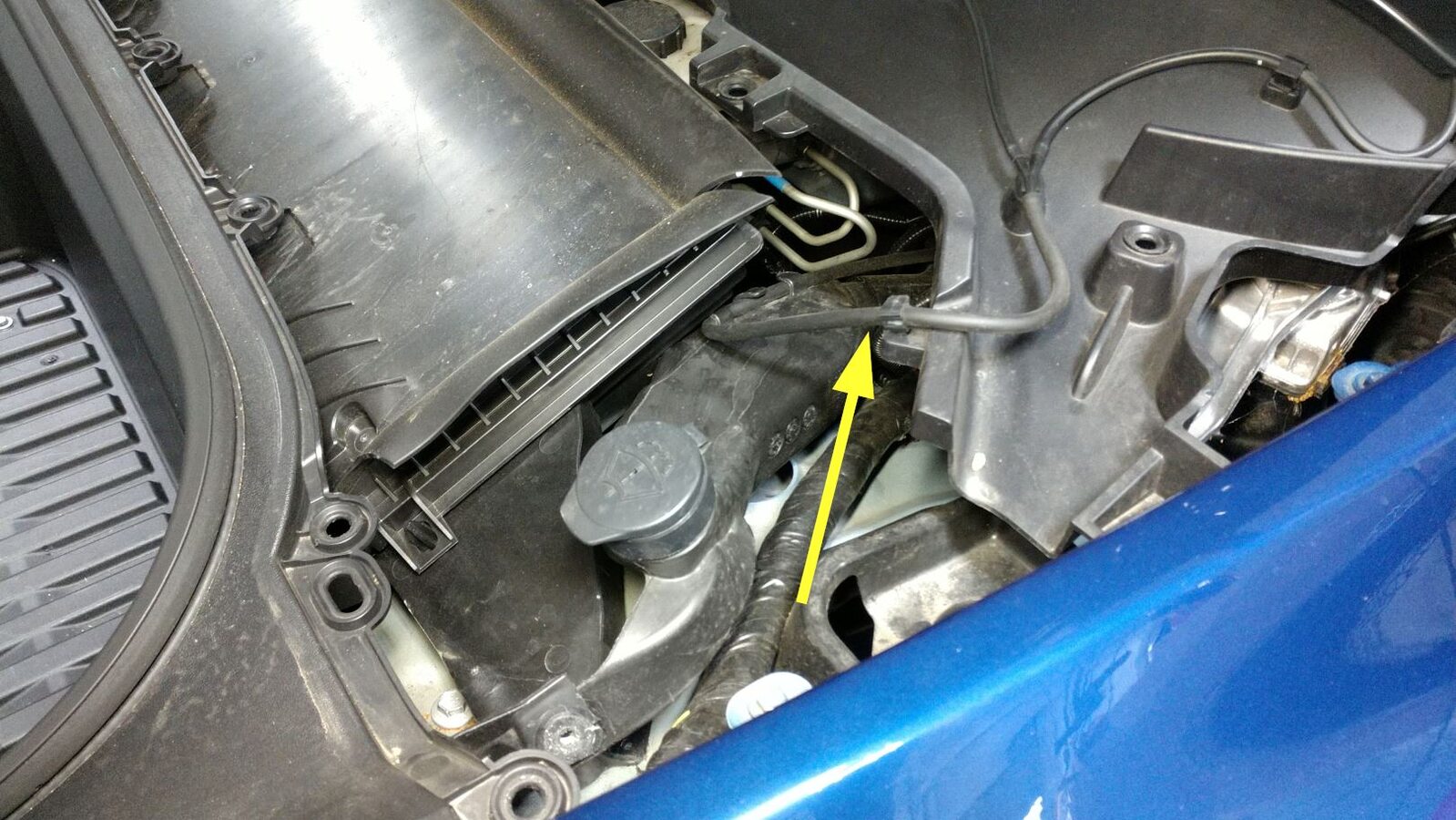

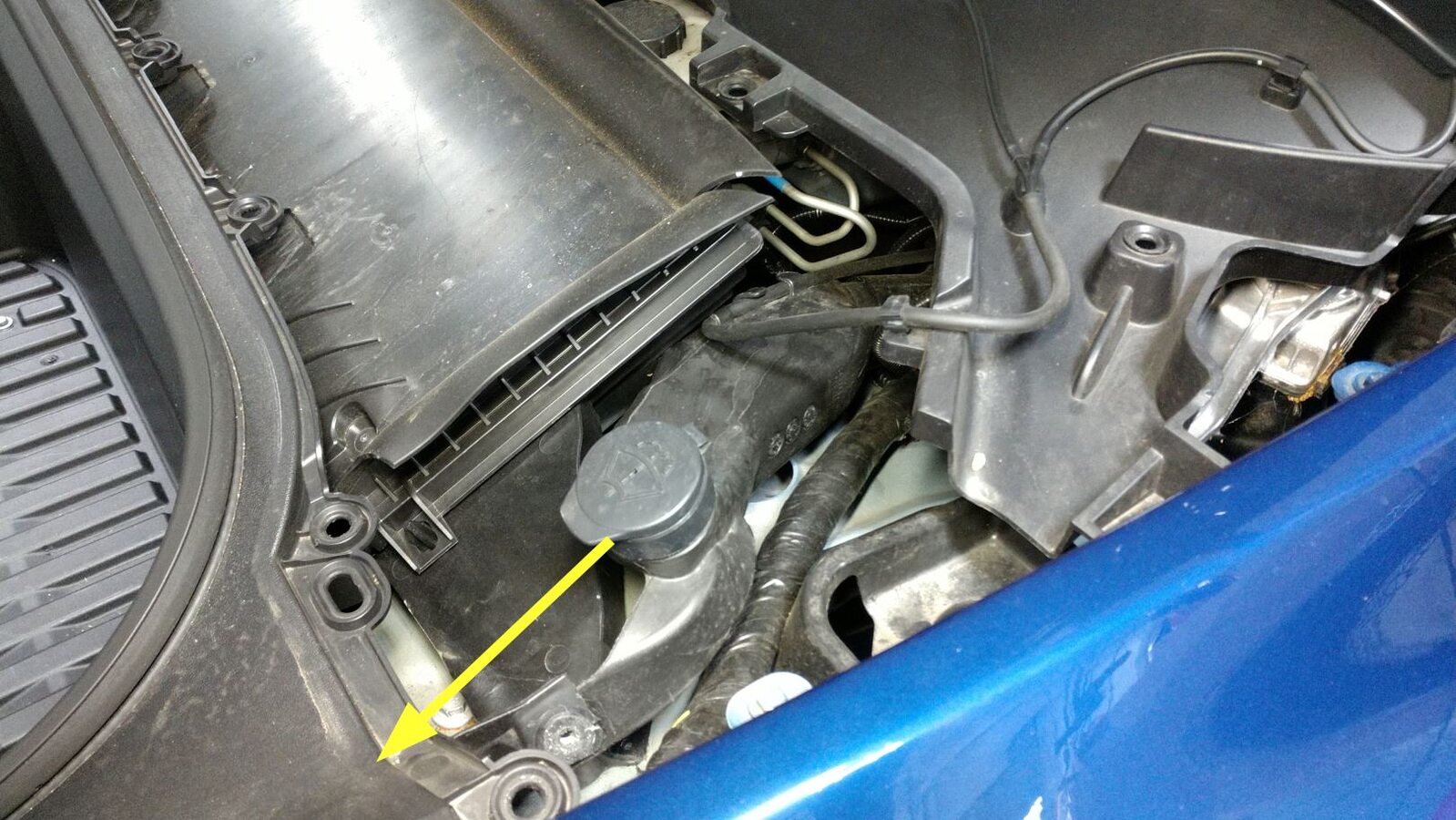

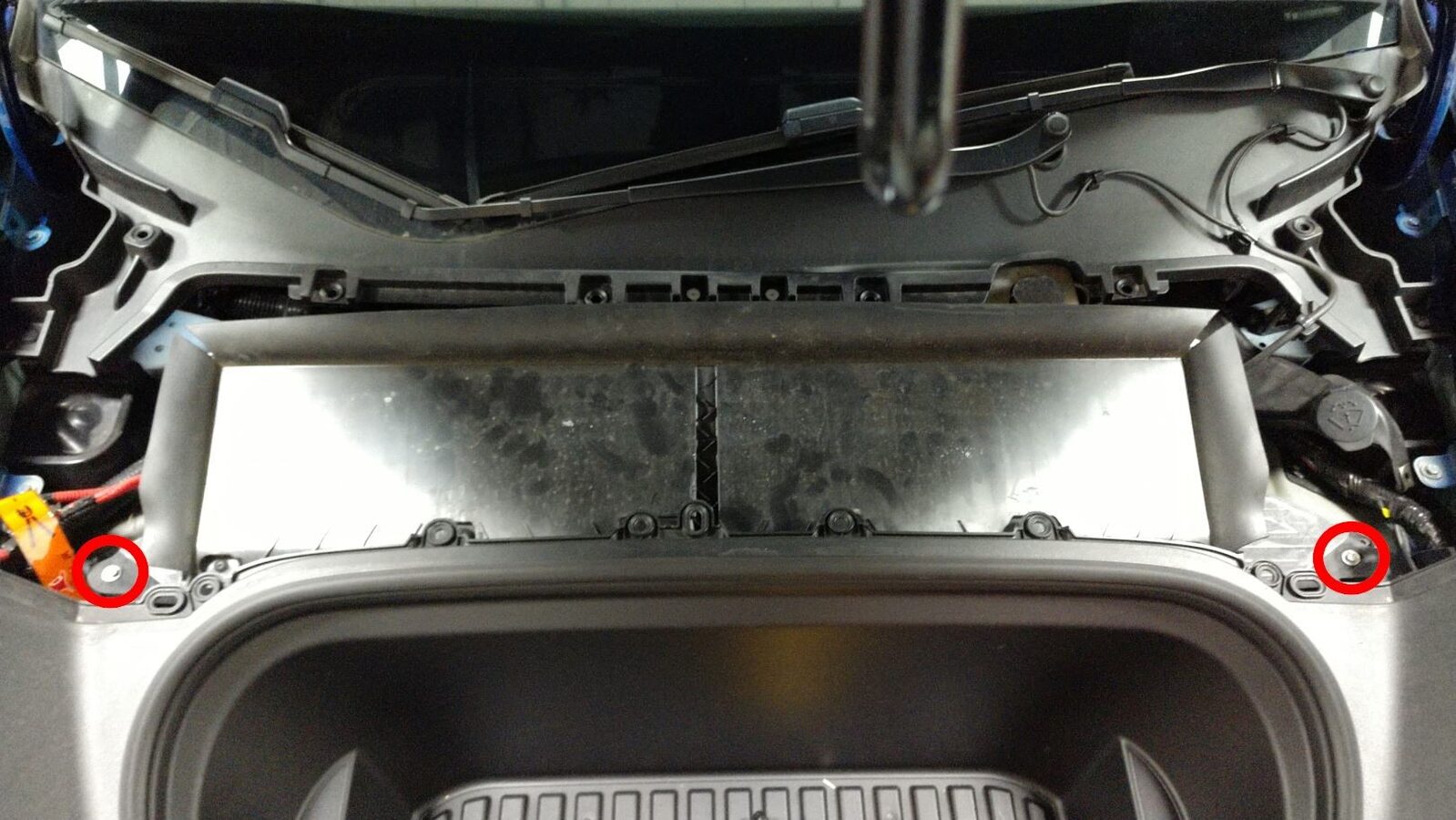

7. Release washer fluid reservoir neck from frunk

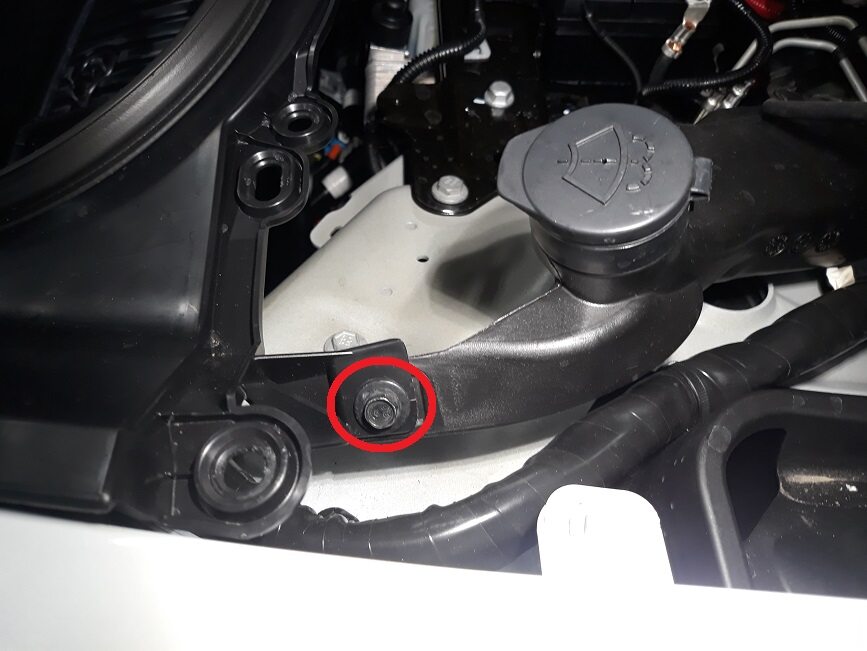

   注

   1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



8. Release washer tank neck from washer tank and set aside
   注

   1x O-ring, No need to remove hose from neck

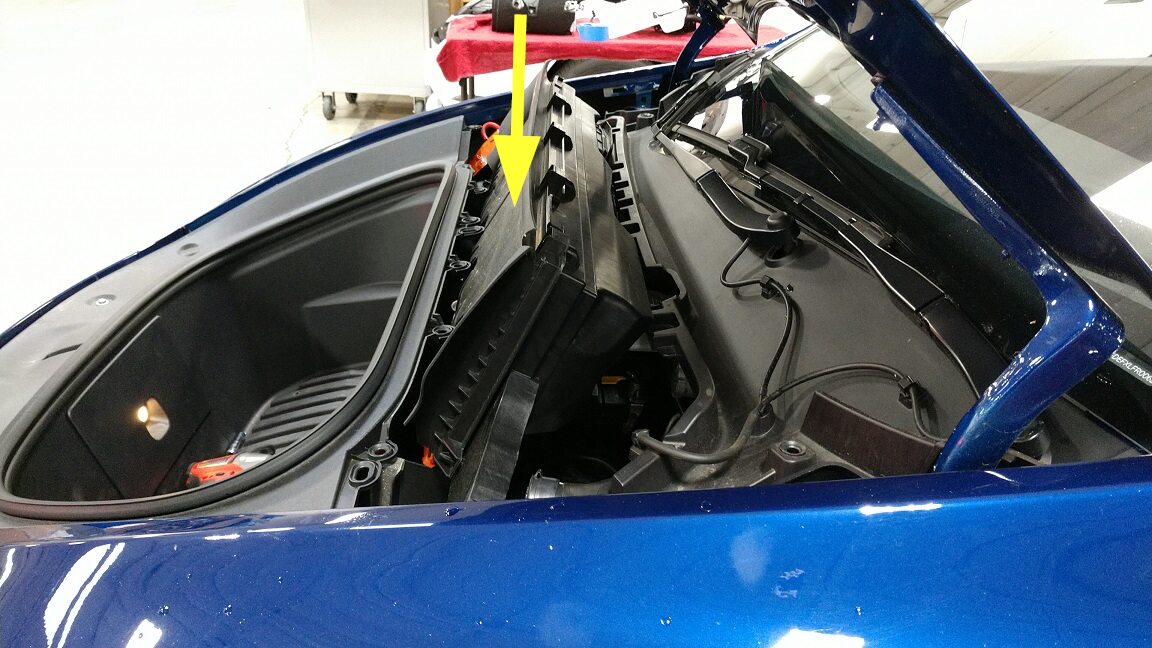

9. Remove HEPA filter assembly
   注

   2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly

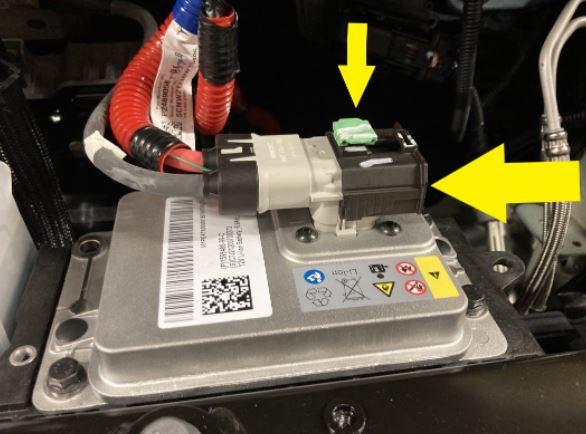

10. Disconnect the LV battery connector and First Responder Loop.





11. Apply masking tape on RH front brake line and RH front rail panel

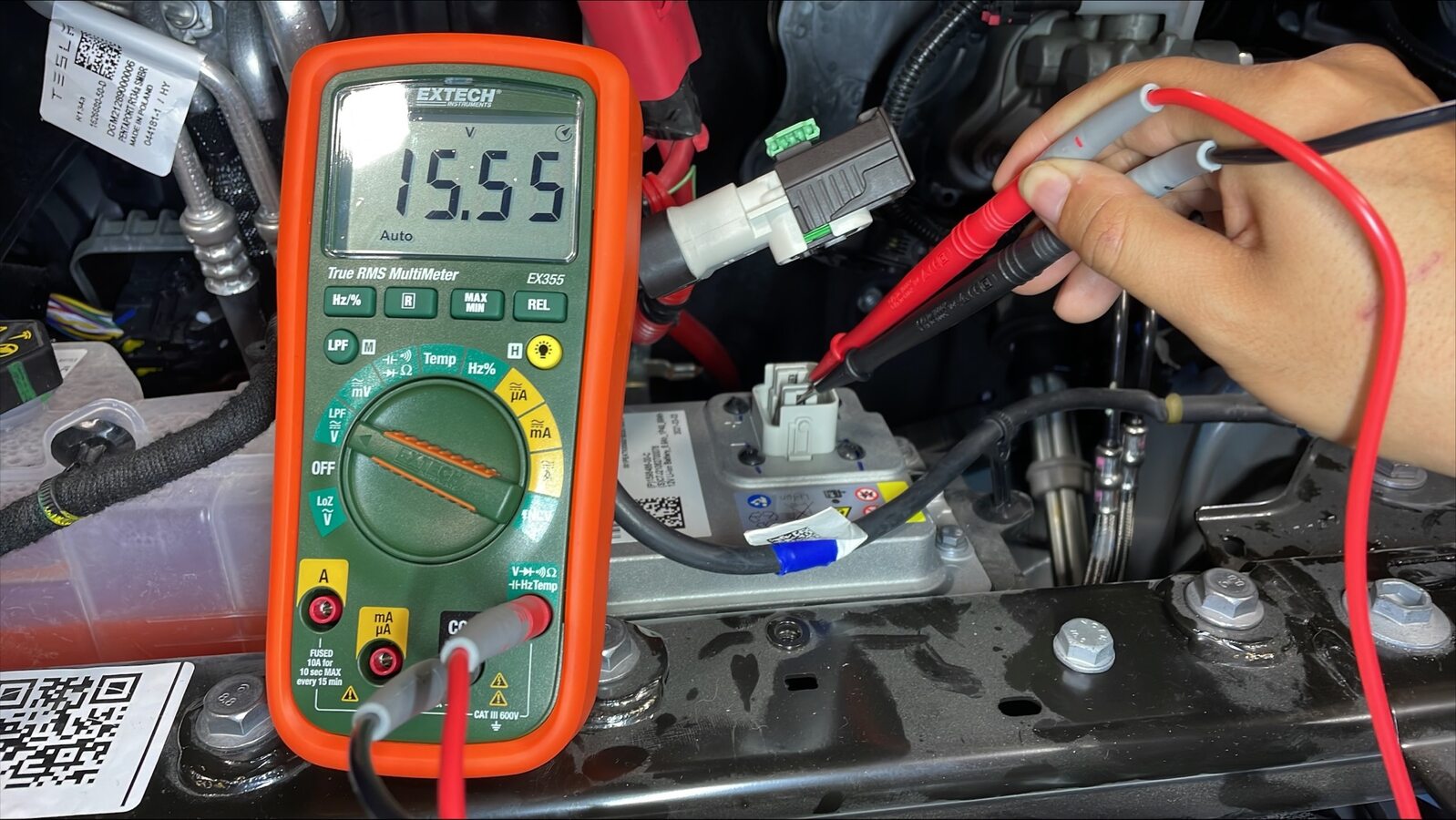

12. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals

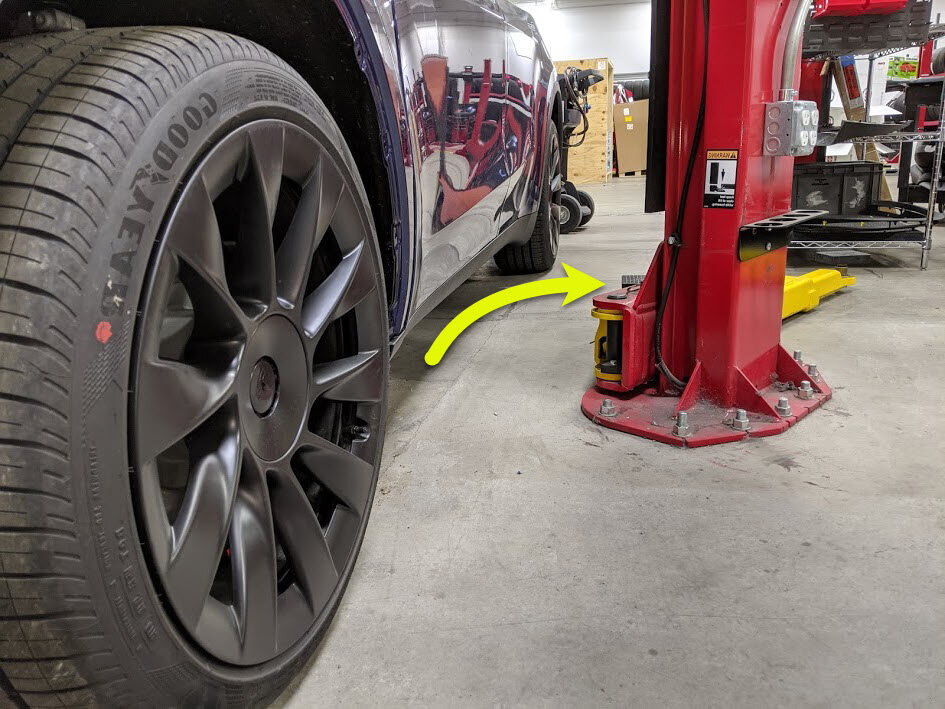

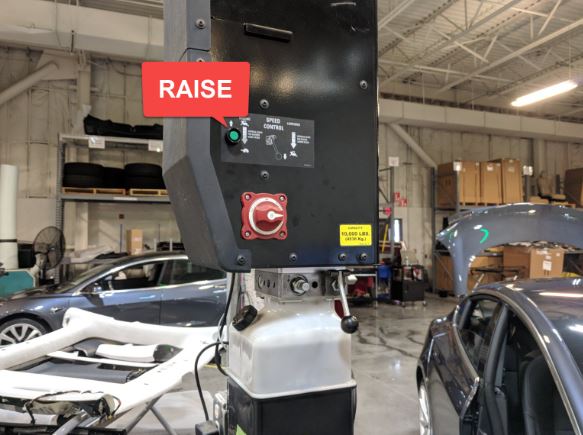

13. Fully raise the vehicle, and then lower the lift onto the locks.

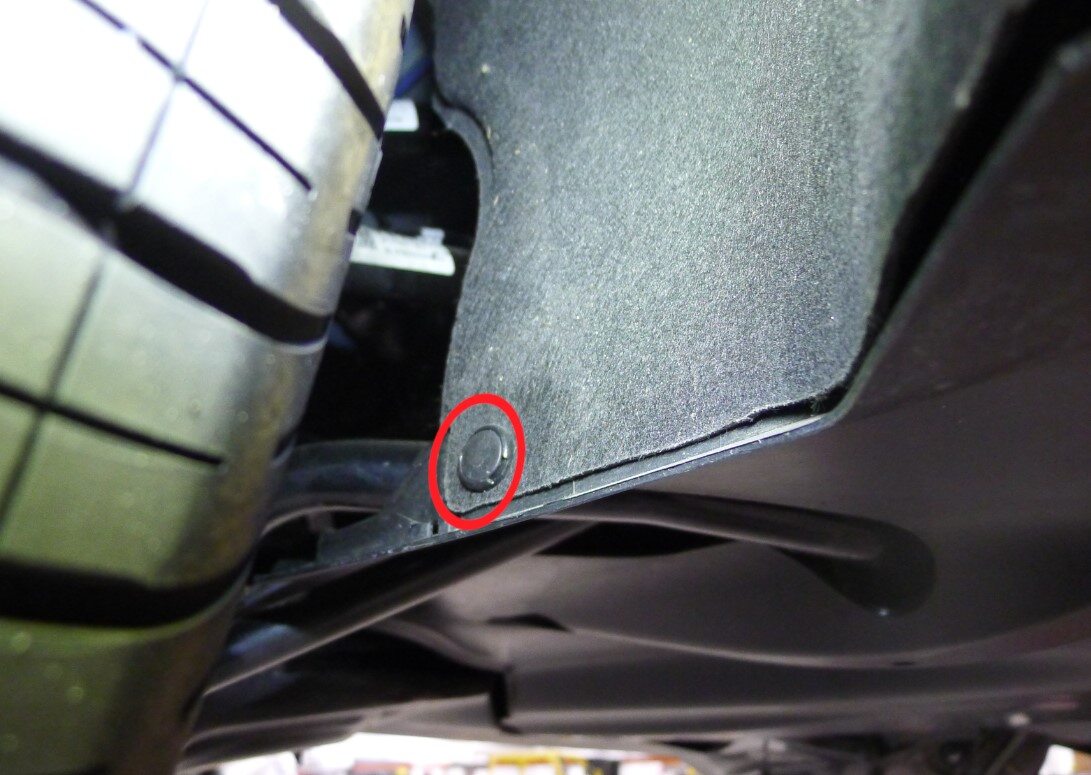

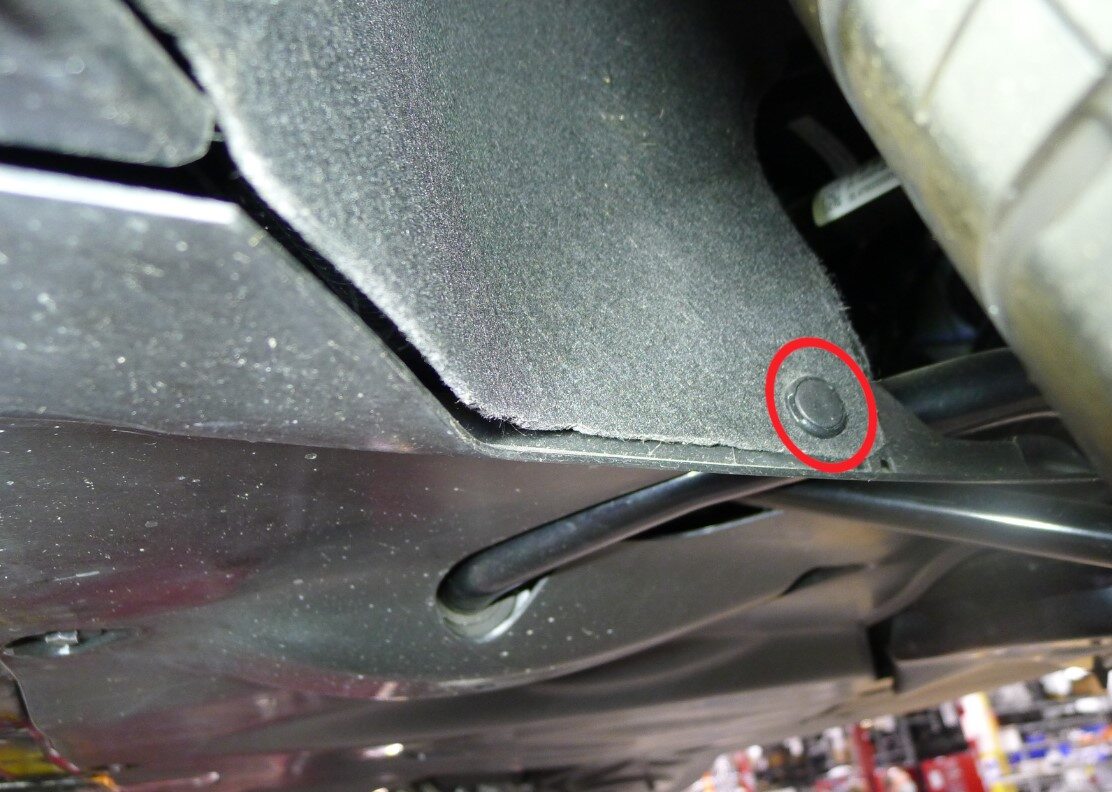

14. Remove both LH and RH push clips securing mid aero shield to wheel house liner
    注

    2x clips





15. Remove mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, MYSP will have one less bolt



16. Remove all items from pockets and ensure not wearing metal items



17. Inspect HV insulating gloves
    注

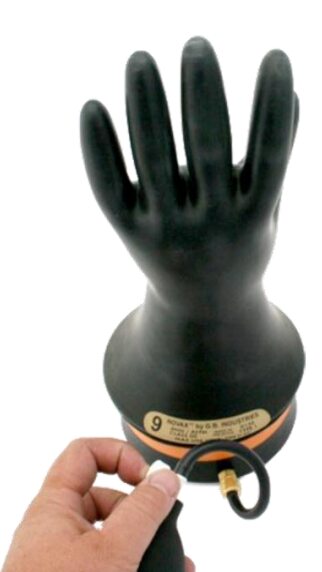

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

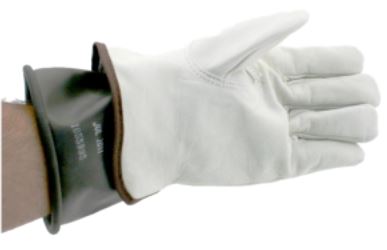

18. Put on the HV insulating gloves and leather over gloves.

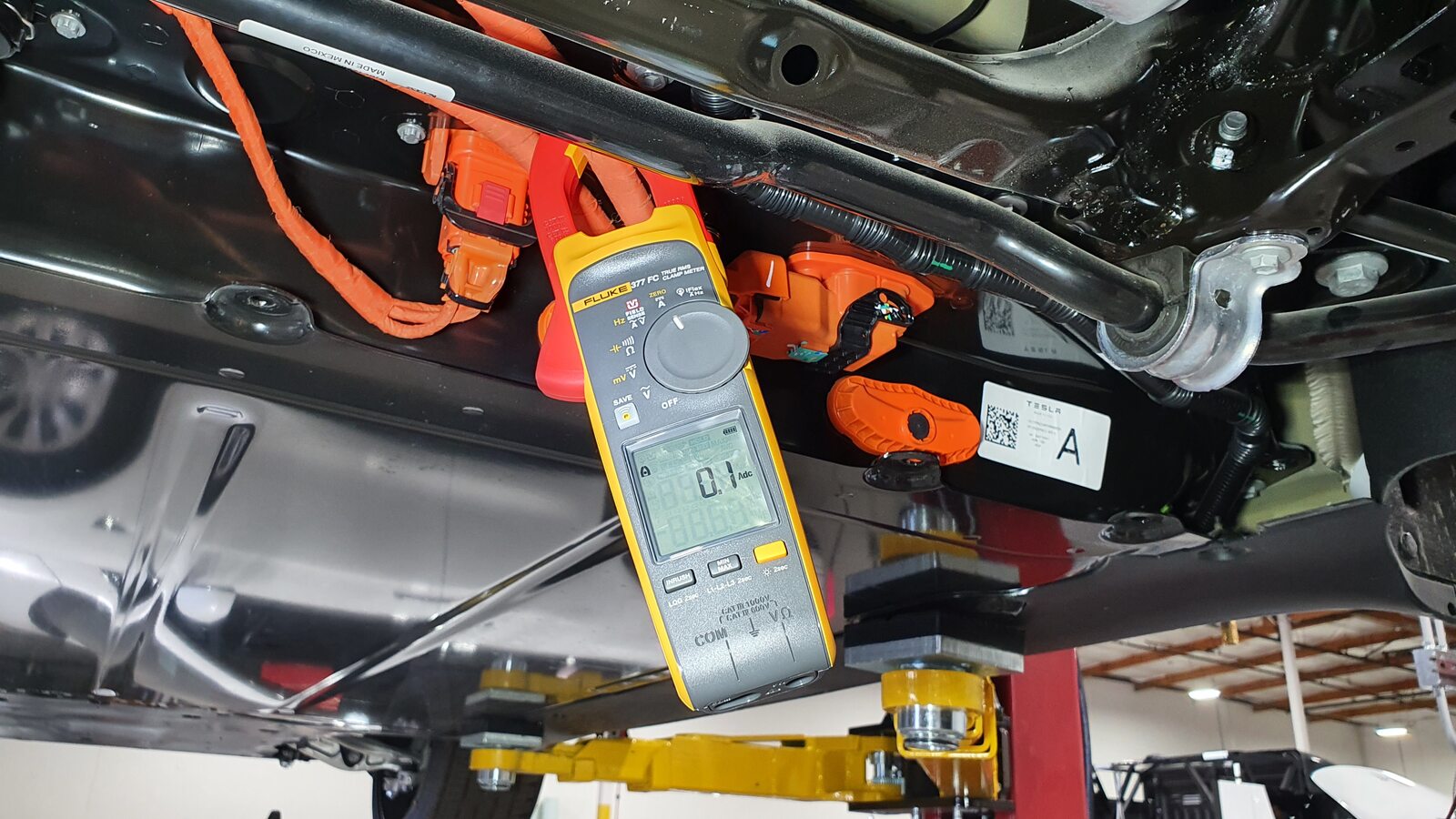

19. Install amp clamp to RDU HV harness
    注

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as required If current < 0.5A, OK to disconnect and check voltage at HV plug on battery side

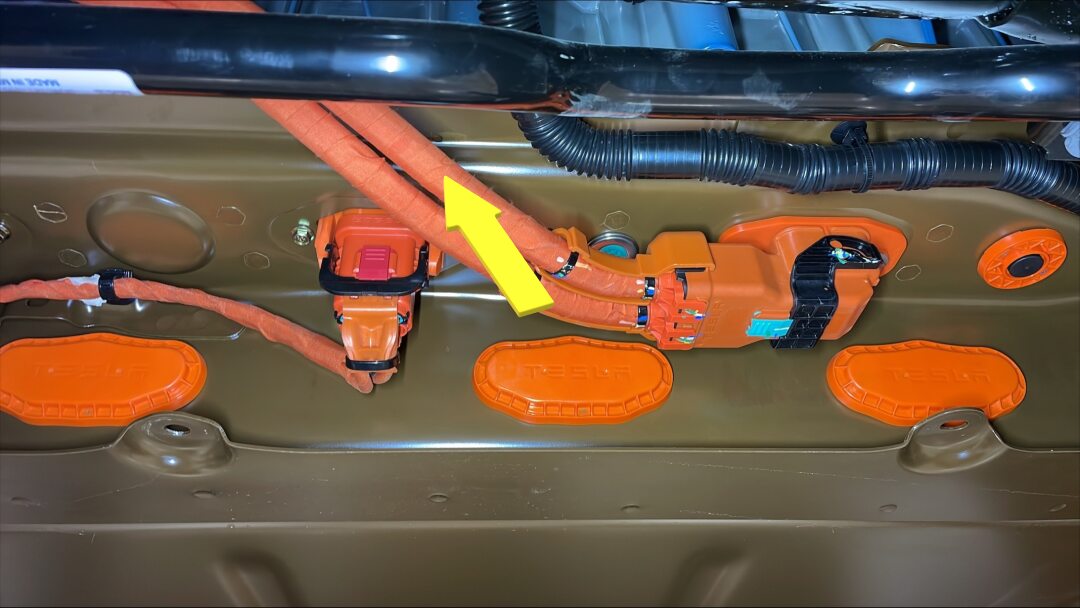

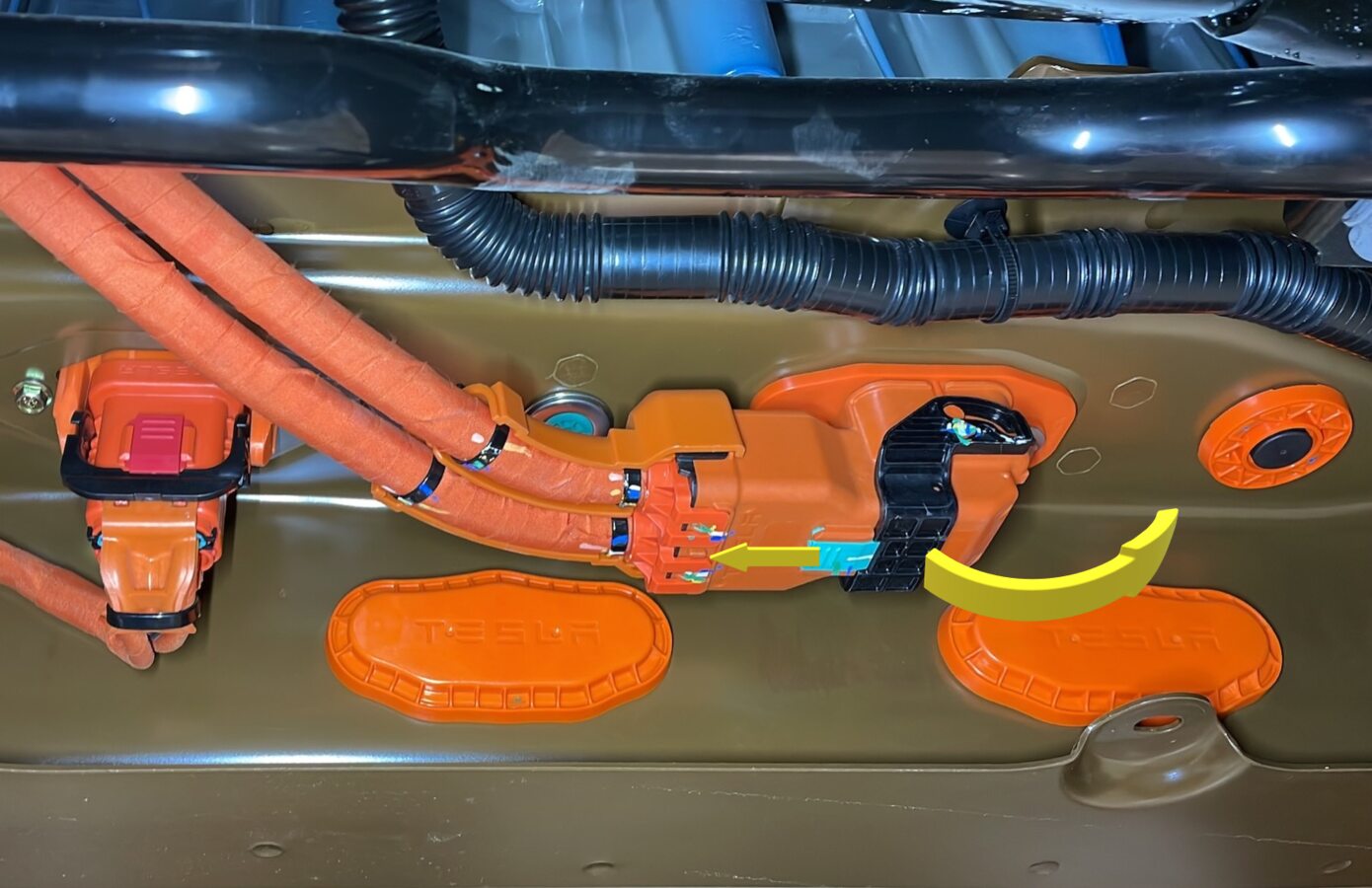

20. Release RDU HV harness from HV battery
    注

    1x connector, Release locking tab and rotate release lever up to disengage connector, Do not force release lever up, Ensure alignment tabs on RDU header are not damaged

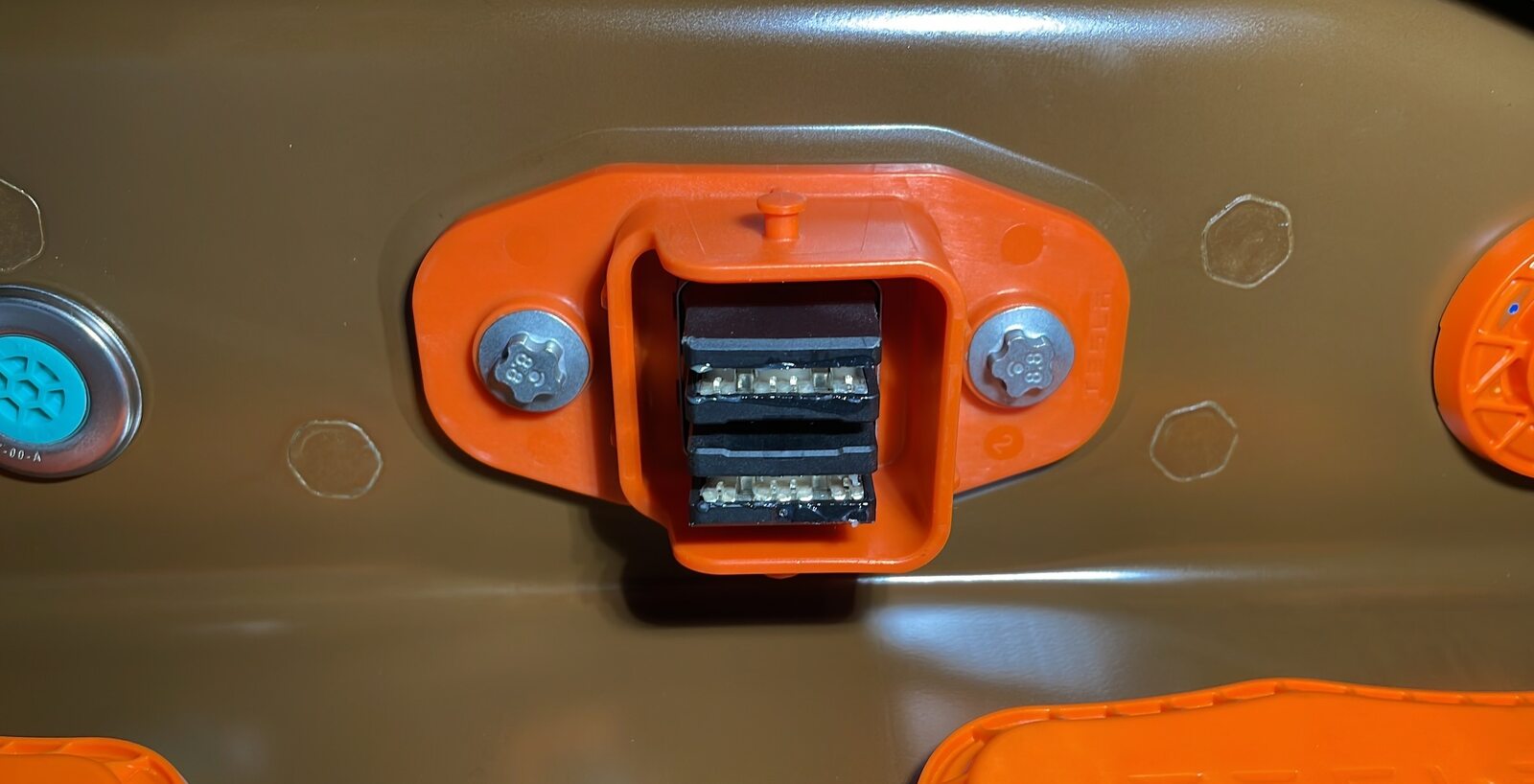

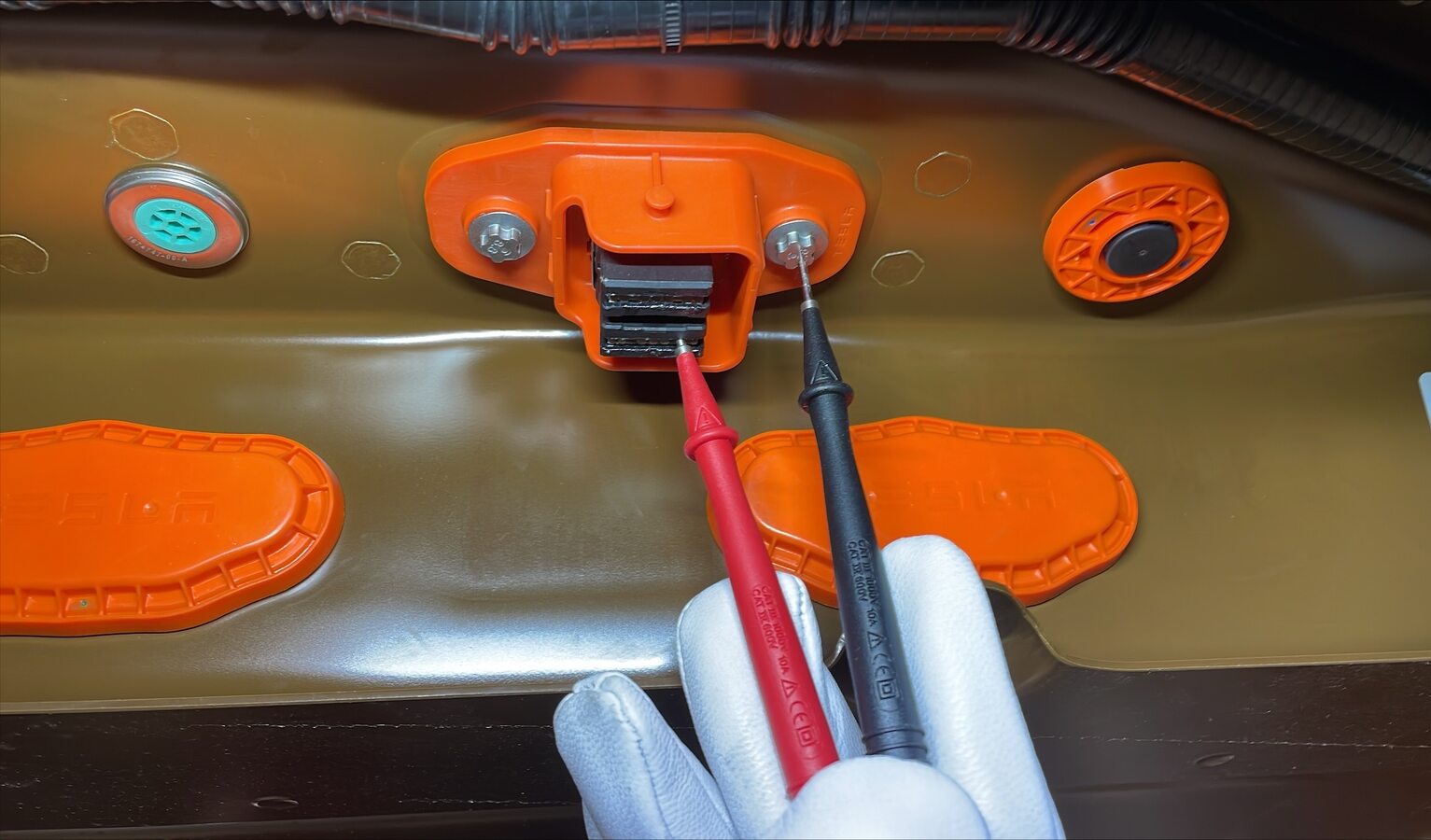

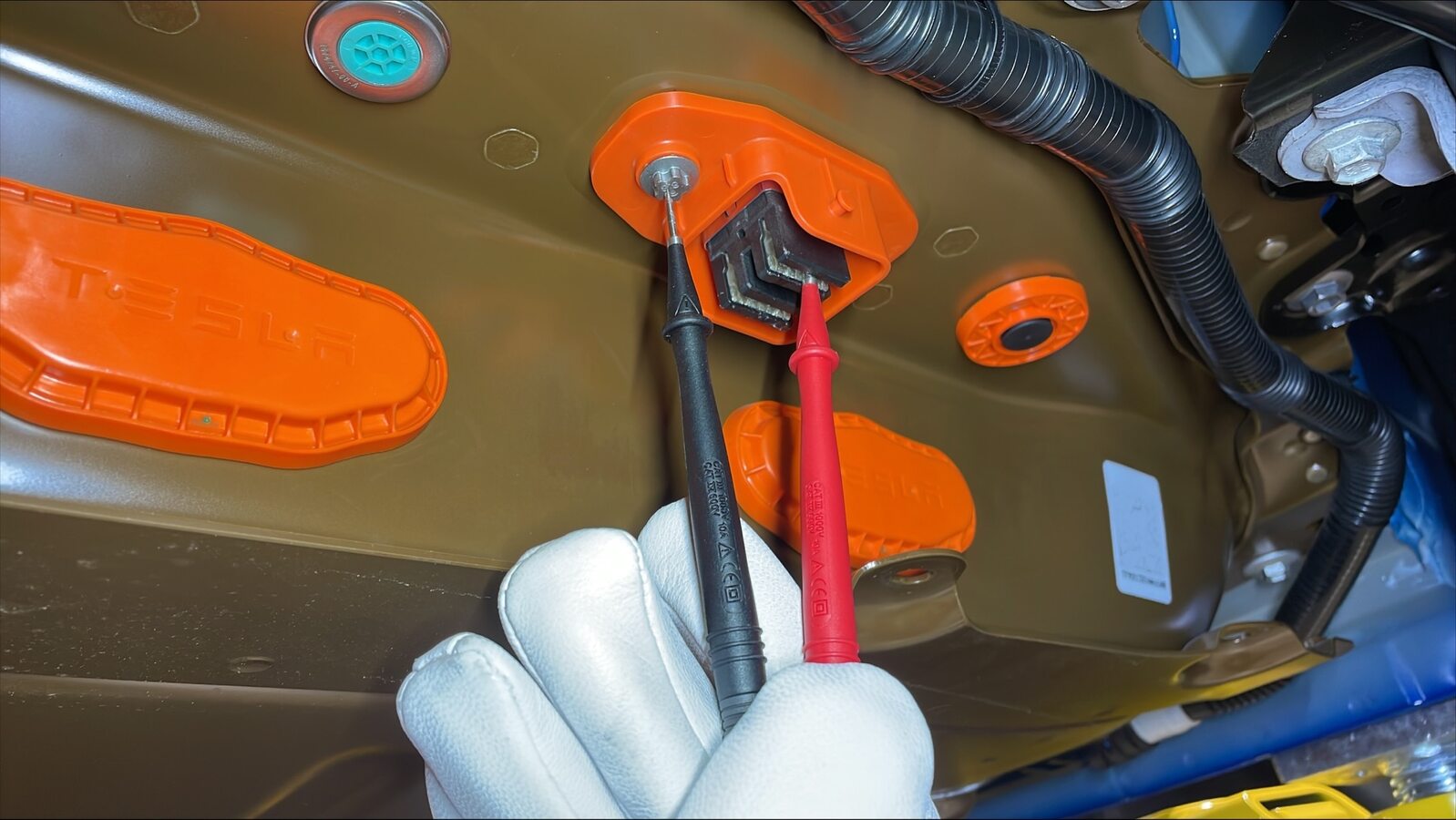

21. Verify no high voltage at RDU HV header
    注

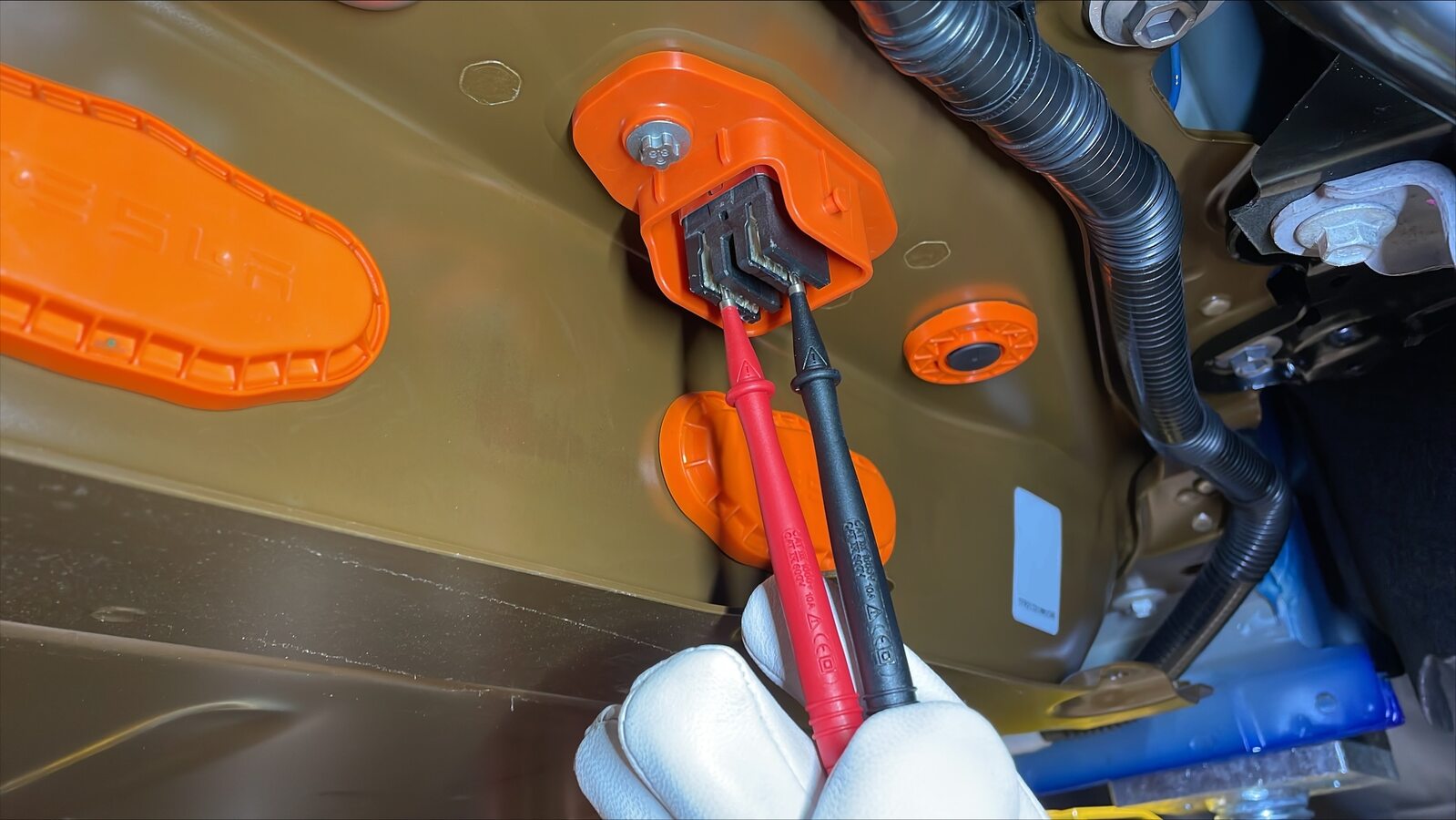

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

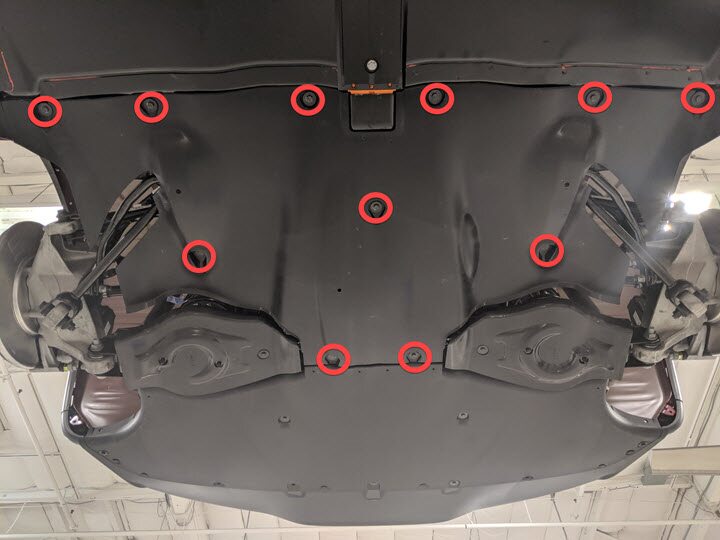

22. Remove the outer fasteners from the front aero shield.



23. Remove the remaining nuts (x2), and then remove the front aero shield from the vehicle.

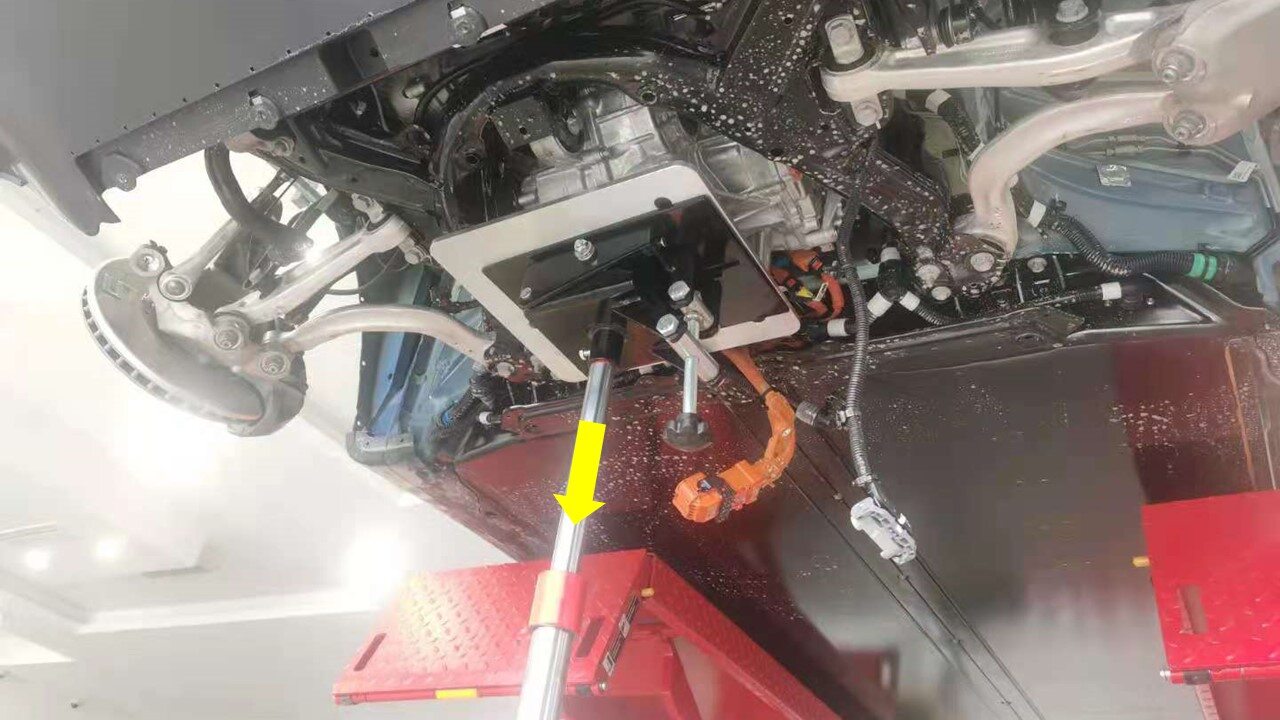

24. Position FDU support posts to FDU
    注

    Align the mounting position





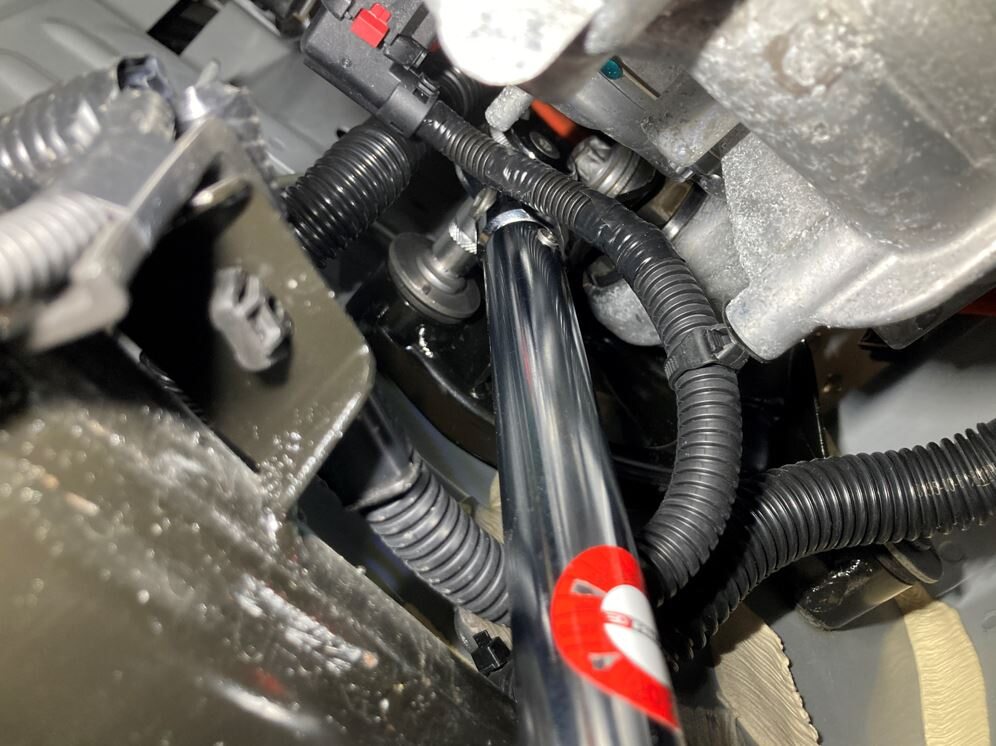

25. Remove bolt securing RH motor mount to RH motor mount isolator
    注

    1x bolt, E18, 105 Nm

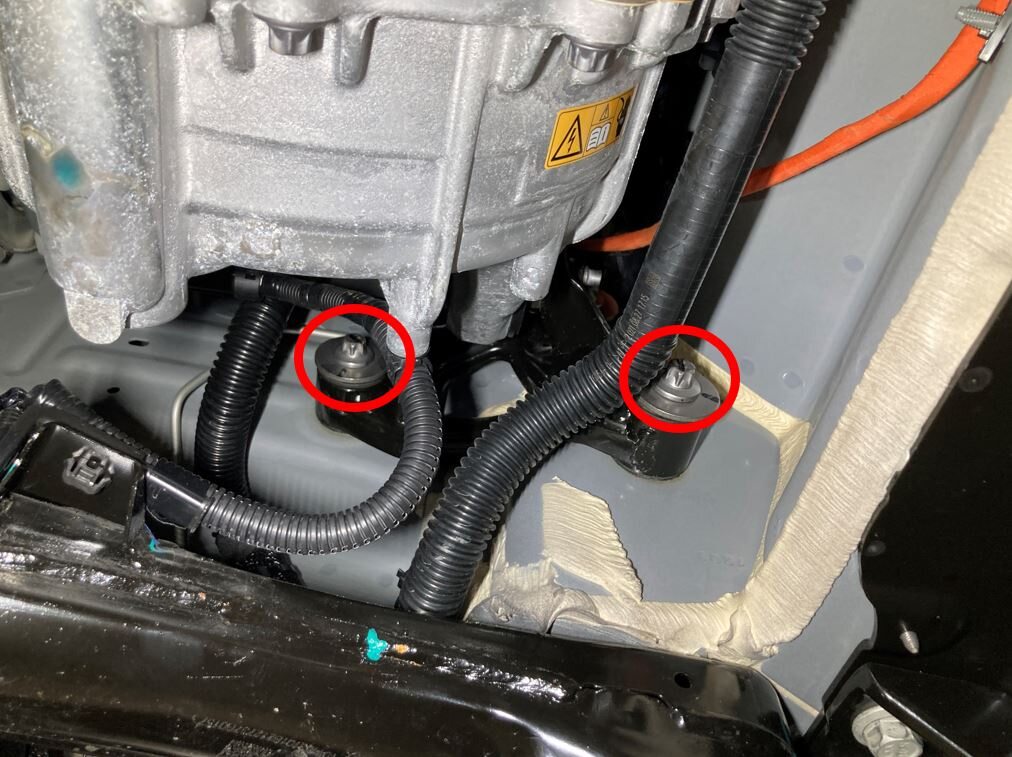

26. Remove lower bolts of RH motor mount Isolator
    注

    2x patch bolts, E14, 62 Nm, Discard after removal

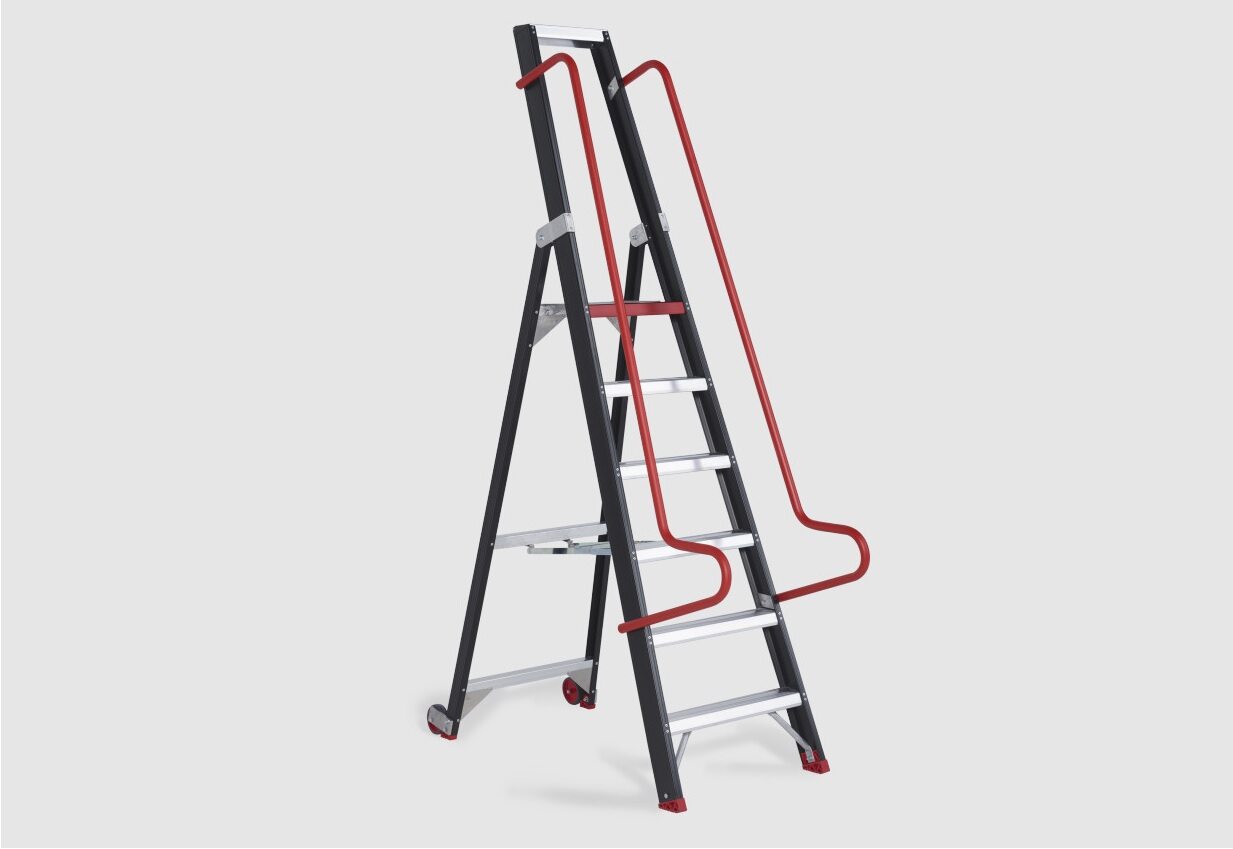

27. Set up ladder
    注

    Set up ladder to the front of the car to perform required steps in the frunk area when the car on a 2 post lift and FDU is on transmission jack support

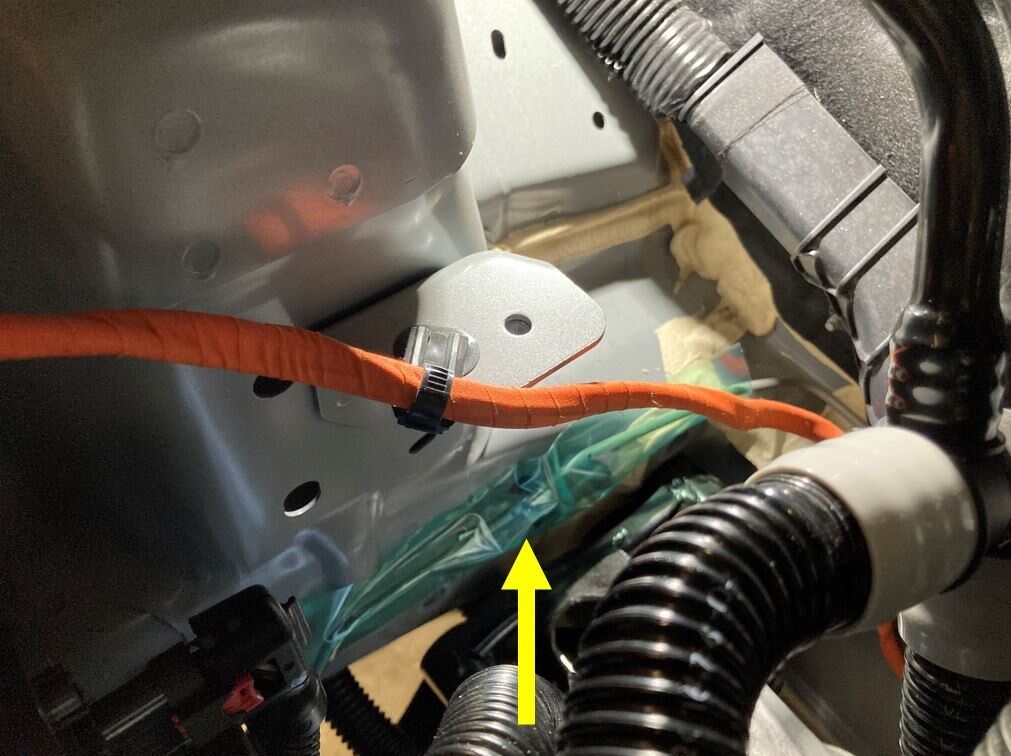

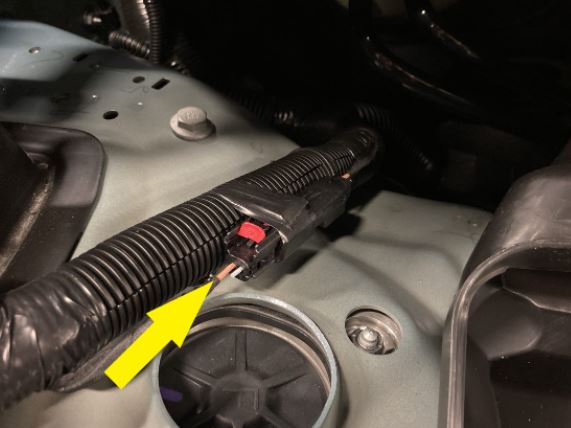

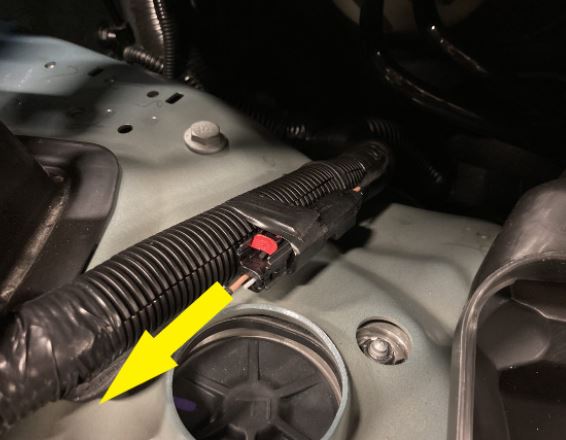

28. Release AC HV compressor harness from RH shock tower
    注

    1x retaining clip, Pull upward on clip to assist with removal, Do not pull on HV cable

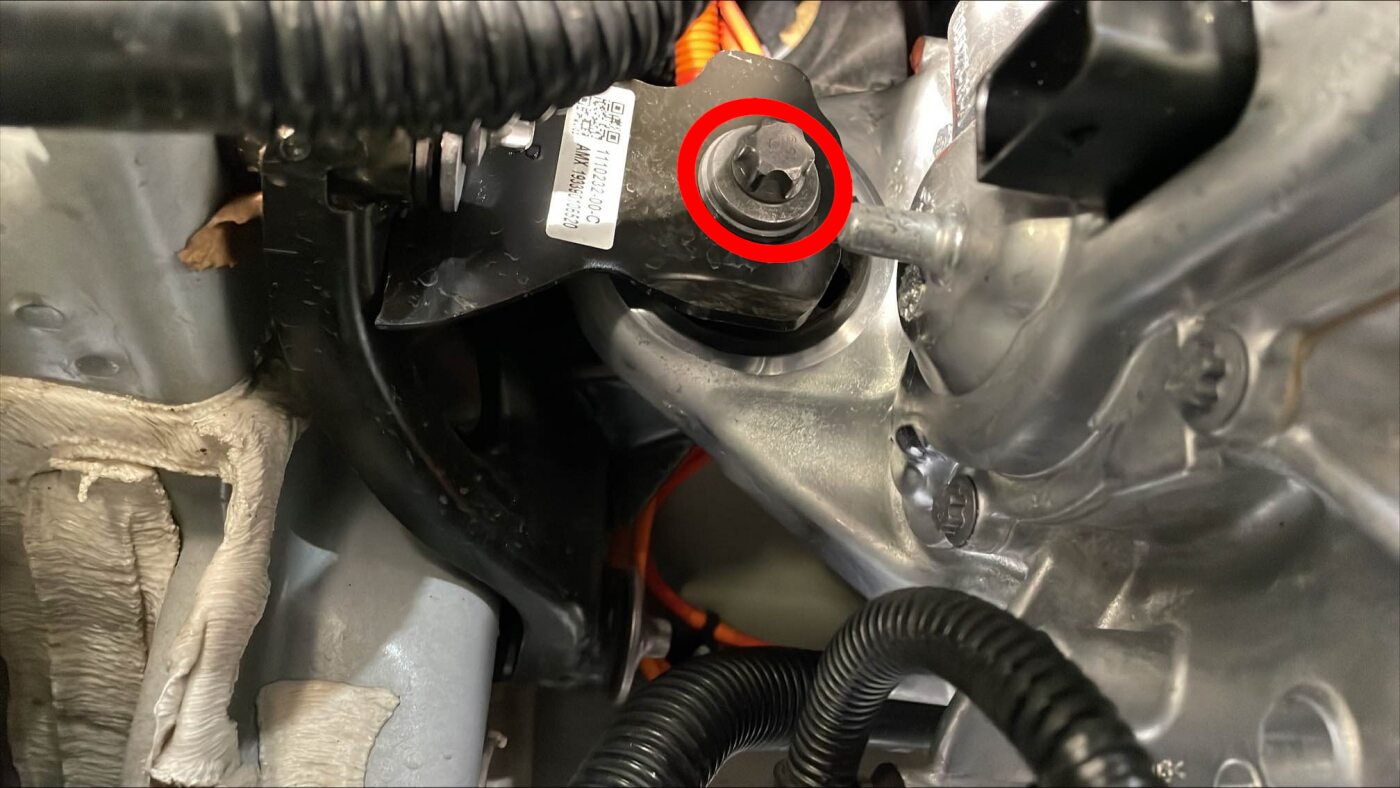

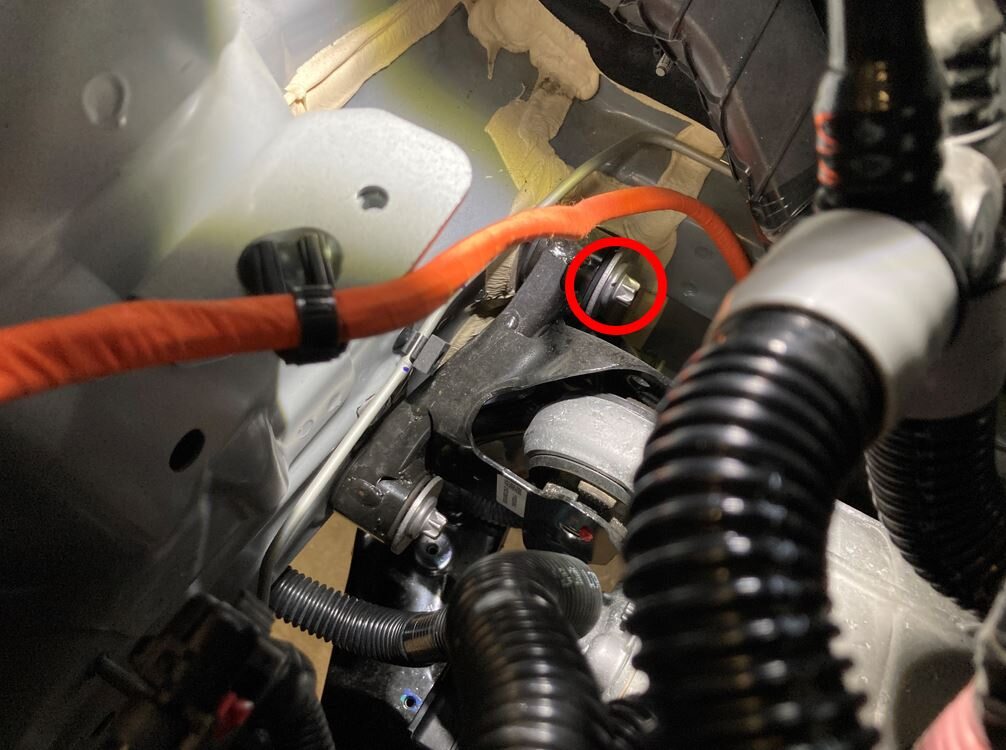

29. Remove upper bolt of RH motor mount Isolator
    注

    1x patch bolt, E14, 62 Nm, Discard after removal, With the removal of the final bolt the mount will no longer be secured to the body and will fall if not careful

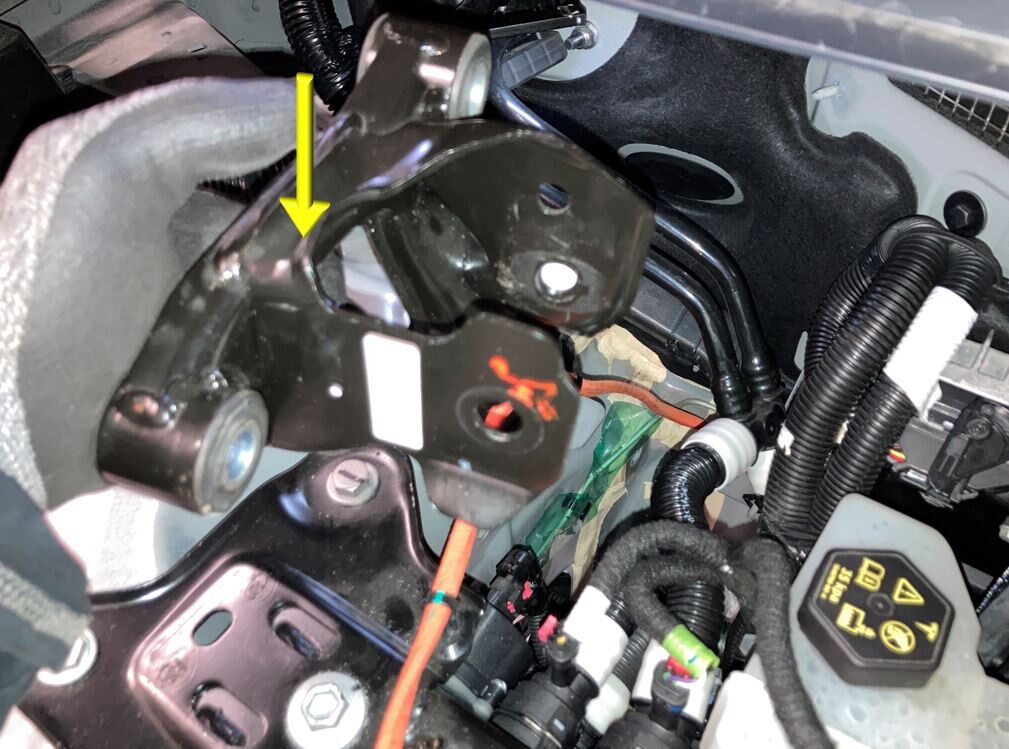

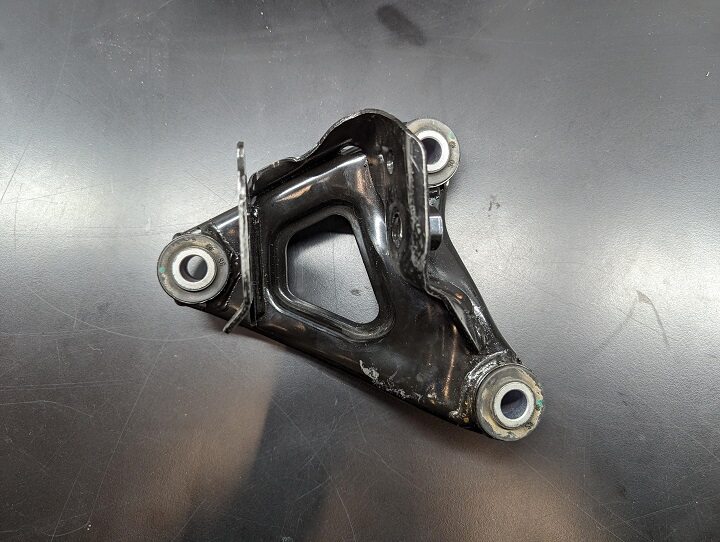

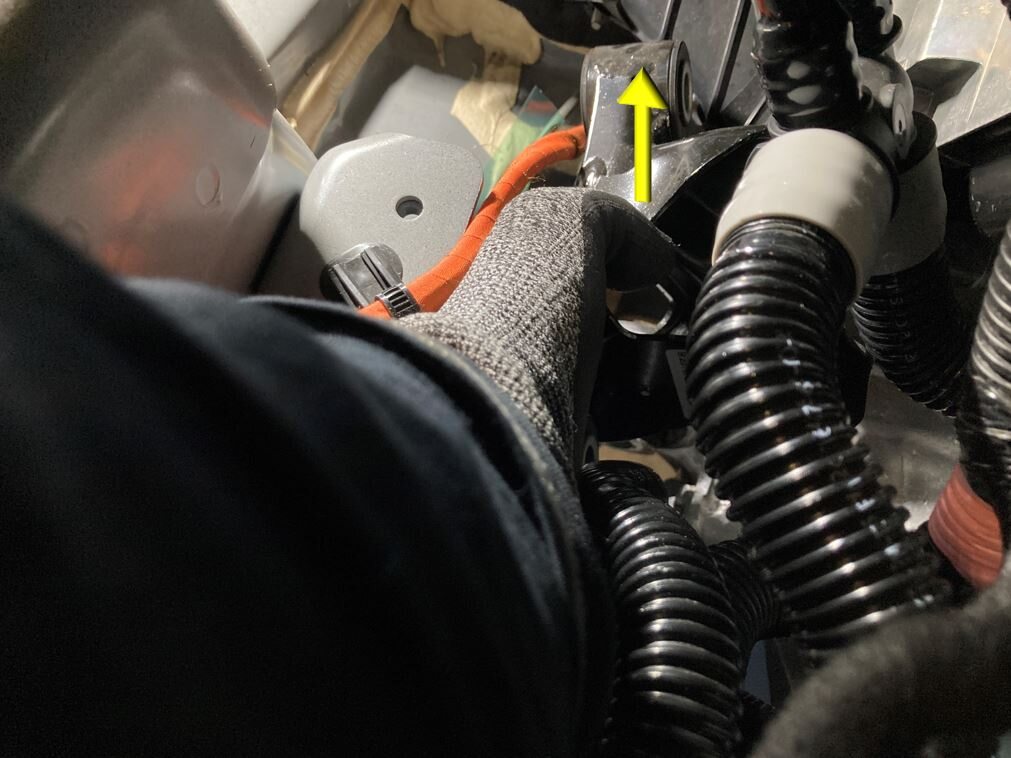

30. Remove RH motor mount Isolator
    注

    Lift the mount up to remove it. Caution to not damage any brake line or the front rail panel. Recommended assistance below the vehicle to move the transmission jack as needed





31. Install O-Rings on motor mount isolator bolts
    注

    3x patch bolts, E14, 62 Nm, 3x O-Rings, 9/16" x 3/8" x 3/32", install 5 threads from end of the new bolts



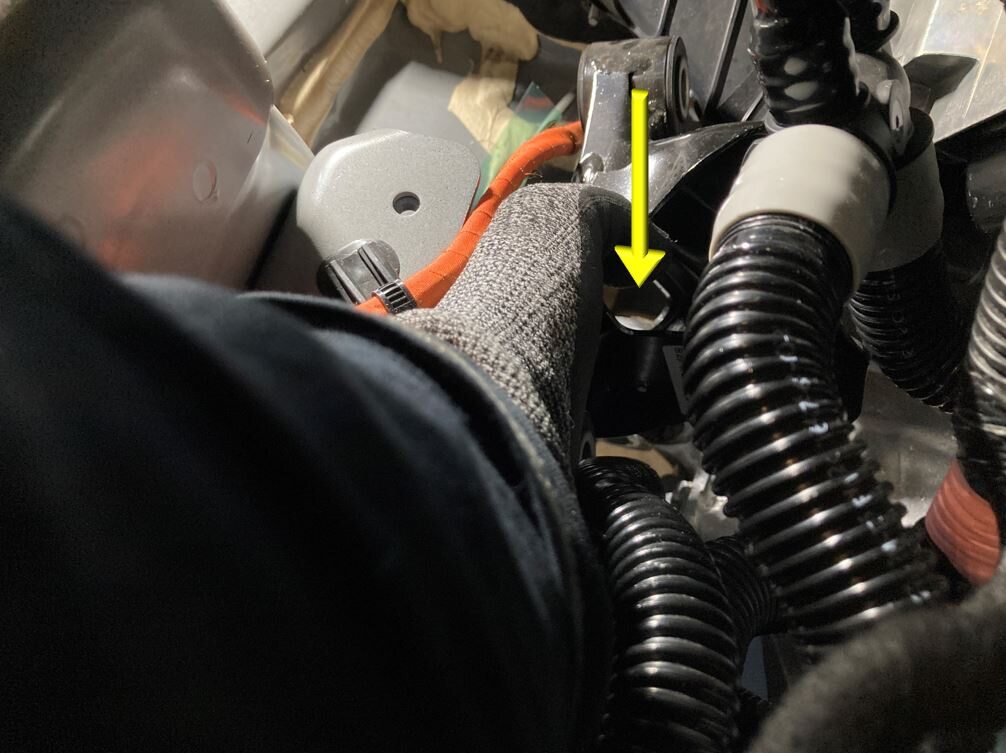

32. Position RH motor mount Isolator
    注

    Carefully push mount into position, avoid touching brake line and LH front rail panel, recommended assistance from underneath to move transmission jack if needed

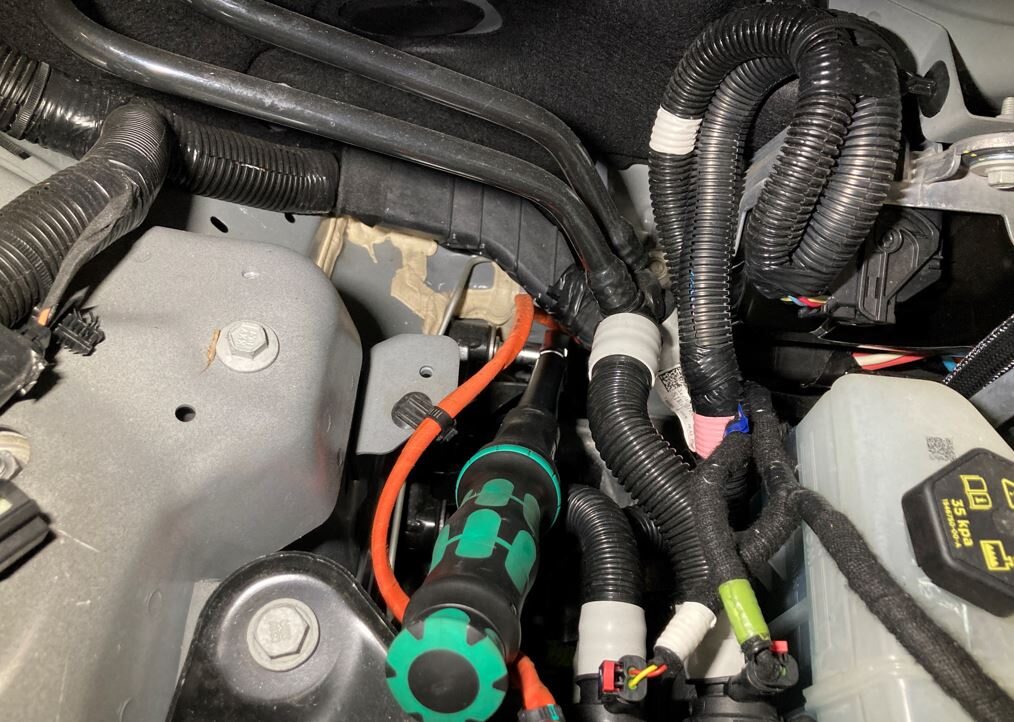

33. Loosely install upper bolt of RH motor mount Isolator
    注

    1x patch bolt, E14, 62 Nm, Install new bolt, The O-Ring on the new bolt will properly align the new mount



34. Loosely install lower bolts of RH motor mount Isolator
    注

    2x patch bolt, E14, 62 Nm, Install new bolts, The O-Ring on the new bolt will properly align the new mount



35. Torque bolts securing RH motor mount Isolator
    注

    3x patch bolts, E14, 62 Nm









36. Remove ladder



37. Install bolt securing RH motor mount to RH motor mount Isolator
    注

    1x bolt, E18, 105 Nm, May need adjust subframe jig to align mount with bolt hole



38. Remove FDU support and bottom hoist support under FDU



39. Position the front aero shield on the vehicle, and then install the nuts that attach the aero shield to the vehicle.

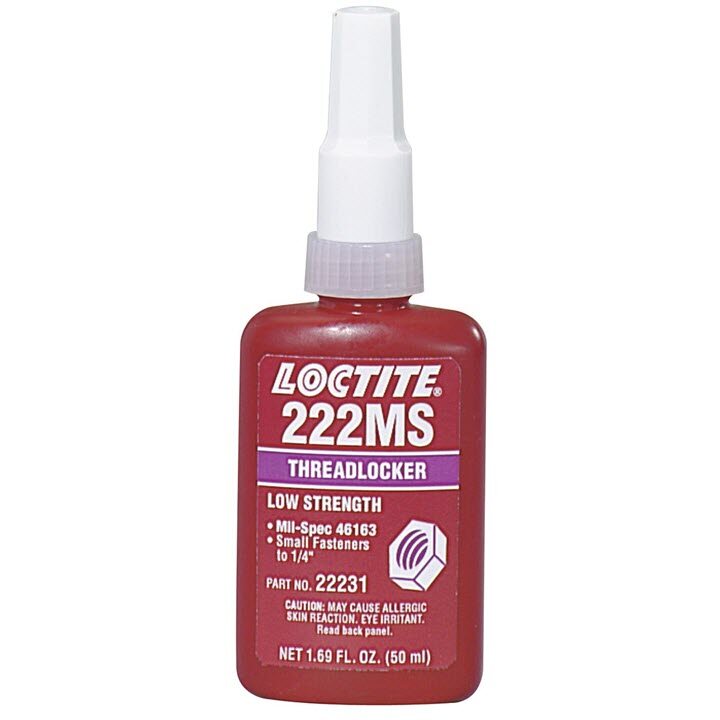

40. Apply Loctite 222 on the front aero shield bolts, and then install the bolts on the aero shield.





41. Secure RDU HV harness onto HV battery
    注

    1x connector, Verify lever is in upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



42. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack has one less bolt and one extra clip





43. Install both LH and RH push clips securing mid aero shield to wheel house liner
    注

    2x clips





44. Lower vehicle fully
    注

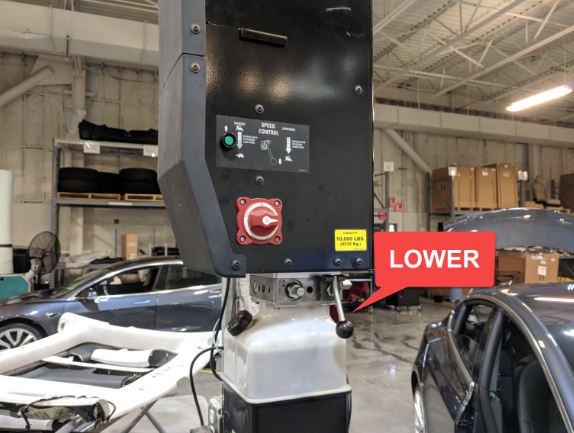

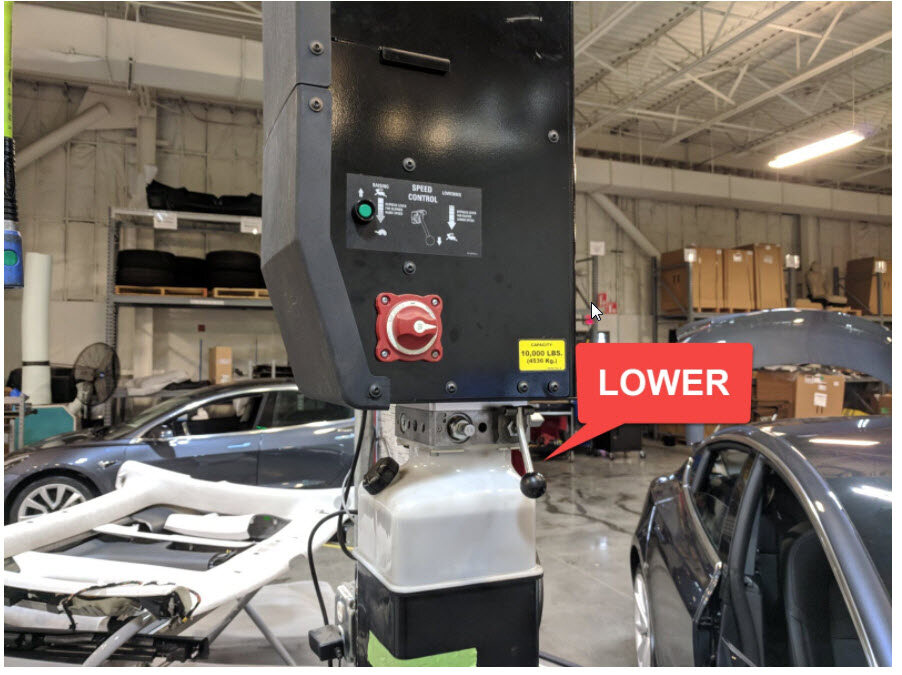

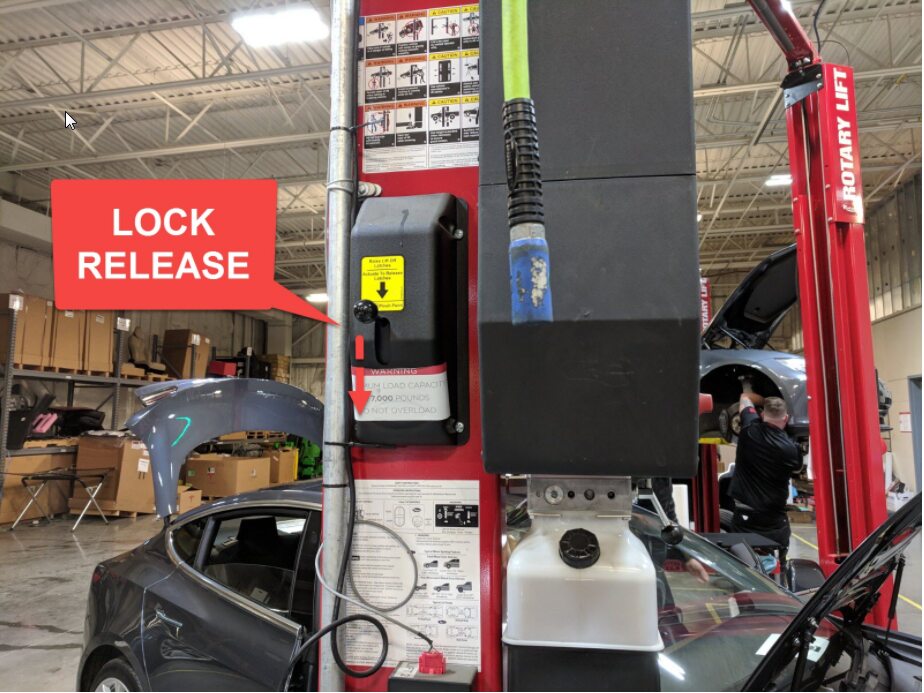

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered







45. Remove masking tape from RH front brake line and RH front rail panel

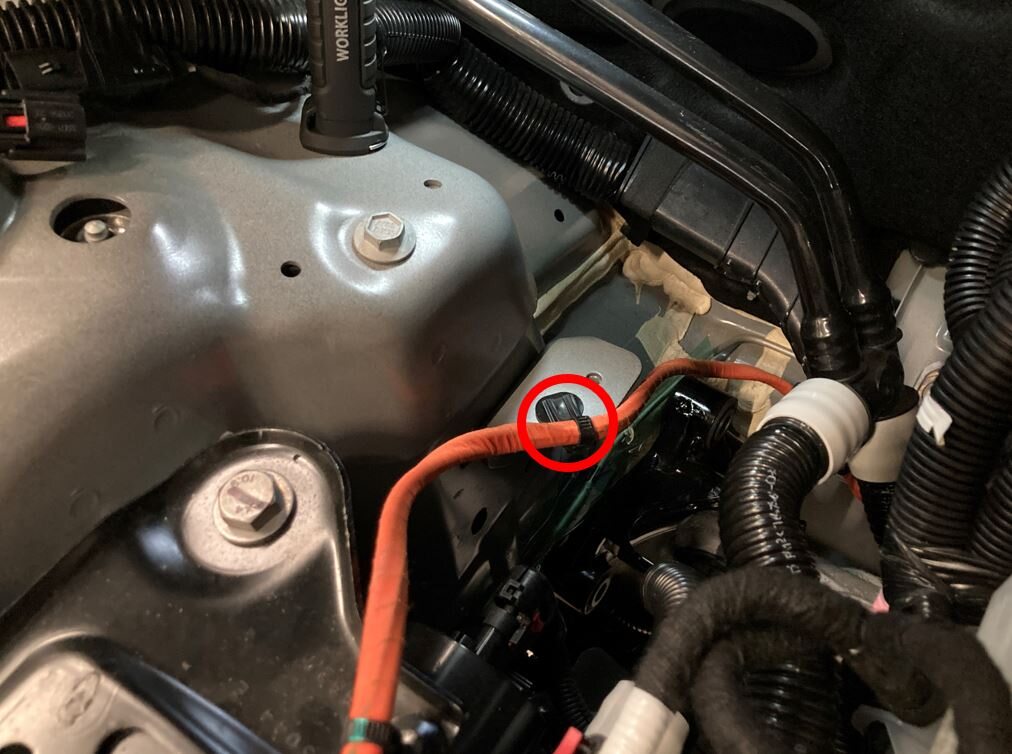

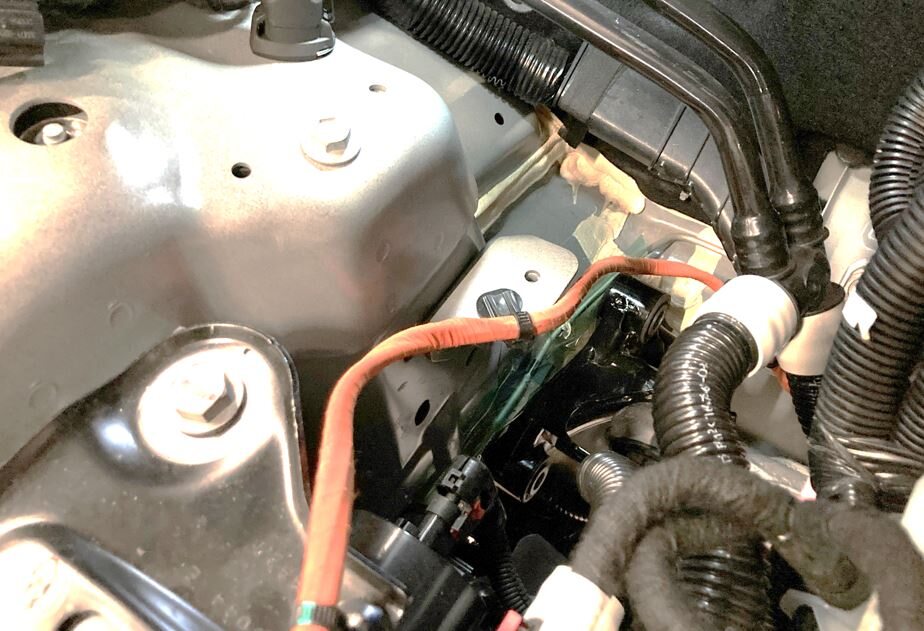

46. Secure AC HV compressor harness to RH shock tower
    注

    1x retaining clip, Feed harness down against firewall of vehicle to continue installation



47. Connect the First Responder Loop and LV battery connector.





48. Install HEPA filter assembly
    注

    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Rework requires new bolts









49. Secure washer tank neck onto washer tank
    注

    1x O-ring, Ensure washer hose is properly routed



50. Secure washer fluid reservoir neck to frunk
    注

    1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



51. Install the rear apron.





52. Close the hood.



53. Remove vehicle from lift
    注

    Lower rack arms fully and remove from under vehicle



54. Raise all four windows



55. Close all four doors
    注

    If LV is powered up, Unlatch rear doors before closing
