机油泵 - 后驱动单元 (4DU)（拆卸和更换）

校正代码 40304642 0.54 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“小心”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。

拆卸

  1. Move the vehicle to a 2 post lift. See 举升车辆 - 双柱举升机.
  2. Remove the mid aero shield panel. See 面板 - 流线型护板 - 中间（拆卸和更换）.
  3. Position an oil drain collector under the rear drive unit oil pump.
  4. Pull the red tab, and then pull the red tab again to disconnect the rear subframe harness from the rear drive unit oil pump connector.

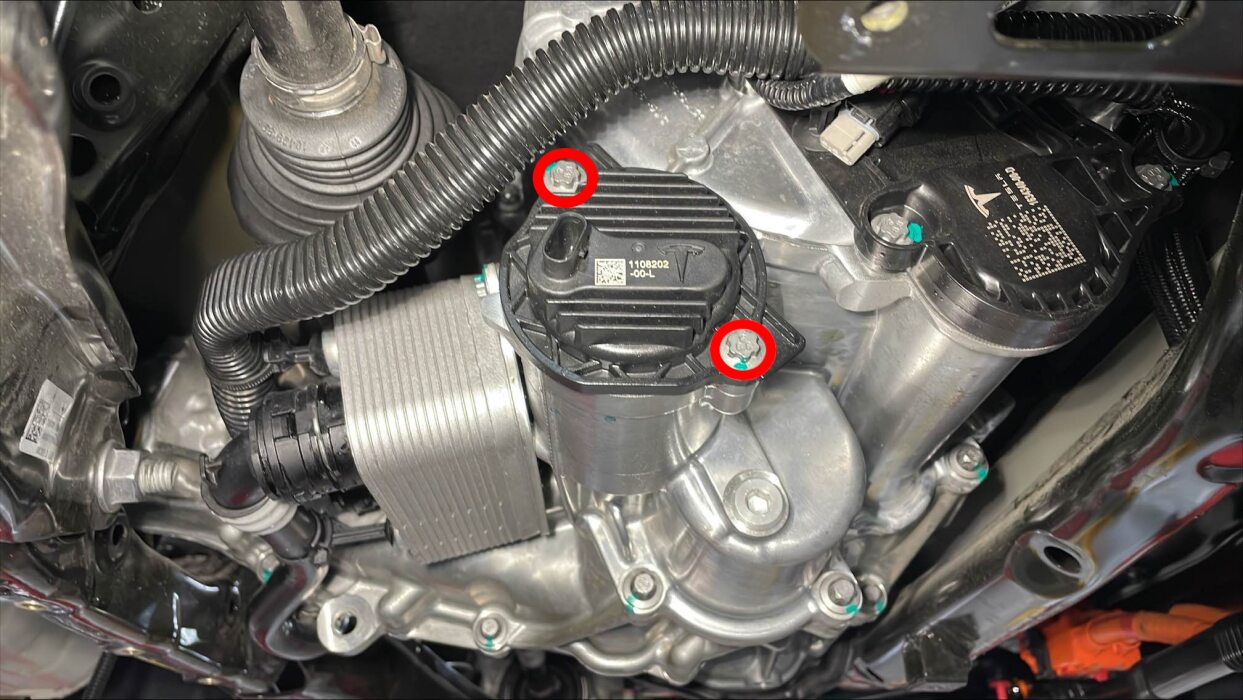

  5. Remove the bolts (x2) that attach the rear drive unit oil pump to the rear drive unit.

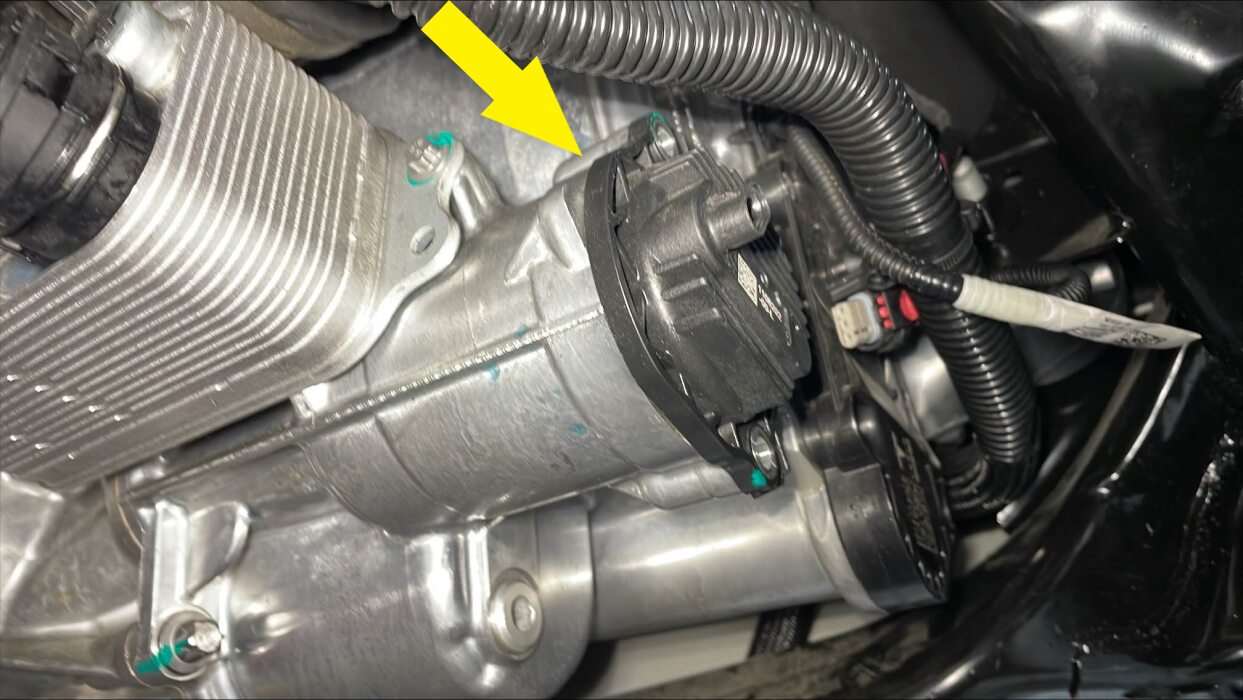

  6. Use a plastic pry tool to separate the rear drive unit oil pump from the rear drive unit, remove the oil pump, and allow the fluid to drain.

安装

  1. Apply a light coat of KAF1 oil to the O-rings of the rear drive unit oil pump, and then wipe away any excess oil.
  2. Install the rear drive unit oil pump into the rear drive unit, and then install the bolts (x2) that attach the oil pump to the drive unit.
    5 Nm (3.7 lbs-ft) +20 deg
  3. Drain the gearbox fluid from the rear drive unit. See 变速箱油 - 后驱动单元 (4DU)（排放和重新加注）.
  4. Refill the rear drive unit with gearbox fluid. See 变速箱油 - 后驱动单元 (4DU)（排放和重新加注）.
  5. Install the mid aero shield panel. See 面板 - 流线型护板 - 中间（拆卸和更换）.
  6. Enable Service Mode on the touchscreen. See 维护模式.
  7. Perform a software reinstall. See 软件重新安装 - 触摸屏.
  8. Disable Service Mode. See 维护模式.
  9. Remove the vehicle from the 2 post lift. See 举升车辆 - 双柱举升机.
