座垫底盘 - 第二排座椅 - LH（七座）（拆卸和更换）

校正代码 13050132 0.54 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Remove the LH 2nd row seat assembly from the vehicle. See 座椅总成 - 第二排 - LH（七座）（拆卸和更换）.

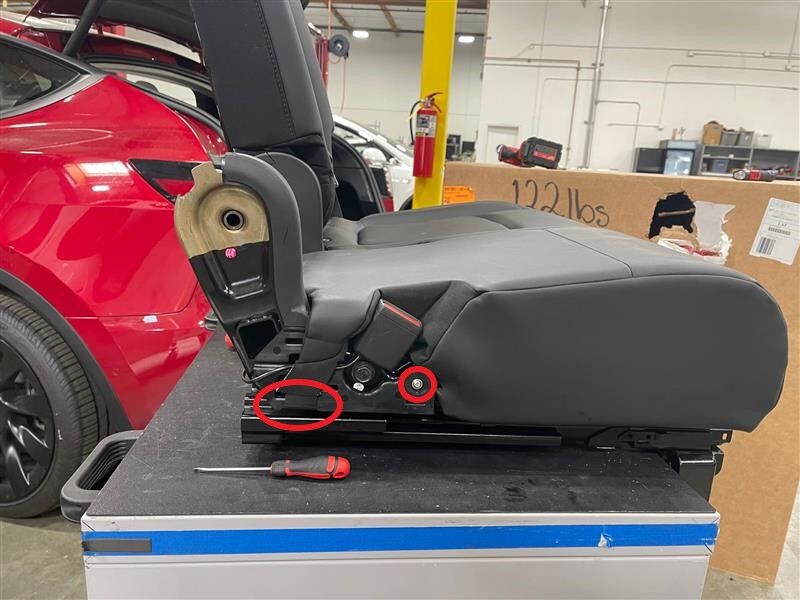

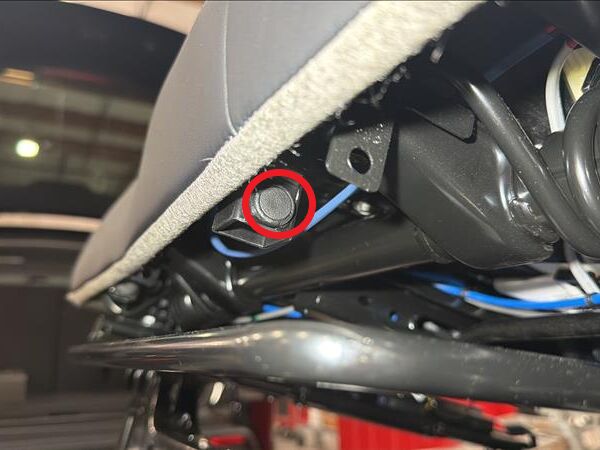

  2. Remove the push clip from the front of the LH 2nd row seat outer sideshield assembly.
    提示： Use a pick to remove the push clip from the bottom side of the outboard cover.

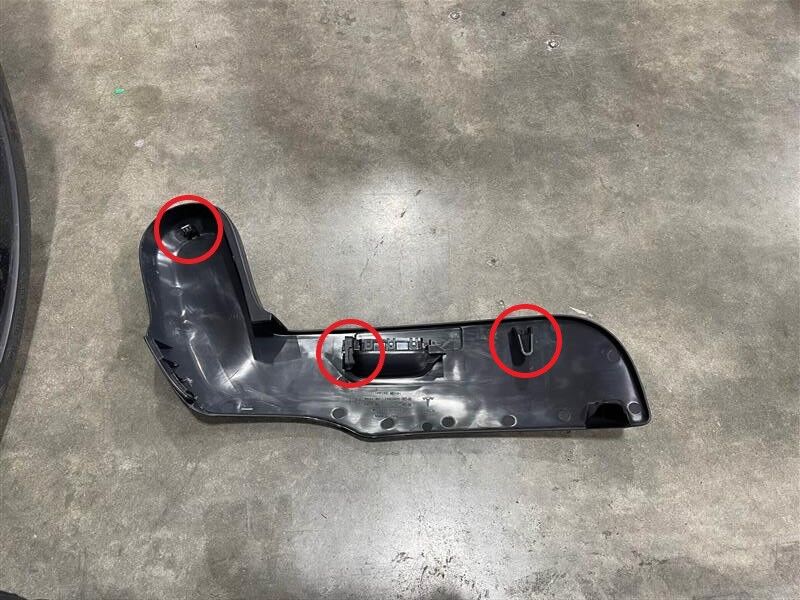

  3. Release the clip that attaches the LH 2nd row seat outer sideshield to the seat assembly, disconnect the electrical connector, and then remove the sideshield from the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    注

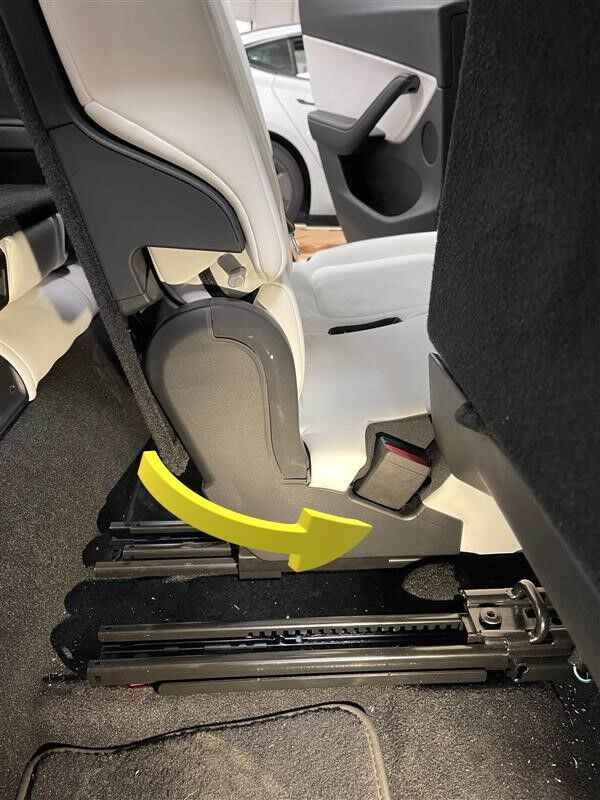

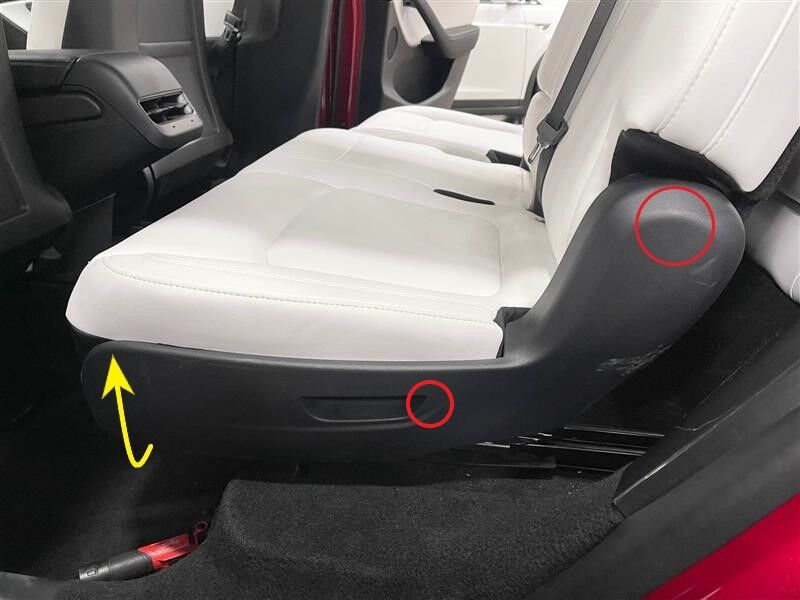

    Release the outer sideshield assembly by pulling outwards and up at the front portion of the trim, and then releasing the remaining clip.
  4. Release the clips (x3) that attach the LH 2nd row seat inboard outer trim to the seat assembly, and then remove the trim from the seat assembly.
  5. Remove the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.
  6. Remove the LH 2nd row seat back panel. See 背板 - 第二排座椅 - LH（拆卸和更换）.
  7. Remove the center 2nd row seat back panel. See 背板 - 第二排座椅 - 中间/20 百分比（五座）（拆卸和更换）.

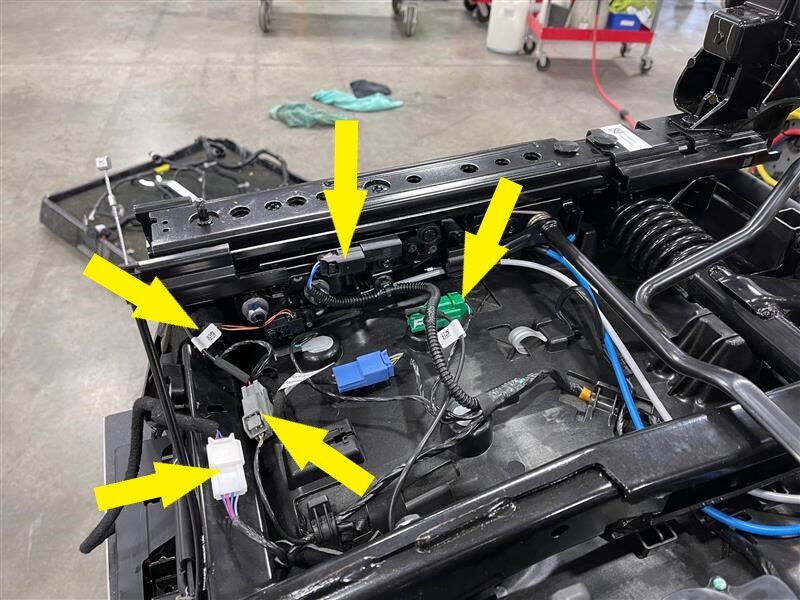

  8. Disconnect the LH 2nd row seat harness electrical connectors (x7), and then release the clip that attaches the harness to the seat frame.
  9. Release the seat cables (x4) from the LH 2nd row seat EZ entry actuator.
  10. Release the clip that attaches the cable to the LH 2nd row seat fold actuator.

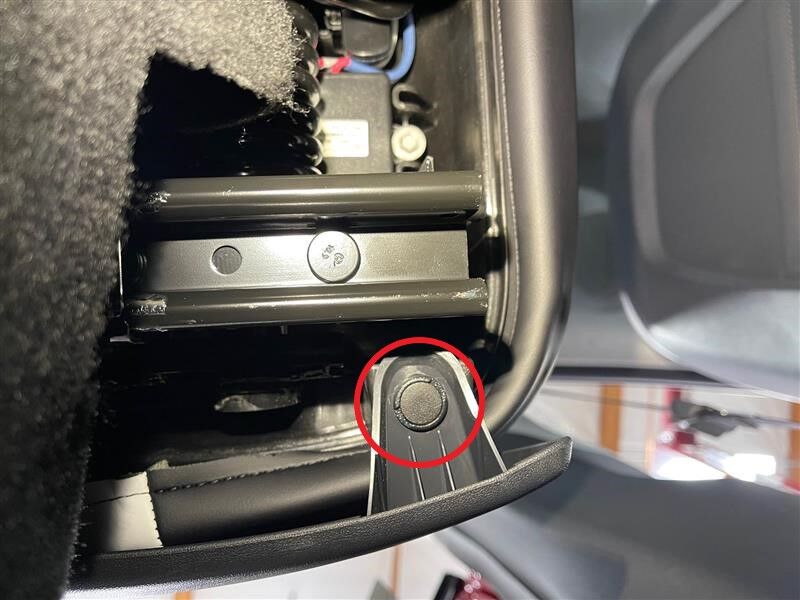

  11. Remove the push clips (x2) from the LH 2nd row seat cushion pan.
  12. Remove the center 2nd row lumbar bun. See 腰部支撑块 - 第二排 - 中间/20 百分比（拆卸和更换）.
  13. Remove the center 2nd row seat back pivot clamps. See 枢轴卡夹 - 座椅靠背 - 第二排 - 中间/20 百分比（拆卸和更换）.
  14. Lift the center 2nd row seat back upward to remove it from the seat assembly.

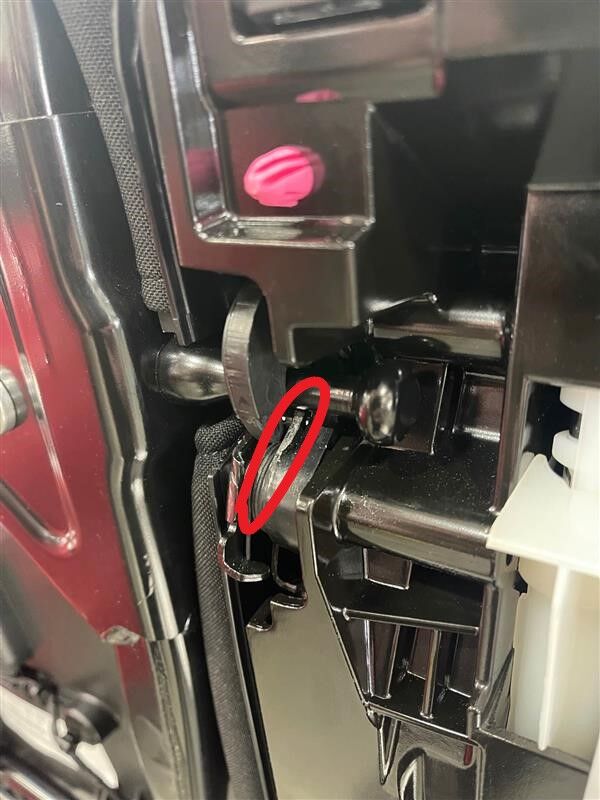

  15. Manually release the center seatback latch.
    Informational PurposesAn informational icon, calling your attention
    注

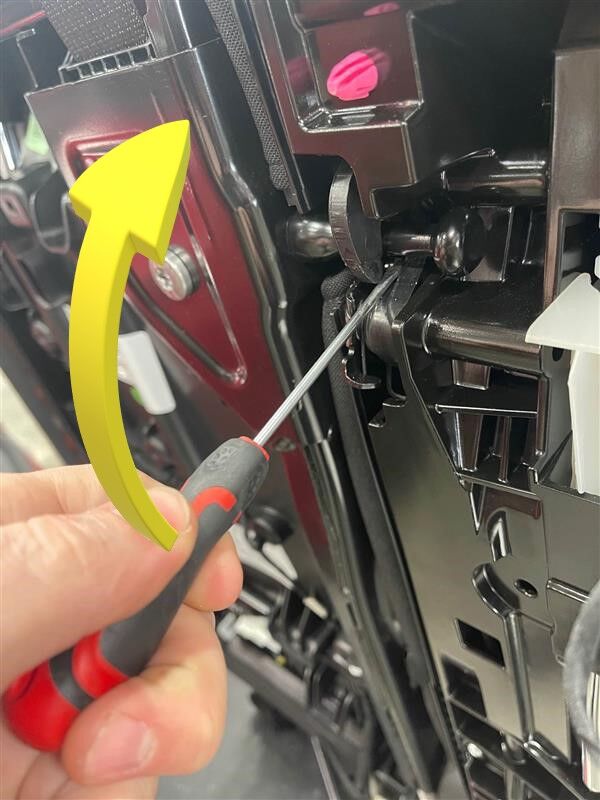

    Use a small screwdriver to manipulate the center seatback latch to release it.

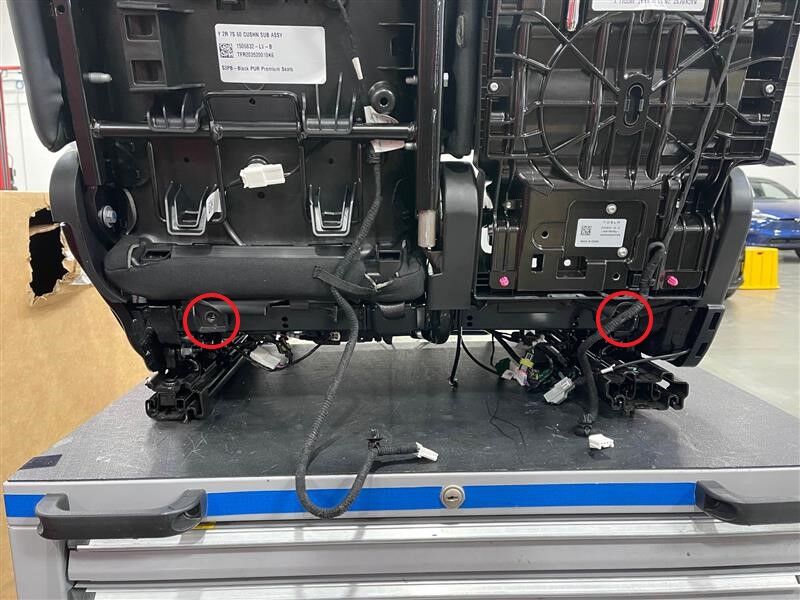

  16. Remove the fasteners (x4) that attach the LH 2nd row seat seat pan to the seat frame.
    6 Nm (4.4 lbs-ft)
    1.5 Nm (1.1 lbs-ft)
    提示： 推荐使用以下工具：
    • 10 毫米套筒
    • 梅花 T25 套筒
  17. Remove the LH 2nd row seat headrest trim. See 头枕 - 第二排 - 外侧 - LH（拆卸和更换）.
  18. Remove the LH 2nd row headrest adjustment guide. See 调节导件 - 头枕 - 第二排（拆卸和更换）
  19. Remove the LH 2nd row seat headrest guide lock. See 导锁 - 头枕 - 第二排（拆卸和更换）.

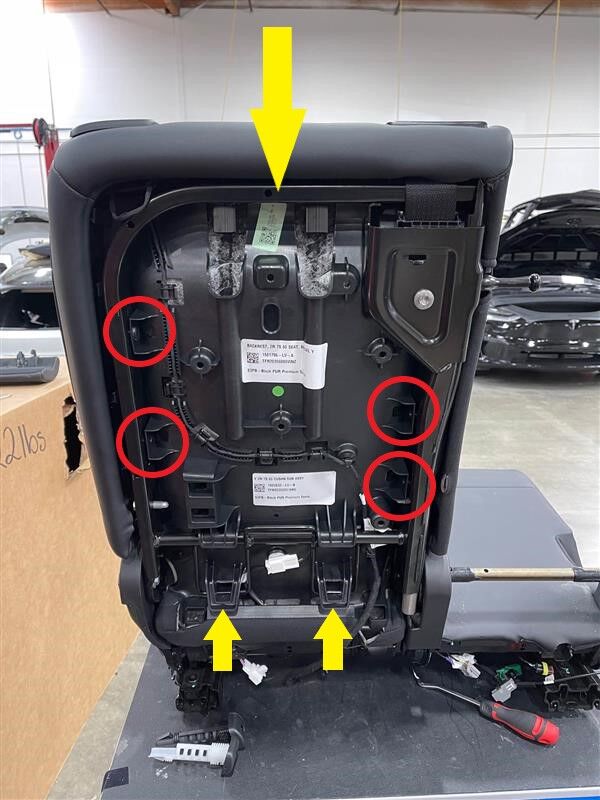

  20. Release the clips (x4) that attach the LH 2nd row seat back to the seat assembly, and then lift the seat back to remove it from the assembly.

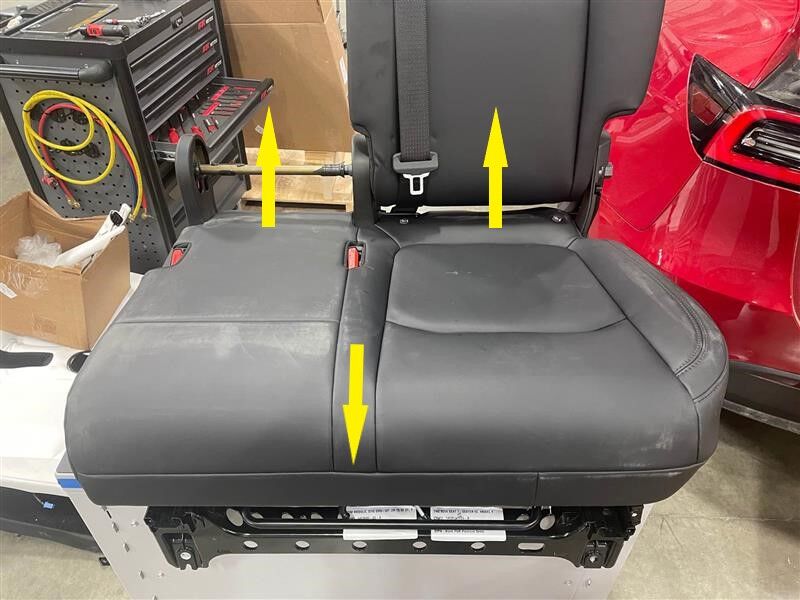

  21. Lift the rear of the LH 2nd row seat cushion assembly, and then slide the cushion toward the front of the seat to remove it from the seat assembly.

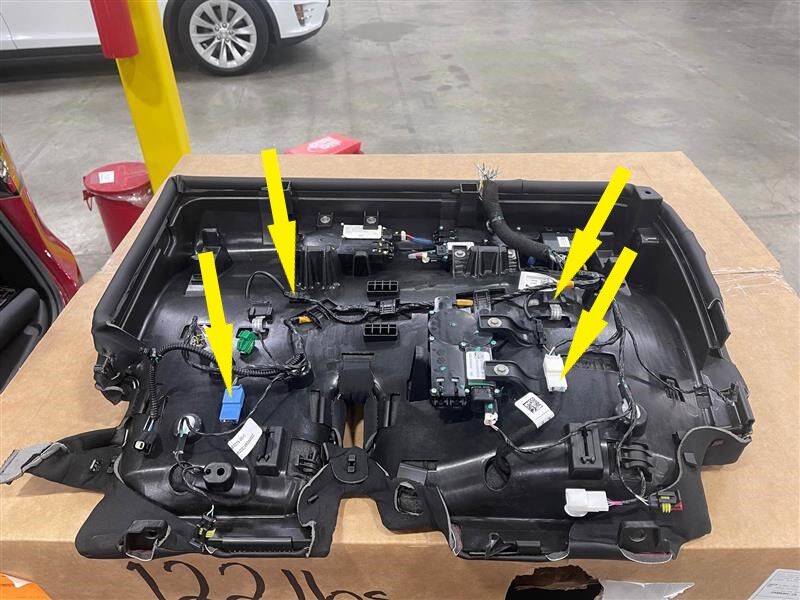

  22. Disconnect the remaining connectors (x4) from the LH 2nd row seat cushion pan.
  23. Release the J-hooks that attach the LH 2nd row seat cushion cover from the cushion pan, and then remove the cover from the cushion pan.

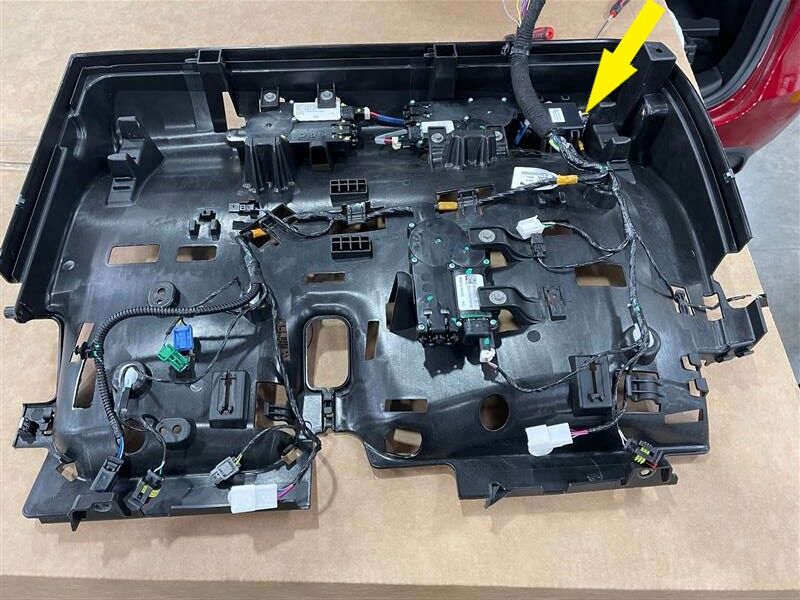

  24. Disconnect the LH 2nd row seat fold actuator connector.
  25. Disconnect the actuator switch box connector.
  26. Release the remaining seat harness clips (x4) from the LH 2nd row seat cushion pan.

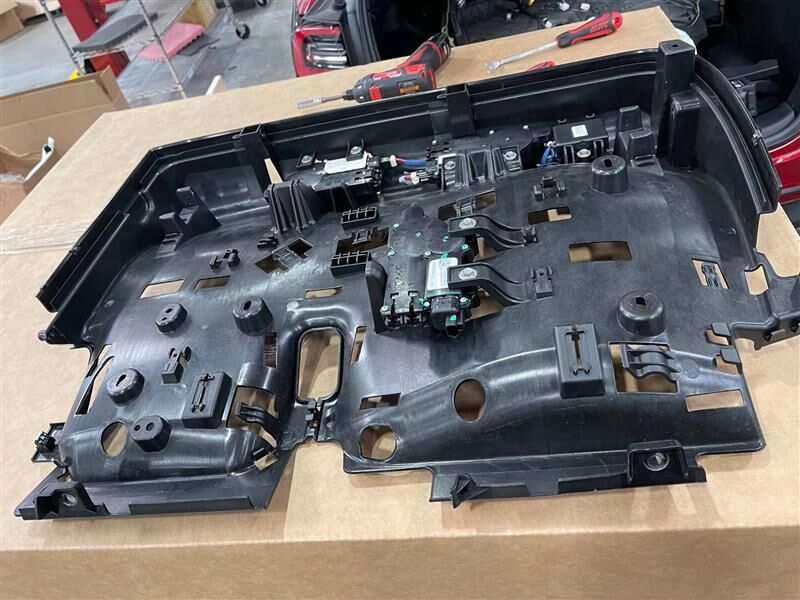

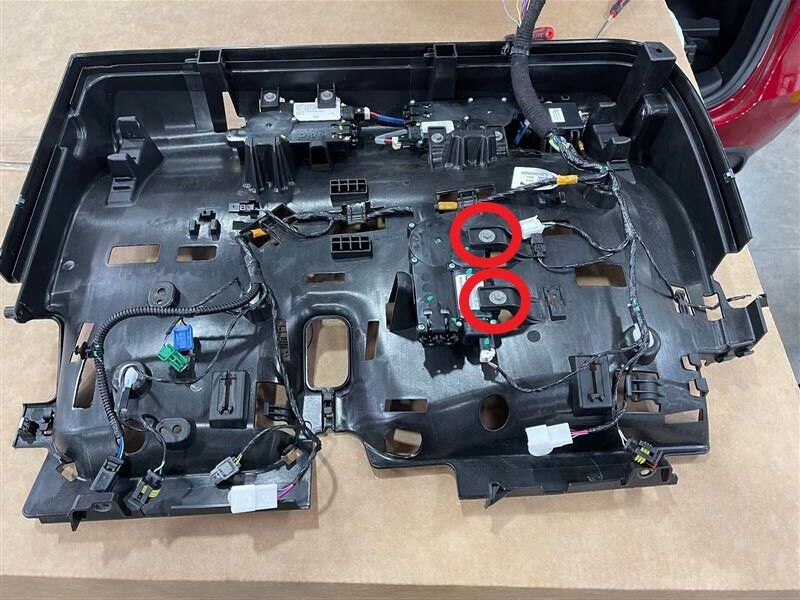

  27. Remove the bolts that attach the LH 2nd row seat fold actuator to the cushion pan, and then remove the actuator from the cushion pan.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 8 毫米套筒

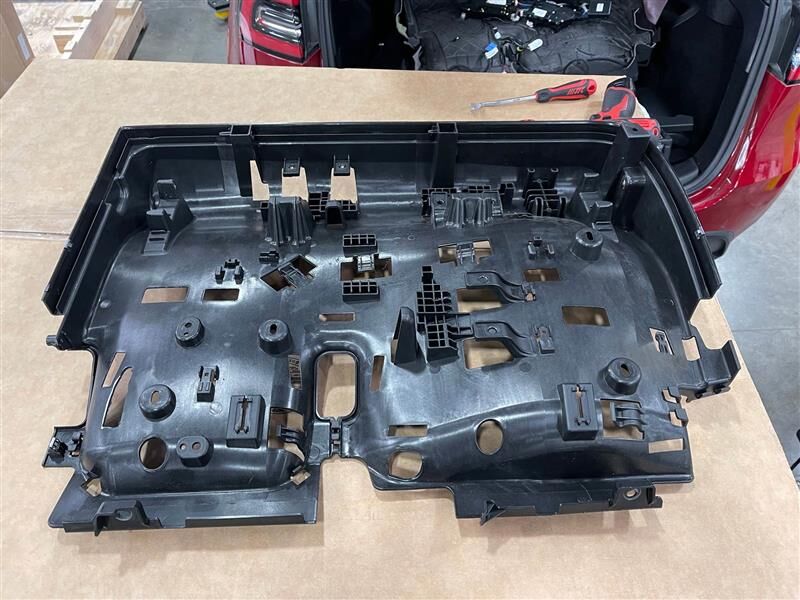

  28. Remove the bolts (x6) that attach LH 2nd row seat actuator switch box to the cushion pan, and then remove the switch box, EZ entry latch, and floor latch actuators from the cushion pan.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 8 毫米套筒

安装

  1. Position the LH 2nd row seat actuator switch box, EZ entry latch, and floor latch actuators to the cushion pan, and then install the bolts (x6) that attach the switch box to the cushion pan.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 8 毫米套筒
  2. Position the LH 2nd row seat fold actuator to the cushion pan, and then install the bolts that attach the actuator to the cushion pan.
    2.5 Nm (1.8 lbs-ft)
    提示： 推荐使用以下工具：
    • 8 毫米套筒
  3. Secure the seat harness clips (x4) to the LH 2nd row seat cushion pan.
  4. Connect the LH 2nd row seat fold actuator connector.
  5. Connect the actuator switch box connector.
  6. Position the LH 2nd row seat cushion cover onto the cushion pan, and then secure the J-hooks that attach the cover to the cushion pan.
  7. Starting at the rear of the seat, position the LH 2nd row seat pan onto the seat frame.
  8. Install the fasteners (x4) that attach the LH 2nd row seat seat pan to the seat frame.
    6 Nm (4.4 lbs-ft)
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    The 10 mm bolts are torqued to 6 Nm. The T25 screws are torqued to 1.5 Nm.
    提示： 推荐使用以下工具：
    • 10 毫米套筒
    • 梅花 T25 套筒
  9. Position the LH 2nd row seat back to the seat assembly, and then install the clips (x4) that attach the seat back to the assembly.
    Informational PurposesAn informational icon, calling your attention
    注
    Make sure the bottom retainers slide into position.
  10. Install the LH 2nd row seat headrest guide lock. See 导锁 - 头枕 - 第二排（拆卸和更换）.
  11. Install the LH 2nd row headrest adjustment guide. See 调节导件 - 头枕 - 第二排（拆卸和更换）
  12. Install the LH 2nd row seat headrest trim. See 头枕 - 第二排 - 外侧 - LH（拆卸和更换）.
  13. Install the center 2nd row seat back pivot clamps. See 枢轴卡夹 - 座椅靠背 - 第二排 - 中间/20 百分比（拆卸和更换）.
  14. Install the center 2nd row lumbar bun. See 腰部支撑块 - 第二排 - 中间/20 百分比（拆卸和更换）.
  15. Position the LH 2nd row seat outer sideshield to the seat assembly, connect the electrical connector, and then secure the clip.
    Informational PurposesAn informational icon, calling your attention
    注
    Release the outer sideshield assembly by pulling outwards and up at the front portion of the trim, and then releasing the remaining clip.
  16. Install the push clip to the front of the LH 2nd row seat outer sideshield assembly.
    提示： Use a pick to remove the push clip from the bottom side of the outboard cover.
  17. Install the clips (x3) that attach the LH 2nd row seat inboard outer trim to the LH 2nd row seat.
  18. Install the center 2nd row seat back panel. See 背板 - 第二排座椅 - 中间/20 百分比（五座）（拆卸和更换）.
  19. Install the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.
  20. Install the LH 2nd row seat back panel. See 背板 - 第二排座椅 - LH（拆卸和更换）.
  21. Install the LH 2nd row seat assembly. See 座椅总成 - 第二排 - LH（七座）（拆卸和更换）.
