轮拱内衬 - 后 - LH(结构化电池组)(拆卸和更换)

校正代码 12011112 0.24 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Remove the LH rear wheel. See轮毂总成(拆卸和安装).

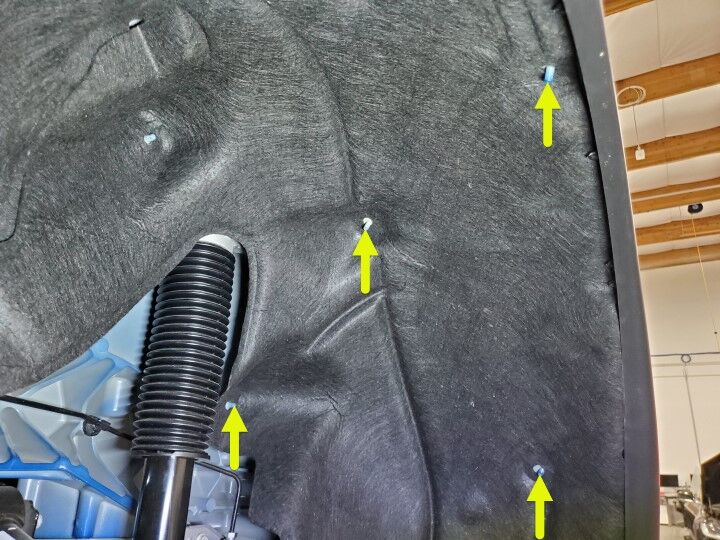

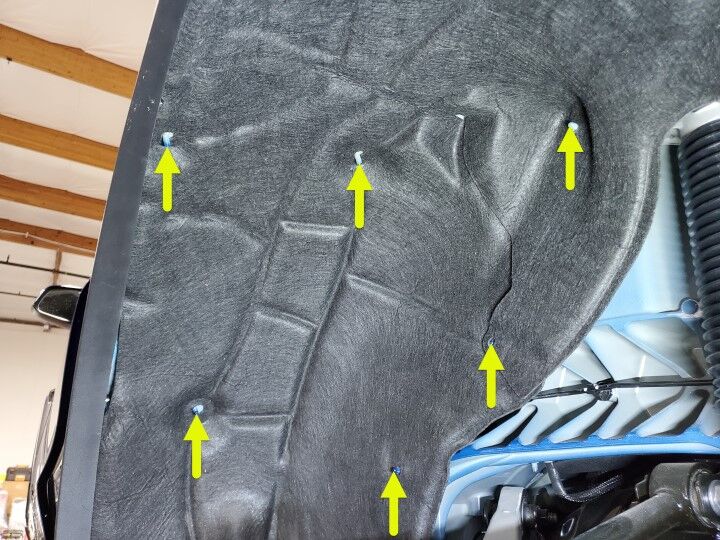

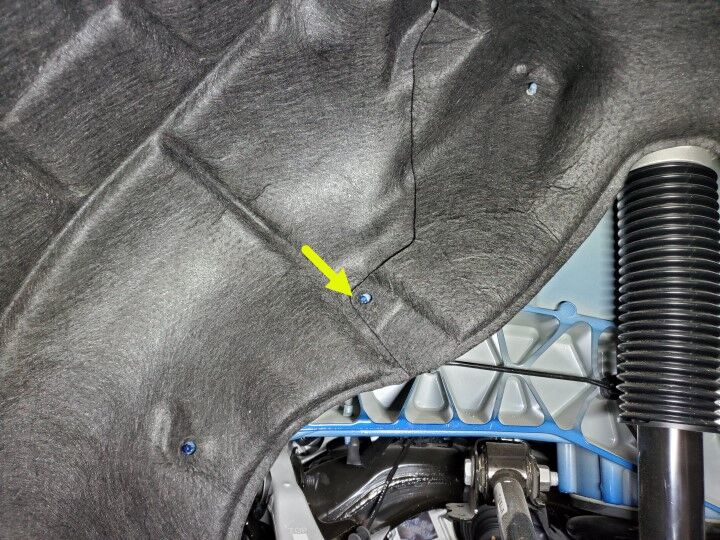

  2. Remove the push clips (x7), fan clips (x6) and metal clips (x4) that attach the LH rear wheel arch liner to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Rotate the fan clips counterclockwise to remove.
    提示: Use a prytool to get cutters under metal clip.
  3. Release the LH rear wheel arch liner from the studs (x10), and then remove the liner from the vehicle.

安装

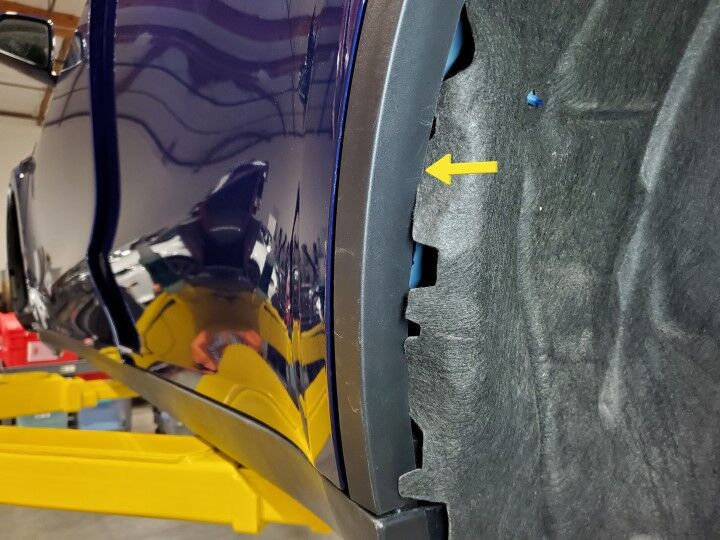

  1. Position the LH rear wheel arch liner into the vehicle and onto the studs (x10), tuck the liner behind the garnish, and then secure the mid flap over the liner.
  2. Install the push clips (x7), fan clips (x6) and metal clips (x4) that attach the LH rear wheel arch liner to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Use a socket to press the metal clips evenly.
  3. Install the LH rear wheel. See轮毂总成(拆卸和安装).
