校正代码 16202402 3.12 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Remove the LH rocker panel carrier. See 支架 - 门槛板 - LH（结构化电池组）（拆卸和更换）.
2. Remove butyl patches covering LH rocker access holes
   注

   2x butyl patches, Clean excess butyl from area





3. Install lift pad adapters onto LH rocker
   注

   2x lift pad adapters





4. Remove the RH rocker panel carrier. See 支架 - 门槛板 - LH（结构化电池组）（拆卸和更换）.
5. Remove butyl patches covering RH rocker access holes
   注

   2x butyl patches, Clean excess butyl from area





6. Install lift pad adapters onto RH rocker
   注

   2x lift pad adapters





7. Open all four doors
8. Lower all four windows
9. Move LH front seat forward
10. Move RH front seat forward
11. Remove the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
12. Remove the LH and RH lower c-pillar trims. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
13. Remove the RH 2nd row seat back. See 座椅靠背 - 第二排 - RH（拆卸和更换）.
14. Remove the LH 2nd row seat back. See 座椅靠背 - 第二排 - LH（拆卸和更换）.
15. Raise and support vehicle
    注

    Verify jack locations prior to lifting vehicle, ONLY place on lifting points at front and rear of rocker panels







16. Open hood
17. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
18. Remove the HEPA filter assembly. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和安装）.
19. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
20. Disconnect LV battery connector and First Responder Loop
    注

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge







21. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals





22. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
23. Remove front aero shield
    注

    12x bolts, 10mm, 6 Nm, 2x nuts, 15mm, 6 Nm, 2x clips, 2x hooks





24. Remove push clips at left and right wheel house liner to mid aero shield
    注

    2x clips





25. Remove mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, MYSP will have one less bolt and an extra clip



26. Position coolant drain container underneath LH front of HV battery



27. Disconnect PT supply hose at LH front side of vehicle
    注

    1x spring clip, Plug hose connections as needed



28. Install PCS flush adapter onto PT supply hose
    注

    Remove plugs as needed, Verify fully seated, Perform push-pull-push test







29. Secure coolant cart flush hose to regulator and PCS flush adapter

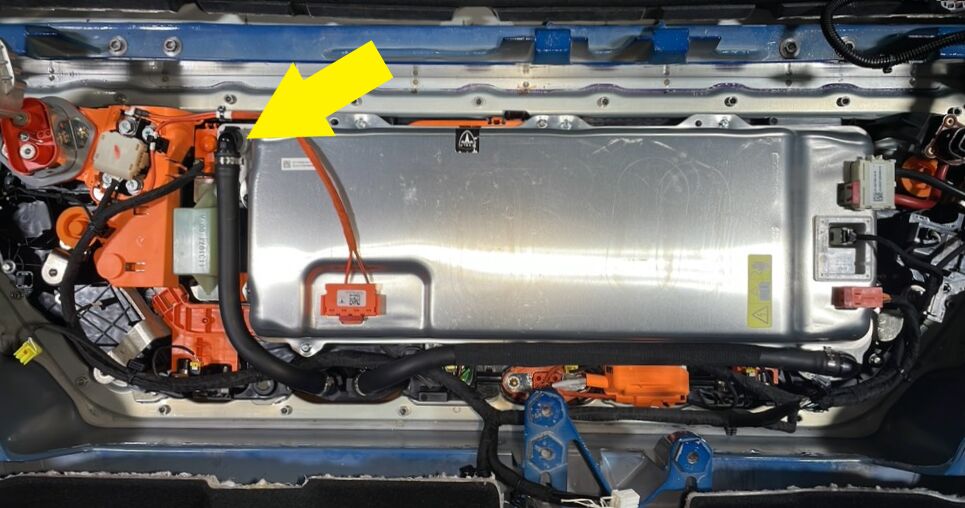

    注

    Verify regulator valve is closed, Pressure regulator is not adjustable







30. Position coolant drain container underneath LH RDU area
    注

    Position neck to catch all coolant loss



31. Disconnect RDU inverter inlet hose from fluid coupling
    注

    1x spring clip, 2x plugs, Plug drive unit coupling



32. Attach compressed air line to coolant pressure tester
    注

    Make sure valve is closed on pressure regulator



33. Slowly open valve on pressure regulator and allow coolant to drain out of HV battery
    注

    Allow system to drain completely



34. Close valve on pressure regulator once no coolant is draining from PT return hose



35. Disconnect compressed air from coolant pressure tester



36. Remove cart flush hose from PCS Flush adapter



37. Remove PCS flush adapter from PT supply hose
    注

    1x spring clip, Plug hose connections as needed





38. Remove coolant drain container from underneath vehicle



39. Remove all items from pockets and ensure not wearing metal items





40. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



41. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used



42. Install amp clamp to RDU HV harness
    注

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.





43. Release RDU HV harness from HV battery
    注

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged



44. Verify no high voltage at RDU HV header
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering









45. Lower vehicle until tires are touching the ground
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
46. Disconnect HVC logic connector and install logic cap
    注

    1x connector, 1x cap, Release locking tab then pivot handle downward to release connector



47. Disconnect power connector to HV battery
    注

    1x connector, Pull locking tab upward then release connection



48. Remove bolt securing busbar cover access door
    注

    1x bolt, 10mm, 9 Nm



49. Remove bolts securing charge port busbar kit to HV header
    注

    2x bolts, 10mm, 9 Nm



50. Disengage LH body harness from rear body and move aside
    注

    1x clip





51. Lift busbar kit connector to remove from HV header
    注

    Use inflatable air bag to suspend busbar away from HV header during removal and installation







52. Remove NVH insulation from ancillary bay cover
    注

    Move insulation aside





53. Remove fasteners securing ancillary bay cover to high voltage controller
    注

    3x bolts, E10, 10 Nm



54. Release fasteners securing PCS LVDC header to ancillary bay cover
    注

    3x bolts, T20, 2.5 Nm



55. Release fasteners securing charge port header to ancillary bay cover and remove doubler
    注

    2x bolts, 10 EPL, 10 Nm, Release charge port header from ancillary bay and remove plastic doubler, Take note of small tabs on shielding







56. Release perimeter bolts securing ancillary bay to HV battery
    注

    22x captured bolts, EPL 10, 5 Nm



57. Remove ancillary bay cover from HV battery
    注

    Recommend assistance, Lift up on the RH side and pivot the cover, Maneuver away from body casting and charge port components and HV header





58. 拆下烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
59. Release PCS supply hose from PCS
    注

    1x hose, Carefully release PCS hose using the special tool, Be cautious and do not damage hose, No coolant will come out as the system was completely flushed, Use absorbent material only if required, Plug PCS









60. Release harness clip by PCS supply hose
    注

    1x clip



61. Release PCS supply hose from coolant passthrough and remove assembly
    注

    1x hose, Carefully release PCS hose using the special tool, Rotate hose as needed to gain access, Be cautious and do not damage hose, No coolant will come out as the system was completely flushed, Use absorbent material only if required











62. Position PCS supply hose for installation and secure onto coolant passthrough
    注

    1x hose, Carefully secure PCS hose, Perform push pull push test, Verify hose is fully seated







63. Secure harness clip by PCS supply hose
    注

    1x clip



64. Secure PCS supply hose onto PCS
    注

    2 tabs, Carefully secure PCS hose, Perform push pull push test, Verify hose is fully seated







65. 测量烟火电池隔离开关安装点间的电压，然后安装烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
66. Inspect ancillary bay phantom seal to verify no damage is present
    注

    If damage is present, Replace ancillary bay phantom seal







67. Install ancillary bay cover onto HV battery
    注

    Recommend assistance, Guide LH side of cover into position clearing HV header, Maneuver cover past body casting and into position with charge port components





68. Install perimeter bolts securing ancillary bay to HV battery
    注

    22x captured bolts, EPL 10, 5 Nm, Thread bolts in evenly and torque



69. Secure doubler and install fasteners securing charge port header to ancillary bay cover
    注

    2x bolts, 10 EPL, 10 Nm, Secure doubler onto header and install bolts, Take note of small tabs on shielding







70. Install fasteners securing PCS LVDC header to ancillary bay cover
    注

    3x bolts, T20, 2.5 Nm



71. Install fasteners securing ancillary bay cover to high voltage controller
    注

    3x bolts, E10, 10 Nm



72. Install NVH insulation onto ancillary bay cover





73. Connect power connector to HV battery
    注

    1x connector, Push red locking tab down to secure connection



74. Connect HVC logic connector
    注

    1x connector, Pivot handle upward to engage connector and secure locking tab, Remove cap if needed



75. Clean busbar HV connector contact surface of residual Penetrox
    注

    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



76. Clean HV connector contact surface of residual Penetrox
    注

    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



77. Apply Penetrox onto HV connector joints
    注

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered





78. Position busbar kit connector and lower onto HV header



79. Install bolts securing charge port busbar kit to HV Header
    注

    2x bolts, 10mm, 9 Nm



80. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    注

    2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), there is too much resistance in the High Voltage joint. Remove the fastener, clean areas with isopropyl alcohol, install fastener back and test again.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step



81. Install fastener securing busbar cover access door
    注

    1x bolt, 10mm, 9 Nm



82. Engage LH body harness onto rear body
    注

    1x clip





83. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
84. Secure RDU HV harness onto HV battery
    注

    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



85. Remove HV insulating gloves
86. Secure closed end cap to RDU inverter inlet hose
    注

    1x hose, Plug hose with cap from the coolant hose plug kit, Plug hose so it will not leak air, Perform push-pull-push test



87. Secure coolant leak test adapter to PT supply hose
    注

    This adapter is connected to regulated air line adapter, Make sure the locking tab is fully seated, Perform push-pull-push test





88. Secure pressure test fixture hose to leak test adapter



89. Secure compressed air line to pressure test fixture
    注

    Make sure valves are closed on pressure regulator





90. Open the regulator valve then slowly adjust regulator to 50 psi
    注

    Use caution due to high pressure, Make sure to wear safety glasses and personal protection equipment





91. Open the 2nd valve slowly
    注

    Slowly allow air to enter system



92. Allow 1 minutes and 50 seconds for the pressure to stabilize
    注

    Allow 1 minutes and 50 seconds (110 seconds) for pressure to stabilize
93. Close the regulator valve



94. Record start pressure value
95. Allow 4 minutes to test
96. Record end pressure value
    注

    If pressure did not drop more than 0.35 psi, continue to next step, If pressure dropped more than 0.35 psi, then inspect for leaks and retest
97. Release compressed air line from pressure test fixture



98. Open the regulator valve slowly
    注

    Slowly allow air to leave the system



99. Release pressure test fixture hose from coolant leak test adapter



100. Release coolant leak test adapter to PT supply hose





101. Release closed end cap from RDU inverter inlet hose



102. Remove hose plugs and connect coolant inlet hose to rear drive unit
     注

     1x spring clip, Let coolant drain from hose before install, Perform push-pull-push test to make sure hose is fully seated



103. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
     注

     11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack will one less bolt and one extra clip



104. Install push clips at left and right wheel house liner to mid aero shield
     注

     2x clips





105. Connect PT supply hose at LH front side of vehicle
     注

     1x spring clip, Remove plugs as needed



106. Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle
     注

     12x bolts, 10mm, 6 Nm, 2x nuts, 15mm, 6 Nm, 2x clips, 2x hooks





107. Lower vehicle fully
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
108. Remove vehicle from lift
     注

     Lower rack arms fully and remove from under vehicle
109. Remove coolant bottle cap



110. Fill coolant to the proper level
     注

     Ensure that the fluid level filled to the Max line



111. Connect first responder loop and LV battery
     注

     2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







112. Connect to vehicle using Toolbox 3.0
     注

     Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)If RJ45 ethernet diagnostic connector present connect directly from laptop using an RJ45 Ethernet cable
113. Select ‘Actions/Autodiag’ tab and search for ‘ Purge'
114. Select ‘TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Toolbox: (link)via Service Mode:
     • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
     • Thermal ➜ Coolant System ➜ Coolant Purge Start
     via Service Mode Plus:
     • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
     • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
     ’, click ‘Run’, and allow routine to complete
     注

     Make sure vehicle is not in drive state, Plan is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valve between SERIES and PARALLEL, Putting vehicle into drive state will stop this routine, If speeds hover at 7000 RPM, that means the pumps are air locked, perform vacuum fill again, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle, Select ‘X’ at top right of window to close once complete
115. Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
116. Inspect coolant level and top off as necessary
     注

     Ensure that the fluid level is at the Max line



117. Install coolant bottle cap



118. Install the HEPA filter assembly. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和安装）.
119. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
120. Install the RH 2nd row seat back. See 座椅靠背 - 第二排 - RH（拆卸和更换）.
121. Install the RH lower c-pillar trim. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
122. Install the LH 2nd row seat back. See 座椅靠背 - 第二排 - LH（拆卸和更换）.
123. Install the LH lower c-pillar trim. See 饰板 - C 柱 - 下 - LH（拆卸和更换）.
124. Install the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
125. Move LH front seat to original position
126. Move RH front seat to original position
127. Raise LH front window
128. Close LH front door
129. Remove lift pad adapters from RH rocker
     注

     2x lift pad adapters





130. Install butyl patches onto RH rocker access holes
     注

     2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch if needed, Roughly 2" x 2 1/2"





131. Install the RH rocker panel carrier. See 支架 - 门槛板 - LH（结构化电池组）（拆卸和更换）.
132. Remove lift pad adapters from LH rocker
     注

     2x lift pad adapters





133. Install butyl patches onto LH rocker access holes
     注

     2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch if needed, Roughly 2" x 2 1/2"





134. Install the LH rocker panel carrier. See 支架 - 门槛板 - LH（结构化电池组）（拆卸和更换）.
