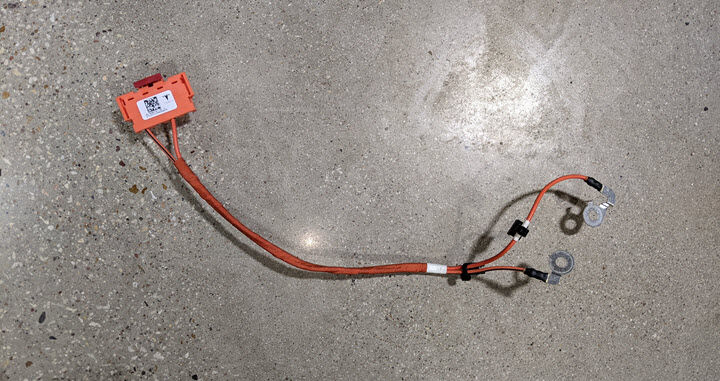

线束 - 交流滤波器 - 高压电池（结构化电池组）（拆卸和更换）

校正代码 16305312 1.86 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至 ServiceManualFeedback@tesla.com。。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。请参阅人体工程学注意事项查看安全健康的作业规程。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。

拆卸

  1. Open all the doors and lower all the windows.
  2. Place the vehicle into Service Mode. See 维护模式.
  3. Remove the ancillary bay cover. See 盖板 - 高压电池仓（结构化电池组）（拆卸和更换）.
  4. 拆下烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。

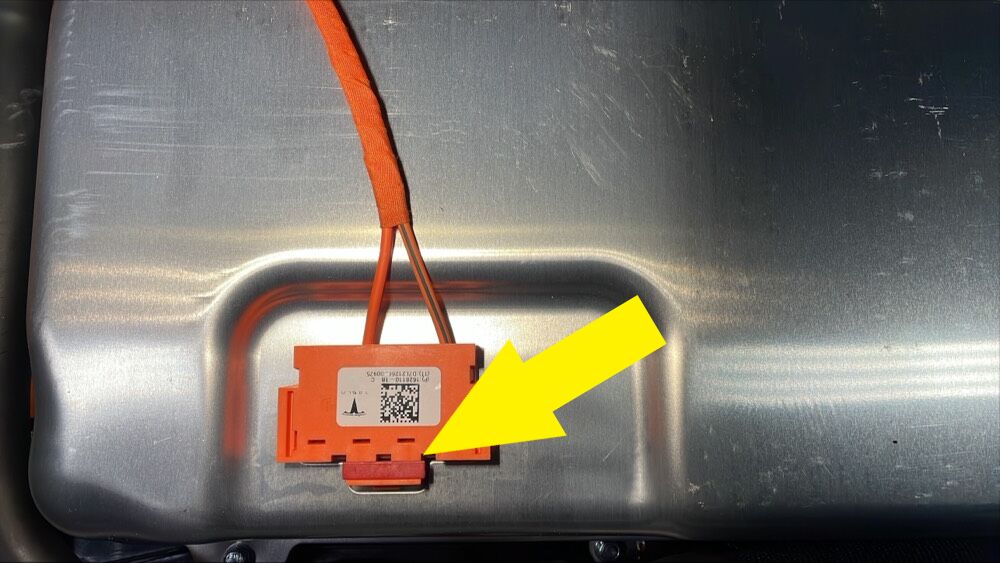

  5. Release the locking tab, and then disconnect the AC filter harness connector.
    Informational PurposesAn informational icon, calling your attention
    注
    Release the locking tab by pulling upward. Use a plastic trim tool to help lift the connector.
  6. Release the clips (x2) that attach the AC filter harness to the tray.
  7. Disconnect the fast charge contactor connector.
    Informational PurposesAn informational icon, calling your attention
    注
    Push on both side of connector to release the tabs, and then pull upward to disconnect.
  8. Remove and discard the bolt that attaches the AC filter harness to the negative DC inlet busbar.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 13 毫米套筒
  9. Remove and discard the bolt that attaches the AC filter harness to the positive DC inlet busbar.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 13 毫米套筒
  10. Remove the HV battery AC filter harness from the ancillary bay.

安装

  1. Position the HV battery AC filter harness into the ancillary bay.
  2. Install a new bolt that attaches the AC filter harness to the positive DC inlet busbar.
    15 Nm (11.1 lbs-ft) -180 degrees
    5 Nm (3.7 lbs-ft) +60 degrees
    Informational PurposesAn informational icon, calling your attention
    注
    Tighten the bolt to 15 Nm, back off 180 degrees, then torque to 5 Nm +60 degrees.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 13 毫米套筒
  3. Install a new bolt that attaches the AC filter harness to the negative DC inlet busbar.
    15 Nm (11.1 lbs-ft) -180 degrees
    5 Nm (3.7 lbs-ft) +60 degrees
    Informational PurposesAn informational icon, calling your attention
    注
    Tighten the bolt to 15 Nm, back off 180 degrees, then torque to 5 Nm +60 degrees.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 13 毫米套筒
  4. Use a Hioki resistance meter to measure the resistance at the HV joint between the newly-installed AC filter harness and the positive DC inlet busbar.
    Informational PurposesAn informational icon, calling your attention
    注
    The resistance should be 150µΩ or less.
  5. Use a Hioki resistance meter to measure the resistance at the HV joint between the newly-installed AC filter harness and the negative DC inlet busbar.
    Informational PurposesAn informational icon, calling your attention
    注
    The resistance should be 150µΩ or less.
  6. Connect the fast charge contactor connector.
  7. Install the clips (x2) that attach the AC filter harness to the tray.
  8. Connect the PCS to fast charge contactor AC filter harness connector, and then engage the red locking tab.
    Informational PurposesAn informational icon, calling your attention
    注
    Make sure the connector is fully seated.
  9. 测量烟火电池隔离开关安装点间的电压，然后安装烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
  10. Install the ancillary bay cover. See 盖板 - 高压电池仓（结构化电池组）（拆卸和更换）.
  11. Exit Service Mode. See 维护模式.
  12. Remove the vehicle from the lift. See 举升车辆 - 双柱举升机.
  13. Raise all the windows and close all the doors.
