B 柱盖板 - 第二排 - 内侧 - LH(七座)(拆卸和更换)

校正代码 13084212 0.66 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com
  1. Open RH front and rear doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward
  5. Partially remove LH rear door seal
  6. Remove LH 7s Lower C-Pillar Trim
    Informational PurposesAn informational icon, calling your attention

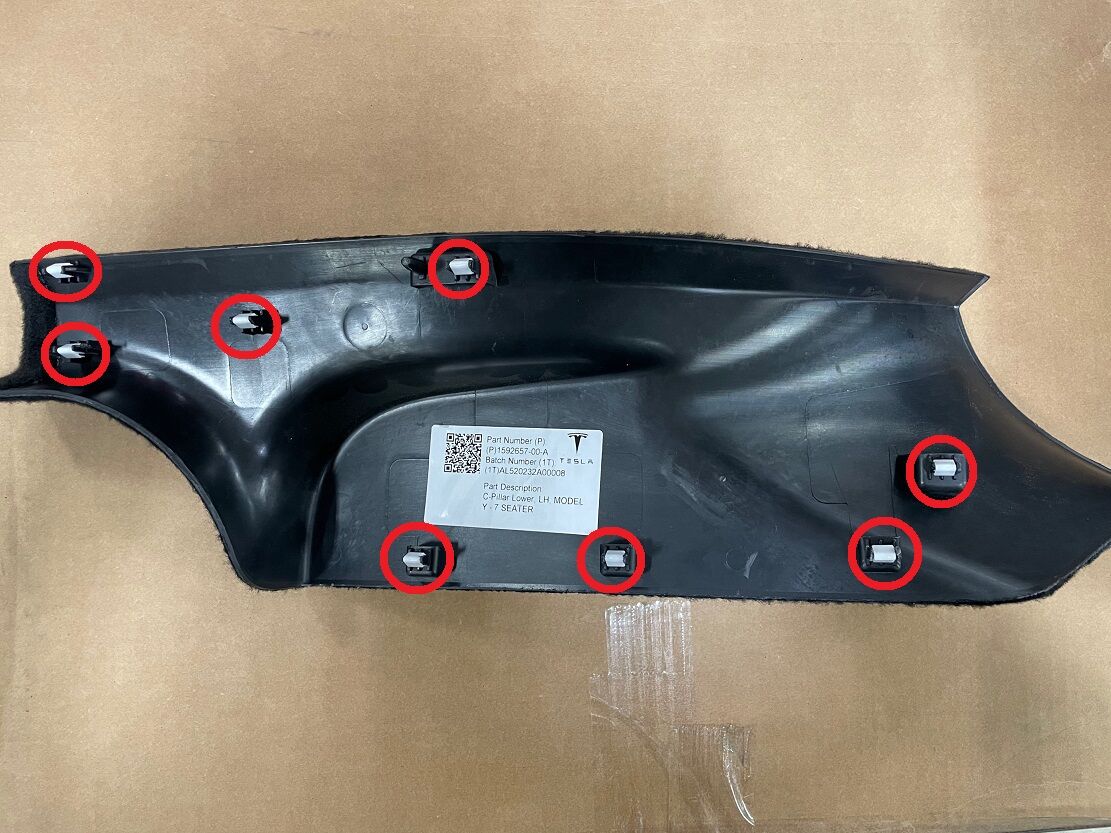

    8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim

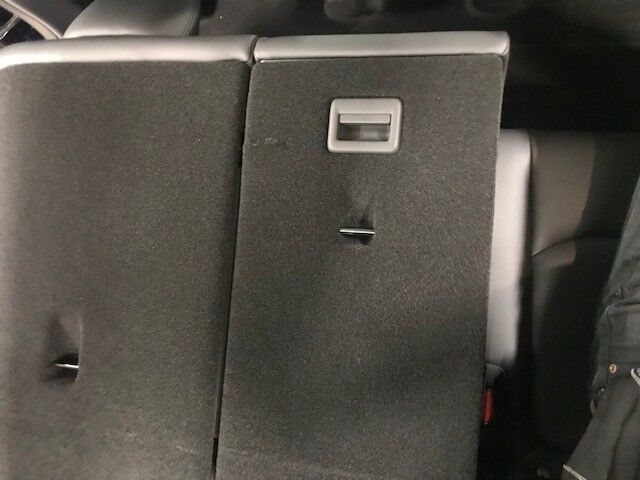

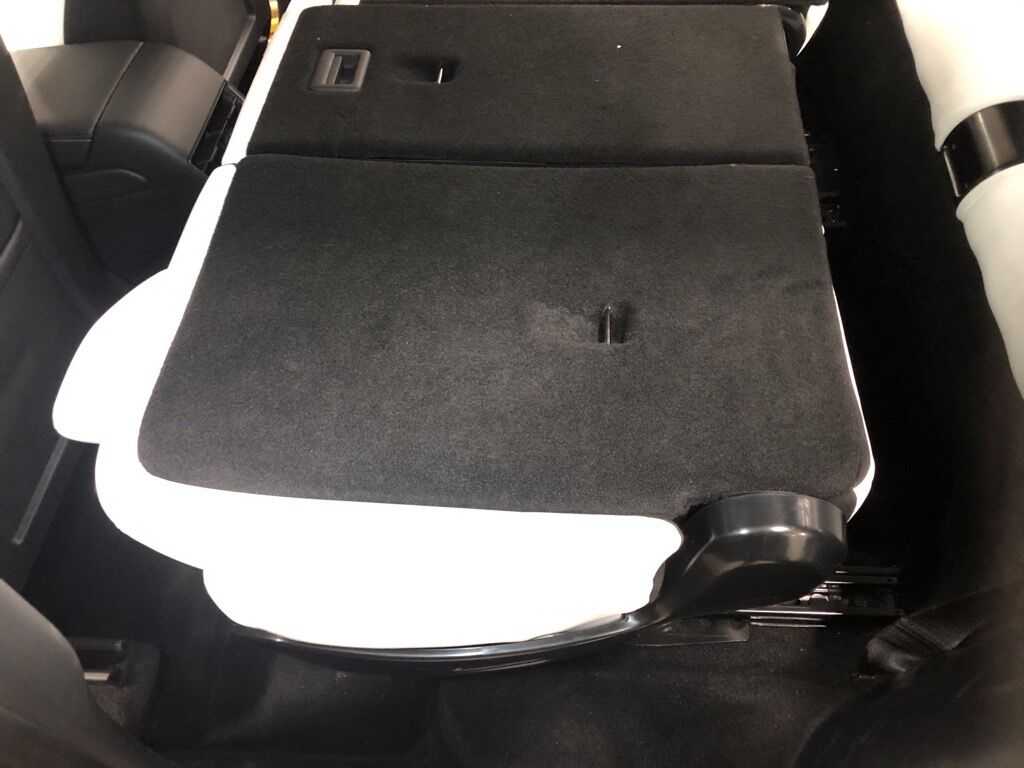

  7. Fold 60 seat into down position

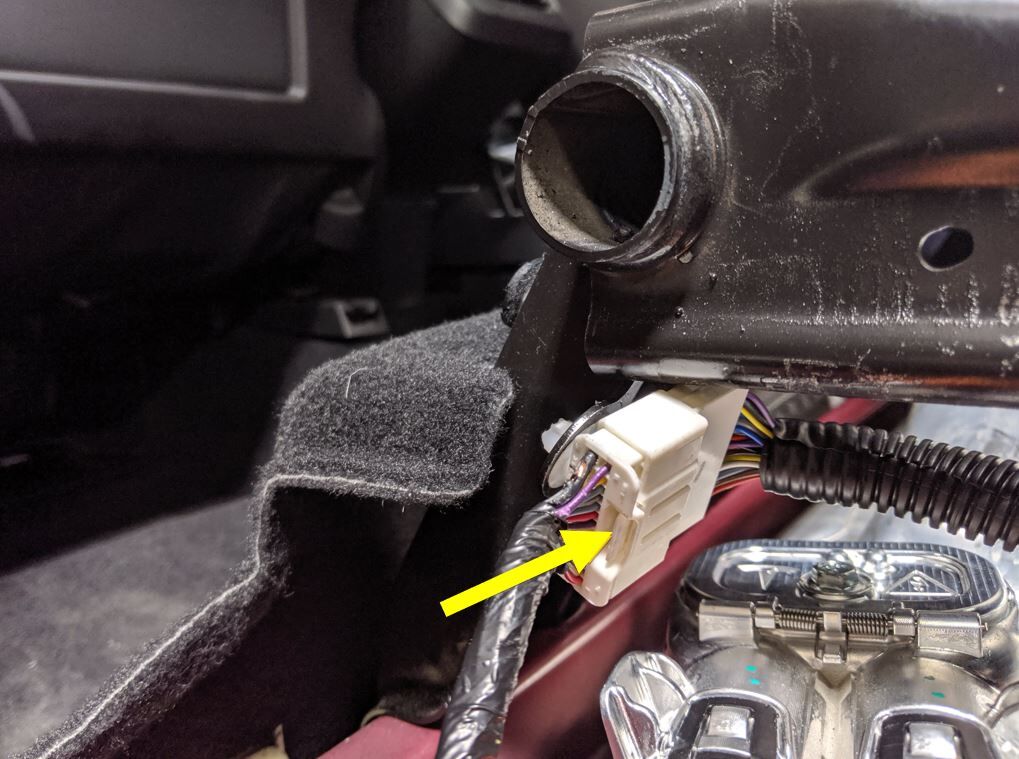

  8. Disconnect logic connector at LH seat frame
    Informational PurposesAn informational icon, calling your attention
    1x connector

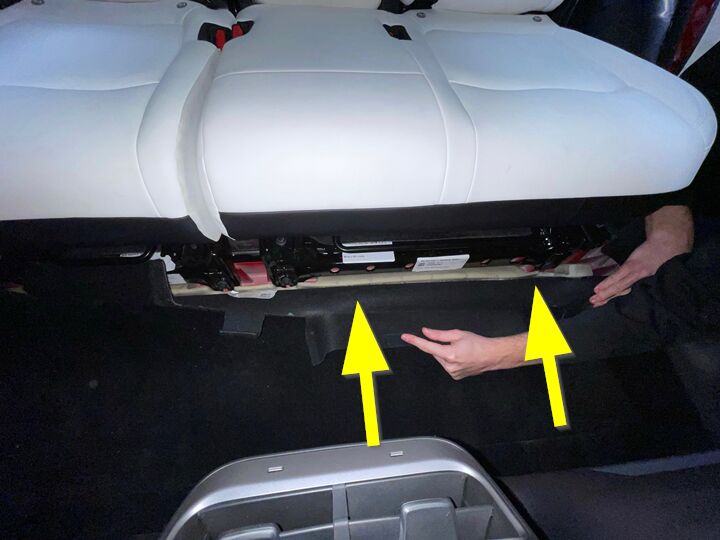

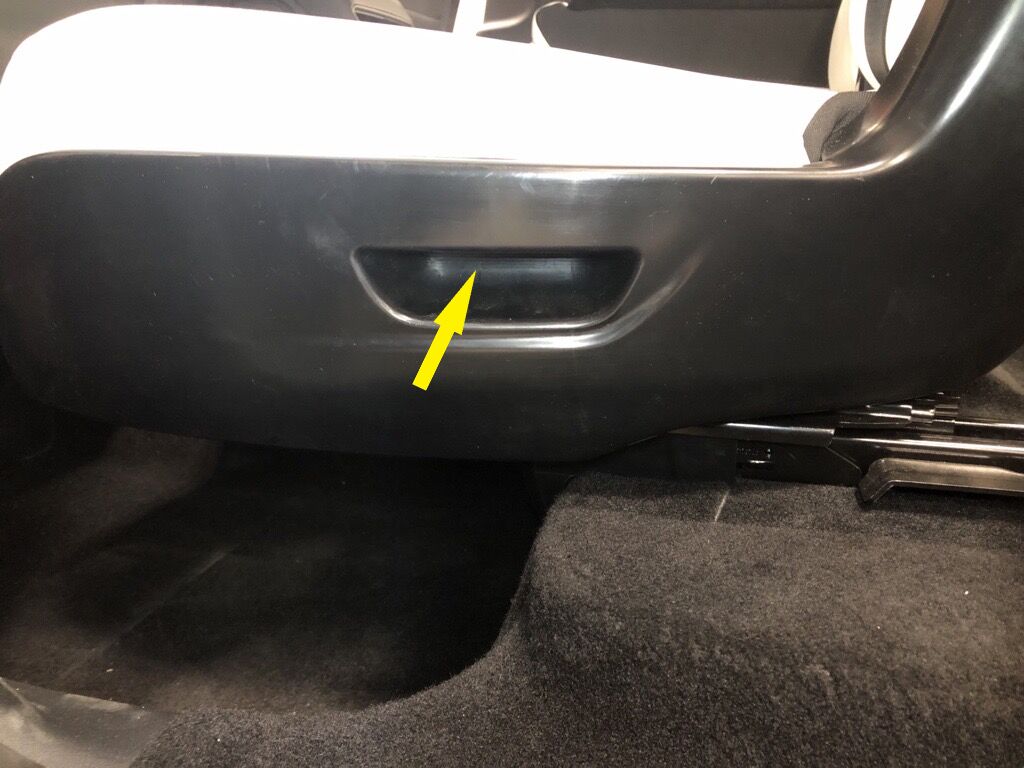

  9. Move 60 seat forward using towel bar
    Informational PurposesAn informational icon, calling your attention
    With one hand on towel bar pull up and slide the seat forward with your other hand

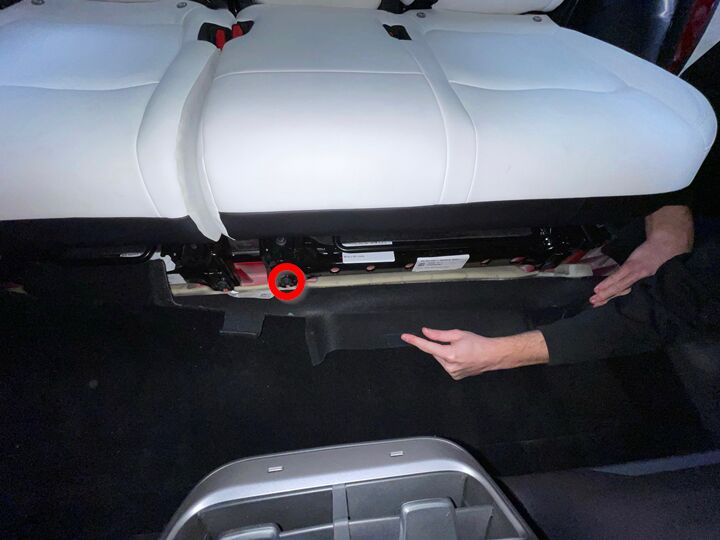

  10. Remove 60 seat rear outboard track fastener
    Informational PurposesAn informational icon, calling your attention
    1x patch bolt, 11mm, 37 Nm, Discard after removal

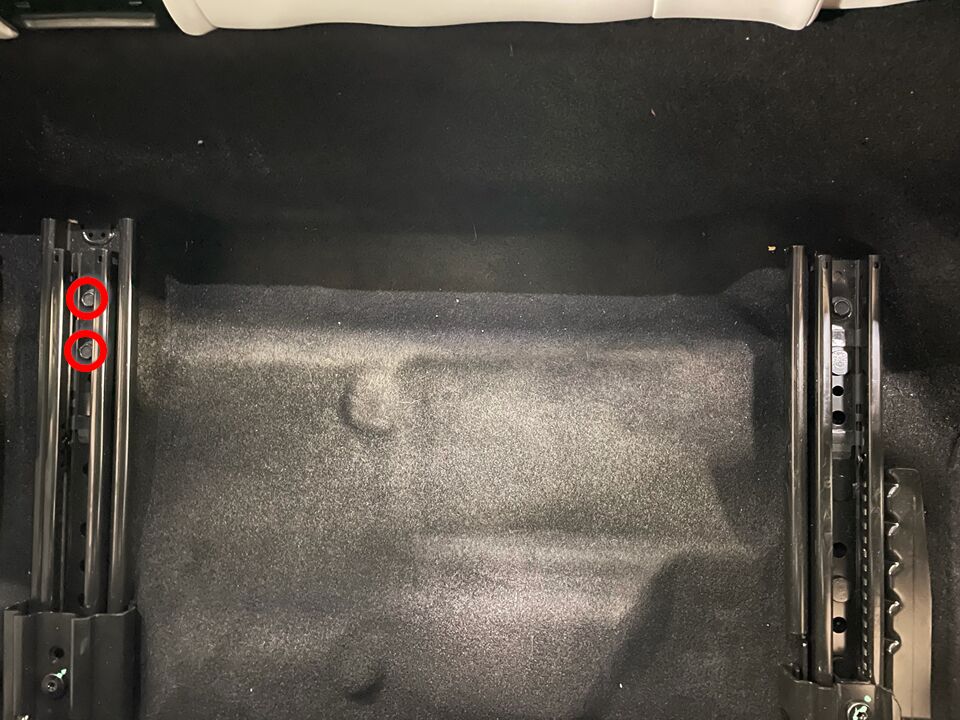

  11. Remove 60 seat rear inboard track fasteners
    Informational PurposesAn informational icon, calling your attention
    2x patch bolts, 11mm, 37 Nm, Discard after removal

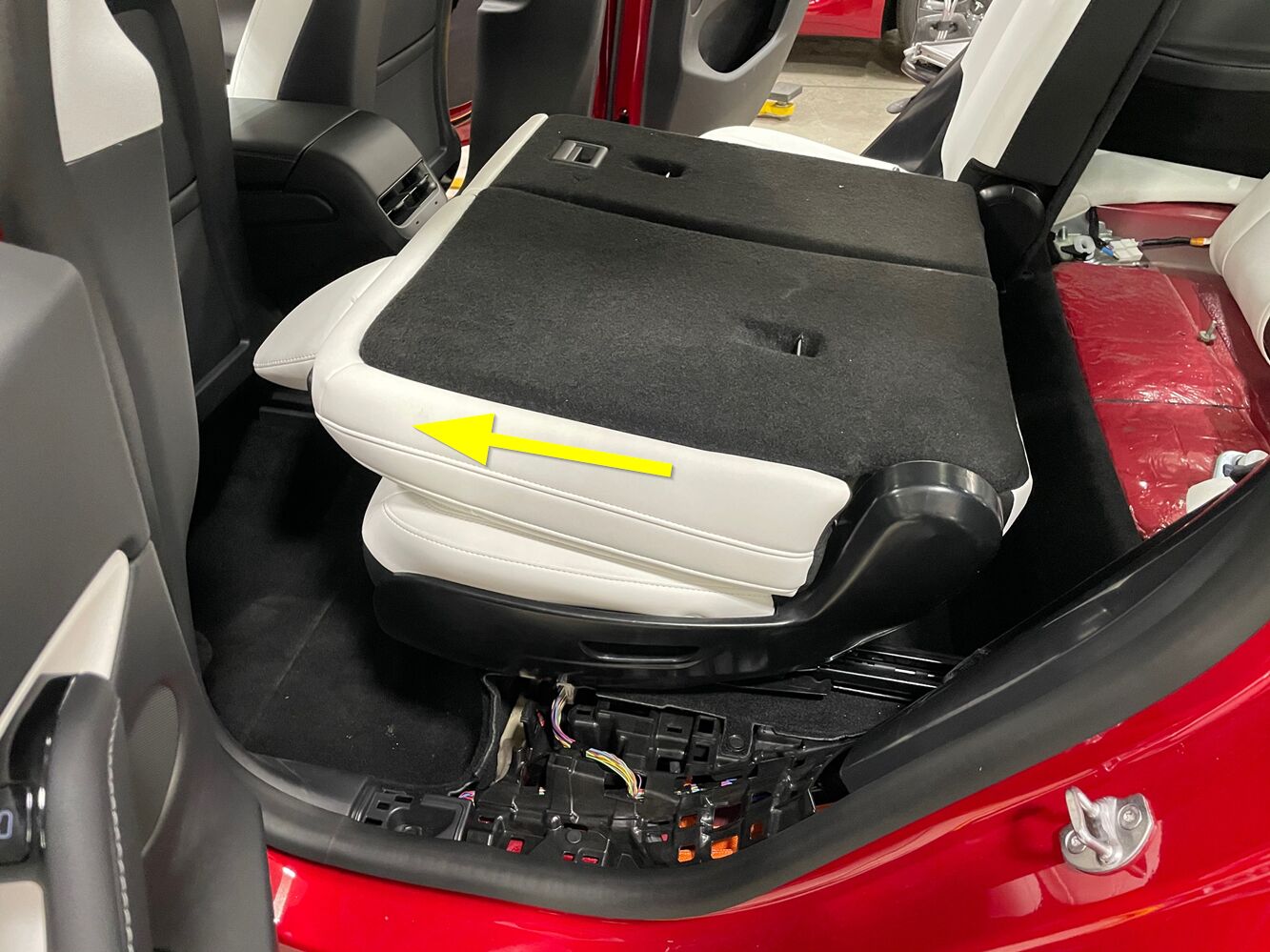

  12. Move 60 seat fully rearward using towel bar
    Informational PurposesAn informational icon, calling your attention
    With one hand on towel bar pull up and slide the seat forward with your other hand

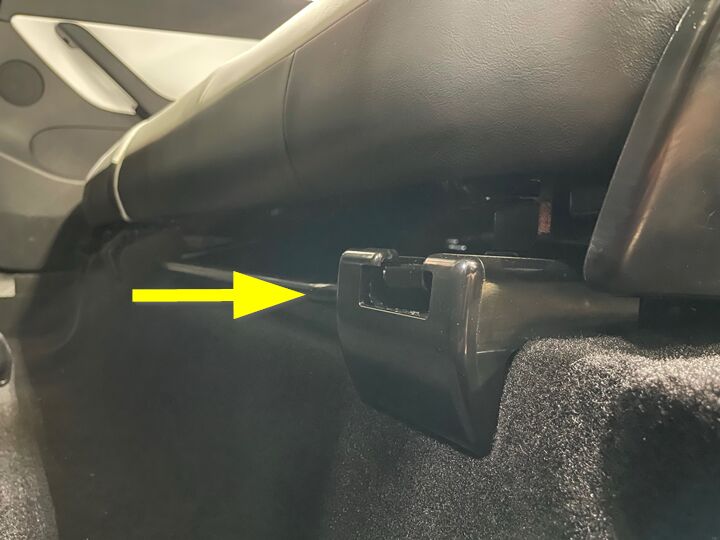

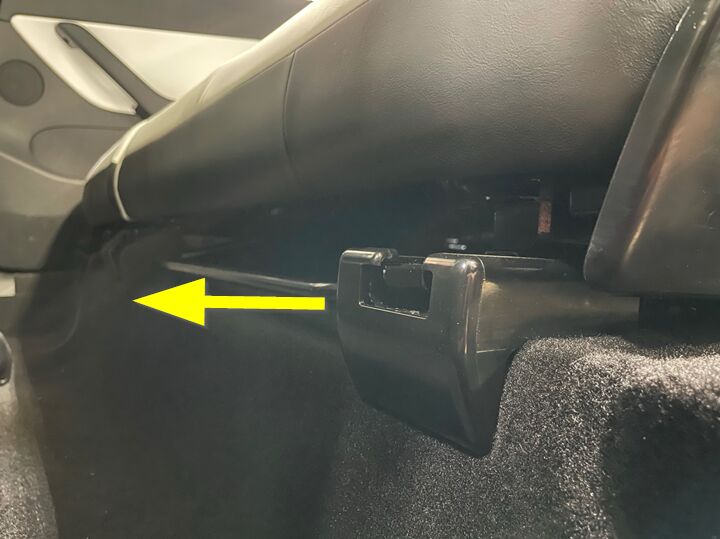

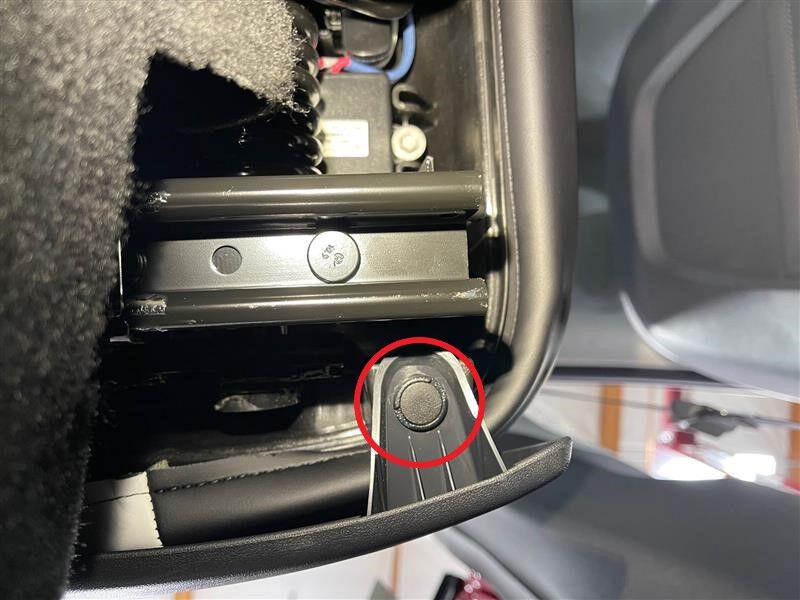

  13. Remove 60 seat outboard track cover
    Informational PurposesAn informational icon, calling your attention
    1x clip, Slide covers forward to release from 60 seat tracks
  14. Remove center track cover from 2nd row seats
    Informational PurposesAn informational icon, calling your attention
    2x clips, Slide covers forward to release from 2nd row seat tracks

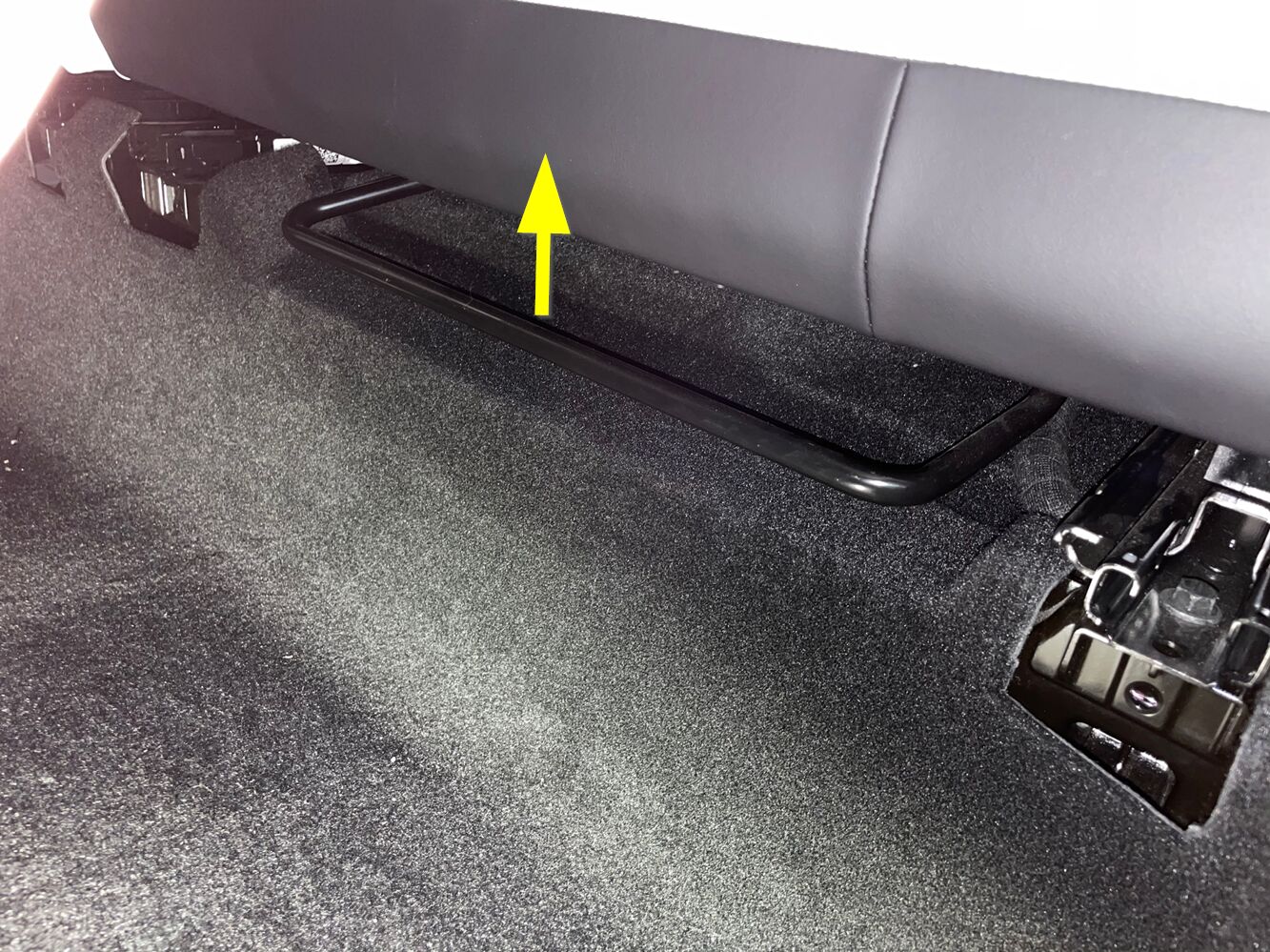

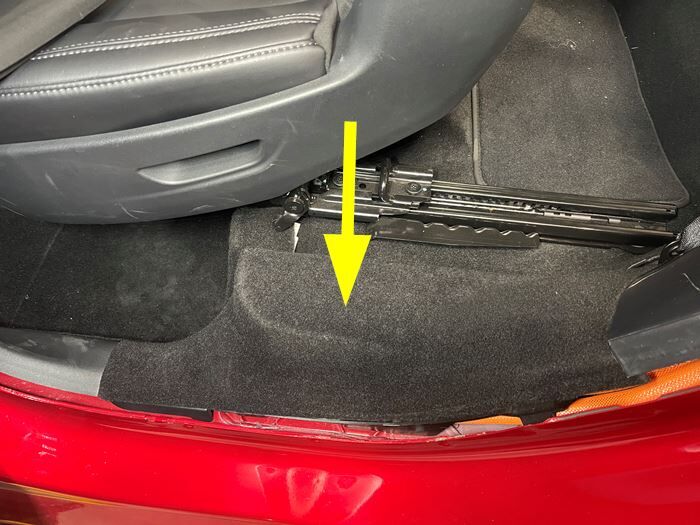

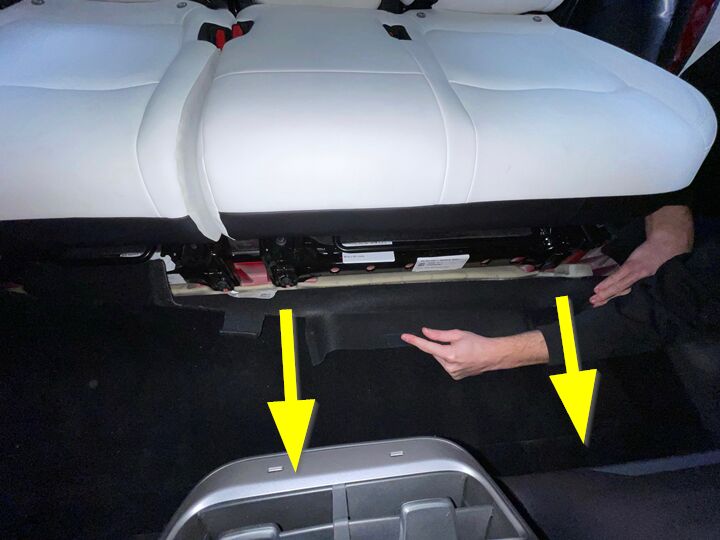

  15. Release cabin carpet from 60 seat
    Informational PurposesAn informational icon, calling your attention
    Pull cabin carpet towards front of vehicle

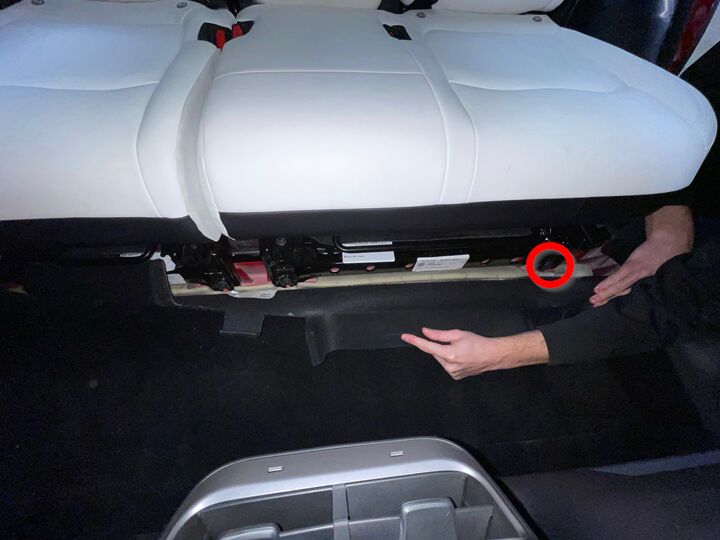

  16. Remove 60 seat front inboard track fasteners
    Informational PurposesAn informational icon, calling your attention
    1x bolts, 11mm, 37 Nm, Discard after removal
  17. Remove 60 seat front outboard track fasteners
    Informational PurposesAn informational icon, calling your attention
    1x bolts, 11mm, 37 Nm, Discard after removal

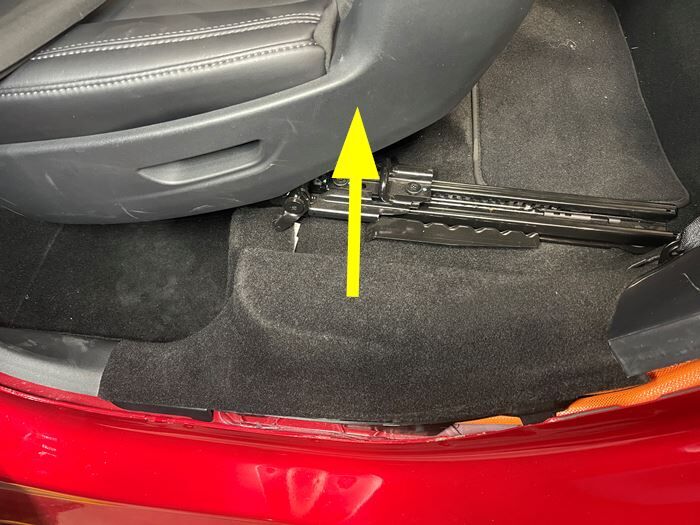

  18. Remove 2nd row 60 seat assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Recommend assistance

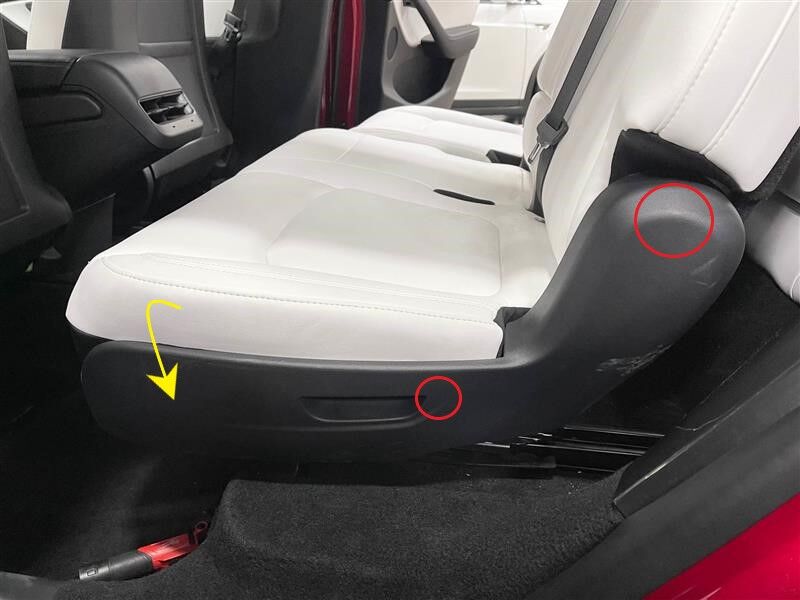

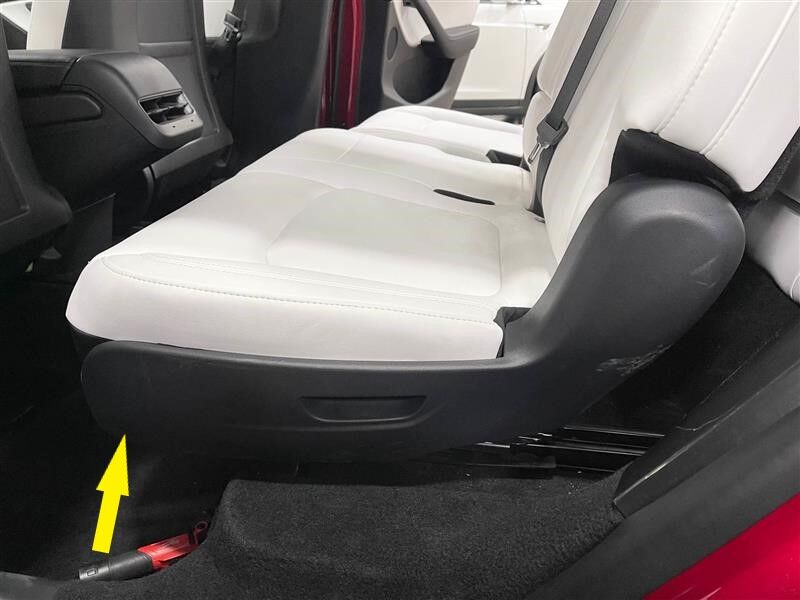

  19. Remove front push clip from 60 outer sideshield assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip, Use pick to remove the push clip from the bottom side of the outboard cover

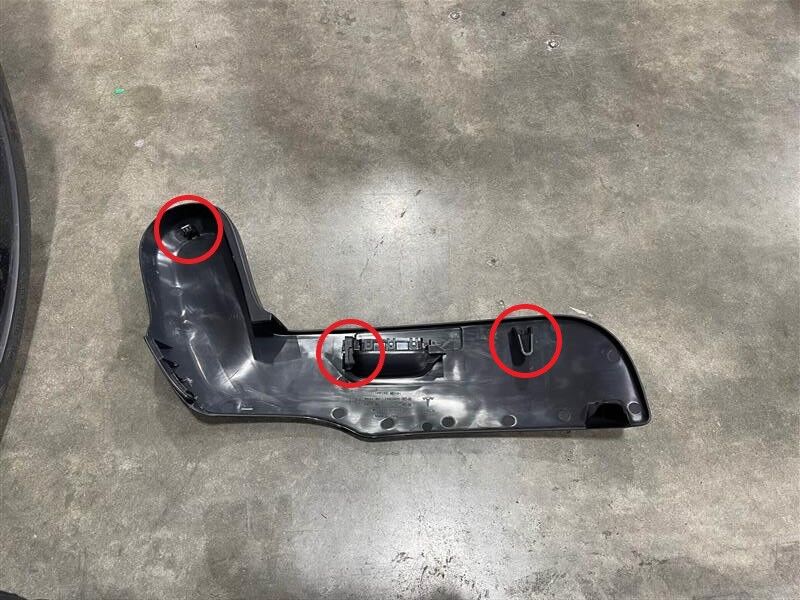

  20. Remove 60 outer sideshield assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection

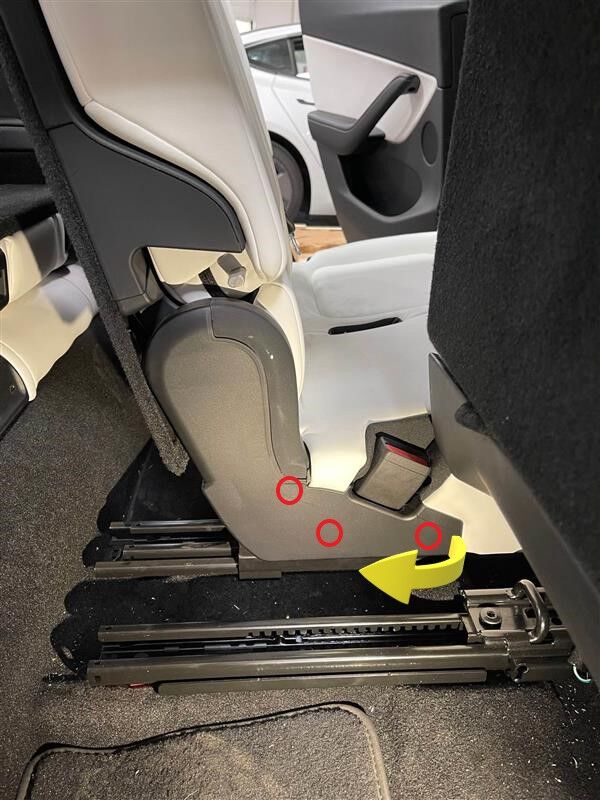

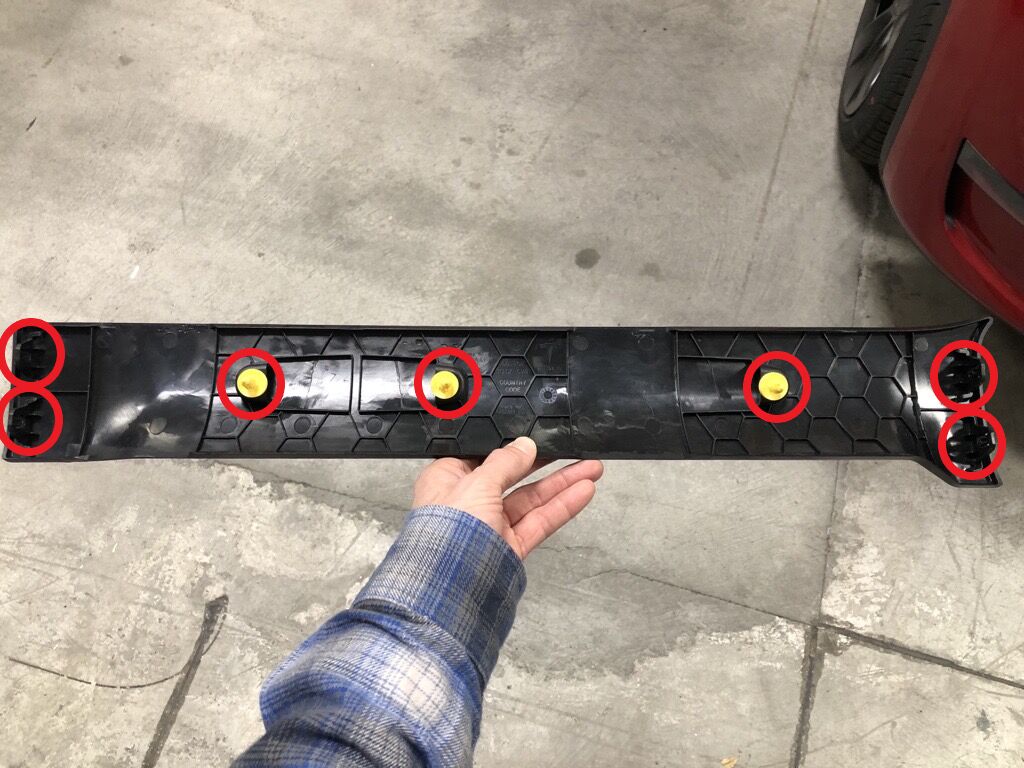

  21. Remove 60 seat toe kick cover
    Informational PurposesAn informational icon, calling your attention
    7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
  22. Release clips and remove inboard outer trim from 60 seat
    Informational PurposesAn informational icon, calling your attention
    3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle

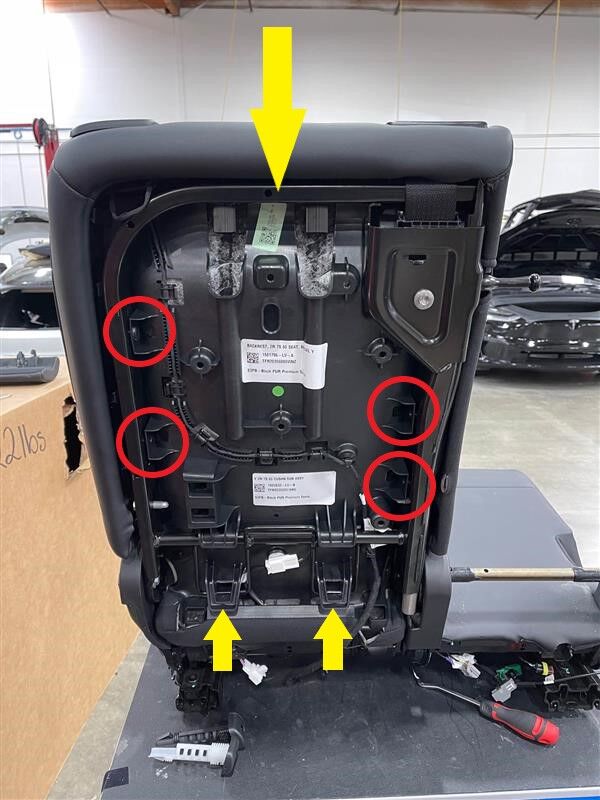

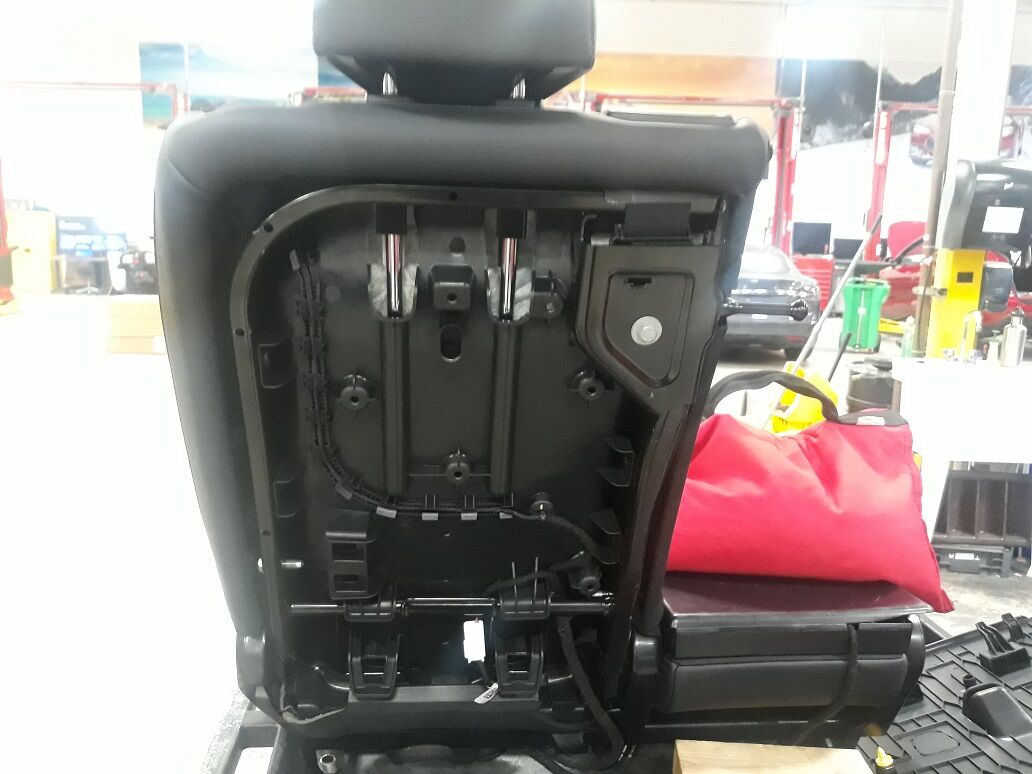

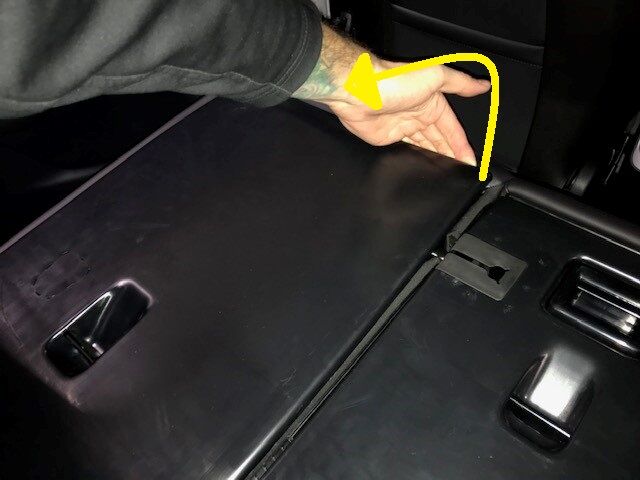

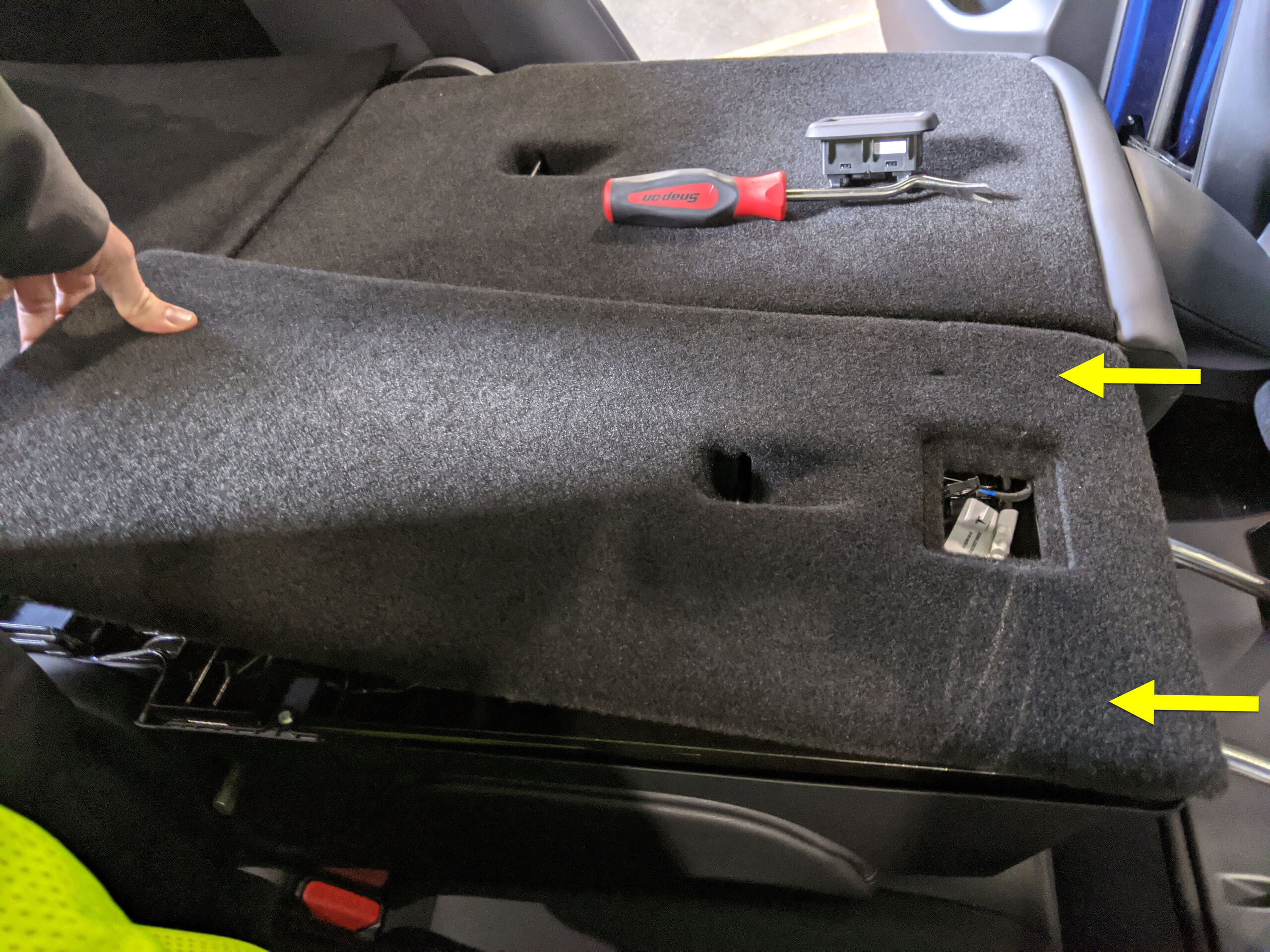

  23. Remove 60 seatback panel
    Informational PurposesAn informational icon, calling your attention

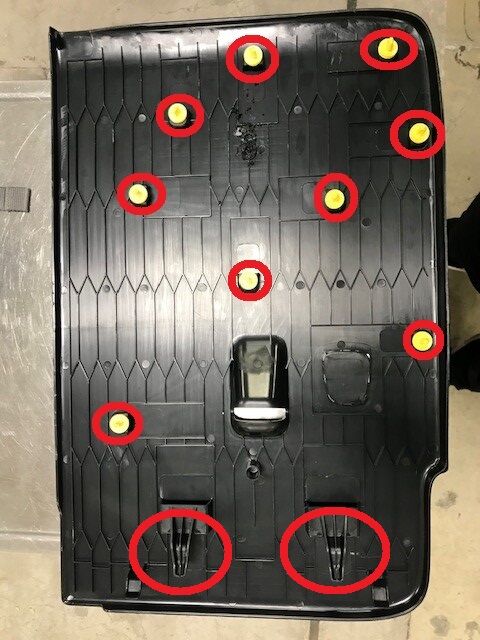

    9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove

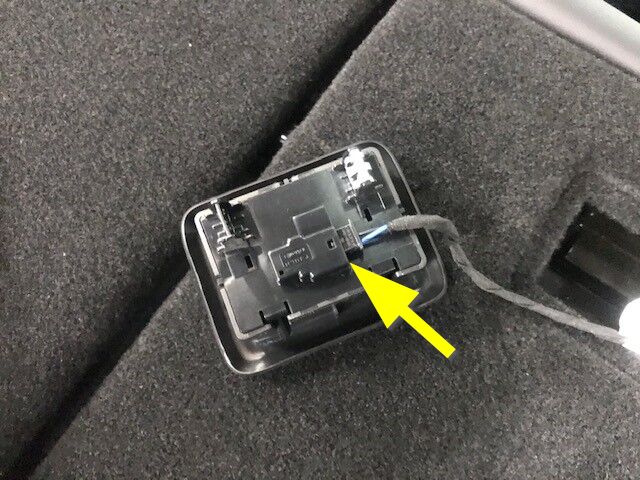

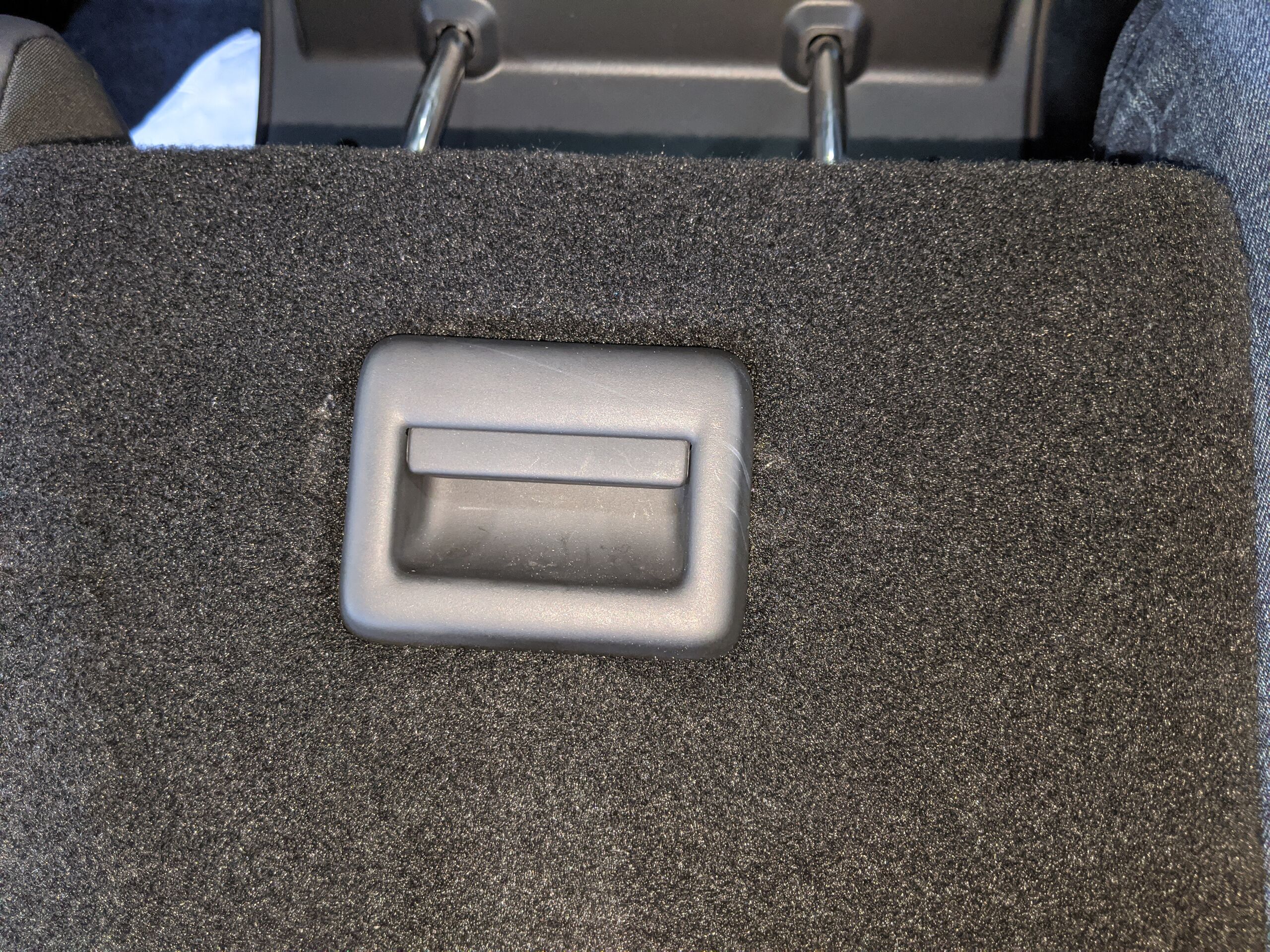

  24. Remove 2nd row center seat switch
    Informational PurposesAn informational icon, calling your attention
    1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal

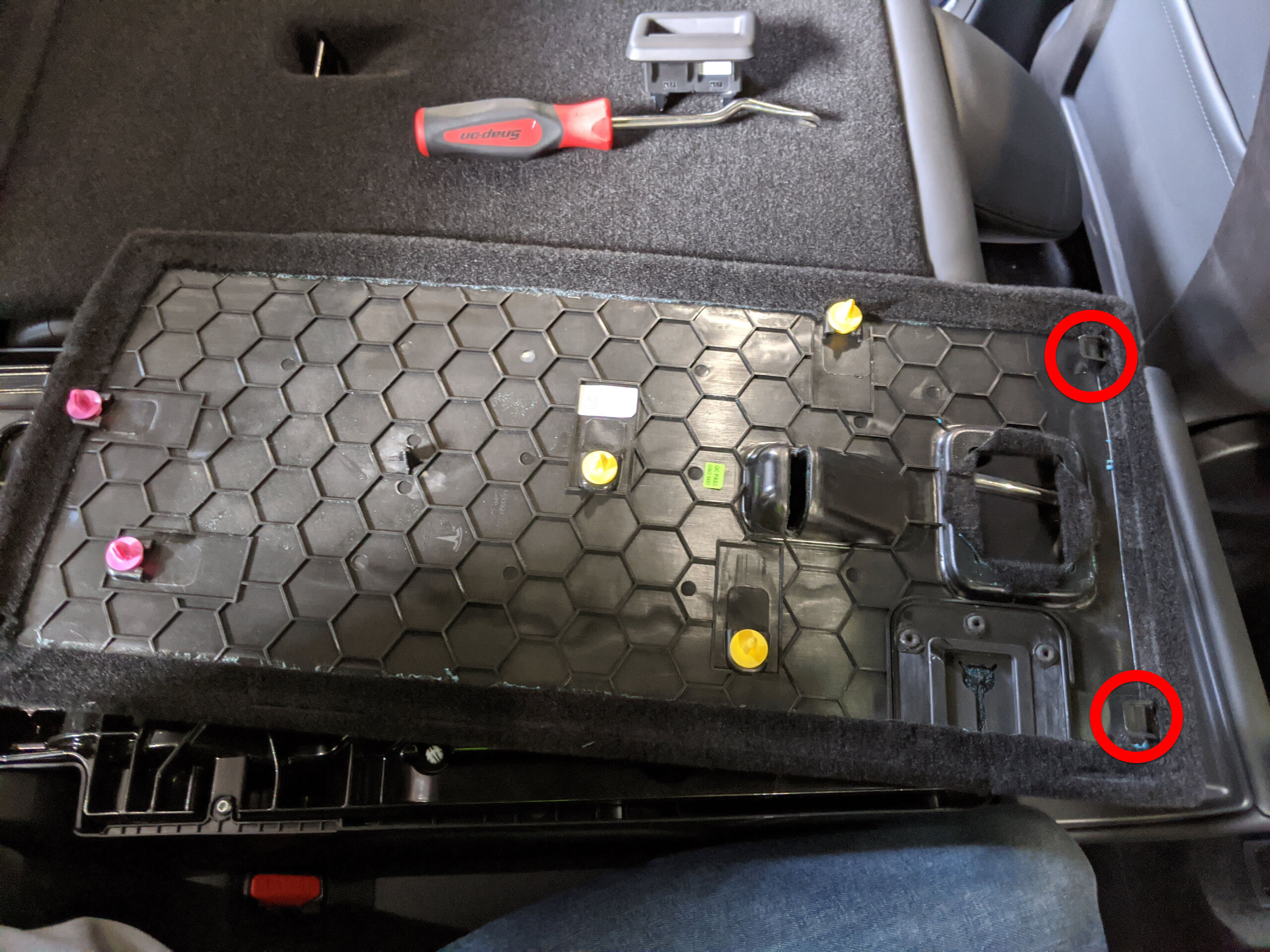

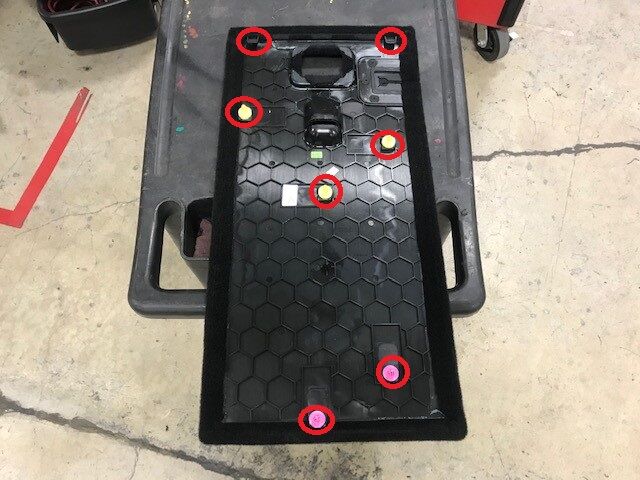

  25. Remove center backpanel from center seatback
    Informational PurposesAn informational icon, calling your attention
    5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release

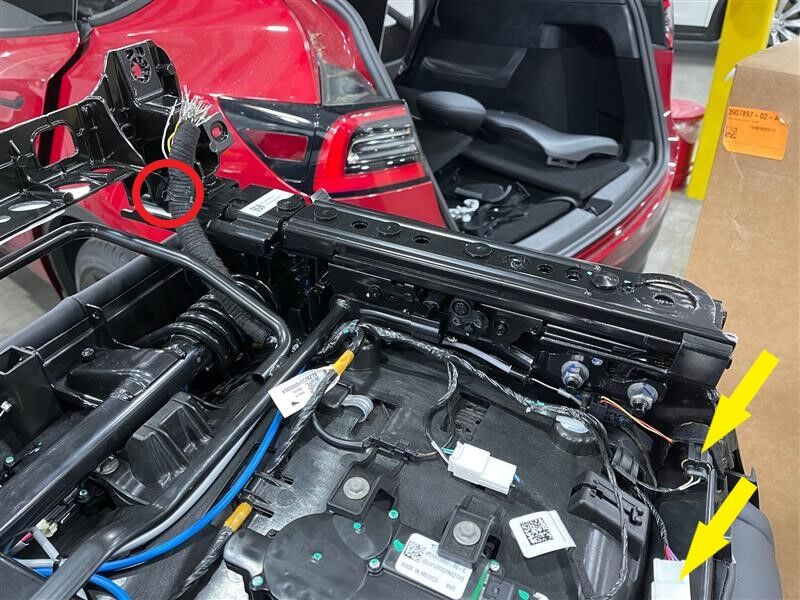

  26. Release 60 seat harness connectors and clip from seat from seat frame
    Informational PurposesAn informational icon, calling your attention
    1x clip, 7x connectors
  27. Disconnect seat cables from easy entry actuators on 60 seat
    Informational PurposesAn informational icon, calling your attention
    4x clips

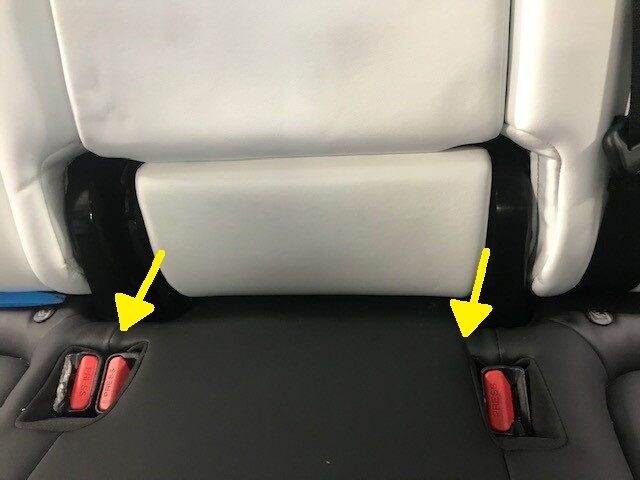

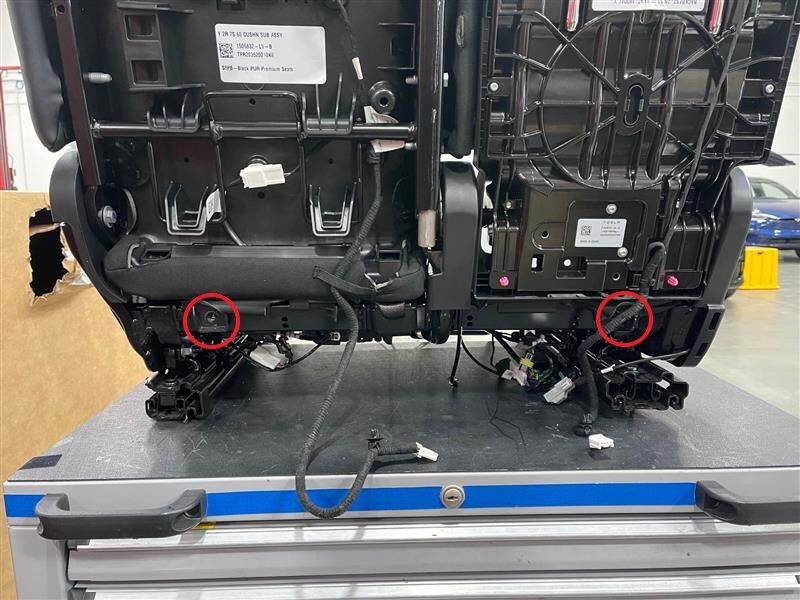

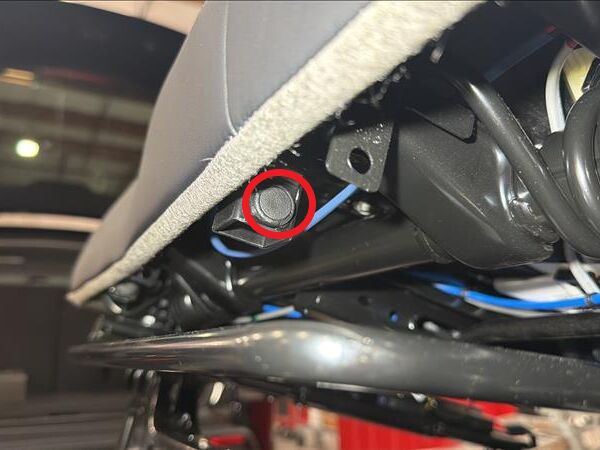

  28. Remove push clips for 60 bottom seat pan
    Informational PurposesAn informational icon, calling your attention
    2x clips, Remove push clips from front of seat pan
  29. Remove center seatback lumbar bun fastener
    Informational PurposesAn informational icon, calling your attention
    1x screw, T20, 1.5 Nm
  30. Remove center seatback lumbar bun
    Informational PurposesAn informational icon, calling your attention
    2x clips, Pull bolster outwards to release

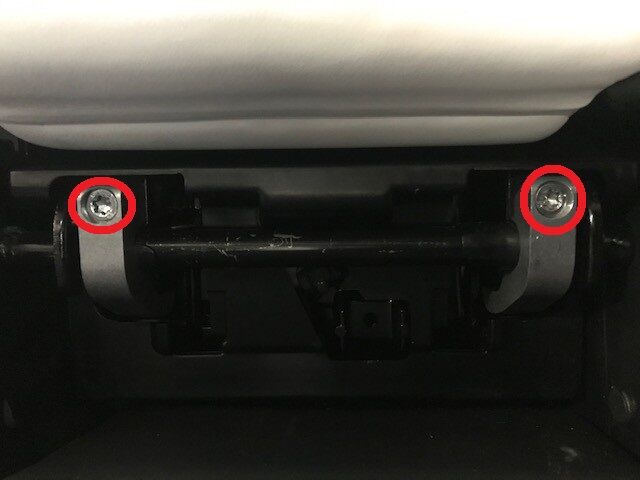

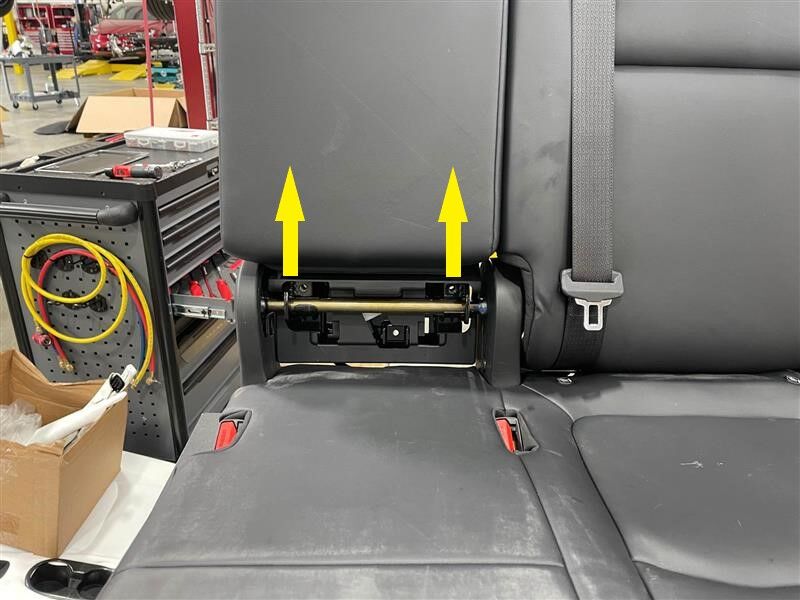

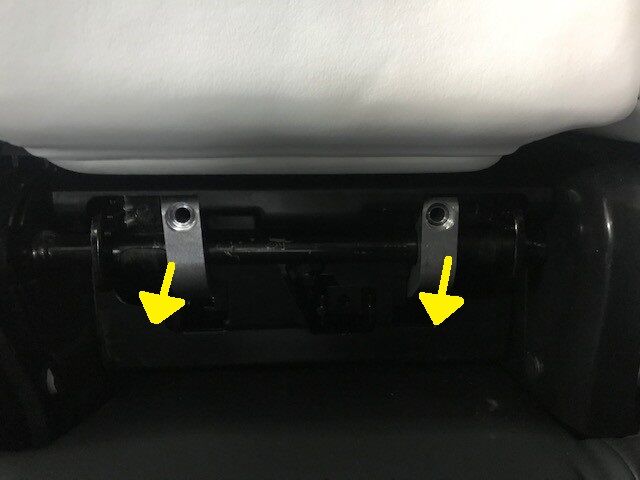

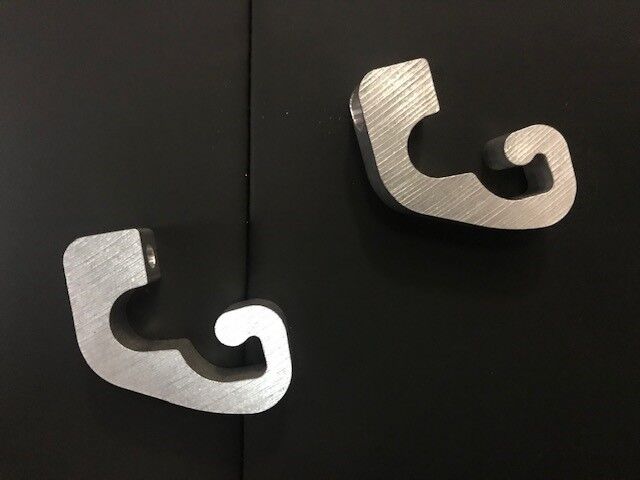

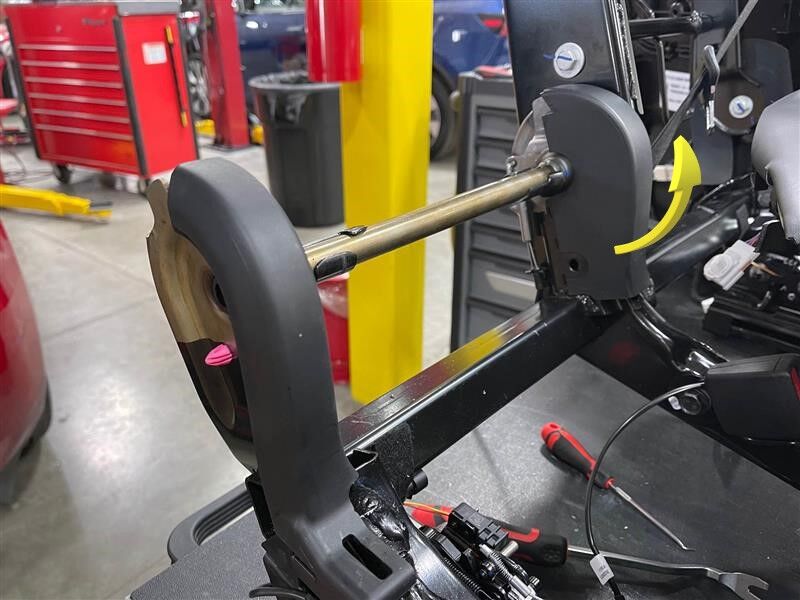

  31. Remove center seatback pivot clamps
    Informational PurposesAn informational icon, calling your attention
    2x bolts, T40, 22 Nm, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove

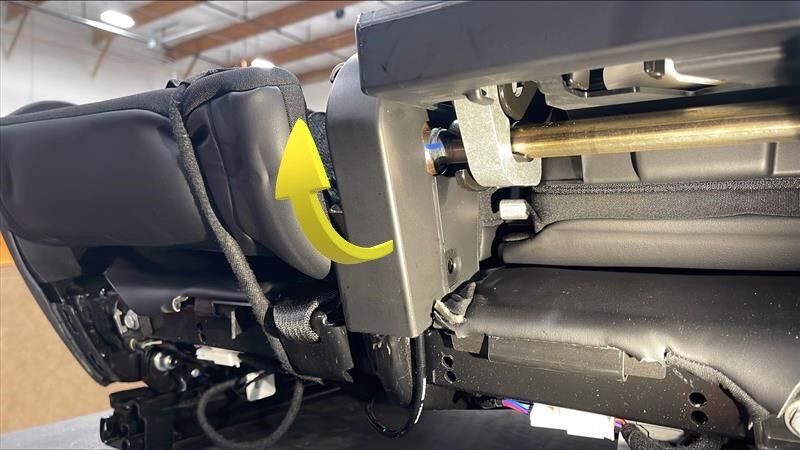

  32. Remove center seatback from 60 seat frame
    Informational PurposesAn informational icon, calling your attention
    Remove center seatback by lifting upwards

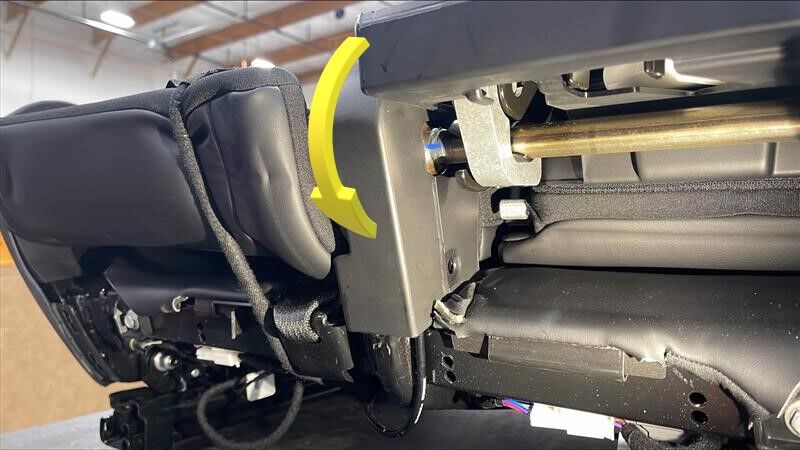

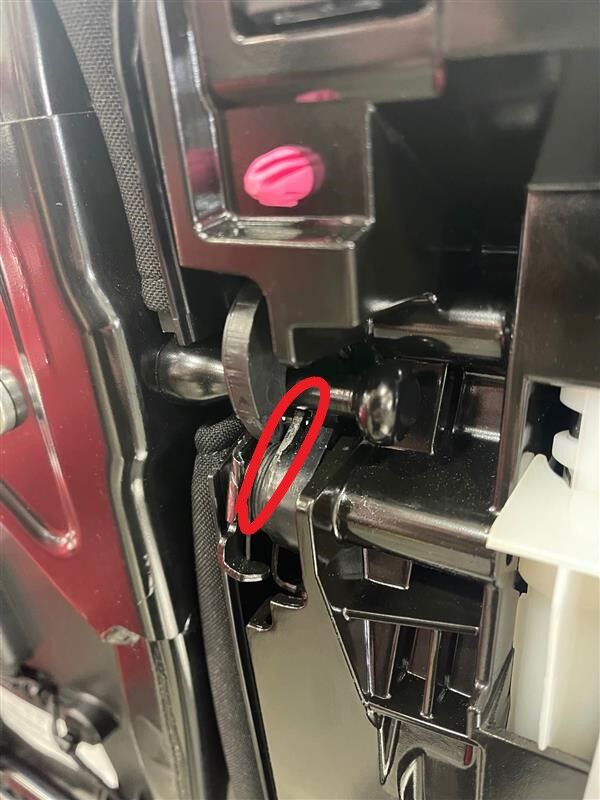

  33. Manually release the center seatback latch
    Informational PurposesAn informational icon, calling your attention

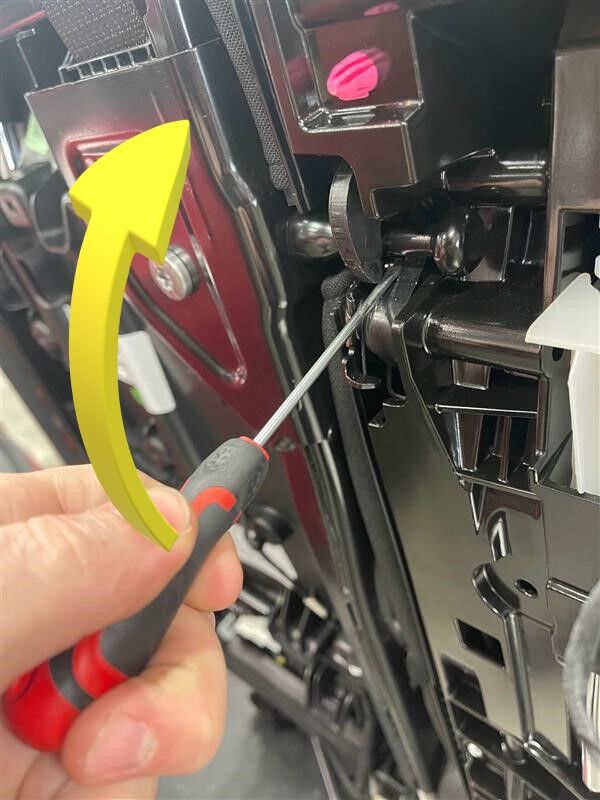

    Use small screwdriver to manipulate the center seatback latch to release

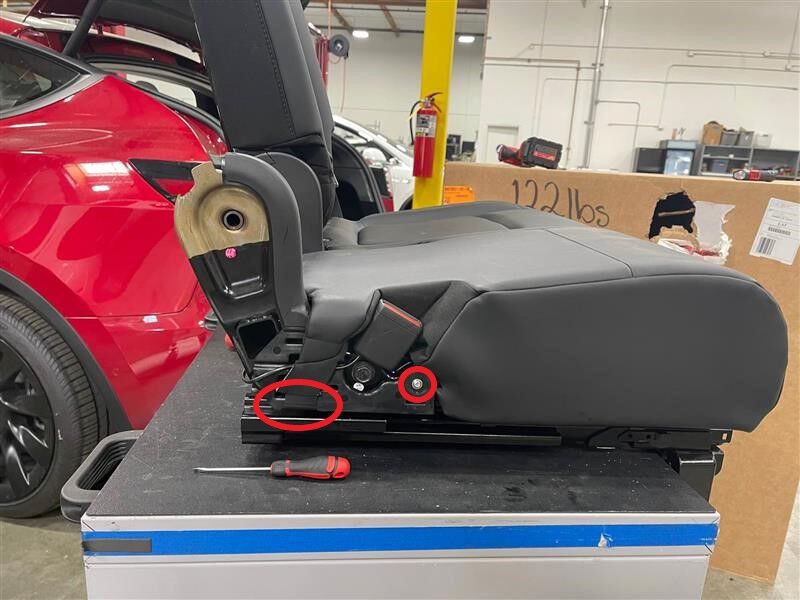

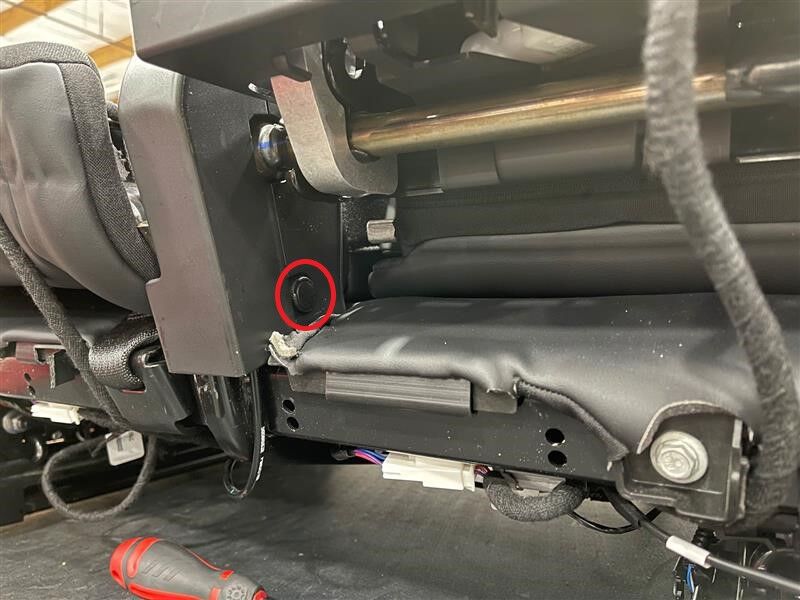

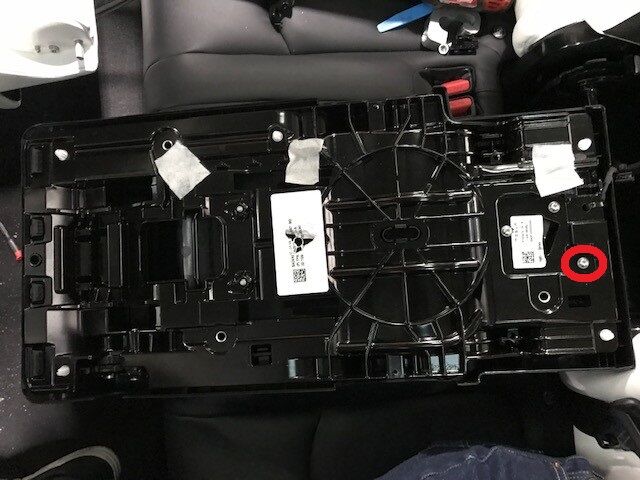

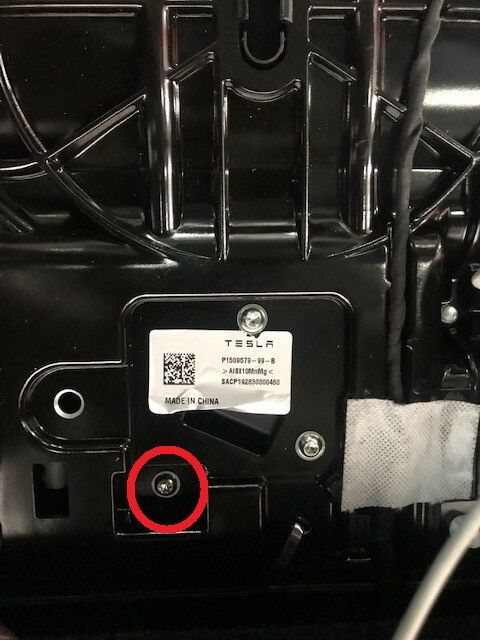

  34. Remove fasteners securing 60 seat pan to seat frame
    Informational PurposesAn informational icon, calling your attention
    4x fastener, 3x 10mm, 6 Nm, 1x T25, 1.5 Nm, 1x clip, Remove remaining bolts attaching seat pan to seat frame

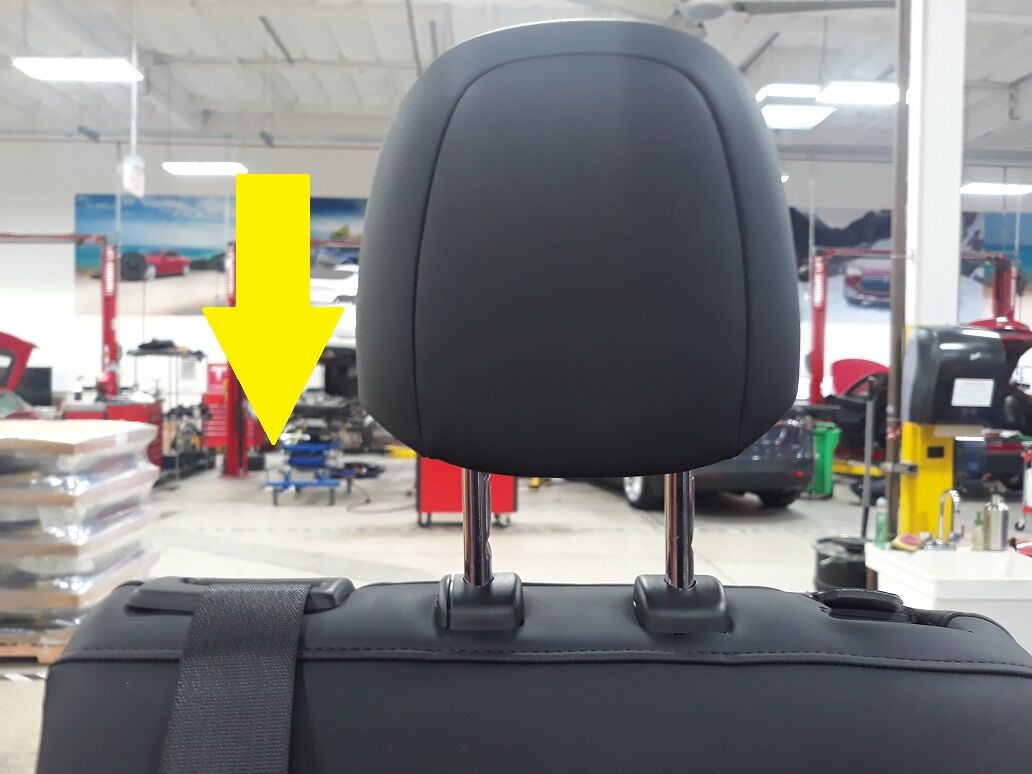

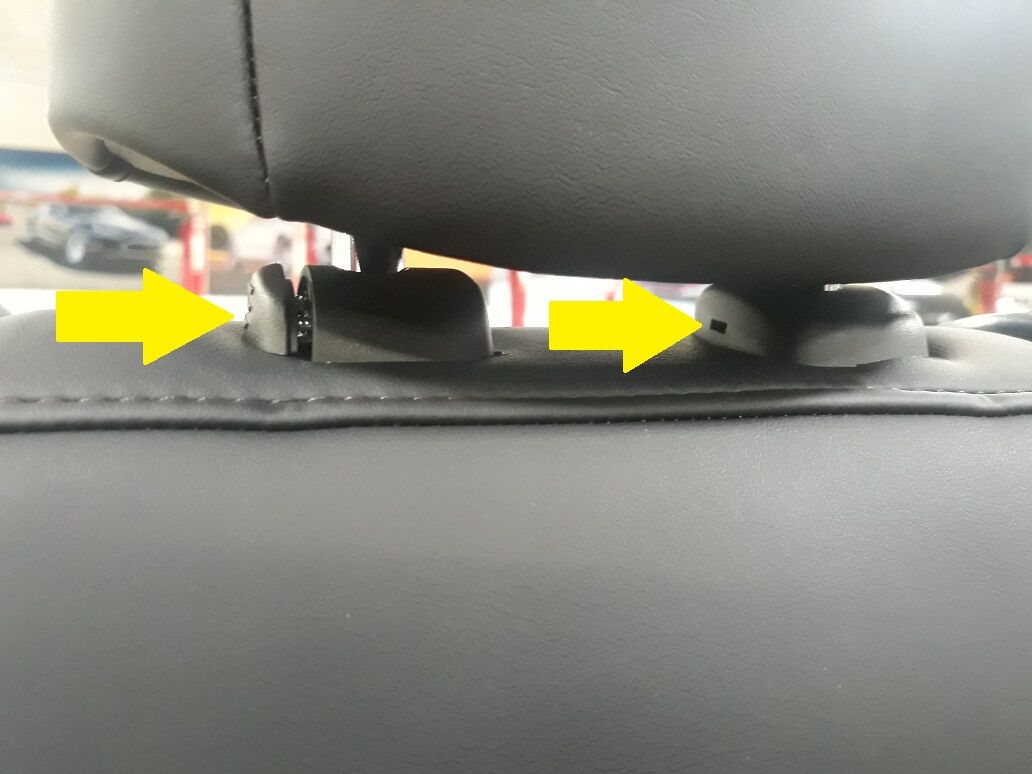

  35. Remove headrest from 60 seat assembly
    Informational PurposesAn informational icon, calling your attention

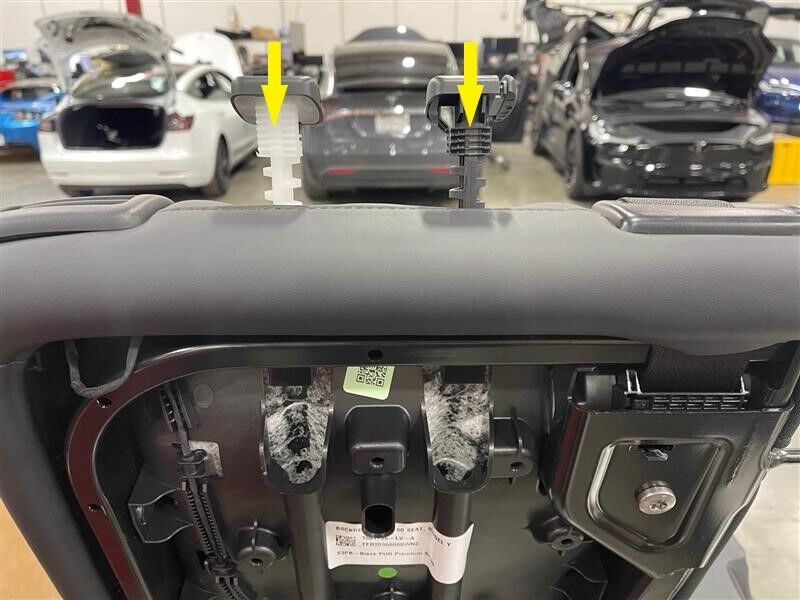

    Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged

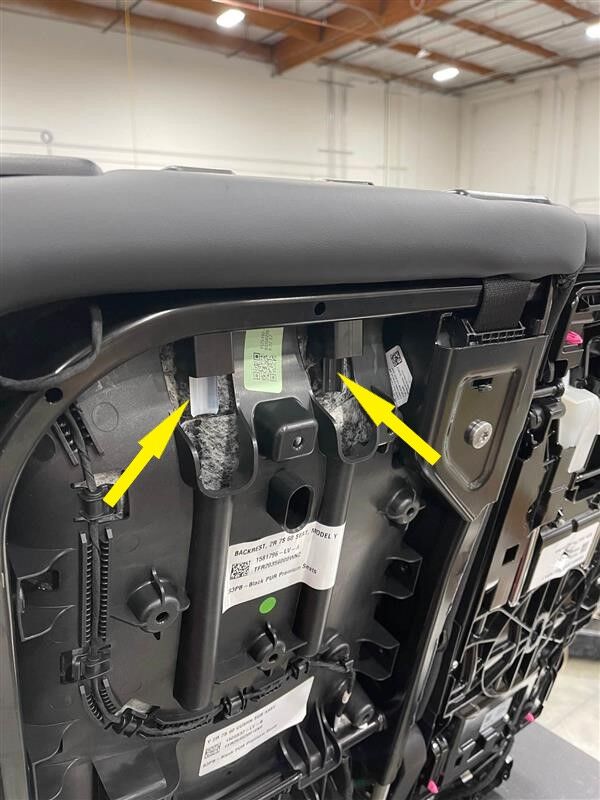

  36. Remove headrest guides from 60 seat
    Informational PurposesAn informational icon, calling your attention
    Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides

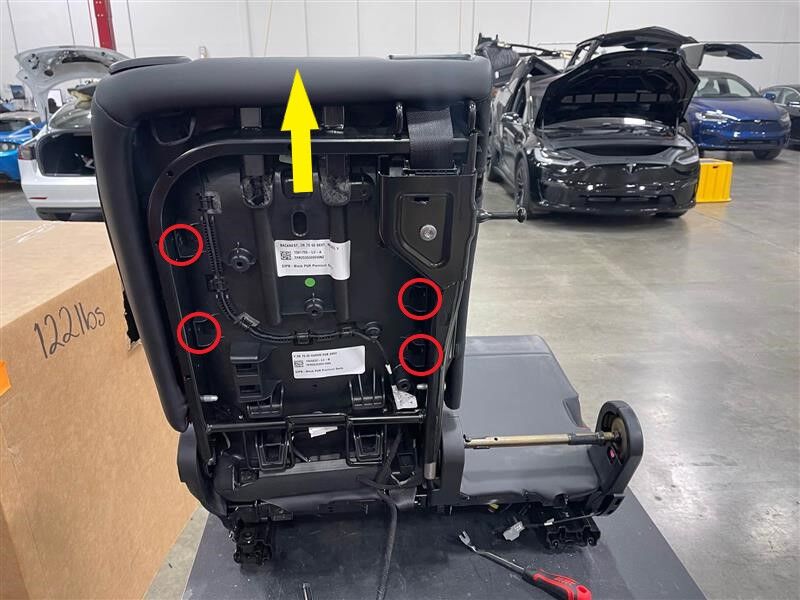

  37. Remove 60 seatback
    Informational PurposesAn informational icon, calling your attention
    4x clips, Release clips securing 60 seatback and lift upwards

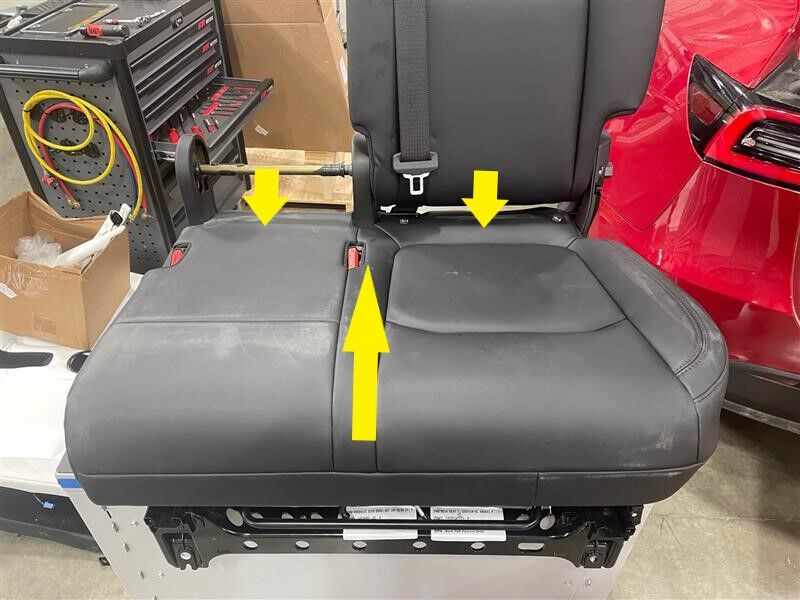

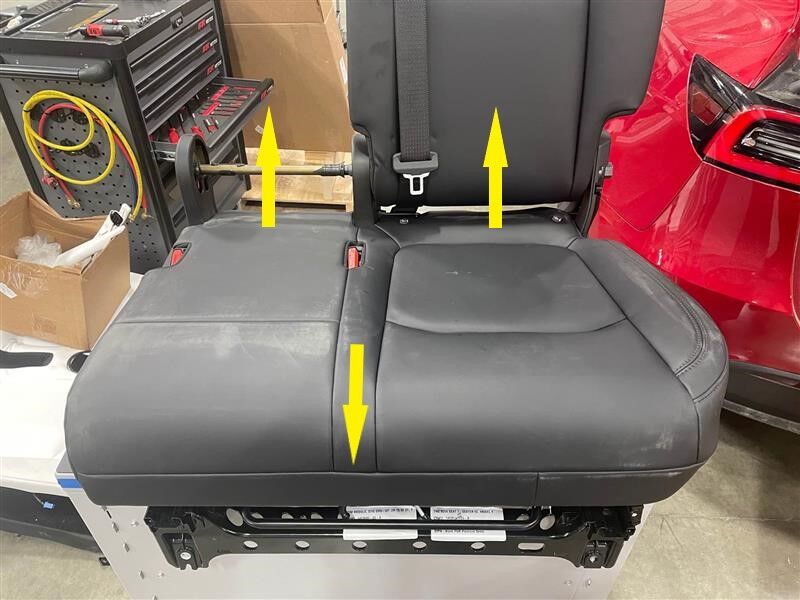

  38. Remove 60 seat bottom
    Informational PurposesAn informational icon, calling your attention
    Remove seat bottom by lifting the rear first and removing it towards front of the seat
  39. Remove push clip from trim
    Informational PurposesAn informational icon, calling your attention
    1x clip, Remove trim clip from cover

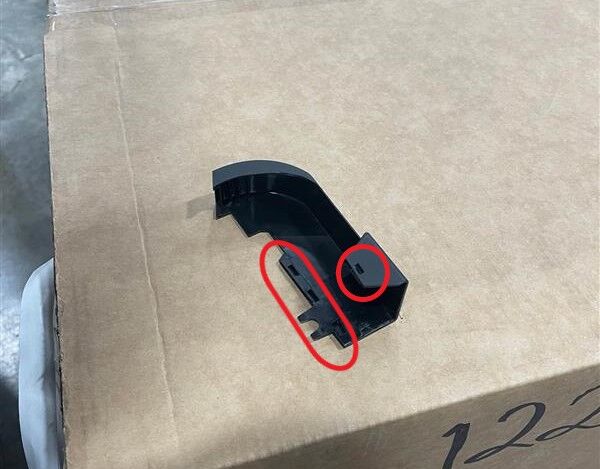

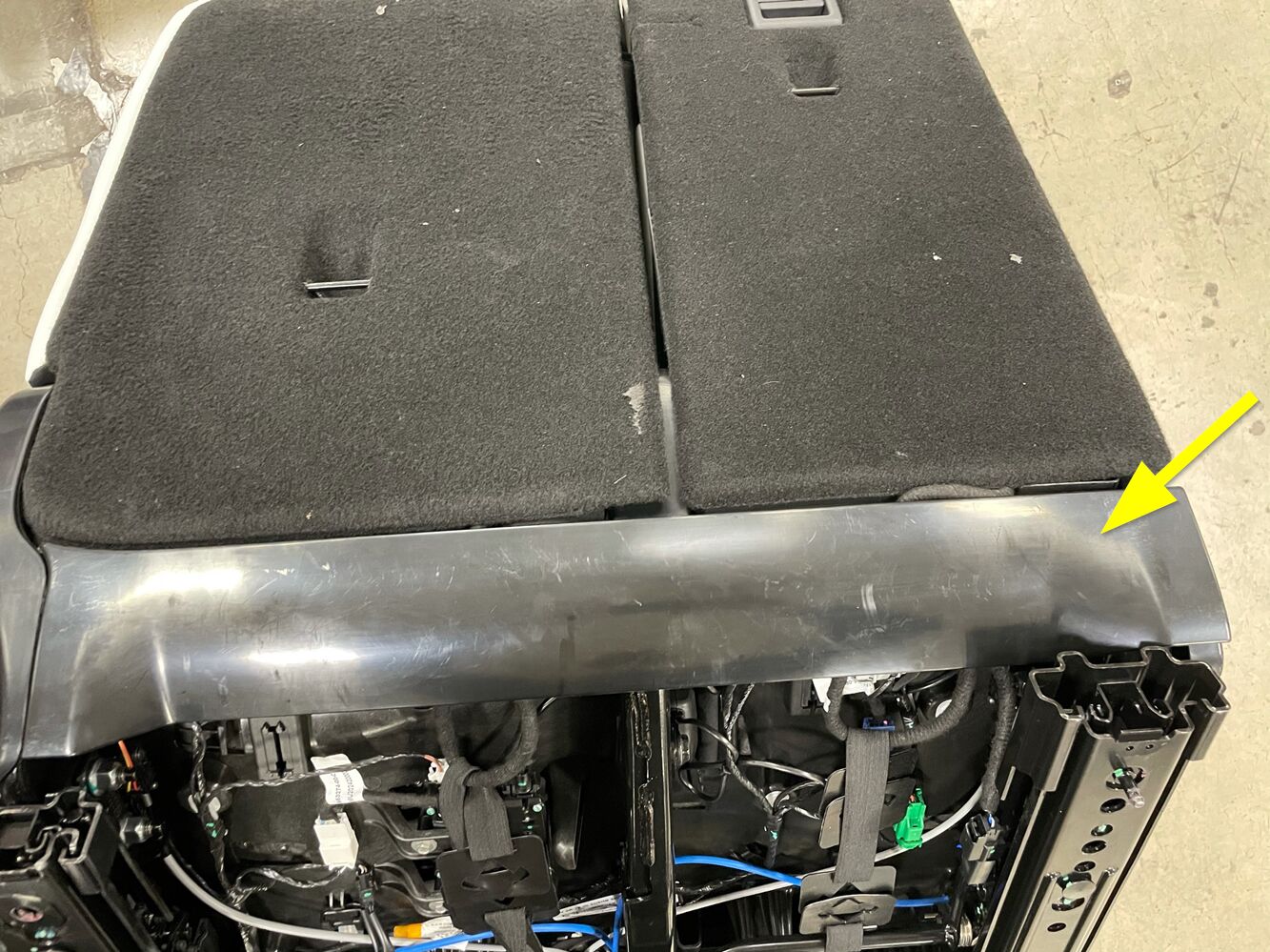

  40. Remove center inner cover
    Informational PurposesAn informational icon, calling your attention
    2x clips, Pry center inner cover back to disengage clips, Remove by lifting up while pulling back

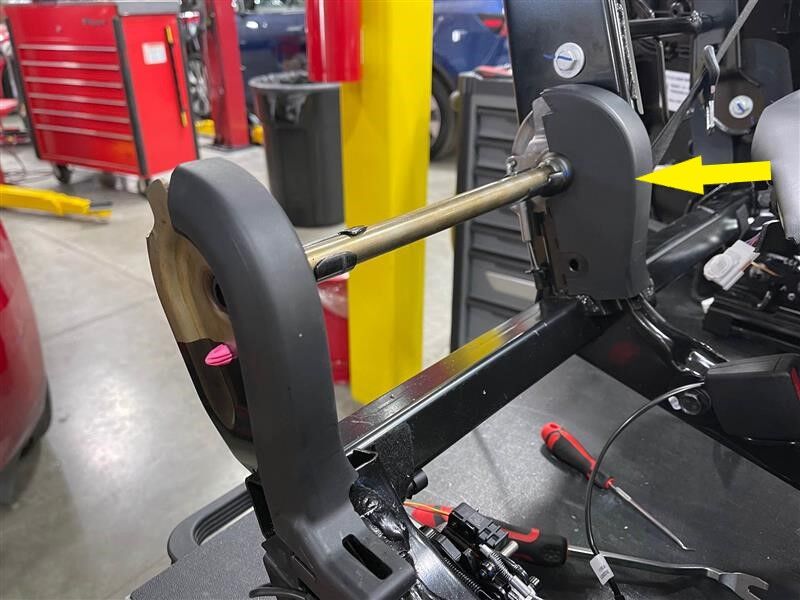

  41. Remove 60 B-Cover I/B Inner
  42. Install 60 B-Cover I/B Inner trim
  43. Install center inner cover
    Informational PurposesAn informational icon, calling your attention
    2x clips, Install inner cover ensuring the clips seat to outer cover
  44. Install push clip to trim
    Informational PurposesAn informational icon, calling your attention
    1x clip
  45. Place 60 seat pan onto seat frame
    Informational PurposesAn informational icon, calling your attention
    Reinstall seat bottom onto seat frame by starting at the rear of the seat
  46. Secure 60 seat bottom to seat frame
    Informational PurposesAn informational icon, calling your attention
    4x fasteners, 3x 10mm, 6 Nm, 1x T25, 1.5 Nm, 1x clip, Install remaining bolts attaching seat pan to seat frame
  47. Install headrest guides into 60 seat assembly
    Informational PurposesAn informational icon, calling your attention
    Install headrest guides by pressing downwards until lower tab is seated
  48. Install 60 seat back into place
    Informational PurposesAn informational icon, calling your attention
    4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
  49. Install headrest onto 60 seat assembly
    Informational PurposesAn informational icon, calling your attention
    Push down to secure
  50. Install center seatback pivot clamps
    Informational PurposesAn informational icon, calling your attention
    2x bolts, T40, 22 Nm, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
  51. Install center seatback lumbar bun fastener
    Informational PurposesAn informational icon, calling your attention
    1x screw, T20, 1.5 Nm
  52. Plug in connector and install trim to 60 seat
    Informational PurposesAn informational icon, calling your attention
    1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
  53. Install push clip at front of outer 60 sideshield assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip, Install push clip at front bottom side of the trim
  54. Install inboard outer trim to 60 seat
    Informational PurposesAn informational icon, calling your attention
    Clips 3x, Install inboard outer trim and reseat 3x clips
  55. Insert backpanel hooks into center seat back assembly
    Informational PurposesAn informational icon, calling your attention
    2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
  56. Install center backpanel onto seat back
    Informational PurposesAn informational icon, calling your attention
    5x clips
  57. Install 2nd row center seat switch
    Informational PurposesAn informational icon, calling your attention
    1x connector, 2x clips
  58. Install 60 toe kick cover
    Informational PurposesAn informational icon, calling your attention
    7x clips
  59. Install LH seatback onto 60 seat assembly
    Informational PurposesAn informational icon, calling your attention
    9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
  60. Connect logic connector at LH 60 seat frame
    Informational PurposesAn informational icon, calling your attention
    1x connector
  61. Install fasteners securing 60 seat frame to body
    Informational PurposesAn informational icon, calling your attention
    5x patch bolts, 11mm, 37 Nm, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front

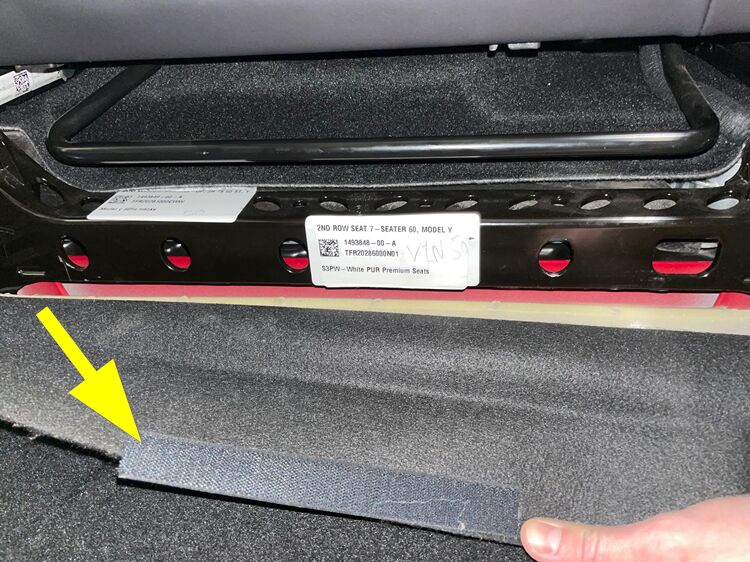

  62. Secure cabin carpet to 60 seat
    Informational PurposesAn informational icon, calling your attention
    Strap velcro on

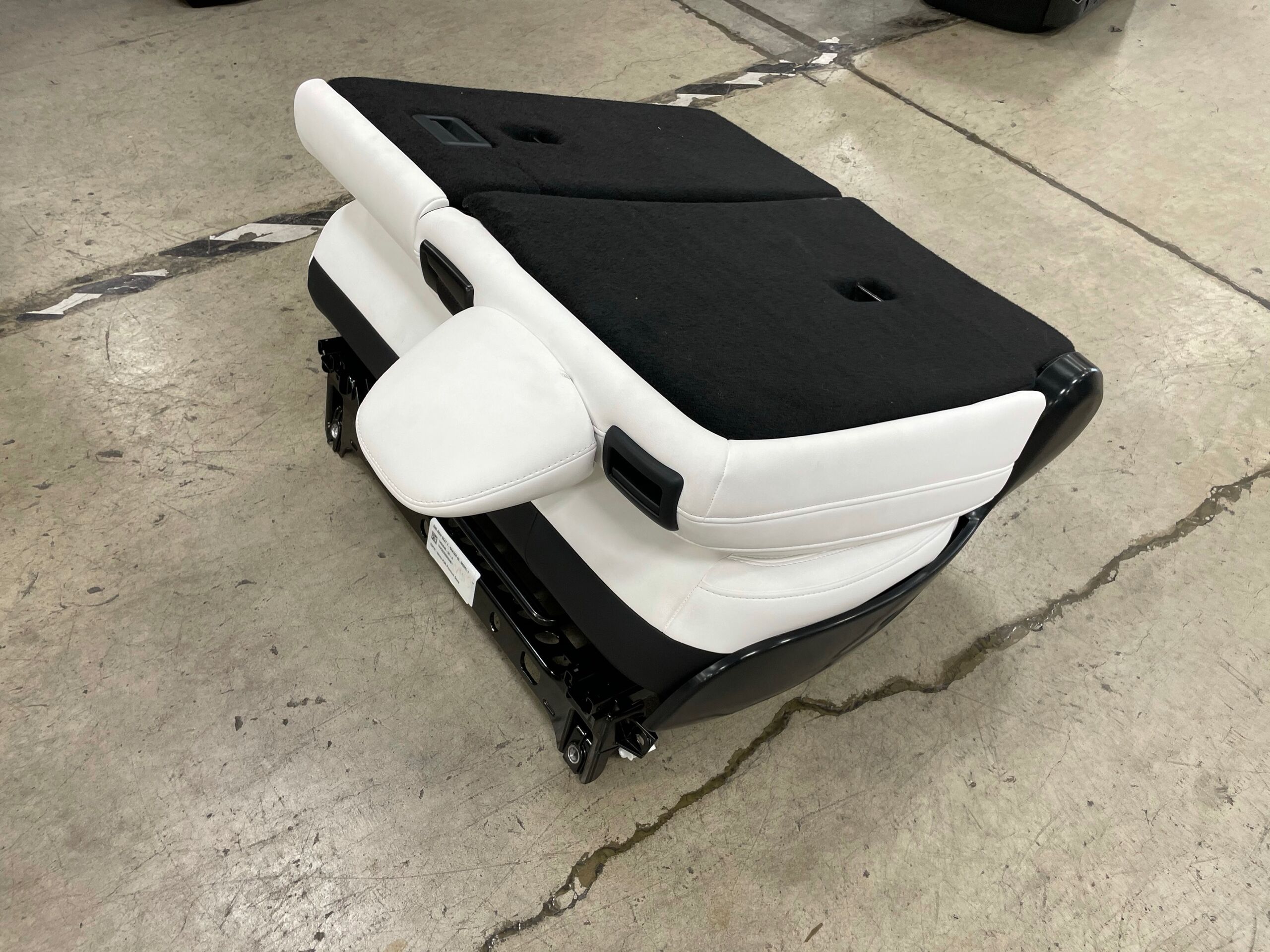

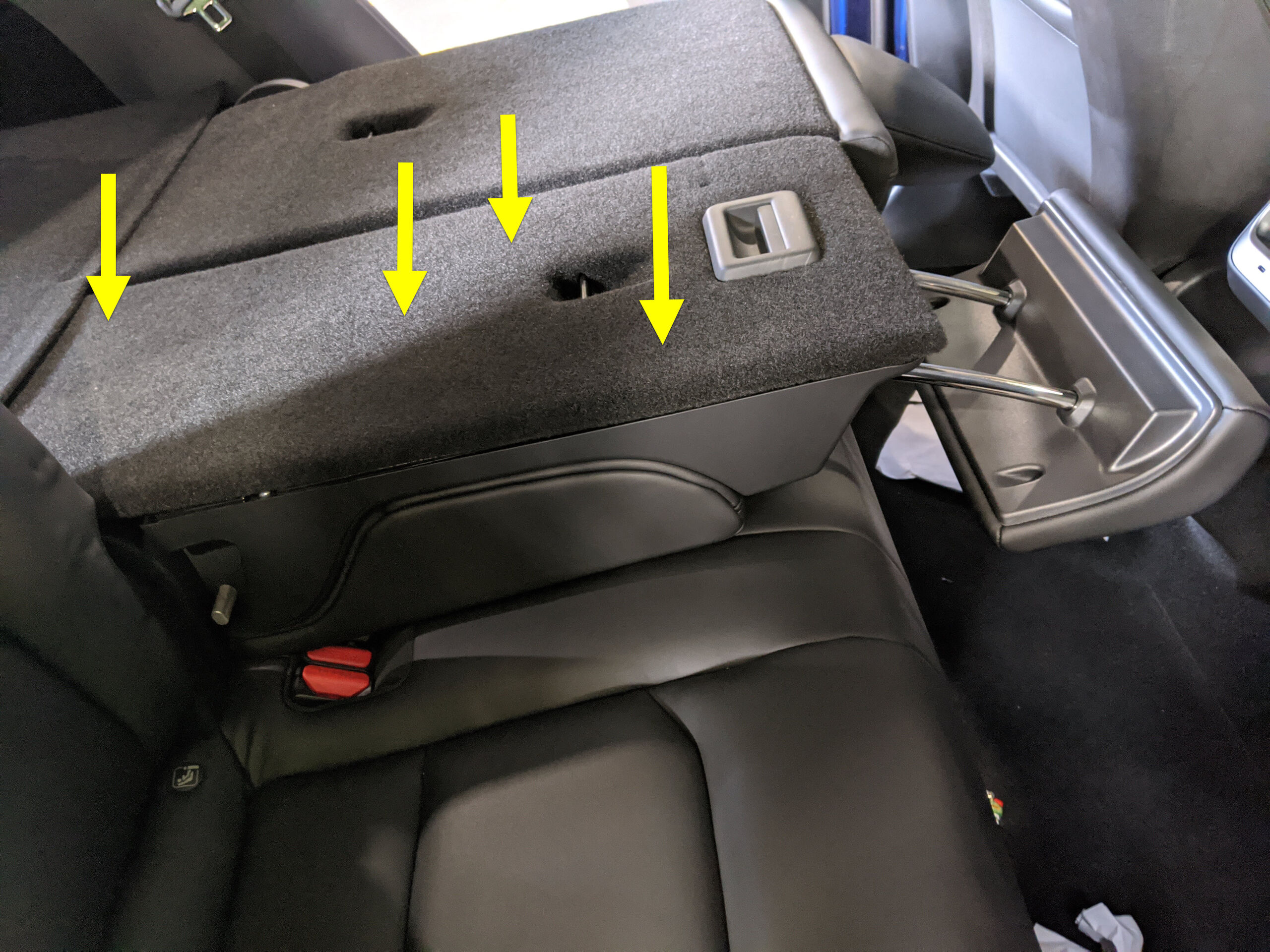

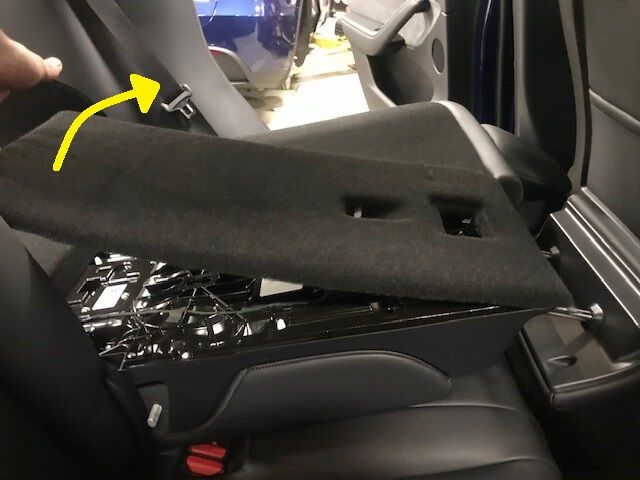

  63. Fold the 60 seat into vertical position
    Informational PurposesAn informational icon, calling your attention
    Remove seat back protection if necessary
  64. Install 60 seat outboard track cover
    Informational PurposesAn informational icon, calling your attention
    1x clip
  65. Install 60 seat outboard track cover
    Informational PurposesAn informational icon, calling your attention
    1x clip
  66. Install LH 7s Lower C-Pillar Trim
    Informational PurposesAn informational icon, calling your attention
    8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
  67. Reseat LH rear door seal
    Informational PurposesAn informational icon, calling your attention
    Seat pillar and sill trim tabs underneath seal
  68. Move RH front seat to original position
  69. Raise all four windows
  70. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    If 12V is powered up, Unlatch rear doors before closing
