Stone Guard ((拆卸和更换))
校正代码
18200332
FRT
1.14
注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。
注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至 ServiceManualFeedback@tesla.com。。
注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。请参阅人体工程学注意事项查看安全健康的作业规程。
- 2025-12-29: Released new procedure.
拆卸
- Remove the cooling fan module assembly. See 模块 - 冷却风扇（拆卸和安装）.
-

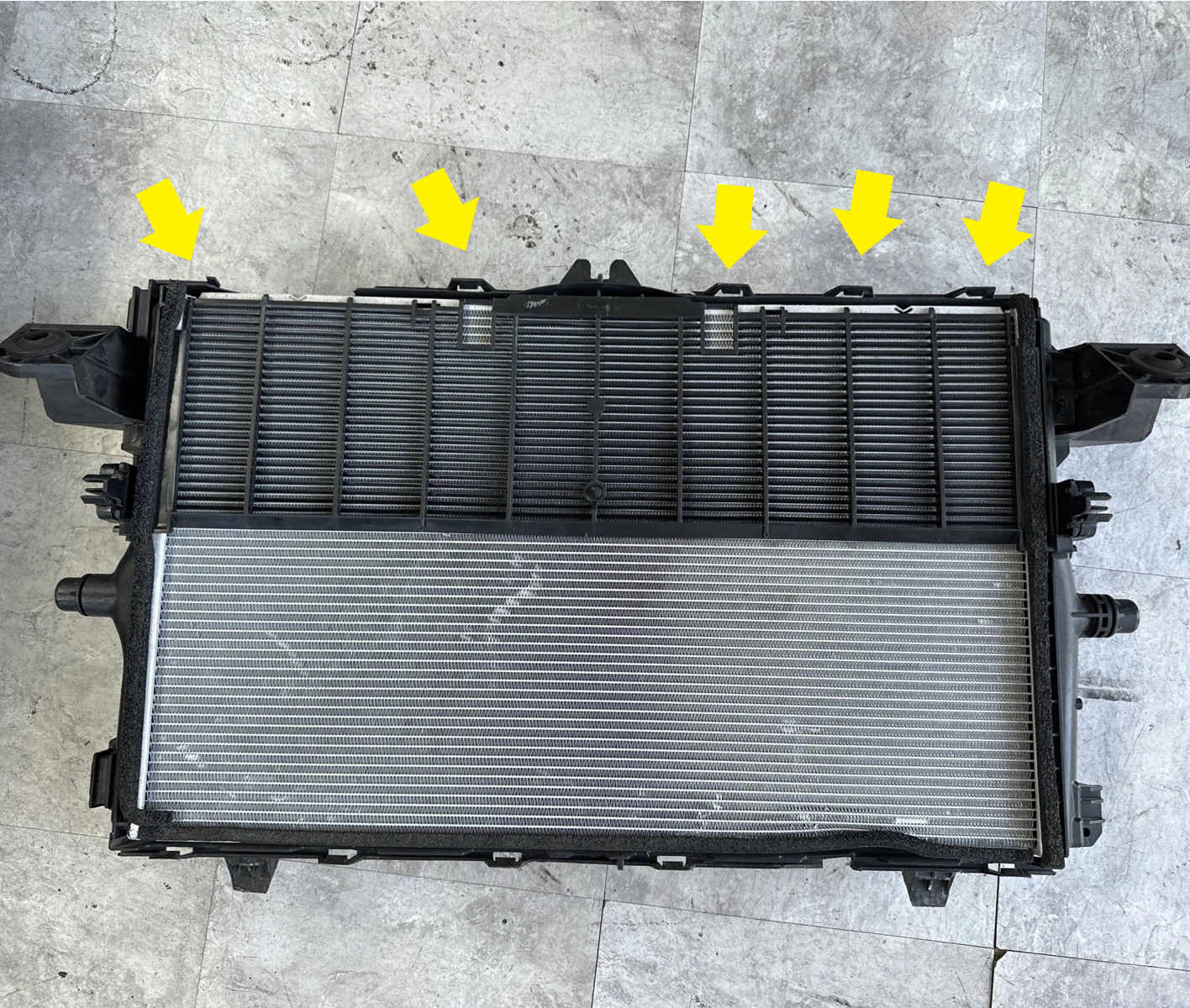

Release the locking tabs (x14) that
attach the active grille shutter to the cooling fan and shroud assembly, and then remove
the active grille shutter.
-
Release the locking tabs (x4) that
attach the radiator to the fan and shroud assembly, and then slide the radiator out of
the holding mounts.
-

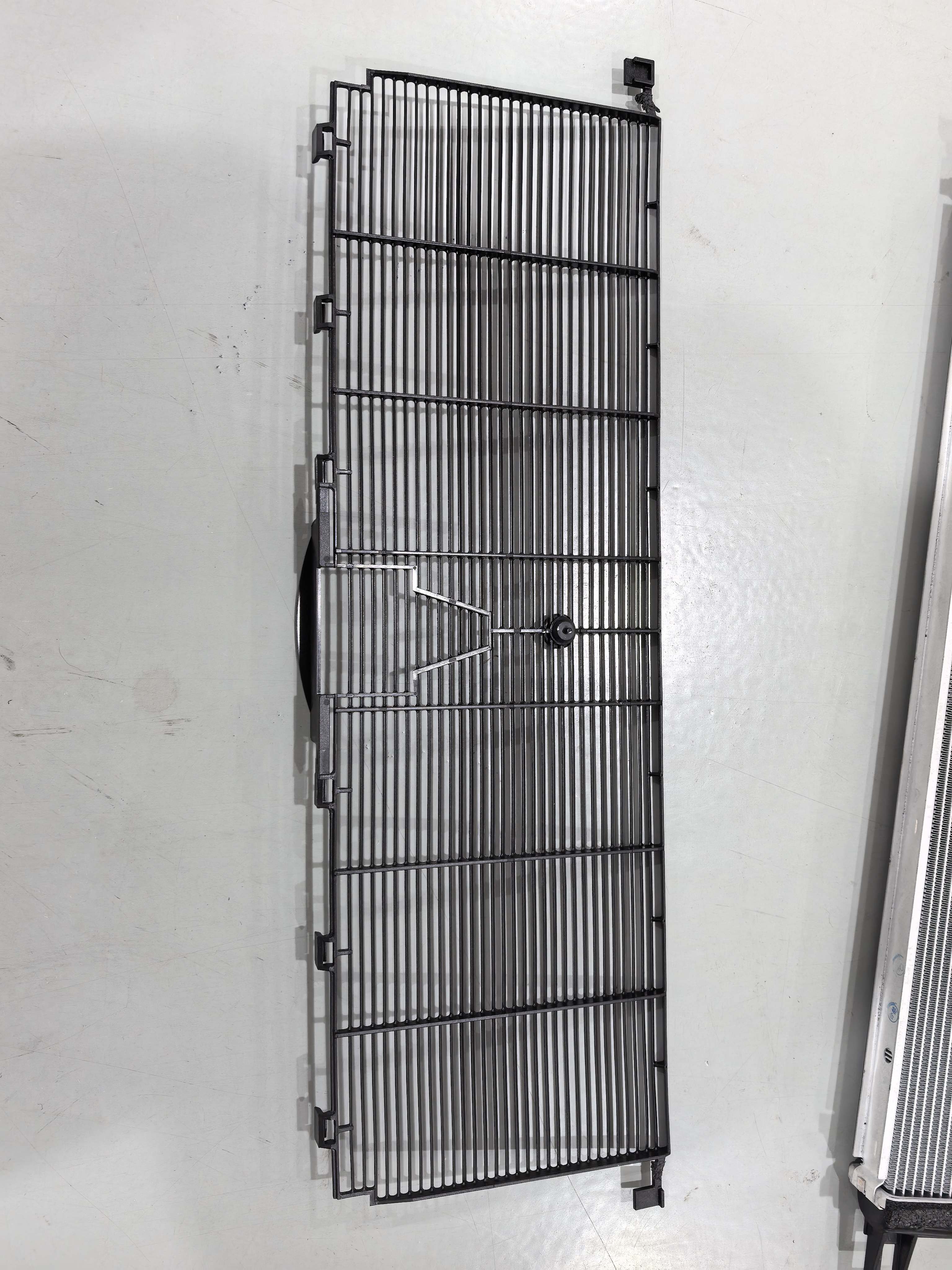

Release the clips that attach the stone guard to the radiator, and then slide the
stone guard out to remove it from the radiator.
安装
-
Align the tabs of the stone guard with
the guide datums, and then install the clips that attach the stone guard to the
radiator.
-
Install the locking tabs (x4) that attach the radiator to the fan and shroud
assembly.
-
Install the active grille shutter onto the cooling fan and shroud assembly, and then fasten the locking tabs that attach the shutter to the assembly.
- Install the cooling fan module assembly. See 模块 - 冷却风扇（拆卸和安装）.
- Perform a cooling system vacuum refill. See 冷却系统（真空再加注）.
- Install the underhood storage unit. See 前备箱储物单元（拆卸和更换）.
