锁扣 - 第二排 - 中间（七座）（拆卸和更换）

校正代码 20057222 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2023-06-06: Added torque specifications and fixed missing/incorrect steps.
  • 2023-05-10: Rearranged procedure steps and added configuration instructions.
  • 2024-11-26: Add a note to clarify that harness should not be around bolt when install the buckle to seat assembly.
警告
如果维修或处理不当，辅助约束系统 (SRS) 部件可能引发危害。请参阅
警告
气囊或座椅安全带预紧装置一旦展开，必须更换特定部件，并检查其他部件是否损坏。请参阅《碰撞维修手册》查看必须检查和更换的零件的详细清单。

拆卸

  1. Open the rear doors and lower the rear windows.
  2. Remove the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.

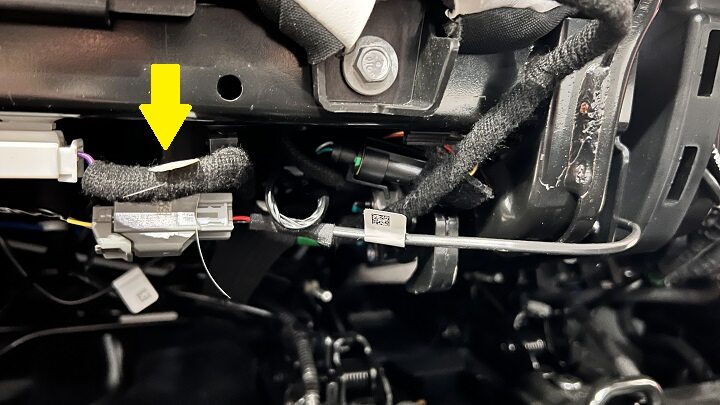

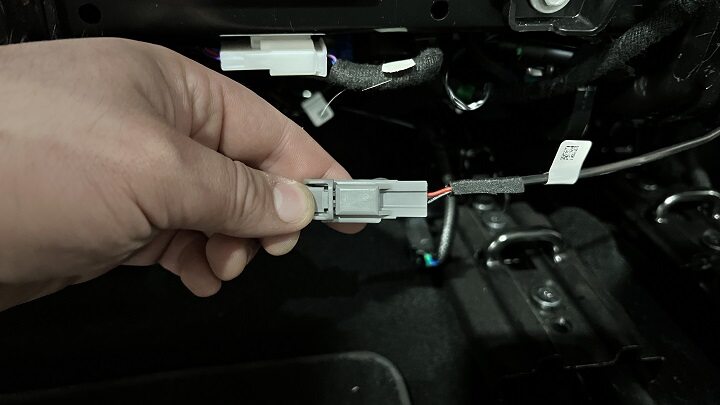

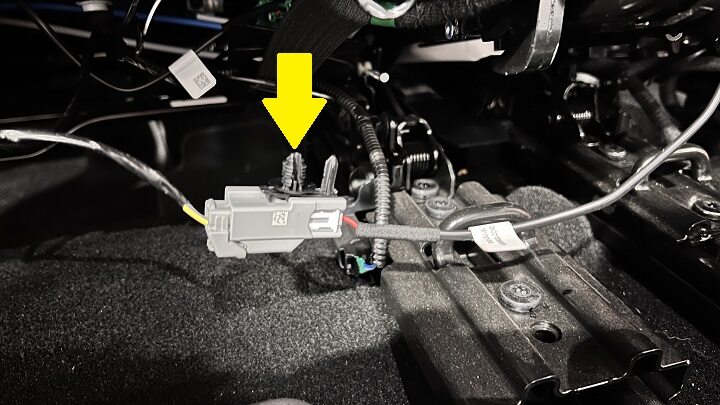

  3. Disconnect center 2nd row buckle electrical connector, and then release the connector from the seat assembly.
  4. Return the LH 2nd row seat to its original position.
  5. Move the RH 2nd row seat forward.

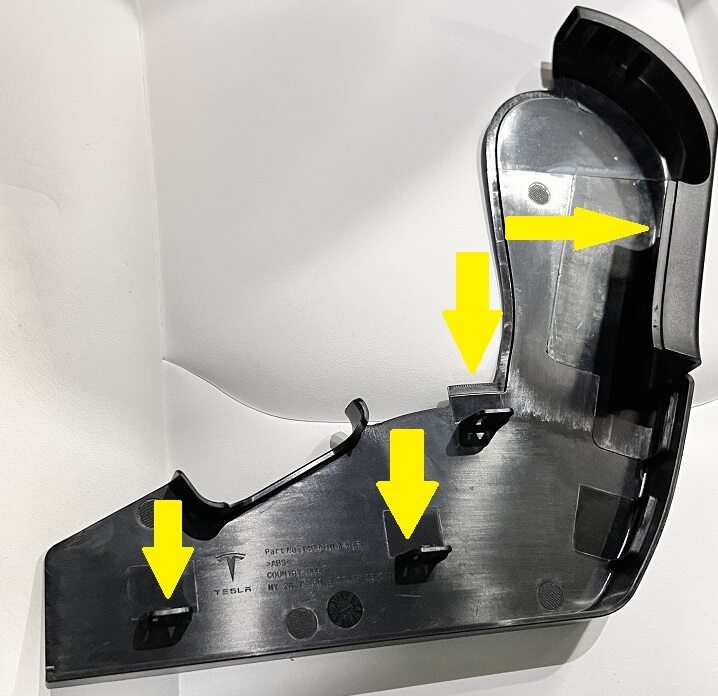

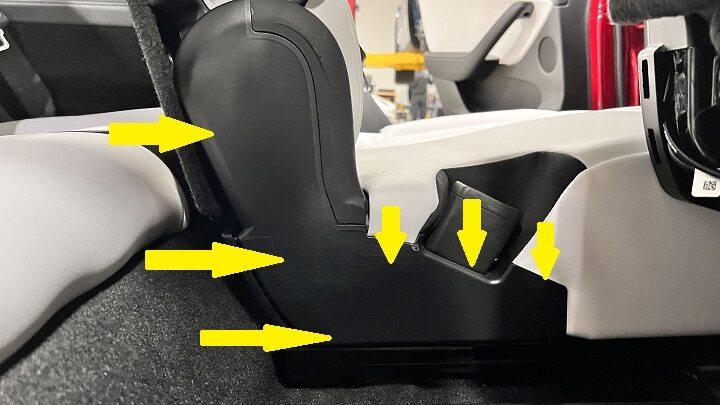

  6. Release the tabs (x4) that attach the RH 2nd row seat back inboard cover to the seat assembly.
    提示
    Release the front portion first, and then slide the cover straight rearward to clear the groove.
  7. Release the edge clip that attaches the cushion cover to the seat back assembly.

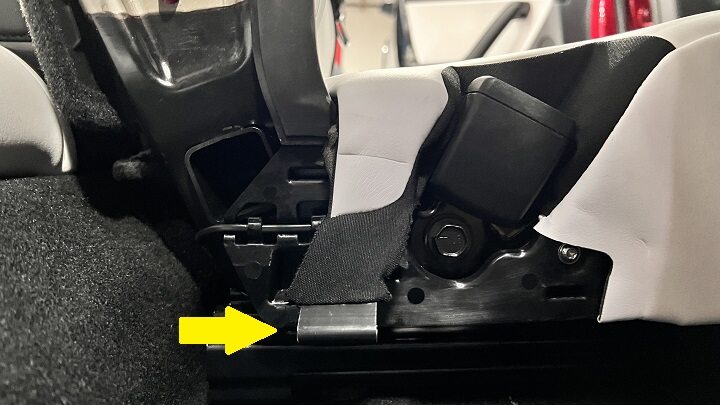

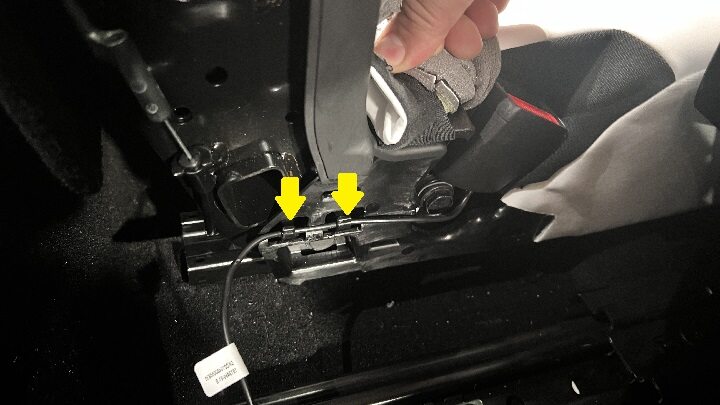

  8. Release the 2nd row center buckle harness from the LH seat back assembly.

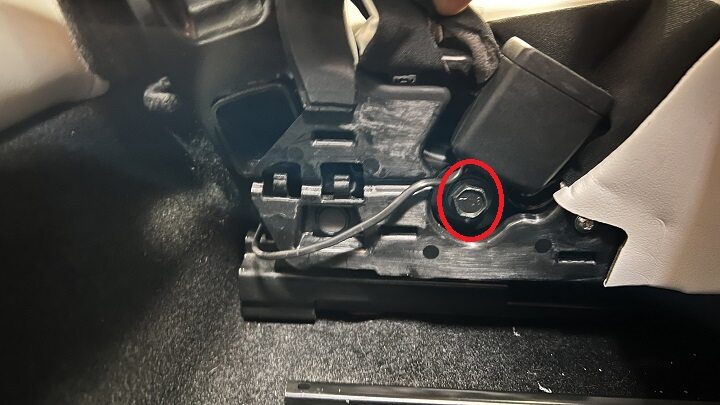

  9. Remove and discard the bolt that attaches the center 2nd row buckle to the seat assembly, and then remove the buckle from the assembly.
    40 Nm (29.5 lbs-ft)
    提示
    推荐使用以下工具
    • 15 毫米套筒

安装

  1. Position the center 2nd row buckle to the seat assembly, and then install a new bolt that attaches the buckle to the assembly.
    40 Nm (29.5 lbs-ft)
    注
    Make sure to not pinch the wire between the bolt and the buckle bracket. Harness should not be around bolt.
    提示
    推荐使用以下工具
    • 15 毫米套筒
  2. Install the center buckle harness onto the LH seat back assembly.
  3. Install the edge clip that attaches the cushion cover to the LH 2nd row seat back assembly.
  4. Position the LH 2nd row seat back inboard cover onto the seat assembly, slide the cover forward into the grooved section, and then secure the tabs (x4).
  5. Move the LH 2nd row seat forward.
  6. Install the center 2nd row buckle connector onto the seat assembly, and then connect the connector.
  7. Install the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.
  8. Move the 2nd row seats to the original positions.
  9. Raise rear windows and close rear doors.
