开关 - 方向盘 - 左侧（拆卸和更换）

校正代码 17300702 0.30 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-11-03: Updated the specification of the bolts (x4) that attach the bright surround to the steering wheel.

拆卸

  1. Remove the driver airbag. See 气囊 - 驾驶位（拆卸和更换）.
  2. Disconnect the steering wheel electrical wiring harness from the connector.
  3. Disconnect the electrical harness from the LH steering wheel switch connector.
  4. Disconnect the electrical harness from the RH steering wheel switch connector.
  5. Release the clips that attach the horn assembly, and then move the horn assembly to the side.
  6. Disconnect the electrical harness from the lower connector, and then remove the electrical harness from the steering wheel.
  7. Remove the screws (x4) that attach the bright surround to the steering wheel, and then remove the surround.
    Note
    Depending on the vehicle batch, some vehicles are equipped with T25 bolts while others are equipped with PH1 bolts.
    Note
    Pry the lower portion of the bright surround assembly away from the steering wheel, and then work your way around. Do not remove it now. Wait until the steering wheel is removed.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 bit
    • PH1 Stubby Phillips Screwdriver

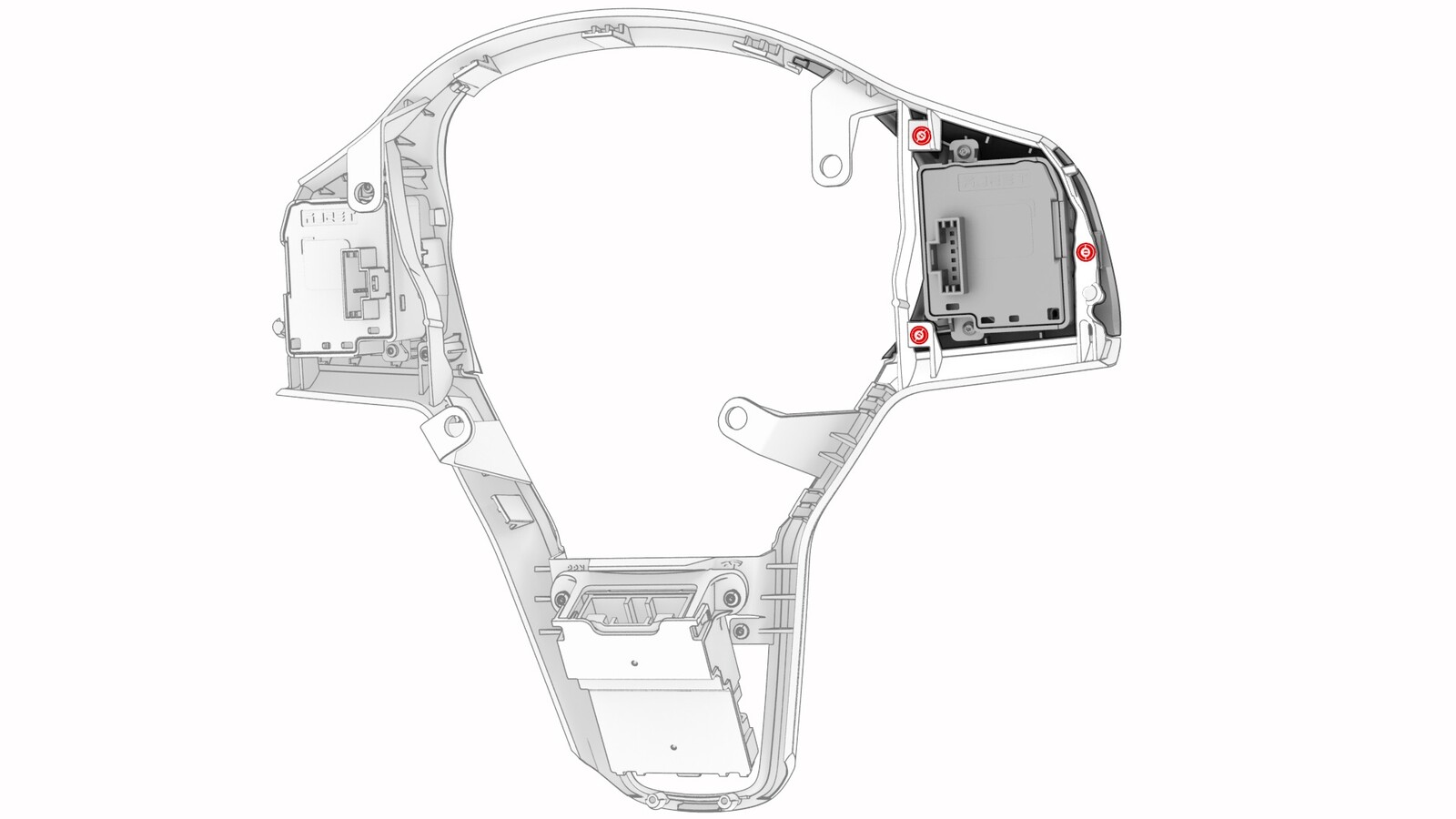

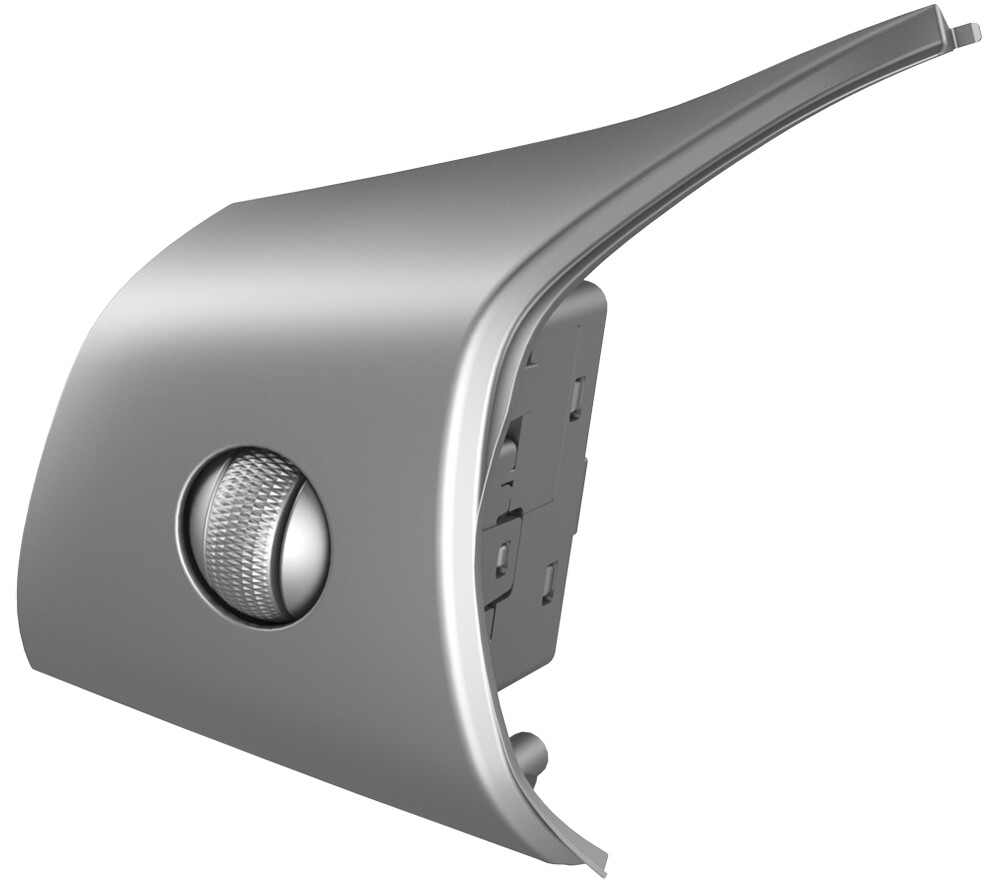

  8. Remove the screws (x3) that attach the LH steering wheel switch to the bright surround, and then remove the switch from the surround.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit

安装

  1. Install the LH steering wheel switch into the bright surround, and then install the screws (x3) that attach the switch to the surround.
    0.9 Nm (8 lbs-in)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit
  2. Install the bright surround into the steering wheel, and then install the screws (x4) that attach the surround to the steering wheel.
    2.5 Nm (1.8 lbs-ft)
    Note
    Depending on the vehicle batch, some vehicles are equipped with T25 bolts while others are equipped with PH1 bolts.
    Note
    Torque the T25 bolts to 2.5 Nm; torque the PH1 bolts to 1.8 Nm.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 bit
    • PH1 Stubby Phillips Screwdriver
  3. Install the electrical harness into the steering wheel, and then connect the electrical harness to the lower connector.
  4. Move the horn assembly to the center, and then fasten the clips that attach the horn assembly.
  5. Connect the electrical harness to the RH steering wheel switch connector.
  6. Connect the electrical harness to the LH steering wheel switch connector.
  7. Connect the steering wheel electrical harness to the connector.
  8. Install the driver airbag. See 气囊 - 驾驶位（拆卸和更换）.
