高压电池（RWD）（结构化电池包）（三相）（拆卸和更换） ((拆卸和更换))

校正代码 16010132 5.70 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-08-20: Moved steps for installation of lift adapters.
  • 2025-03-26: Released new procedure.
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。
  • 2026-05-21: Added warnings to never move the gantry with a suspended load or put any part of the body underneath a suspended load. Changed wording to clarify that crates are positioned under gantries rather than gantries moved over crates.

拆卸

  1. Open all four doors
  2. Lower all four windows

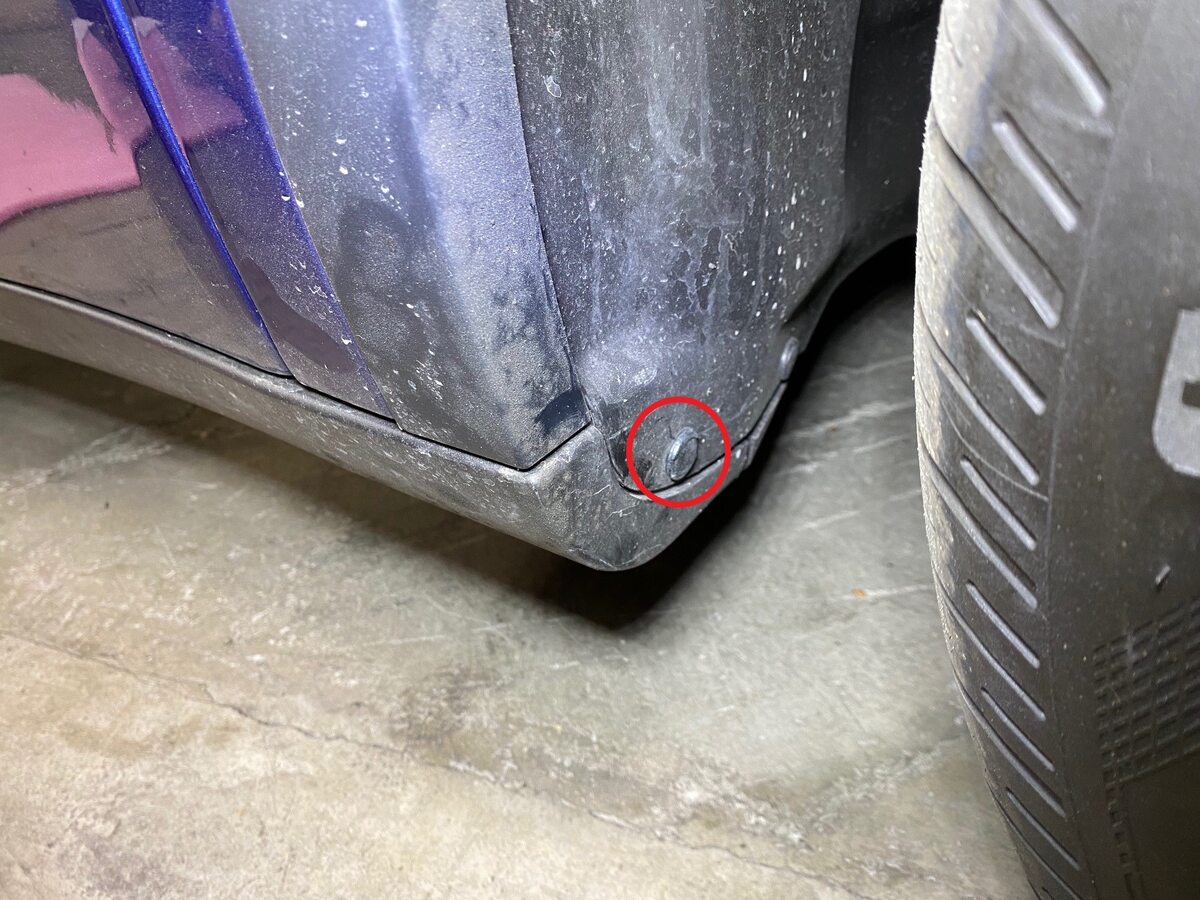

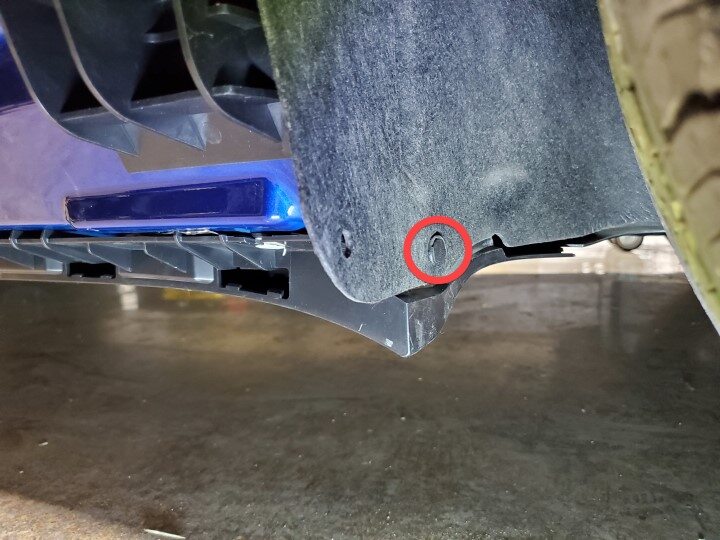

  3. Remove clips securing LH rocker cover to front and rear wheel liner
    注
    2x clips

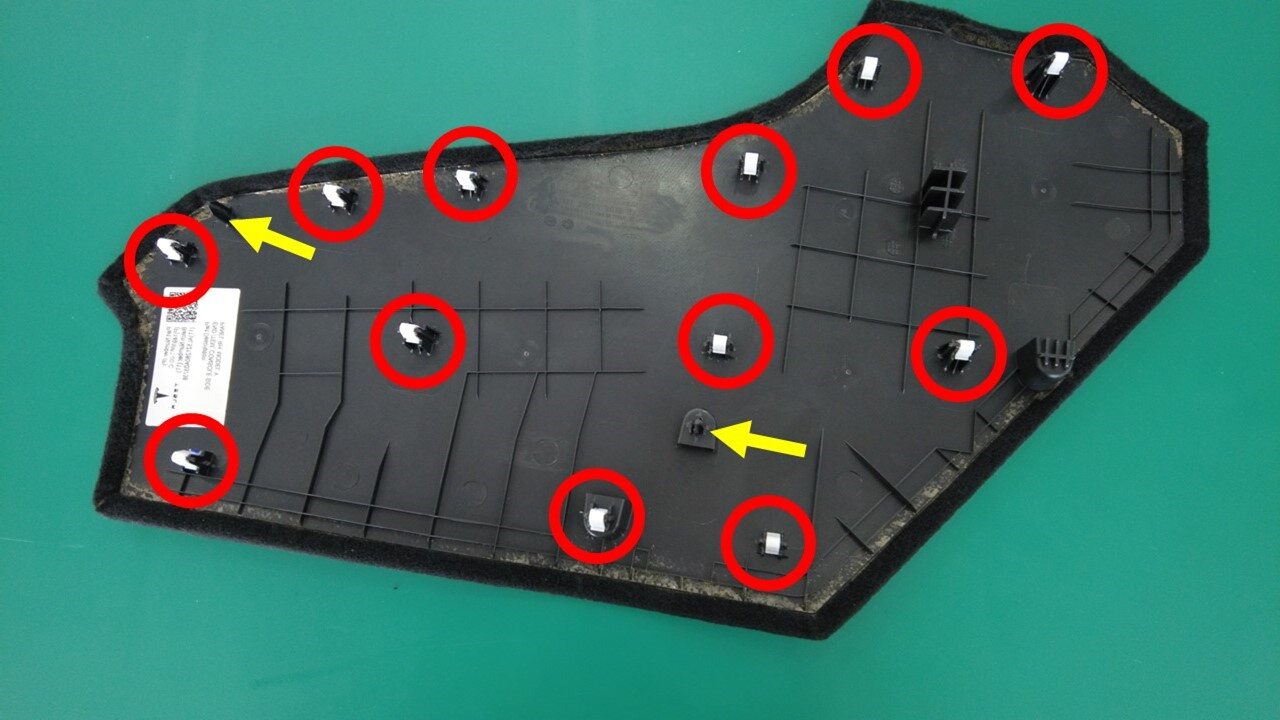

  4. Remove LH rocker cover from rocker carrier
    注
    11x clips, 11x tabs, Work a plastic trim tool between door panel and rocker cover to release tabs
  5. Remove clips securing LH rocker carrier to body and wheel liners
    注
    3x bolts, 10mm, 12 Nm, 4x clips
  6. Remove LH rocker carrier
    注
    10x clips, 1x datum, Use pry tool to release clips and prevent damage to carrier, Negotiate carrier around rear wheel liner then front wheel liner

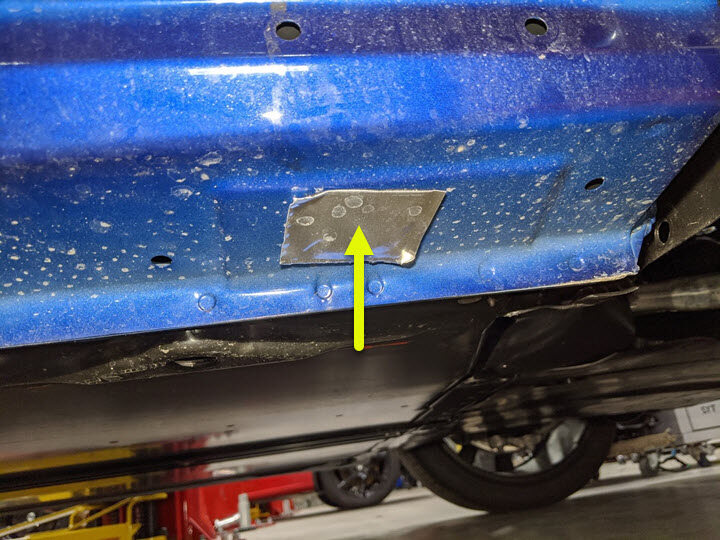

  7. Remove butyl patches covering LH rocker access holes
    注
    2x butyl patches, Clean excess butyl from area

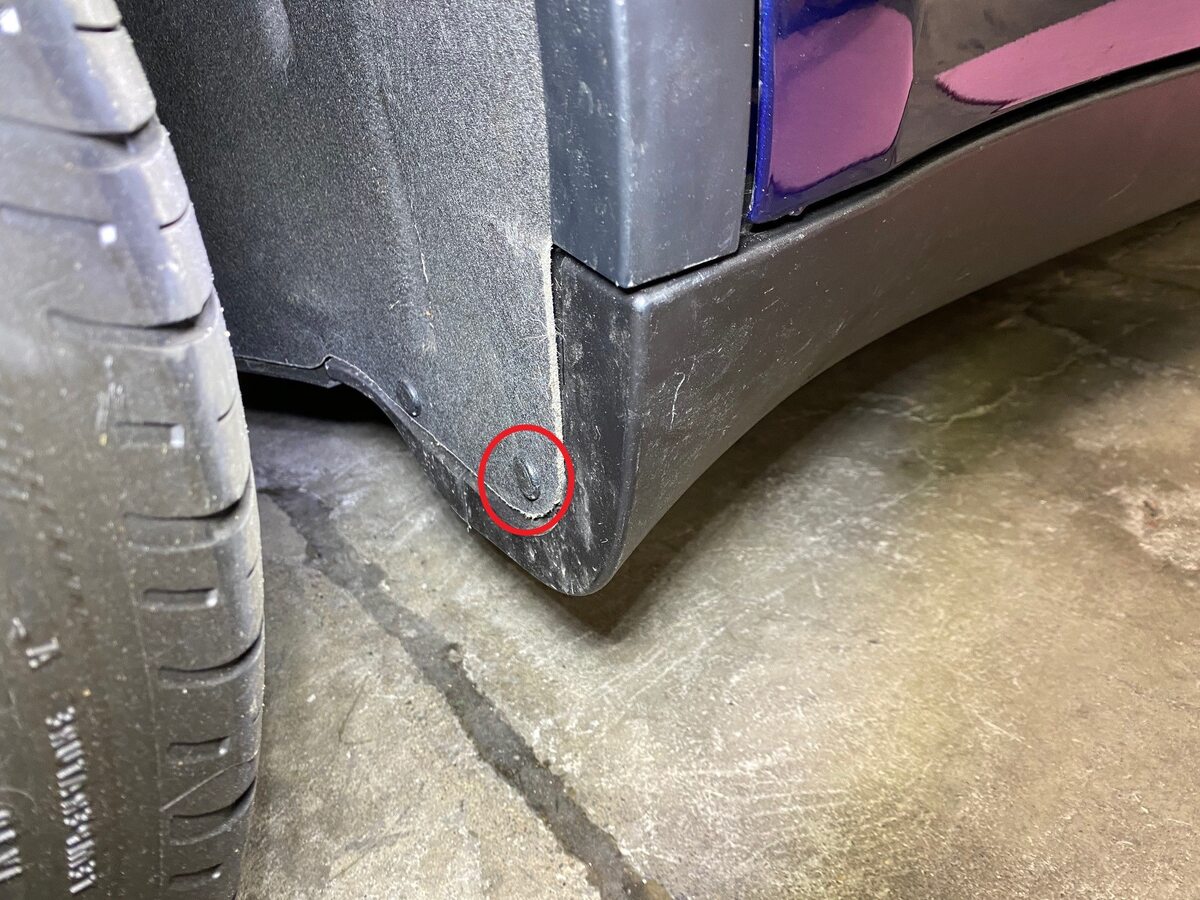

  8. Remove clips securing RH rocker cover to front and rear wheel liner
    注
    2x clips
  9. Remove RH rocker cover from rocker carrier
    注
    11x clips, 11x tabs, Work a plastic trim tool between door panel and rocker cover to release tabs
  10. Remove clips securing RH rocker carrier to body and wheel liners
    注
    3x bolts, 10mm, 12 Nm, 4x clips
  11. Remove RH rocker carrier
    注
    10x clips, 1x datum, Use pry tool to release clips and prevent damage to carrier, Maneuver carrier around rear wheel liner then front wheel liner

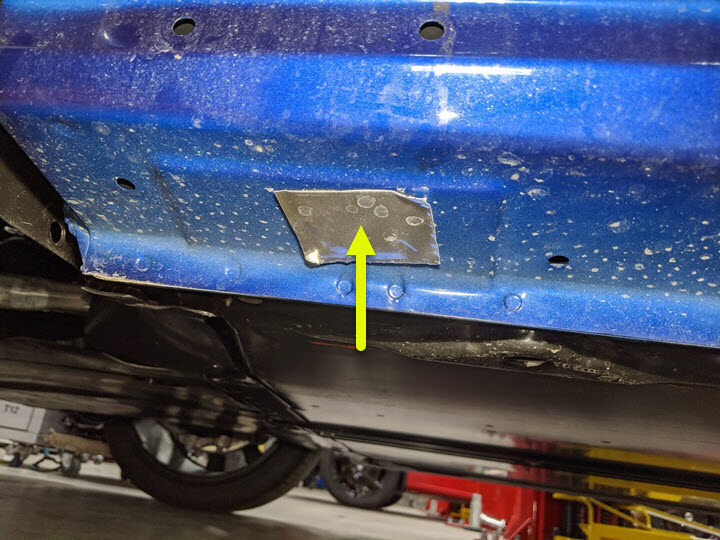

  12. Remove butyl patches covering RH rocker access holes
    注
    2x butyl patches, Clean excess butyl from area
  13. Chock LH rear wheel
  14. Connect a laptop with Toolbox 3 to the vehicle.
  15. 运行 ODIN 例行程序 PROC_EPB_X_SERVICE-MODE-STARTvia Toolbox:(link)
  16. Access thermal system routines via UI
    注
    Select quick controls > Service mode > Thermal
  17. Run Thermal Fill Drain (Coolant Only) through Service UI
    注
    Select Thermal > Coolant System > Coolant Fill/Drain, click Run, close once routine is completed, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours routine must be performed again
  18. Remove laptop from vehicle
    注
    Do not close Toolbox 3.0, we will need to resume later
  19. Remove LH mid A pillar assembly
    注
    1x clip, 1x tab, Release upper clip then pull mid A pillar upward to remove
  20. Remove clip securing LH lower A pillar trim
    注
    1x push clip
  21. Partially release LH front primary door seal
  22. Remove LH lower A pillar trim
    注
    6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel
  23. Remove clip securing LH front cabin carpet to body
    注
    1x push clip

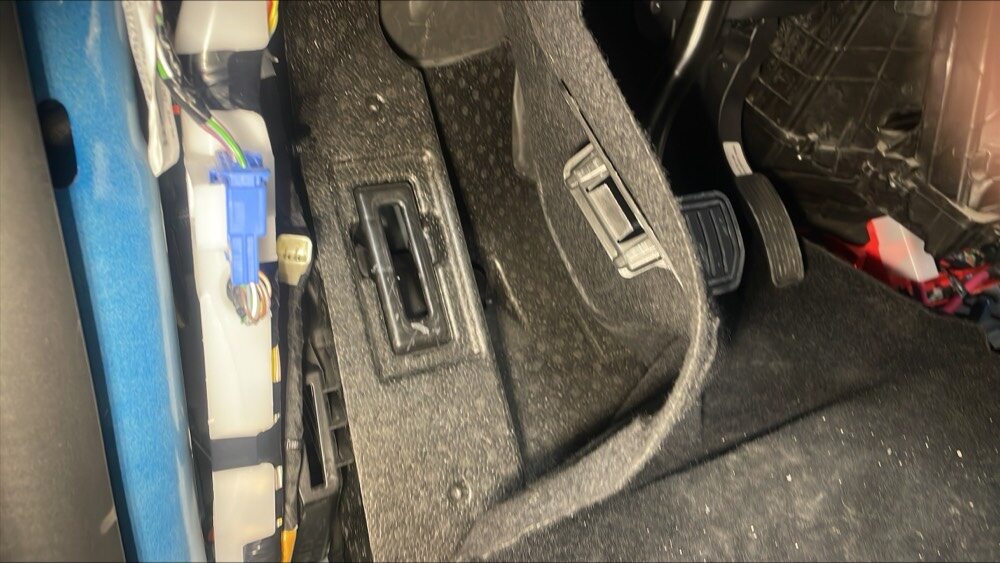

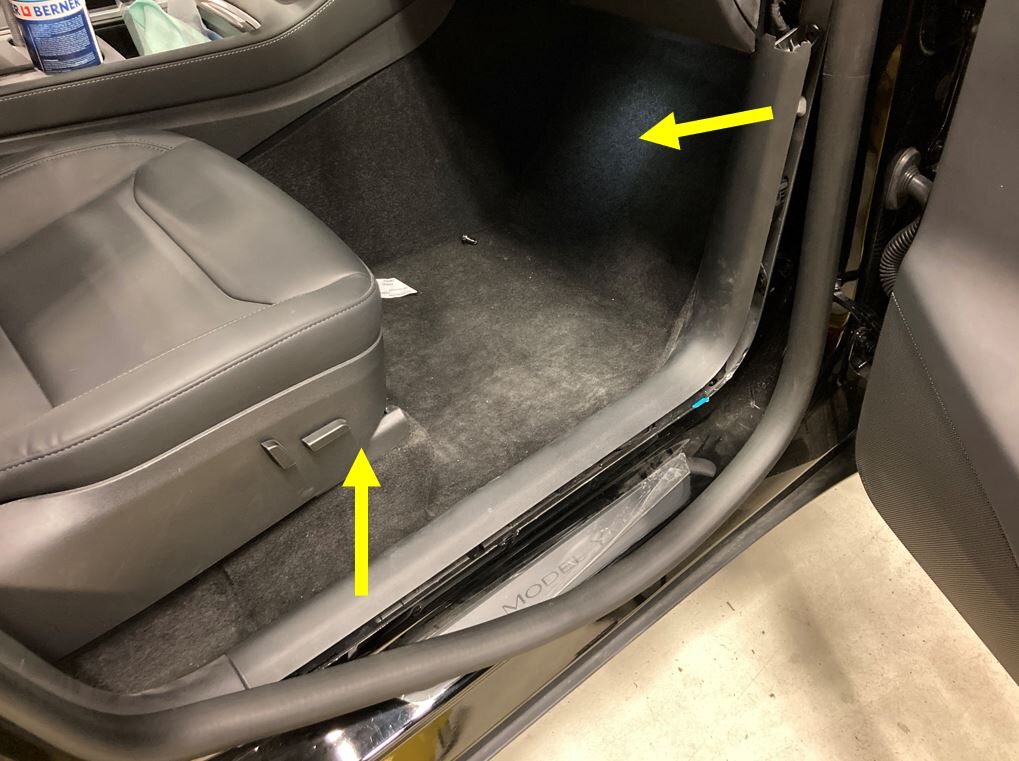

  24. Pull LH front cabin carpet away from A-pillar to access LH front seat connector
  25. Move LH front seat forward
  26. Remove RH mid A pillar assembly
    注
    1x clip, 1x tab, Release the upper clip then pull mid A pillar upward to remove
  27. Remove clip securing RH lower A pillar trim
    注
    1x push clip
  28. Partially release RH front primary door seal
  29. Remove RH lower A pillar trim
    注
    6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel
  30. Remove clip securing RH front cabin carpet to body
    注
    1x clip
  31. Pull RH front cabin carpet away from A-pillar to access RH front seat connector
  32. Move RH front seat forward

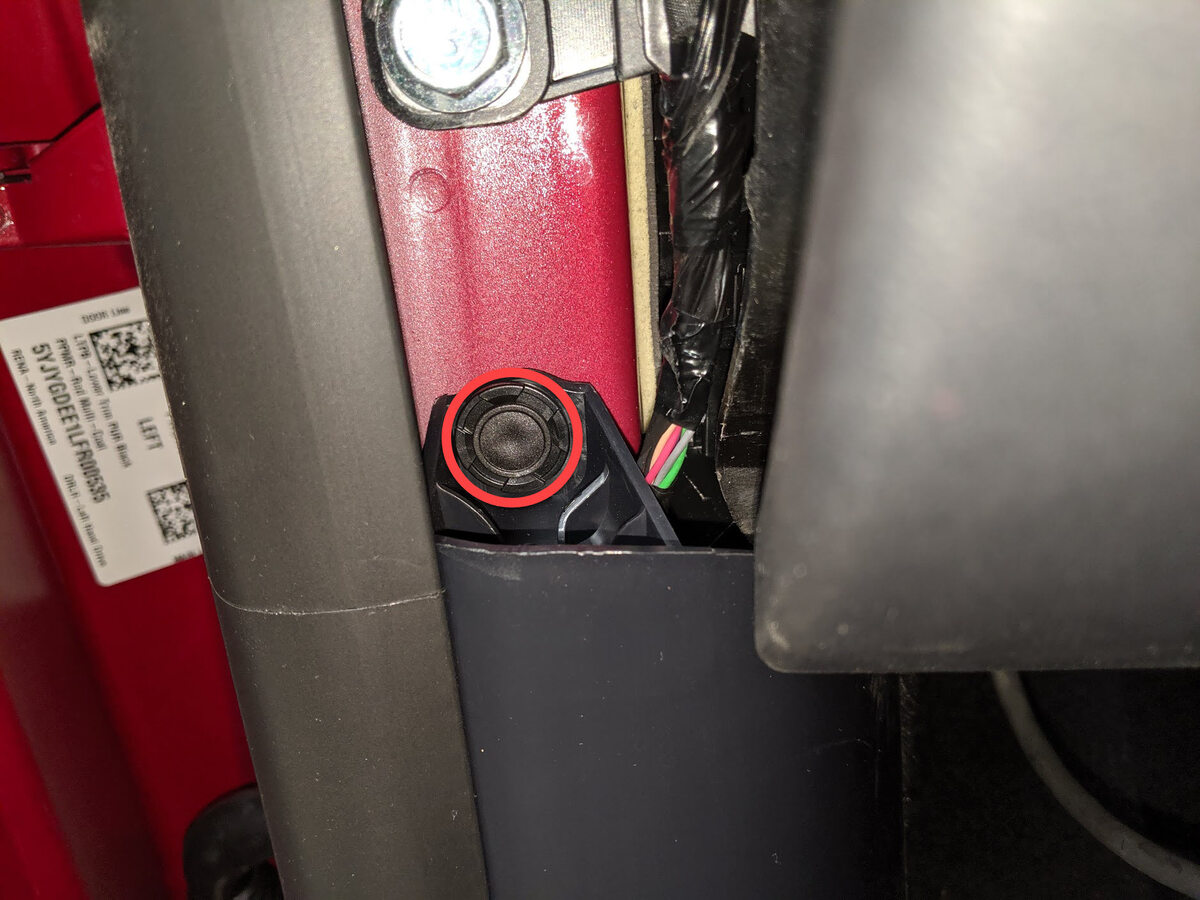

  33. Release RH front seat belt retractor from pretensioner
    注
    Insert special removal tool into the bottom of the retractor to release
  34. Release LH front seat belt retractor from pretensioner
    注
    Insert seat belt tool into the bottom of the retractor to release

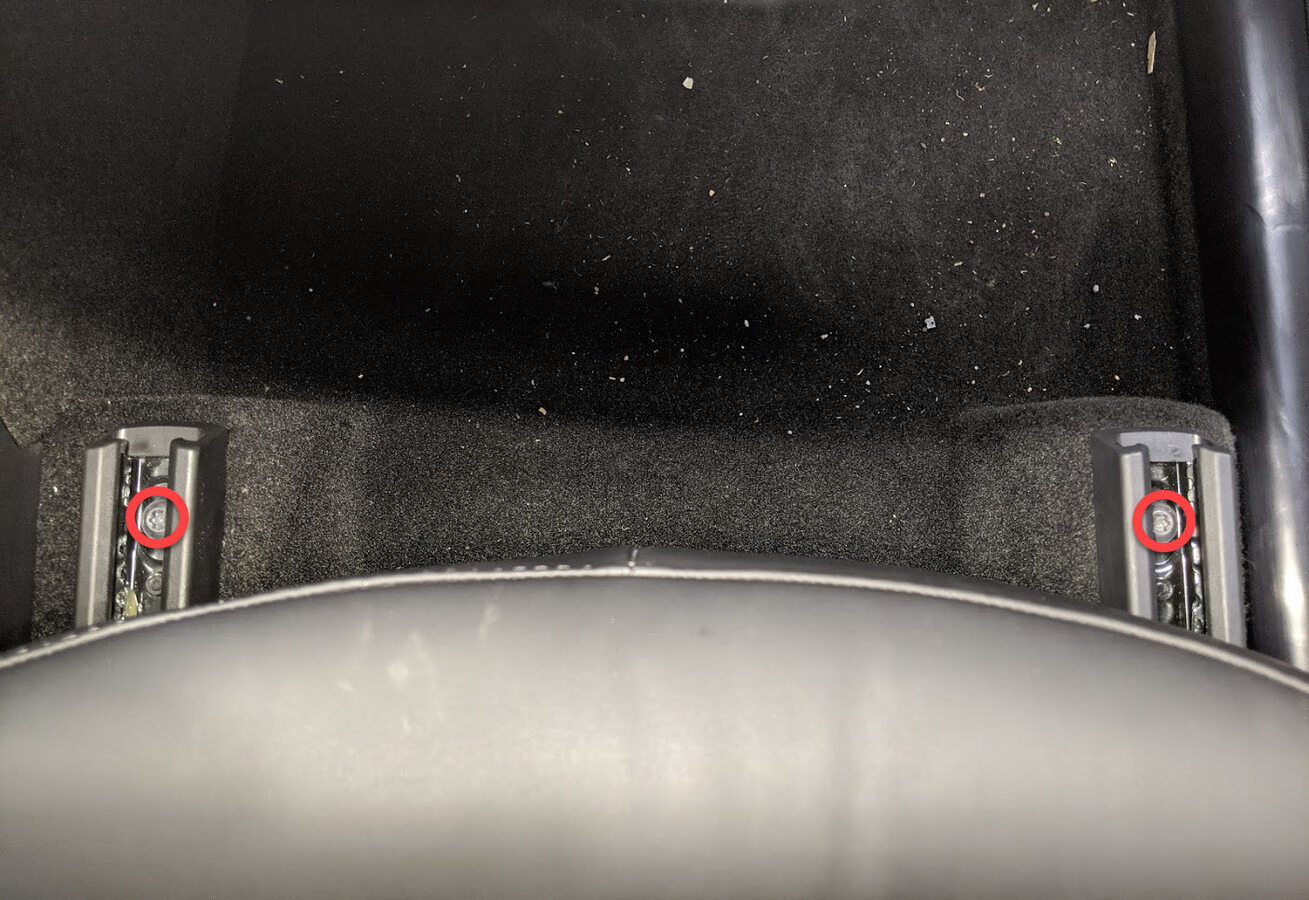

  35. Remove LH front seat rear fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Discard after removal
  36. Move LH front seat backward
    注
    Ensure profile is saved to allow seat position to be restored

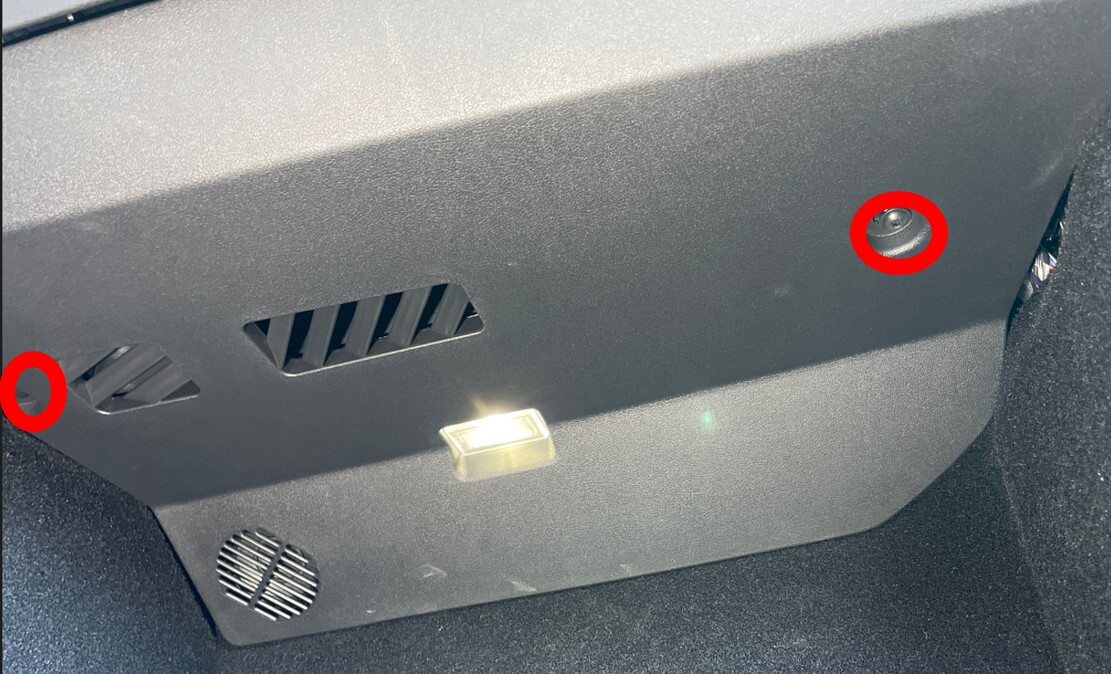

  37. Release LH footwell assembly from IP
    注
    1x push clips, 1x screw, T20, 2.5 Nm
  38. Remove LH footwell assembly
    注
    3x tabs, 1x Ethernet connector, 1x puddle light connector, 1x OBD connector
  39. Remove LH front floor mat
  40. Remove LH front seat front fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Discard after removal
  41. Remove LH console side panel carpet
    注
    11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
  42. Adjust position of LH front seat for easy removal
    注
    Move seat to middle of track at most upright position
  43. Remove RH front seat rear fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Discard after removal
  44. Move the RH front seat back.
  45. Release RH footwell assembly from IP
    注
    1x push clips, 1x screw, T20, 2.5 Nm
  46. Remove RH footwell assembly
    注
    2x connectors
  47. Remove RH front floor mat
  48. Remove RH front seat front fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Discard after removal
  49. Remove RH console side panel carpet

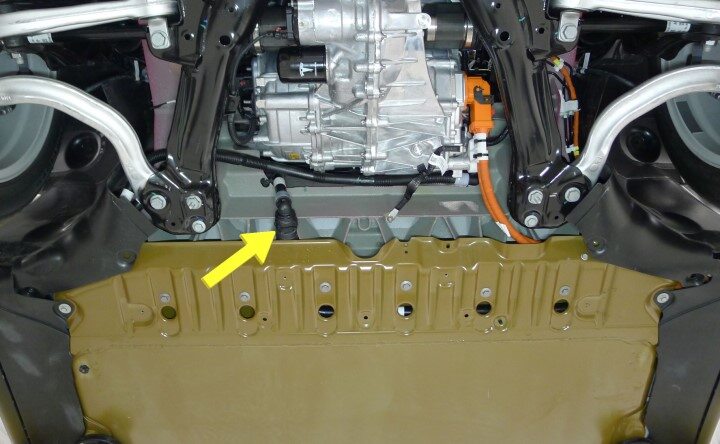

    注
    12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
  50. Adjust position of RH front seat for easy removal
    注
    Move seat to middle of track at most upright position
  51. Open the hood.
  52. Remove the rear apron.

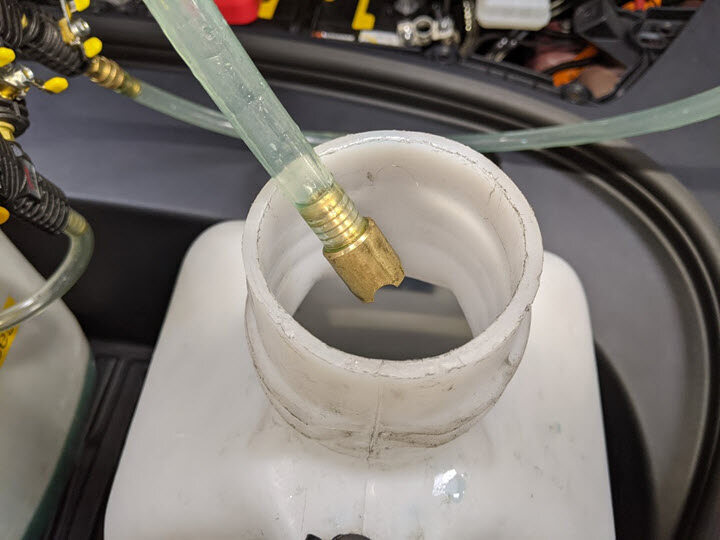

  53. Release washer fluid reservoir neck from frunk
    注
    1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location
  54. Release washer tank neck from washer tank and set aside
    注
    1x O-ring, No need to remove hose from neck
  55. Remove HEPA filter assembly
    注
    2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly
  56. Power off the vehicle using the touchscreen.
  57. Disconnect the LV battery connector and First Responder Loop.
  58. Disconnect LH front seat harness from VC left
    注
    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC left, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged
  59. Remove LH front seat harness clips from LH footwell support bracket
    注
    2x retaining clips
  60. Position LH front seat up and tilt backwards
    注
    Carefully lean LH front seat backwards
  61. Release clips securing LH cabin carpet to cabin support
    注
    2x push clips, 1x vertical clip, Insert clip pry tool outboard of clip and rotate to the right to release one side of clip, Move clip pry tool inboard of clip and rotate to left to fully release carpet clip from cabin support

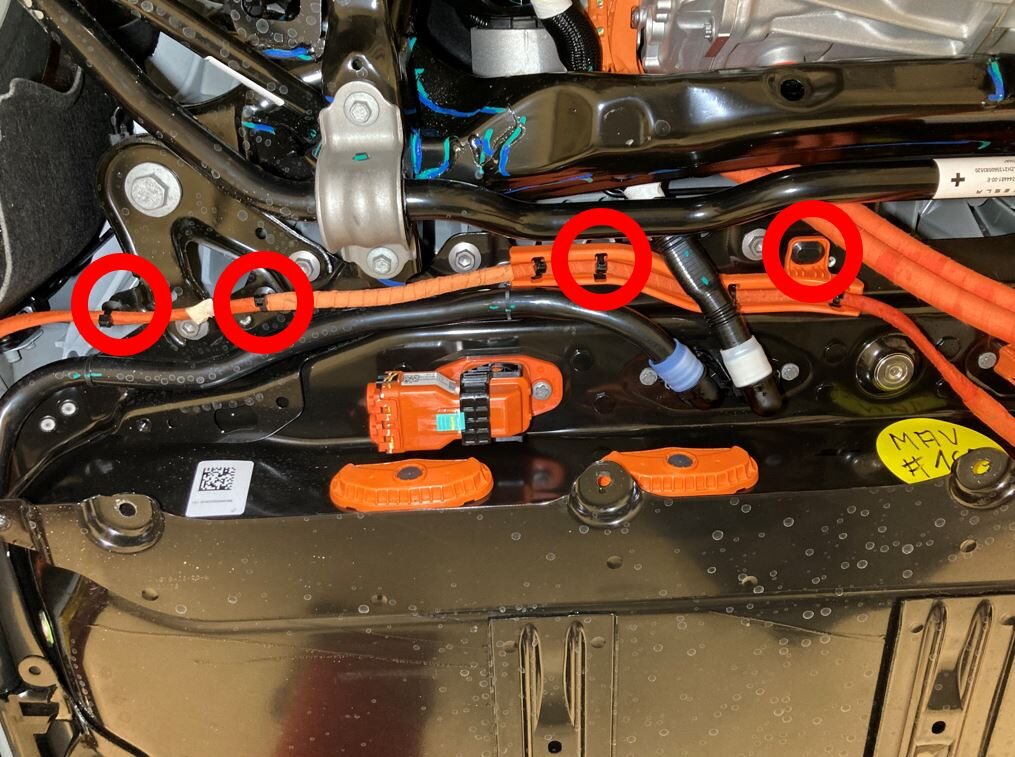

  62. Release clips securing LH front cabin carpet underneath front seat
    注
    4x clips
  63. Remove LH front cabin carpet from vehicle
    注
    1x harness clip, Release seat harness clip and harness, Release all edges, Take note of short edge under center console

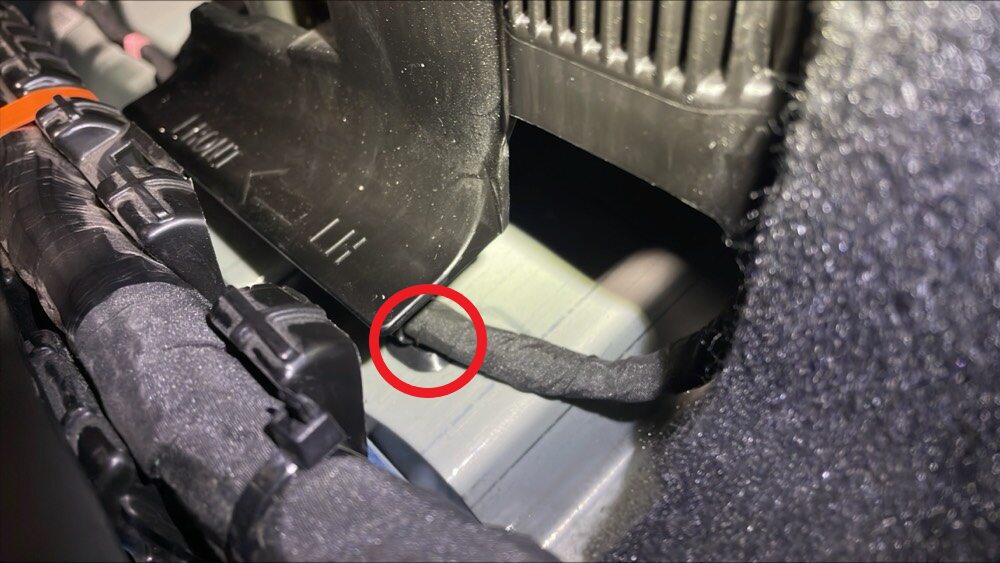

  64. Release clips securing LH front seat harness
    注
    3x clips, Lean seat back as required, Route harness out from under seat riser
  65. Remove LH front seat from vehicle
    注
    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
  66. Disconnect RH front seat harness from VC right
    注
    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC right, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged
  67. Remove RH front seat harness from RH footwell support bracket
    注
    2x retaining clips
  68. Position RH front seat up and tilt backwards
    注
    Carefully lean RH front seat backwards
  69. Release clips securing RH cabin carpet to cabin support
    注
    2x clips
  70. Release clips securing RH front cabin carpet underneath front seat
    注
    4x clips
  71. Remove RH front cabin carpet from vehicle
    注
    Lift up rear edge of carpet then slide out towards rear of vehicle, be cautious to avoid foam below catching on seat risers
  72. Release clips securing RH front seat harness and route out from under seat
    注
    3x clips, Lean seat back as required, Route harness out and release clips
  73. Remove RH front seat from vehicle
    注
    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim

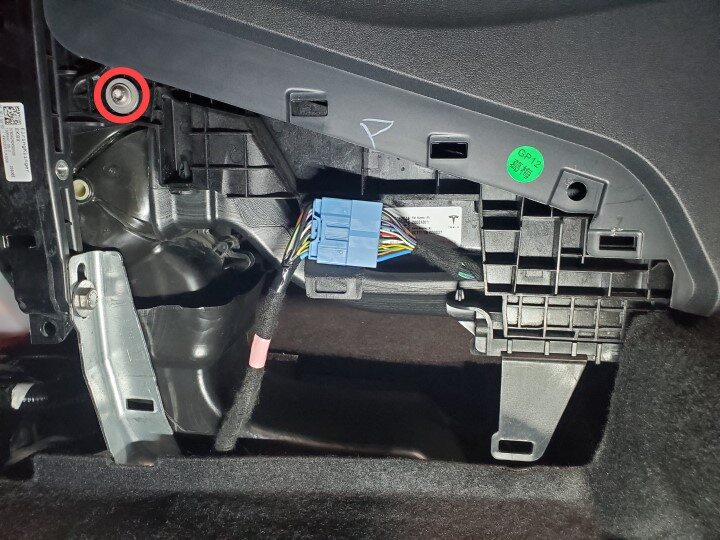

  74. Remove LH bolt securing center console to instrument panel
    注
    1x bolt, T30, 6.5 Nm, Later production vehicles may have a 10mm bolt
  75. Disconnect center console harness connector
    注
    1x connector, Located behind LH center console side carpet
  76. Remove console lower rear panel
    注
    5x clips
  77. Remove bolts securing center console to lower rails
    注
    2x screws, 8mm, 9.5 Nm
  78. Disconnect USB harness at RH center console
    注
    1x USB connector, Located behind RH center console side bracket
  79. Remove RH bolt securing center console to instrument panel
    注
    1x bolt, T30, 6.5 Nm, Later production vehicles may have a 10mm bolt
  80. Slide center console assembly out of riser rails
    注
    Squat behind center console then pull back on cupholders, Take note of surrounding components to avoid personal injury and vehicle damage, Force applied must be parallel to rails, Shift center console from side to side to loosen

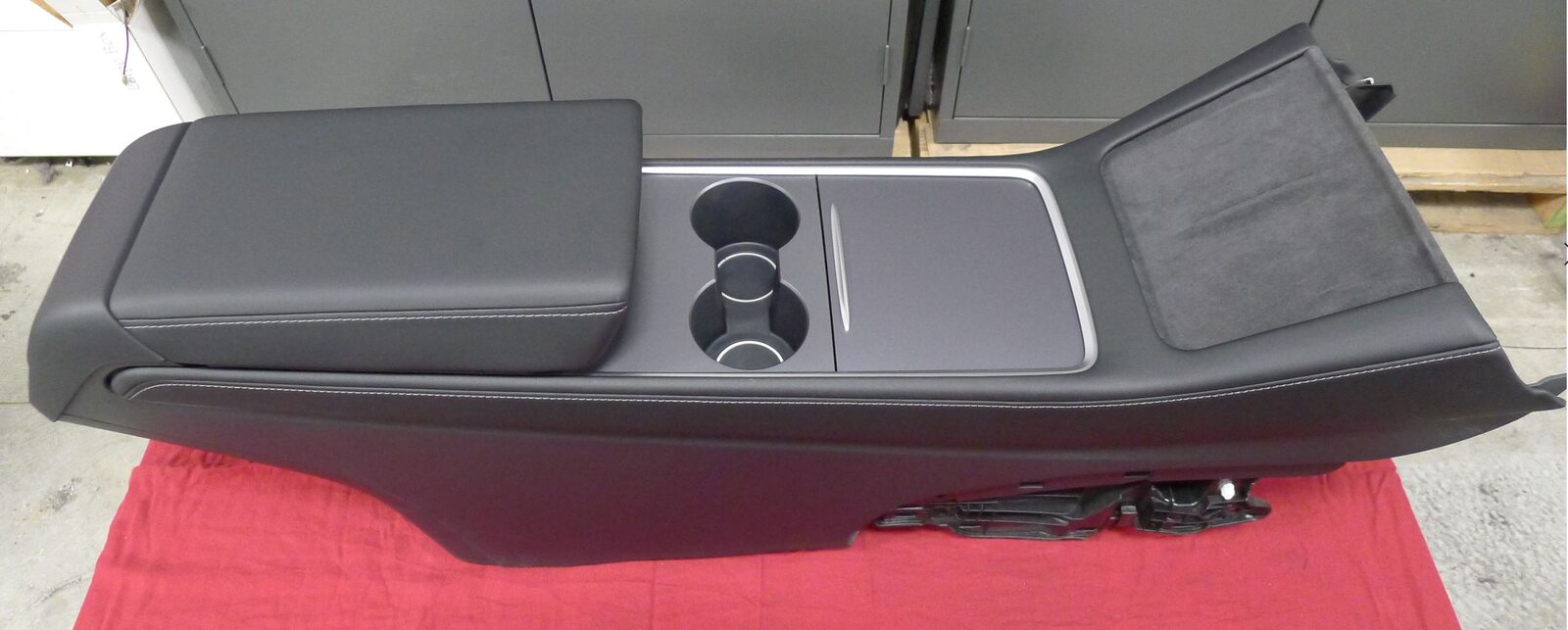

  81. Remove center console from vehicle
    注
    Verify lid is in closed position, Recommend assistance, Tilt rear of console upward, Pull assembly towards rear of vehicle
  82. Release the 2nd row seat cushion from the seat frame.
  83. Partially remove lower portion of LH rear door seal
  84. Remove LH Lower C-Pillar trim
    注
    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at front of LH Lower C-Pillar trim working your way back towards rear of sill trim, trim part may slightly differ, by vehicle build location,Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later
  85. Partially remove RH rear door seal
    注
    Pillar and sill trim have tabs seated underneath seal
  86. Remove RH C-pillar lower trim
    注
    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at front of LH Lower C-Pillar trim working your way back towards rear of sill trim, trim part may slightly differ by vehicle build location, and the number of clips may also vary, by vehicle build location, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall
  87. Remove rear floormat
  88. Remove rear main cabin carpet from vehicle
    注
    7x clips, pull up at the rear of rear main carpet and slide back, remove from LH rear door
  89. Remove LH riser side carpet support bracket
    注
    2x tabs
  90. Remove RH riser side carpet support bracket
    注
    2x tabs
  91. Remove LH and RH center console lower rails
    注
    4x bolts, 10mm, 4.5 Nm, 8x guides, Slide rails forward to disengage from center console riser assembly, Discard bolts after removal

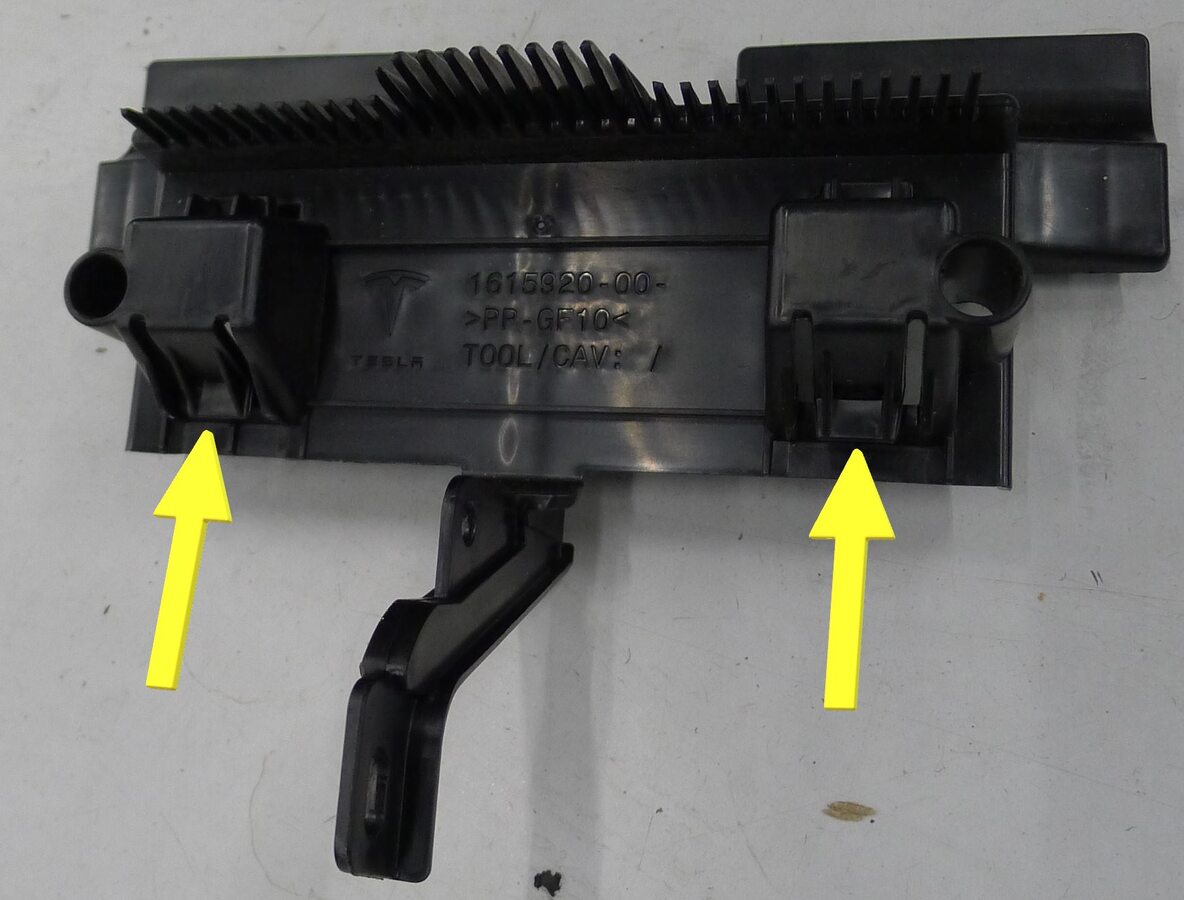

  92. Remove LH and RH floor ducts
    注
    2x clips

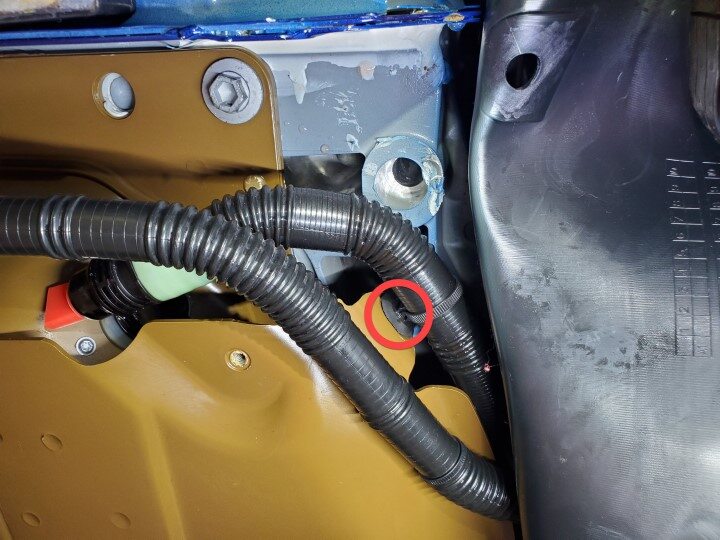

  93. Release center console harness from HV Battery
    注
    1x clip
  94. Remove LH and RH lower IP carrier brackets
    注
    4x bolts, 10mm, 25 Nm
  95. Secure center seat belt buckles away from penthouse
    注
    Apply tape across seat frame

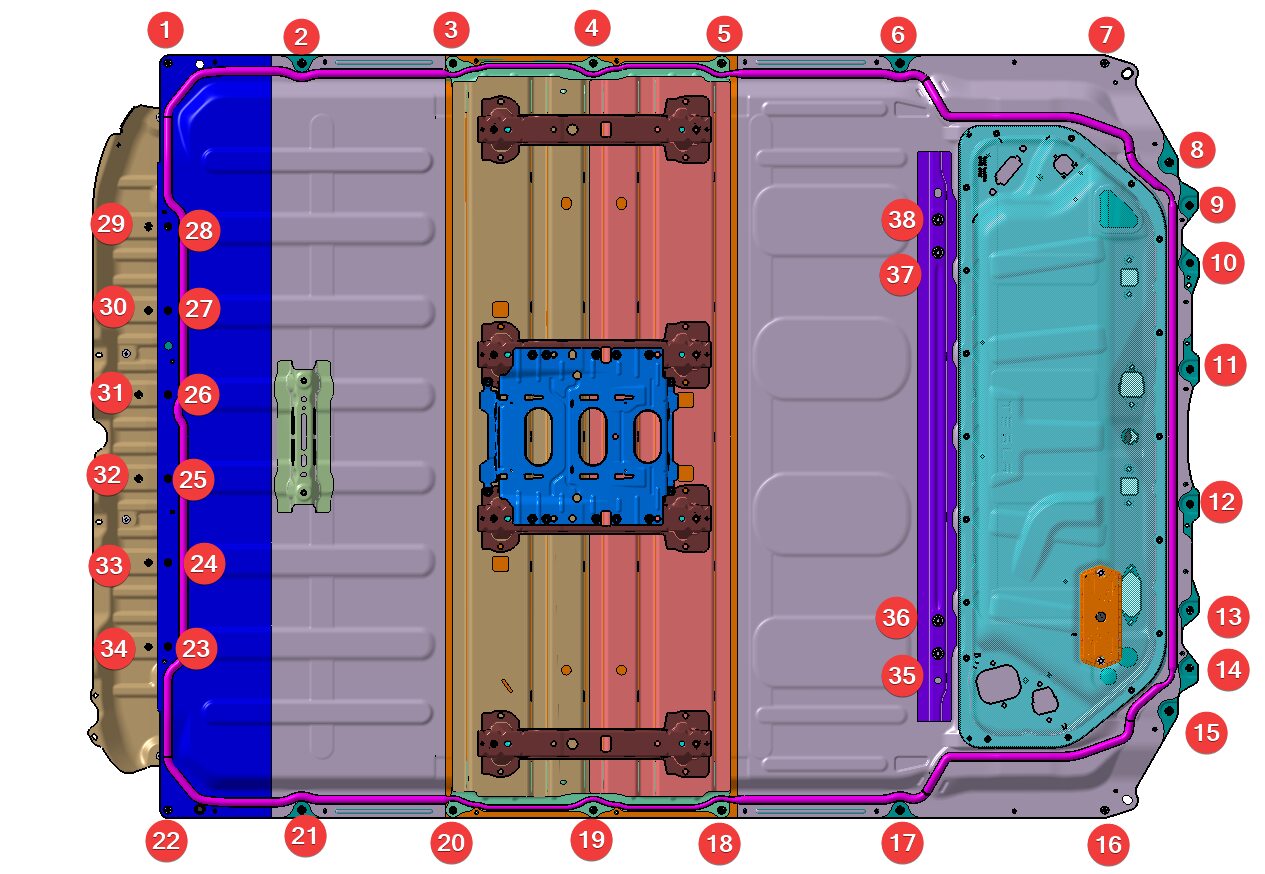

  96. Remove rear inner HV battery bolts
    注
    4x bolts, 13mm, 49 Nm, Bolt position 35 to 38, loosen with ratchet and remove with battery powered drill
  97. Remove wheel chocks and push vehicle onto lift
    注
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed, close all doors enough as needed to fit between the lift and latch rear doors to prevent accidental closure, Replace wheel chocks once vehicle in correct position
  98. Verify operation of multimeter
    注
    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals

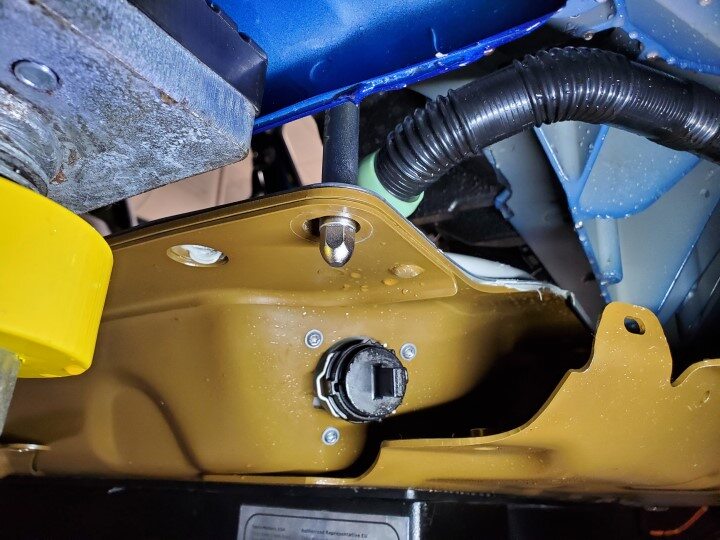

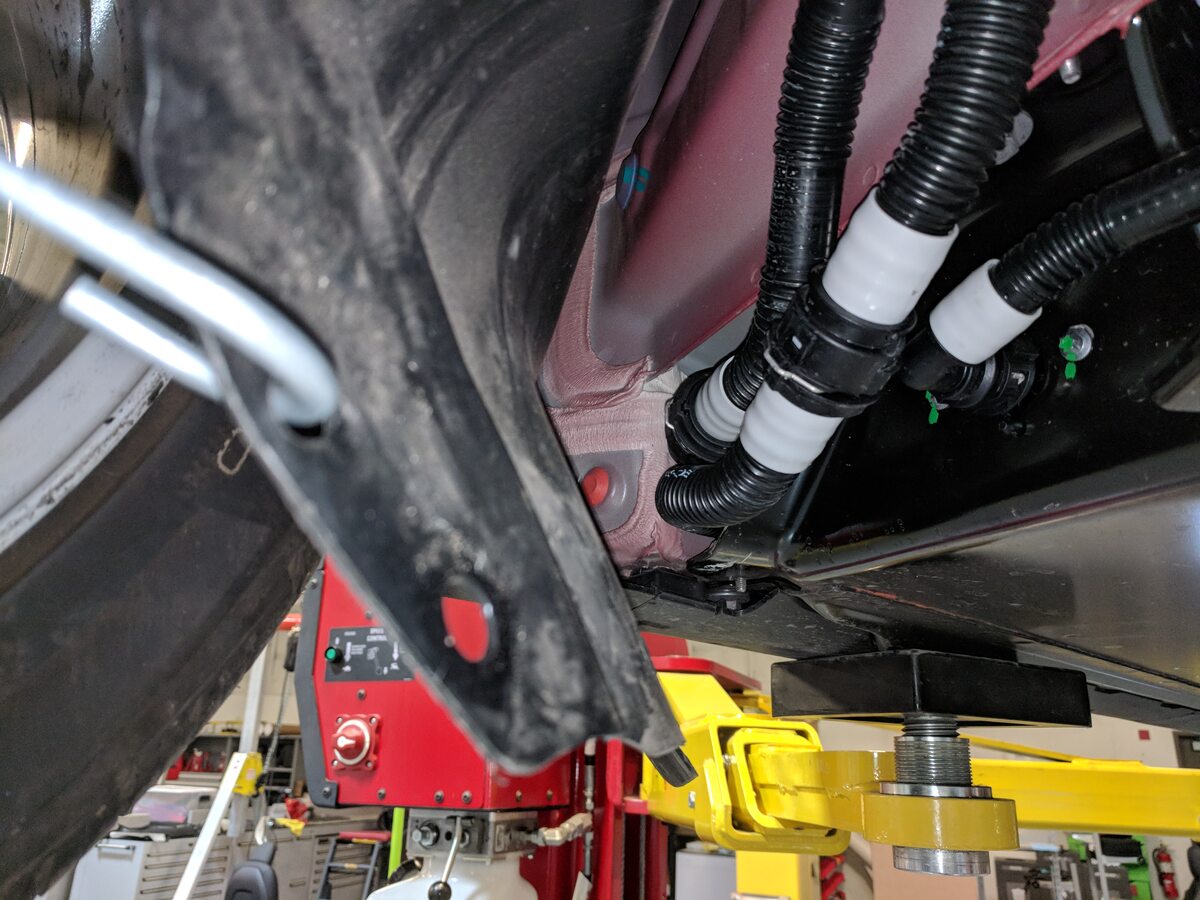

  99. Install lift pad adapters onto LH rocker
    注
    2x lift pad adapters
  100. Install lift pad adapters onto RH rocker
    注
    2x lift pad adapters
  101. Raise and support vehicle
    注
    Verify jack locations prior to lifting vehicle, ONLY place on lifting points at front and rear of rocker panels
  102. Fully raise the vehicle, and then lower the lift onto the locks.
  103. Remove front aero shield
    注
    12x bolts, 10mm, 6 Nm, 2x nuts, 15mm, 6 Nm, 2x clips, 2x hooks
  104. Secure RH front wheel liner away from HV battery
  105. Secure LH front wheel liner away from HV battery
  106. Remove mid aero shield
    注
    11x bolts, 10mm, 5 Nm, Fasteners may vary, MYSP will have one less bolt
  107. Remove all items from pockets and ensure not wearing metal items
  108. Inspect HV insulating gloves
    注
    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
  109. Put on the HV insulating gloves and leather over gloves.
  110. Install amp clamp to RDU HV harness
    注
    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as required. If current < 0.5A, OK to disconnect and check voltage at HV plug on battery side
  111. Release RDU HV harness from HV battery
    注
    1x connector, Release locking tab and rotate release lever up to disengage connector, Do not force release lever up, Ensure alignment tabs on RDU header are not damaged
  112. Verify no high voltage at RDU HV header
    注
    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
  113. Remove HV insulating gloves

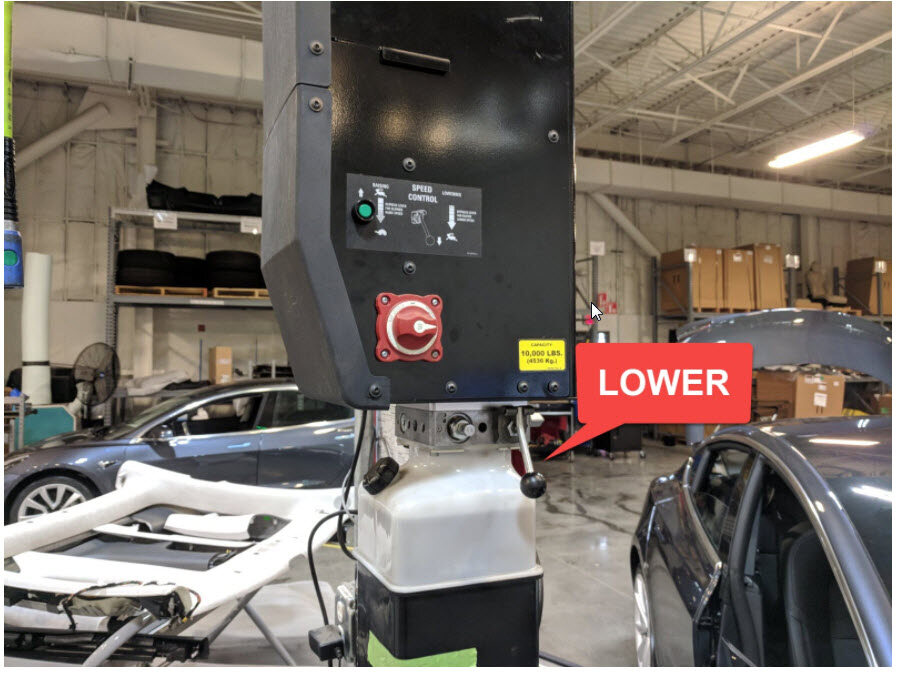

  114. Lower vehicle until tires are touching ground
    注
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

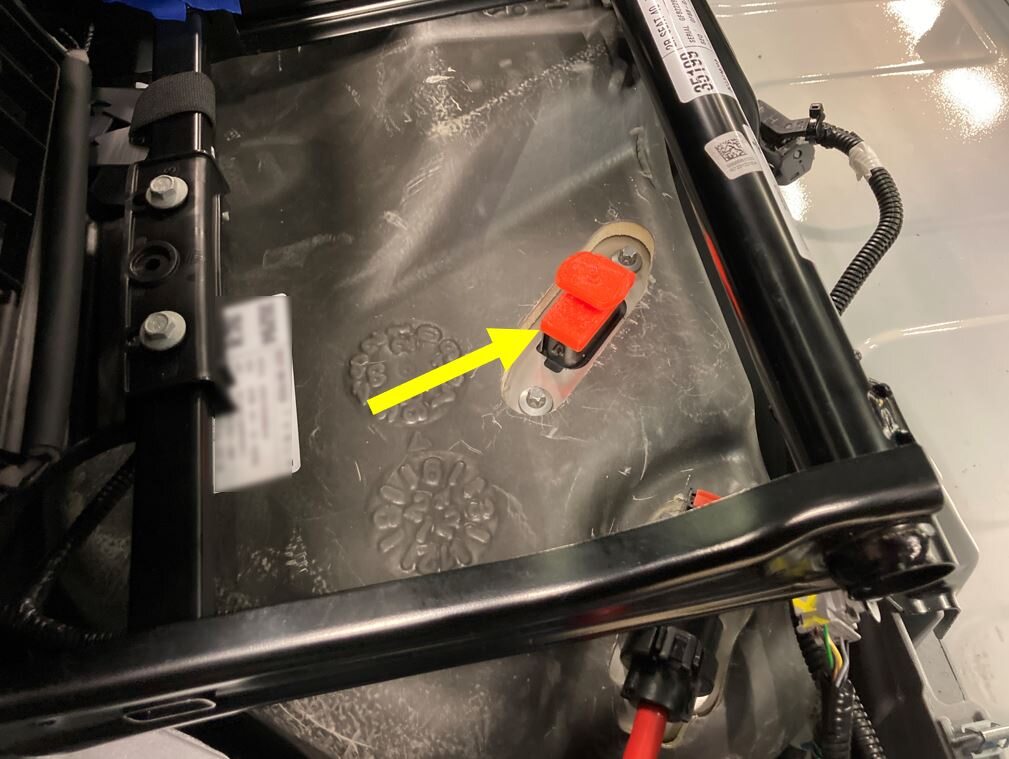

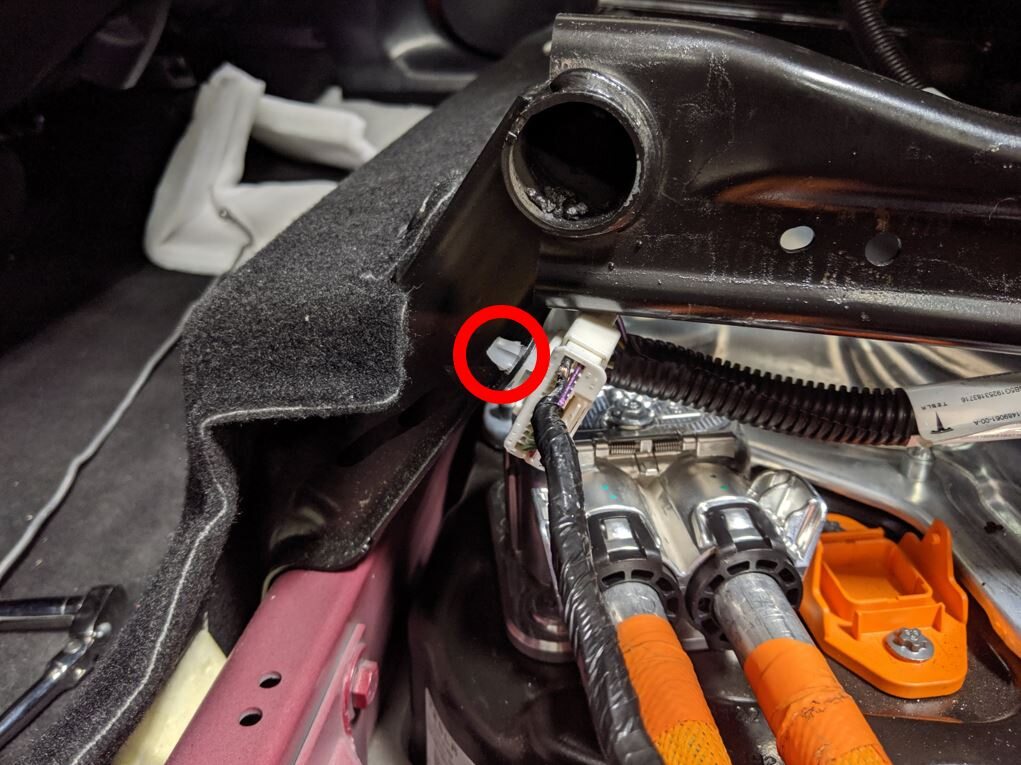

  115. Release 2nd row 60 seat connector from LH seat frame
    注
    1x clip, Pinch tabs on clip to avoid damage
  116. Disconnect HV inlet harness from HV battery
    注
    1x connector, Release locking tab upwards then lift connector
  117. Remove bolt securing busbar cover access door
    注
    1x bolt, 10mm, 9 Nm
  118. Remove bolts securing charge port busbar kit to HV header
    注
    2x bolts, 10mm, 9 Nm
  119. Release LH body harness from rear body and move aside
    注
    1x clip
  120. Lift busbar kit connector to remove from HV header
    注
    Use inflatable air bag to suspend busbar away from HV header during removal and installation, hold busbar firmly as there is tension on
  121. Disconnect HVC logic connector and install logic cap
    注
    1x connector, 1x cap, Release locking tab then pivot handle downward to release connector
  122. Disconnect power connector to HV battery
    注
    1x connector, Pull locking tab upward then release connection
  123. Close all four doors
    注
    Latch rear doors to prevent accidental closure
  124. Raise vehicle fully and lower lift onto locks
    注
    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side
  125. Position coolant drain container underneath LH front of HV battery

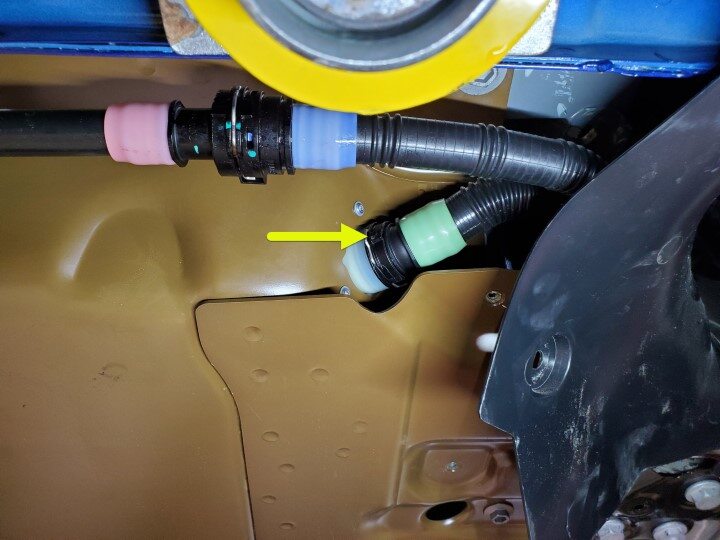

  126. Disconnect PT supply hose at LH front side of vehicle
    注
    1x spring clip, Plug hose connections as needed
  127. Install PCS flush adapter onto PT supply hose
    注
    Remove plugs as needed, Verify fully seated, Perform push-pull-push test
  128. Secure coolant cart flush hose to regulator and PCS flush adapter
    注
    Verify regulator valve is closed, Pressure regulator is not adjustable
  129. Position coolant drain container underneath LH RDU area
    注
    Position neck to catch all coolant loss
  130. Release RDU inverter inlet hose from RDU
    注
    1x clip
  131. Disconnect RDU inverter inlet hose from fluid coupling
    注
    1x spring clip, 2x plugs, Plug drive unit coupling
  132. Attach compressed air line to coolant pressure tester
    注
    Make sure valve is closed on pressure regulator
  133. Slowly open valve on pressure regulator and allow coolant to completely drain
    注
    Keep an eye on all hose connections to verify no leaks from tooling
  134. Close valve on pressure regulator once no coolant is draining from RDU inverter inlet hose
  135. Disconnect compressed air from coolant pressure tester
  136. Position coolant drain container underneath LH front of HV battery
  137. Remove PCS flush adapter from PT supply hose
    注
    1x spring clip, Plug hose connections as needed
  138. Remove PT flush fitting adapter from cart pressure hose
  139. Position coolant drain container underneath center front of HV battery pack
    注
    Underneath front left manifold battery supply tube
  140. Disconnect front left manifold battery supply tube
    注
    1x spring clip, 1x clip, Plug hose connections as needed
  141. Attach battery drain fitting adapter onto female front left manifold battery supply tube
    注
    Make sure valve is closed and adapter is locked to manifold tube
  142. Secure coolant cart flush hose to battery drain fitting adapter
  143. Position coolant drain container underneath RH front of HV battery
  144. Disconnect HV battery RH front inlet hose
    注
    1x spring clip, Plug hose connections as needed
  145. Release clip securing HV battery RH front inlet hose to skid plate
    注
    1x clip
  146. Attach compressed air line to coolant pressure tester
    注
    Make sure valve is closed on pressure regulator
  147. Open valve on battery drain fitting adapter
  148. Slowly open valve on pressure regulator and allow coolant to completely drain
    注
    Keep an eye on all hose connections to verify no leaks from tooling
  149. Close valve on pressure regulator once no coolant is draining from HV battery RH front inlet port
  150. Disconnect compressed air from coolant pressure tester
  151. Position coolant drain container underneath center front of HV battery pack
    注
    Underneath front left manifold battery supply tube
  152. Remove battery drain fitting adapter from female front left manifold battery supply tube
    注
    1x spring clip, Plug hose connections as needed
  153. Remove battery drain fitting adapter from cart drain hose
  154. Position coolant drain container underneath RH front of HV battery
  155. Disconnect PT return hose at RH front side of vehicle
    注
    1x spring clip, Plug hose connections as needed
  156. Release clip securing PT return hose to RH front side of HV battery pack
    注
    1x clip
  157. Release PT coolant hose from LH side of front HV battery bash plate
    注
    1x clip
  158. Position coolant drain container underneath LH rear of HV battery

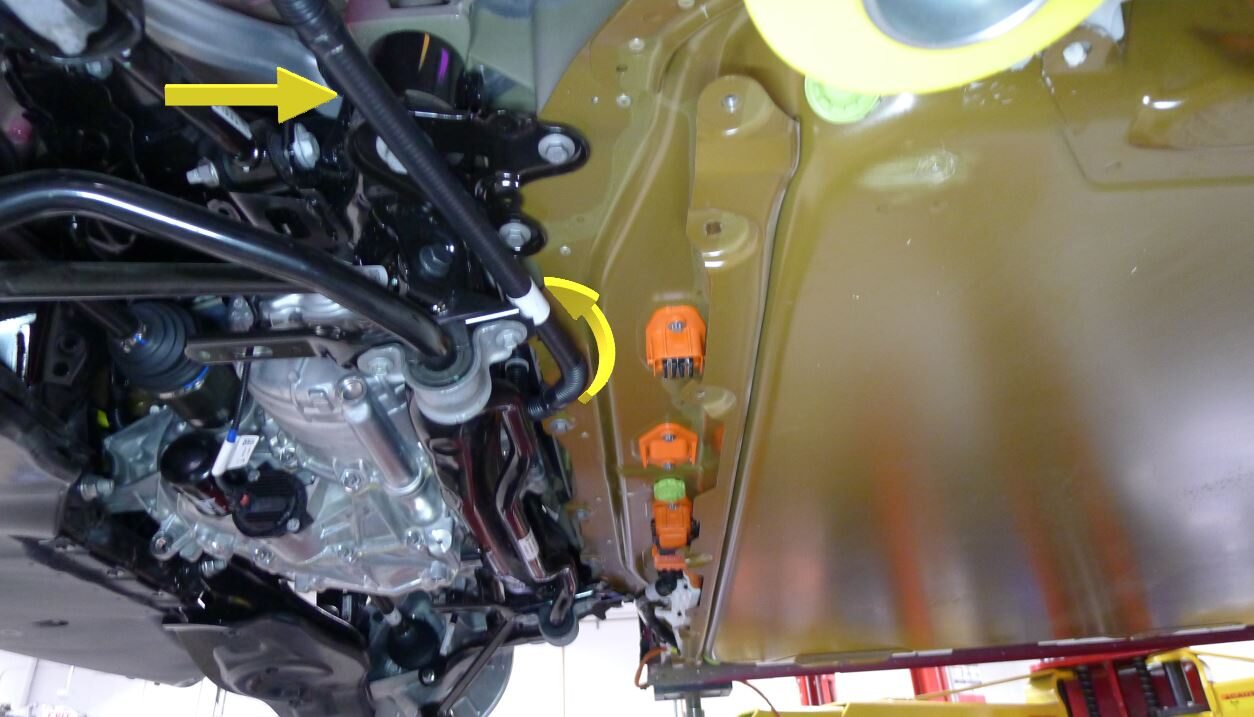

  159. Remove RDU inverter inlet hose
    注
    1x spring clip, 1x clip, Rotate between subframe and battery out of vehicle, plug hose connections as needed
  160. Disconnect compressor HV harness from HV battery
    注
    1x locking connector, Hold down red locking tab and disengage the release lever, Do not force the release lever up
  161. Release compressor HV harness from HV battery
    注
    4x clips
  162. Release RDU oil cooler outlet pipe
    注
    2x spring clips, 5x clips, Plug hose connections as needed
  163. Remove RDU oil cooler outlet pipe
    注
    Rotate down over RDU and rearward around subframe
  164. Remove coolant drain container from underneath vehicle
  165. Release RDU HV cable bracket from RDU
    注
    1x bolt, 10mm, 6 Nm
  166. Disconnect RDU HV cable from RDU
    注
    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up
  167. Remove RDU HV cable
    注
    Rotate cable underneath logic cable harness between subframe and HV battery
  168. Remove smaller fasteners for LH and RH shear plates
    注
    4x bolts, 13mm, 47 Nm, Bolt position 8-9 and 14-15
  169. Loosen large bolt securing LH shear plate and subframe to body and rotate shear plate clear of HV battery
    注
    1x bolt, 21mm, 130 Nm, Hand tighten bolt once shear plate is in position
  170. Loosen large bolt securing RH shear plate and subframe to body and rotate shear plate clear of HV battery
    注
    1x bolt, 21mm, 130 Nm, Hand tighten bolt once shear plate is in position
  171. Place battery table into position and lower vehicle to support battery
    注
    Recommend assistance, Line up table so bolts at front bash plate are accessible and rear HV cables are accessible, Adjust final battery table position using adjustable caster jacks on table
  172. Loosen front bolts securing HV battery through skid plate cover with ratchet and remove with battery powered drill
    注
    6x bolts, 16mm, 52 Nm, Later production vehicles have E14 bolts torqued at 75 Nm, Bolt location 23 to 28
  173. Loosen bolts securing skid plate to vehicle with ratchet and remove with battery powered drill
    注
    6x bolts, 13mm, 62 Nm, Bolt location 29-34
  174. Loosen bolts securing rear HV battery to vehicle with ratchet and remove with battery powered drill
    注
    4x bolts, 13mm, 62 Nm, Bolt position 10-13

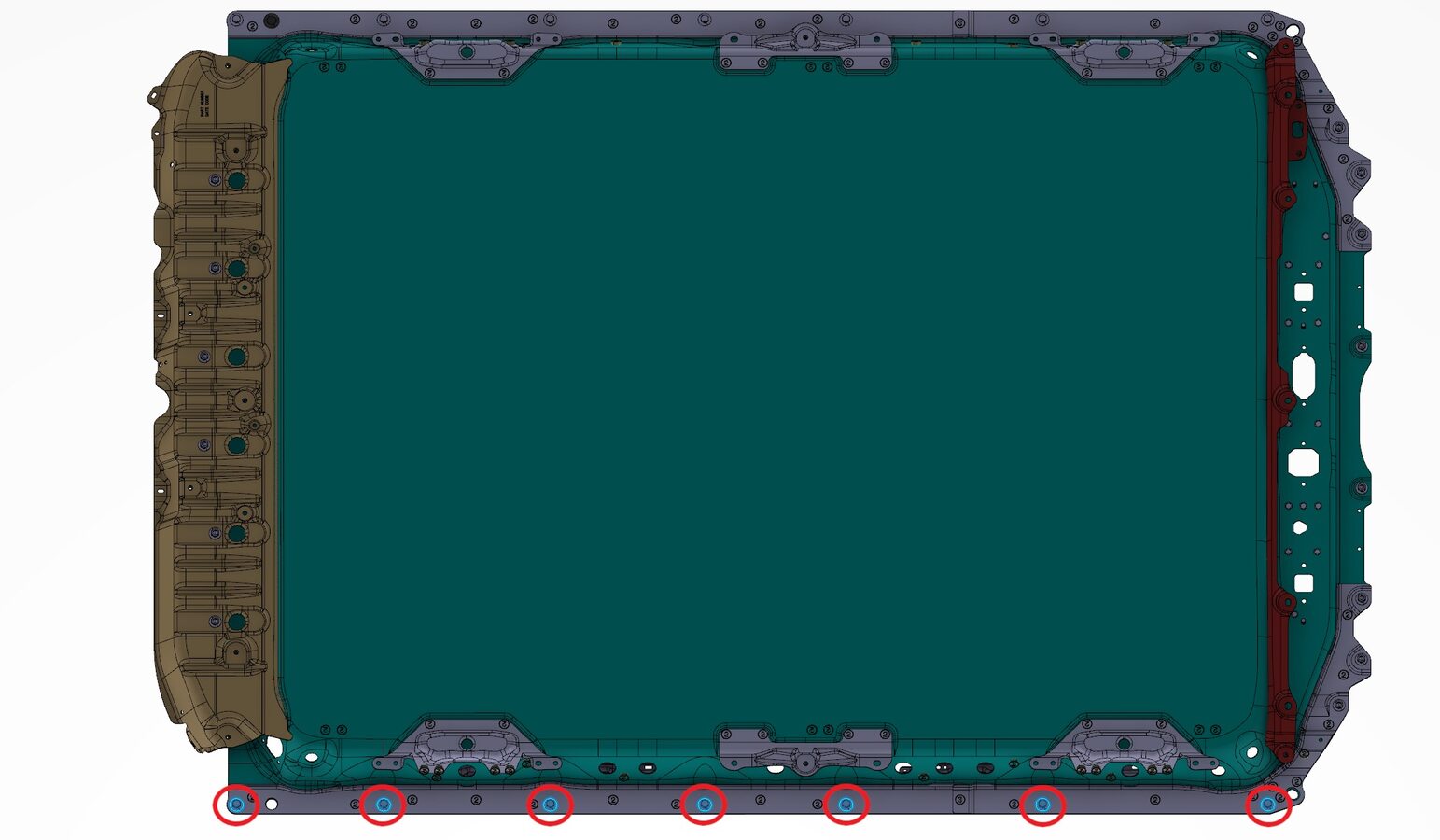

  175. Loosen LH bolts securing HV battery to vehicle with ratchet and remove with battery powered drill
    注
    7x bolts, 15mm, 56 Nm, Bolt position 16-22
  176. Loosen RH bolts securing HV battery to vehicle with ratchet and remove with battery powered drill
    注
    7x bolts, 15mm, 56 Nm, Bolt position 1-7

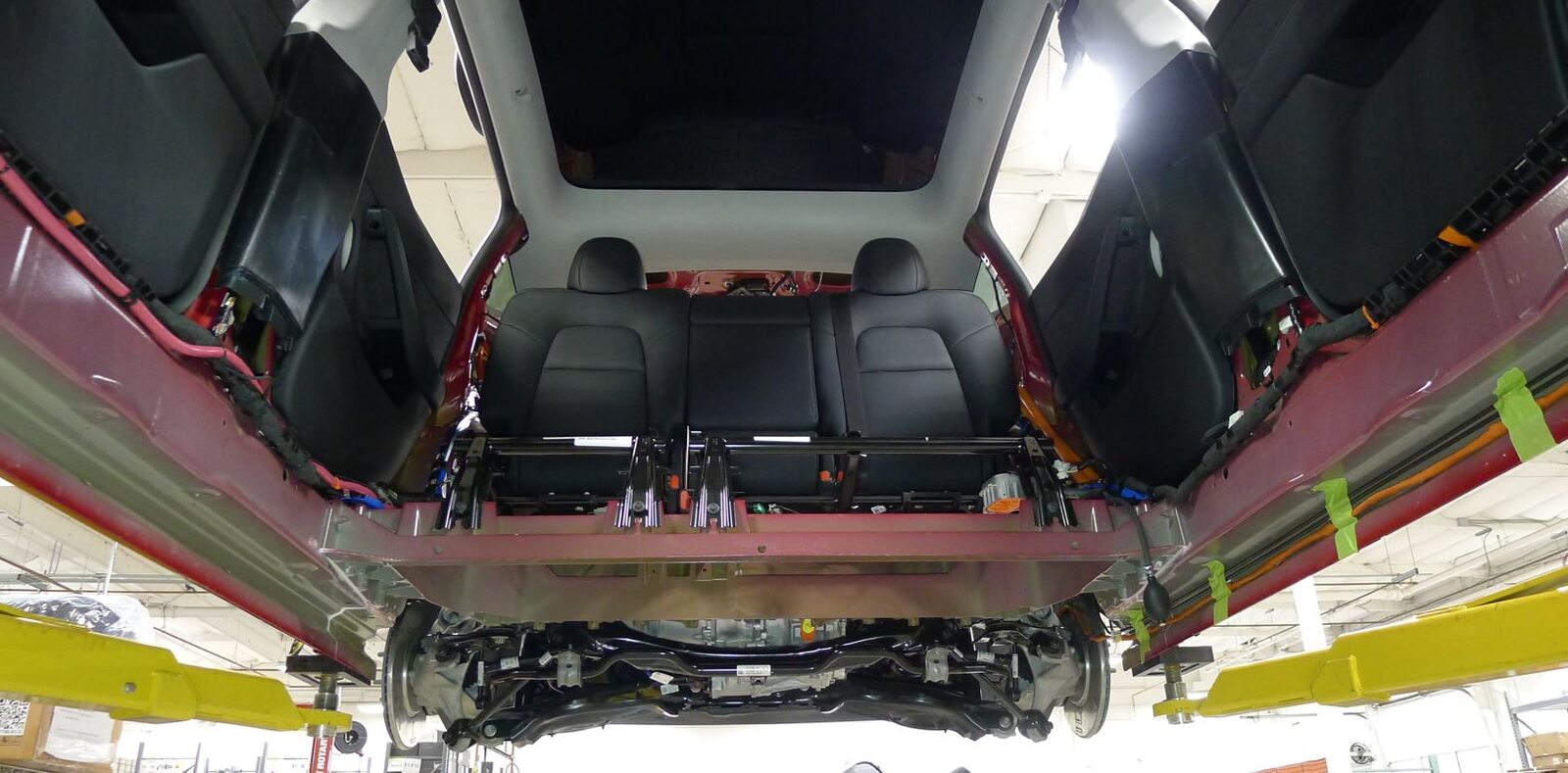

  177. Raise vehicle to free from HV battery
    注
    Recommend assistance
  178. Remove battery from under vehicle
    注
    Recommend assistance
  179. Release PT supply tube from rear of HV battery pack
    注
    1x spring clip, 2x clips, Plug hose connections as needed
  180. Remove PT supply tube from LH side of HV battery pack
    注

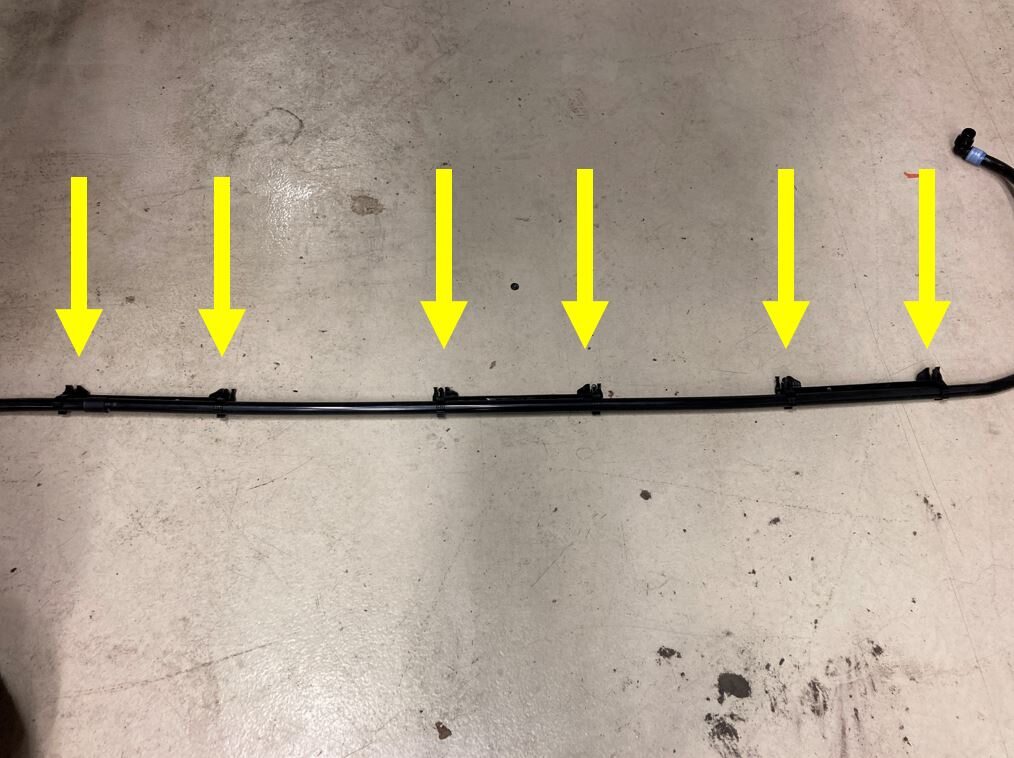

    6x clamps, 6x brackets, Each clamp has 1x datum that need to be released from bracket holes
  181. Remove FDU dummy plug from HV battery pack
    注
    1x connector, Disengage locking tab then release connector body
  182. Remove front left manifold battery supply tube from HV battery pack
    注
    1x spring clip, 3x clips, Use shop towel to clean any residue coolant if necessary, Plug hose connections as needed
  183. Remove PT return tube from RH side of HV battery pack
    注
    6x clamps, 6x brackets, Each clamp has 3x datums that need to be released from 3x bracket holes
  184. Attach HV battery H-frame to gantry and raise into position
    警告
    注意请确保无任何身体部位暴露在悬挂重物下方。
    警告
    请勿尝试移动悬挂有重物的起重机架。
    警告
    请参阅起重机架制造商说明，了解相关安全和操作信息。
  185. Placeholder - Release P2 sling adapter from H-frame
    注
    4x anchor hooks
  186. Position HV battery under gantry
    注
    Recommend assistance

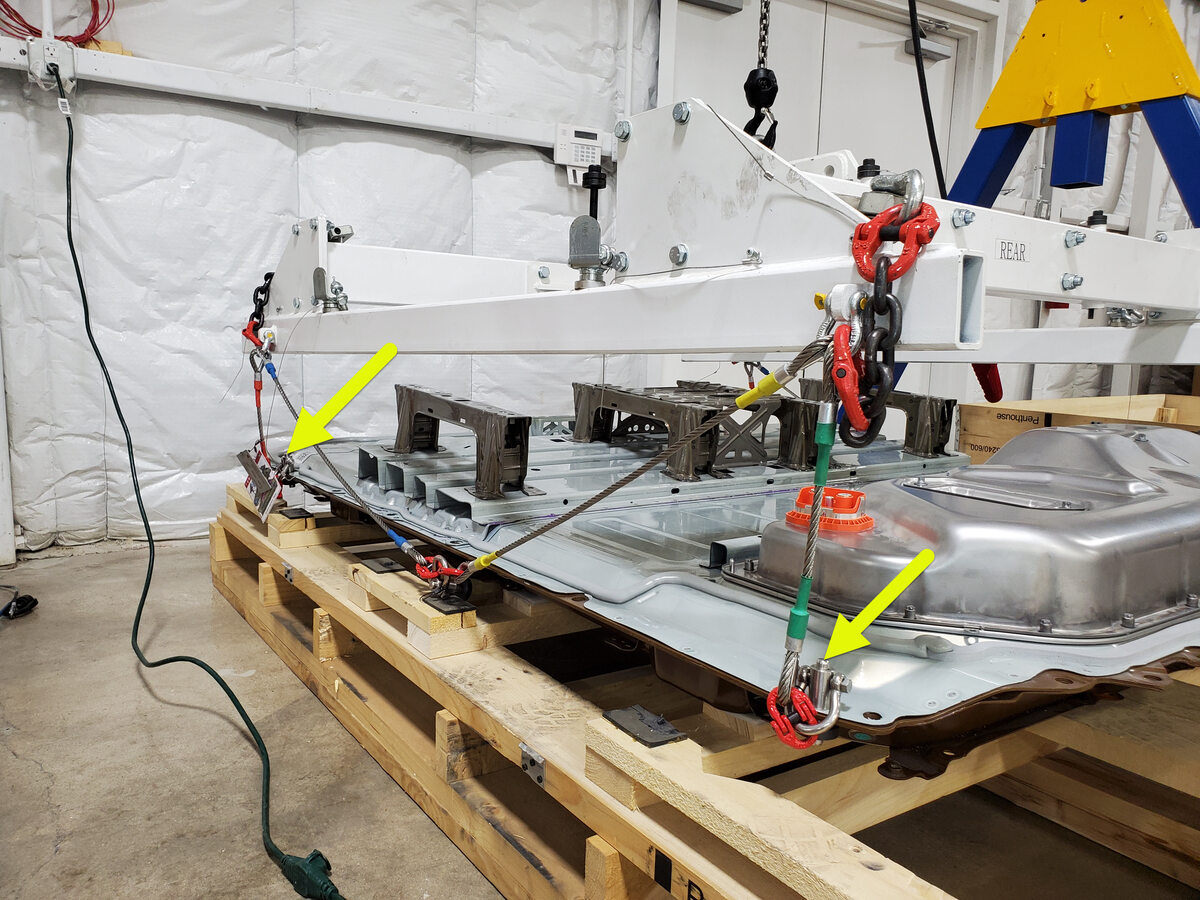

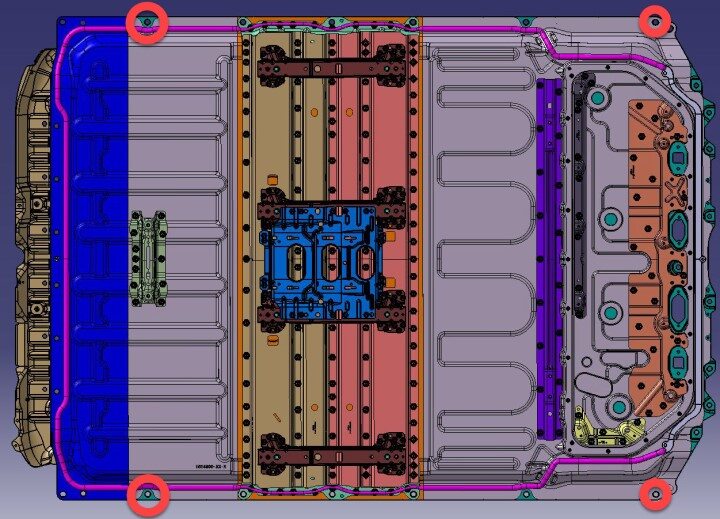

  187. Secure P2 sling adapter onto HV battery pack
    注
    4x locking joints, The hoist is color coded and will come with instructions, Verify locking joints are fully secured, DO NOT secure middle joints, Perform push and pull test, If not properly secured then top pin will be recessed, Take care to secure properly and safely
  188. Raise HV battery pack off battery table
  189. Position a pallet under the gantry.
    注
    Recommend assistance
  190. Lower HV battery pack onto pallet
  191. Release P2 battery sling adapter from HV battery pack
    注
    4x locking joints, Push down on top pin to release
  192. Raise gantry and H-frame from old HV battery pack
  193. Remove logic cap from old HV battery pack
    注
    1x cap
  194. Open crate top housing new HV battery pack
    注
    Recommend assistance
  195. Inspect and clean wade seal on battery prior to installation
    注
    Clean with water and dry surface completely, if any damage is detected, wade seal must be reworked or replaced
  196. Install logic cap onto new HV battery pack
    注
    1x cap
  197. Placeholder - Remove fasteners securing new HV battery pack to crate
    注
    Fasteners still in development
  198. Position the crate under the gantry and H-frame, then secure P2 sling adapter to new HV battery pack
    注
    4x locking joints, The hoist is color coded and will come with instructions, Verify locking joints are fully secured, DO NOT secure middle joints, Perform push and pull test, If not properly secured then top pin will be recessed, Take care to secure properly and safely
  199. Raise new HV battery pack off crate
    注
    Recommend assistance
  200. Move the crate from under the gantry, then position HV battery table under the gantry.
    注
    Recommend assistance
  201. Lower HV battery pack onto battery table
    注
    Recommend assistance, Make sure to align battery pack to table with clear access to all bolt to body holes
  202. Release P2 sling adapter from HV battery pack
    注
    4x locking joints, Push down on top pin to release
  203. Remove HV battery pack from under gantry
    注
    Recommend assistance
  204. Position the old HV battery pack under the gantry.
    注
    Recommend assistance
  205. Lower gantry and H-frame and secure P2 sling adapter to old HV battery pack
    注
    4x locking joints, The hoist is color coded and will come with instructions, Verify locking joints are fully secured, DO NOT secure middle joints, Perform push and pull test, If not properly secured then top pin will be recessed, Take care to secure properly and safely
  206. Raise old HV battery pack above height of crate
  207. Position crate underneath old HV battery pack
  208. Lower old HV battery pack onto crate
    注
    Recommend assistance
  209. Release P2 sling adapter from HV battery pack
    注
    4x locking joints, Push down on top pin to release
  210. Raise gantry and H-frame from old HV battery pack
  211. Lower gantry and remove HV battery H-frame from gantry
  212. Placeholder - Install fasteners securing new HV battery pack to crate hand tight
    注
    Fasteners still in development
  213. Close crate top housing old HV battery pack
    注
    Recommend assistance

安装

  1. Install PT return tube onto RH side of HV battery pack
    注
    6x clamps, 6x brackets, Each clamp has 3x datums that need to be secured onto 3x bracket holes
  2. Install front left manifold battery supply tube onto HV battery pack
    注
    安装螺栓或接合连接器前，请先目视检查螺栓孔和高压接头，确保端子均已对齐且螺纹未损坏。
    注
    1x spring clip, 3x clips, Remove plugs as needed
  3. Install FDU dummy plug onto HV battery pack
    注
    1x connector, Fully seat connector body, then engage locking latch
  4. Install PT supply tube to LH side of HV battery pack
    注
    6x clamps, 6x brackets, Each clamp has 1x datum that need to be secured to bracket holes
  5. Secure PT supply tube onto rear of HV battery pack
    注
    1x spring clip, 2x clips, Remove plugs as needed
  6. Clean HV connector contact surface of residual Penetrox
    注
    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector
  7. Clean busbar HV connector contact surface of residual Penetrox
    注
    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar

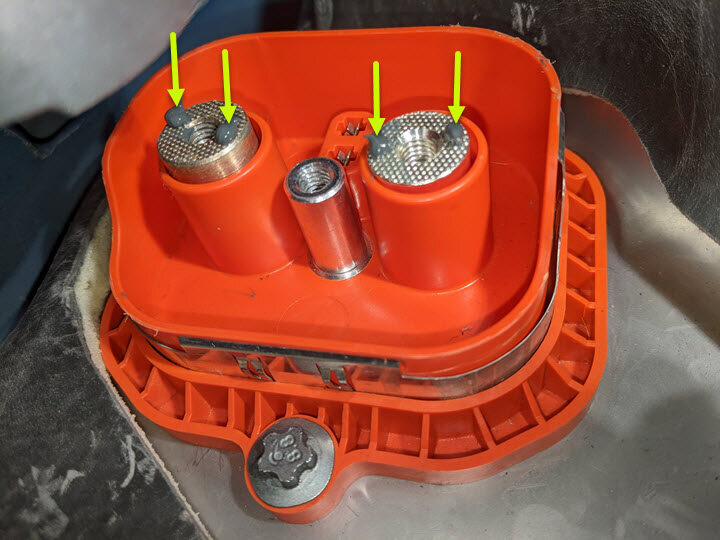

  8. Apply Penetrox onto HV connector joints
    注
    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of hole on both leads, Spread evenly to verify contact surface is fully covered

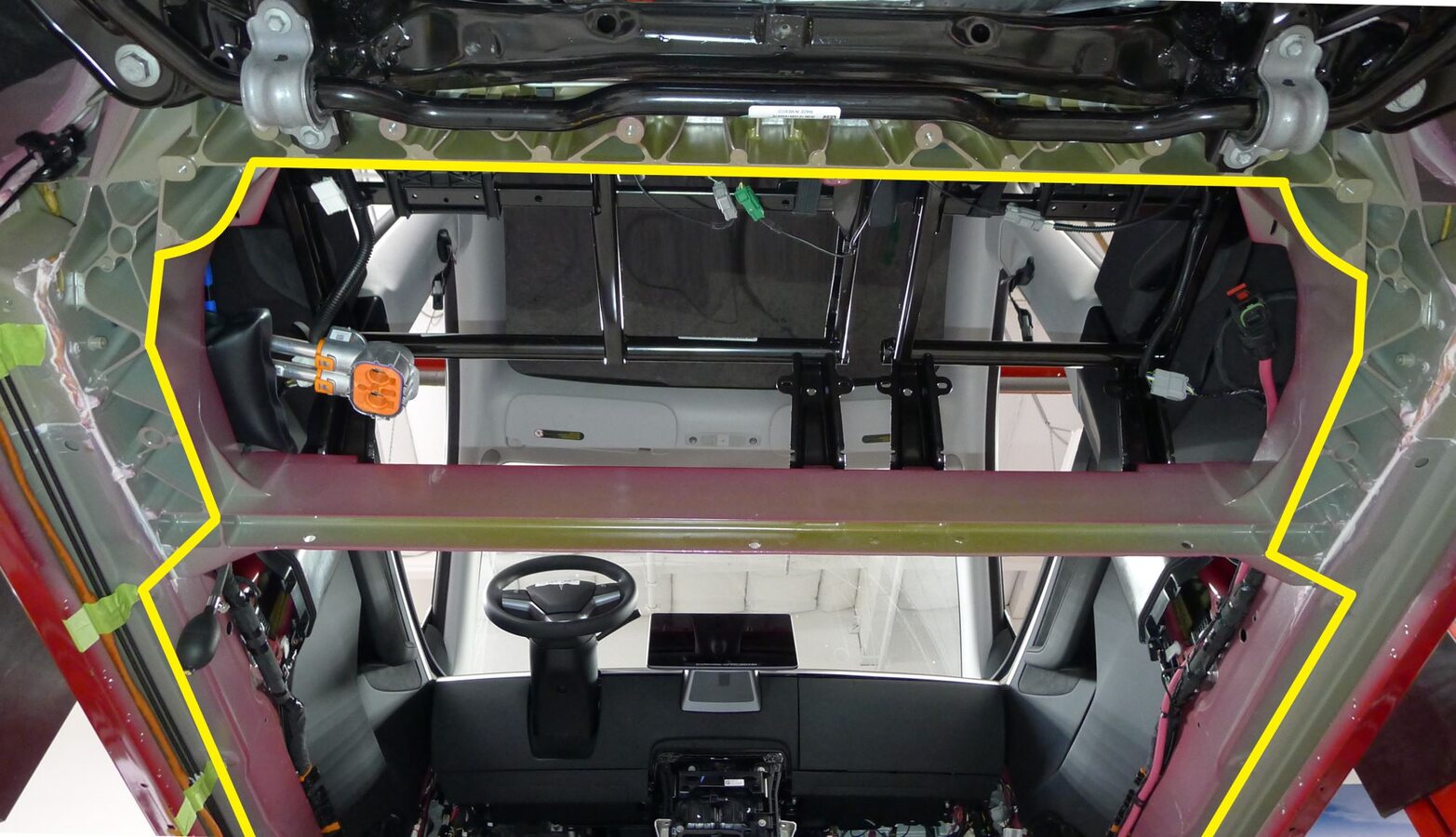

  9. Inspect and clean body side of HV battery wade seal interface
    注
    Clean with water and dry surface completely
  10. Install HV battery alignment rods onto body
    注
    2x rods, Use smaller rods only, Thread onto RH front most and LH rear most side holes
  11. Position HV battery pack under vehicle
    注
    Recommend assistance
  12. Lower vehicle onto HV battery pack and align battery holes with rods
    注
    Recommend assistance, Use smaller rods only, Be sure coolant hoses and harnesses do not get pinched
  13. Open LH rear door
    注
    Use caution while working around this area not to damage any components
  14. Open RH rear door
    注
    Use caution while working around this area not to damage any components
  15. Remove HV battery alignment rods from body
    注
    2x rods, Remove rods once the HV battery is aligned
  16. Thread in by hand all bolts securing HV battery to vehicle - (Except for shear plates)
    注
    34x bolts, Includes top bolts, Do not thread shear plate bolts (8-9, 14-15), Start with bolts (35-36-37-38) Ensure smooth thread engagement and bolts are not cross threaded into casting
  17. Lower vehicle onto pack completely
    注
    Recommend assistance
  18. Seat all bolts securing HV battery to vehicle with battery powered drill - (Except for shear plates)
    注

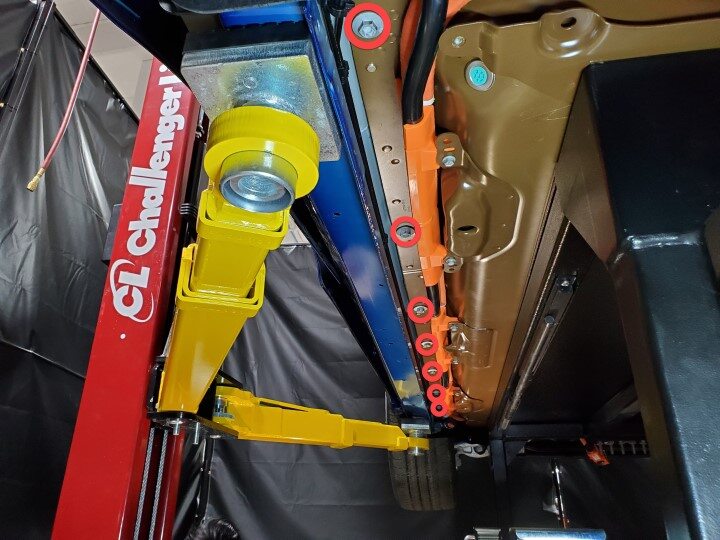

    34x bolts, Includes top bolts, Do not seat shear plate bolts (3-9, 14-15), Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
  19. Fully torque LH bolts securing HV battery to vehicle
    注
    7x bolts, 15mm, 56 Nm, Bolt position 1-7
  20. Fully torque RH bolts securing HV battery to vehicle
    注
    7x bolts, 15mm, 56 Nm, Bolt position 16-22
  21. Fully torque rear bolts securing HV battery to vehicle
    注
    4x bolts, 13mm, 62 Nm, Bolt position 10-13
  22. Fully torque front bolts securing HV battery through bash plate openings
    注
    6x bolts, 16mm, 52 Nm, Later production vehicles have E14 bolts torqued at 75 Nm, Bolt location 23 to 28
  23. Fully torque front bolts securing bash plate to vehicle
    注
    6x bolts, 13mm, 62 Nm, Bolt location 29-34

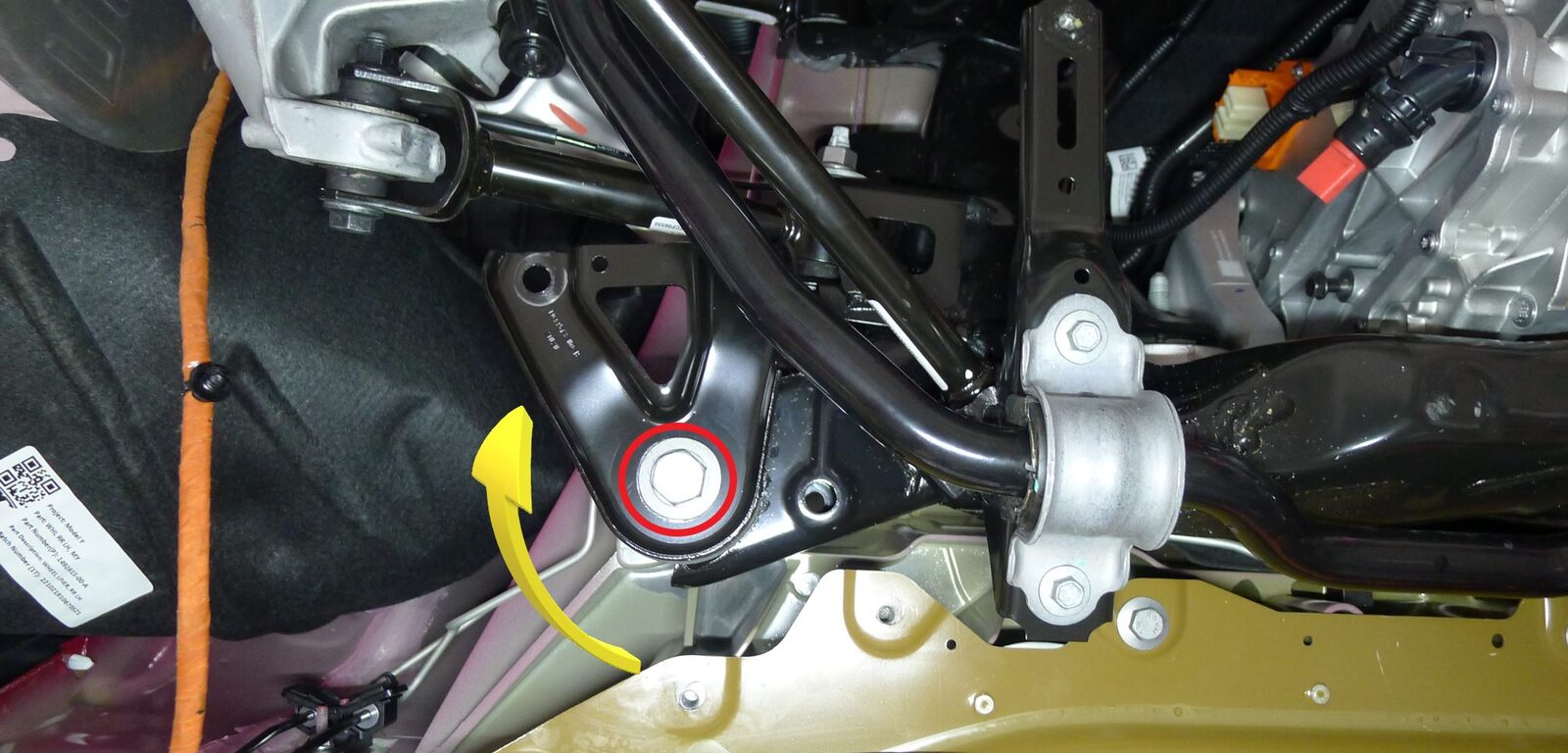

  24. Loosen RH rear subframe bolt and align RH rear shear plate with HV battery
    注
    1x bolt, 21mm, 130 Nm, Hand tighten bolt once shear plate is in position
  25. Install bolts securing RH shear plate to HV battery hand tight
    注
    2x bolts, 13mm, 62 Nm, Bolt position 8-9, Torque at later step
  26. Torque bolt securing subframe and RH rear shear plate to body
    注
    1x bolt, 21mm, 130 Nm
  27. Torque small fasteners securing RH rear shear plate to body
    注
    2x bolts, 13mm, 62 Nm, Bolt position 8-9
  28. Loosen LH rear subframe bolt and align LH rear shear plate with HV battery
    注
    1x bolt, 21mm, 130 Nm, Hand tighten bolt once shear plate is in position
  29. Install bolts securing LH rear shear plate to body hand tight
    注
    2x bolts, 13mm, 62 Nm, Bolt position 14-15, Torque at later step
  30. Torque bolt securing subframe and LH rear shear plate to body
    注
    1x bolt, 21mm, 130 Nm
  31. Torque small fasteners securing LH rear shear plate to body
    注
    2x bolts, 13mm, 62 Nm, Bolt position 14-15
  32. Fully torque LH rear inner bolts securing HV battery to vehicle
    注
    2x bolts, 13mm, 49 Nm, Located below rear main carpet, Bolt position 35-36
  33. Close LH rear door
  34. Fully torque RH rear inner bolts securing HV battery to vehicle
    注
    2x bolts, 13mm, 49 Nm, Located below rear main carpet, Bolt position 37-38
  35. Visually inspect wade seal to ensure no gaps are present
  36. Close RH rear door
  37. Raise vehicle and lower onto locks, then remove battery table from under vehicle
    注
    Recommend assistance, Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  38. Position RDU HV cable up to RDU
    注
    Rotate cable underneath logic cable harness between subframe and HV battery
  39. Connect RDU HV cable onto RDU
    注
    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins
  40. Secure RDU HV harness onto HV battery
    注
    1x connector, Verify lever is in upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins
  41. Install bolt securing RDU HV cable bracket to RDU
    注
    1x bolt, 10mm, 6 Nm
  42. Install RDU oil cooler outlet pipe
    注
    Rotate up over RDU and rearward around subframe to oil cooler
  43. Secure RDU oil cooler outlet pipe
    注
    2x spring clips, 5x clips, Remove plugs as needed
  44. Secure compressor HV harness to HV battery
    注
    4x clips
  45. Connect compressor HV harness onto HV battery
    注
    1x locking connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked
  46. Install RDU inverter inlet hose
    注
    2x spring clip, 1x clip, Rotate between subframe and battery into RDU and PCS outlet, Remove plugs as needed
  47. Secure RDU inverter inlet hose to RDU HV cable
    注
    1x clip
  48. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
    注
    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack has one less bolt and one extra clip
  49. Position coolant drain container underneath LH front of HV battery
  50. Connect PT supply hose at LH front side of vehicle
    注
    1x spring clip, Remove plugs as needed
  51. Secure PT coolant hose onto LH side of front HV battery bash plate
    注
    1x clip
  52. Position coolant drain container underneath RH front of HV battery
  53. Connect PT return hose at RH front side of vehicle
    注
    1x spring clip, Remove plugs as needed
  54. Secure PT return hose to RH front side of HV battery pack
    注
    1x clip
  55. Connect HV battery RH front inlet hose
    注
    1x spring clip, Remove plugs as needed
  56. Secure HV battery RH front inlet hose to skid plate
    注
    1x clip
  57. Position coolant drain container underneath center front of HV battery pack
    注
    Underneath front left manifold battery supply tube
  58. Connect front left manifold battery supply tube
    注
    1x spring clip, 1x clip, Remove plugs as needed
  59. Remove coolant drain container from underneath vehicle
  60. Release LH front wheel liner from bungee strap
    注
    Remove strap from vehicle
  61. Release RH front wheel liner from bungee strap
    注
    Remove strap from vehicle
  62. Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle
    注
    12x bolts, 10mm, 6 Nm, 2x nuts, 15mm, 6 Nm, 2x clips, 2x hooks
  63. Lower vehicle fully and move rack arms away from vehicle
    注
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  64. Push vehicle away from lift
    注
    Recommend assistance, Place wheel chocks to keep vehicle from moving, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
  65. Open all four doors
    注
    Latch rear doors to prevent accidental closure
  66. Connect LV power connector to HV battery
    注
    1x connector, Push red locking tab down to secure connection
  67. Remove HVC logic cap
    注
    1x cap
  68. Connect HVC logic connector
    注
    1x connector, Pivot handle upward to engage connector and secure locking tab, Remove cap if needed
  69. Position busbar kit connector and lower onto HV header
    注
    Hold busbar firmly as there is tension on, caution not to damaged busbar connectors
  70. Install bolts securing charge port busbar kit to HV Header
    注
    2x bolts, 10mm, 9 Nm
  71. Inspect the HV insulating gloves for any damage.
  72. Put on HV insulating gloves and leather over gloves
    注
    Make sure to wear Electrical Protective Gloves any time Hioki tester is used
  73. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    注
    2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session. If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again. If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step
  74. Remove HV insulating gloves
  75. Install fastener securing busbar cover access door
    注
    1x bolt, 10mm, 9 Nm
  76. Install LH body harness onto rear body
    注
    1x clip
  77. Connect HV inlet harness to HV battery
    注
    1x connector, Pivot handle downwards to engage connector and secure locking tab
  78. Secure 2nd row 60 seat connector to LH seat frame
    注
    1x clip
  79. Remove tape from seat frame
  80. Install LH and RH lower IP carrier brackets
    注
    4x bolts, 10mm, 25 Nm
  81. Install center console harness to HV Battery
    注
    1x clip
  82. Install LH and RH floor ducts
    注
    2x clips
  83. Install LH and RH center console lower rails
    注
    4x bolts, 10mm, 4.5 Nm, 8x guides, Slide rails rearward to engage onto center console riser assembly, Install new bolts
  84. Install LH riser side carpet support bracket
    注
    2x tabs
  85. Install RH riser side carpet support bracket
    注
    2x tabs
  86. Install rear main cabin carpet onto vehicle
    注
    7x clips, Position rear main carpet to floorboard and slide forward, Ensure rear main carpet tucks beneath lower B-pillar trims and air duct
  87. Install rear floormat
  88. Install RH C-pillar lower trim
    注
    5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of RH rear sill trim into trunk side trim and work your way forward securing clips, Confirm installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall
  89. Reseat RH rear door seal
    注
    Seat pillar and sill trim tabs underneath seal
  90. Install LH Lower C-Pillar trim
    注
    5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of LH Lower C-Pillar trim into trunk side trim and work your way forward securing clips, trim part may slightly differ, by vehicle build location, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall
  91. Reseat LH rear door seal
    注
    Seat pillar and sill trim tabs underneath seal
  92. Reposition 2nd row seat cushion
    注
    Slide cushion rearward then align with buckles and foam with seat rail, Make sure cushion is fully seated with push & pull test
  93. Install center console into vehicle
    注
    Recommend assistance, Tilt front of console downward, Engage into rails on risers, Slide assembly towards front of vehicle and engage into IP carrier
  94. Install RH bolt securing center console to instrument panel
    注
    1x bolt, T30, 6.5 Nm
  95. Connect USB harness at RH center console
    注
    1x USB connector, Located behind RH center console side bracket
  96. Install bolts securing center console to lower rails
    注
    2x bolts, 8mm, 9.5 Nm
  97. Install console lower rear panel
    注
    5x clips
  98. Connect center console harness connector
    注
    1x connector, Located behind LH center console side carpet
  99. Install LH bolt securing center console to instrument panel
    注
    1x bolt, T30, 6.5 Nm
  100. Install RH front seat into vehicle
    注
    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim, Gateway configuration update for cfg_frontSeattype is needed when replacing from 7654324-XX-C to 7654324-XX-F or newer 1st Row LHD RH Seat Assembly with 1st Row Mini-Tilt Motor Assembly
  101. Position RH front seat up and tilt backwards
    注
    Carefully lean RH front seat backwards
  102. Route RH front seat harness under seat riser and secure clips onto seat riser and carpet
    注
    4x clips
  103. Install RH front cabin carpet into vehicle
    注
    Secure all edges, Tuck short edge underneath center console
  104. Install clips securing RH front cabin carpet underneath front seat
    注
    4x clips
  105. Install clips securing RH cabin carpet to cabin support
    注
    2x push clips, Secure clips and verify fitment of carpet
  106. Position RH front seat down and tilt forwards
    注
    Carefully return to original position
  107. Install RH front seat harness onto RH footwell support bracket
    注
    2x retaining clips
  108. Connect RH front seat harness to VC right
    注
    1x connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated
  109. Install LH front seat into vehicle
    注
    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim, Gateway configuration update for cfg_frontSeattype is needed when replacing from 7654322-XX-E to 7654322-XX-F or newer 1st Row LHD LH Seat Assembly with 1st Row Mini-Tilt Motor Assembly
  110. Position LH front seat up and tilt backwards
    注
    Carefully lean LH front seat backwards
  111. Route LH front seat harness under seat riser and secure clips onto seat riser and carpet
    注
    4x clips
  112. Install LH front cabin carpet into vehicle
    注
    Secure all edges, Tuck short edge underneath center console
  113. Install clips securing LH front cabin carpet underneath front seat
    注
    4x clips
  114. Install clips securing LH cabin carpet to cabin support
    注
    2x push clips, 1x vertical clip, Secure vertical clip into place first, Verify fitment of carpet
  115. Position LH front seat down and tilt forwards
    注
    Carefully return to original position
  116. Install LH front seat harness clips onto LH footwell support bracket
    注
    2x retaining clips
  117. Connect LH front seat harness to VC left
    注
    1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated
  118. Remove coolant bottle cap
  119. Place empty coolant container into front storage area
  120. Fill container with at least 15L of coolant
  121. Place filled coolant container into front storage area
  122. Setup vacuum refill tool
    注

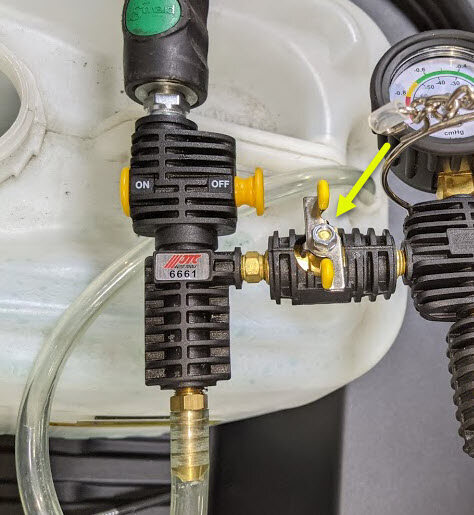

    Verify all valves on refill tool are in the closed position, See image for clarity
  123. Install refill tool cap onto coolant bottle assembly
  124. Setup vacuum refill tool
    注
    Verify all valves on refill tool are in the closed position, See image for clarity
  125. Install vacuum refill hose into refill cap on coolant bottle
    注
    Perform push-pull-push test to verify hose is fully engaged
  126. Position overflow hose into empty container
  127. Place refill hose inside filled coolant container
    注
    Make sure hose end is fully submerged into coolant
  128. Connect shop air supply to coolant refill tool
    注
    If not already done, Verify refill valve is set to off
  129. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    注
    Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
  130. Slowly open refill valve to allow coolant to be drawn into system
    注
    Make sure hose end of refill hose is fully submerged during entire process
  131. Once gauge reads zero, close refill valve
  132. Disconnect shop air supply from coolant refill tool
  133. Remove coolant refill hose from coolant container
  134. Remove coolant overflow hose from coolant container
  135. Remove vacuum refill hose from refill cap on coolant bottle
  136. Remove coolant refill tool from vehicle
  137. Remove both coolant containers from inside underhood area
  138. Connect the First Responder Loop and LV battery connector.
  139. Press and hold park button to release EPB service mode
    注
    Remove wheel chocks if necessary
  140. Access thermal system routines via UI
    注
    Select quick controls > Service mode > Thermal
  141. 运行 ODIN 例行程序 TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Service Mode:
    • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
    • Thermal ➜ Coolant System ➜ Coolant Purge Start
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
    via Toolbox:(link)
  142. Inspect coolant level and top off as necessary
    注
    Ensure coolant is filled using G-48 coolant
  143. Install coolant bottle cap
  144. 运行 ODIN 例行程序 TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCEvia Service Mode:Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
    via Toolbox:(link)
  145. Reinstall Software from UI
    注
    Select Controls > Service Mode > Software Reinstall > Request, Wait for the message and "Successfully requested"
  146. Select clock on center display, then select "Install Now" to start firmware update
    注
    Tap center display next to software update window until clock runs down to 0,After displayed installation time
  147. Once firmware redeploy is complete, Verify on center display release notes are present
    注
    If the redeploy fails you may receive an error message on UI
  148. Perform Battery Pack Replacement through Service UI
    注
    Select Service mode > High Voltage > Procedures > Battery Pack Replacement > Restore HVC after battery pack replacement, click Run, close once routine is completed, if routine fails follow https://toolbox.teslamotors.com/articles/6768800
  149. 运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
  150. Install HEPA filter assembly
    注
    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Rework requires new bolts
  151. Secure washer tank neck onto washer tank
    注
    1x O-ring, Ensure washer hose is properly routed
  152. Secure washer fluid reservoir neck to frunk
    注
    1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location
  153. Install the rear apron.
  154. Close the hood.
  155. Move RH front seat backward
  156. Install RH front seat front fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  157. Install RH console side panel carpet
    注
    12x clips, 2x locating pins, Position side panel and align the locator, then the rear locator, Push side panel towards console to install
  158. Install RH front floor mat
  159. Install RH footwell lighting and speaker connectors
    注
    2x connectors
  160. Secure RH footwell assembly onto IP
    注
    5x tabs, 1x screw, T20, 2.5 Nm, 1x push clips
  161. Move RH front seat forward
  162. Install RH front seat belt retractor to pretensioner
    注
    Slide the linkage onto the pretensioner cable, an audible click will be heard. Verify there are no twists in the webbing from the upper trim to the pretensioner. Perform a firm pull test to confirm pretensioner is engaged
  163. Install RH front seat rear fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  164. Move the RH front seat to its original position.
  165. Fully seat RH front cabin carpet
  166. Install clip securing RH front cabin carpet to body
    注
    1x push clip
  167. Install RH lower A pillar trim
    注
    6x clips, 2x locating pins, Align front locating pin first
  168. Install clip securing RH lower A pillar trim
    注
    1x push clip
  169. Install RH mid A pillar assembly
    注
    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Make sure the seal seat on top of the trim
  170. Reseat RH front door seal along lower A pillar trim
  171. Move LH front seat backward
  172. Install LH front seat front fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  173. Install LH console side panel carpet
    注
    11x clips, 2x locating pins, Position side panel and align the locator, then the rear locator, Push side panel towards console to install
  174. Install LH front floor mat
    注
    2x velcro patches, Ensure mat does not interfere with pedal operation
  175. Position LH footwell assembly
    注
    6x tabs, 1x Ethernet connector, 1x puddle light connector, 1x OBD connector
  176. Secure LH footwell assembly onto IP
    注
    1x screw, T20, 2.5 Nm, 1x push clips
  177. Move LH front seat forward
  178. Install LH front seat belt retractor to quick fix
    注
    Slide the linkage into quick fix, an audible click will be heard, Verify there are no twists in the webbing from the upper trim to quick fix, Perform a firm pull test to confirm pretensioner is engaged
  179. Install LH front seat rear fasteners
    注
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  180. Move LH front seat to original position
  181. Fully seat LH front cabin carpet
  182. Install clip securing LH front cabin carpet to body
    注
    1x push clip
  183. Install LH lower A pillar trim
    注
    6x clips, 2 locating pins, Align front locating pin first
  184. Install clip securing LH lower A pillar trim
    注
    1x push clip
  185. Install LH mid A pillar assembly
    注
    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Pull seal over trim
  186. Reseat LH front door seal along lower A-pillar trim
  187. Remove lift pad adapters from RH rocker
    注
    2x lift pad adapters
  188. Install butyl patches onto RH rocker access holes
    注
    2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch if needed, Roughly 2" x 2 1/2"
  189. Install RH rocker carrier
    注
    10x clips, 1x datum, Maneuver carrier around front wheel liner then rear wheel liner
  190. Install clips securing RH rocker carrier to body and wheel liners
    注
    3x bolts, 10mm, 12 Nm, 4x clips
  191. Install RH rocker panel onto RH rocker carrier
    注
    11x clips, 11x tabs, Recommend assistance, Tabs go into cavities on the rocker carrier and cannot be accessed from outer side of trim
  192. Install clips securing RH rocker cover to front and rear wheel liner
    注
    2x clips
  193. Remove lift pad adapters from LH rocker
    注
    2x lift pad adapters
  194. Install butyl patches onto LH rocker access holes
    注
    2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch if needed, Roughly 2" x 2 1/2"
  195. Install LH rocker carrier
    注
    10x clips, 1x datum, Maneuver carrier around front wheel liner then rear wheel liner
  196. Install clips securing LH rocker carrier to body and wheel liners
    注
    3x bolts, 10mm, 12 Nm, 4x clips
  197. Install LH rocker panel onto LH rocker carrier
    注
    11x clips, 11x tabs, Recommend assistance, Tabs go into cavities on the rocker carrier and cannot be accessed from outer side of trim
  198. Install clips securing LH rocker cover to front and rear wheel liner
    注
    2x clips
  199. Raise all four windows
  200. Close all four doors
    注
    If LV is powered up, Unlatch rear doors before closing
