维修面板 - 仪表板（拆卸和更换）

校正代码 21051212 0.06 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open the LH front door and lower the LH front window.

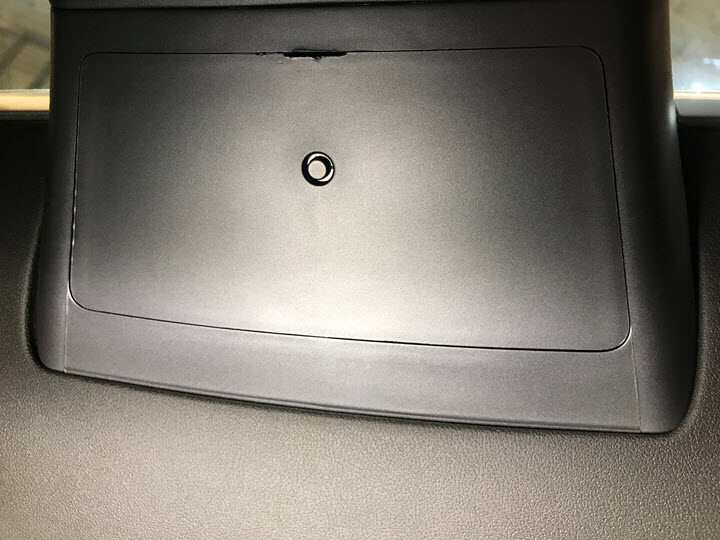

  2. Release the clips (x4) and tabs (x4) that attach the instrument panel service panel to the vehicle, and then disconnect the temperature sensor connector.

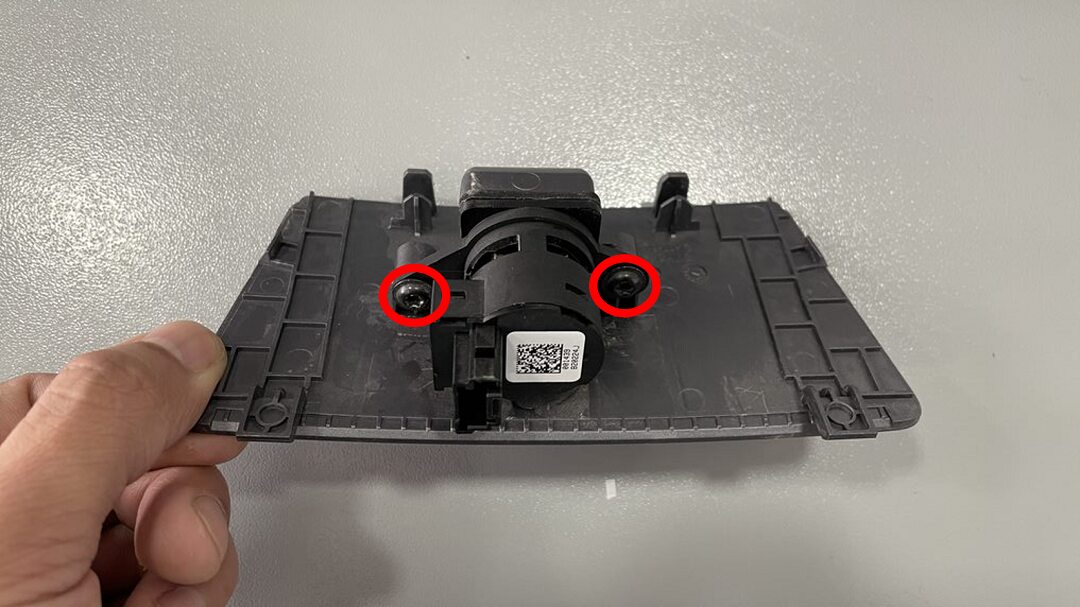

  3. Remove bolts (x2) that attach the cabin temperature sensor to instrument panel service panel, and then remove the sensor from the service panel.
    0.7 Nm (6 lbs-in)
    提示： 推荐使用以下工具：
    • 梅花 T20 批头

安装

  1. Position the cabin temperature sensor to instrument panel service panel, and then install the bolts (x2) that attach the sensor to the service panel.
    0.7 Nm (6 lbs-in)
    提示： 推荐使用以下工具：
    • 梅花 T20 批头
  2. Position the instrument panel service panel assembly to the instrument panel, connect the temperature sensor connector, and then secure the clips (x4) and tabs (x4) that attach the service panel to the vehicle.
  3. Raise the LH front window and close the LH front door.
