Super Dash (Structural Pack) ((拆卸和更换))

This procedure requires refrigerant evacuation and recharge, Please add specific evacuation and recharge correction code as needed

注

18200102,18033302,18033305,18200122**Always use this Step ID**

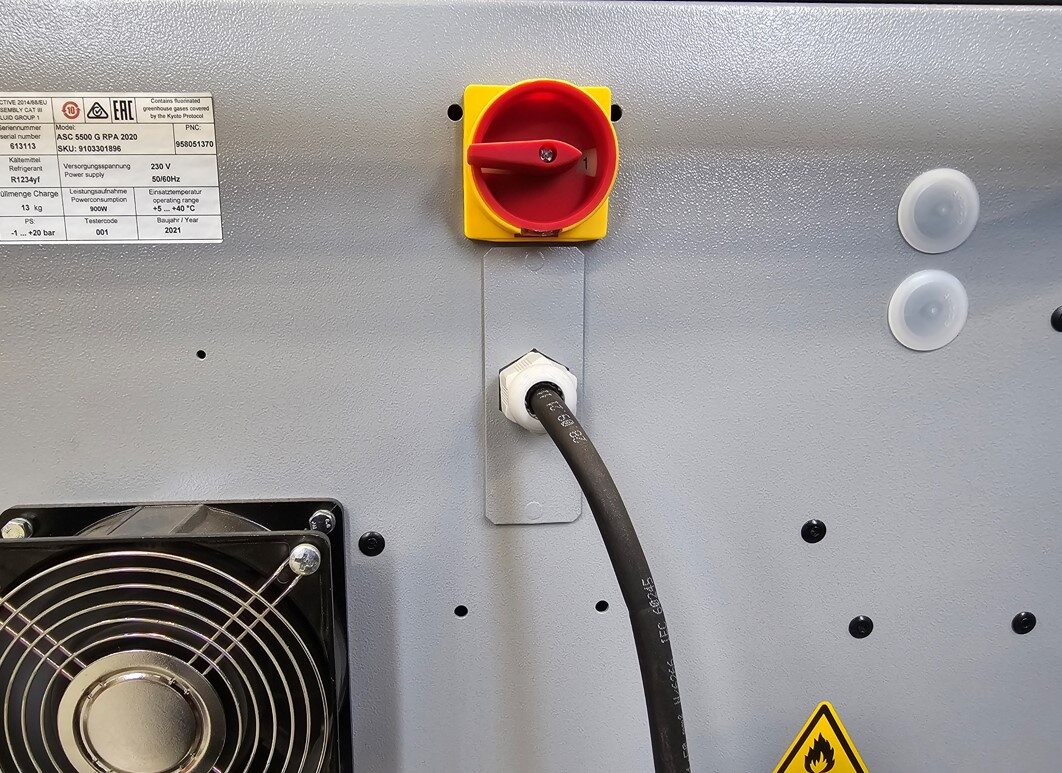

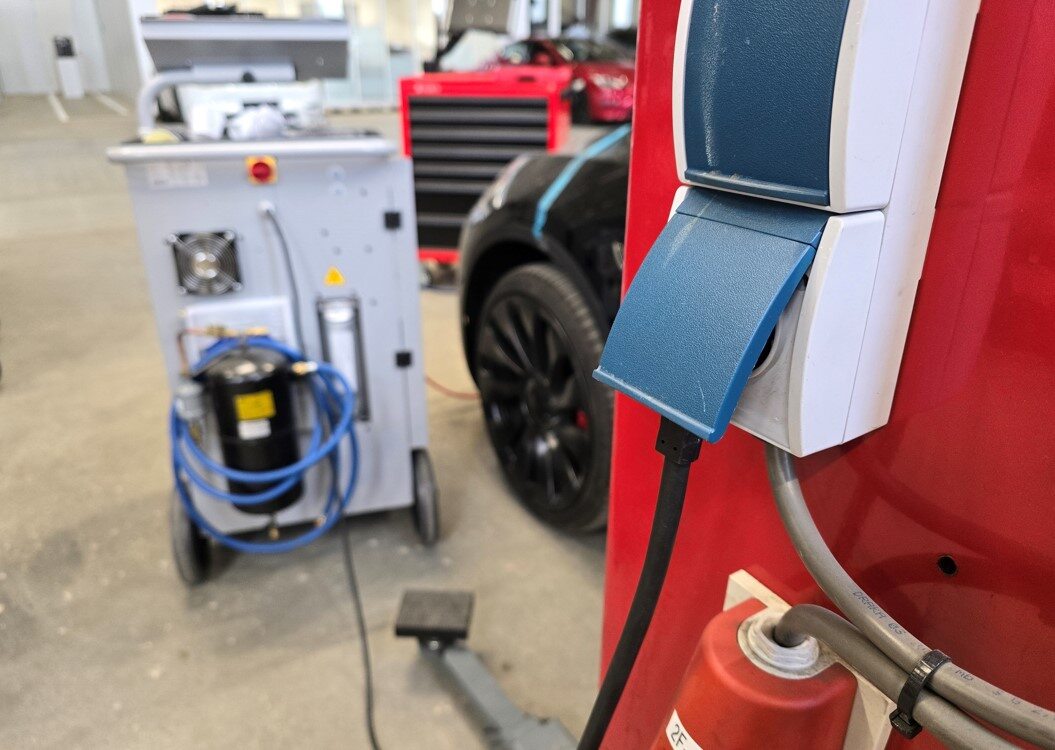

Set up A/C machine

注

Touch time only, Connect to power, Turn power switch on

Open all four doors

Lower all four windows

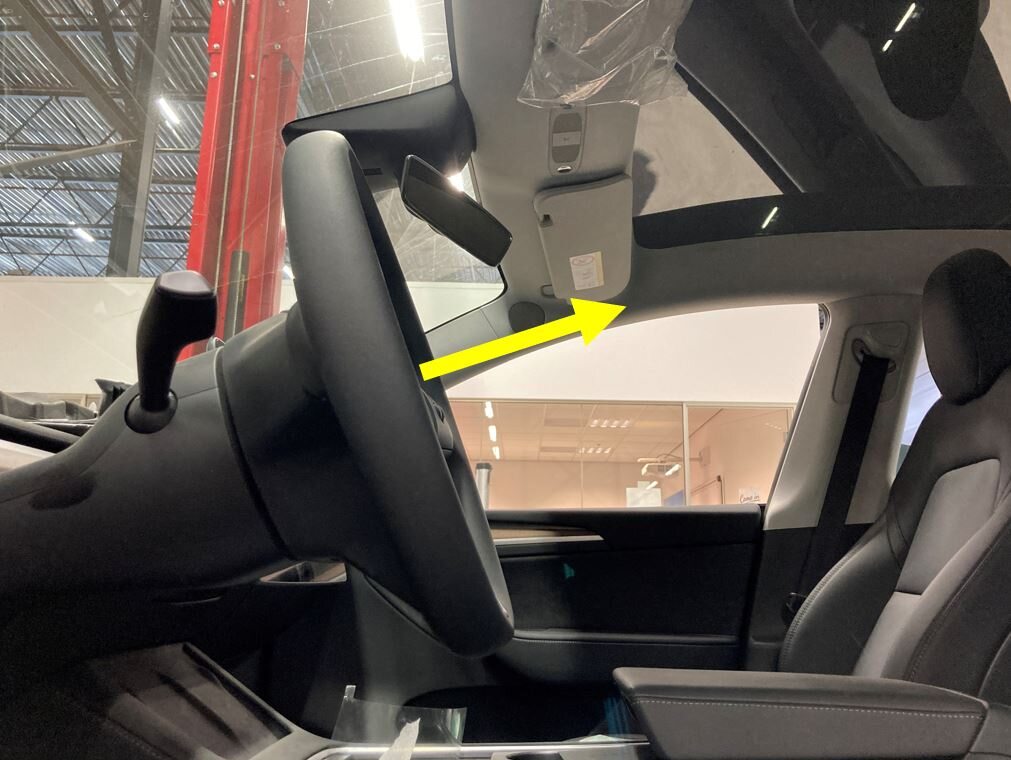

Move LH front seat forward

Raise LH front seat cushion to maximum height

注

Adjust seat back if needed to avoid contacting headliner

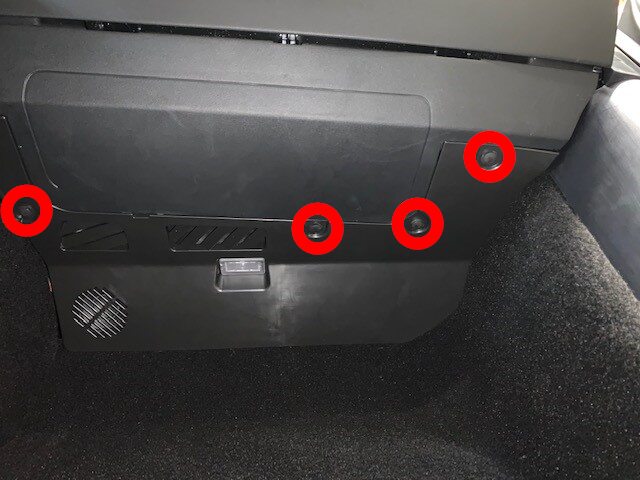

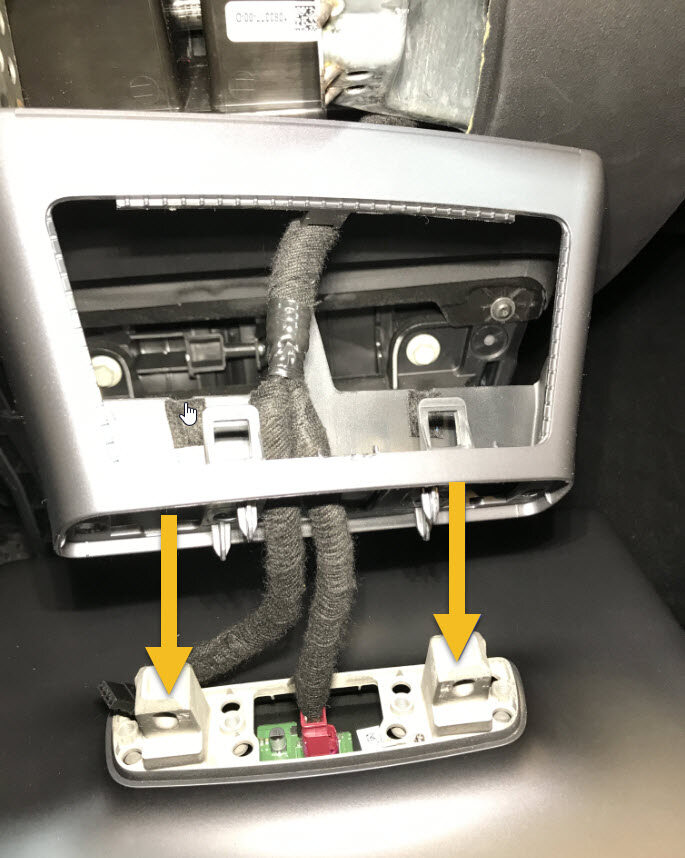

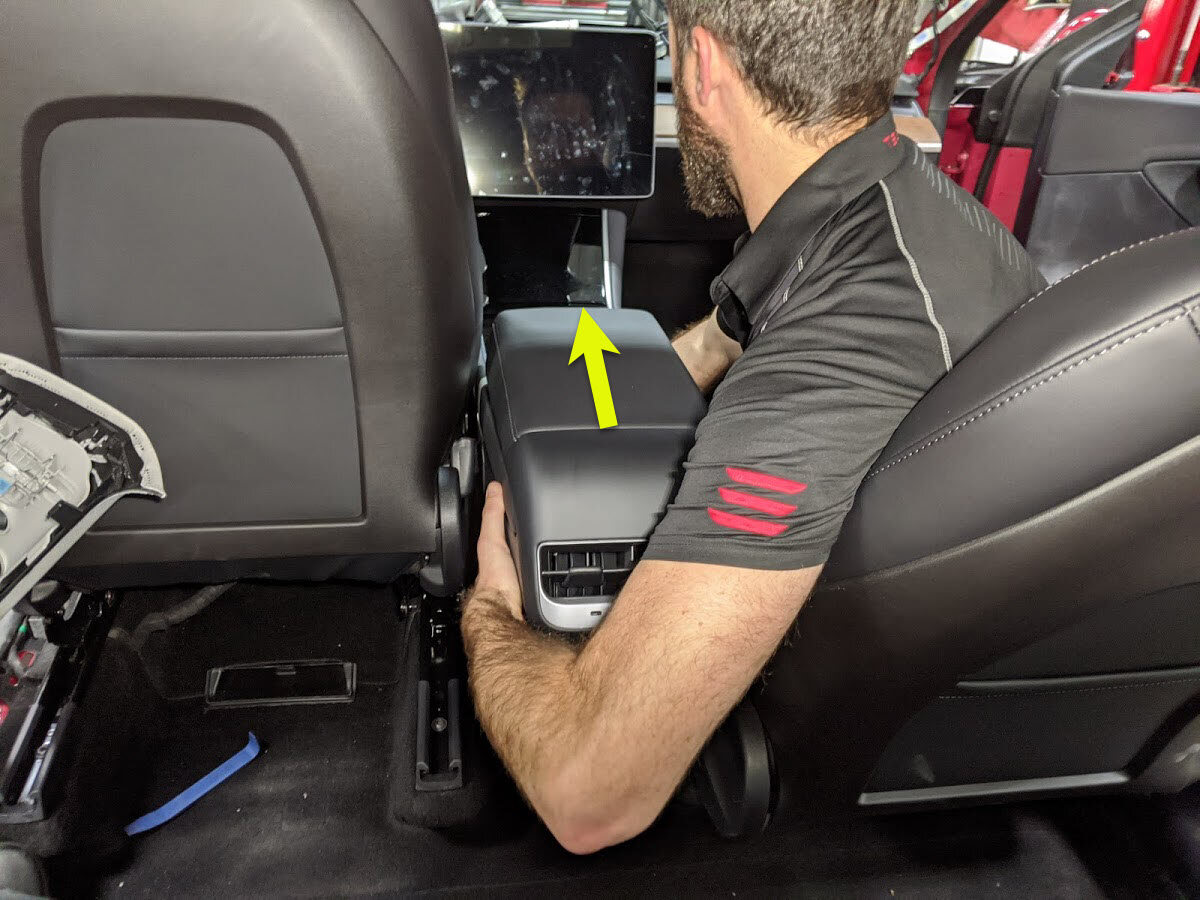

Remove console lower rear panel

注

5x clips

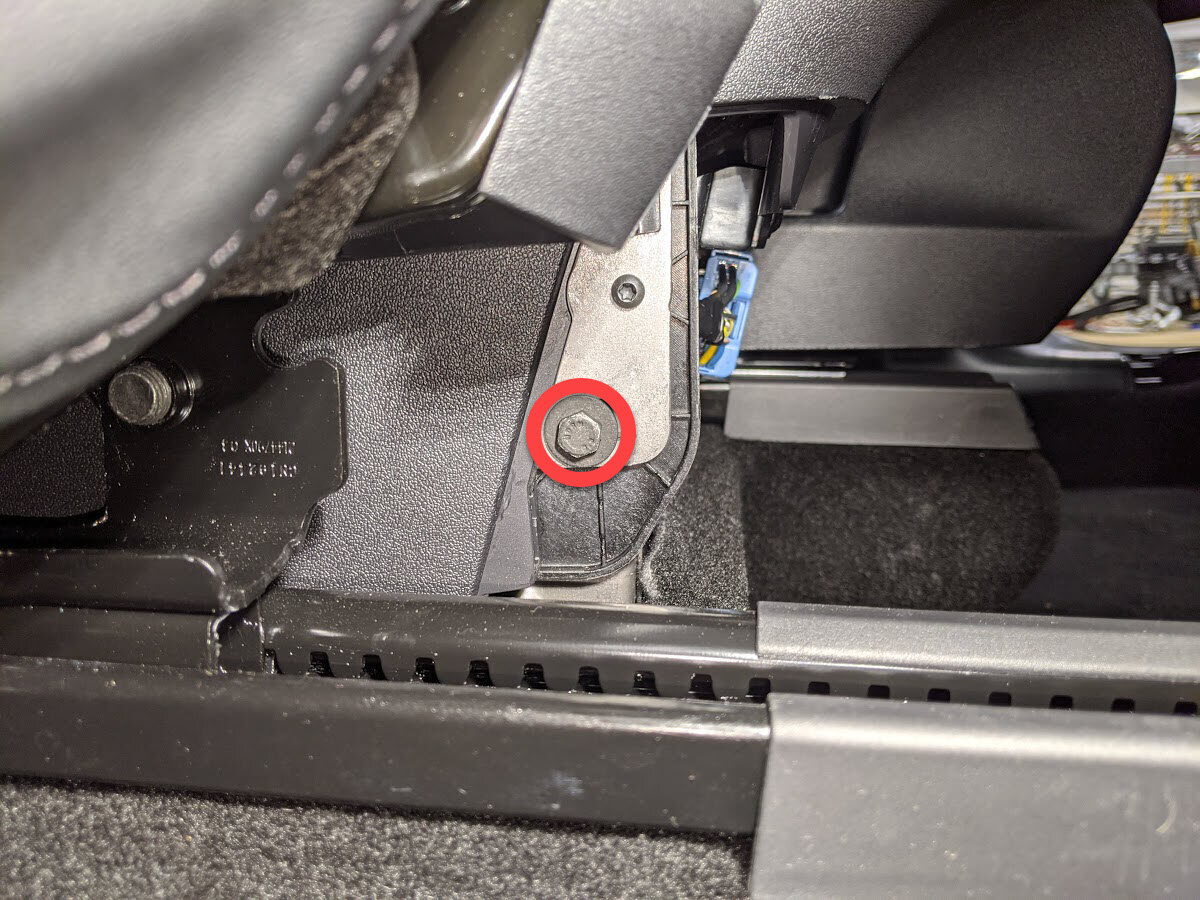

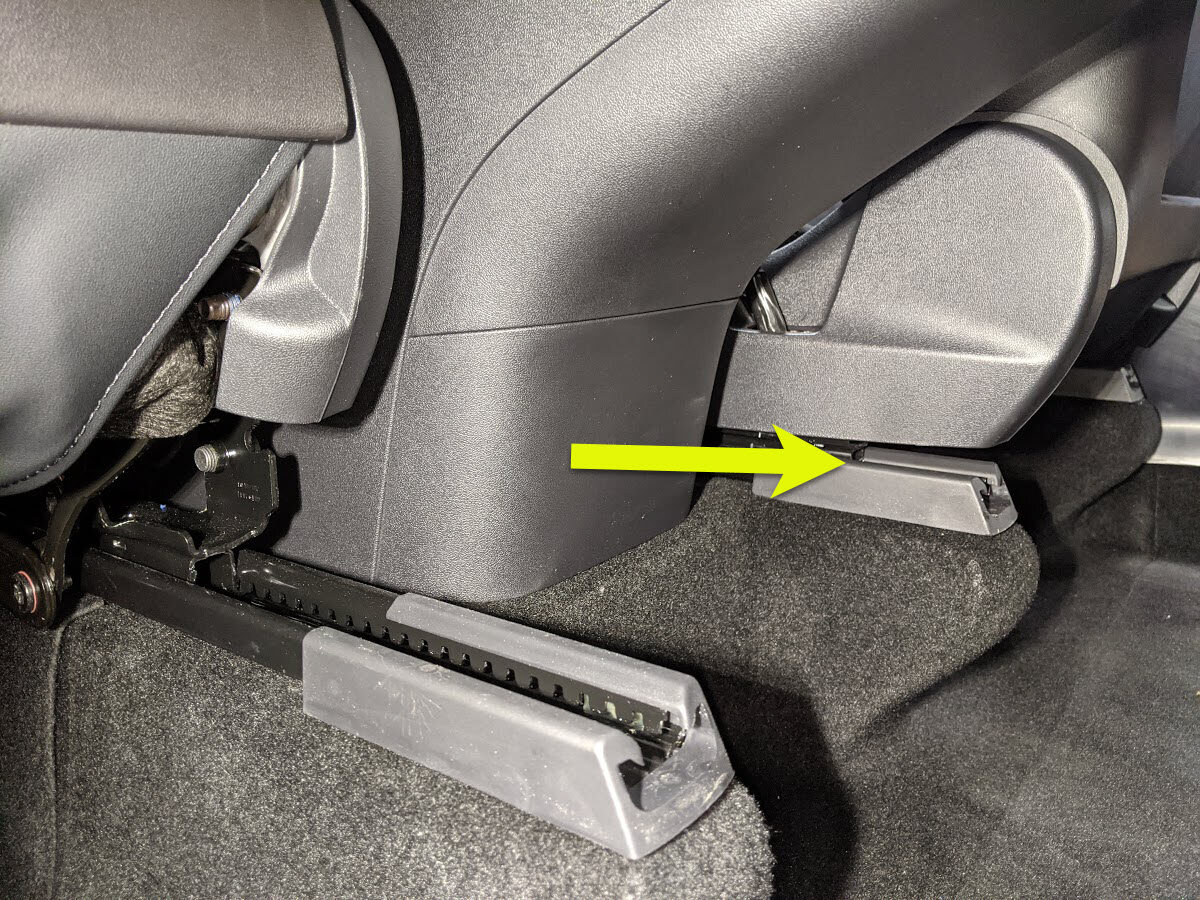

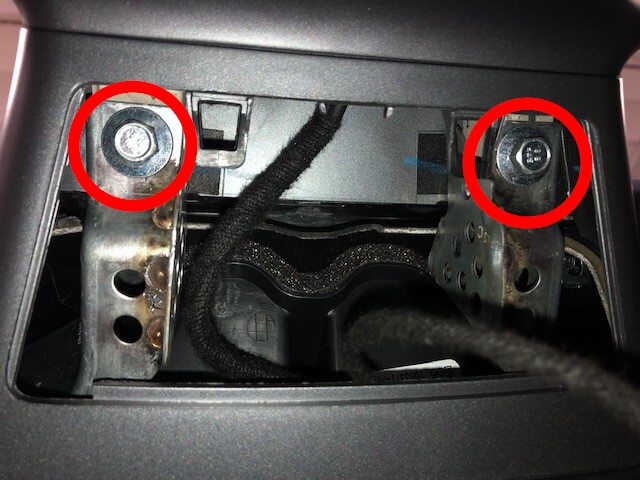

Remove LH rear exterior hardware from center console

注

1x bolt, 10mm, 7 Nm

Move LH front seat backward

注

Ensure profile is saved to allow seat position to be restored

Move RH front seat forward

Raise RH front seat cushion to maximum height

注

Adjust seat back if needed to avoid contacting headliner

Remove RH rear exterior hardware from center console

注

1x bolt, 10mm, 7 Nm

Move the RH front seat back.

Open the hood.

Remove the rear apron.

Remove frunk access panel

注

3x clips, 3x guide tabs, 1x connector

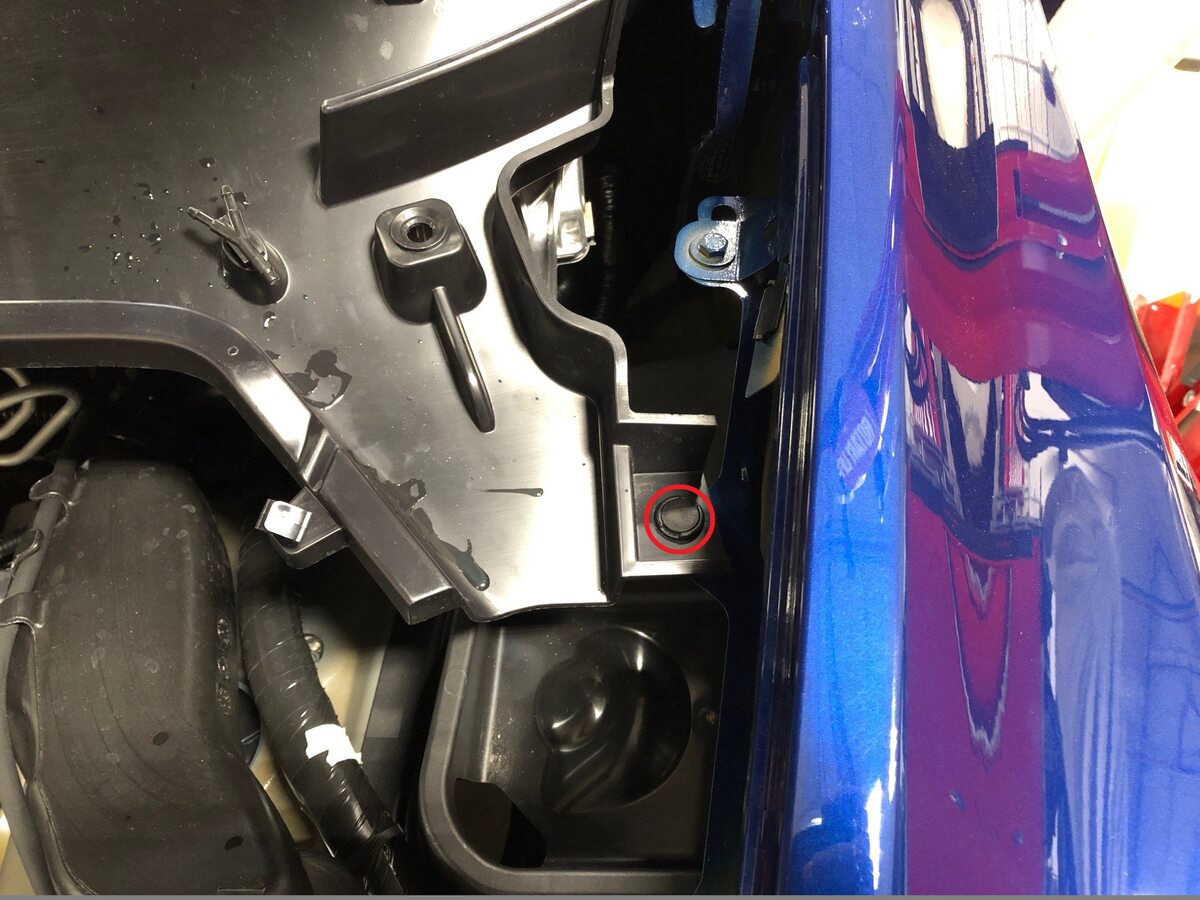

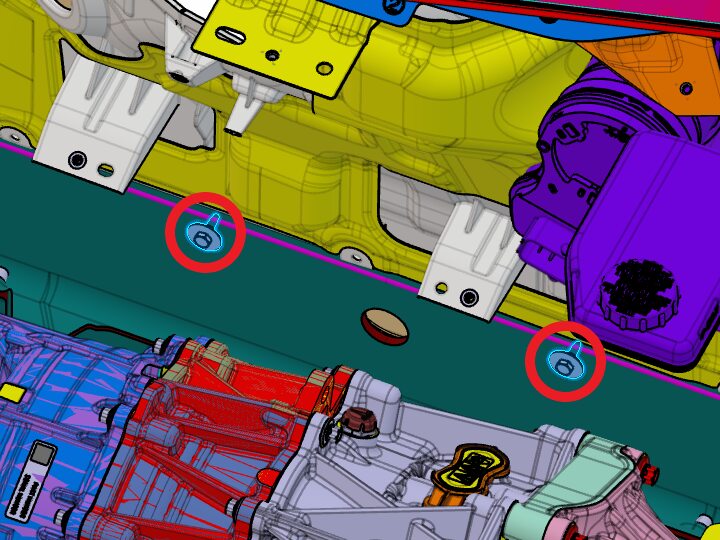

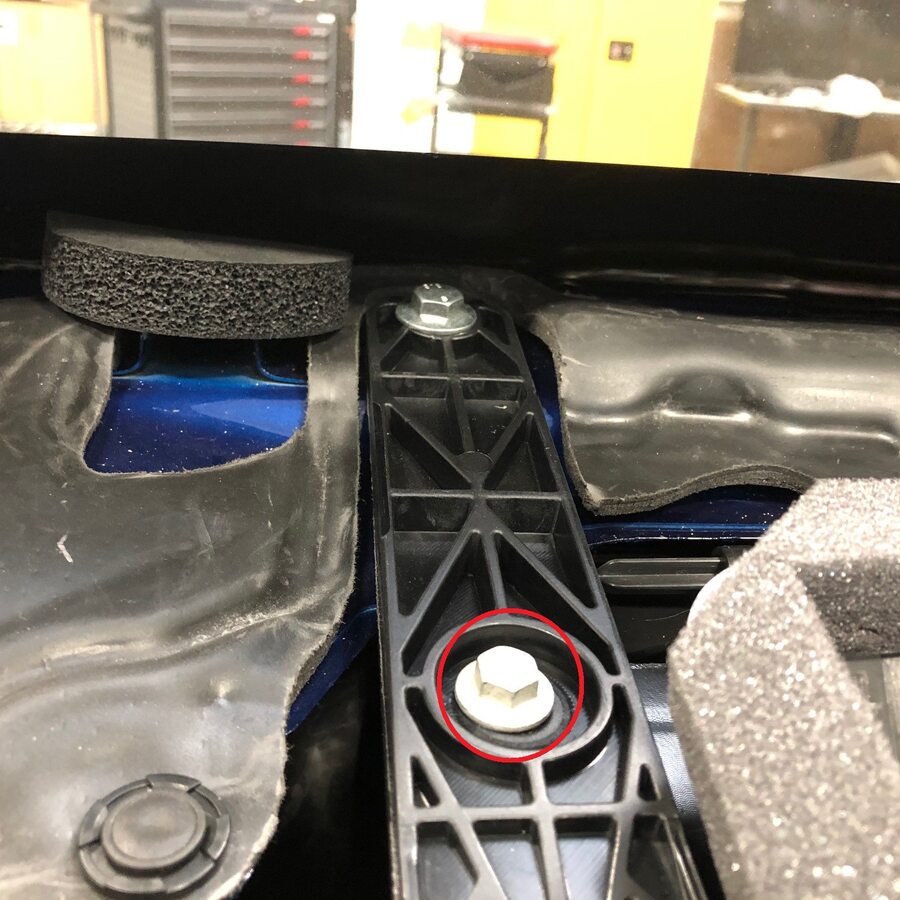

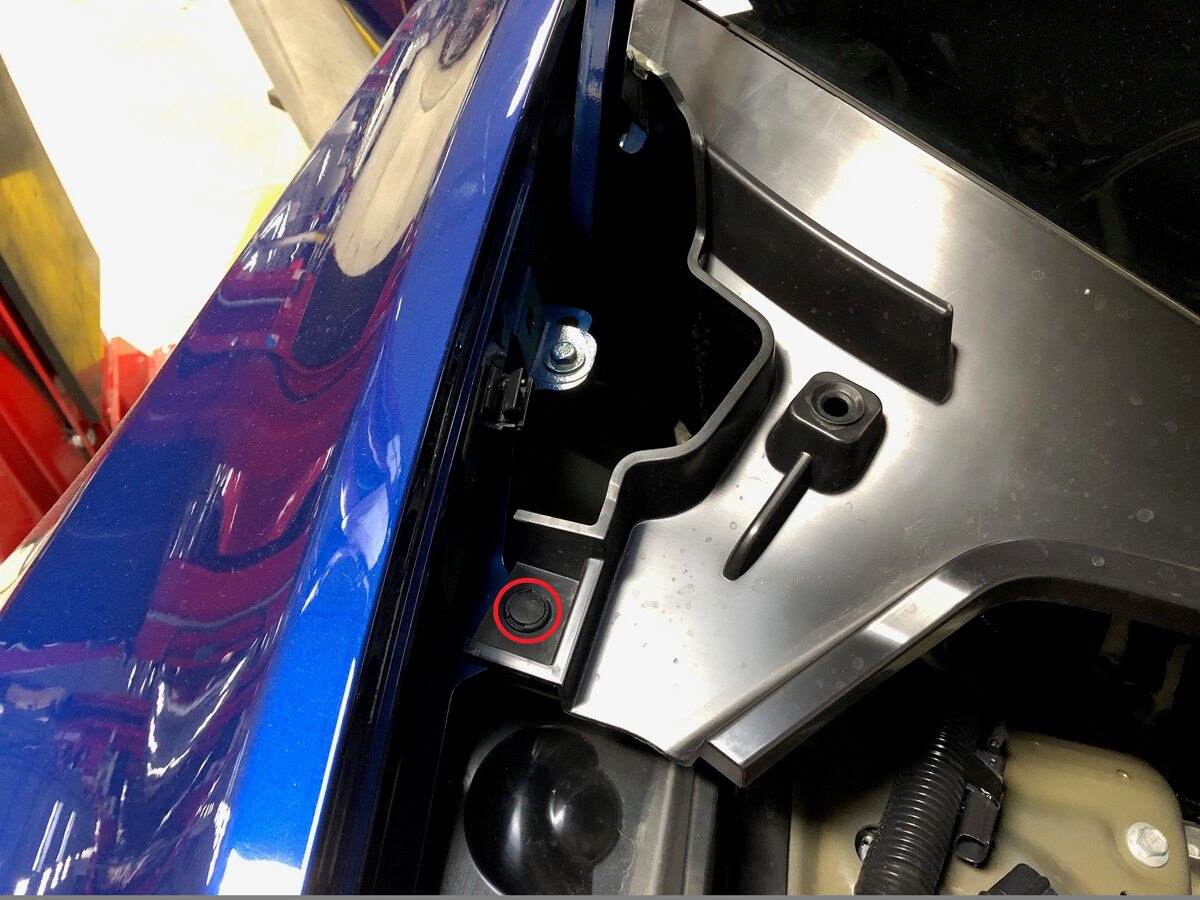

Remove fasteners securing frunk assembly

注

(*Use this ALL MODELS version of the step for multiple-model type procedures) 5x bolts, 10mm, 5 Nm, Newer vehicles may be equipped with 4x bolts and 1x push clip securing frunk to reservoir neck

Remove frunk assembly from vehicle

注

4x clips, Replace any clips if broken or missing

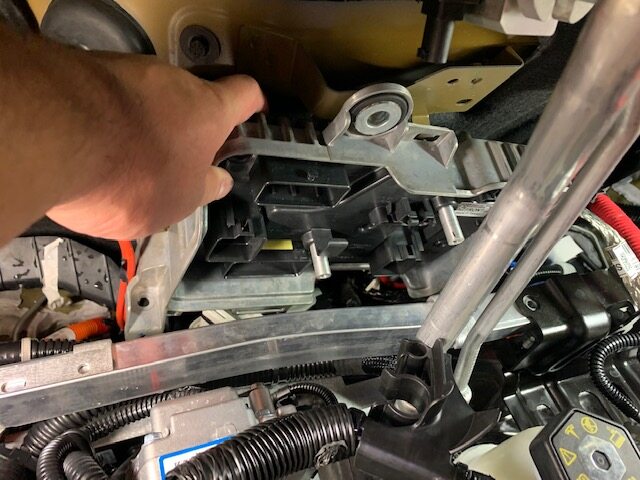

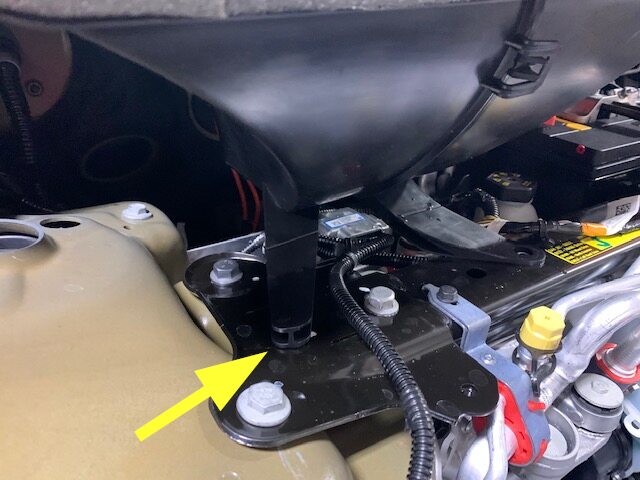

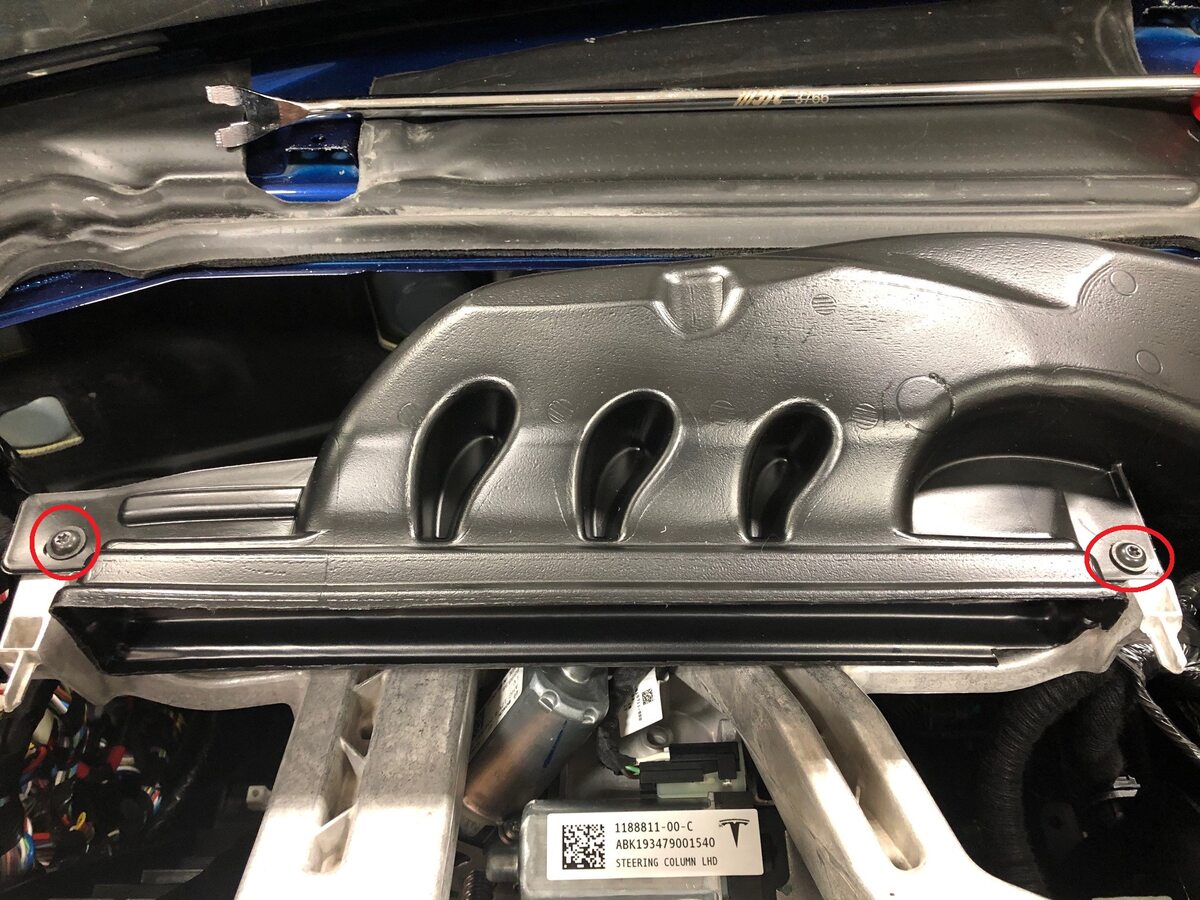

Remove HEPA filter assembly

注

2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly, Note: Not all Model Y vehicles have a HEPA filter assembly installed

运行 ODIN 例行程序 PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)

Access thermal system routines via UI

注

Select quick controls > Service mode > Thermal

运行 ODIN 例行程序 PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN-REFRIGERANTvia Toolbox:(link)

Power off vehicle from center display

注

Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

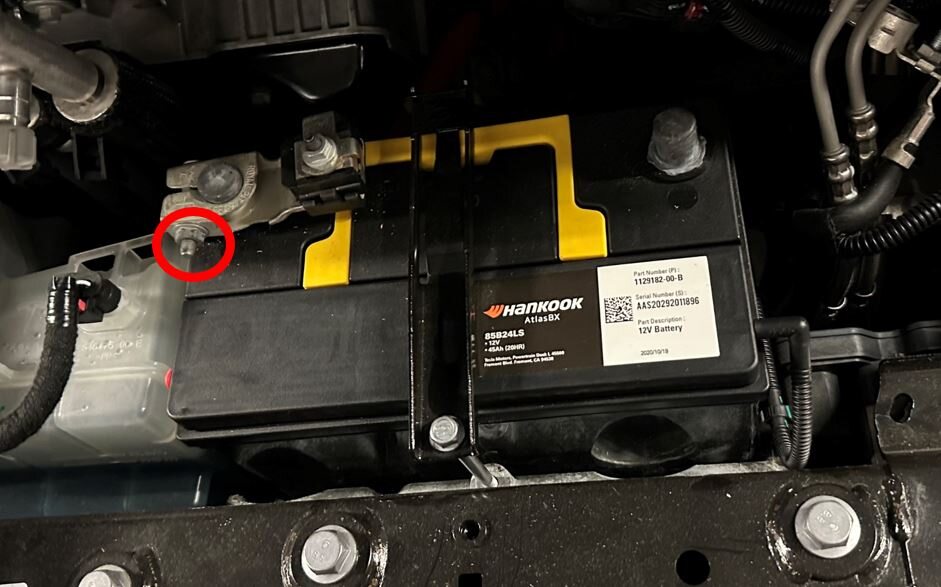

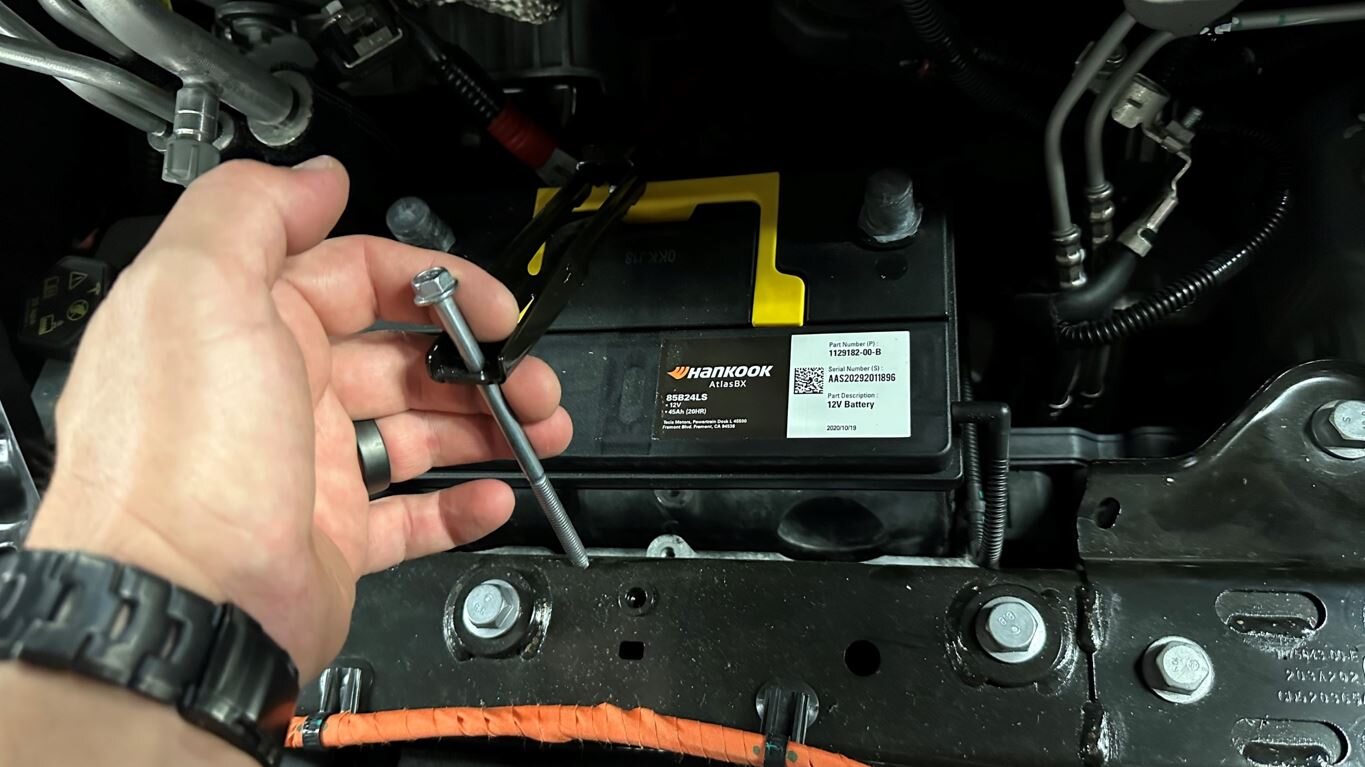

Disconnect the 12V negative battery cable and First Responder Loop.

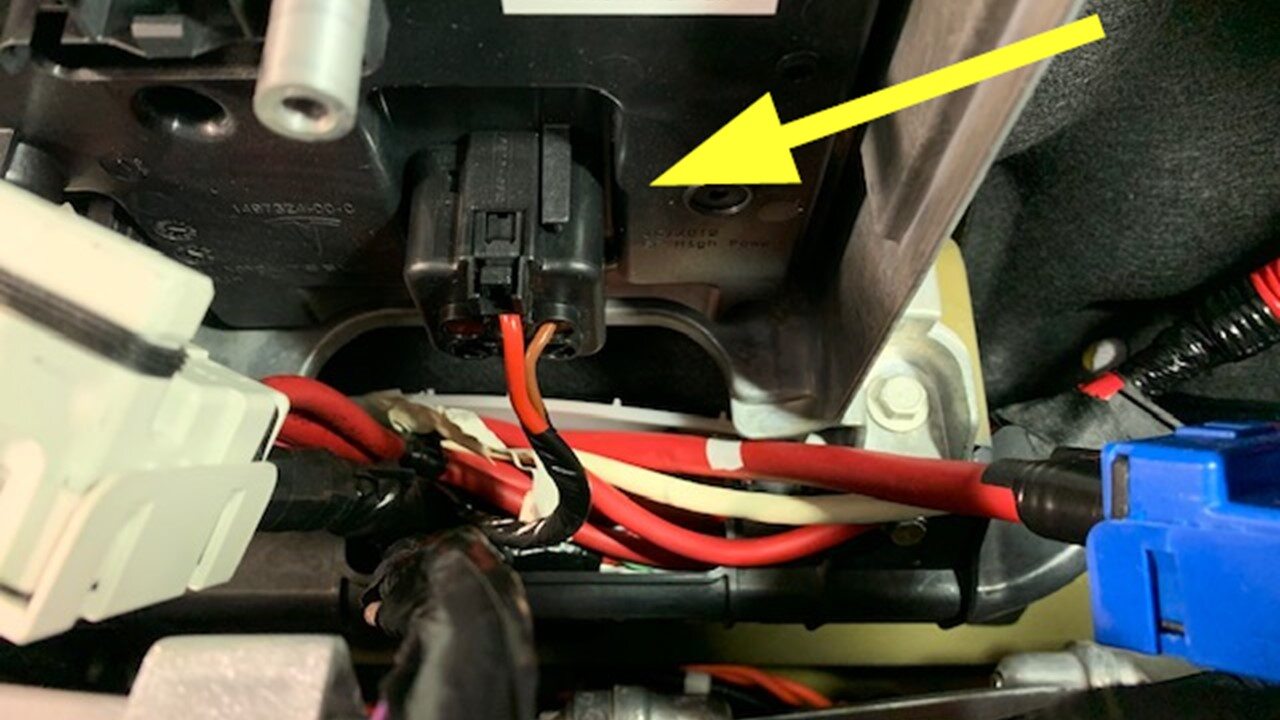

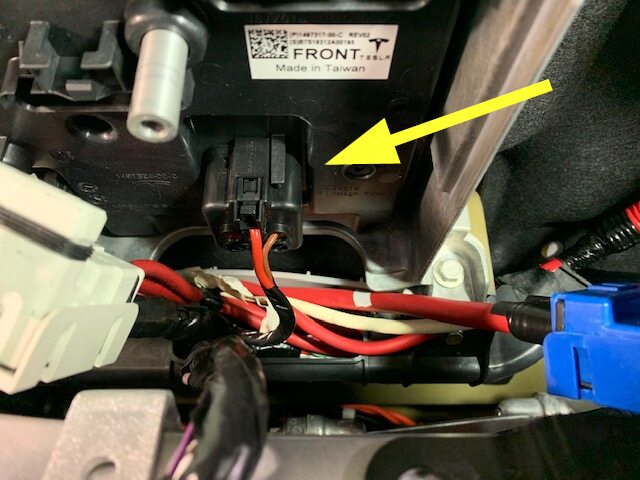

Disconnect the LV battery connector and First Responder Loop.

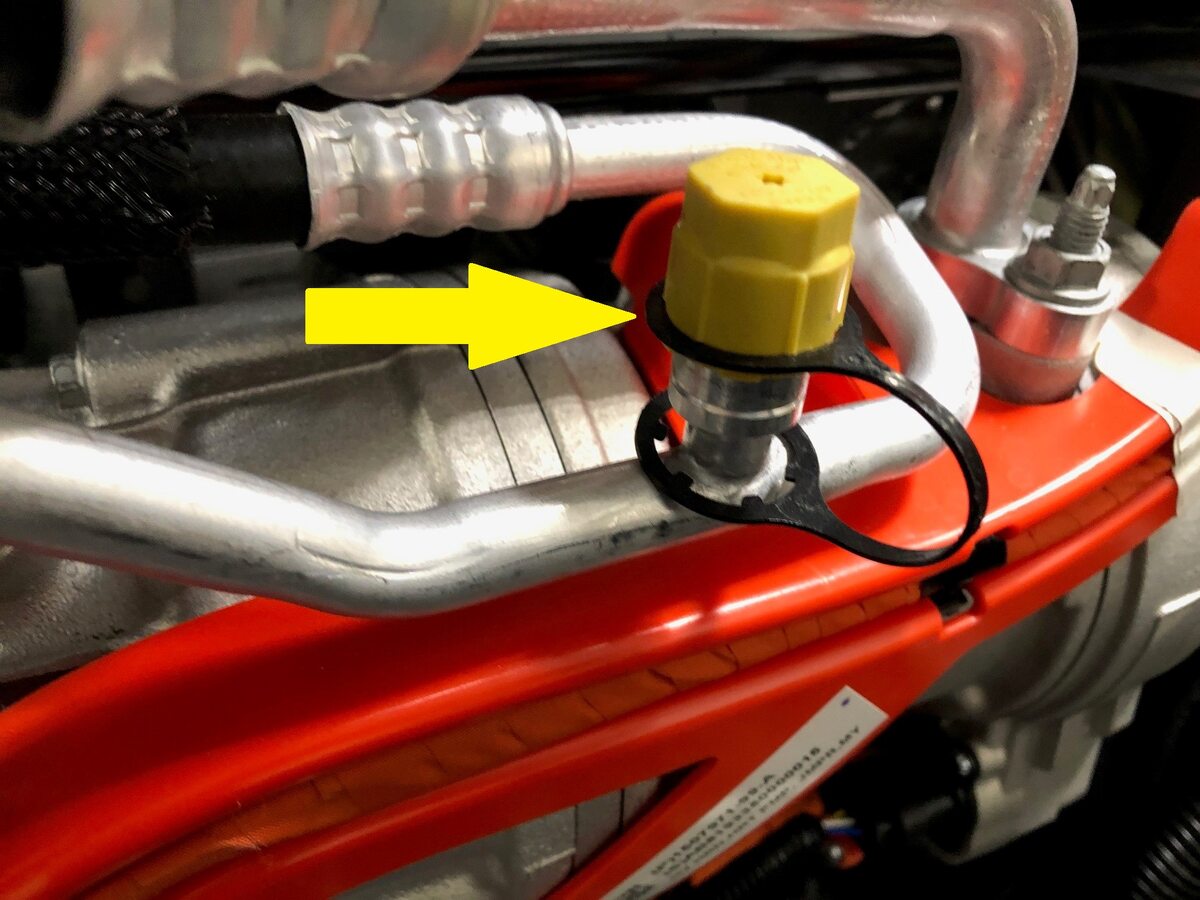

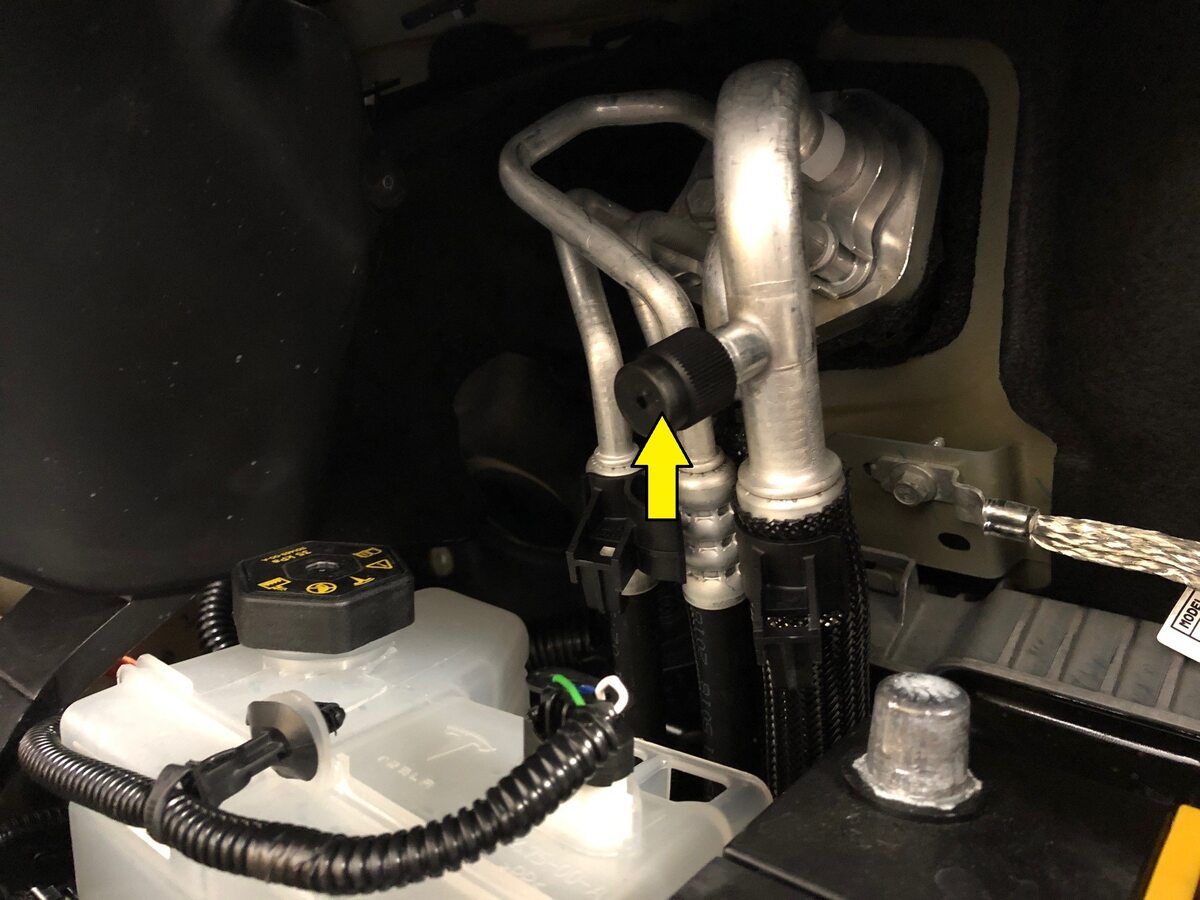

Remove caps from low side and high side A/C ports

注

2x caps

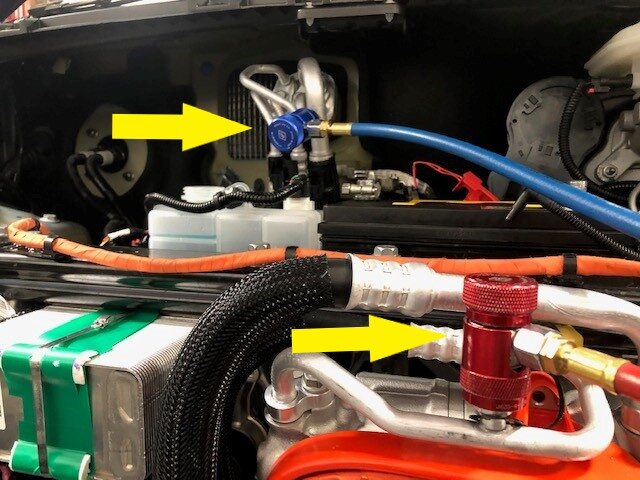

Connect A/C hoses to vehicle

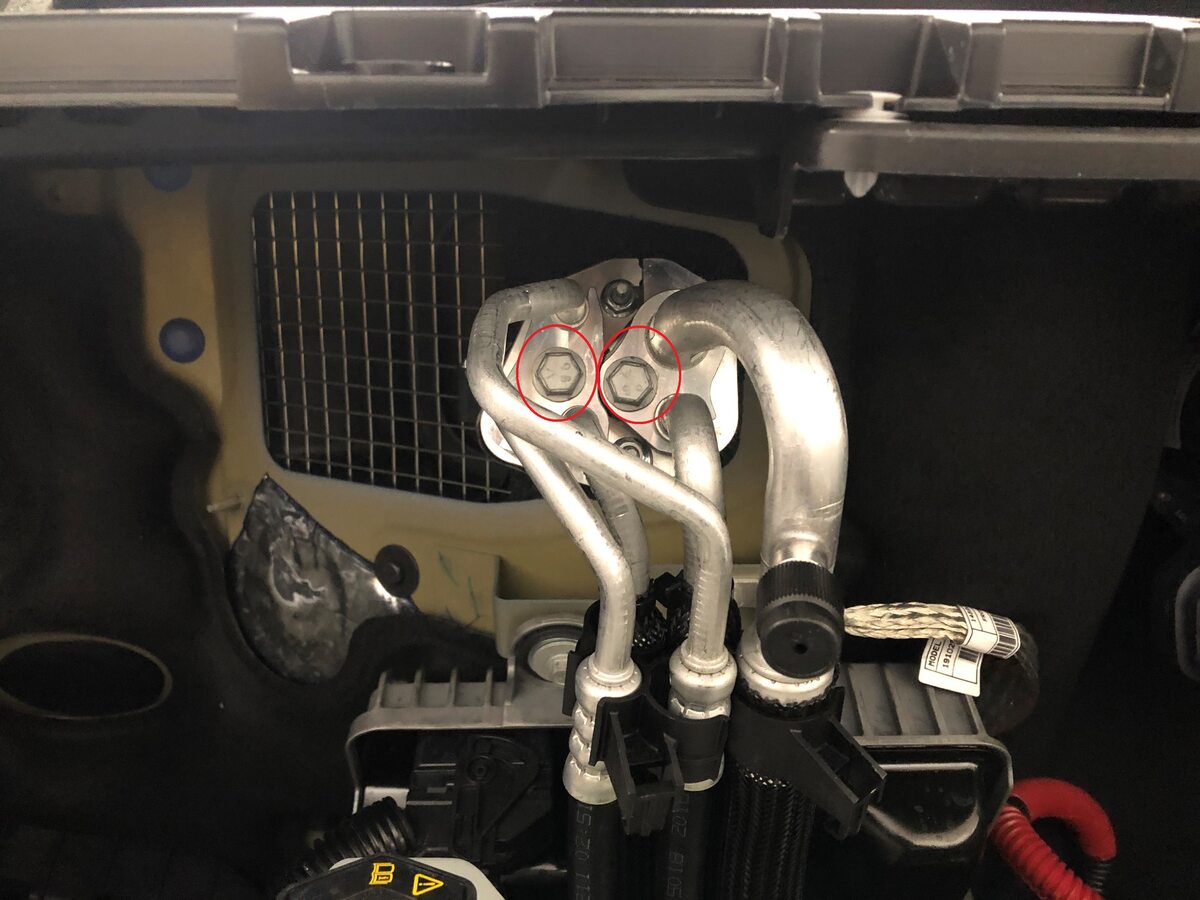

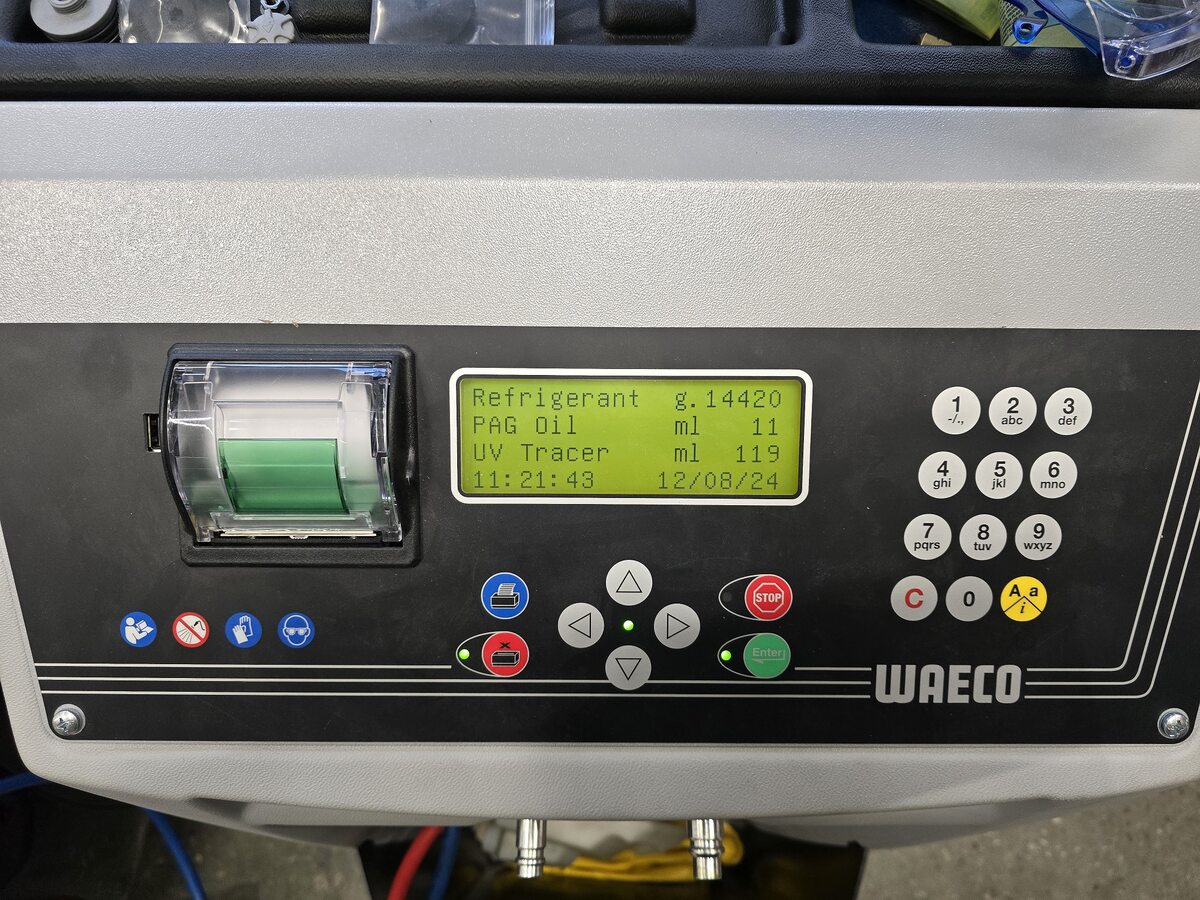

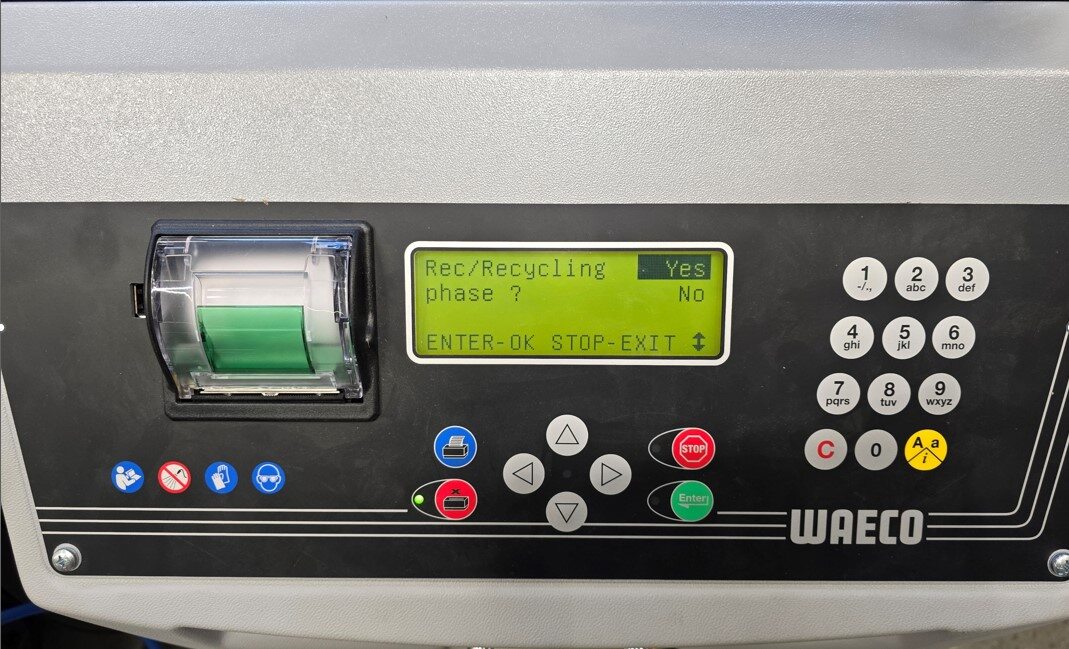

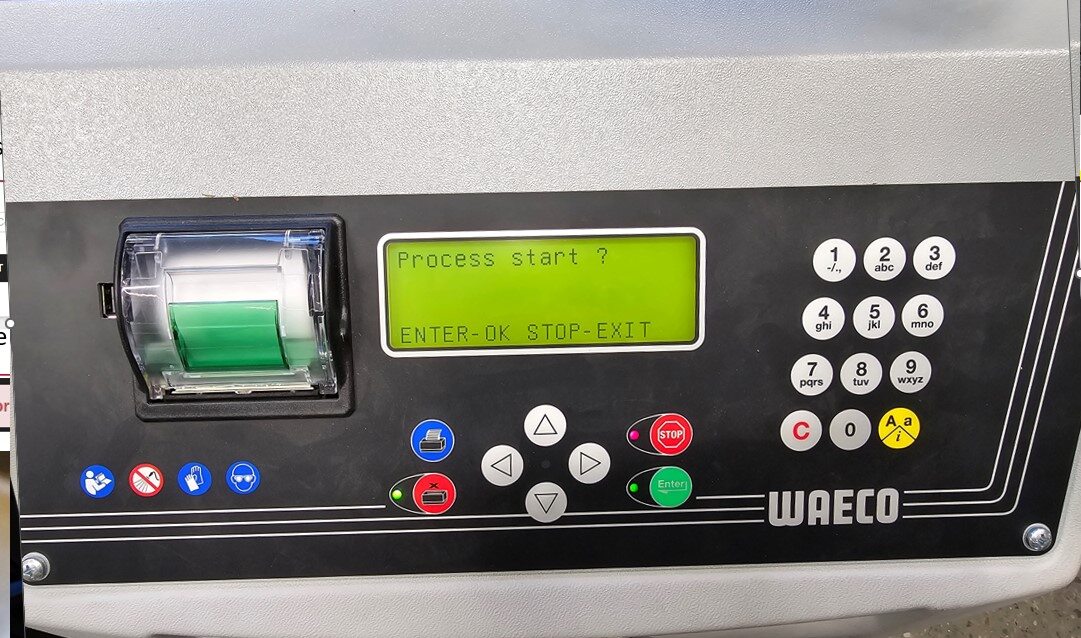

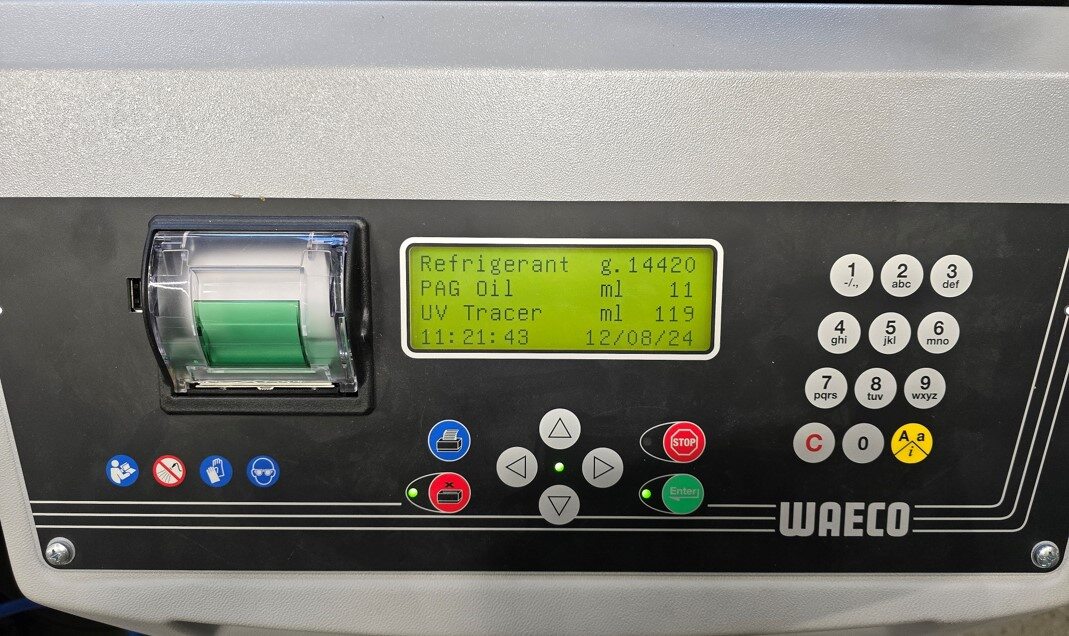

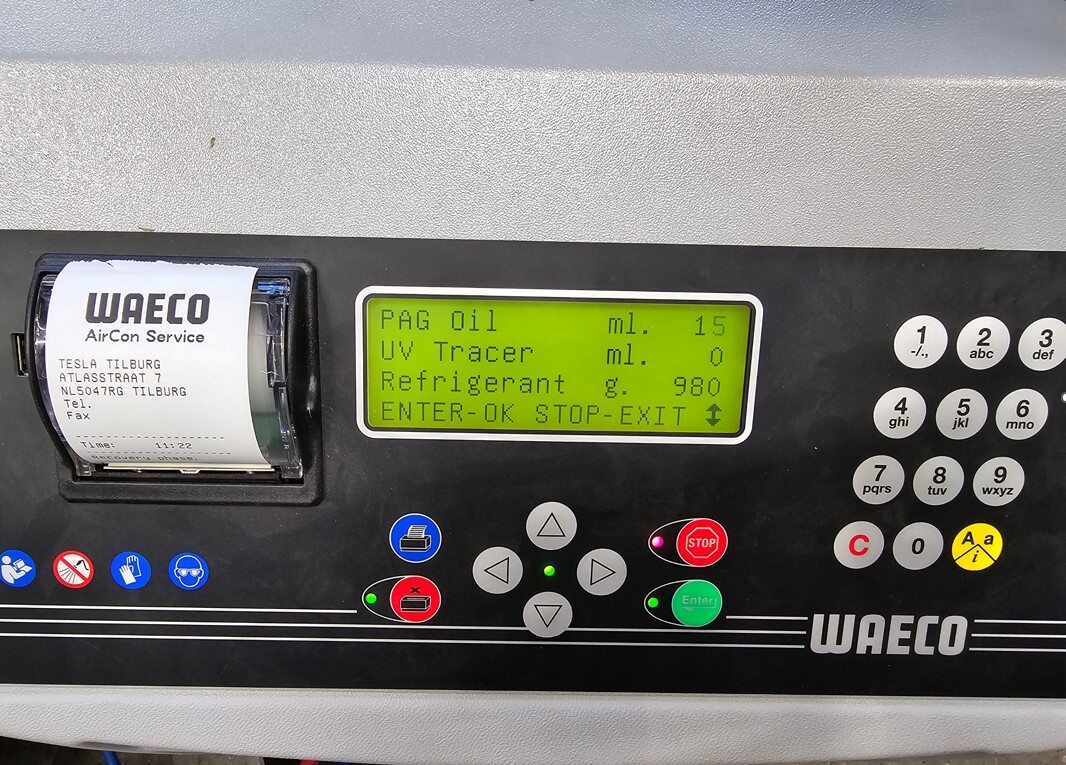

Perform refrigerant system recovery

注

Note or print the amount of refrigerant and oil recovered, If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart https://toolbox.teslamotors.com/articles/353700

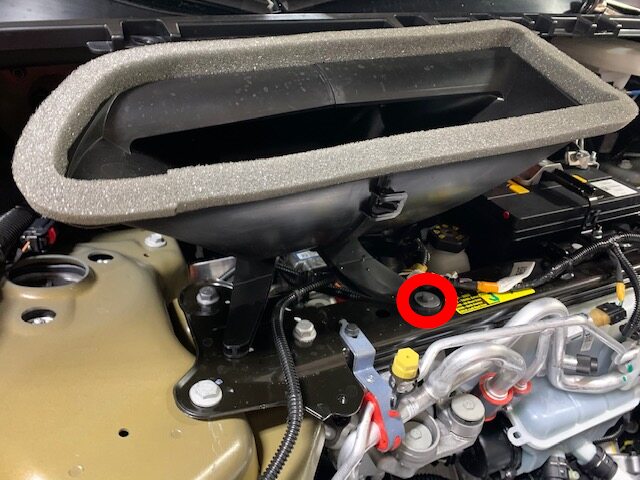

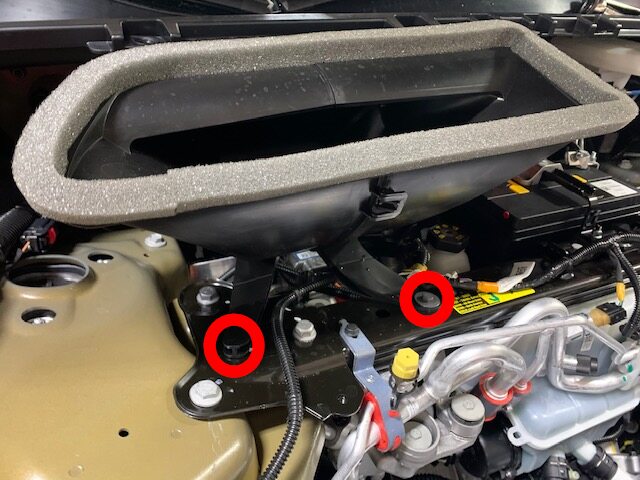

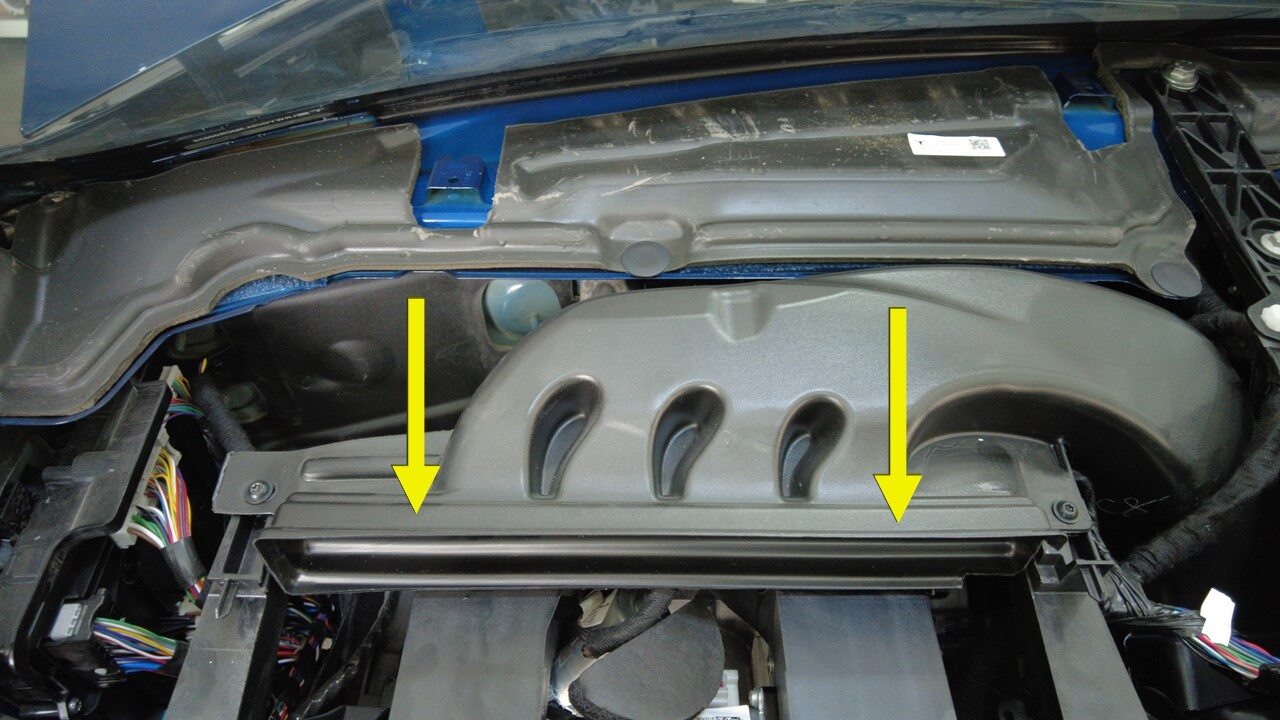

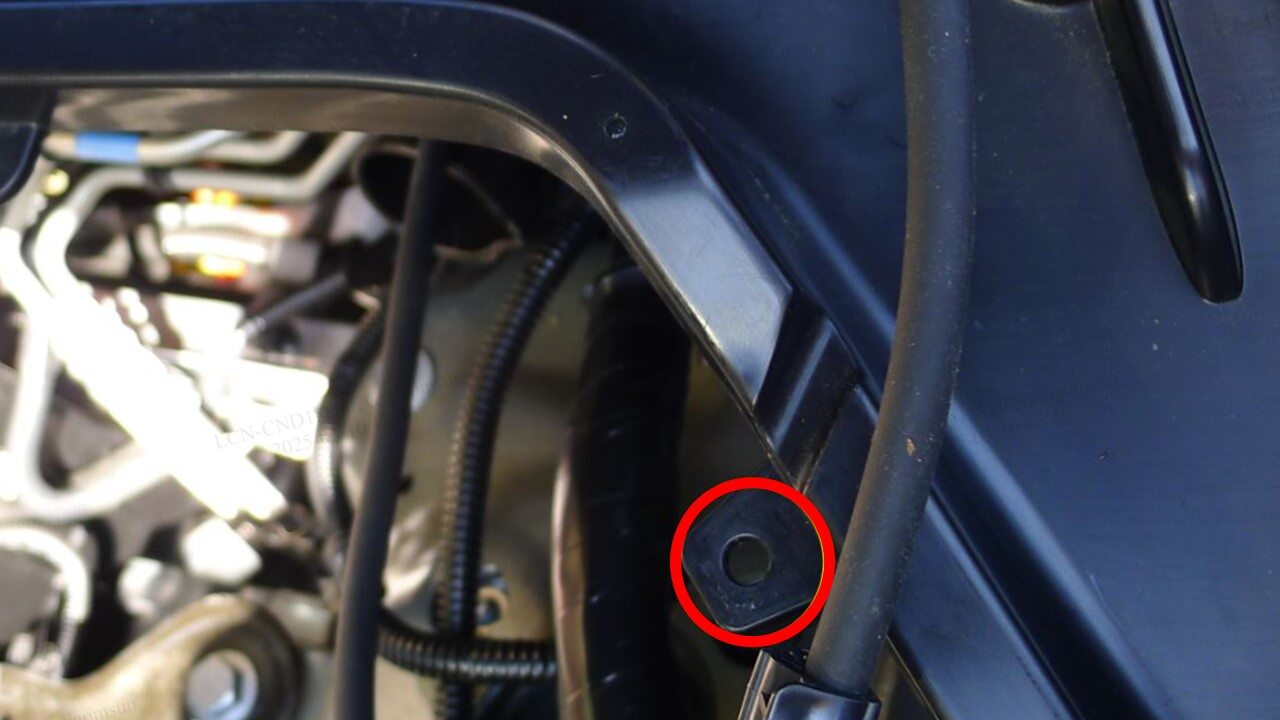

Remove fresh air intake duct

注

1x bolt, 10mm, 4 Nm, 2x clips, 1x pin, Remove bolt, Gently pry pin out from thermal beam then remove duct from bulkhead studs, Maneuver between cowl and frunk

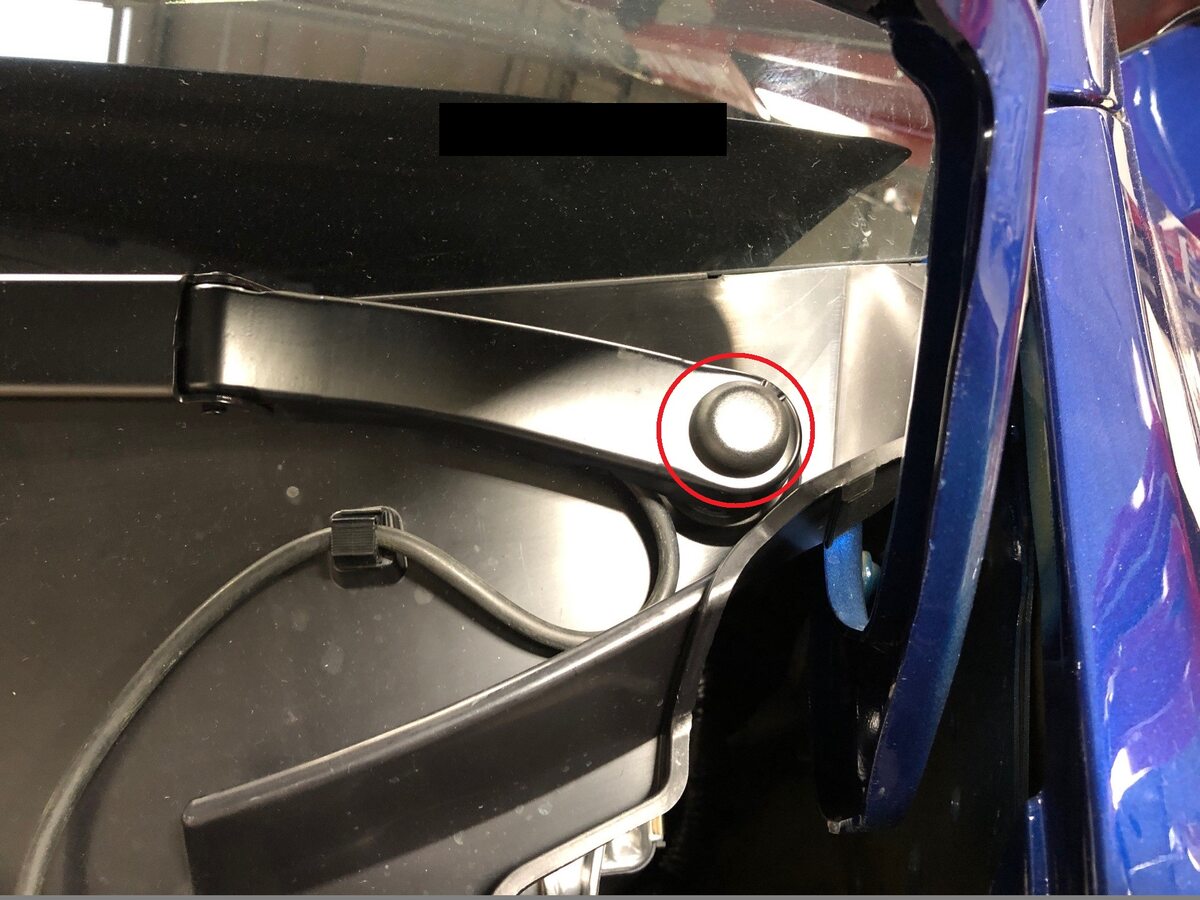

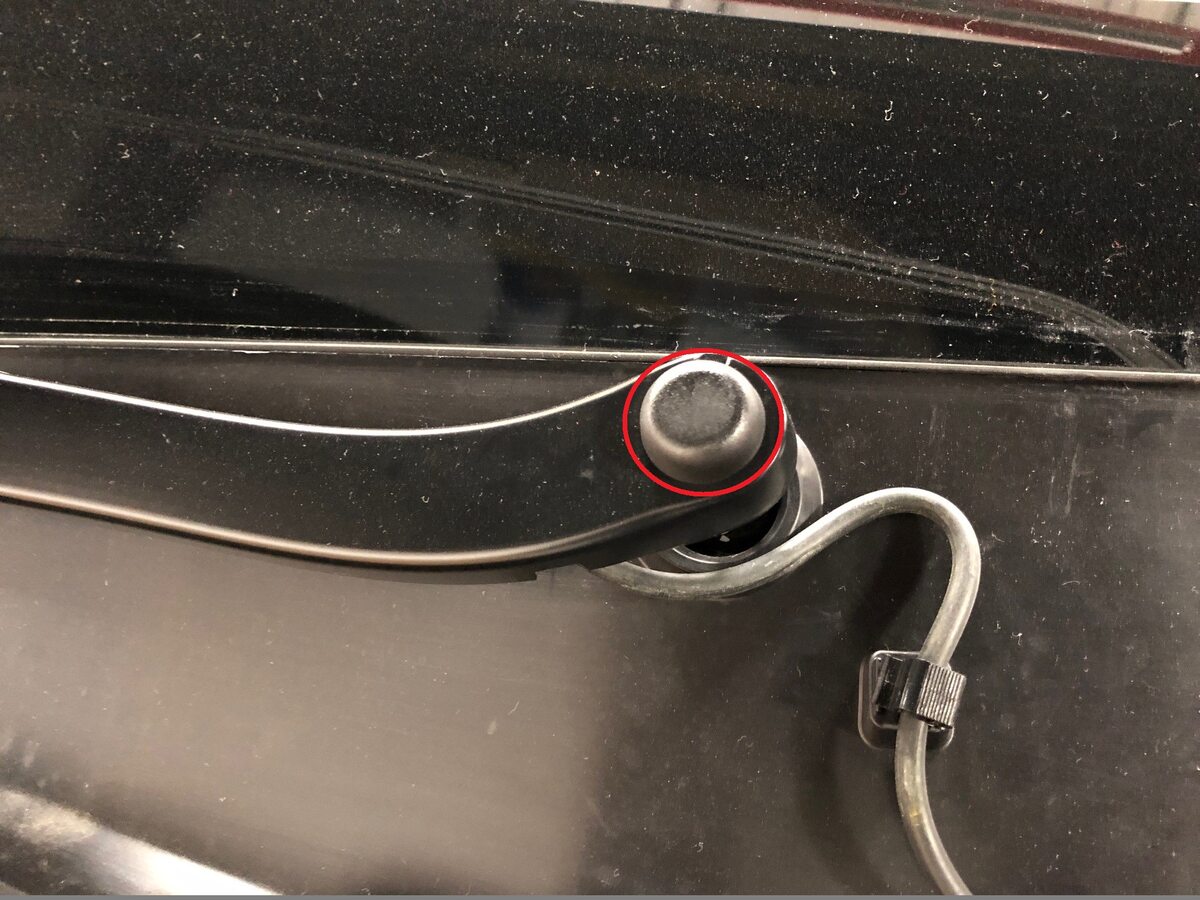

Remove LH wiper arm nut cover

注

1x cover

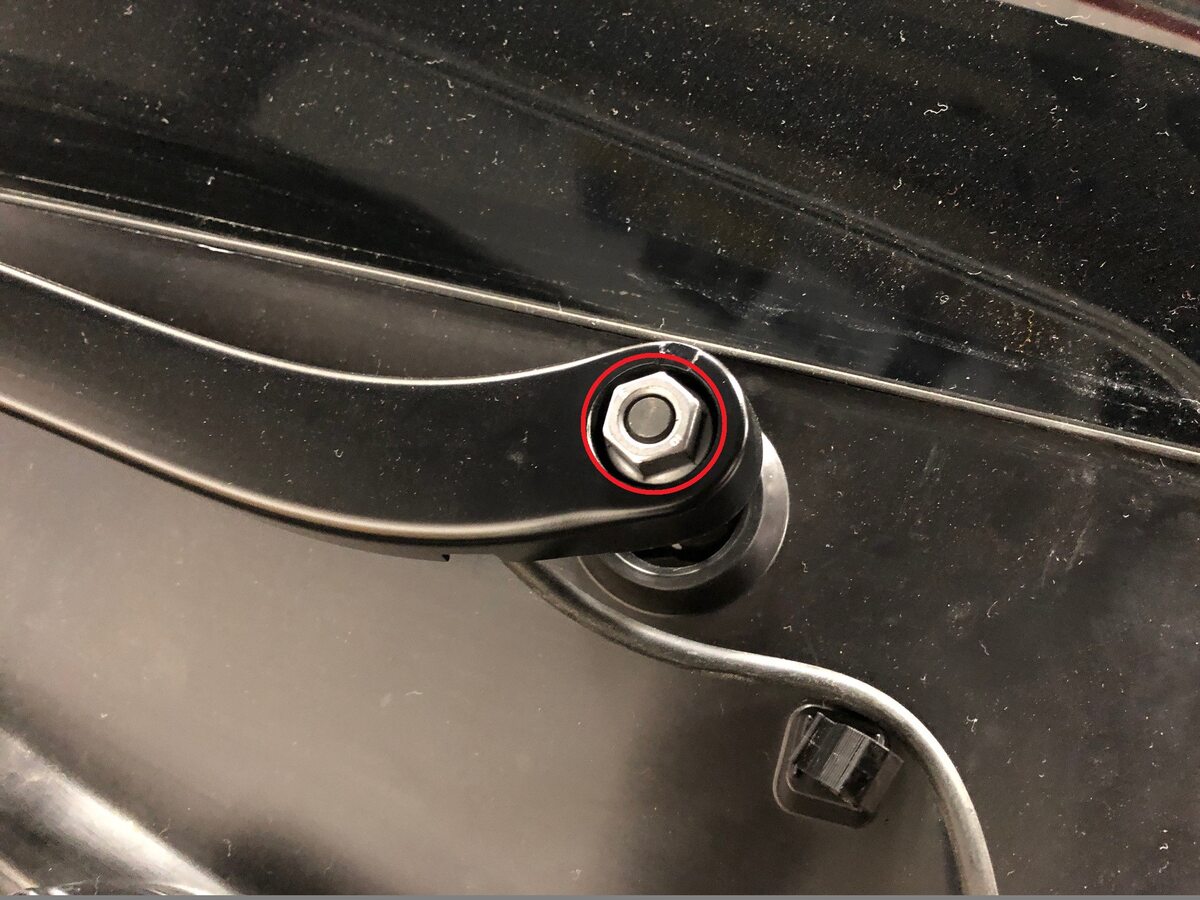

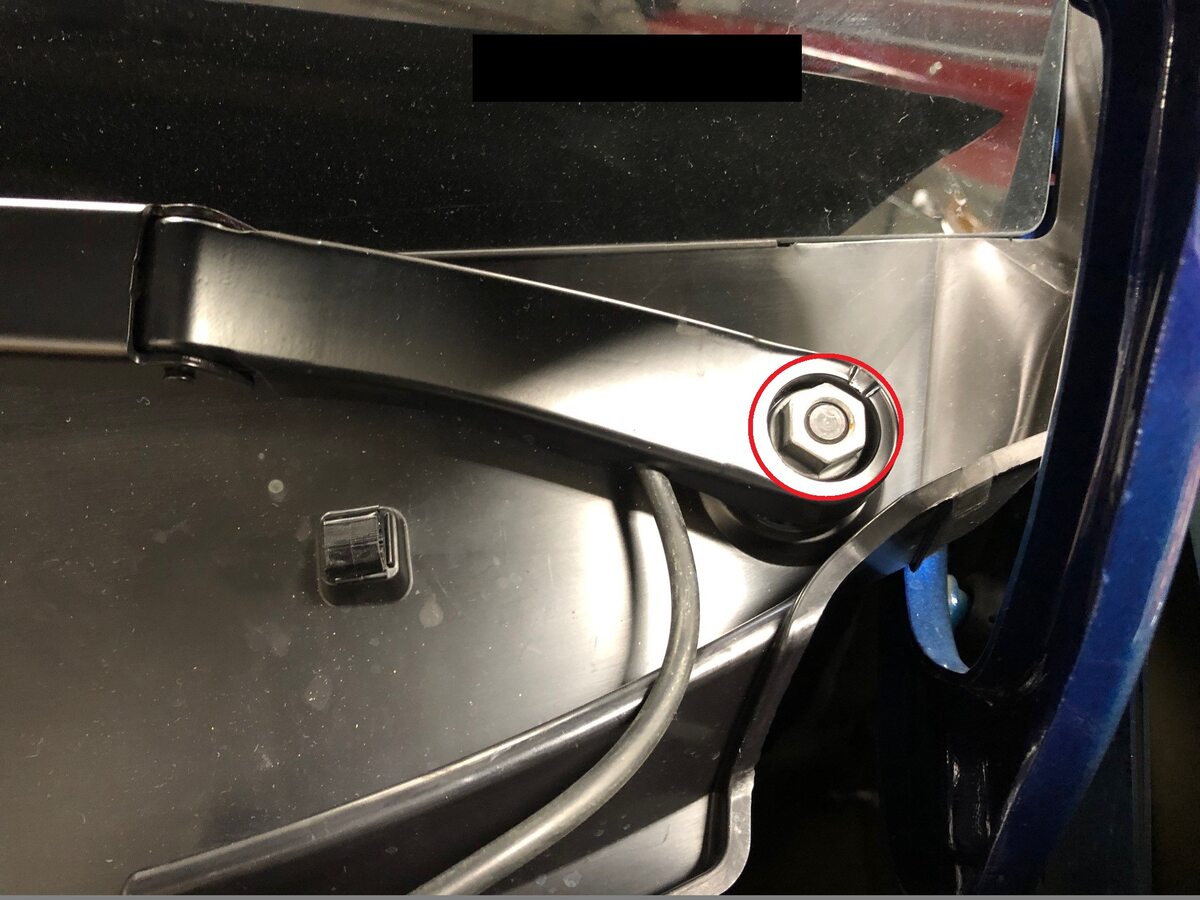

Remove nut securing LH wiper arm to wiper module

注

1x nut, 15mm, 25 Nm

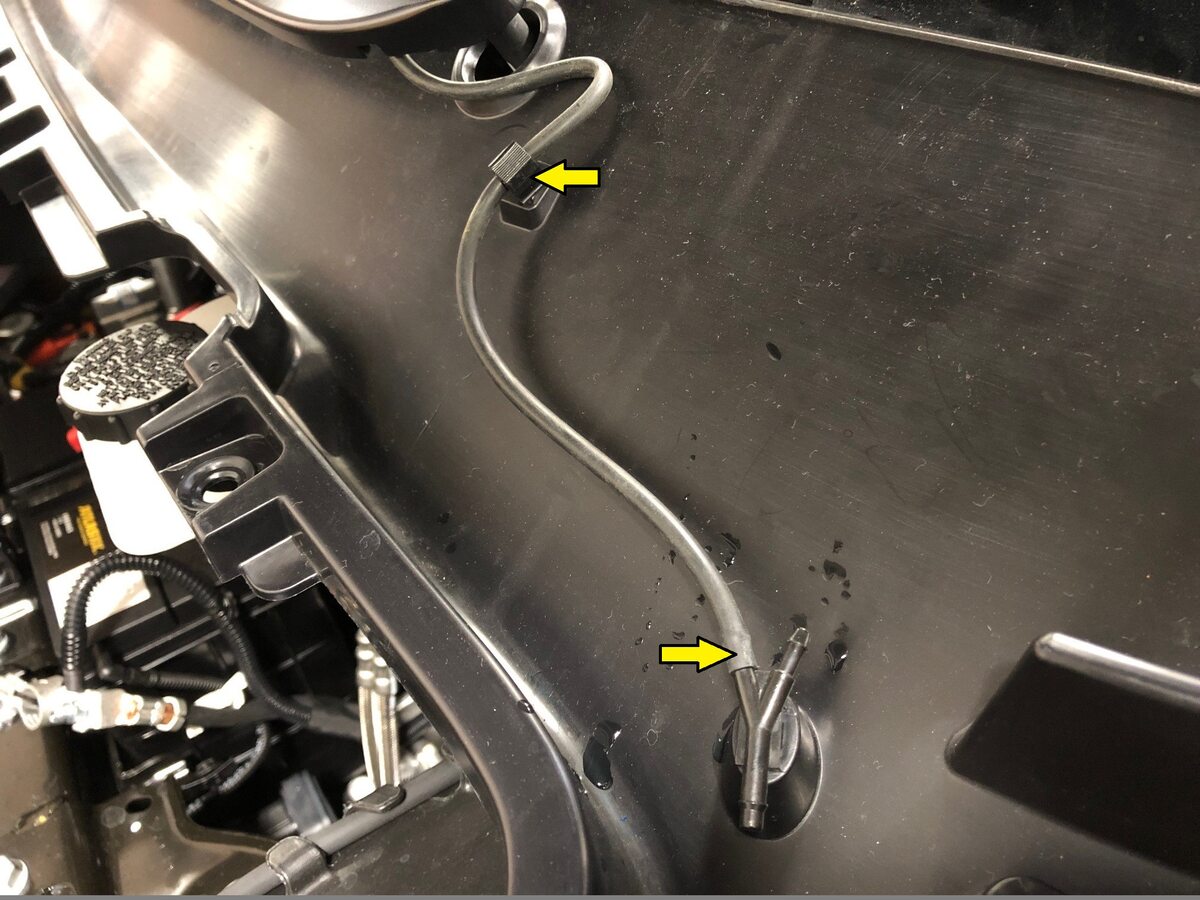

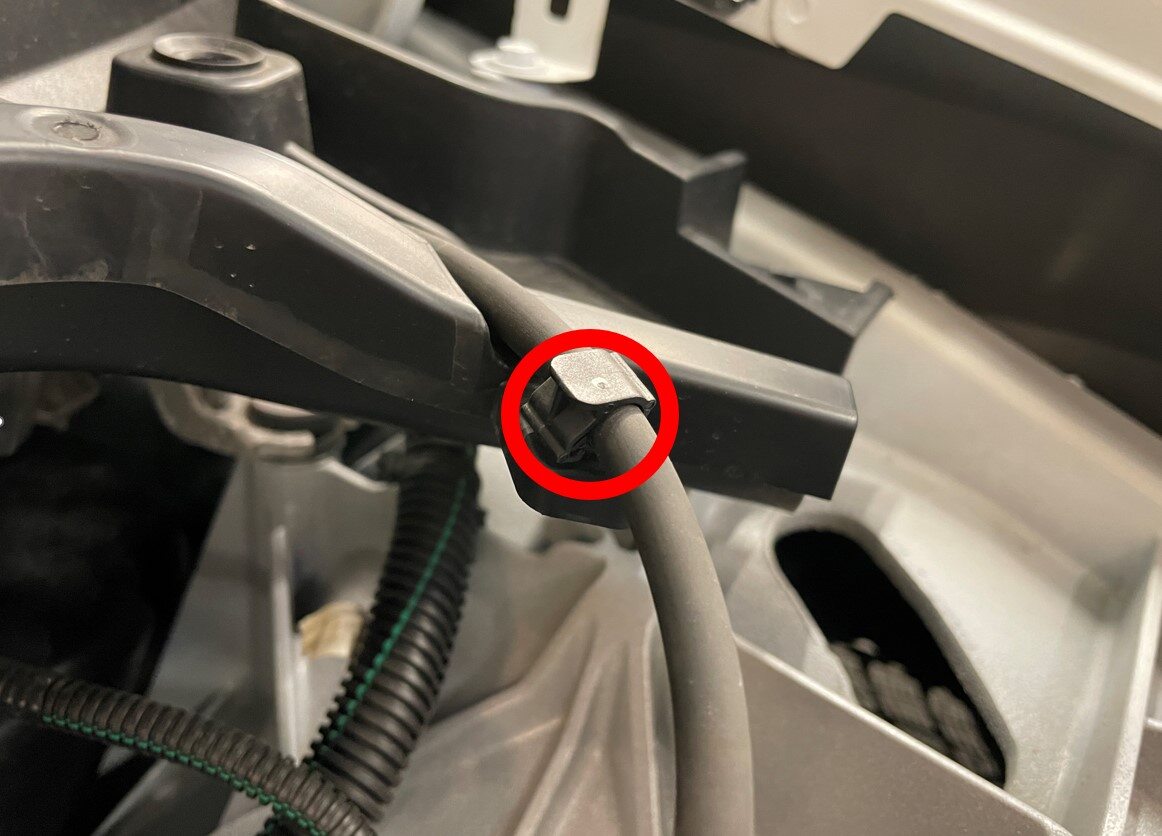

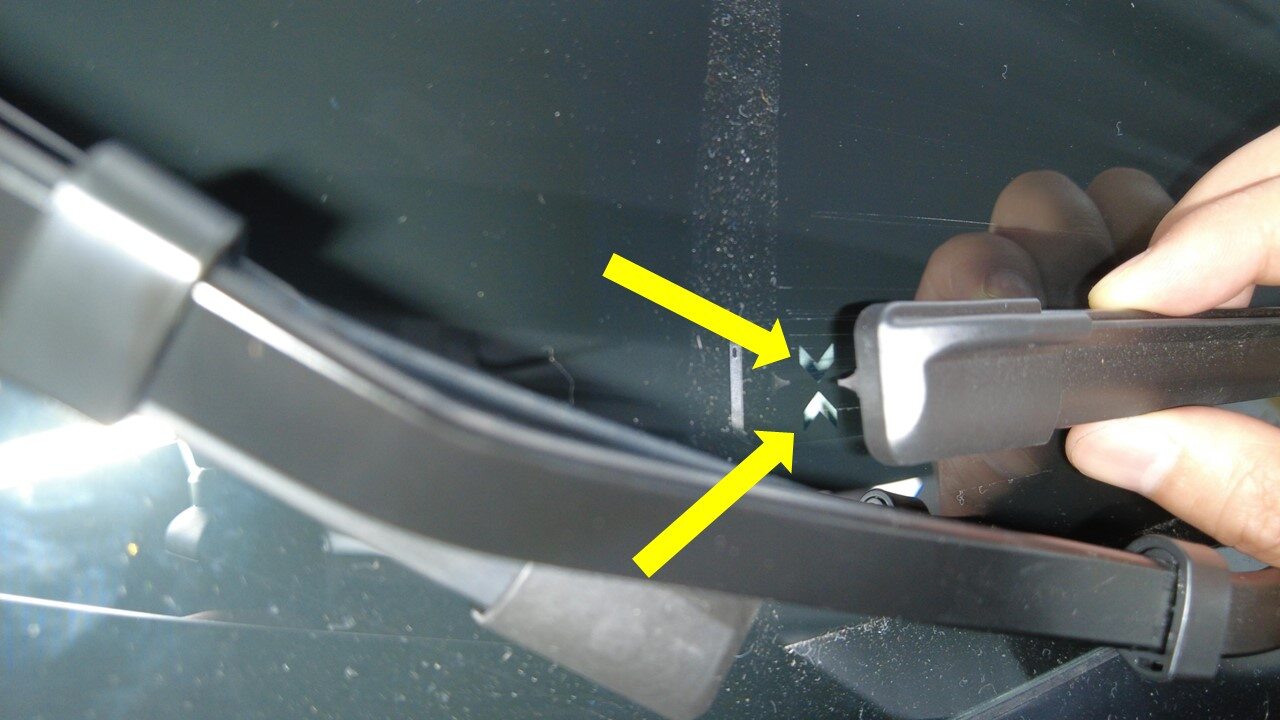

Disconnect washer hose from LH wiper arm to Y-tube fitting and release washer hose clip

注

1x clip, 1x hose

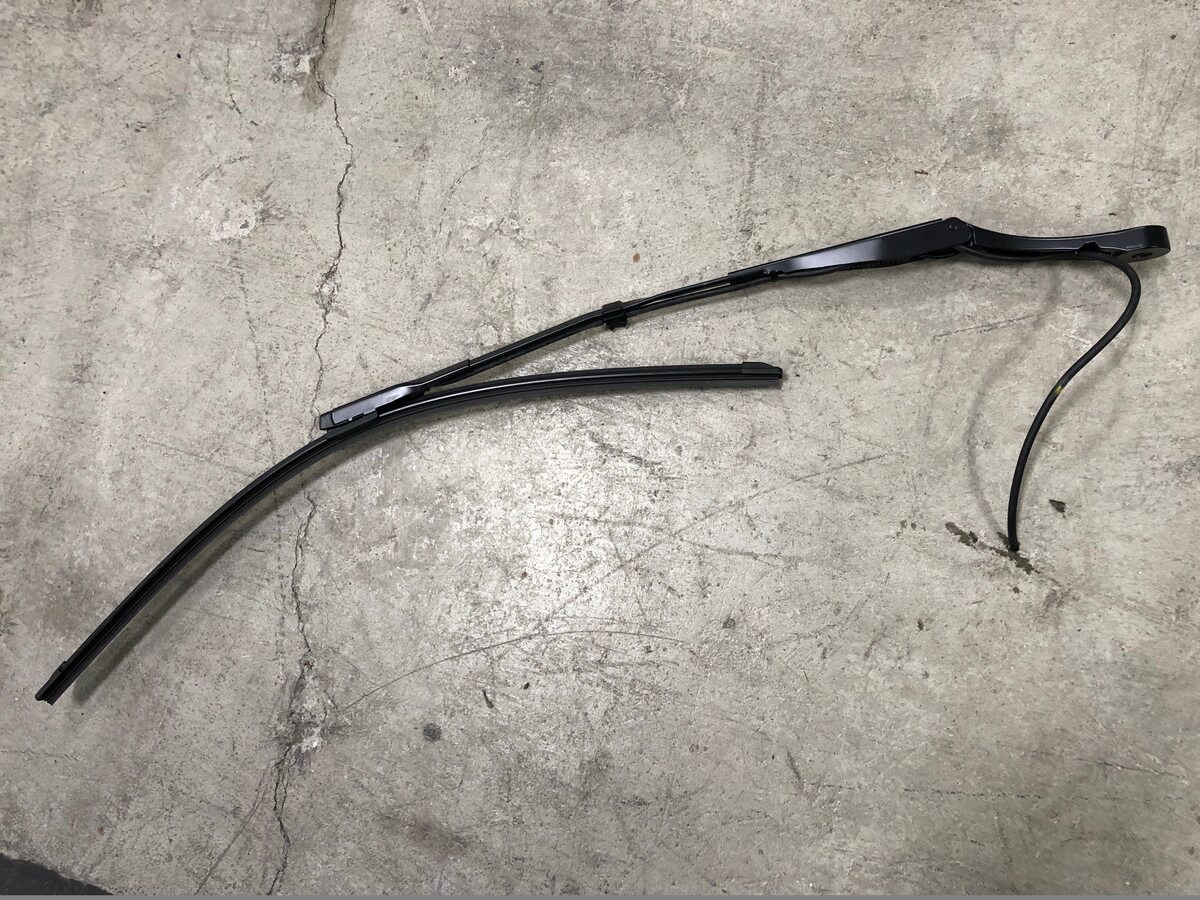

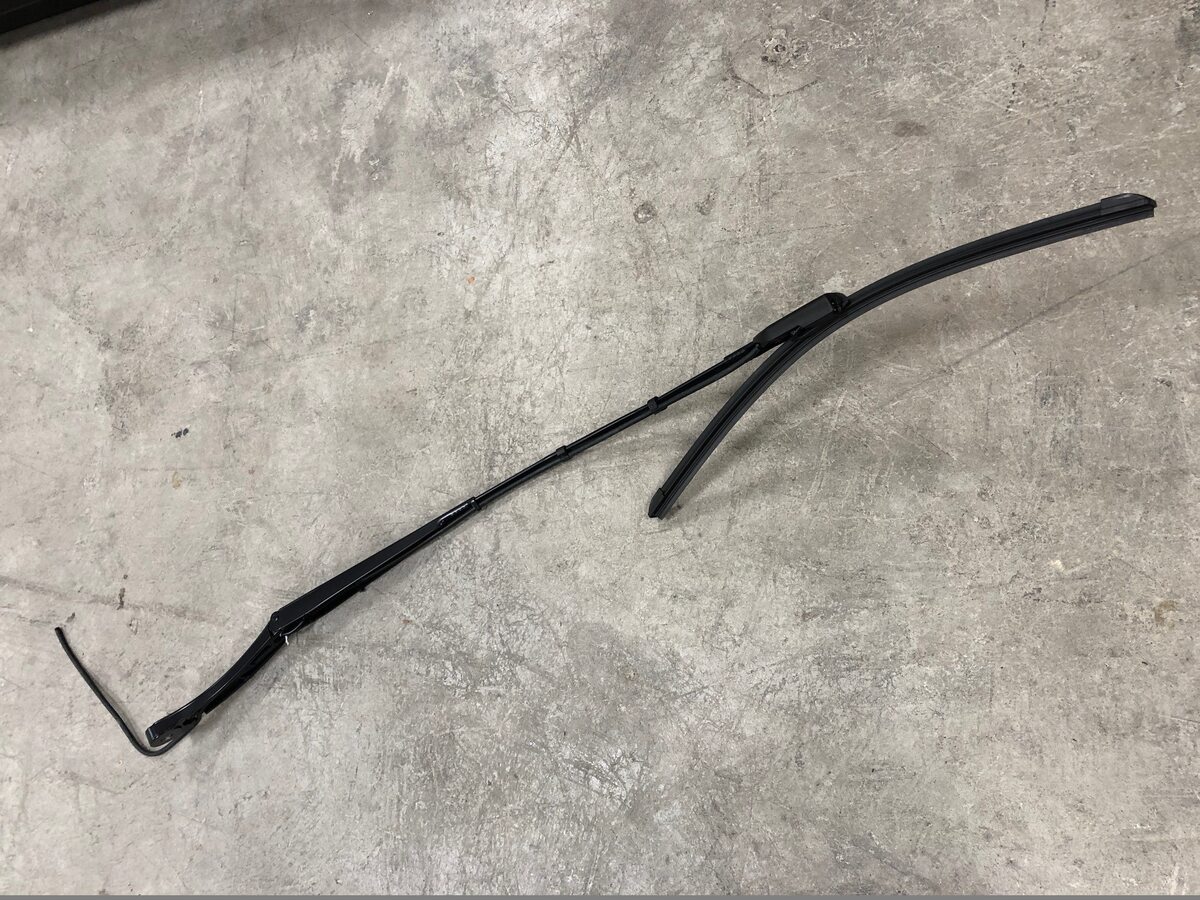

Remove LH wiper arm and hose assembly from vehicle

Remove RH wiper arm nut cover

注

1x cover

Remove nut securing RH wiper arm to wiper module

注

1x nut, 15mm, 25 Nm

Disconnect washer hose from RH wiper arm to Y-tube fitting and release washer hose clip

注

1x clip, 1x hose

Remove RH wiper arm and hose assembly from vehicle

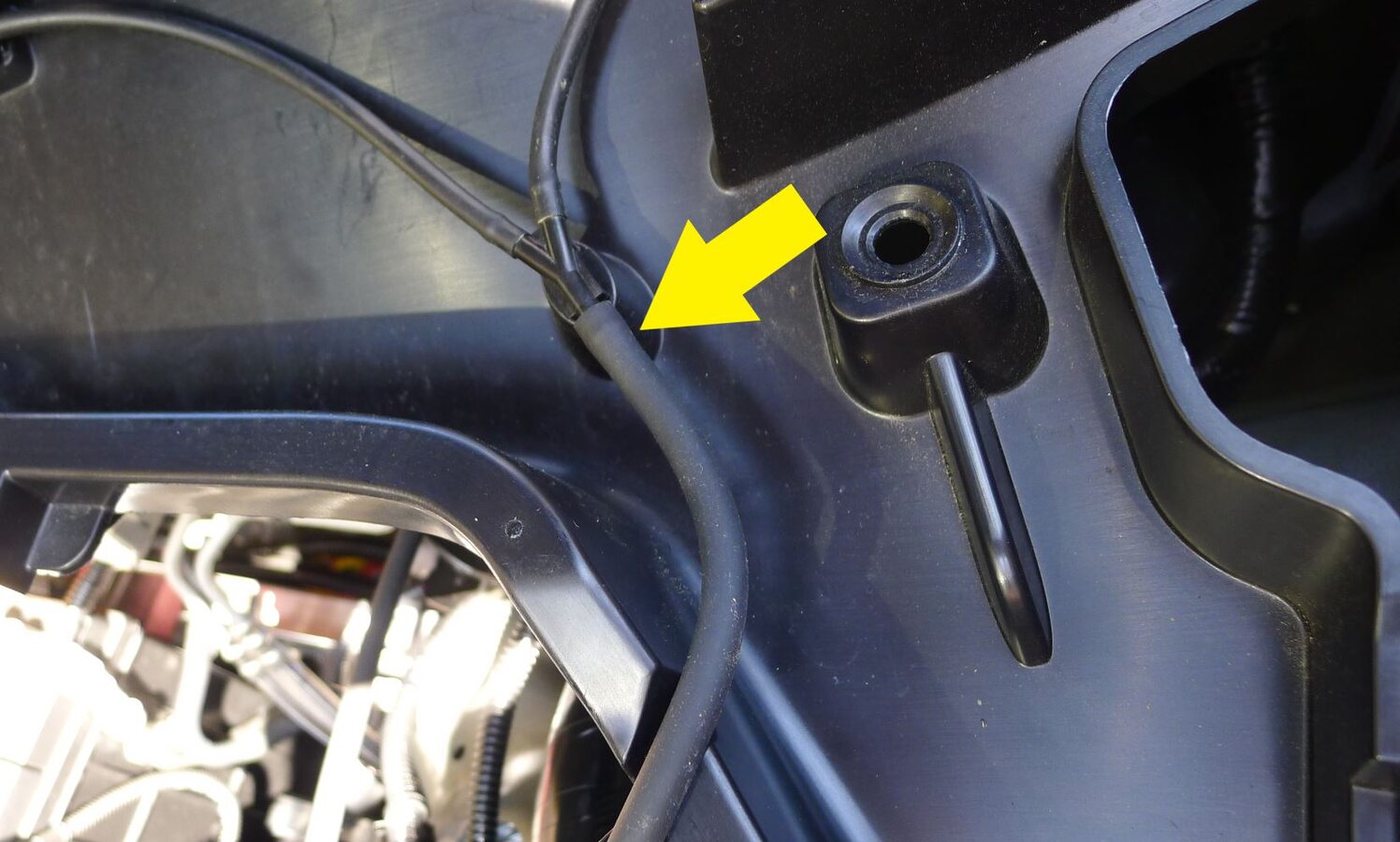

Disconnect washer hose from washer pump to Y-tube fitting and release washer hose clip

注

1x clip, 1x hose

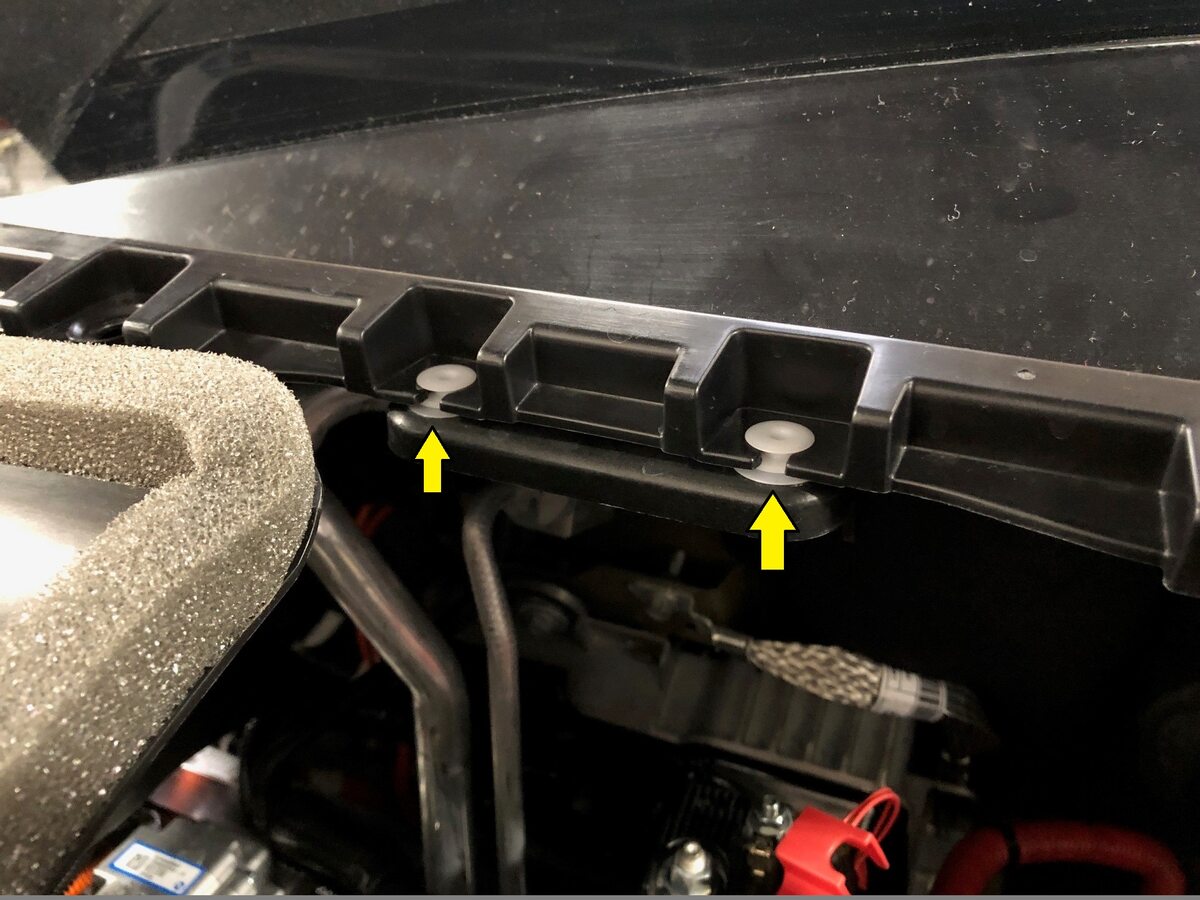

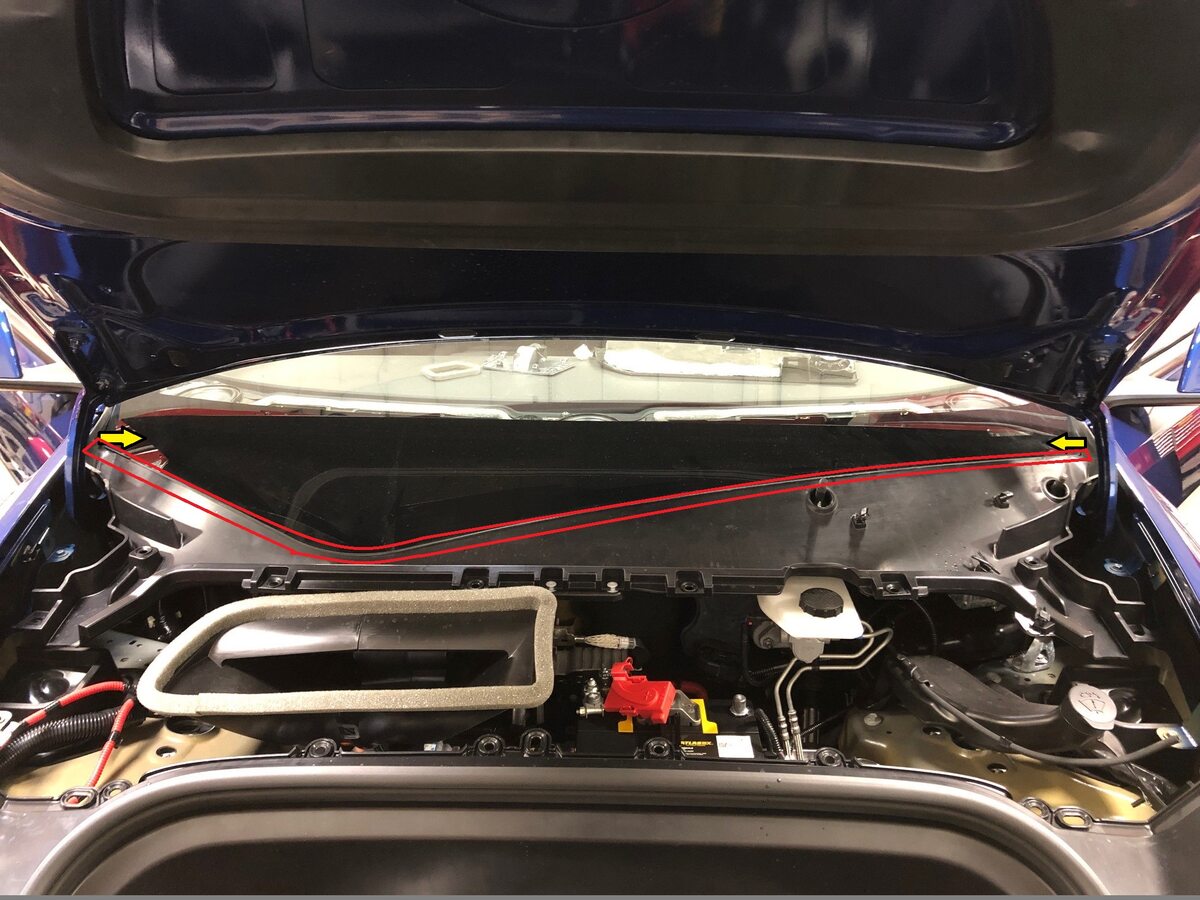

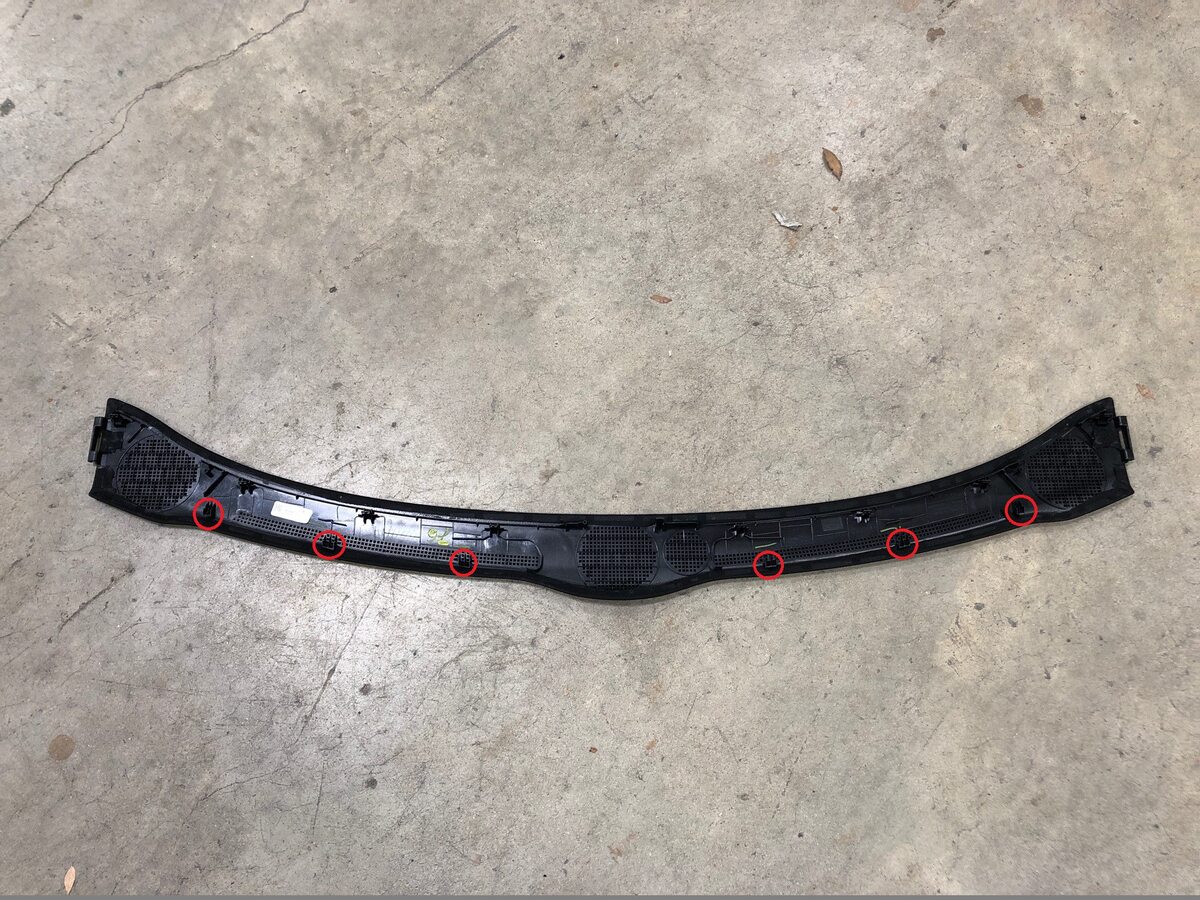

Remove cowl screen retaining clips

注

2x push clips

Release cowl clips at center bracket

注

2x retaining clips

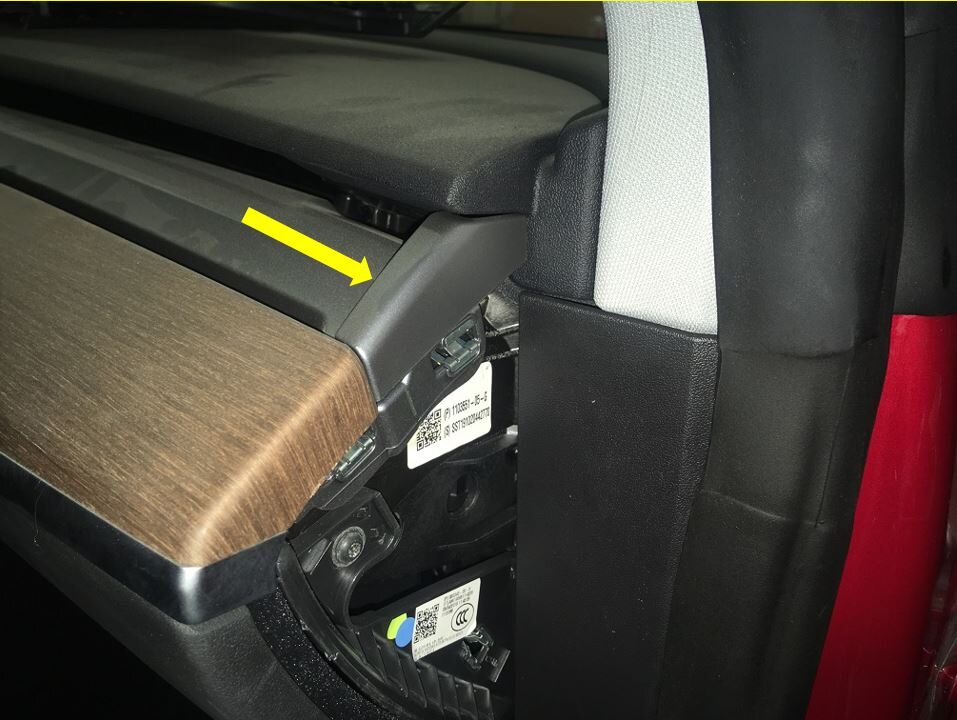

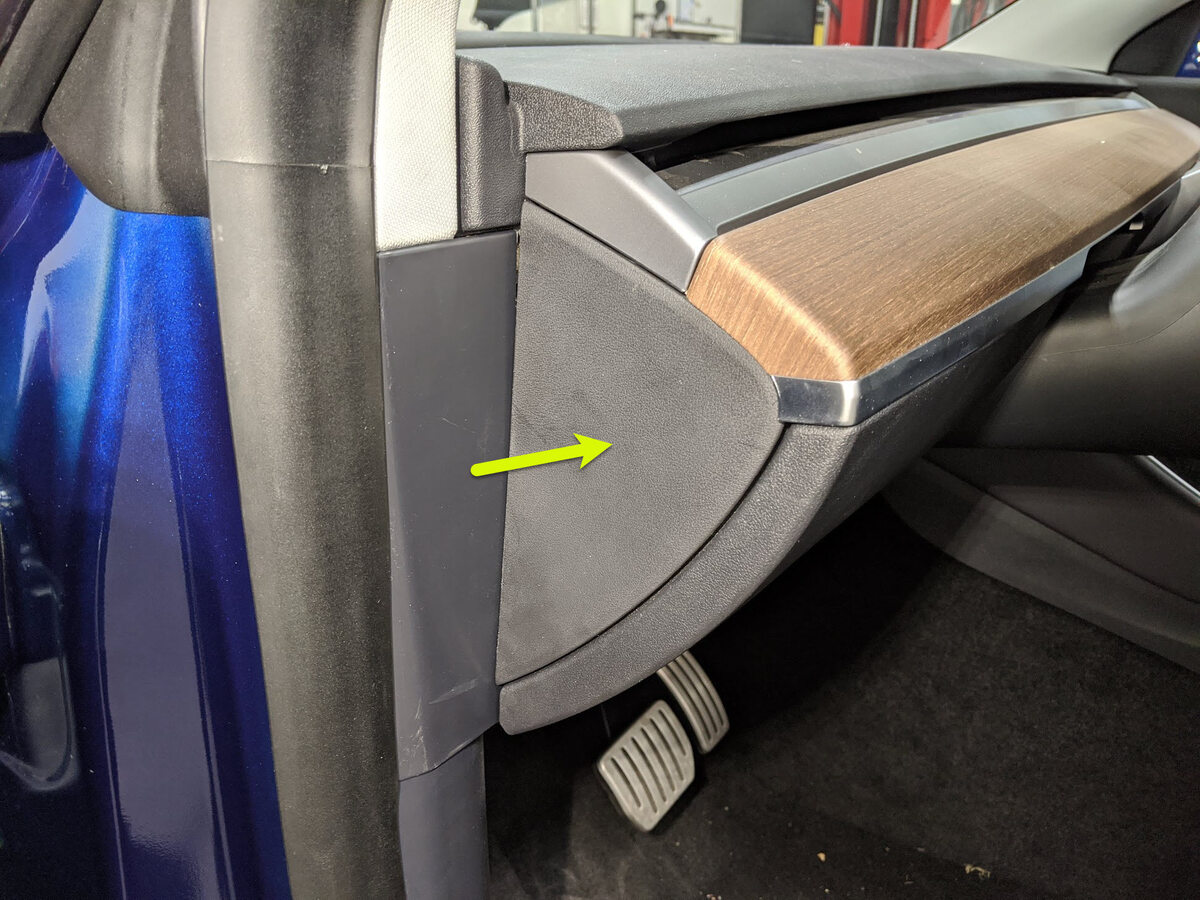

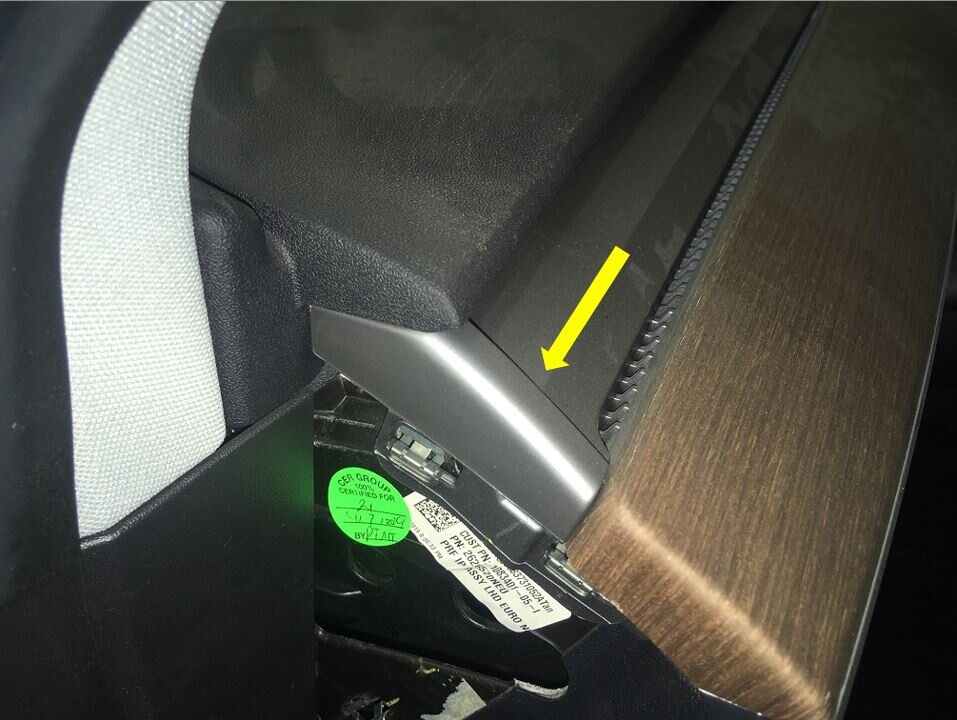

Remove LH IP end cap

注

3x clips

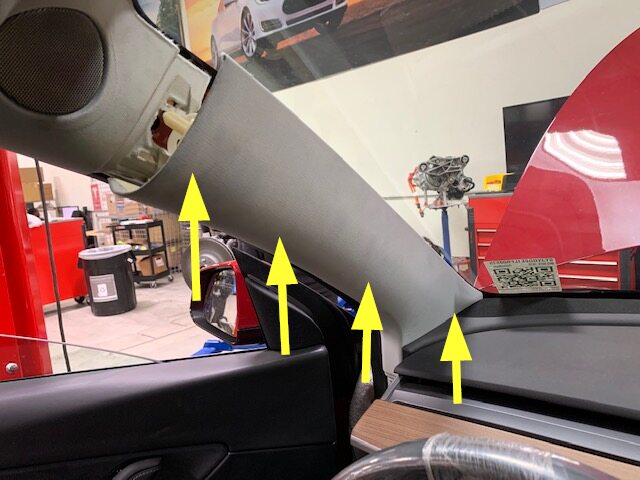

Remove LH mid A pillar assembly

注

1x clip, 1x tab, Release upper clip then pull mid A pillar upward to remove

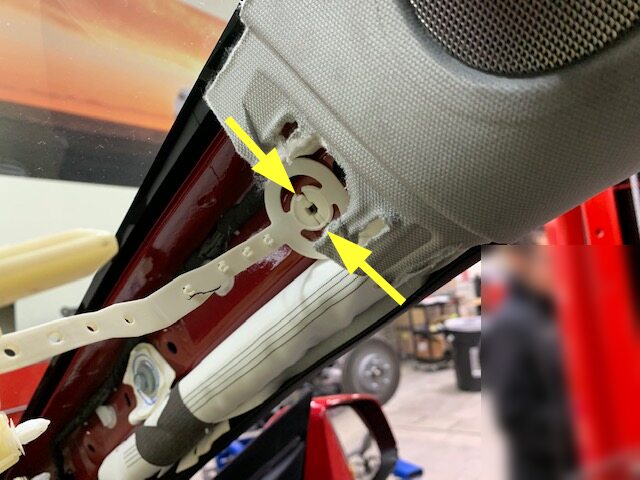

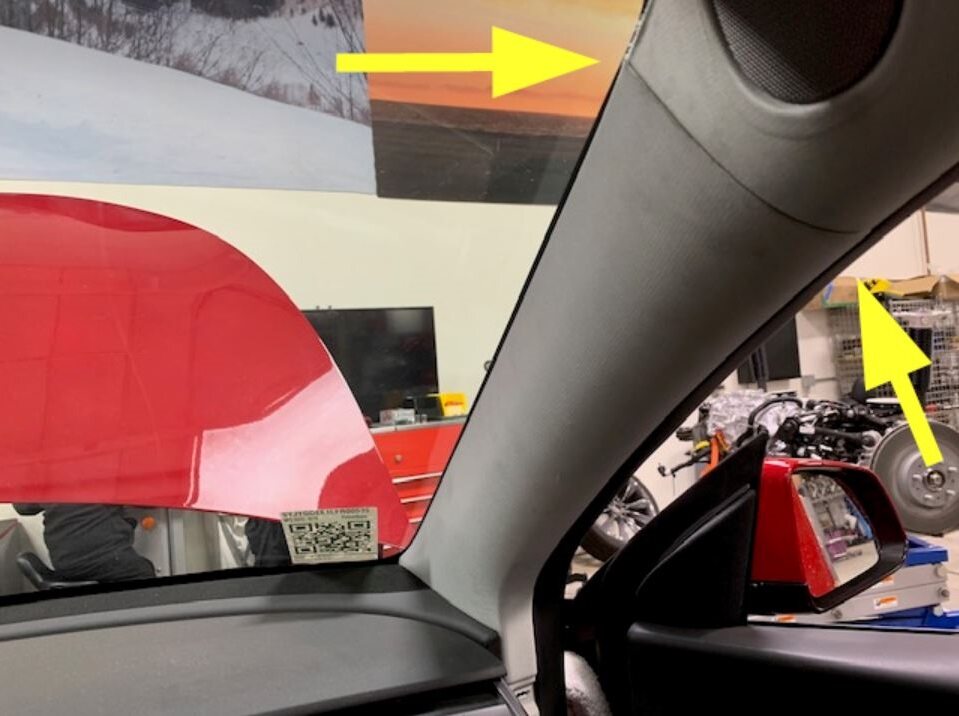

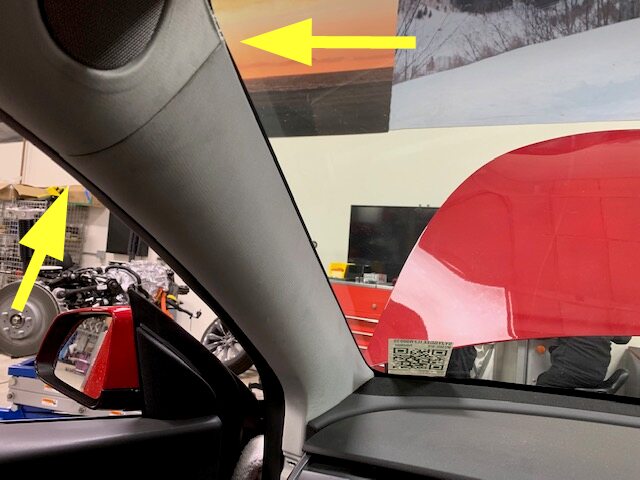

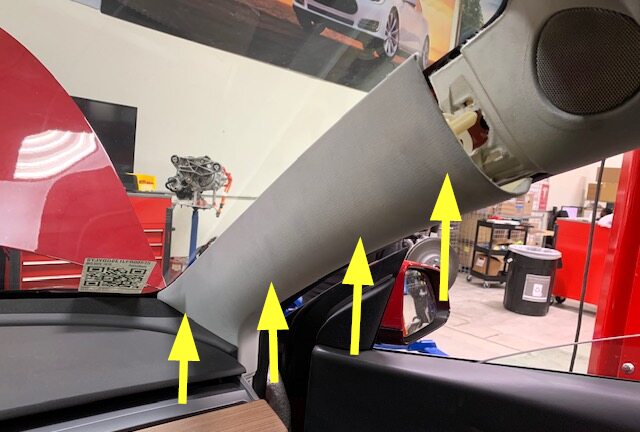

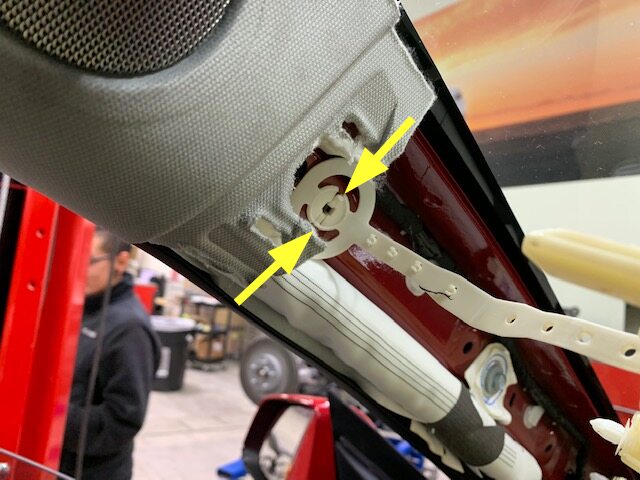

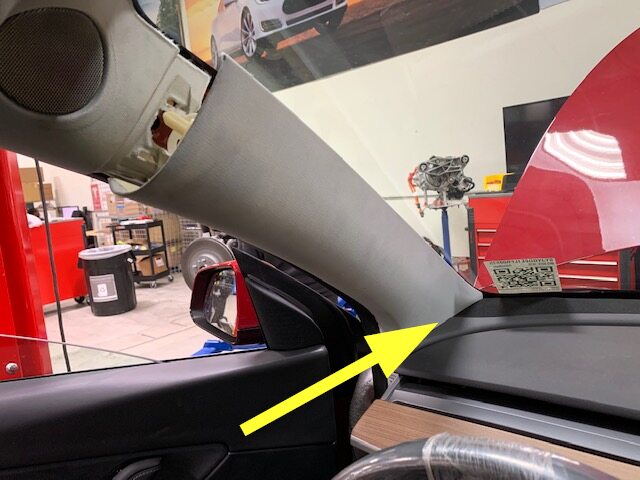

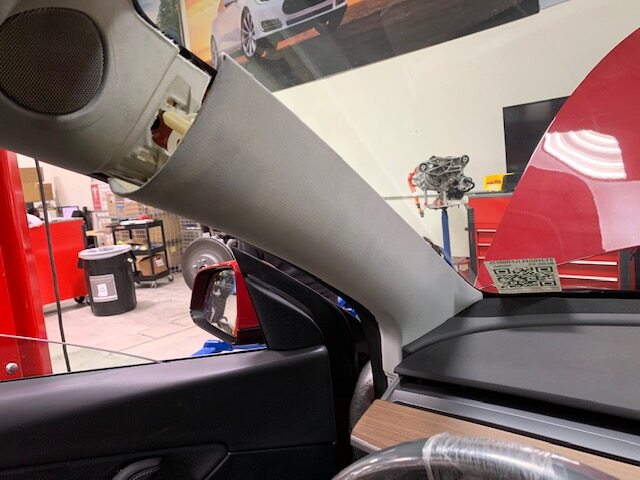

Remove LH upper A-pillar trim

注

3x clips, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove

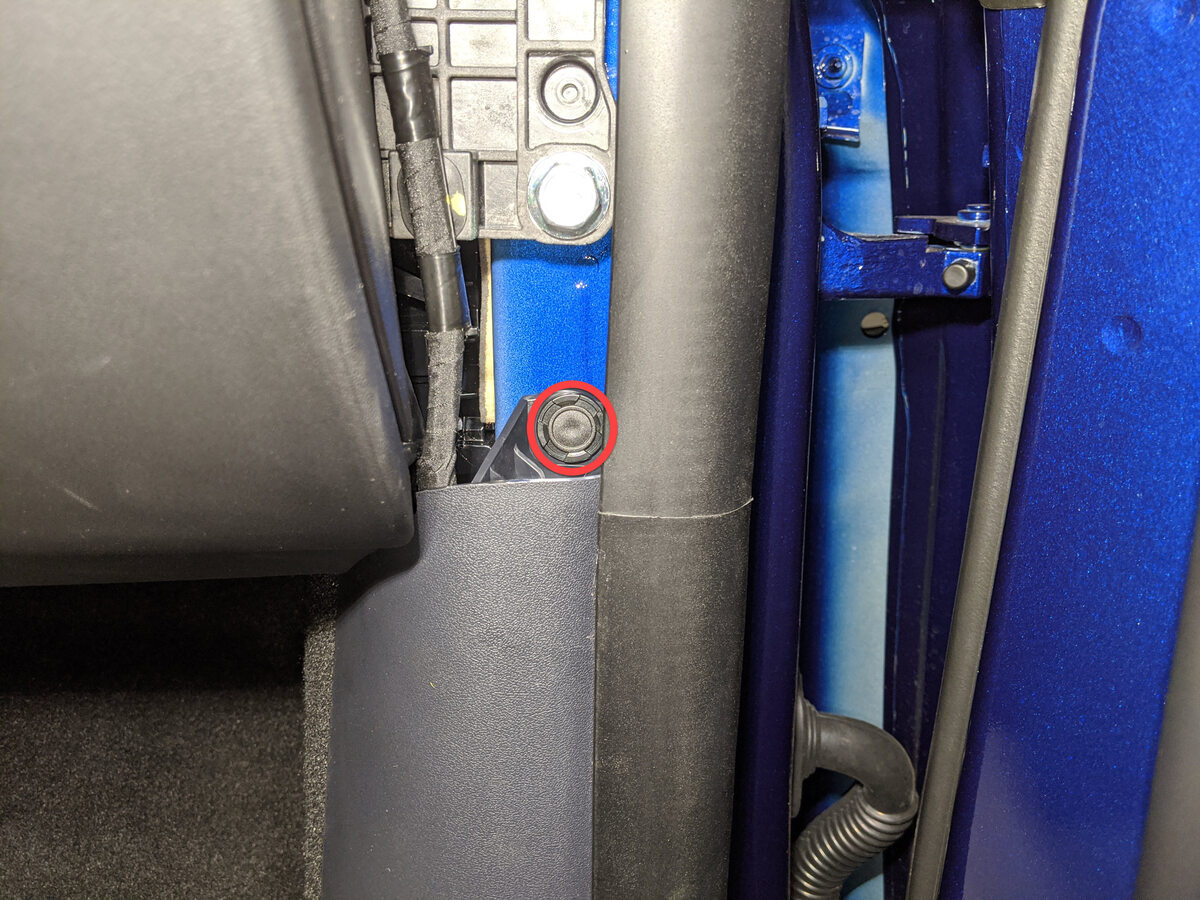

Remove clip securing LH lower A pillar trim

注

1x push clip

Remove LH lower A pillar trim

注

6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel

Remove LH front floor mat

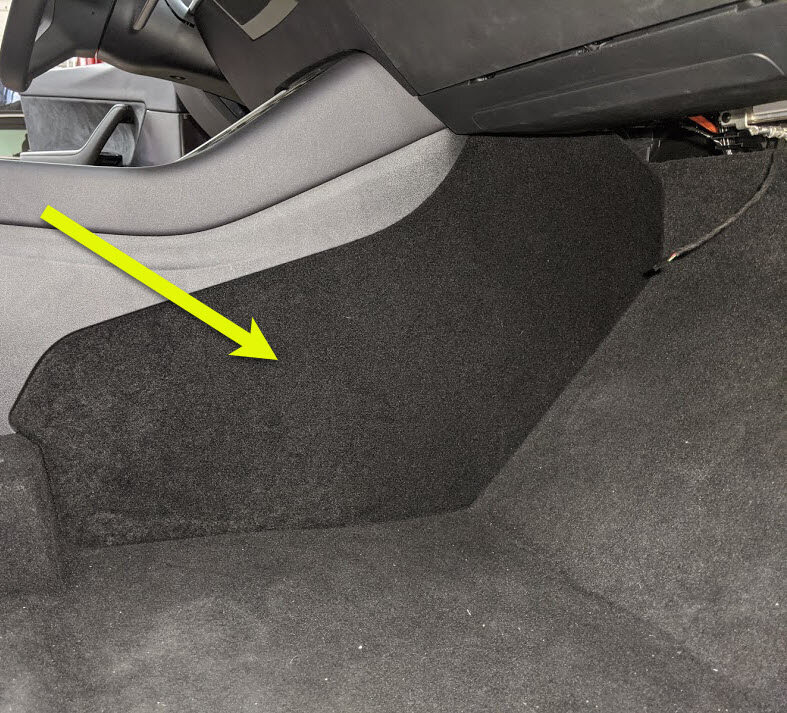

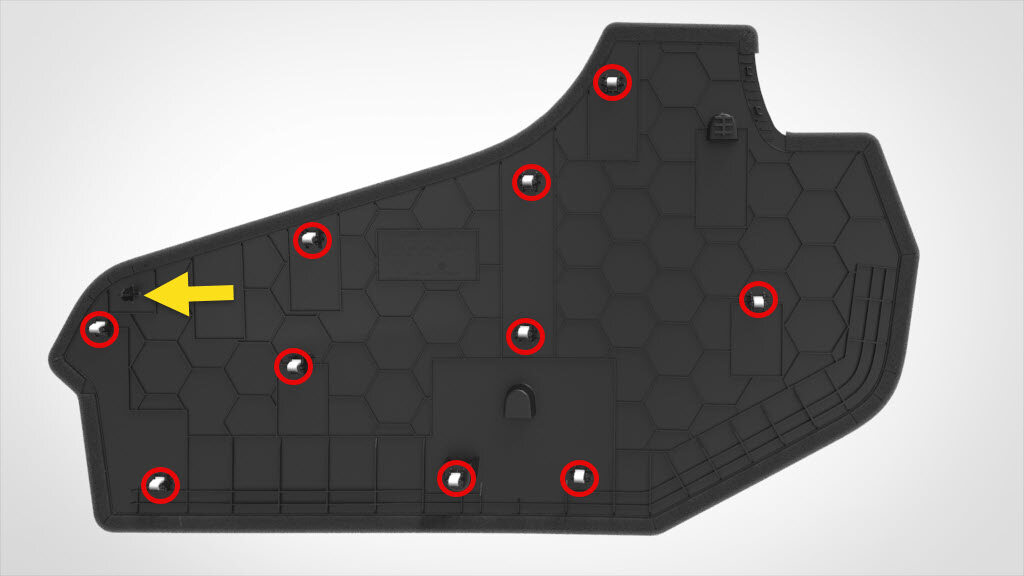

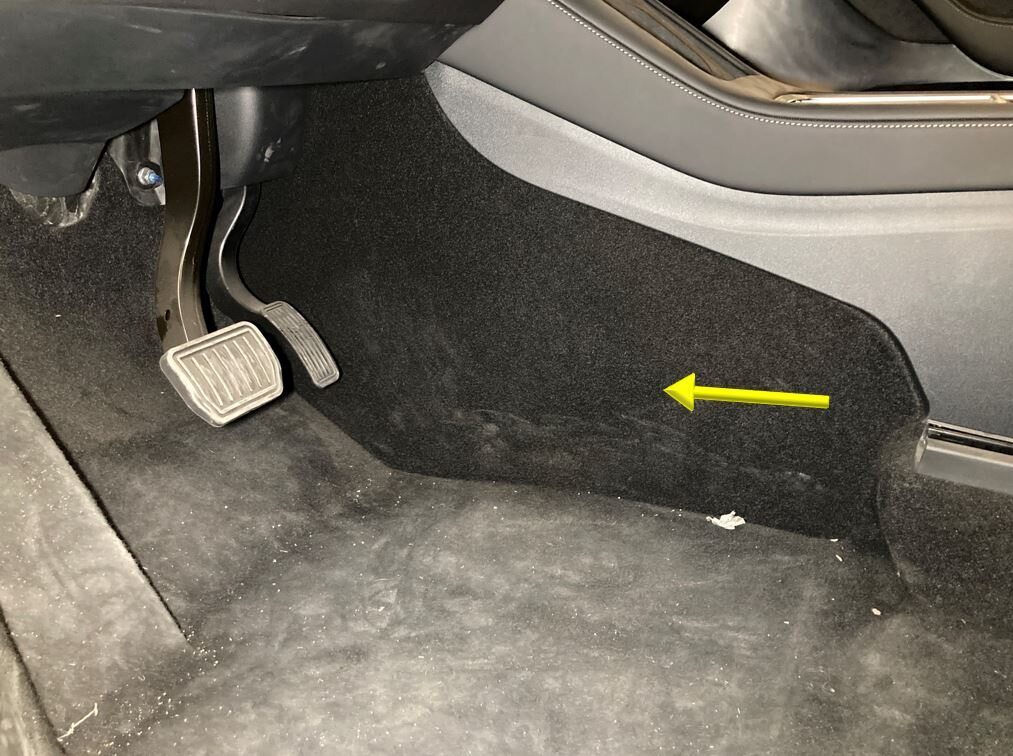

Remove LH console side panel carpet

注

10x clips, 1x guide pin, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged

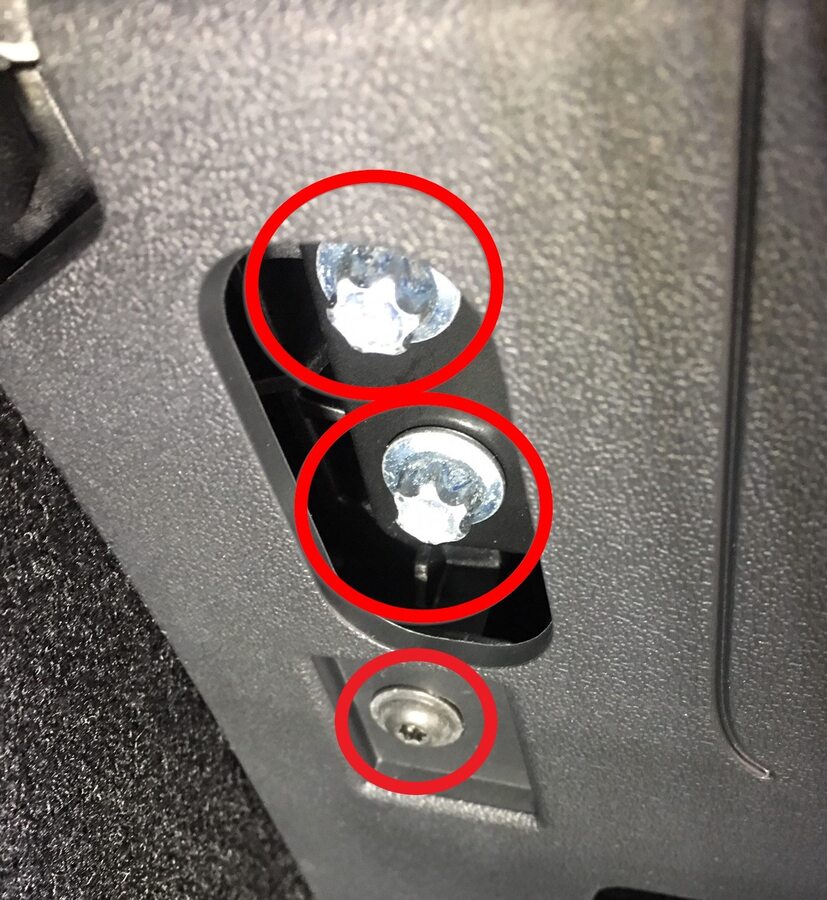

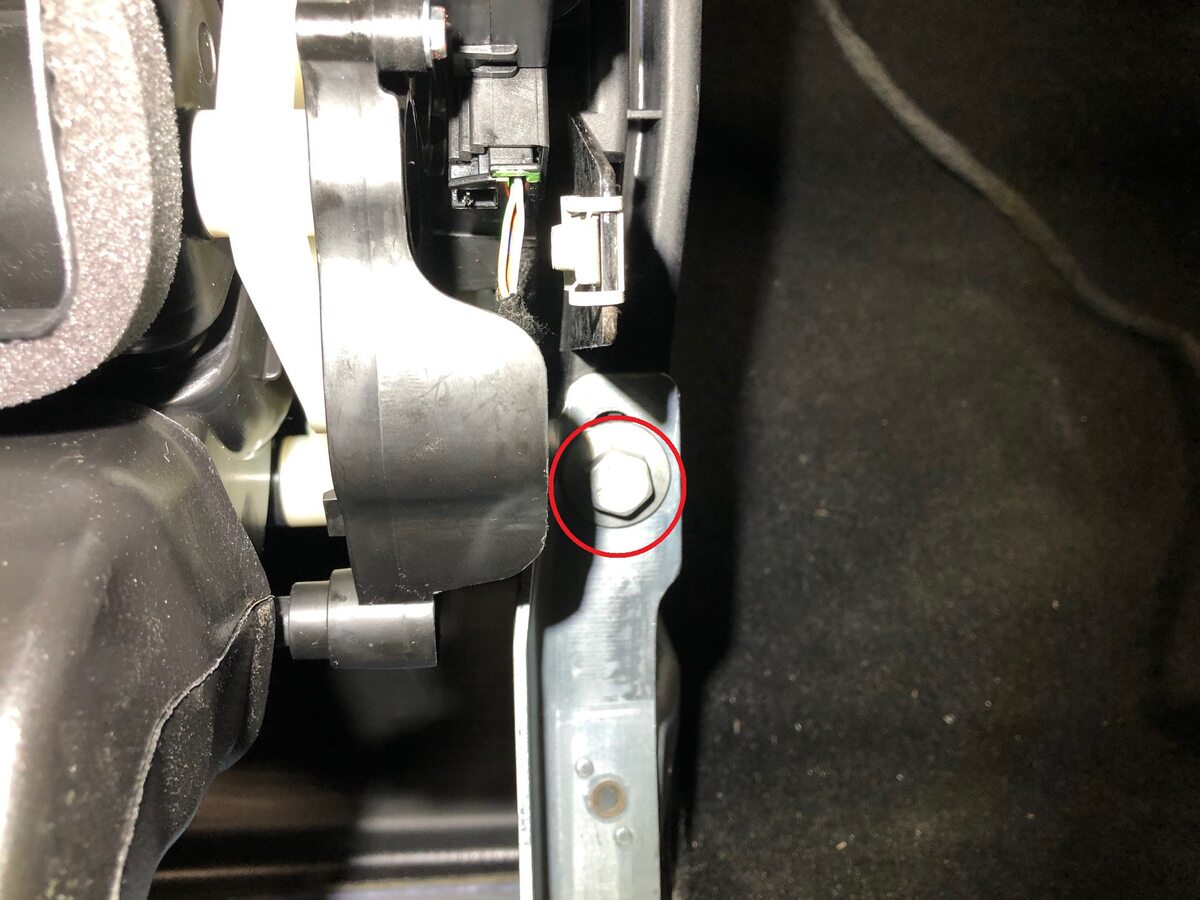

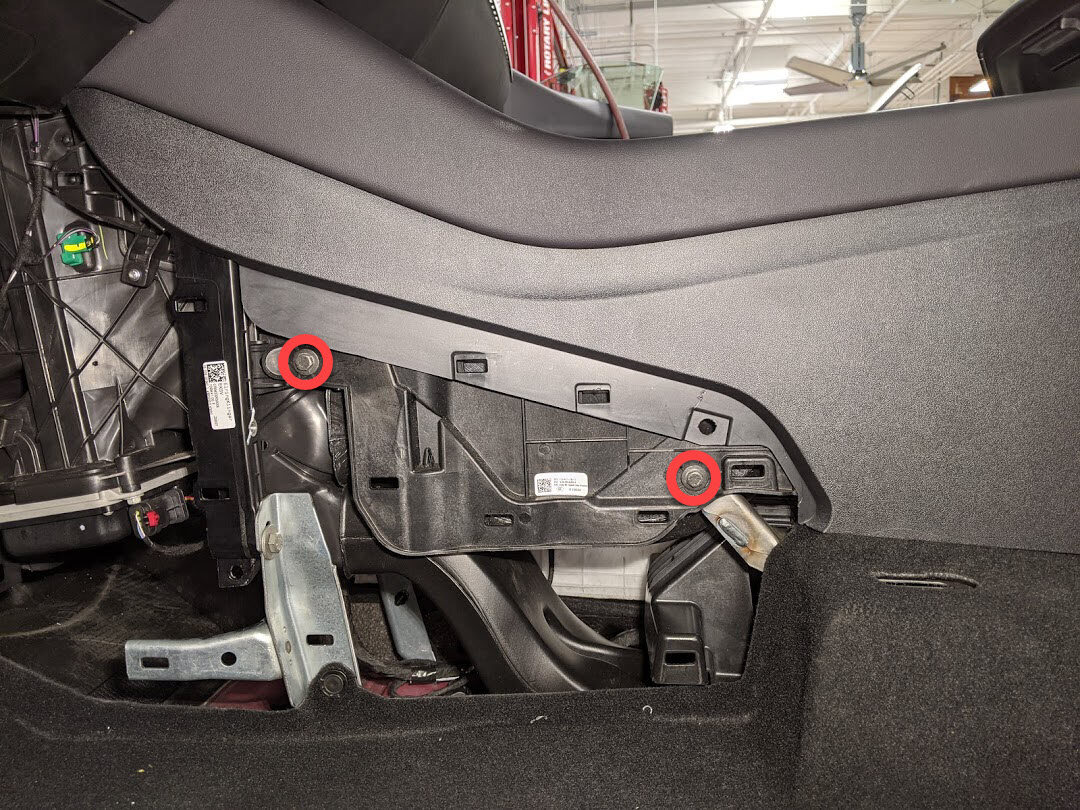

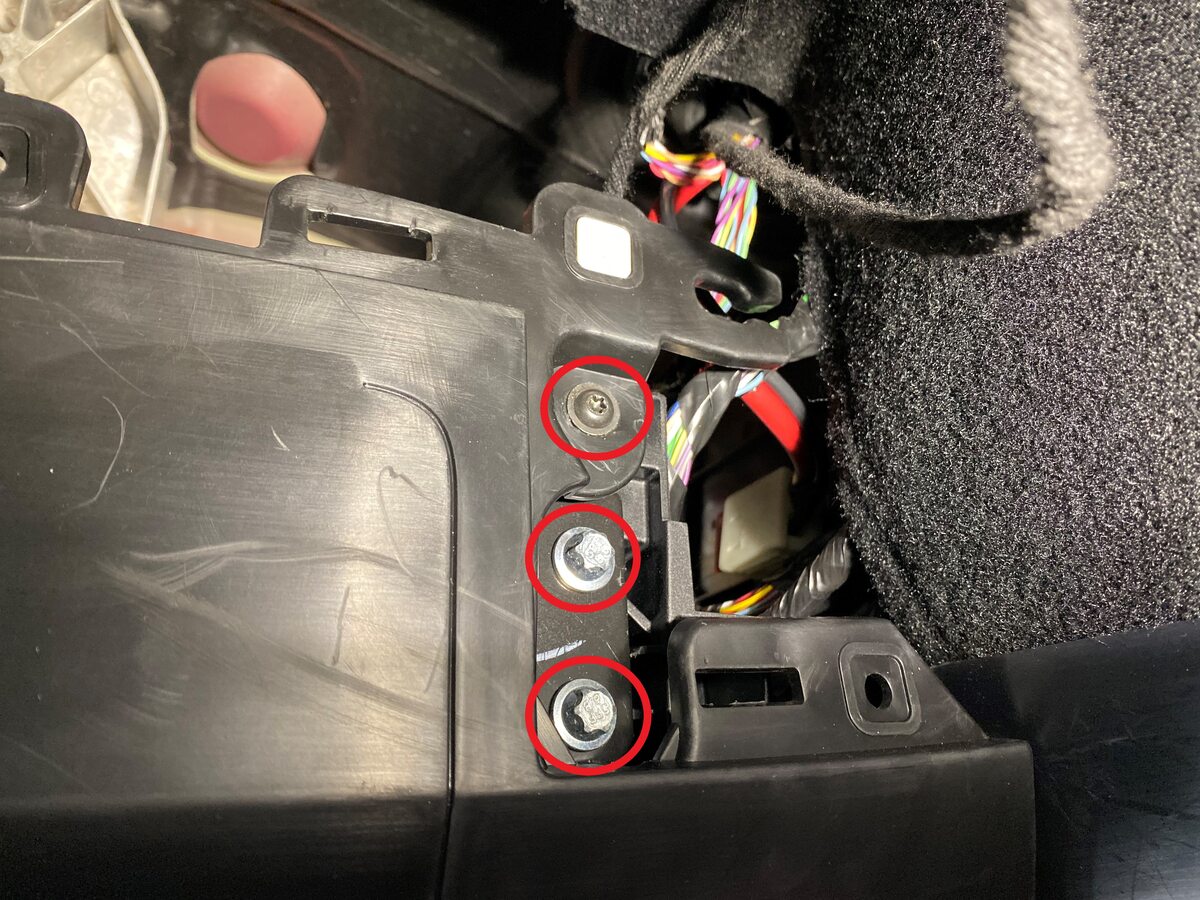

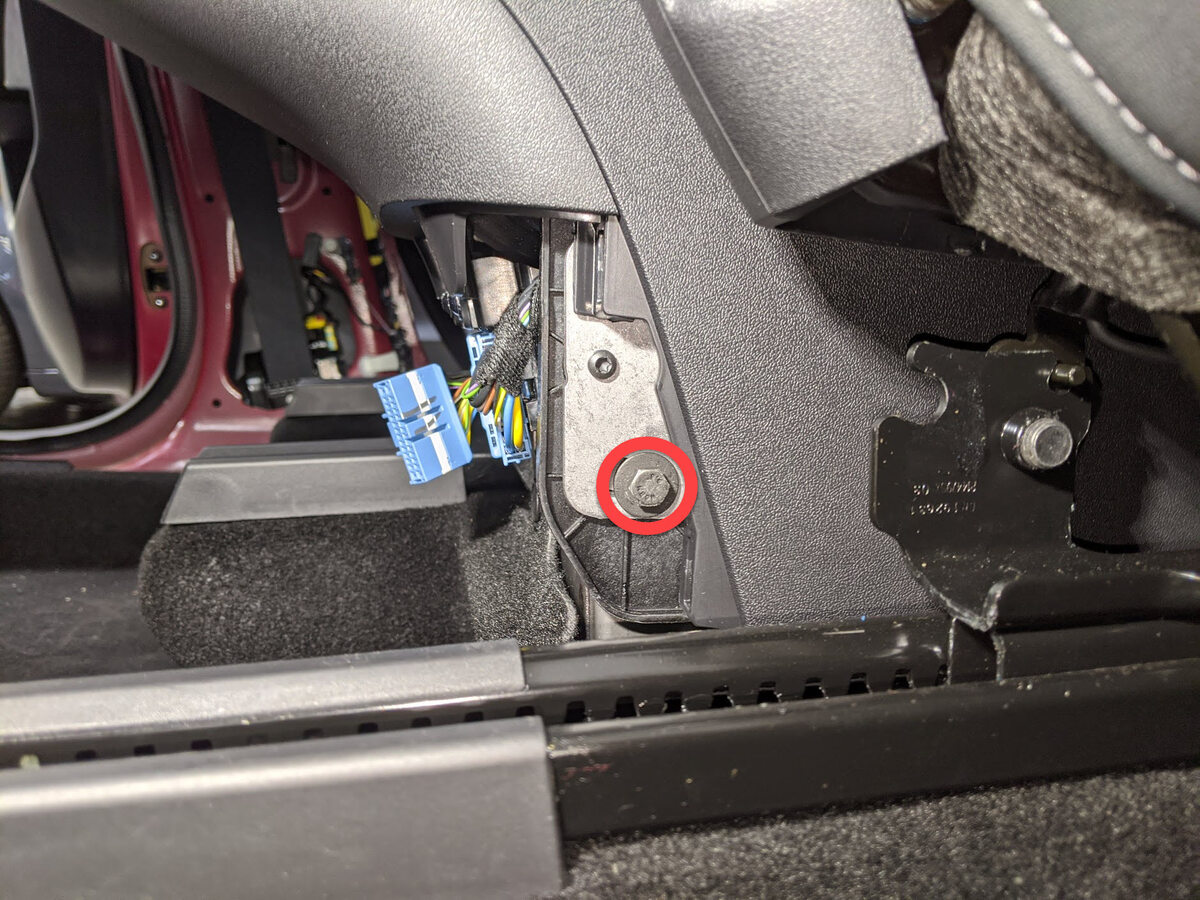

Remove LH front exterior hardware from center console

注

2x bolts, 10mm, 7 Nm, The relatively newer vehicles are equipped with a T30 bolt.

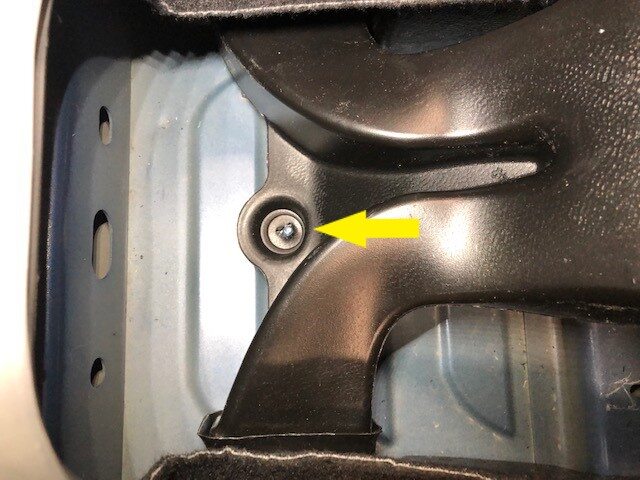

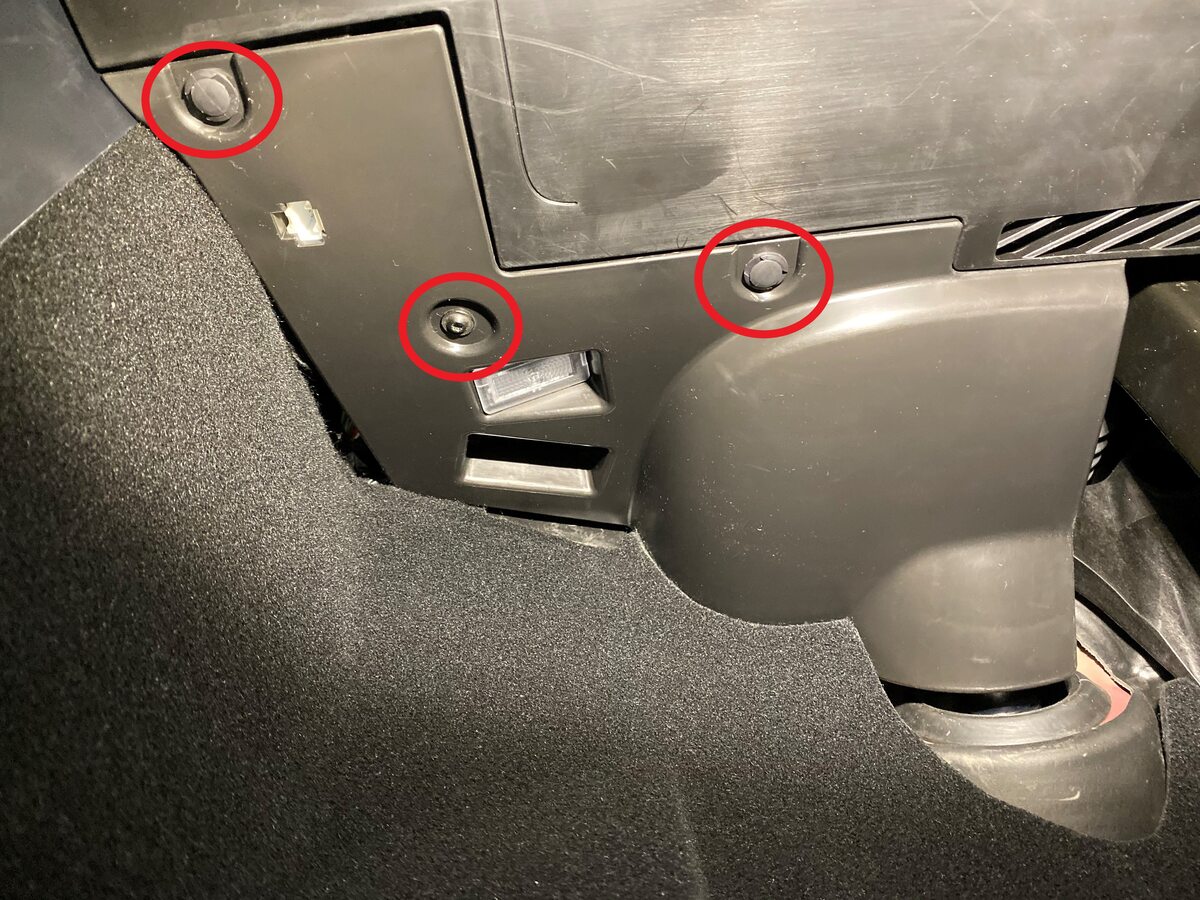

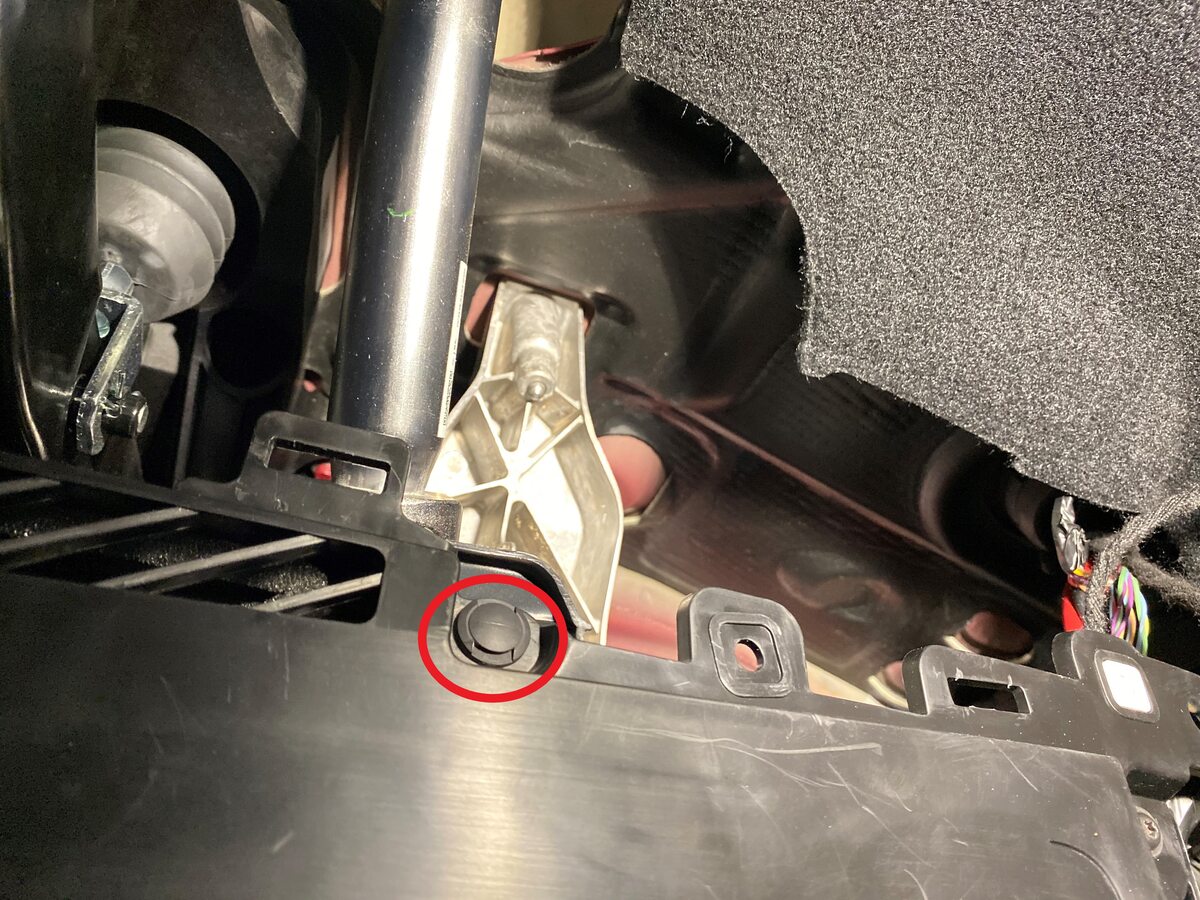

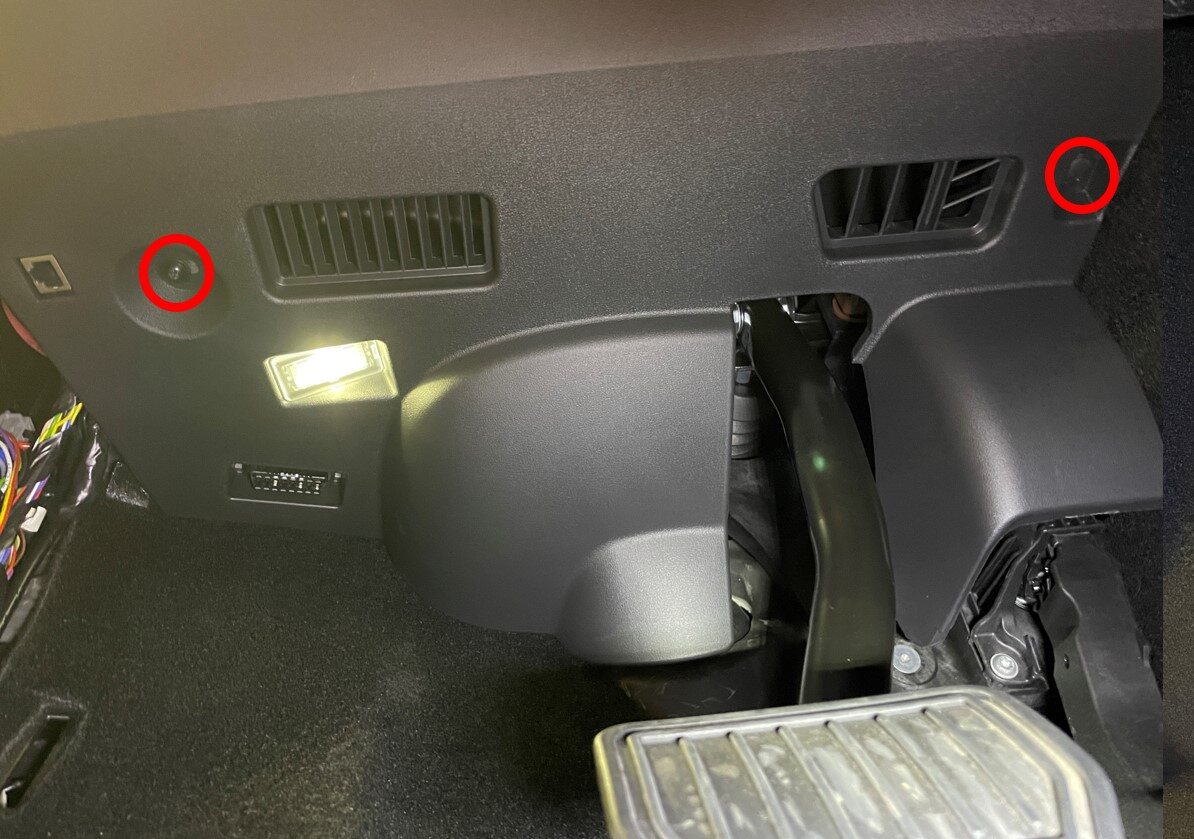

Remove screw and clips securing LH footwell cover

注

2x push clips, 1x screw, T20, 2.5 Nm

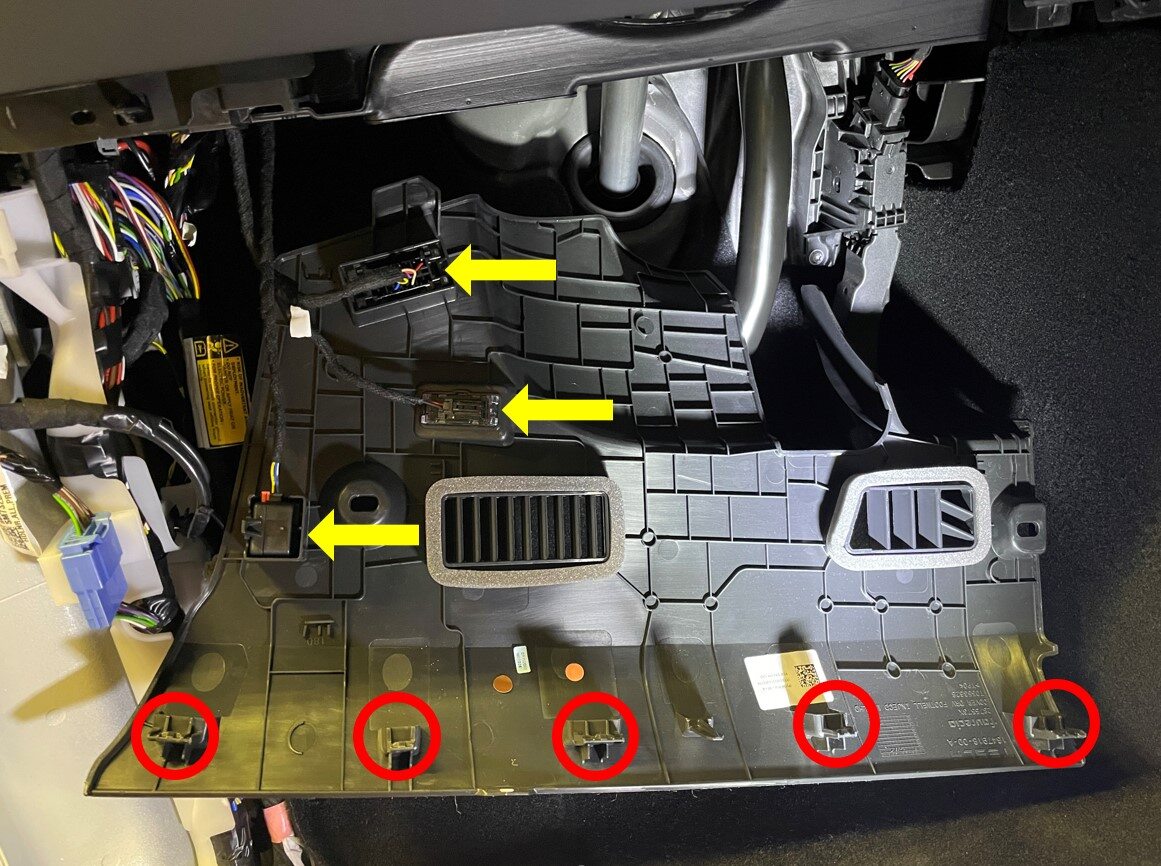

Remove connectors from LH footwell cover and remove from vehicle

注

3x tabs, 1x Ethernet connector, 1x puddle light connector, APAC specific vehicles an additional ODII connector will have to be connected

Remove fasteners securing driver knee air bag to vehicle

注

2x push clips, 2x screws, T20, 2 Nm, 4x patch bolts, E10, 8 Nm, Discard after removal, Support the knee air bag while lowering, The connector / harness length is very short

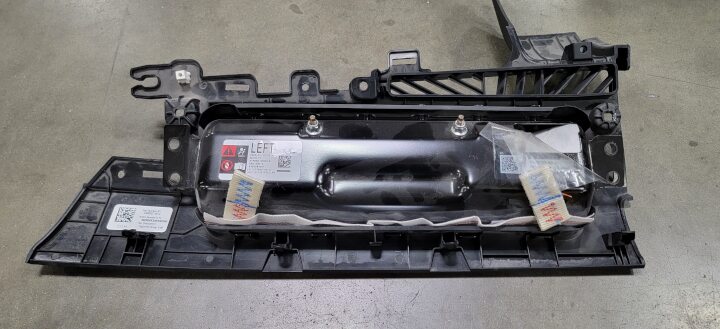

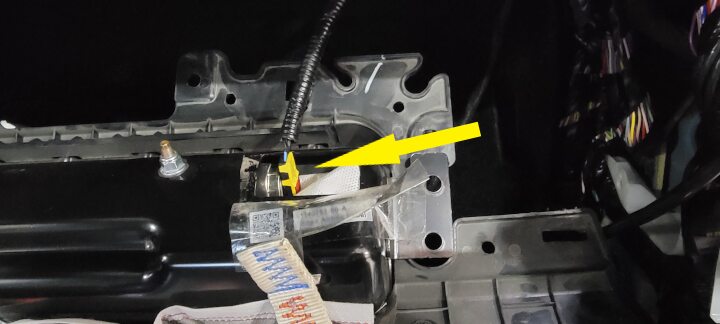

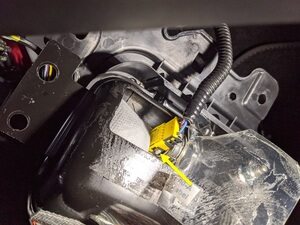

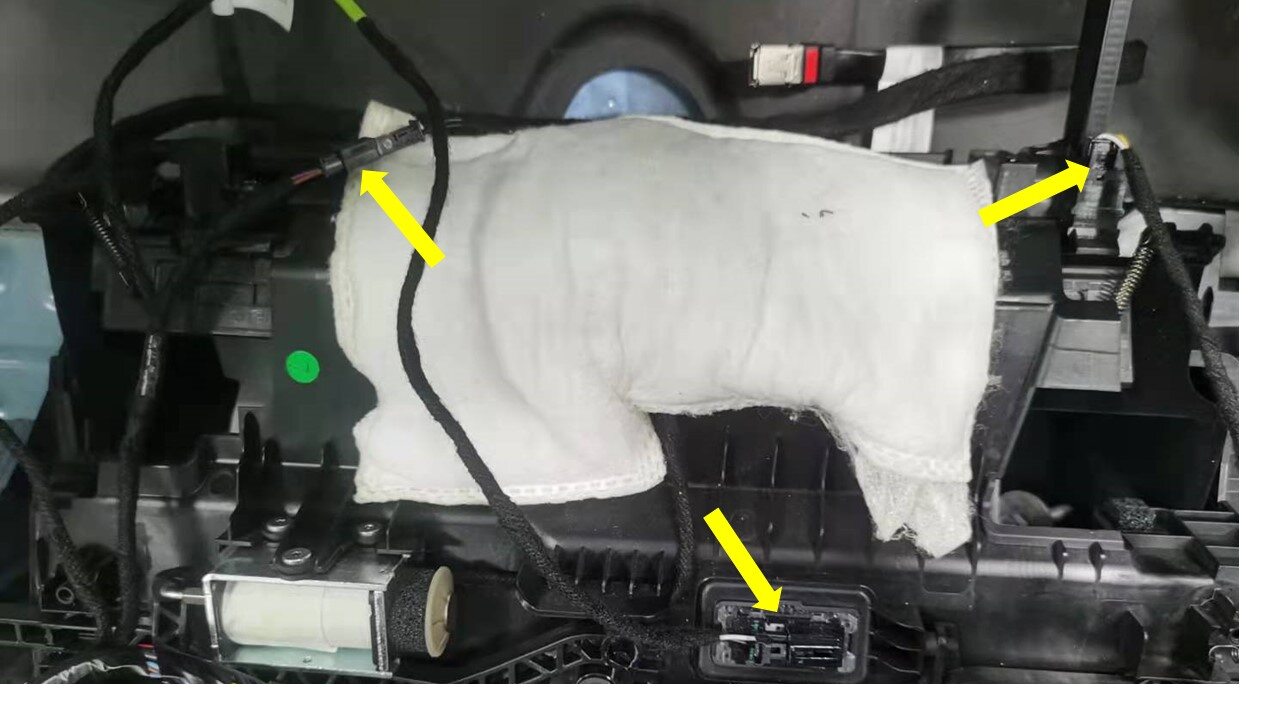

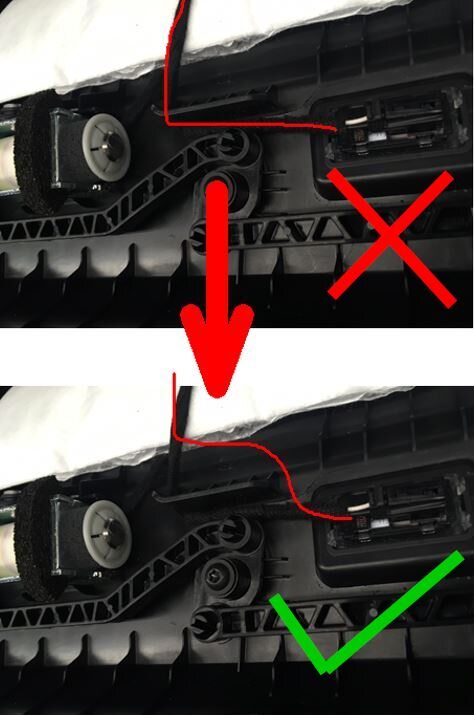

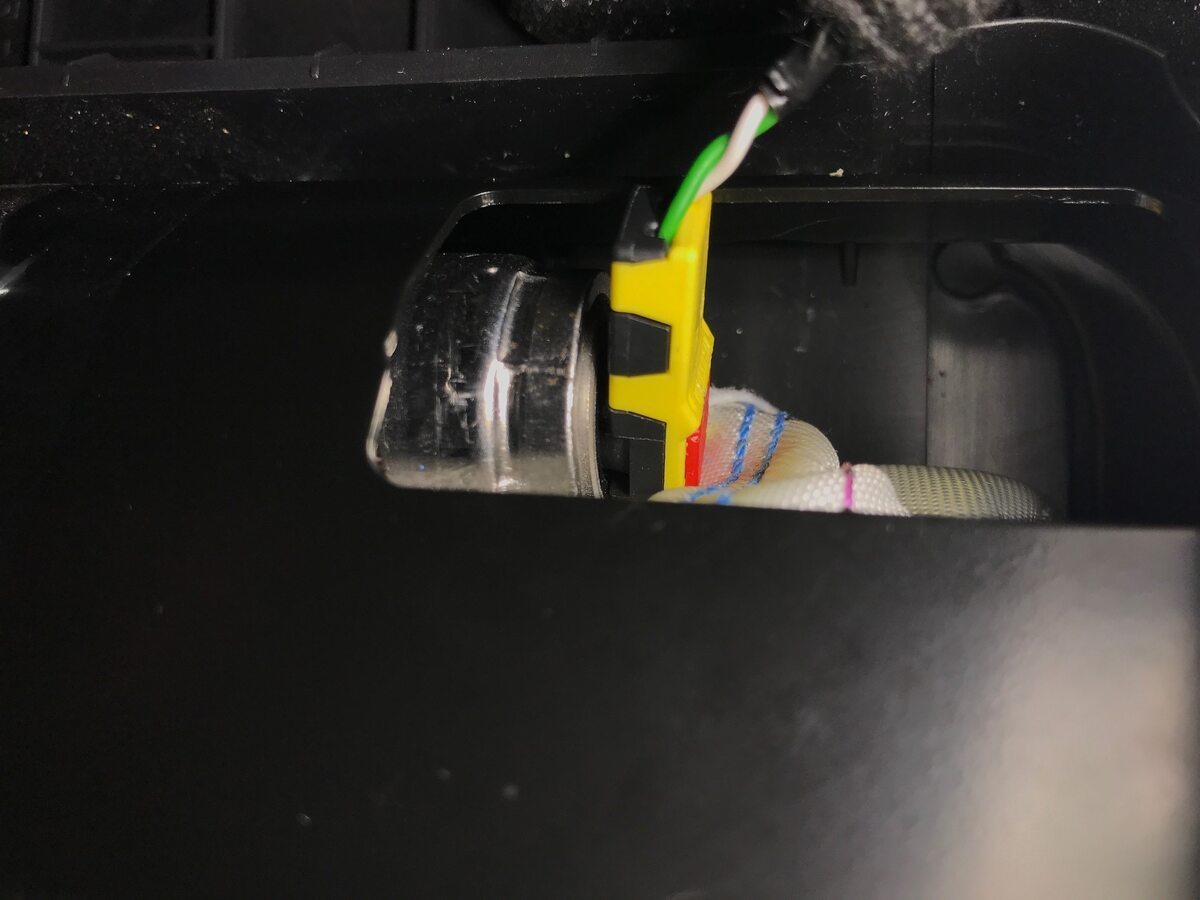

Remove driver knee air bag

注

1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary

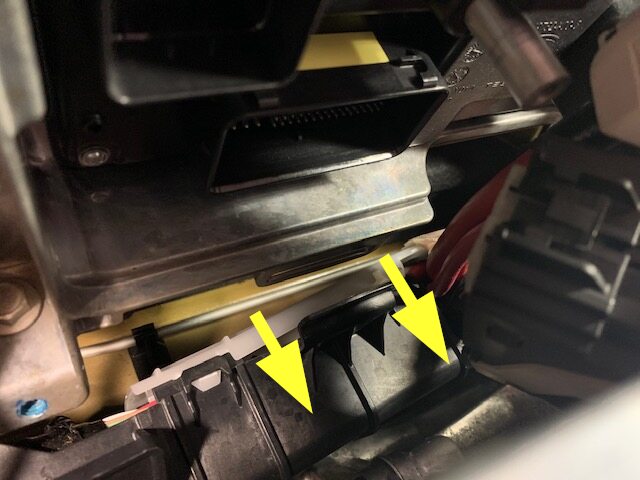

Remove LH footwell duct from HVAC module

注

Pull LH footwell duct towards LH side of vehicle to remove

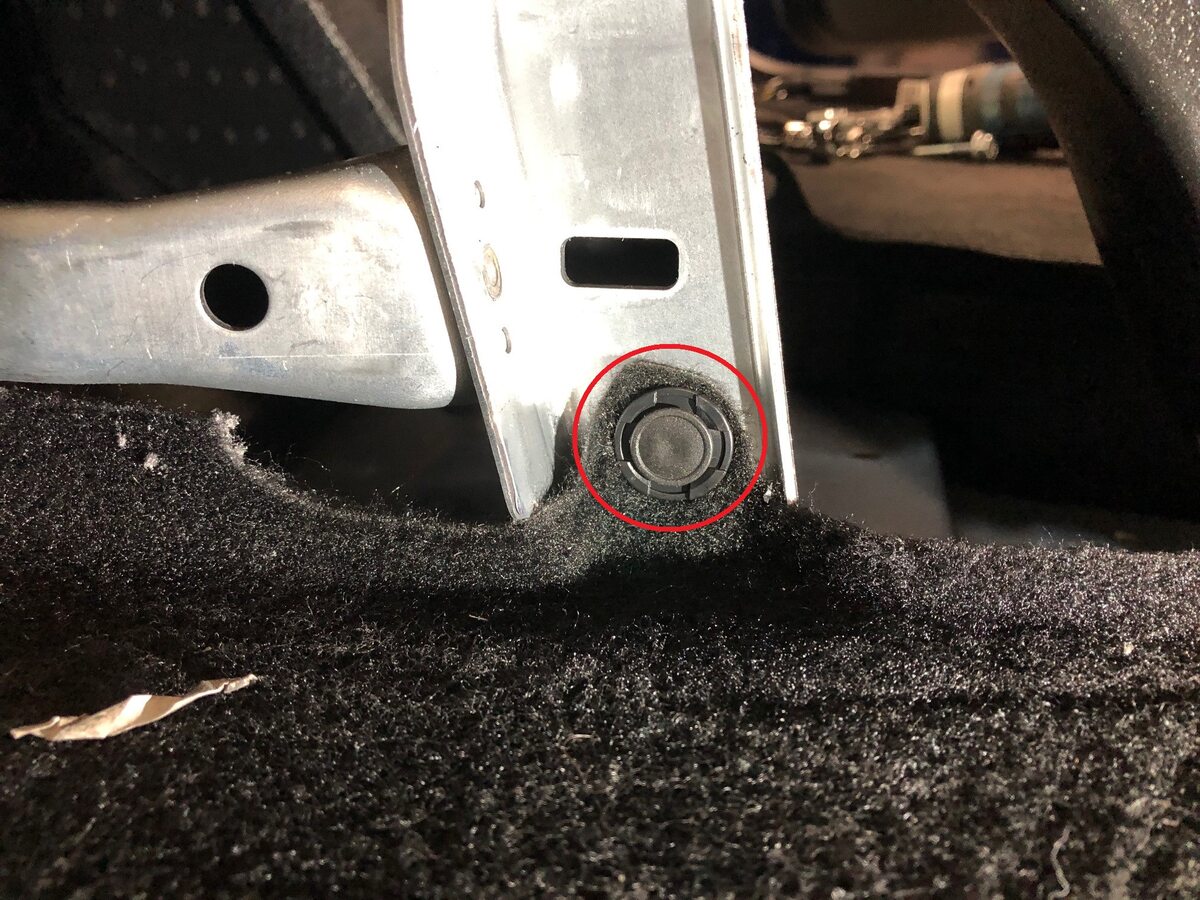

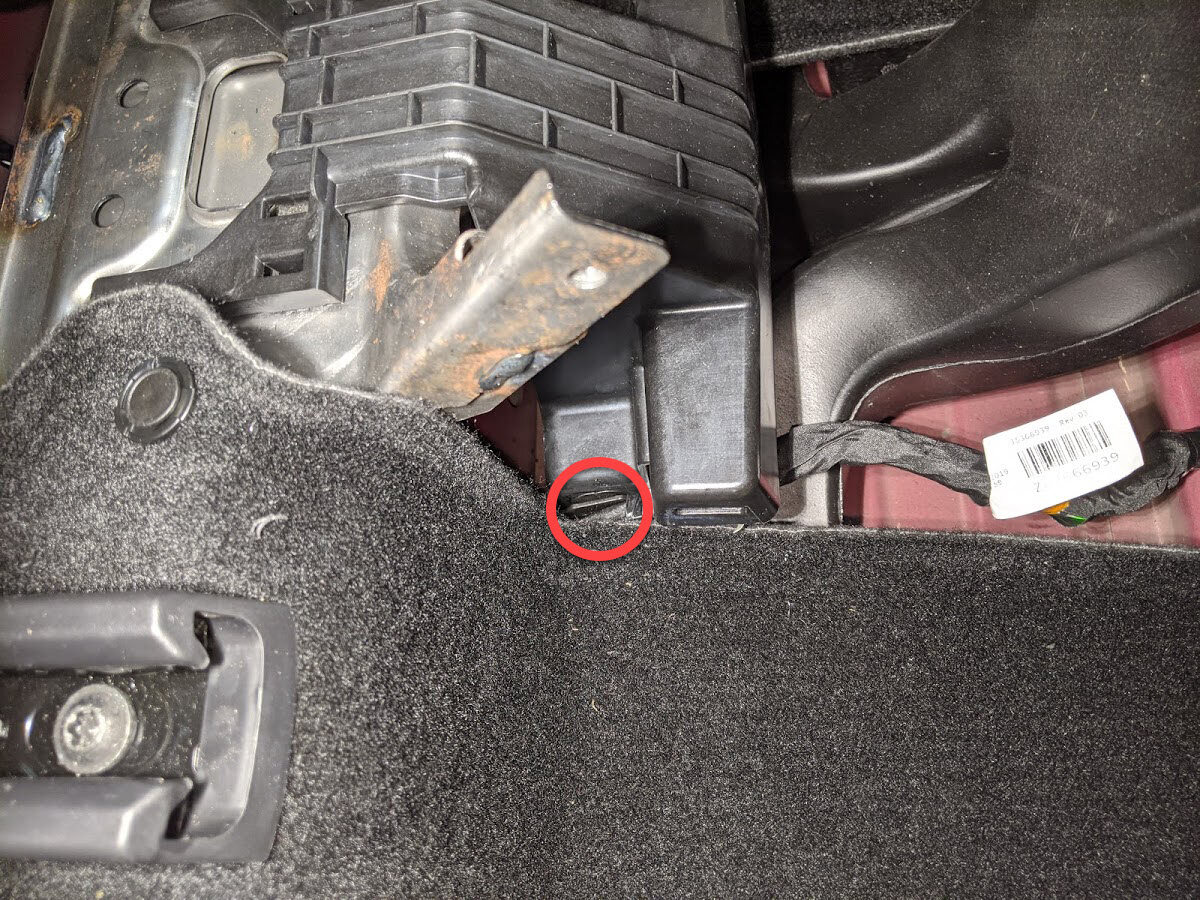

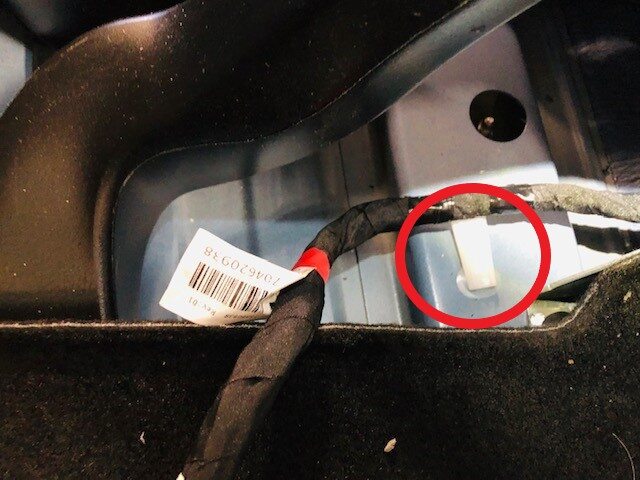

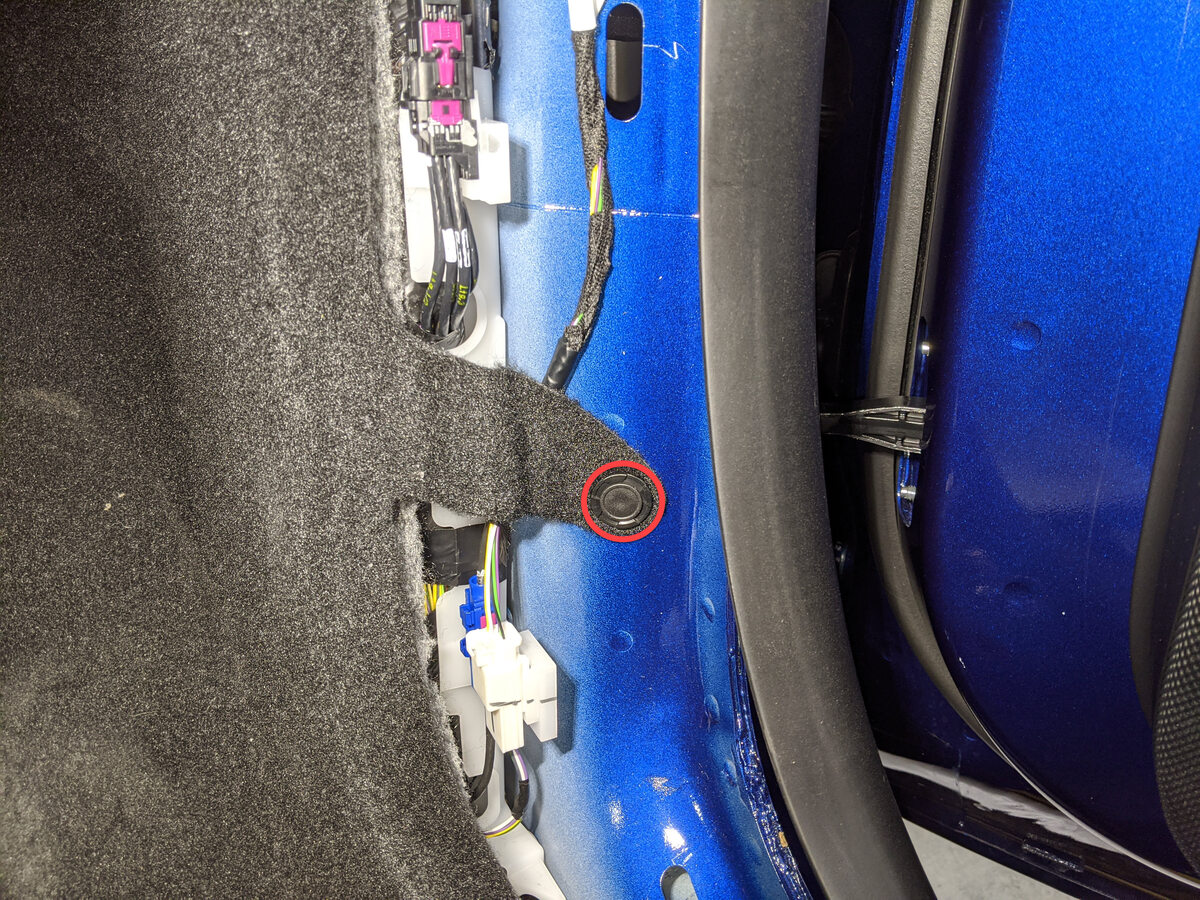

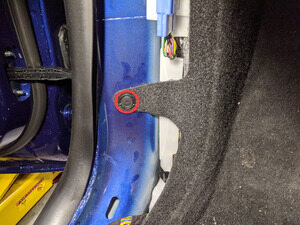

Remove clip securing LH front cabin carpet to body

注

1x push clip

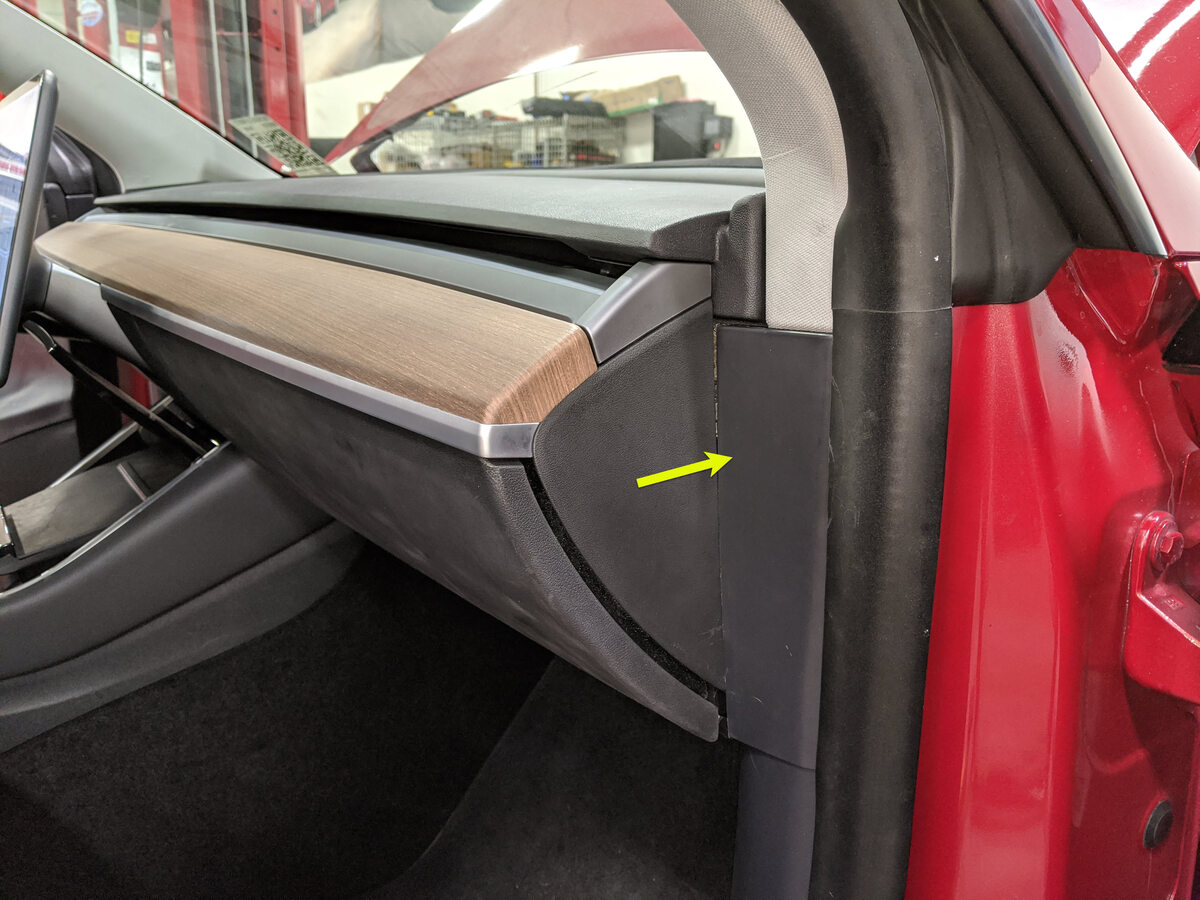

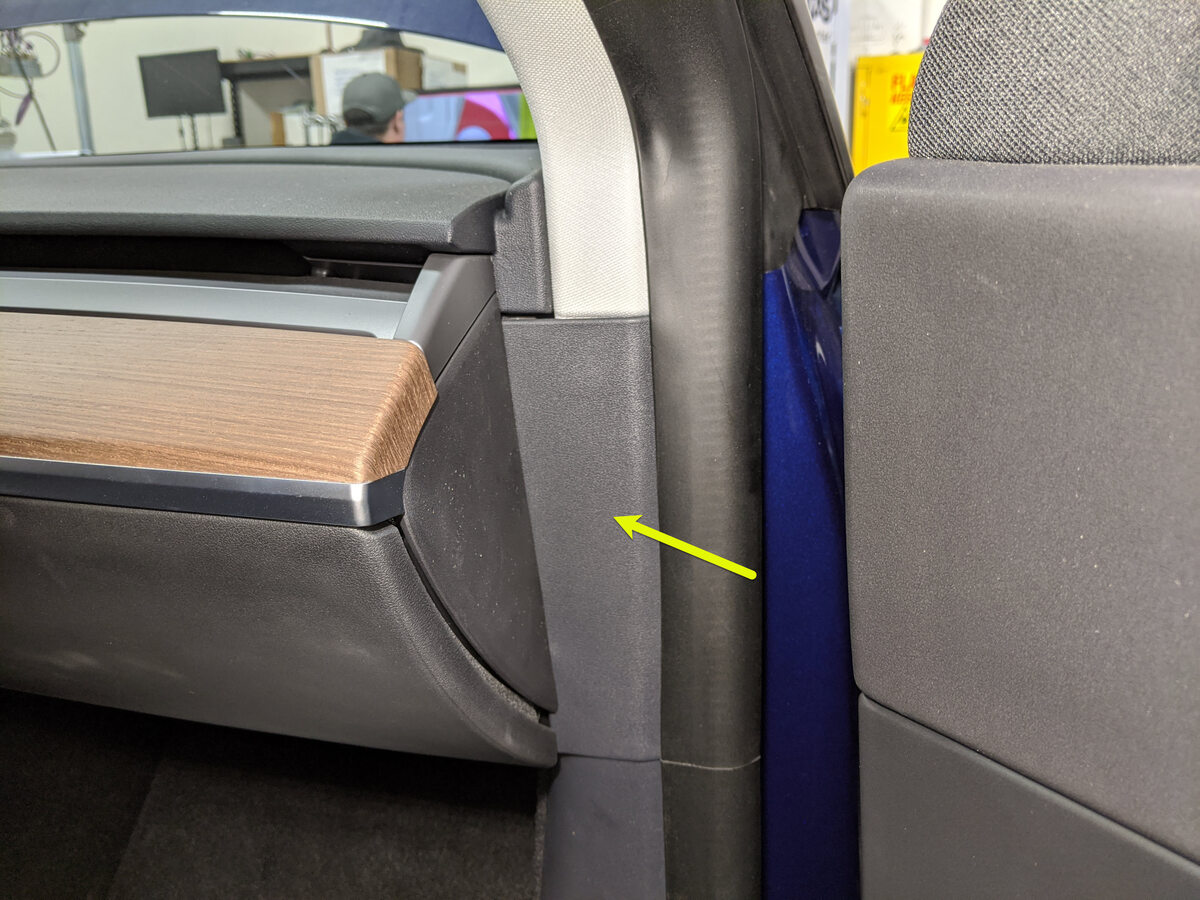

Remove RH IP end cap

注

3x clips

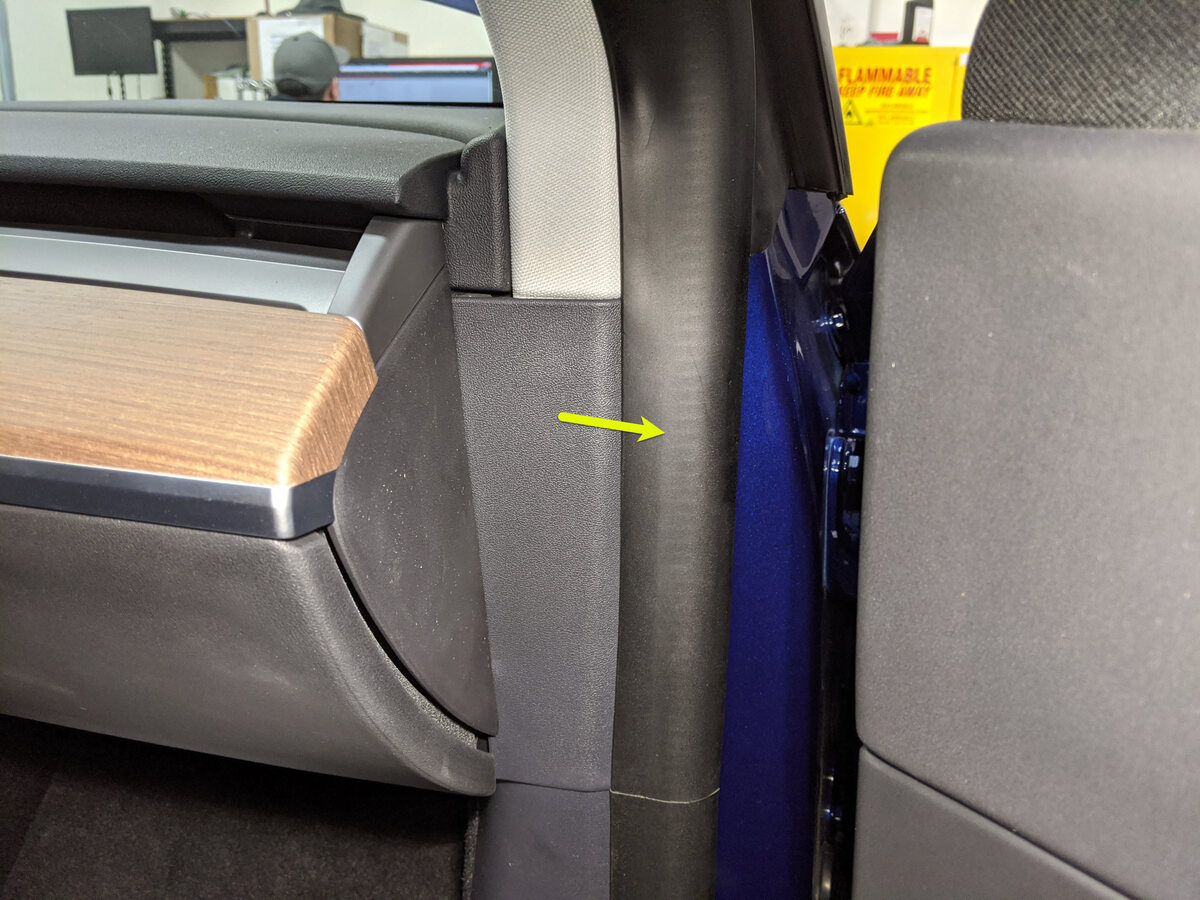

Remove RH mid A pillar assembly

注

1x clip, 1x tab, Release the upper clip then pull mid A pillar upward to remove

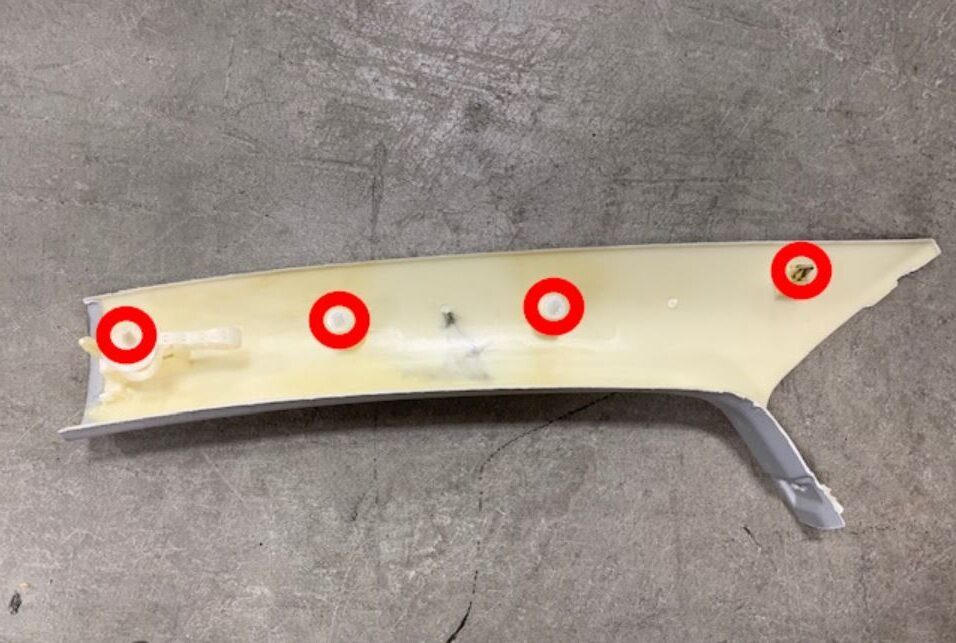

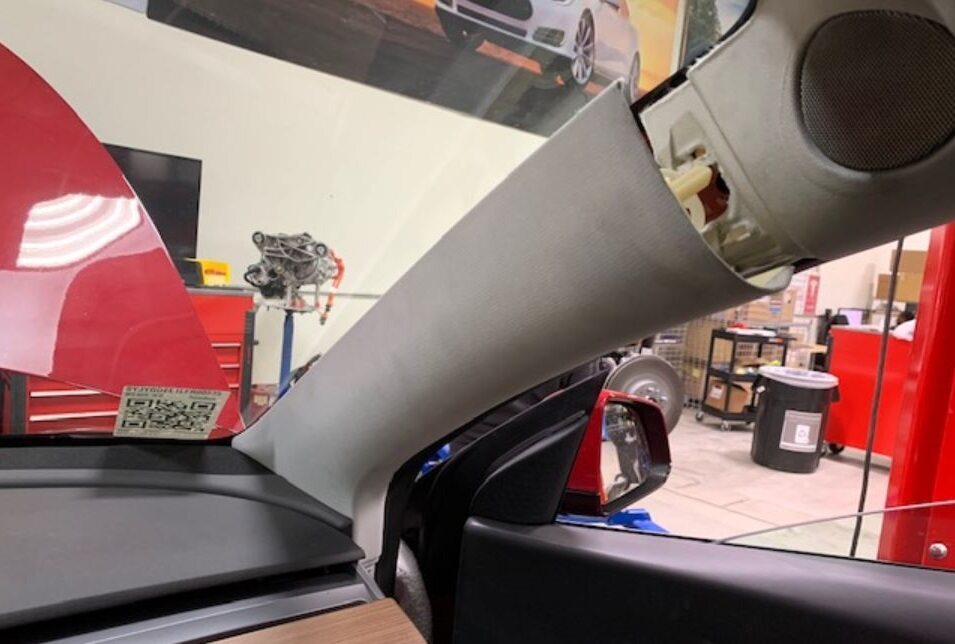

Remove RH upper A-pillar trim

注

3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove

Remove clip securing RH lower A pillar trim

注

1x push clip

Remove RH lower A pillar trim to release seat harness.

注

6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel

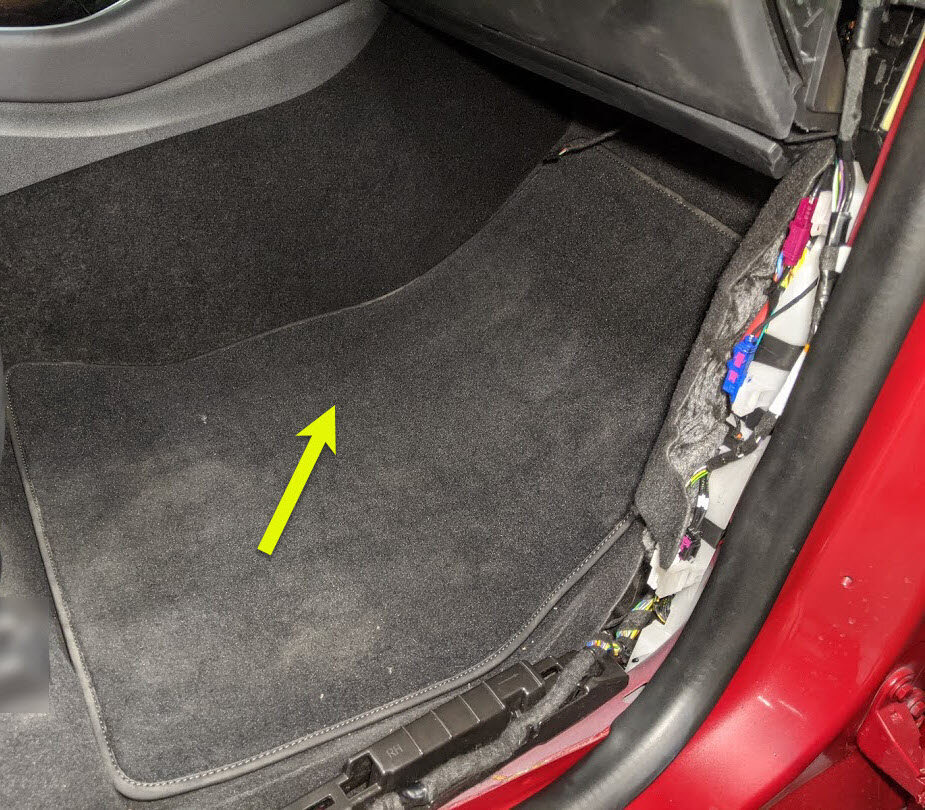

Remove RH front floor mat

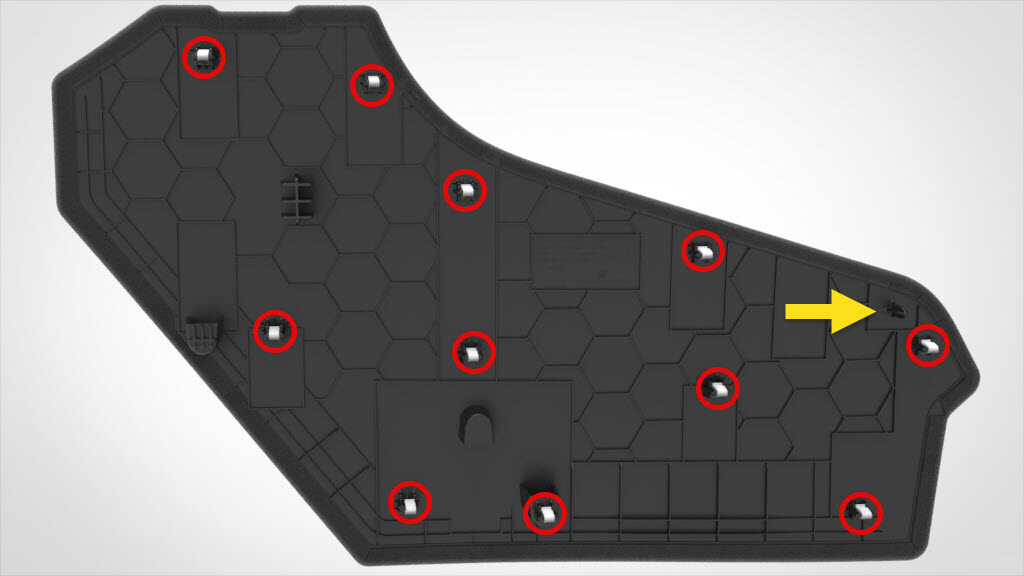

Remove RH console side panel carpet

注

11x clips, 1x guide pin, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged

Remove RH front exterior hardware from center console

注

2x bolts, 10mm, 7 Nm, The relatively newer vehicles are equipped with a T30 bolt.

Disconnect USB harness at right front of center console

注

1x USB connector

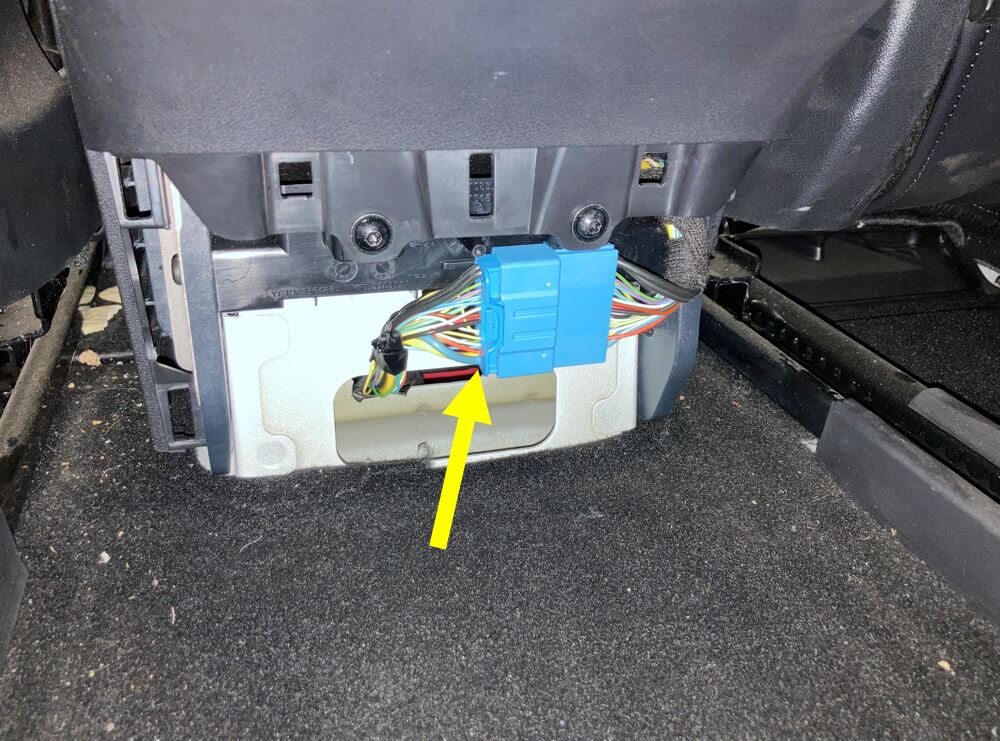

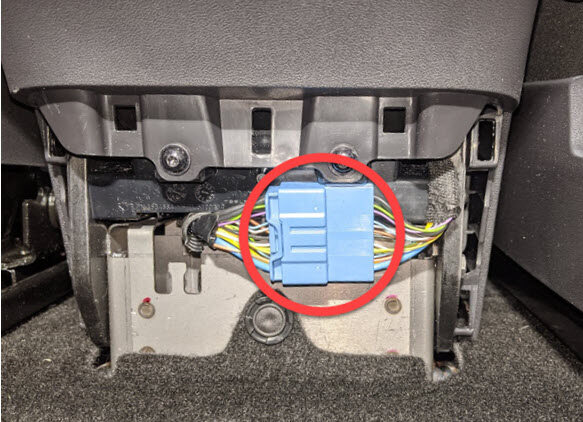

Disconnect harness from rear of center console

注

1x connector

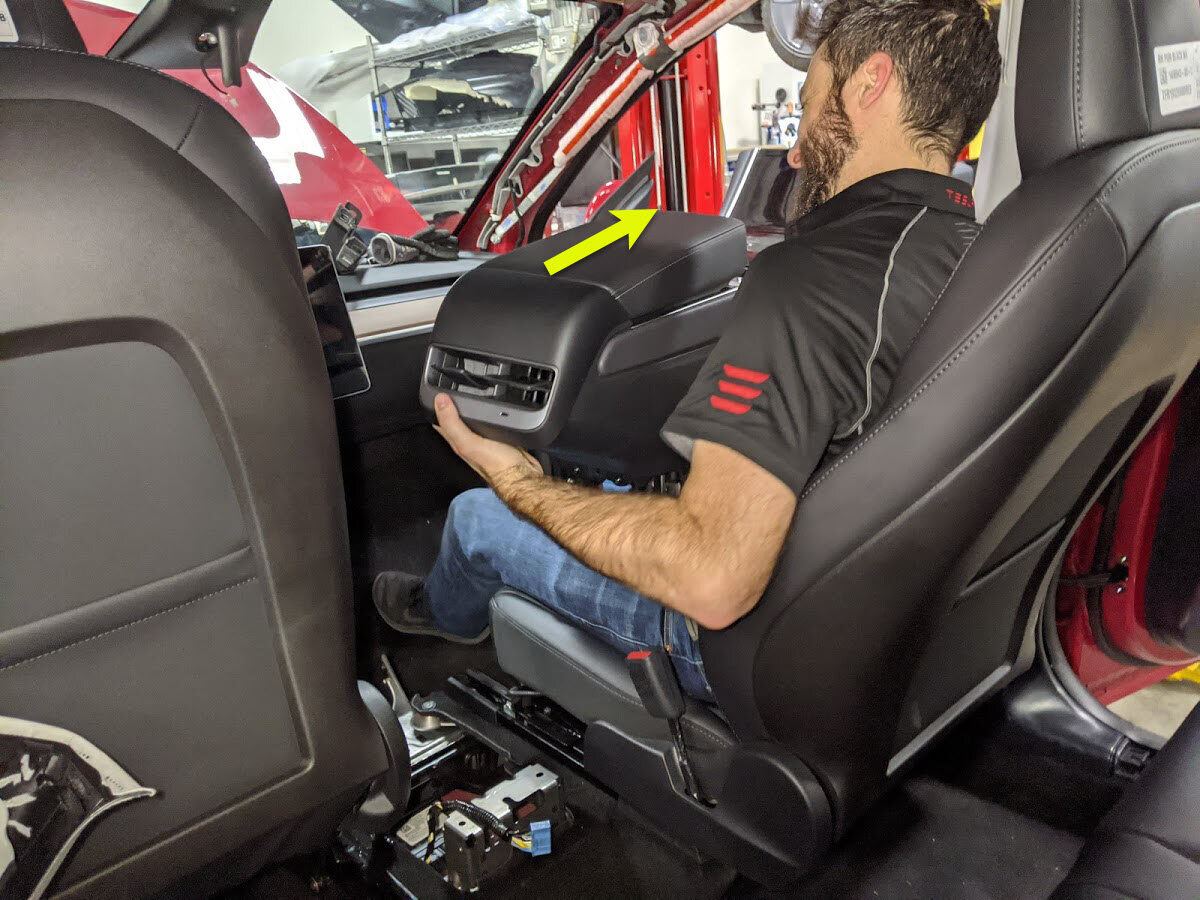

Remove center console from vehicle

注

Recommend assistance, Tilt rear of console upward, pull assembly towards rear of vehicle, then tilt front of console upward and remove through passenger side

Remove clips securing RH footwell assembly

注

4x push clips, Clip count may vary depending on region

Remove RH footwell assembly

注

2x connectors

Remove bolts securing passenger knee air bag

注

2x screws, T20, 2 Nm, 1x push clip, 4x patch bolts, E10, 8 Nm, Discard patch bolts after removal, Support the knee air bag while lowering, The connector / harness length is very short

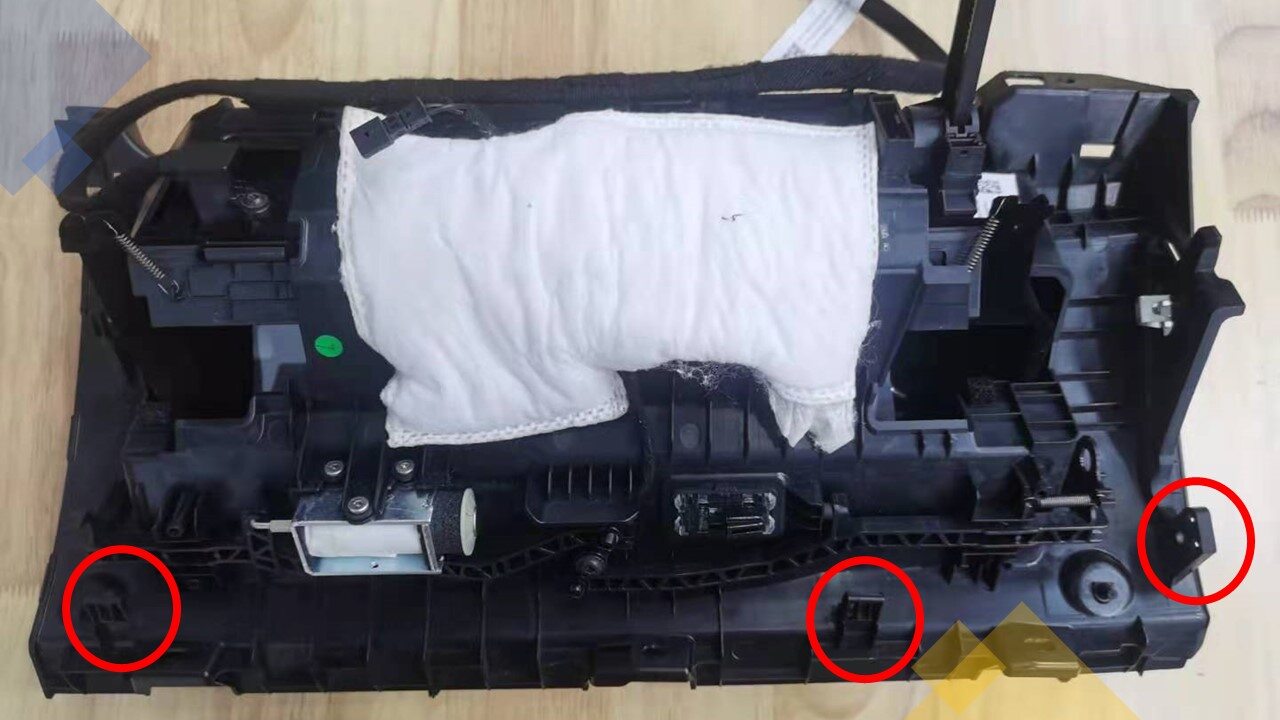

Remove passenger knee air bag

注

1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary

Remove clip securing RH front cabin carpet to body

注

1x clip

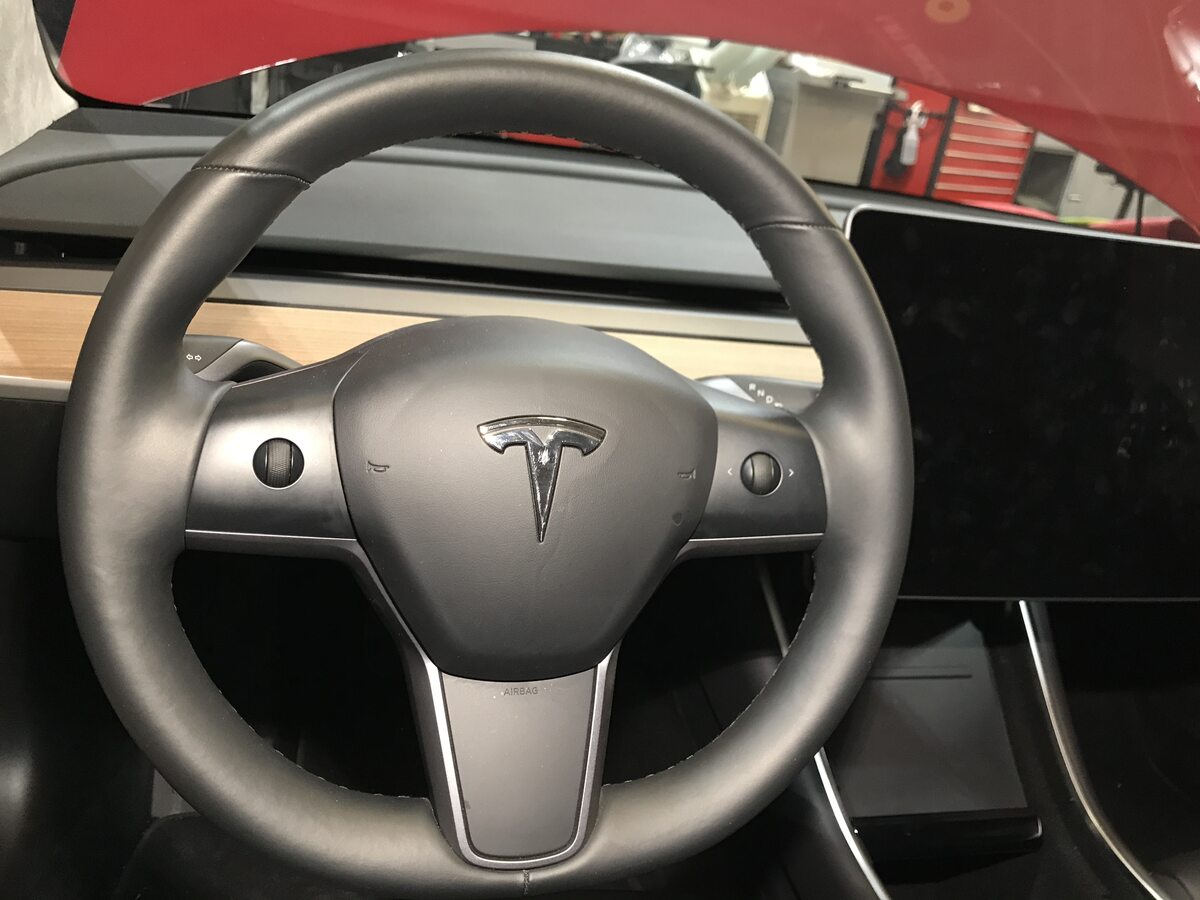

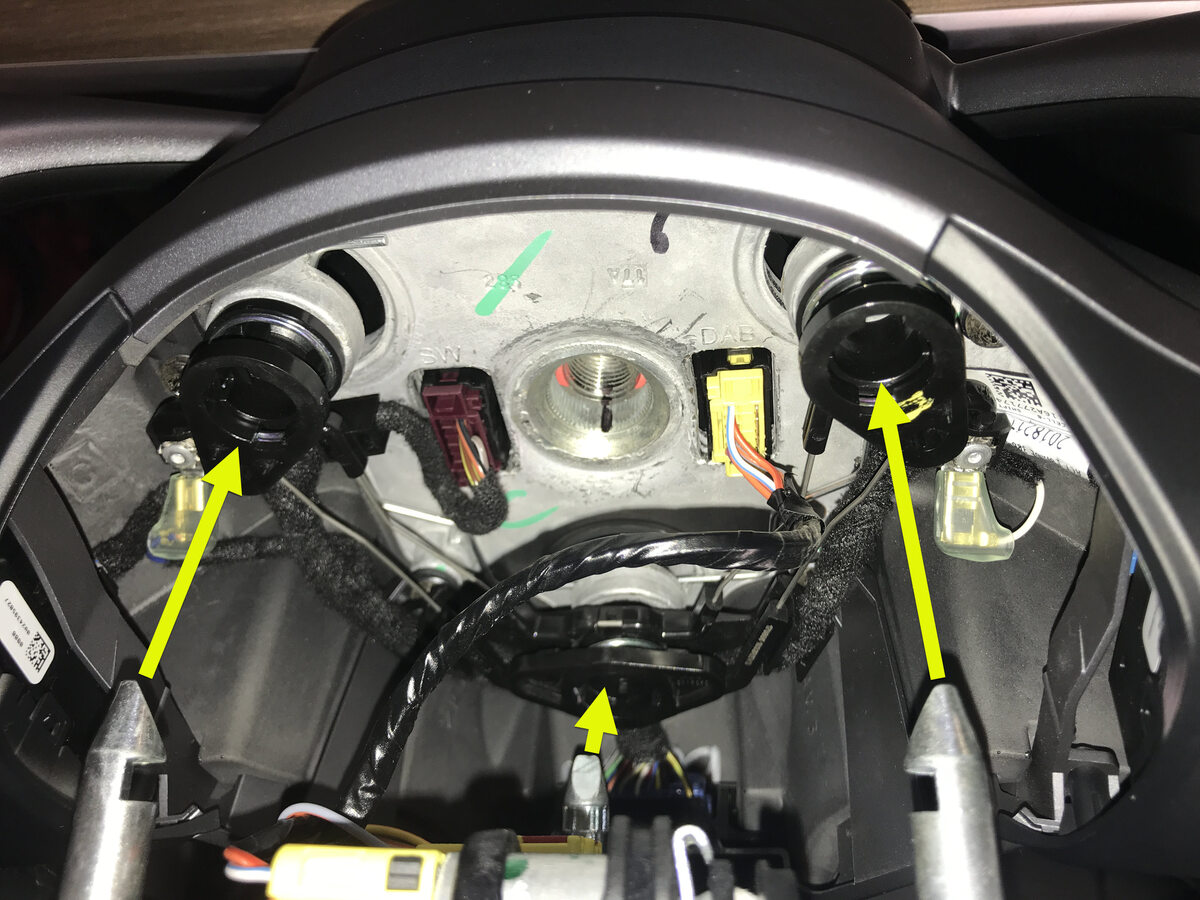

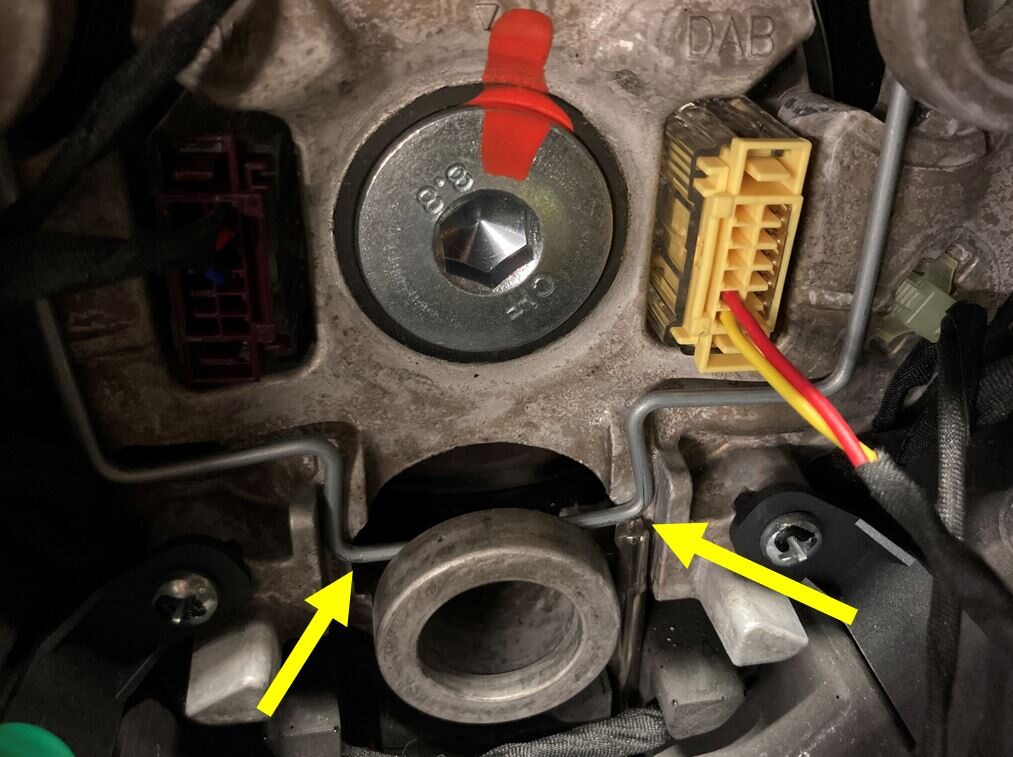

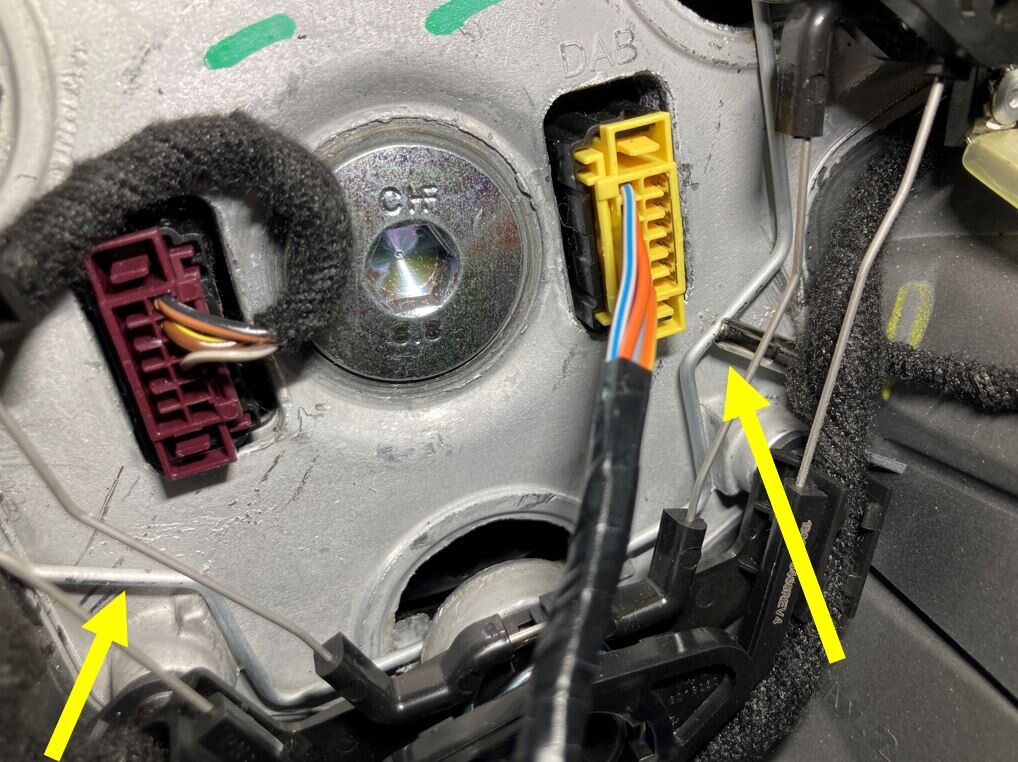

Release driver air bag assembly away from steering wheel

注

2x spring clips, 3x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o’clock position, Later production vehicles will have holes located at 6 o’clock. Do not insert tool too far as air bag connector could be damaged

Remove driver air bag assembly

注

2x connectors, Some vehicles may have only one connector

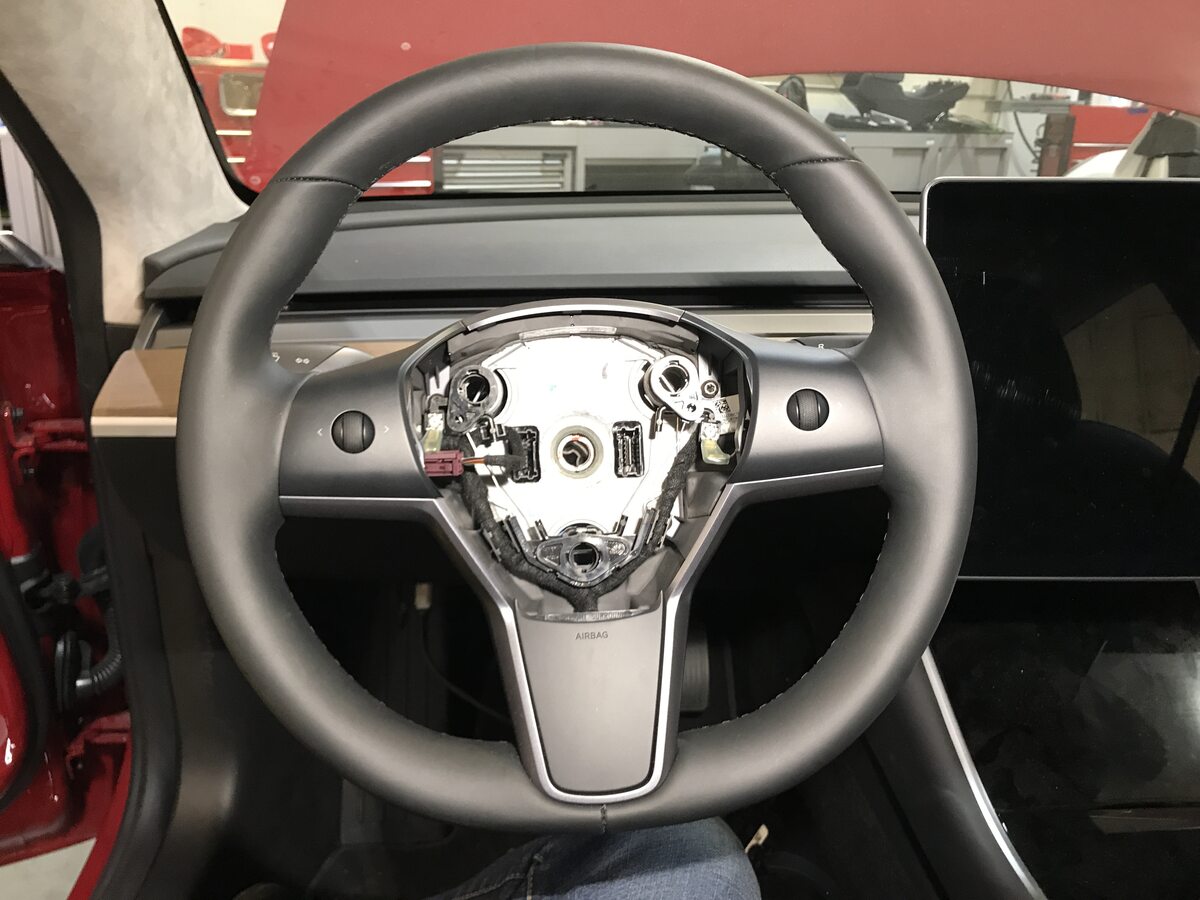

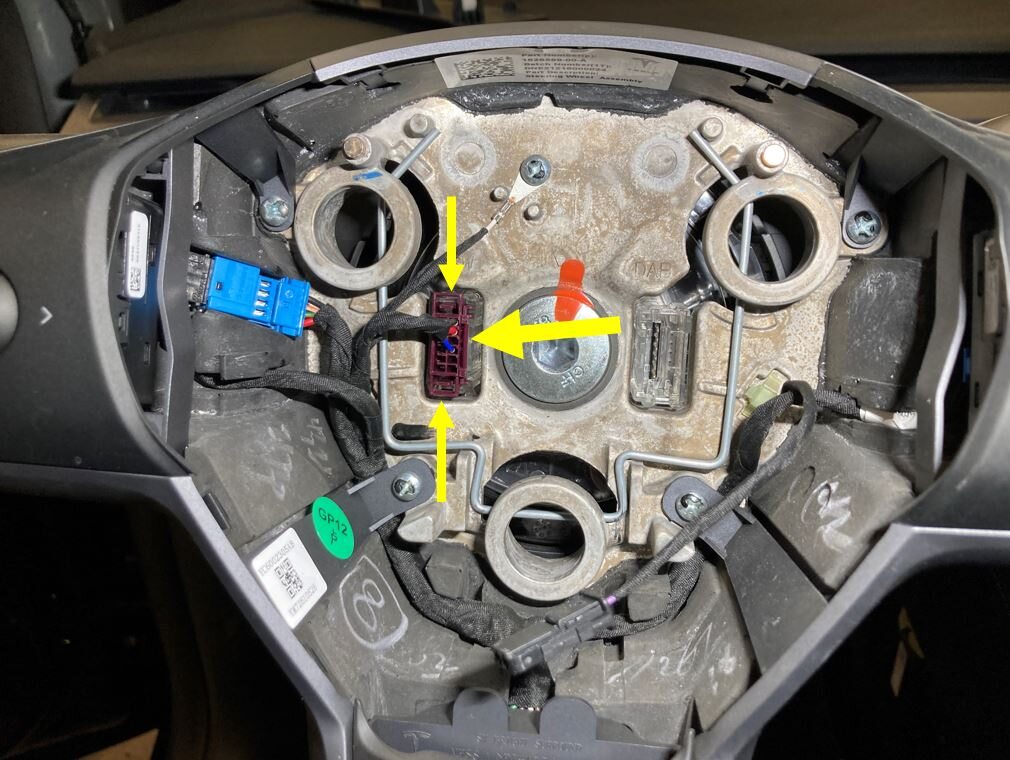

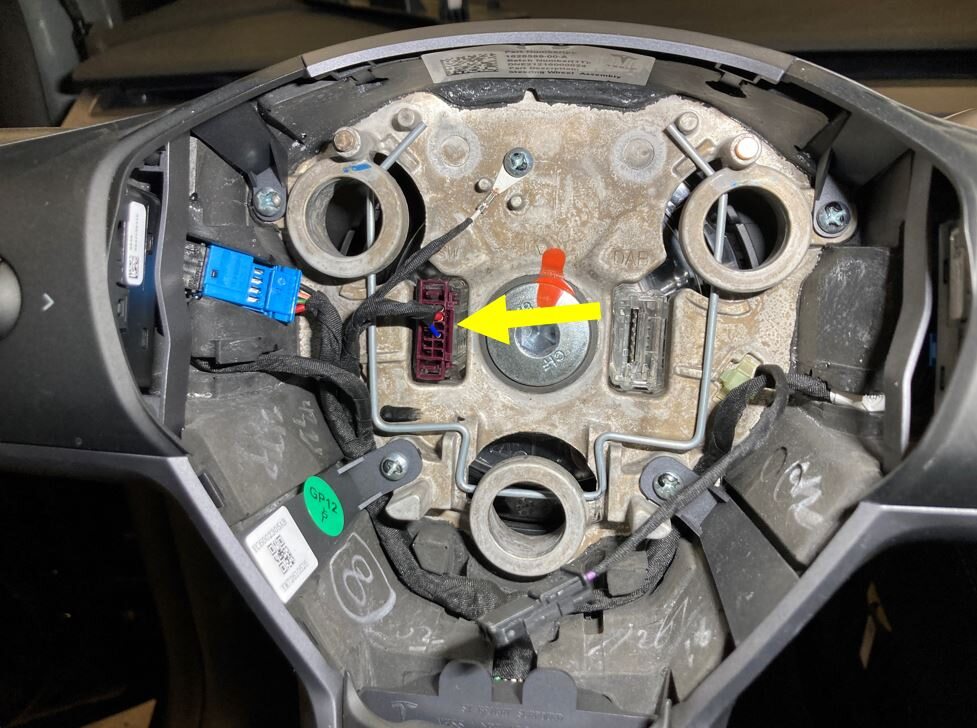

Disconnect steering wheel connector

注

1x connector

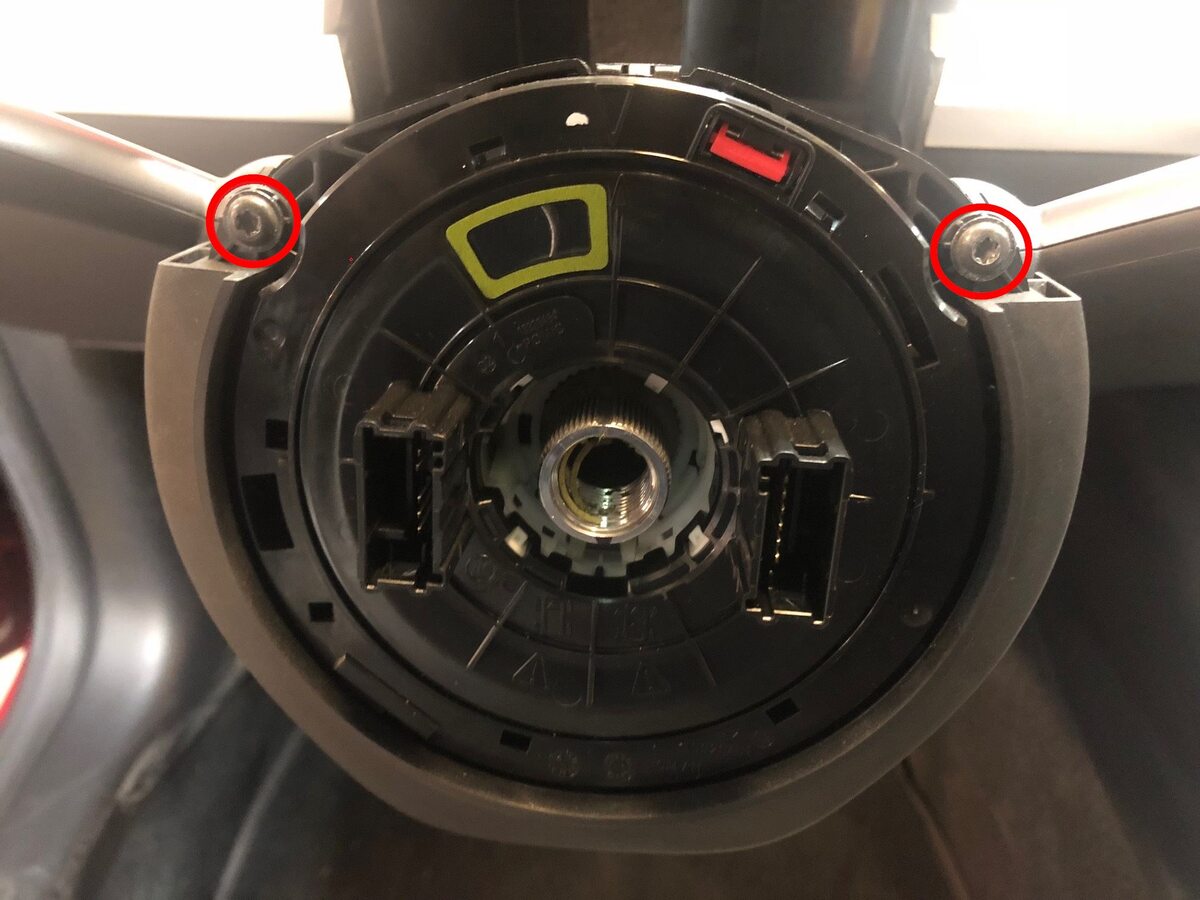

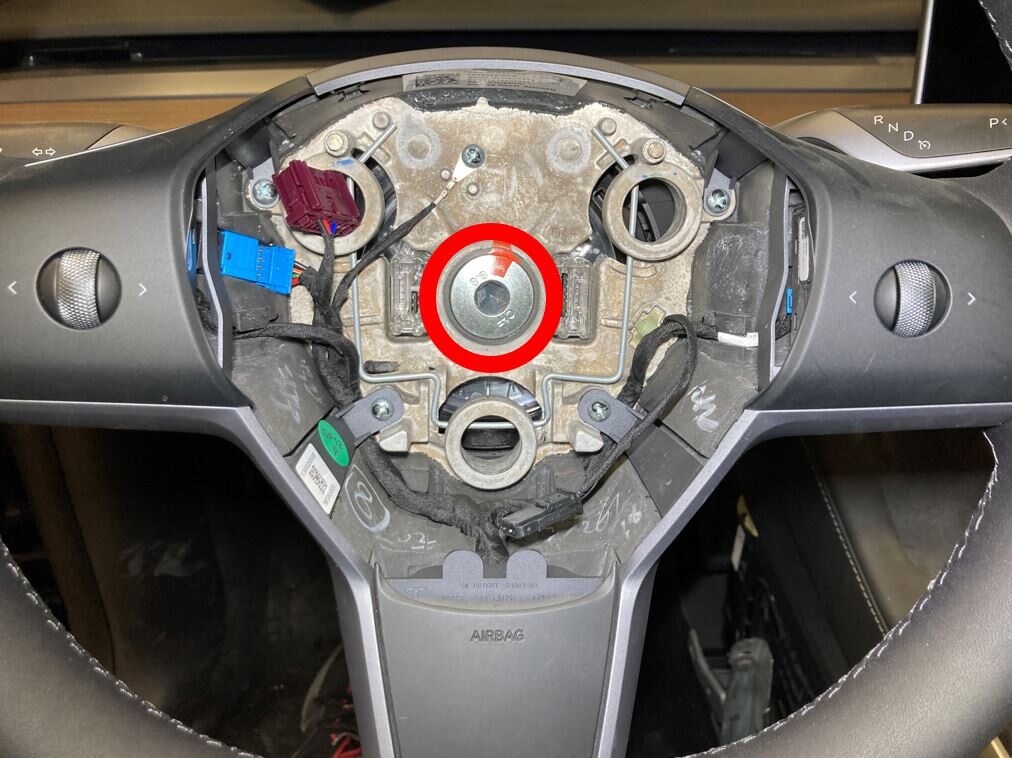

Release steering wheel from steering column

注

1x patch bolt, 10mm hex, 80 Nm, Discard after removal, Counter hold the steering wheel when breaking bolt loose

Remove steering wheel from steering column

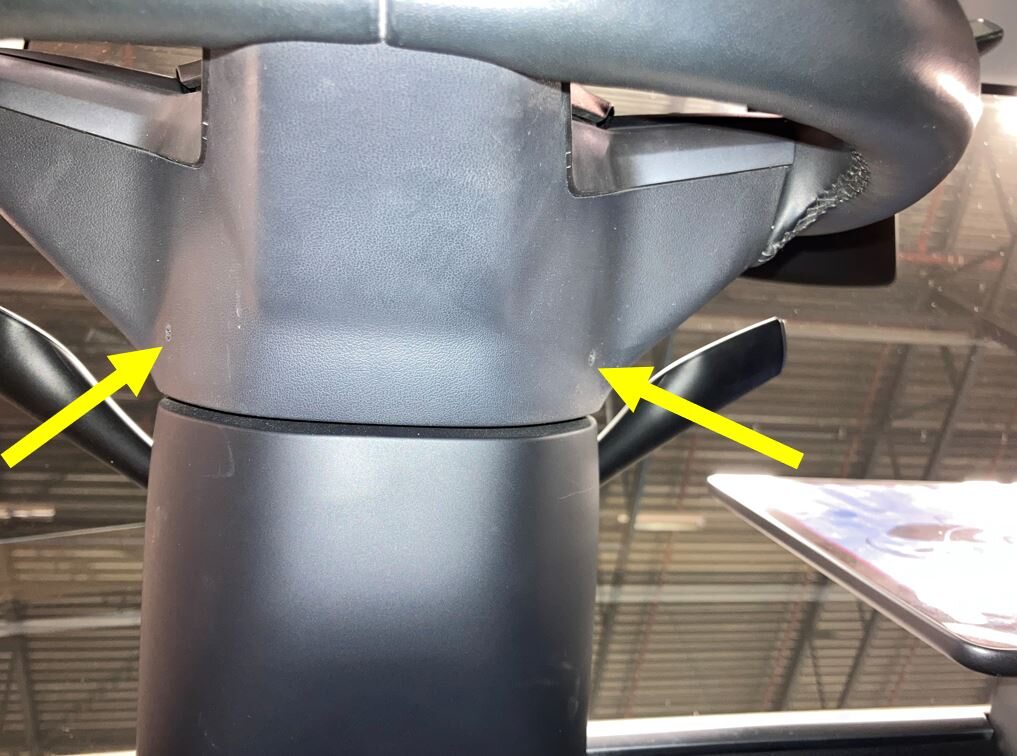

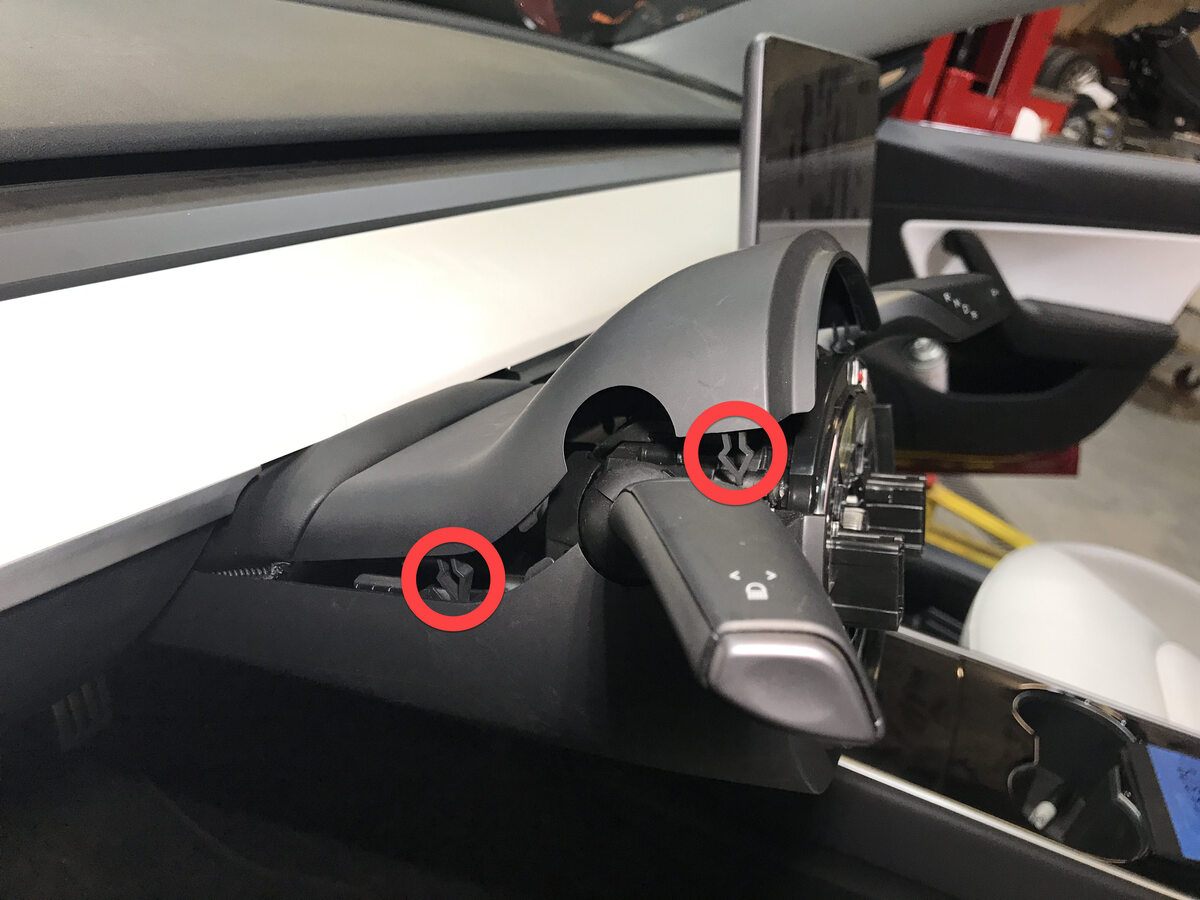

Release steering column upper shroud from lower shroud

注

4x clips, Pull upward to release steering column upper shroud from lower shroud

Release lower shroud from steering column

注

3x screws, T20, 1.5 Nm

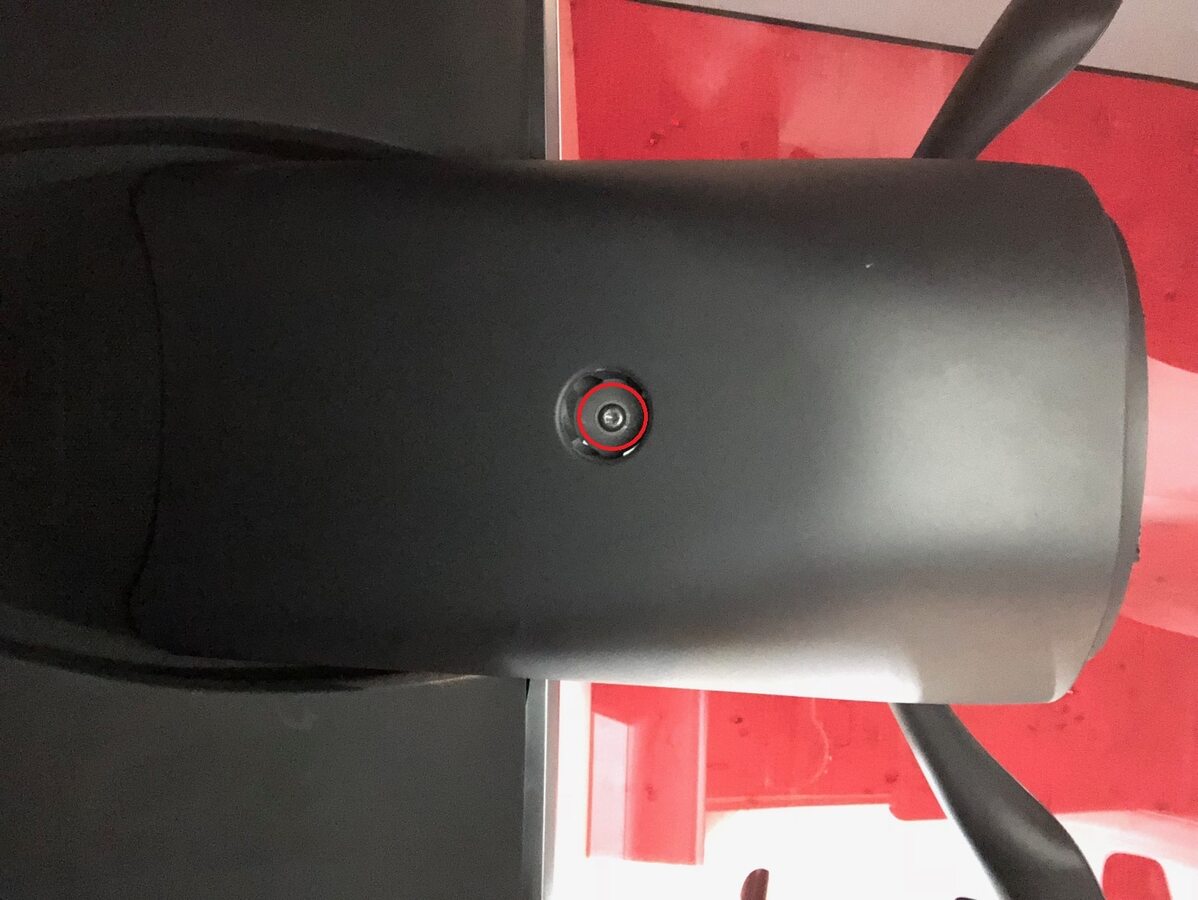

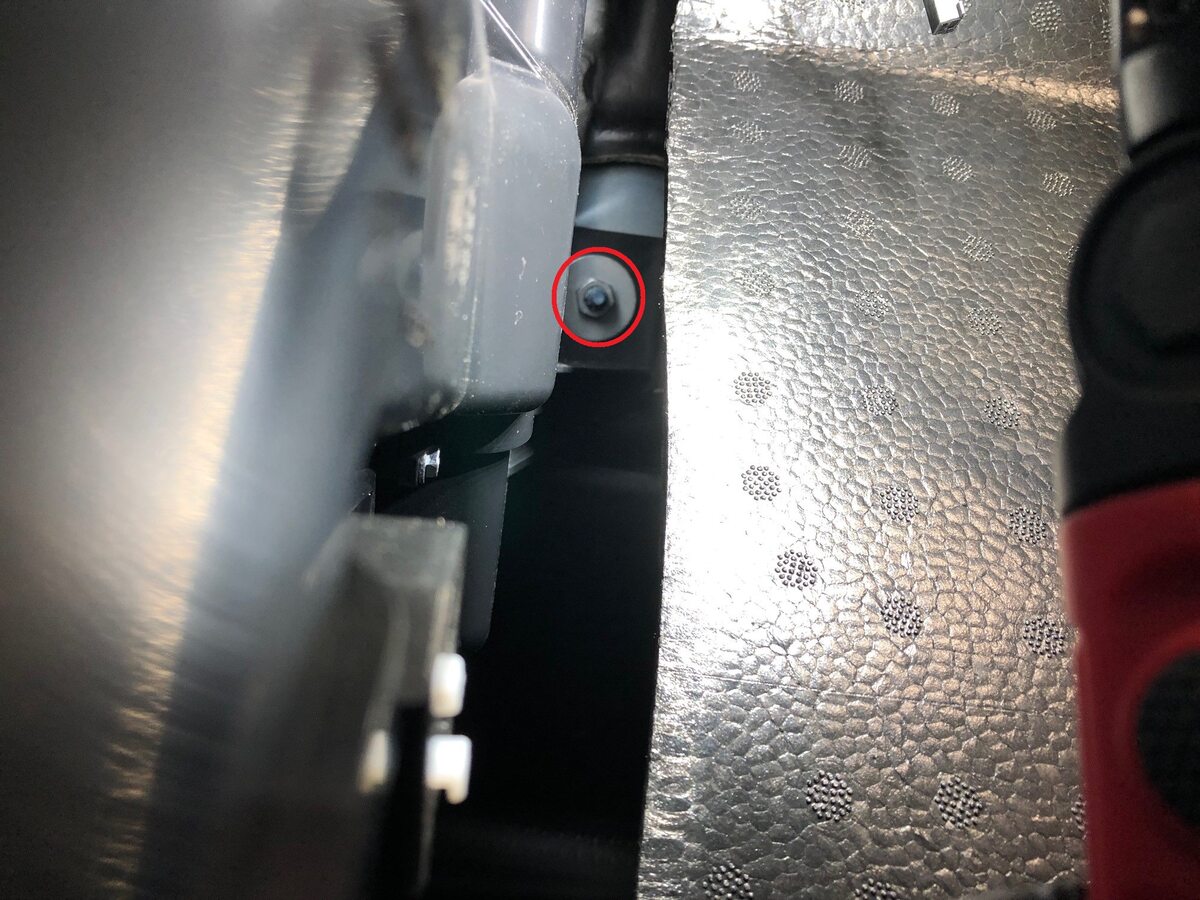

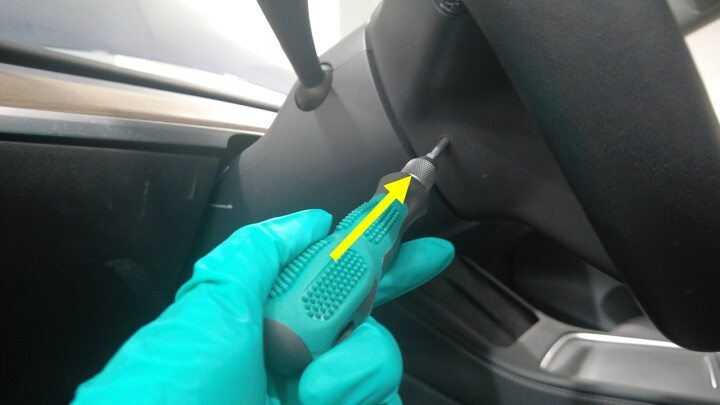

Remove lower screw securing lower shroud to steering column

注

1x screw, T20, 1.5 Nm

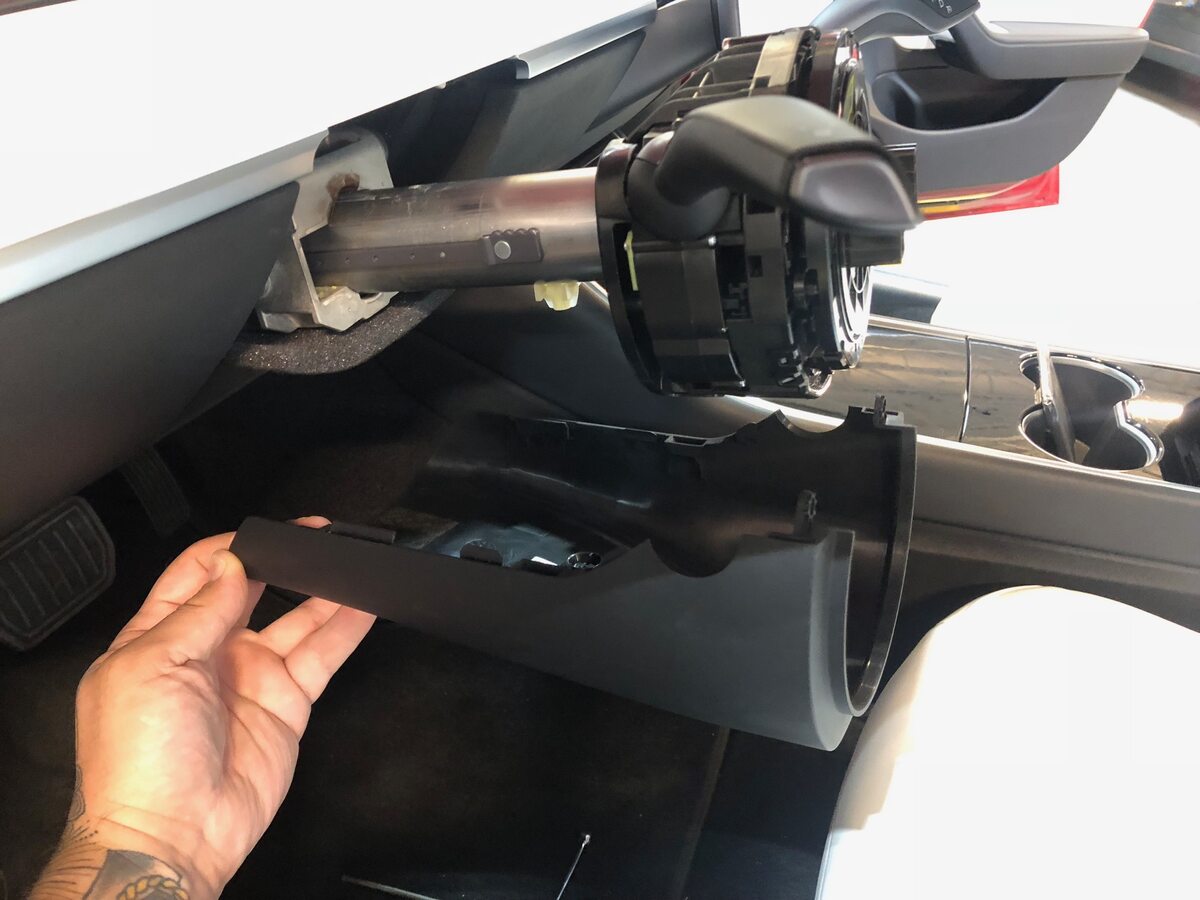

Remove lower shroud from steering column

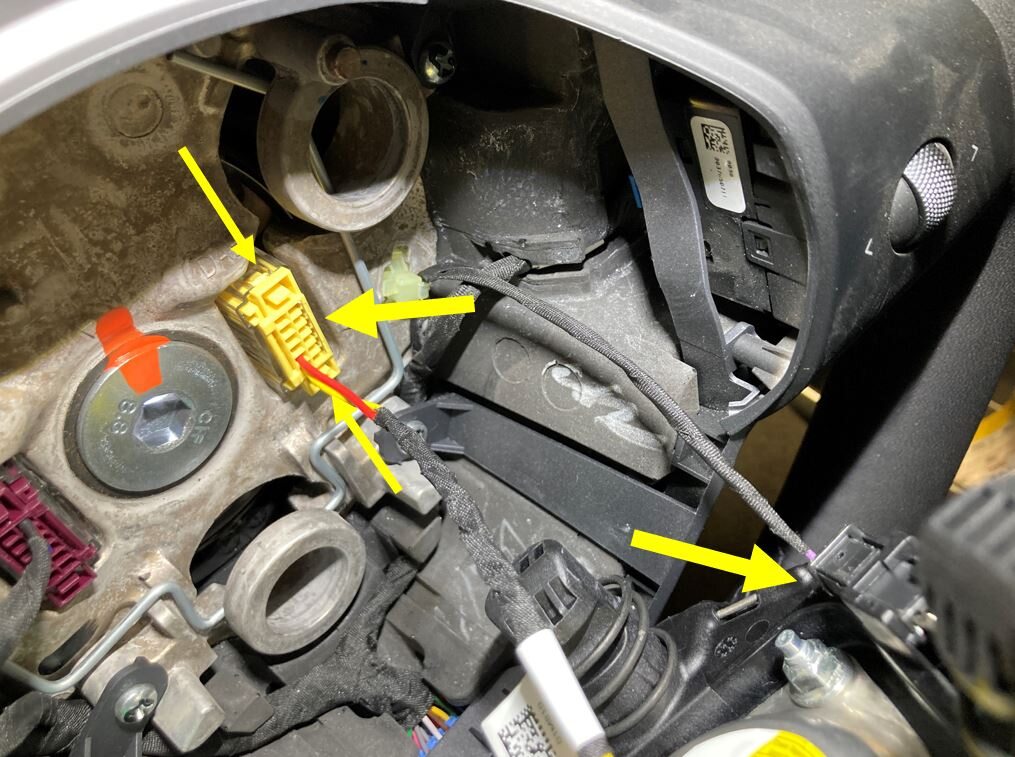

Disconnect SCCM assembly connector

注

1x connector, Remove retaining clip on the connector, release connector, then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange

Remove SCCM from steering column

注

1x bolt, 5mm allen, 9 Nm

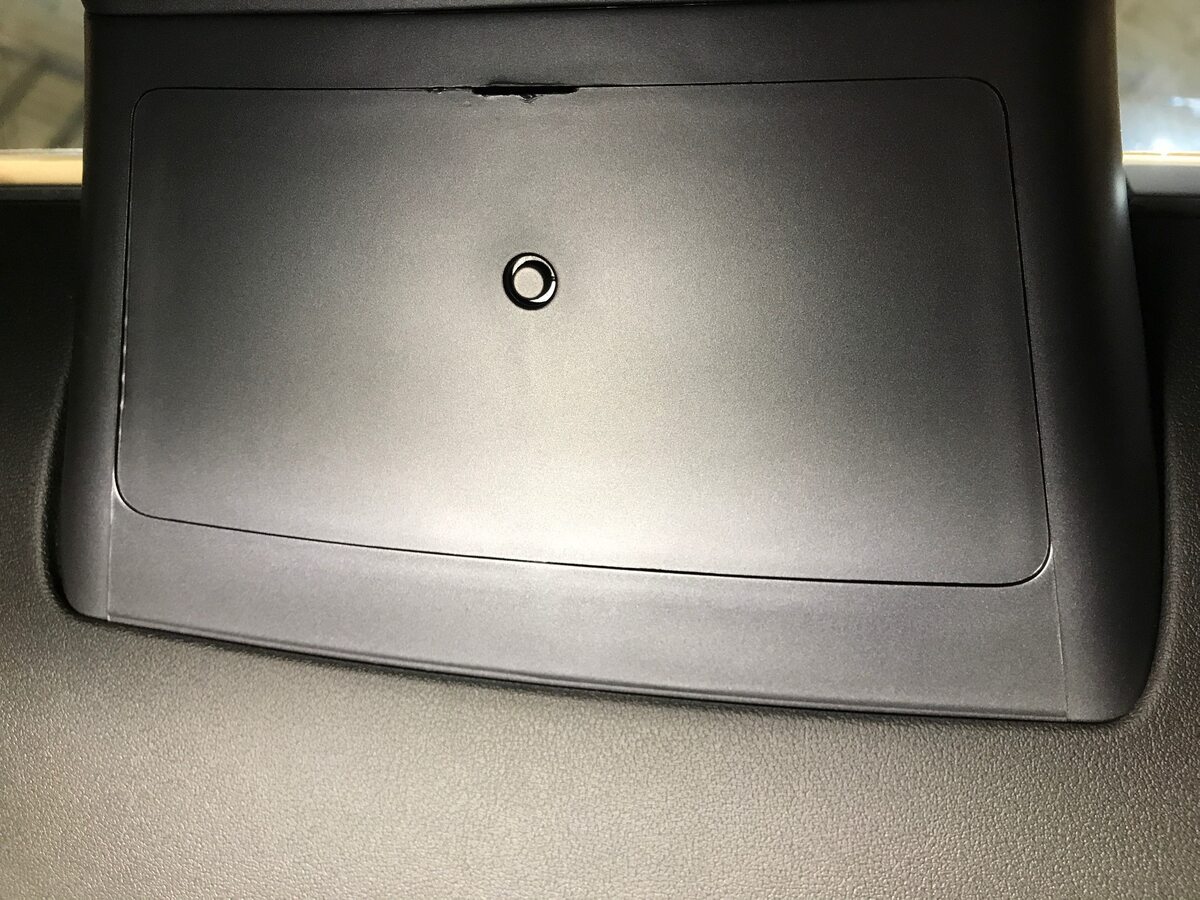

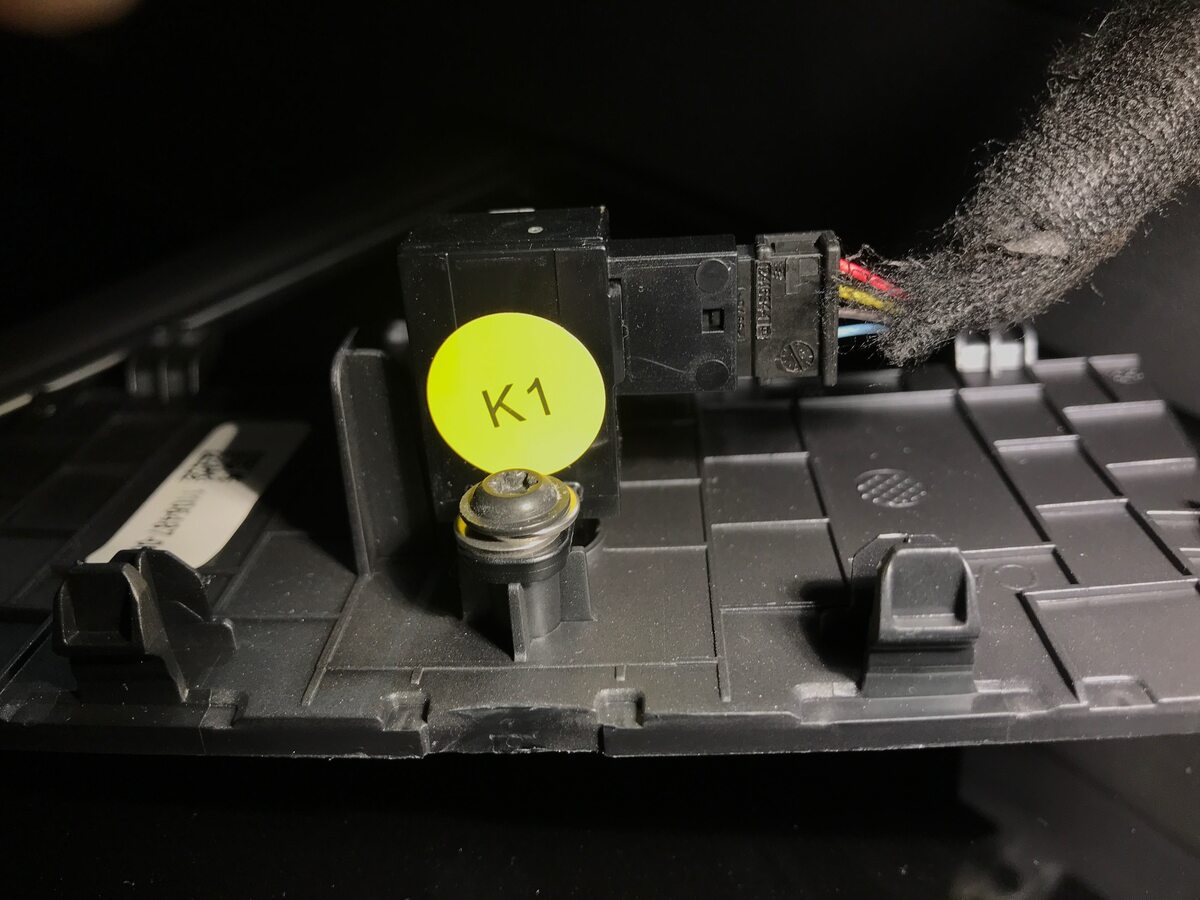

Release IP service panel from IP and disconnect temperature sensor connector

注

4x clips, 4x tabs, 1x connector

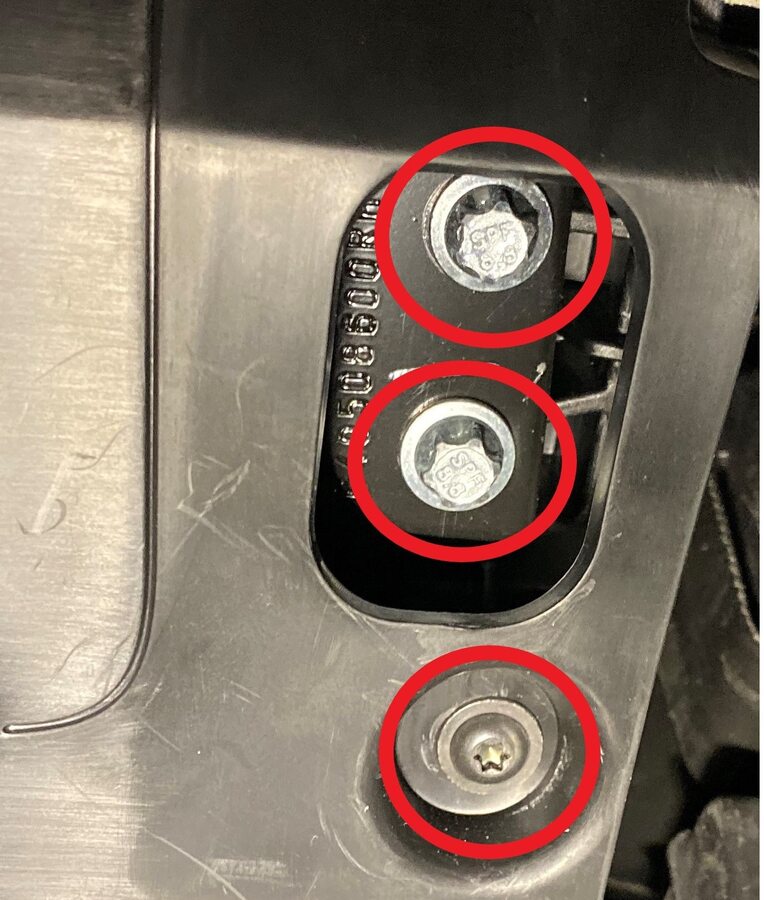

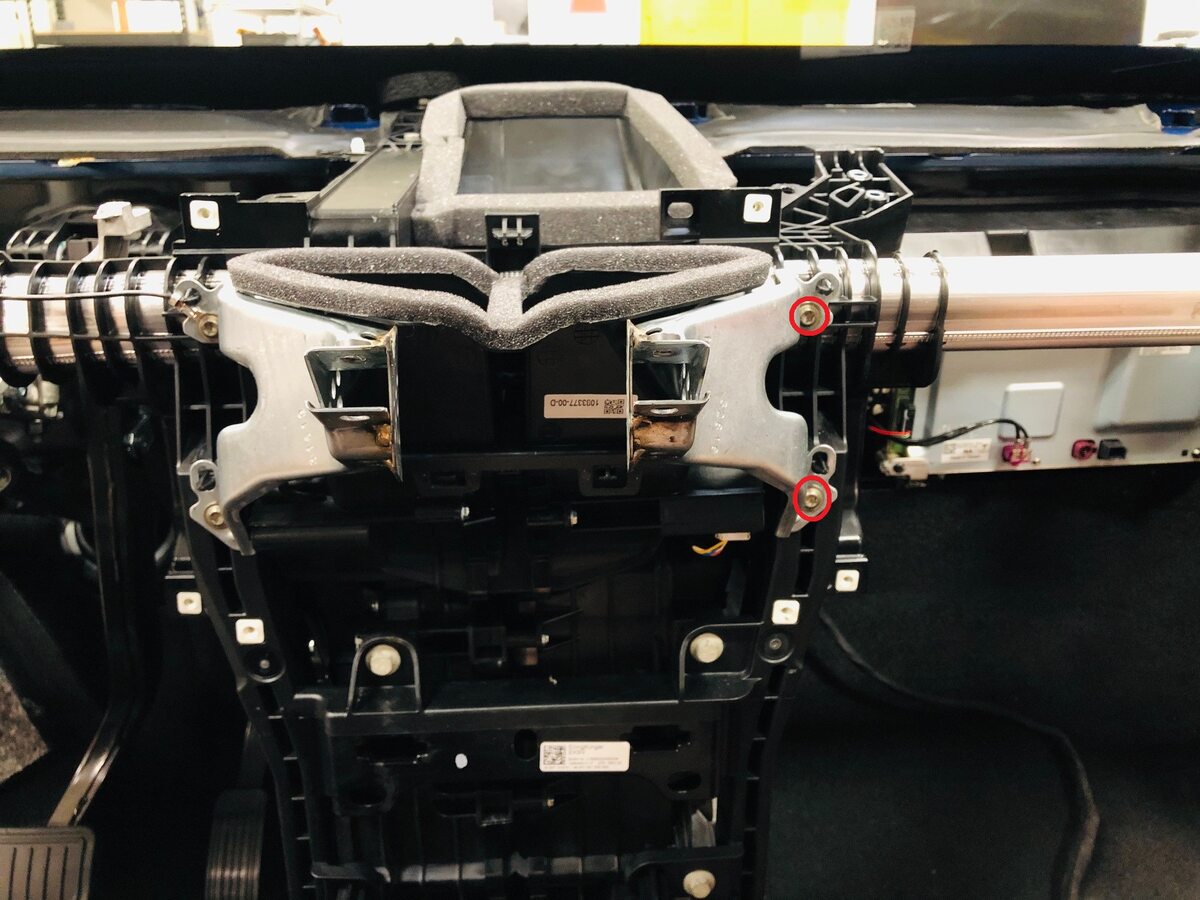

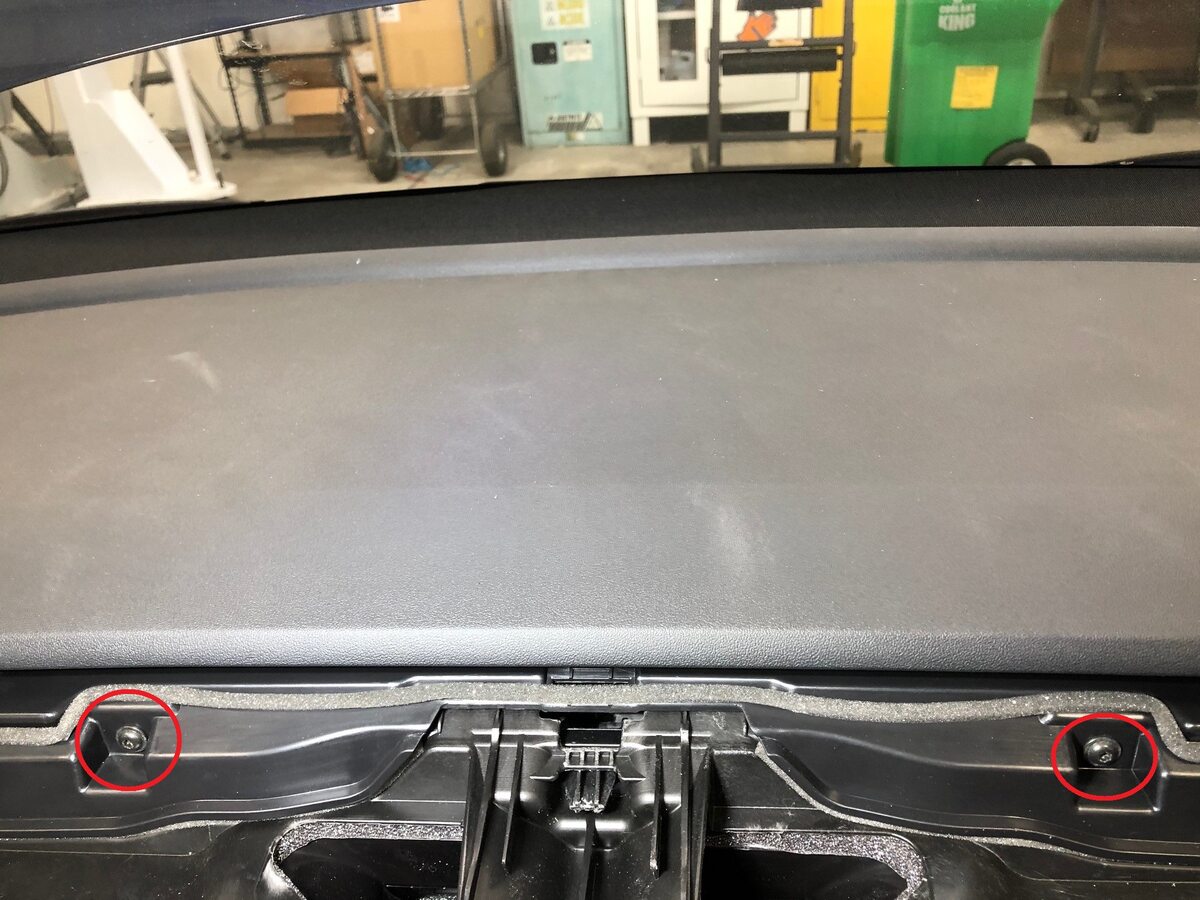

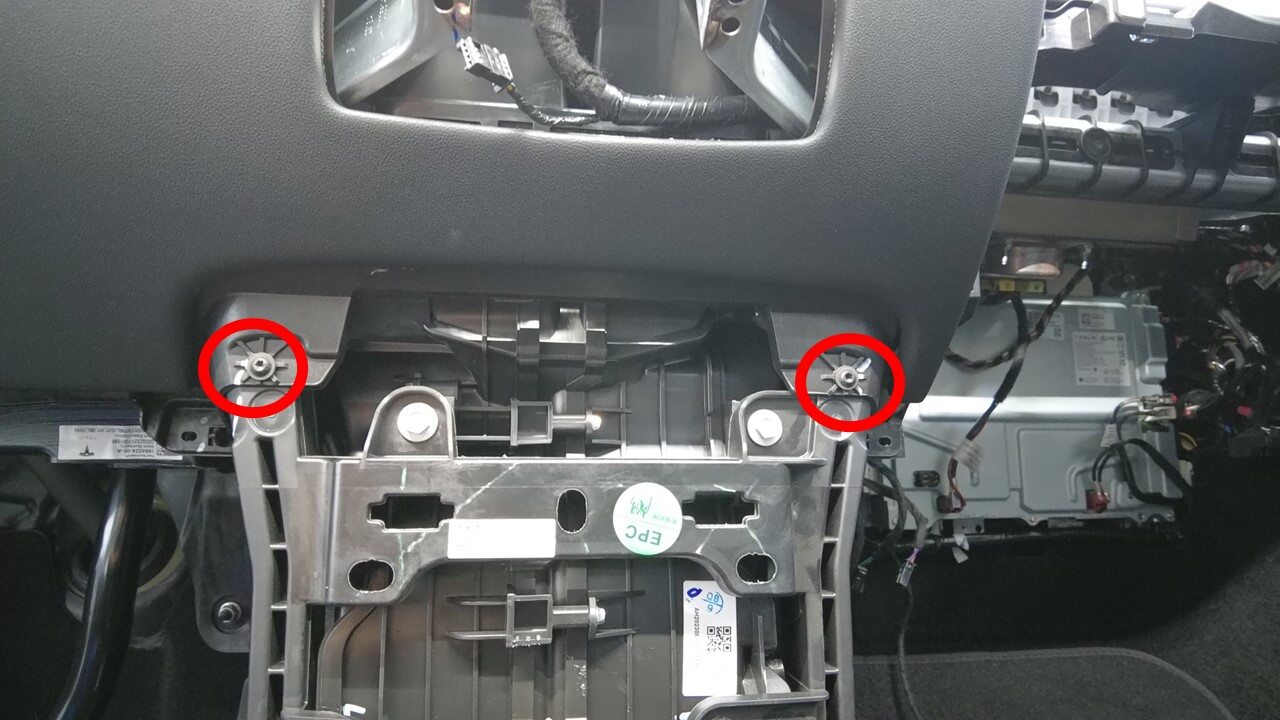

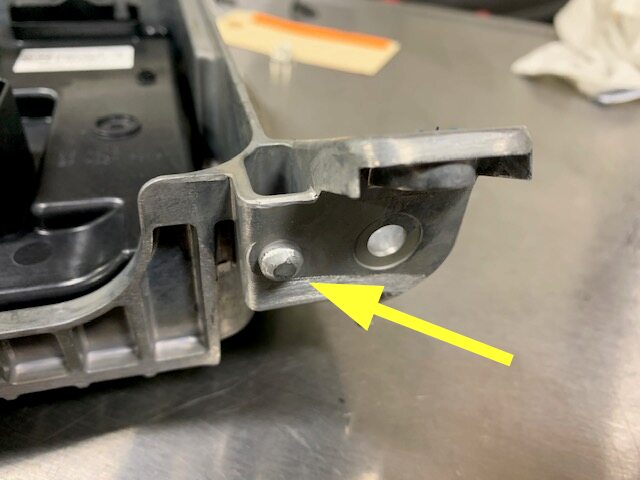

Remove bolts securing center display to IP carrier

注

2x patch bolts, 10mm, 16 Nm, Discard after removal, Slide towards rear of vehicle to remove

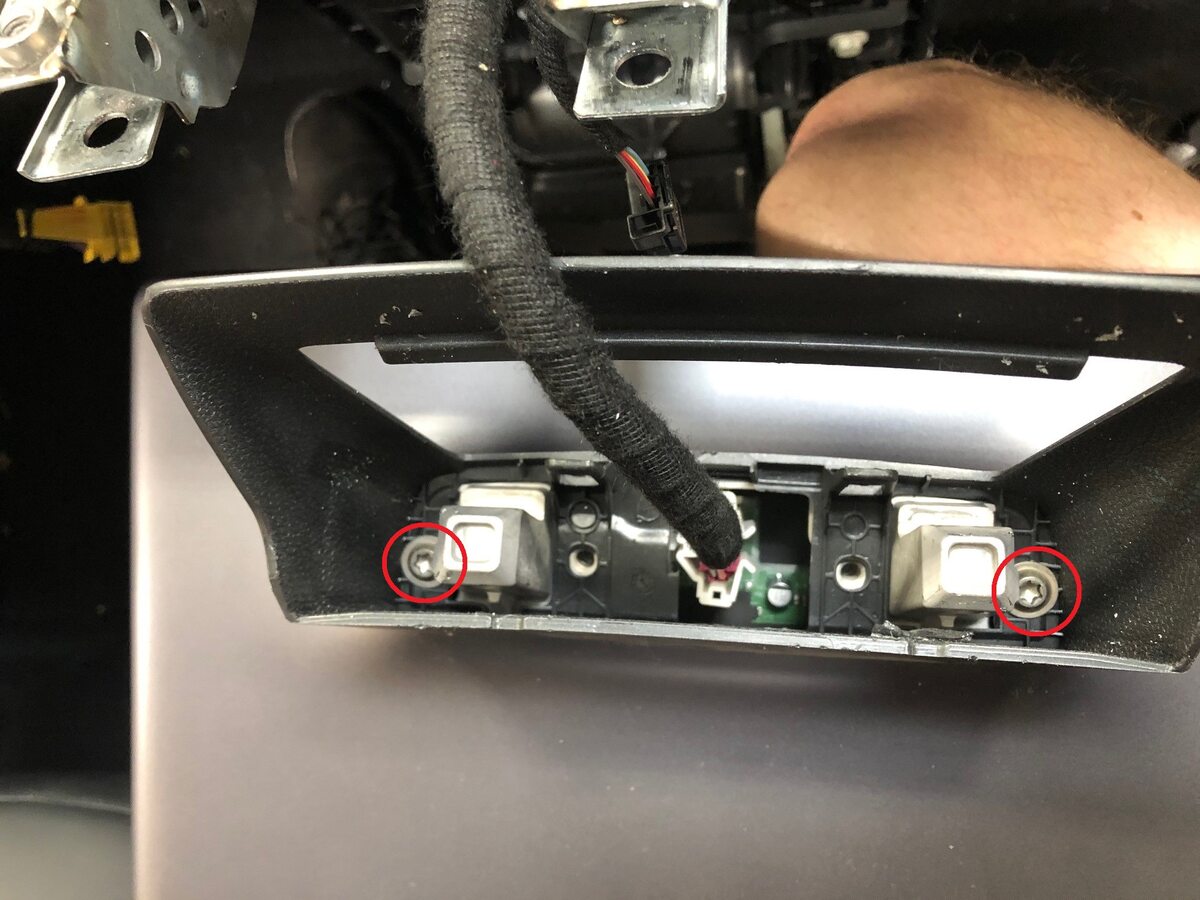

Remove bolts securing housing neck to center display and slide away from display

注

2x bolts, T30, 3 Nm

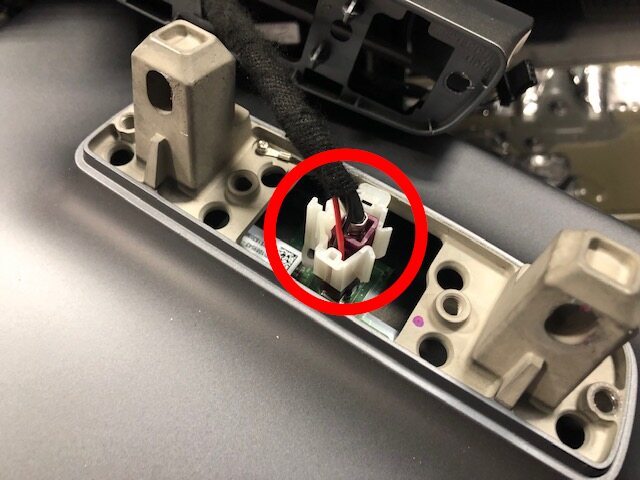

Remove retaining clip from display connector

注

1x clip

Disconnect harness connector from center display

注

1x connector

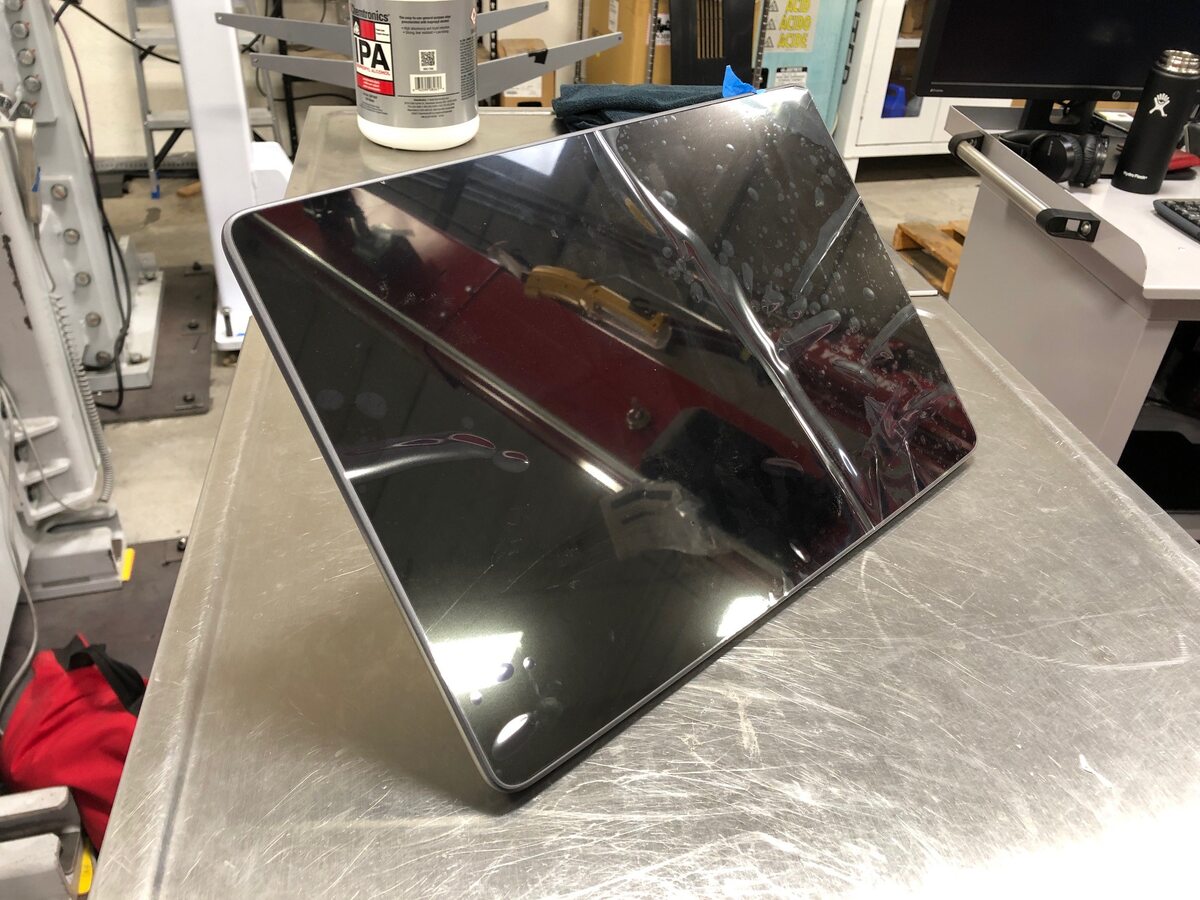

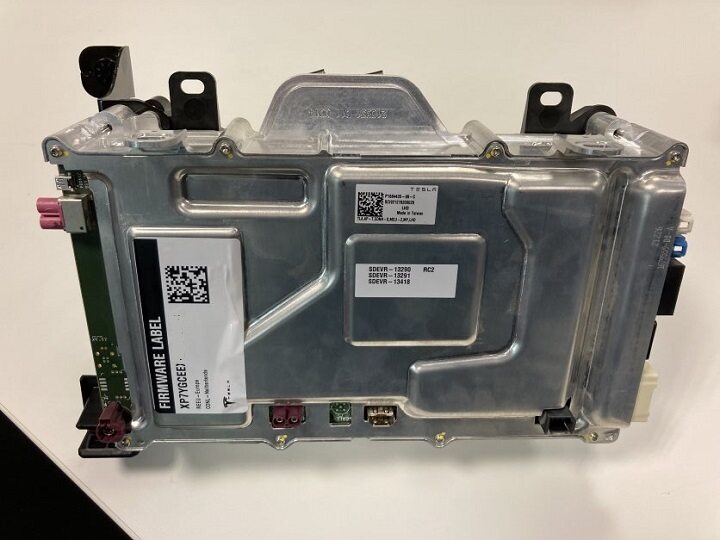

Remove center display from vehicle

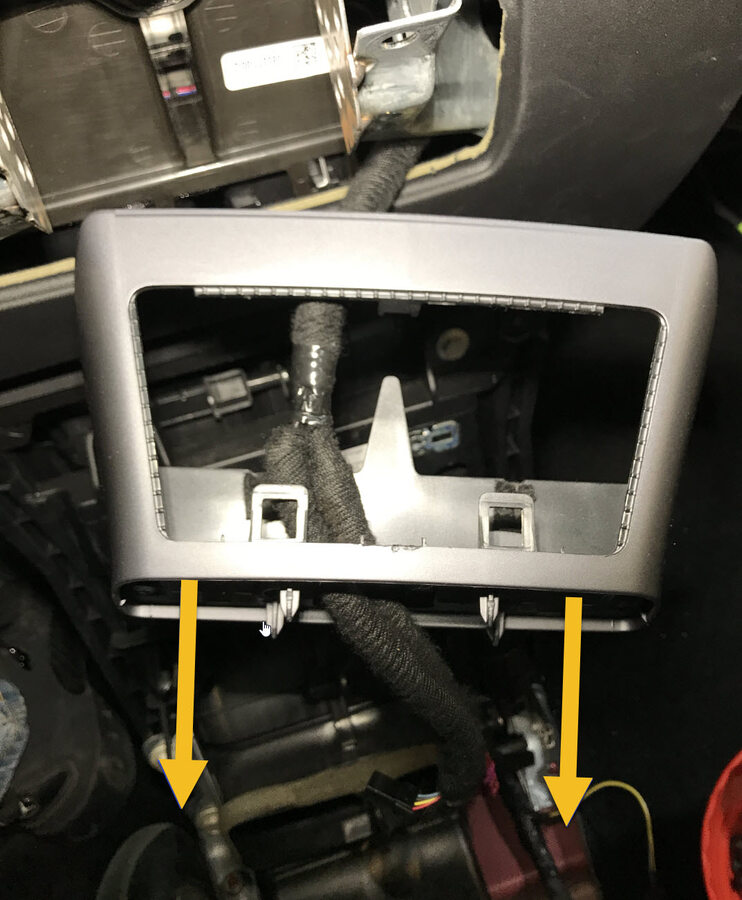

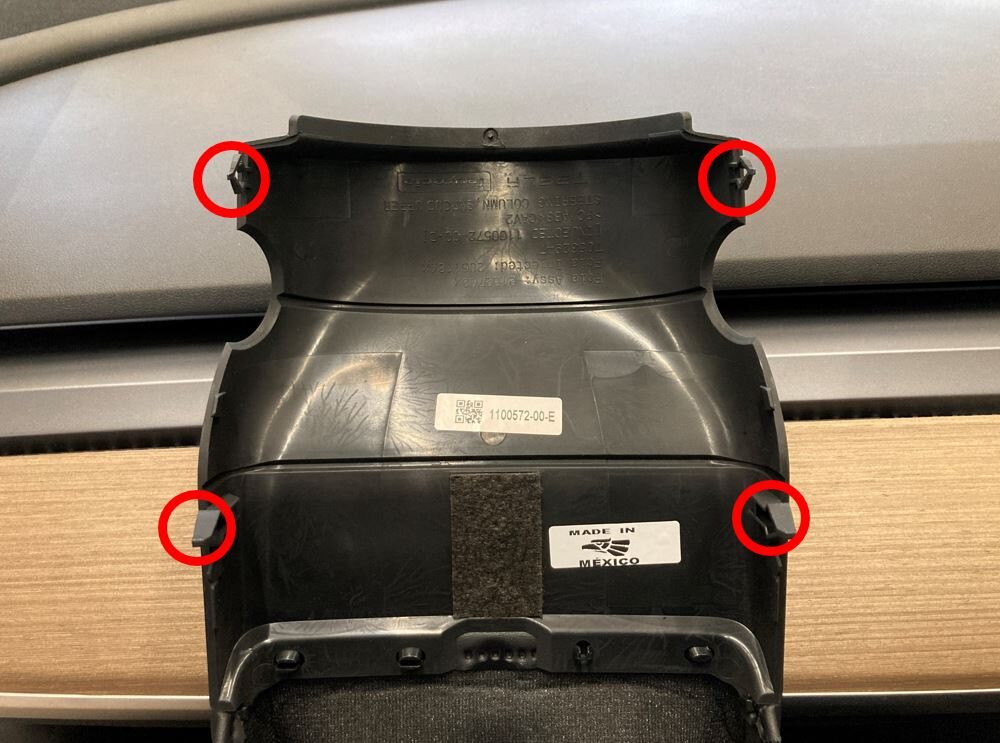

Remove center display neck housing from vehicle

Remove LH air wave bezel cap from main decor assembly

注

2x clips

Remove RH air wave bezel cap from main decor assembly

注

2x clips

Remove main decor assembly

注

15x clips, 1x center clip, Replace securing clips as needed.

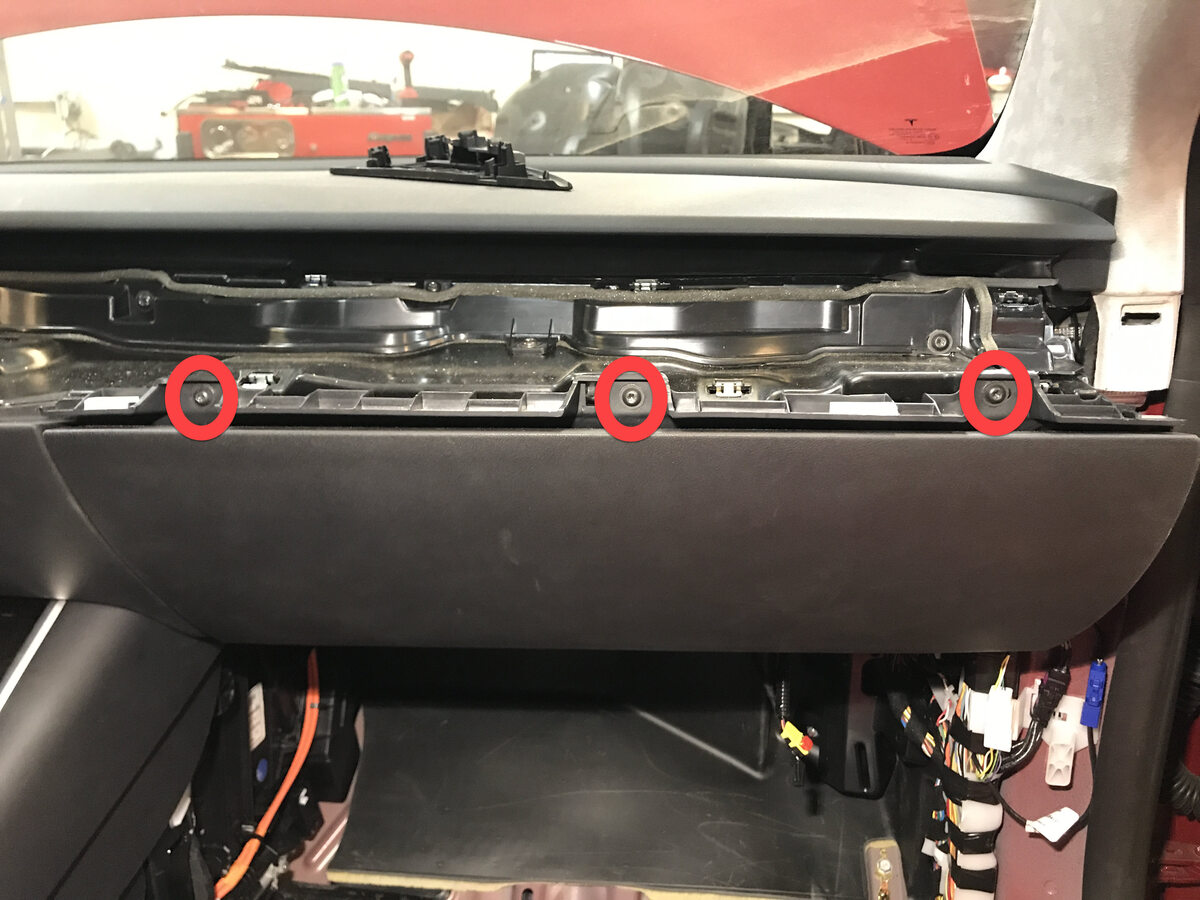

Remove screws securing glove box assembly to IP carrier

注

6x screws, T20, 2.3 Nm

Disconnect glove box assembly connectors

注

3x connectors

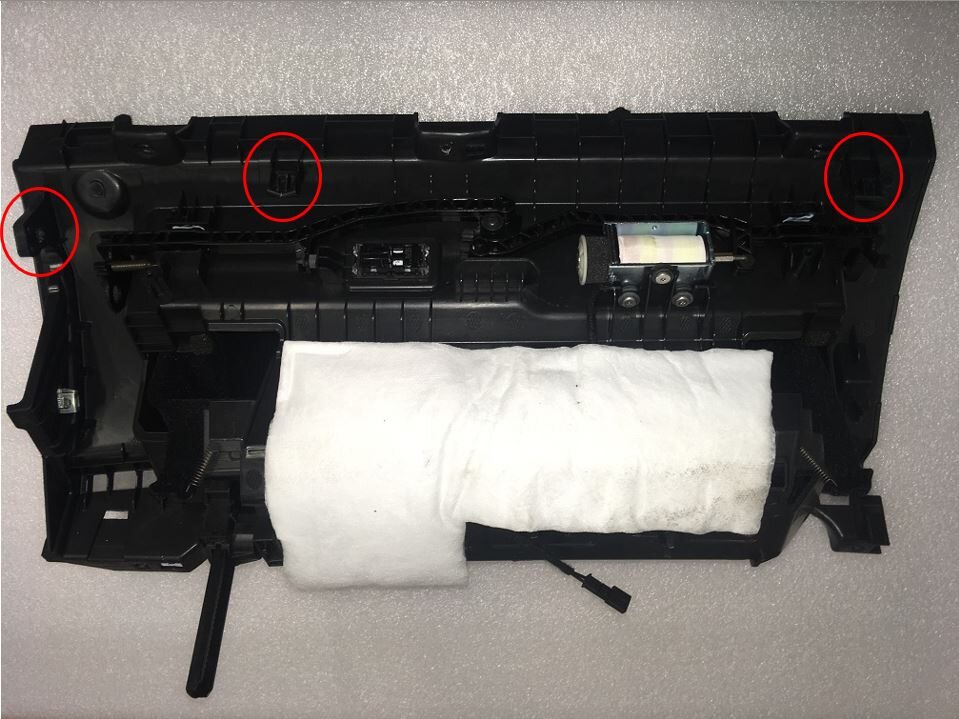

Remove glove box from IP carrier

注

3x clips

Remove passenger footwell air duct

注

1x push clip

Remove RH IP air wave duct

注

2x push clips

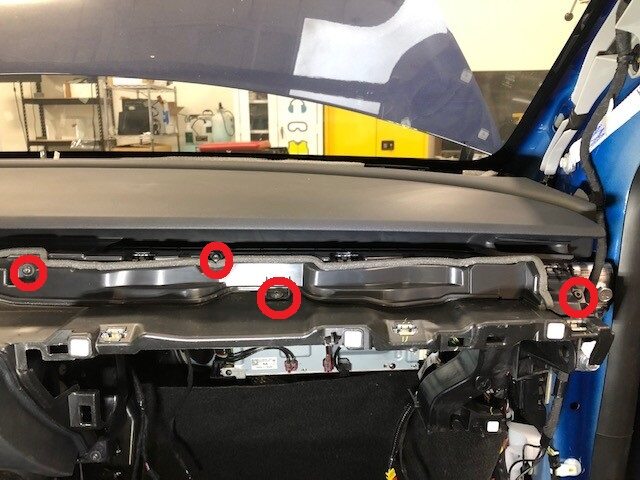

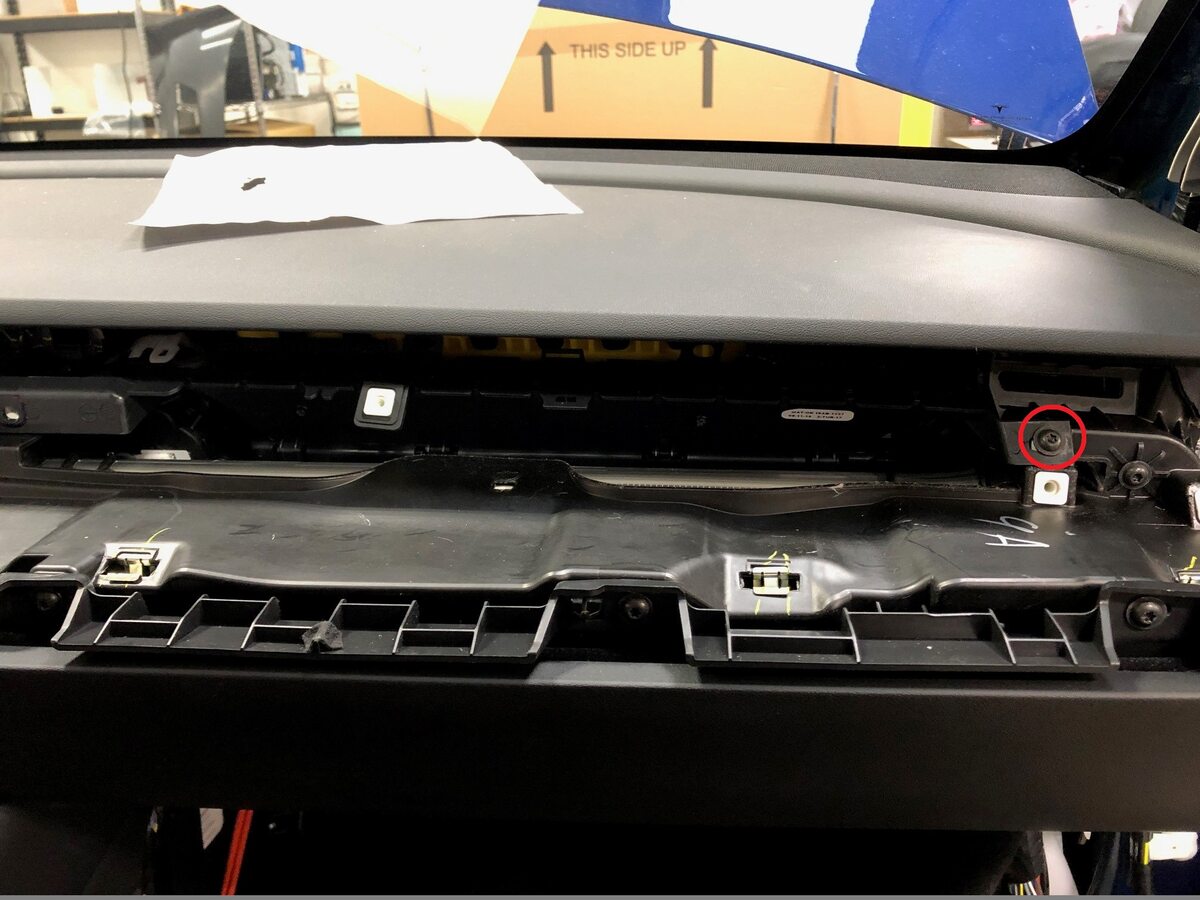

Remove screws securing LH side of IP brow finisher

注

4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws

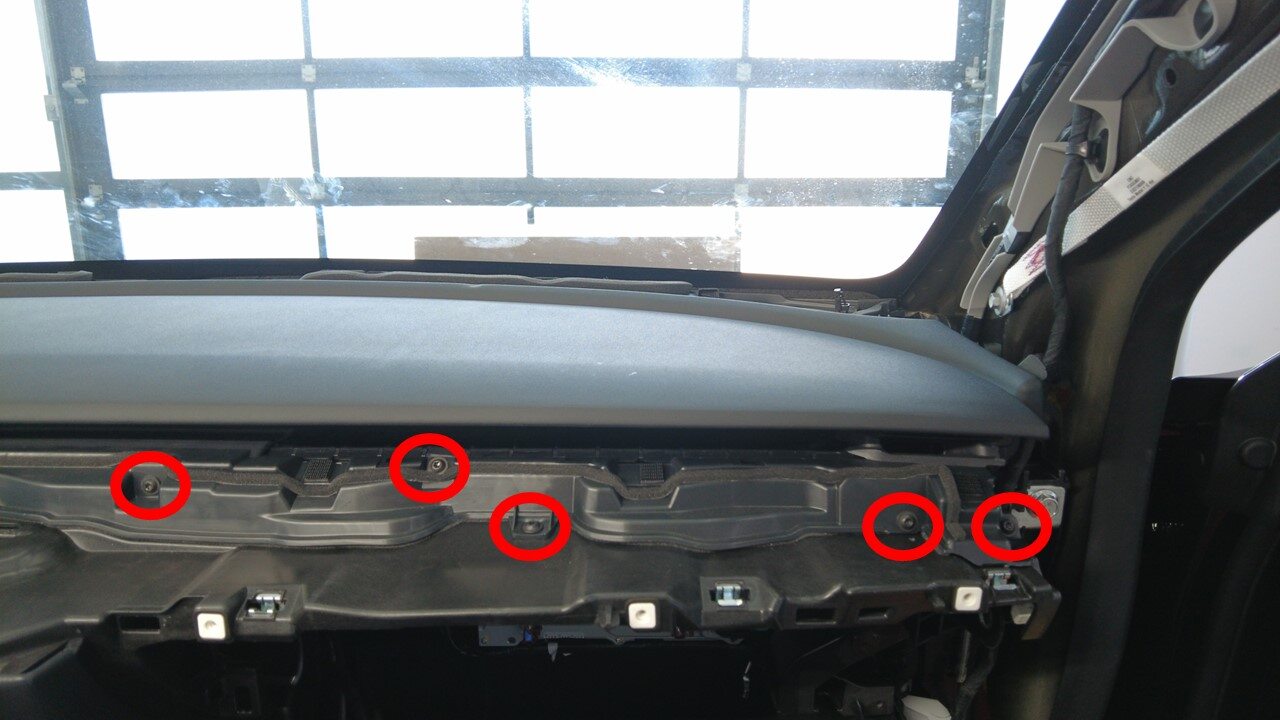

Remove screws securing RH side of IP brow finisher

注

4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws

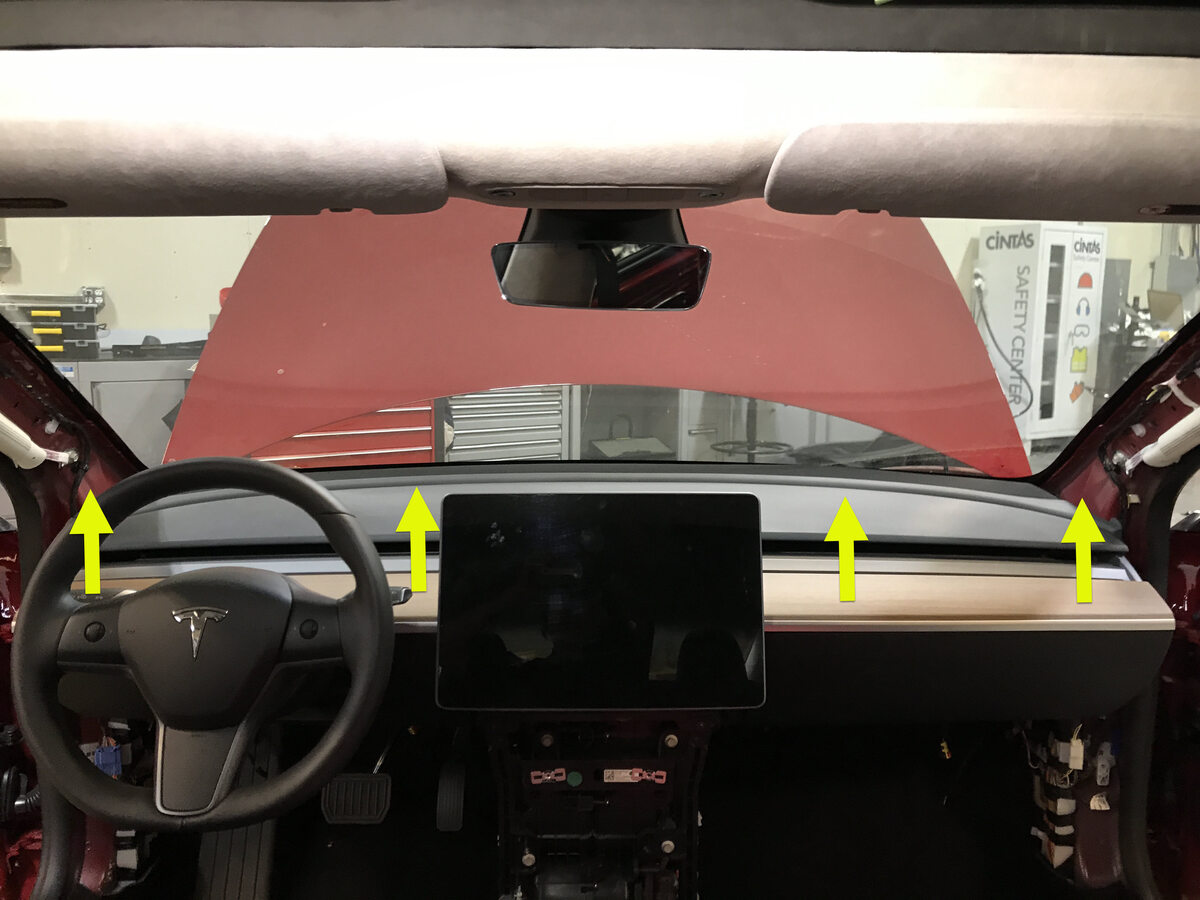

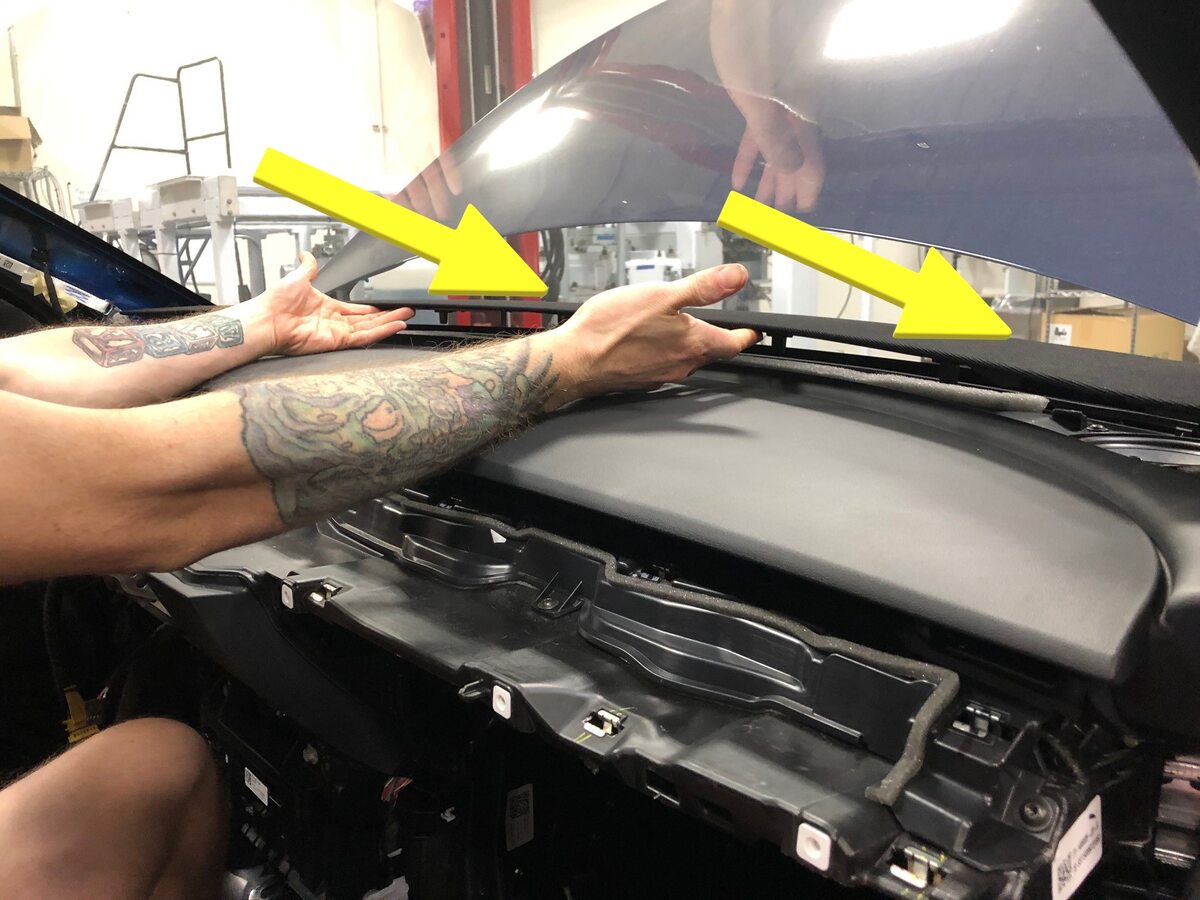

Remove IP brow finisher from vehicle

注

16x clips, Need to lift top pad up slightly to insert trim tool and release clips, Then slide IP brow finisher towards rear of vehicle

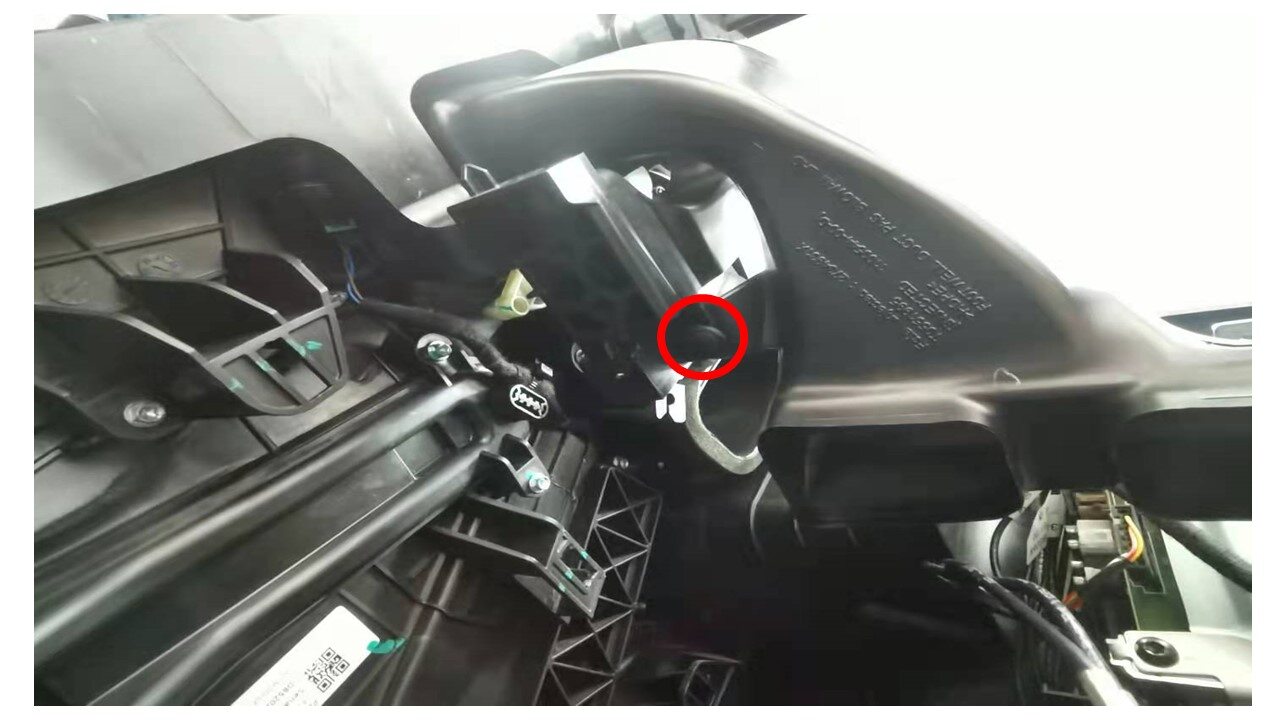

Pull RH side of RH air duct out and release from IP

注

1x screw, T20, 2.3 Nm

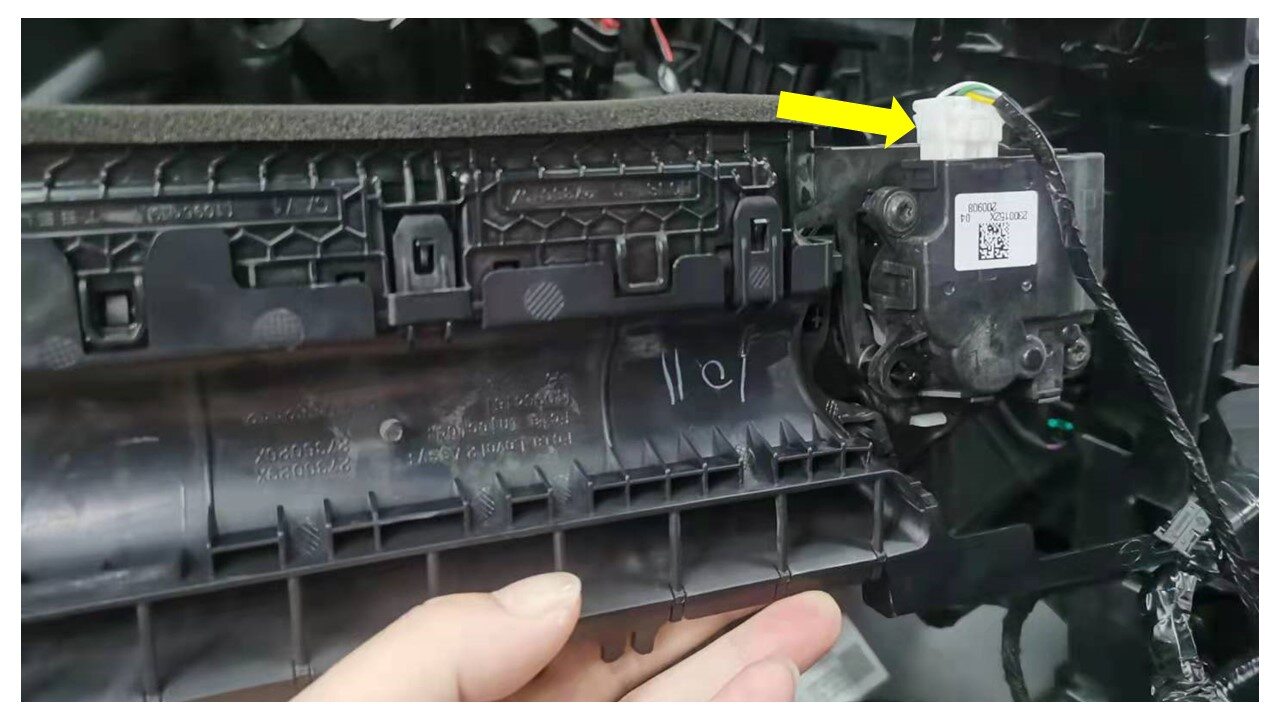

Disconnect harness connector from RH air duct and remove duct

注

1x connector

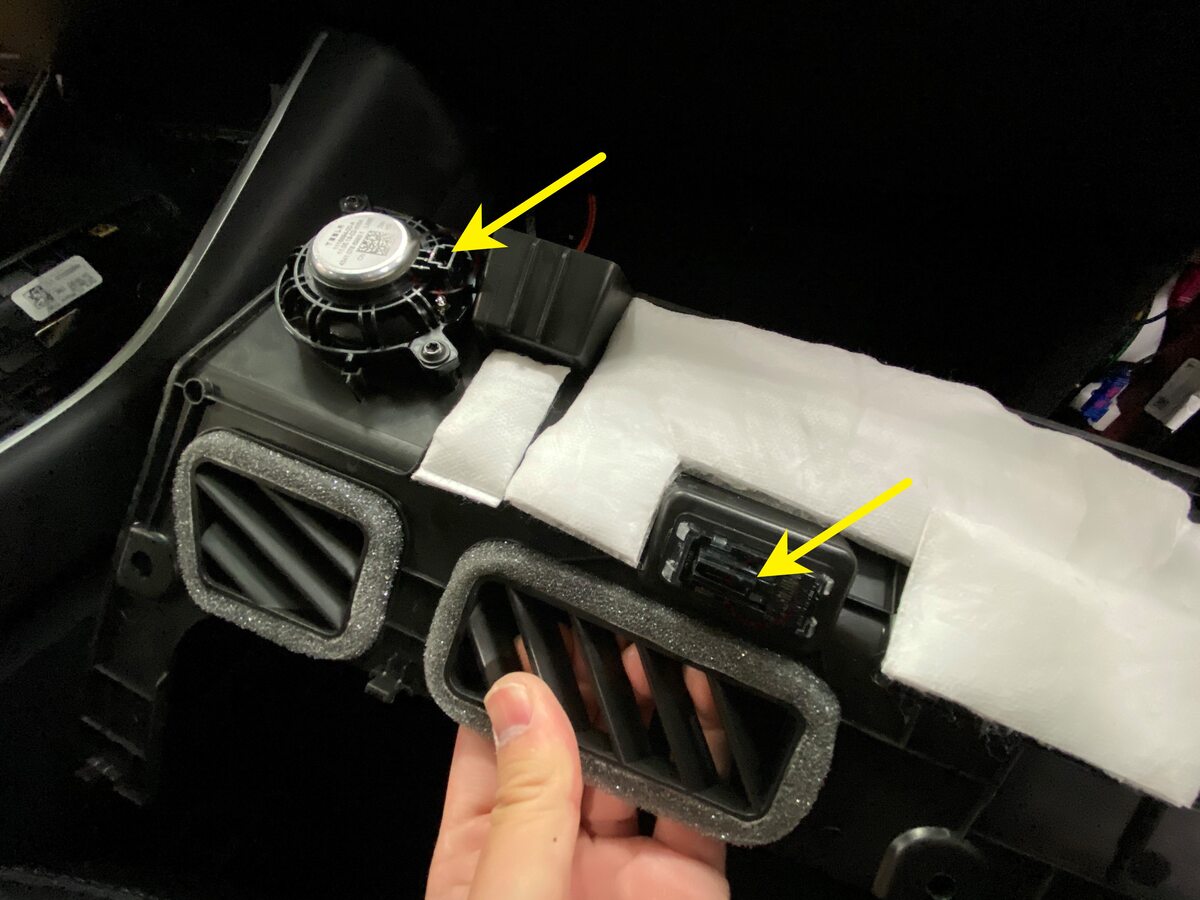

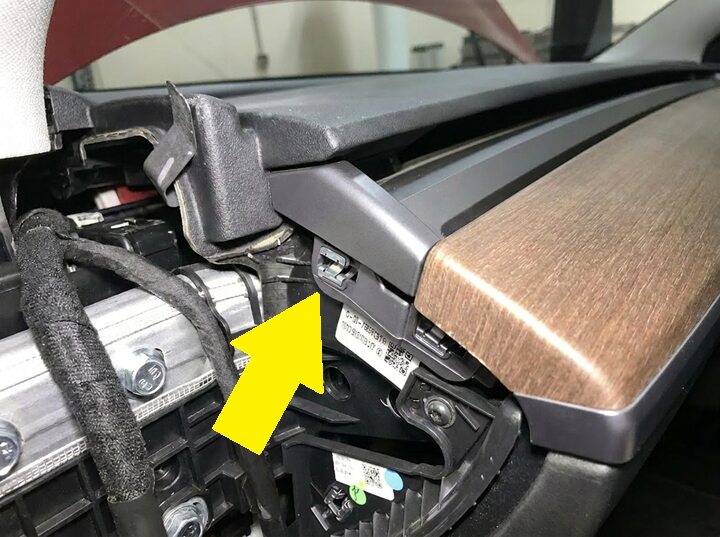

Pull LH air duct out and release from IP

注

1x screw, T20, 2.3 Nm

Disconnect harness connector from LH air duct and remove duct

注

1x connector

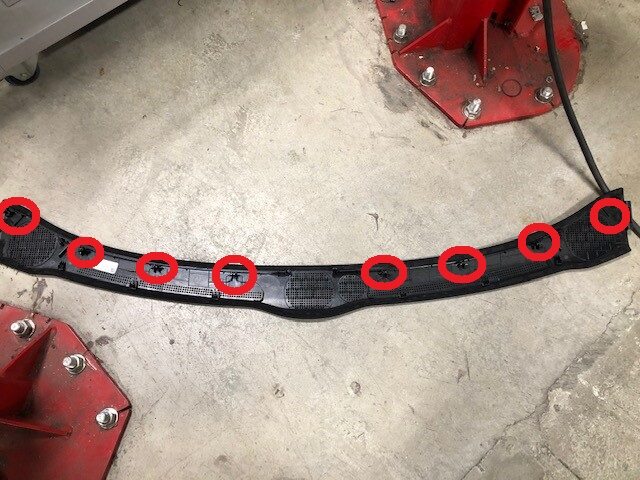

Release clips securing defroster grill

注

8x clips, Replace any damaged clips

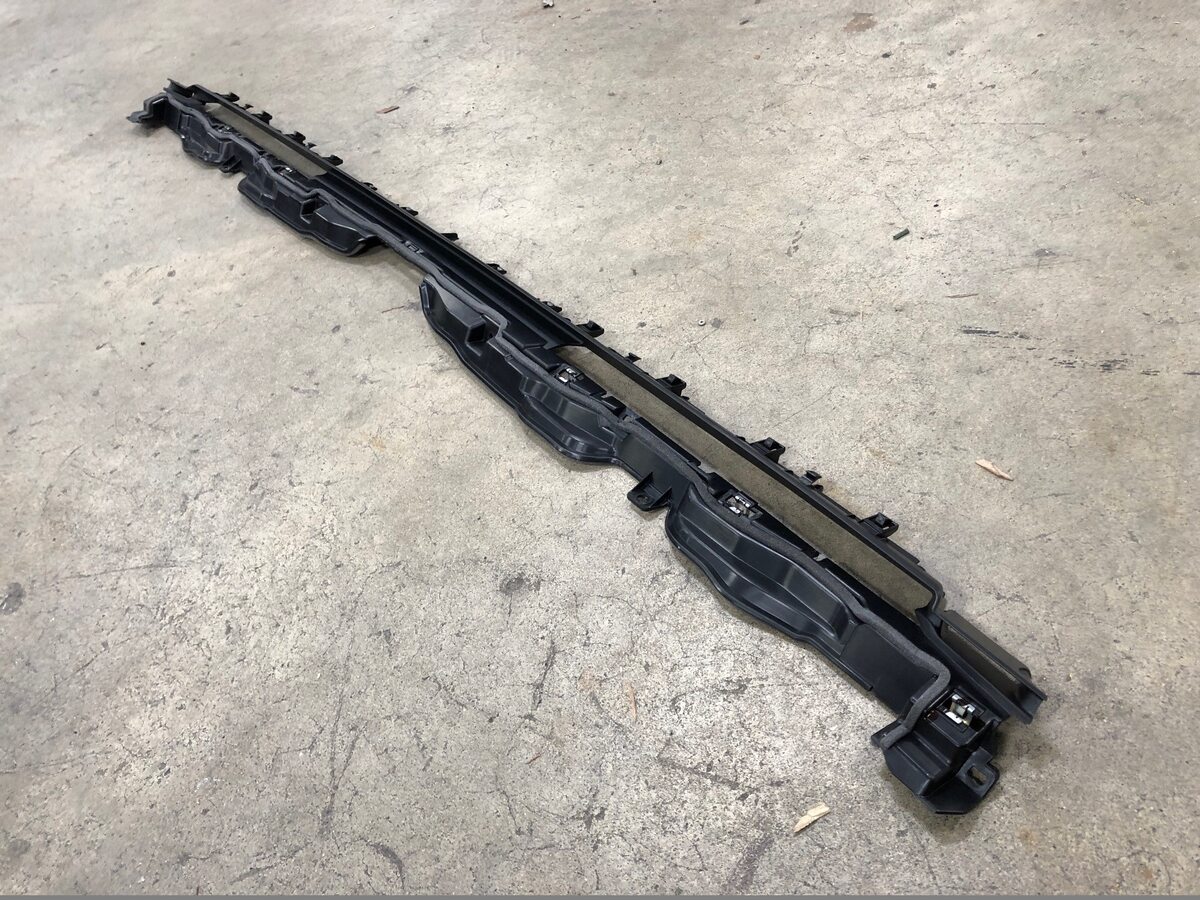

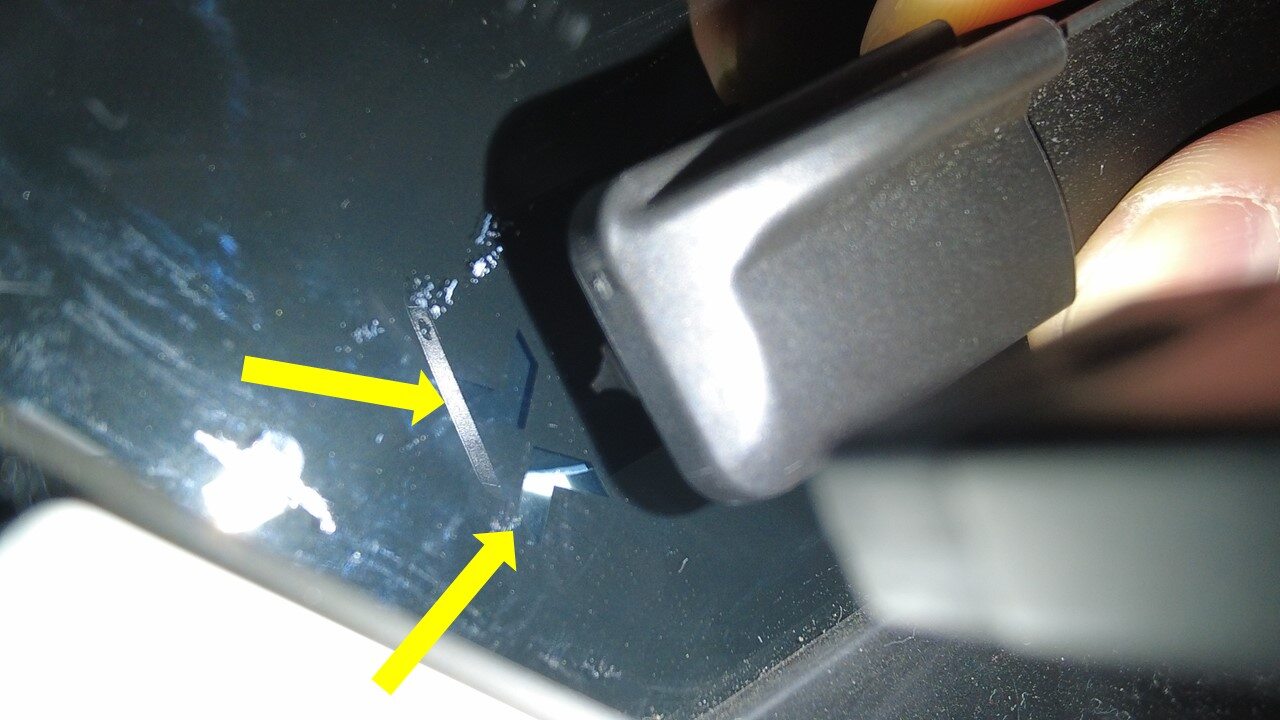

Pivot rear edge of defroster grill up and release tabs from IP

注

6x tabs

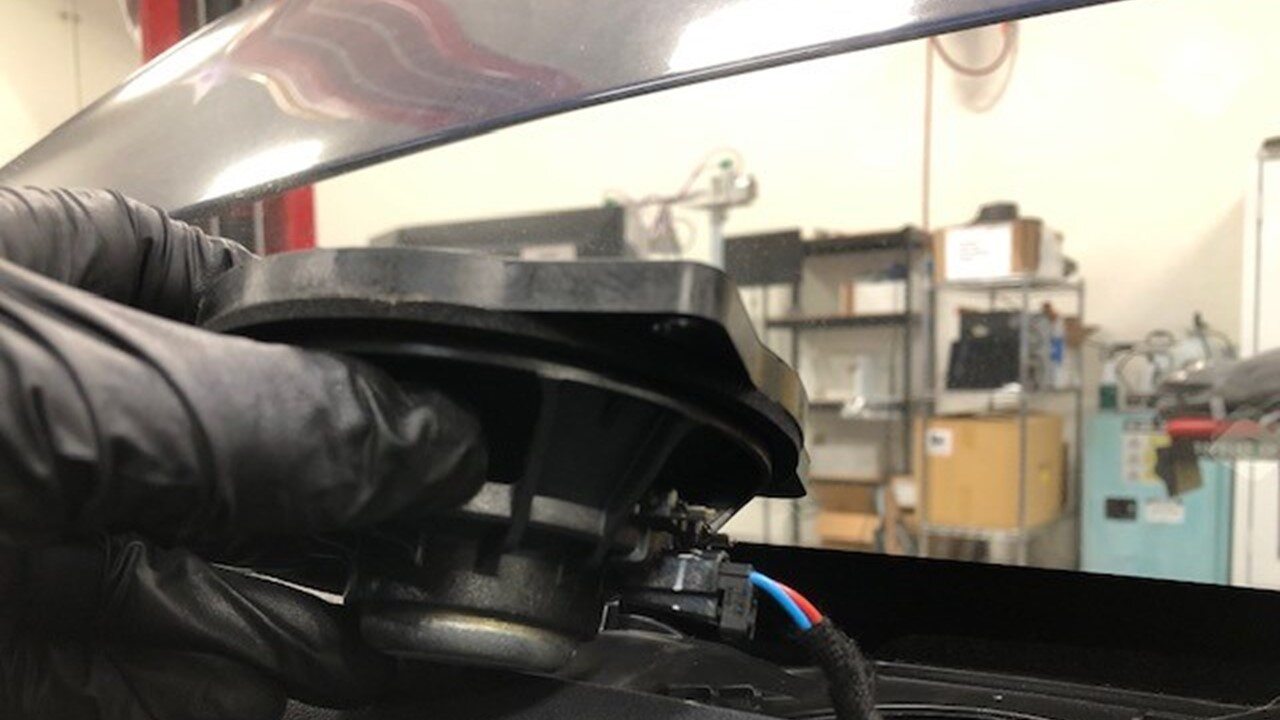

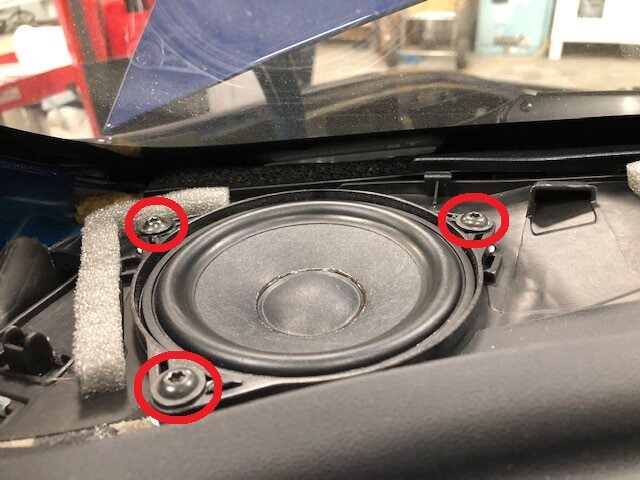

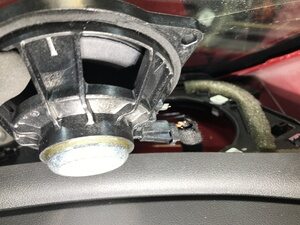

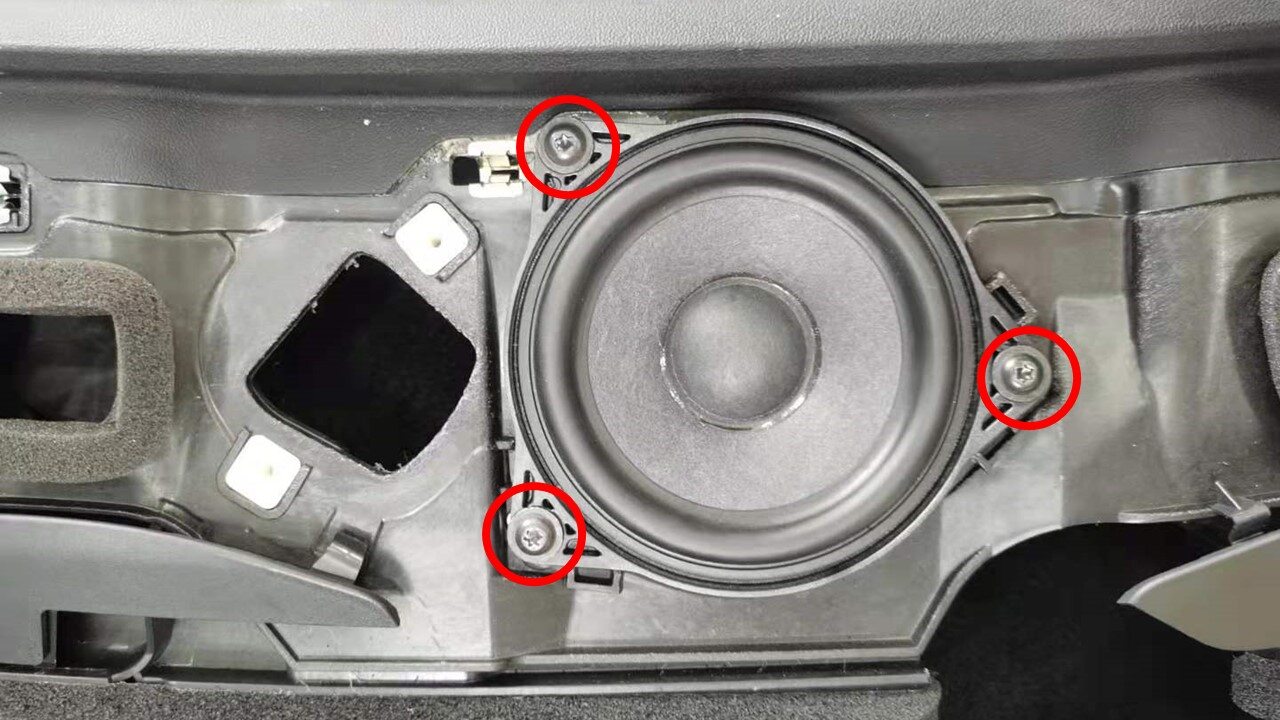

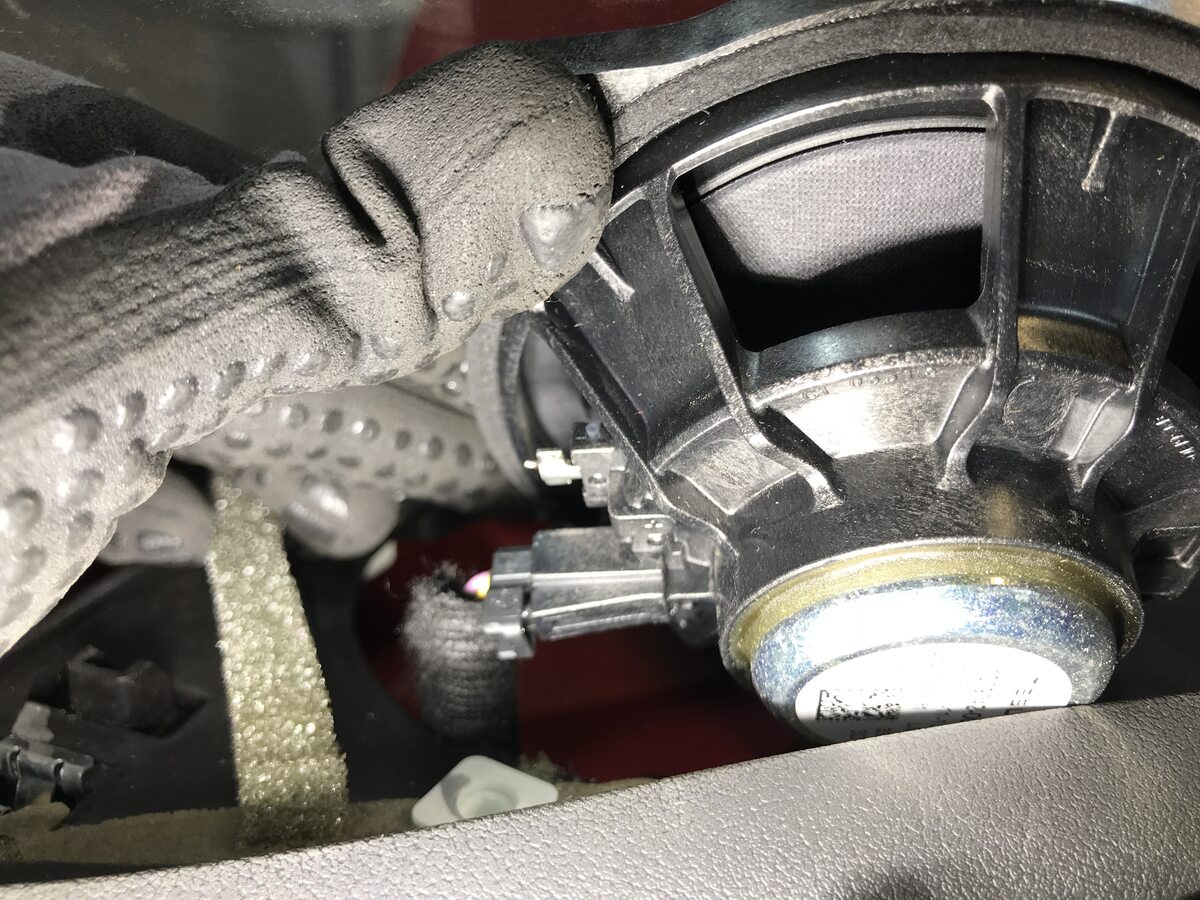

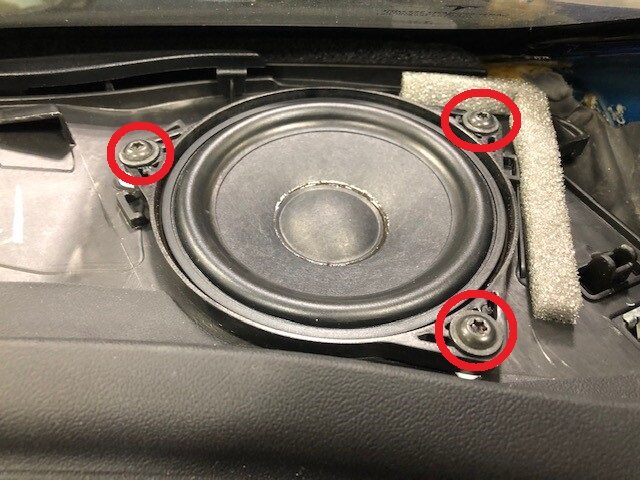

Remove screws securing LH speaker to IP and remove speaker

注

3x screws, T20, 2.3 Nm, 1x connector

Remove screws securing center speaker to IP and remove speaker

注

3x screws, T20, 2.3 Nm, 1x connector

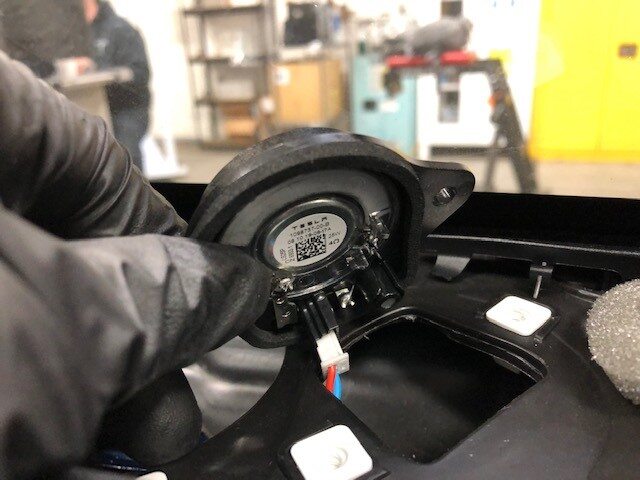

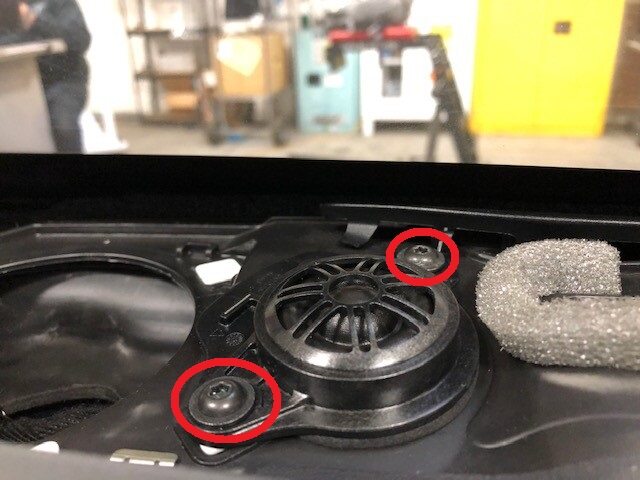

Remove screws securing center tweeter to IP and remove speaker

注

1x connector, 2x screws, T20, 2.3 Nm, discard speaker and tweeter

Remove screws securing RH speaker to IP and remove speaker

注

3x screws, T20, 2.3 Nm, 1x connector

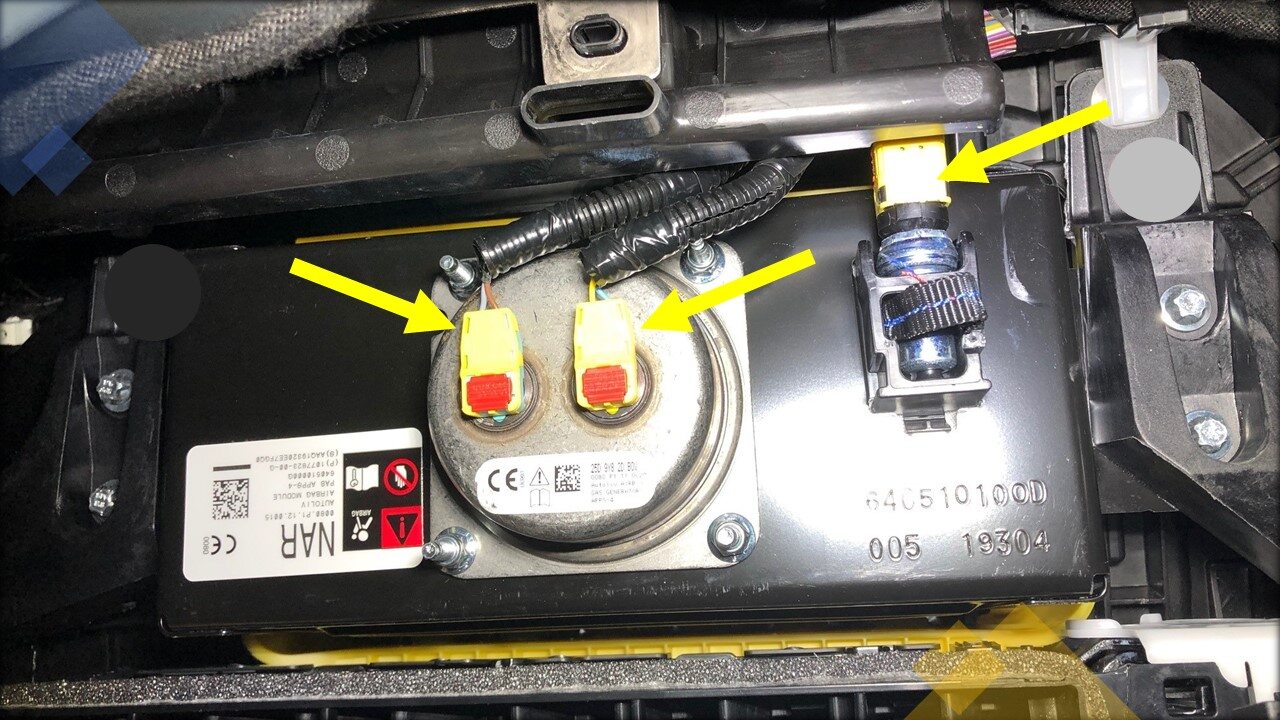

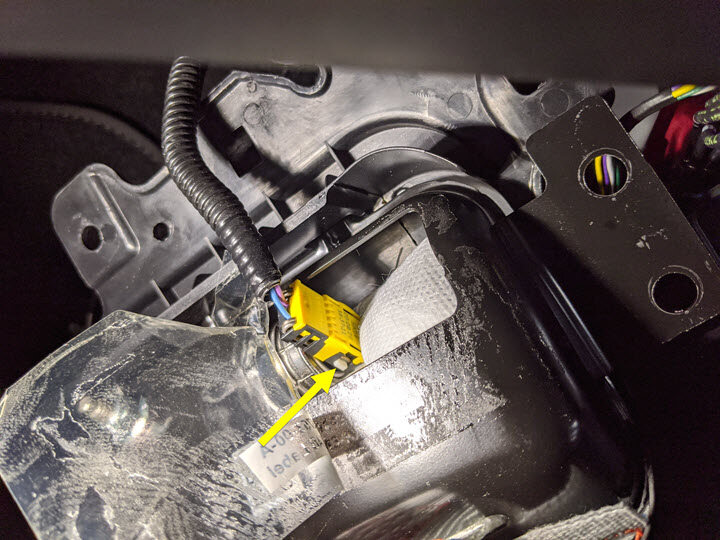

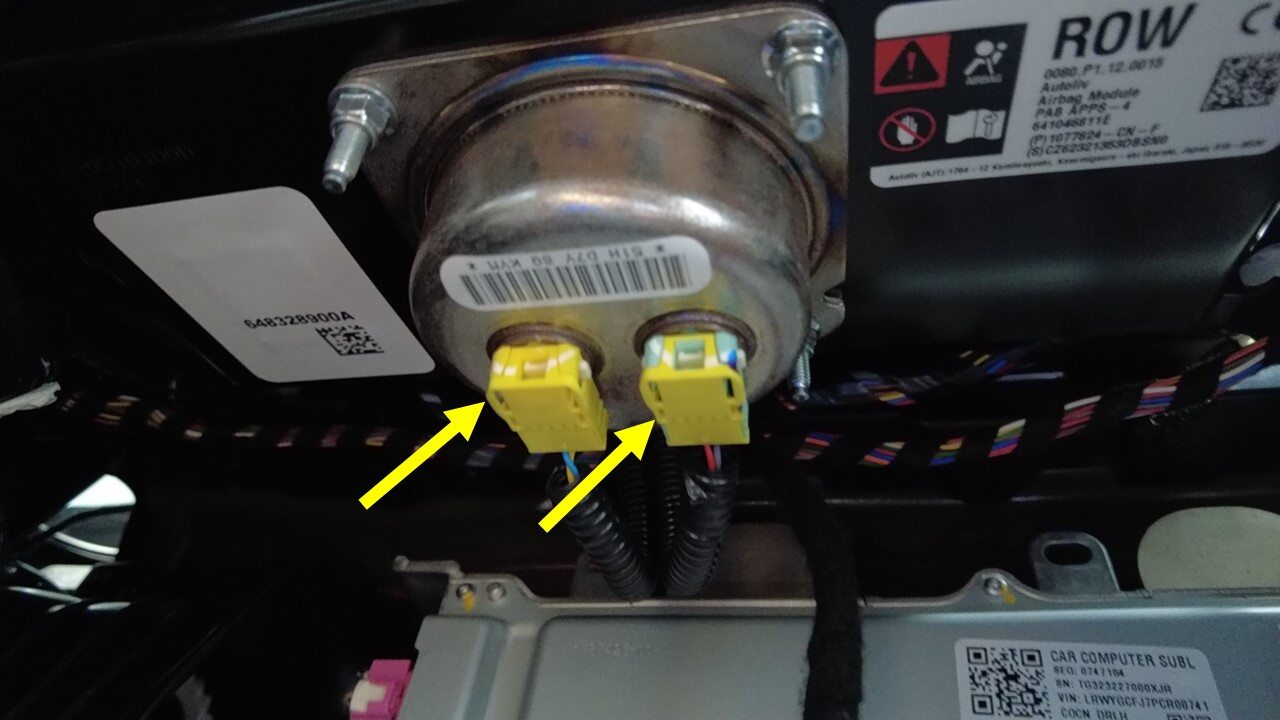

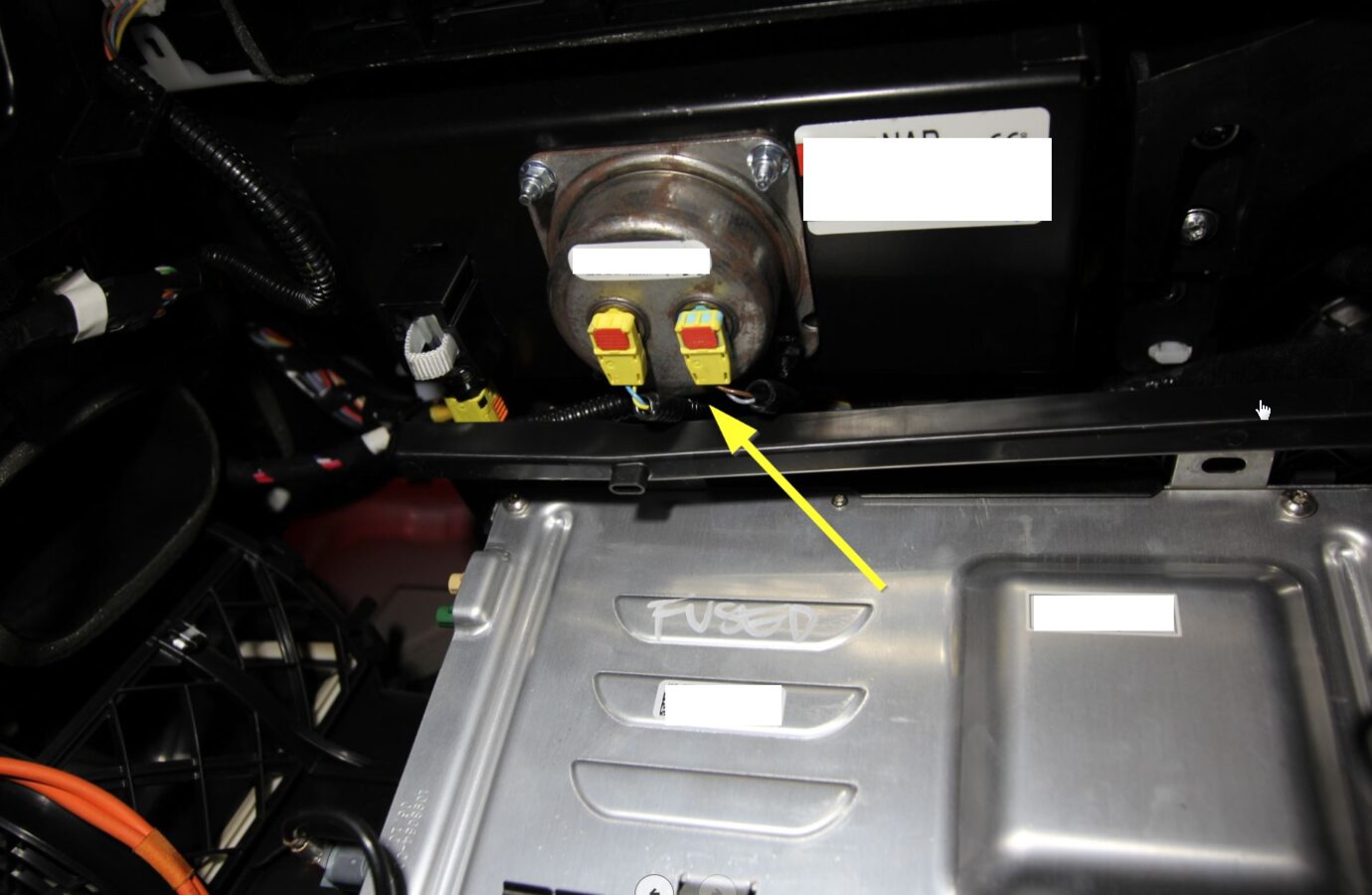

Disconnect connectors for passenger air bag assembly

注

3x connectors, 2x connectors for regions other than North America

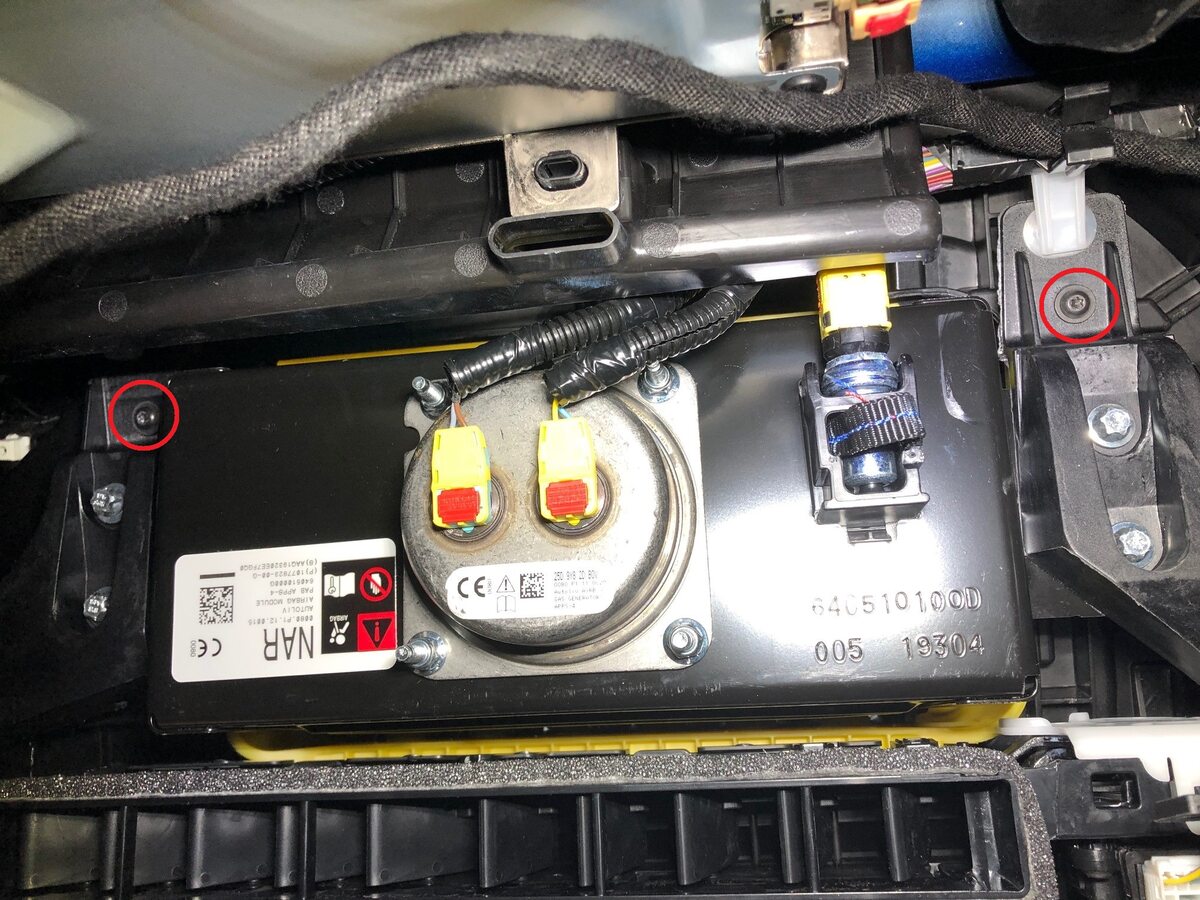

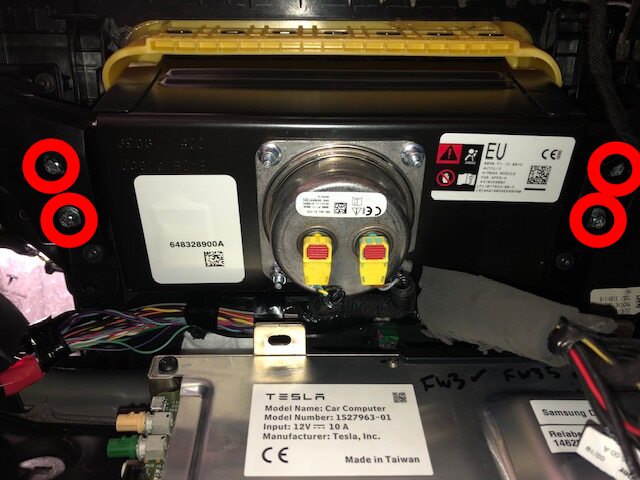

Remove bolts securing passenger air bag assembly to cross car beam

注

4x bolts, E10 patch bolts, 8 Nm, Discard after removal

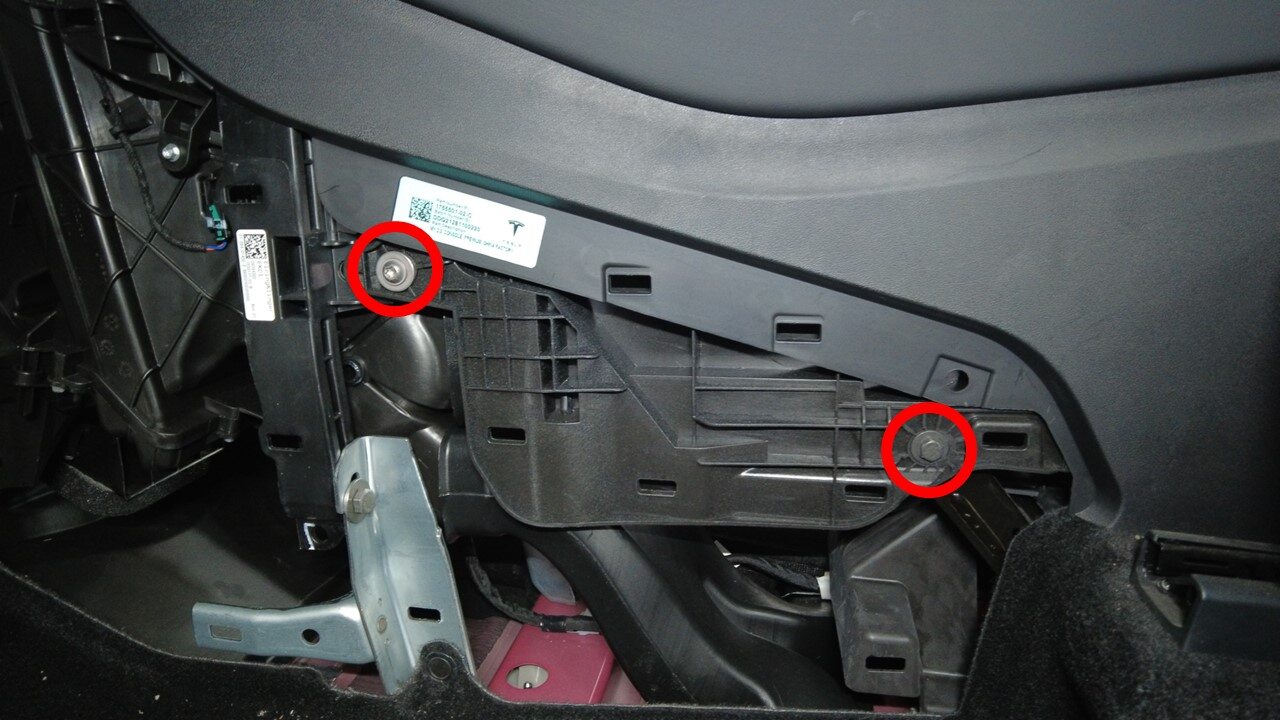

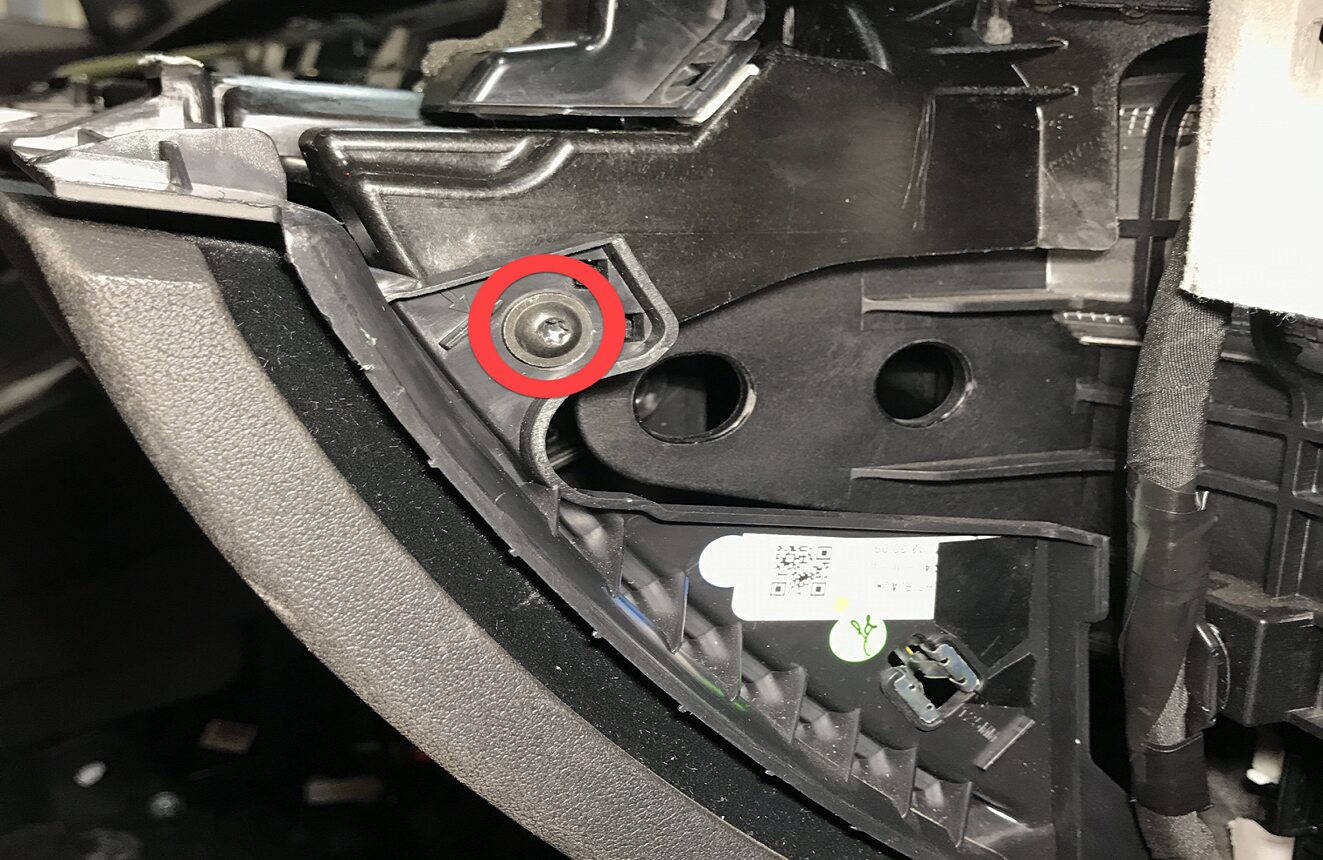

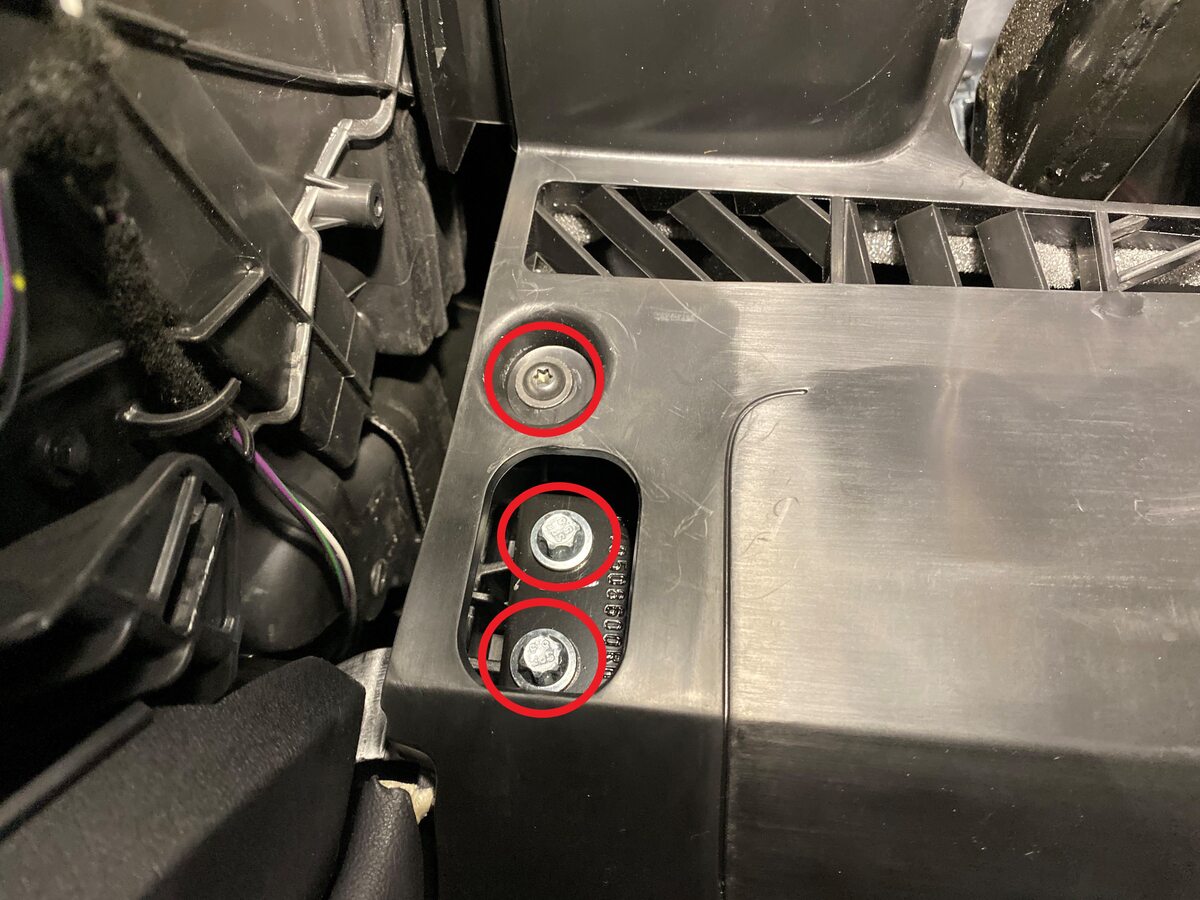

Remove screws securing LH side of IP carrier to cross car beam near passenger air bag

注

2x screws, T20, 2.3 Nm

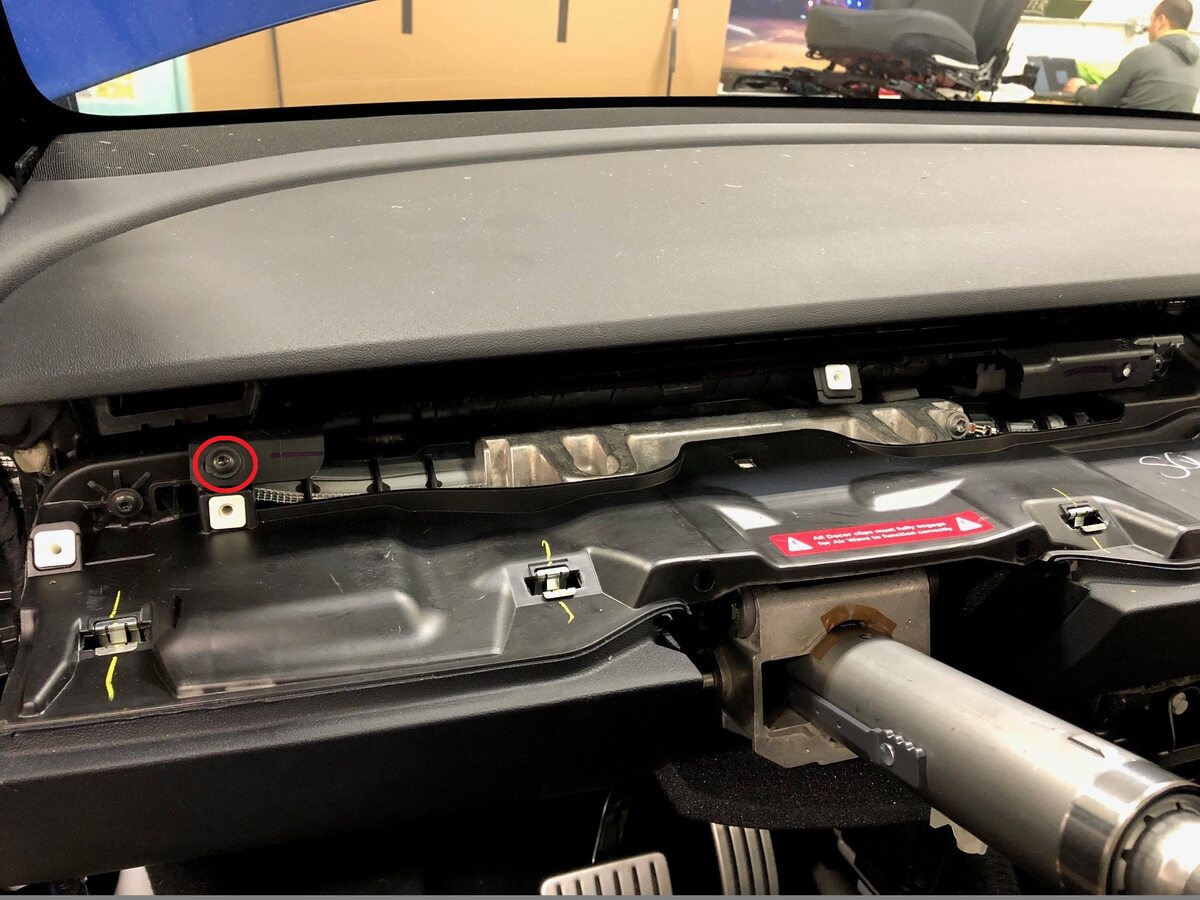

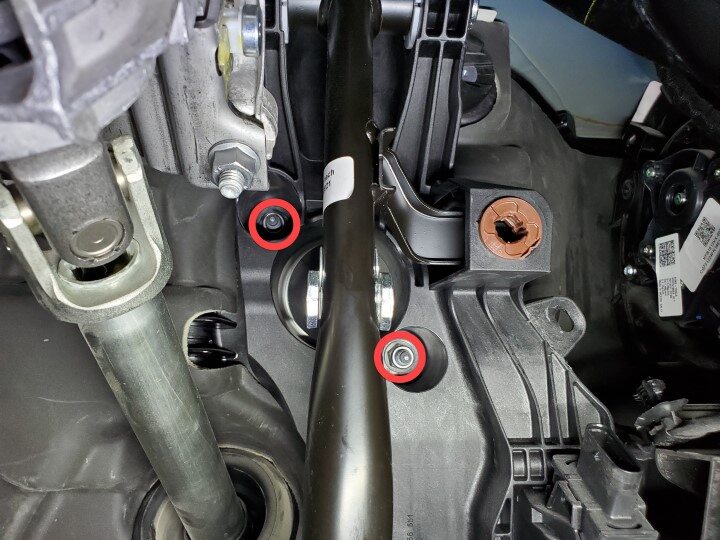

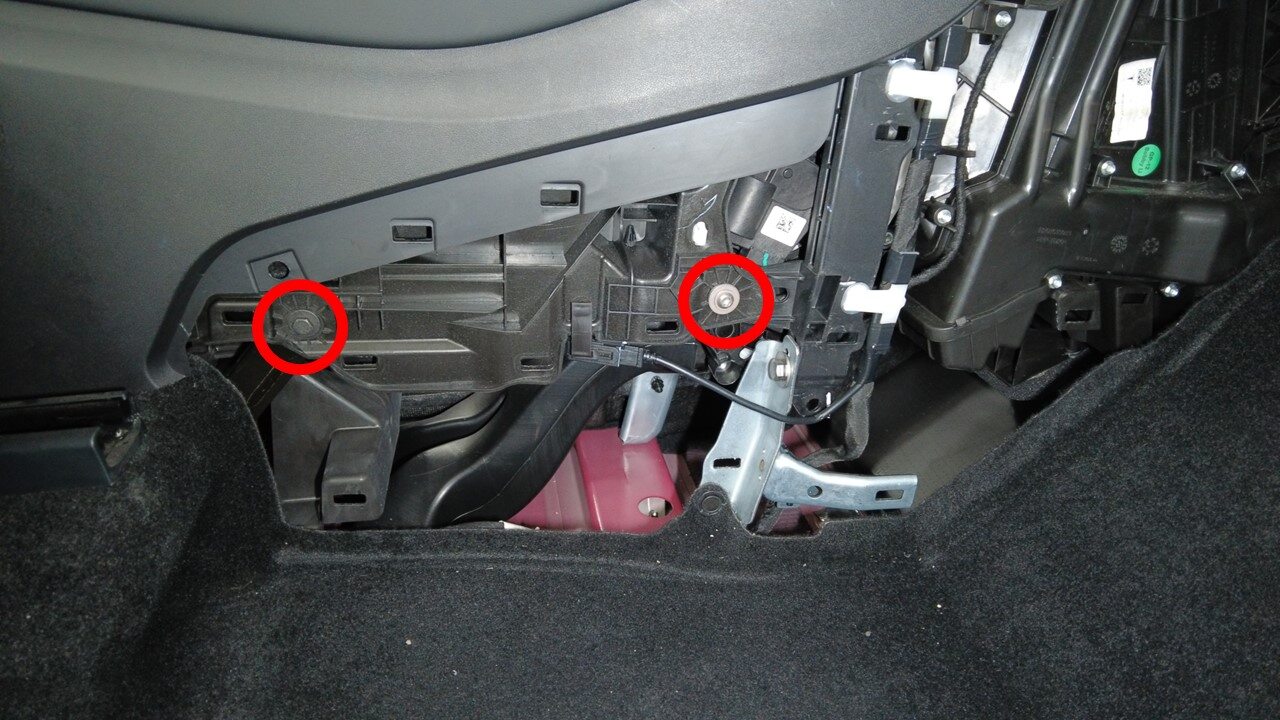

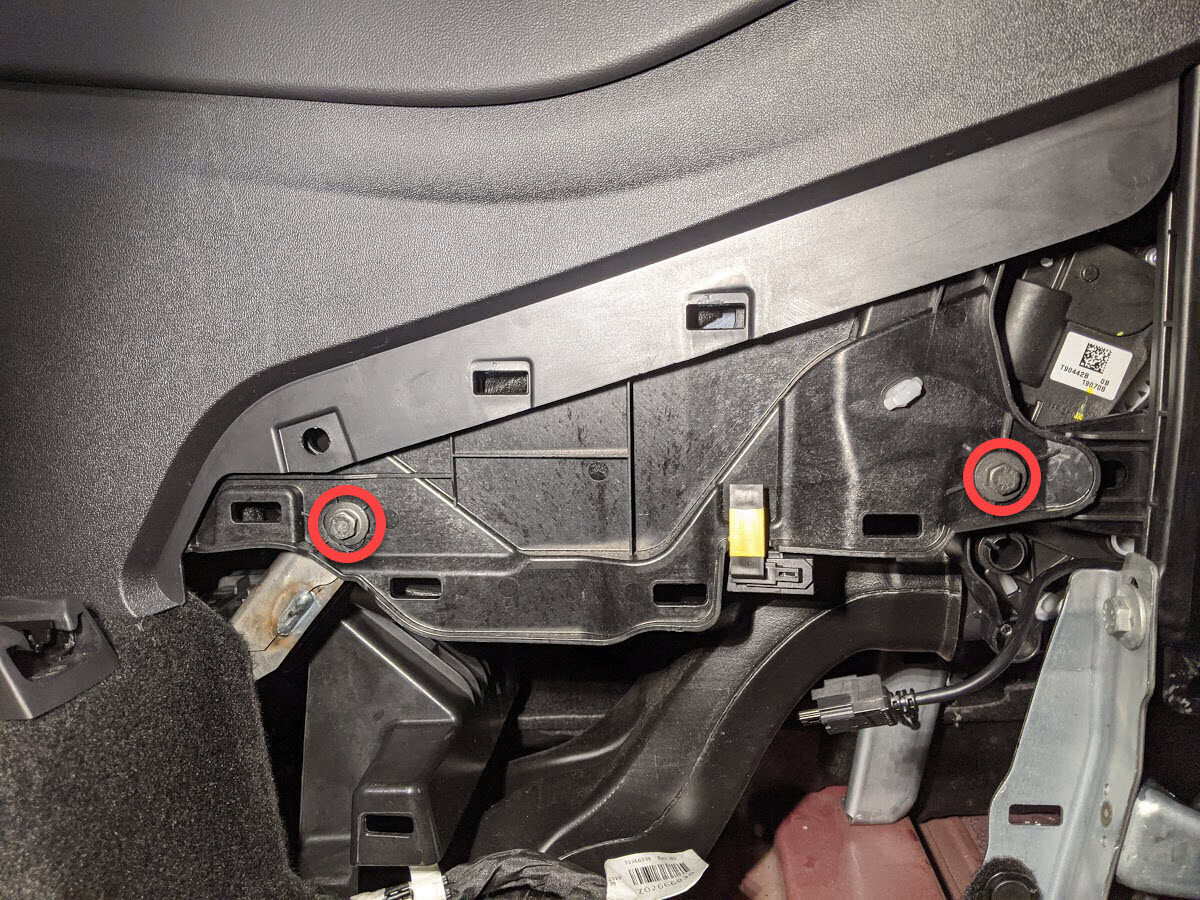

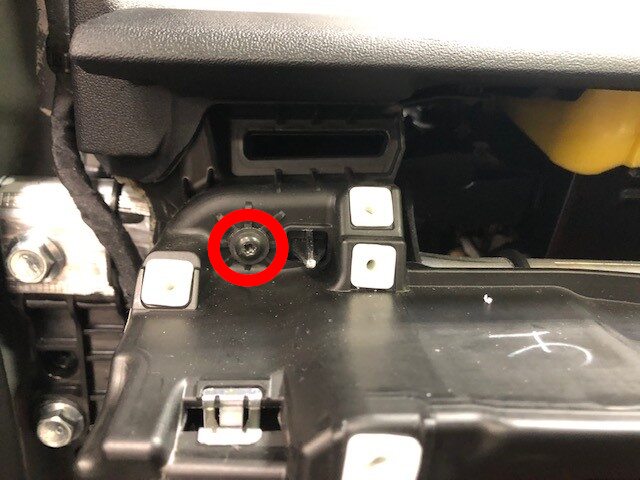

Remove screws securing IP carrier to cross car beam on lower LH side

注

2x screws, T20, 2.3 Nm

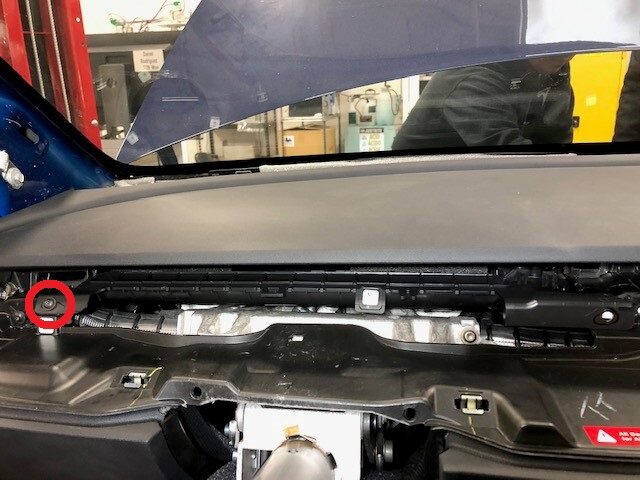

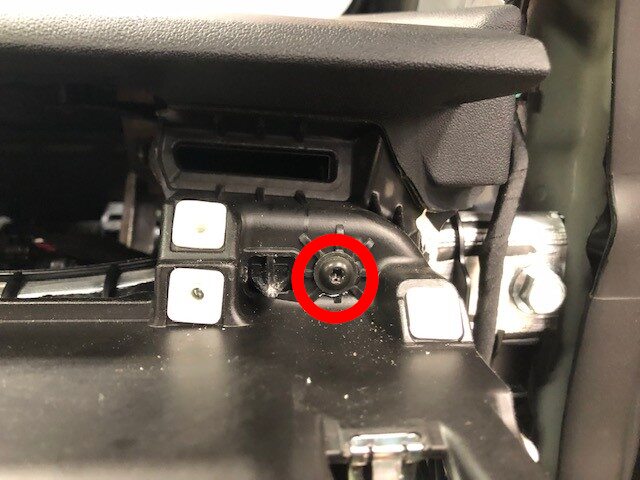

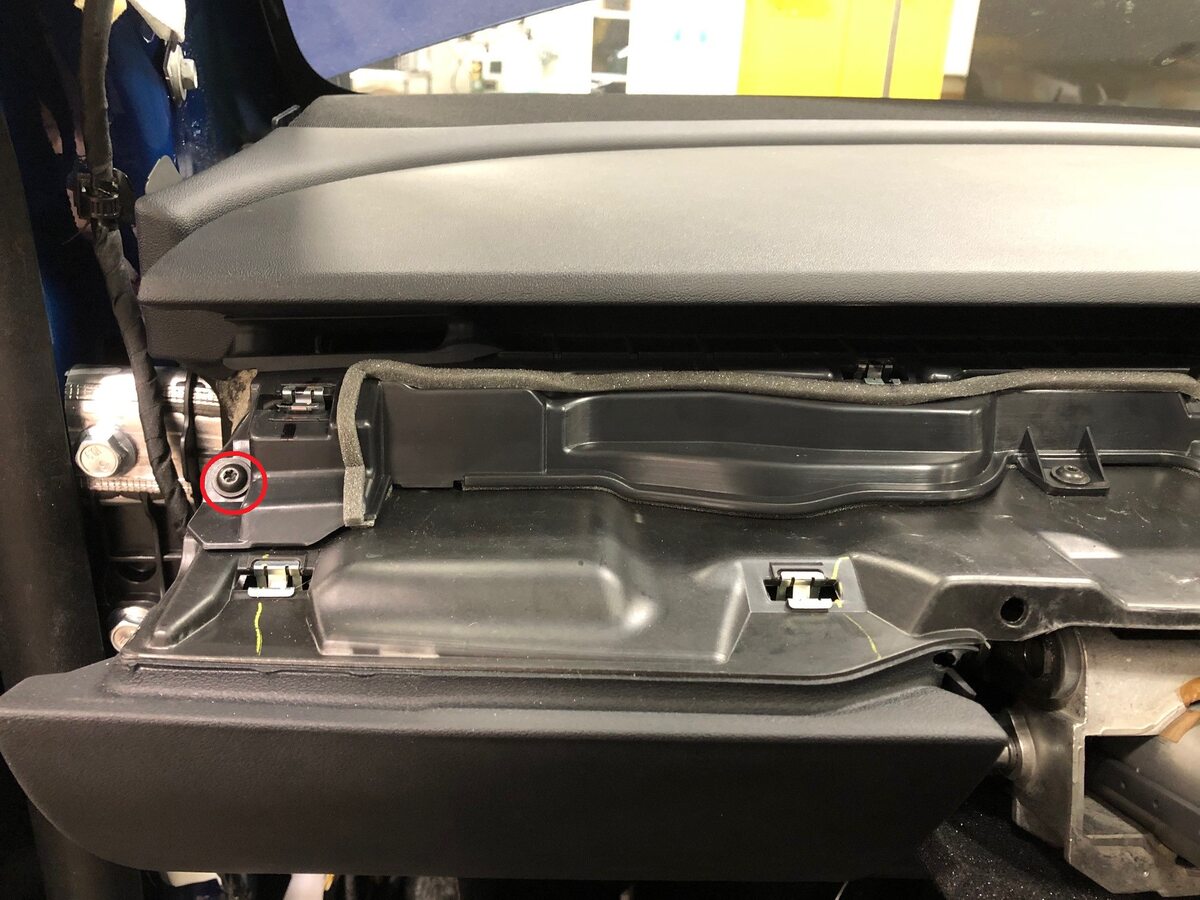

Remove screw securing IP carrier to cross car beam on upper LH side

注

1x screw, T20, 2.3 Nm

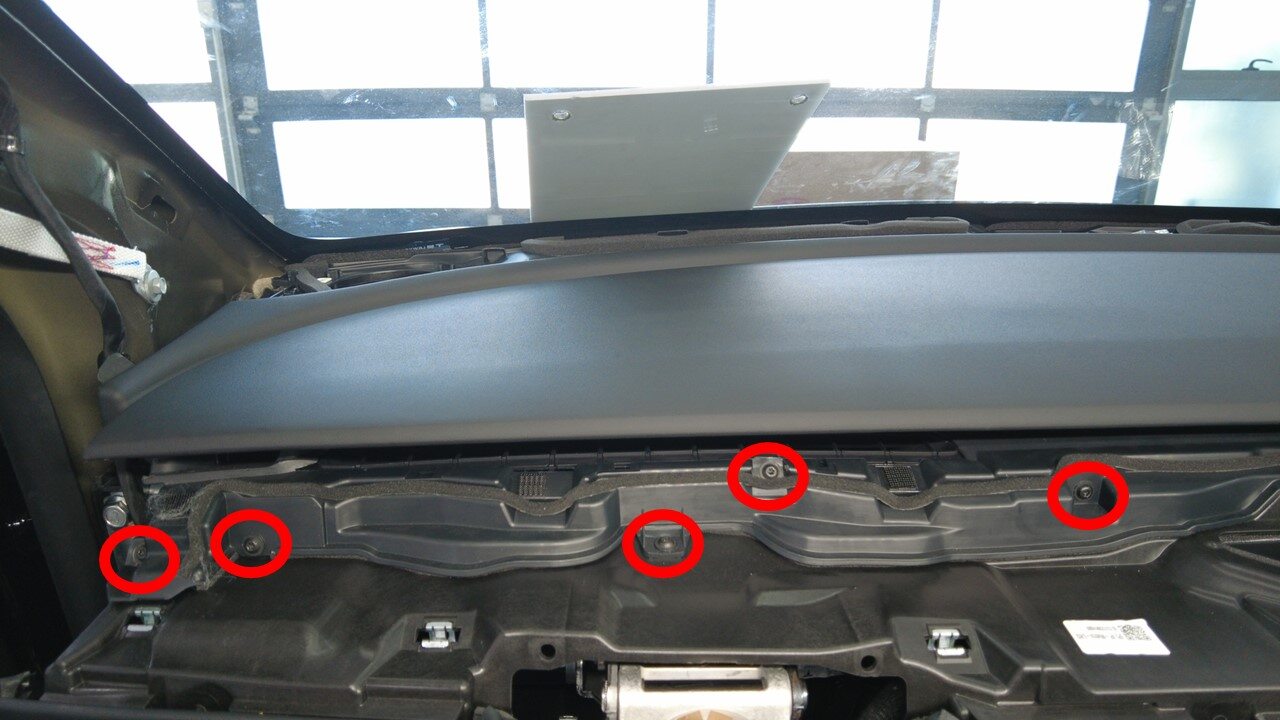

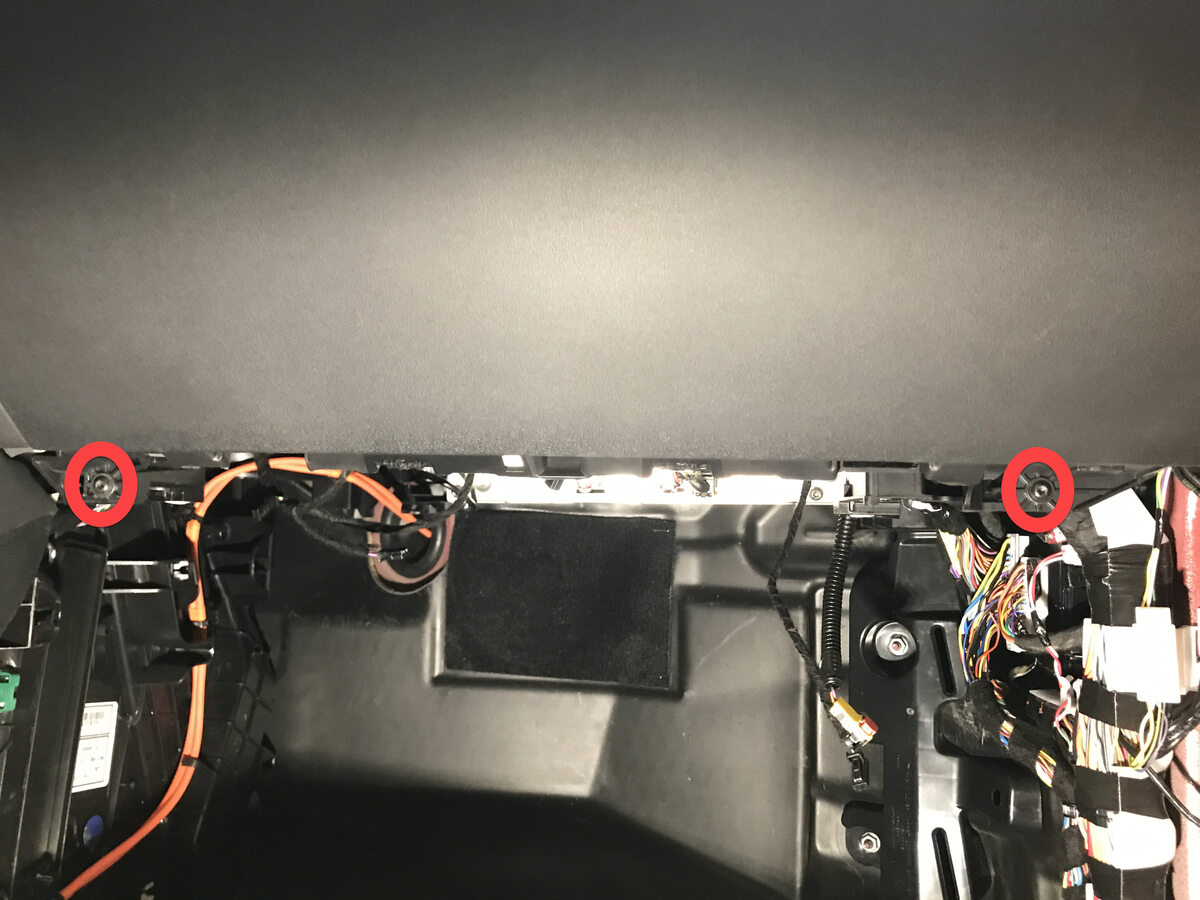

Remove screws securing IP carrier to cross car beam at lower center

注

2x screws, T20, 2.3 Nm

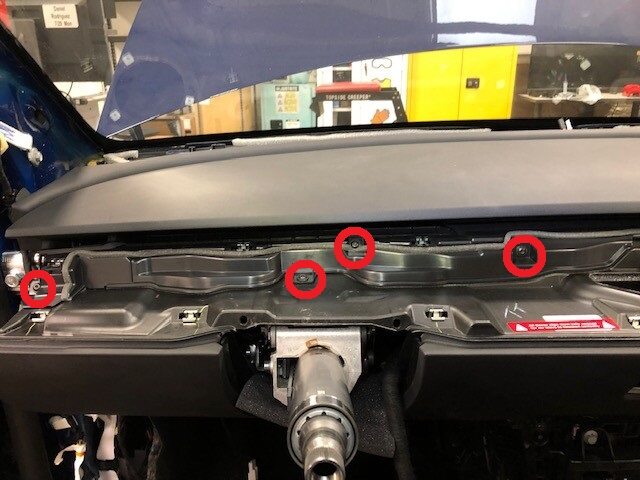

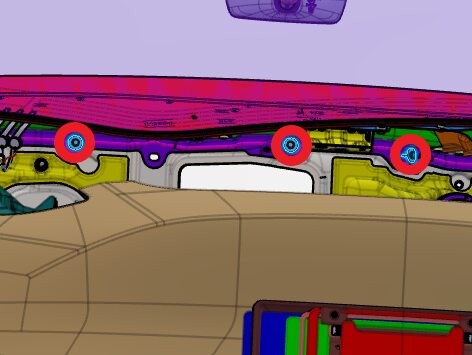

Remove screws securing IP carrier to cross car beam at upper center

注

2x screws, T20, 2.3 Nm

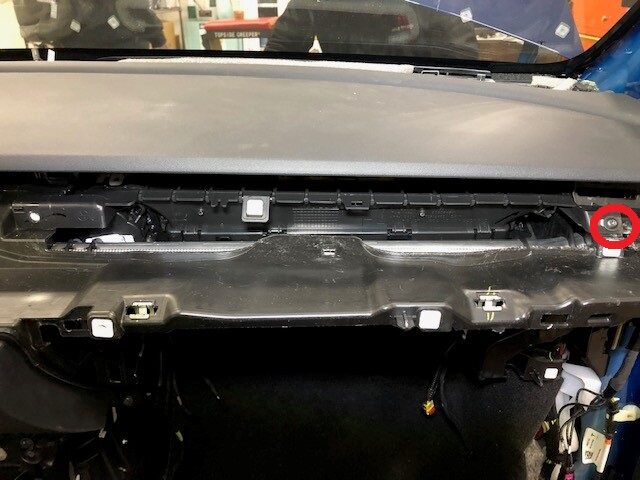

Remove screw securing IP carrier to cross car beam on upper RH side

注

1x screw, T20, 2.3 Nm

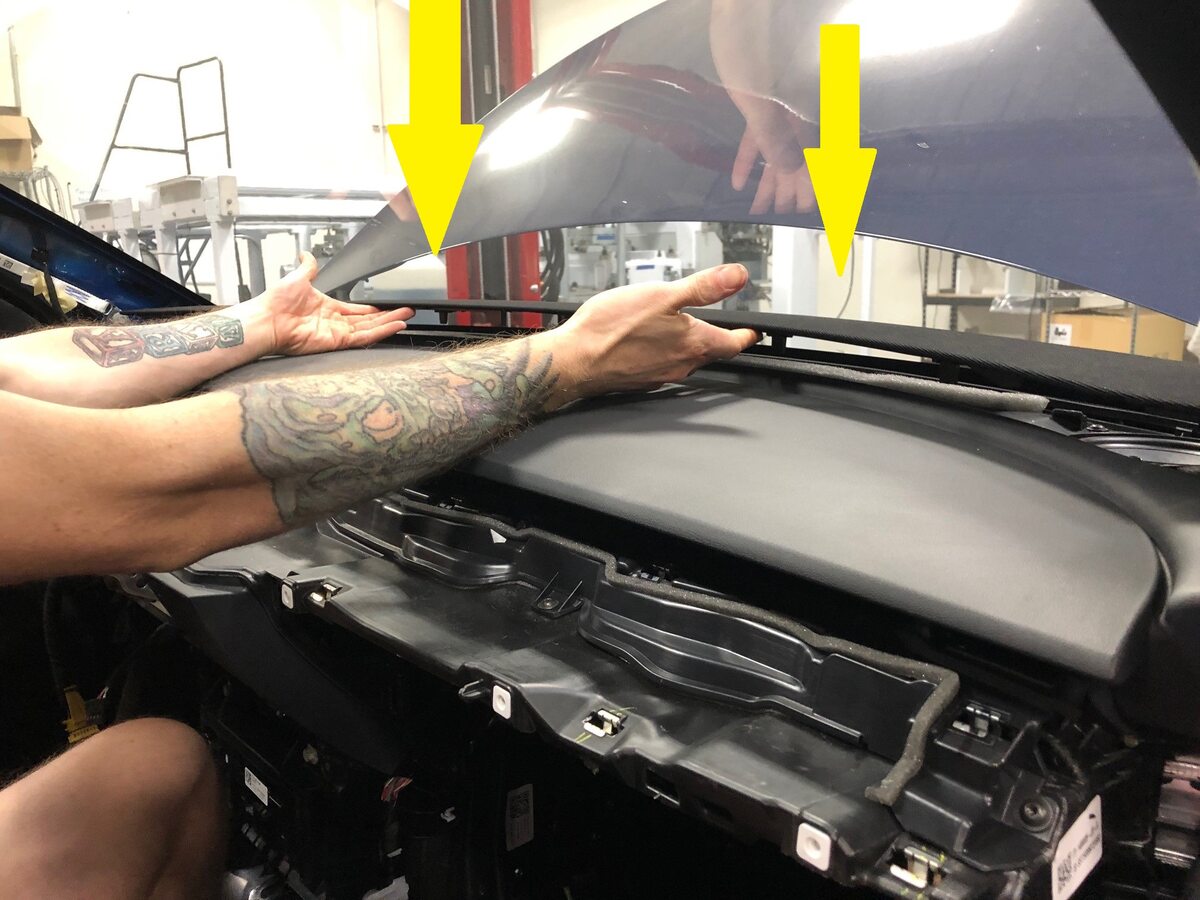

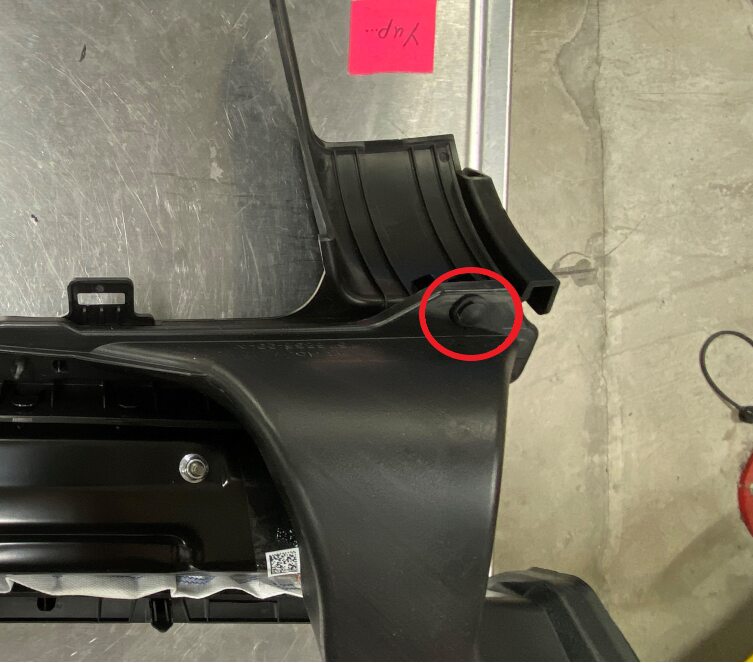

Remove IP carrier from cross car beam

注

Recommend assistance, Be cautious to clear harness clipped at top center of HVAC assembly

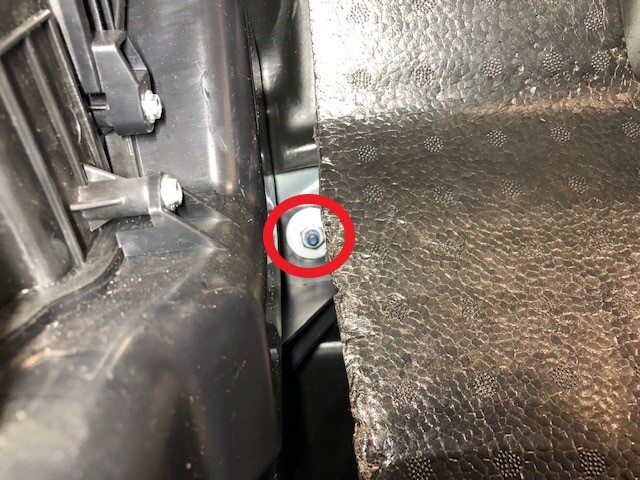

Remove screws securing drivers air duct to cross car beam

注

2x scews, T20, 2.3 Nm

Remove drivers air duct from HVAC assembly

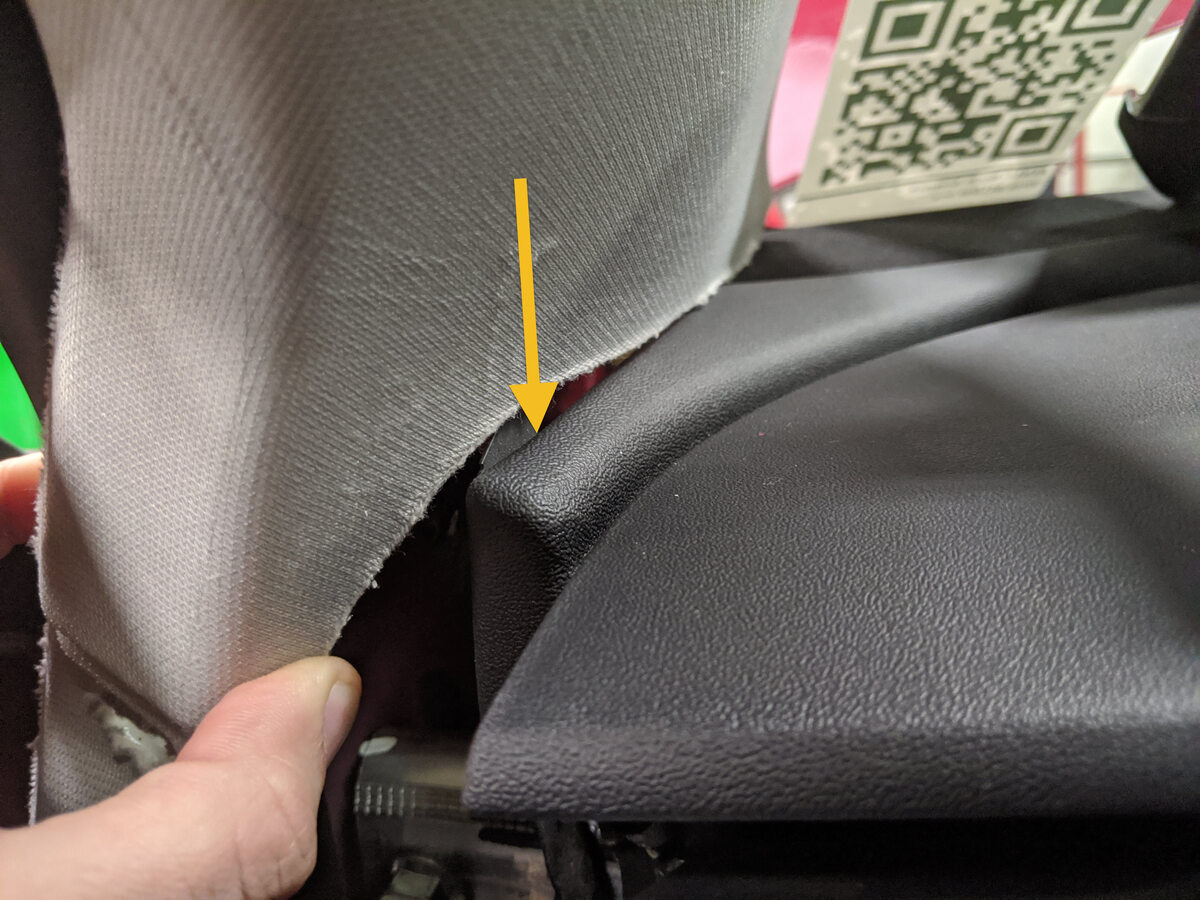

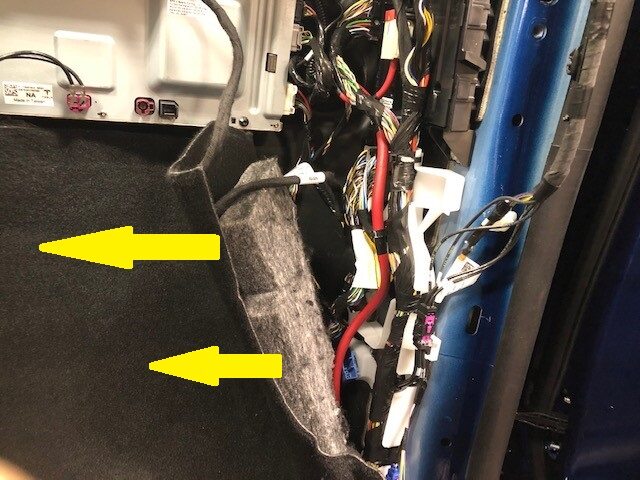

Partially remove LH cabin carpet

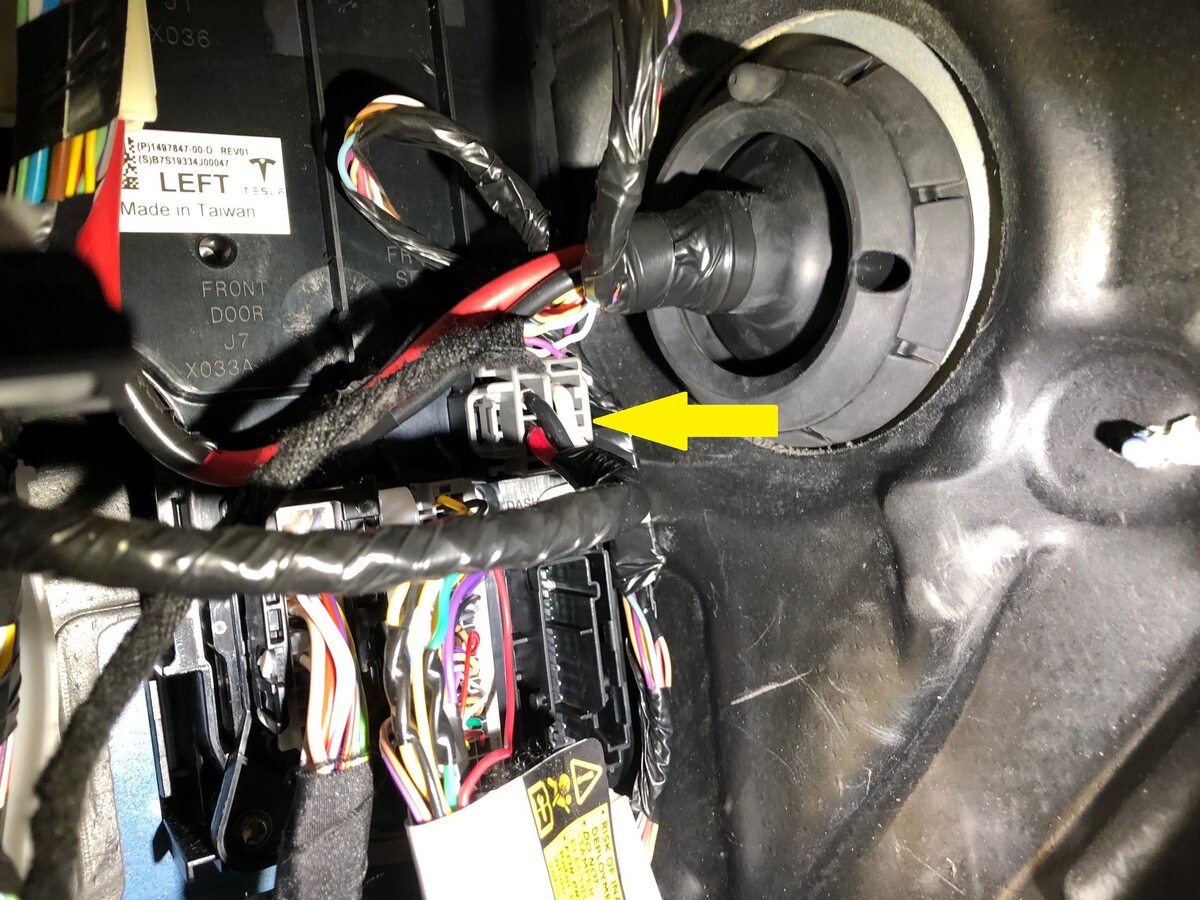

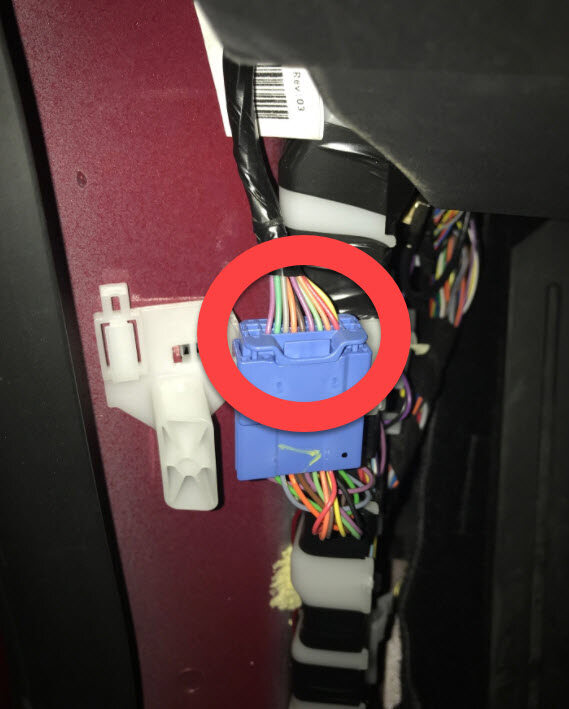

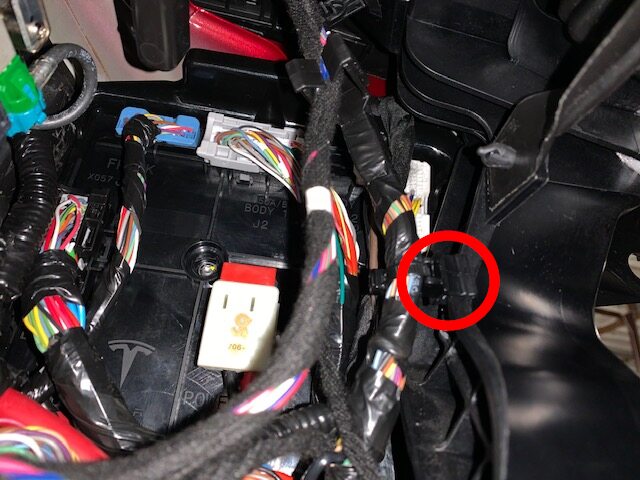

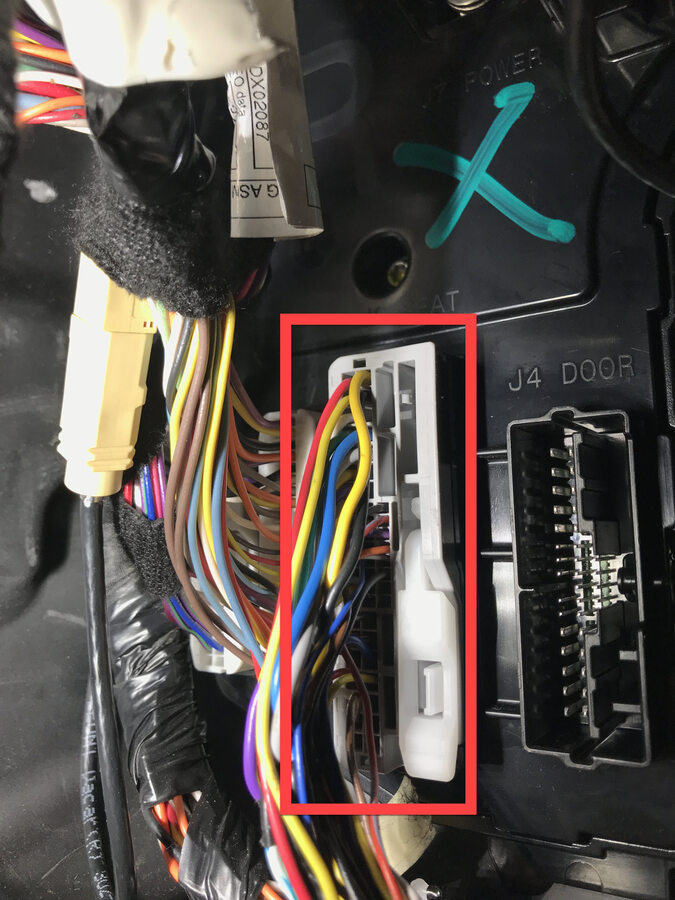

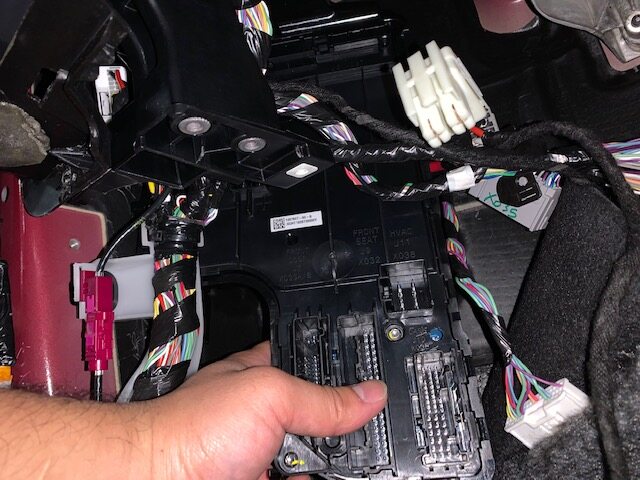

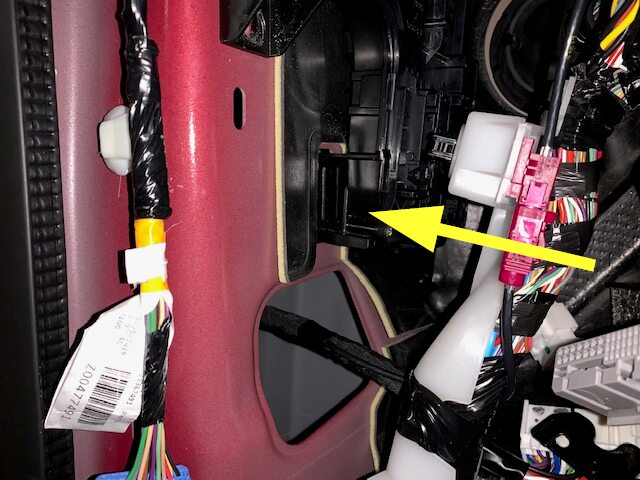

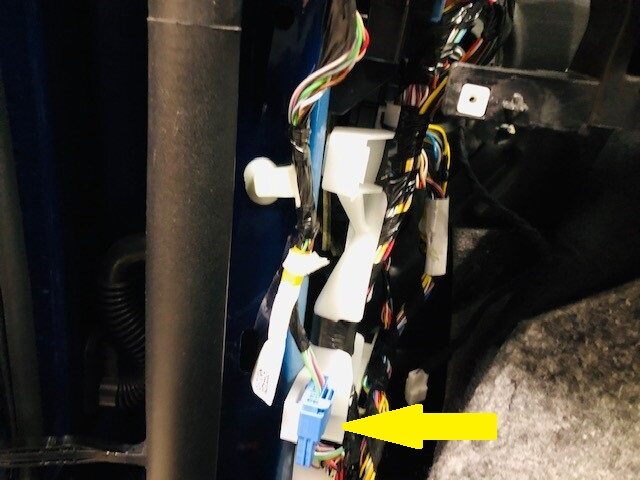

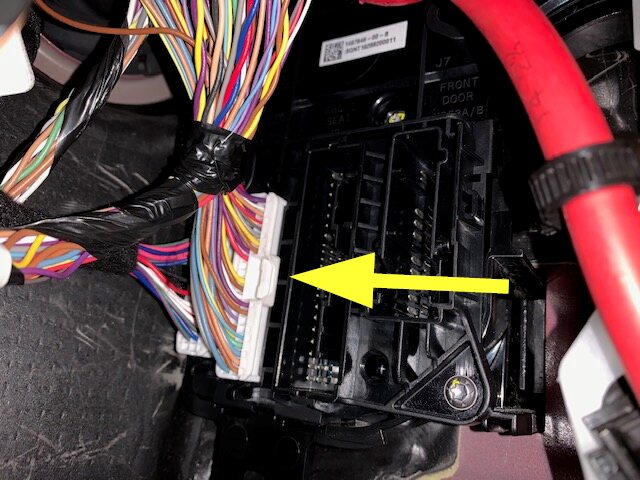

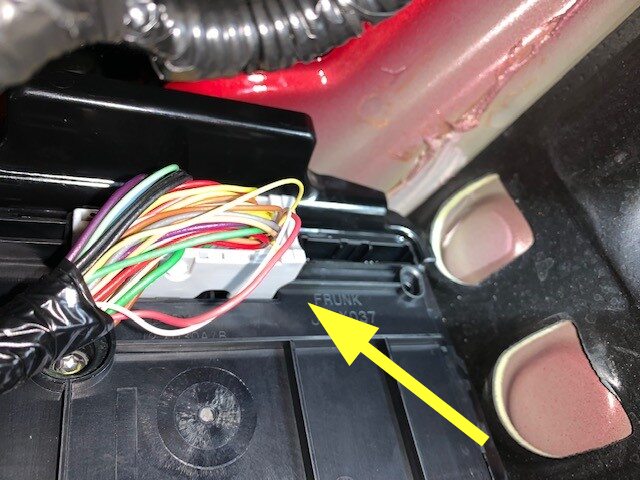

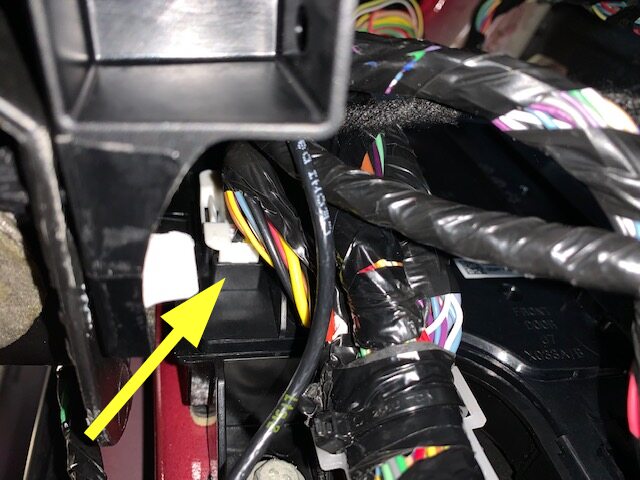

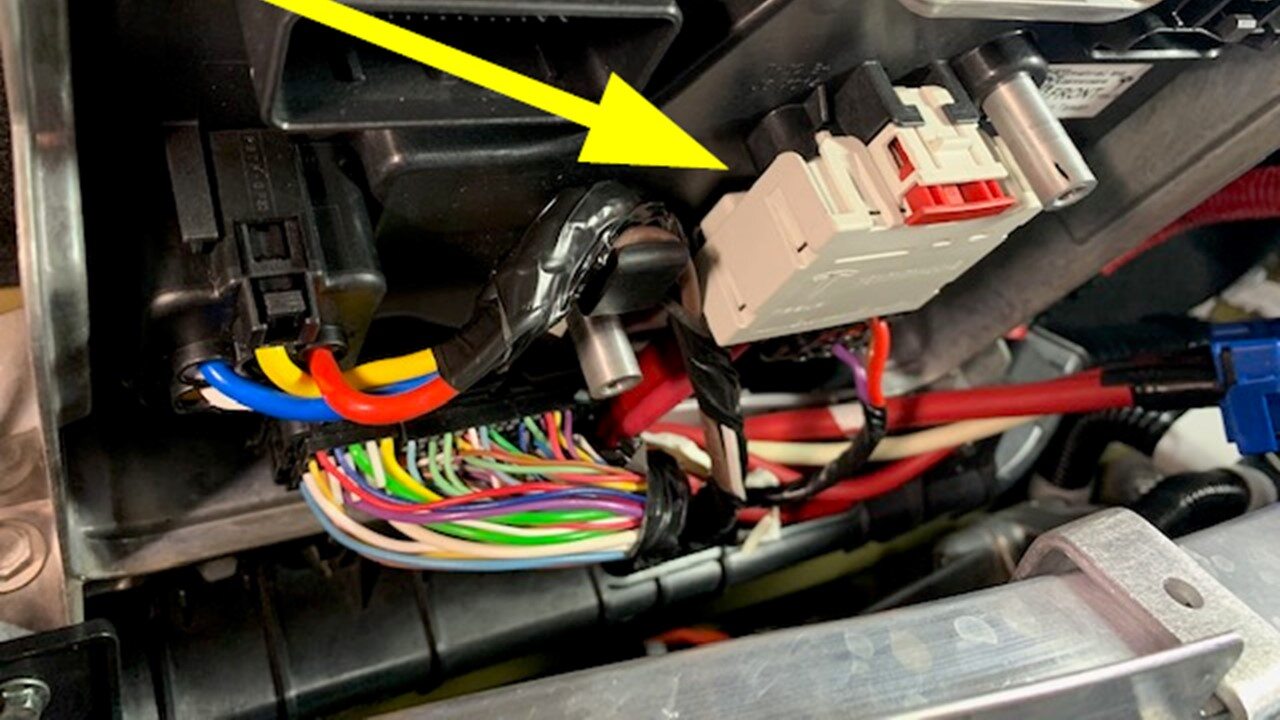

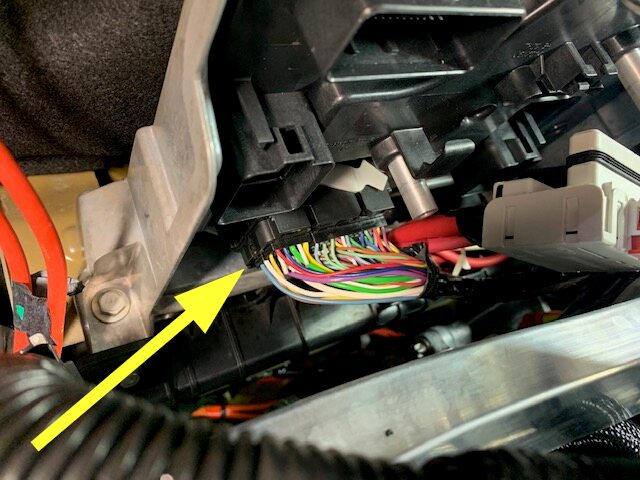

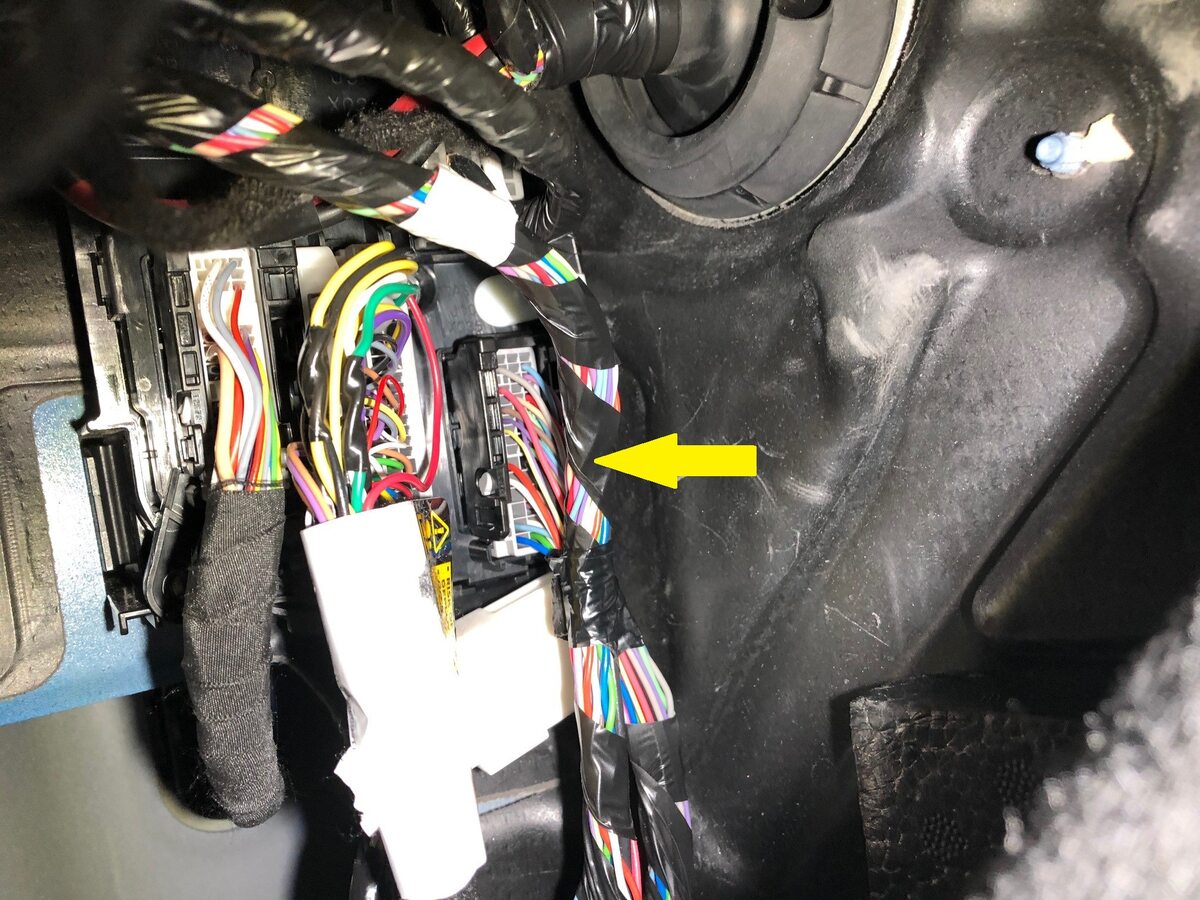

Disconnect dash connector from left body controller

注

1x connector, Release locking tab and gently pull down to release connector

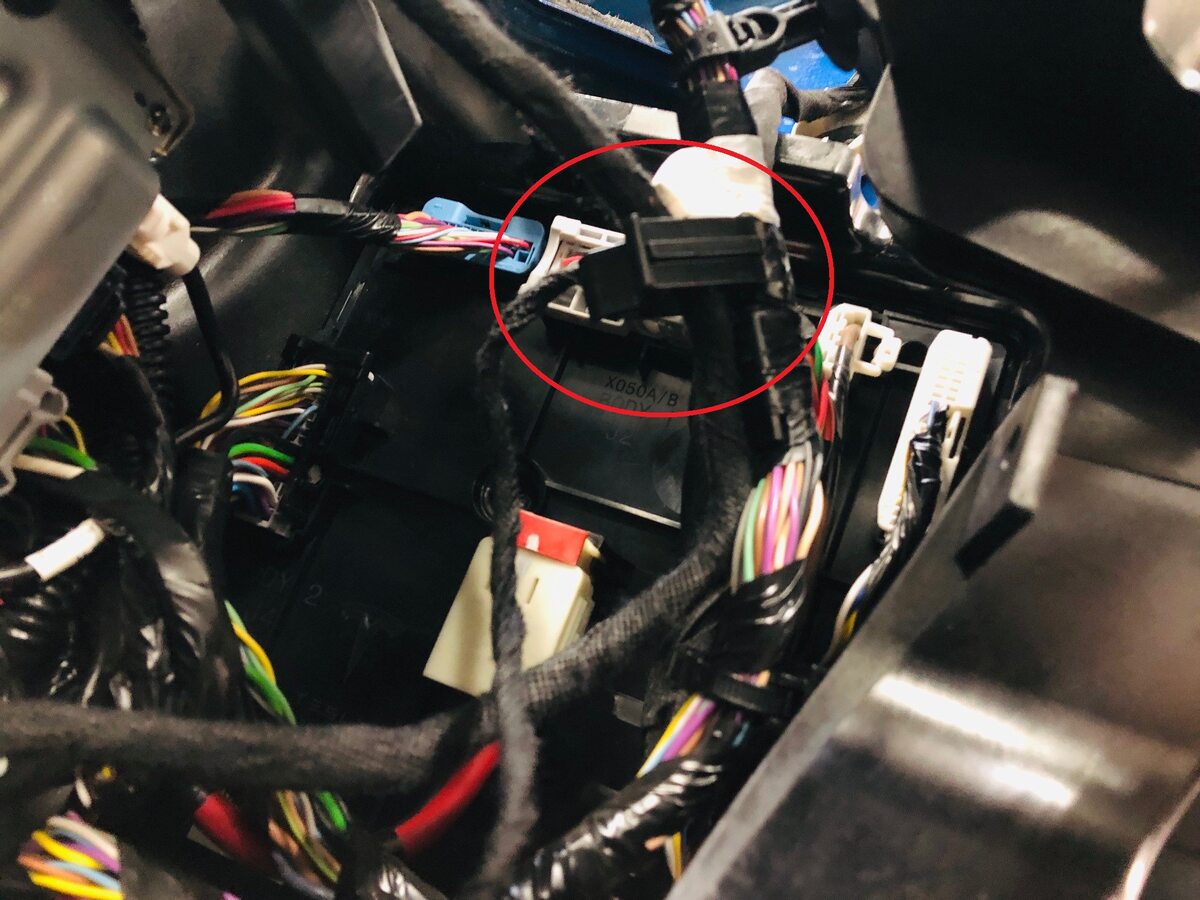

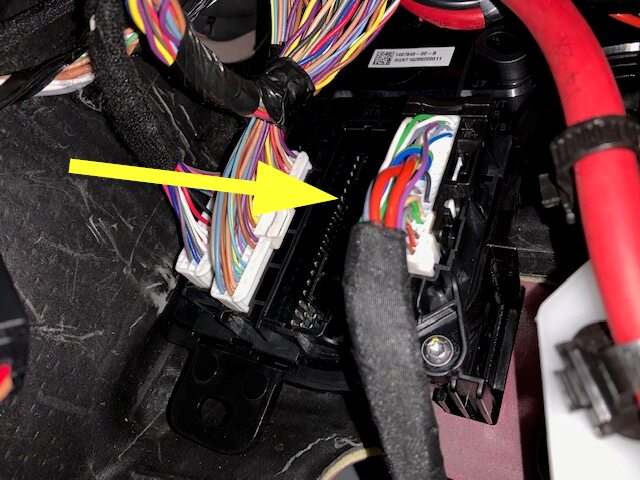

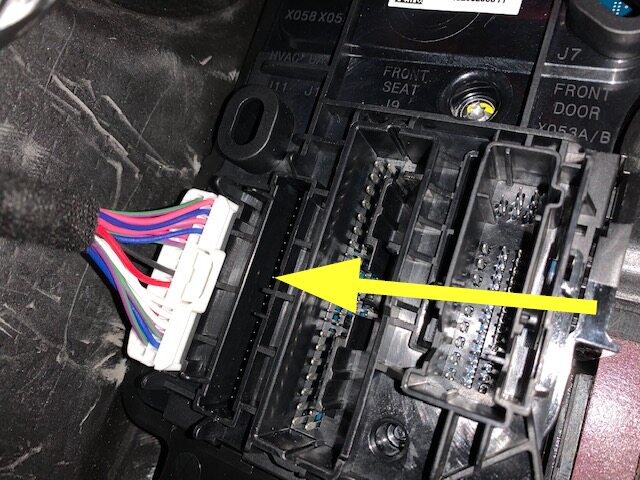

Disconnect HVAC connector from left body controller

注

1x connector

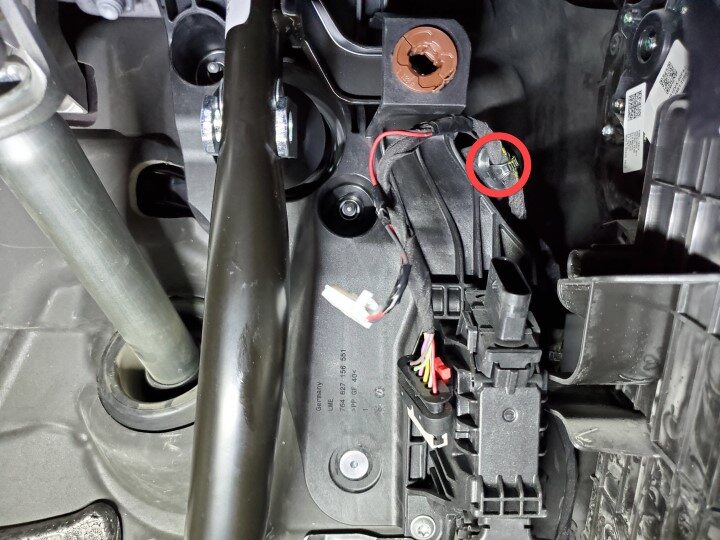

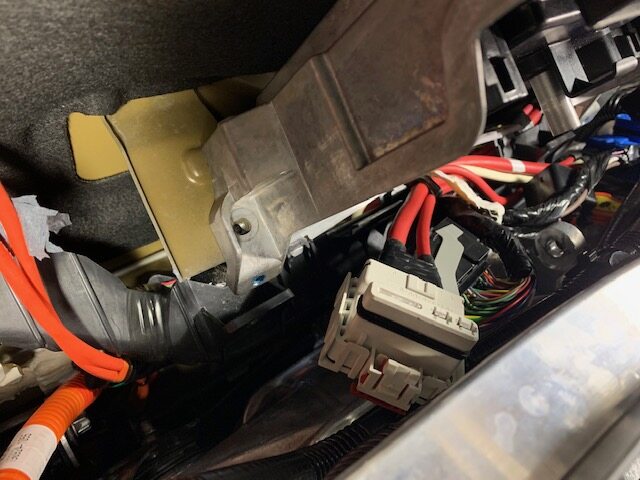

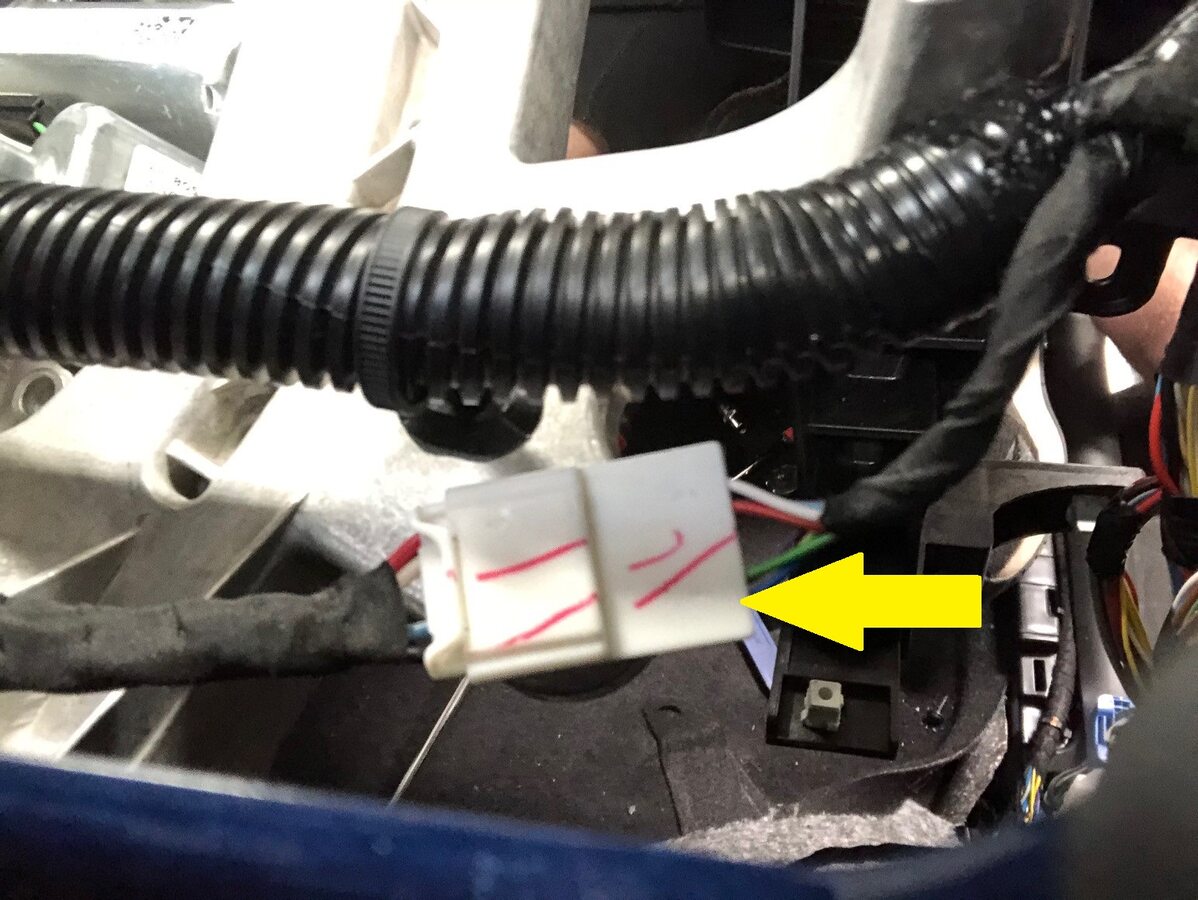

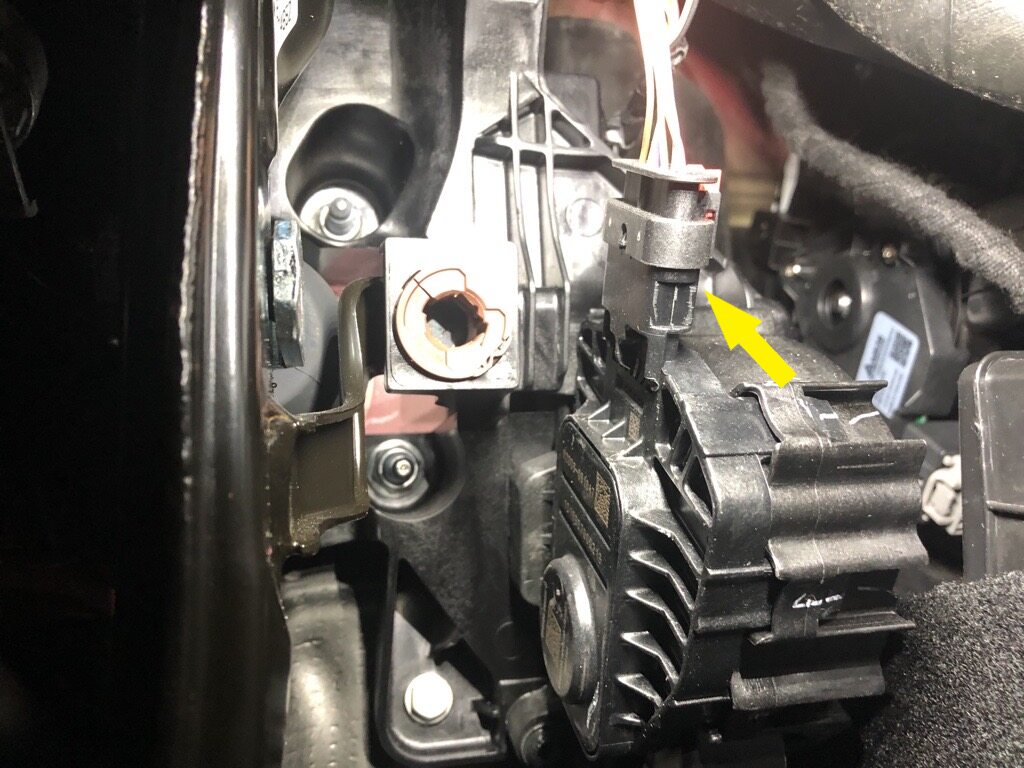

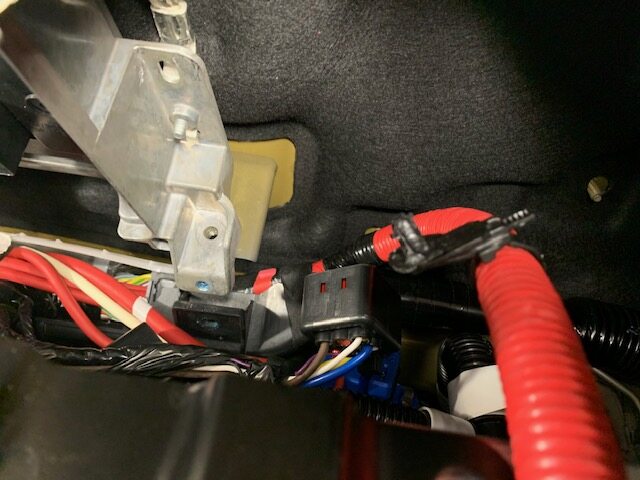

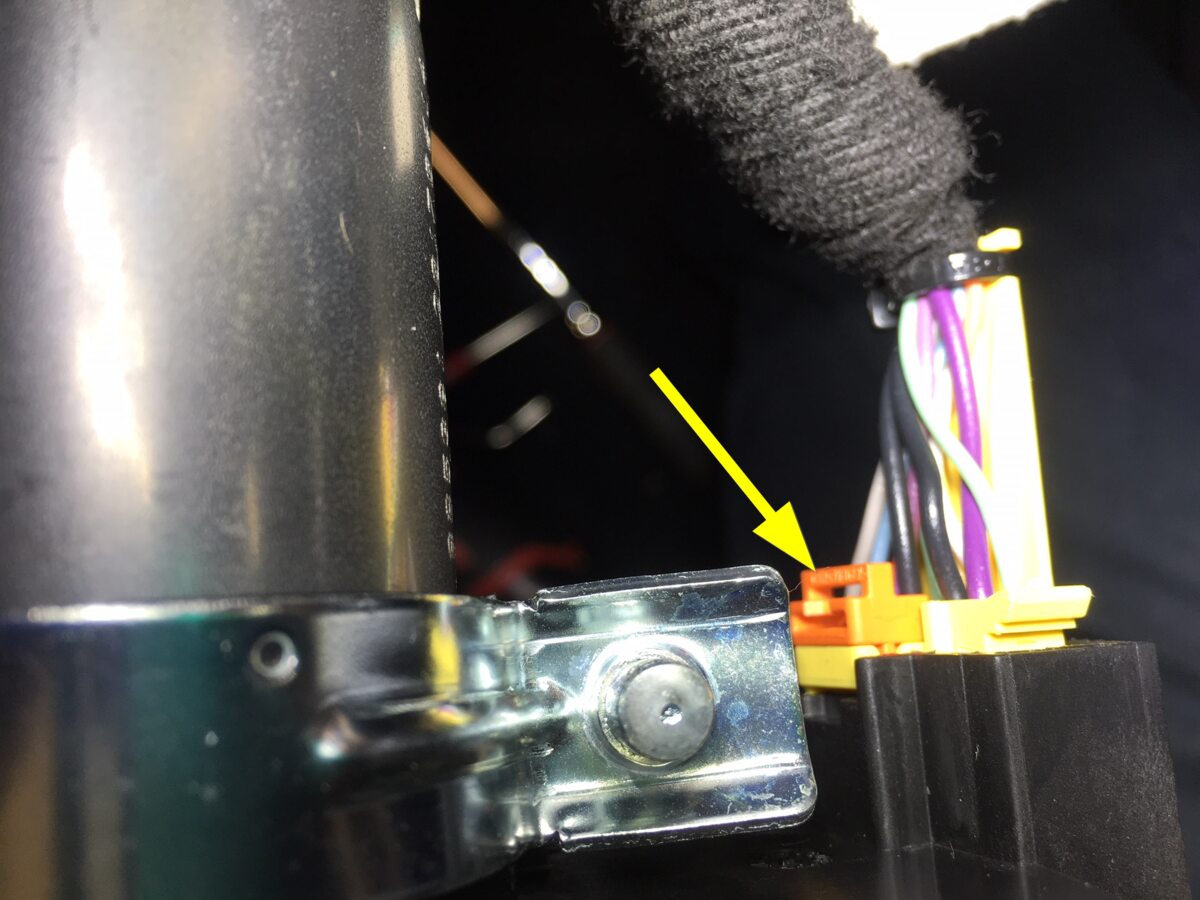

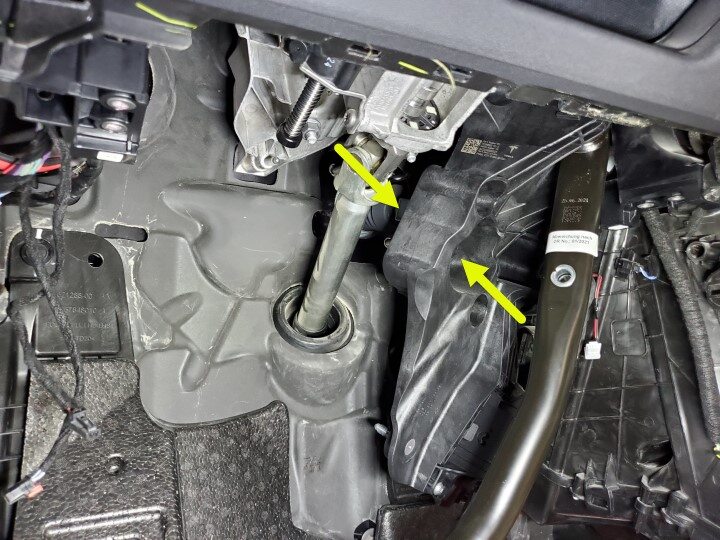

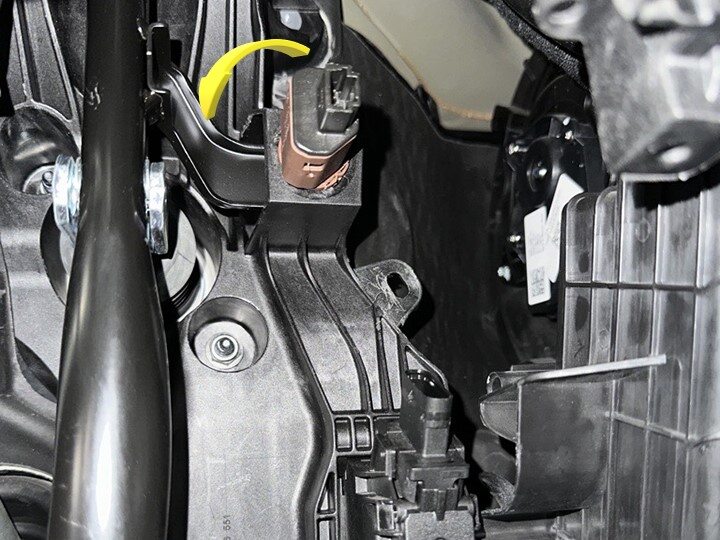

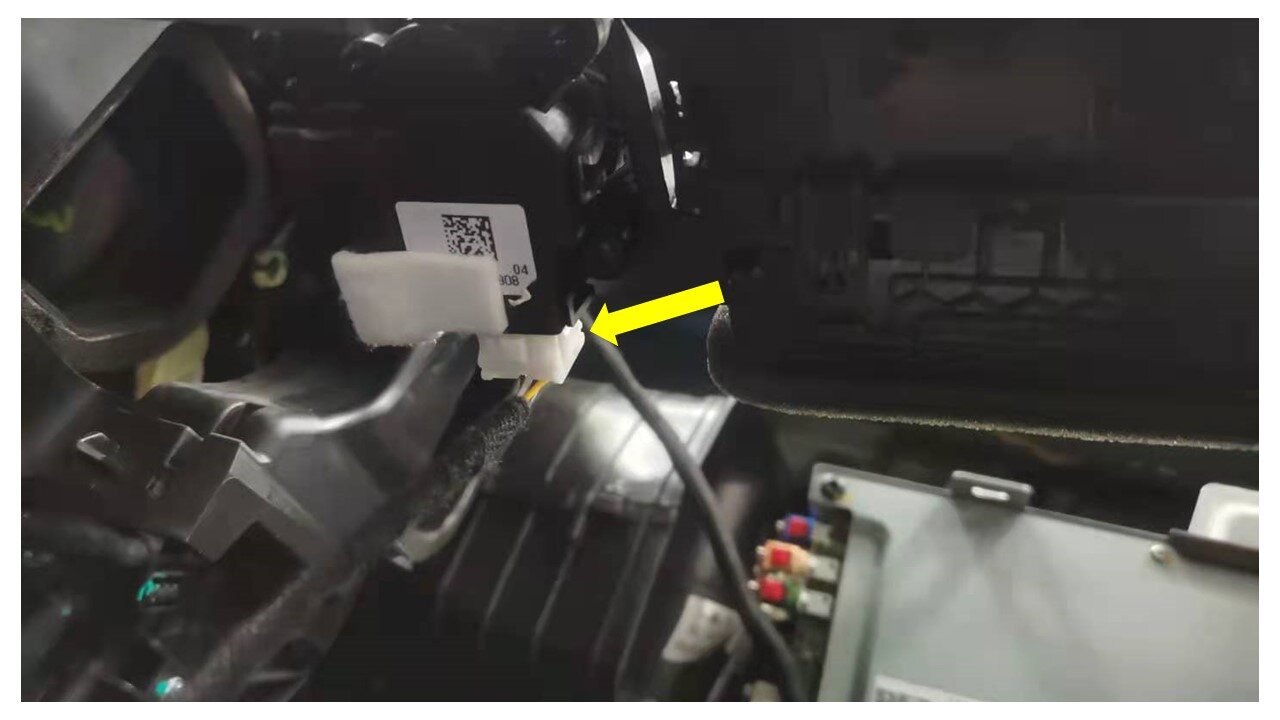

Disconnect connector from electric steering column

注

1x connector

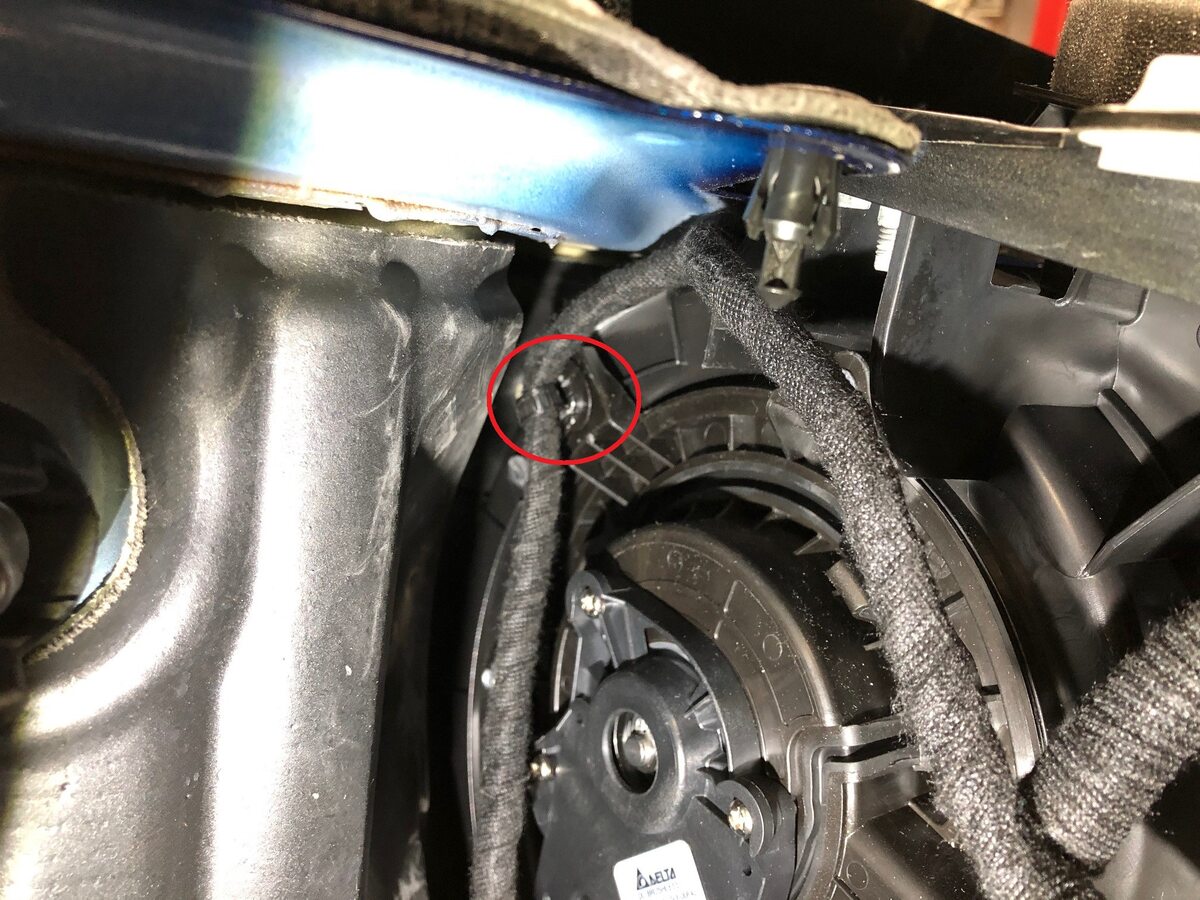

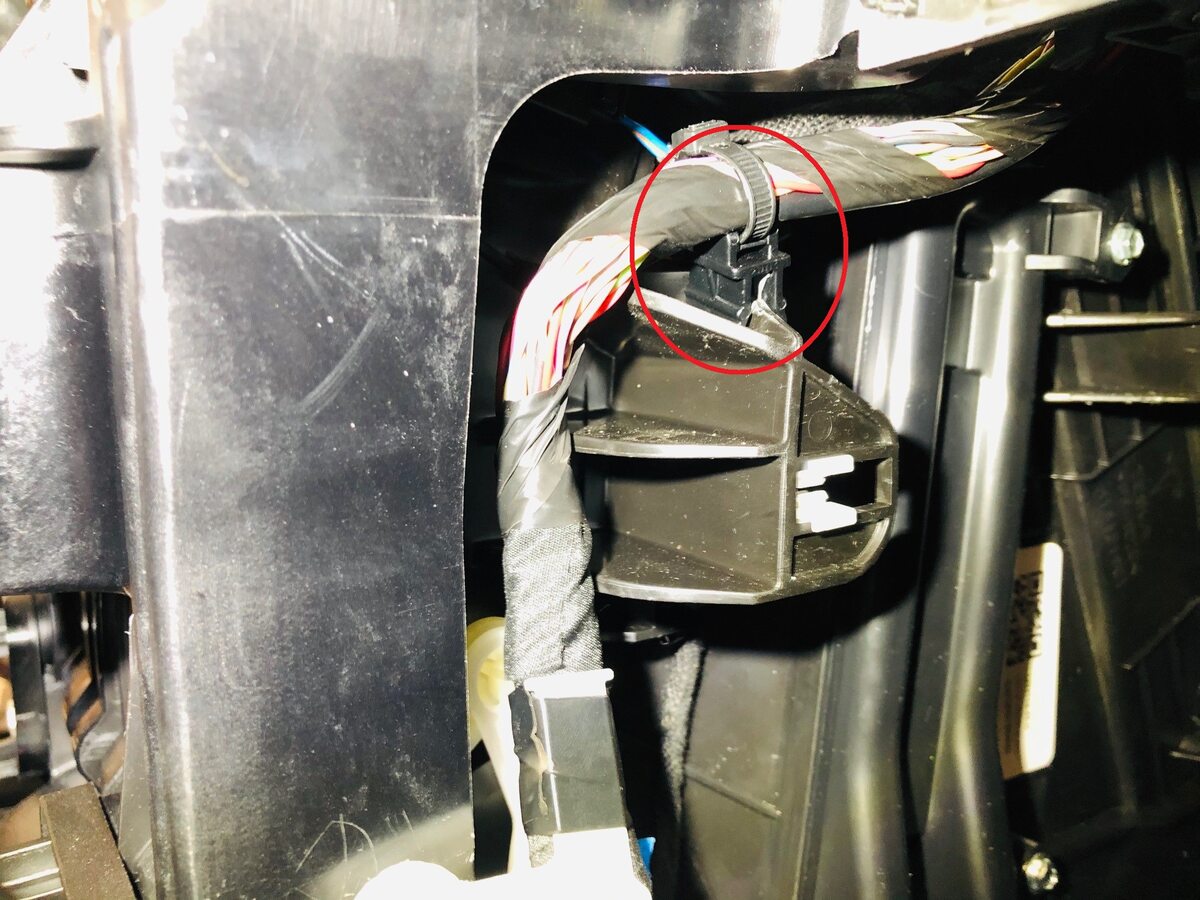

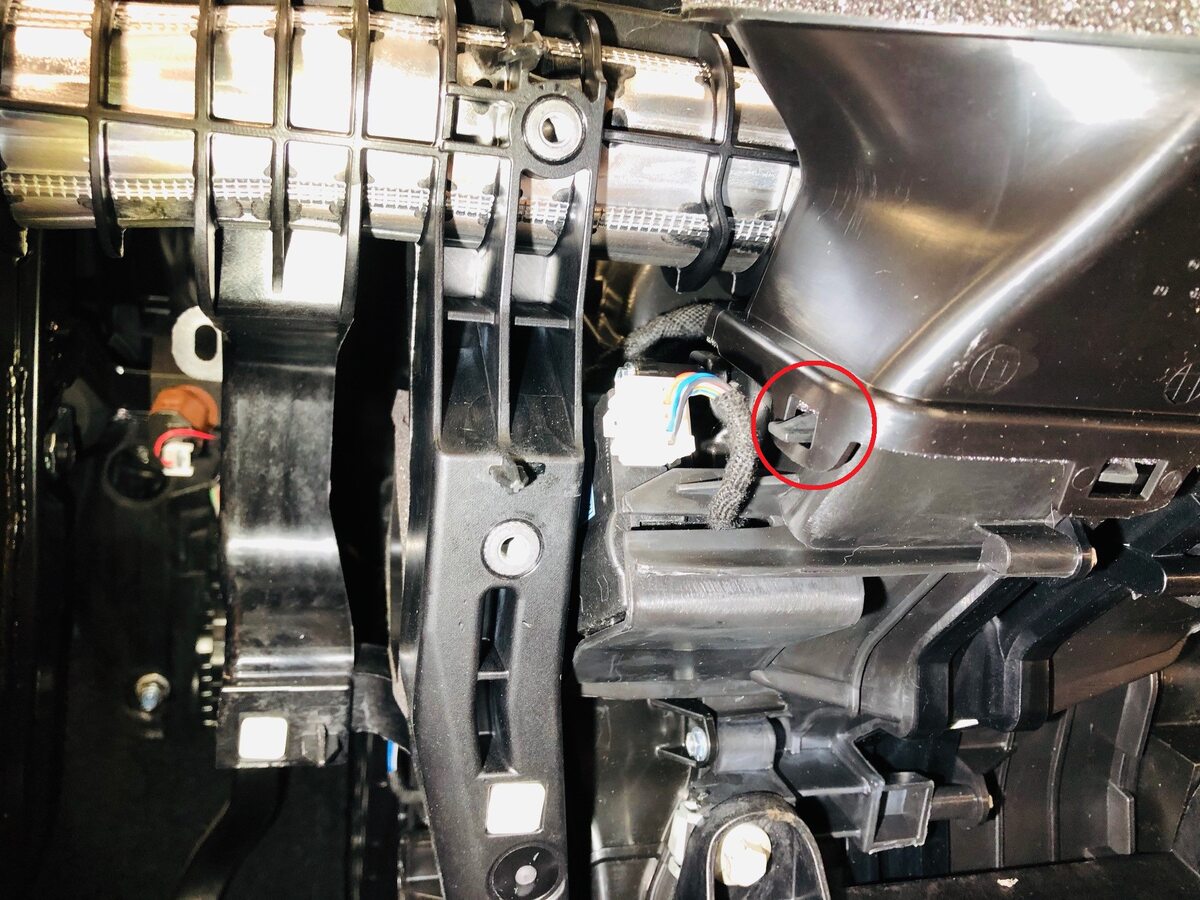

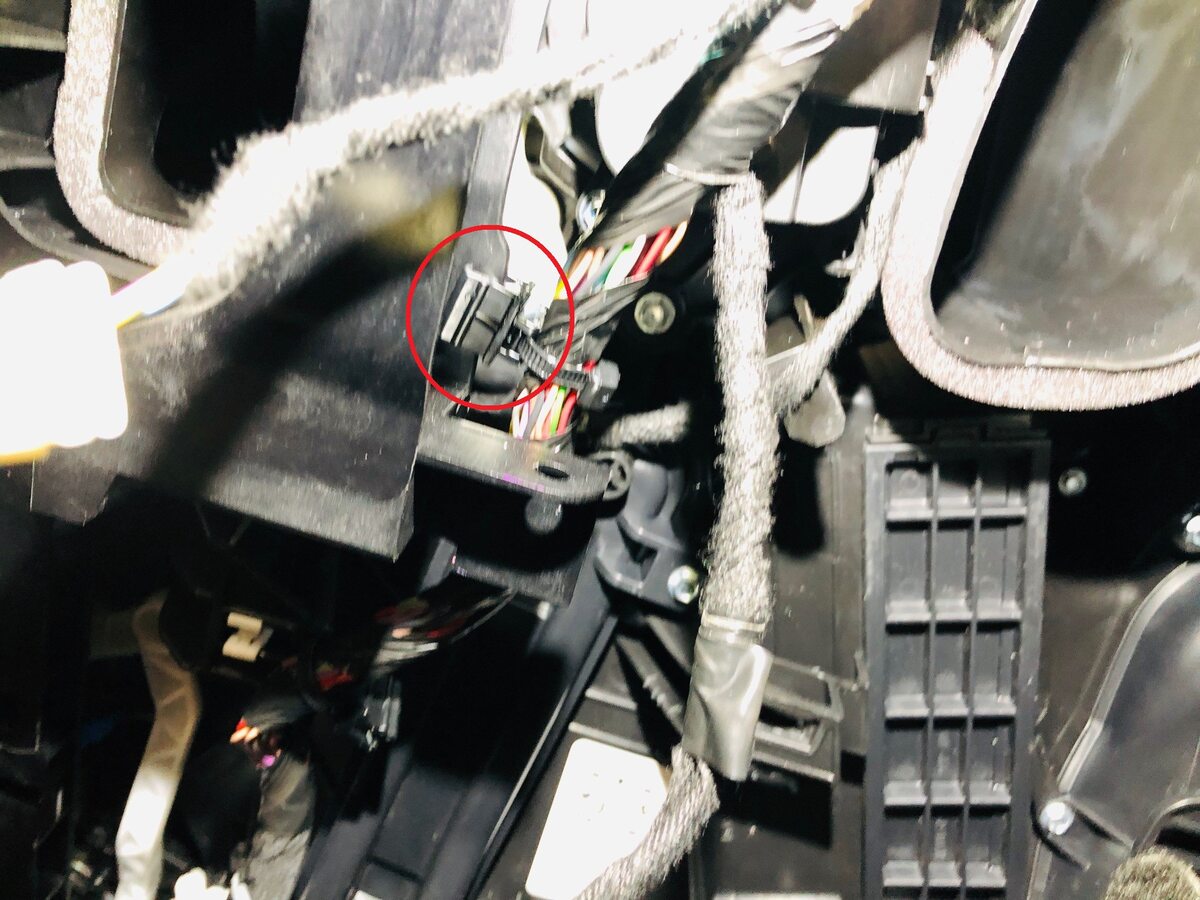

Release IP harness clip located on blower motor assembly

注

1x harness clip

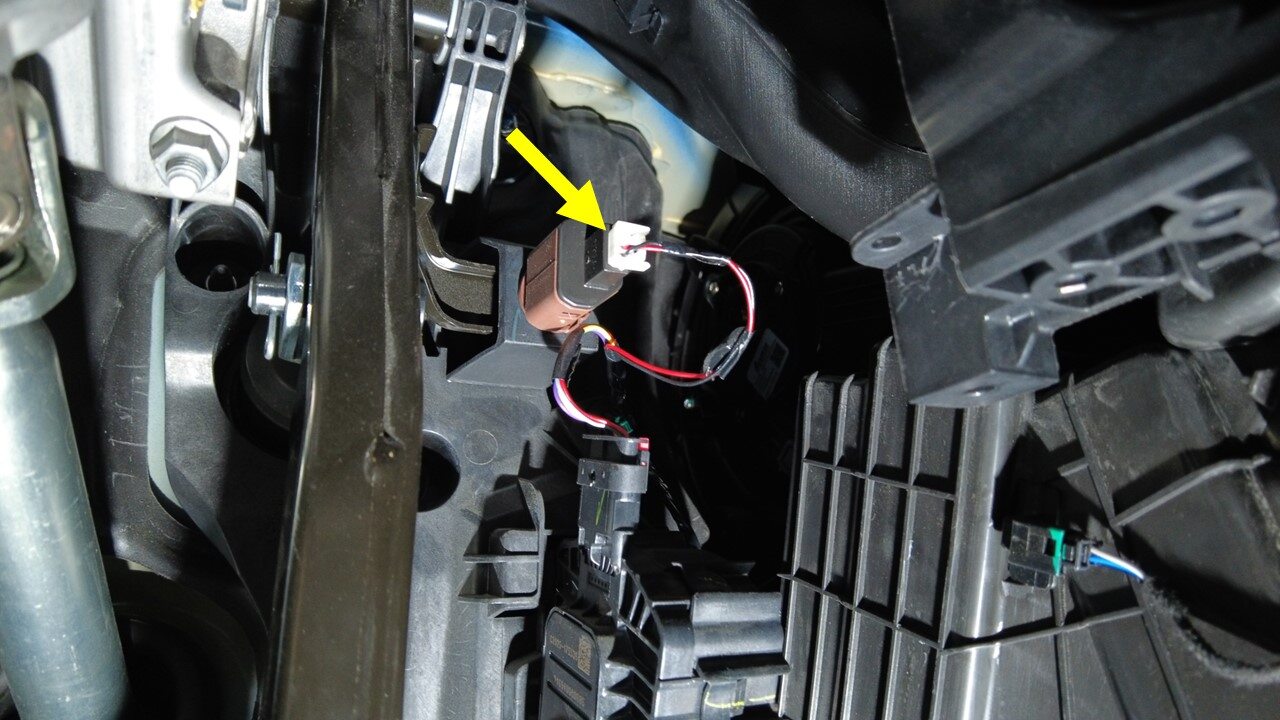

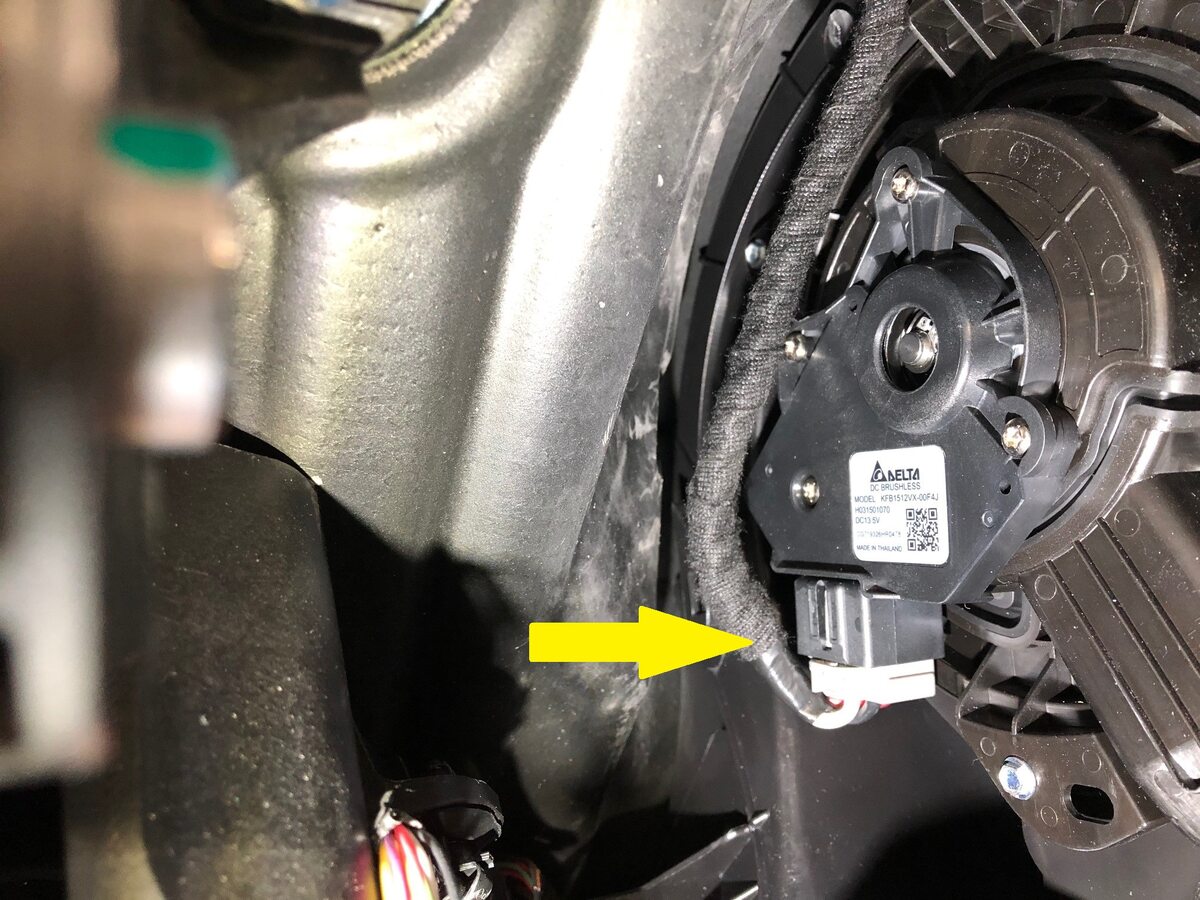

Disconnect connector on blower motor assembly

注

1x connector

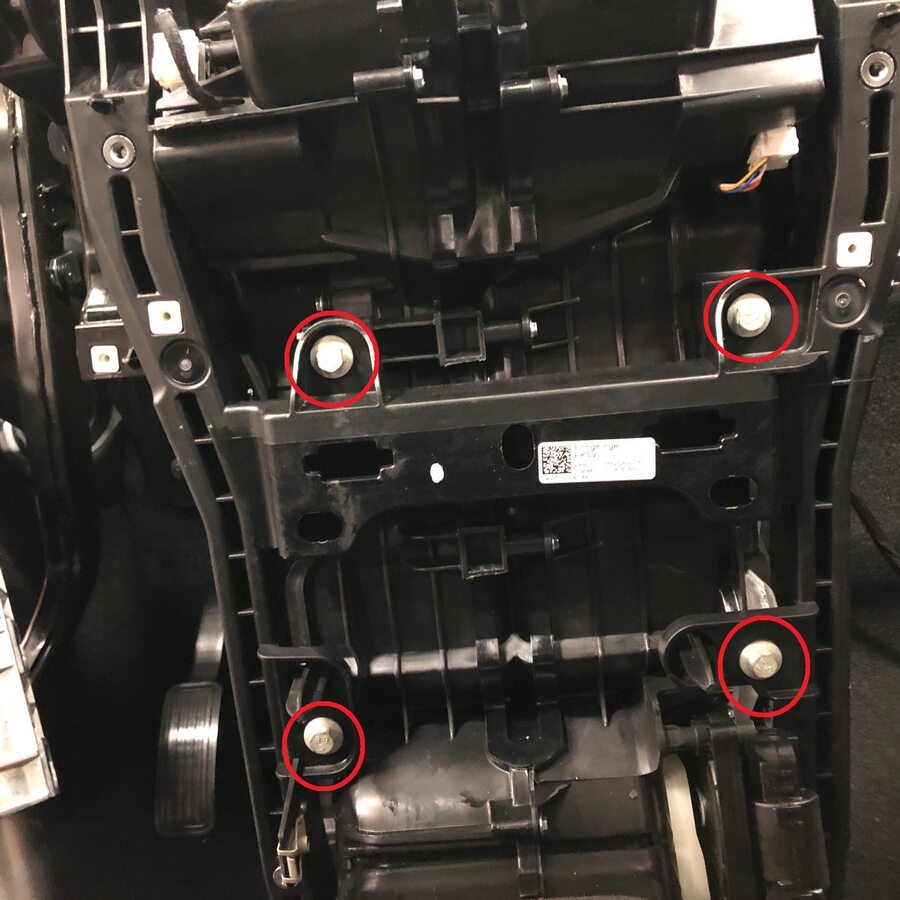

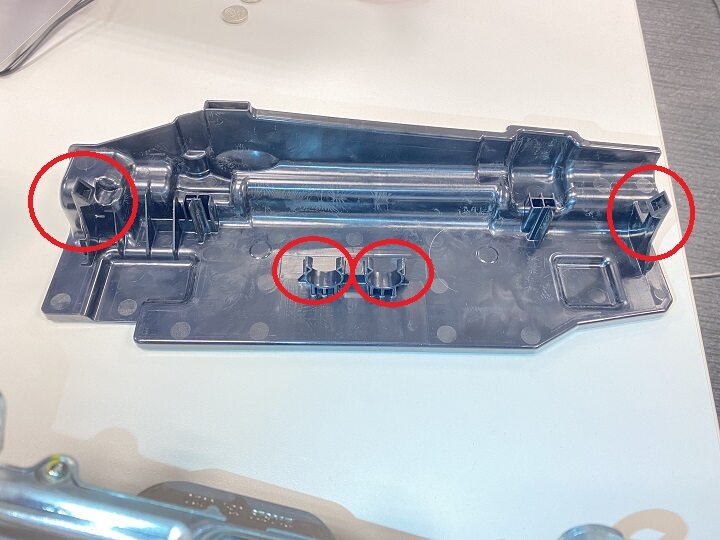

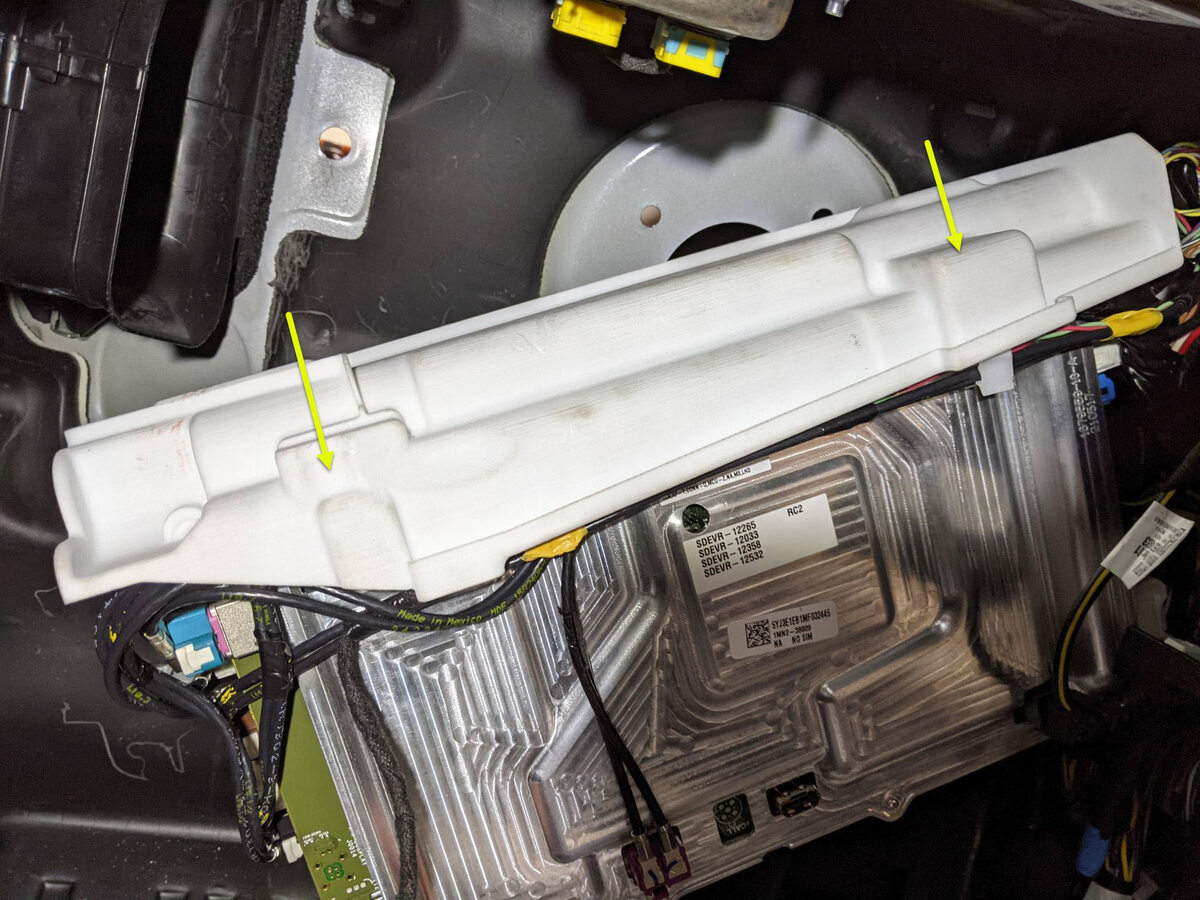

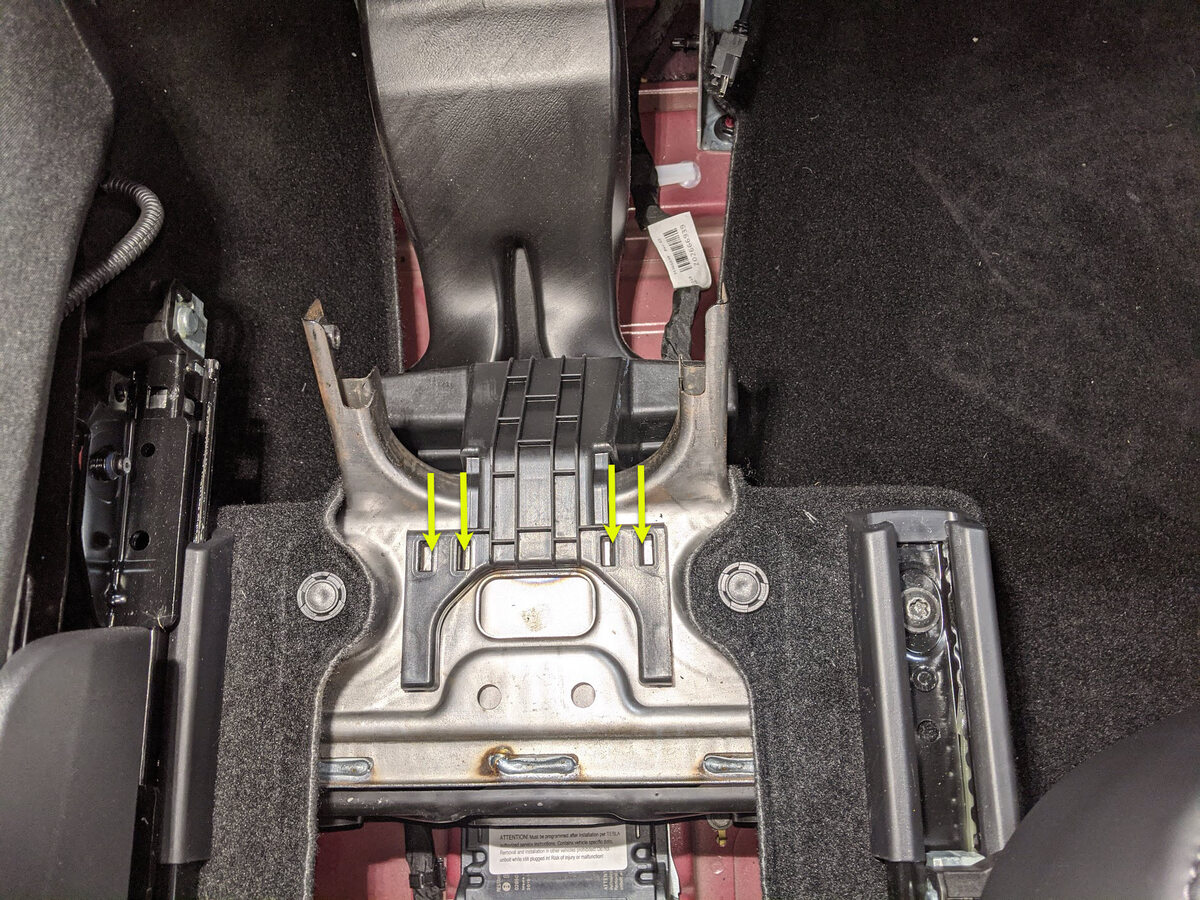

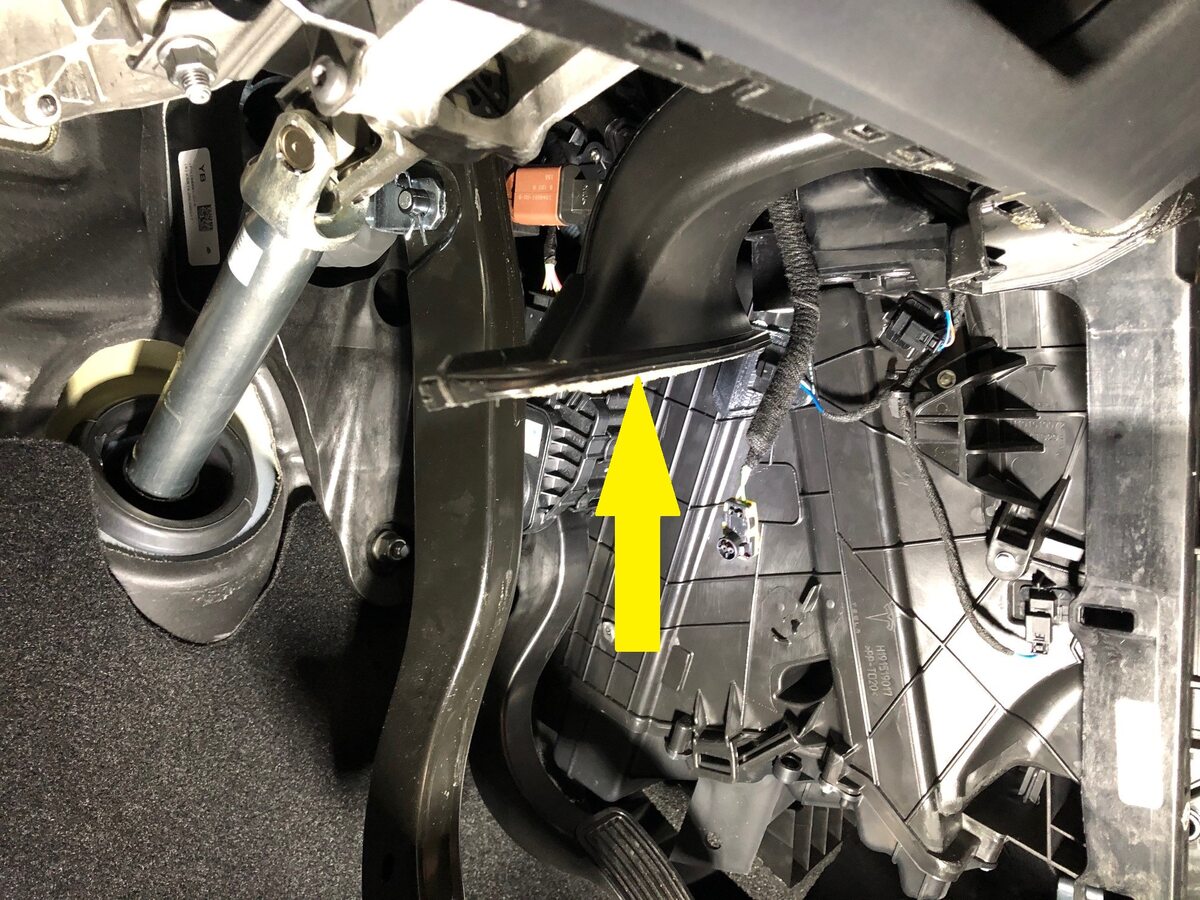

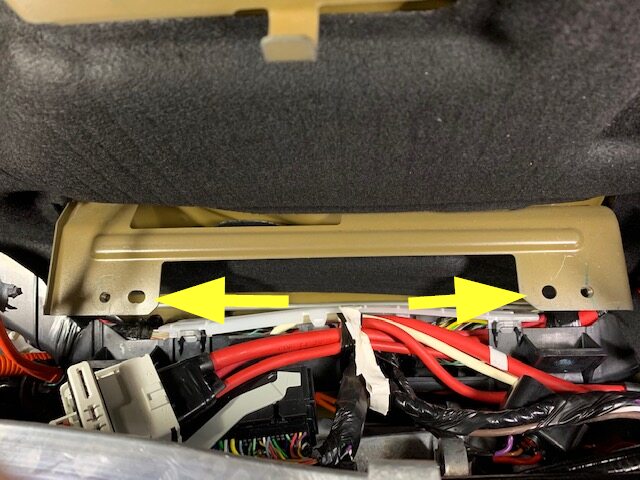

Remove center console support bracket

注

1x clip, 4x tabs, Once tabs are free from riser carefully slide towards front of vehicle

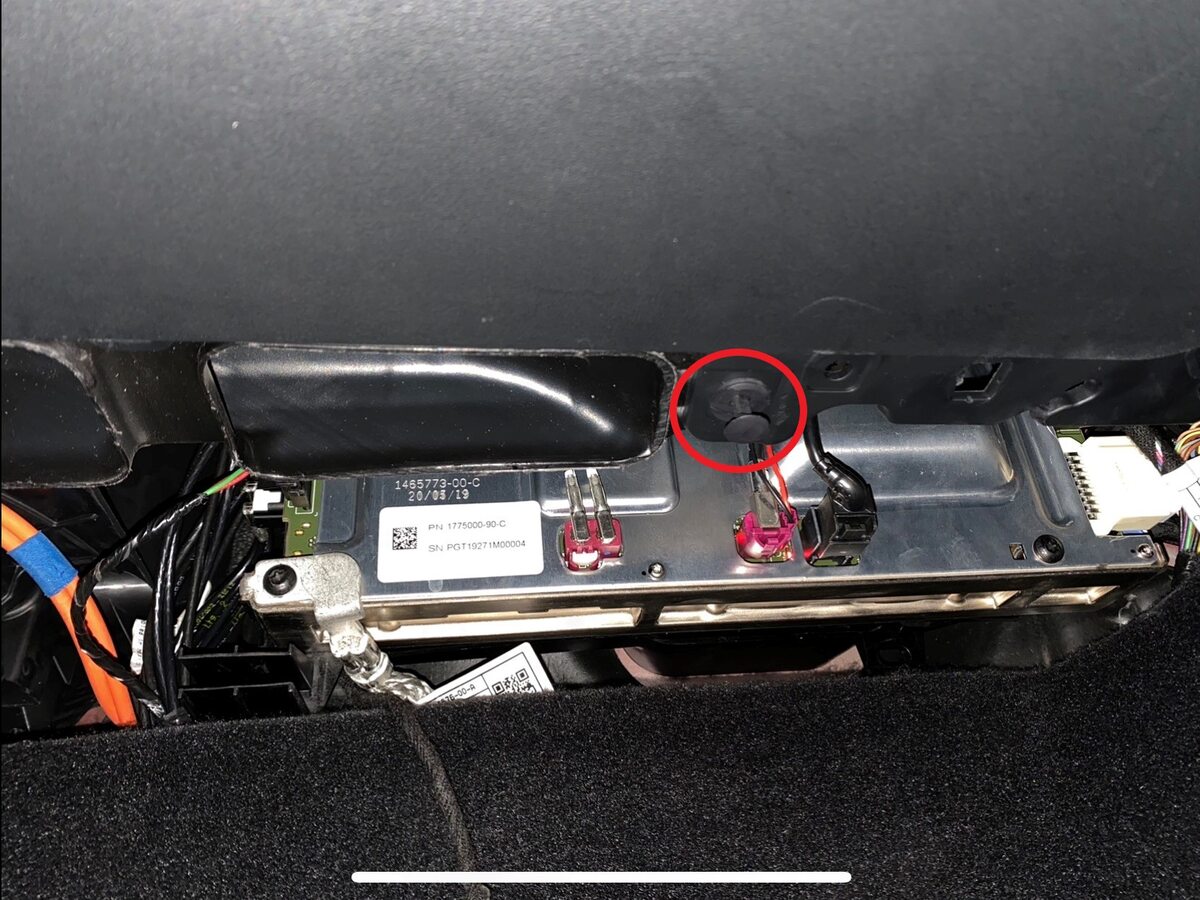

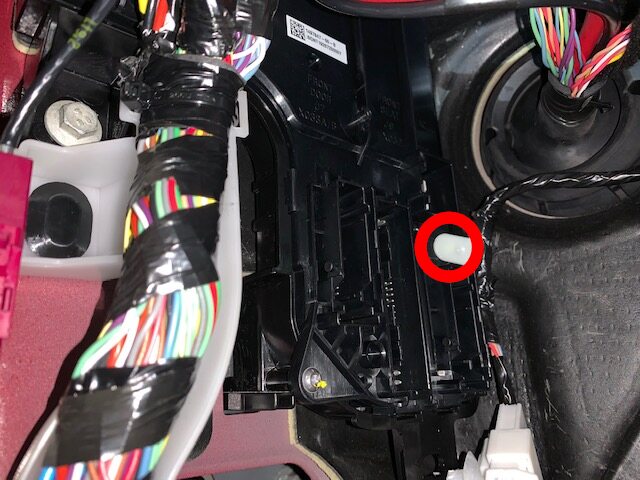

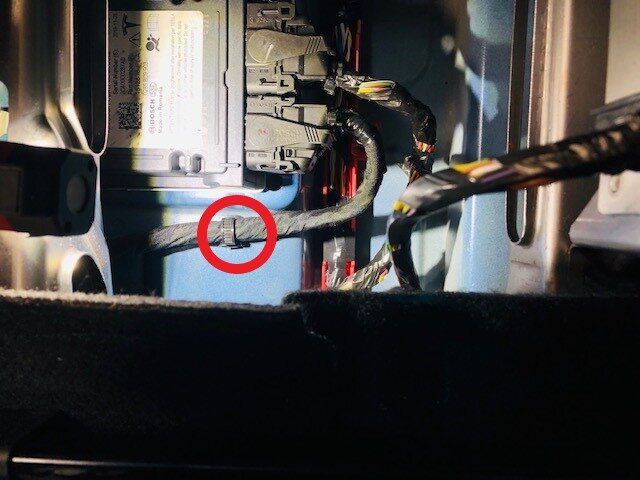

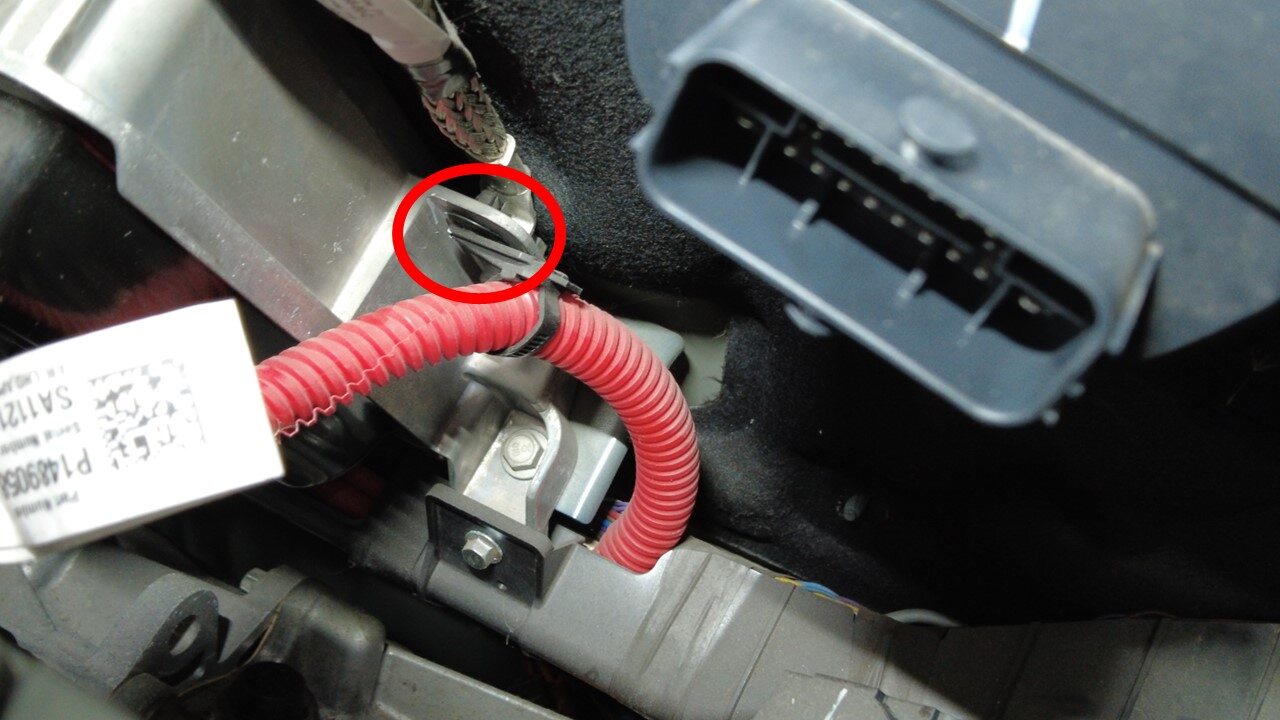

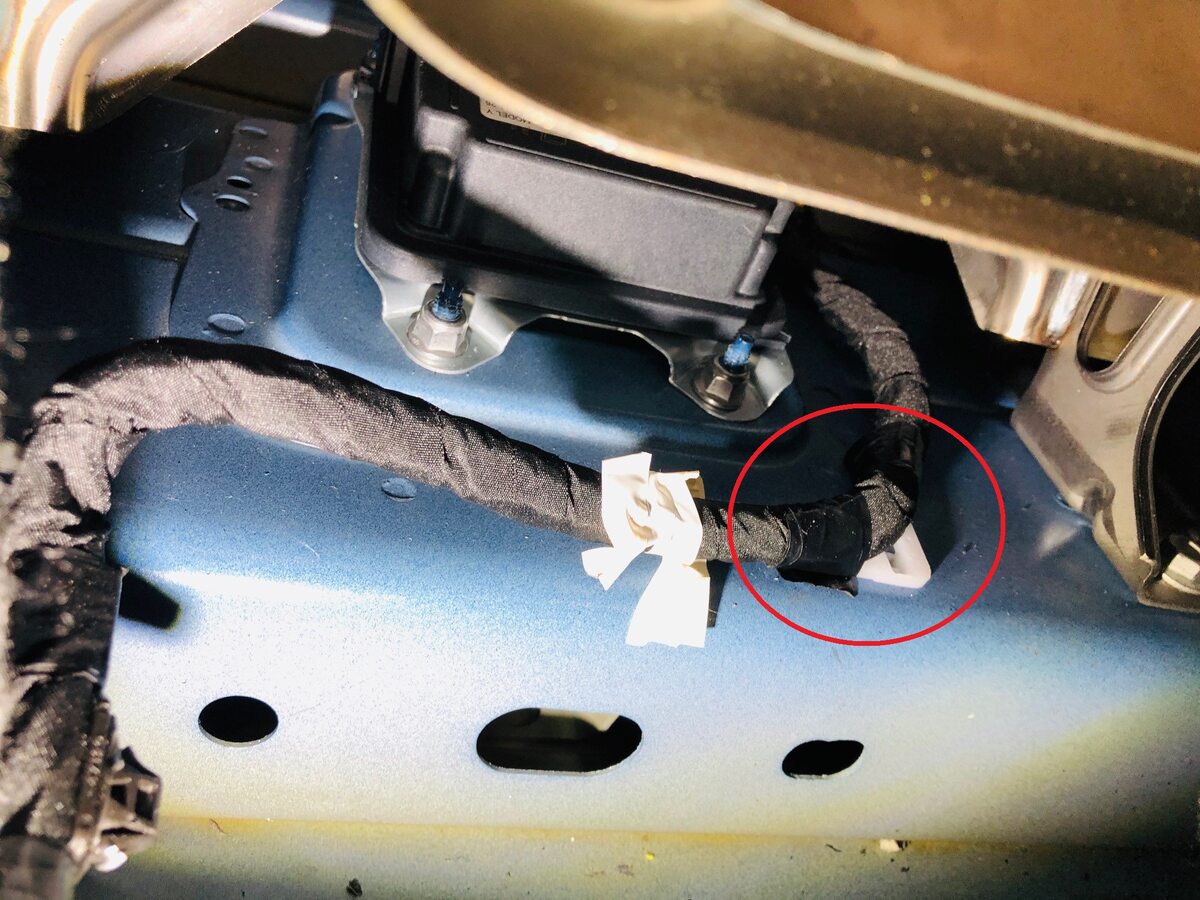

Release clip located next to RCM

注

1x harness clip

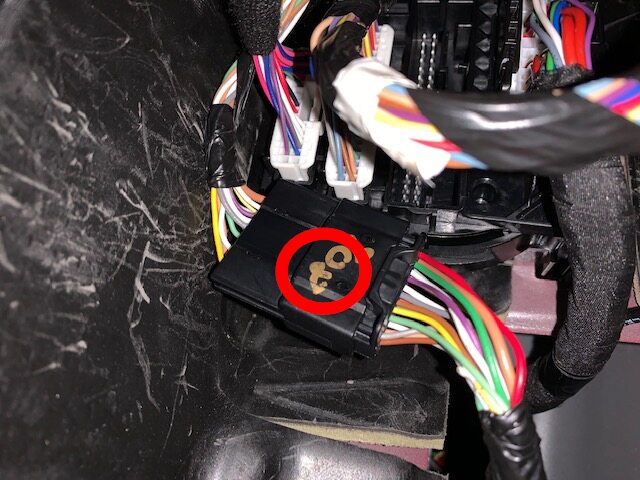

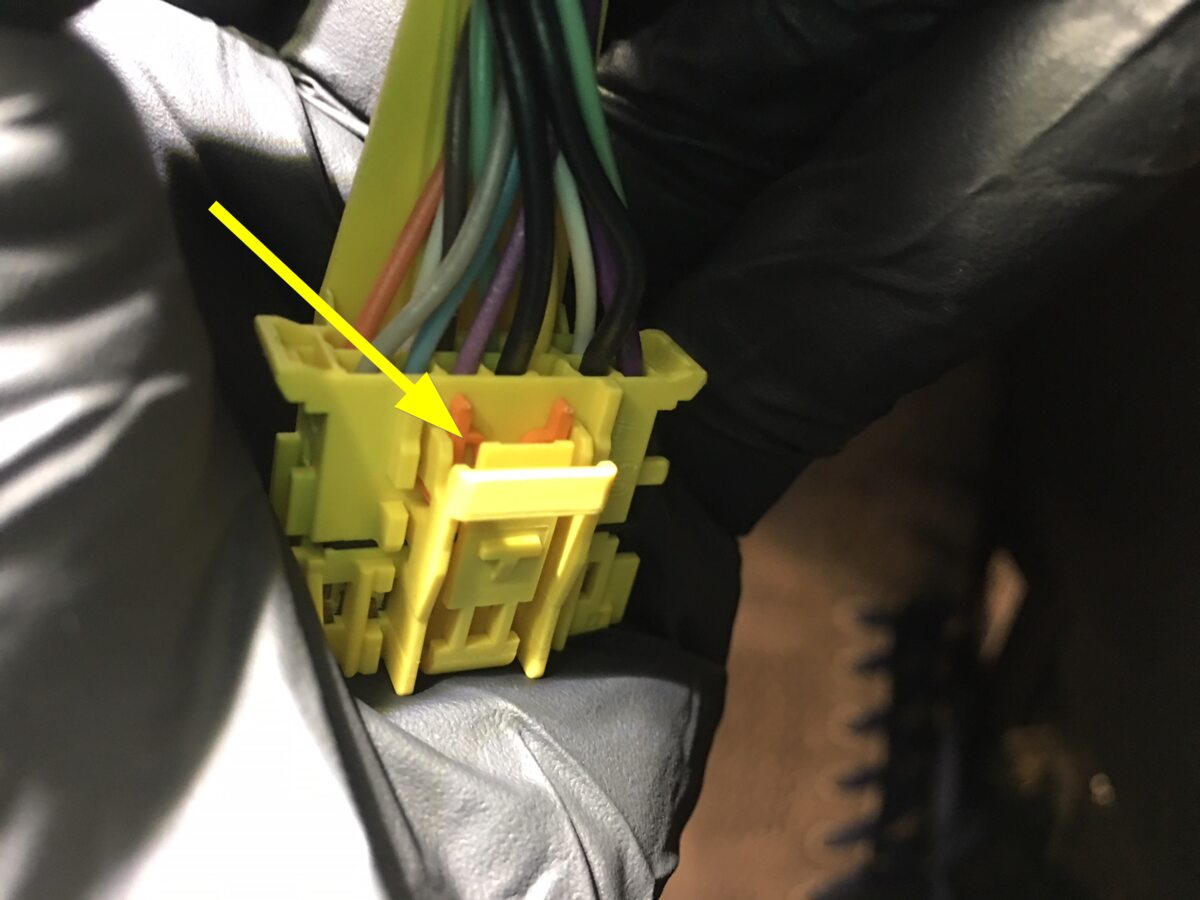

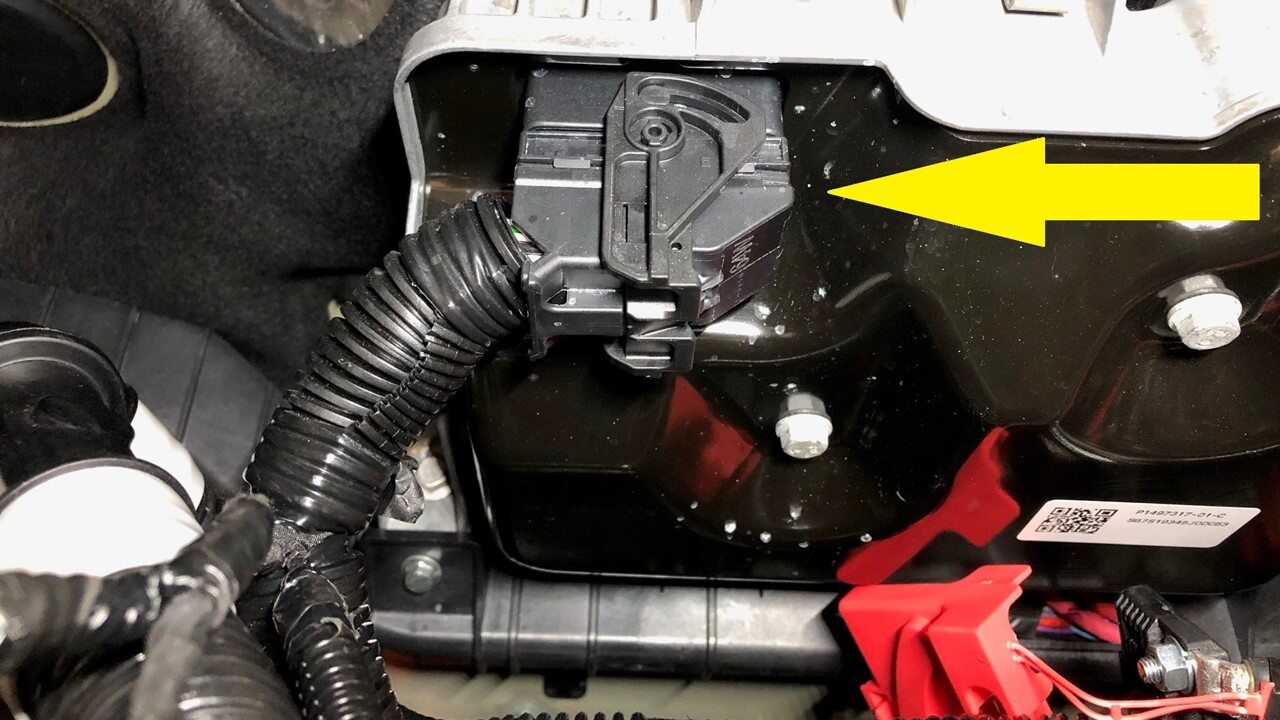

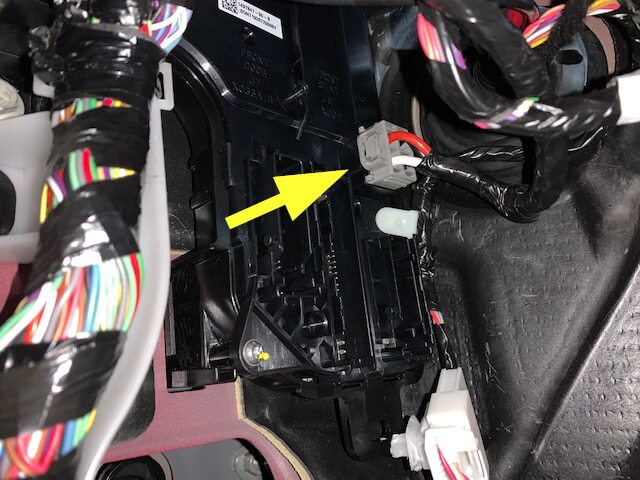

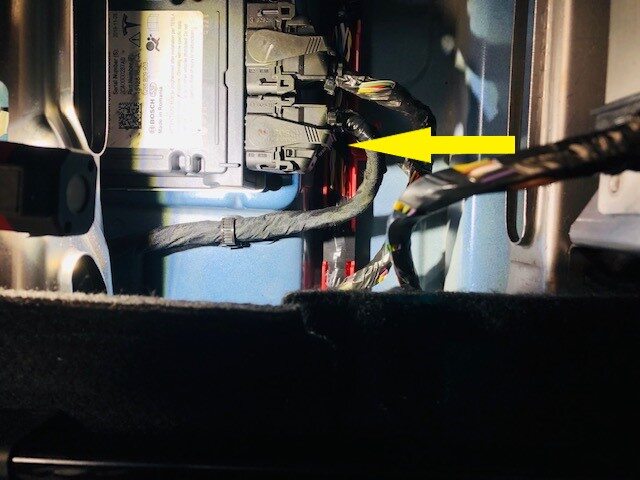

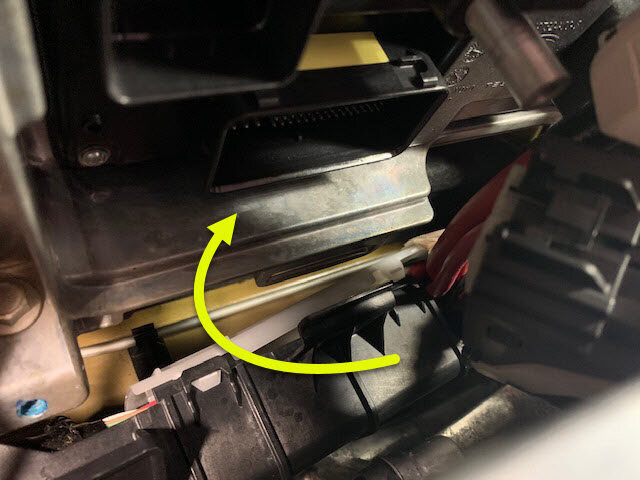

Disconnect connector located on RCM

注

1x connector, Push down on locking tab and release connector

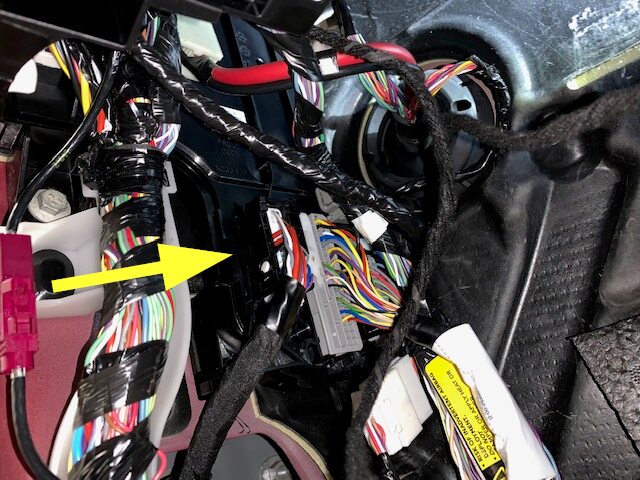

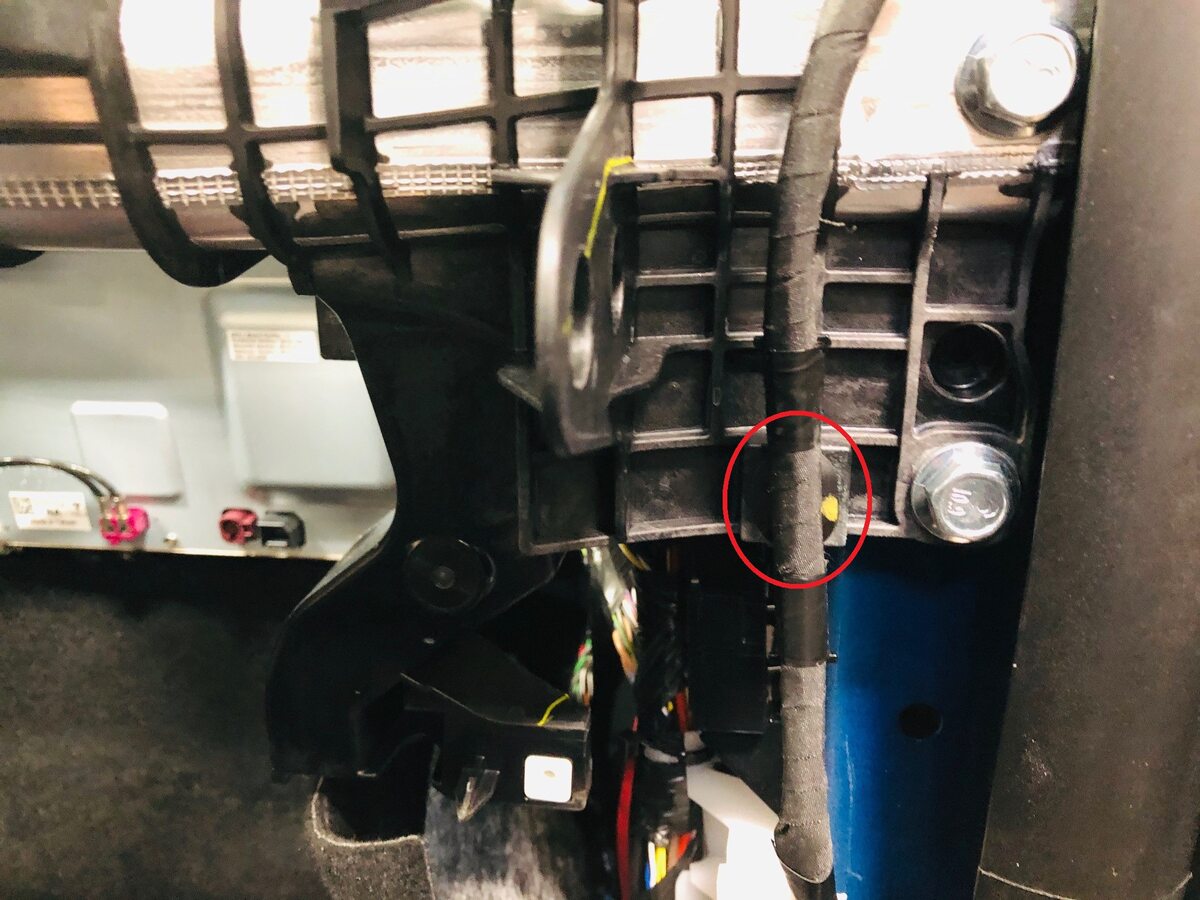

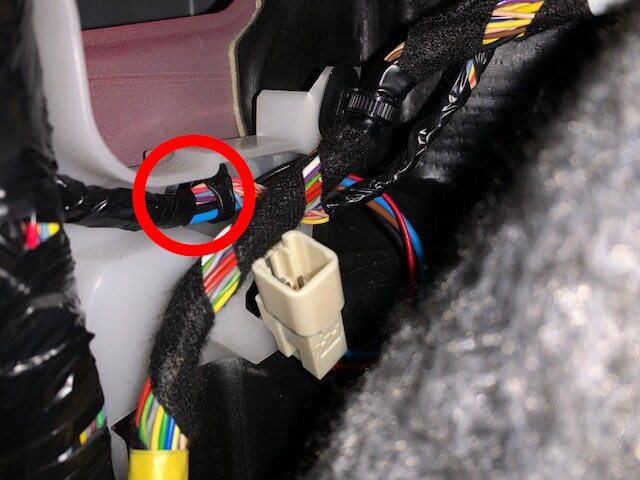

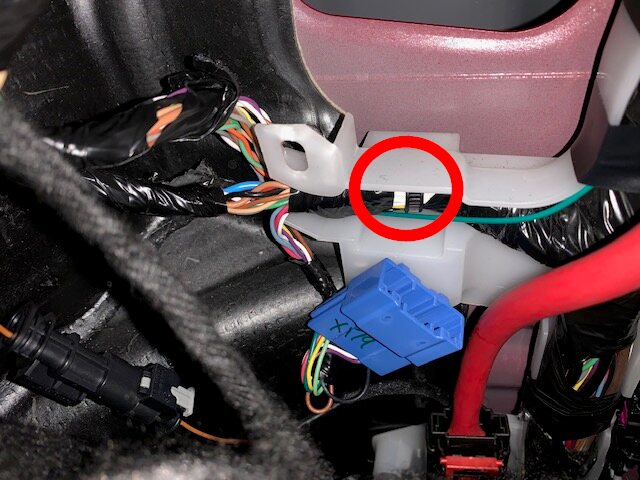

Release IP harness clip located next to RCM

注

1x harness clip, Release inner tabs on clip then lift from body

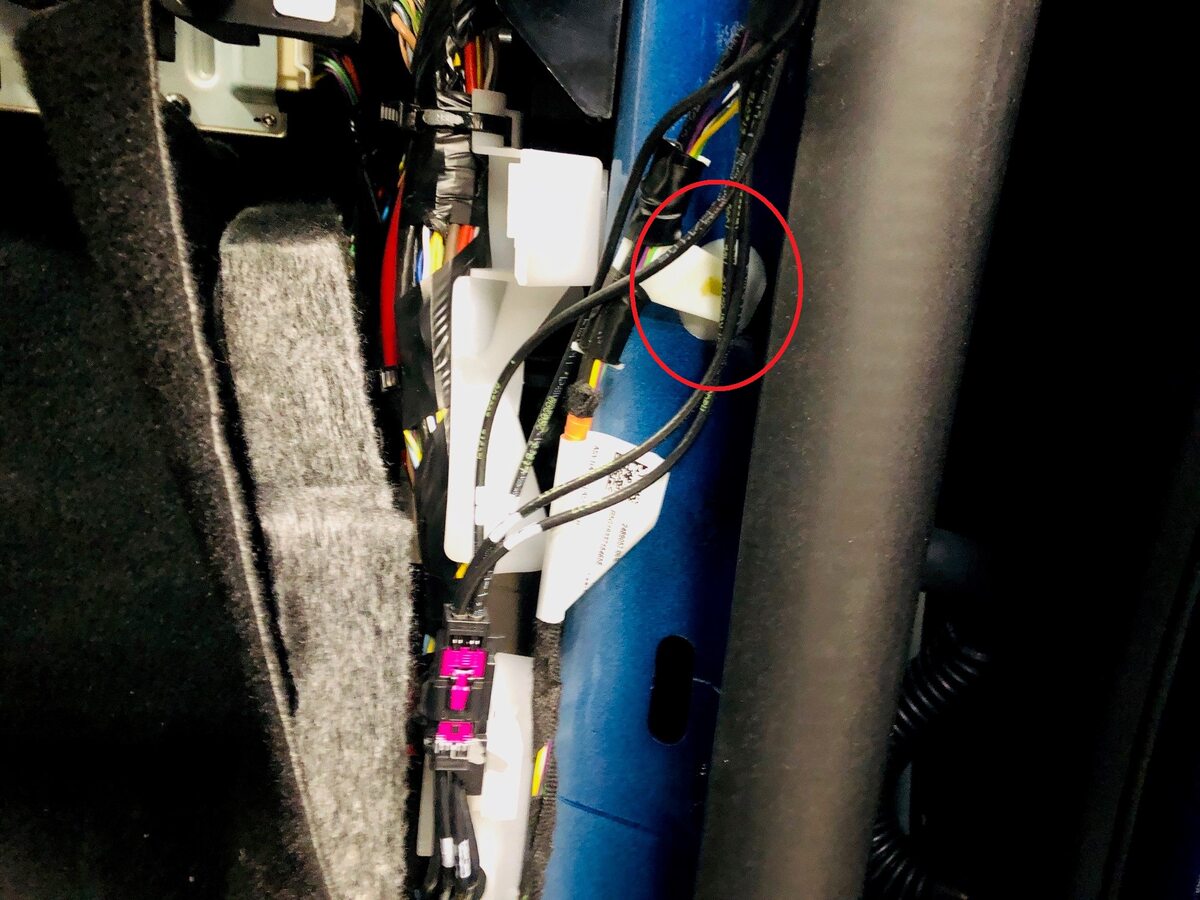

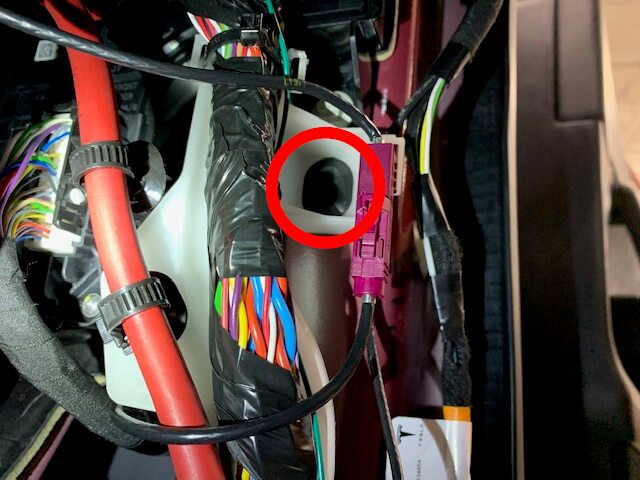

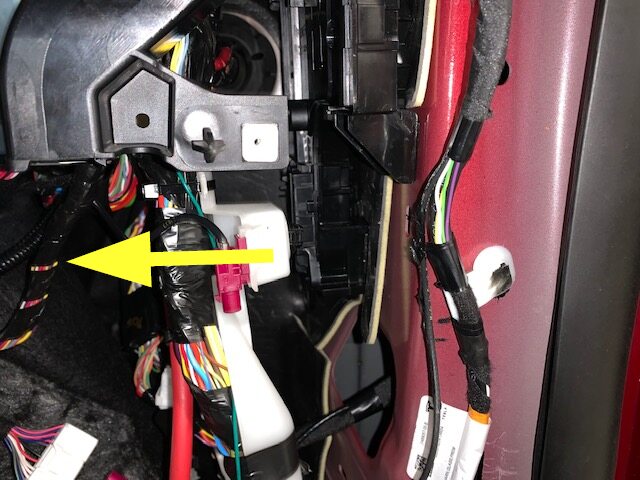

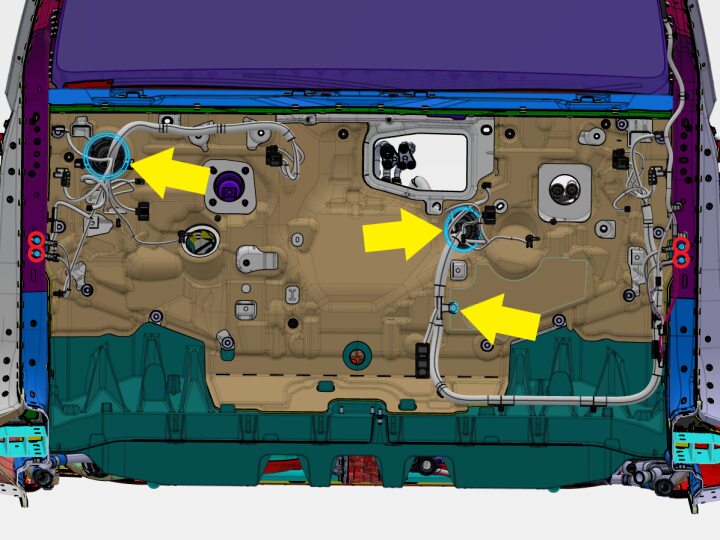

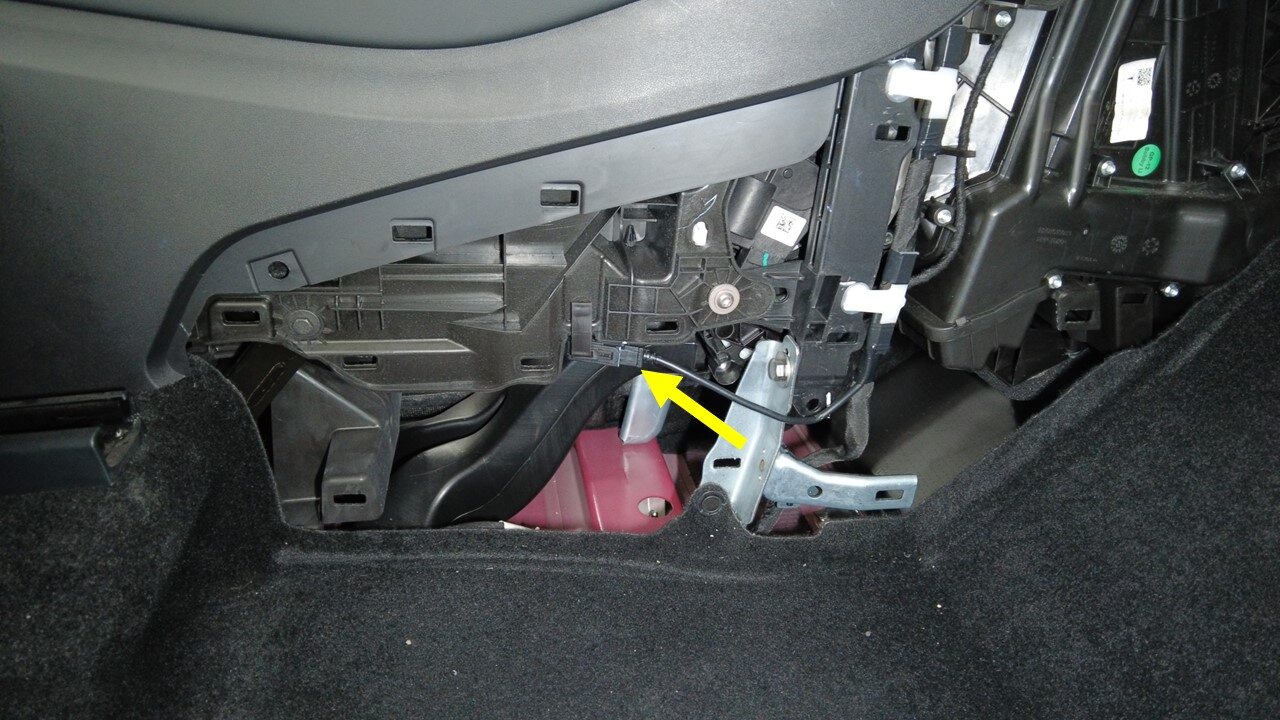

Release IP harness clip from body vehicle by RH cross car beam bracket

注

1x harness clip

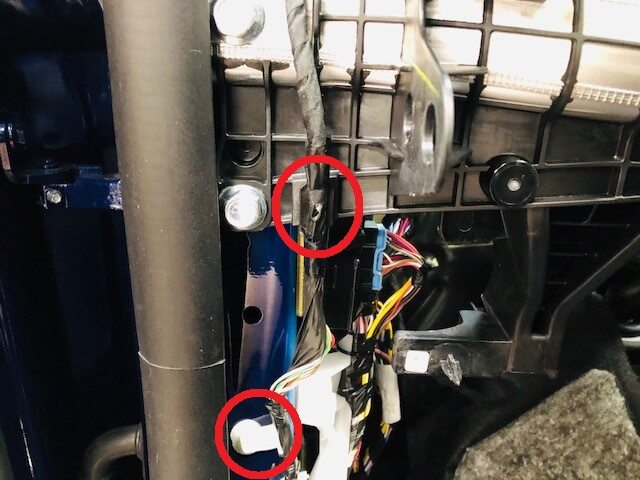

Release IP harness clip from cross car beam

注

1x harness clip

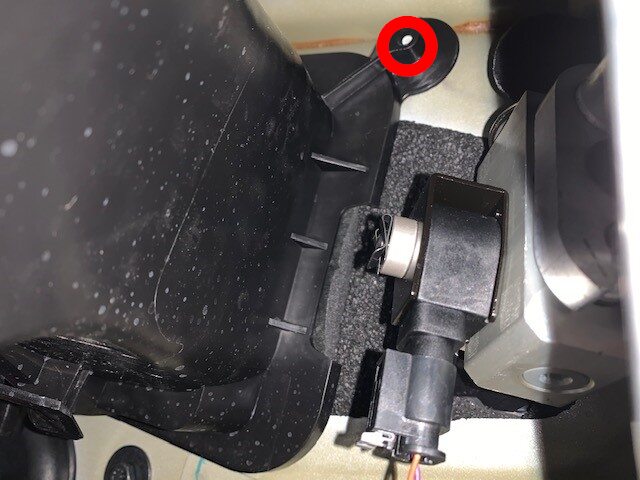

Release IP harness clip next to RH lower duct thermistor

注

1x harness clip

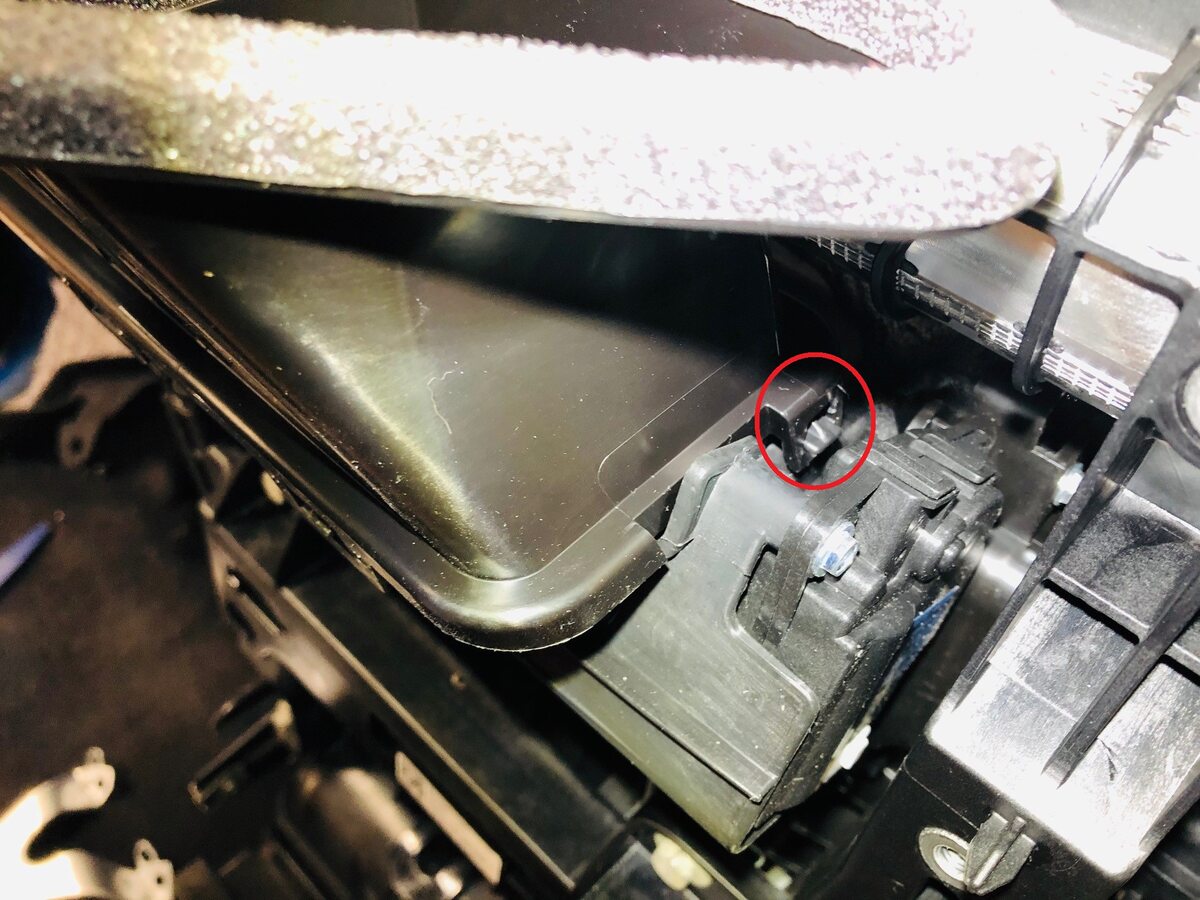

Release IP harness clip next to RH upper mode actuator

注

1x harness clip

Release HVAC harness from IP harness holding mount on RH side of IP harness.

注

2x holding mount, 1st holding mount is located on the RH side of the HVAC assembly, 2nd holding mount is located next to the right body controller

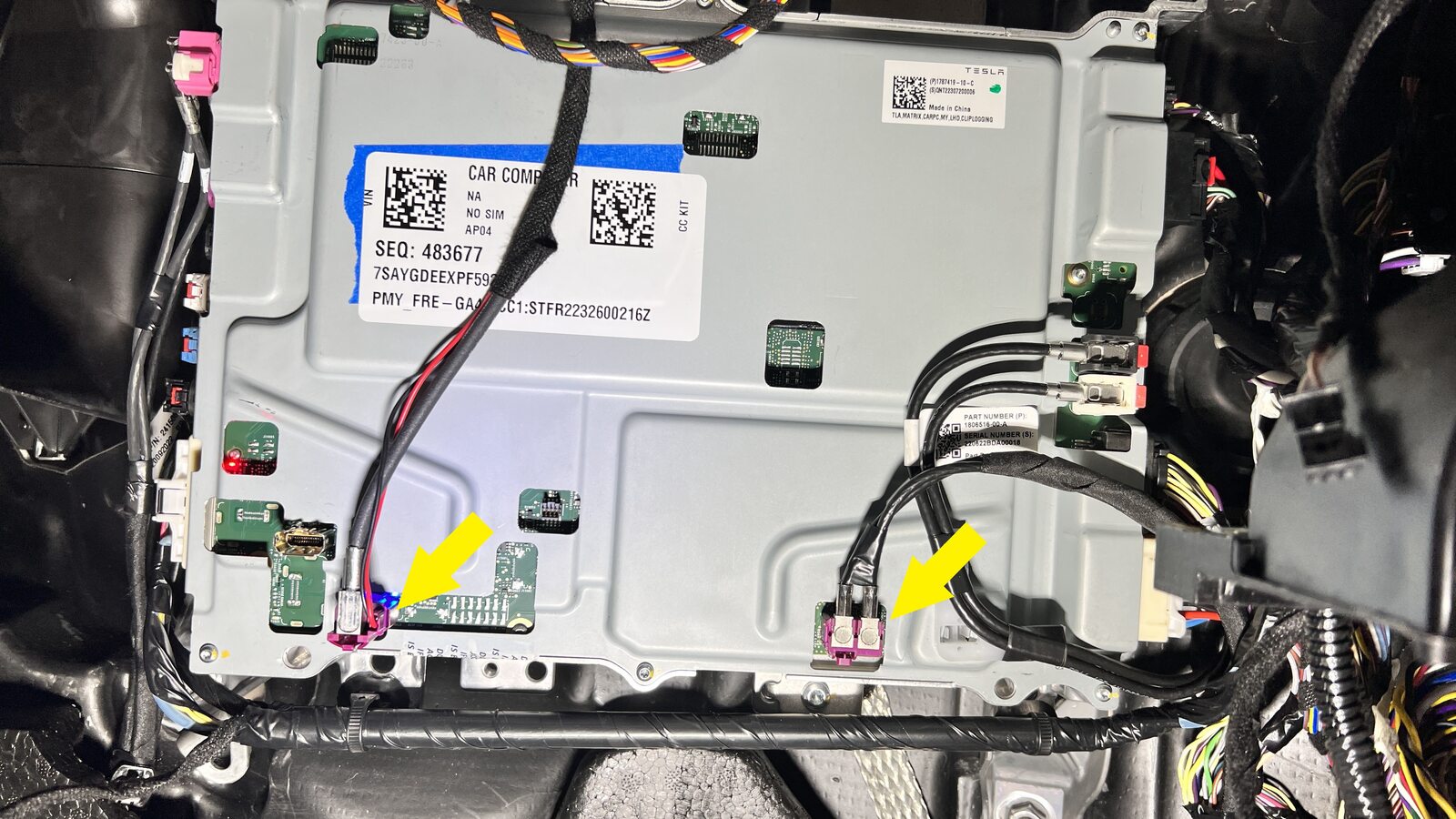

Disconnect connectors from car computer

注

2x connectors

Partially remove RH carpet

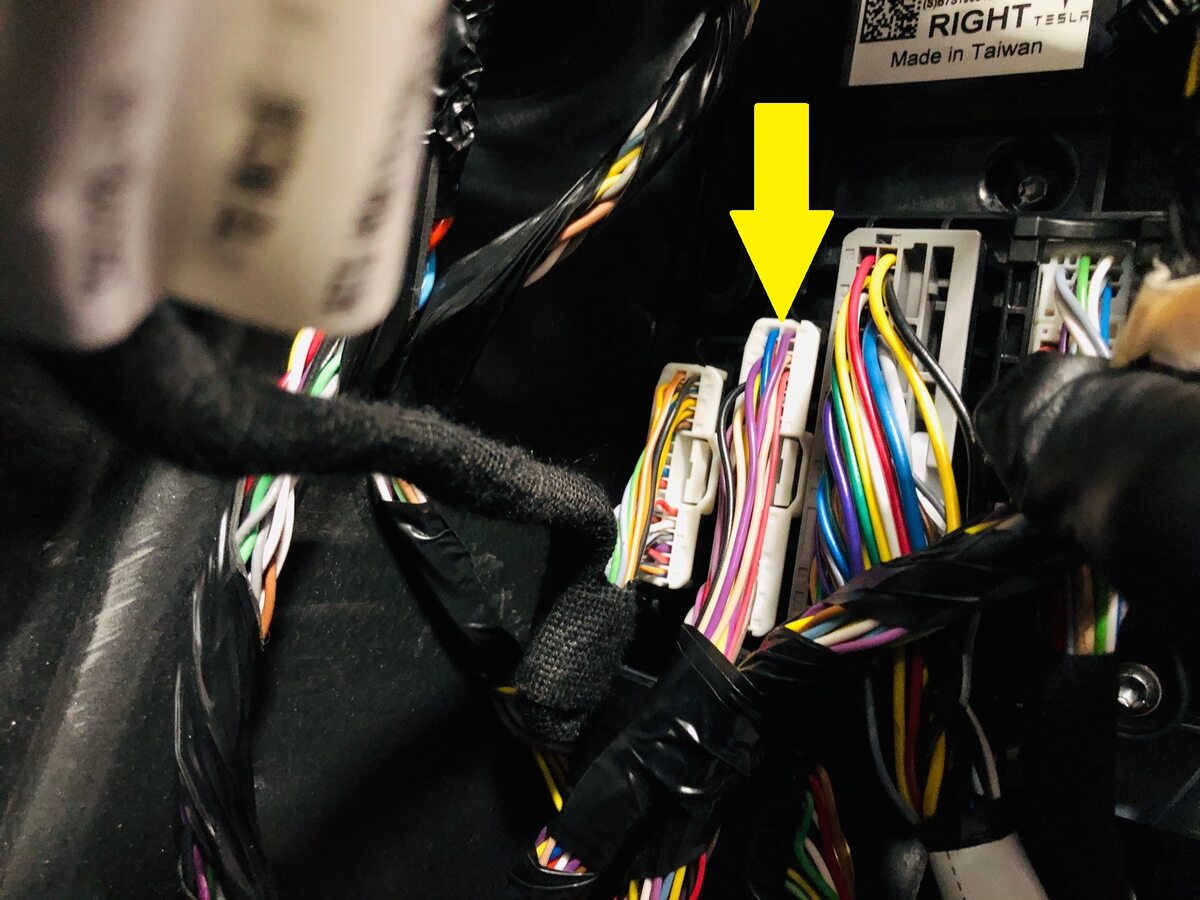

Disconnect dash harness connector from right body controller

注

1x connector

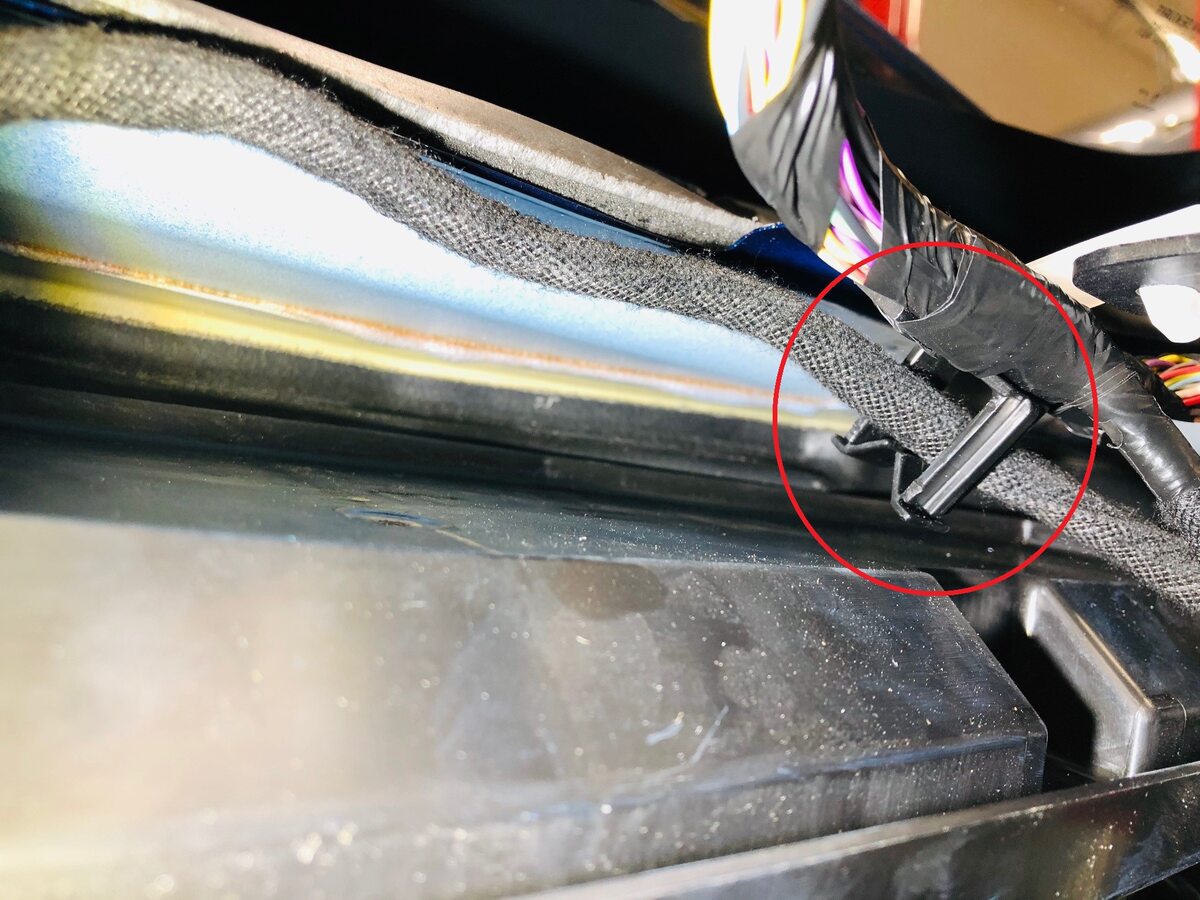

Release clip from RH side of cross car beam

注

1x harness clip

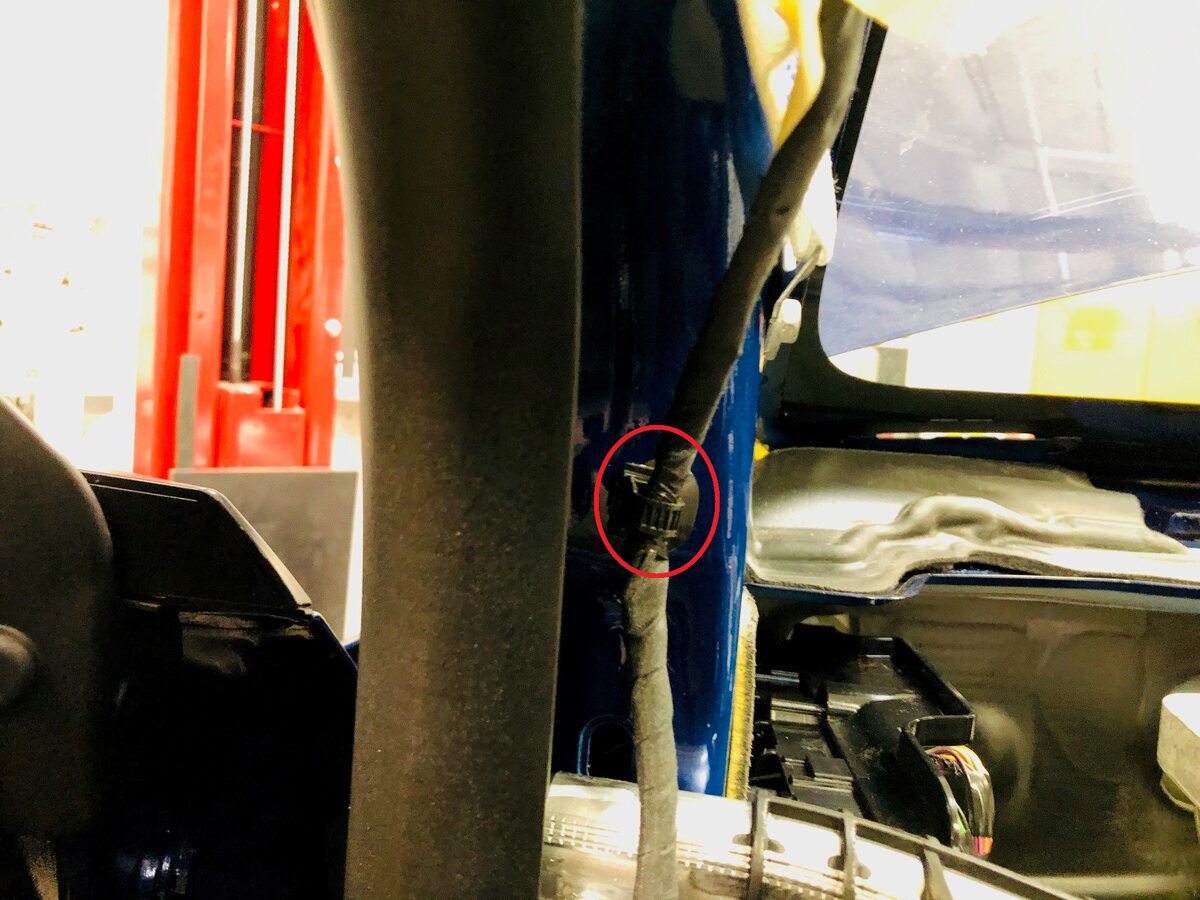

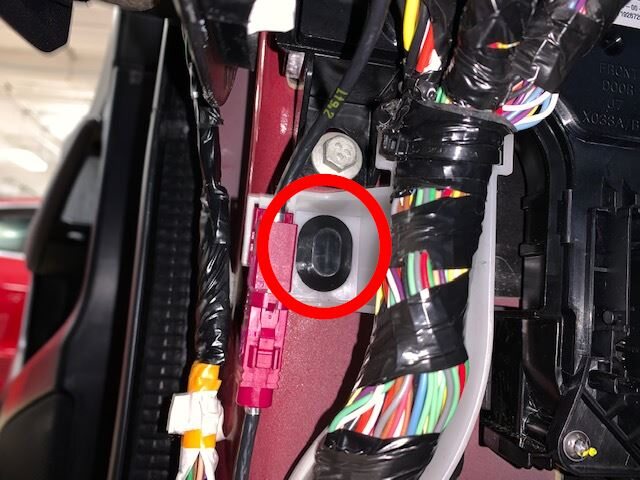

Release clip from body of vehicle on RH lower A-pillar

注

1x harness clip

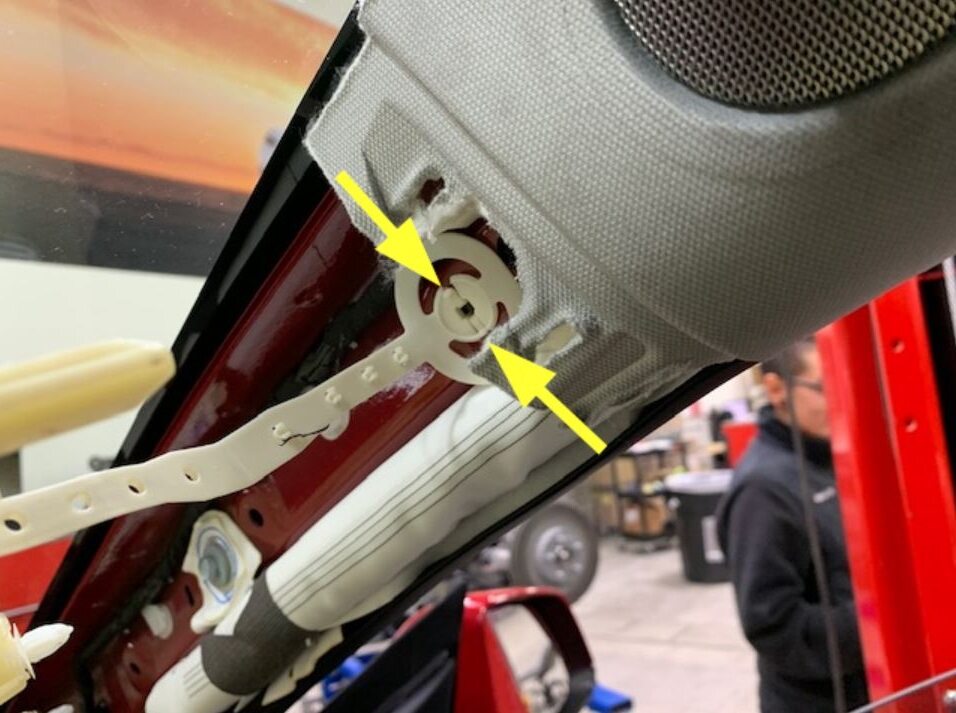

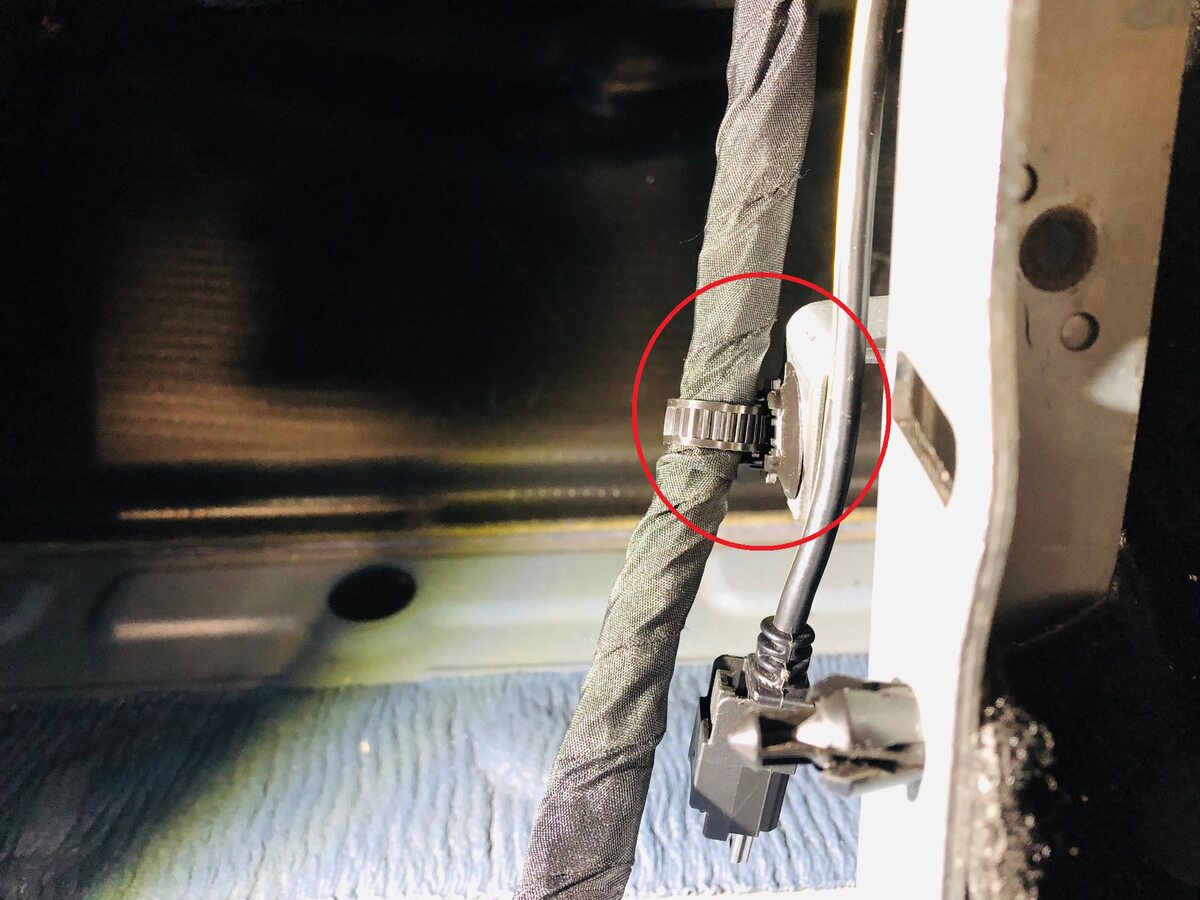

Release headliner harness clip from body of vehicle located on LH upper A-pillar

注

1x harness clip

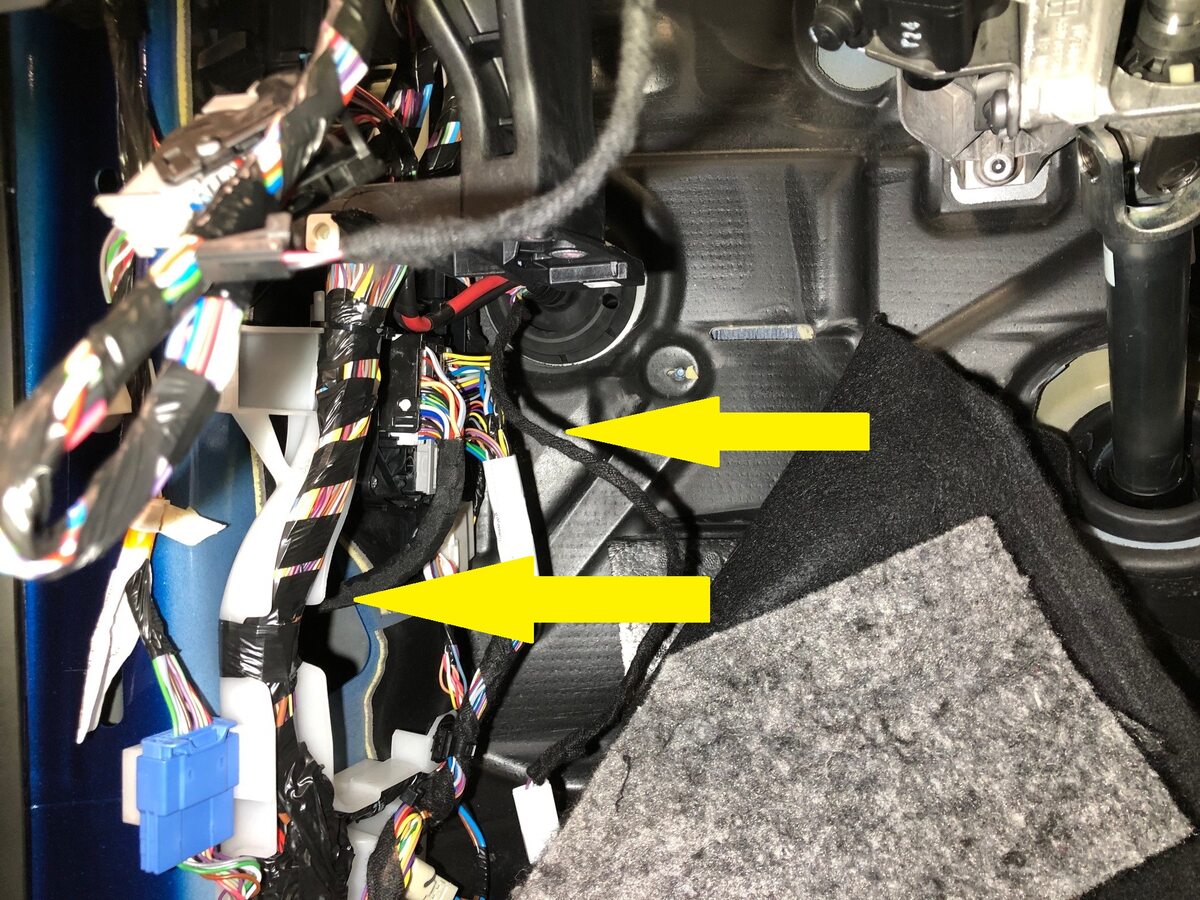

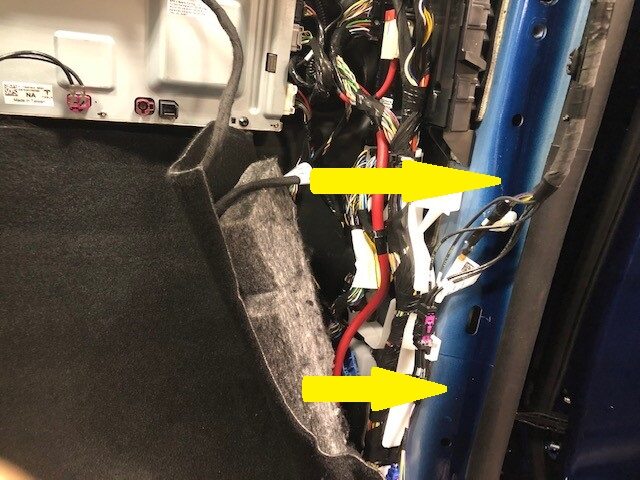

Release headliner harness clips located on LH lower A-pillar

注

2x clips

Disconnect headliner harness connector located on LH lower A-pillar

注

1x connector

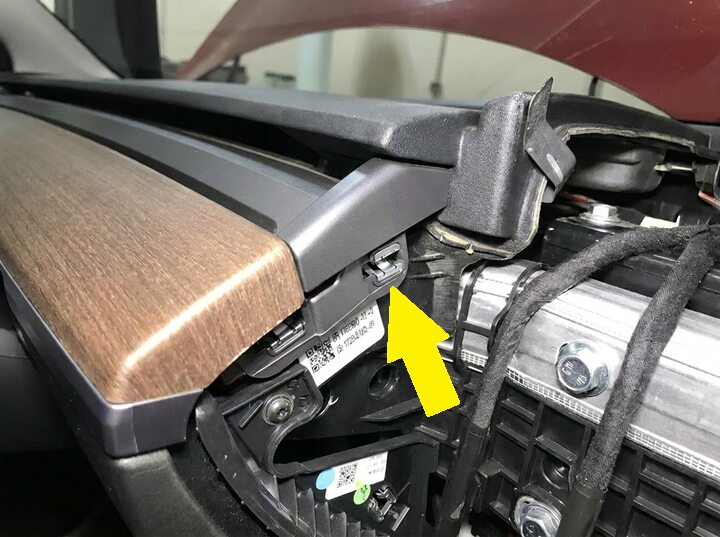

Remove LH touchscreen bracket

注

2x bolts, T30, 12 Nm

Remove RH touchscreen bracket

注

2x bolts, T30, 12 Nm

Remove bleeder duct adapter from HVAC assembly

注

4x clips

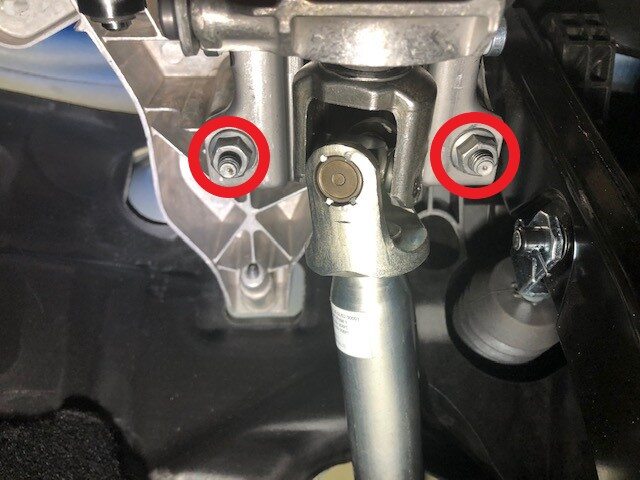

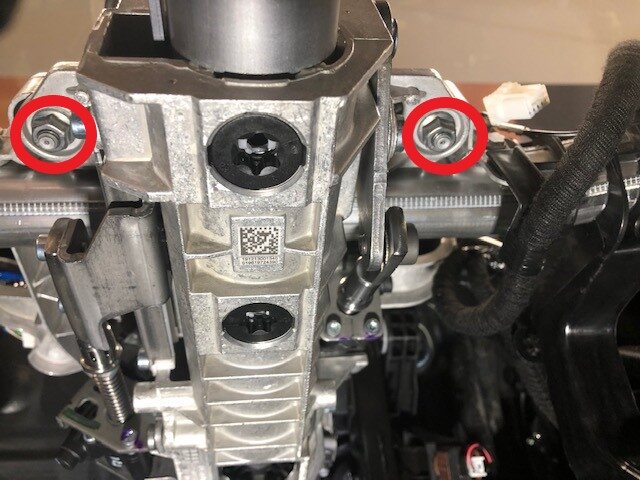

Remove nuts securing upper steering column to cross car beam

注

2x nuts, 13mm, 15 Nm

Remove nuts securing lower steering column to cross car beam and carefully lower steering column

注

2x nuts, 13mm, 15 Nm

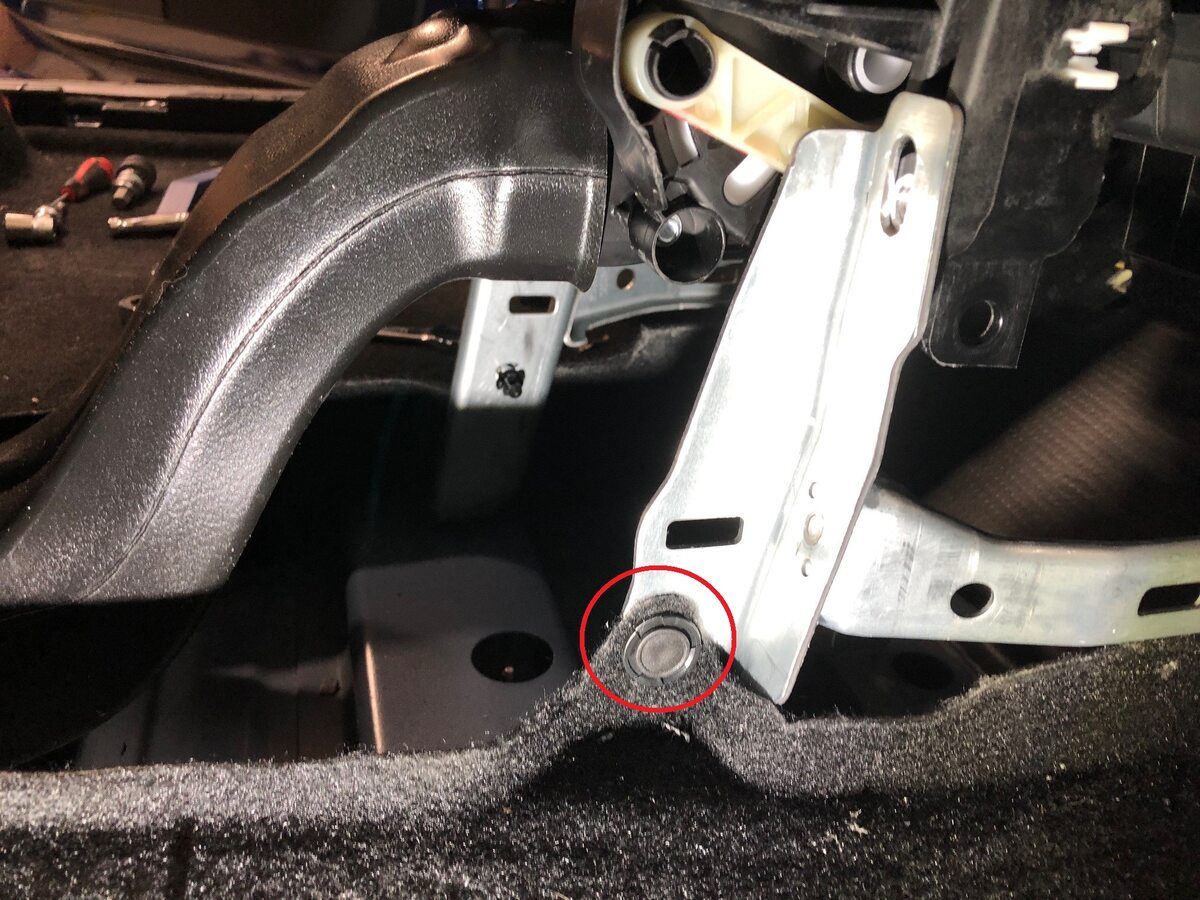

Remove clip securing carpet to LH cross car beam bracket

注

1x clip

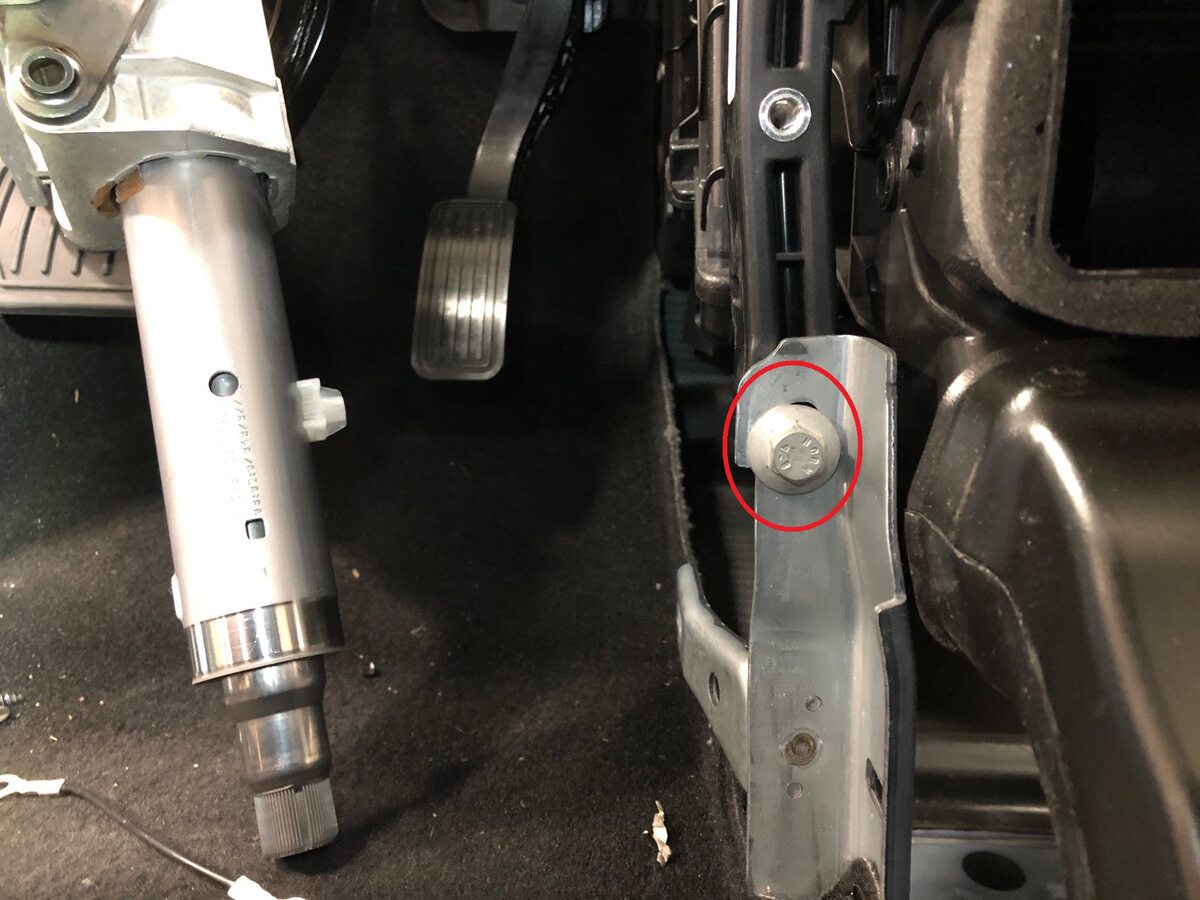

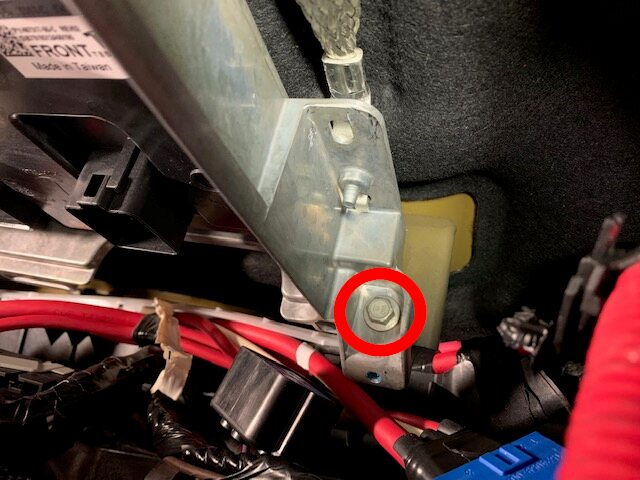

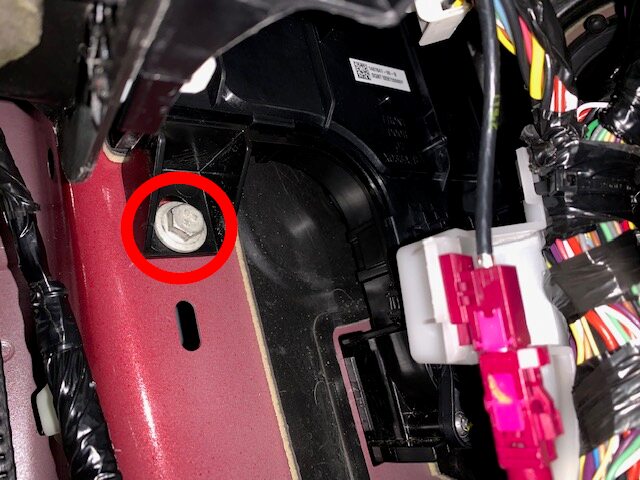

Remove bolt that secures LH cross car beam bracket to cross car beam

注

1x bolts, 13mm, 25 Nm

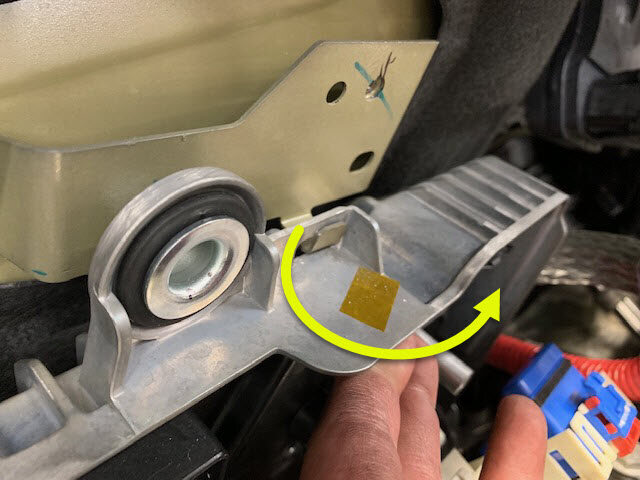

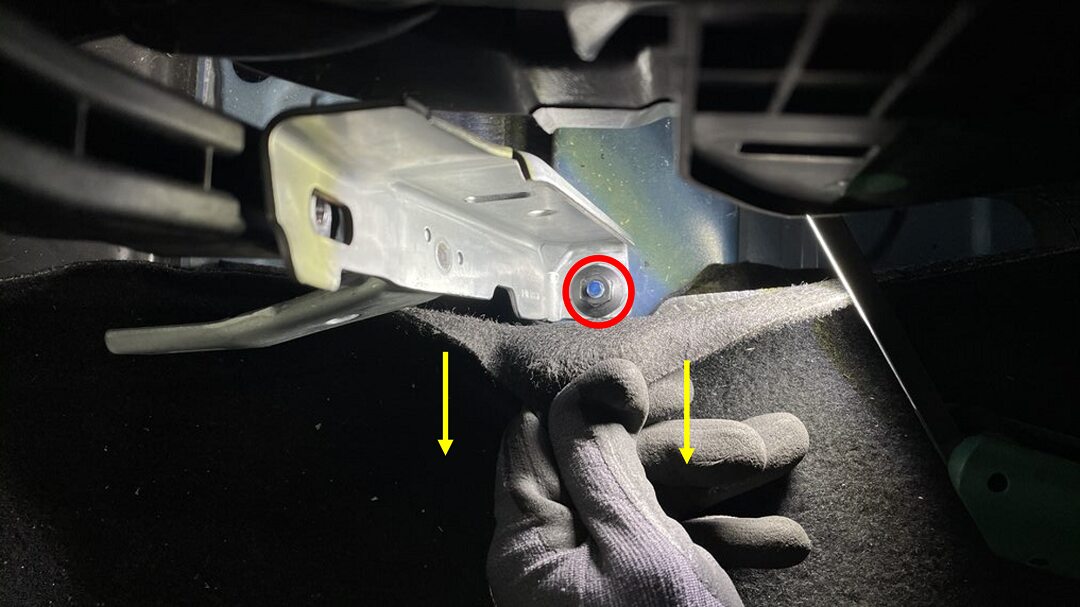

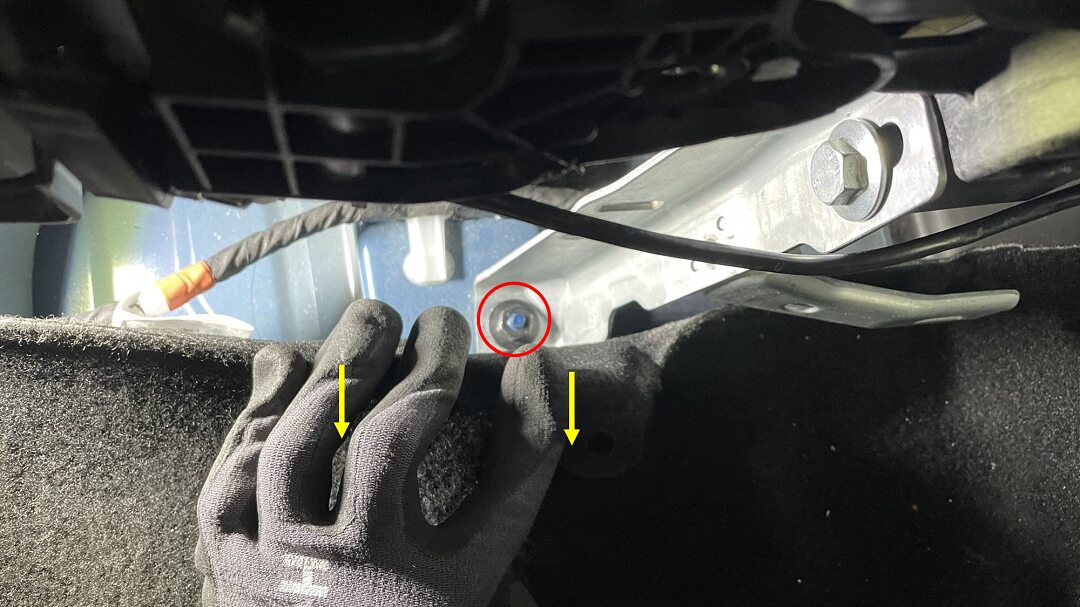

Remove nut securing LH cross car beam bracket to body and remove LH cross car beam bracket

注

1x nut, 13mm, 25 Nm, Slightly pull LH carpet towards LH side of vehicle, Take note of direction of cross car beam bracket during removal

Remove clip securing carpet to RH cross car beam bracket

注

1x clip

Remove bolt securing RH cross car beam bracket to cross car beam

注

1x bolts, 13mm, 25 Nm

Remove nut securing RH cross car beam bracket to body and remove RH cross car beam bracket

注

1x nut, 13mm, 25 Nm, Slightly pull the RH carpet towards RH side of vehicle, Take note of direction of cross car beam bracket during removal

Remove bolts securing cross car beam to HVAC assembly

注

4x bolts, 10mm, 5.5 Nm

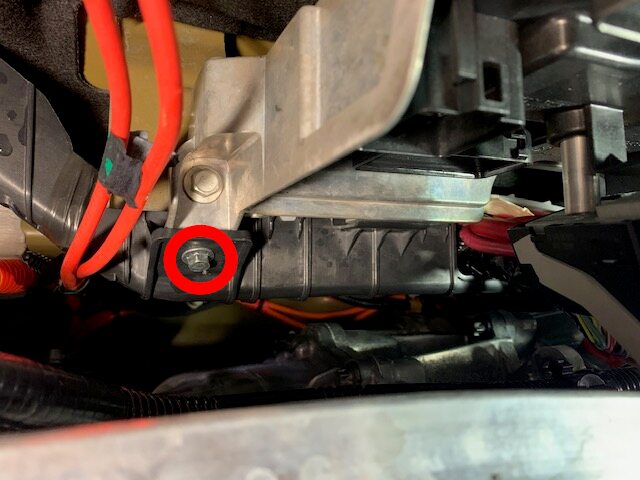

Remove bolt securing cross car beam to HVAC assembly on upper LH side of HVAC assembly

注

1x bolt. 10mm, 5.5 Nm

Remove bolt securing cross car beam to upper cowl

注

1x bolt, 13mm, 25 Nm

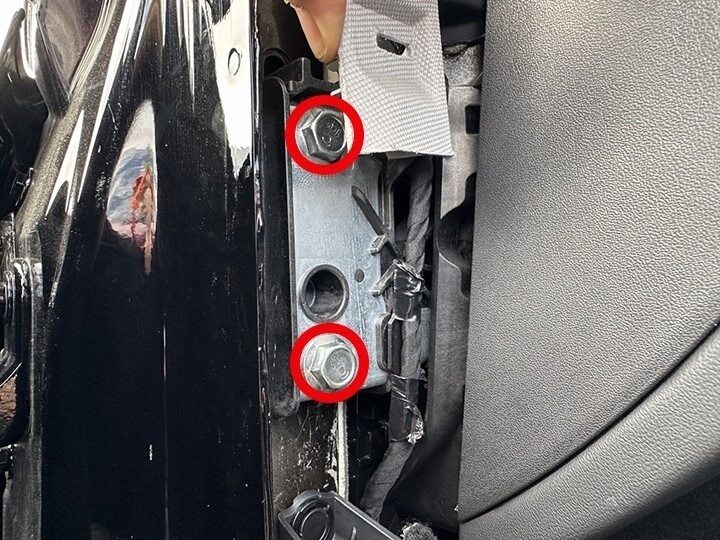

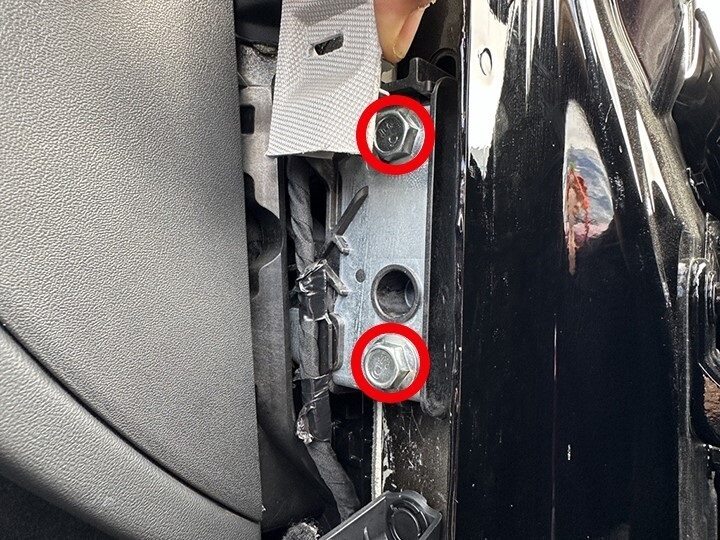

Remove bolts securing cross car beam to LH side of body

注

2x bolts, 15mm, 29 Nm

Remove bolts securing cross car beam to RH side of body

注

2x bolts, 15mm, 29 Nm

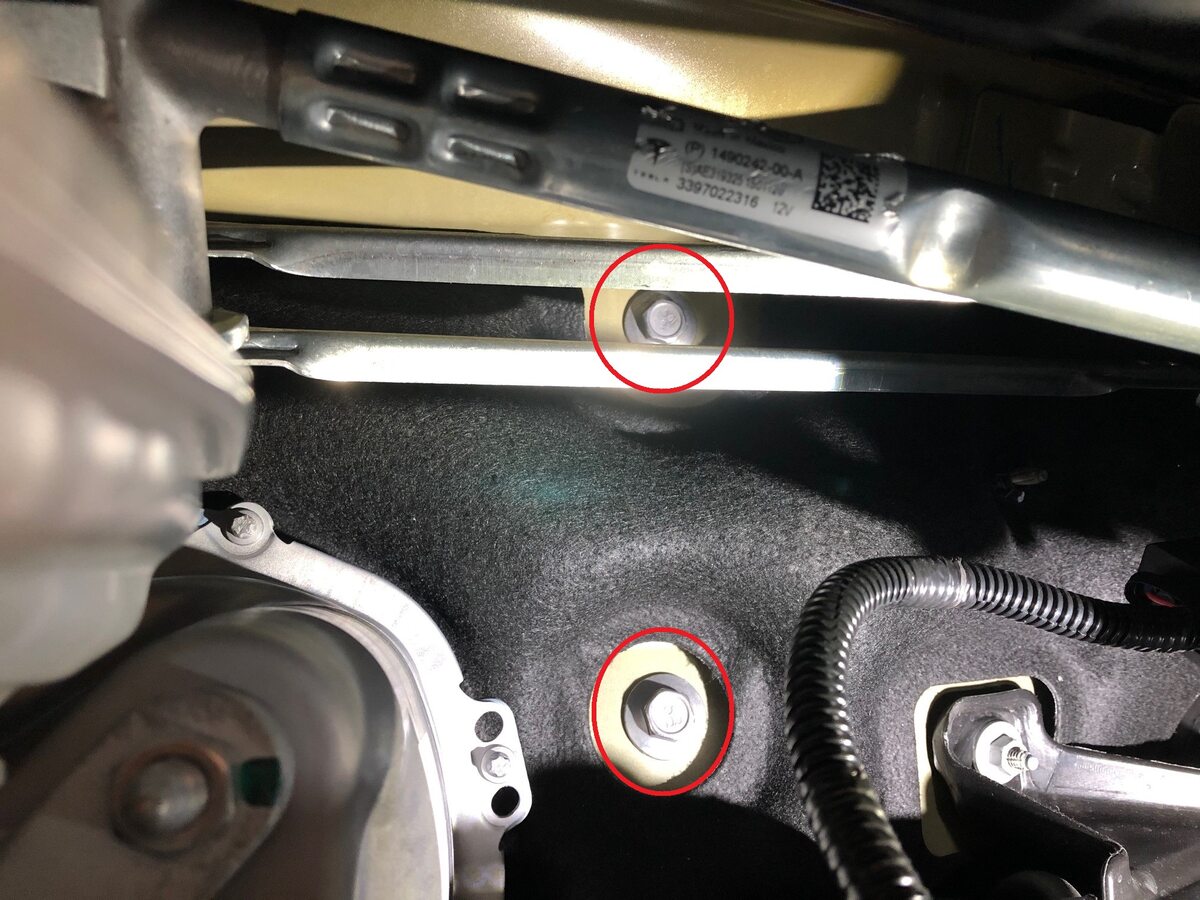

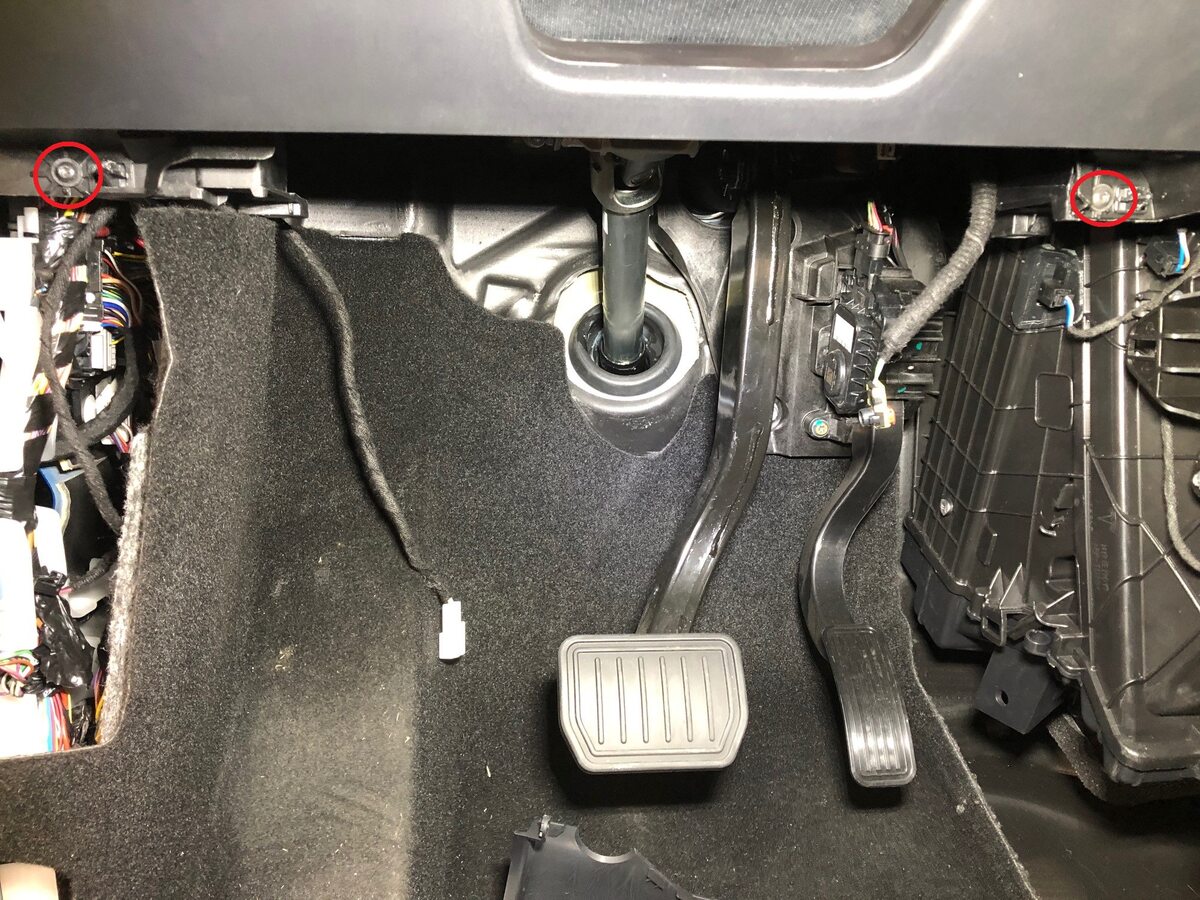

Remove bolts securing cross car beam to LH side of bulkhead

注

2x bolts, 13mm, 25 Nm

Remove cross car beam from vehicle

注

Recommend assistance

Disconnect HVAC connector from right vehicle controller

注

1x connector

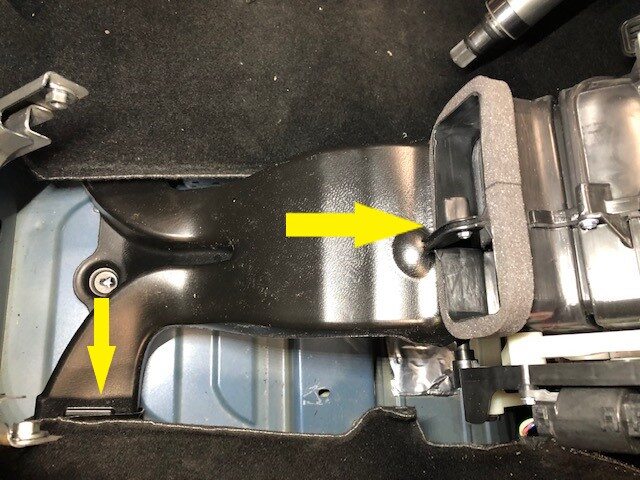

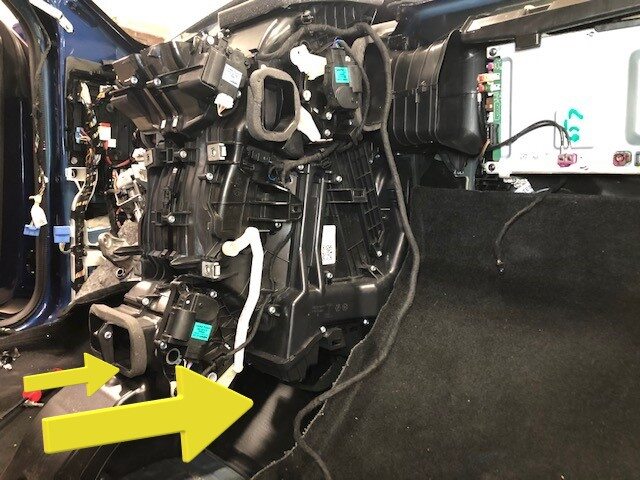

Remove floor duct from stud located in-between LH and RH seat

注

1x stud

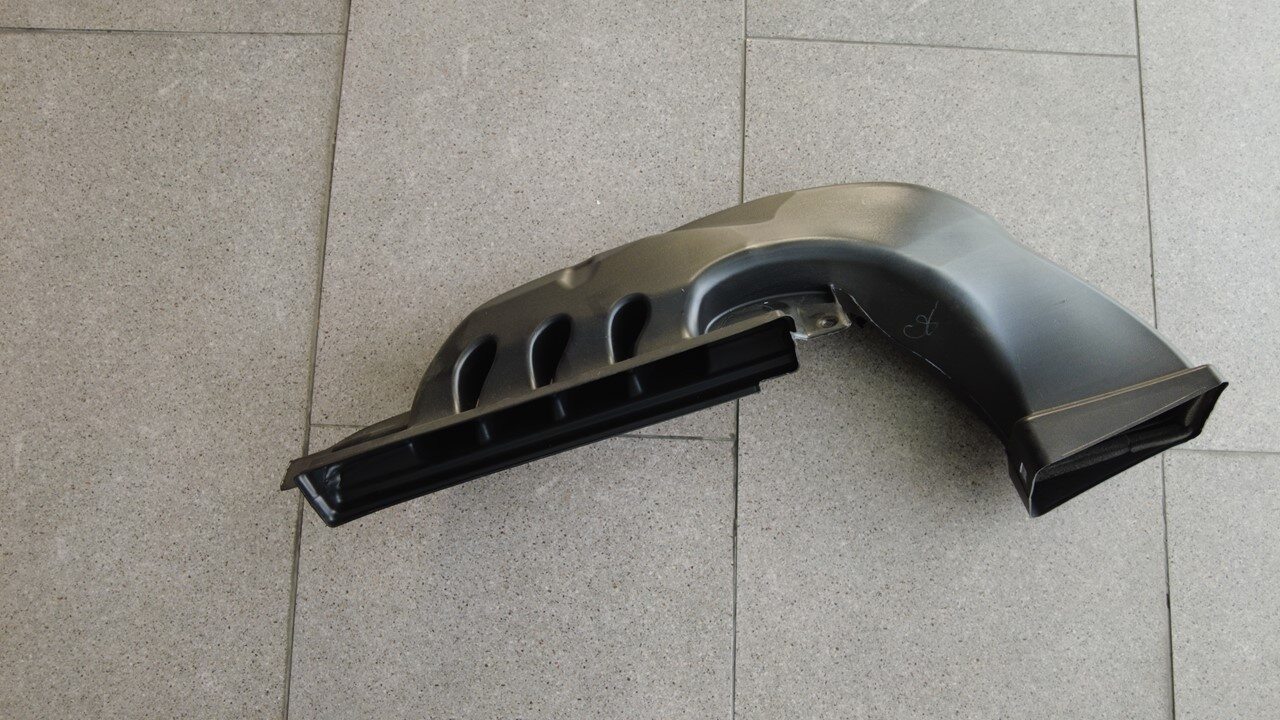

Remove floor duct from HVAC assembly and position out of way

Remove A/C hoses from vehicle

Release vacuum from A/C lines

注

2x schrader valves, Carefully depress the schrader valves to release vacuum from A/C lines

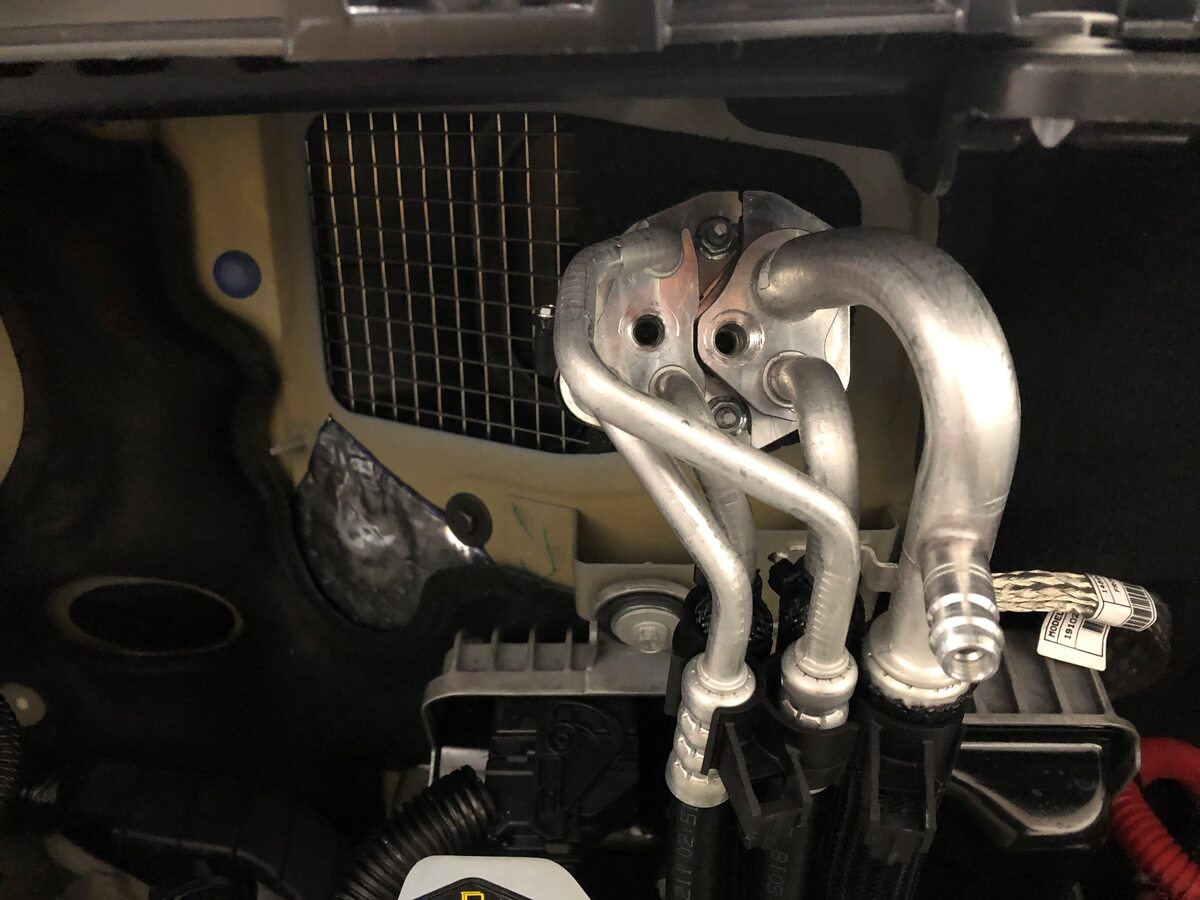

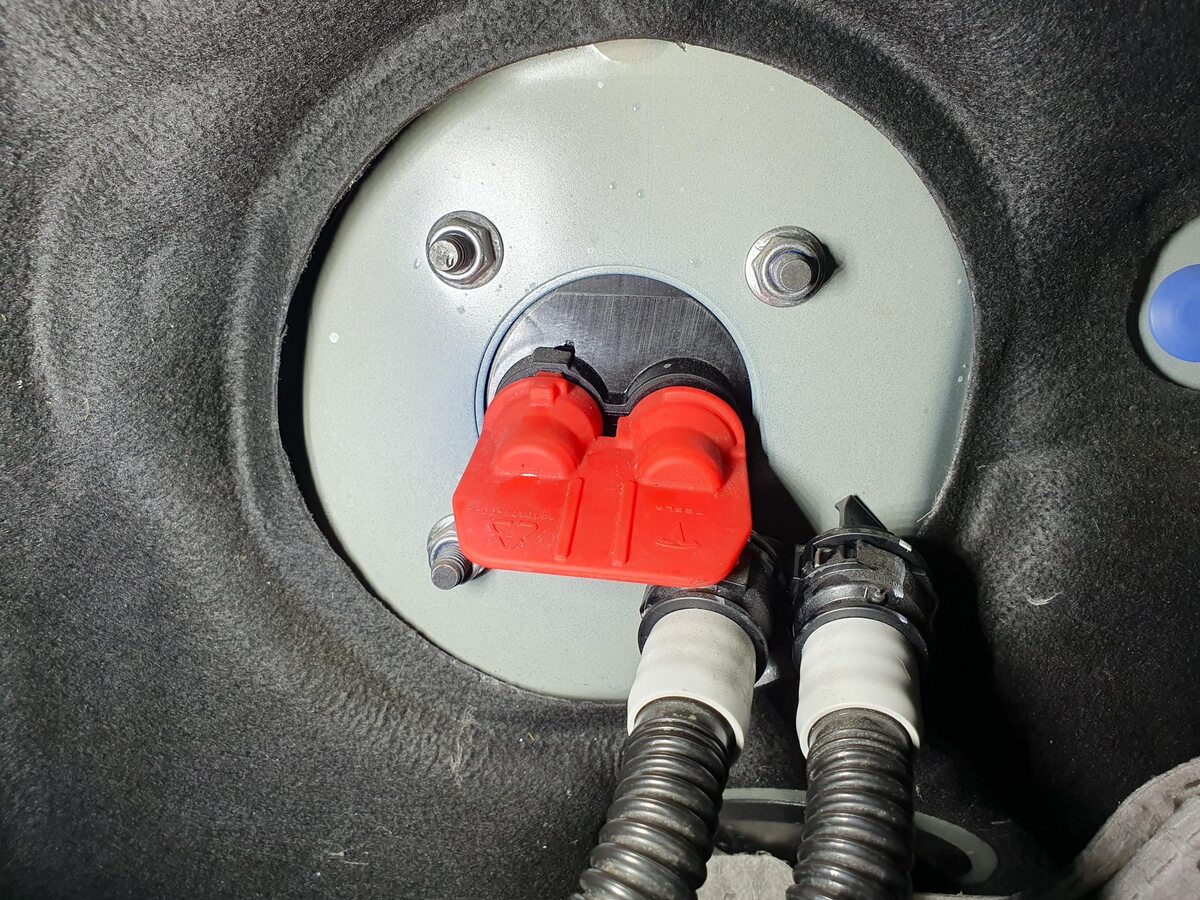

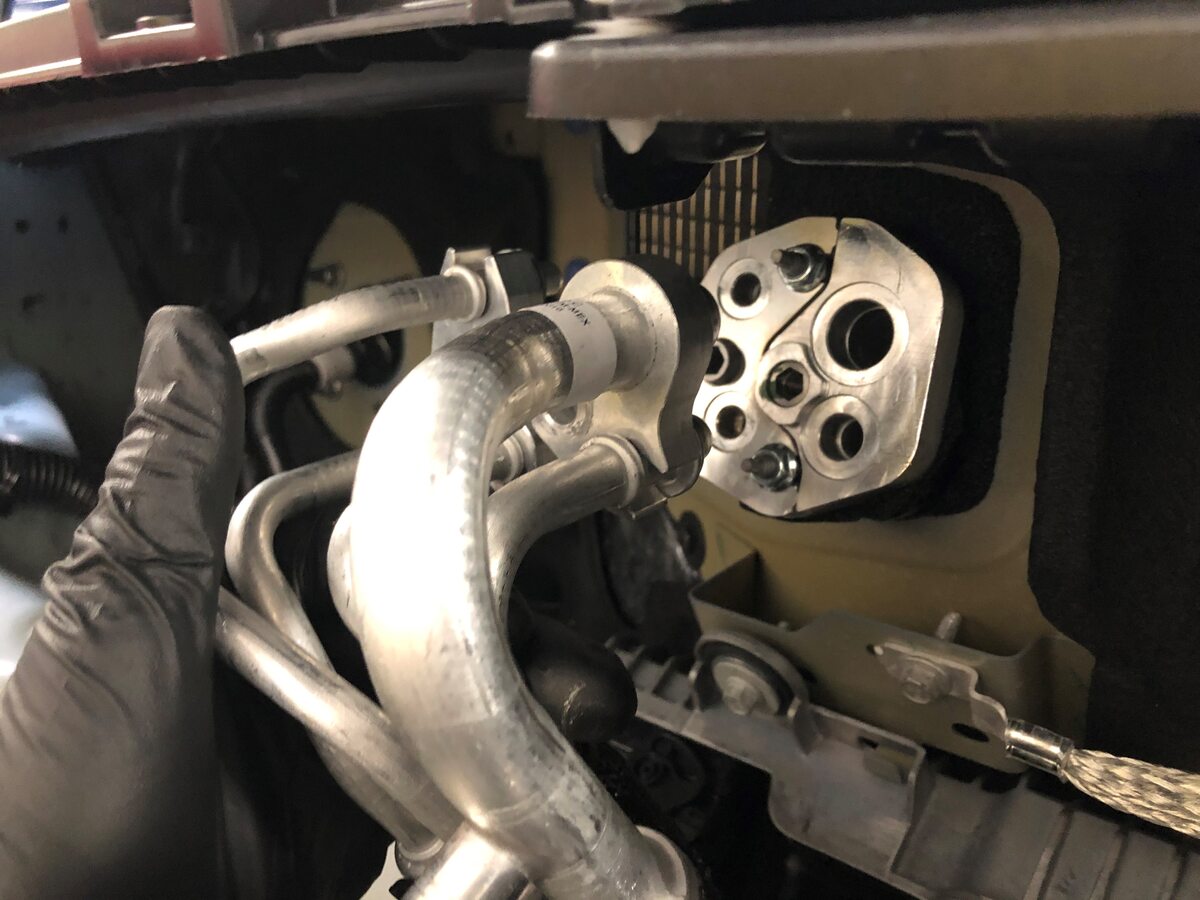

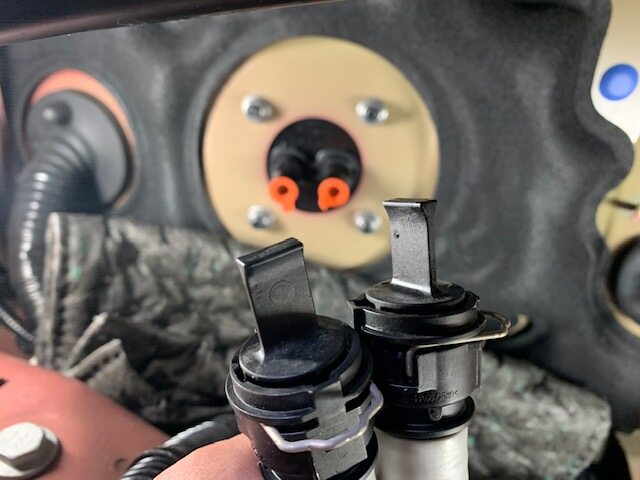

Remove A/C manifold to HVAC line from HVAC assembly

注

2x bolts, 13mm, 28 Nm

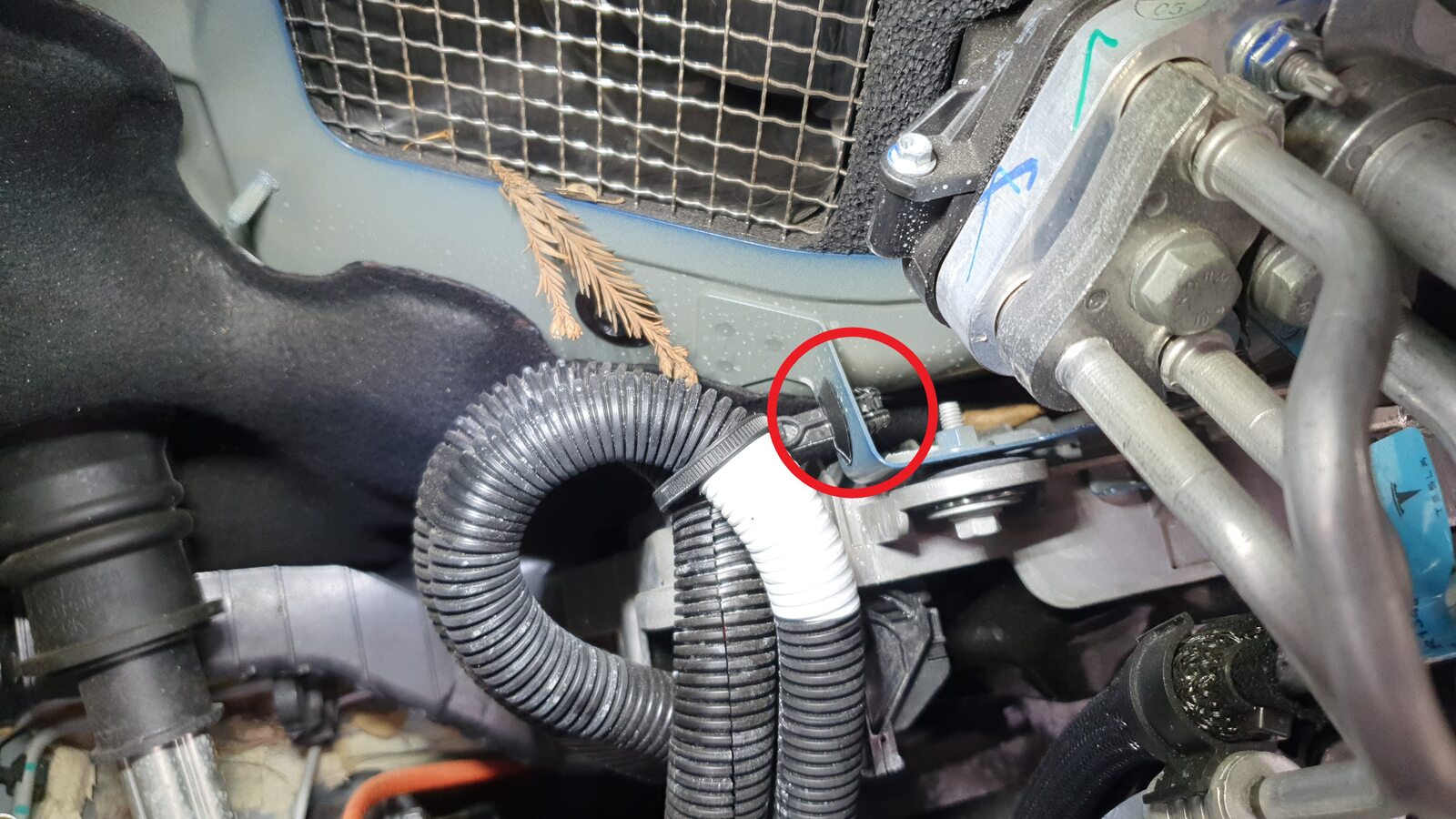

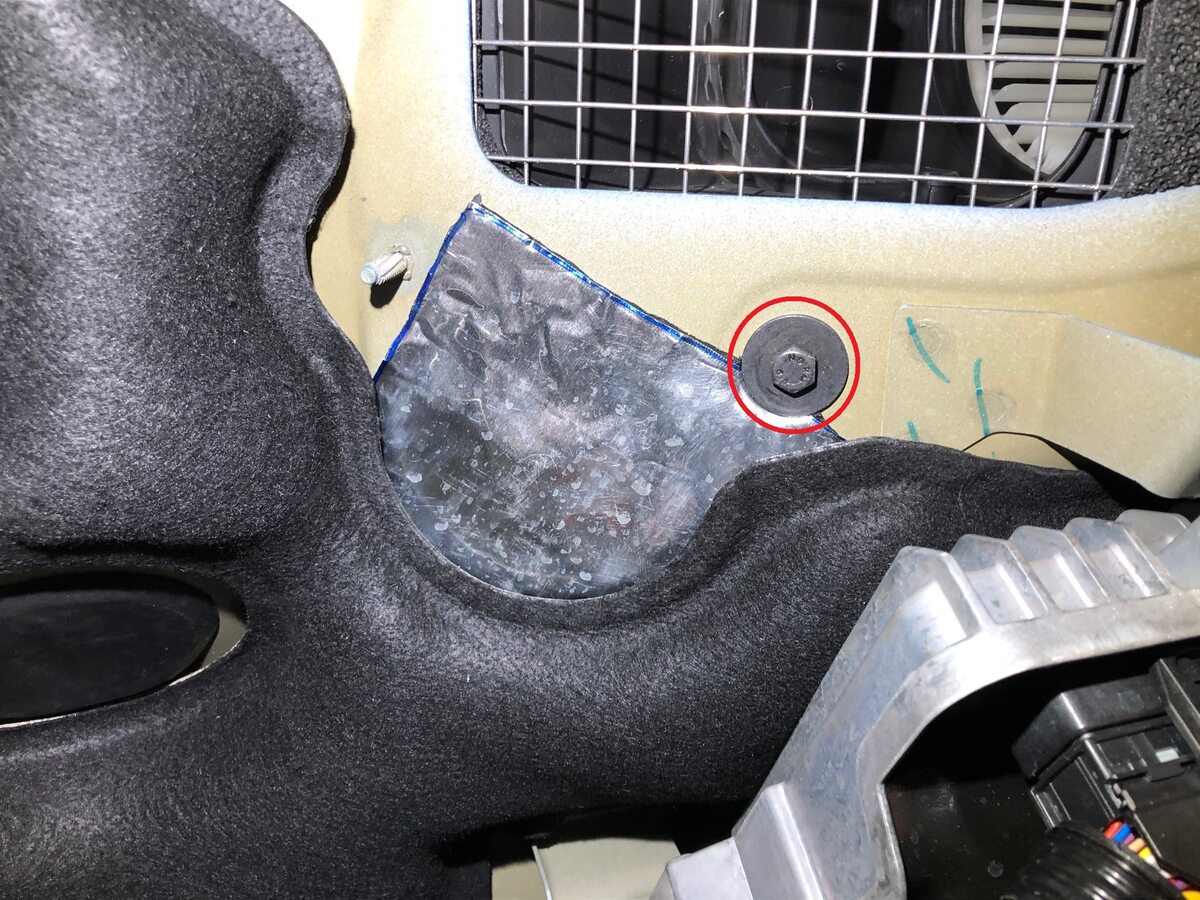

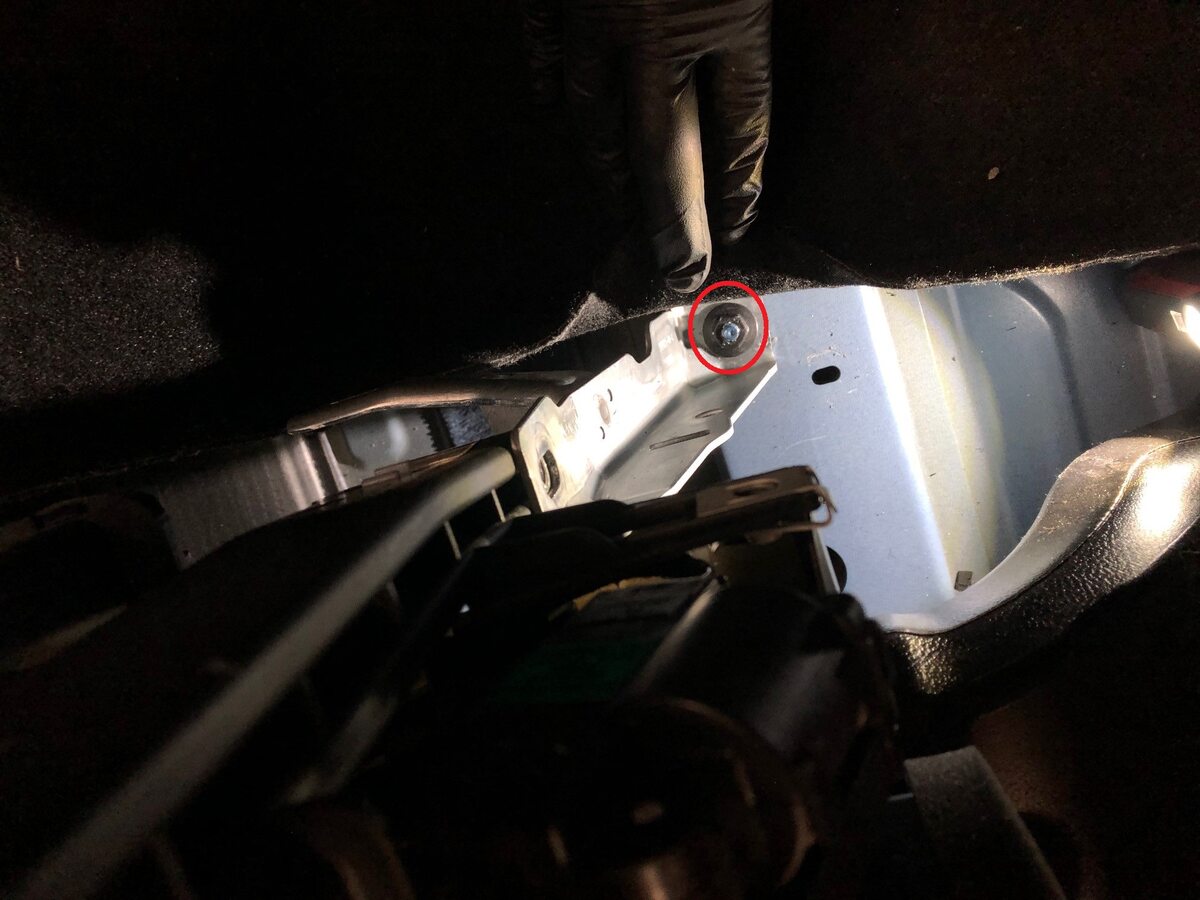

Remove bolt securing HVAC assembly to RH side of bulkhead

注

1x bolt, 10mm, 5.5 Nm

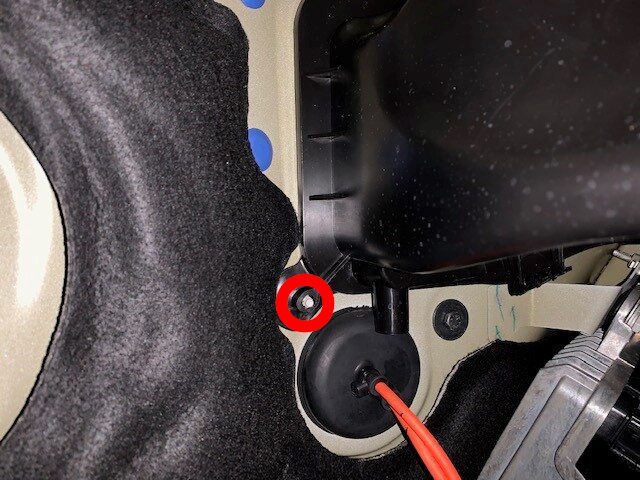

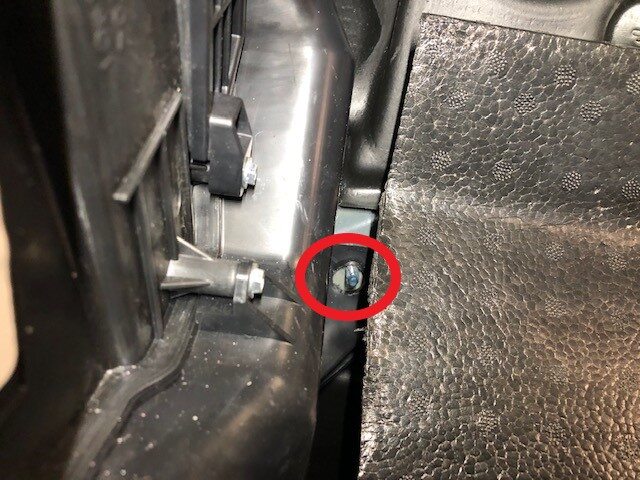

Remove nut securing HVAC assembly to body located on RH side of HVAC assembly

注

1x nut, 10mm, 5.5 Nm, Slightly move RH carpet and foam towards RH side of vehicle, Recommend assistance to support HVAC assembly Vehicles built after 3/2020 may not have stud and nut

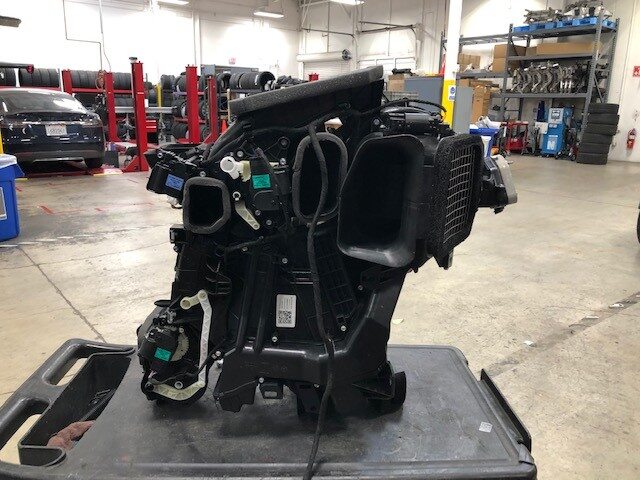

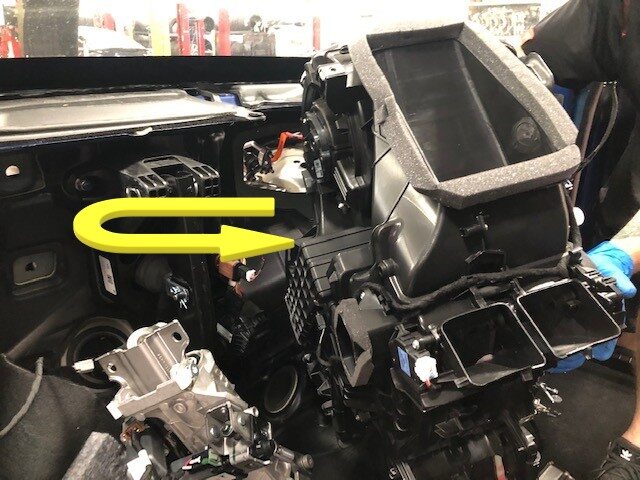

Remove HVAC assembly from vehicle

注

Remove HVAC assembly towards rear of vehicle, Rotate counter clockwise and remove out of passenger front door, Recommend assistance

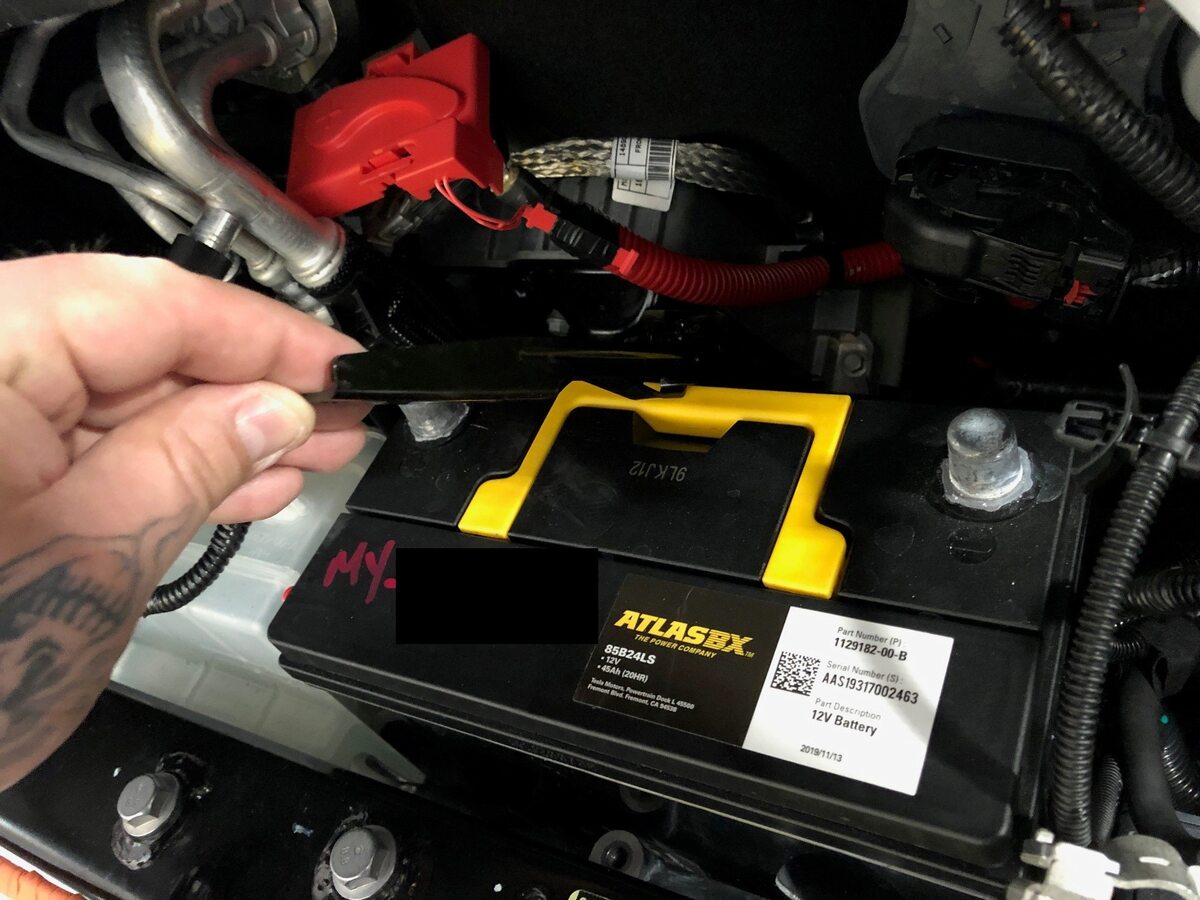

Remove vent tube hose from LH side of 12V battery

注

1x hose

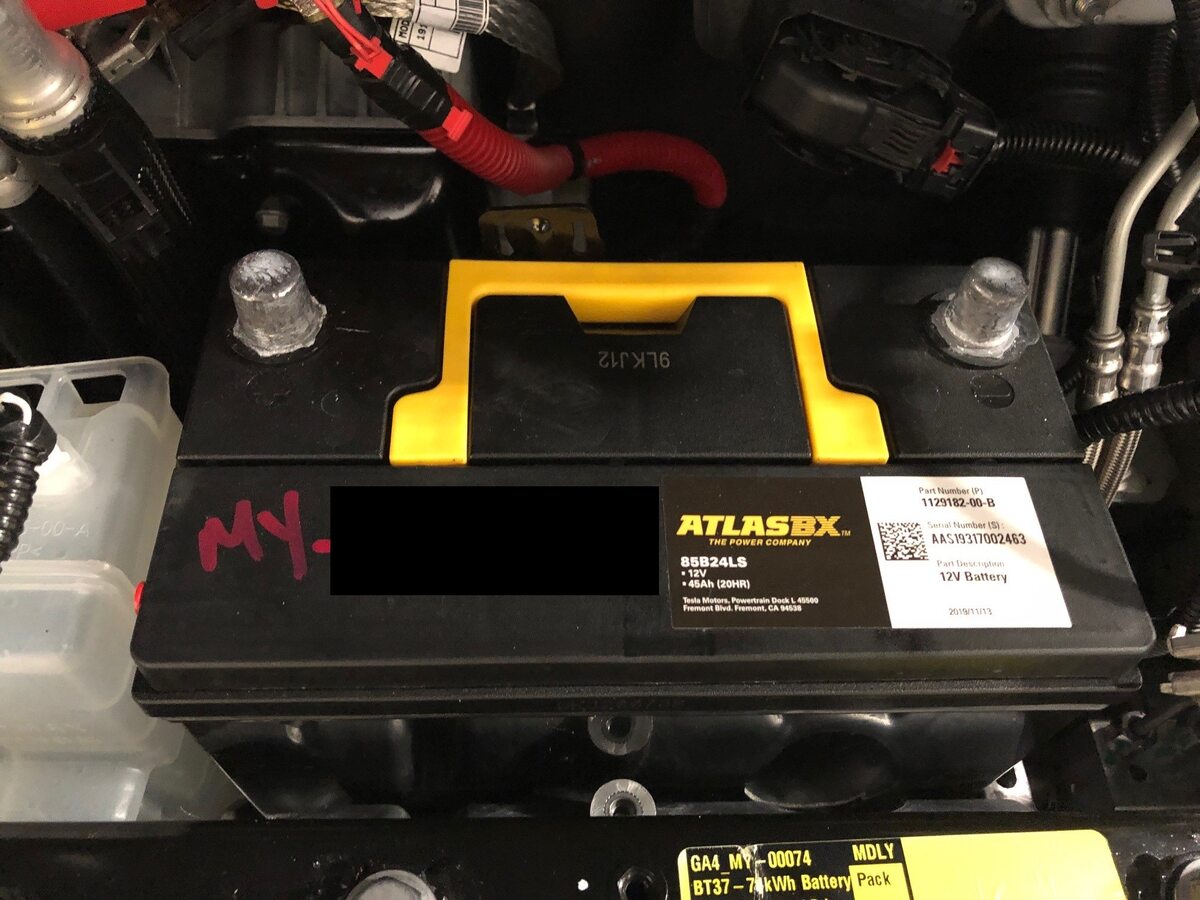

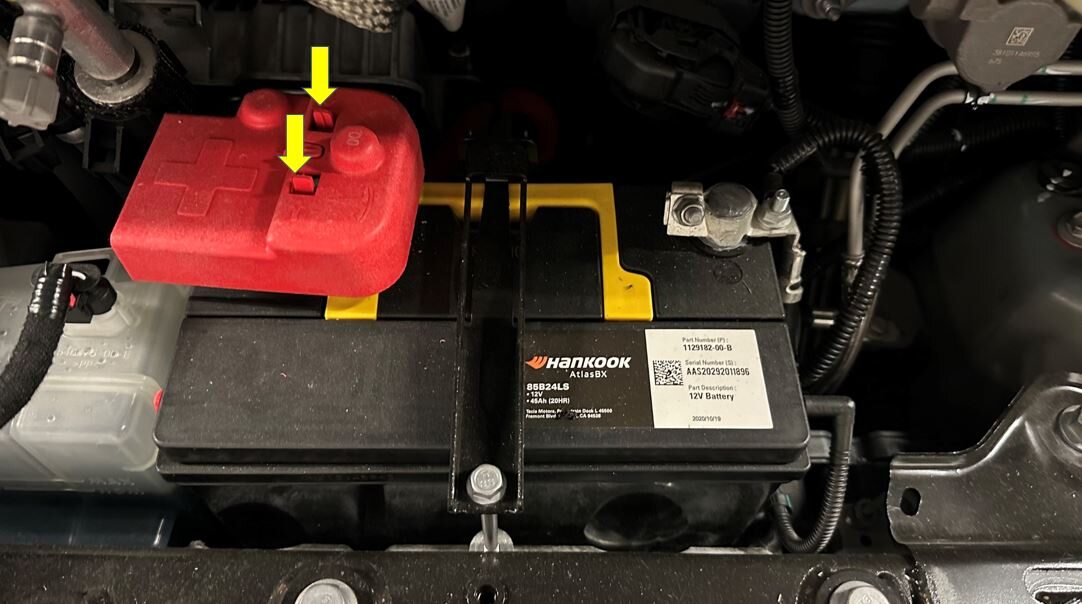

Remove 12V positive terminal cover and positive terminal

注

2x clips, 1x nut, 10mm, 6 Nm, Do not fully remove positive terminal nut

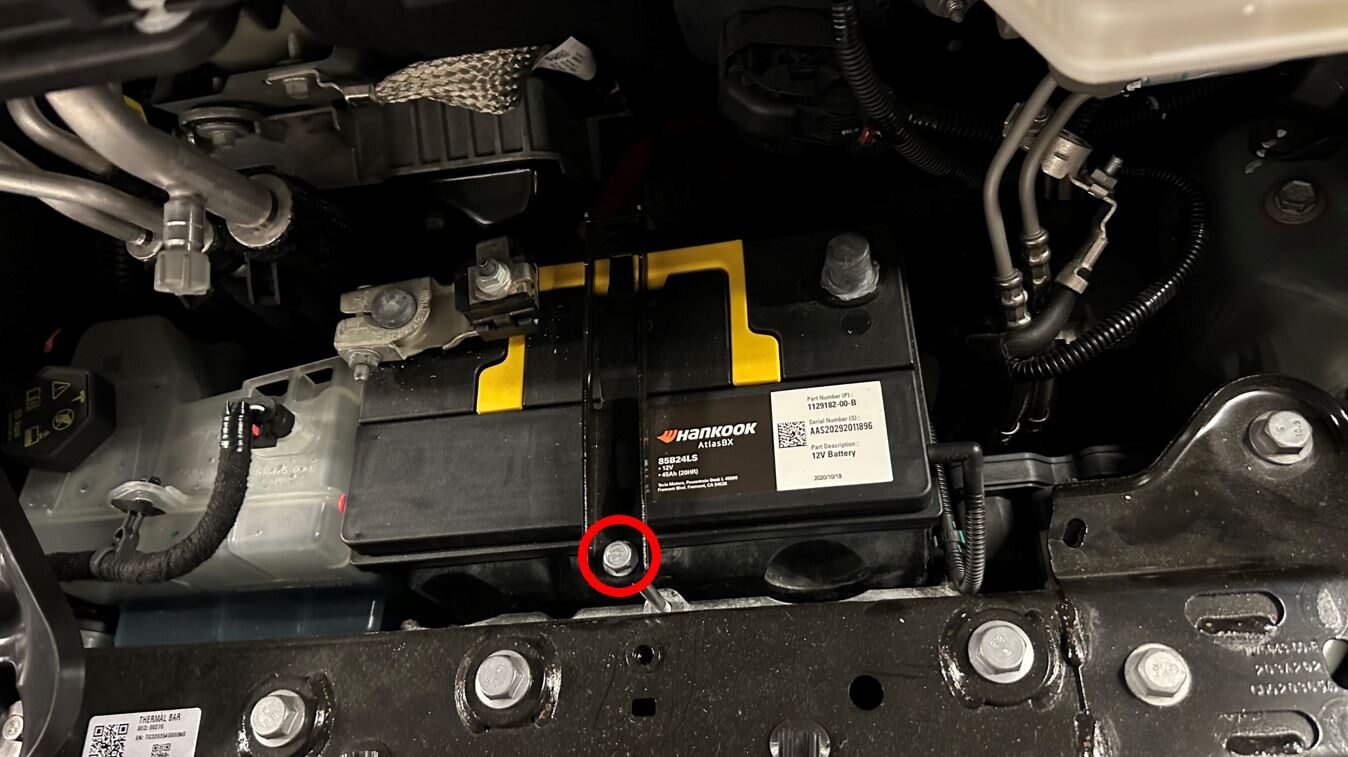

Remove 12V battery strap

注

1x bolt, 10mm, 5 Nm

Remove battery upper tie down strap

注

Lift battery tie down strap up and remove it from the rear tie down hook strap

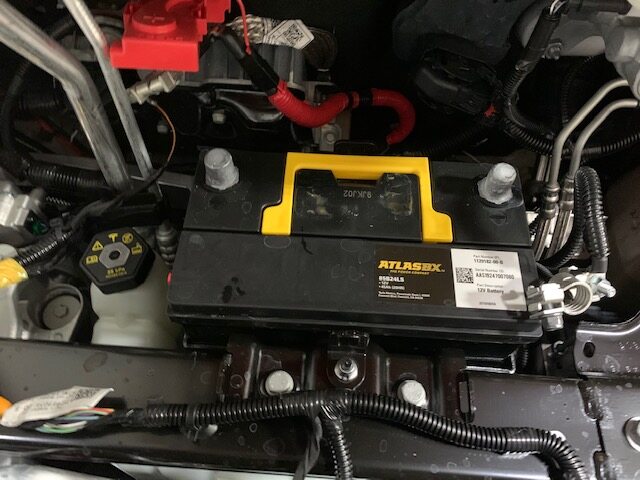

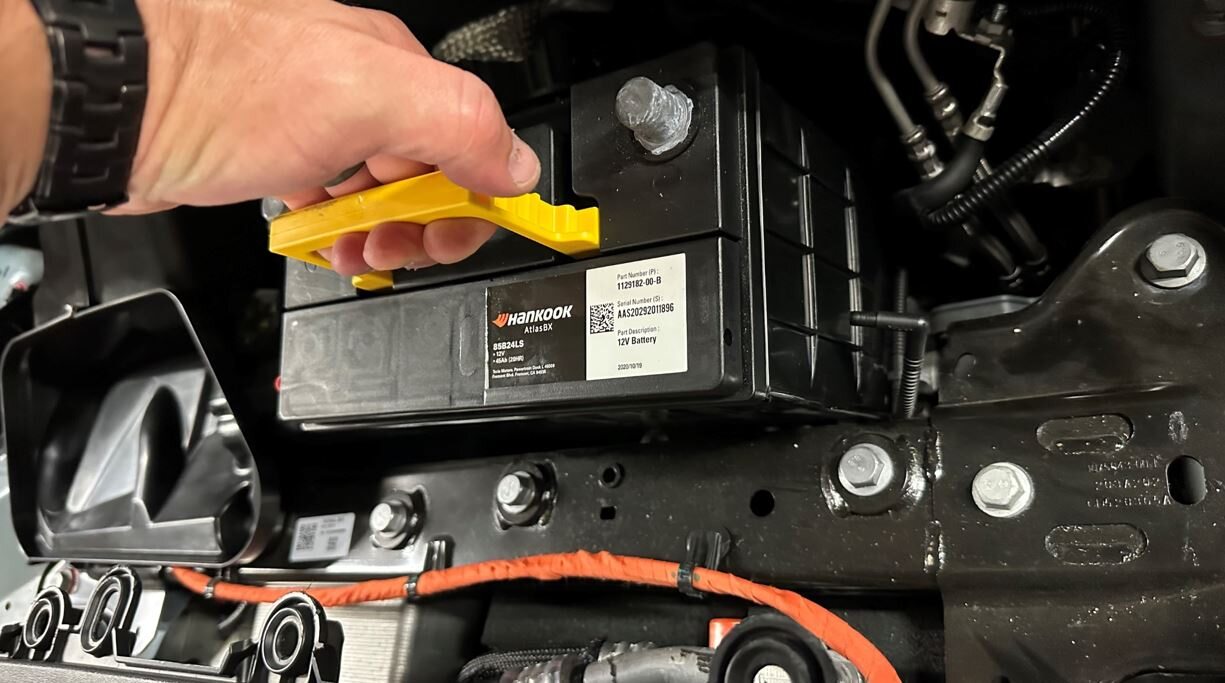

Remove 12V battery from vehicle

Release LV positive cable clip from front controller

注

1x clip

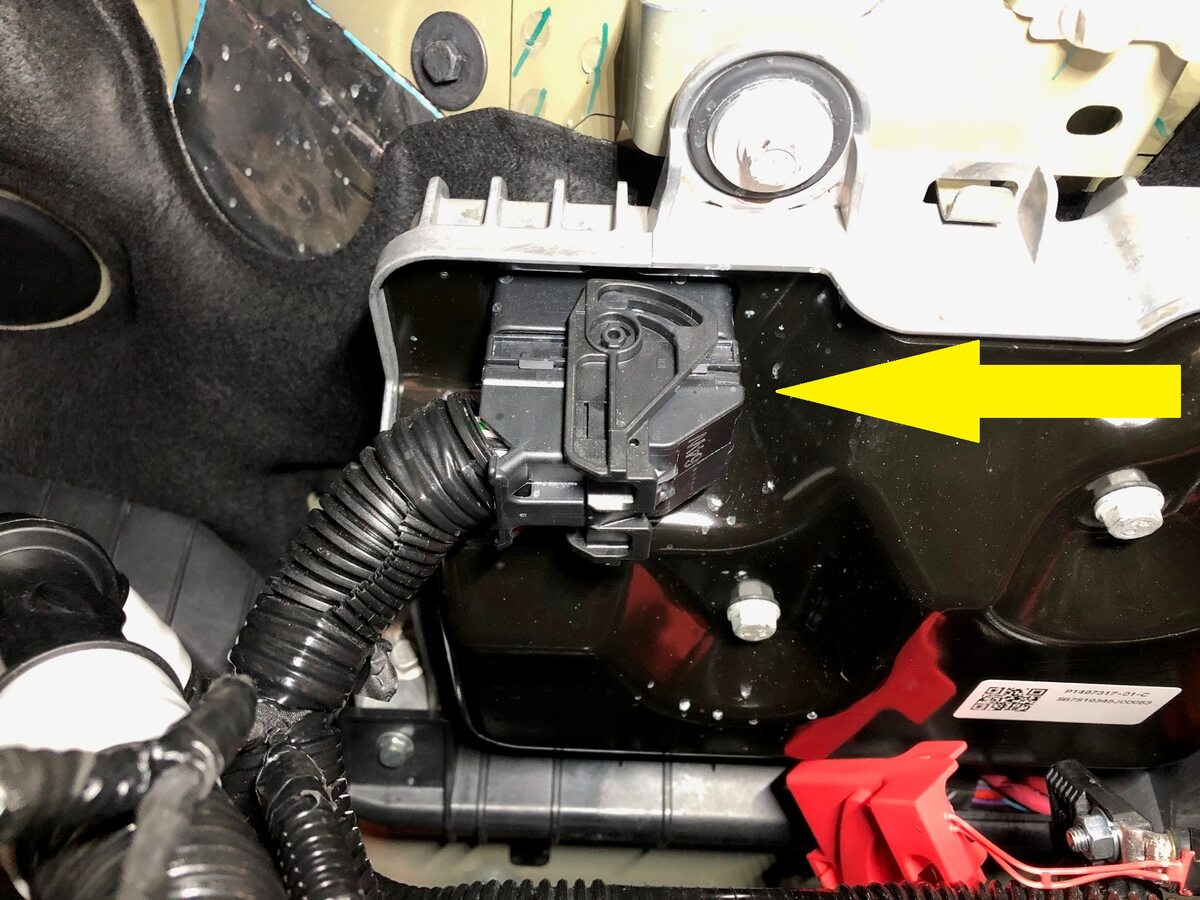

Disconnect supermanifold harness connector from vcfront

注

1x connector, 1x clip

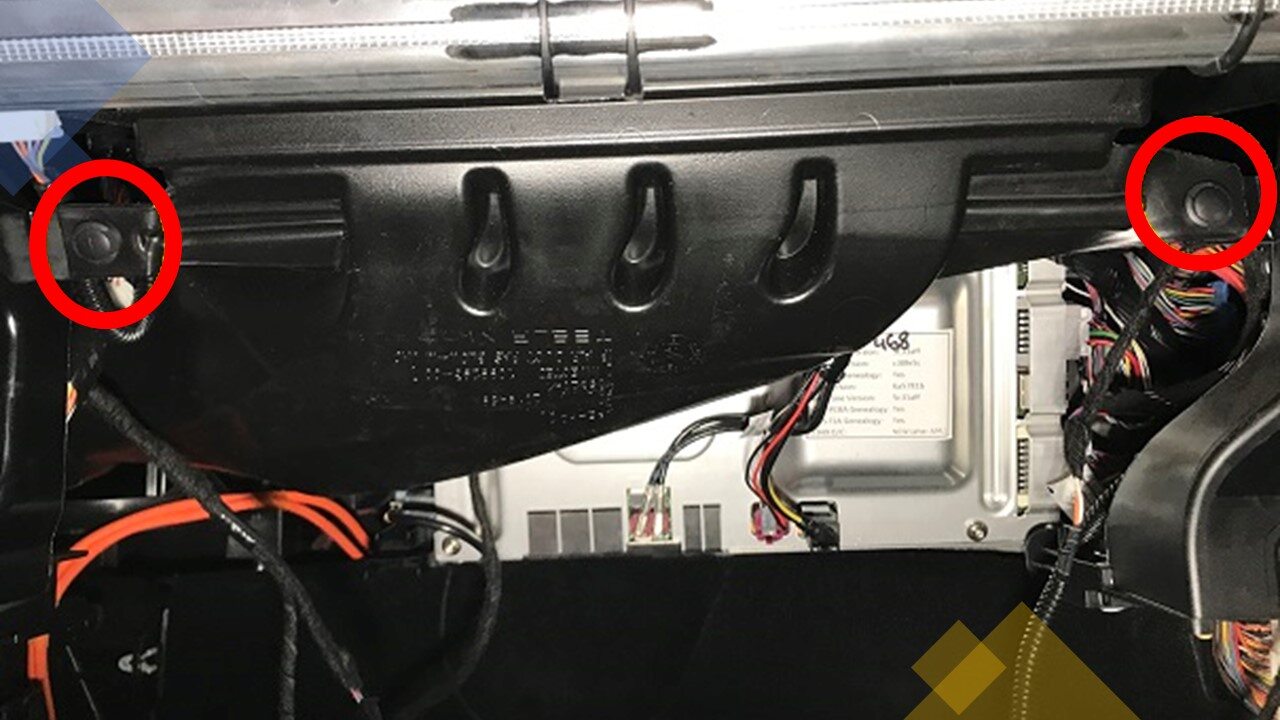

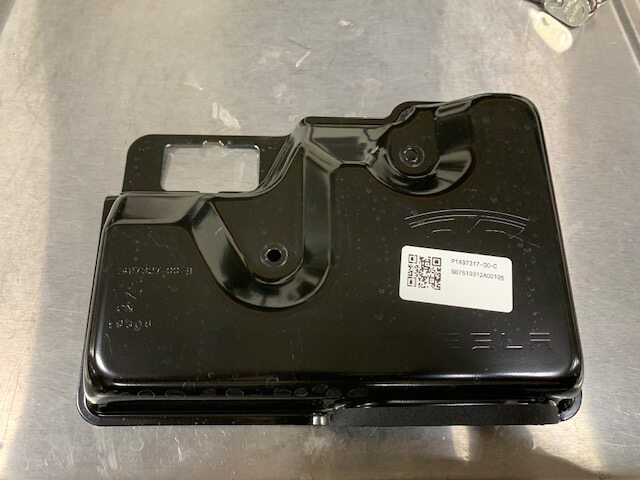

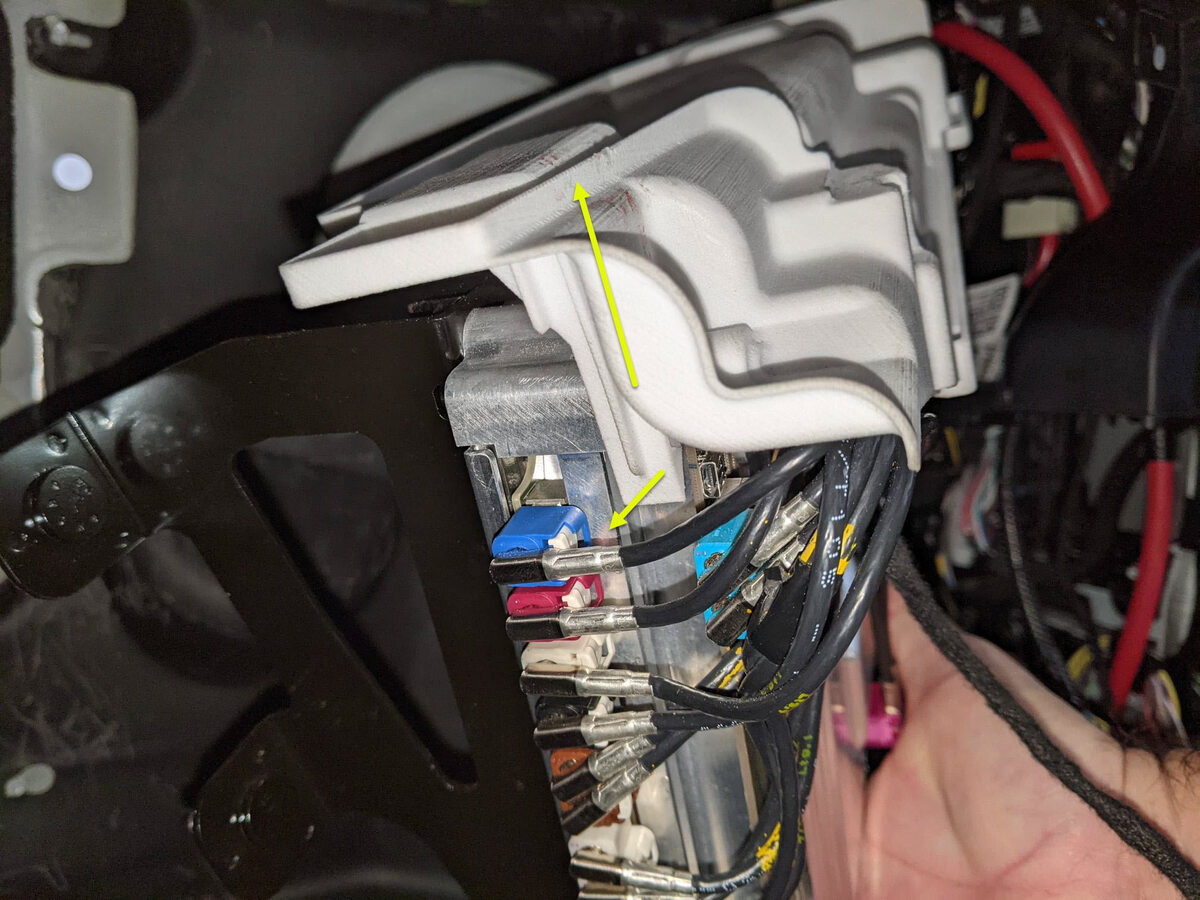

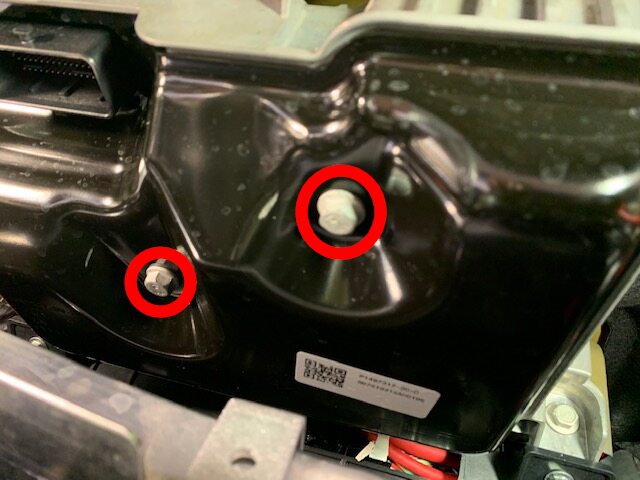

Remove bolts securing vcfront shield assembly and remove from vehicle

注

2x bolts, 10mm, 8.5 Nm

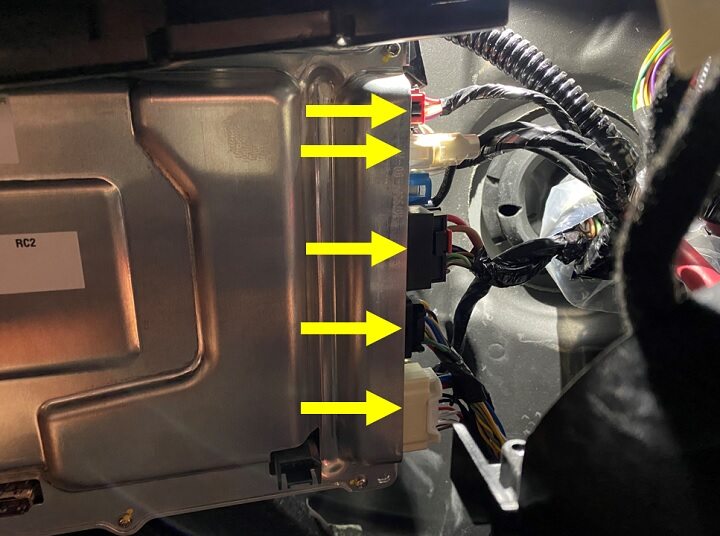

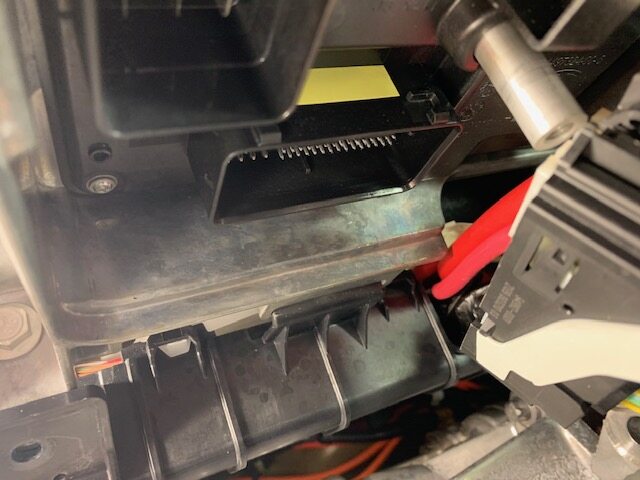

Disconnect front LV harness connectors from vcfront

注

5x connectors, Release locking tabs

Release harness guide from vcfront

注

2x patch bolts, 8mm, 6 Nm, 1x temp set clip, Discard bolts after removal, Remove bolts first, Then pivot harness guide slightly forward and up to remove temp set clip from front harness

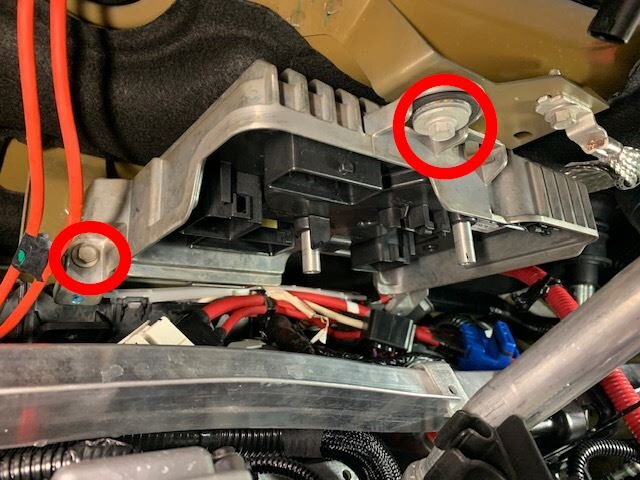

Remove bolts securing vcfront

注

3x bolts, 10mm, 10 Nm

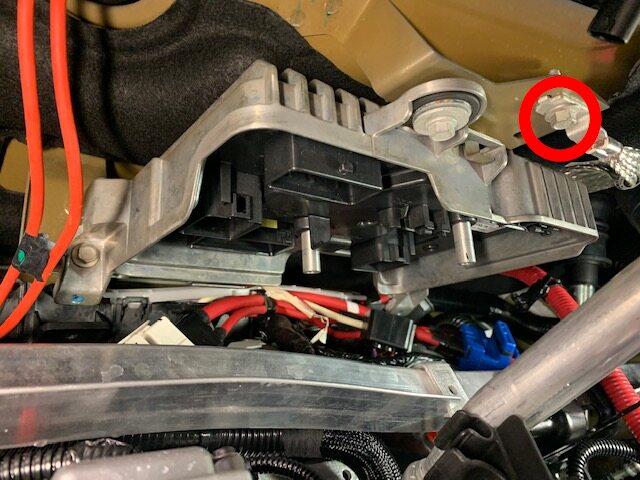

Remove vcfront upper ground strap from body

注

1x bolt, 10mm, 10 Nm

Remove vcfront from vehicle

注

Push harness connectors down to provide space, Gently pry bottom of controller out of BIW temp set holes, Then swing controller forward and up to release from top temp set

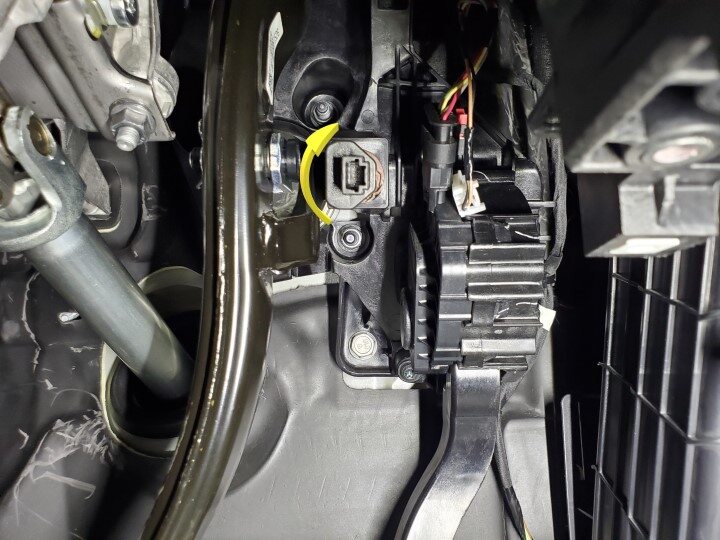

Disconnect brake switch

注

1x connector

Remove brake switch from pedal assembly

注

Twist counter clockwise 45 degrees to remove, Replace if damaged during removal

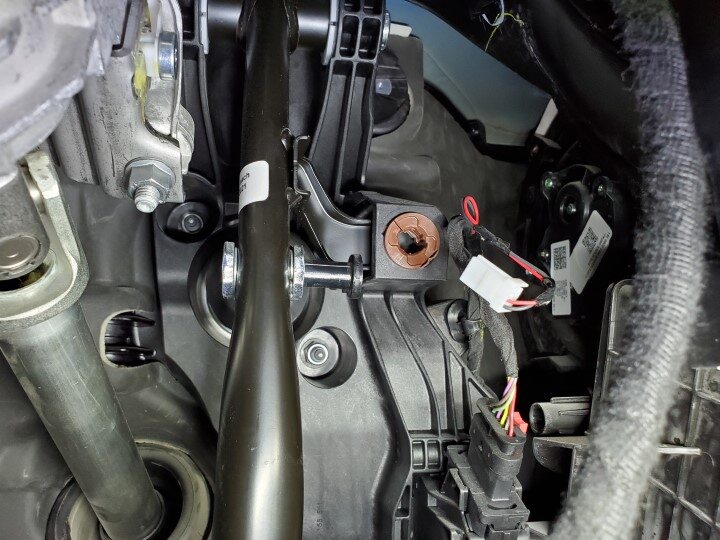

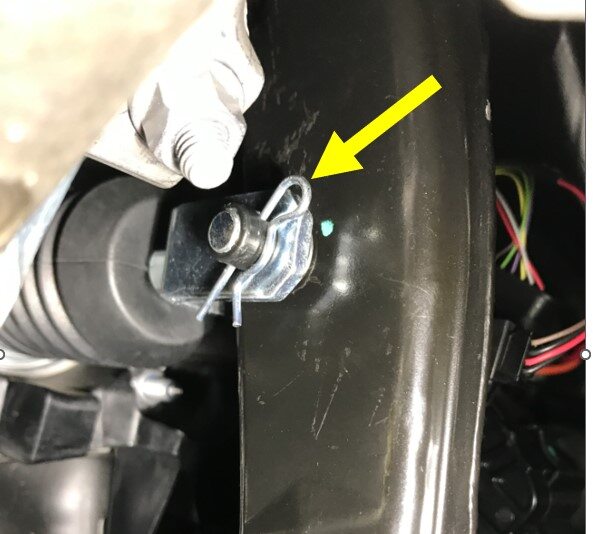

Remove cotter clip from clevis pin on brake pedal assembly

注

1x clip

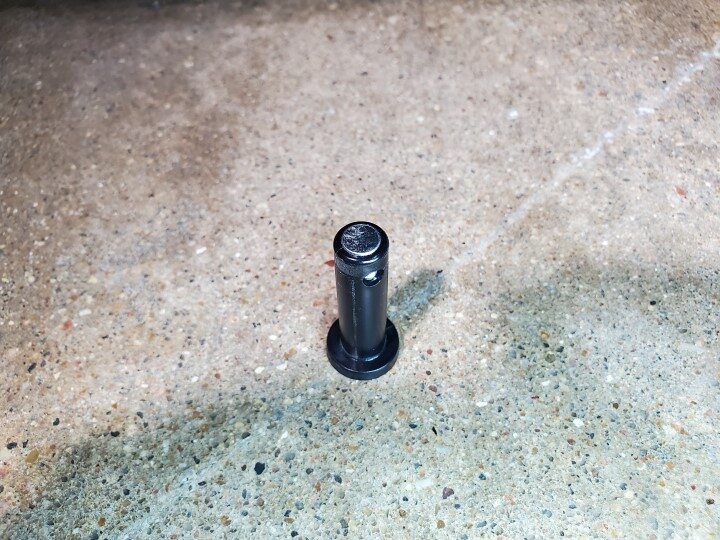

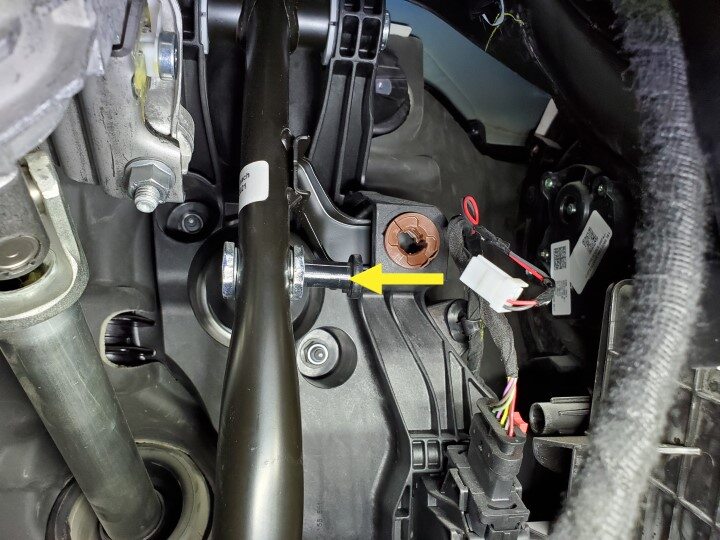

Remove clevis pin from brake pedal assembly

注

1x pin

Remove clip securing pedal harness to pedal assembly

注

1x clip

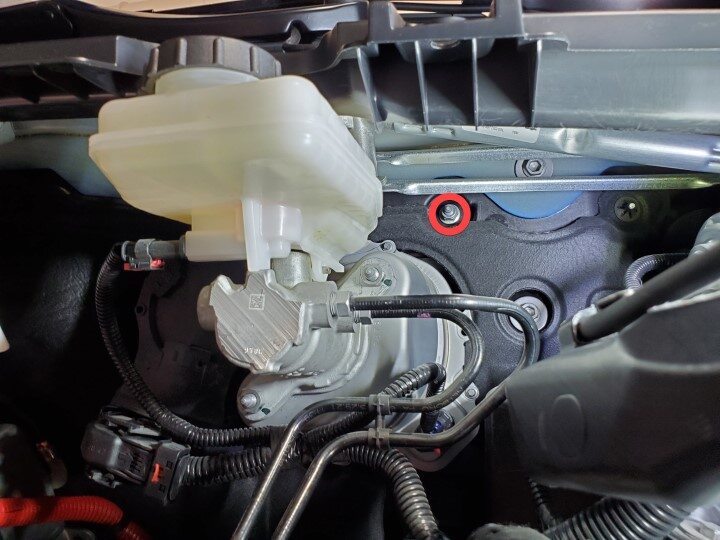

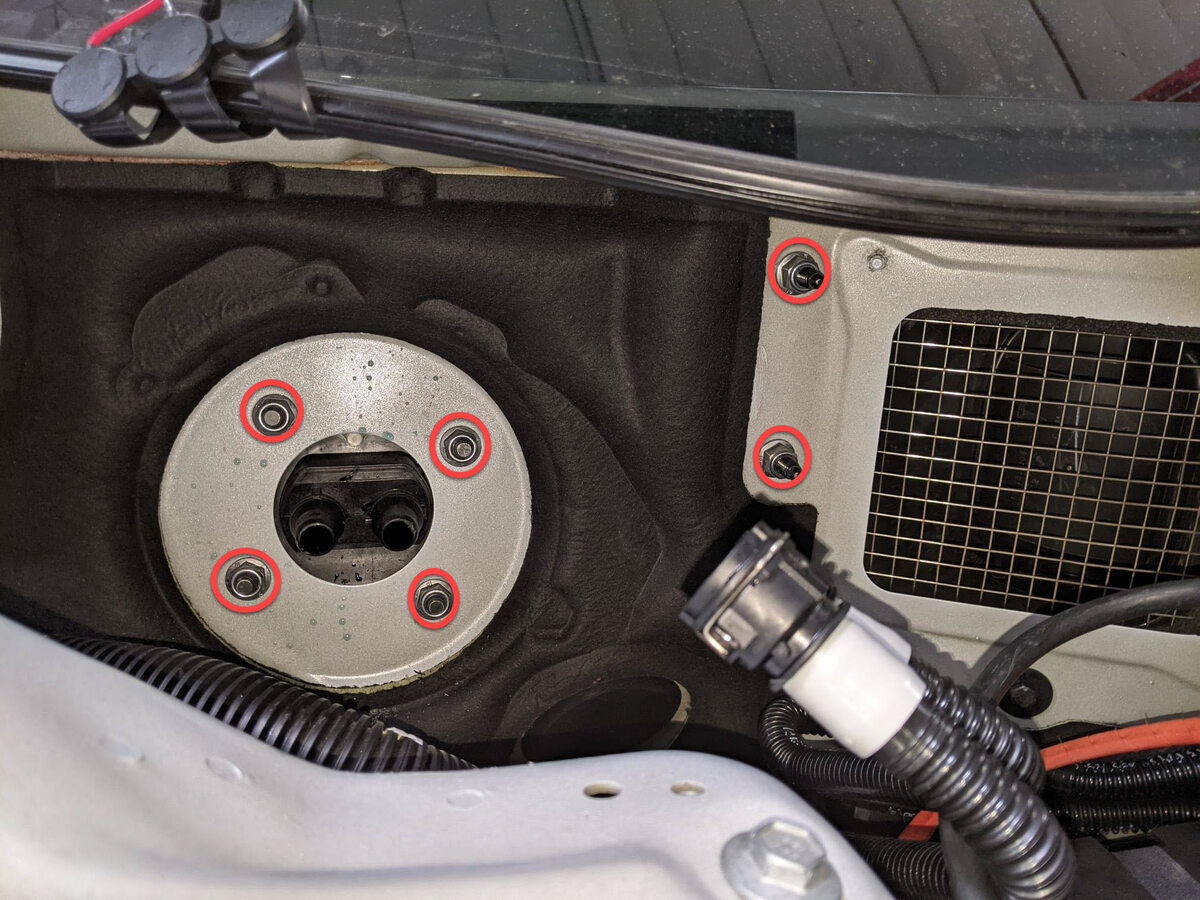

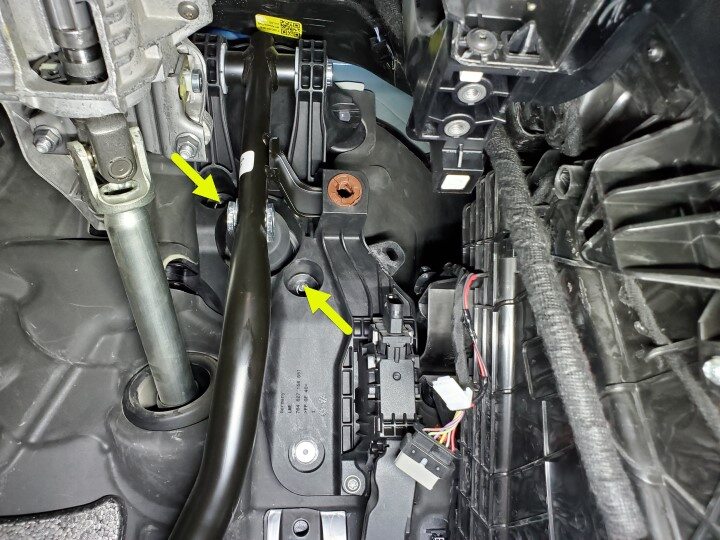

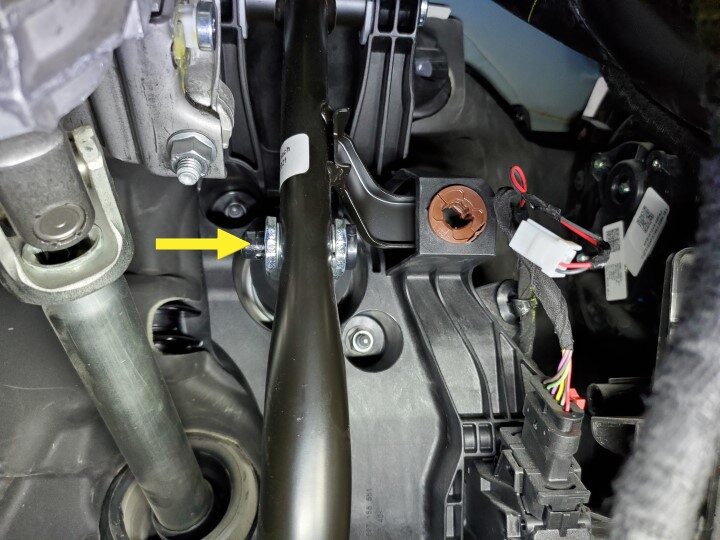

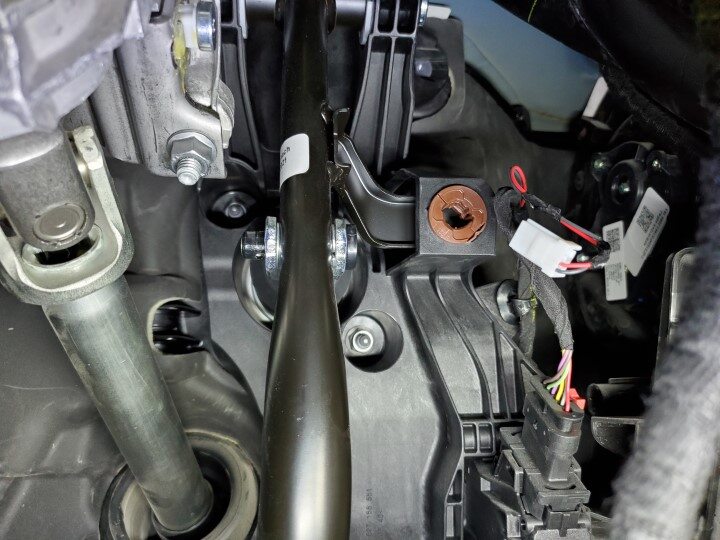

Remove inner nuts securing pedal assembly to superdash

注

2x nuts, 13mm, 16.5 Nm, Discard nyloc nuts after removal

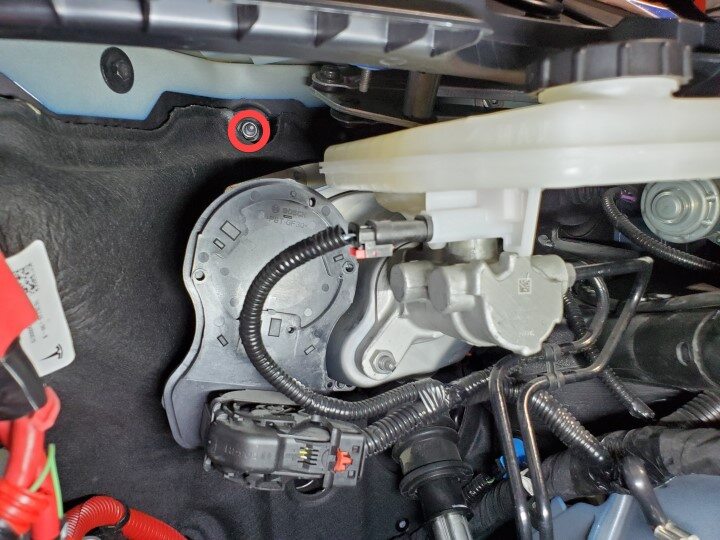

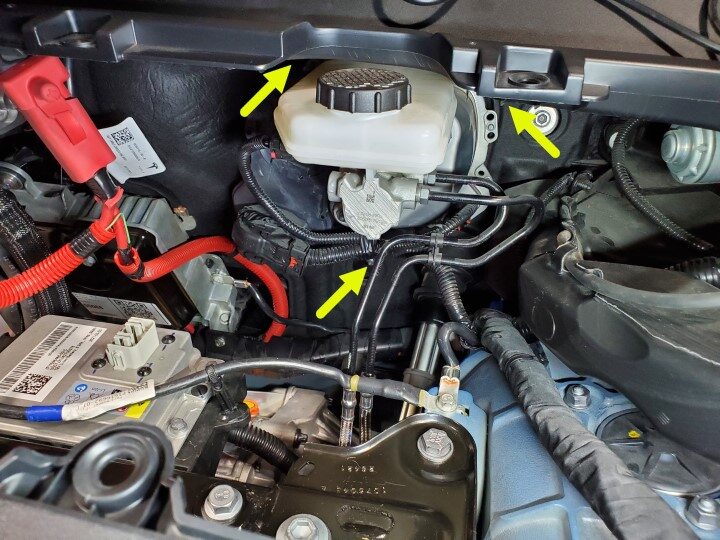

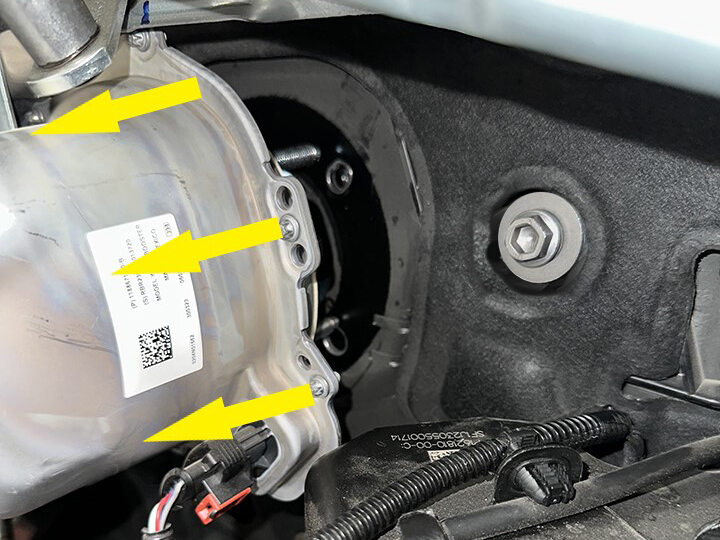

Remove outer nuts securing pedal assembly to superdash

注

3x nuts, 13mm, 16.5 Nm, Located under cowl, Discard nyloc nuts after removal

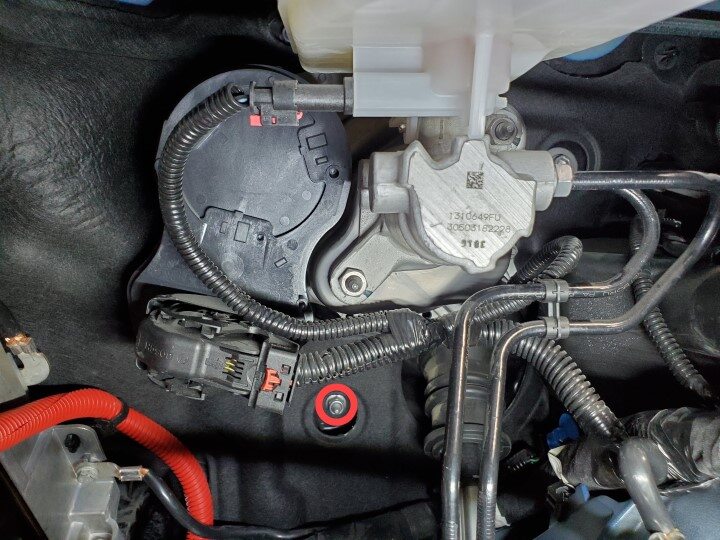

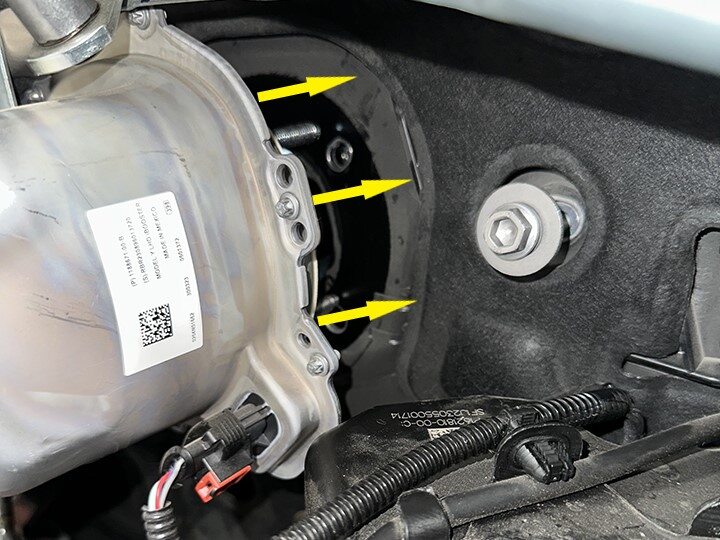

Pull away the iBooster from bulkhead

注

Allowing iBooster push rod to separate from brake pedal arm

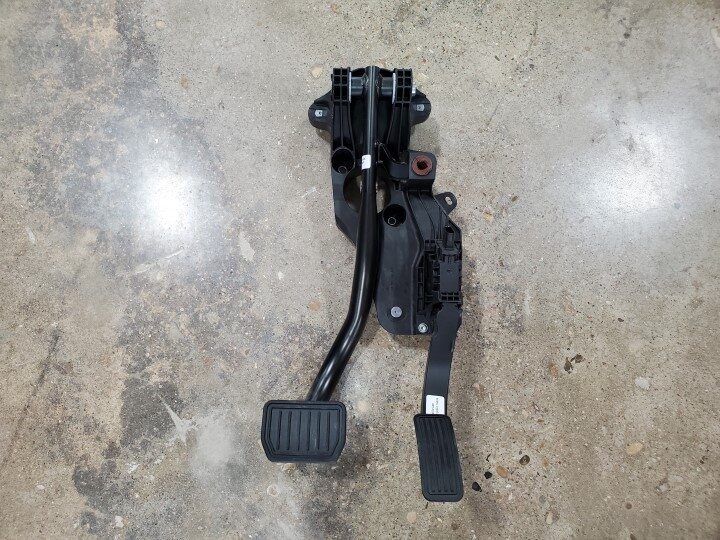

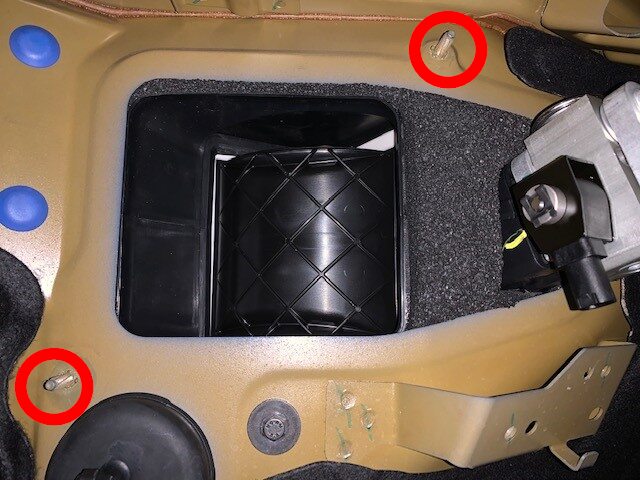

Remove pedal assembly

注

2x studs, Release from iBooster studs then negotiate around iBooster rod

Place absorbent material below car computer coolant hose connection points to collect any spilled coolant

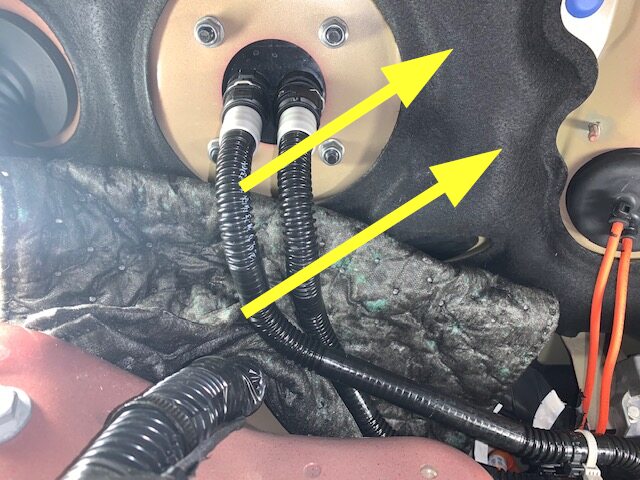

Release coolant hoses from car computer

注

2x spring clips

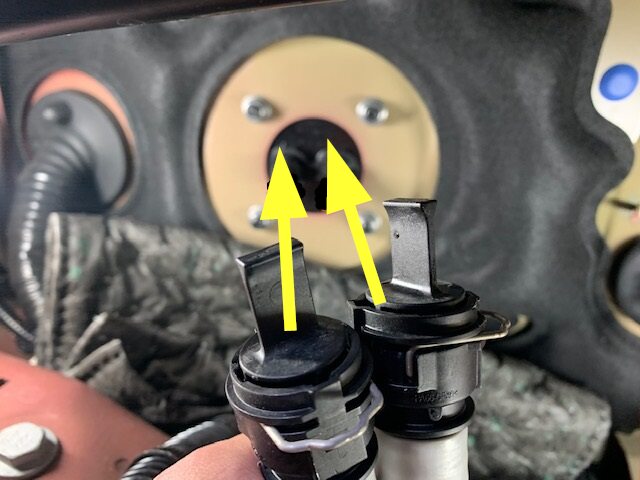

Install coolant plug into coolant outlets of car computer that is being removed from vehicle

Install plugs to car computer coolant hoses

注

2x plugs, Do not need to engage spring clips

Remove nuts securing car computer to bulkhead

注

5x nyloc nuts, 13mm, 7.1 Nm, Discard nuts after removal

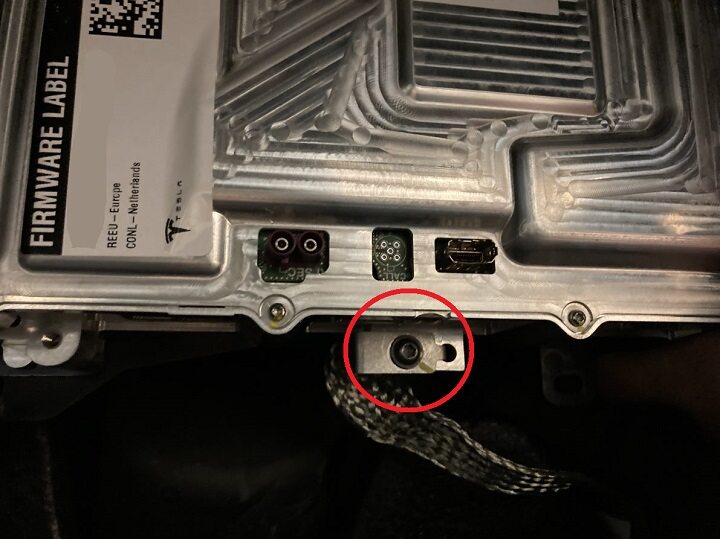

Release ground strap from car computer

注

1x bolt, T25, 4 Nm, Bolt located, Discard bolt after removal

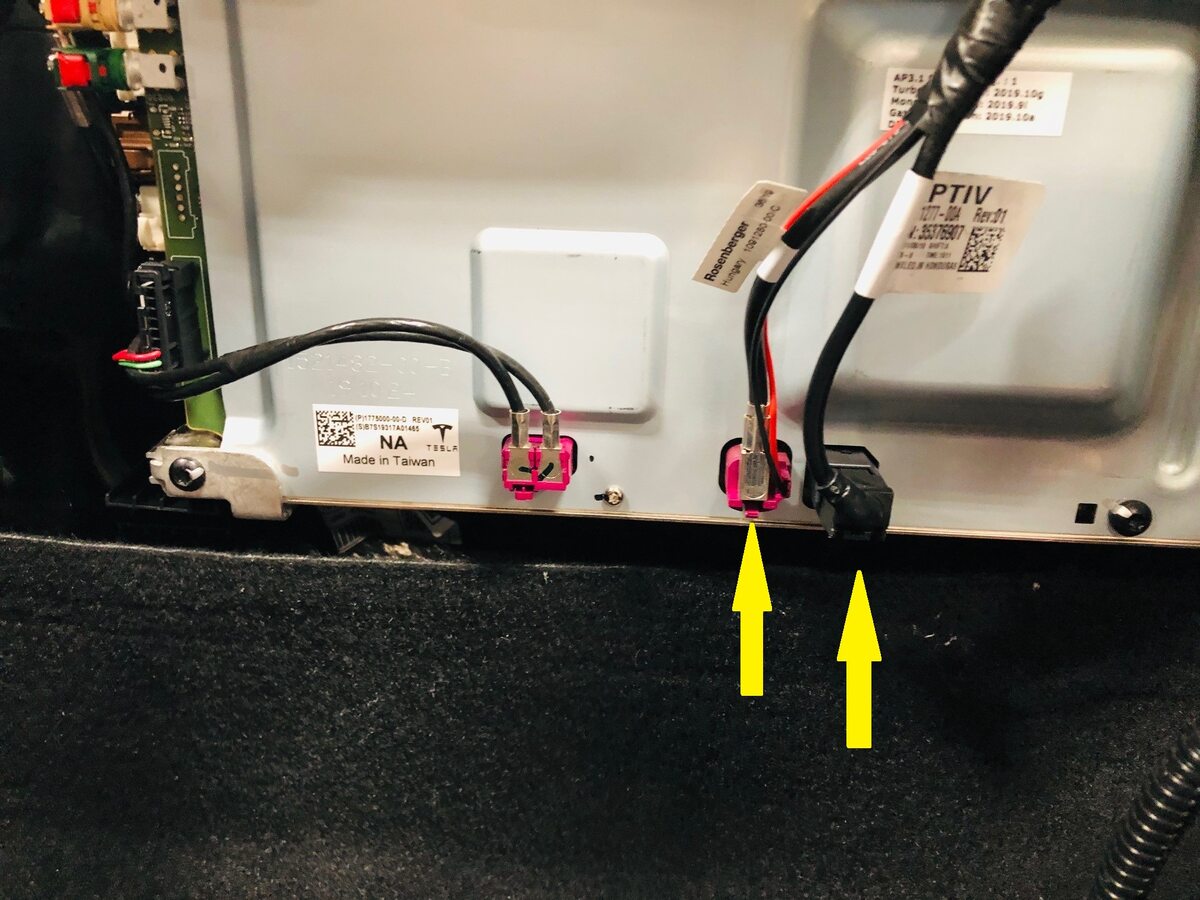

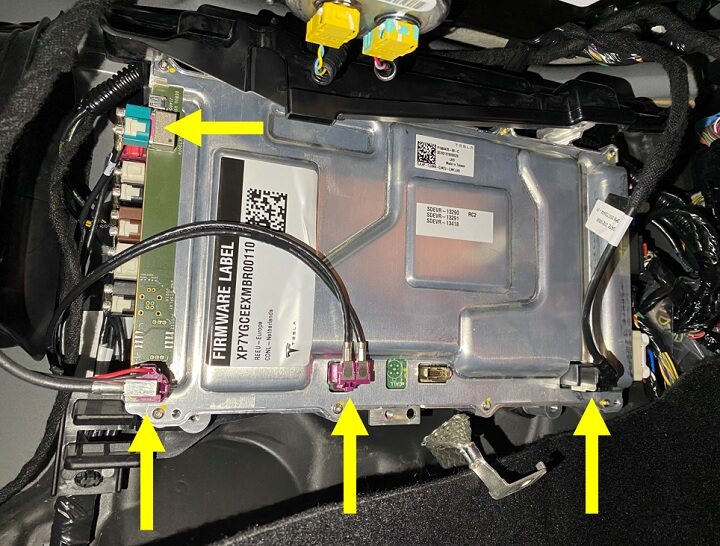

Disconnect connectors on front side of car computer

注

2x connectors

Release harness connectors on LH side of car computer

注

7x connectors, If equipped, release locking tab, then remove connector body

Release harness guide clip

注

1x clip, Pinch release tabs with needle nose pliers

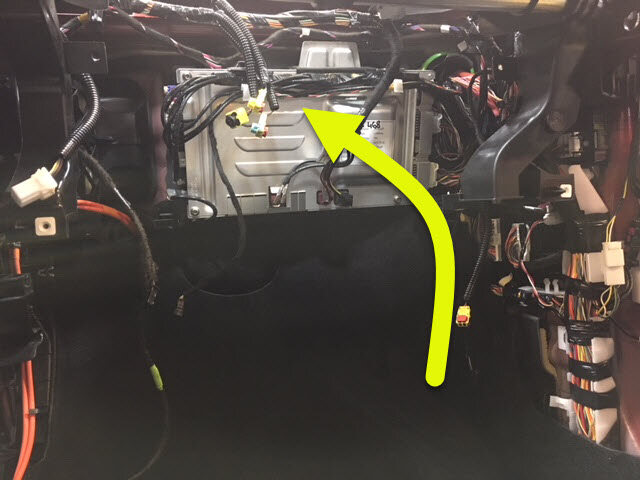

Slide car computer inward to allow access to connectors and harness clips

注

With right hand on top of computer and left hand under computer, use right hand to help push airbag up and towards the rear of the vehicle to provide clearance for visor.

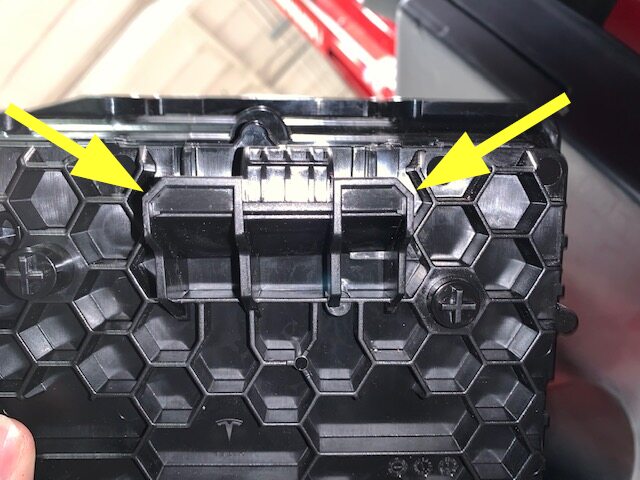

Remove visor from car computer

注

4xclips Pull tab on left side of computer away from computer and lift visor up and way.

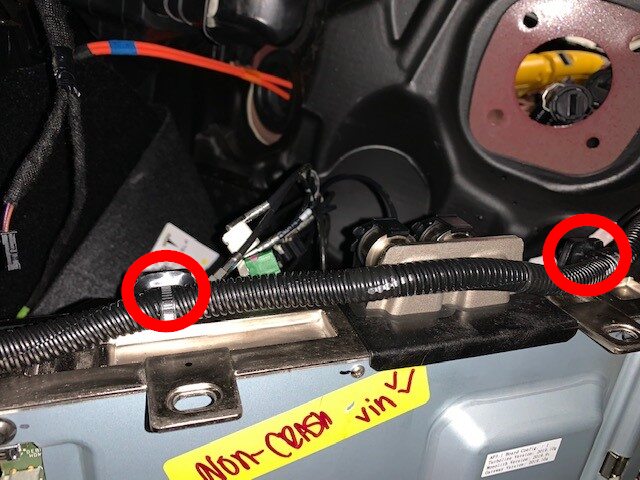

Release harness clips from top of car computer

注

2x clips, Car computer partially removed for better visual

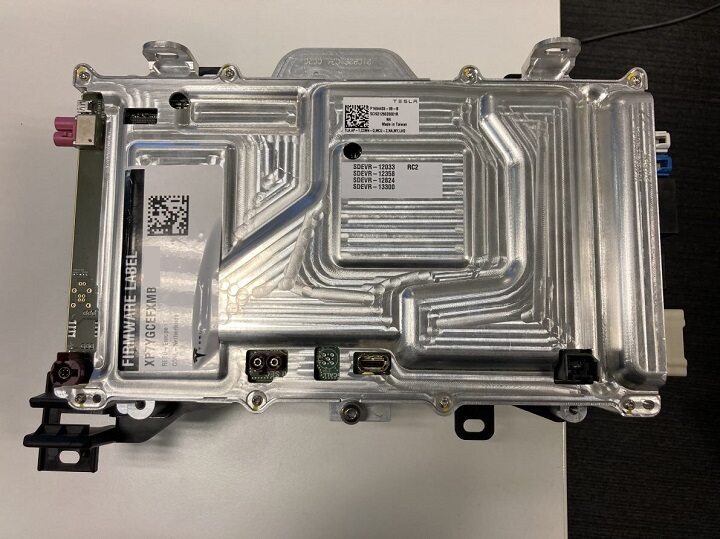

Release connectors from RH side of car computer and remove from vehicle

注

8x connectors, If equipped, release locking tab, then remove connector body, Replace the car computer, If the old car computer is of the removable SIM card type, please install it onto the new car computer

Disconnect headliner harness

注

1x connector

Remove LH body harness clips from left body controller area

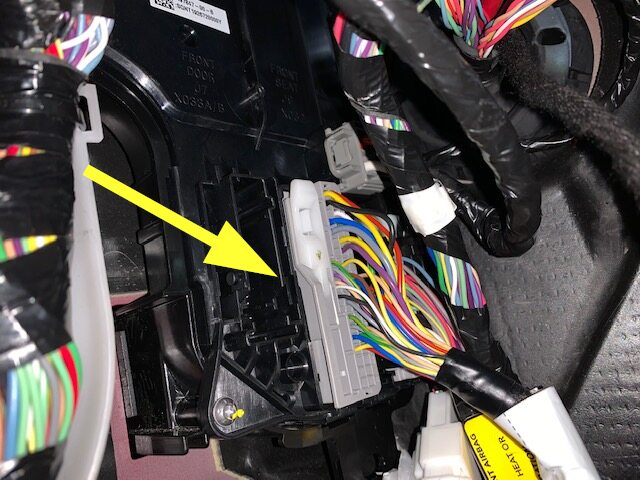

Disconnect J7 LH front door connector

注

1x connector, Release lock then remove

Disconnect J9 LH front seat connector

注

1x connector, Release lock then remove

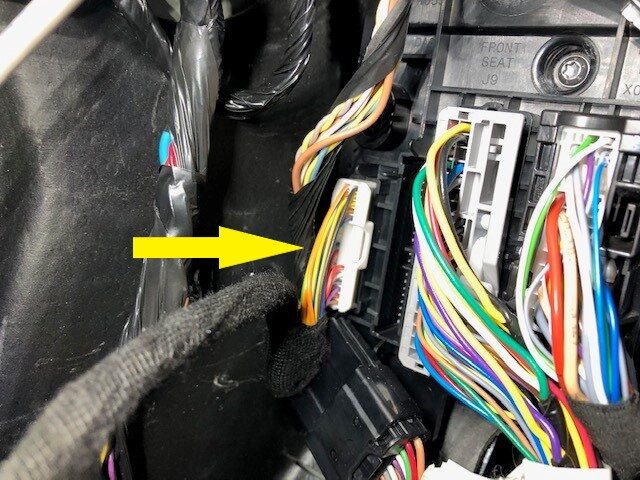

Disconnect X055 dash connector

注

1x connector

Disconnect J11 HVAC connector

注

1x connector

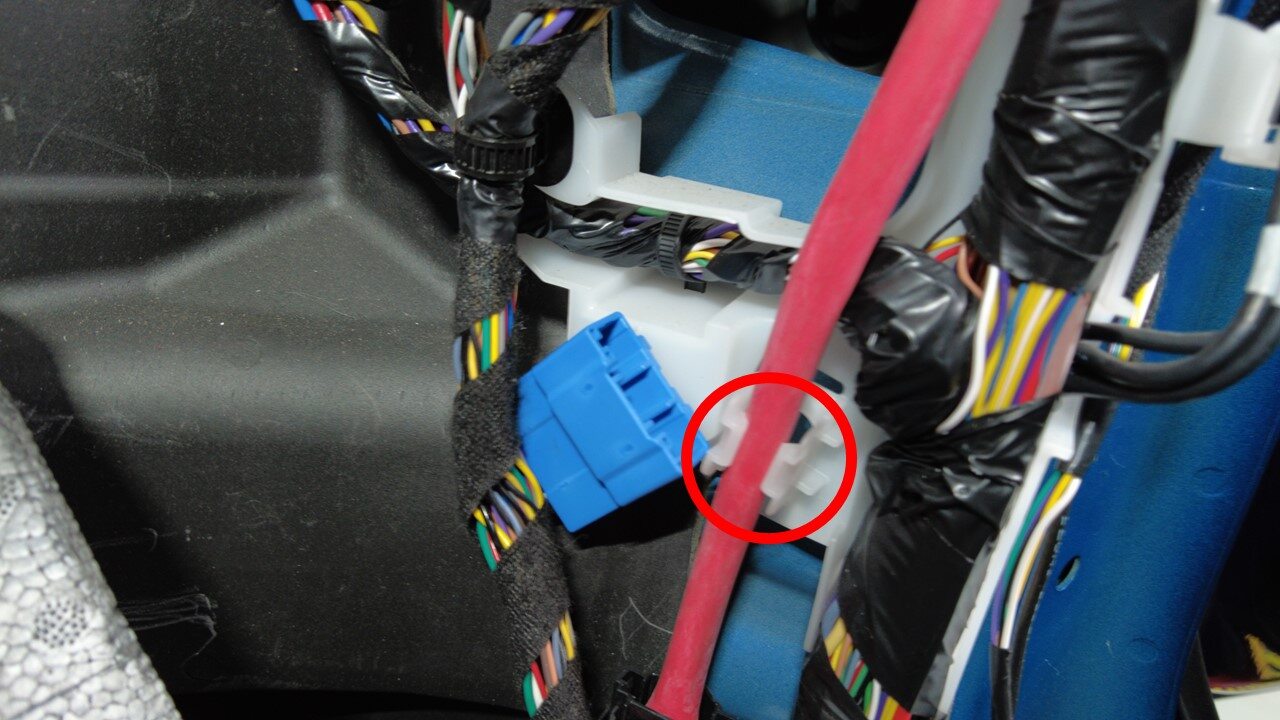

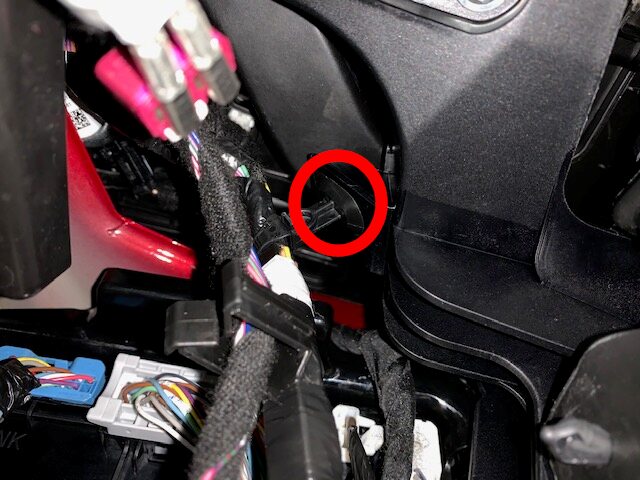

Release harness clip from vcleft

注

1x clip

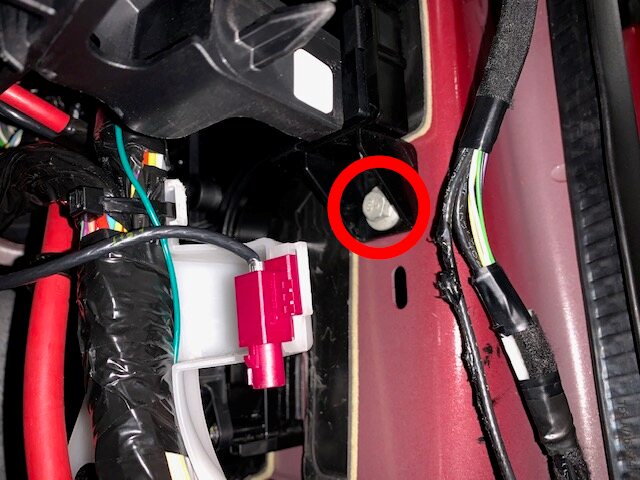

Remove bolt securing LH body controller to body

注

1x bolt, 10mm, 6 Nm

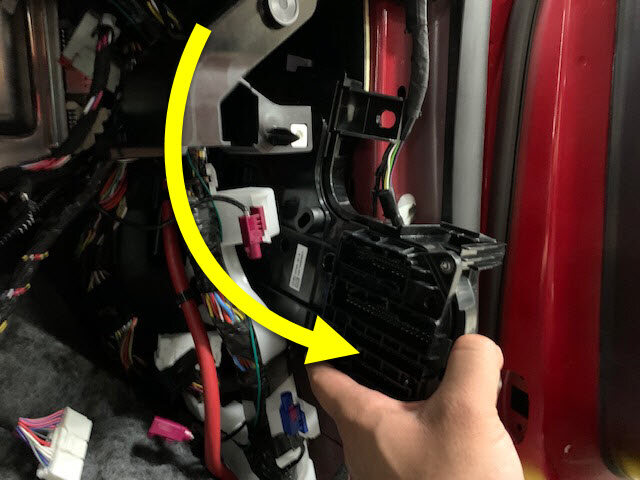

Remove LH controller from vehicle

注

1x clip, 1x tab, Release molded controller clip and slide LH body controller downward to release tab, Then maneuver LH controller out from under IP

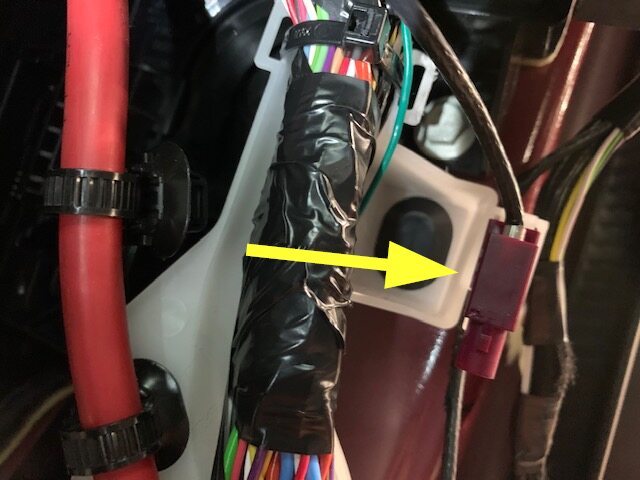

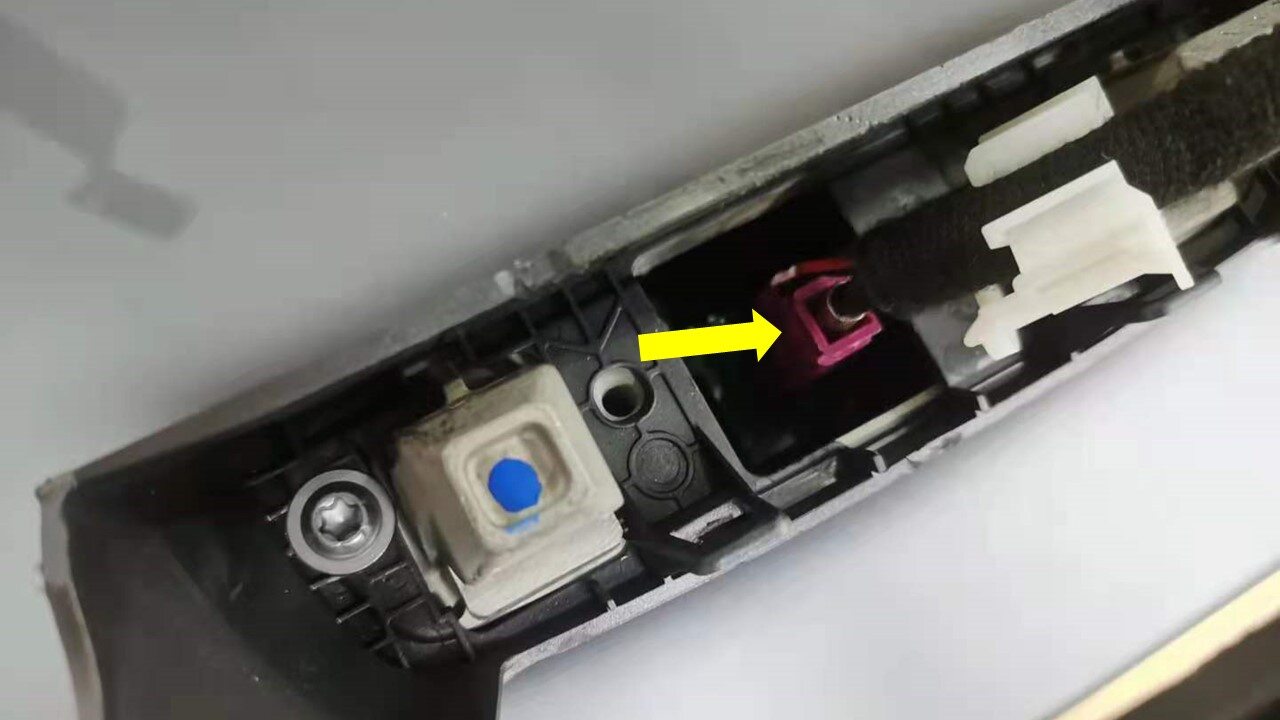

Disconnect coax connector

注

1x connector

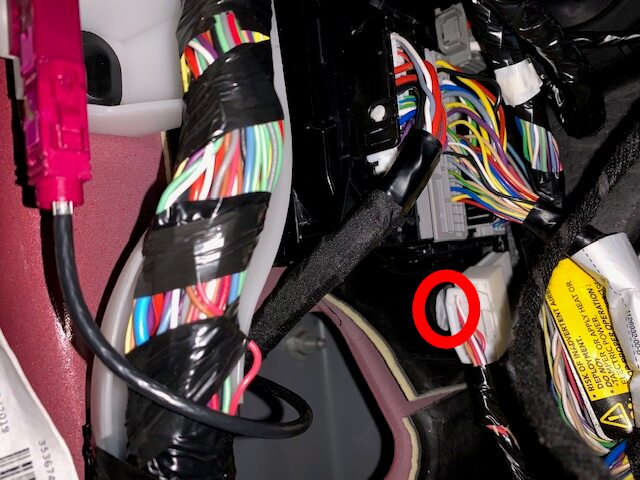

Disconnect connector from harness guide at RH lower A-pillar area

注

1x connector

Remove the RH body harness clips from right body controller area

注

2x clips

Release harness from IP

注

2x clips

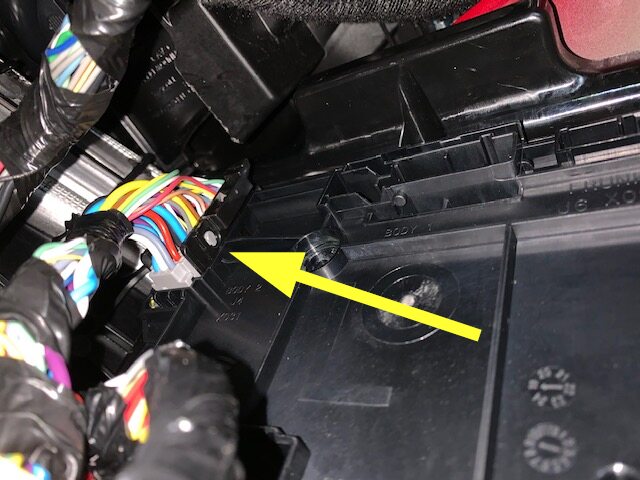

Disconnect J2 body connector

注

1x connector, Release lock then remove

Disconnect J6 frunk connector form vcleft

注

1x connector

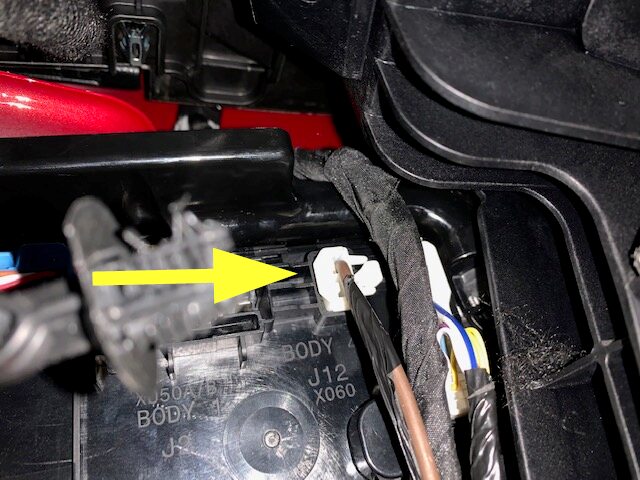

Disconnect J12 body connector

注

1x connector

Disconnect J5 body connector

注

1x connector, Release lock then remove

Disconnect J4 body connector

注

1x connector, Release lock then remove

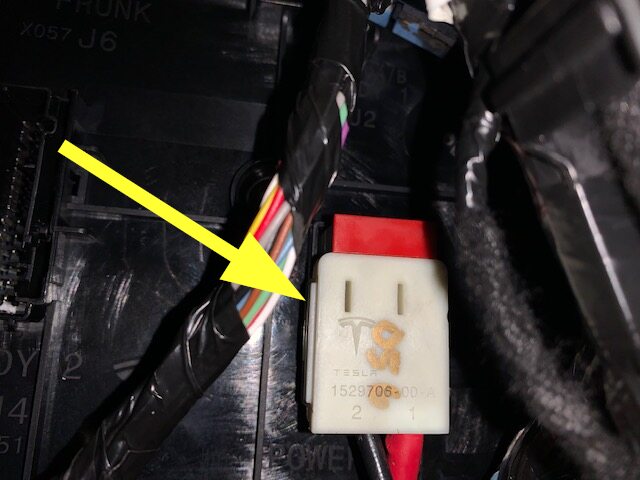

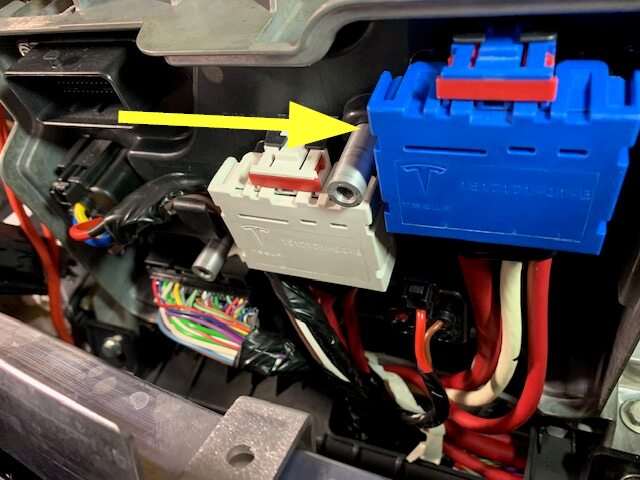

Disconnect J1 power connector form vcleft

注

1x connector, Disengage locking tab

Remove connector from RH controller

注

1x clip

Disconnect J7 door connector

注

1x connector, Release lock then remove

Disconnect J9 RH front seat connector

注

1x connector, Release lock then remove

Disconnect X055 dash connector

注

1x connector

Disconnect J11 HVAC connector

注

1x connector

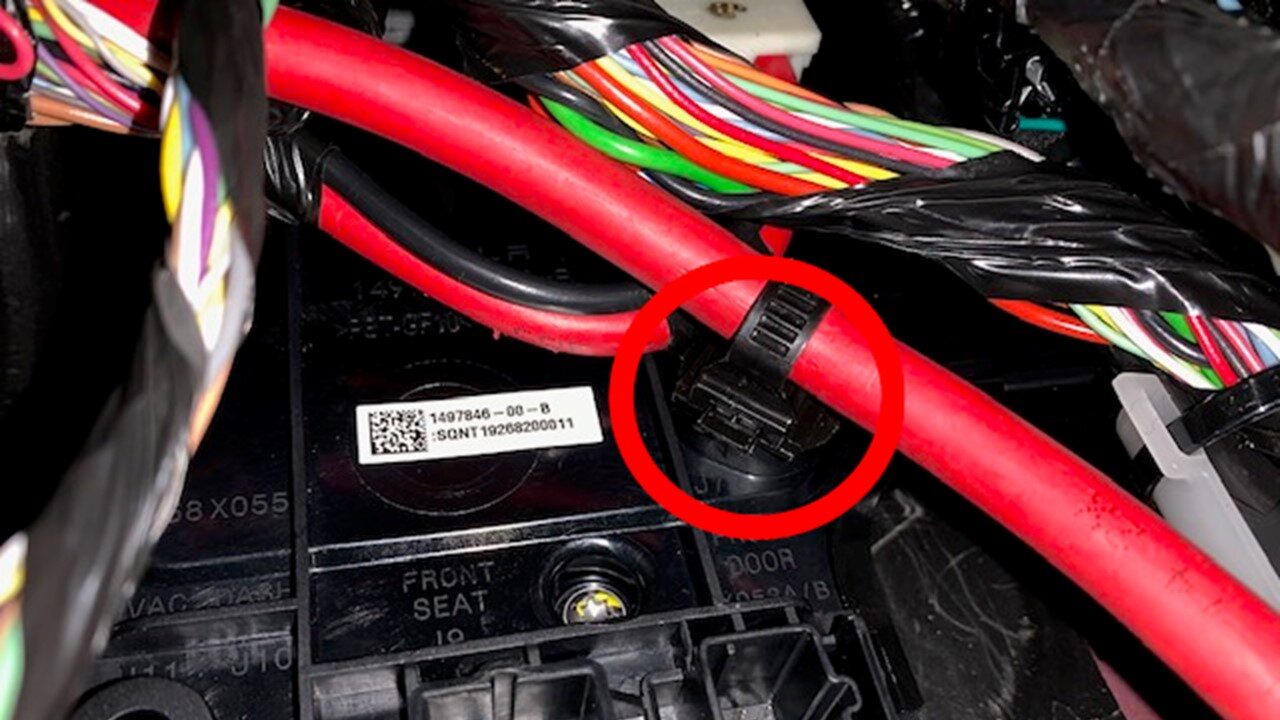

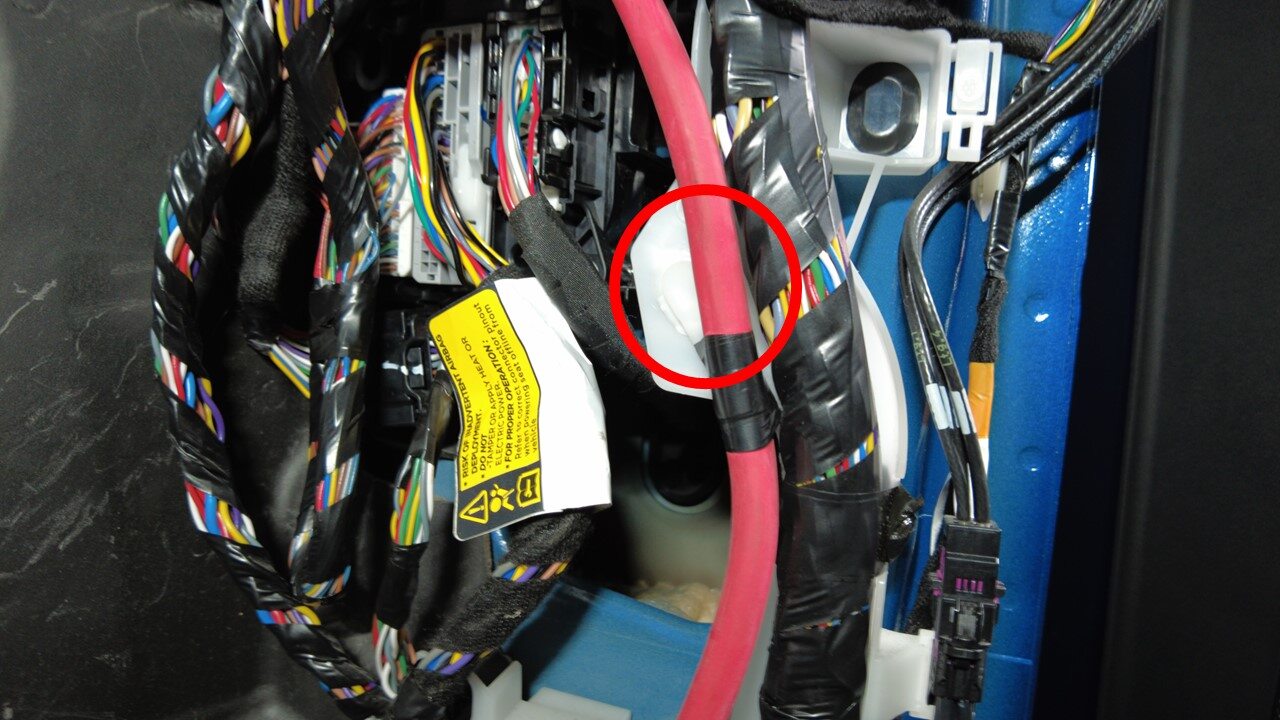

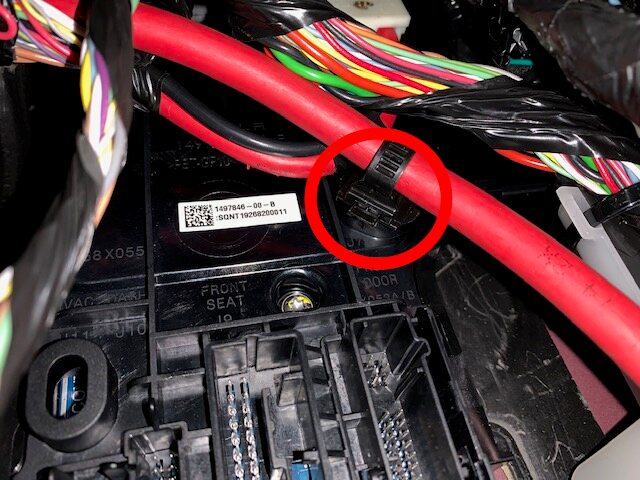

Release LV positive harness from vcright

注

2x clips, 1x hook

Remove bolt securing RH body controller to body

注

1x bolt, 10mm, 6 Nm

Remove RH controller from vehicle

注

1x clip, 1x tab, Release molded controller clip and slide RH body controller downward to release tab, Then maneuver RH controller out from under IP between harness guide and body

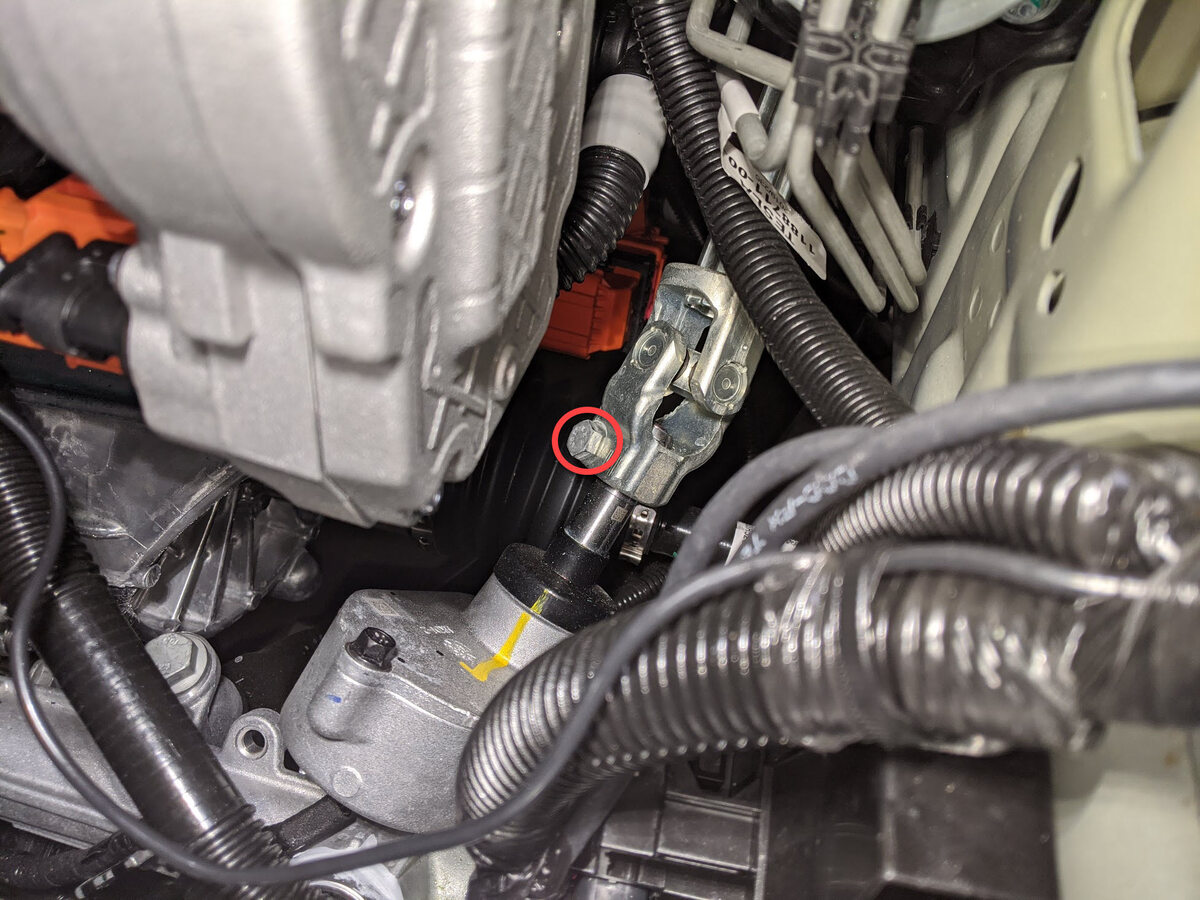

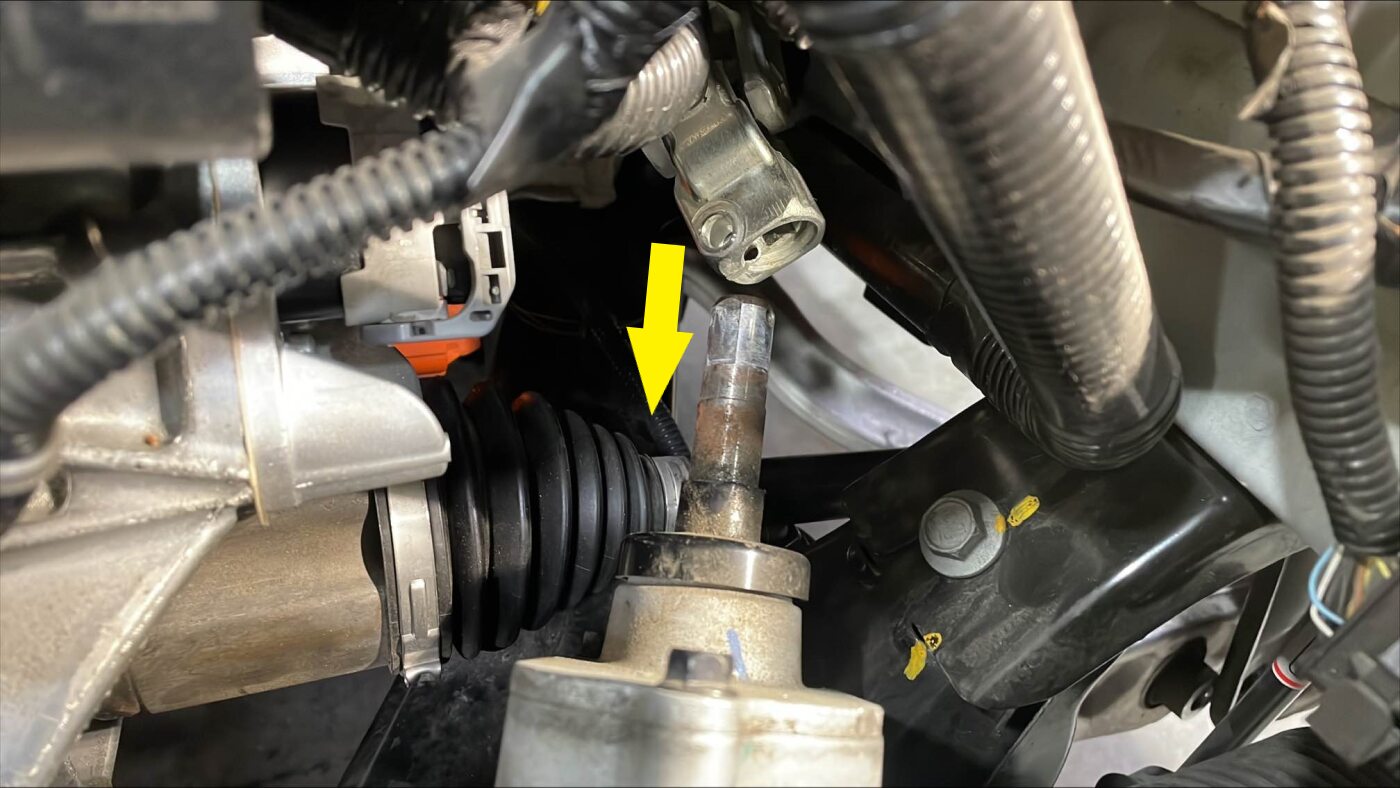

Disconnect steering column from steering gear assembly

注

May need to wiggle or use dead blow to help separate

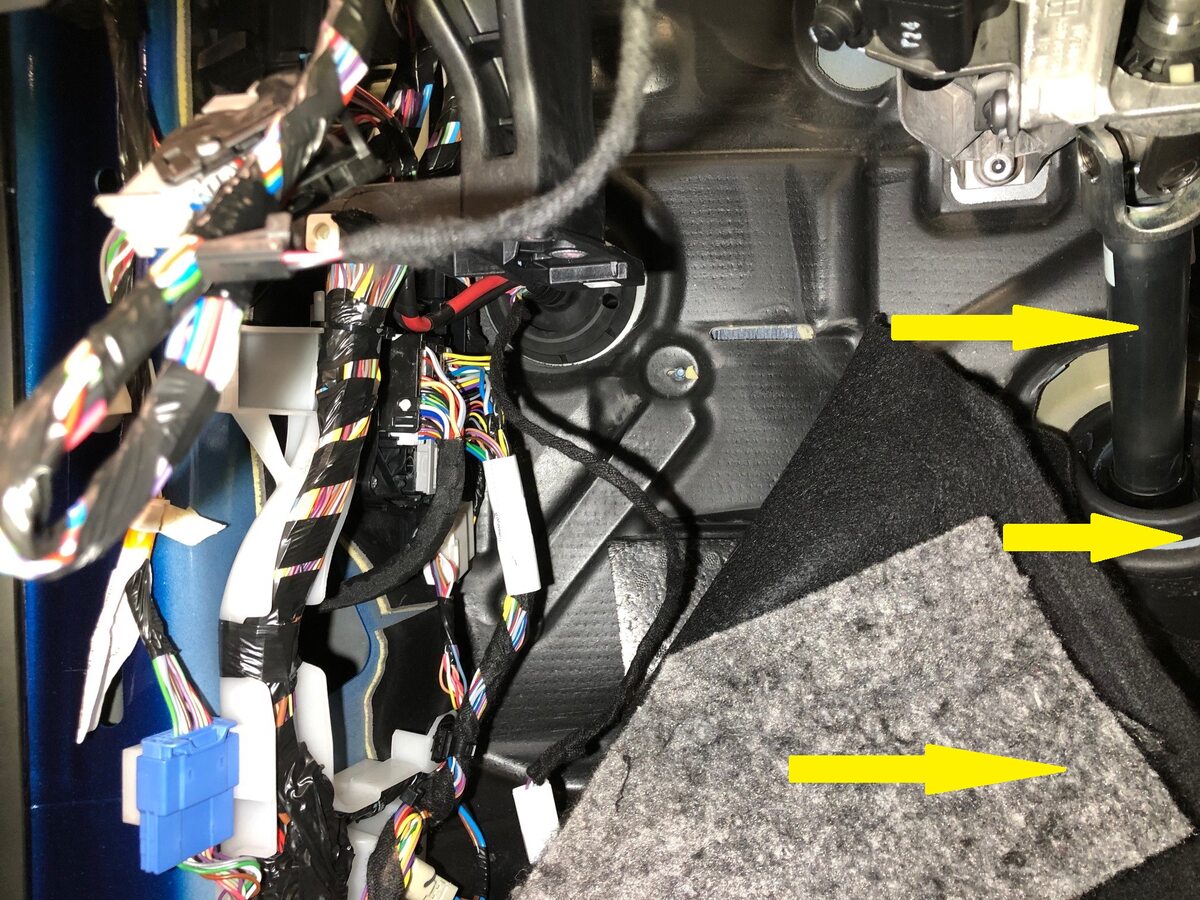

Release steering column boot from LH side of bulkhead

注

Partially push steering column boot into cabin of vehicle

Remove steering column from vehicle

注

Slowly pulling assembly inwards

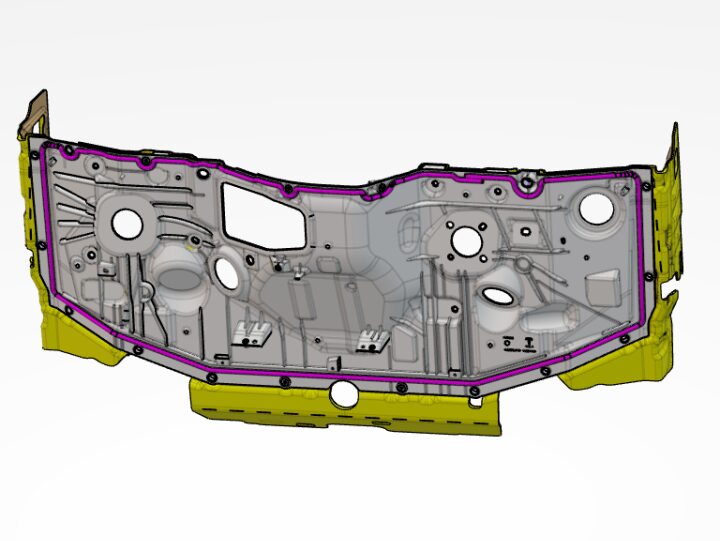

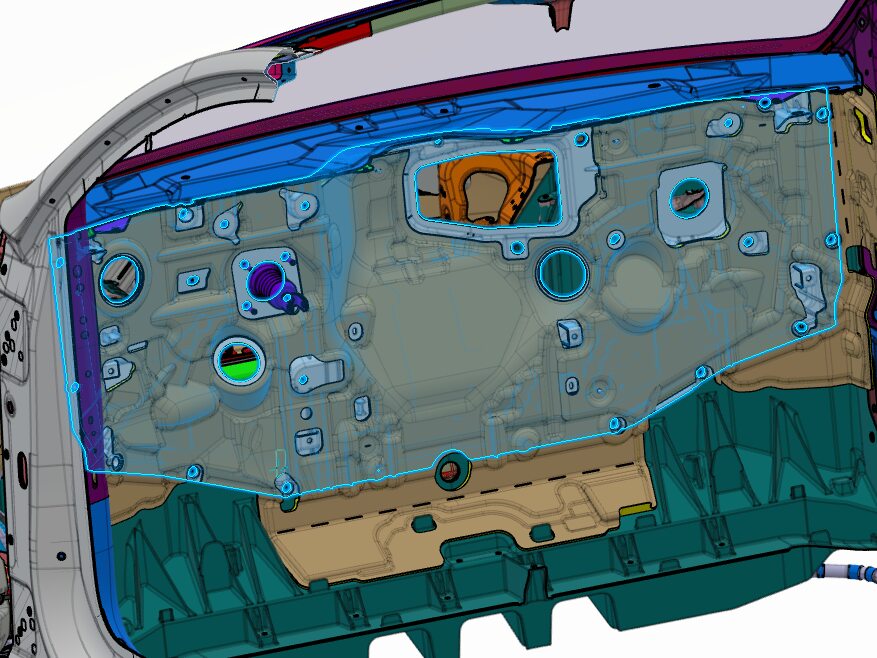

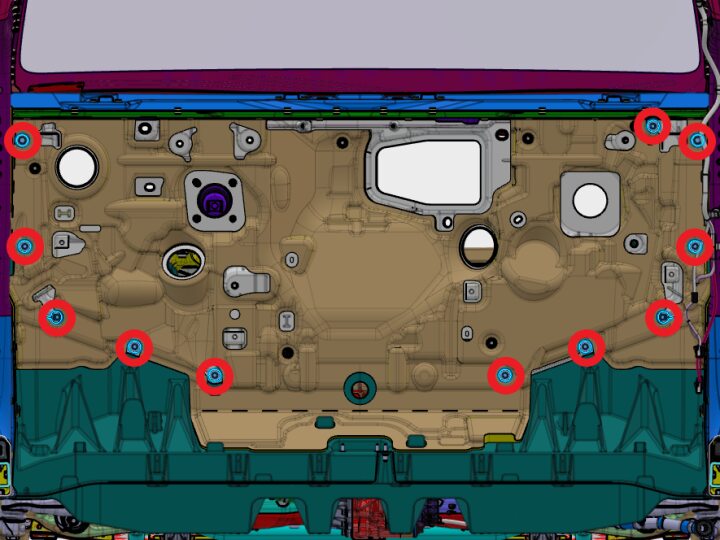

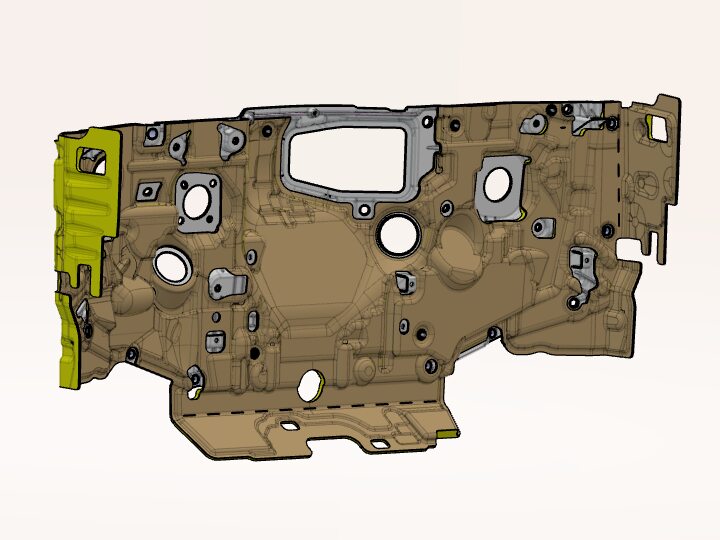

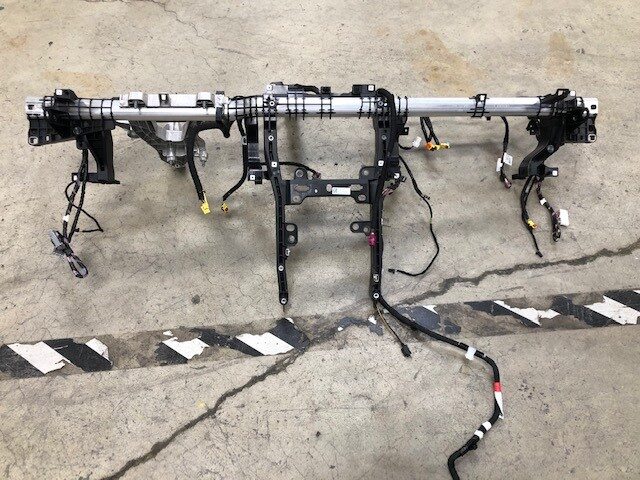

Remove superdash assembly

注

16x bolts, 10mm, 12 Nm, 2x grommets, 1x harness clip, Release harness grommets then feed harness through to underhood, Remove superdash from interior

Install superdash assembly

注

16x bolts, 10mm, 12 Nm, 2x grommets, 1x harness clip, Install superdash from interior, Feed harness through from underhood, Position iBooster studs to dash, Secure harness grommets

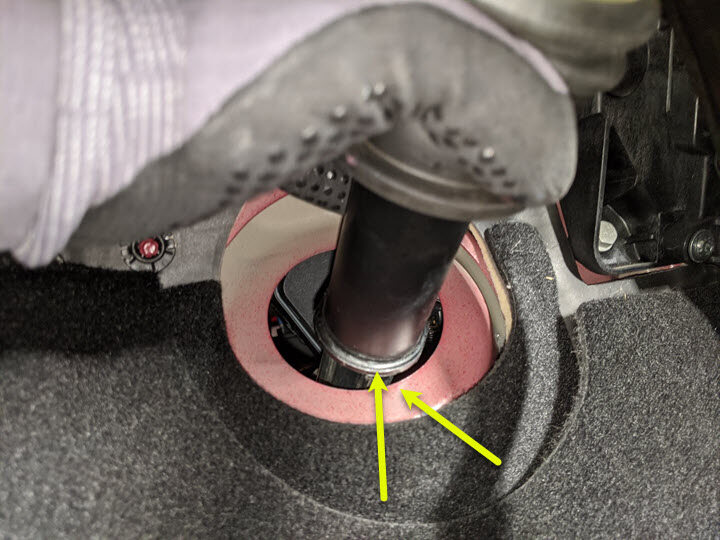

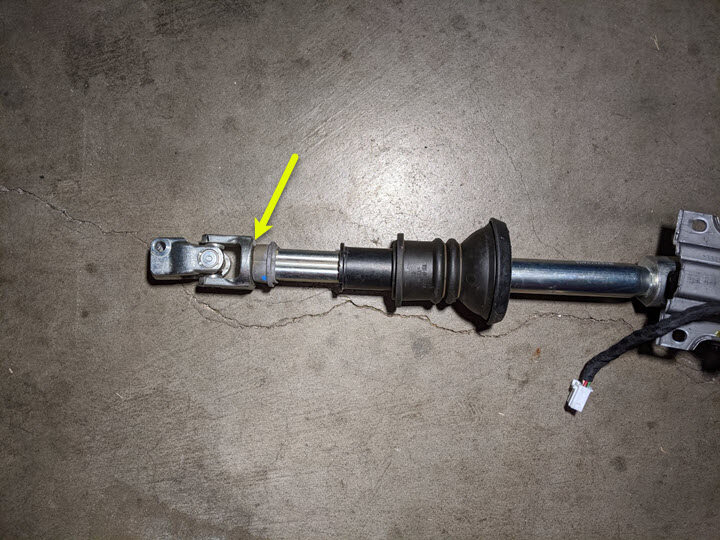

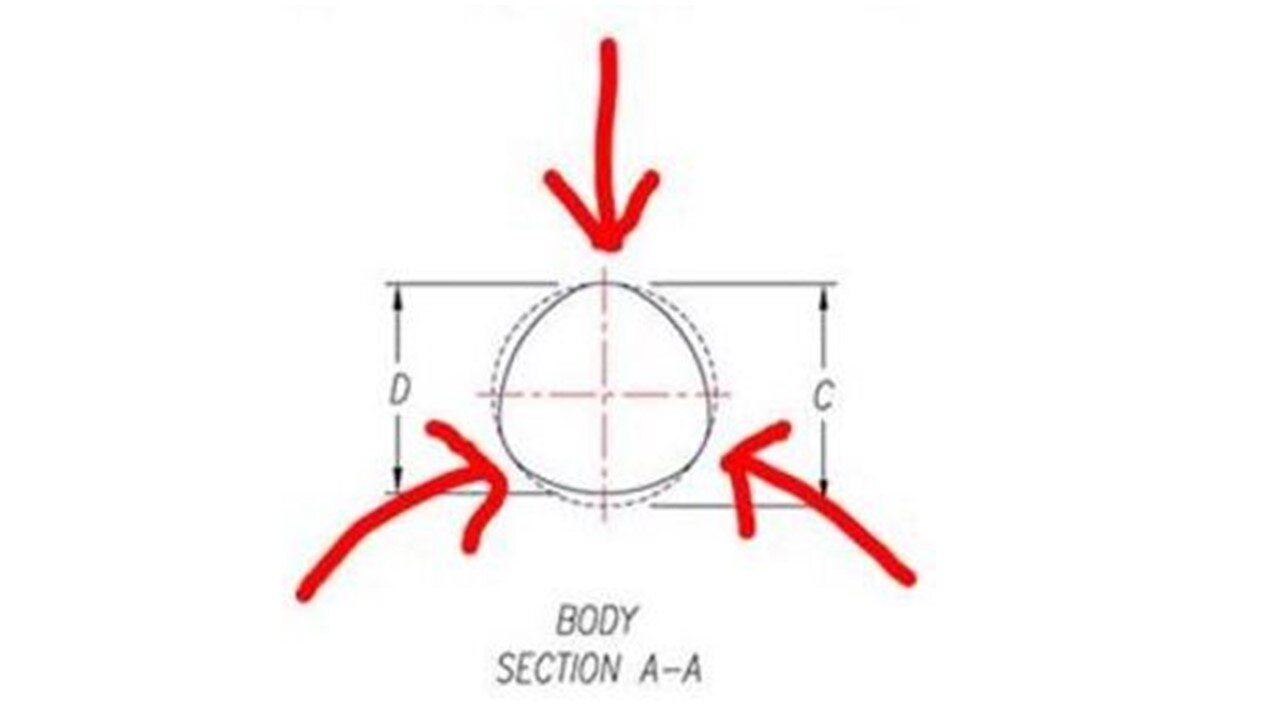

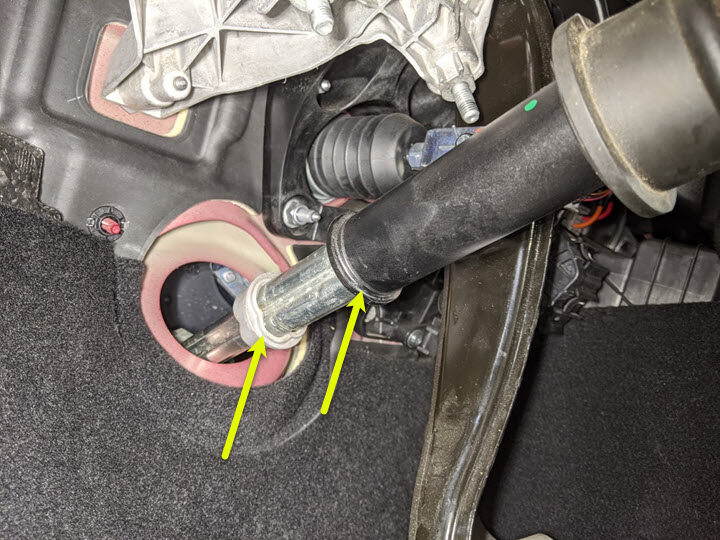

Slide lower shaft into column until it bottoms out

Position steering column into place for installation

注

Clear lower shaft through bulk head while supporting front side of steering column up towards roof of vehicle,

Connect steering column to steering gear assembly

注

Slide steering column downward to install steering gear assembly, Ensure the intermediate shaft is aligned and fully seated

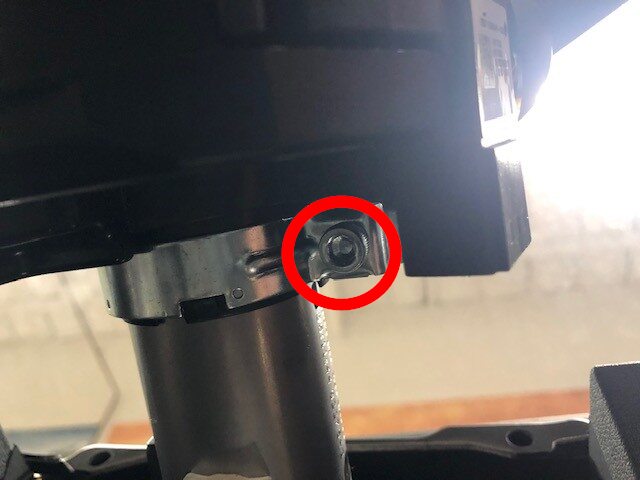

Install bolt securing intermediate shaft assembly to steering gear assembly

注

1x bolt, 13mm, 18 Nm, Install new bolt

Install steering column boot to LH bulkhead

Install RH body controller to vehicle

注

1x clip, 1x tab, Maneuver controller between harness guide and body up into IP, Set tab into BIW cut-out, clip controller into body

Install bolt securing RH controller to body

注

1x bolt, 10mm, 6 Nm

Secure LV positive harness to vcright

注

2x clip, 1x hook

Connect J11 HVAC connector

注

1x connector

Connect J10 dash connector

注

1x connector

Connect J9 RH front seat connector

注

1x connector, Fully seat connector then engage lock

Connect J7 door connector

注

1x connector, Fully seat connector then engage lock

Secure connector to RH controller

注

1x clip

Connect J1 power connector

注

1x connector, Fully seat connector then engage lock

Connect J4 body connector

注

1x connector, Fully seat connector then engage lock

Connect J5 body connector

注

1x connector, Fully seat connector then engage lock

Connect J12 body connector

注

1x connector

Connect J6 frunk connector

注

1x connector

Connect J2 body connector

注

1x connector, Fully seat connector then engage lock

Secure harness to IP

注

1x edge clip, 1x clip

Secure RH body harness to RH controller area

注

2x clips

Connect blue coax connector to body harness guide side

注

1x connector

Connect purple coax connector to body harness guide side

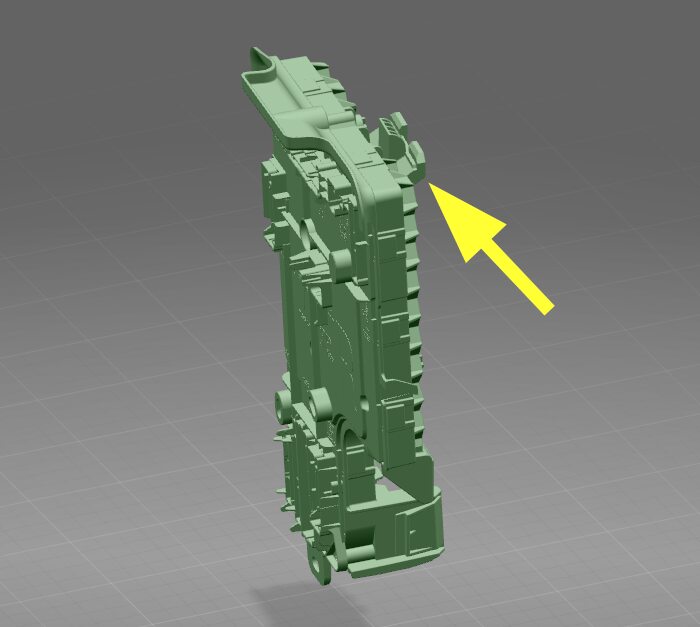

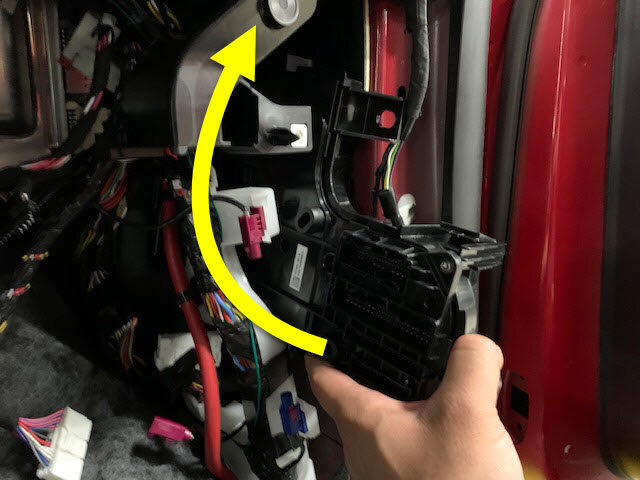

Install LH body controller to vehicle

注

1x clip, 1x tab, Maneuver controller up into IP, Set tab into BIW cut-out, Clip controller into body

Install bolt securing LH controller to body

注

1x bolt, 10mm, 6 Nm

Connect J4 body connector

注

1x connector, Fully seat connector then engage lock

Connect J2 body connector

注

1x connector, Fully seat connector then engage lock

Connect J6 frunk connector

注

1x connector

Connect J5 body connector

注

1x connector, Fully seat connector then engage lock

Connect J1 power connector

注

1x connector, Fully seat connector then engage lock

Secure harness clip to vcleft

注

1x clip

Connect J11 HVAC connector

注

1x connector

Connect J10 dash connector

注

1x connector

Connect J9 LH front seat connector

注

1x connector, Fully seat connector then engage lock

Connect J7 door connector

注

1x connector, Fully seat connector then engage lock

Secure LH body harness to LH controller area

Secure connector to LH controller

注

1x clip

Connect headliner harness

注

1x connector

Place car computer into vehicle and connect RH side connectors

注

8x connectors, If equipped, fully seat connector, then engage locking tab, If the procedure involves replacing the car computer, and the old computer uses a removable SIM card, please install it into the new car computer

Secure harness to top of car computer

注

2x clips

Install visor on car computer

注

4x clips, Align coolant pipe clips over coolant pipes and lower visor until all clips are secured.

Slide car computer into position on bulkhead

注

Use caution during installation due to minimal clearance between shroud and passenger airbag connectors and harness

Secure harness guide clip

注

1x harness clip

Connect LH side connectors

注

7x connectors, If equipped, fully seat connector, then engage locking tab

Connect connectors on the front side of car computer

注

4x connectors, If equipped, fully seat connector, then engage locking tab

Secure ground cable to car computer

注

1x bolt, T25, 4 Nm

Install nuts securing car computer to the bulkhead

注

6x nyloc nuts, 13mm, 7.1 Nm, Install new nyloc nuts

Remove coolant plug from car computer

Remove plugs from car computer coolant hoses

注

2x plugs, Engage spring clips after removal

Secure hoses to car computer coolant inlet/outlet

注

2x spring clips, Perform push-pull-push test to ensure the hoses are fully seated

Remove absorbent material from below car computer coolant hose connection points

Secure the iBooster in place

注

May have to align iBooster push rod before securing iBooster back into it's position

Position pedal assembly

注

2x studs, Negotiate around iBooster rod then secure onto iBooster studs

Install inner nuts securing pedal assembly to superdash

注

2x nuts, 13mm, 16.5 Nm, Install new nyloc nuts

Install outer nuts securing pedal assembly to superdash

注

3x nuts, 13mm, 16.5 Nm, Located under cowl, Install new nyloc nuts

Install clip securing pedal harness to pedal assembly

注

1x clip

Connect accelerator pedal connector

注

1x connector, Engage locking tab

Align brake pedal to booster rod and install clevis pin to brake pedal assembly

注

1x pin

Install cotter pin into clevis pin clip on brake pedal assembly

注

1x clip

Install new brake switch clip into new pedal assembly

注

1x clip

Install brake switch onto pedal assembly

注

Confirm that the brake pedal is in the home position,iBooster and Brake Pedal must be assembled together for brake light switch to be installed, Push the brake switch into the clip until it stops (don't push so hard as to move the brake pedal), Twist clockwise 45 degrees to set the brake switch, Make sure brake switch connector facing RH side of vehicle with connector pins vertical

Connect brake switch connector

注

1x connector

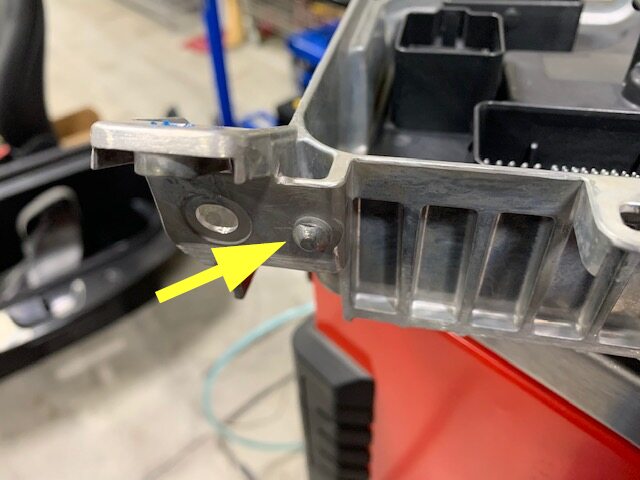

Maneuver vcfront into position

注

Slide over temp set hook first, then into bottom bracket temp set holes

Install securing vcfront bolts to body

注

3x bolts, 10mm, 10 Nm

Secure vcfront upper ground strap

注

1x bolt, 10mm, 10 Nm

Install harness guide to vcfront

注

2x patch bolts, 8mm, 6 Nm, 1x temp set clip, Install new bolts, Pivot harness guide upwards and back to install temp set clip to front harness, then install bolts, If new bolts are not available apply Loctite 222 to the bolts

Connect vcfront harness connectors

注

5x connectors, Fully seat connector, then engage locking tabs if equipped

Install vcfront protection shield

注

2x bolts, 10mm, 8.5 Nm

Connect supermanifold harness to vcfront

注

1x connector,1x tree clip, Verify locking tab is fully engaged

Secure LV positive cable to front controller

注

1x clip

Install fresh air intake duct

注

1x bolt, 10mm , 4 Nm, 2x clips, 1x pin, Maneuver between cowl and frunk, Position clips onto bulkhead studs then duct secure onto thermal bar

Install 12V battery into vehicle

Install 12V battery strap

注

1x bolt, 10mm, 5 Nm

Install bolt securing upper tie down strap to A/C compressor bracket

注

1x bolt, 10mm, 5 Nm

Install vent tube hose into 12V battery

Install 12V positive terminal and terminal cover

注

1x nut, 10mm, 6 Nm, 2x clips

Install HVAC assembly into vehicle and position HVAC assembly onto stud

注

Install front of HVAC assembly through passenger front door, Rotate counter clockwise and install towards front of vehicleStud may not be present on vehicles built after 3/2020

Install nut securing HVAC assembly to body

注

1x nut, 10mm, 5.5 Nm, Slightly move RH carpet and foam towards RH side of vehicle

Install bolt securing HVAC assembly to RH side of bulkhead

注

1x bolt, 10mm, 5.5 Nm

Install floor duct to HVAC assembly

Install floor duct onto stud located in-between LH and RH seat

注

1x stud

Connect HVAC connector to right vehicle controller

注

1x connector

Install A/C manifold to HVAC line to HVAC assembly

注

2x bolts, 13mm, 28 Nm

Reconnect A/C hoses to vehicle

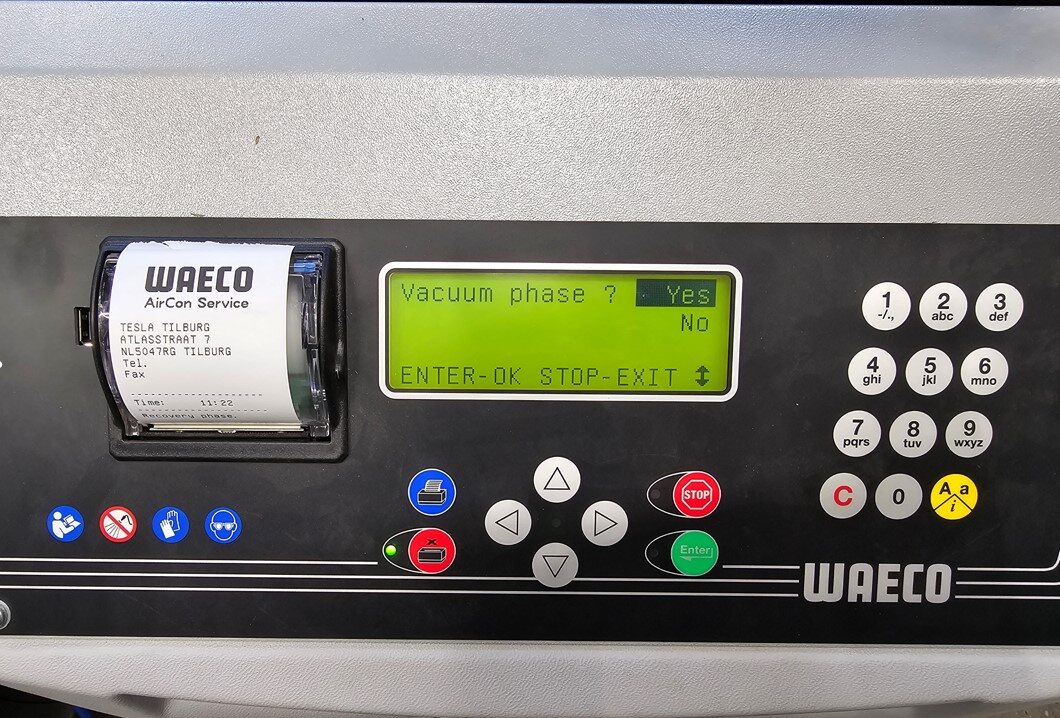

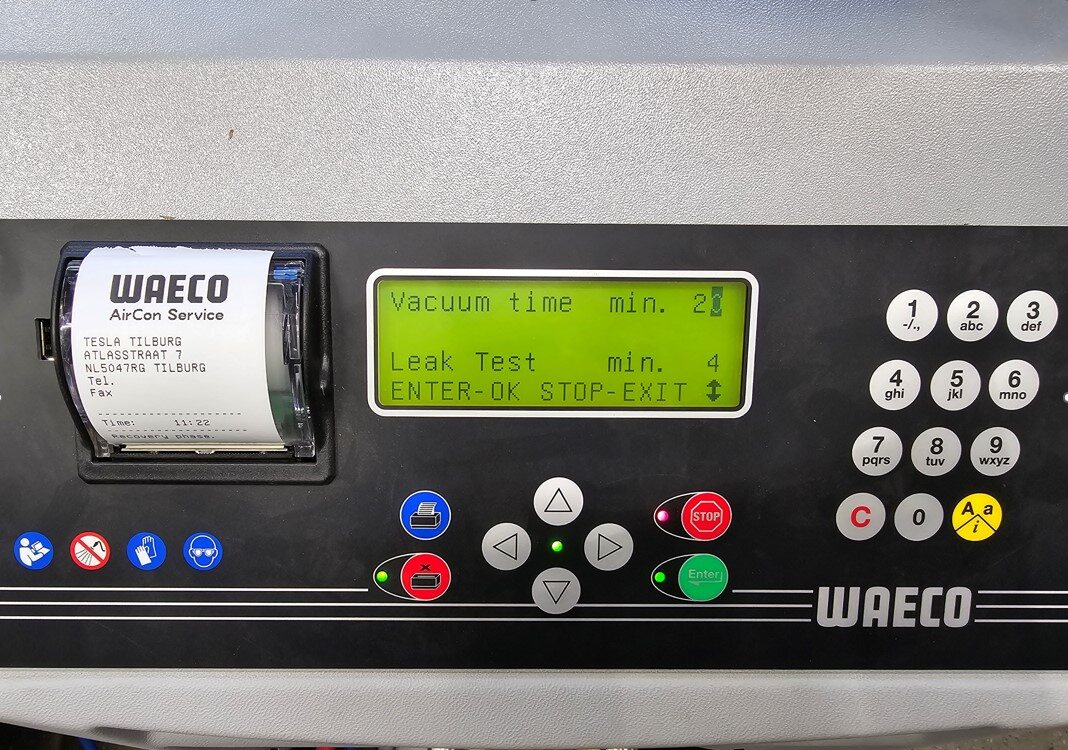

Perform system vacuum and refrigerant refill

注

Select 20 mins of Vacuum, Recharge refrigerant to car's specs, add oil quantity as needed, select both HP and LP for charging

Install cross car beam into vehicle

注

Recommend assistance

Loosely install bolts securing cross car beam to RH side of body

注

2x bolts, 15mm, 29 Nm, Torque at later step

Loosely install bolts securing cross car beam to LH side of body

注

2x bolts, 15mm, 29 Nm, Torque at later step

Loosely install bolt securing cross car beam to upper cowl

注

1x bolt, 13mm, 25 Nm

Loosely install bolt securing cross car beam to HVAC assembly on upper LH side of HVAC assembly

注

1x bolt, 10mm, 5.5 Nm

Loosely install bolts securing cross car beam to HVAC assembly in front of HVAC assembly

注

4x bolts, 10mm, 5.5 Nm

Install RH cross car beam bracket and loosely install nut that secures RH cross car beam bracket to body

注

1x nut, 13mm, 25 Nm, Torque at later step

Loosely install bolt securing RH cross car beam bracket to cross car beam

注

1x bolts, 13mm, 25 Nm, Torque at later step

Install LH cross car beam bracket and loosely install nut that secures LH cross beam bracket to body

注

1x nut, 13mm, 25 Nm

Loosely install bolt to secure LH cross car beam bracket to cross car beam

注

1x bolt, 13mm, 25 Nm

Install bolts securing cross car beam to LH side of bulkhead

注

2x bolts, 13mm, 25 Nm

Torque bolt that secures LH cross car beam bracket to cross car beam

注

1x bolt, 13mm, 25 Nm

Torque nut securing LH cross car beam bracket to body

注

1x nut, 13mm, 25 Nm,Slightly pull LH carpet towards LH side of vehicle

Install clip that secures carpet to LH cross car beam bracket

注

1x clip

Torque bolt securing RH cross car beam bracket to cross car beam

注

1x bolt, 13mm, 25 Nm

Torque nut securing RH cross car beam bracket to body

注

1x nut, 13mm, 25 Nm

Install clip securing carpet to RH cross car beam bracket

注

1x clip

Torque bolts securing cross car beam to HVAC assembly

注

4x bolts, 10mm, 5.5 Nm

Torque bolt that secures cross car beam to HVAC assembly

注

1x bolt, 10mm, 5.5 Nm

Torque bolt that secures cross car beam to upper cowl

注

1x bolt, 13mm, 25 Nm

Torque bolts securing cross car beam to LH side of body

注

2x bolts, 15mm, 29 Nm

Torque bolts securing cross car beam to RH side of body

注

2x bolts, 15mm, 29 Nm

Install nuts securing lower steering column to cross car beam

注

2x nuts, 13mm, 15 Nm

Install nuts securing upper steering column to cross car beam

注

2x nuts, 13mm, 15 Nm

Install bleeder duct adapter to HVAC assembly

注

4x clips

Install RH touchscreen bracket

注

2x bolts, T30, 12 Nm

Install LH touchscreen bracket

注

2x bolts, T30, 12 Nm

Install headliner harness clip located on LH upper A pillar

注

1x clip

Install headliner harness clips to LH lower A-Pillar

注

2x clips

Install headliner harness connector on LH lower A-Pillar

注

1x connector

Install clip located on RH lower A-pillar

注

1x clip

Install clip located on RH side of cross car beam

注

1x clip

Install dash harness connector to right body controller

注

1x connector

Position RH carpet back to original position

Install connectors to the car computer

注

2x connectors

Install HVAC harness to IP harness holding mount on RH side of IP harness

注

2x holding mount, 1st holding mount is located on the RH side of the HVAC assembly, 2nd holding mount is located next to the right body controller

Install IP harness clip to HVAC assembly next to RH upper mode actuator

注

1x clip

Install IP harness clip to HVAC assembly next to RH lower duct thermistor

注

1x clip

Install IP harness clip to cross car beam

注

1x clip

Install IP harness clip to body vehicle next to RH cross car beam bracket

注

1x clip

Install center console support bracket

注

1x clip, 4x tabs, Slide towards rear of vehicle then engage tabs

Install IP harness clip to body located next to RCM

注

1x clip

Connect connector located on RCM

注

1x connector, Fully install connector and pull release tab into locking position

Install clip located next to RCM

注

1x clip

Connect connector to blower motor assembly

注

1x connector

Install IP harness clip located on blower motor assembly

注

1x clip

Connect connector to electric steering column

注

1x connector

Connect HVAC connector to left body controller

注

1x connector

Connect dash connector to left body controller

注

1x connector, Fully seat connector and pull release tab into locking position

Position LH cabin carpet back to original position

Install drivers air duct to HVAC assembly

Install screws securing drivers air duct to cross car beam

注

2x scews, T20, 2.3 Nm

Install IP carrier onto cross car beam

注

Recommend assistance, Be cautious to clear the harness clipped at top center of HVAC assembly, This will also ease installation

Install screw securing IP carrier to cross car beam on upper RH side

注

1x screw, T20, 2.3 Nm

Install screws securing IP carrier to cross car beam at upper center

注

2x screws, T20, 2.3 Nm

Install screws securing IP carrier to cross car beam at lower center

注

2x screws, T20, 2.3 Nm

Install screw securing IP carrier to cross car beam on upper LH side

注

1x screw, T20, 2.3 Nm

Install screws securing IP carrier to cross car beam on lower LH side

注

2x screws, T20, 2.3 Nm

Install screws securing RH side of IP carrier to cross car beam near passenger air bag

注

2x screws, T20, 2.3 Nm

Install passenger air bag into IP carrier and secure bolts

注

4x patch bolts, E10, 8 Nm, Install new patch bolts

Install connectors for passenger air bag

注

3x connectors, 2x connectors for regions other than North America

Install RH speaker to IP carrier

注

3x screws, T20, 2.3 Nm, 1x connector , If there is insufficient room to use a small torque wrench, torque the rearmost screw first, and then use a small wrench to fasten the remaining screws

Install center tweeter to IP carrier

注

2x screws, T20, 2.3 Nm, 1x connector

Install center speaker to IP

注

3x screws, T20, 2.3 Nm, 1x connector , If there is insufficient room to use a small torque wrench, torque the rearmost screw first, and then use a small wrench to fasten the remaining screws

Install LH speaker to IP carrier

注

3x screws, T20, 2.3 Nm, 1x connector , If there is insufficient room to use a small torque wrench, torque the rearmost screw first, and then use a small wrench to fasten the remaining screws

Position defroster grill and lower tabs into position on IP

注

6x tabs

Secure clips securing defroster grill

注

8x clips

Position LH air duct into IP and connect harness connector

注

1x connector

Install LH air duct into IP

注

1x screw, T20, 2.3 Nm

Position RH air duct into IP and connect harness connector

注

1x connector

Install RH air duct into IP

注

1x screw, T20, 2.3 Nm

Install IP brow finisher into vehicle

注

16x clips, Need to lift top pad up slightly to slide IP brow finisher into position

Install screws securing RH side of IP brow finisher

注

4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws

Install screws securing LH side of IP brow finisher

注

4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws

Install RH IP air wave duct

注

2x push clips

Install passenger footwell air duct

注

1x clip

Connect glove box assembly connectors

注

3x connectors, New puddle lamp harness routing prevent blocking movement of pawls

Install glove box into IP carrier

注

3x clips

Install screws securing glove box assembly to IP carrier

注

6x screws, T20, 2.3 Nm

Install main decor assembly

注

15x clips, 1x center clip

Install RH air wave bezel cap to main decor assembly

注

2x clips

Install LH air wave bezel cap to main decor assembly

注

2x clips

Position center display neck housing into vehicle

Position center display into vehicle

Connect center display

注

1x connector

Install retaining clip to center display connector

注

1x clip

Slide down neck housing and install bolts securing neck housing to center display

注

2x bolts, T30, 3 Nm,

Install center display to IP carrier

注

2x patch bolts, 10mm, 16 Nm, Install new 10mm patch bolts, Slide towards front of vehicle

Connect temperature sensor connector and install IP service panel into IP

注

4x clips, 4x tabs, 1x connector

Install SCCM onto steering column

Install SCCM onto steering column

注

1x bolt, 5mm allen, 9 Nm

Connect SCCM assembly connector

注

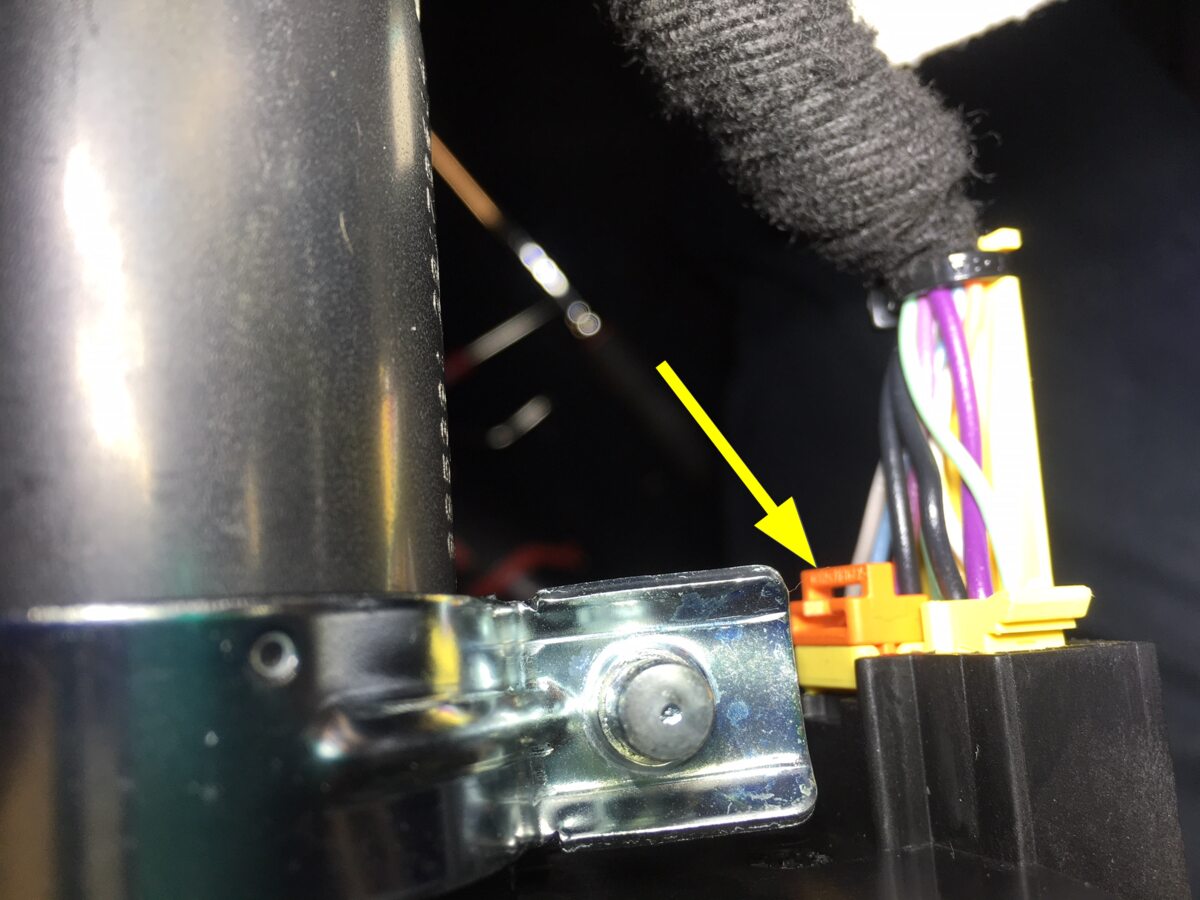

1x connector,Do not break red tab or else it will move it inner ribbon, remove at later step, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly

Install lower shroud onto steering column

Install lower screw securing lower shroud to steering column

注

1x screw, T20, 1.5 Nm

Install upper screws securing lower shroud to steering column

注

2x screws, T20, 1.5 Nm

Align clips then press downward to install upper shroud onto lower shroud

注

4x clips

Align steering wheel to steering column then position it for installation

注

The steering wheel and column are keyed

Install steering wheel to steering column

注

1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt

Connect steering wheel

注

1x connector

Connect driver air bag connector

注

2x connectors, Make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism

Install driver air bag assembly to steering wheel

注

3x datums, 2x spring clips, Inspect to make sure lower horn bracket is properly secured to steering wheel before installing driver air bag, make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism, verify air bag is fully engaged

Install passenger knee air bag

注

1x connector, Engage locking tab, Use caution not to damage connector/harness, Support air bag while connecting connector

Install fasteners securing passenger knee air bag to vehicle

注

4x patch bolts, E10, 8 Nm, 2x screws, T20, 2 Nm, 1x push clip, Install new patch bolts

Install RH footwell lighting and speaker connectors

注

2x connectors

Install clips securing RH footwell assembly

注

4x push clips

Install clip securing RH front cabin carpet to body

注

1x push clip

Install LH footwell duct into HVAC module

注

1x clip

Install driver knee air bag

注

1x connector, Engage locking tab, Use caution not to damage connector/harness, Support air bag while connecting connector

Install fasteners securing driver knee air bag to vehicle

注

4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 2x push clips

Install LH footwell cover

注

5x clips, 1x push clip, 1x Ethernet connector, 1x connector, 1x OBD, T20, 2.5 Nm

Install screw and clips securing LH footwell cover

注

1x screw, T20, 2.5 Nm, 2x push clips

Install clip securing LH front cabin carpet to body

注

1x clip

Install center console onto vehicle

注

Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place

Connect harness to rear of center console

注

1x connector

Connect harness at right front of center console

注

1x USB connector

Install RH front exterior hardware to center console

注

2x bolts, 10mm, 7 Nm, The relatively newer vehicles are equipped with a T30 bolt.

Install RH console side panel carpet

注

11x clips, 1x guide pin, Position side panel and align the locator, then the rear locator, Push side panel towards console to install

Install RH front floor mat

Install LH front exterior hardware to center console

注

2x bolts, 10mm, 7 Nm, The newer vehicles are equipped with a T30 bolt.

Install LH console side panel carpet

注

10x clips, 1x guide pin, Position side panel and align the locator, then the rear locator, Push side panel towards console to install

Install LH front floor mat

Install RH upper A-pillar trim

注

3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim

Install RH lower A pillar trim

注

6x clips, 2x locating pins, Align front locating pin first

Install clip securing RH lower A pillar trim

注

1x push clip

Install RH mid A pillar assembly

注

1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Make sure the seal seat on top of the trim

Install RH IP end cap

注

3x clips

Install LH upper A-pillar trim

注

3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim

Install LH lower A pillar trim

注

6x clips, 2 locating pins, Align front locating pin first

Install clip securing LH lower A pillar trim

注

1x push clip

Install LH mid A pillar assembly

注

1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Pull seal over trim

Install LH IP end cap

注

3x clips

Remove A/C hoses from vehicle

Install caps onto A/C ports

注

2x caps

Remove coolant bottle cap

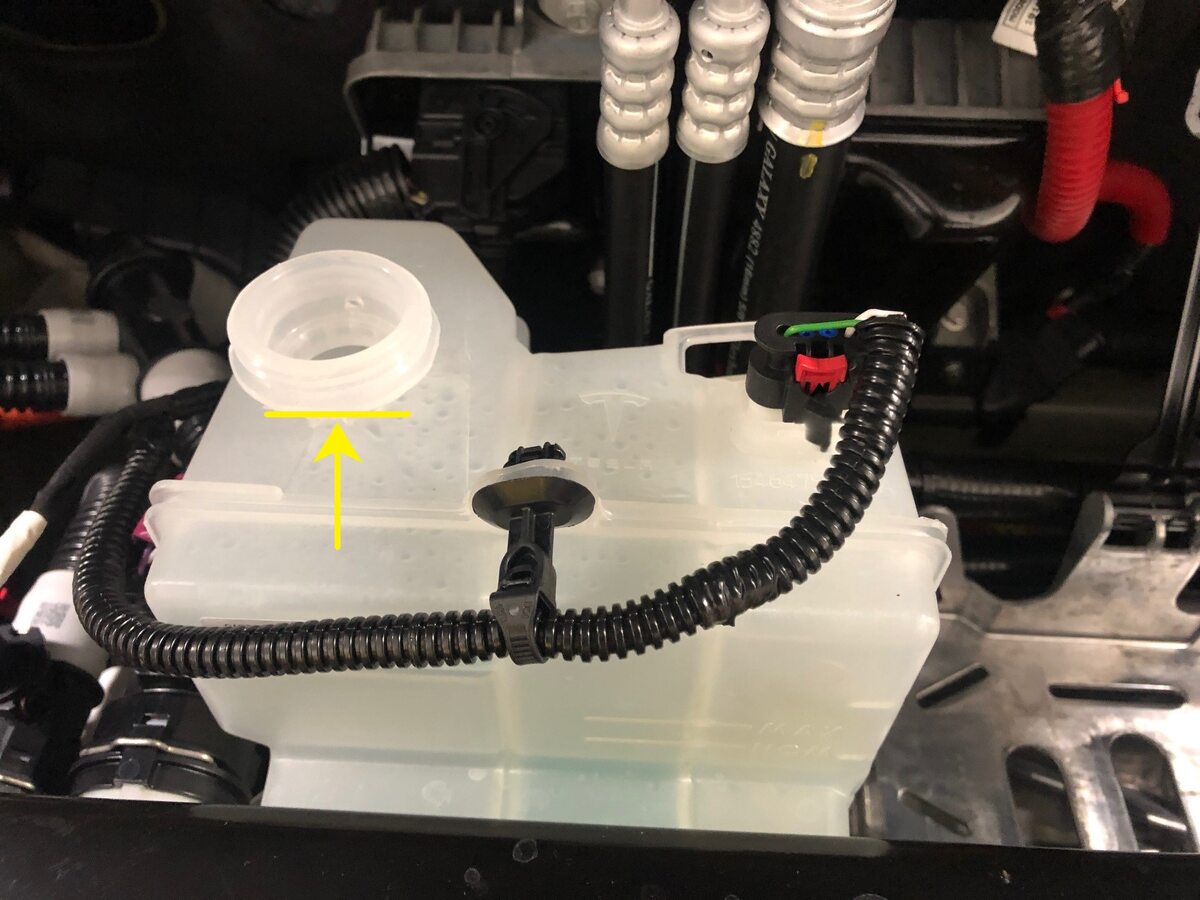

Fill coolant bottle to base of neck as indicated

Connect the First Responder Loop and LV battery connector.

运行 ODIN 例行程序 TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Service Mode:

Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
Thermal ➜ Coolant System ➜ Coolant Purge Start

via Service Mode Plus:

Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge

via Toolbox:(link)

Inspect coolant level and top off as necessary

注

Ensure that fluid level is at Max line

Install coolant bottle cap

Access thermal system routines via UI

注

Select quick controls > Service mode > Thermal

运行 ODIN 例行程序 PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Service Mode:

Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain

via Service Mode Plus:

Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain

via Toolbox:(link)

运行 ODIN 例行程序 TEST-SELF_VCFRONT_X_HEAT-PUMP-COMMISSIONINGvia Service Mode:Thermal ➜ Refrigerant System ➜ Commission Heat Pumpvia Service Mode Plus:Drive Inverter ➜ Front Drive Inverter Replacement ➜ Heatpump commissioningvia Toolbox:(link)

运行 ODIN 例行程序 TEST-SELF_VCRIGHT_X_HVAC-PERFORMANCEvia Service Mode:

Thermal ➜ Actions ➜ Test HVAC Performance
Thermal ➜ HVAC ➜ HVAC Performance Test
Thermal ➜ Actions ➜ Test HVAC Performance

via Toolbox:(link)

运行 ODIN 例行程序 TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCEvia Service Mode:Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:

Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test

via Toolbox:(link)

运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)

Move LH front seat forward

Install LH rear exterior hardware to center console

注

1x bolt, 10mm, 7 Nm

Move RH front seat forward

Install RH rear exterior hardware to center console

注

1x bolt, 10mm, 7 Nm

Install console lower rear panel

注

5x clips

Install cowl screen assembly

注

2x clips, Press the corners of the cowl into the body

Install cowl clips on center bracket

注

2x retaining clips

Install cowl screen retaining clips

注

2x clips

Connect washer hose from washer pump to Y-tube fitting and secure washer hose clip

注

1x clip, 1x hose

Install RH wiper arm and hose assembly onto vehicle

Install nut securing RH wiper arm to wiper module

注

1x nut, 15mm, 25 Nm, Make sure the wiper tip is aligned between the two indicators at corner of windshield

Install RH wiper arm nut cover

注

1x cover

Connect washer hose from RH wiper arm to Y-tube fitting and secure washer hose clips

注

1x clip, 1x hose

Install LH wiper arm and hose assembly onto vehicle

Install nut securing LH wiper arm to wiper module

注

1x nut, 15mm, 25 Nm, Make sure the wiper tip is aligned between the two indicators at windshield

Install LH wiper arm nut cover

注

1x cover

Connect washer hose from LH wiper arm to Y-tube fitting and secure washer hose clip

注

1x clip, 1x hose

Install HEPA filter assembly

注

2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Note: Not all Model Y vehicles have a HEPA filter assembly installed
