线束 - USB - 车载电脑至手套箱（带加热泵款）（左侧驾驶）（拆卸和更换）

校正代码 17106802 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证，但仍是一个草案。可能没有警告和注意事项。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。

拆卸

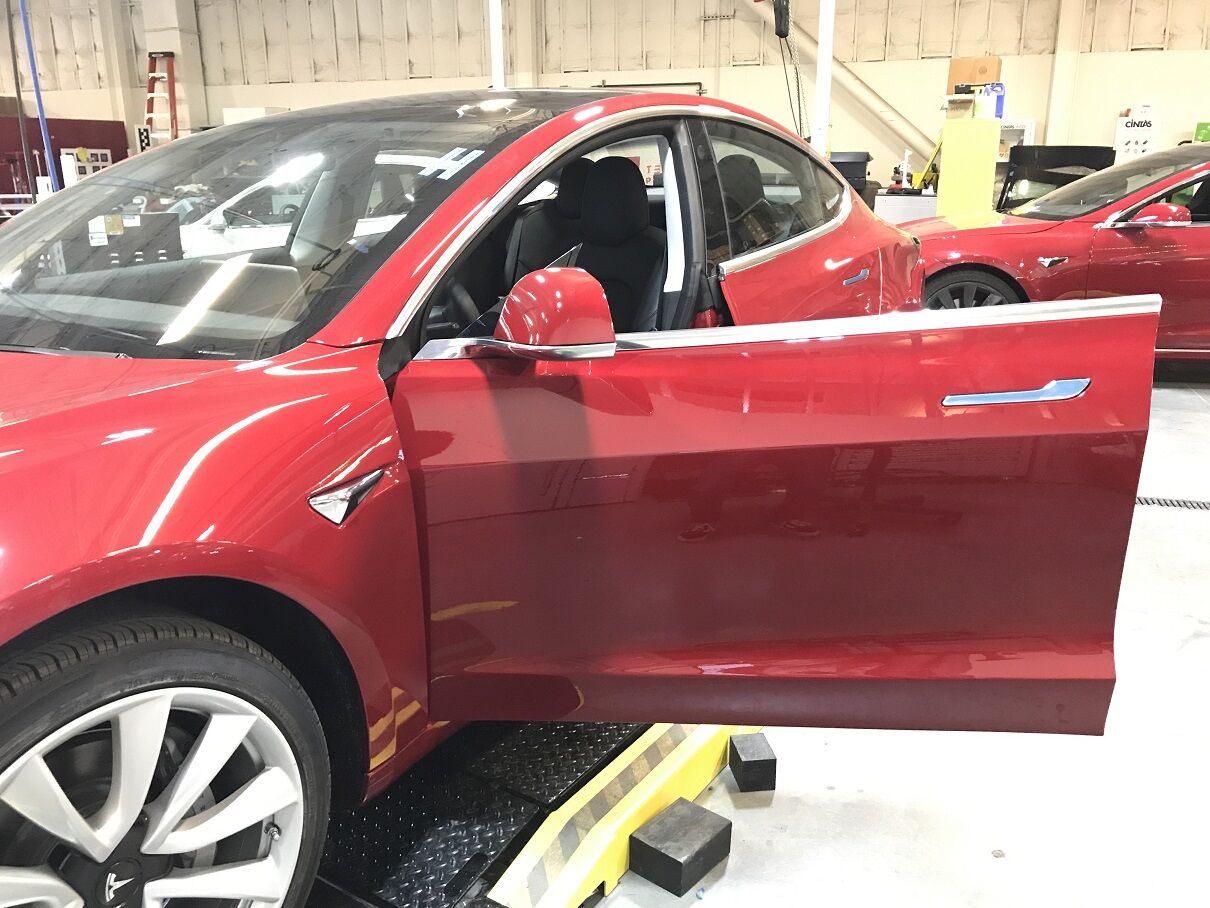

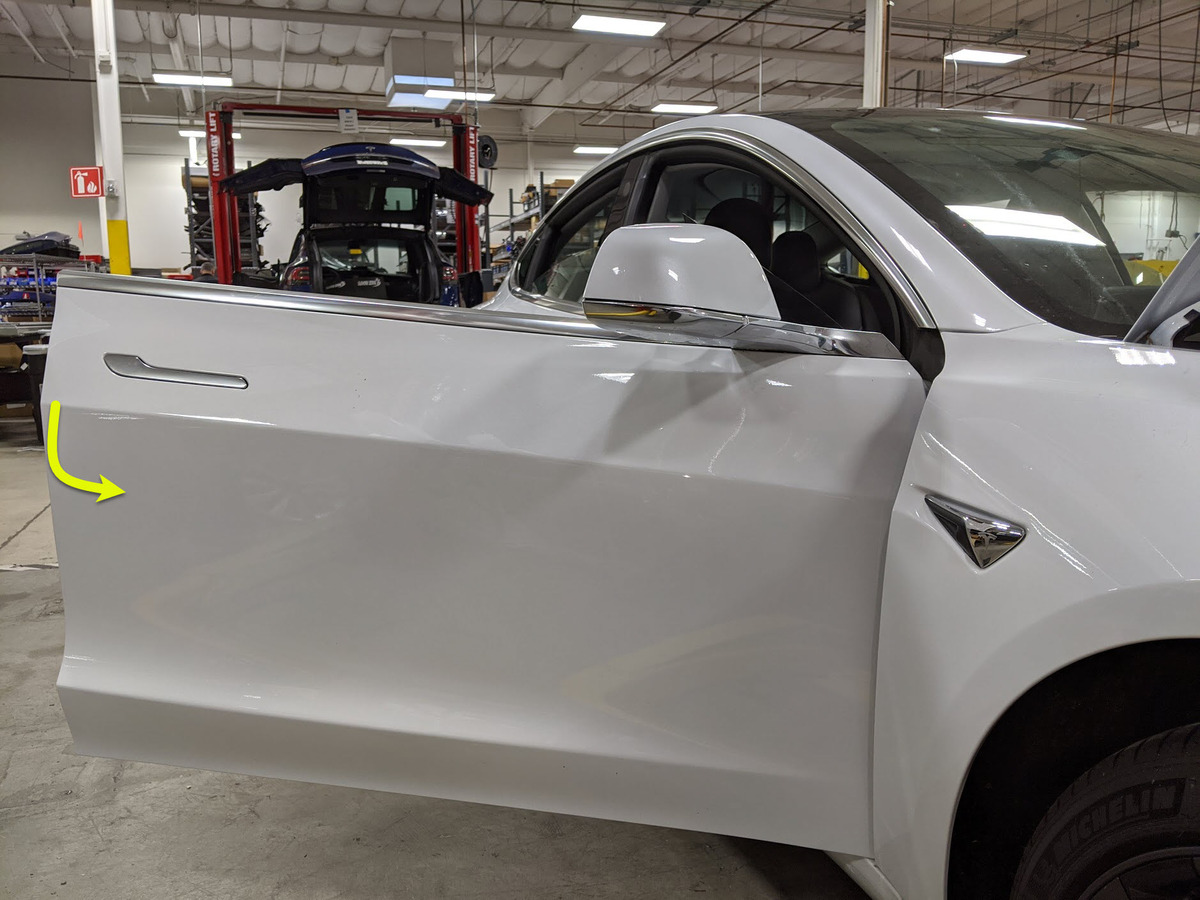

  1. Open LH front door

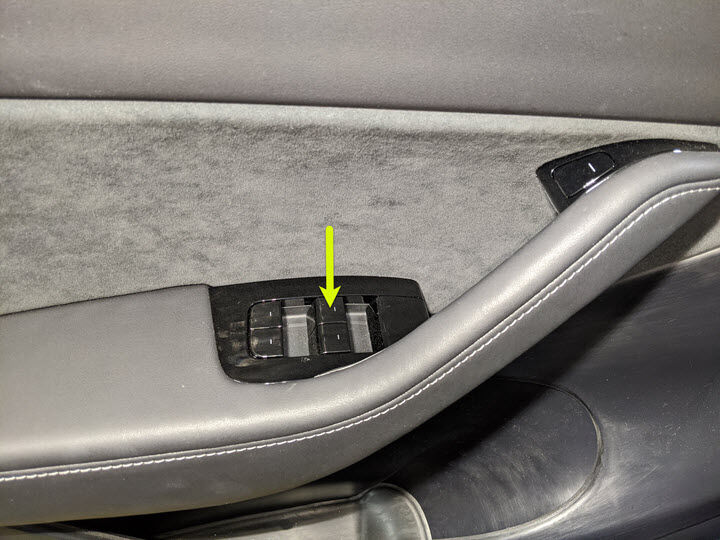

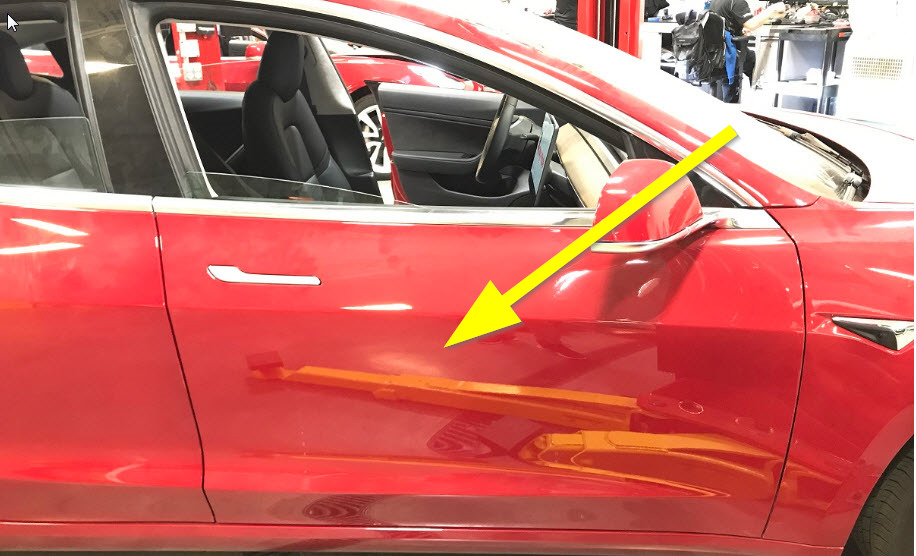

  2. Lower LH front window

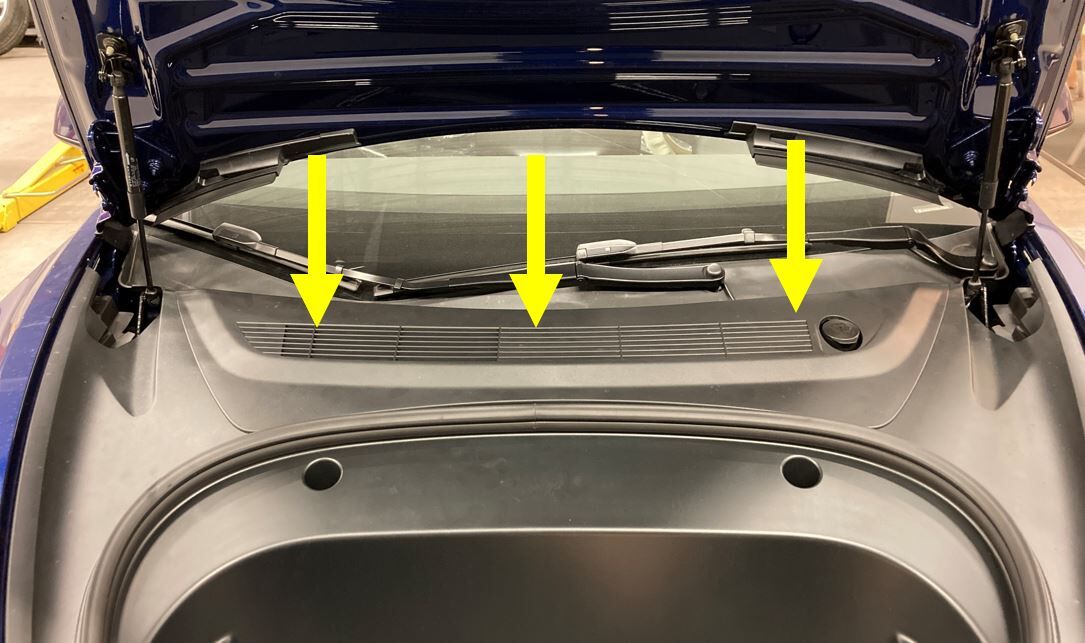

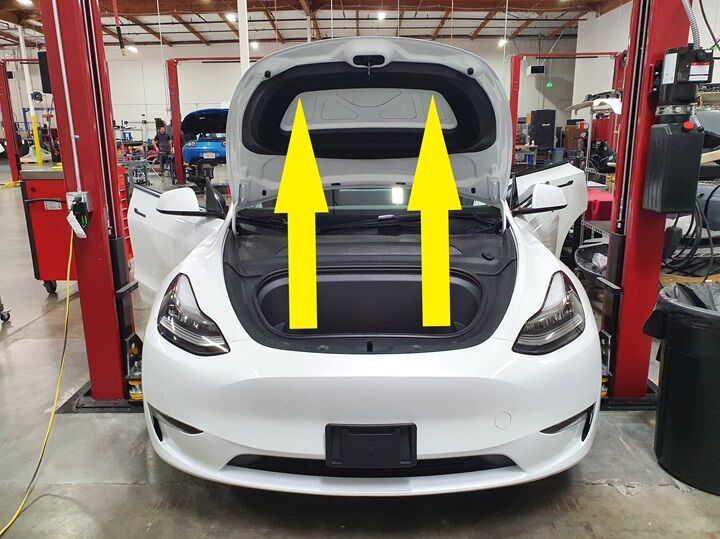

  3. Open hood
    Informational PurposesAn informational icon, calling your attention
    注

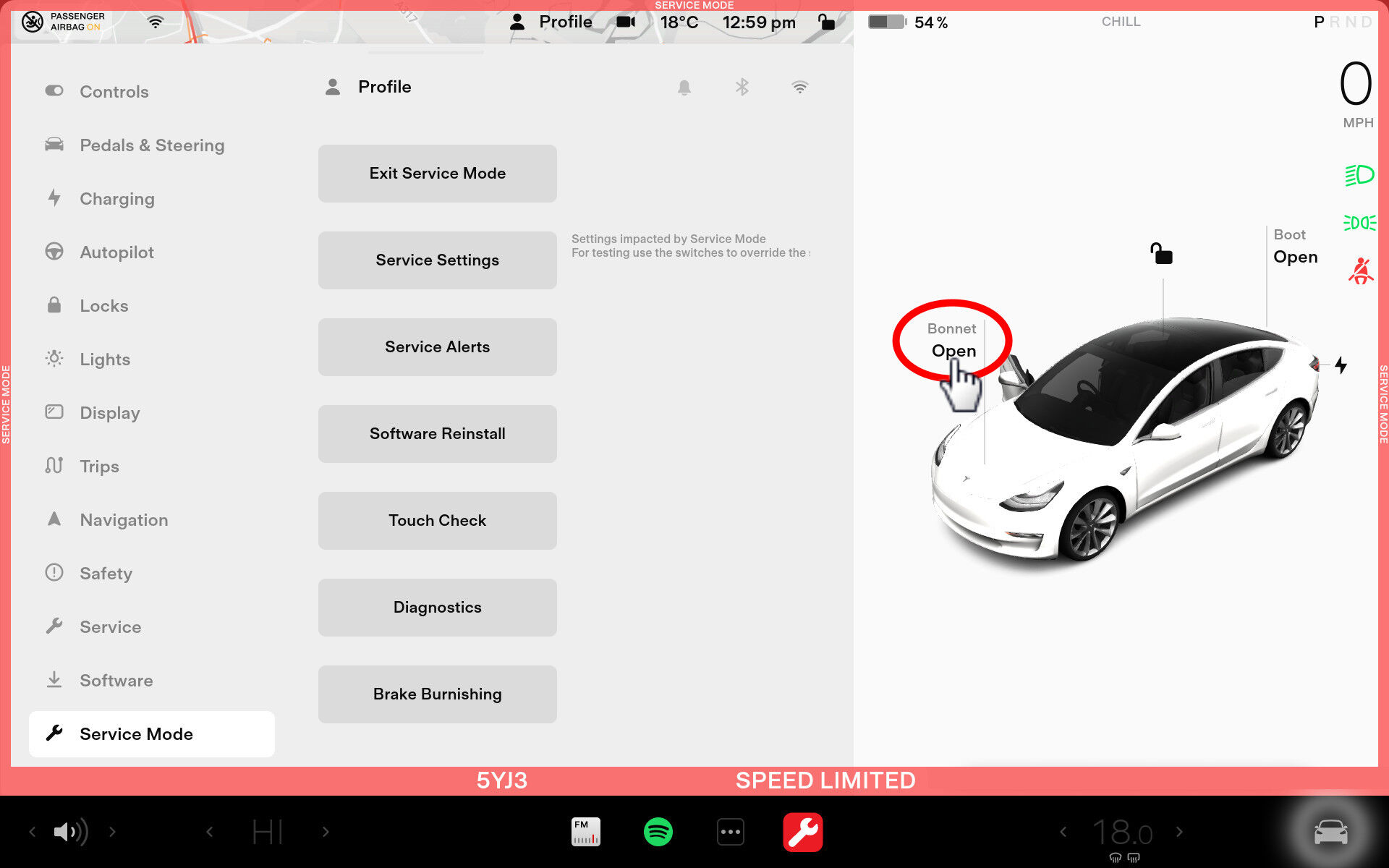

    Press "Open" button on touchscreen to release latch, Lift lid manually

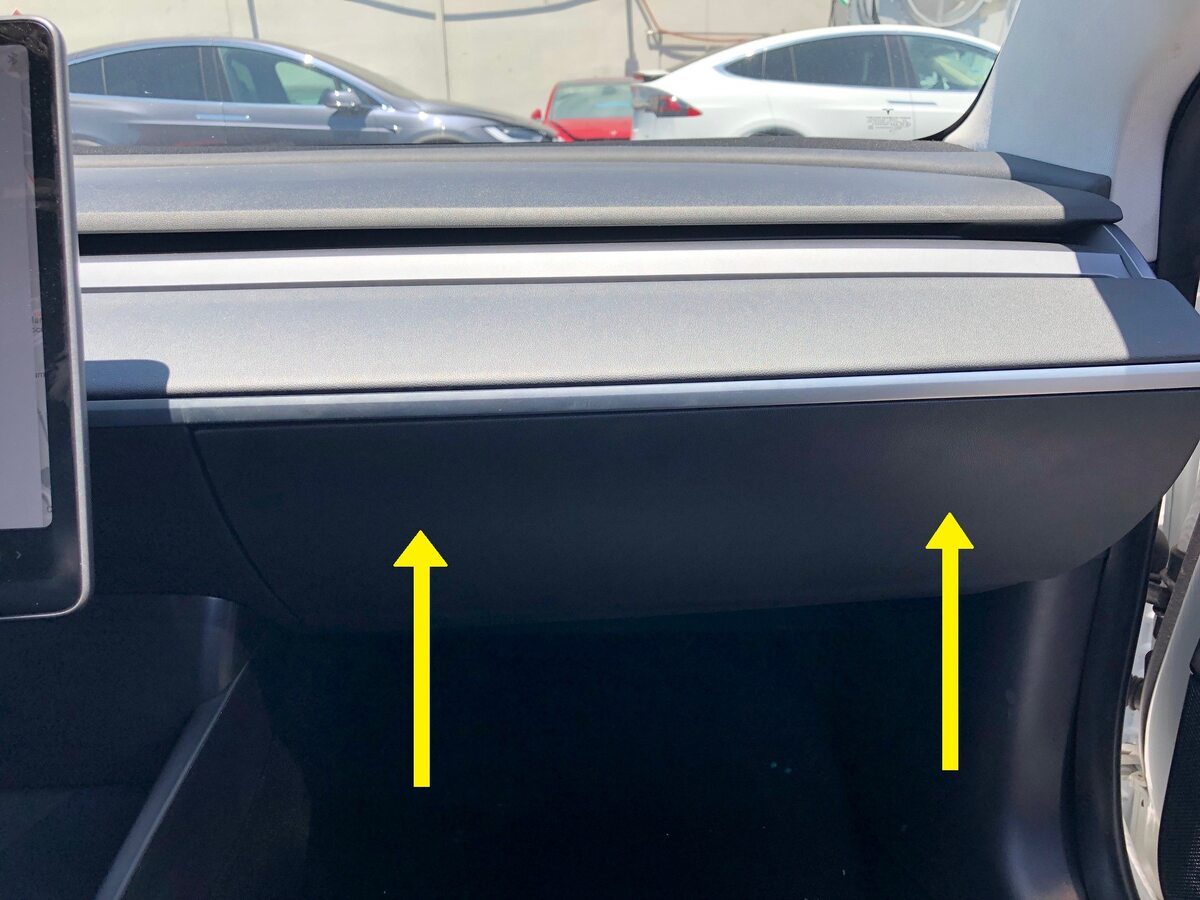

  4. Open glove box through UI
    Informational PurposesAn informational icon, calling your attention
    注

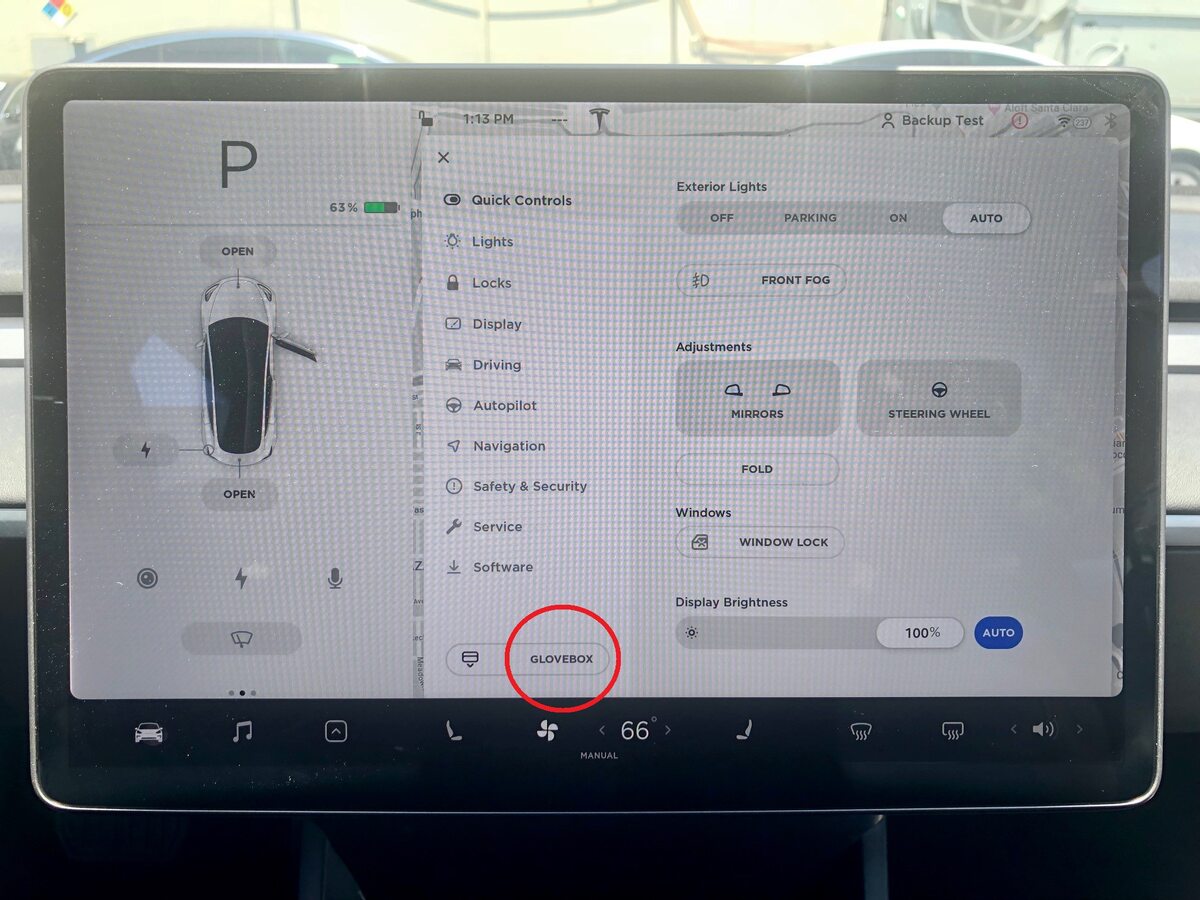

    via Controls > Glovebox
  5. Remove flash drive from glove box USB port

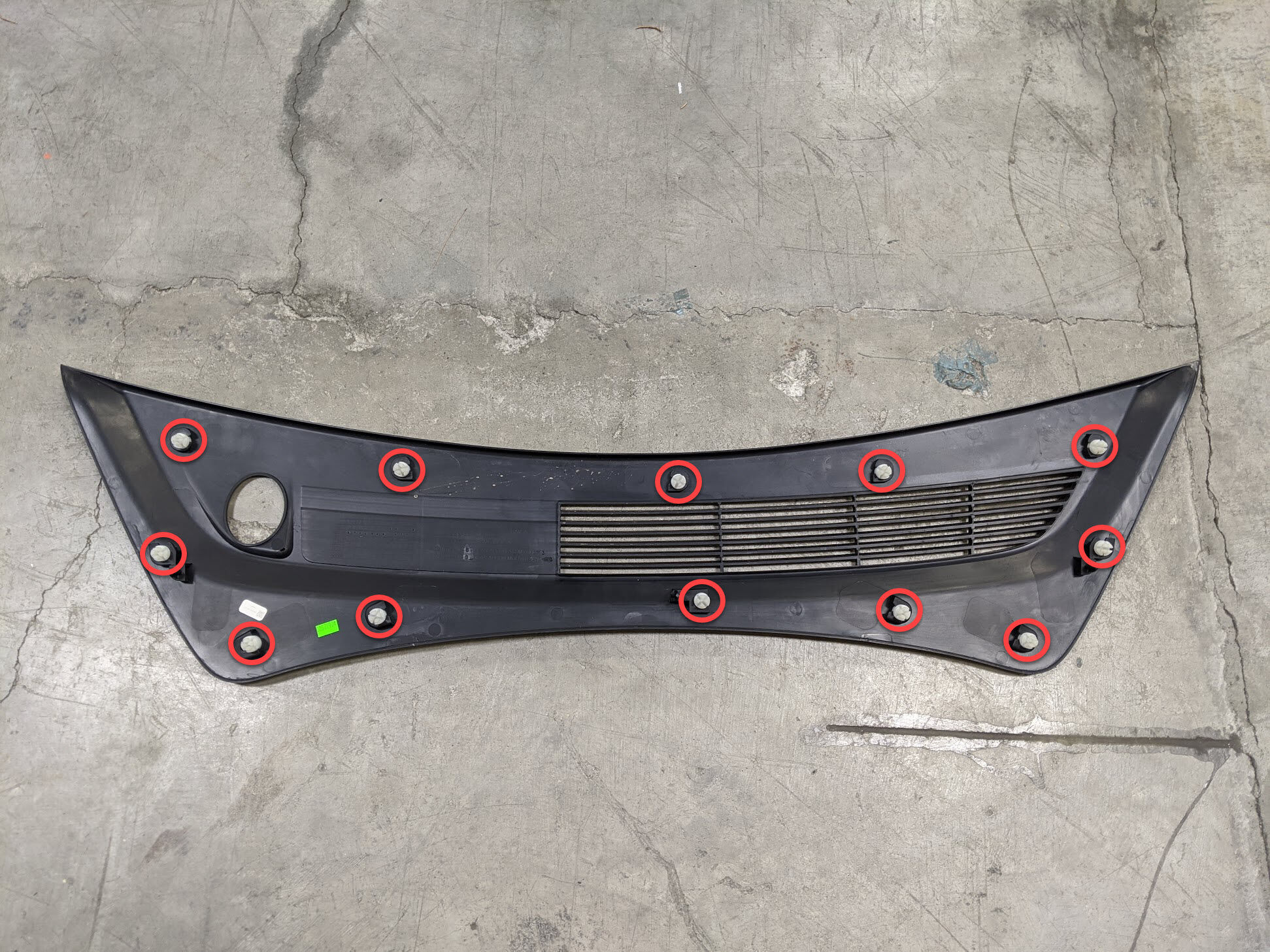

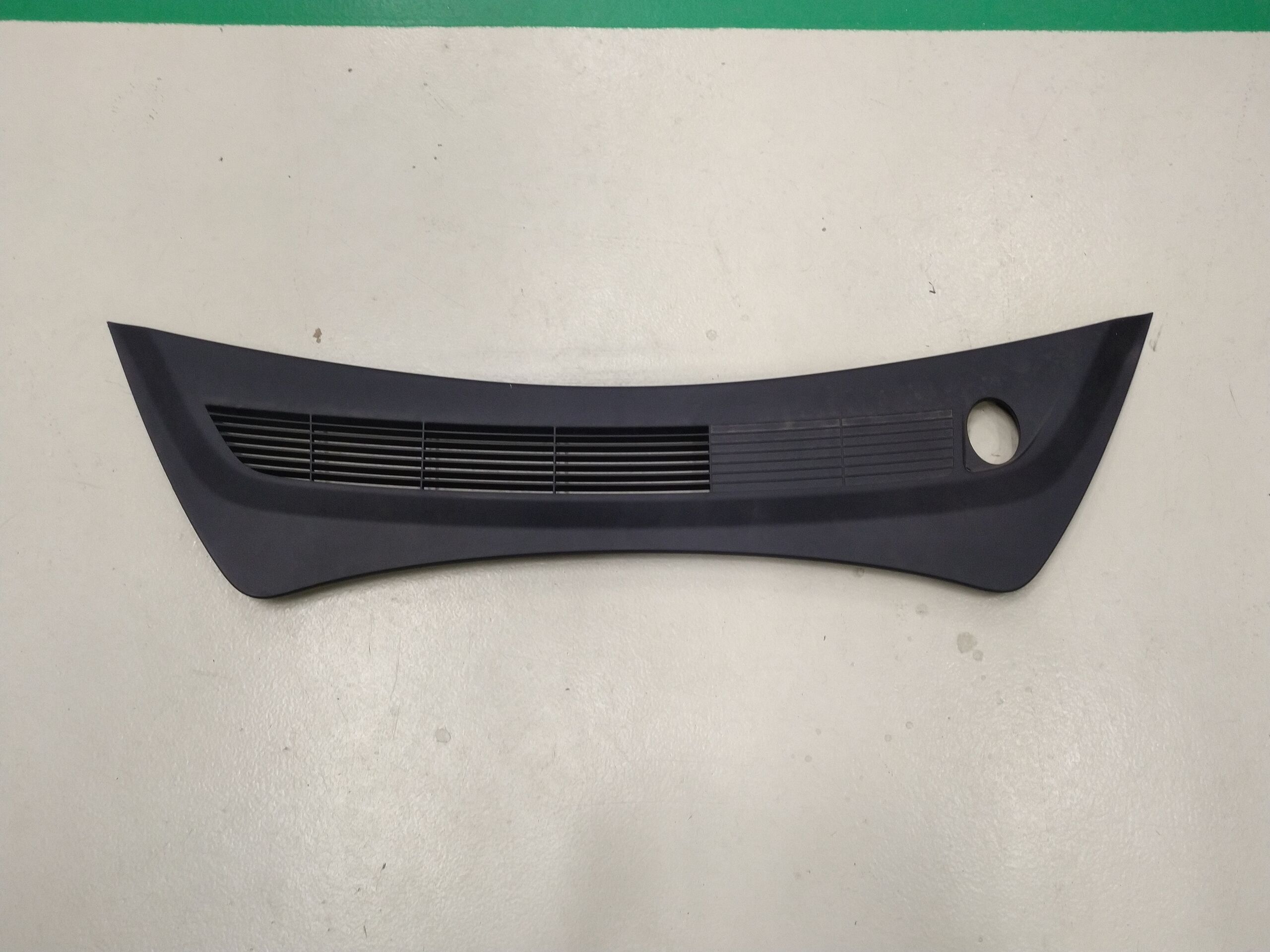

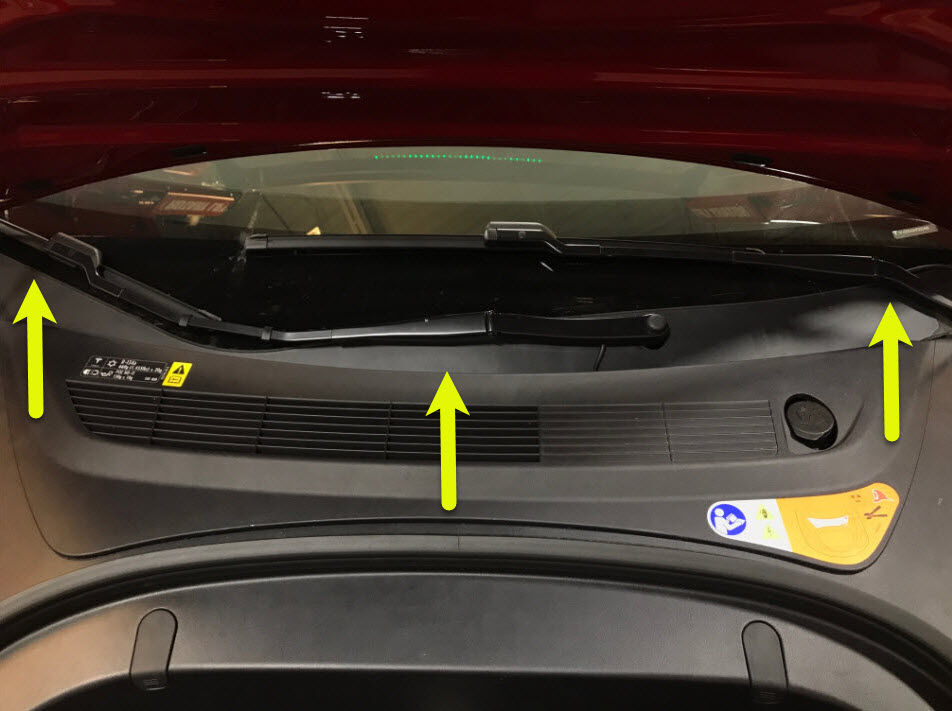

  6. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    注
    12x clips, Only store rear apron visible face upwards

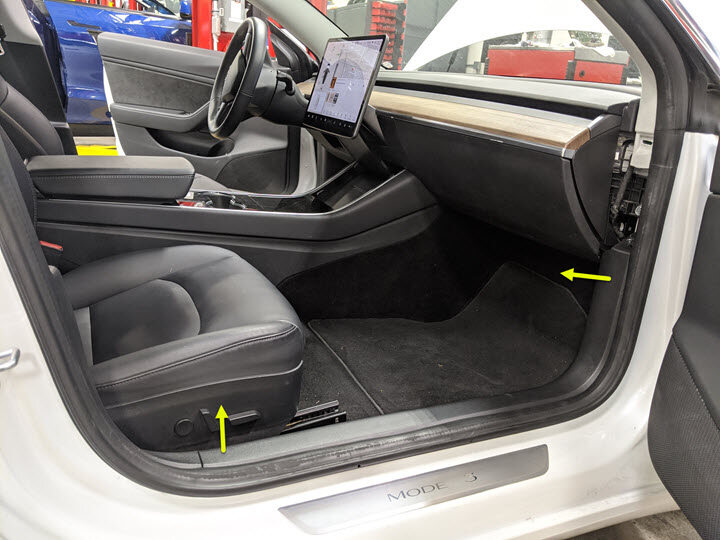

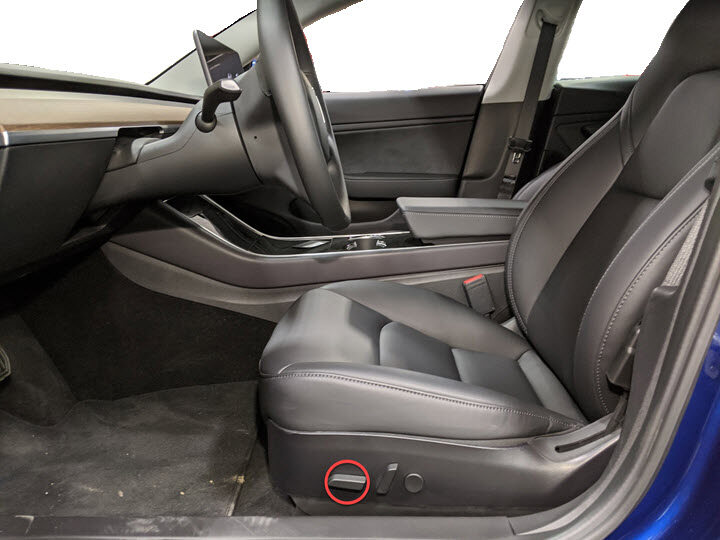

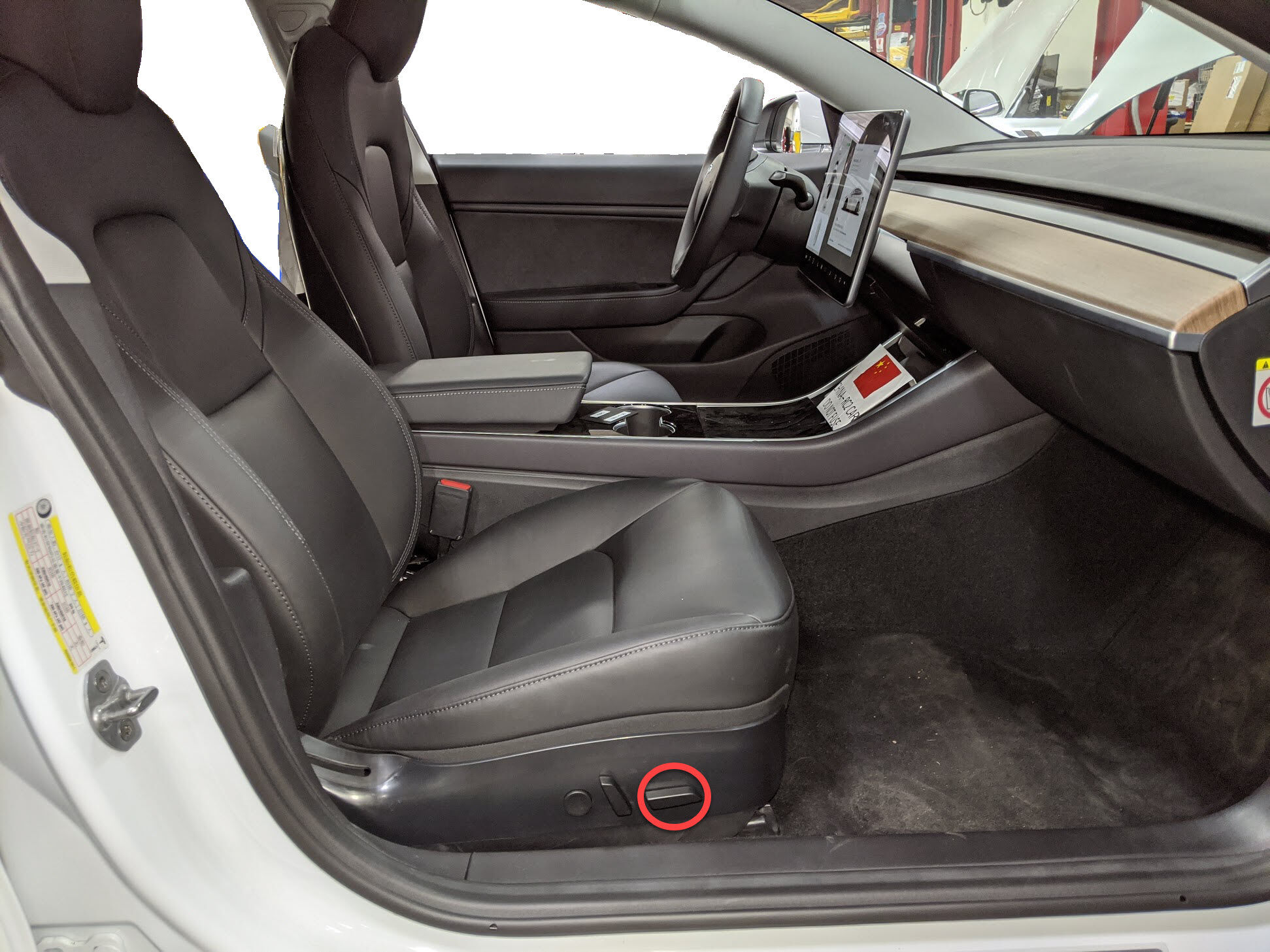

  7. Move LH front seat backward
  8. Open RH front door

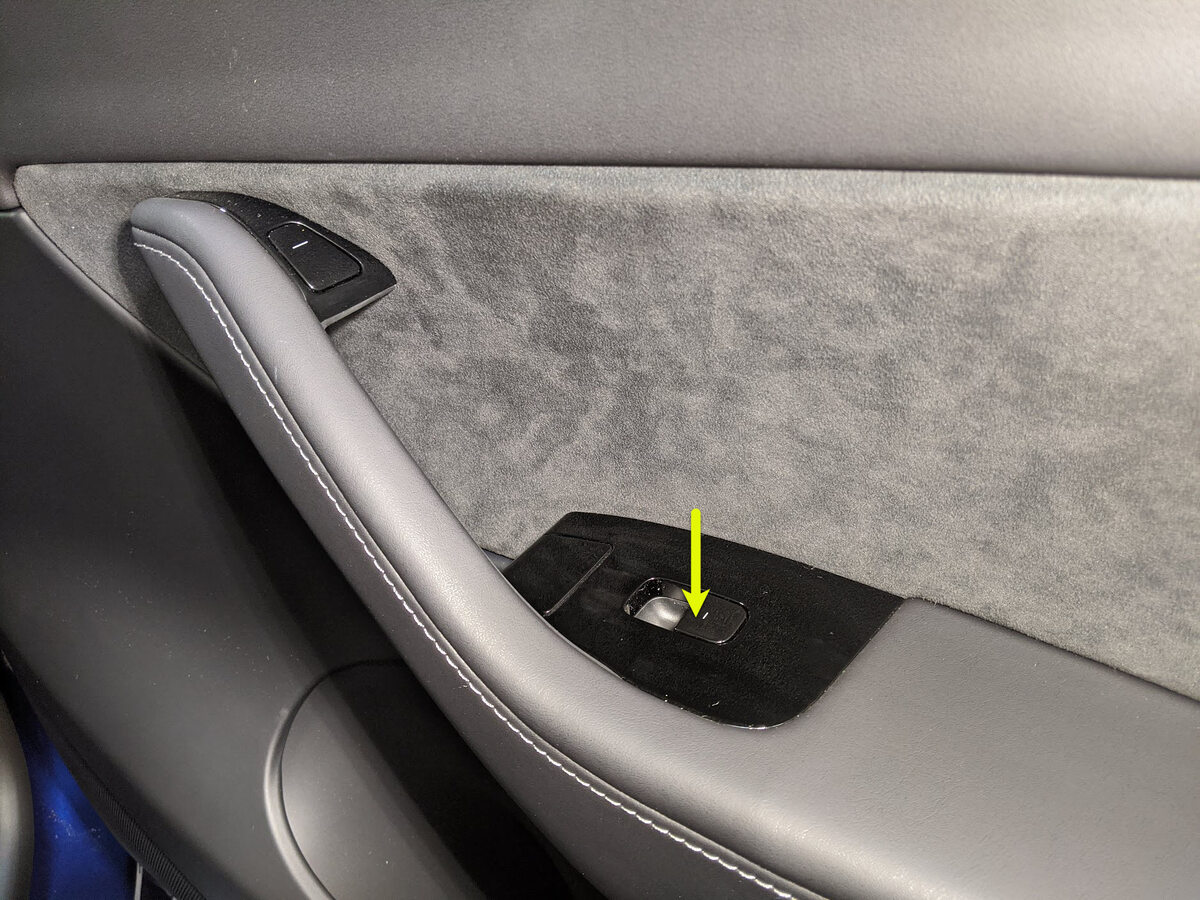

  9. Lower RH front window
  10. Move RH front seat backward

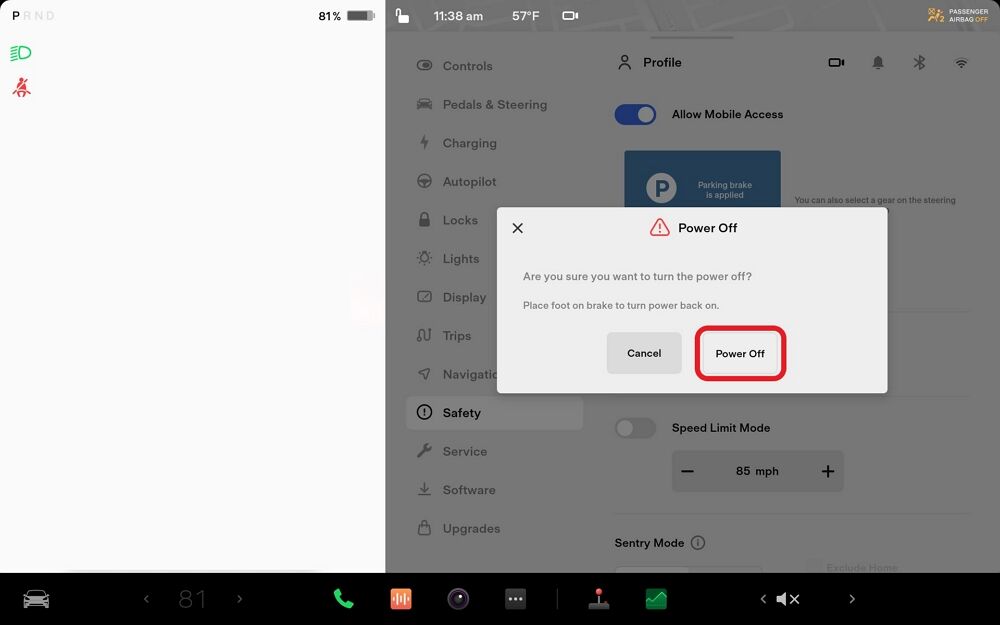

  11. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    注
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

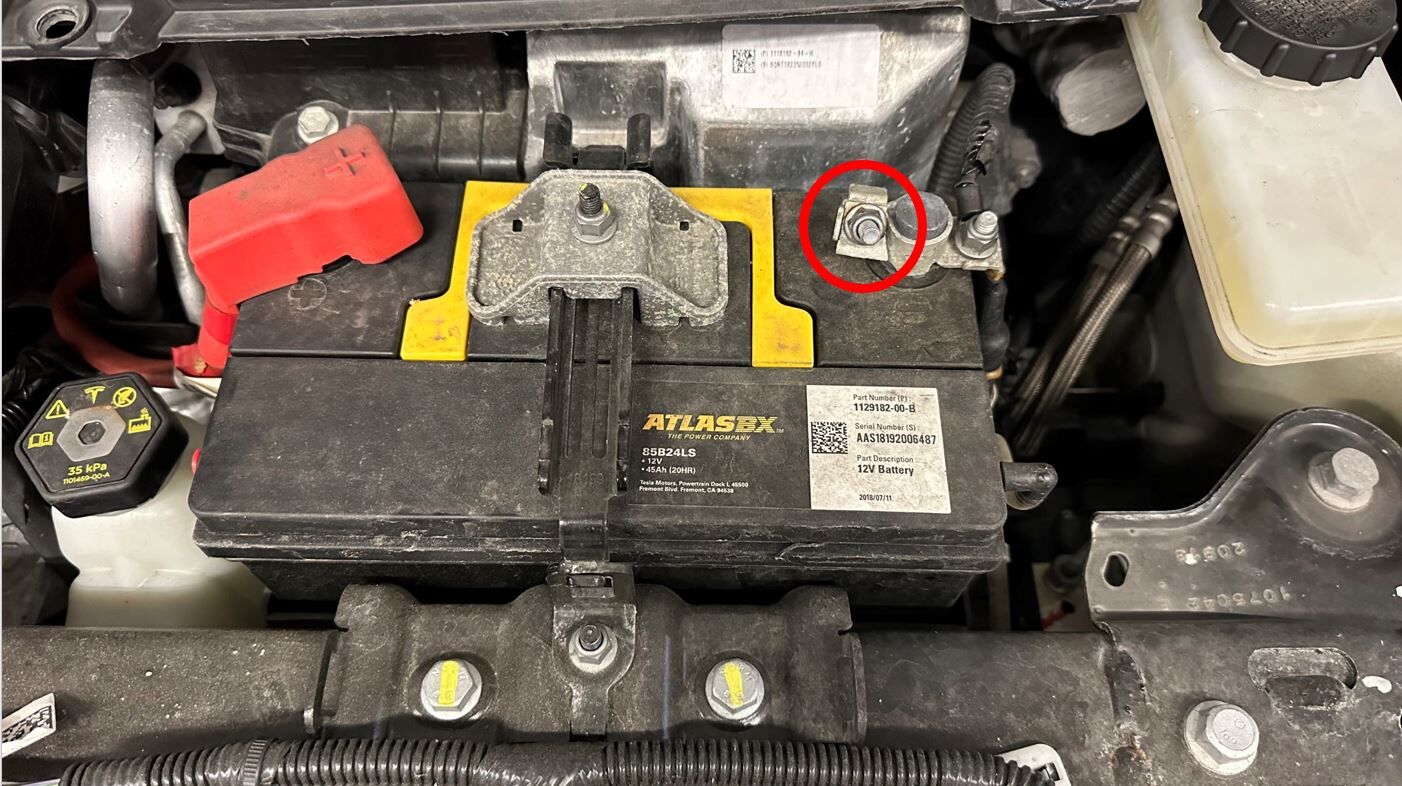

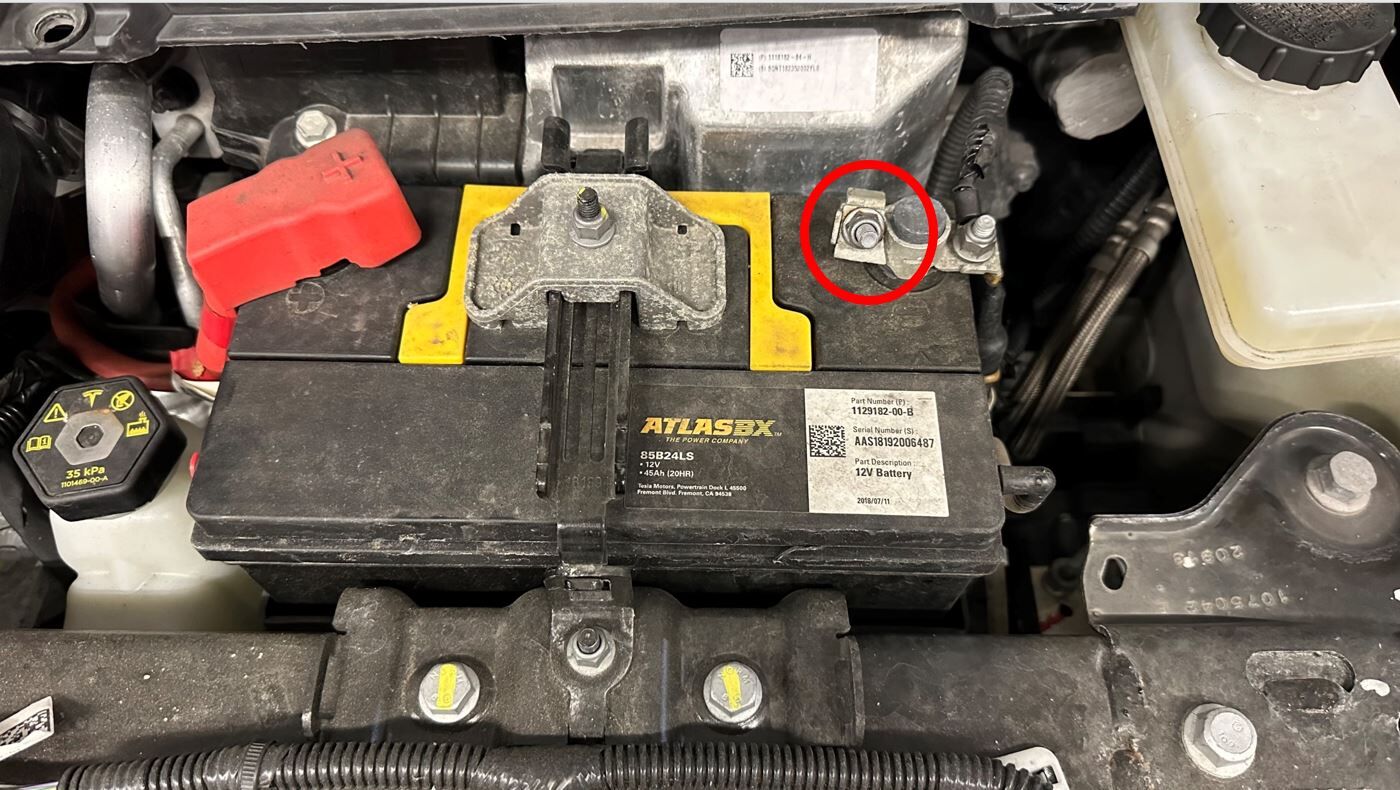

  12. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    注
    1x nut, 10mm, 6 Nm, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V

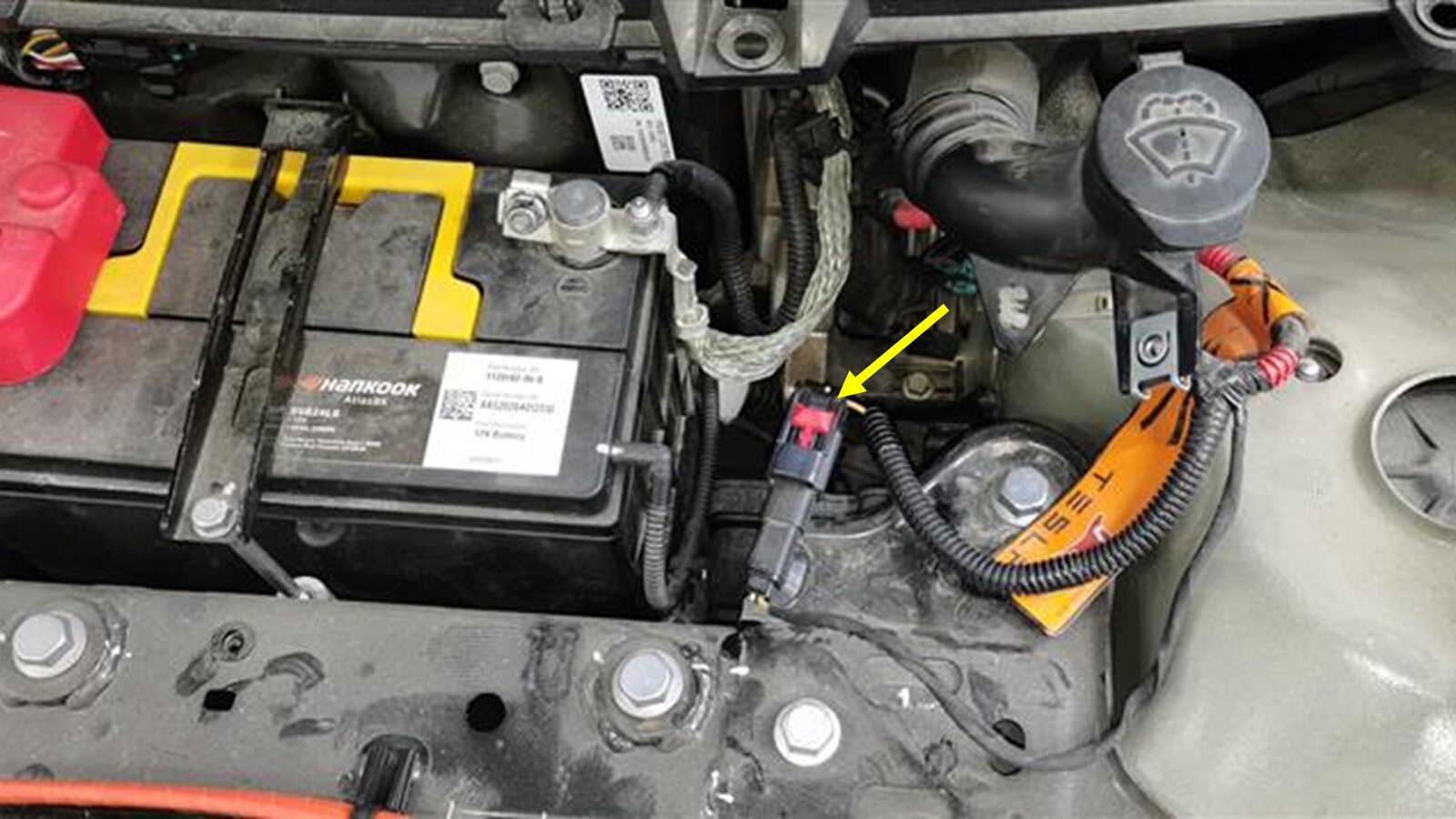

  13. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Release locking tab

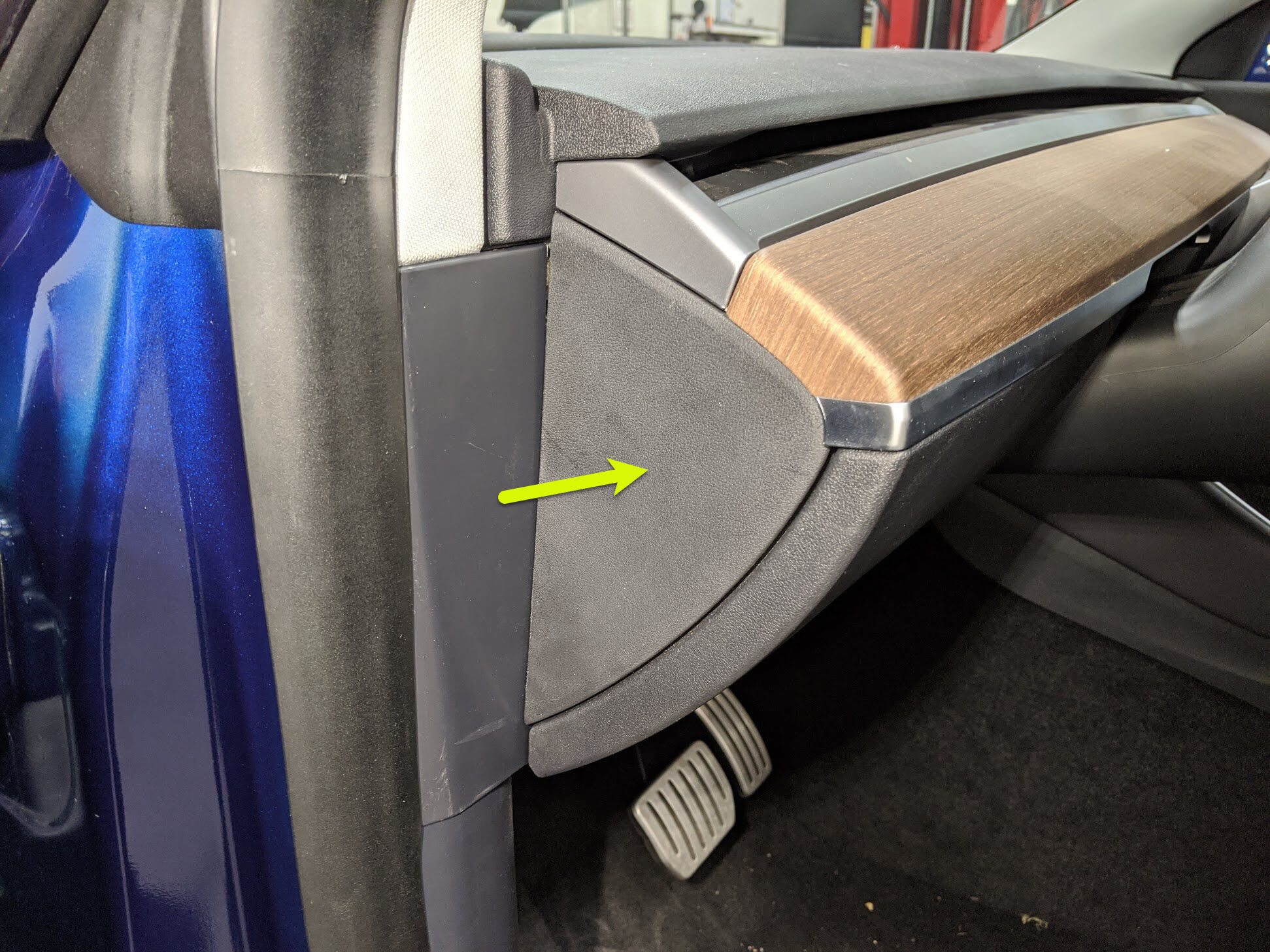

  14. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips

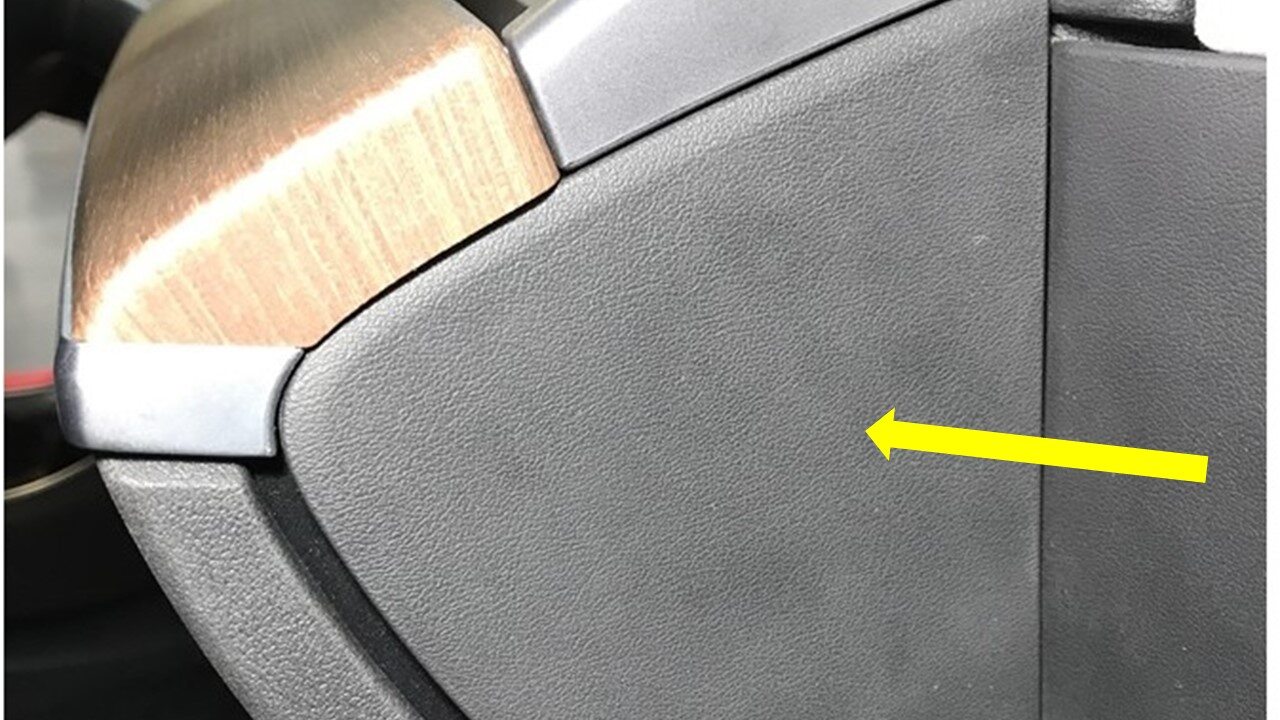

  15. Remove LH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x clips, Newer vehicles are equipped with solid bezel.
  16. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  17. Remove RH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x clips, Newer vehicles are equipped with solid bezel.
  18. Remove RH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip, 1x tab, Release upper clip then pull mid A-pillar upward to remove from vehicle

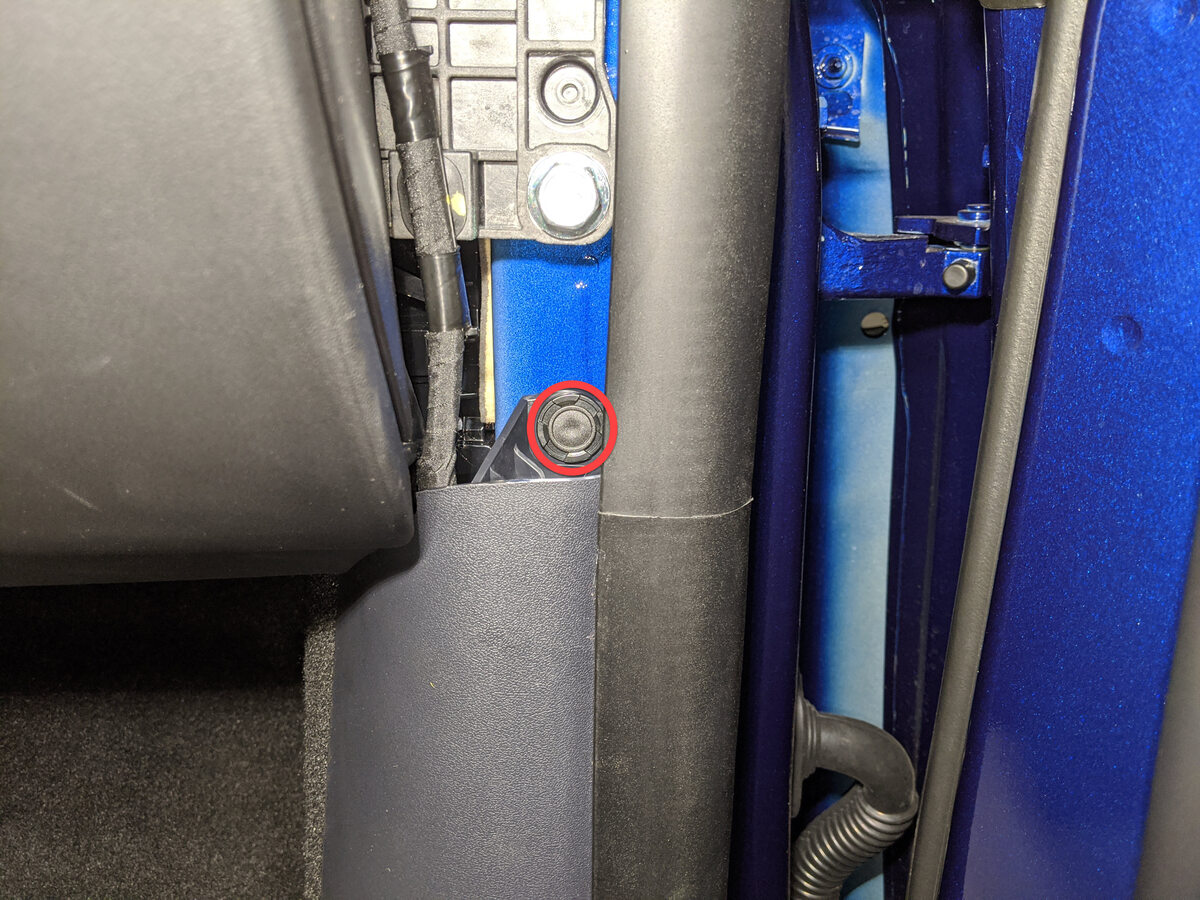

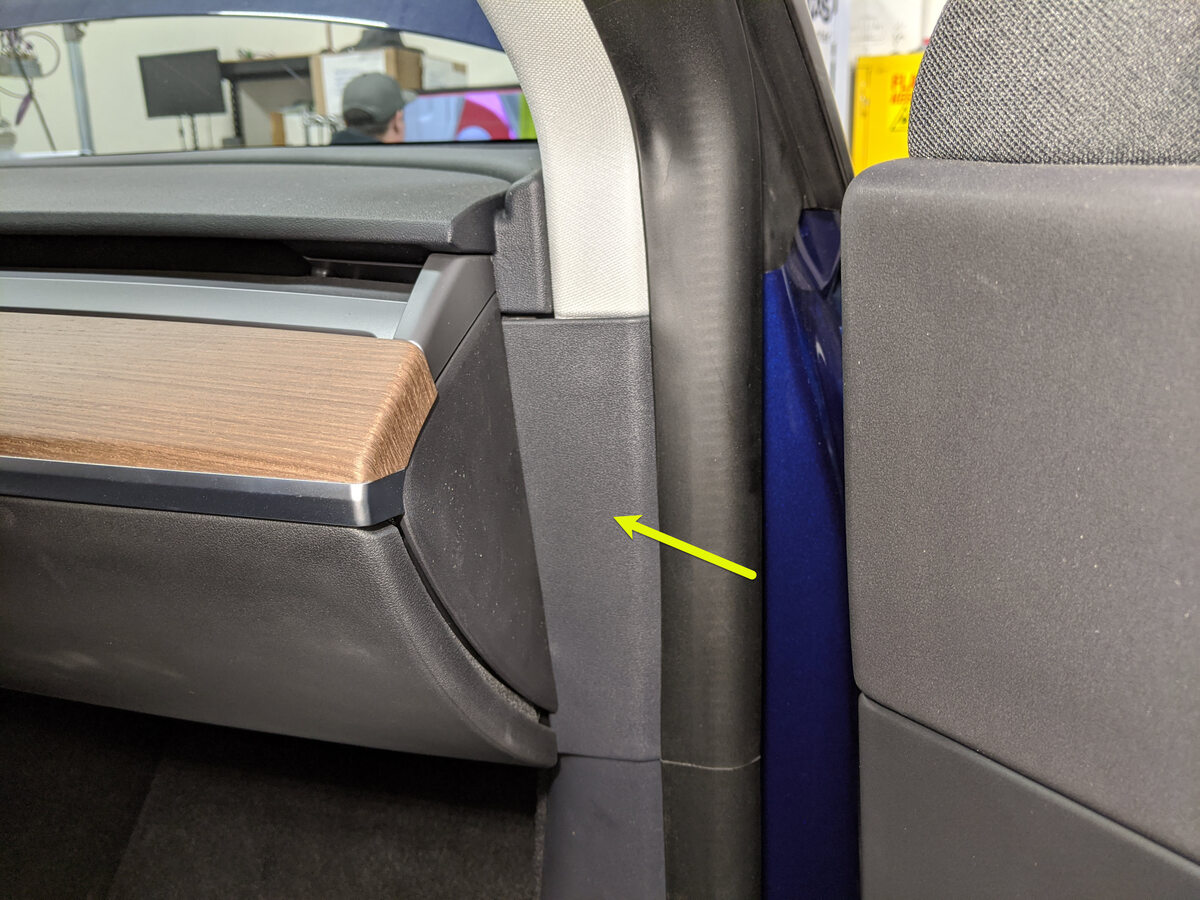

  19. Remove clip from RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    1x push clip

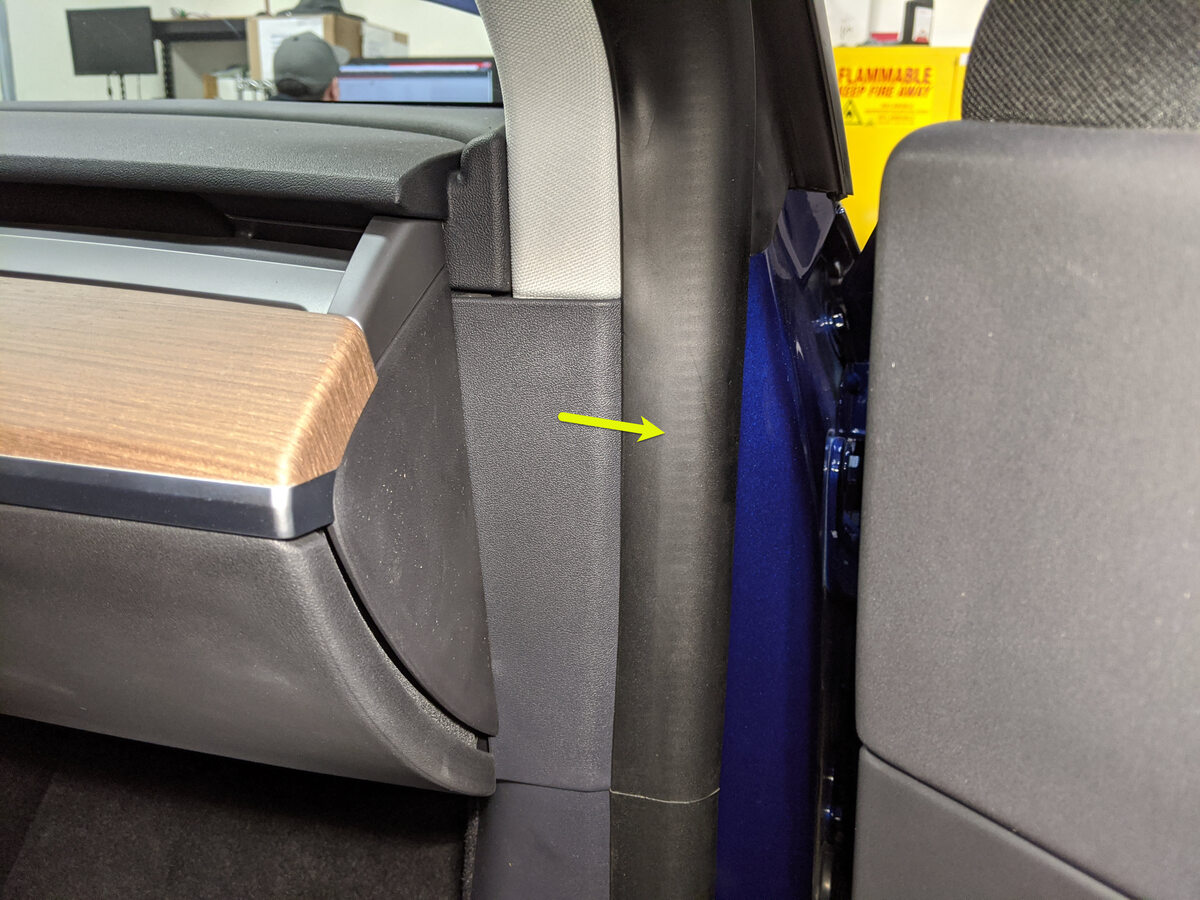

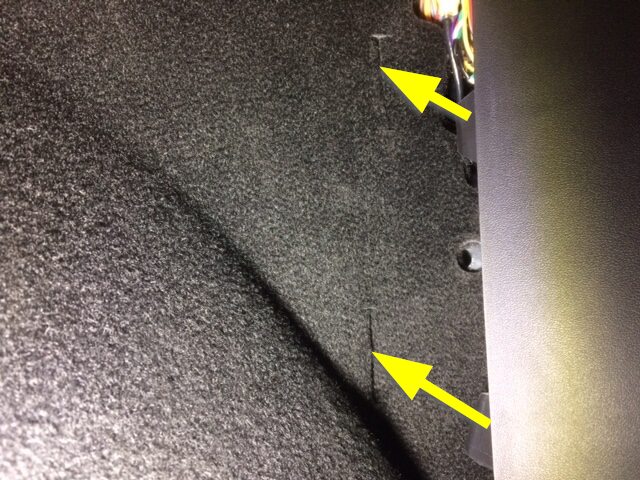

  20. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注

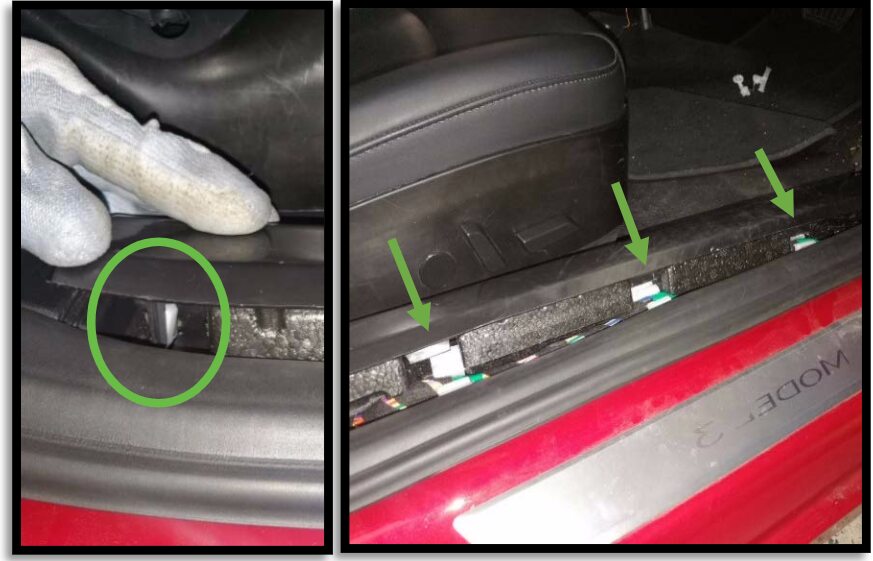

    1x clip, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
  21. Release RH footwell assembly from IP
    Informational PurposesAn informational icon, calling your attention
    注
    4x push clips
  22. Remove RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x connectors

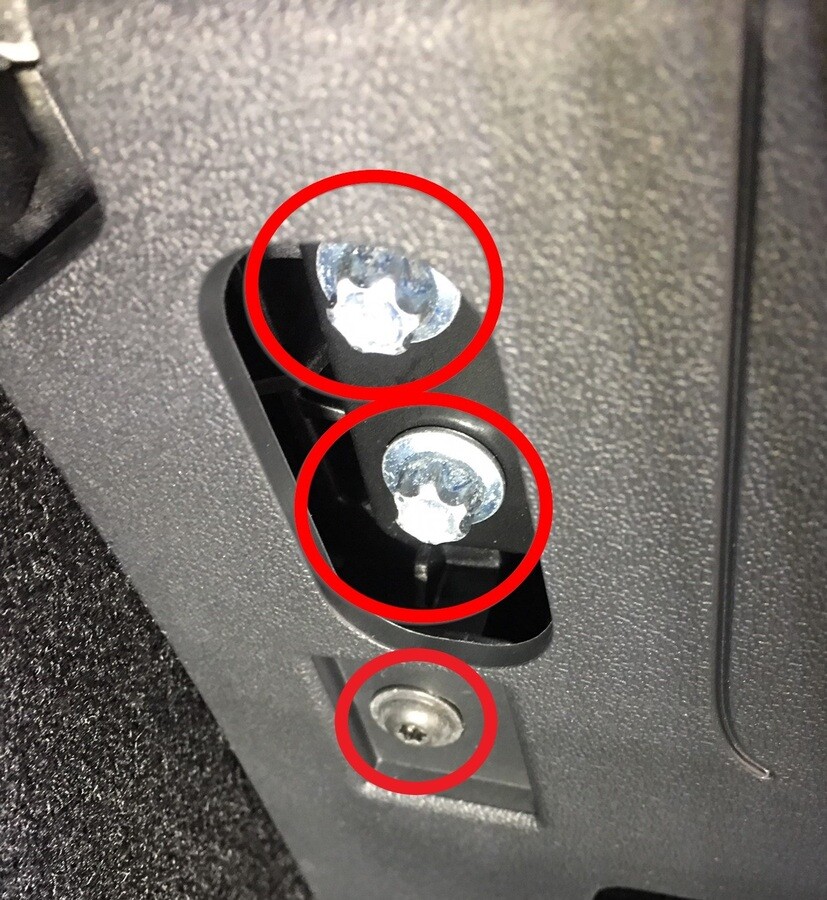

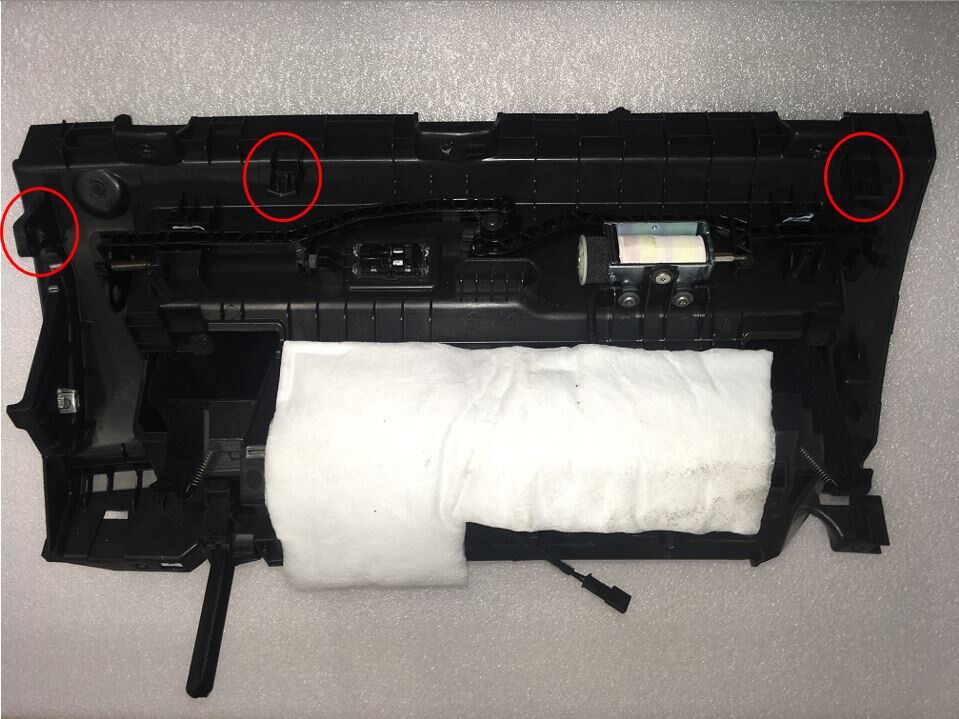

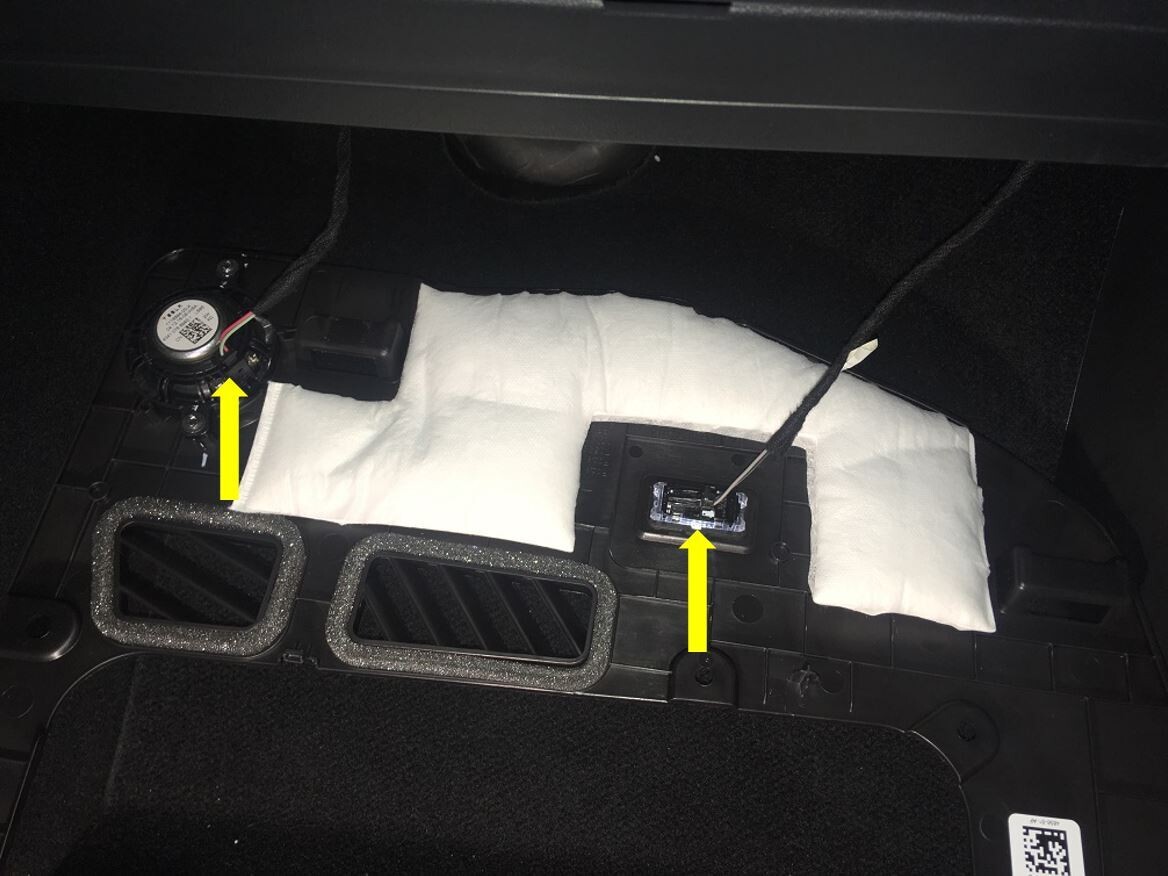

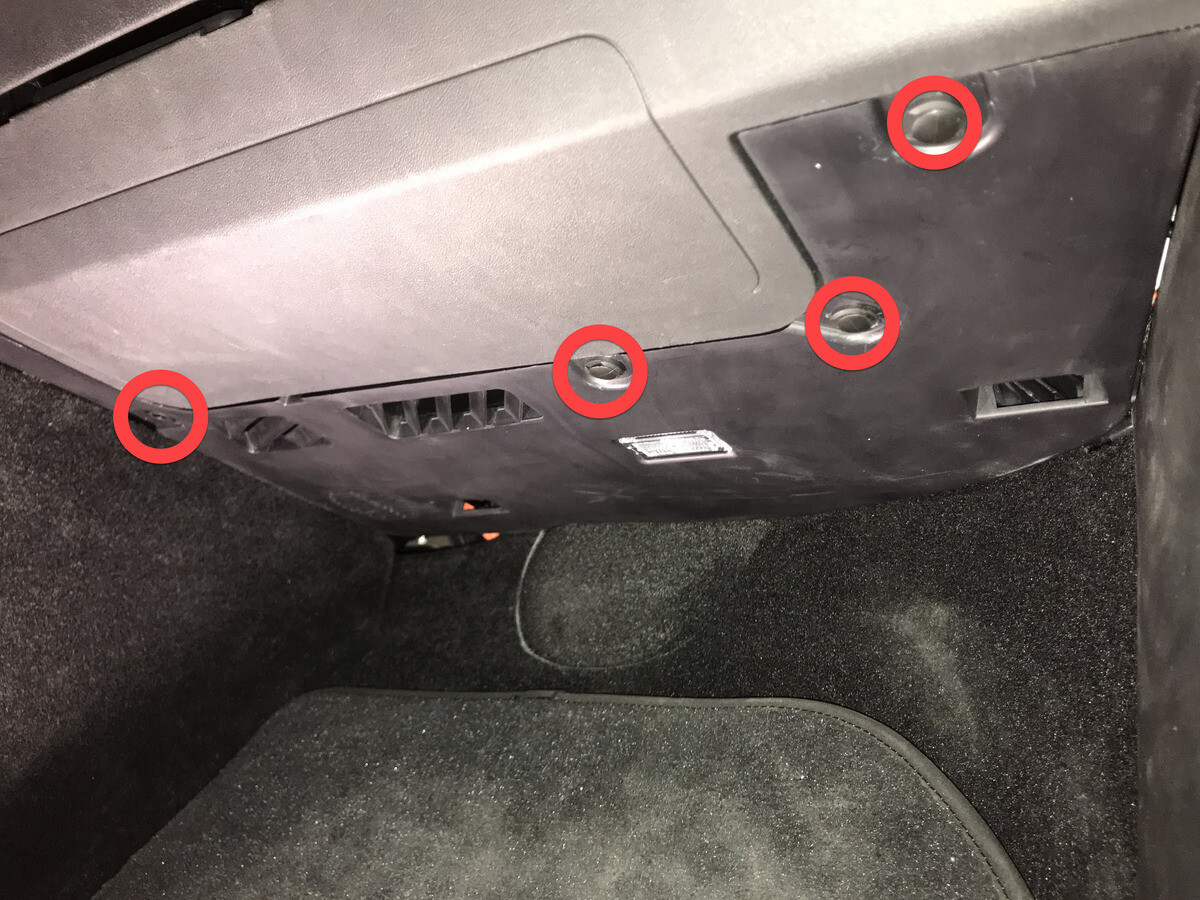

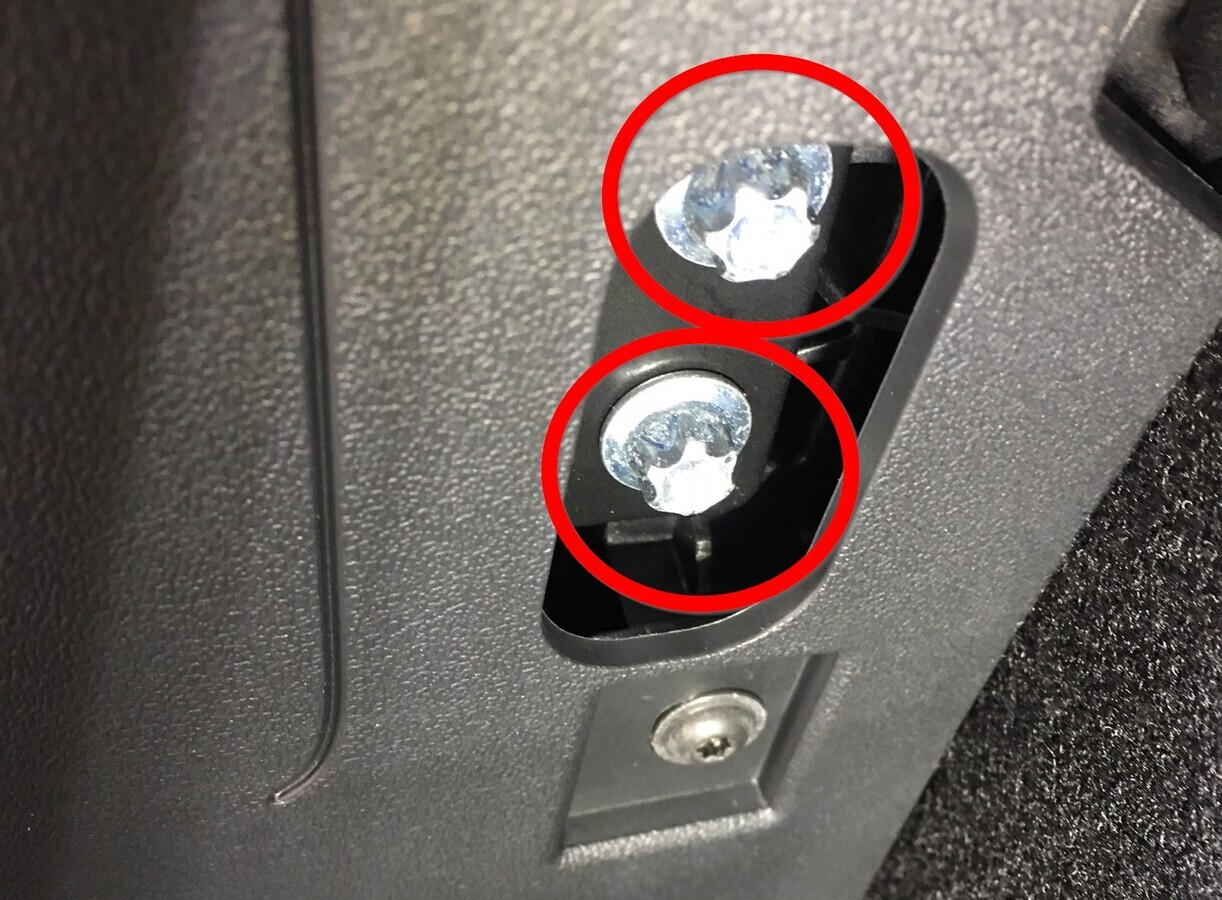

  23. Remove bolts securing passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    注
    4x patch bolts, T30, 8 Nm, Discard after removal, 2x screws, T20, 2 Nm, 1x push clip, Newer vehicles have 4x E10 patch bolts

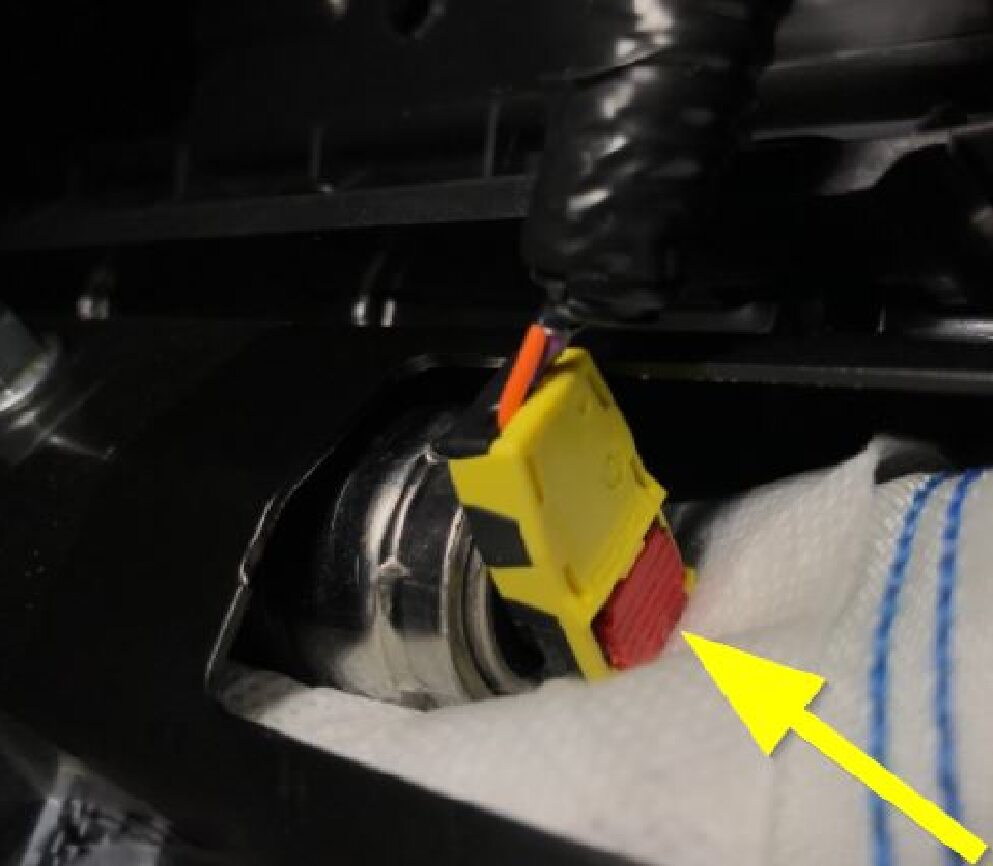

  24. Remove passenger knee air bag from vehicle
    Informational PurposesAn informational icon, calling your attention
    注

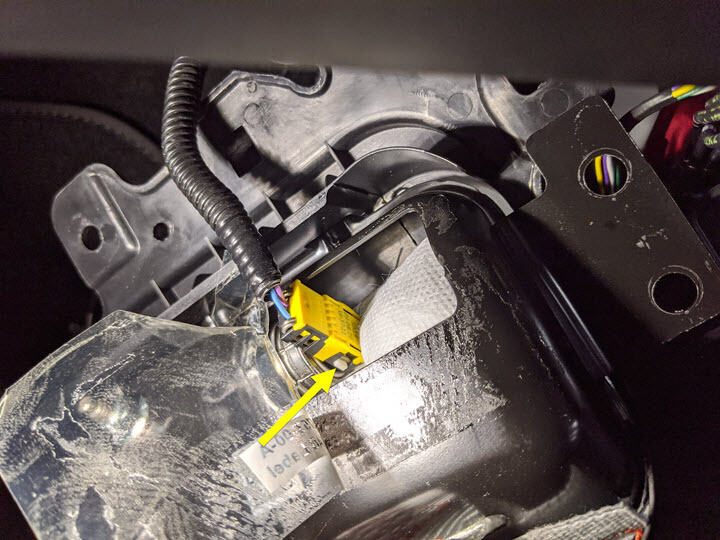

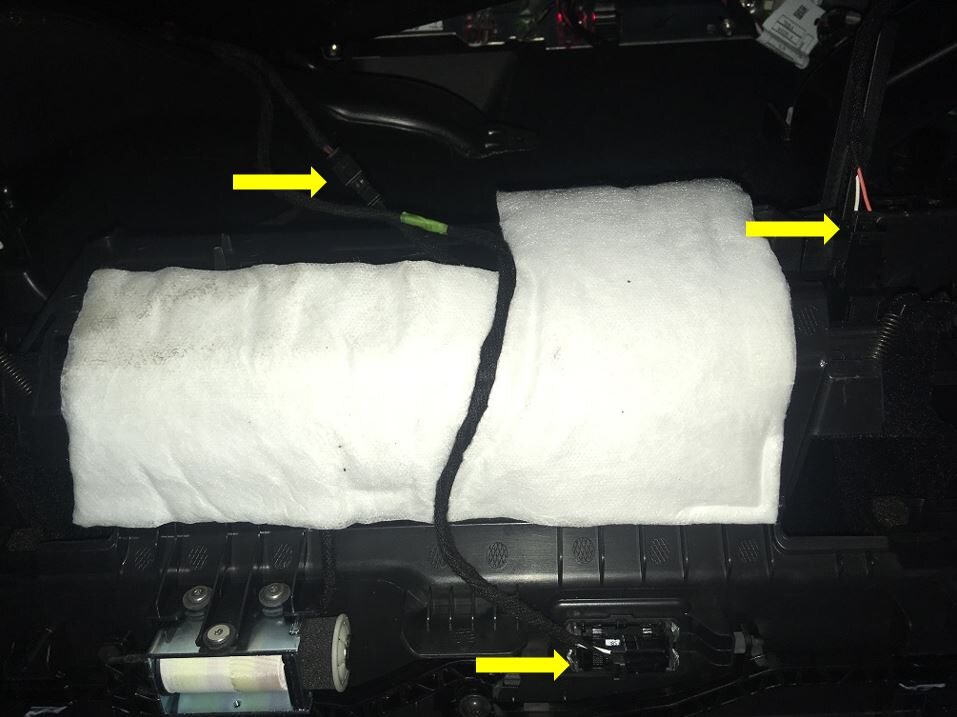

    1x connector, Release locking tab, Connector release may vary

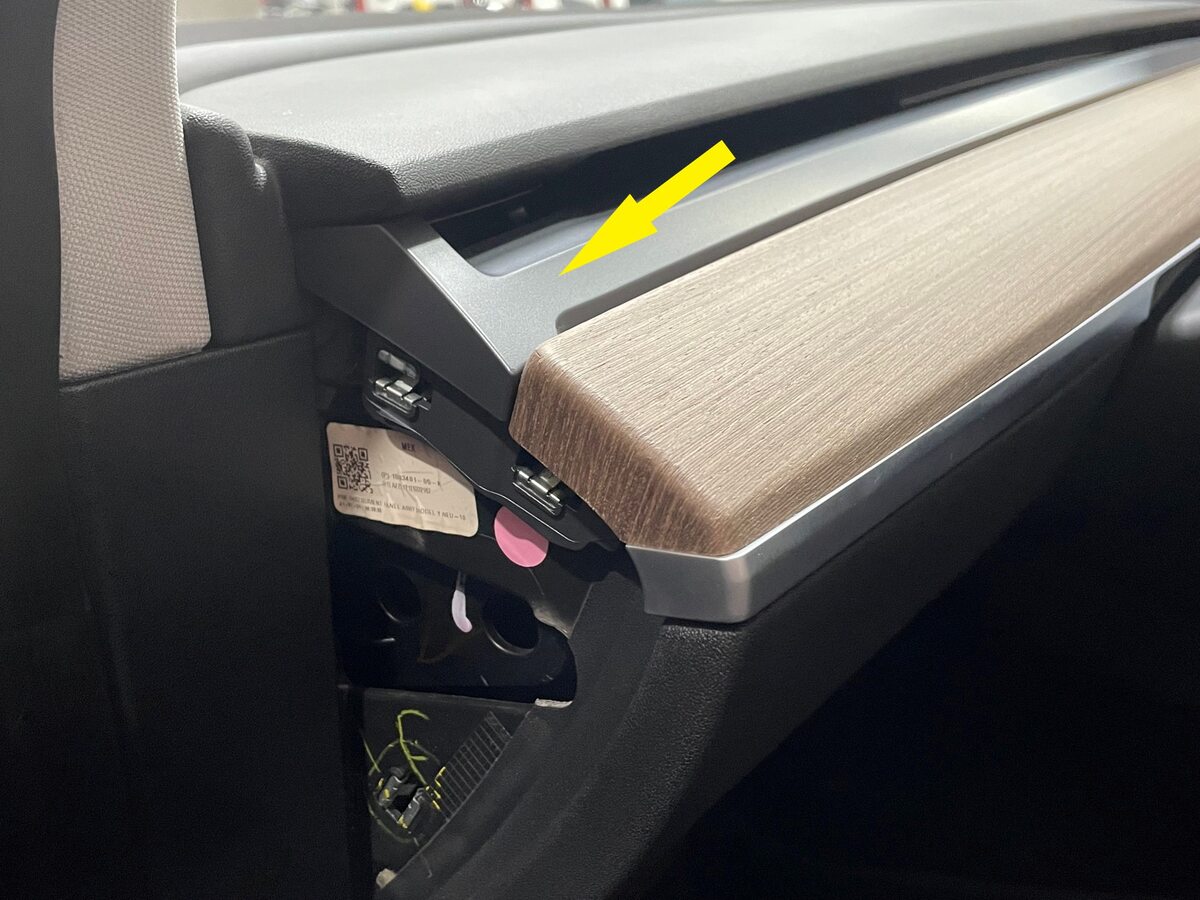

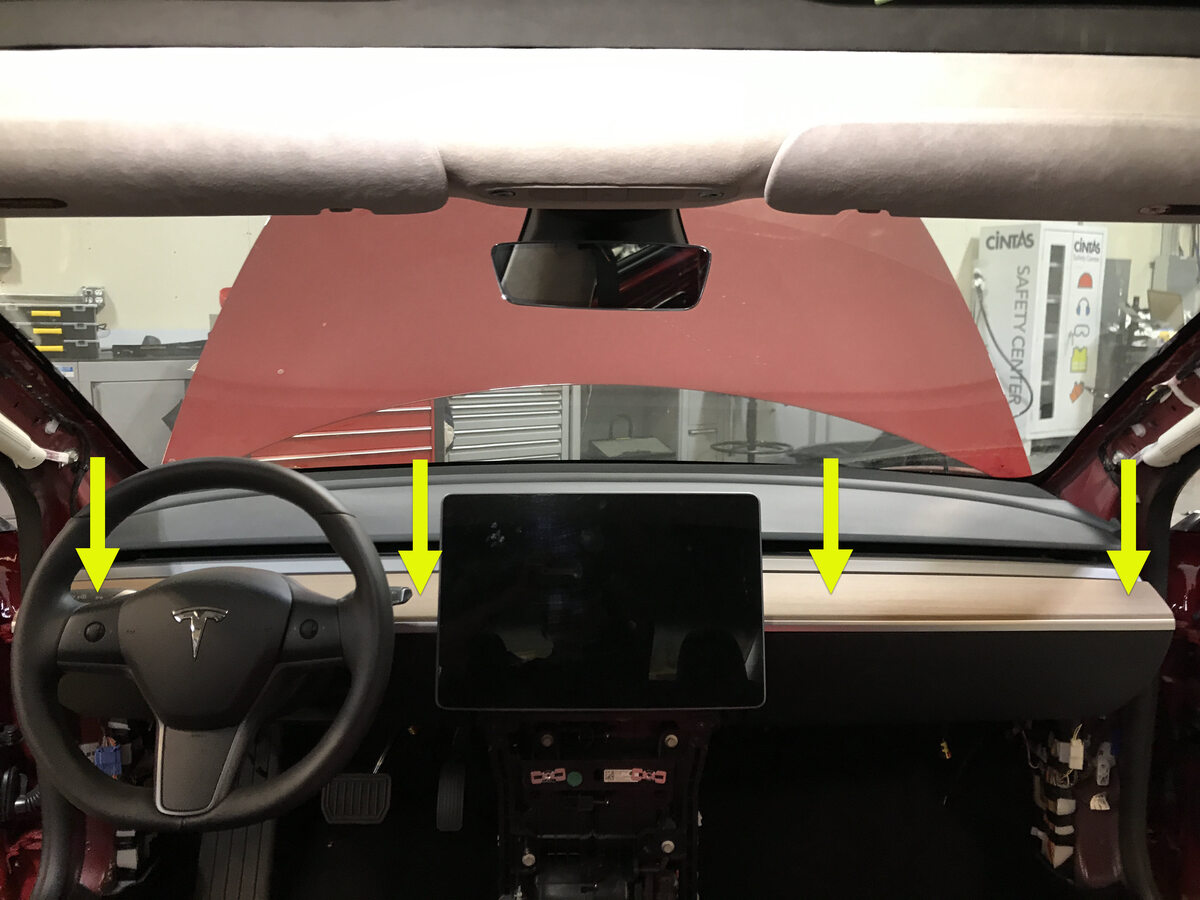

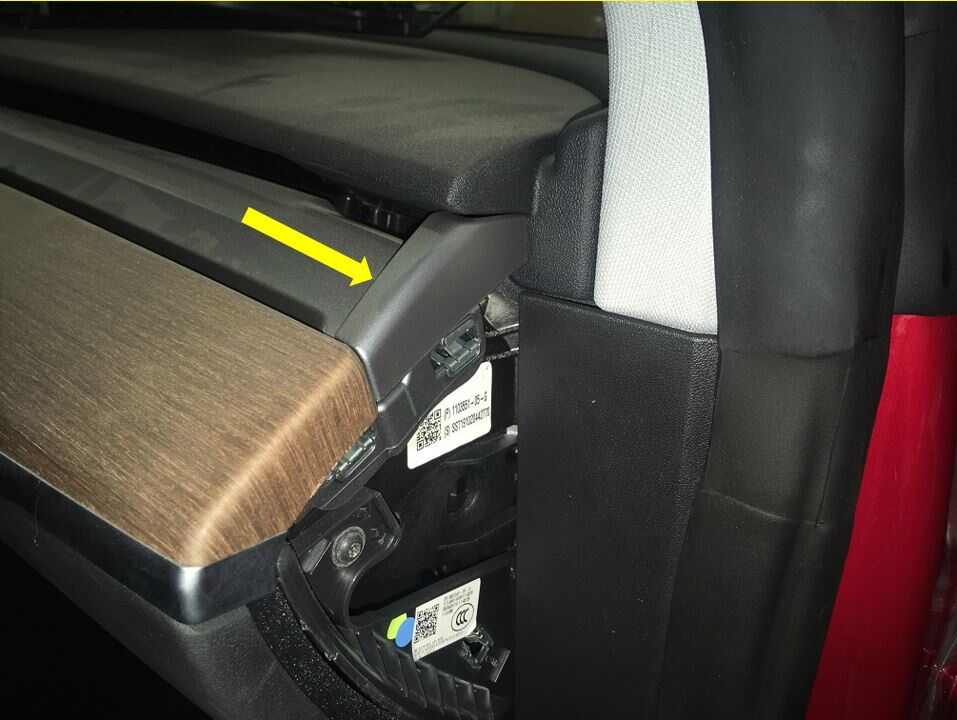

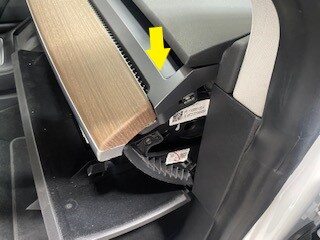

  25. Remove main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注

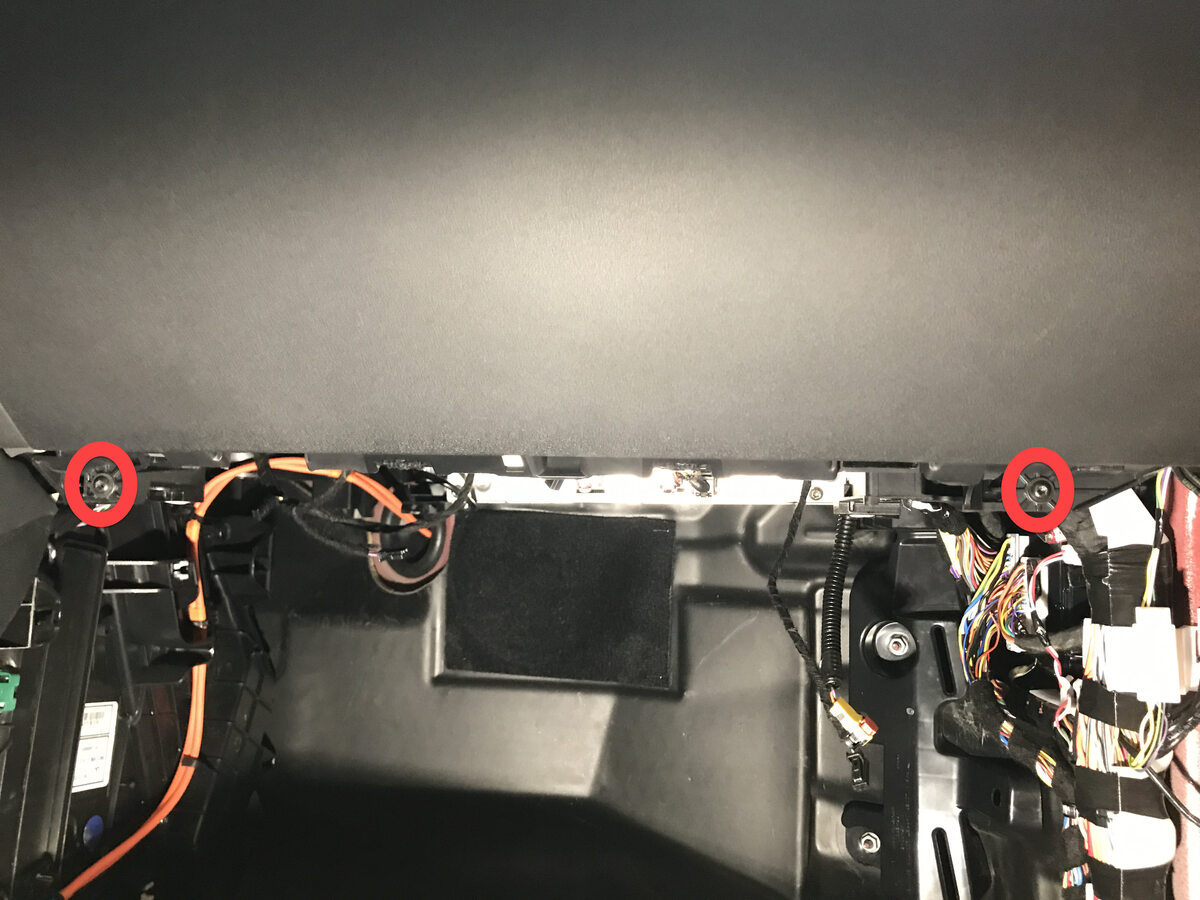

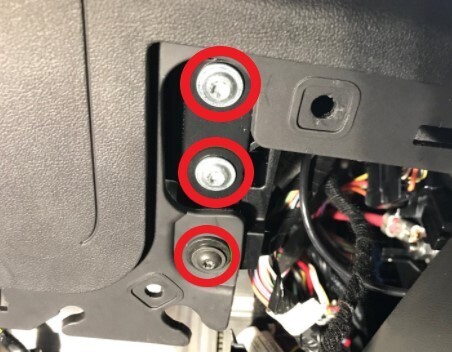

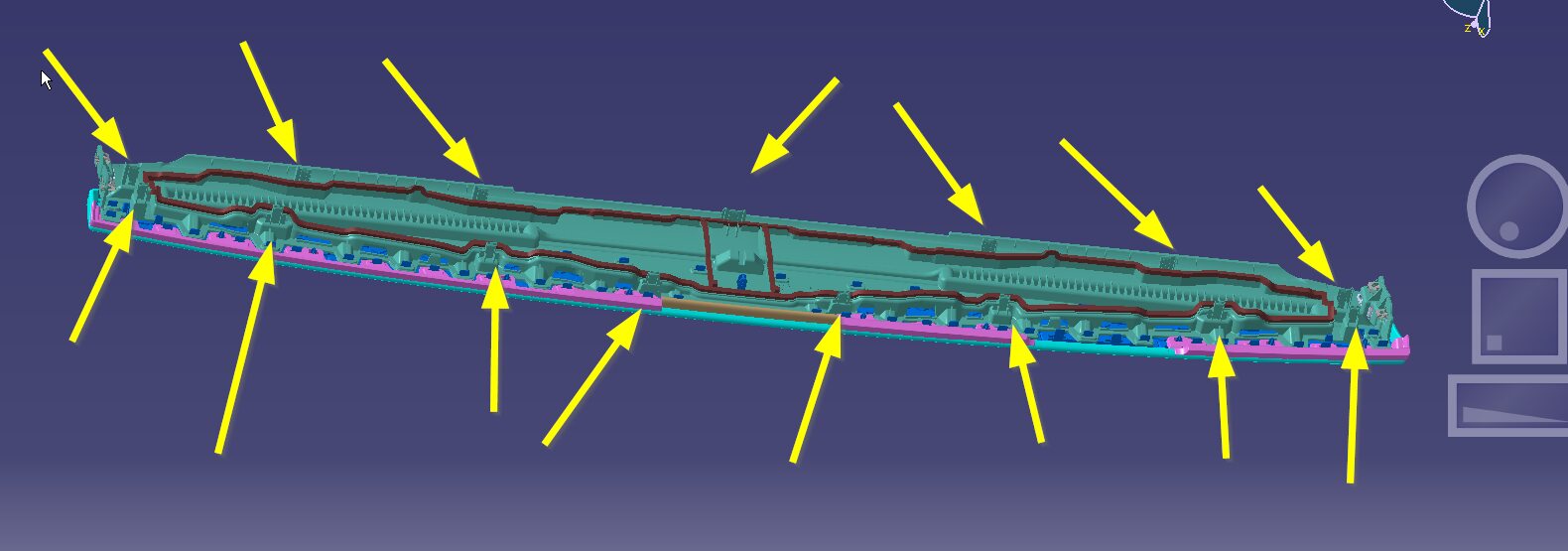

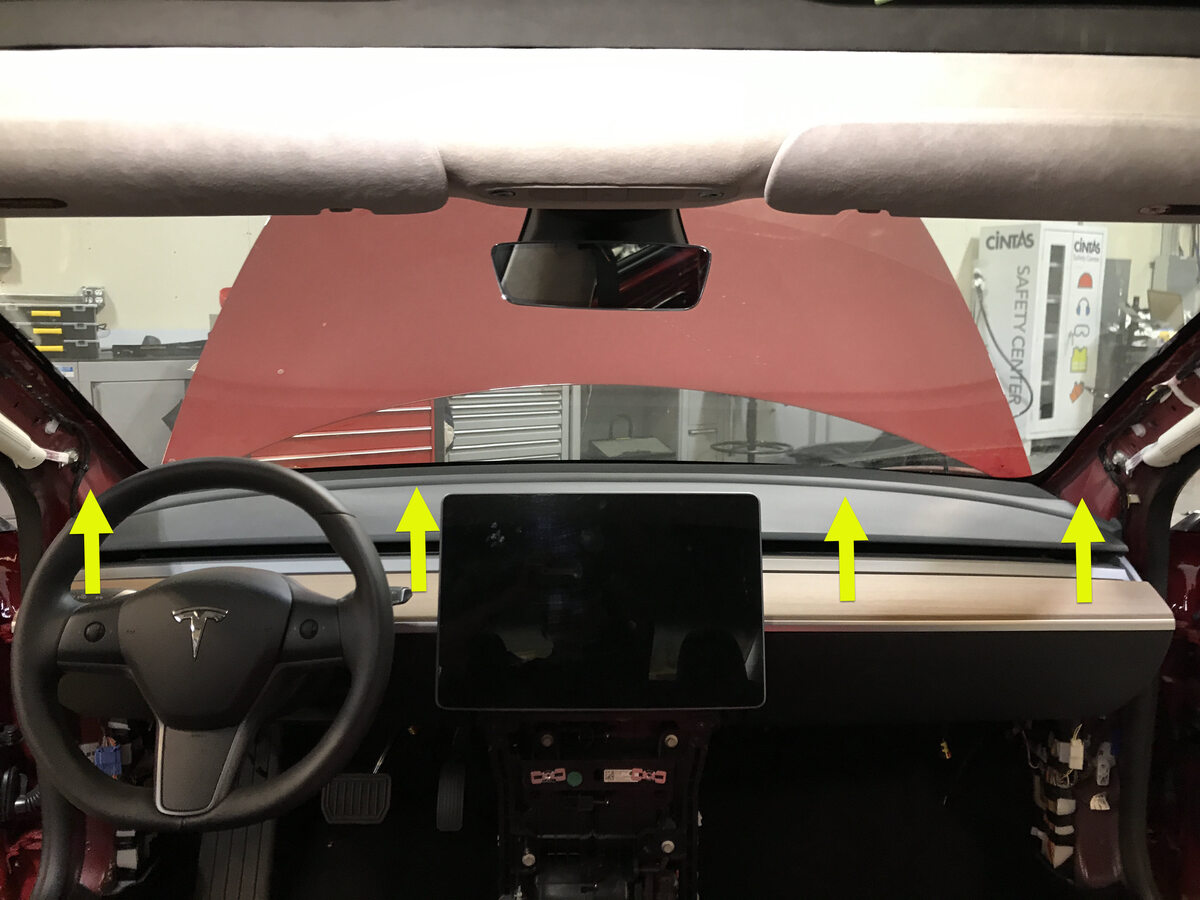

    15x clips, Entire decor does not need to come off for glove box removal, If you lift RH side of decor then you will have access to 3x torx screws securing top of glove box, Replace securing clips as needed

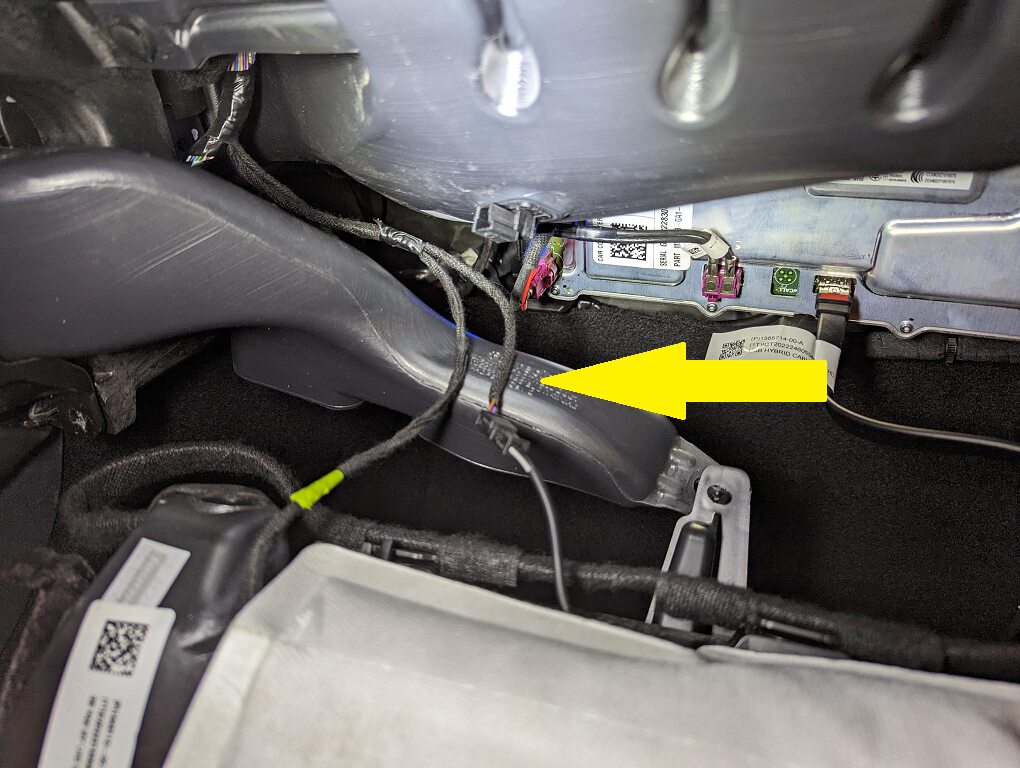

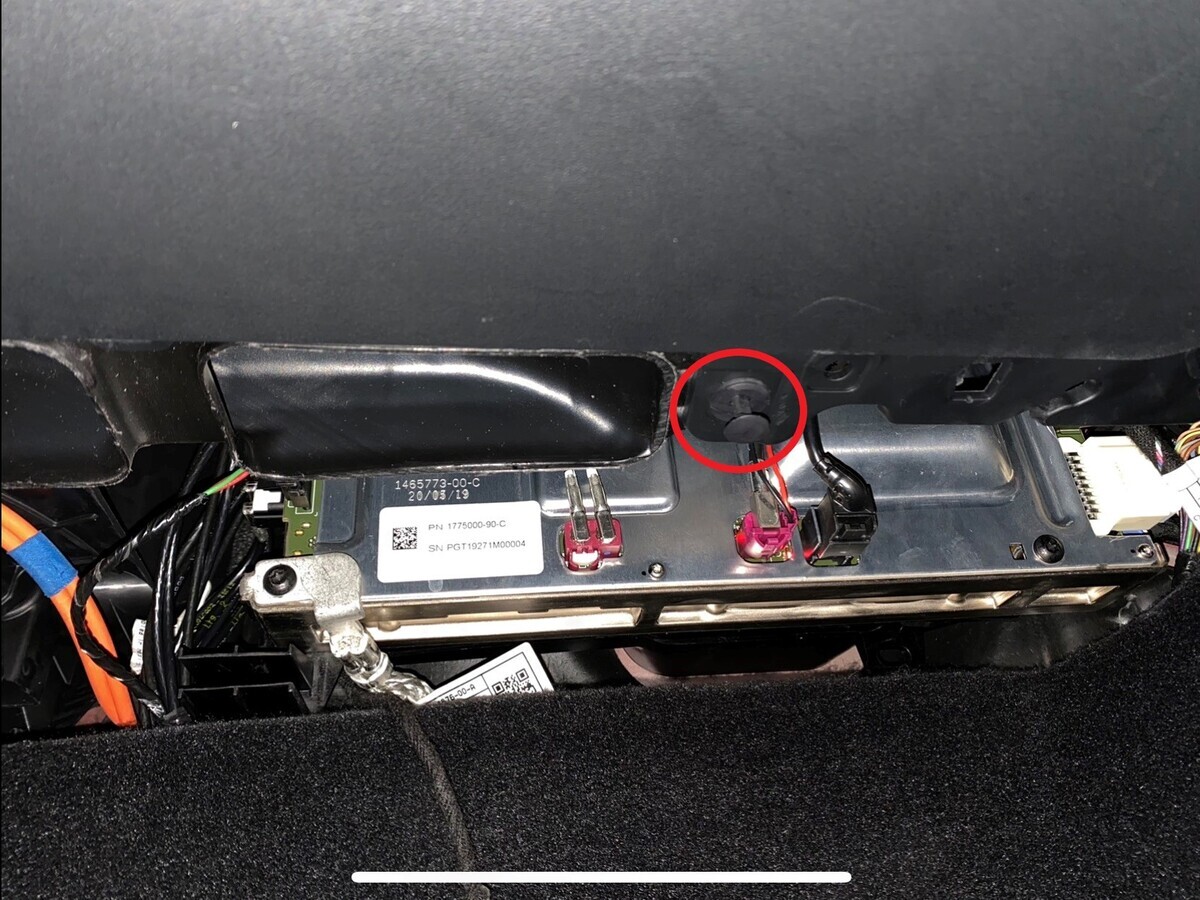

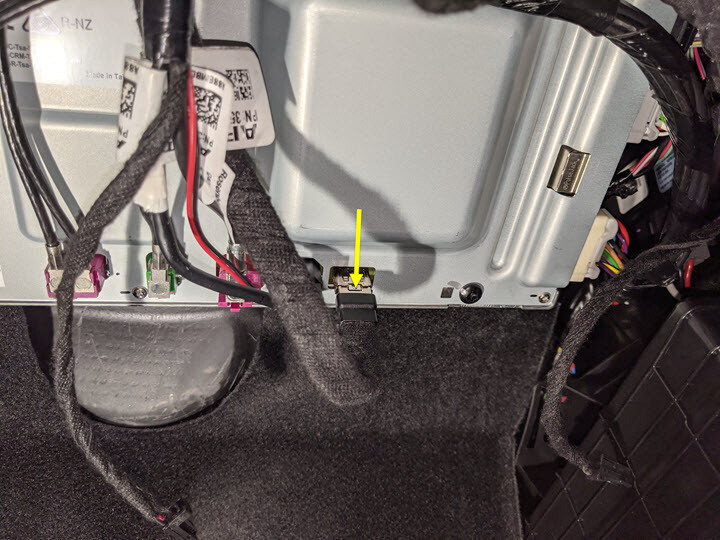

  26. Disconnect glove box USB cable from car computer
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer

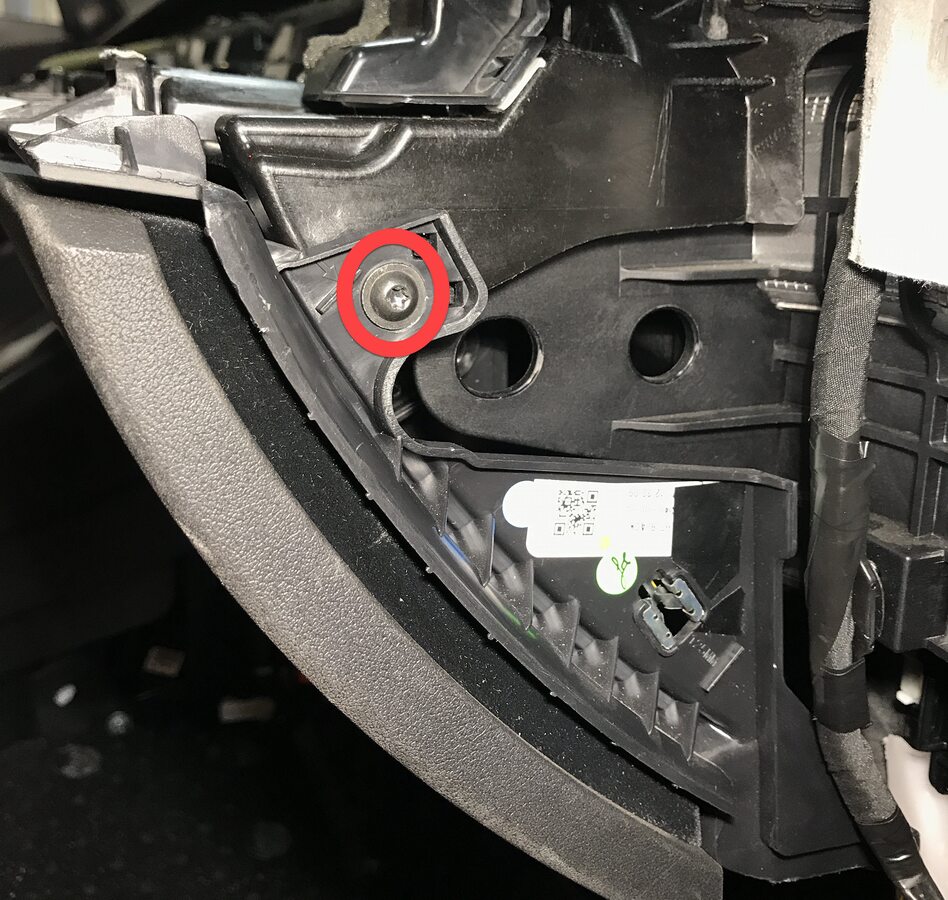

  27. Remove screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    6x screws, T20, 2.3 Nm
  28. Remove glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  29. Disconnect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    注
    3x electrical connectors

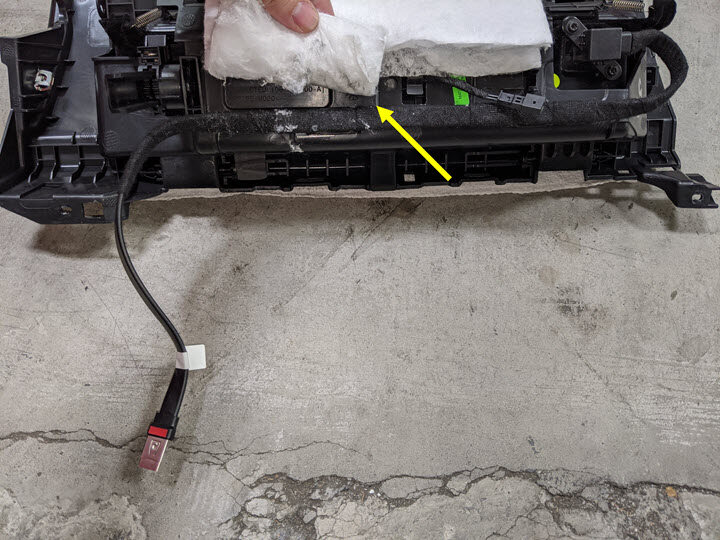

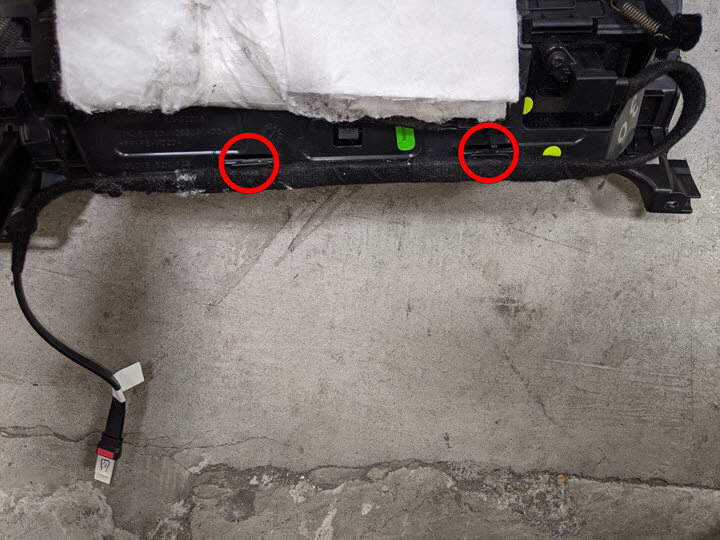

  30. Peel back NVH pad near USB harness clips
  31. Remove USB harness clips from glovebox
    Informational PurposesAn informational icon, calling your attention
    注
    2x clips

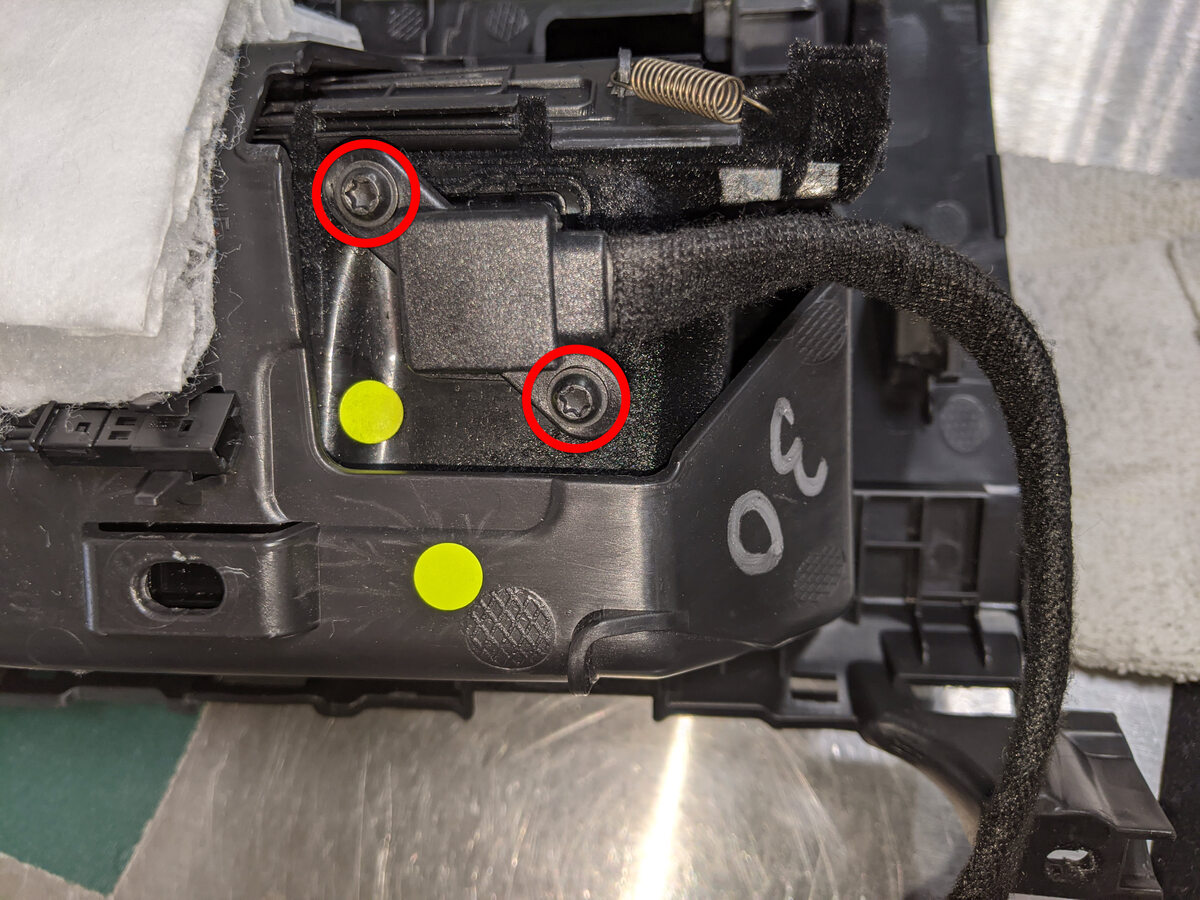

  32. Remove glove box USB cable from glove box
    Informational PurposesAn informational icon, calling your attention
    注
    2x screws, T20, 1 Nm

安装

  1. Install glove box USB cable to glove box
    Informational PurposesAn informational icon, calling your attention
    注
    2x screws, T20, 1 Nm
  2. Secure USB harness clips to glove box
    Informational PurposesAn informational icon, calling your attention
    注
    2x clips
  3. Secure NVH pad near USB harness clips
  4. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    注

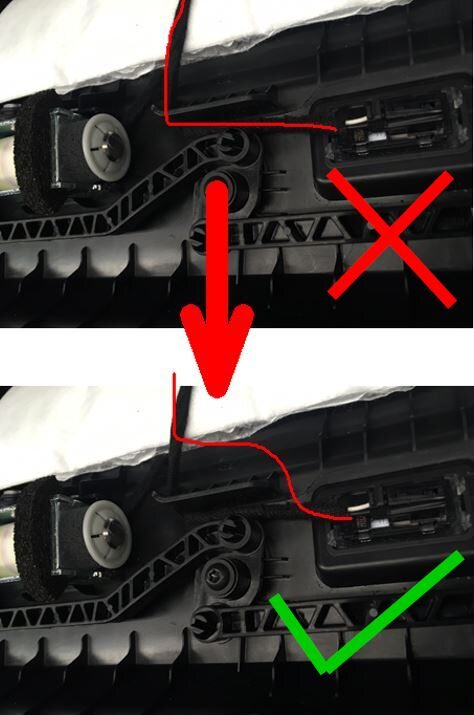

    3x connectors, New puddle lamp harness routing prevent blocking movement of pawls, Make sure harness is routed properly above passenger footwell air duct before connecting
  5. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  6. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    注
    6x screws, T20, 2.3 Nm
  7. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector
  8. Install main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    15x clips, 1x center clip
  9. Install passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Use caution not to damage connector and harness, Support knee air bag while connecting connector
  10. Install bolts securing passenger knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    注
    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 1x push clip, If vehicle equipped with T30 bolts update to E10
  11. Position RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x connectors
  12. Install RH footwell assembly onto IP
    Informational PurposesAn informational icon, calling your attention
    注
    4x push clips

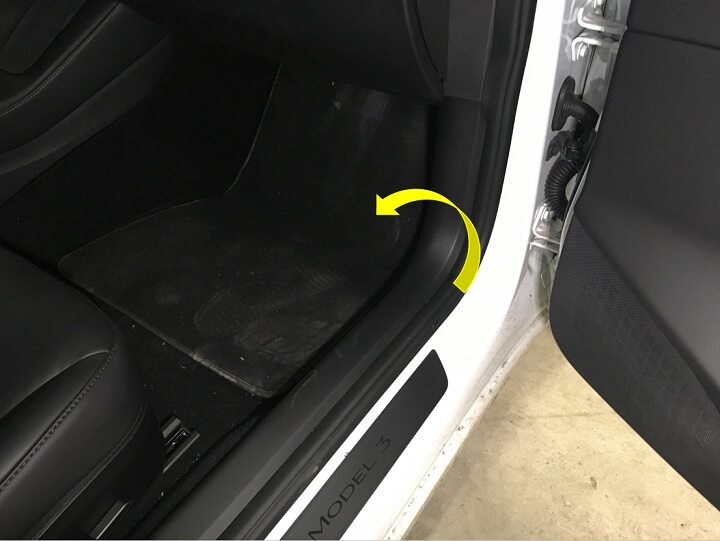

  13. Install RH front floor mat
  14. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip, 2 guide tabs, Align 2 front tabs then align slot with harness bracket and then push rear clip to secure to lower B-pillar
  15. Install clip for RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    注
    1x push clip
  16. Install RH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip, 1x tab, Align bottom tab then push on top clip to fully seat mid A-pillar, Make sure seal seat on top of trim
  17. Install RH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x clips, Newer vehicles are equipped with solid bezel.
  18. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  19. Install LH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    注
    2x clips, Newer vehicles are equipped with solid bezel.
  20. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    注
    3x clips
  21. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  22. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    注
    1x nut, 10mm, 6 Nm
  23. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    注
    12x clips
  24. Close hood
  25. Move RH front seat to original position
  26. Install flash drive to glove box USB port
  27. Close glove box
  28. Raise RH front window
  29. Close RH front door
  30. Move LH front seat to original position
  31. Raise LH front window
  32. Close LH front door
