母排 - 输出 - 负极 - 快充 - 高压电池（结构化电池组）（拆卸和更换）

校正代码 16307502 1.98 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。
  1. Open all four doors
  2. Lower all four windows
  3. Place vehicle in service mode with touchscreen
    注
    Hold Tesla T icon at top of center display for four seconds and then type "service" into dialog box
  4. Remove the ancillary bay cover. See 盖板 - 高压电池仓（结构化电池组）（拆卸和更换）.
  5. 拆下烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
  6. Disconnect fast charge contactor
    注
    1x connector, Push on both side of connector to release tabs and pull upward
  7. Remove bolt securing AC filter harness to negative DC inlet busbar
    注
    1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal
  8. Remove bolt securing AC filter harness positive DC inlet busbar
    注
    1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal
  9. Release AC filter harness from tray
    注
    2x clips
  10. Remove FC contactor cover
    注
    3x securing tabs
  11. Remove bolts securing FC negative outlet jumper
    注
    2x bolts, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal

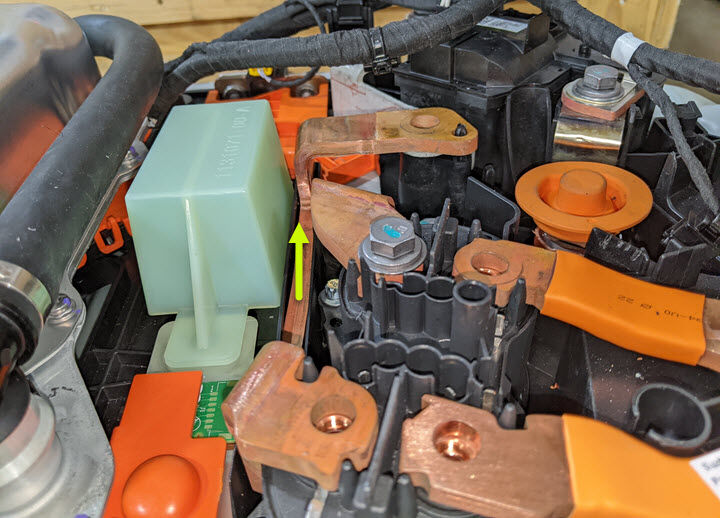

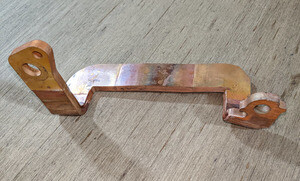

  12. Remove FC negative outlet jumper from ancillary bay
  13. Position FC negative outlet jumper into ancillary bay
  14. Install bolts securing FC negative outlet jumper
    注
    2x bolts, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal
  15. Perform Hioki measurement at the joint from FC negative outlet jumper busbar to DC negative link busbar
    注
    1 HV joint, 60µΩ or less
  16. Install FC contactor cover
    注
    3x securing tabs
  17. Install bolt securing AC filter harness positive DC inlet busbar
    注
    1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Install new bolt
  18. Install bolt securing AC filter harness to negative DC inlet busbar
    注
    1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Install new bolt
  19. Perform Hioki impedance measurement at joint from AC filter harness to positive DC inlet busbar
    注
    1x HV joint, 150µΩ or less
  20. Perform Hioki impedance measurement at joint from AC filter harness to negative DC inlet busbar
    注
    1x HV joint, 150µΩ or less
  21. Secure AC filter harness onto tray
    注
    2x clips
  22. Connect fast charge contactor
    注
    1x connector, Push on both side of connector to release tabs and pull upward
  23. 测量烟火电池隔离开关安装点间的电压，然后安装烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
  24. Install the ancillary bay cover. See 盖板 - 高压电池仓（结构化电池组）（拆卸和更换）.
  25. Exit Service Mode through UI
    注
    Controls > Service Mode > Exit Service Mode
  26. Raise all four windows
  27. Close all four doors
    注
    If 12V is powered up, Unlatch rear doors before closing
