支架 - 前端模块 (FEM) - LH(拆卸和更换)

校正代码 10101032 0.78 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

扭矩规格

表 1. 扭矩规格支架 - 前端模块 (FEM) - LH(拆卸和更换)
描述 扭矩值 推荐工具 重复使用/更换 备注

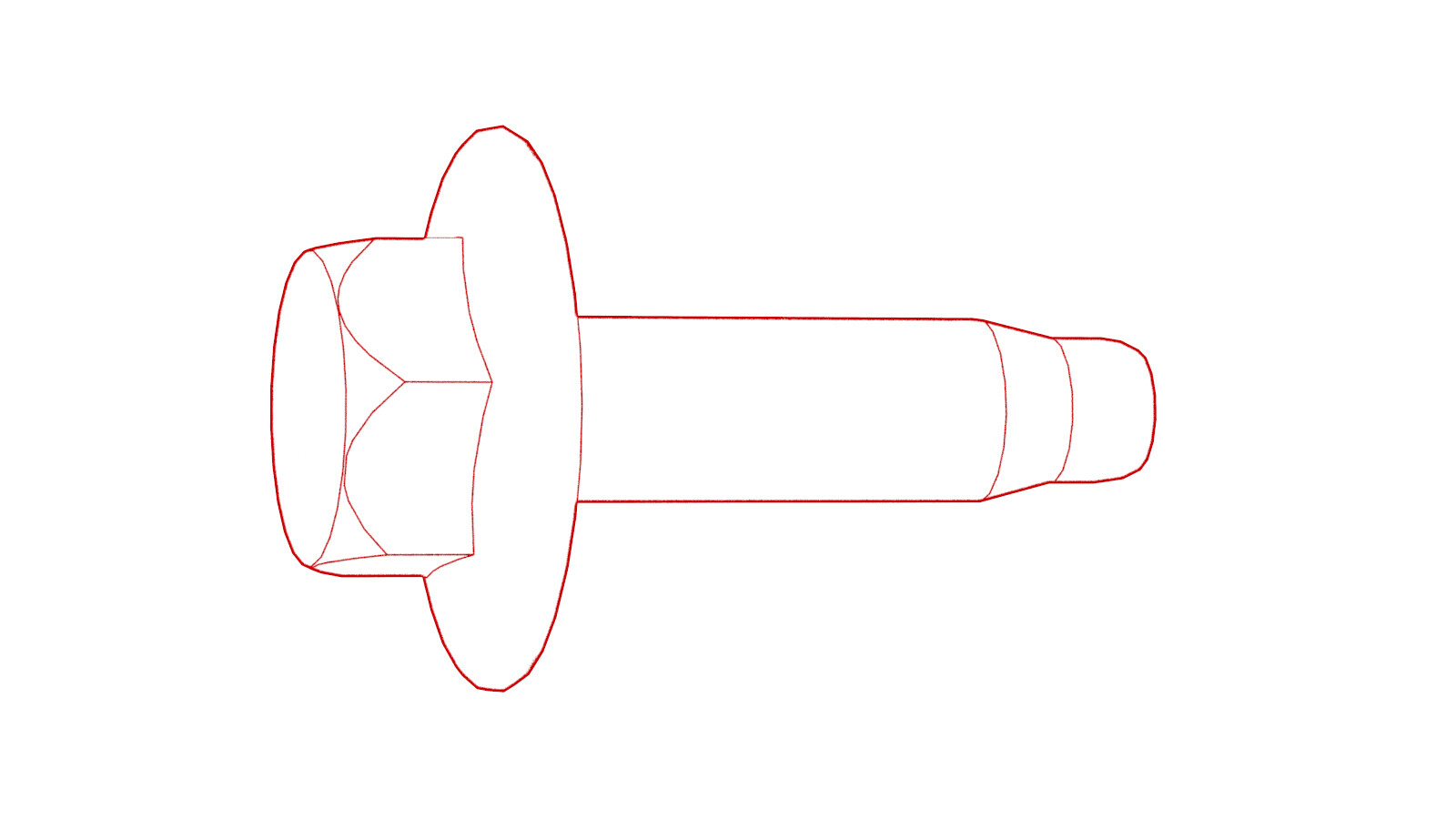

将左侧前端模块支架固定到车辆的螺栓
35 Nm (25.8 lbs-ft)
  • 13 毫米套筒
  • 棘轮/扭矩扳手
重复使用
将左前翼子板支架固定到前翼子板总成的螺栓
9.8 Nm (7.2 lbs-ft)
  • 10 毫米深套筒
  • 4 英寸加长件
  • 棘轮/扭矩扳手
重复使用
将左侧前端模块支架固定到前端支架的螺栓
16 Nm (11.8 lbs-ft)
  • 13 毫米套筒
  • 6 英寸加长件
  • 回旋头棘轮/回旋头扭矩扳手
重复使用

拆卸

  1. Disconnect 12V power. See 12V/低压电源(断开和连接).
  2. Remove the front fascia. See 饰板 - 前(拆卸和安装).

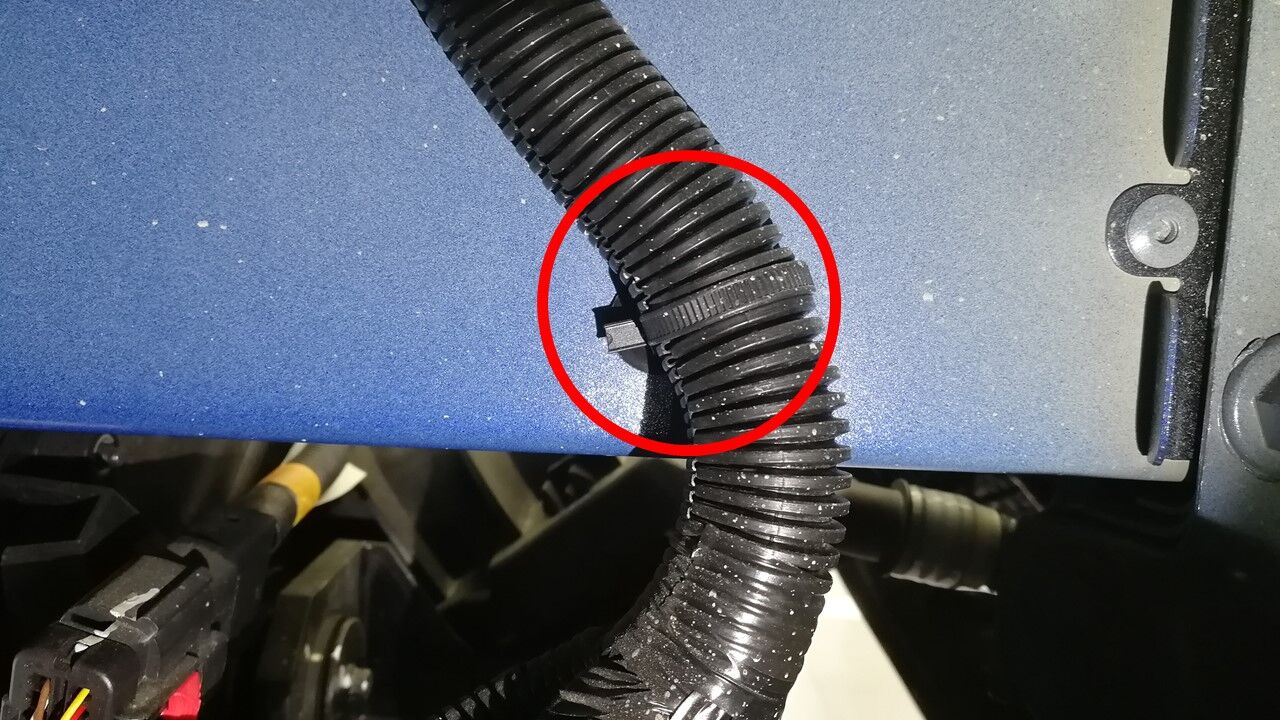

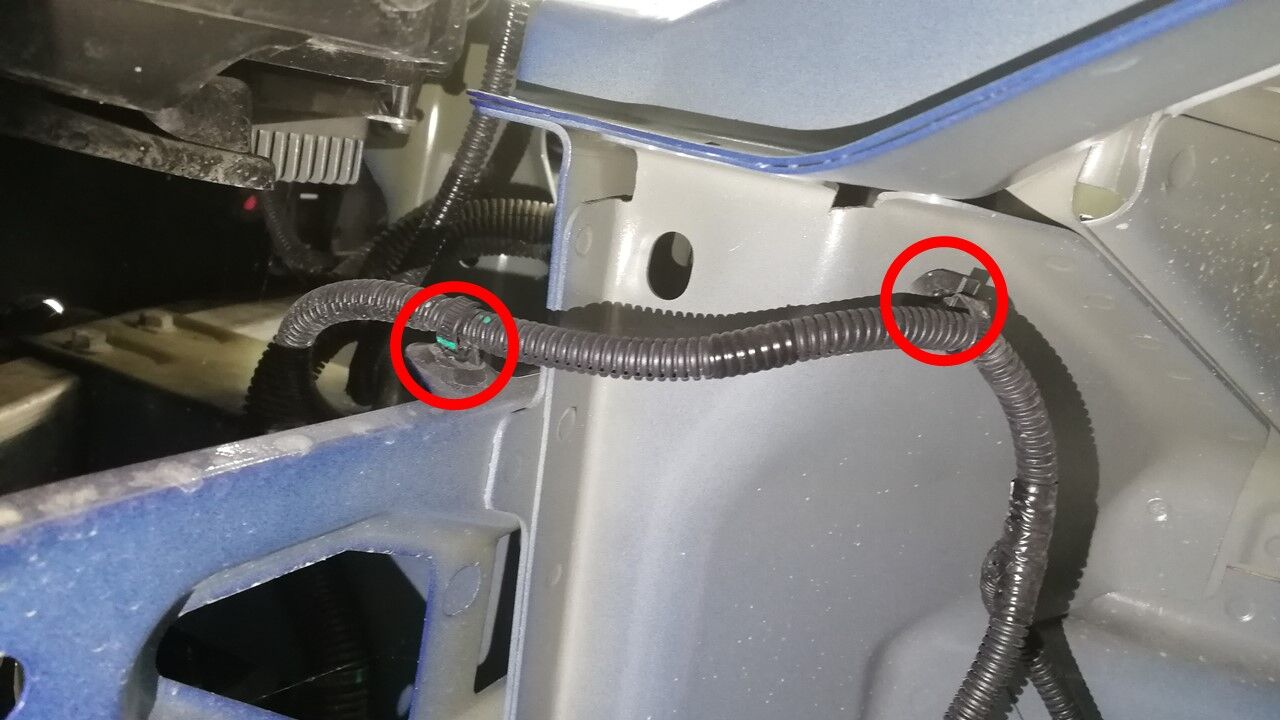

  3. Remove the LH front ride height sensor harness from the FEM bracket assembly.
    Informational PurposesAn informational icon, calling your attention
    2x clips

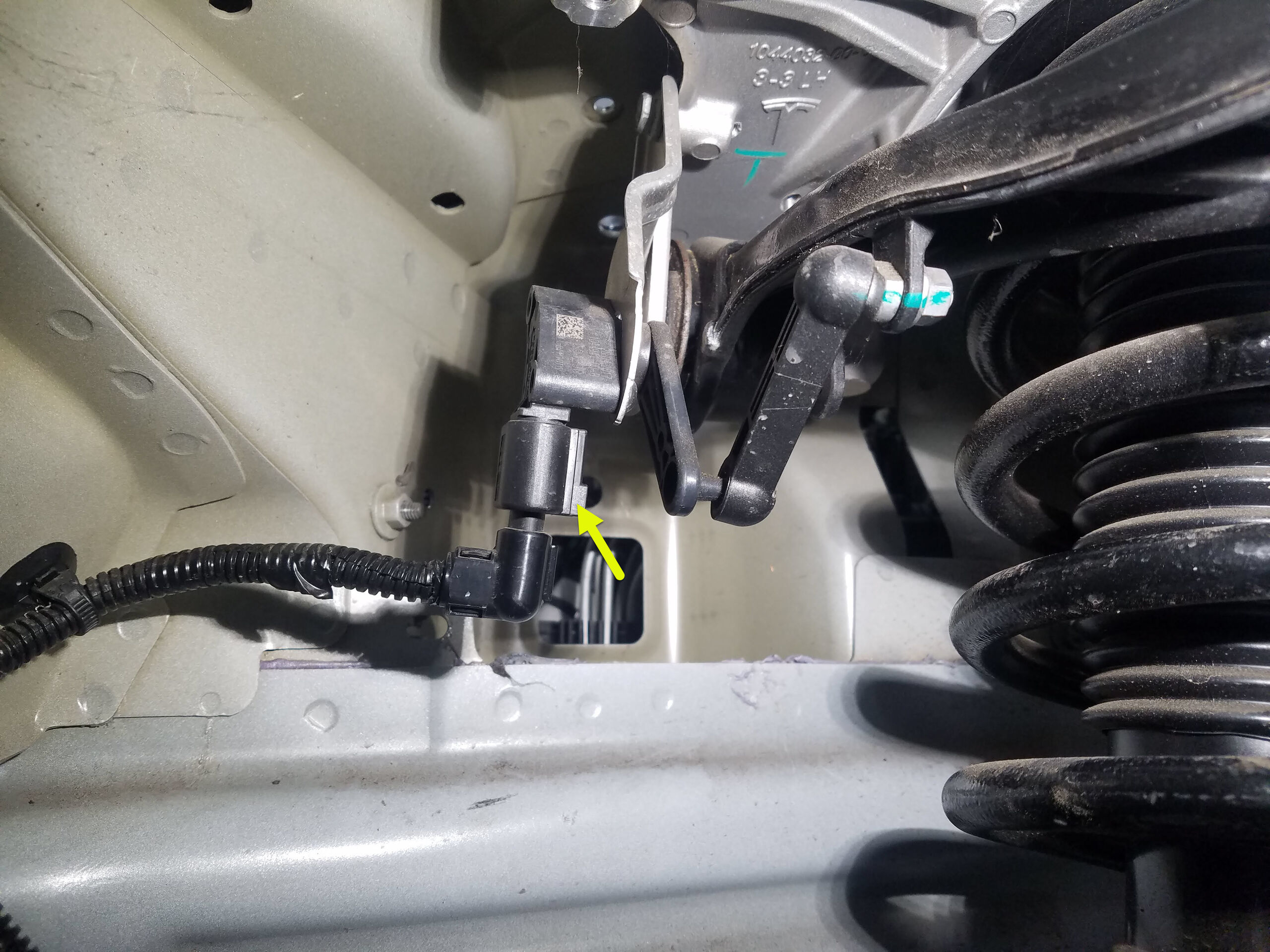

  4. Disconnect the LH front ride height sensor connector.
    Informational PurposesAn informational icon, calling your attention
    1x connector
  5. Disconnect the LH front wheel speed sensor connector.
    Informational PurposesAn informational icon, calling your attention
    1x clip, 1x connector, Release locking tab

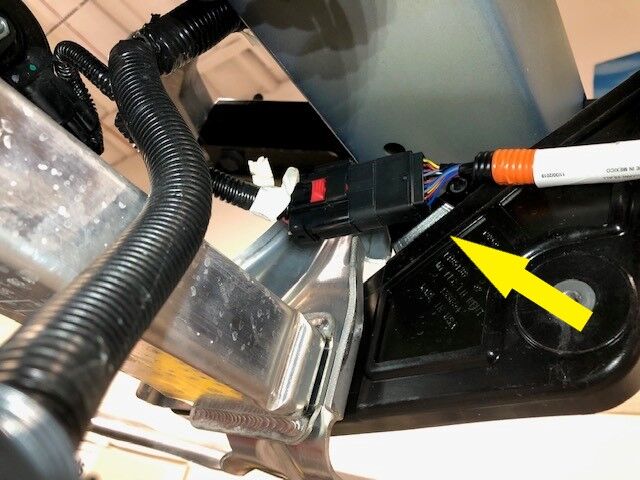

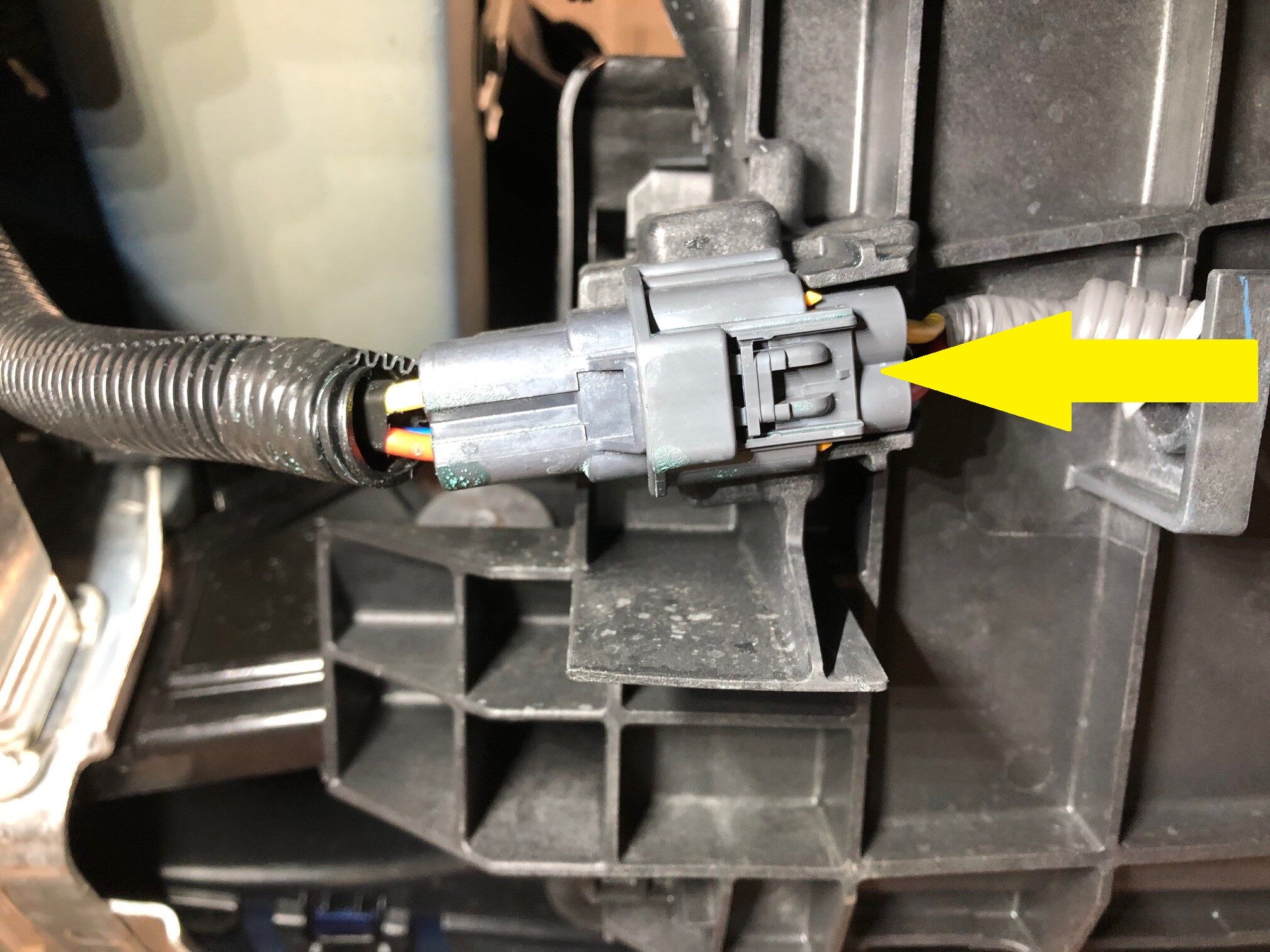

  6. Disconnect the LH FEM harness connector.
    Informational PurposesAn informational icon, calling your attention
    1x connector, Disengage locking tab
  7. Disconnect the cooling fan module connector.
    Informational PurposesAn informational icon, calling your attention
    1x connector, Disconnect this after coolant hose is capped to avoid coolant damaging connector
  8. Release the cooling fan module harness from the FEM bracket assembly.
    Informational PurposesAn informational icon, calling your attention
    1x clip

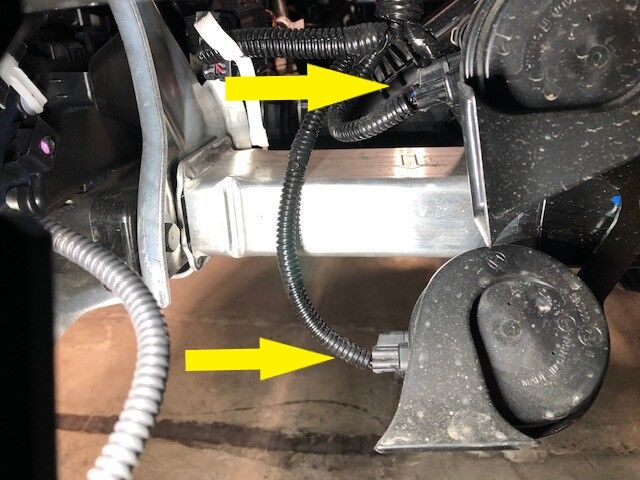

  9. Disconnect the connectors from horn assembly.
    Informational PurposesAn informational icon, calling your attention
    2x connectors

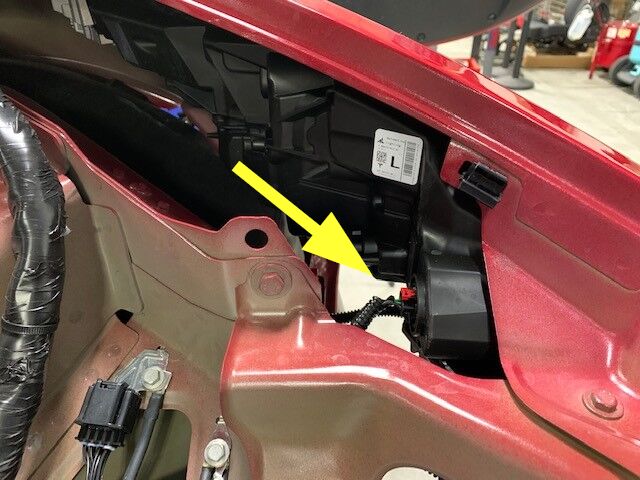

  10. Disconnect the LH headlamp connector.
    Informational PurposesAn informational icon, calling your attention
    1x connector, Pull tab to disengage lock mechanism, Pull again to release connector, Do not press down on tab
  11. Remove the LH impact accelerometer. See 传感器 - 碰撞加速计 - 前保险杠 - LH(拆卸和更换)

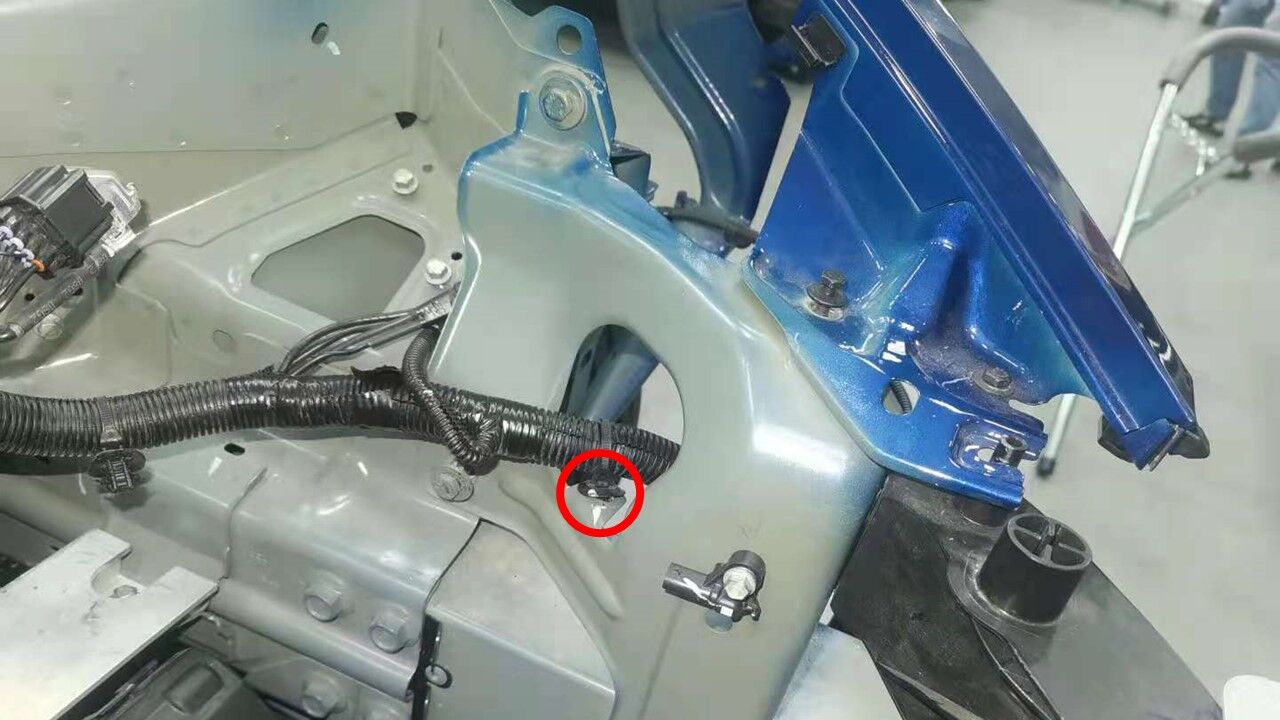

  12. Release the clips that attach the FEM electrical harness to the front end carrier, and then remove the harness from the front end carrier.
    Informational PurposesAn informational icon, calling your attention
    1x clip

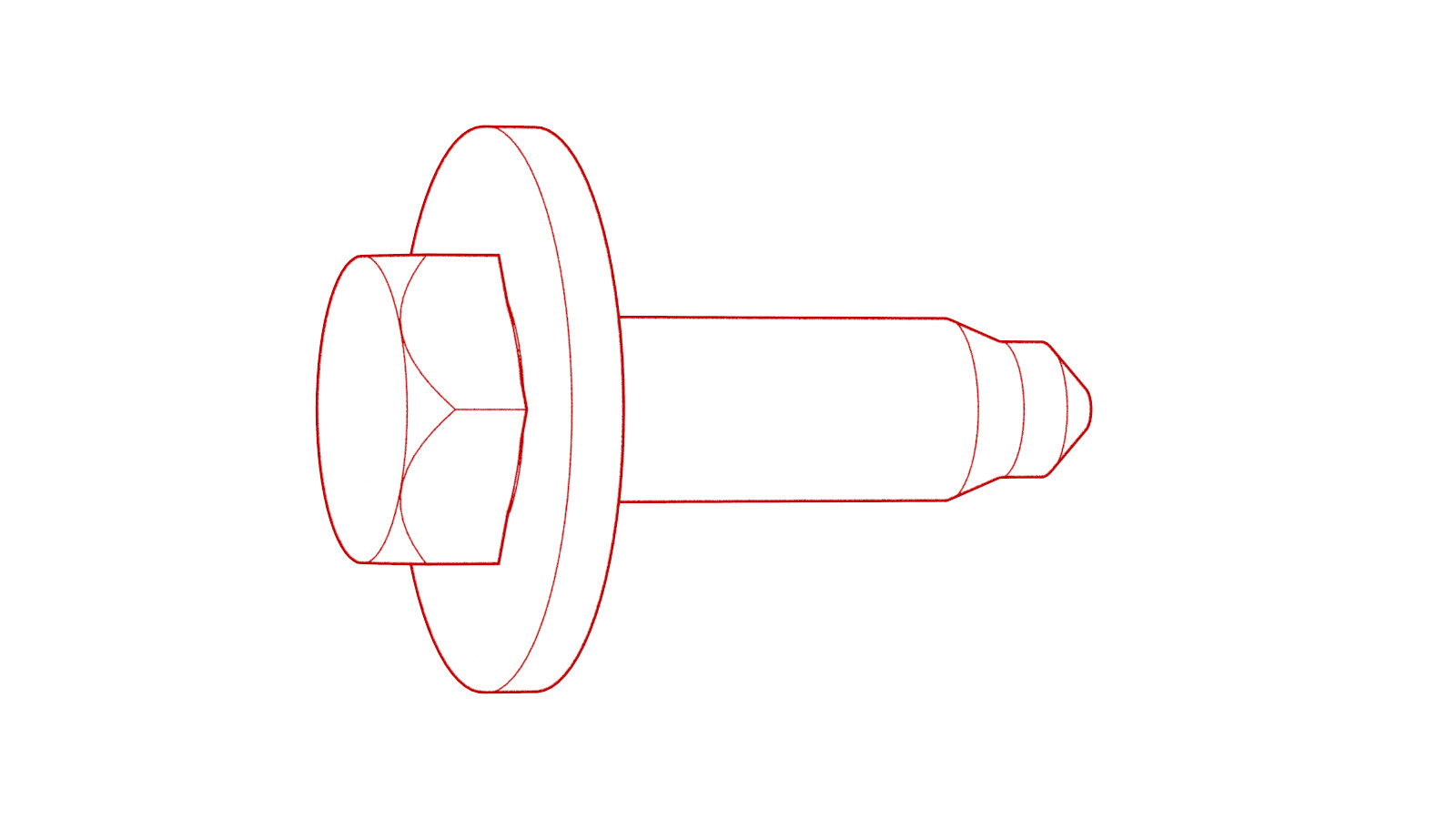

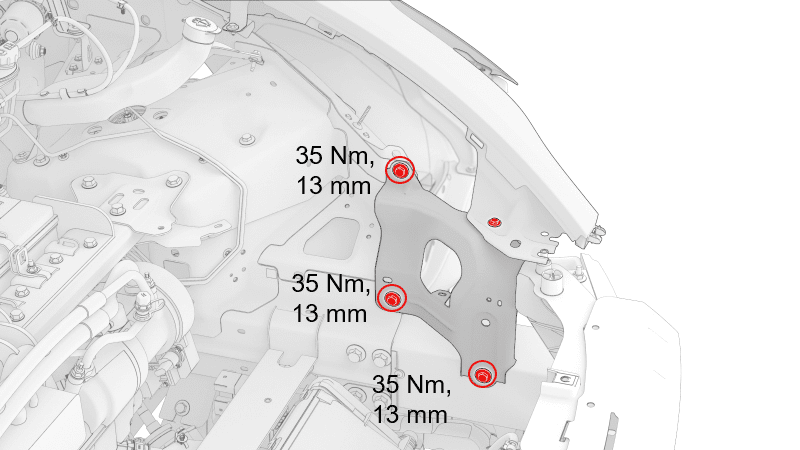

  13. Remove the bolts (x3) that attach the front end module bracket assembly to the vehicle.
    35 Nm (25.8 lbs-ft)
    提示: 推荐使用以下工具:
    • 13 毫米套筒
    • 棘轮/扭矩扳手

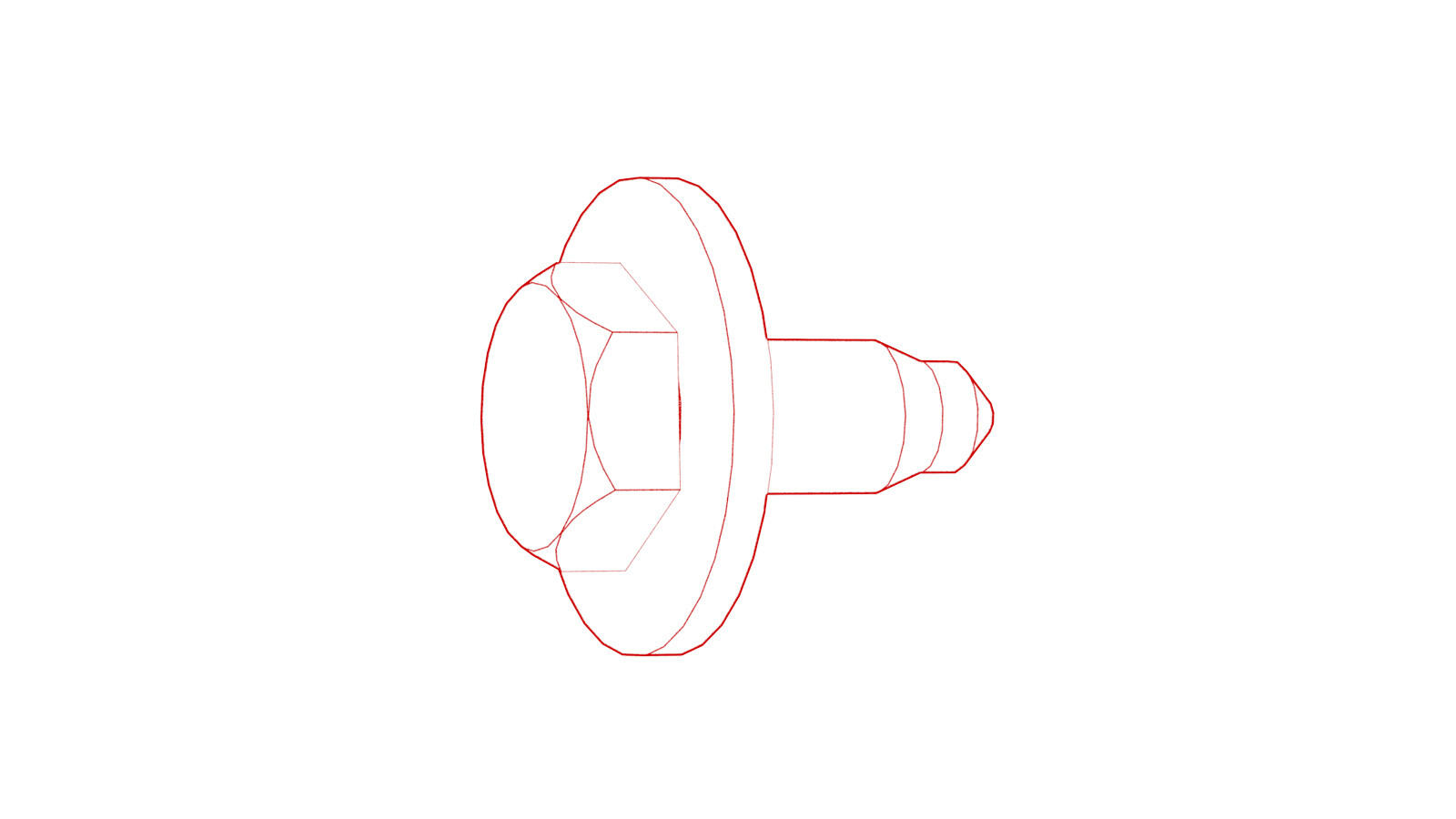

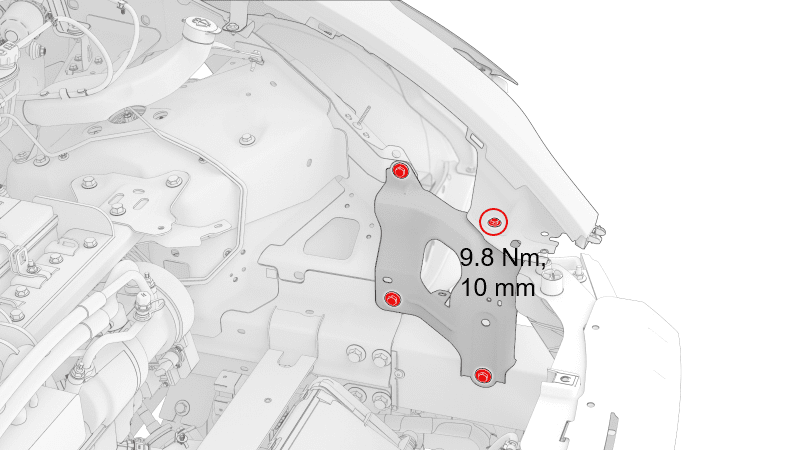

  14. Remove the bolt that attach the front end module bracket to the front fender assembly.
    9.8 Nm (7.2 lbs-ft)
    提示: 推荐使用以下工具:
    • 10 毫米深套筒
    • 4 英寸加长件
    • 棘轮/扭矩扳手

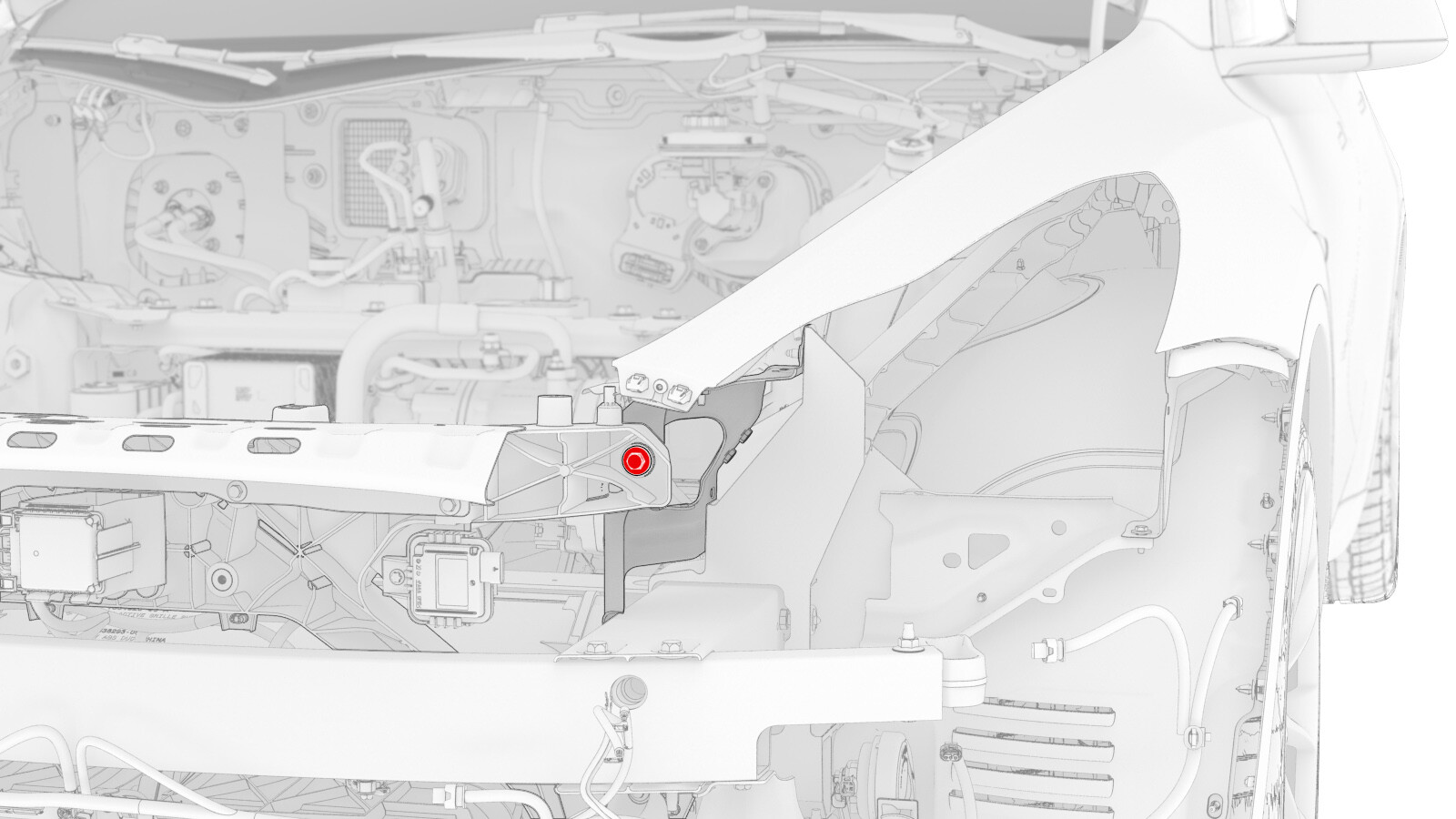

  15. Remove the bolt that attach the front end module bracket to the front end carrier.
    16 Nm (11.8 lbs-ft)
    提示: 推荐使用以下工具:
    • 13 毫米套筒
    • 6 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手

安装

  1. Install the bolt that attach the front end module bracket to the front end carrier.
    16 Nm (11.8 lbs-ft)
    提示: 推荐使用以下工具:
    • 13 毫米套筒
    • 6 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
  2. Install the bolt that attach the front end module bracket to the front fender assembly.
    9.8 Nm (7.2 lbs-ft)
    提示: 推荐使用以下工具:
    • 10 毫米深套筒
    • 4 英寸加长件
    • 棘轮/扭矩扳手
  3. Remove the bolts (x3) that attach the front end module bracket assembly to the vehicle.
    35 Nm (25.8 lbs-ft)
    提示: 推荐使用以下工具:
    • 13 毫米套筒
    • 棘轮/扭矩扳手

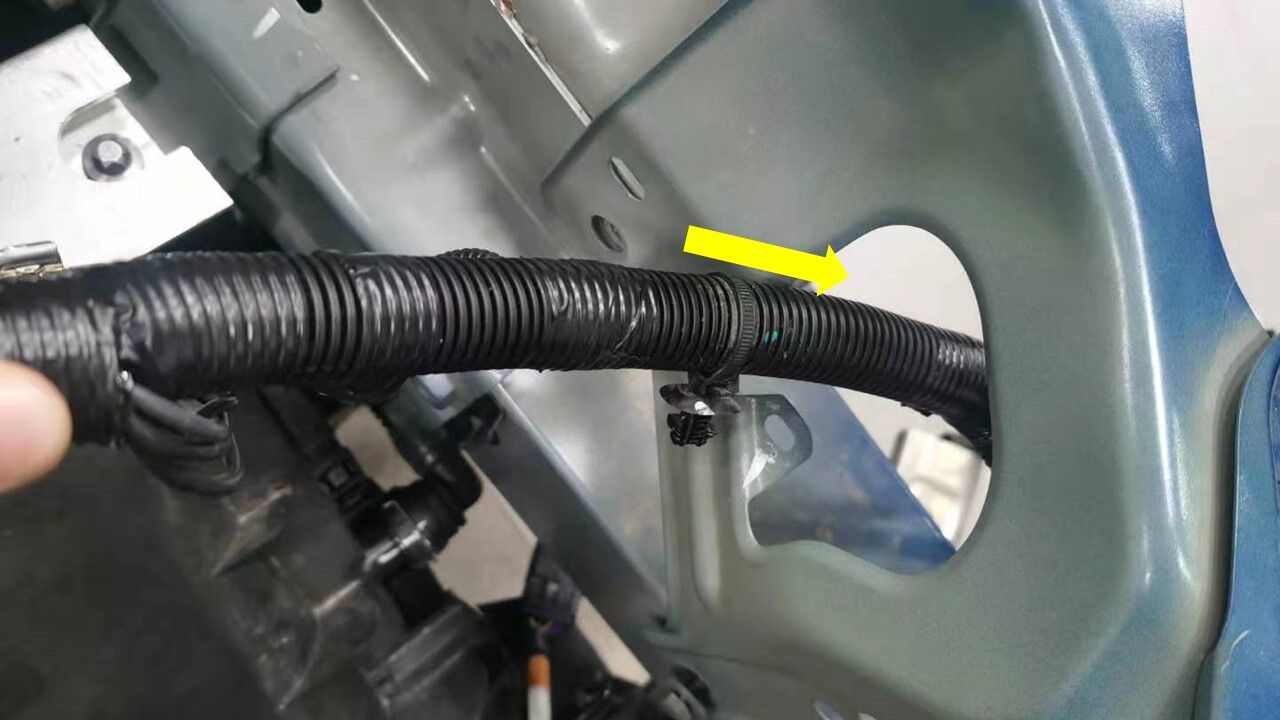

  4. Route the front harness through the LH FEM bracket assembly, and secure the front harness to the bracket.
    Informational PurposesAn informational icon, calling your attention
    1x clip
  5. Install the LH impact accelerometer. See 传感器 - 碰撞加速计 - 前保险杠 - LH(拆卸和更换)
  6. Connect the LH headlamp connector.
    Informational PurposesAn informational icon, calling your attention
    1x connector, 1x locking tab
  7. Connect the horn assembly connectors.
    Informational PurposesAn informational icon, calling your attention
    2x connectors
  8. Connect the cooling fan module connectors and then install the clip.
    Informational PurposesAn informational icon, calling your attention
    1x clip
    Informational PurposesAn informational icon, calling your attention
    1x connector
  9. Connect the LH FEM harness connector.
    Informational PurposesAn informational icon, calling your attention
    1x connector, Engage locking tab
  10. Connect the LH front ride height sensor connector and then install the clips.
    Informational PurposesAn informational icon, calling your attention
    2x clips, 1x connector
  11. Connect the LF wheel speed sensor connector.
    Informational PurposesAn informational icon, calling your attention
    1x clip, 1x connector, Engage locking tab
  12. Install the front fascia. See 饰板 - 前(拆卸和安装).
  13. Connect 12V power. See 12V/低压电源(断开和连接).
