校正代码 33035012 3.60 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Raise and support vehicle with wheels still touching the ground
   注

   Ensure vehicle is not charging
2. Open the LH front door and lower the LH front window.
3. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
4. Remove the underhood storage unit. See 前备箱储物单元（拆卸和更换）.
5. Remove the HEPA filter. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和更换）.
6. Remove the HEPA duct. See 风管 - 高效分子空气 (HEPA)（拆卸和更换）
7. Disconnect LV power. See 12V/低压电源（断开和连接）.
8. Verify operation of multimeter
   注

   Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals





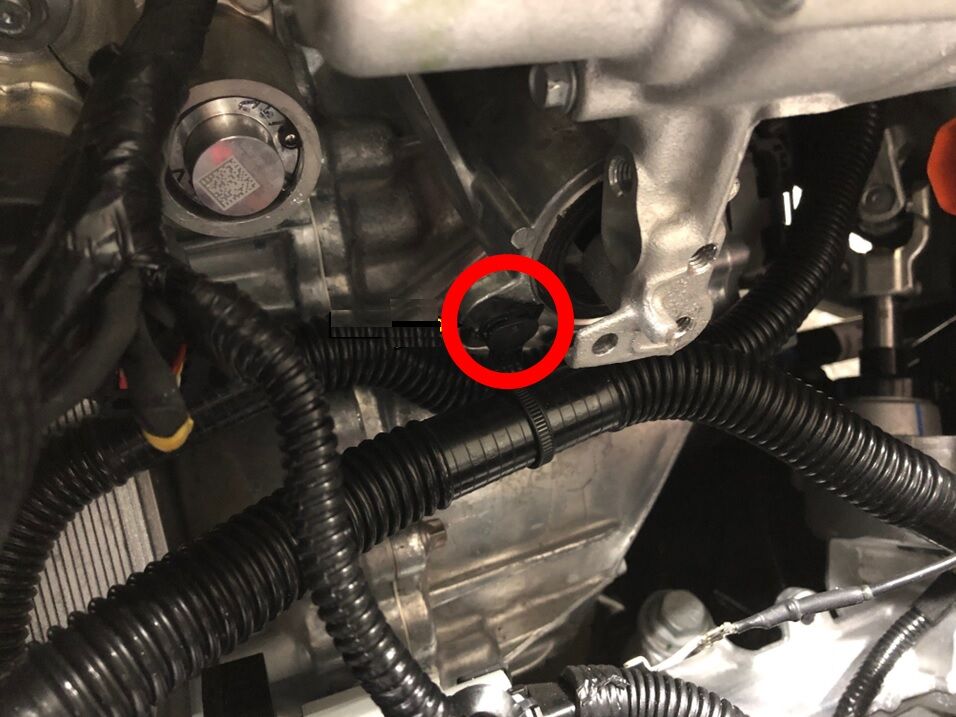

9. Remove clip securing negative terminal cable to AC compressor bracket
   注

   1x clip



10. Remove negative terminal cable from body
    注

    1x bolt, 10mm, 10 Nm

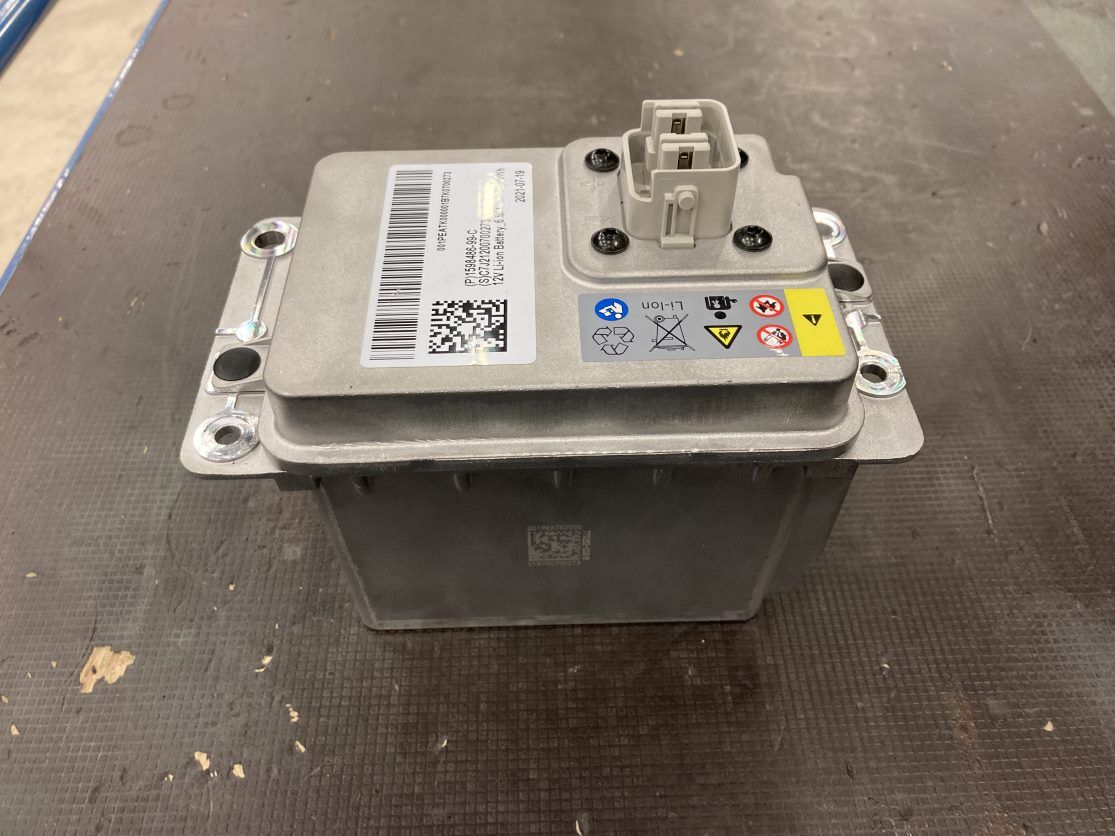

11. Remove the LV battery. See 12V/低压电池（拆卸和更换）.
12. Remove all four wheels. See 轮毂总成（拆卸和安装）.
13. Remove the mid aero shield panel. See 面板 - 流线型护板 - 中间（拆卸和更换）.
14. Remove all items from pockets and ensure not wearing metal items





15. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



16. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used



17. Install amp clamp to RDU HV harness
    注

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as required If current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.

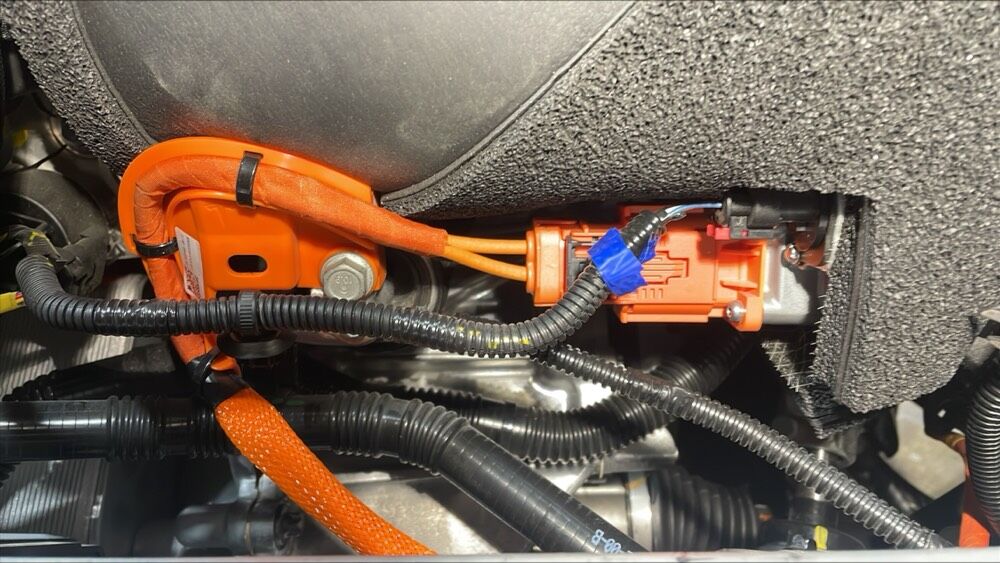

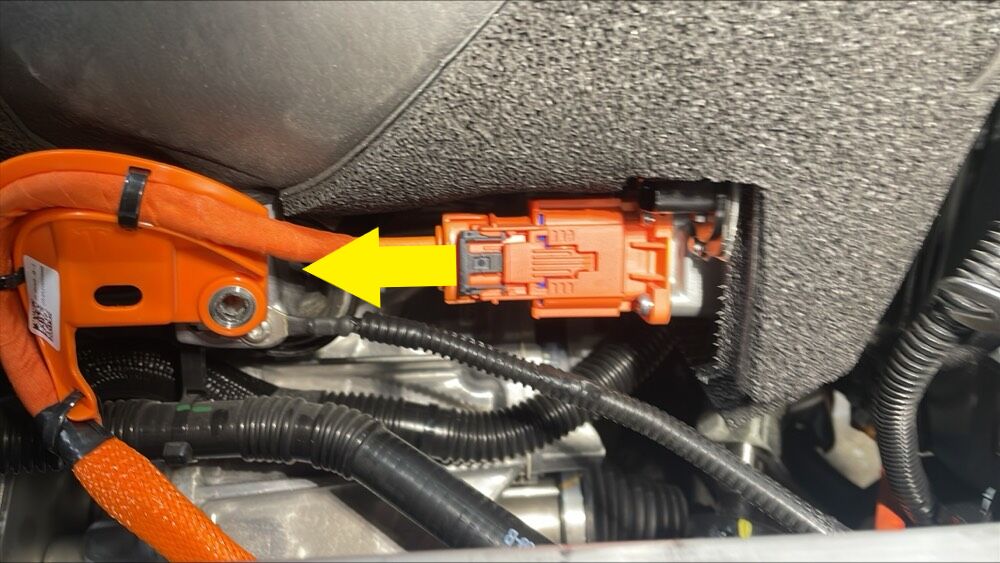

18. Release RDU HV harness from HV battery
    注

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged



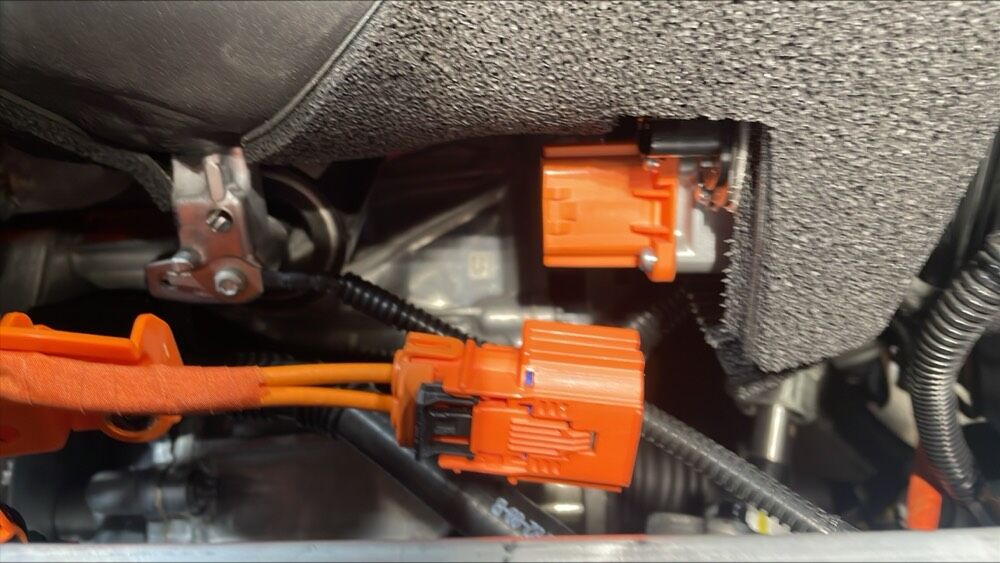

19. Verify no high voltage at RDU HV header
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

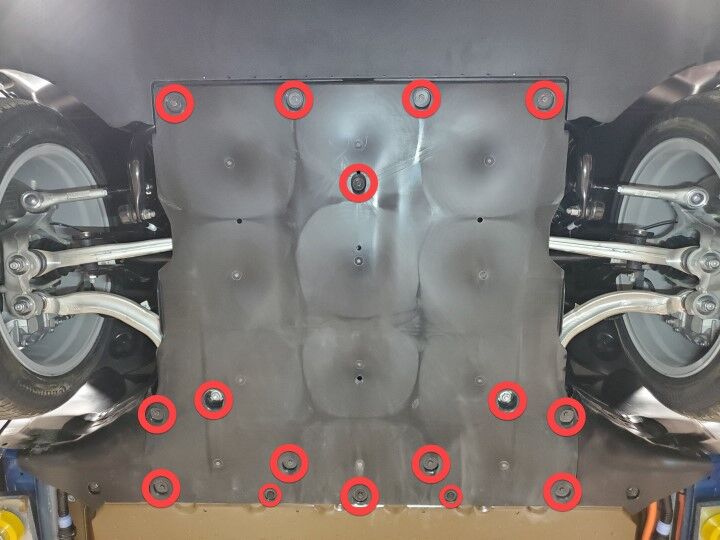

20. Remove front aero shield
    注

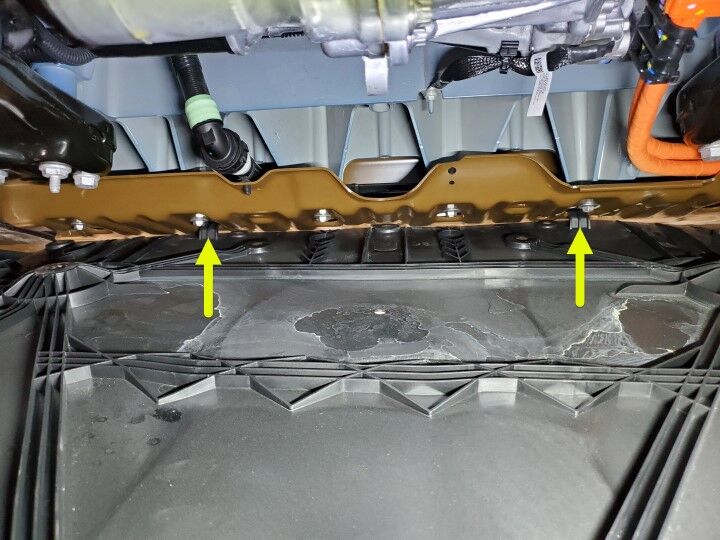

    12x bolts, 10mm, 6 Nm, 2x nuts, 15mm, 6 Nm, 2x clips, 2x hooks

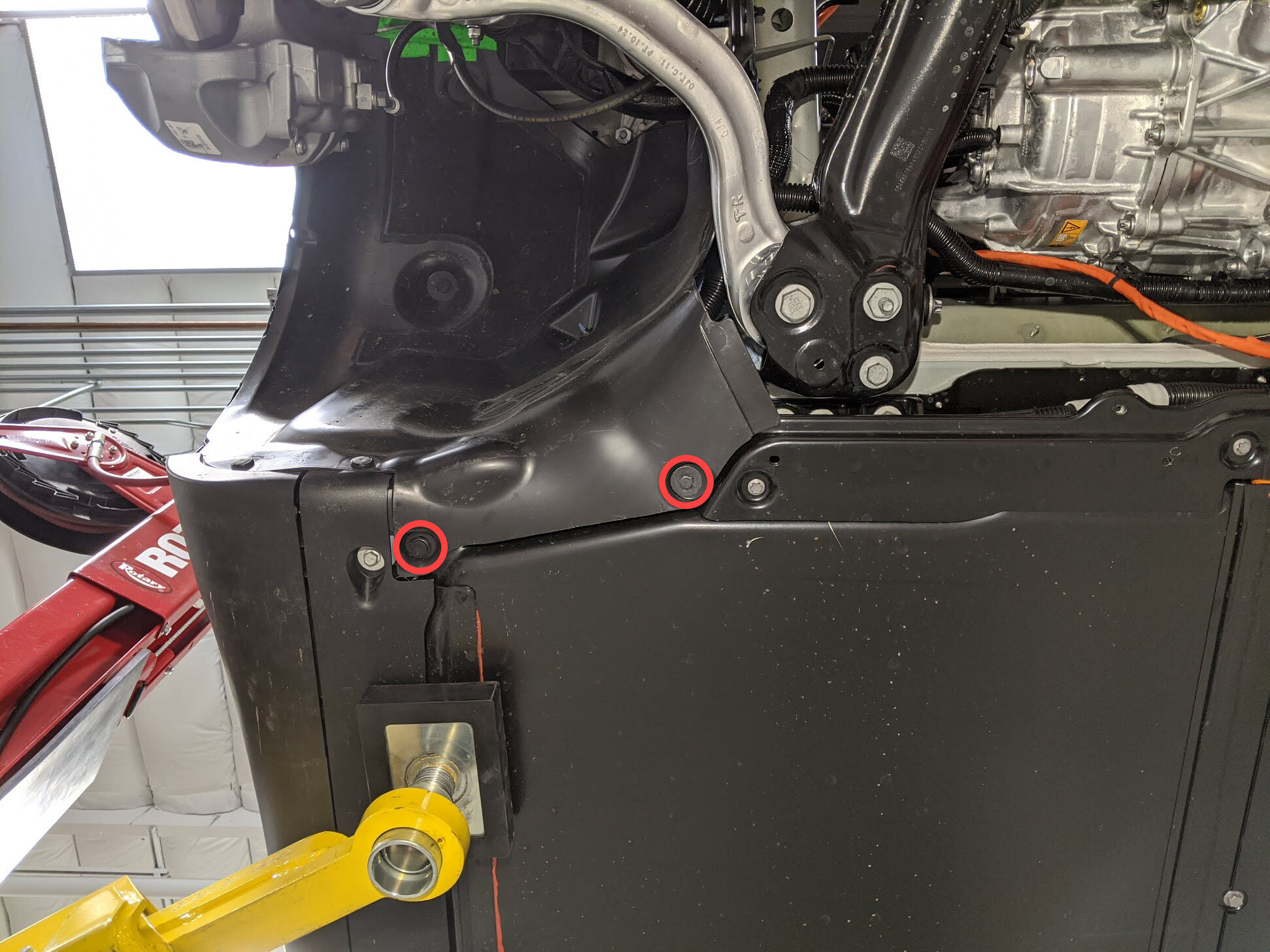

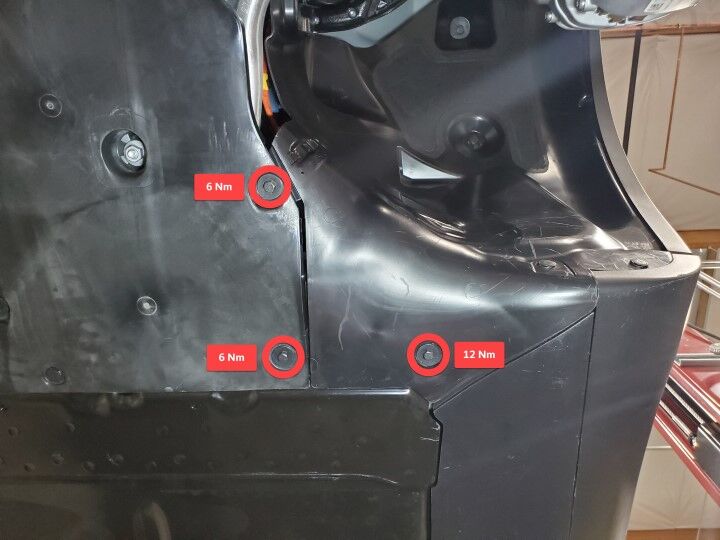

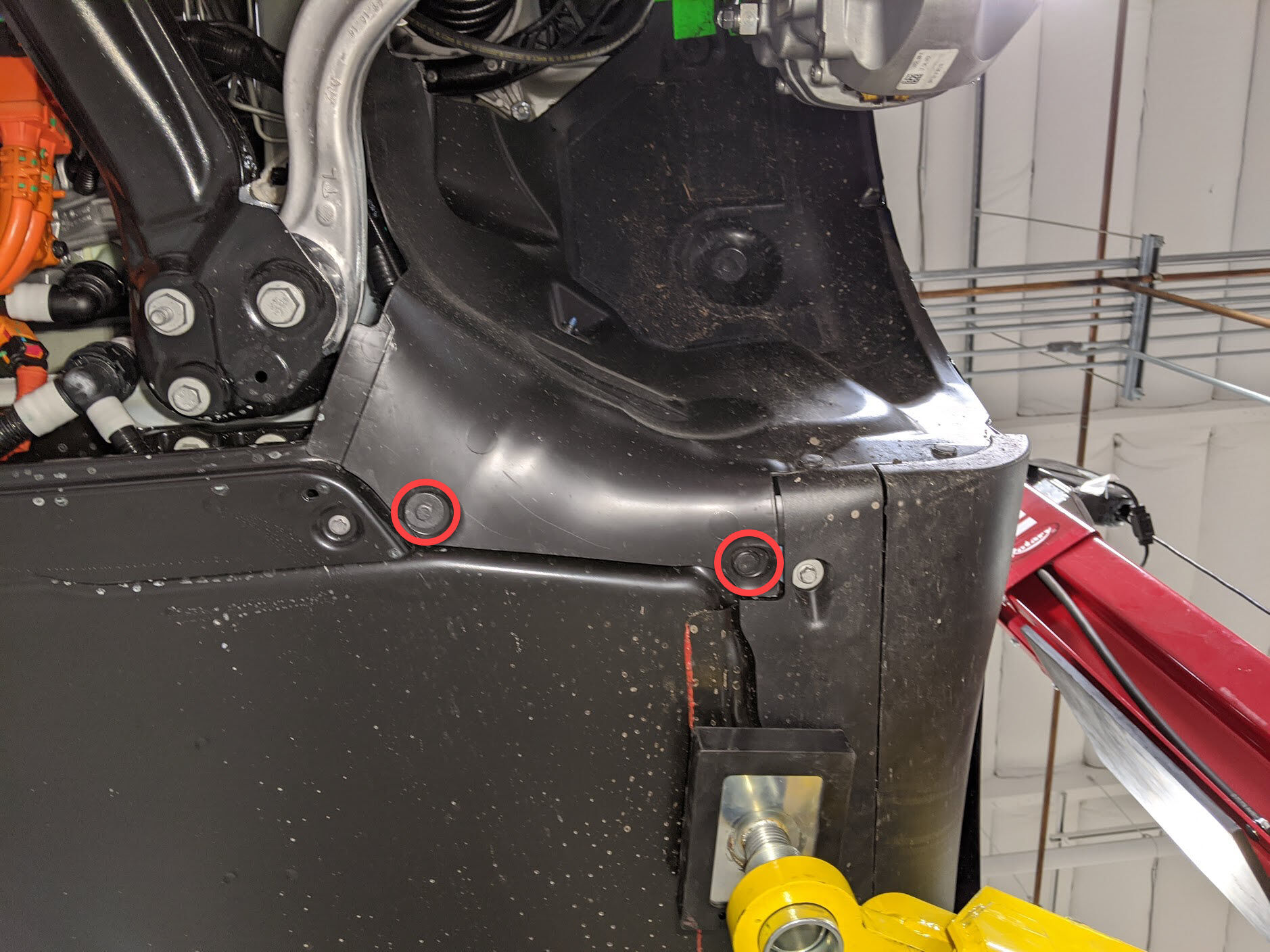

21. Release LH and RH front wheel liner from HV battery
    注

    1x rocker bolt, 10mm, 12 Nm, 2x aero shield bolts, 10mm, 6 Nm

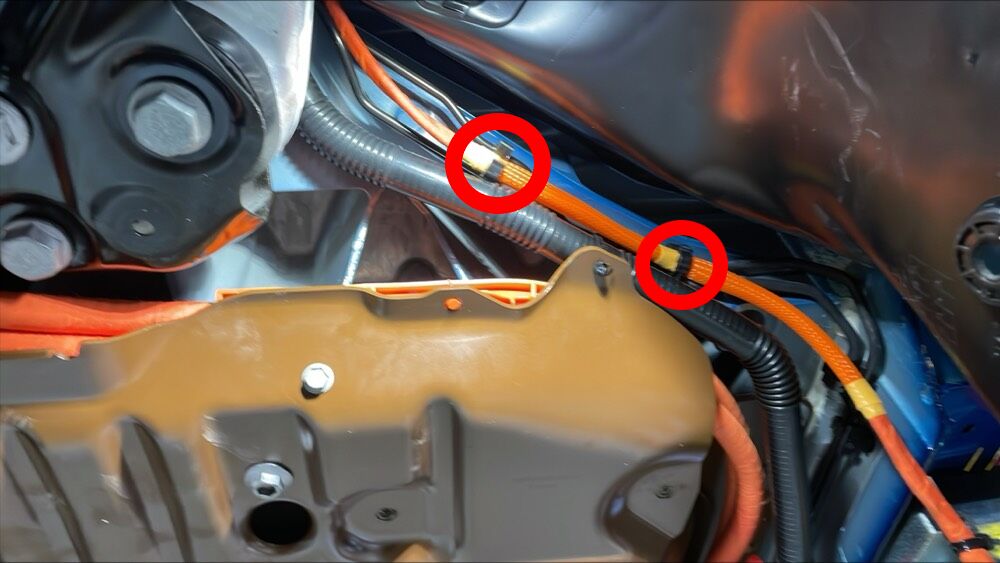

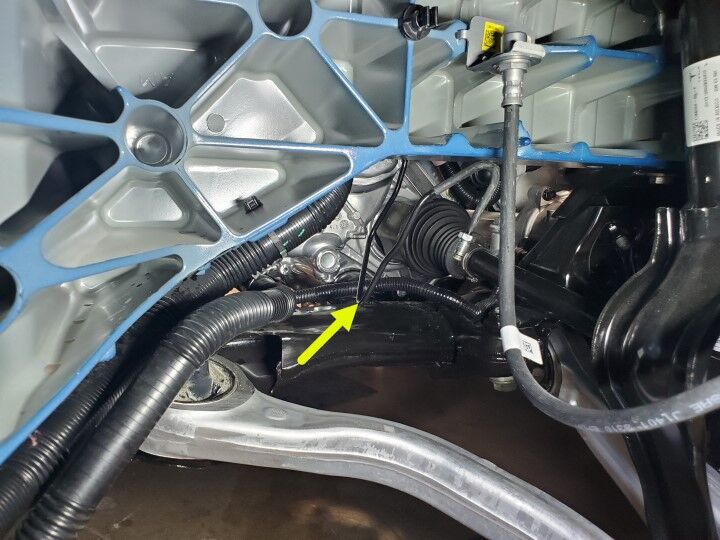

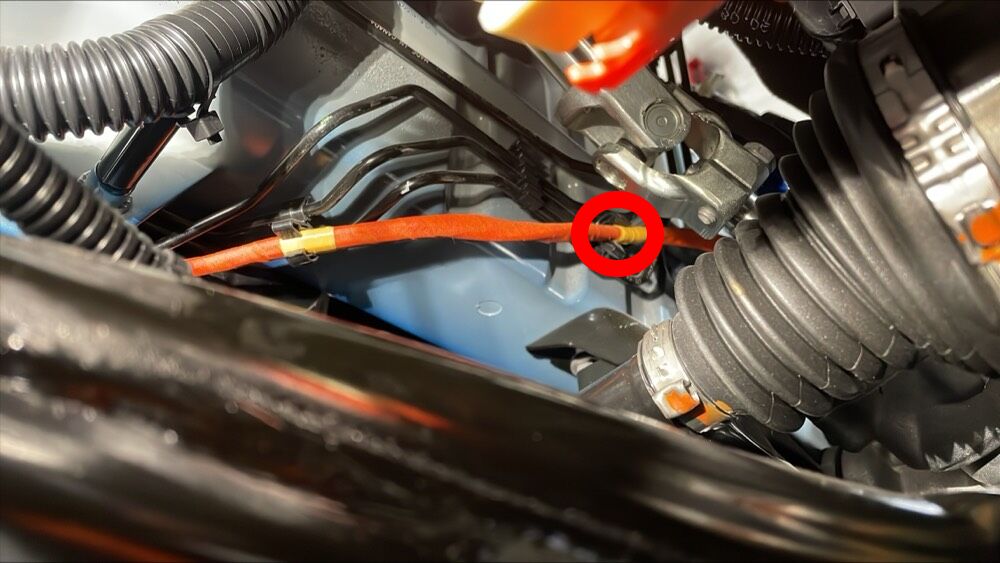

22. Release clipping points securing compressor HV harness to front of vehicle body
    注

    5x clips, Take note of original routing







23. Remove the LH and RH front wheel arch liners. See 轮拱内衬 - 前 - LH（结构化电池组）（拆卸和更换）.
24. Lower vehicle for access to underhood area
    注

    Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

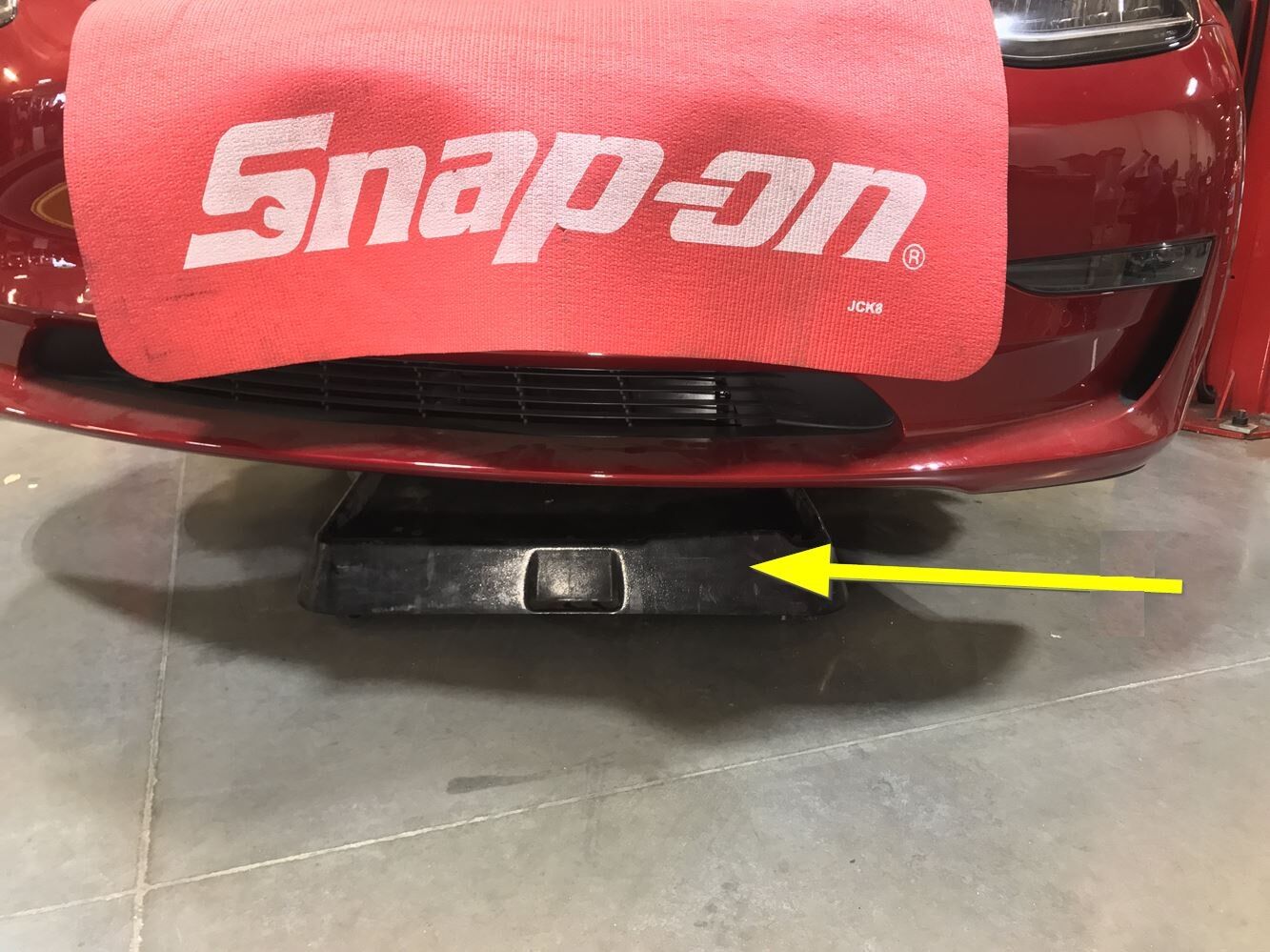

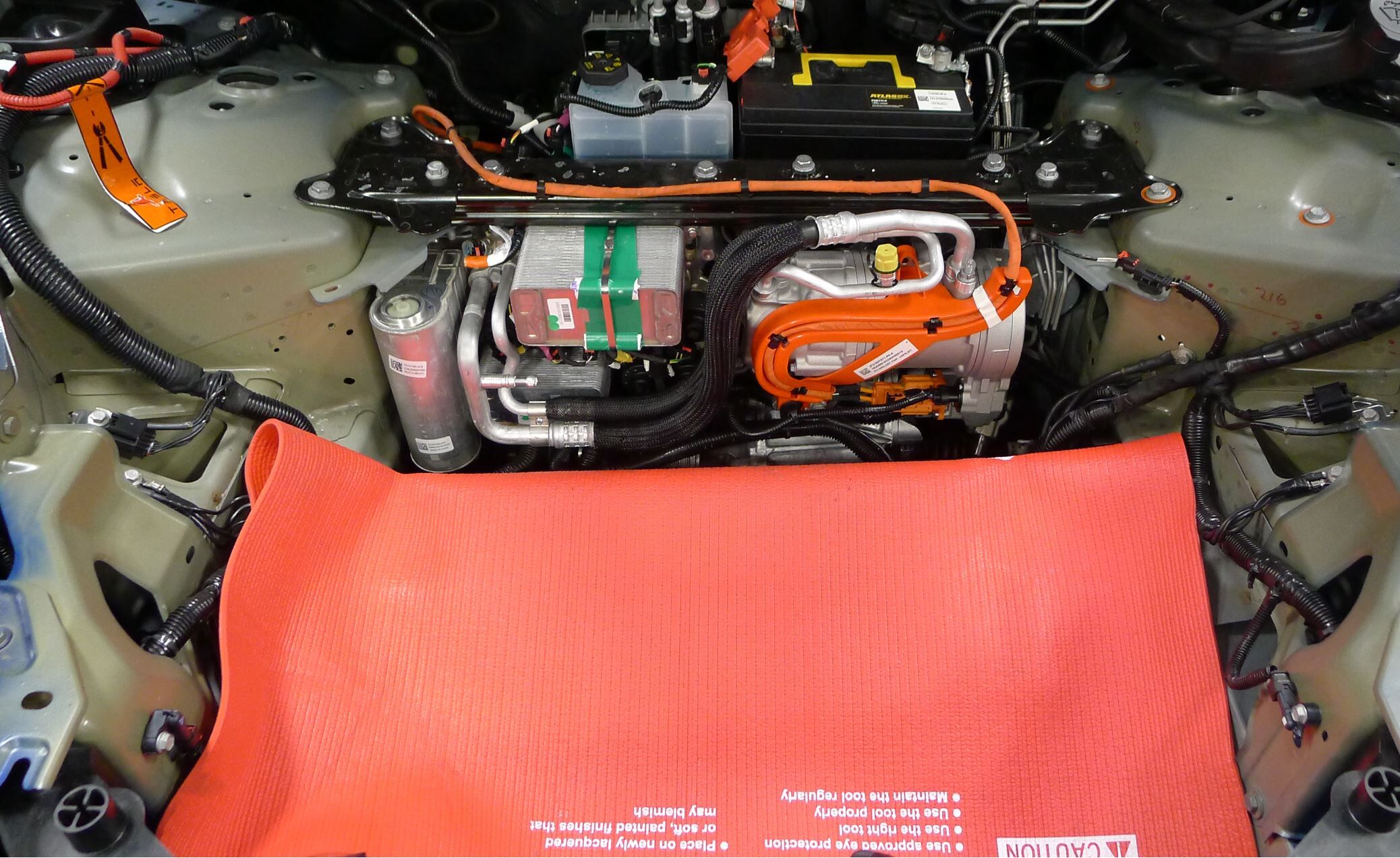

25. Position the oil drain container under hydraulic control unit area



26. Position protective fender cover over fan shroud and support



27. Remove clips securing PT supply hose to AC compressor bracket
    注

    2x clips



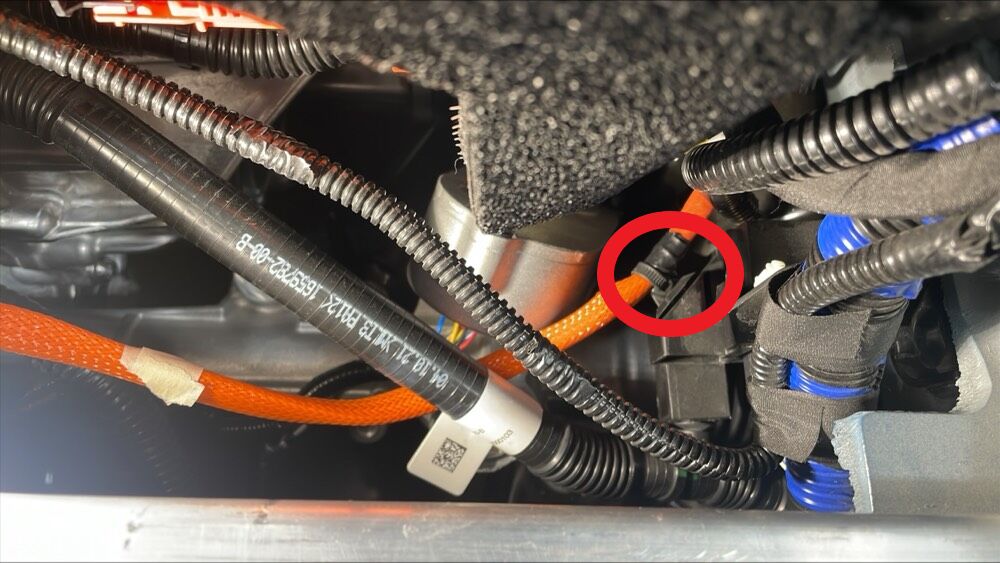

28. Release clip securing HV compressor harness to plastic connector housing
    注

    1x clip, Take note of original routing



29. Release clip securing AC compressor logic connector to HV harness
    注

    1x fir tree clip





30. Release AC compressor logic connector
    注

    1x locking connector, Pull red tab to disengage lock and pull again to release connector, Do not push down on red tab

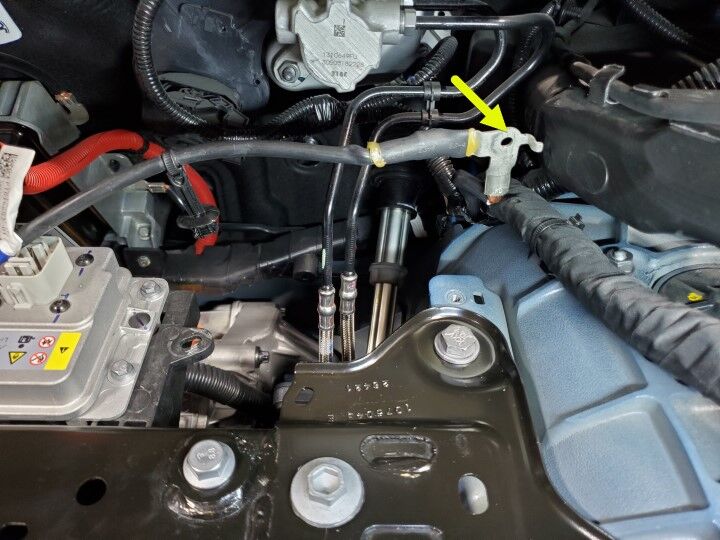

31. Remove fastener securing compressor HV harness to AC compressor
    注

    1x bolt, 13mm, 9 Nm



32. Release HV harness connector from AC compressor
    注

    1x locking connector, Disengage black locking tab and release connector





33. Remove AC compressor ground strap
    注

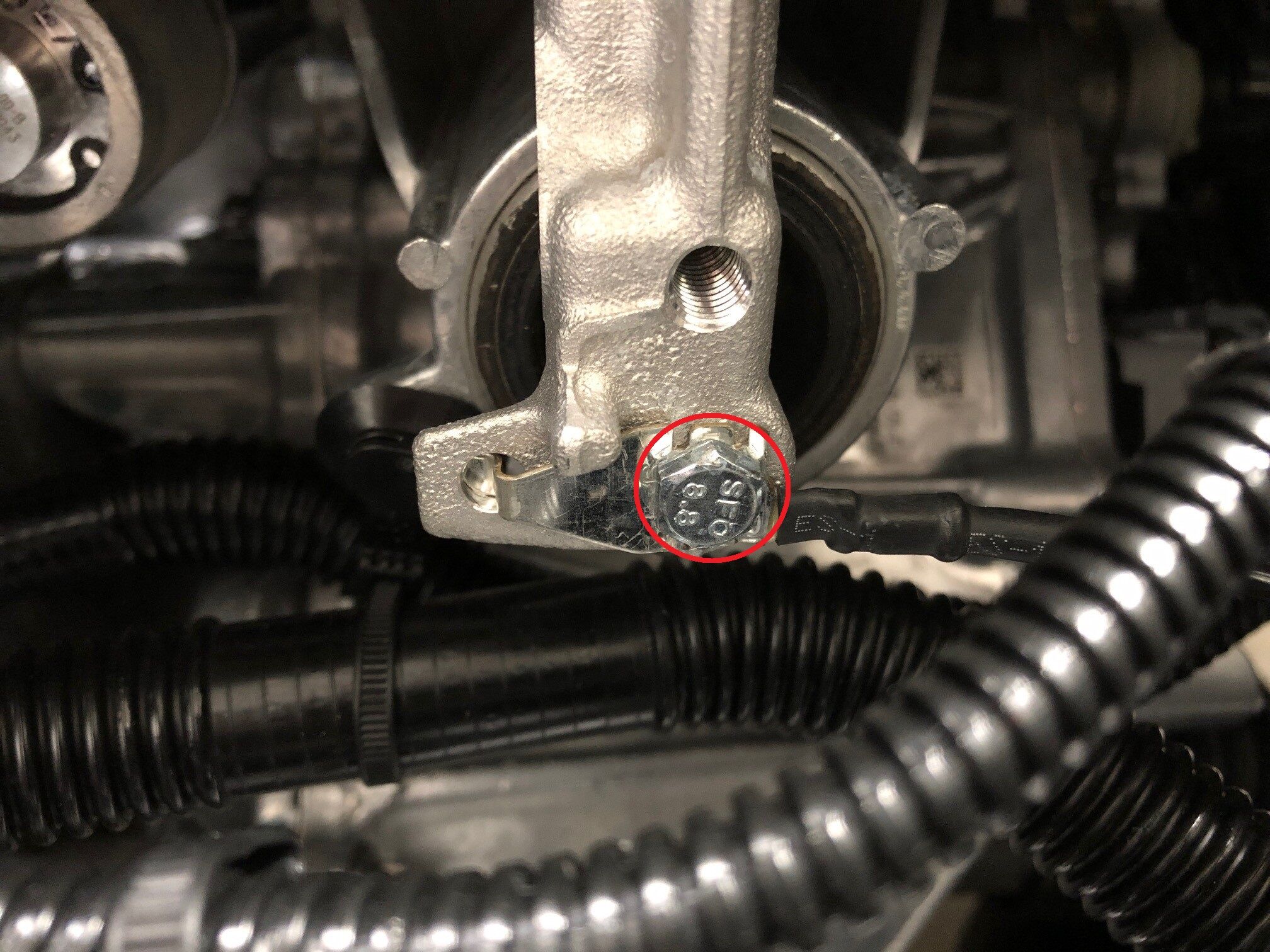

    1x bolt, 10mm, 7 Nm, MYSP uses T25 bolt

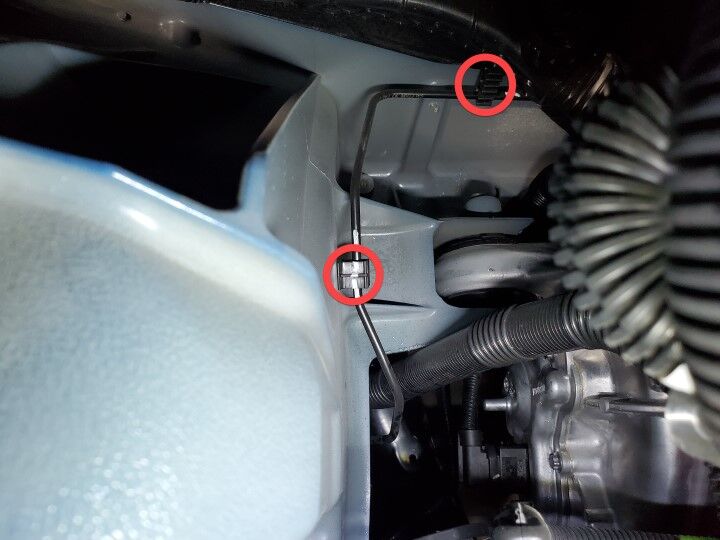

34. Remove the clip securing the coolant hose to the AC compressor bracket
    注

    1x fir tree clip

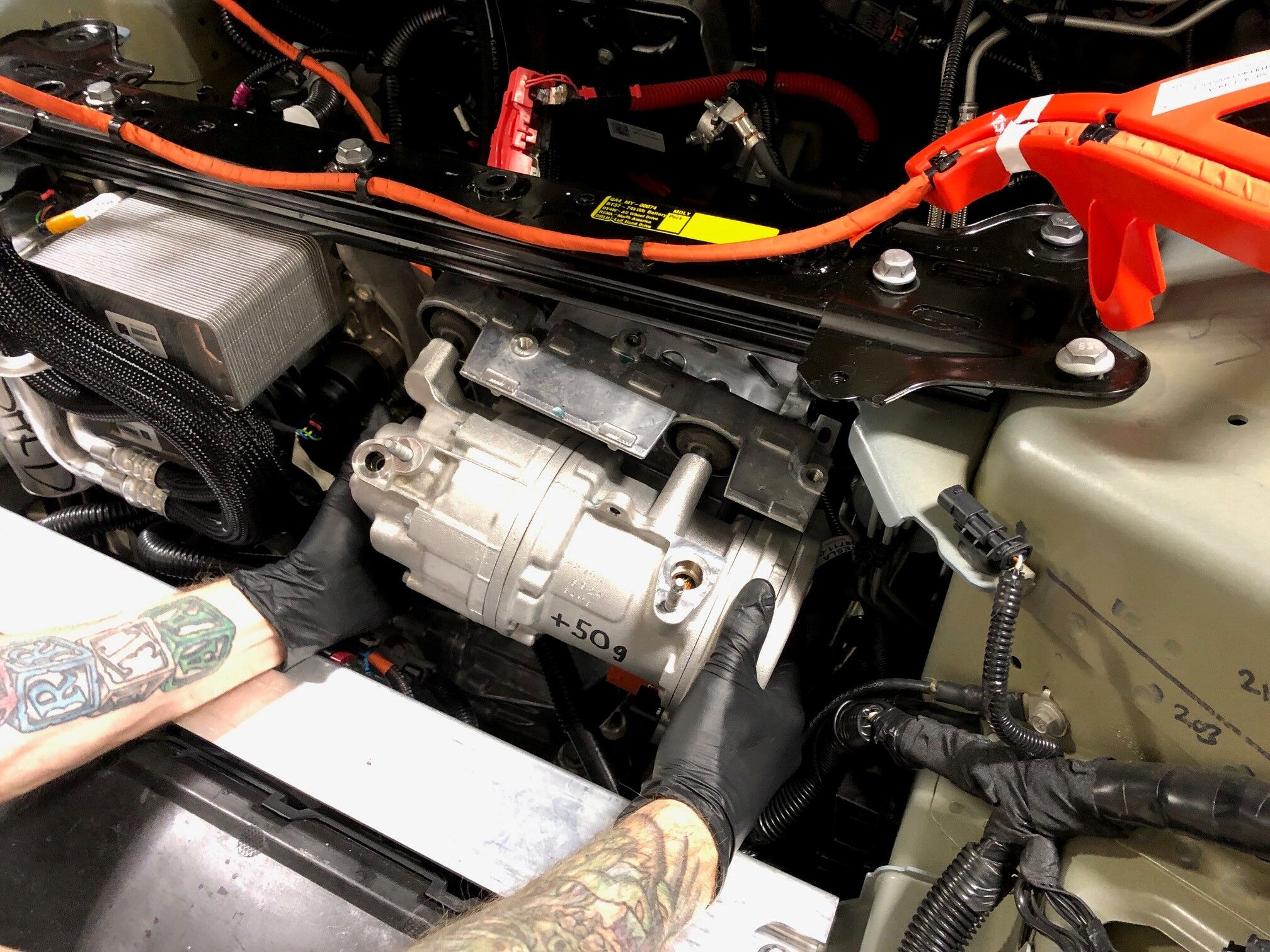

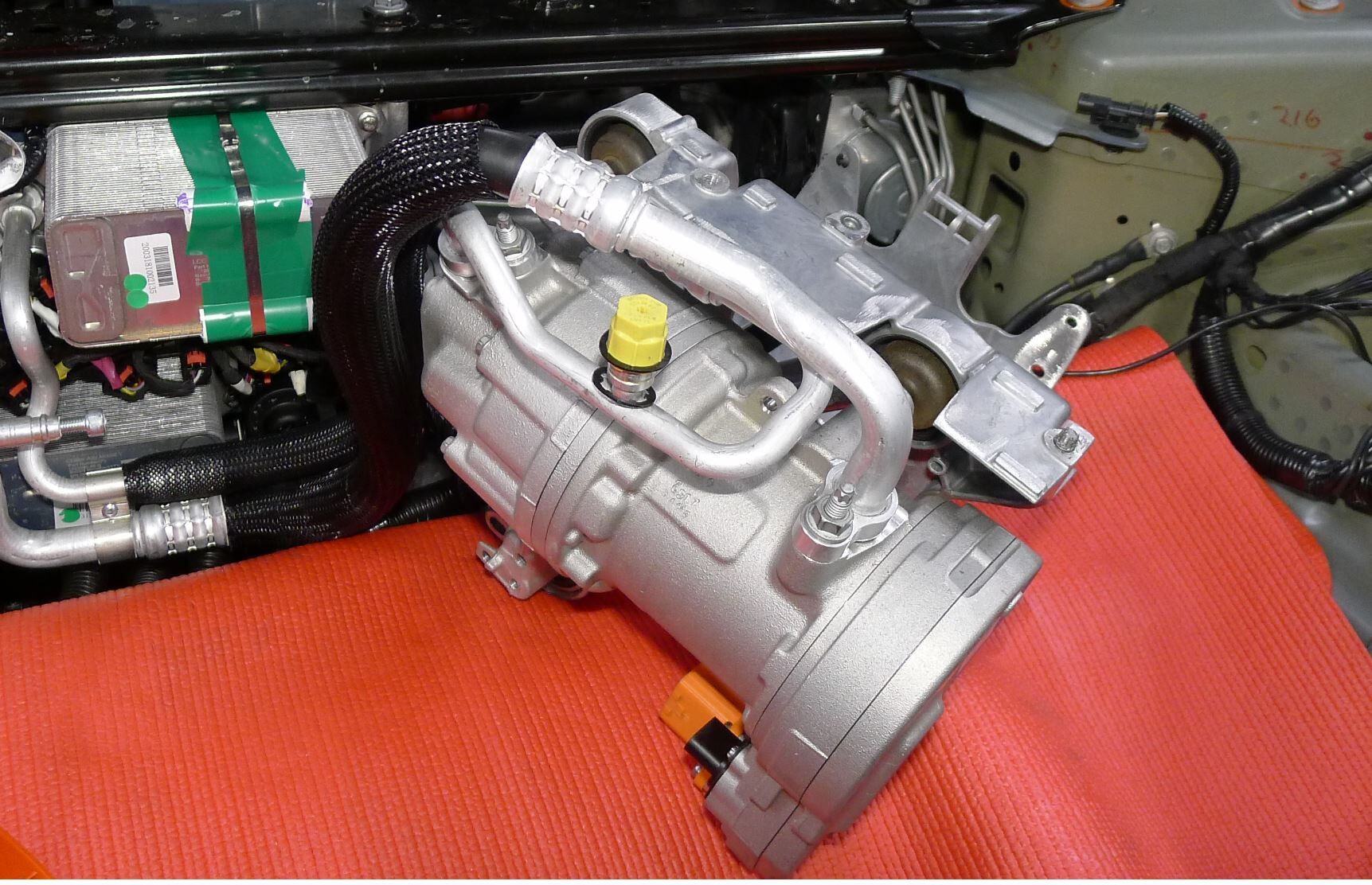

35. Remove AC compressor and AC compressor bracket assembly from strut tower support brace
    注

    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while removing the fasteners, Carefully remove the AC compressor and AC compressor bracket towards the front of the vehicle, under the strut tower support brace and rest on fender cover

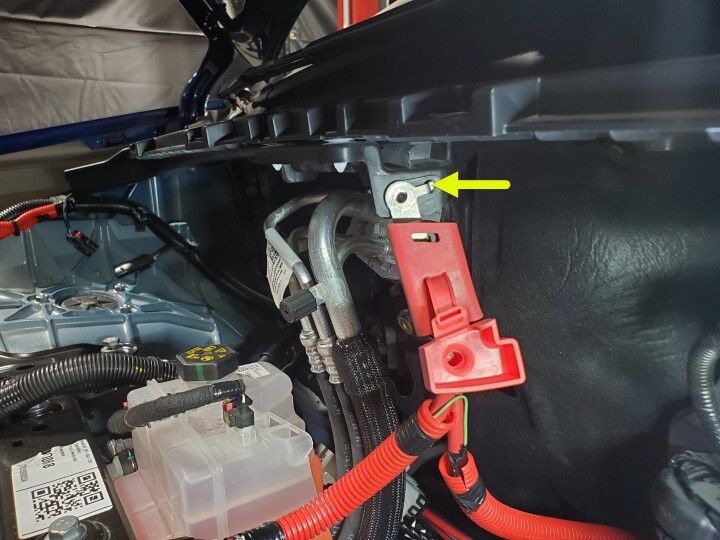

36. Release positive terminal cover



37. Remove positive terminal cable from cowl
    注

    1x stud, E5, 8 Nm





38. Release 12V positive cable clip from front controller
    注

    1x clip

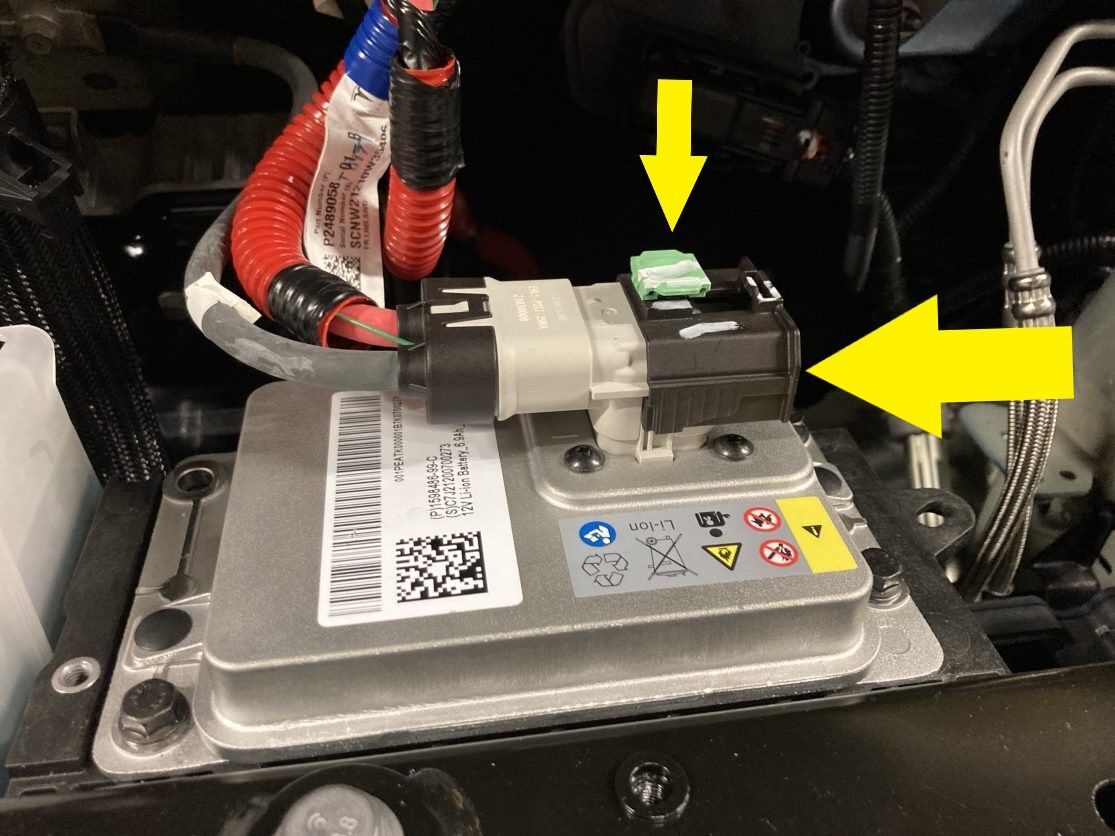

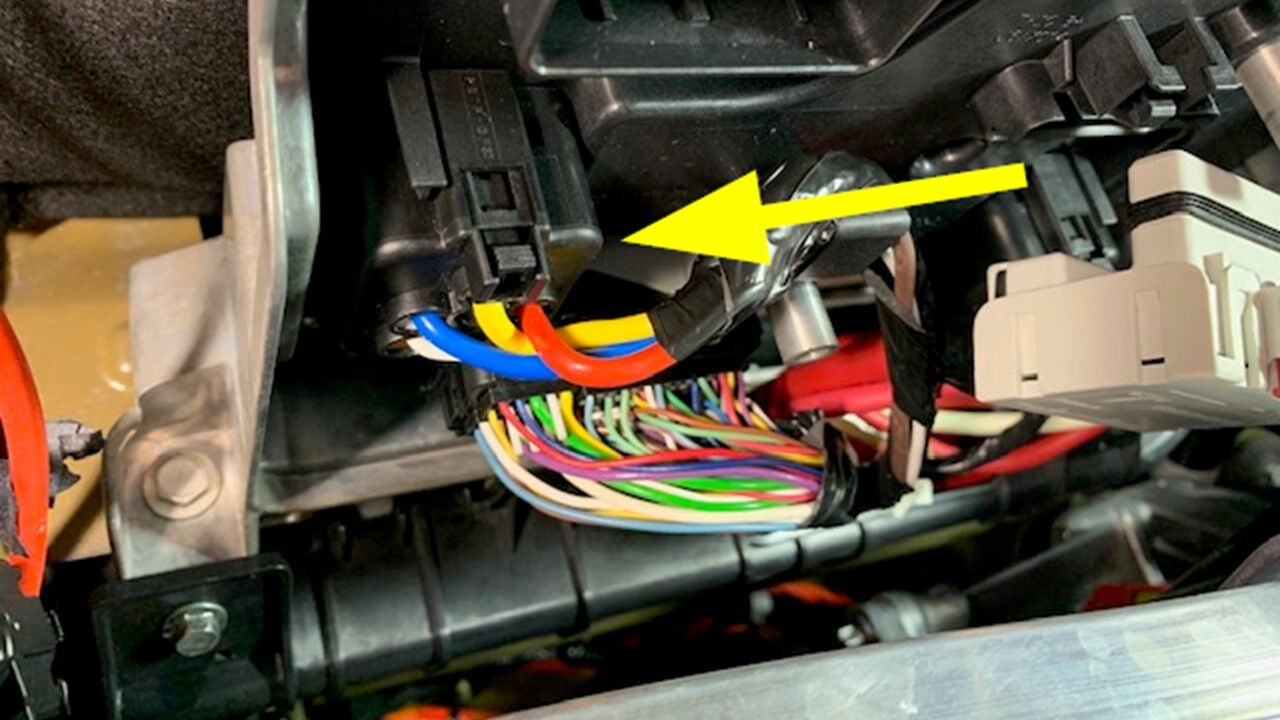

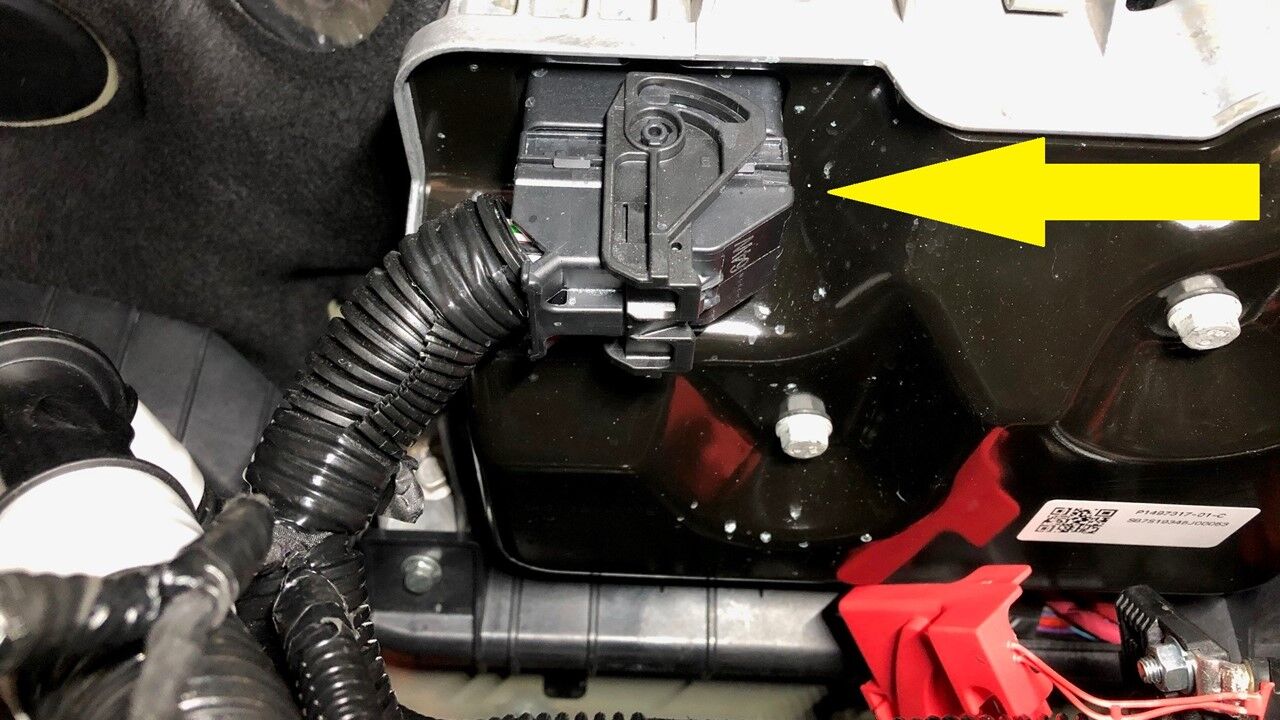

39. Disconnect the supermanifold harness from the front controller
    注

    1x connector

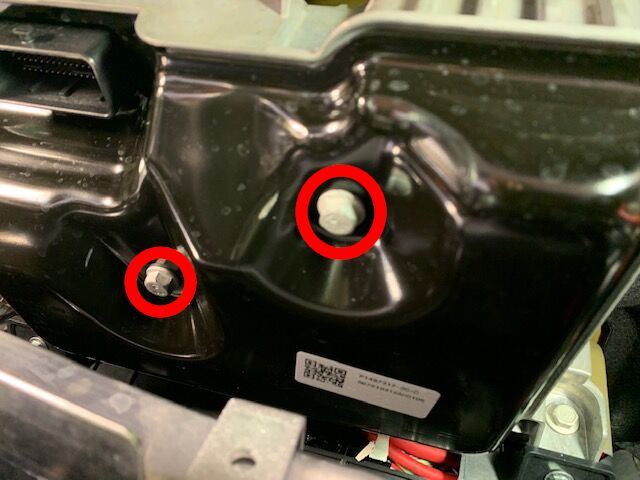

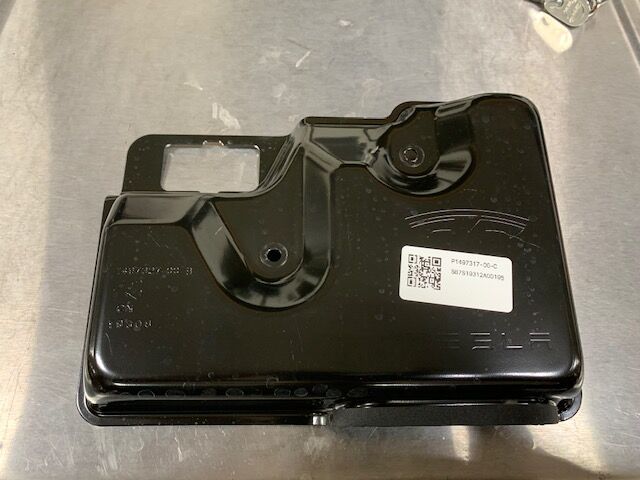

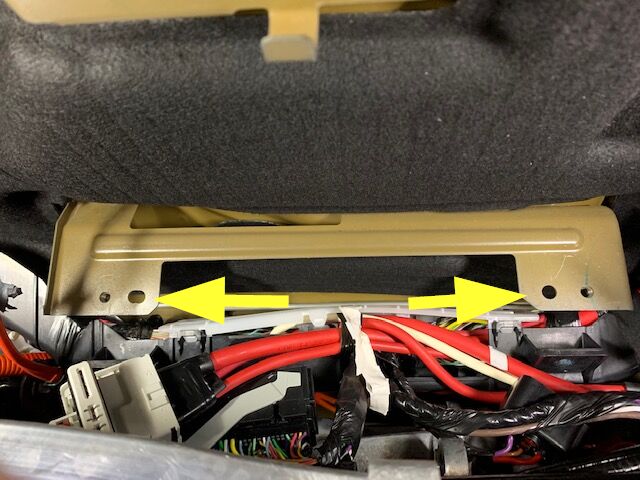

40. Remove bolts securing front controller shield assembly and remove from vehicle
    注

    2x bolts, 10mm, 8.5 Nm

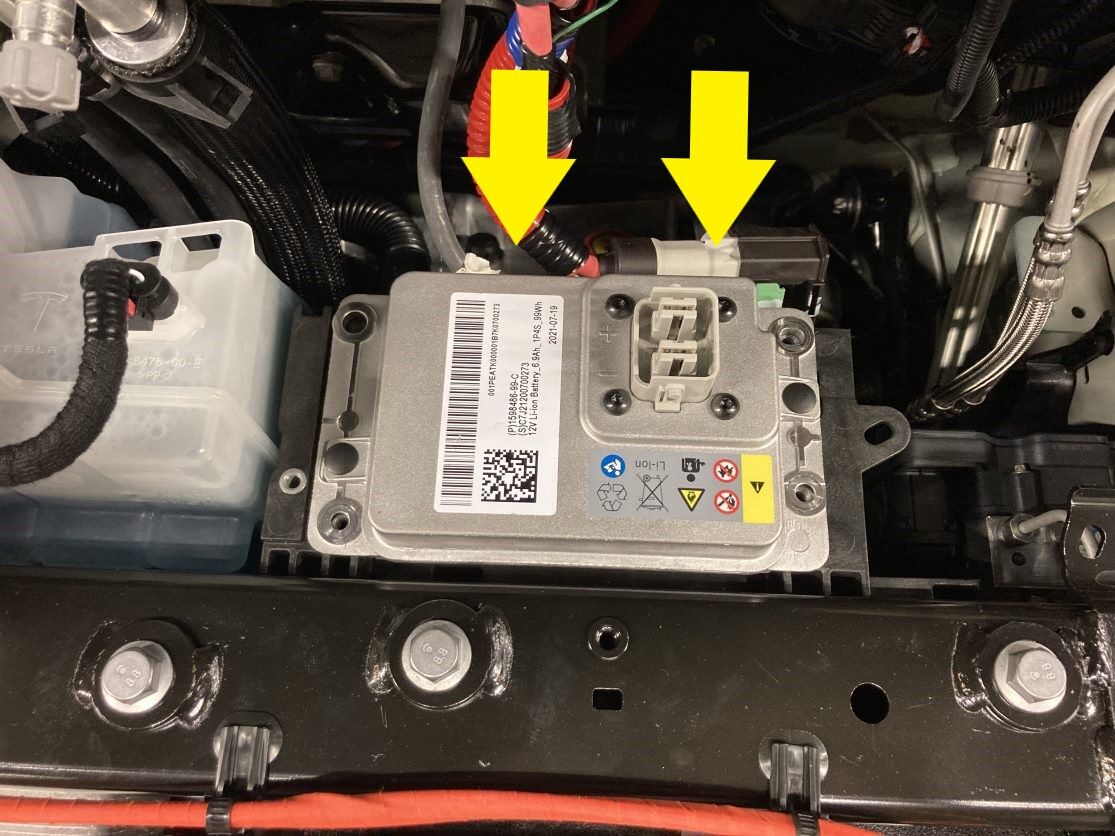

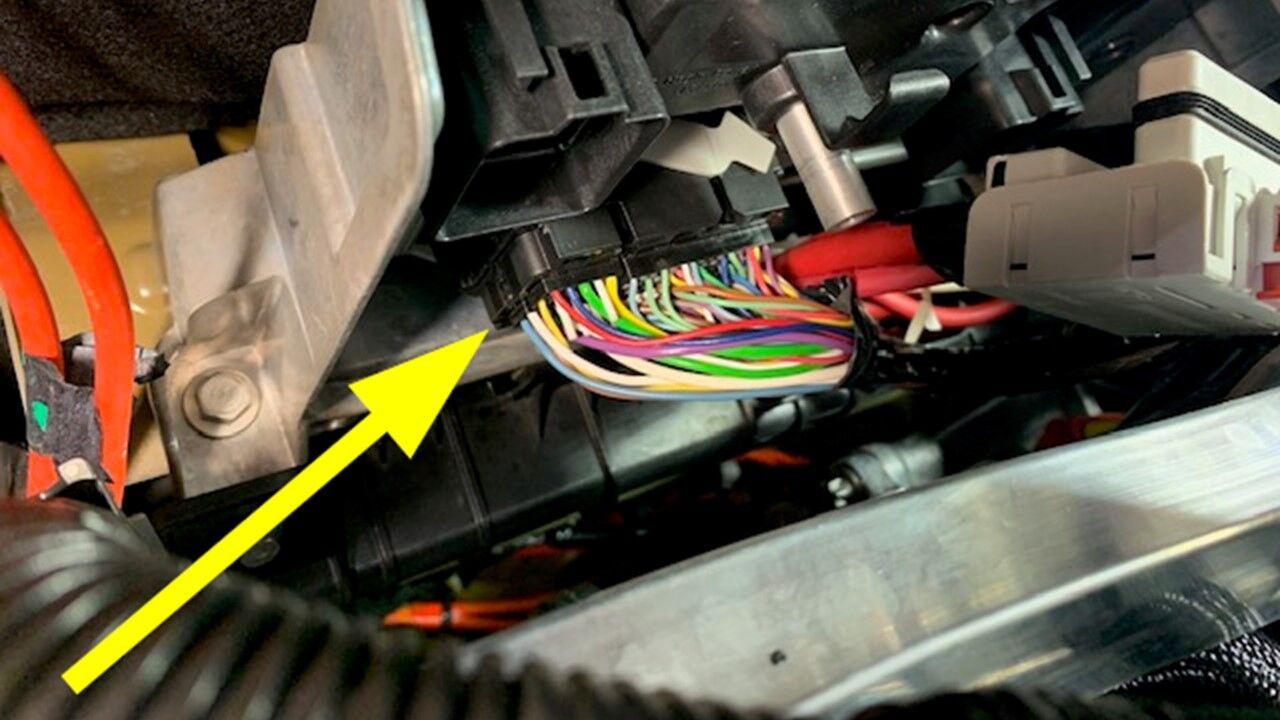

41. Disconnect remaining connectors on front controller
    注

    5x connectors, Release locking tabs first if equipped

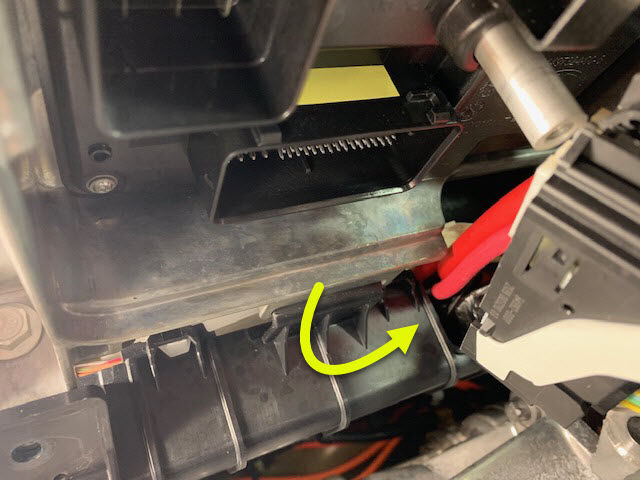

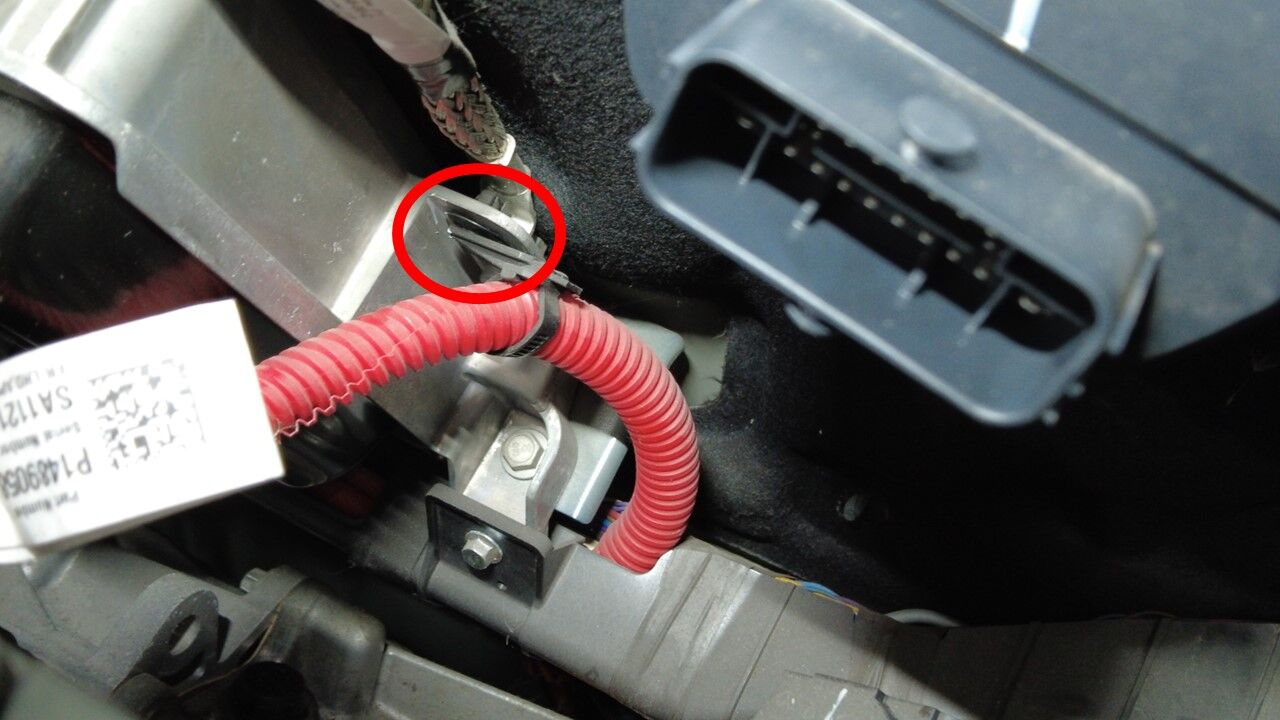

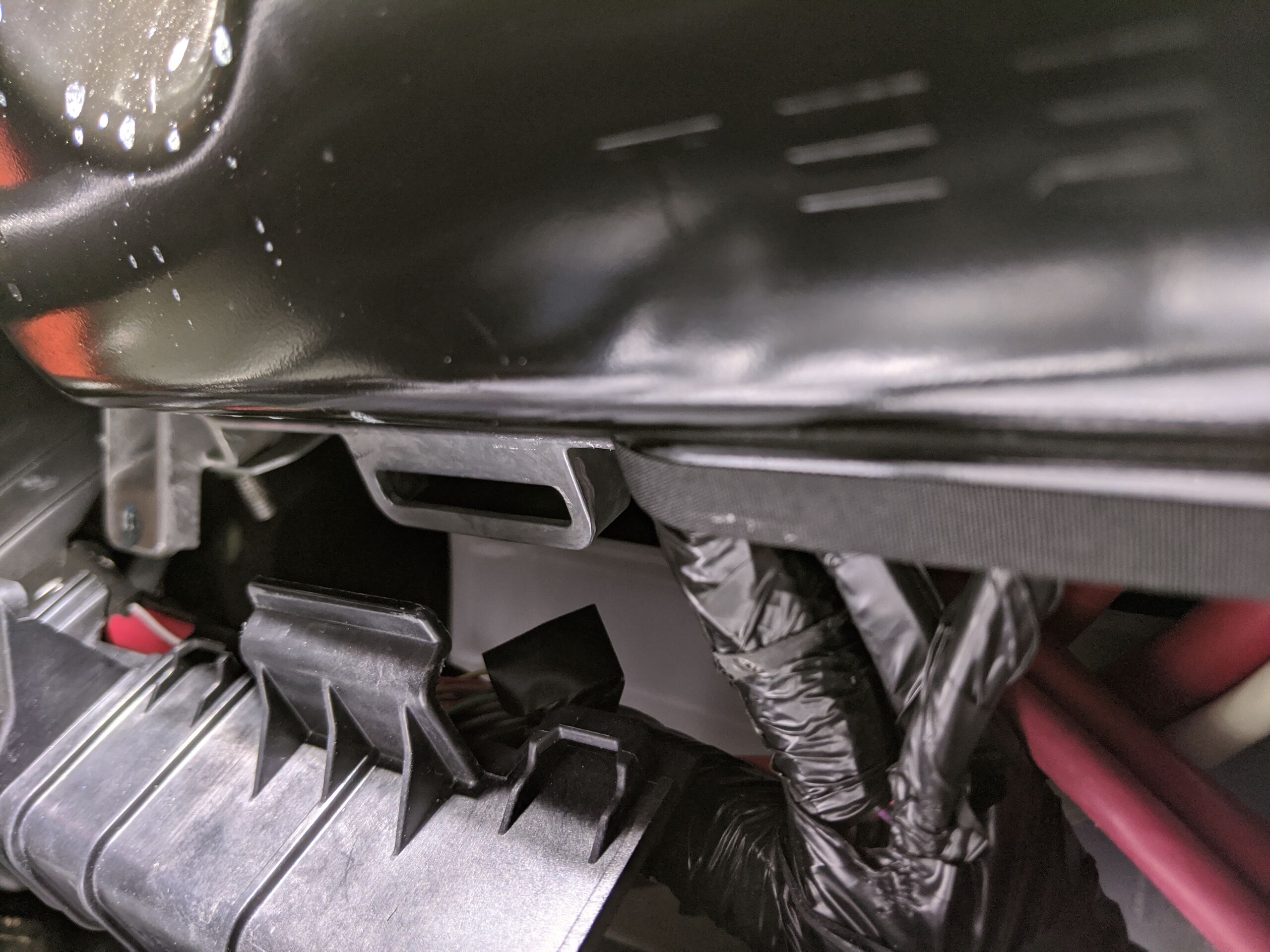

42. Release harness guide from front controller
    注

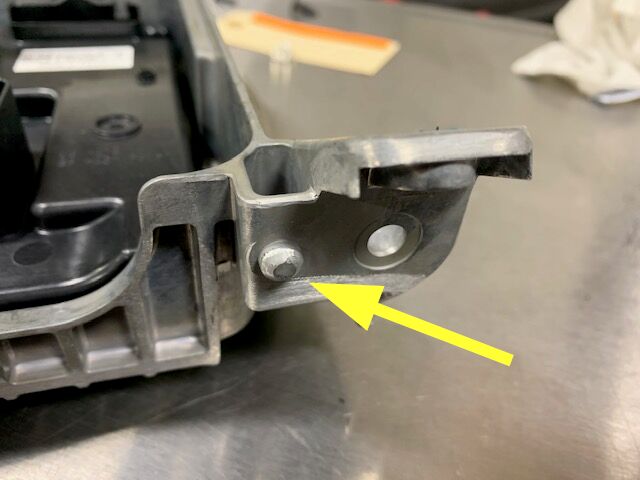

    2x patch bolts, 8mm, 6 Nm, 1x temp set clip, Discard bolts after removal, Remove bolts first, then pivot harness guide slightly forward and up to remove temp set clip from front harness

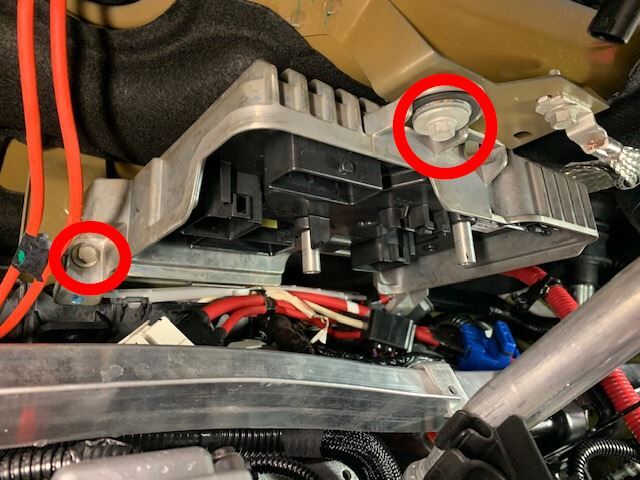

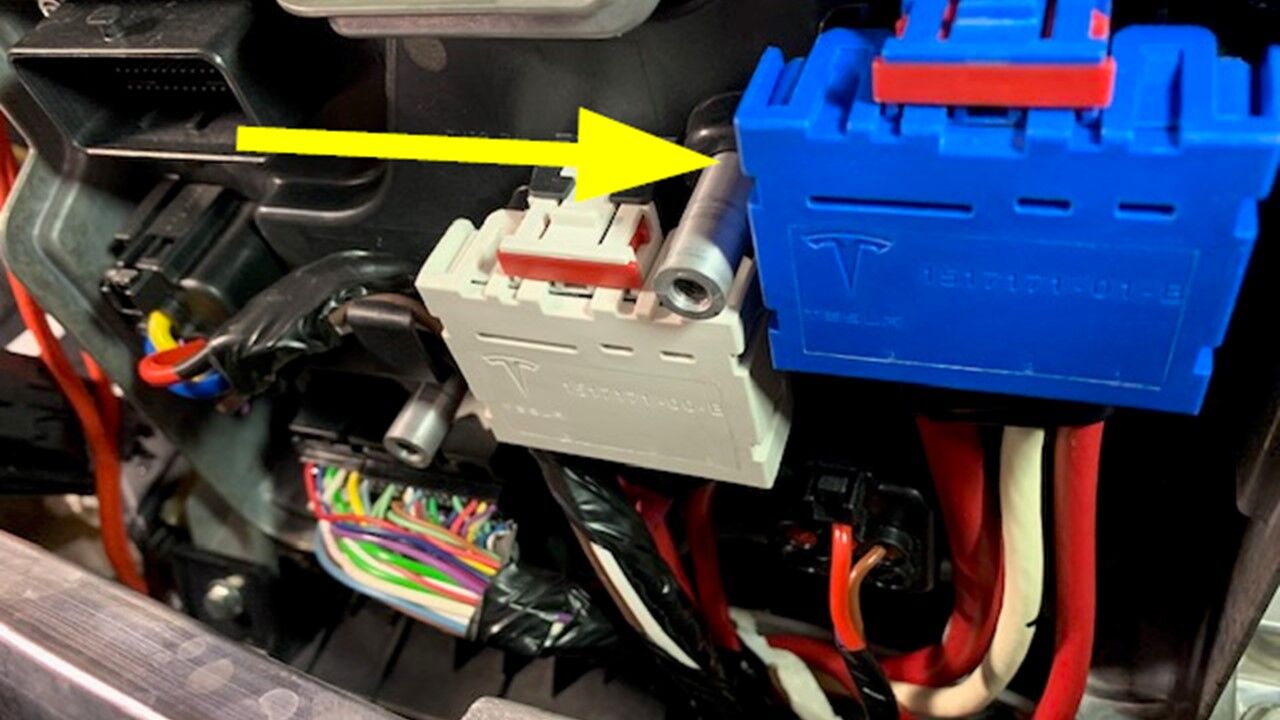

43. Remove bolts securing front controller
    注

    3x bolts, 10mm, 10 Nm

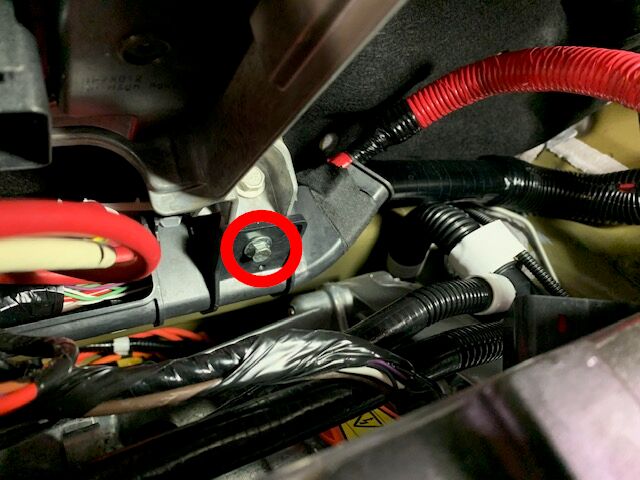

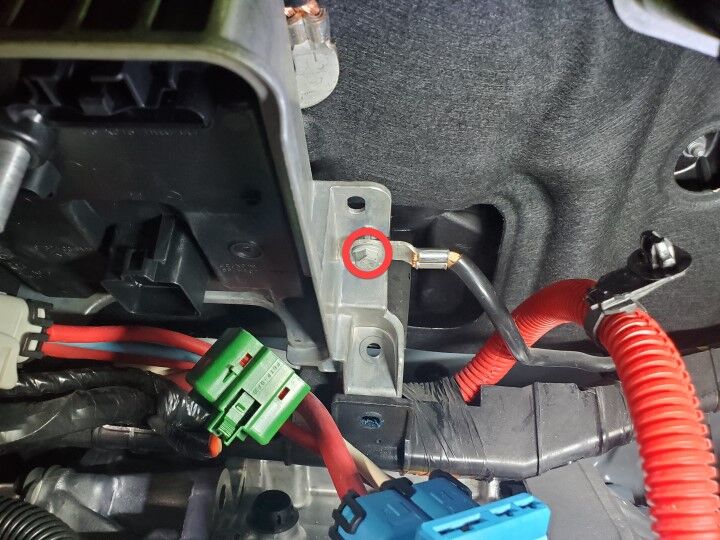

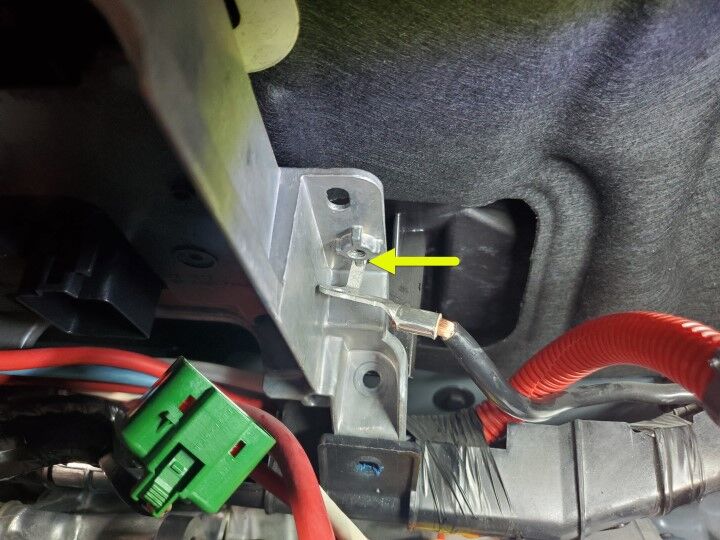

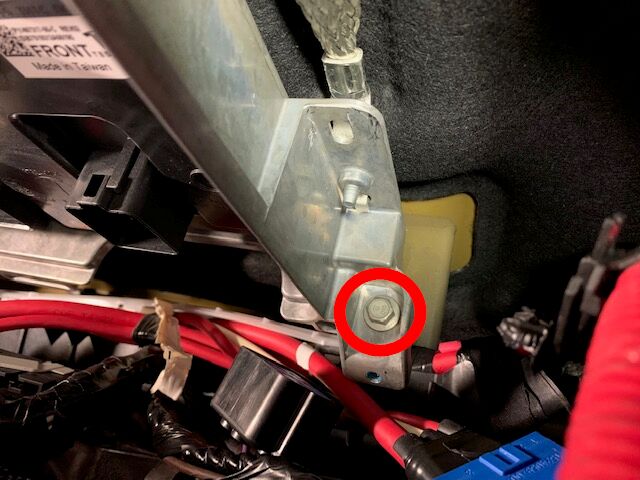

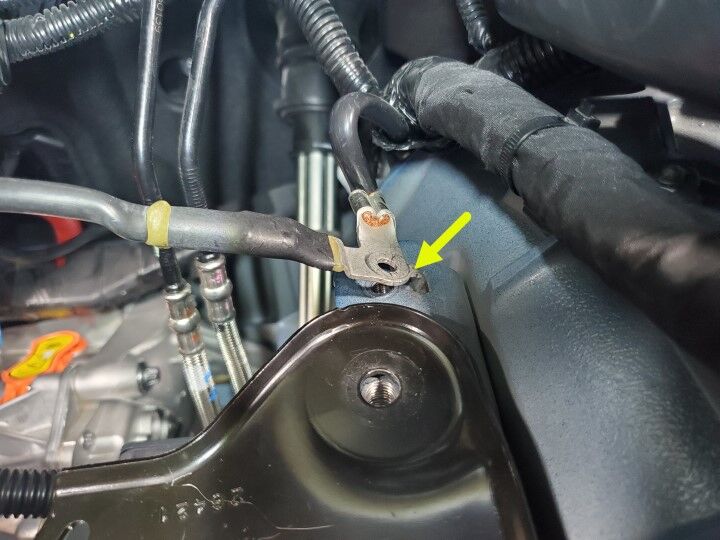

44. Remove front controller upper ground strap from body
    注

    1x bolt, 10mm, 10 Nm, Located under cowl, Discard bolt after removal



45. Remove front controller lower ground strap
    注

    1x bolt, 10mm, 10 Nm

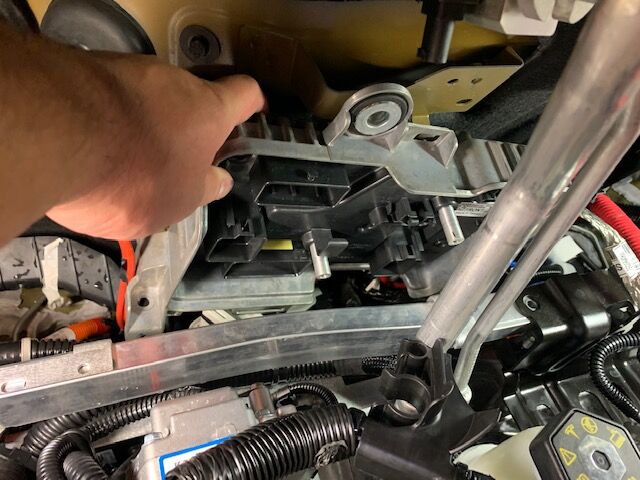

46. Remove the front controller from vehicle
    注

    Push harness connectors down to provide space, Gently pry bottom of controller out of BIW temp set holes, Then swing controller forward and up to release from top temp set

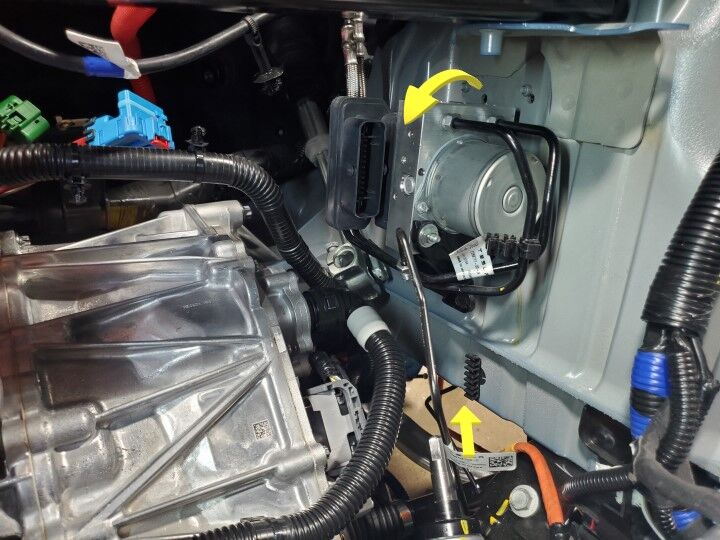

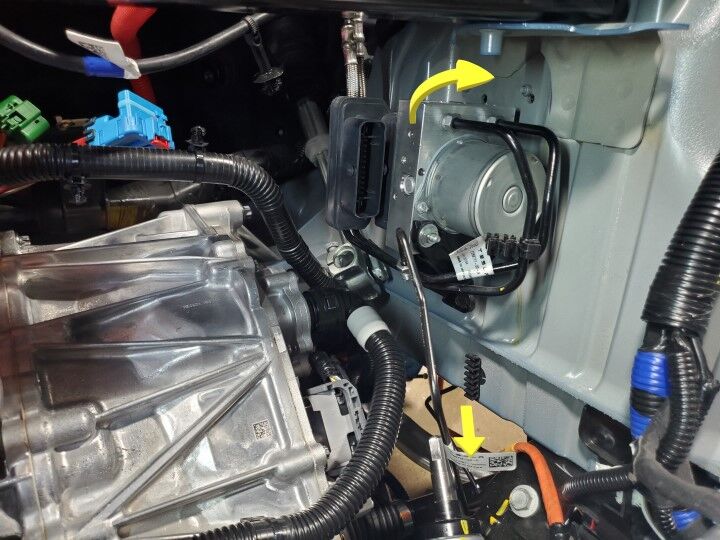

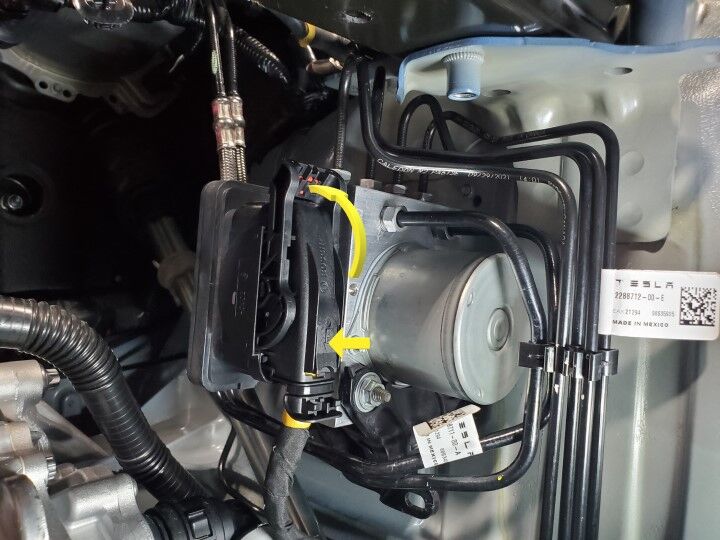

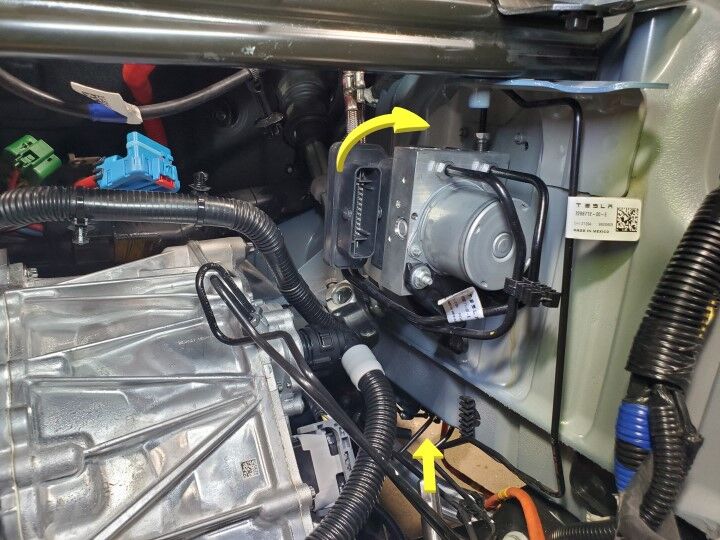

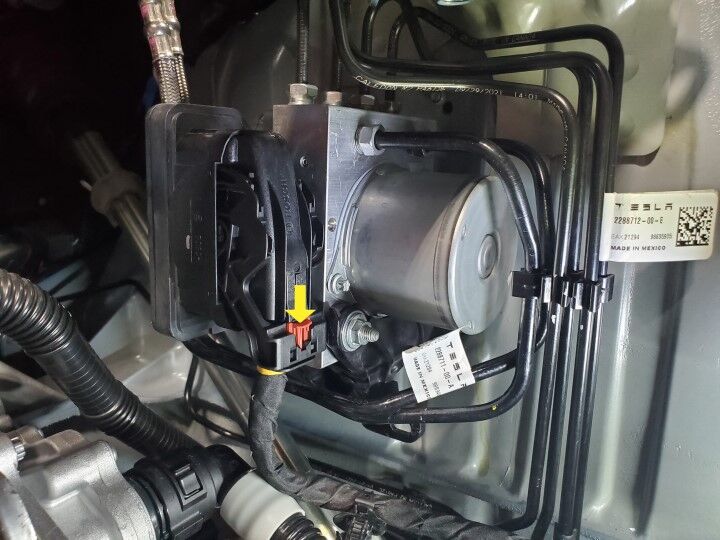

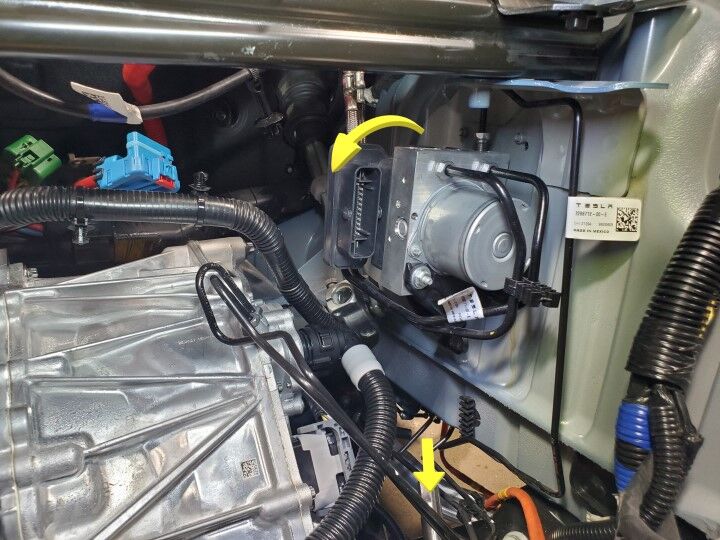

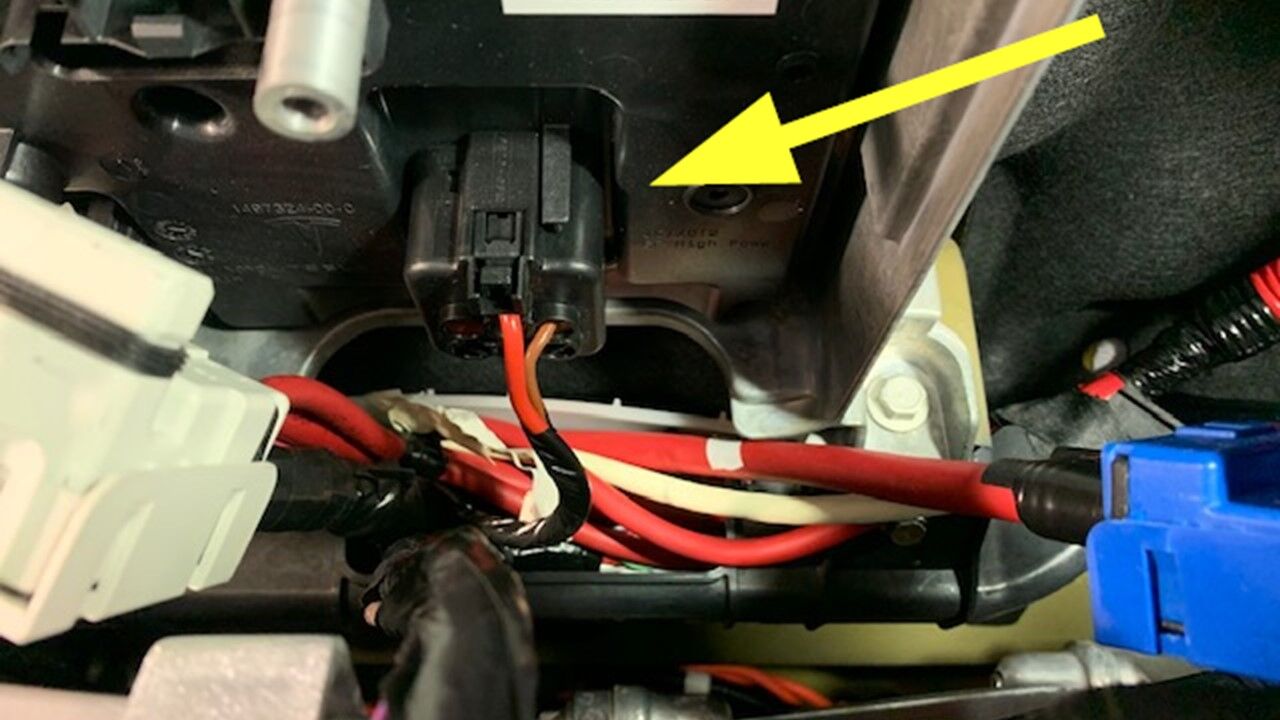

47. Disconnect HCU connector
    注

    1x connector, Release red locking tab, Press black release tab and rotate lever upward to remove





48. Release HCU connector harness
    注

    2x clips

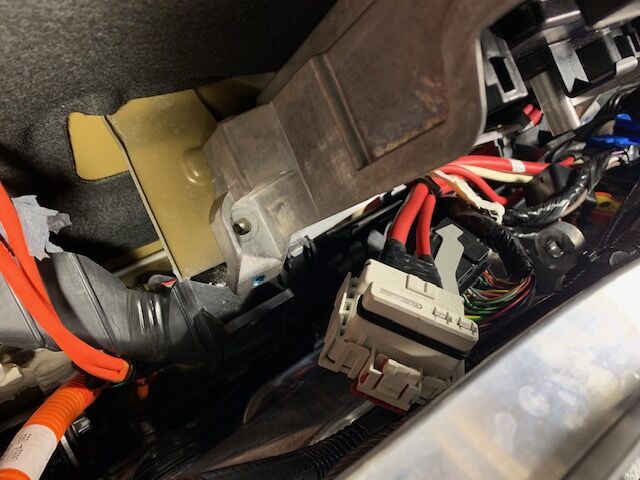

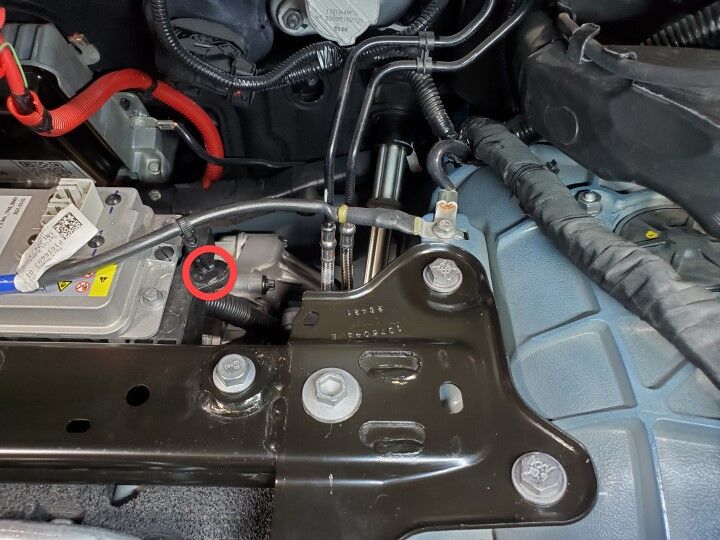

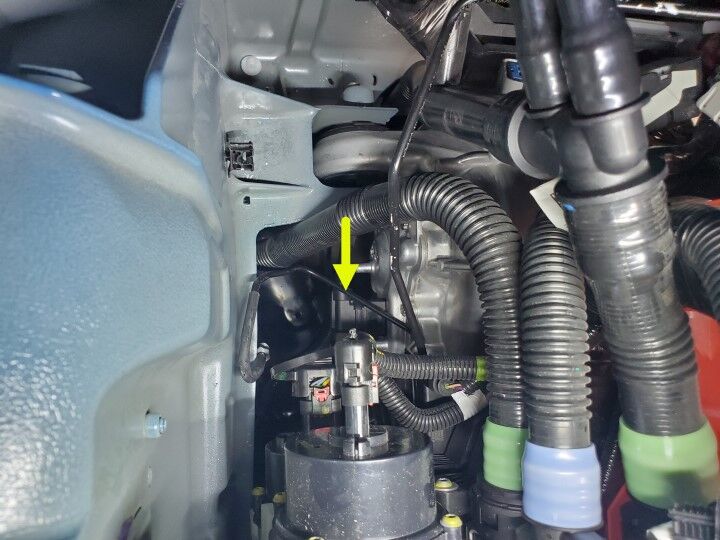

49. Remove bolt securing the steering gear assembly to intermediate shaft assembly
    注

    1x bolt, 13mm, 18 Nm

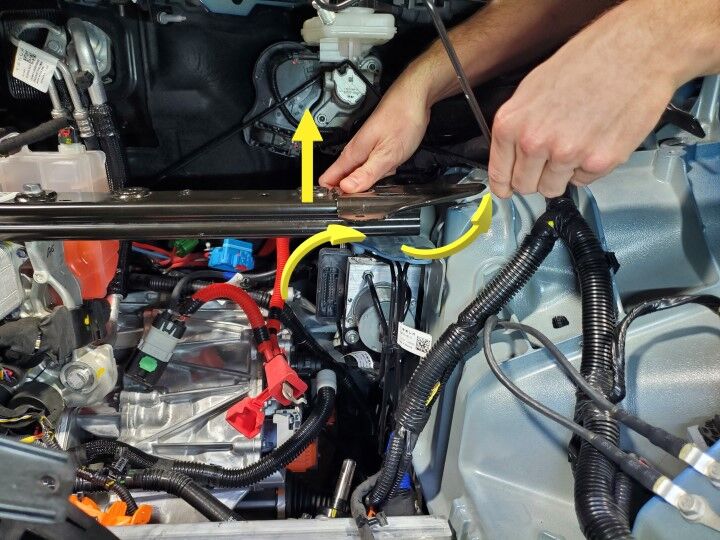

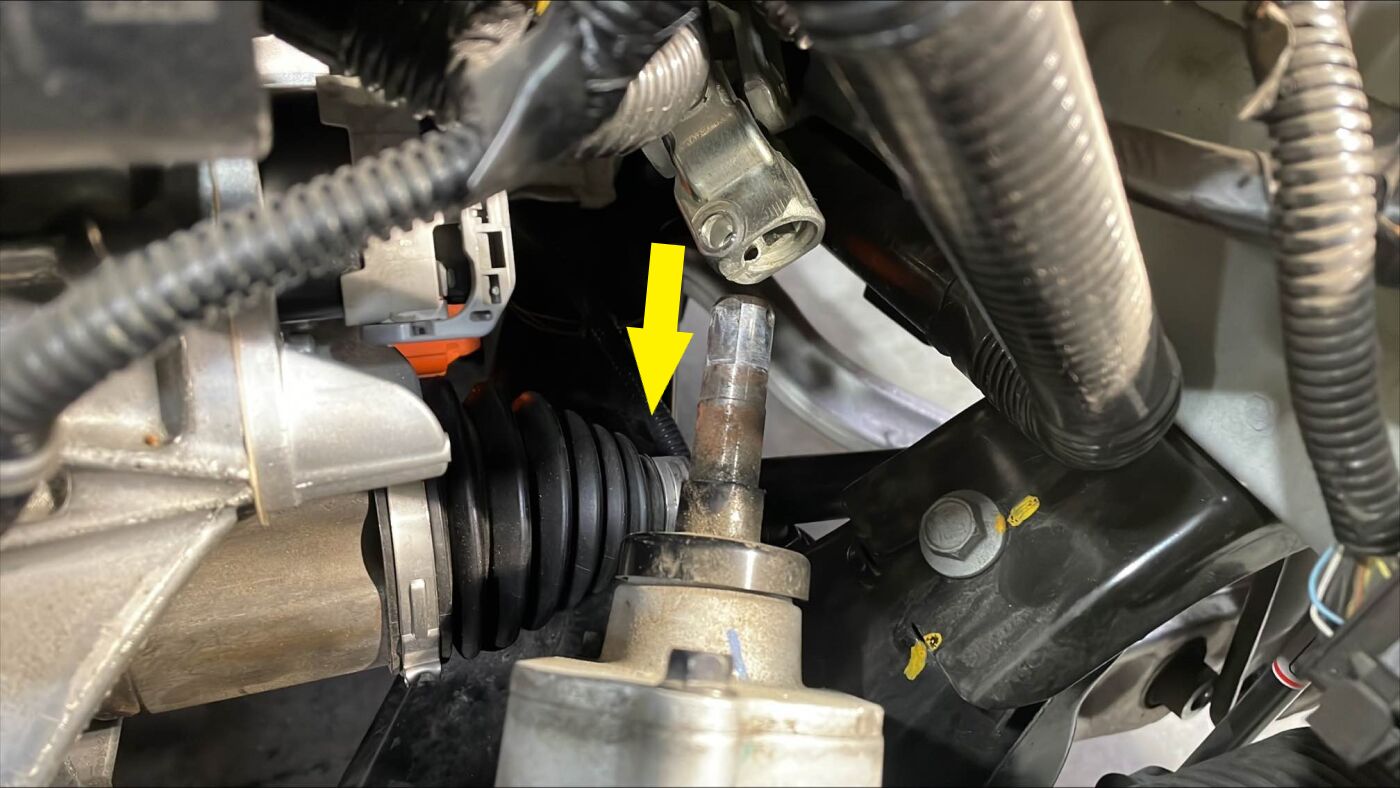

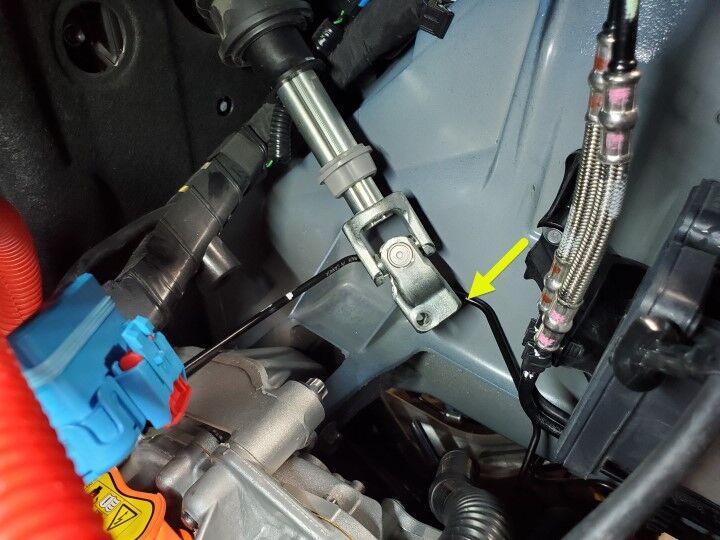

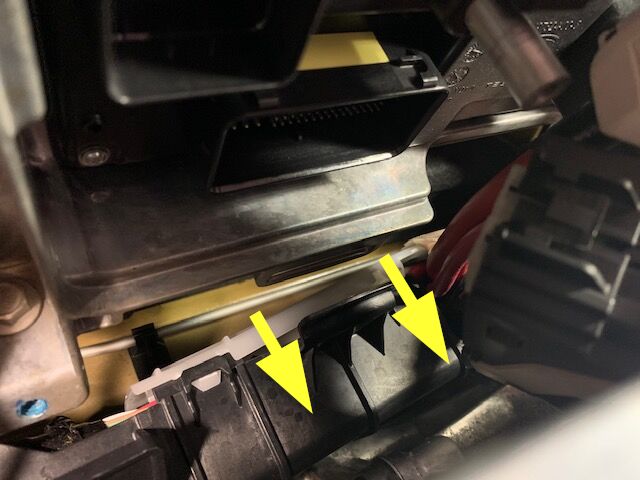

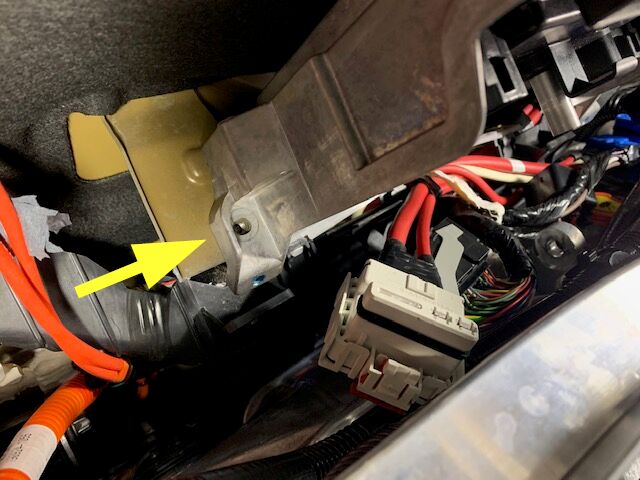

50. Slide the electric steering column upward to remove it from the steering gear assembly

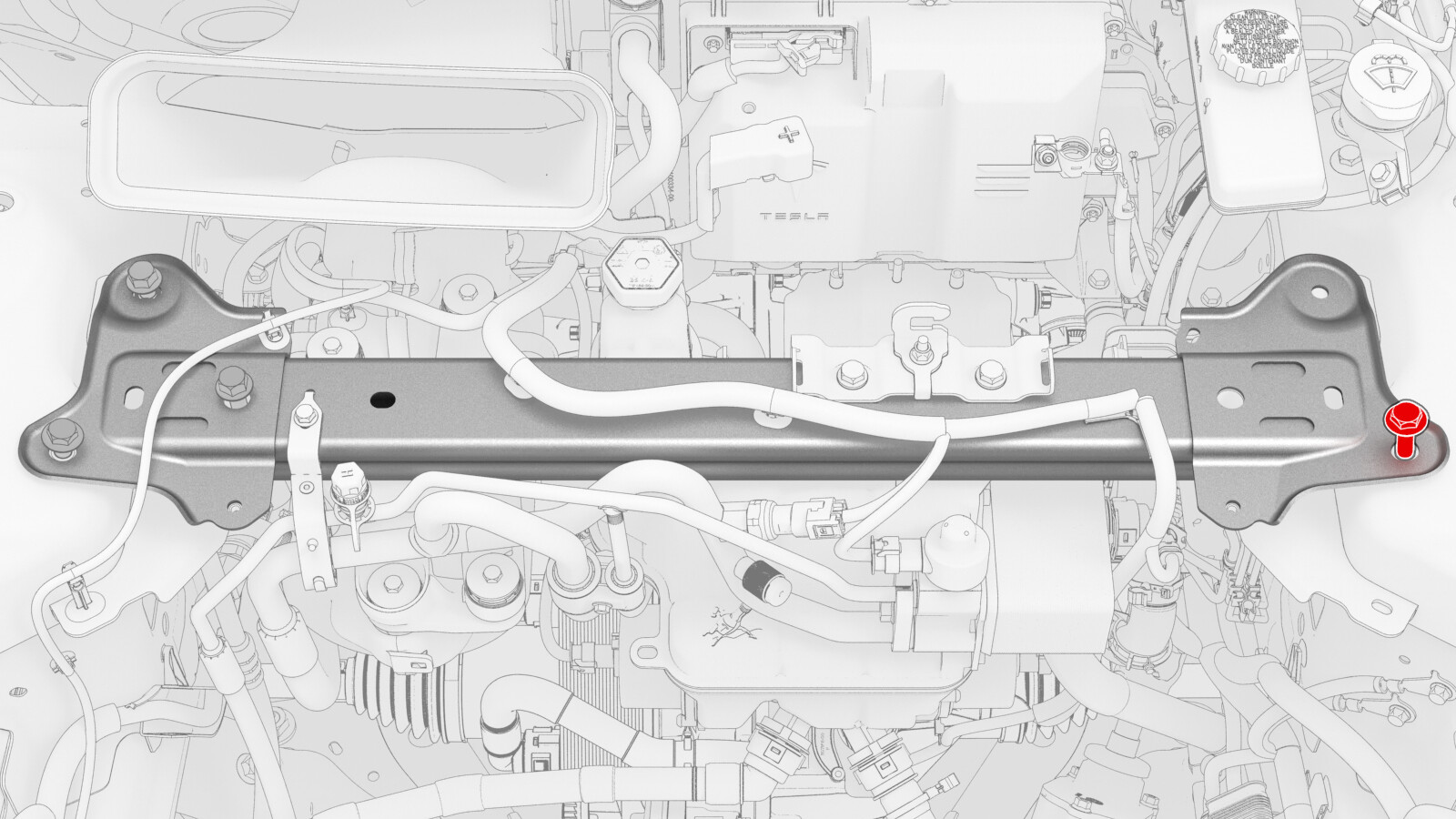

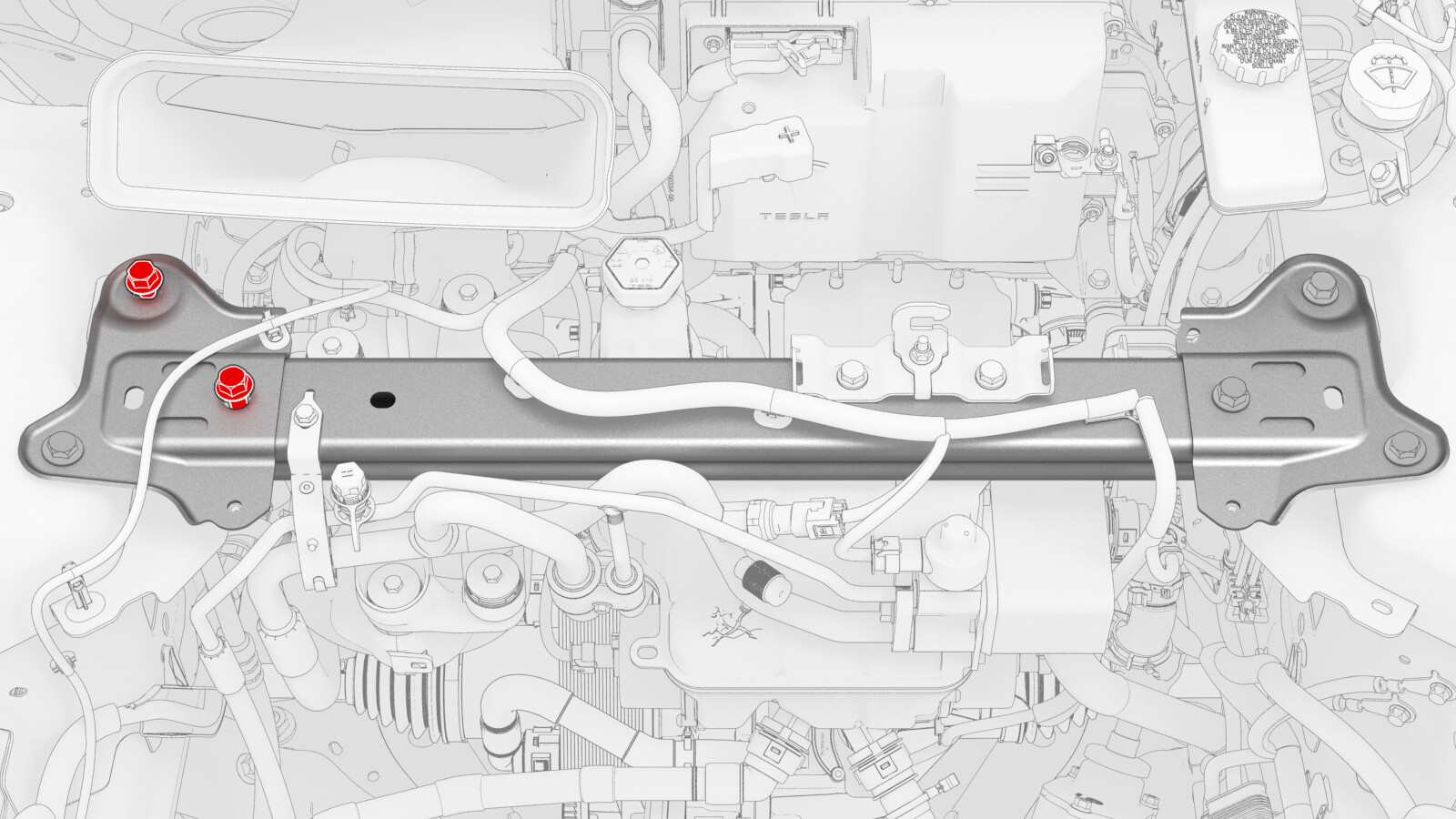

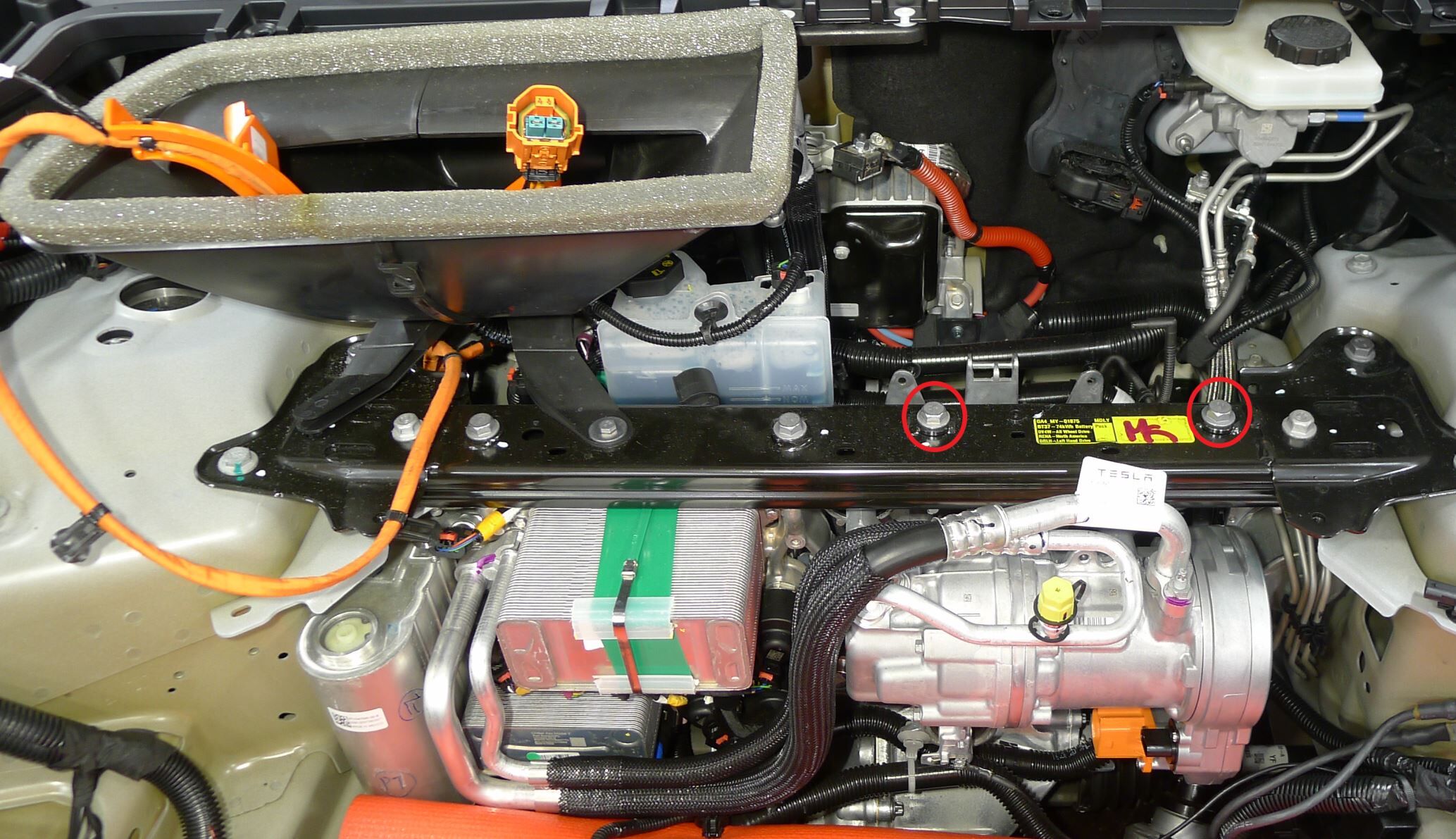

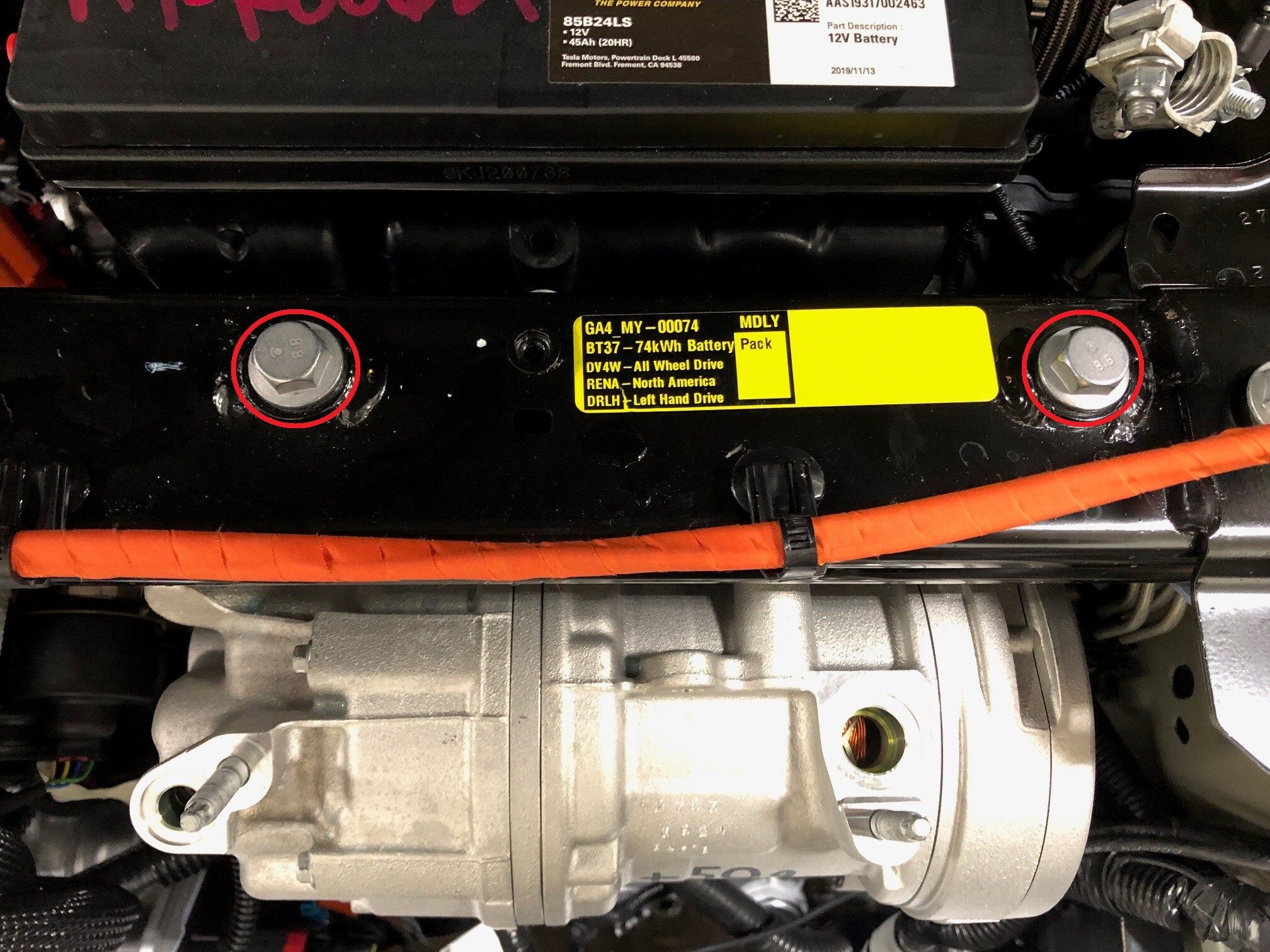

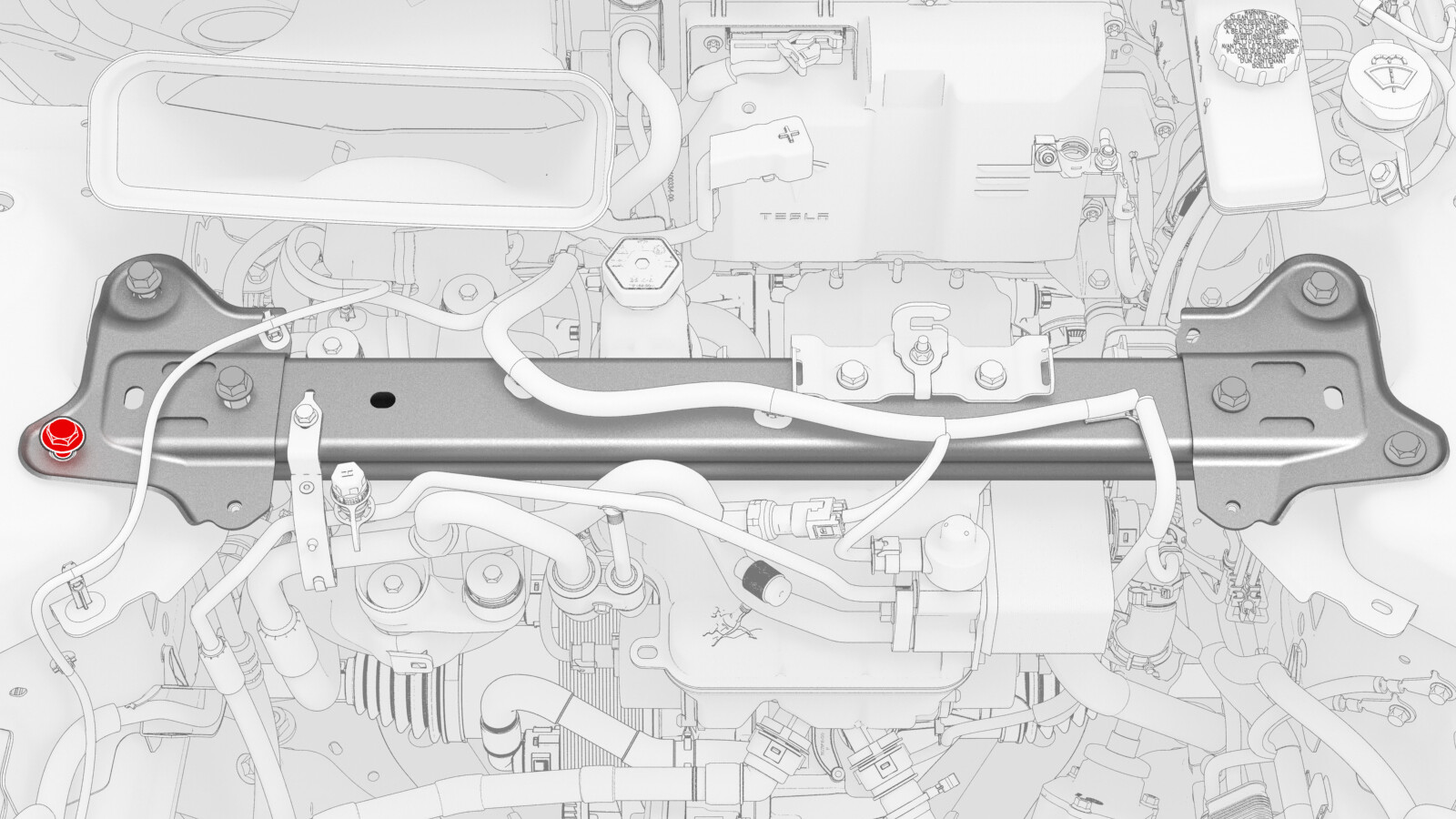

51. Loosen bolts securing shock tower brace to RH shock tower
    注

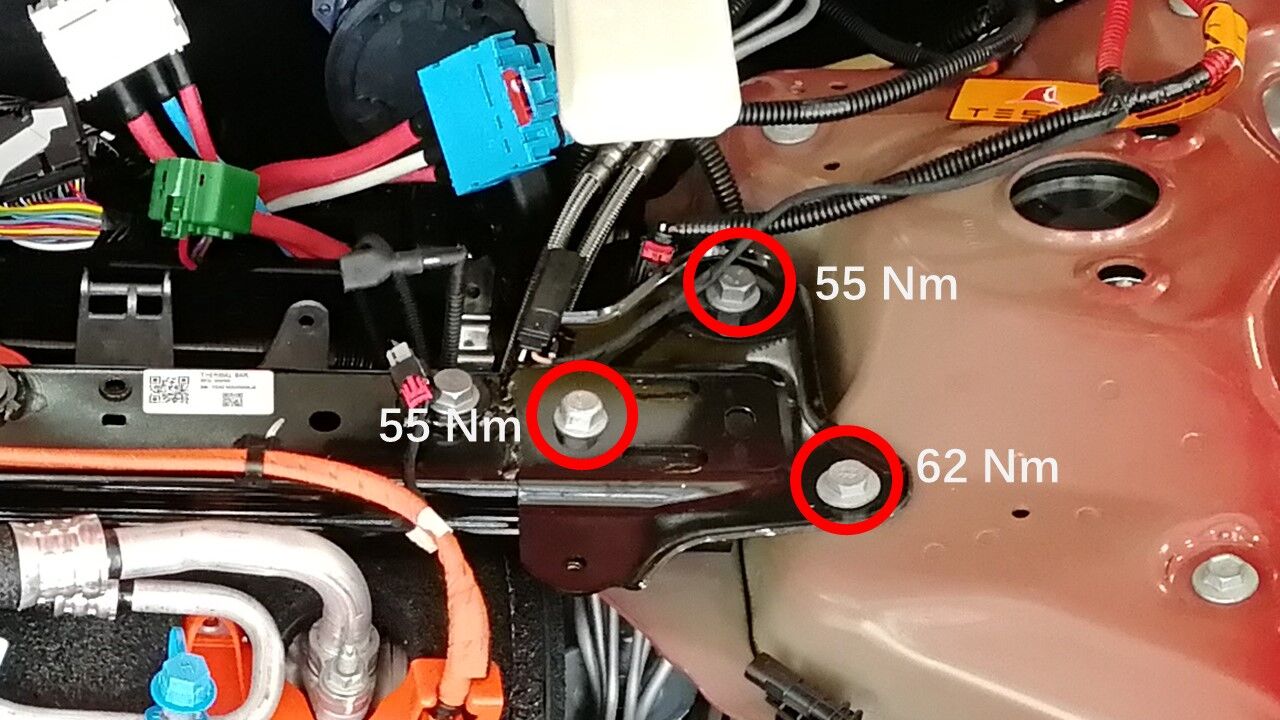

    2x bolts, 15mm, 67 Nm, 1x bolt, 15mm, 62 Nm, See image for torque location



52. Remove fasteners for LH side of shock tower brace
    注

    2x bolts, 15mm, 67 Nm, 1x bolt, 15mm, 62 Nm

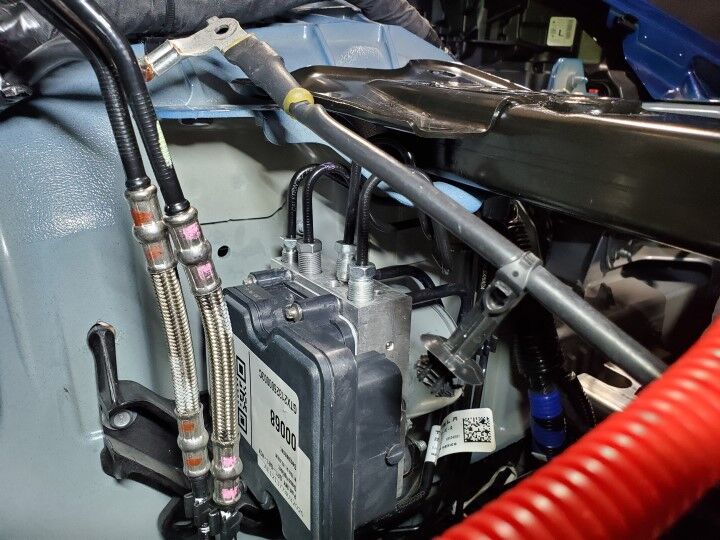

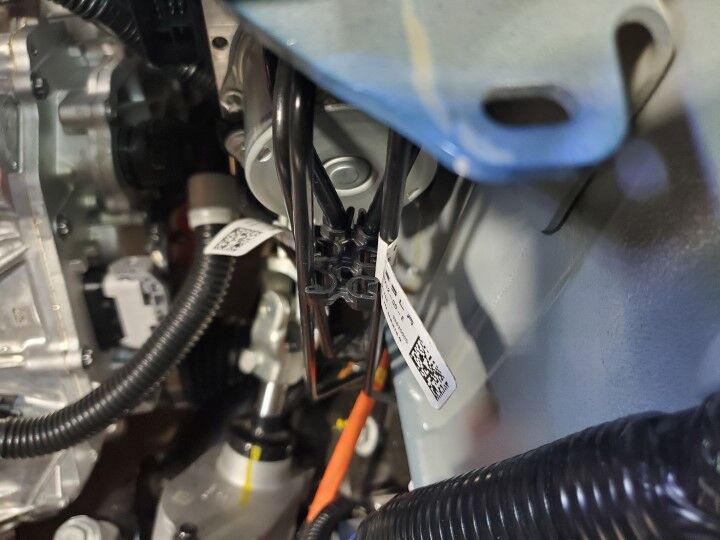

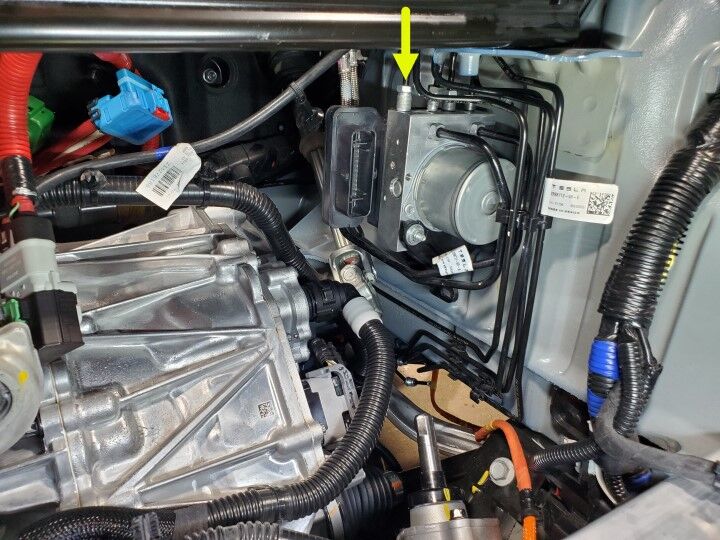

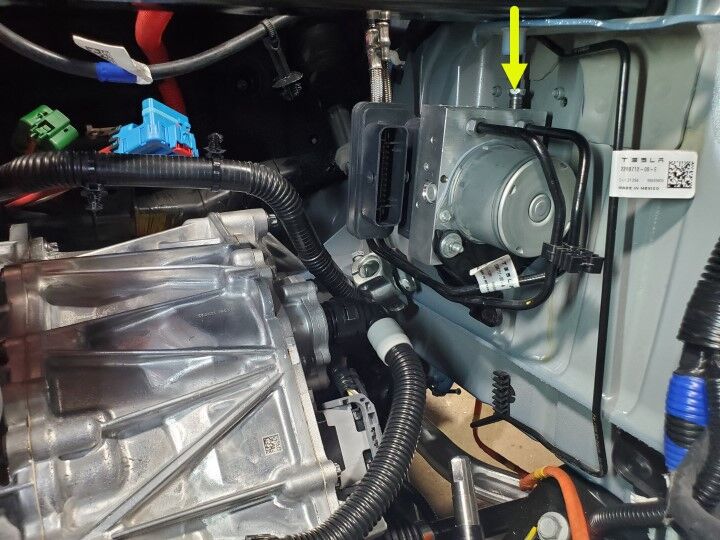

53. Remove 4-tube bundle brake lines from HCU
    注

    4x nuts, 12mm, 16 Nm

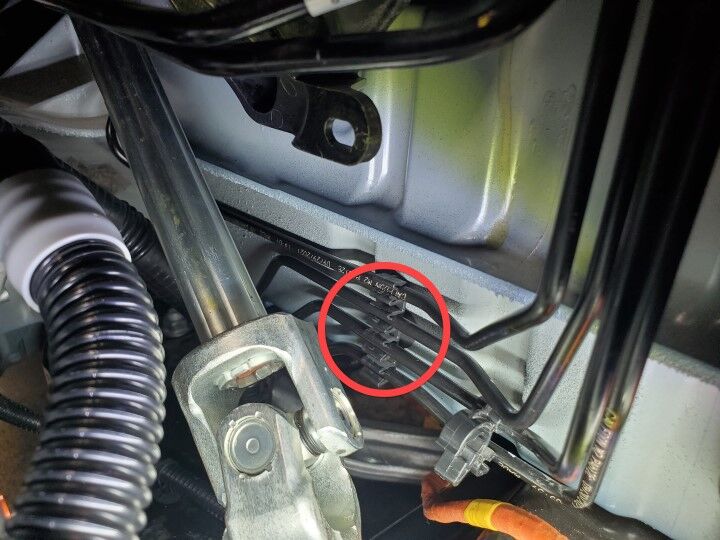

54. Release 4-tube bundle brake lines from LH top spacer
    注

    4x clips, Do not bend pipes





55. Release 4-tube bundle brake lines from LH bottom spacer
    注

    4x clips, Do not bend pipe



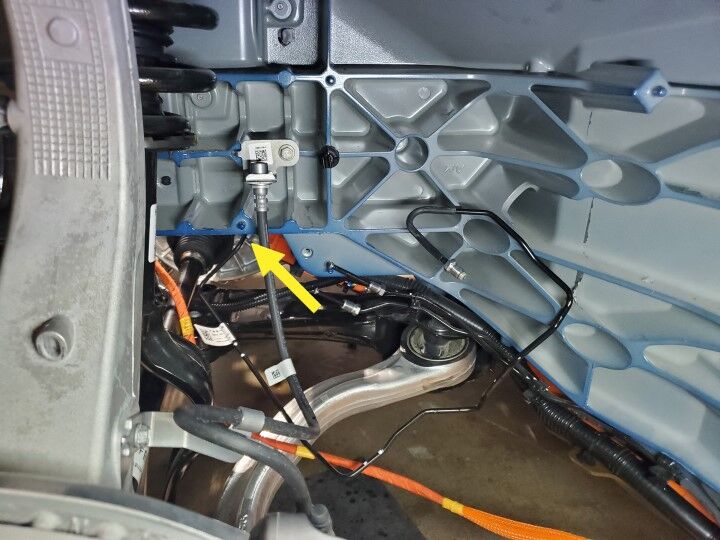

56. Release front brake pipe A from RH jounce hose

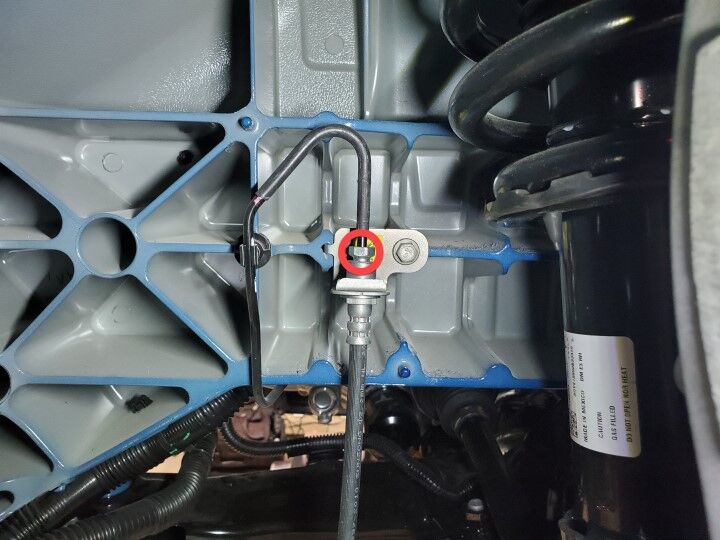

    注

    1x nut, 12mm, 16 Nm

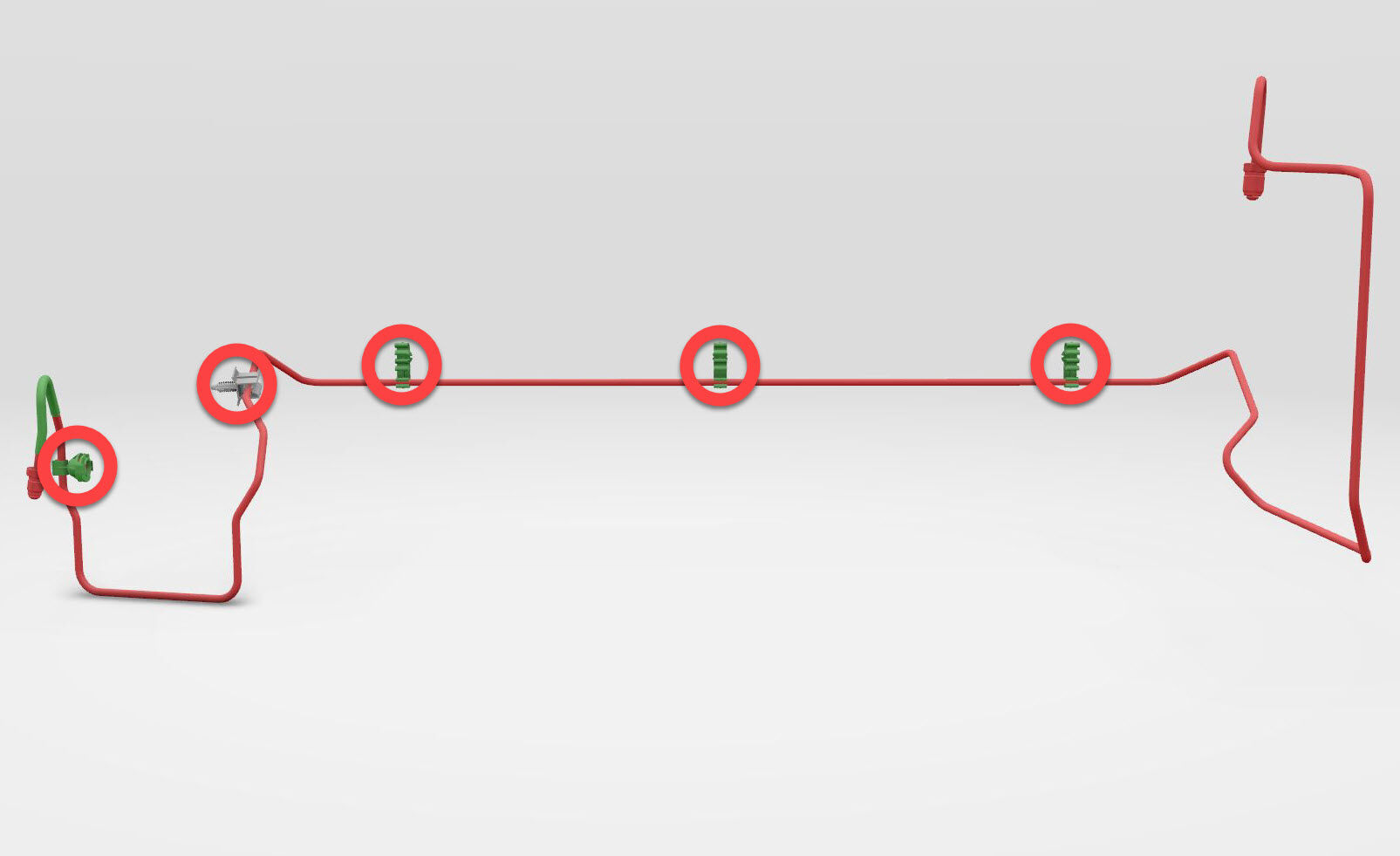

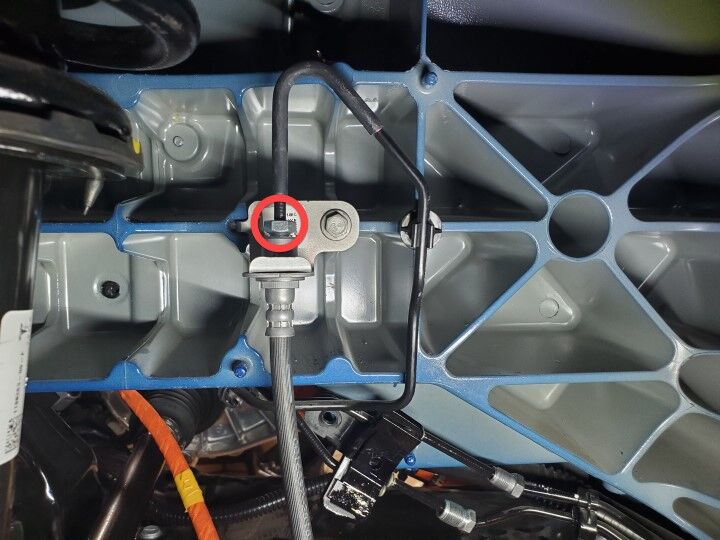

57. Release front brake pipe A from clips
    注

    5x clips, Do not bend pipe

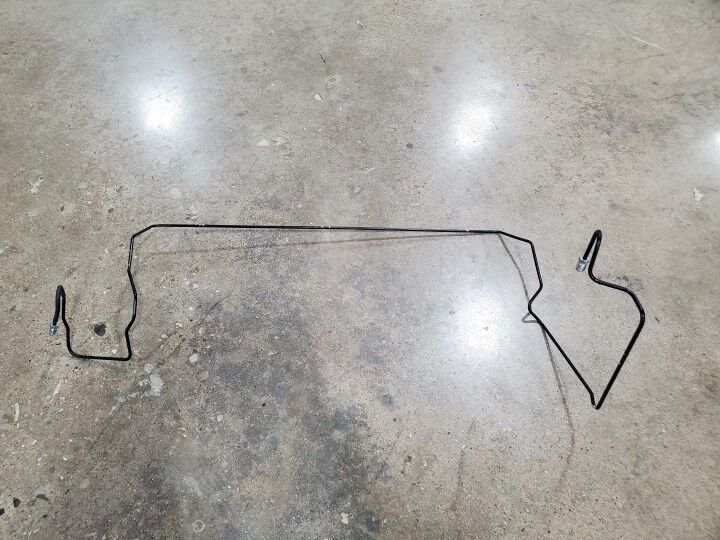

58. Remove front brake pipe A
    注

    Do not bend pipe, Four-step removal, Remove pipe from HCU and negotiate around steering column, Guide pipe through RH wheel well, Lift LH side of thermal bar and guide pipe over body, Negotiate pipe around RH side of FDU and around HVAC line















59. Release side sill brake pipe assembly from LH front junction block
    注

    2x nuts, 12mm, 16 Nm, Front brake pipe B and C bundle does not detach from junction block



60. Remove bolt securing LH junction block to body
    注

    1x bolt, 10mm, 6 Nm



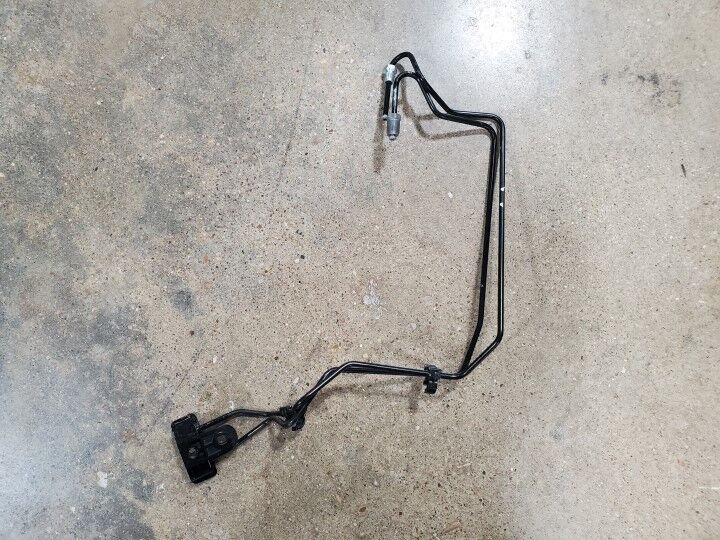

61. Remove front brake pipe B and C bundle
    注

    1x stud, Do not bend pipe, Three-step removal, Release junction block from rear brake pipes and body stud simultaneously, Remove bundle from HCU, Guide bundle toward front of vehicle









62. Release front brake pipe D from LH jounce hose
    注

    1x nut, 12mm, 16 Nm

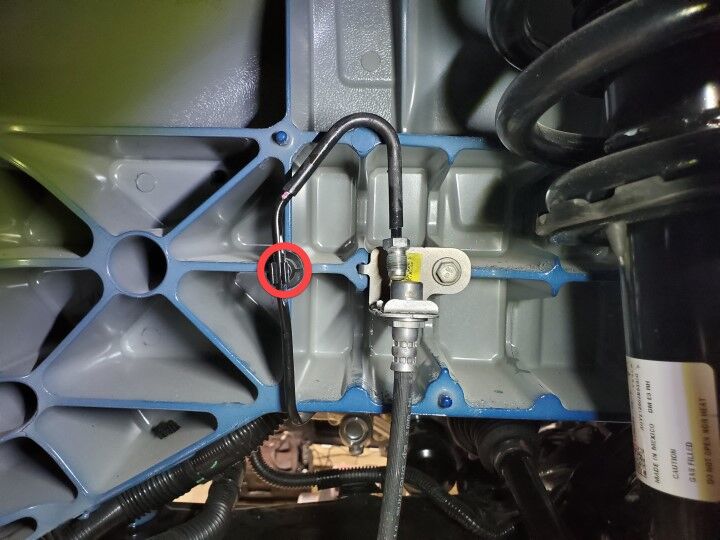

63. Release front brake pipe D from clip
    注

    1x clip, Do not bend pipe

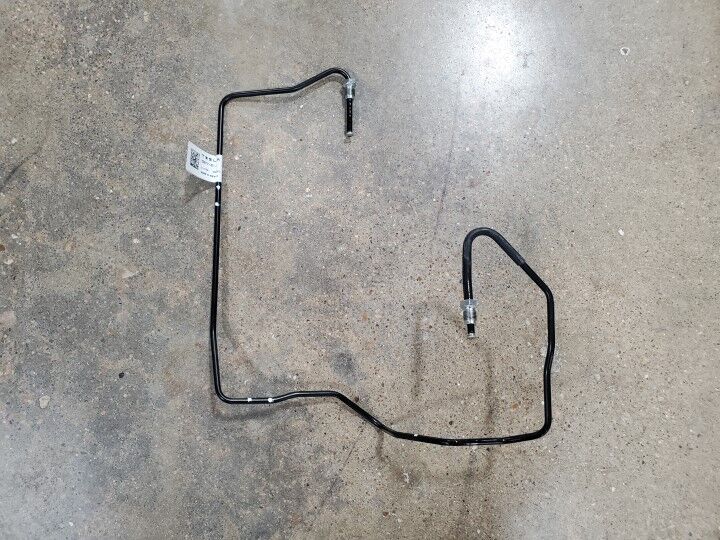

64. Remove front brake pipe D
    注

    Do not bend pipe, Remove pipe from HCU then guide through LH wheel well









65. Position front brake pipe D
    注

    Do not bend pipe, Guide pipe through LH wheel well then position onto HCU









66. Secure front brake pipe D onto clip
    注

    1x clip, Do not bend pipe



67. Secure front brake pipe D onto LH jounce hose
    注

    1x nut, 12mm, 16 Nm



68. Position front brake pipe B and C bundle
    注

    1x stud, Do not bend pipe, Three-step installation, Guide bundle toward rear of vehicle, Position bundle onto HCU, Secure junction block onto rear brake pipes and body stud simultaneously









69. Install bolt securing LH junction block to body
    注

    1x bolt, 10mm, 6 Nm



70. Secure side sill brake pipe assembly onto LH front junction block
    注

    2x nuts, 12mm, 16 Nm, Front brake pipe B and C bundle does not detach from junction block



71. Position front brake pipe A
    注

    Do not bend pipe, Four-step installation, Negotiate pipe around HVAC line and around RH side of FDU, Lift LH side of thermal bar and guide pipe under bar, Guide pipe through RH wheel well, Negotiate around steering column and position pipe onto HCU















72. Secure front brake pipe A onto clips
    注

    5x clips, Do not bend pipe









73. Secure front brake pipe A onto RH jounce hose
    注

    1x nut, 12mm, 16 Nm



74. Secure 4-tube bundle brake lines onto LH bottom spacer
    注

    4x clips, Do not bend pipe



75. Secure 4-tube bundle brake lines onto LH top spacer
    注

    4x clips, Do not bend pipes





76. Install 4-tube bundle brake lines onto HCU
    注

    4x nuts, 12mm, 16 Nm, Clean lines with brake cleaner before mating as needed





77. Install fasteners for LH side of shock tower brace
    注

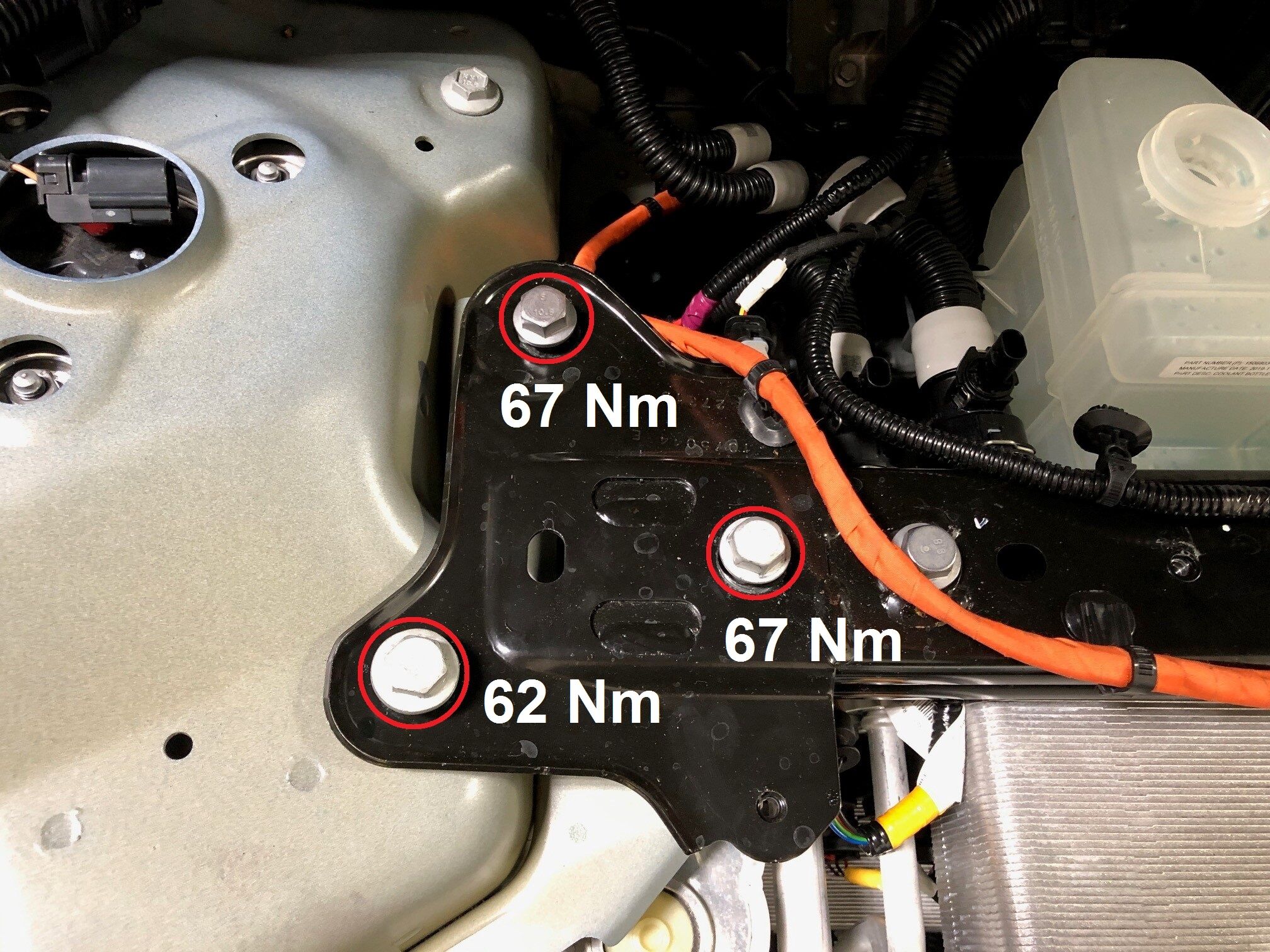

    2x bolts, 15mm, 67 Nm, 1x bolt, 15mm, 62 Nm, Refer to picture proper torque position



78. Torque fasteners for RH side of shock tower brace
    注

    2x bolts, 15mm, 67 Nm, 1x bolt, 15mm, 62 Nm, Refer to picture proper torque position



79. Slide the intermediate shaft assembly downward to install it to the steering gear assembly
    注

    Ensure the intermediate shaft is aligned and fully seated,If necessary to align the shaft to steering gear



80. Install bolt securing the intermediate shaft assembly to the steering gear assembly
    注

    1x bolt, 13mm, 18 Nm



81. Secure HCU connector harness
    注

    2x clips



82. Connect HCU connector
    注

    1x connector, Seat connection and rotate lever downward, Secure red locking tab

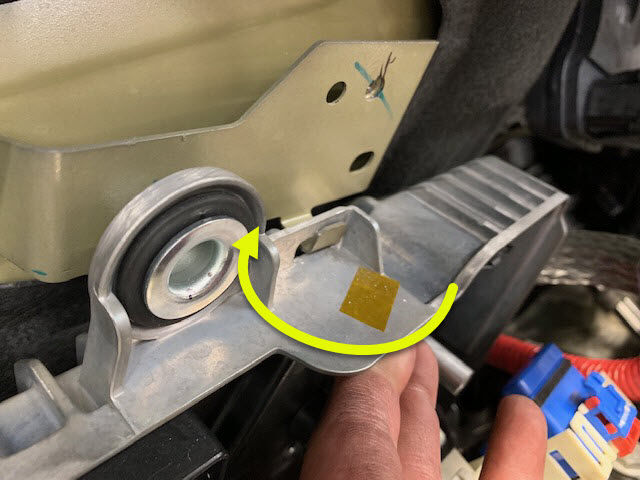

83. Maneuver front controller into position
    注

    Slide over temp set hook first, then into bottom bracket temp set holes















84. Secure front controller
    注

    3x bolts, 10mm, 10 Nm





85. Install front controller lower ground strap
    注

    1x bolt, 10mm, 10 Nm





86. Install front controller upper ground strap onto body
    注

    1x bolt, 10mm, 10 Nm, Install new bolt



87. Install harness guide to front controller
    注

    2x patch bolts, 8mm, 6 Nm, 1x temp set clip, Install new bolts, Pivot harness guide upwards and back to install temp set clip to front harness, then install bolts











88. Connect front controller harness connectors
    注

    5x connectors, Fully seat connector, then engage locking tabs if equipped











89. Install front controller protection shield
    注

    2x bolts, 10mm, 8.5 Nm





90. Connect the supermanifold harness to the front controller
    注

    1x connector



91. Secure 12V positive cable to front controller
    注

    1x clip



92. Install positive terminal cable onto cowl
    注

    1x stud, E5, 8 Nm





93. Secure positive terminal cover



94. Position the AC compressor and AC compressor bracket assembly into the vehicle for assembly and install the fasteners securing the AC compressor assembly to the strut tower support brace
    注

    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while installing the fasteners, Carefully install the AC compressor and AC compressor bracket towards the rear of the vehicle, under the strut tower support brace







95. Install the clip securing the coolant hose to the AC compressor bracket
    注

    1x fir tree clip



96. Install AC compressor ground strap
    注

    1x bolt, 10mm, 7 Nm



97. Install clip securing HV compressor harness to plastic connector housing
    注

    1x clip, Take note of original routing



98. Secure HV harness connector onto AC compressor
    注

    1x locking connector, Secure connector and engage black locking tab, Verify fully seated





99. Install fastener securing AC compressor HV harness bracket to AC compressor
    注

    1x bolt, 13mm, 9 Nm



100. Secure AC compressor logic connector
     注

     1x locking connector, secure connection and engage red locking tab



101. Install clip securing AC compressor logic connector to HV harness
     注

     1x fir tree clip



102. Install clips securing PT supply hose to AC compressor bracket
     注

     2x clips



103. Remove protective fender cover over fan shroud and support



104. Remove the oil drain container from underneath vehicle
105. Raise vehicle fully and lower lift onto locks
     注

     Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

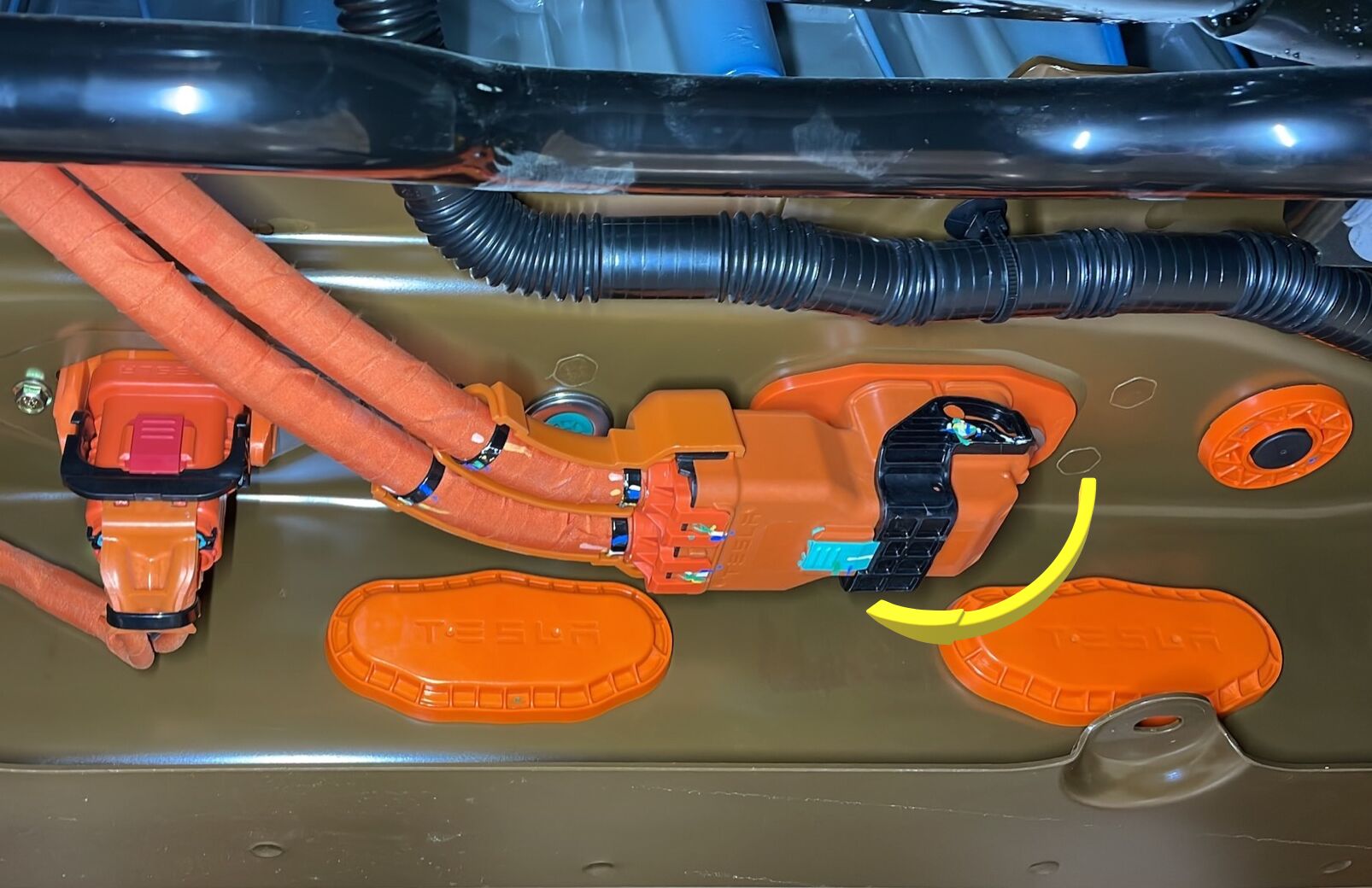

106. Secure RDU HV harness onto HV battery
     注

     1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



107. Remove HV insulating gloves
108. Install the mid aero shield panel. See 面板 - 流线型护板 - 中间（拆卸和更换）.
109. Lower vehicle for access to underhood area
     注

     Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
110. Position LV battery into vehicle
     注

     Lower vertically LV battery into the vehicle





111. Install fasteners securing LV battery
     注

     3x bolts, 8mm, 6 Nm Early production vehicle may have 3x bolts, M6, 10mm, 10 Nm



112. Install negative terminal cable onto body
     注

     1x bolt, 10mm, 10 Nm





113. Install clip securing negative terminal cable to AC compressor bracket
     注

     1x clip



114. Connect first responder loop and LV battery
     注

     2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

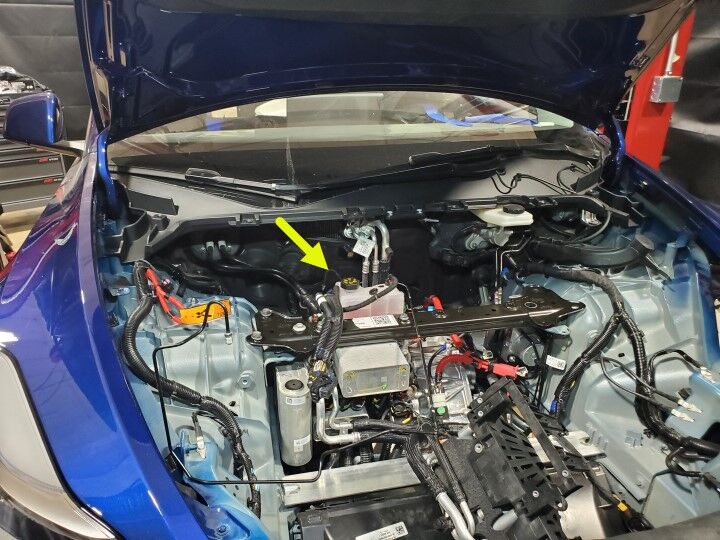

115. Fill brake bleeder reservoir to full level



116. Clean area around brake fluid reservoir and remove brake reservoir cap



117. Top off brake fluid reservoir
     注

     Top off brake fluid as needed



118. Install pressure bleeder adapter onto reservoir



119. Set brake bleed reservoir pressure to 30 psi
     注

     Connect power supply to bleeder and turn on the power, Set pressure to 30 psi, Attach brake bleed reservoir to brake bleed adapter





120. Connect to vehicle using Toolbox 3.0
     注

     Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)
121. Select Actions/Autodiag and search for "bleed"
122. Remove bleeding valve covers and install the fluid catching bottle to LH front brake caliper outer bleeding valve before starting the ESP
     注

     2x covers





123. Open LH front brake caliper outer bleeding valve then click the play button next to PROC_ESP_FRONT-L-REAR-R-BRAKE-BLEEDSearch for routine in ToolboxFL and RR brake bleed procedureChassis / Brakes - Brake Bleed FL-RRChassis / Brakes - Brake Bleed FL-RR and select Run to start the ESP, then close the bleeding valve once the pump stop running, then repeat the process for inner bleeding valve, and then lastly repeat the process for outer bleeding valve again
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



124. Repeat the above step till clear fluid and no air bubbles come out of the LH front brake caliper bleeding valve
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



125. Remove the fluid catching bottle, Torque LH front brake caliper bleeding valves then install covers
     注

     2x covers, 2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers





126. Remove bleeding valve covers and install the fluid catching bottle to RH front brake caliper outer bleeding valve before starting the ESP
     注

     2x covers





127. Open RH front brake caliper outer bleeding valve then Click the play button next to PROC_ESP_FRONT-R-REAR-L-BRAKE-BLEEDSearch for routine in ToolboxFR and RL brake bleed procedureChassis / Brakes - Brake Bleed FR-RLChassis / Brakes - Brake Bleed FR-RL and select Run to start the ESP, then close the bleeding valve once the pump stop running, then repeat the process for inner bleeding valve, and then lastly repeat the process for outer bleeding valve again
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



128. Repeat the above step till clear fluid and no air bubbles come out of the RH front brake caliper bleeding valves
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



129. Remove the fluid catching bottle, Torque RH front brake caliper bleeding valves and install covers
     注

     2x covers, 2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers





130. Remove bleeding valve cover and install the fluid catching bottle to RH rear brake caliper bleeding valve before starting the ESP
     注

     1x cover





131. Open RH rear brake caliper bleeding valve then Click the play button next to PROC_ESP_FRONT-L-REAR-R-BRAKE-BLEEDSearch for routine in ToolboxFL and RR brake bleed procedureChassis / Brakes - Brake Bleed FL-RRChassis / Brakes - Brake Bleed FL-RR and select Run to start the ESP, then close the bleeding valve once the pump stop running
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper





132. Repeat the above step till clear fluid and no air bubbles come out of the RH rear brake caliper bleeding valve
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper



133. Remove the fluid catching bottle, Torque RH rear brake caliper bleeding valve and install cover
     注

     1x cover, 1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper



134. Remove bleeding valve cover and install the fluid catching bottle to LH rear brake caliper bleeding valve before starting the ESP
     注

     1x cover





135. Open LH rear brake caliper bleeding valve then Click the play button next to PROC_ESP_FRONT-R-REAR-L-BRAKE-BLEEDSearch for routine in ToolboxFR and RL brake bleed procedureChassis / Brakes - Brake Bleed FR-RLChassis / Brakes - Brake Bleed FR-RL and select Run to start the ESP, then close the bleeding valve once the pump stop running
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper





136. Repeat the above step untill clear fluid and no air bubbles come out of the LH rear brake caliper bleeding valve
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper



137. Remove the fluid catching bottle, Torque LH rear brake caliper bleeding valve and install cover
     注

     1x cover, 1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper





138. Power off brake bleed reservoir and detach brake bleed reservoir from brake bleed adapter





139. Remove pressure bleeder adapter from reservoir



140. Check fluid level
     注

     Top off if necessary



141. Install brake reservoir cap



142. Pump the brake pedal a few times to ensure the brake pedal feels normal
143. 使用Toolbox 3：
     1. 选择Actions选项卡，然后搜索 “刚度”。
     2. 选择 ODIN 例行程序TEST_BRAKE_X_STIFFNESS-TEST-SERVICESearch for routine in ToolboxIBST Stiffness Test - Service - BURNISHED/UNBURNISHEDChassis / Brakes - Brake Stiffness Test，然后点击例行程序链接。
     3. 如果已更换制动片或制动盘，请在 “Action_Type” 下选择UNBURNISHED。否则请选择BURNISHED。
     4. 点击RUN，然后等待例行程序完成。
        注

        测试期间，请勿踩下制动踏板。
144. Remove ethernet cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
145. Raise vehicle partially and lower lift onto locks
     注

     Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
146. Install the LH and RH front wheel arch liners. See 轮拱内衬 - 前 - LH（结构化电池组）（拆卸和更换）.
147. Install all 4 wheels. See 轮毂总成（拆卸和安装）.
148. Raise vehicle fully and lower lift onto locks
     注

     Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
149. Install clipping points securing compressor HV harness to front of vehicle body
     注

     5x clips, Return to original routing, Verify fully secured







150. Install RH front wheel liner to HV battery
     注

     1x clip, 1x bolt, 10mm, 5 Nm



151. Install LH front wheel liner to HV battery
     注

     1x clip, 1x bolt, 10mm, 5 Nm



152. Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle
     注

     12x bolts, 10mm, 6 Nm, 2x nuts, 15mm, 6 Nm, 2x clips, 2x hooks





153. Lower vehicle until tires are touching the ground
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
154. Torque all four wheels
     注

     5x nuts (each wheel), 21mm, 175 Nm
155. Install all four wheel caps
     注

     1x cap, Align valve stem with wheel cap cavity
156. Install the HEPA duct. See 风管 - 高效分子空气 (HEPA)（拆卸和更换）
157. Install the HEPA filter. See 总成 - 过滤器 - 高效分子空气 (HEPA)（拆卸和更换）.
158. Install the underhood storage unit. See 前备箱储物单元（拆卸和更换）.
159. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
160. Remove vehicle from lift
     注

     Lower rack arms fully and remove from under vehicle
161. Raise the LH front window and close the LH front door
162. Perform test drive
     注

     Per current FRT (00040100) 0.3 hrs, If alignment was adjusted verify tracking, If DAS components were adjusted verify operation, If brakes were serviced perform burnishing
