制动踏板(结构化电池组)(拆卸和更换)

校正代码 33251022 0.66 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2023-12-08: Removed brake stiffness routine.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com
  1. Open the LH front door and lower the LH front window
  2. Move LH front seat backward
  3. Open hood
  4. Remove the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).

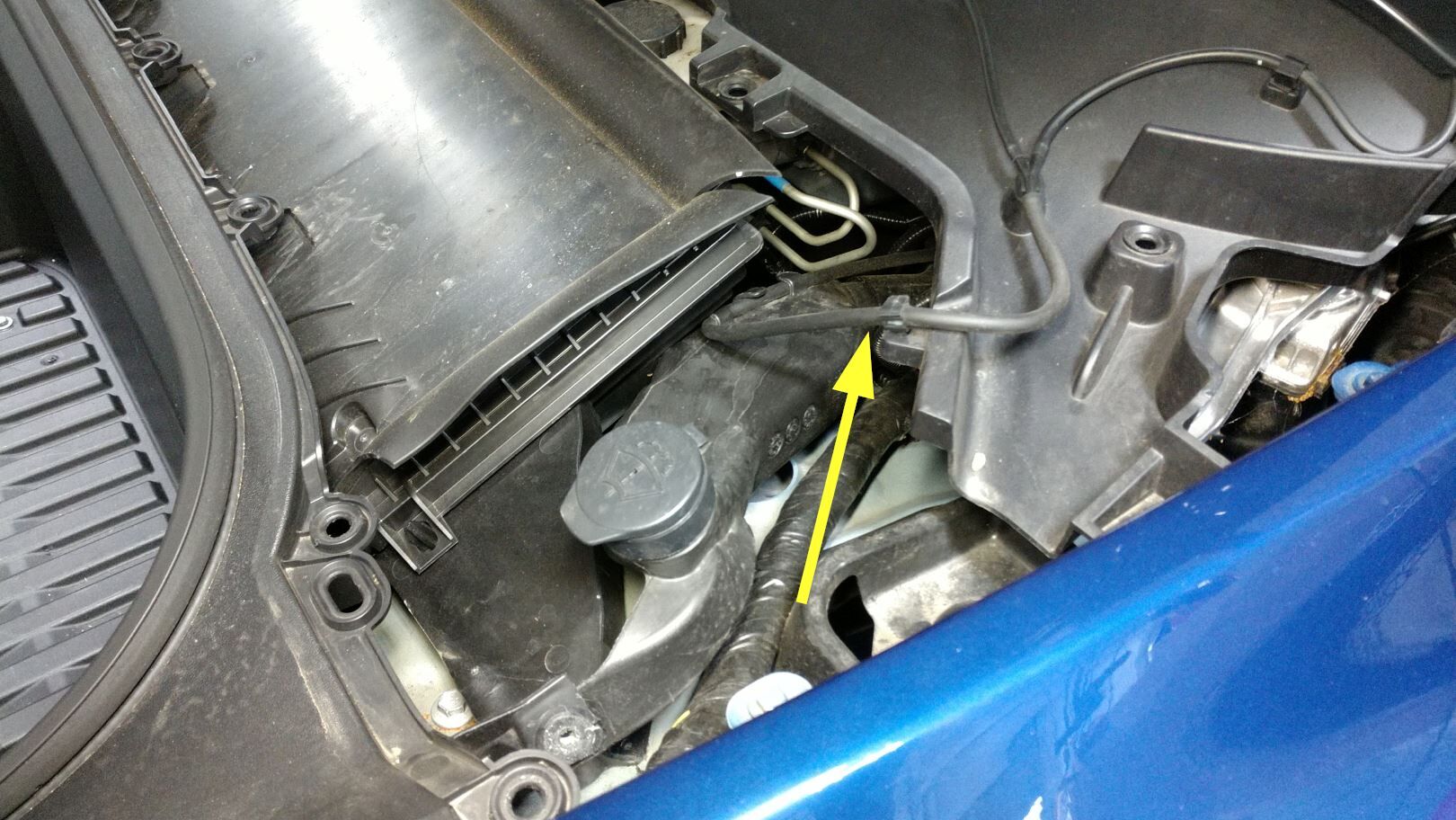

  5. Remove bolt securing frunk to washer fluid reservoir neck
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 5 Nm
  6. Release washer tank neck from washer tank and set aside
    Informational PurposesAn informational icon, calling your attention
    1x O-ring, No need to remove hose from neck

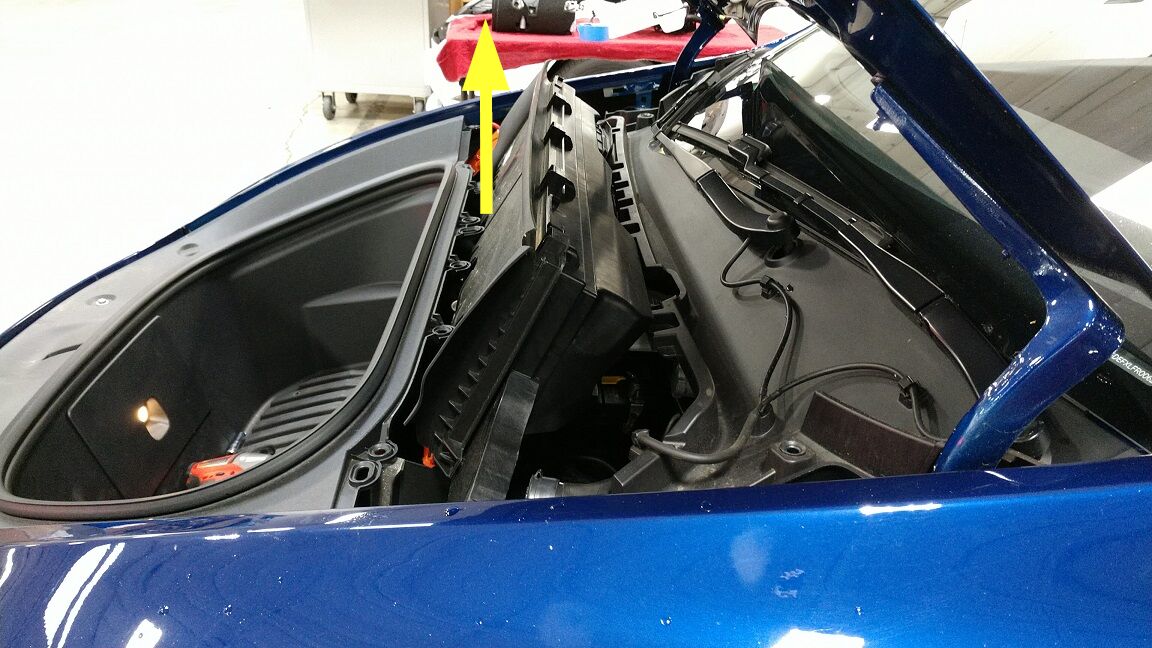

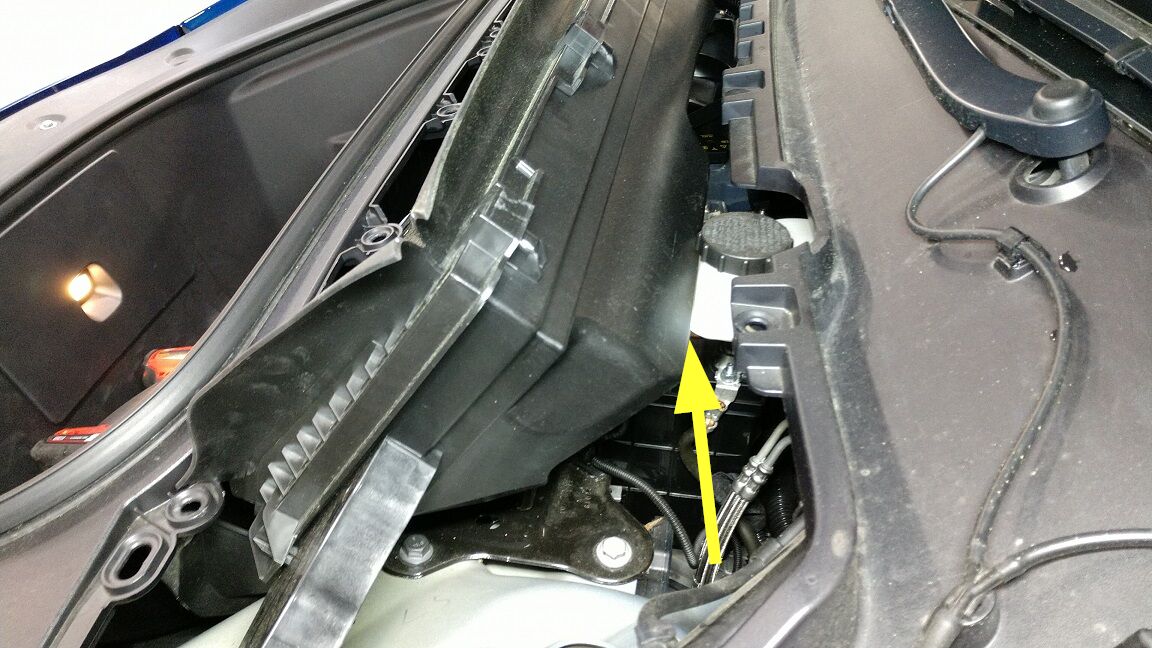

  7. Remove HEPA filter assembly
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, then lift up to clear frunk assembly
  8. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

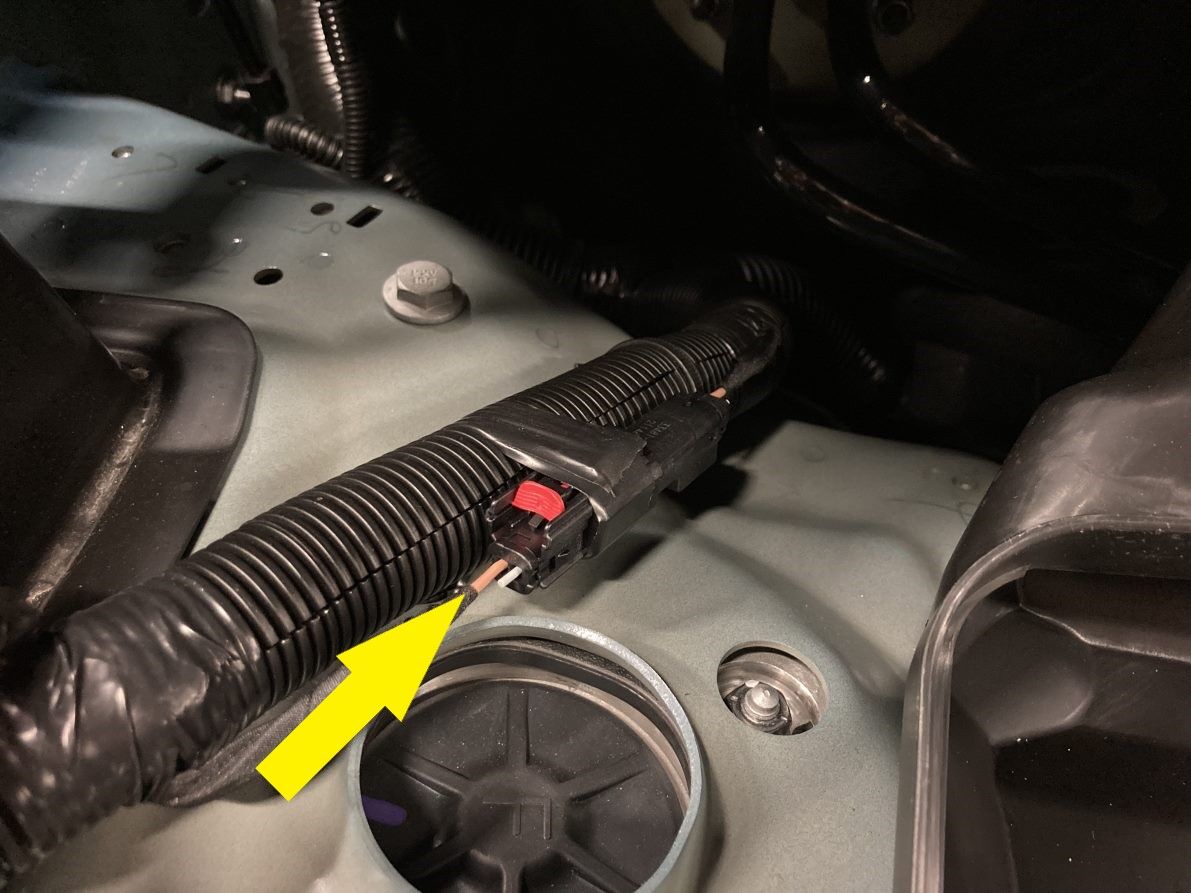

  9. Disconnect LV battery connector and First Responder Loop
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge
  10. Remove LH front floormat

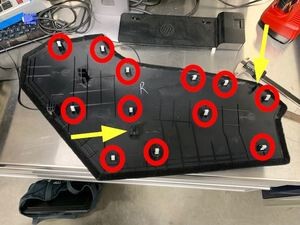

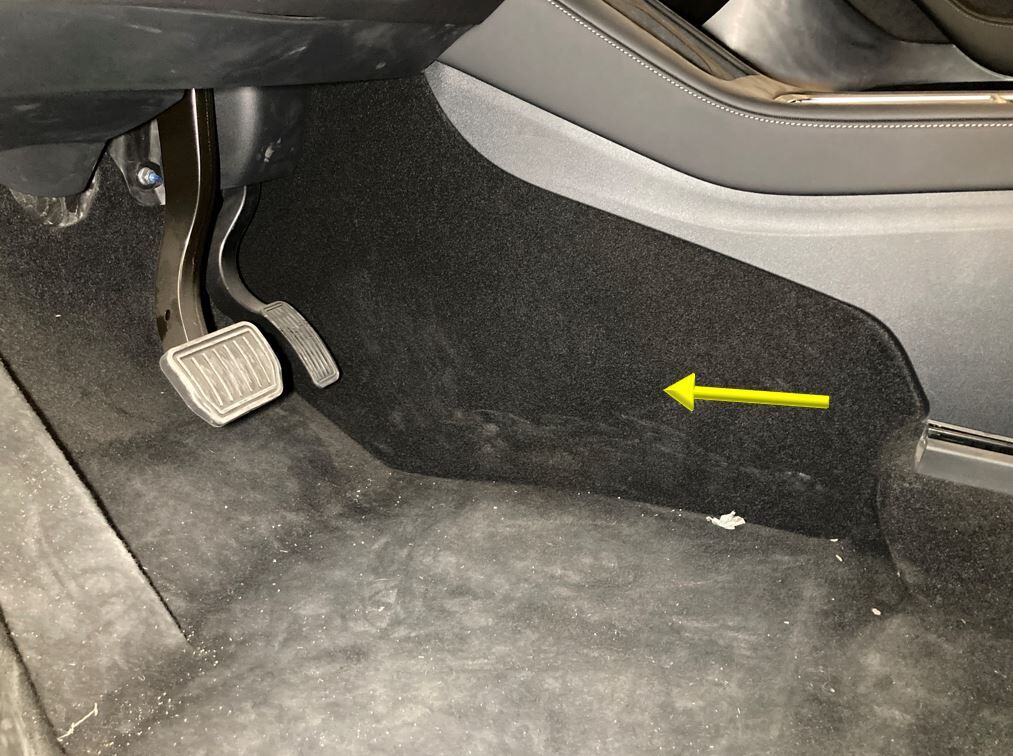

  11. Remove LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
  12. Remove the driver knee airbag. See 气囊 - 膝部 - 驾驶位(拆卸和安装)
  13. Remove the LH footwell air duct
  14. Disconnect brake switch
    Informational PurposesAn informational icon, calling your attention
    1x connector
  15. Remove brake switch from pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Twist counter clockwise 45 degrees to remove. Replace if damaged during removal
  16. Remove cotter clip from clevis pin on brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip
  17. Remove clevis pin from brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x pin

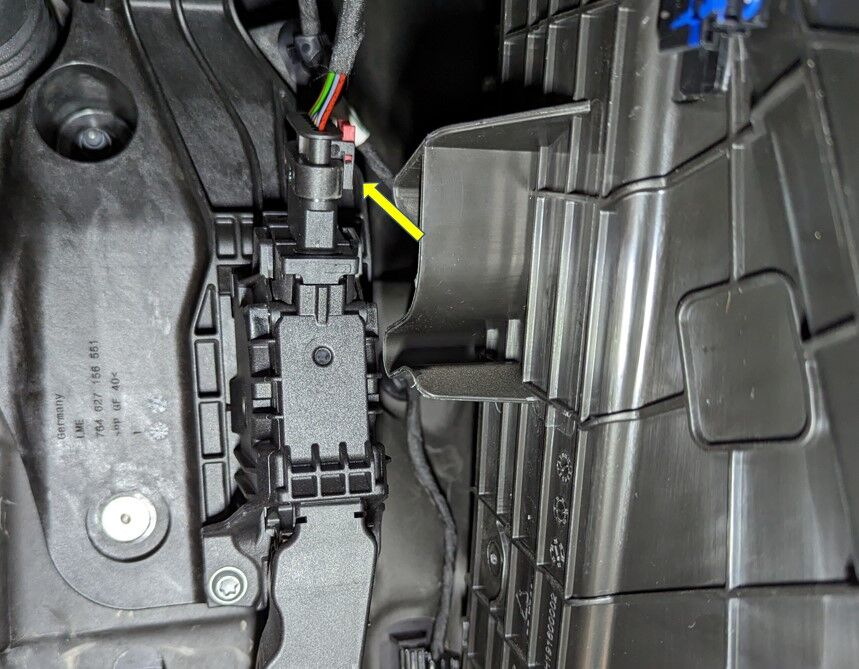

  18. Disconnect accelerator pedal connector
    Informational PurposesAn informational icon, calling your attention
    1x connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector
  19. Remove clip securing pedal harness to pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip

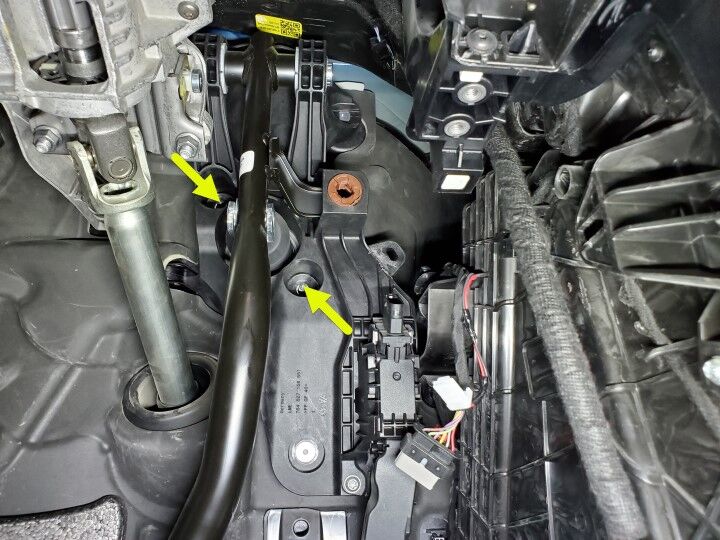

  20. Remove inner nuts securing pedal assembly to superdash
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 13mm, 16.5 Nm, Discard nyloc nuts after removal
  21. Remove outer nuts securing pedal assembly to superdash
    Informational PurposesAn informational icon, calling your attention
    3x nuts, 13mm, 16.5 Nm, Located under cowl, Discard nyloc nuts after removal

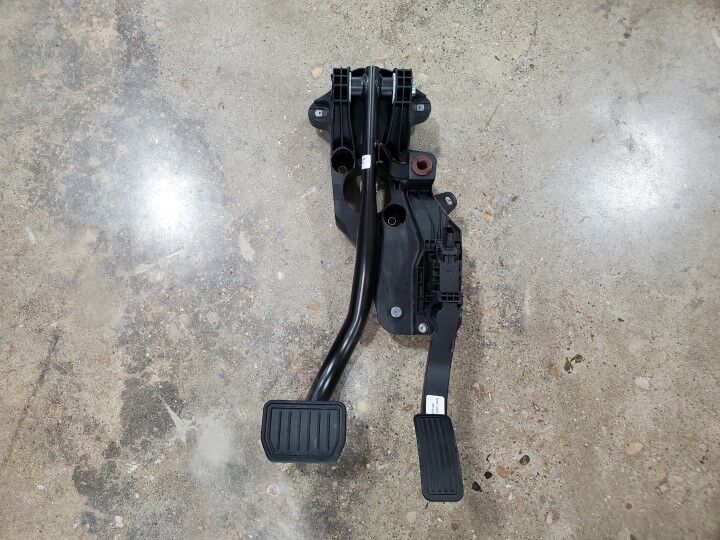

  22. Remove pedal assembly
    Informational PurposesAn informational icon, calling your attention
    2x studs, Release from iBooster studs then negotiate around iBooster rod
  23. Position pedal assembly
    Informational PurposesAn informational icon, calling your attention
    2x studs, Negotiate around iBooster rod then secure onto iBooster studs
  24. Install outer nuts securing pedal assembly to superdash
    Informational PurposesAn informational icon, calling your attention
    3x nuts, 13mm, 16.5 Nm, Located under cowl, Install new nyloc nuts
  25. Install inner nuts securing pedal assembly to superdash
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 13mm, 16.5 Nm, Install new nyloc nuts
  26. Install clip securing pedal harness to pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip
  27. Connect accelerator pedal connector
    Informational PurposesAn informational icon, calling your attention
    1x connector, Engage locking tab
  28. Align brake pedal to iBooster rod and install clevis pin to brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x pin
  29. Install cotter pin into clevis pin clip on brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip

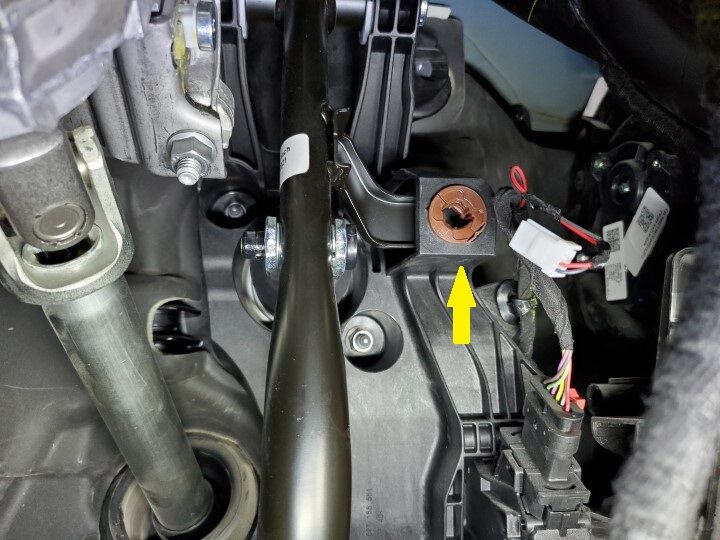

  30. Install new brake switch clip into the new pedal assembly
    Informational PurposesAn informational icon, calling your attention
    1x clip
  31. Install brake switch onto pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Confirm that the brake pedal is in the home position, iBooster and Brake Pedal must be assembled together for brake light switch to be installed, Push the brake switch into the clip until it stops (don't push so hard as to move the brake pedal), Twist clockwise 45 degrees to set the brake switch, Make sure brake switch connector facing RH side of vehicle with connector pins vertical
  32. Connect brake switch connector
    Informational PurposesAn informational icon, calling your attention
    1x connector
  33. Install the LH footwell duct into HVAC module
  34. Connect the driver knee air bag and install into vehicle
    Informational PurposesAn informational icon, calling your attention
    1x connector, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector
  35. Install fasteners securing driver knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 2x push clips
  36. Install connectors to LH footwell cover and position for installation
    Informational PurposesAn informational icon, calling your attention
    3x tabs, 1x Ethernet connector, 1x puddle light connector
  37. Install screw and clips securing LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    1x screw, T20, 2.5 Nm, 2x push clips

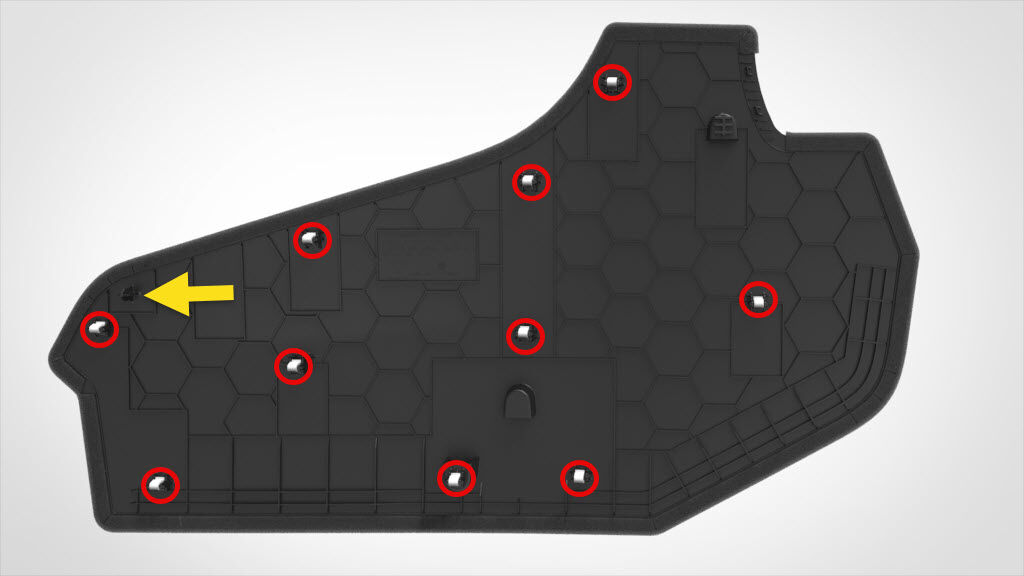

  38. Install LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install
  39. Install LH front floormat
  40. Connect first responder loop and LV battery
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  41. Install HEPA filter assembly
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, then carefully move rear edge past brake reservoir and into position
  42. Install washer tank neck to washer tank
    Informational PurposesAn informational icon, calling your attention
    1x O-ring, Ensure washer hose is properly routed after installation
  43. Secure frunk to washer fluid reservoir neck
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 5 Nm
  44. Install the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  45. Close hood
  46. Move LH front seat to original position
  47. Raise LH front window
  48. Close LH front door
