  热敏电阻 - 气波槽 - RH(拆卸和更换)


    校正代码
    18104212 0.24

          注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。

          注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至 ServiceManualFeedback@tesla.com。。

          注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。请参阅人体工程学注意事项查看安全健康的作业规程。




            注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。

            注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至ServiceManualFeedback@tesla.com。

            注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意:请参阅人体工程学注意事项查看安全健康的作业规程。


拆卸
-
          Remove the front passenger knee airbag assembly from the vehicle. See 气囊 - 膝部 - 副驾位(拆卸和更换).
          注It is not necessary to remove the closeout trim panel from the airbag assembly after removal.
 -

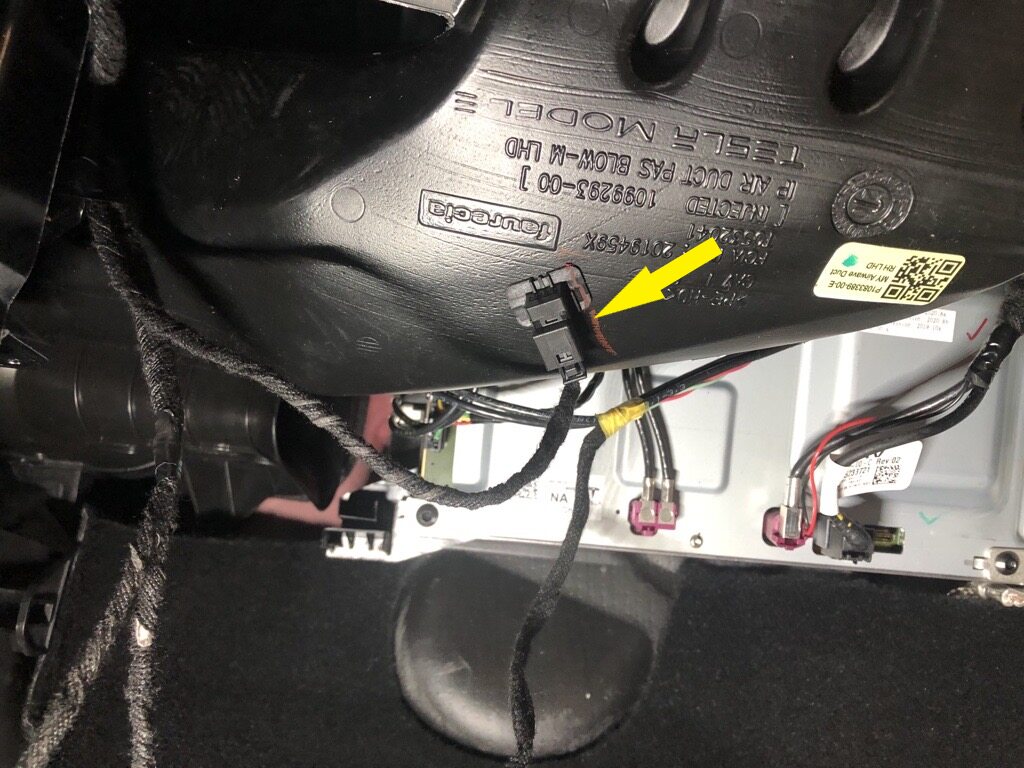

          Disconnect the RH airwave duct
            thermistor connector.

 -

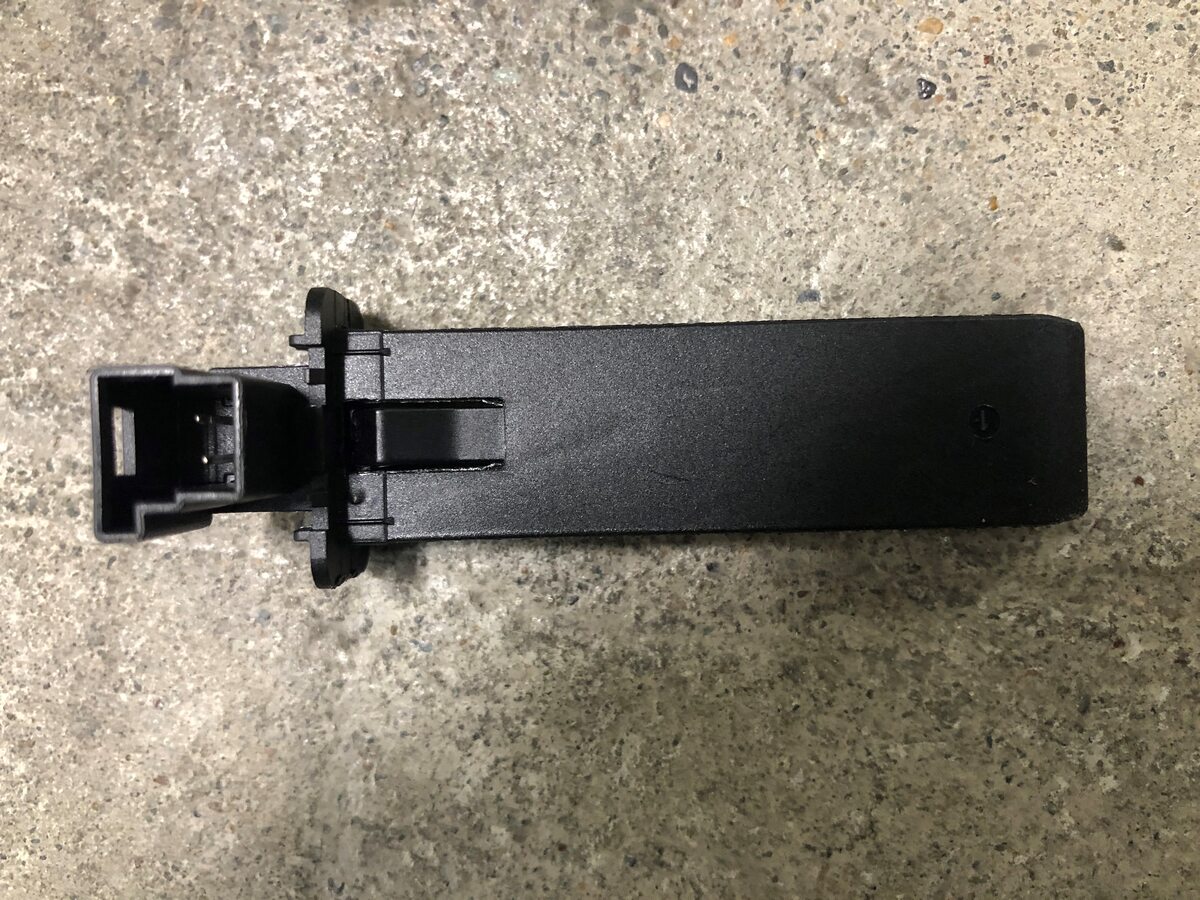

          Use a 90 degree pick to release the
            tabs (x2) that attach the RH airwave duct thermistor to the duct assembly, and then
            remove the thermistor from the assembly.


安装
-

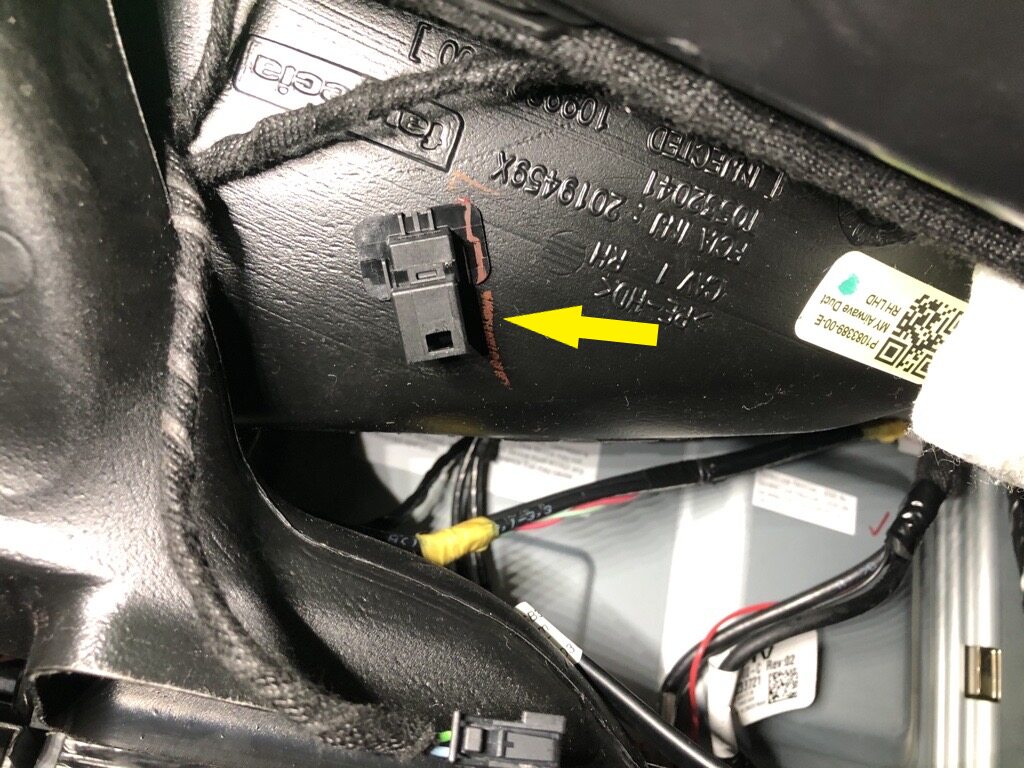

          Install the RH airwave duct thermistor
            into the duct assembly.
          注Make sure both tabs are fully engaged.
 -
          Connect the RH airwave duct thermistor
            connector.

 - Install the front passenger knee airbag assembly. See 气囊 - 膝部 - 副驾位(拆卸和更换).
