12V 电源插座 - 后备箱（拆卸和更换）

校正代码 17303202 0.12 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 N/A

拆卸

Open the liftgate.
Open the LH front door.
Disconnect 12V/LV power. See 12V/低压电源（断开和连接）.

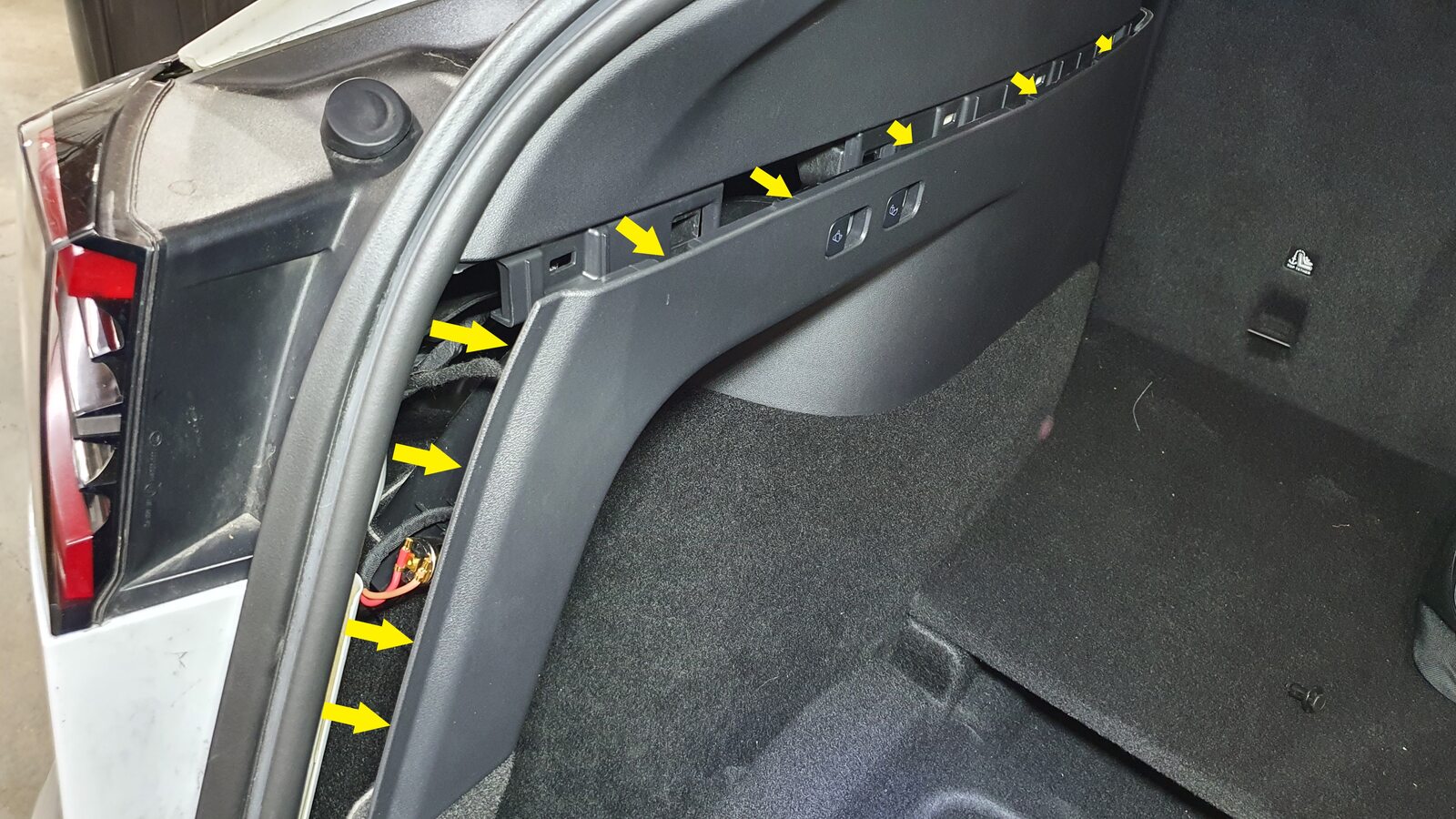

Release the clips (x4) that attach the top edge of the LH trunk side trim to the vehicle, and then carefully pull back the top edge of the trim.
提示：推荐使用以下工具：
- Plastic trim tool

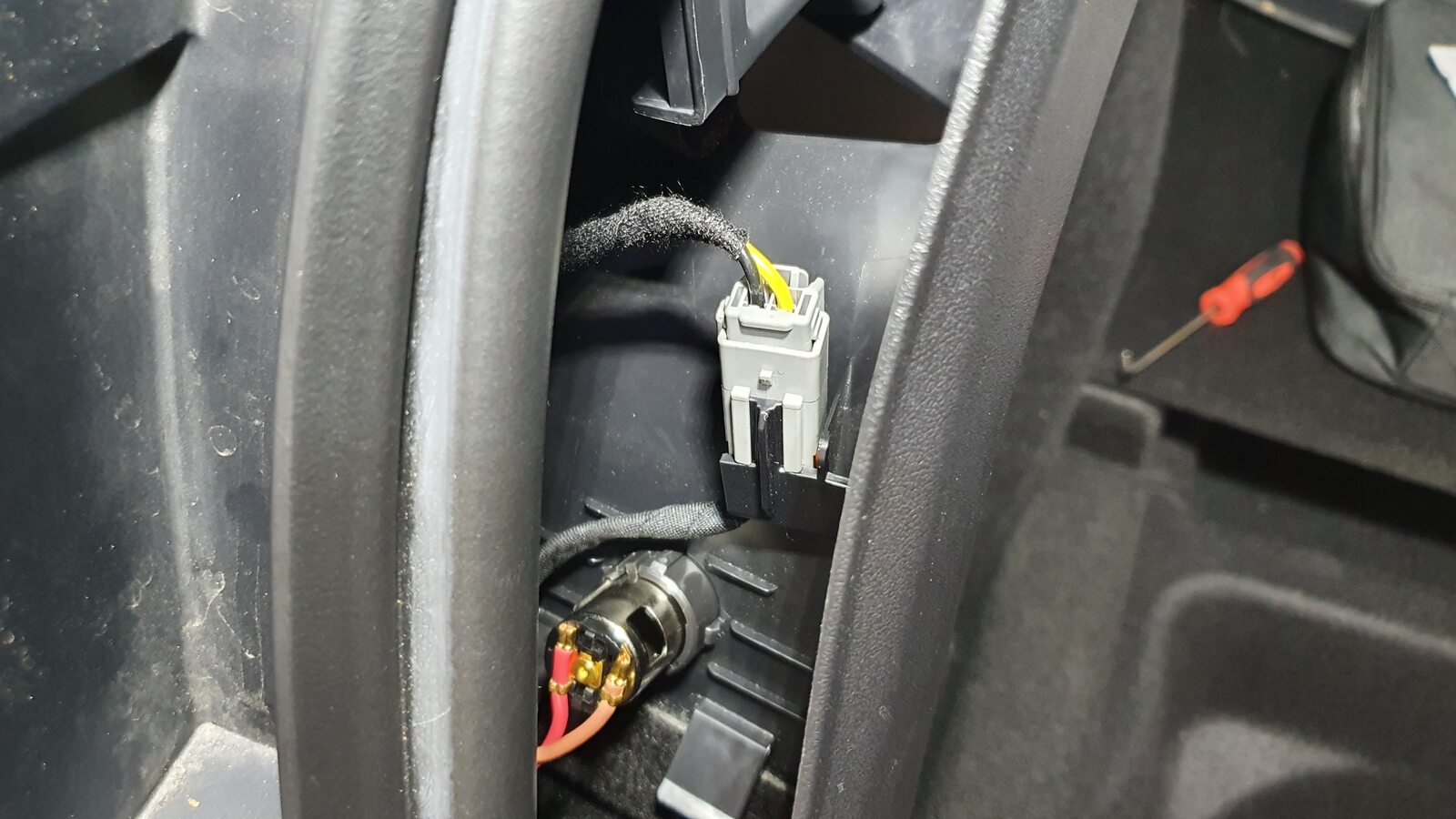

Disconnect the rear trunk power socket 12V connector.

警告
Avoid pulling the connector wiring. Press and pull to release the connector.

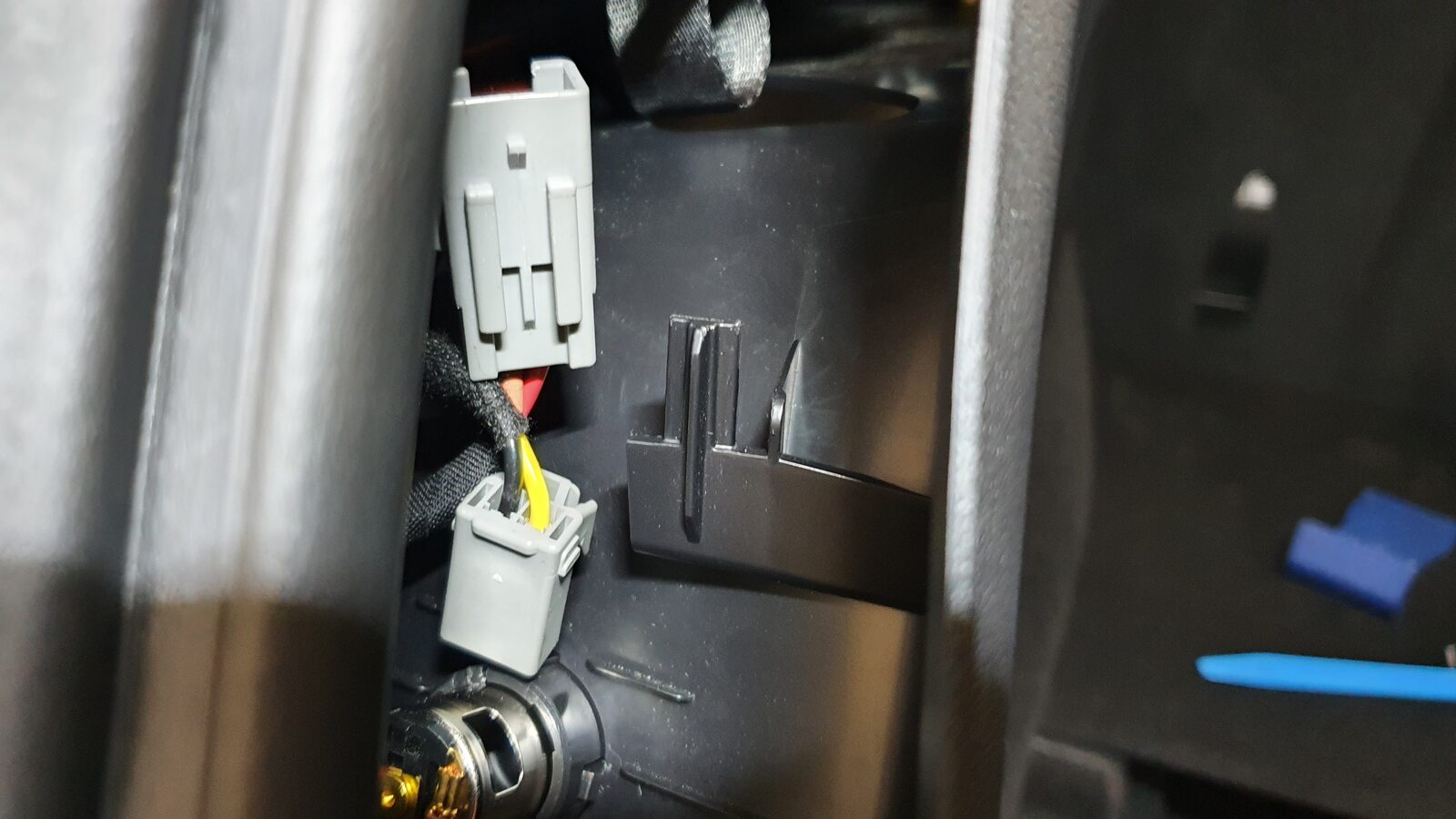

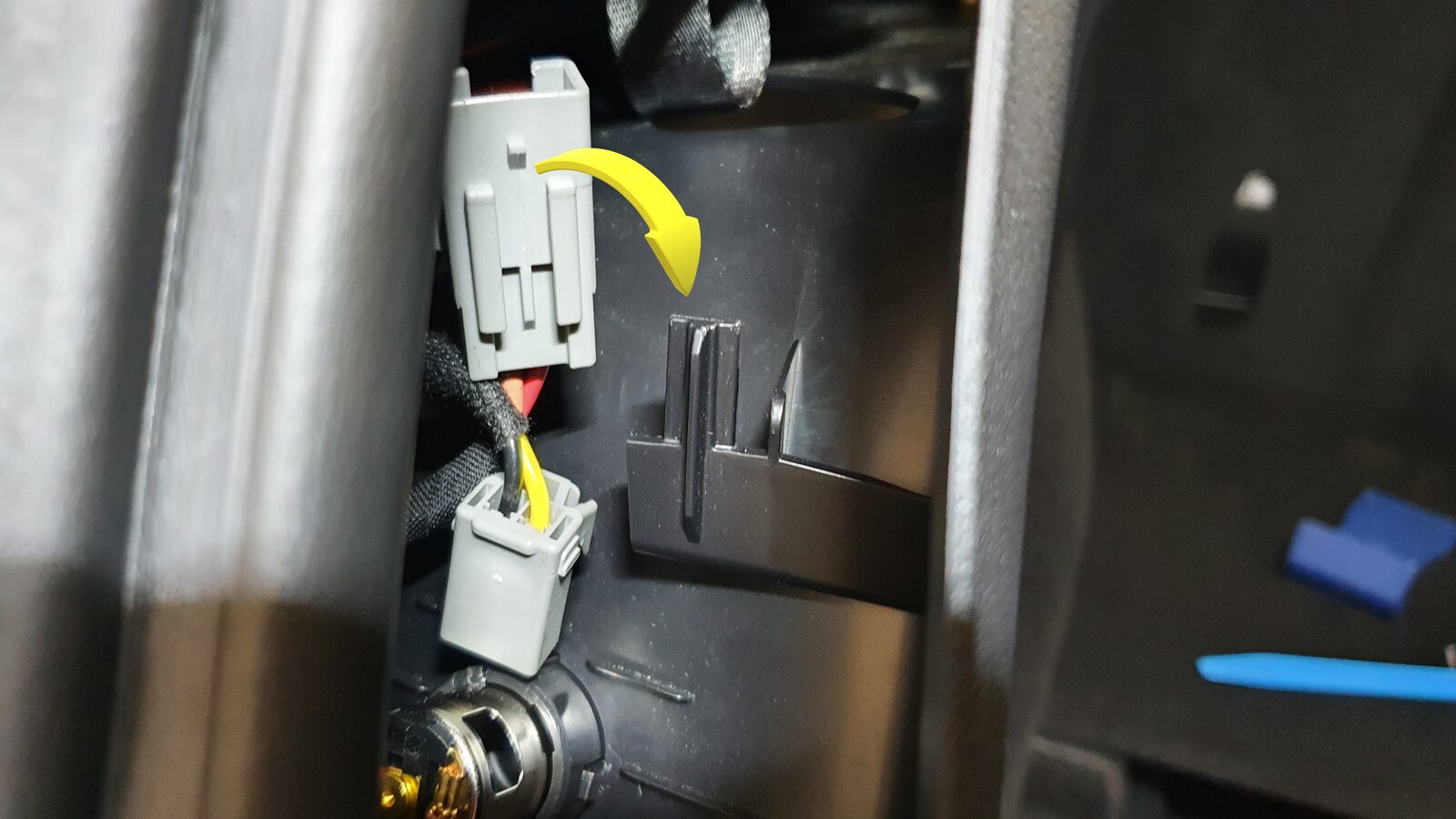

Release the rear trunk power socket 12V connector from the LH trunk side trim.

注

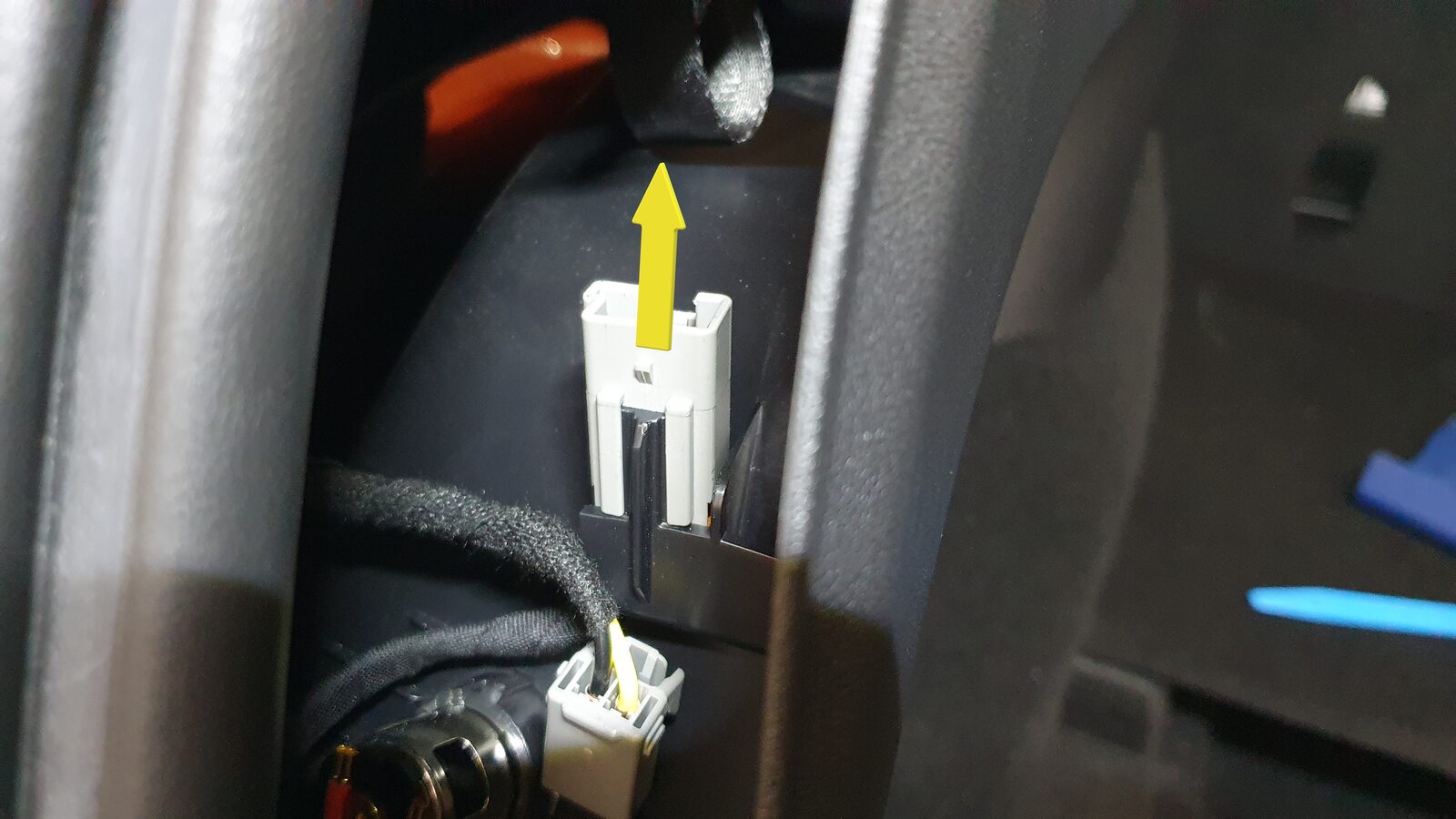

Pull the connector upwards until it clears the mounting tab.

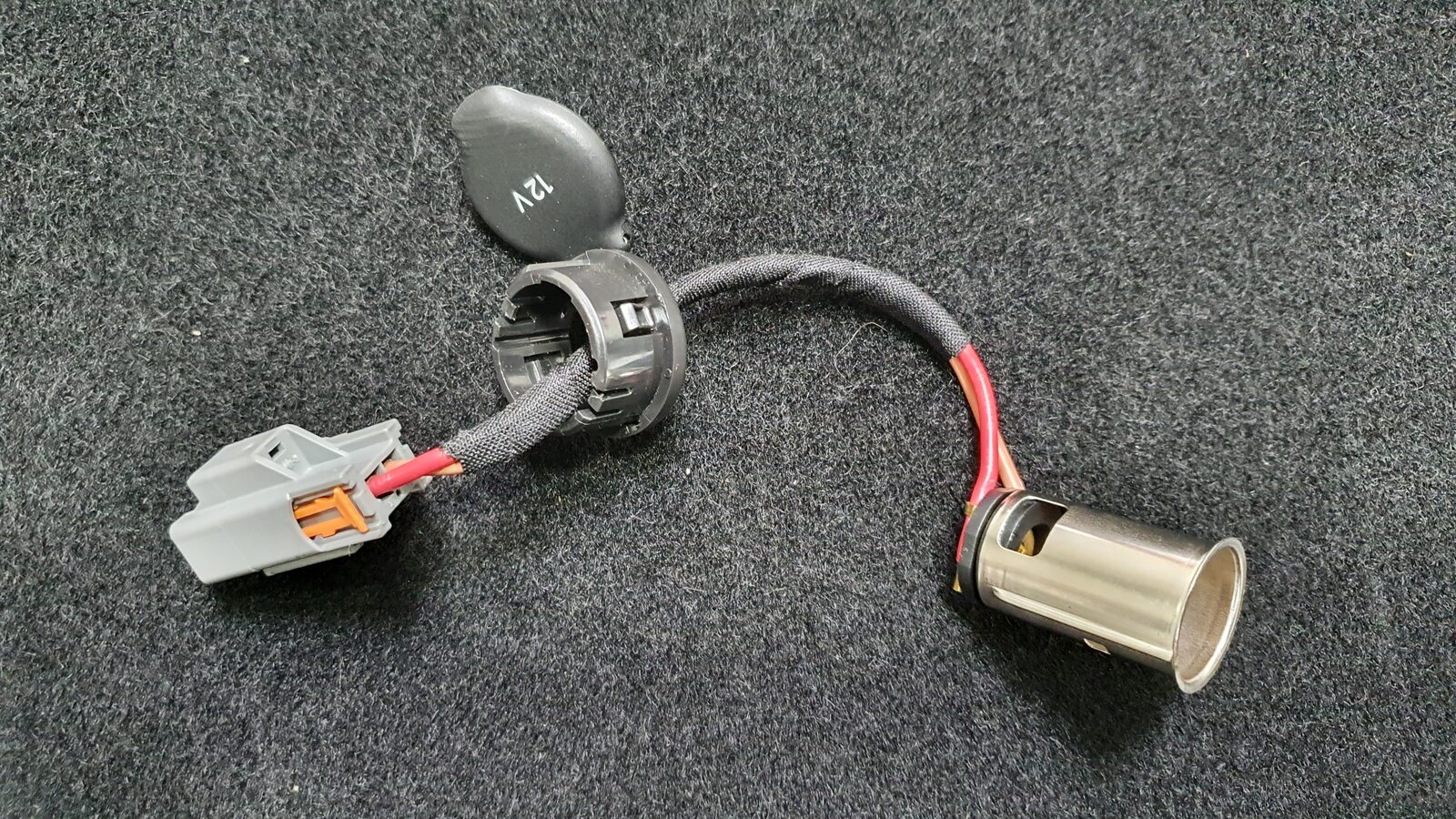

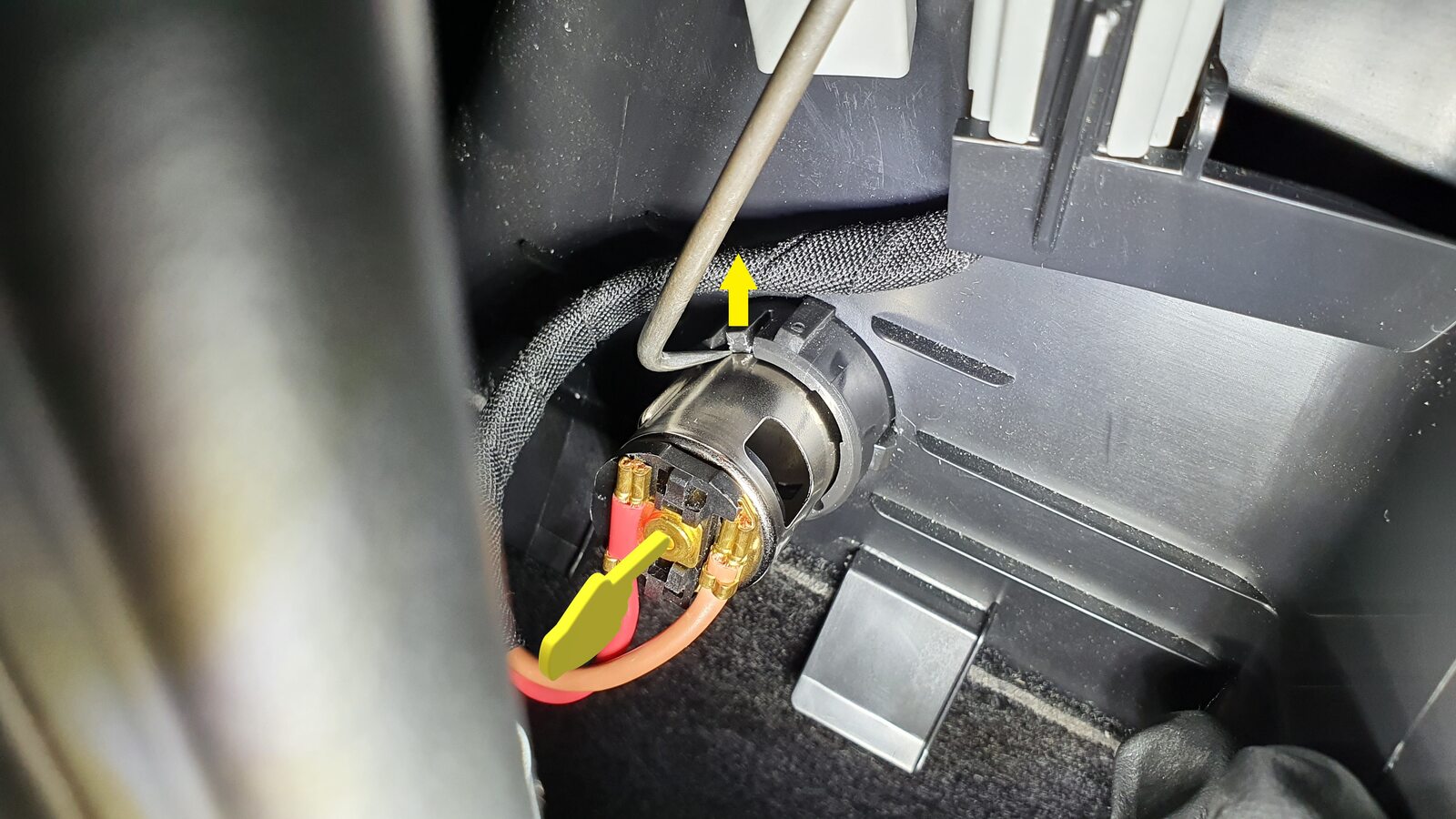

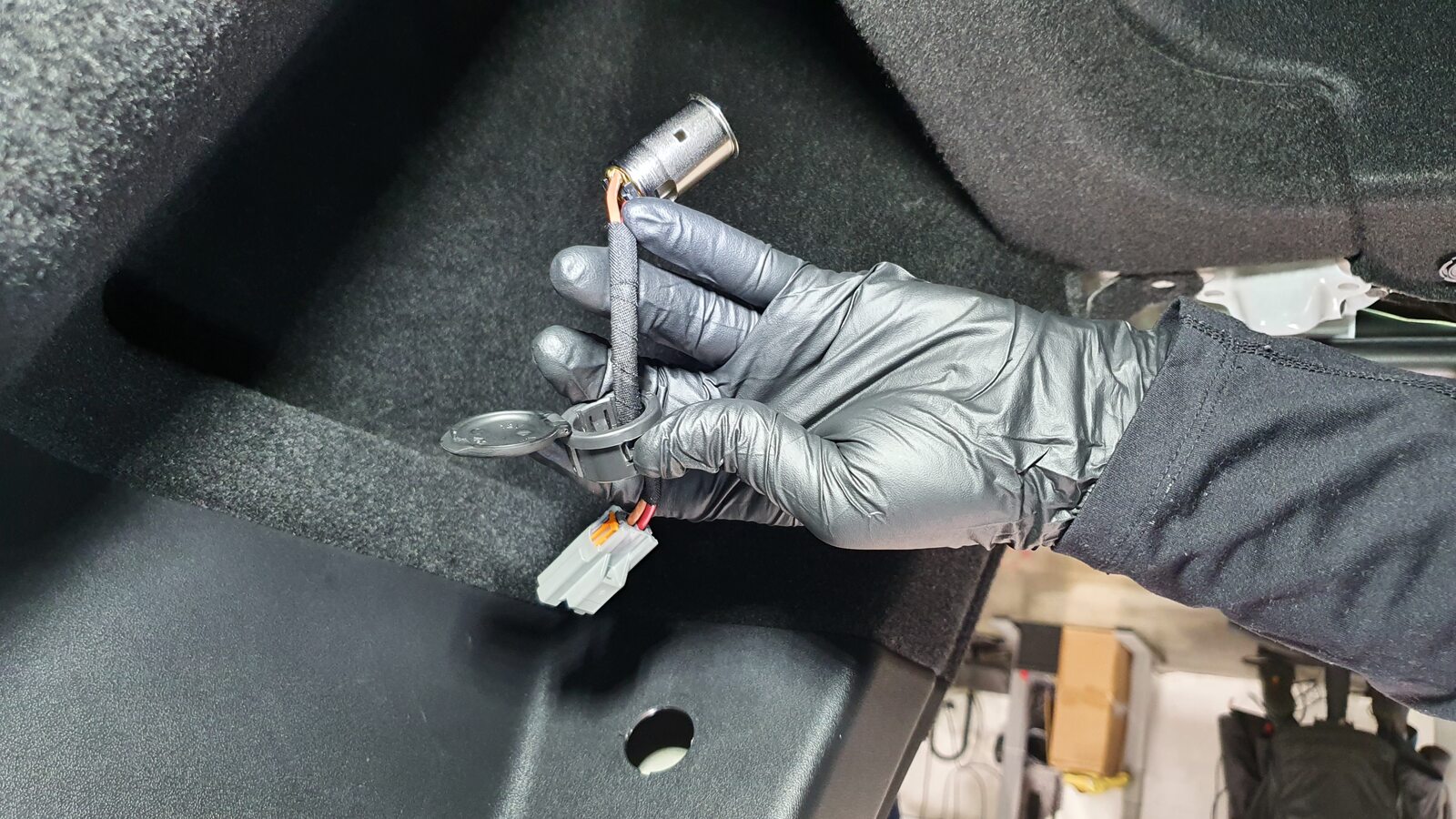

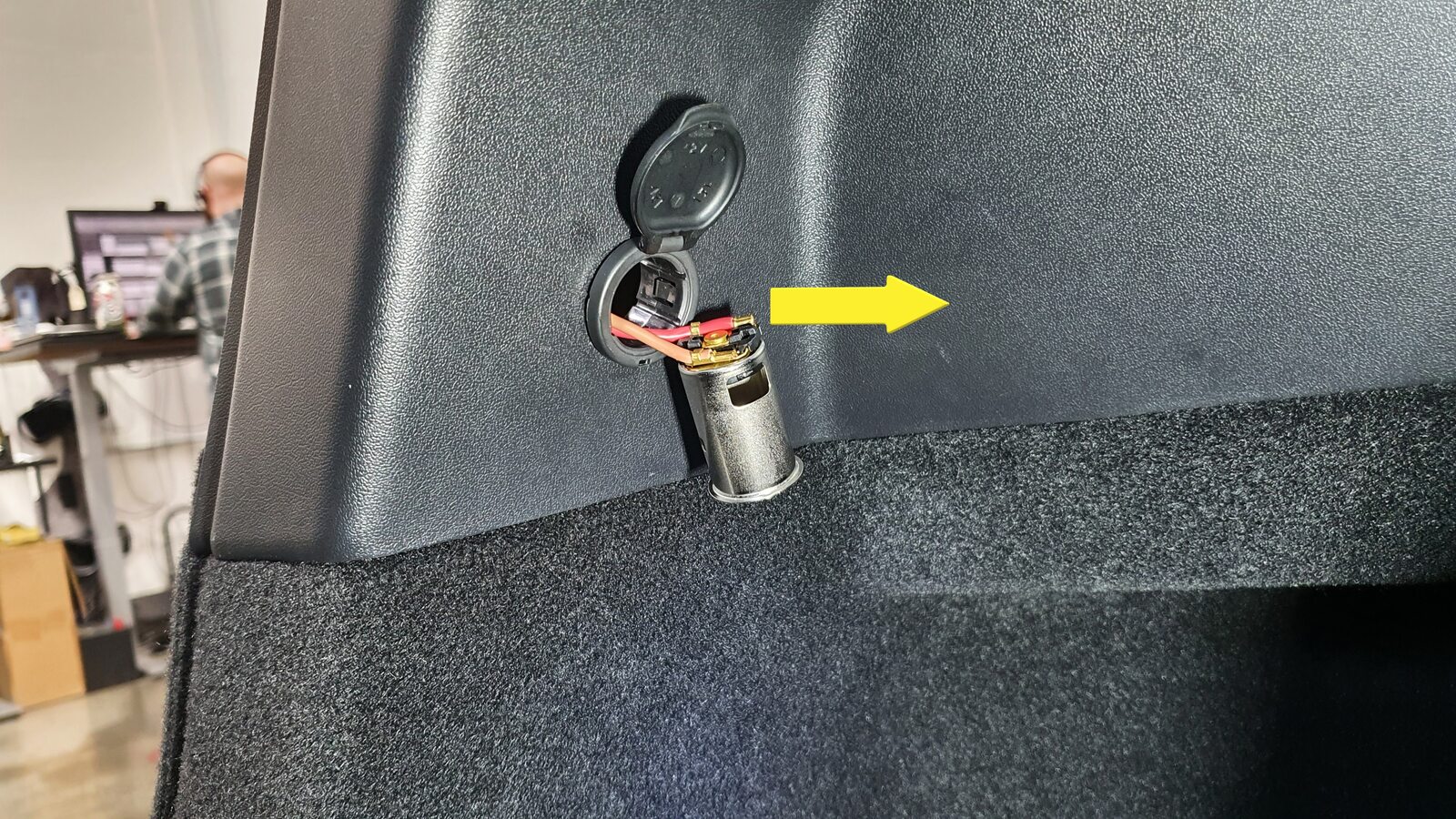

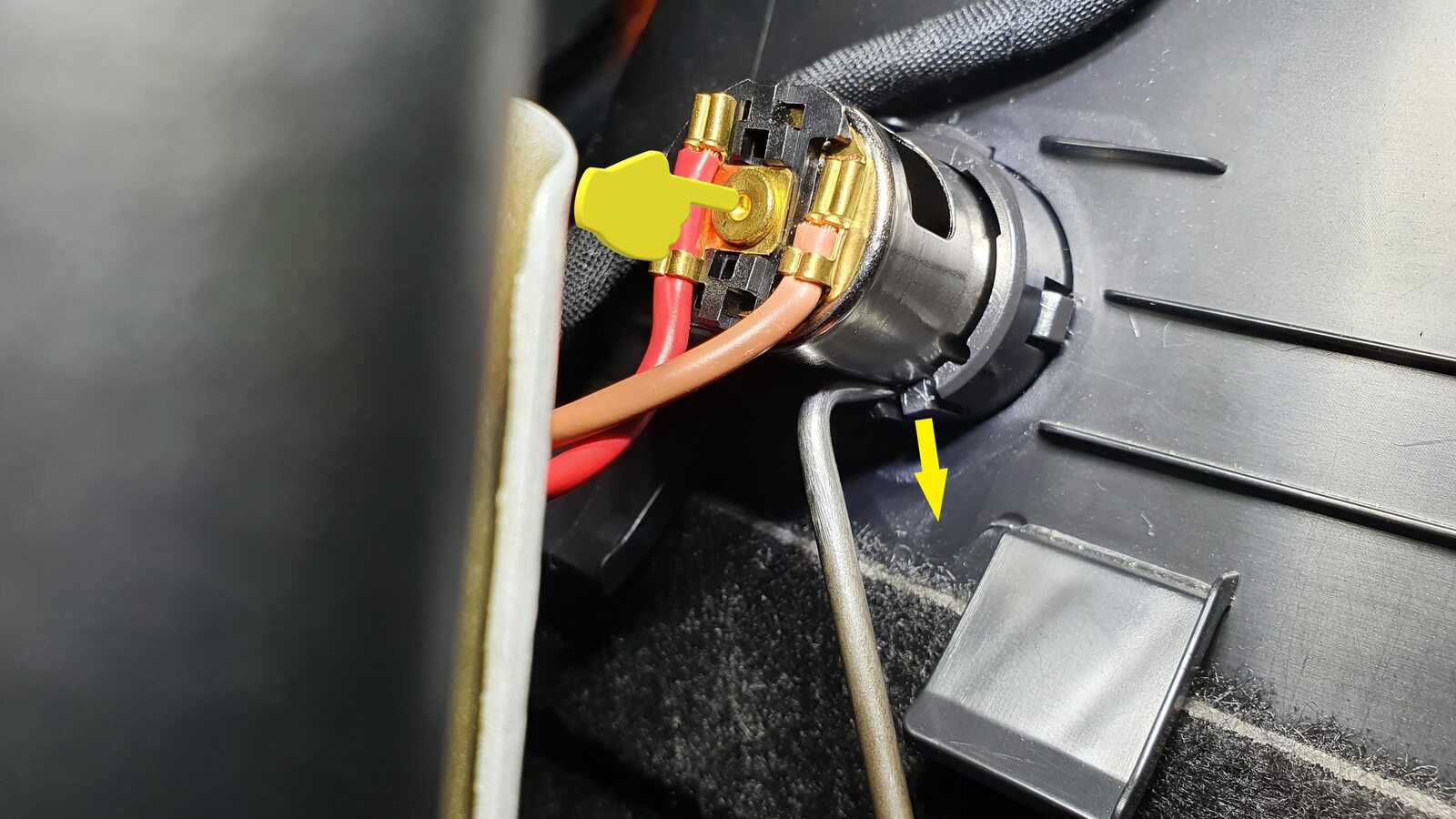

Gently push the rear trunk power socket 12V forward, while simultaneously pulling the upper and lower mount tabs outward to release the power socket 12V from the LH trunk side trim, and then remove the power socket 12V from the vehicle.
提示：推荐使用以下工具：
- 小号软柄拨子，90 度尖嘴，6 英寸

安装

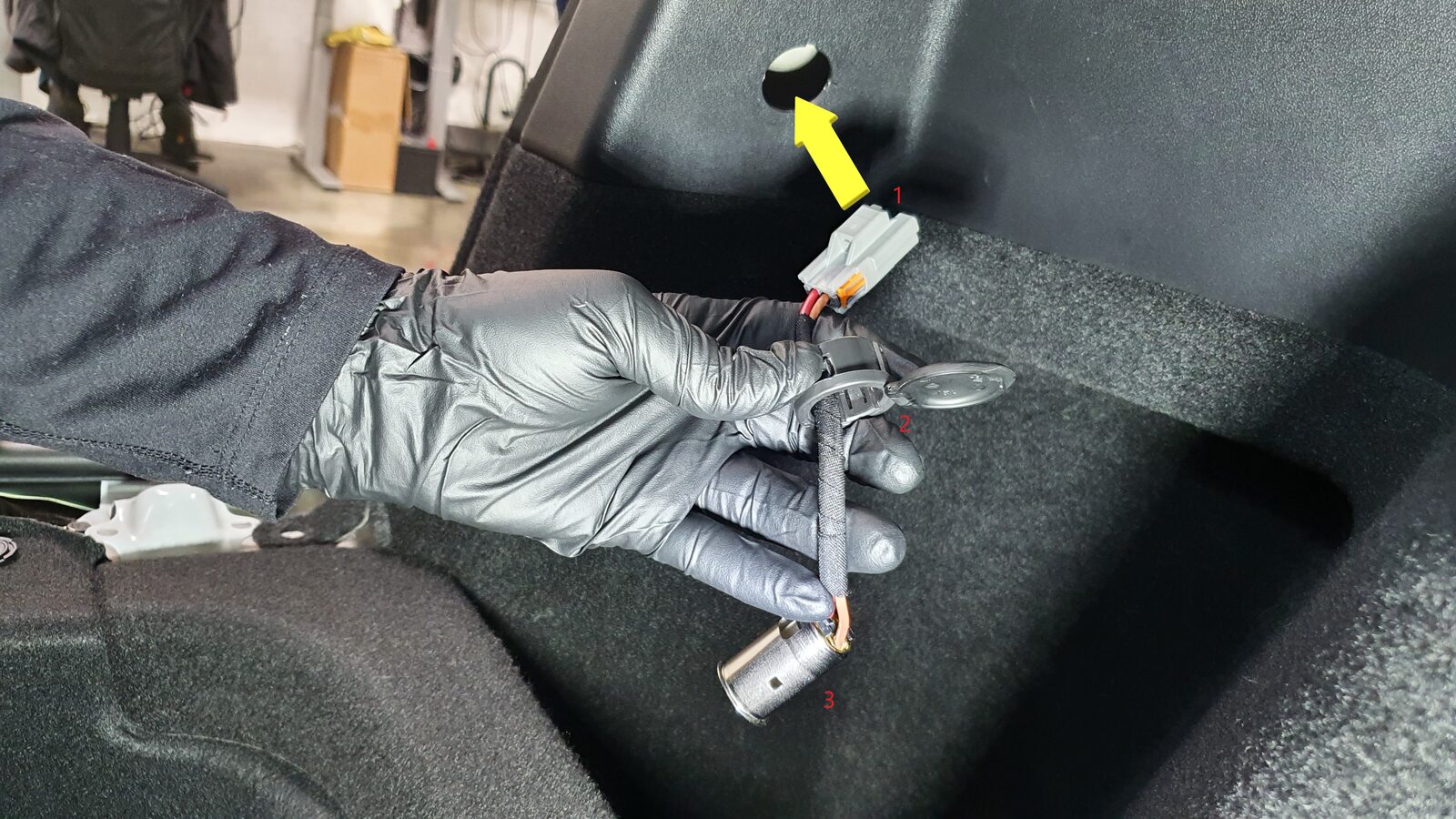

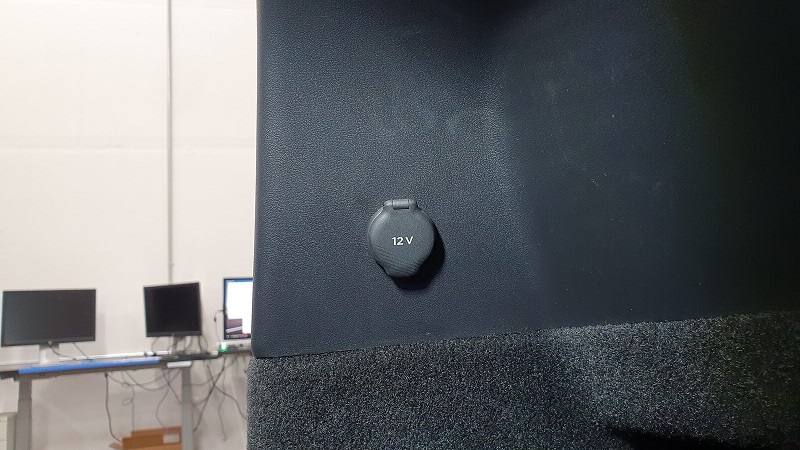

Position the rear trunk power socket 12V on the vehicle, insert the connector first, followed by the mount, and then the power socket 12V outlet. Gently push the outlet with the cover facing upwards to secure in place.

注
Ensure proper fitment of the power socket 12V.

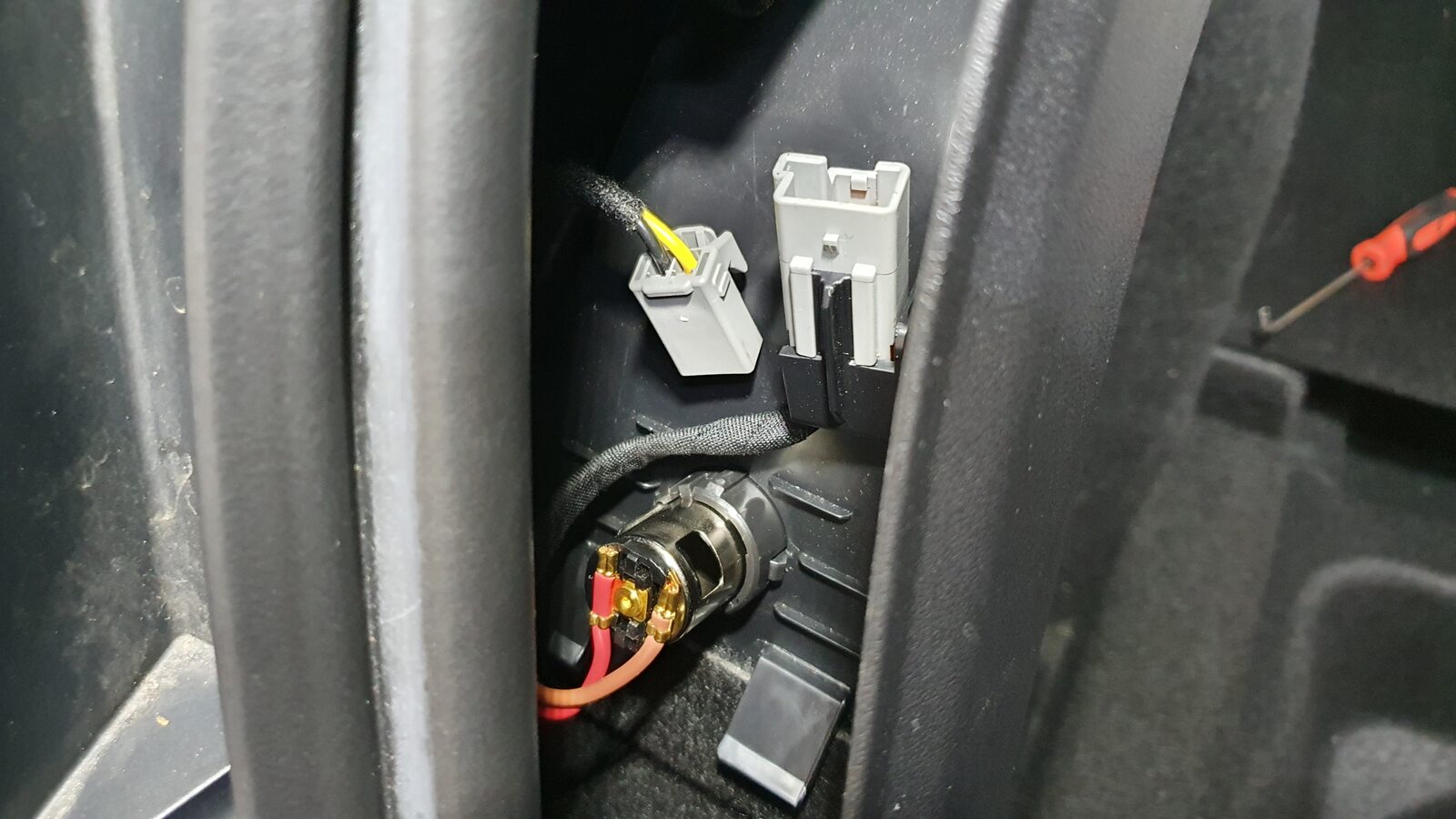

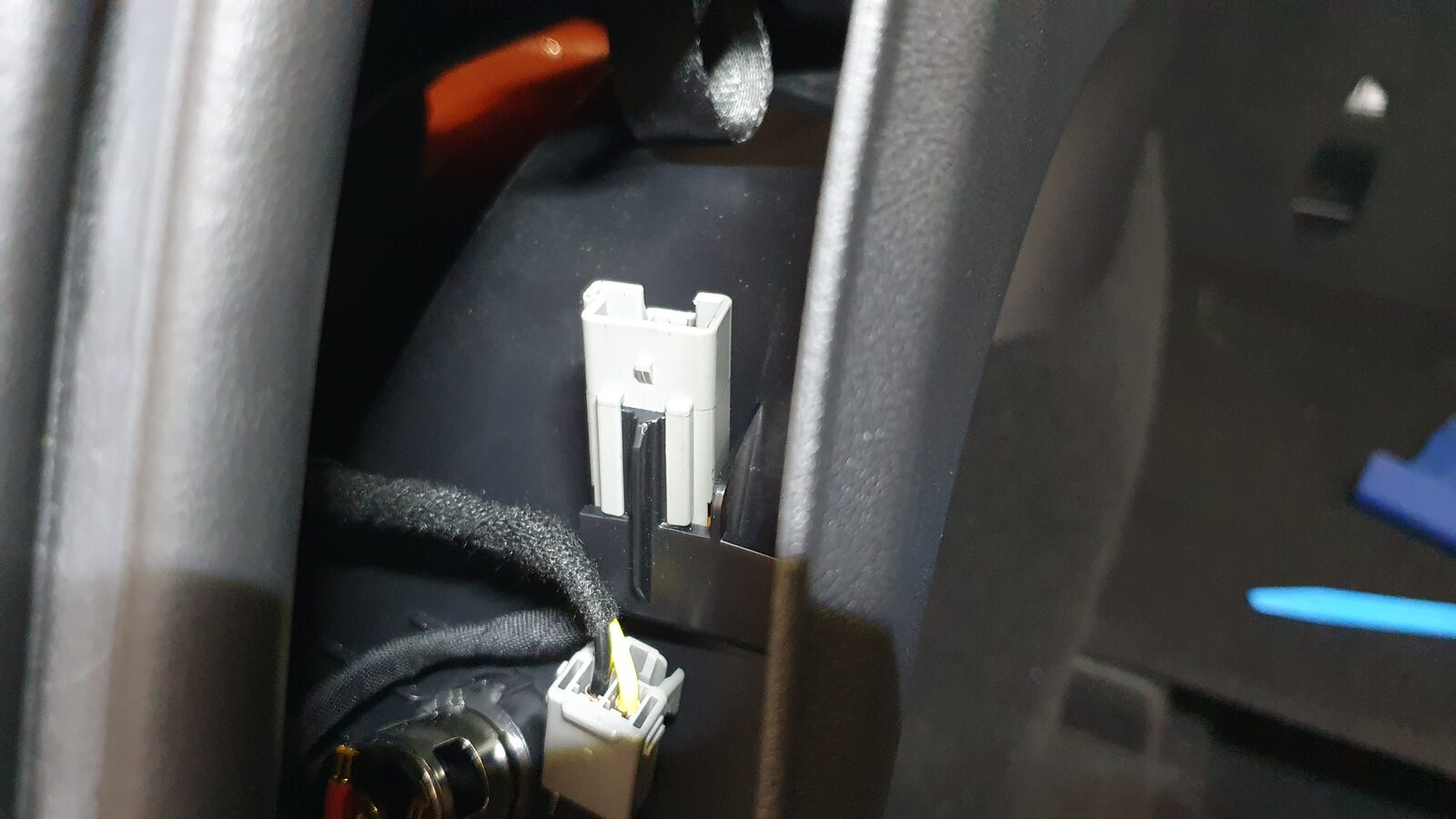

Install the rear trunk power socket 12V connector on the LH trunk side trim.

注
Push the connector downwards until fully lowered on the mounting tab.
Connect the rear trunk power socket 12V connector.

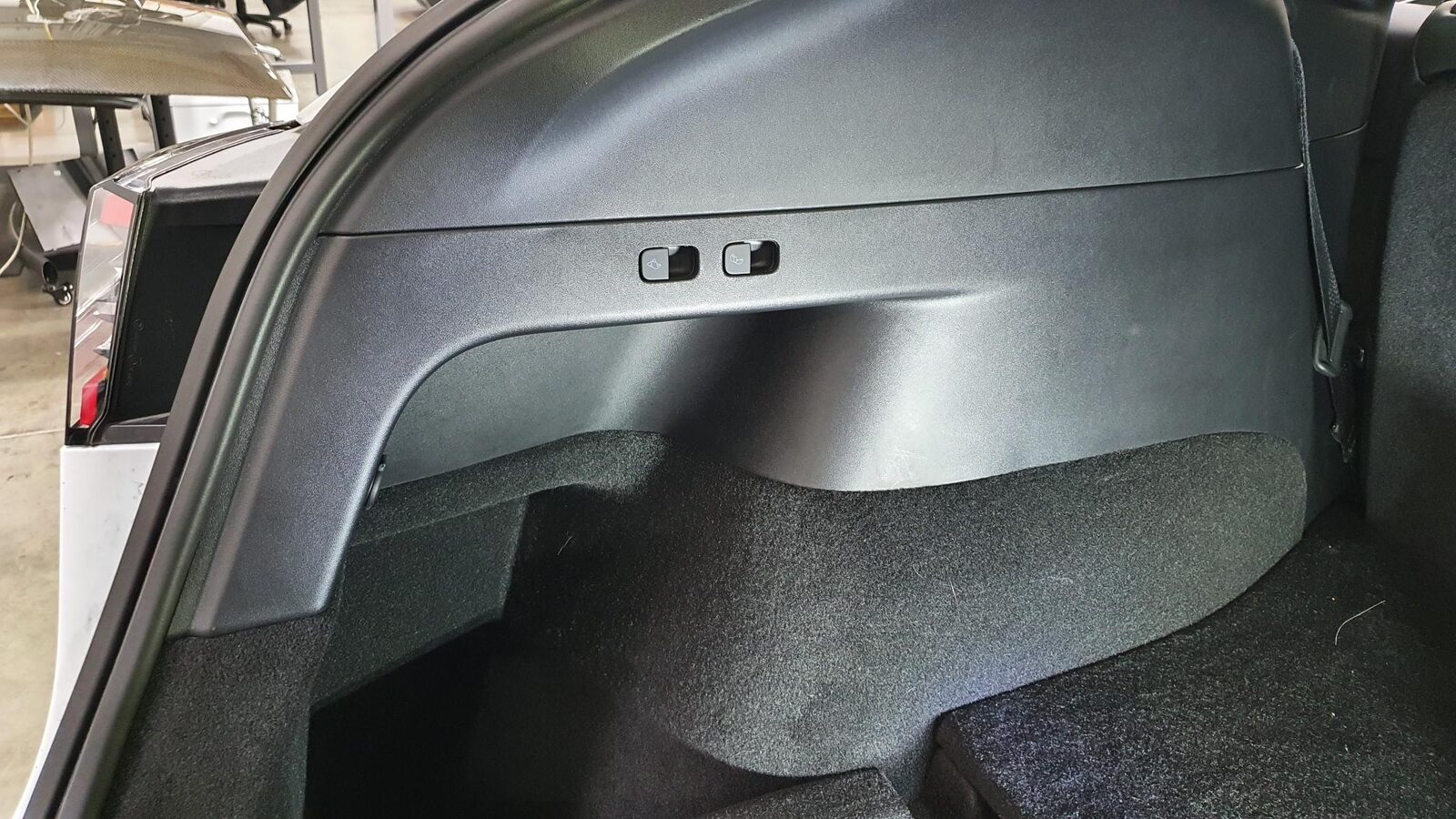

Install the clips (x4) that attach the top edge of the LH trunk side trim to the vehicle.

注
Replace clips as necessary. Attach the clip closest to rear seat back first, and then work towards the liftgate.
Connect 12V/LV power. See 12V/低压电源（断开和连接）.
Close the liftgate.
Close the LH front door.
