校正代码 44011132 0.84 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

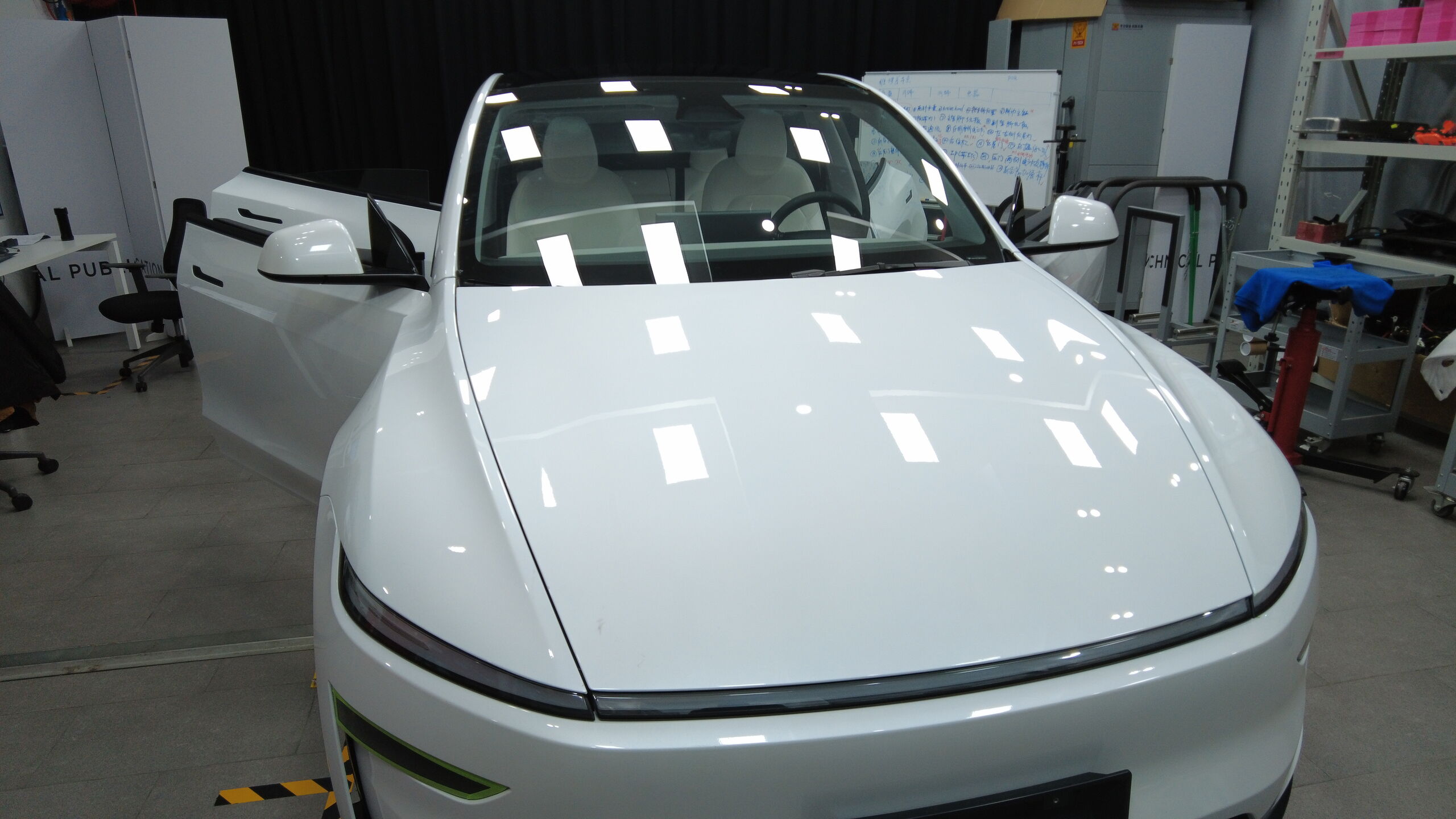

1. Open all four doors.



2. Lower all four windows.



3. Move LH front seat forward.



4. Move RH front seat forward.



5. Open the hood.



6. Remove the rear apron.

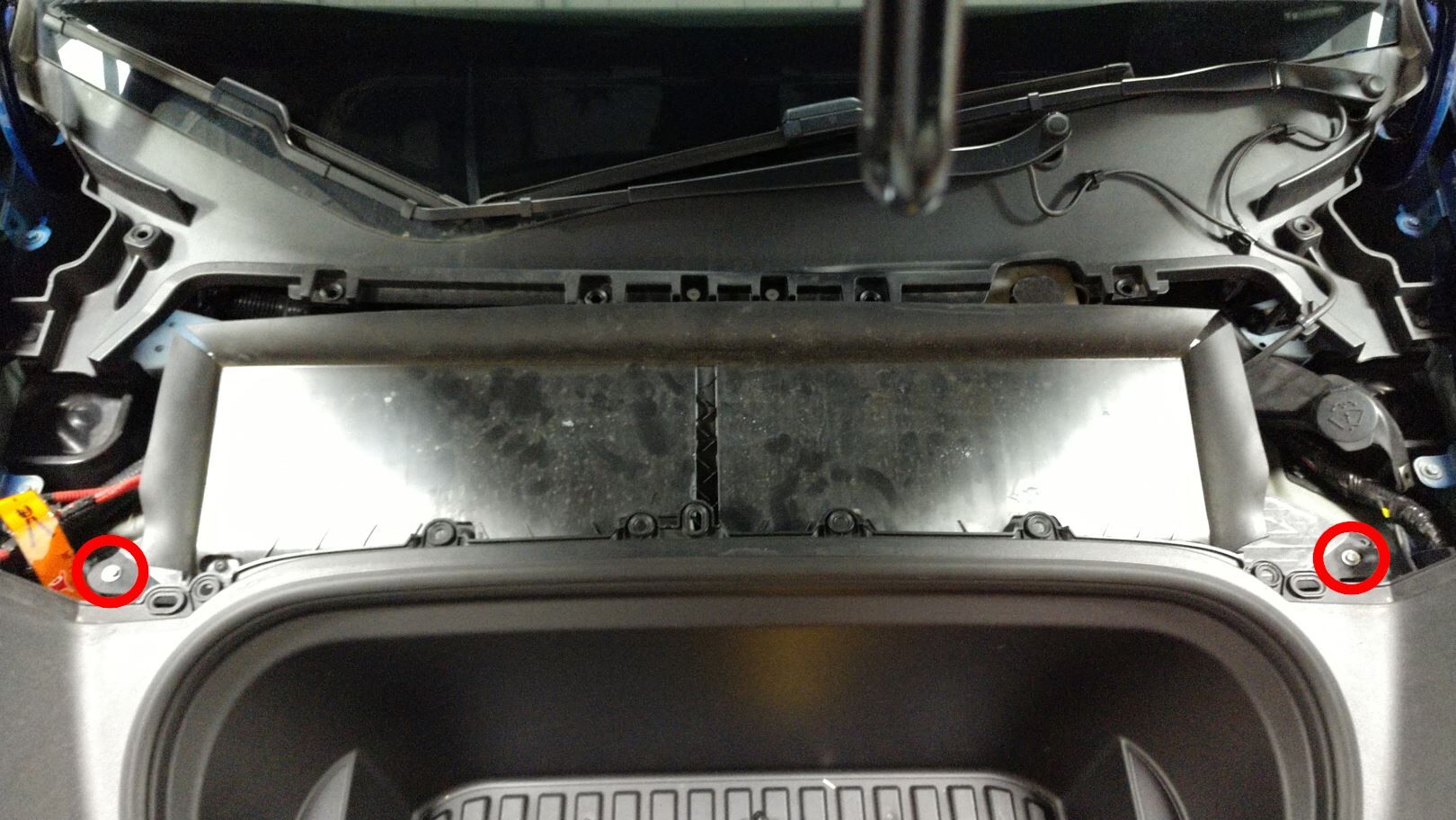

7. Remove HEPA filter assembly.
   注

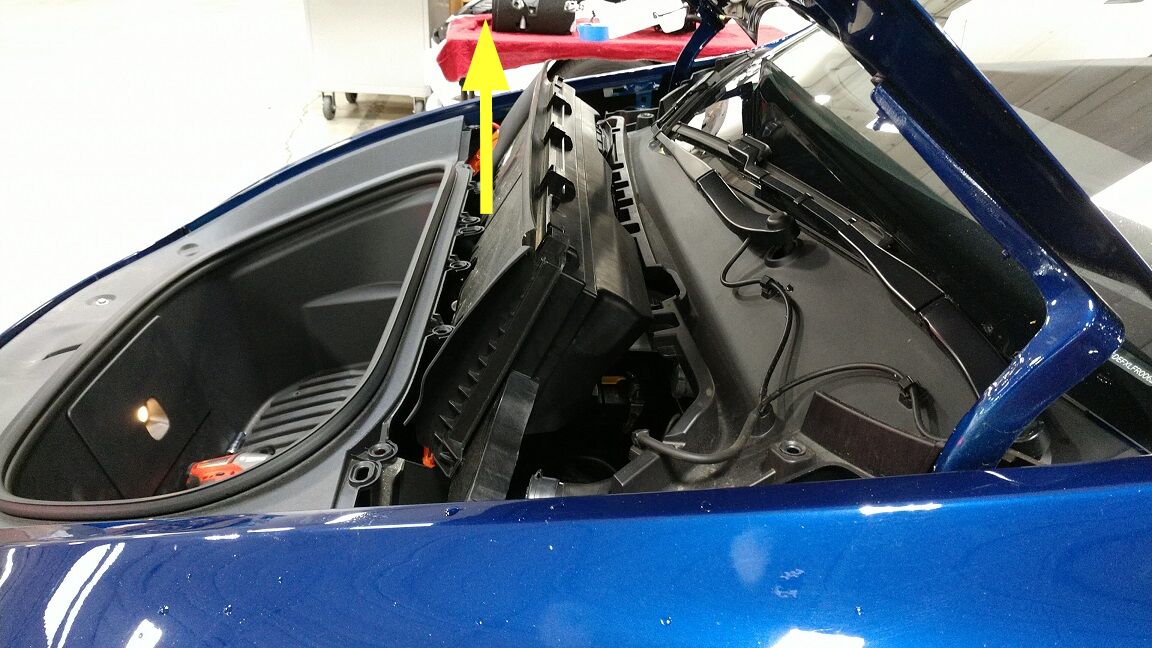

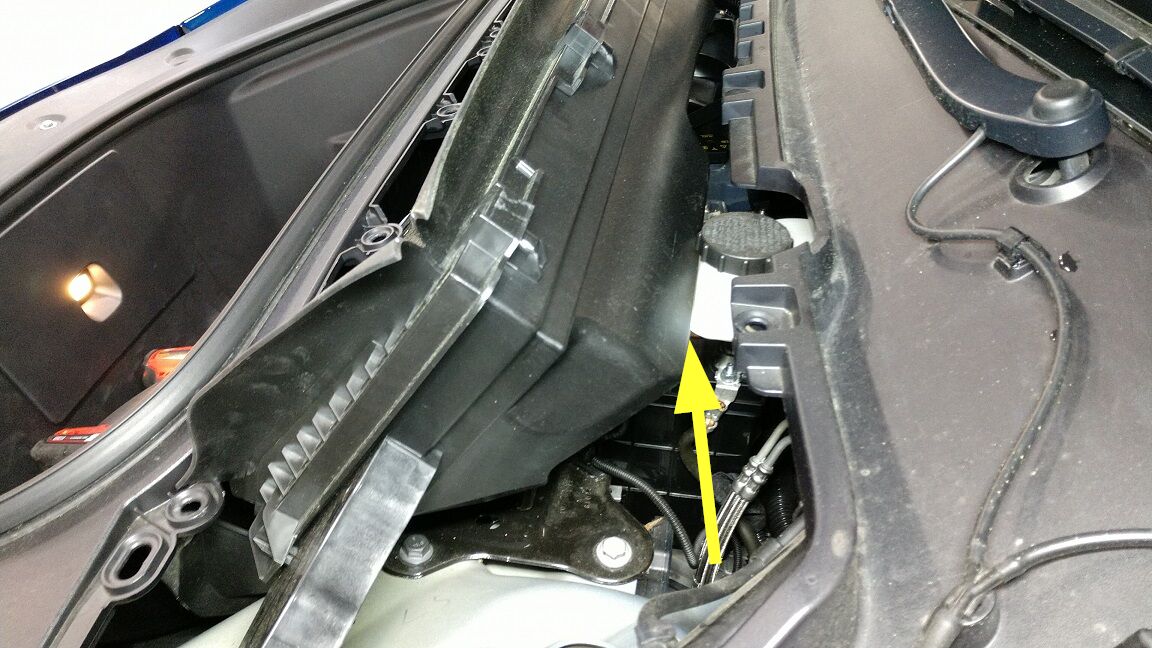

   2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly







8. Open charge port door.



9. Open liftgate.



10. Power off the vehicle using the touchscreen.



11. Disconnect the LV battery connector and First Responder Loop.





12. Empty all pockets and remove all metal objects such as watches and jewelery.

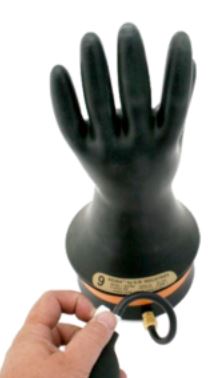

13. Inspect the HV insulating gloves for any damage.
    注

    确保高压绝缘手套未过期。有关某个地区的手套有效期信息，请参阅TN-15-92-003。



14. Put on the HV insulating gloves and leather over gloves.

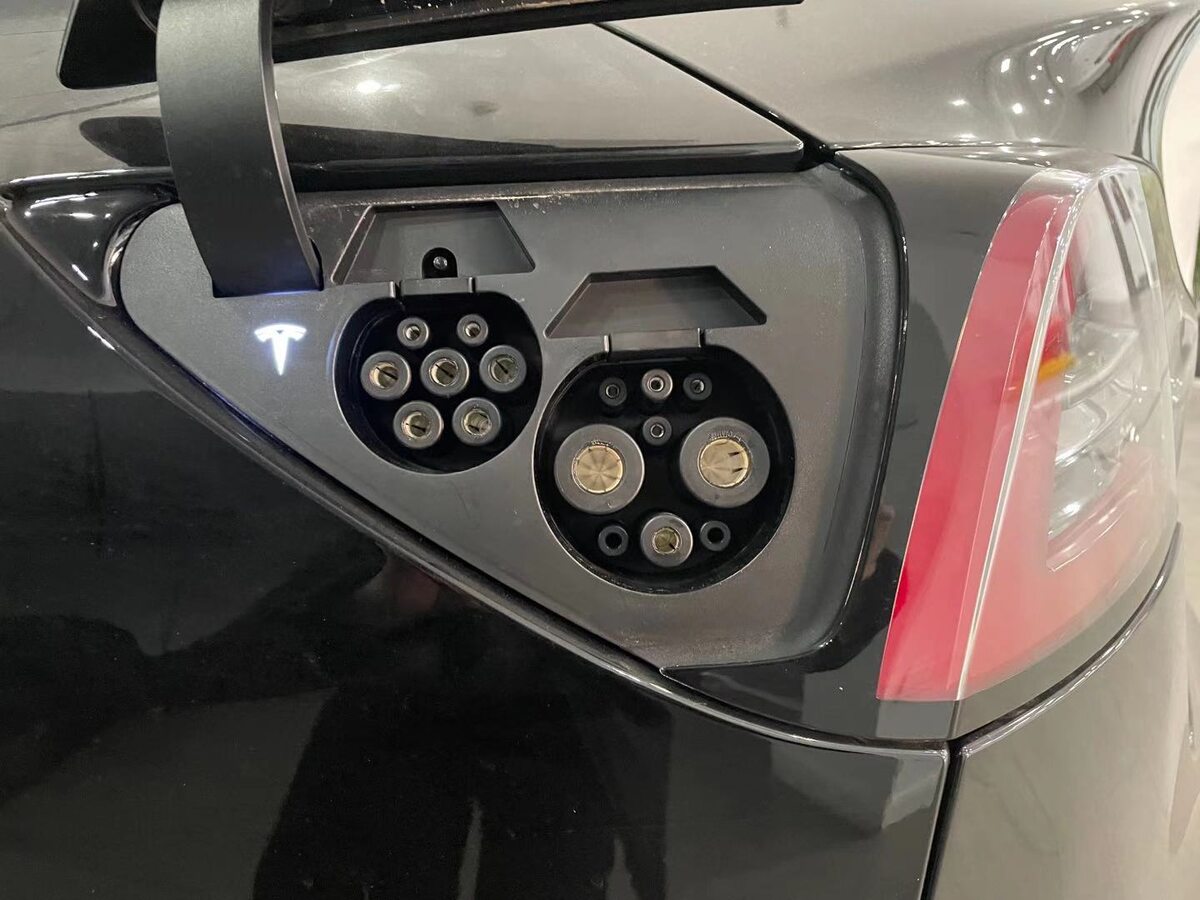

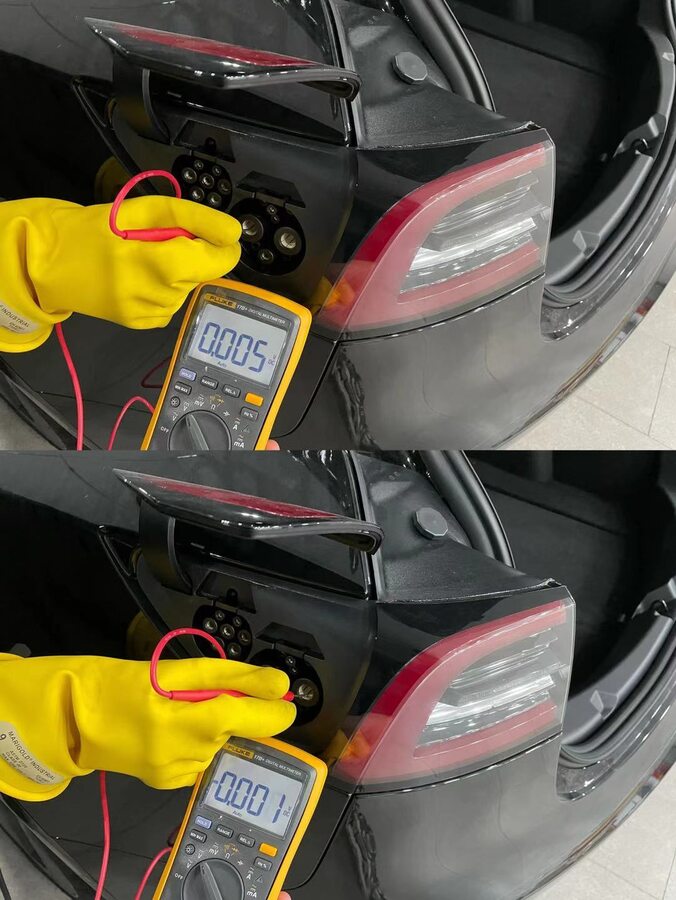

15. Verify there is no high voltage present at the charge port on the type 2 (AC charge inlet).
    注

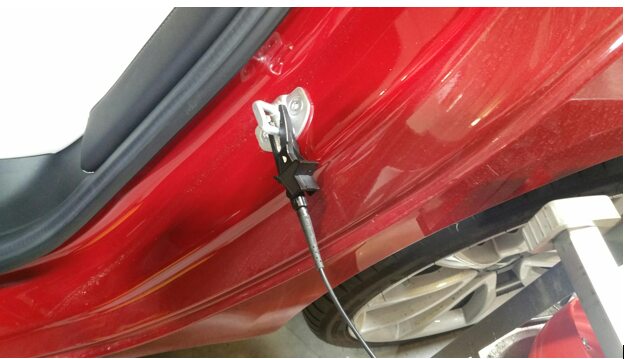

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Be sure to place the positive test lead on the side of the HV pin just past the plastic protective covers Measure the the voltage between B+ (the four dead front pins) to B- (rear left door striker as a ground for the isolation check), If voltage is greater than 10V, pack contactors are not open or welded, Stop work and reach out to Service Engineering.

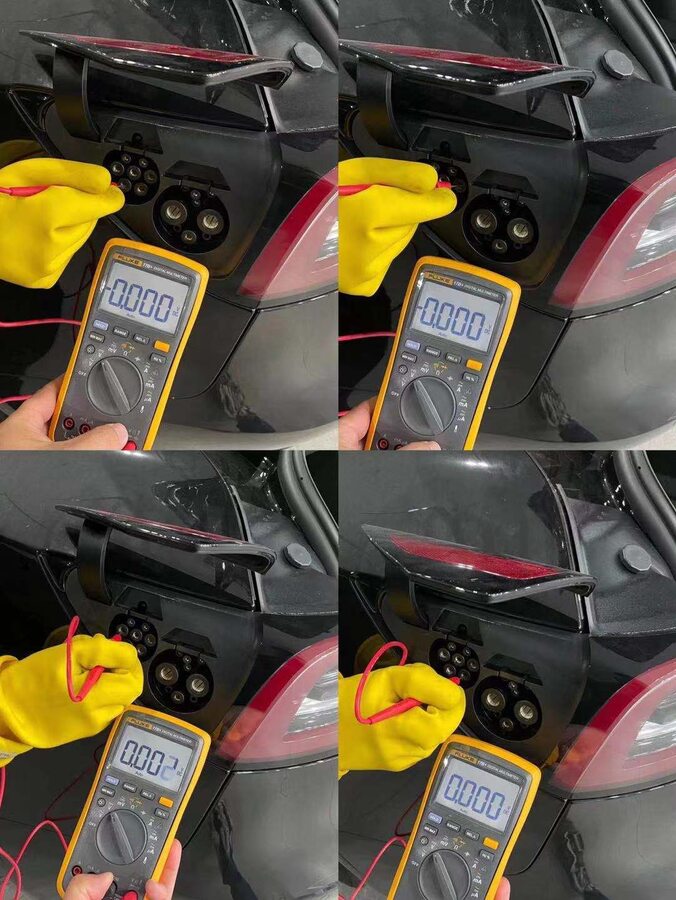

16. Verify there is no high voltage present at the charge port on the Combo 2 (DC charge inlet).
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Be sure to place the positive test lead on the side of the HV pin just past the plastic protective covers Measure the voltage between B+ (the two dead front pins) to B- (rear left door striker as a ground for the isolation check), If voltage is greater than 10V, pack contactors are not open or welded, Stop work and reach out to Service Engineering.





17. Remove HV insulating gloves.

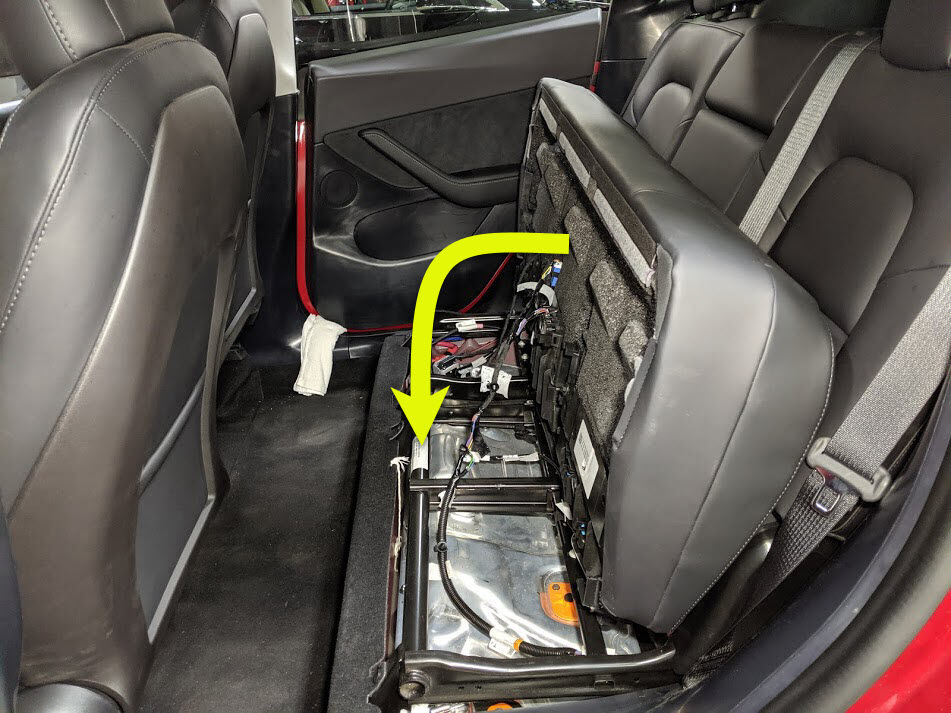

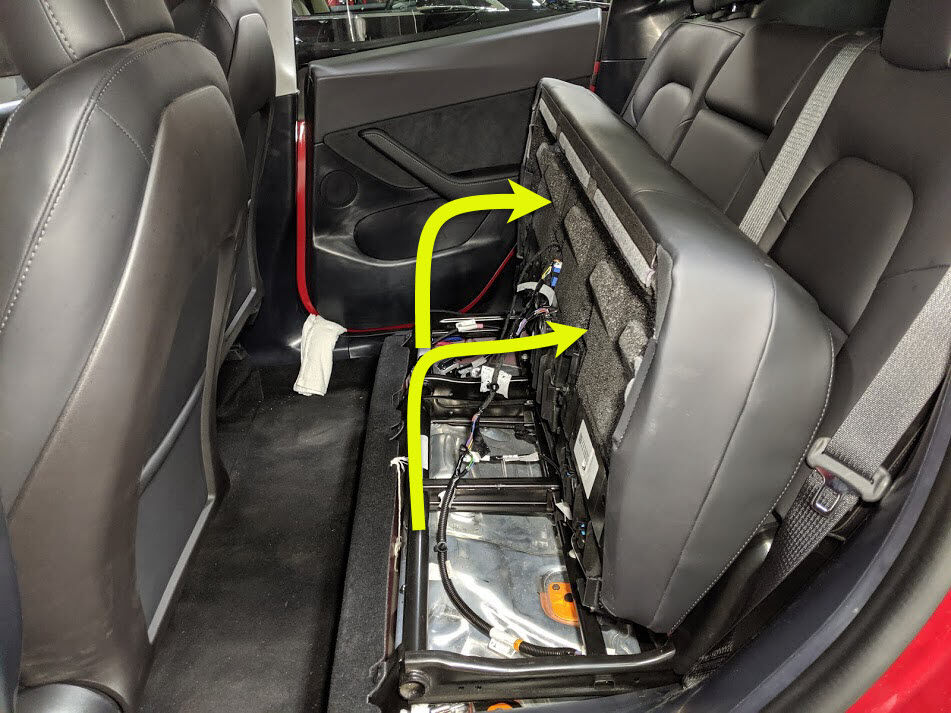

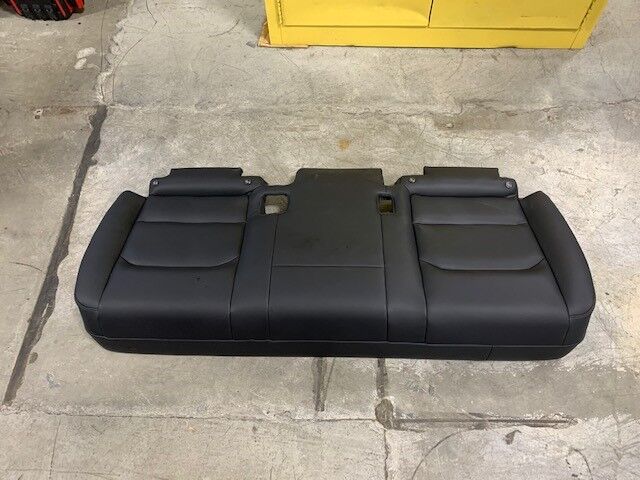

18. Remove 2nd row seat cushion.
    注

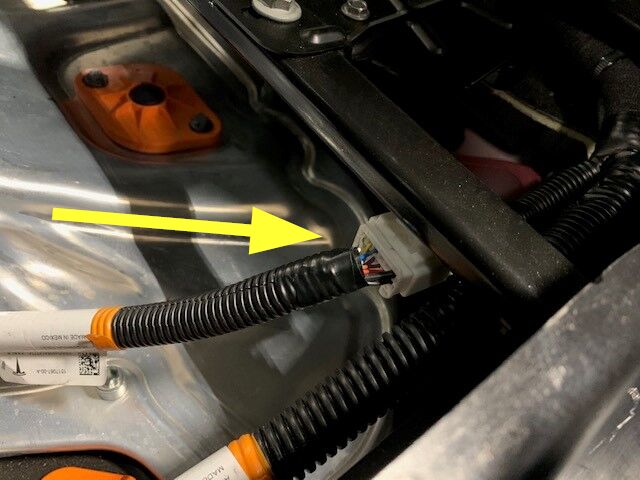

    1x connector, Lift front edge of seat cushion upward to release foam from frame

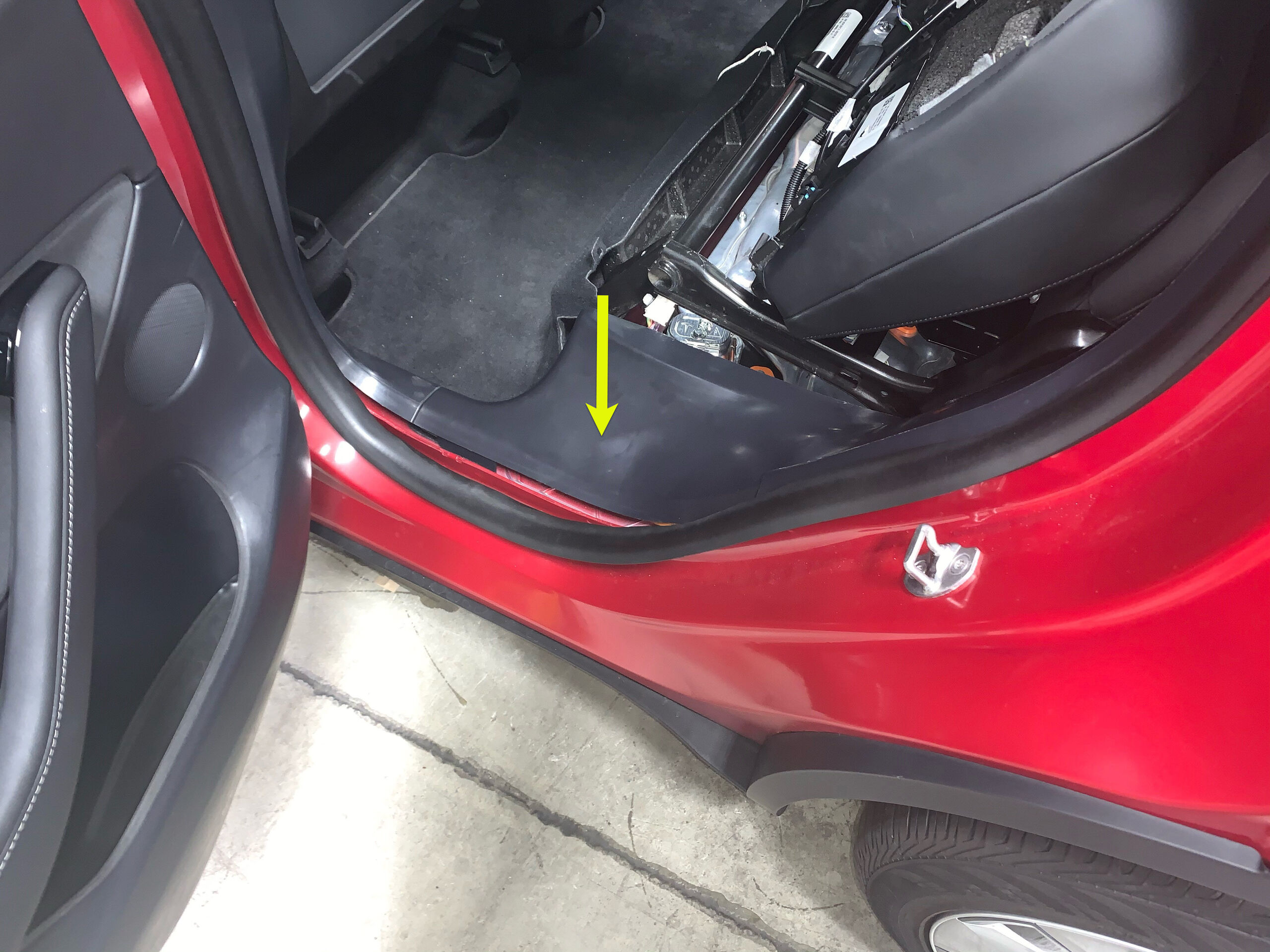

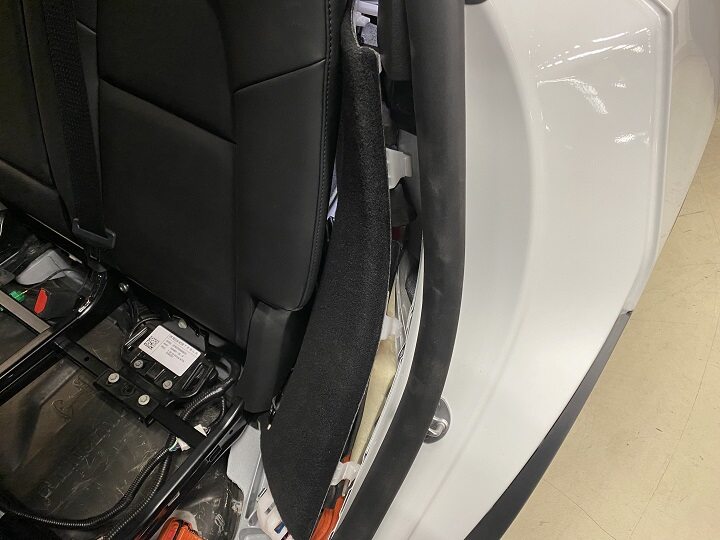

19. Partially remove LH rear door seal.

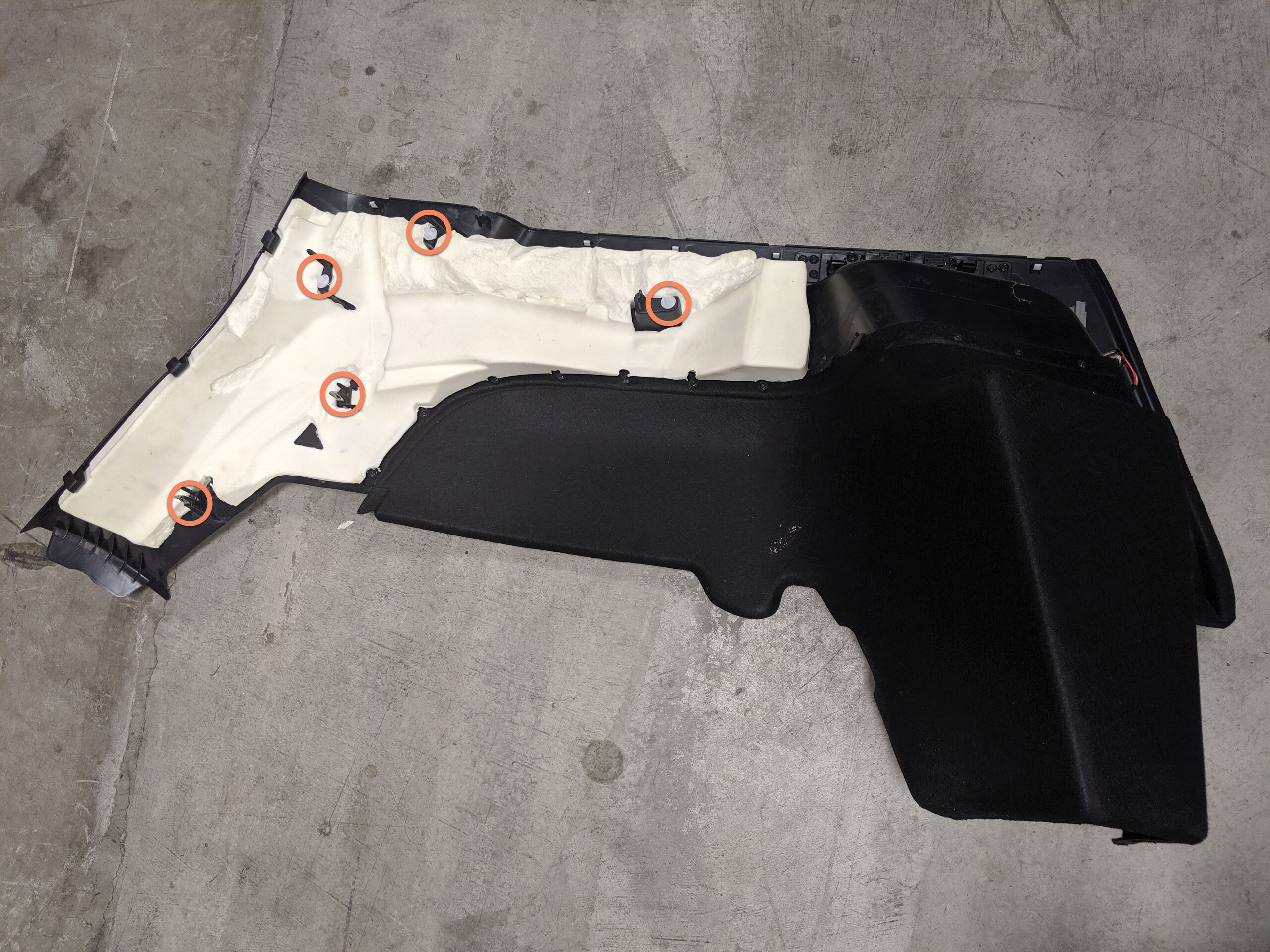

20. Remove LH Lower C-Pillar trim.
    注

    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at front of LH Lower C-Pillar trim working your way back towards rear of sill trim, trim part may slightly differ, by vehicle build location,Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later.

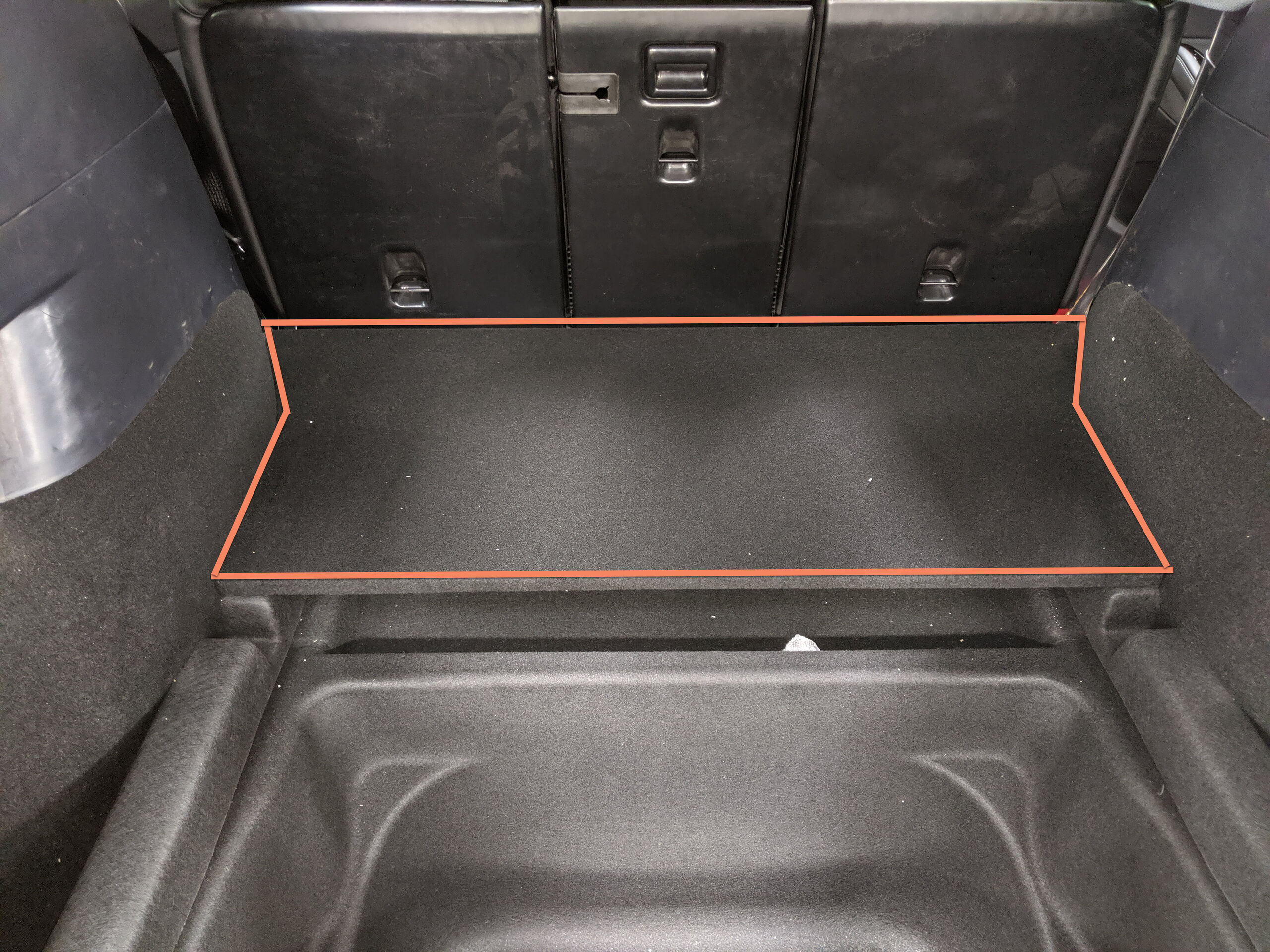

21. Remove rear load floor.



22. Remove front load floor.



23. Remove trunk sill trim.
    注

    4x clips





24. Remove LH load floor bracket.
    注

    2x tabs, 2x clips, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later.

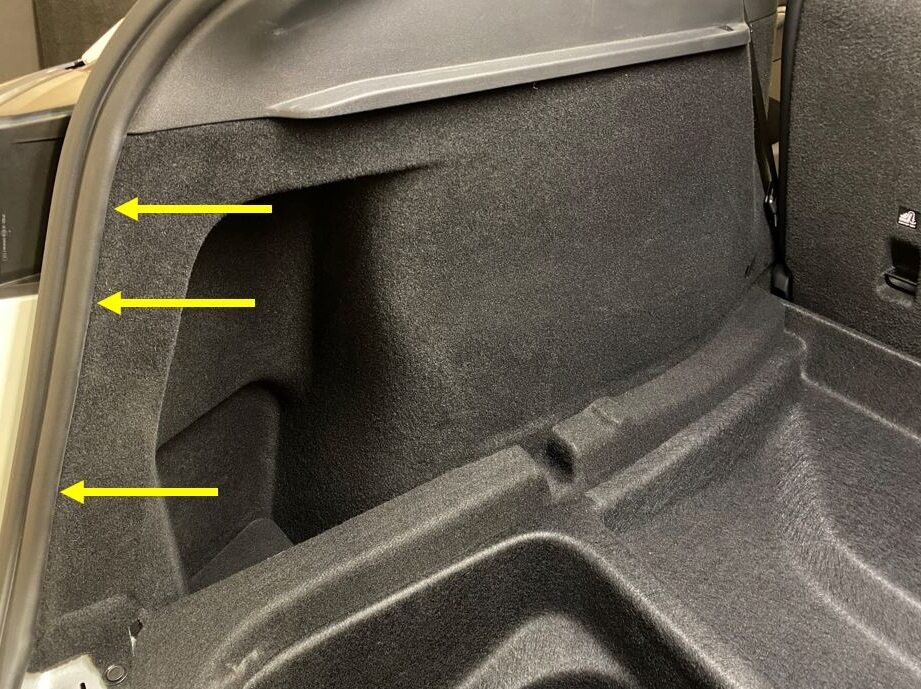

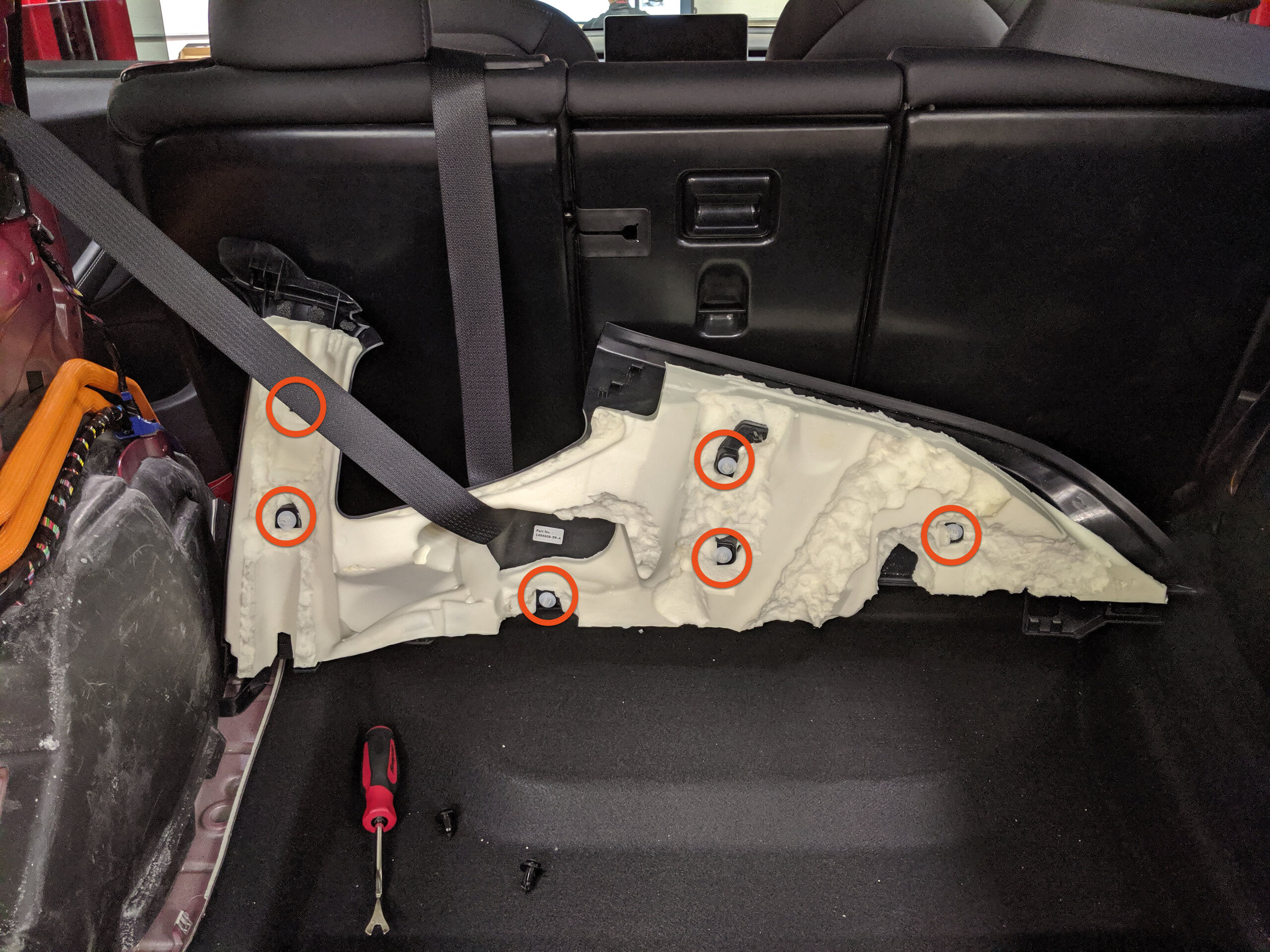

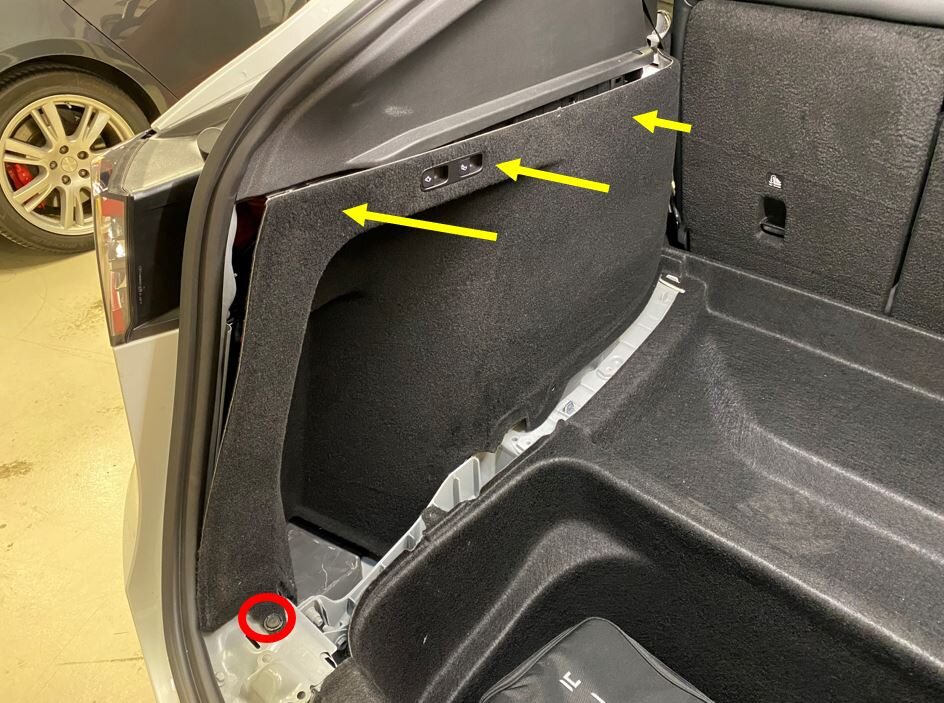

25. Remove LH trunk side trim.
    注

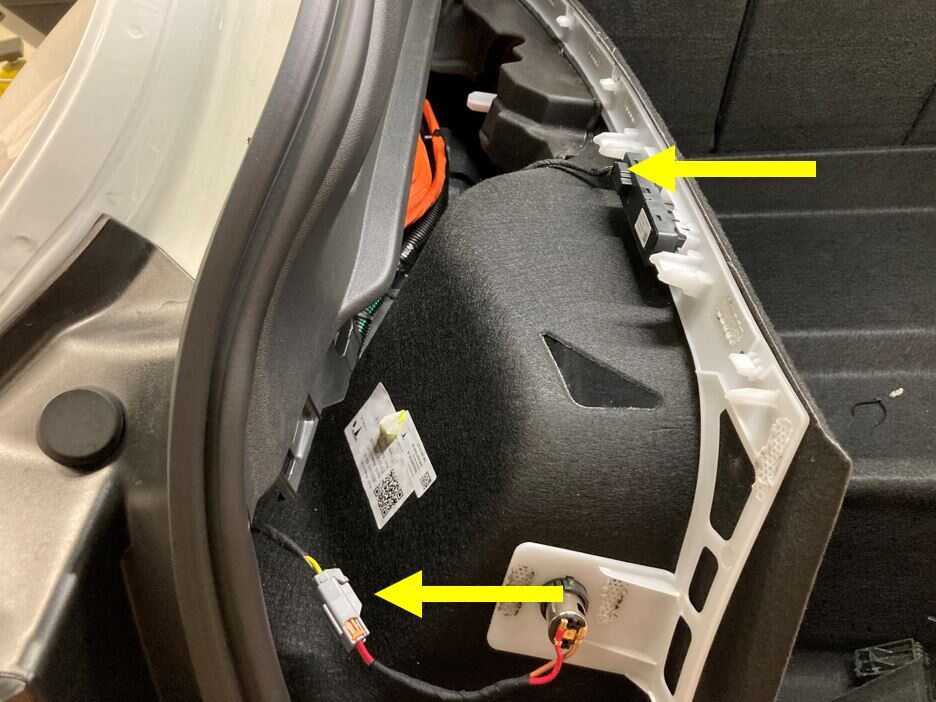

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ by vehicle build location, and the number of clips may also varyt









26. Remove LH trunk side trim.
    注

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ by vehicle build location, and the number of clips may also vary.









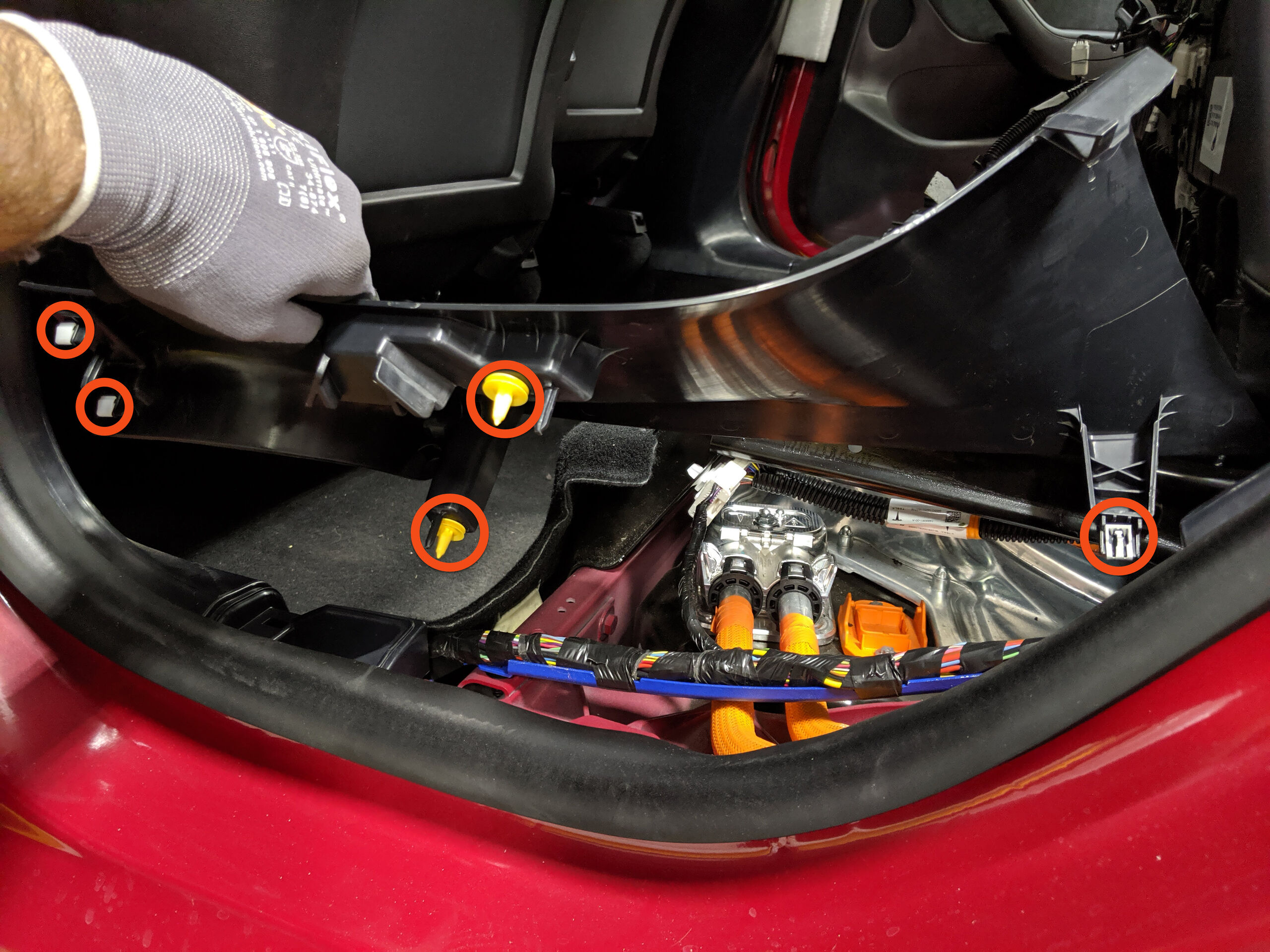

27. Remove LH trunk side trim.
    注

    1x push clip, 5x clips, Release remaining clips and guide front clip stanchions around LH C-pillar.

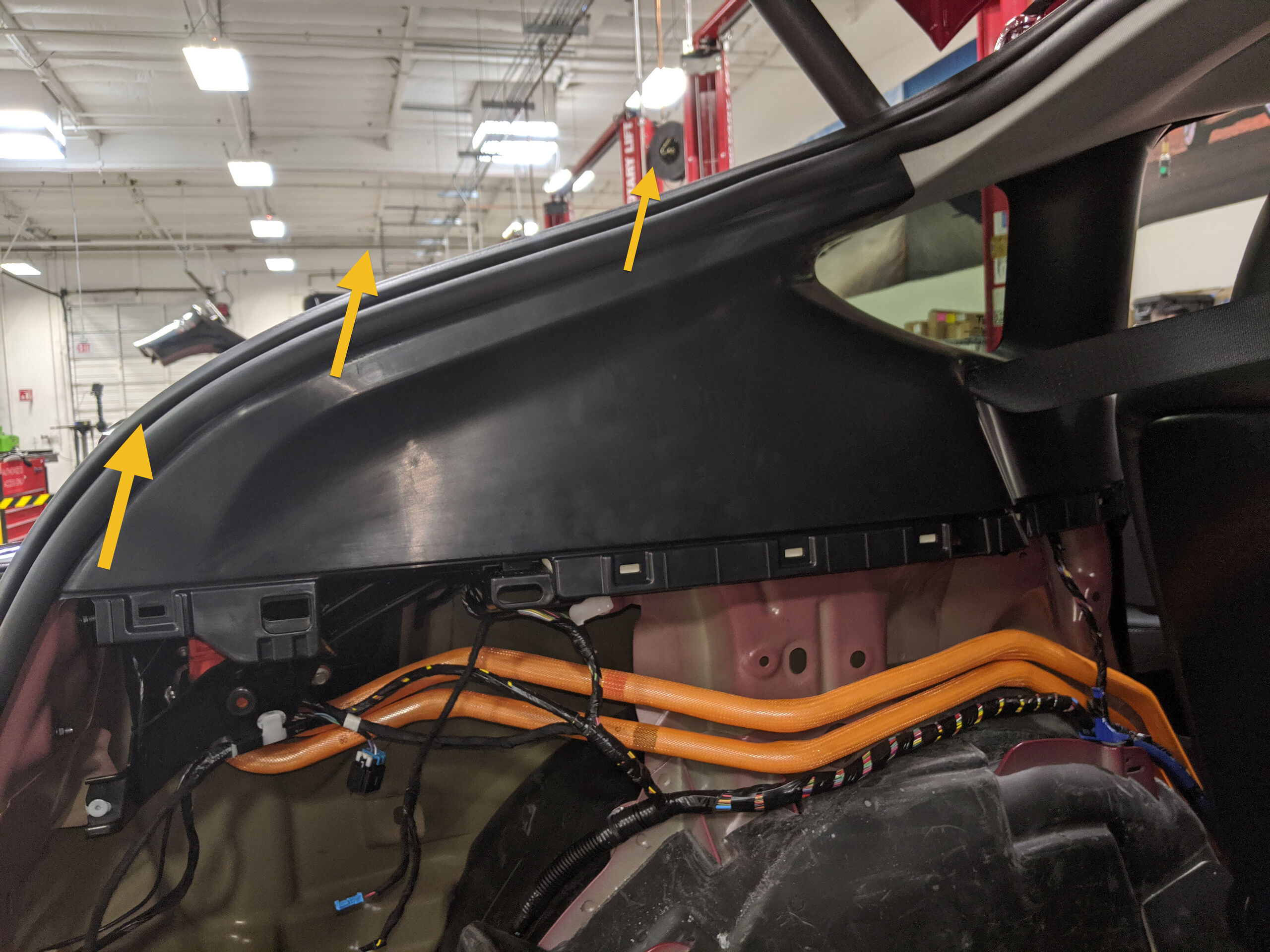

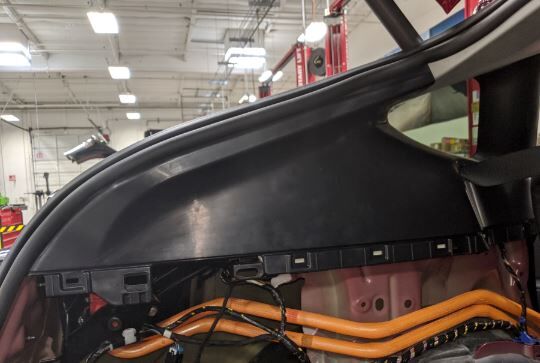

28. Remove LH upper C-pillar trim.
    注

    6x clips, Guide front upper corner groove out from headliner and place trim aside.

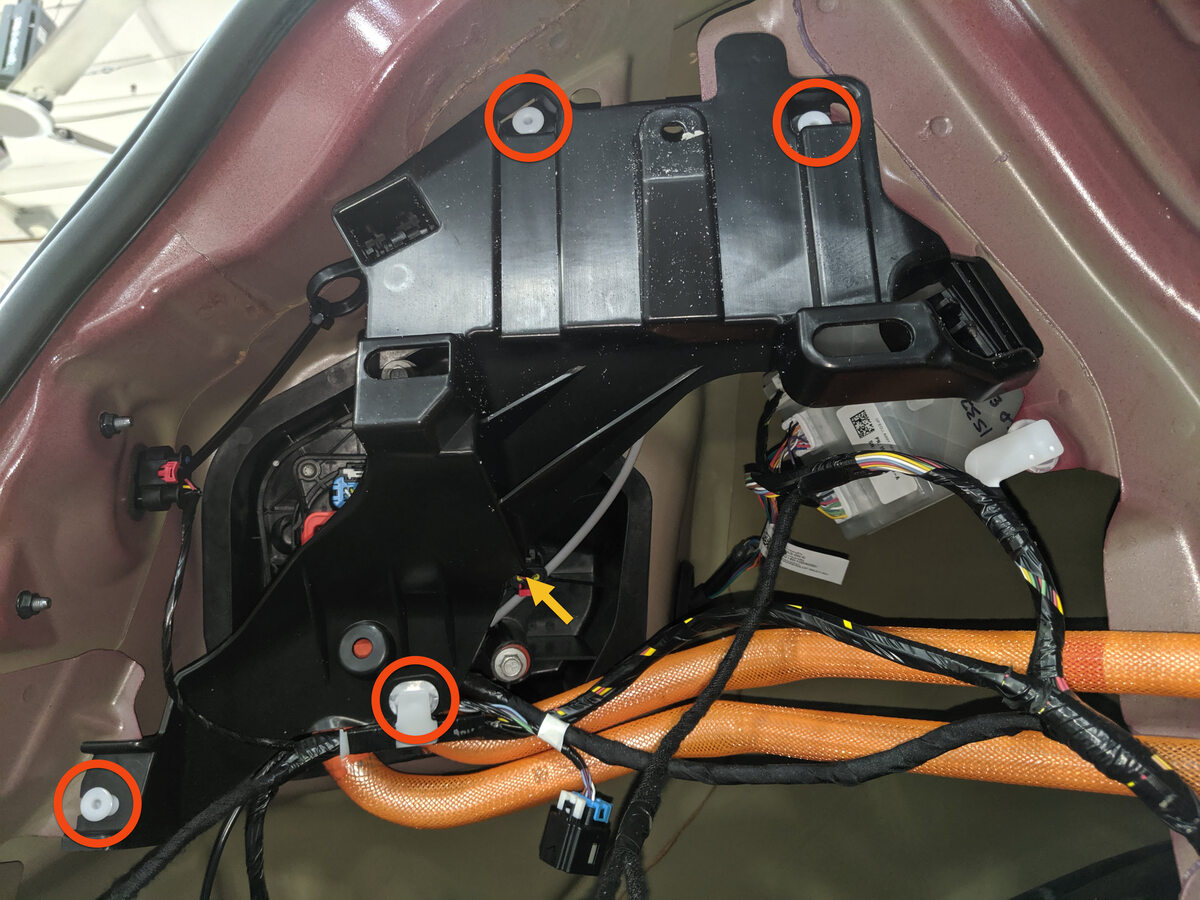

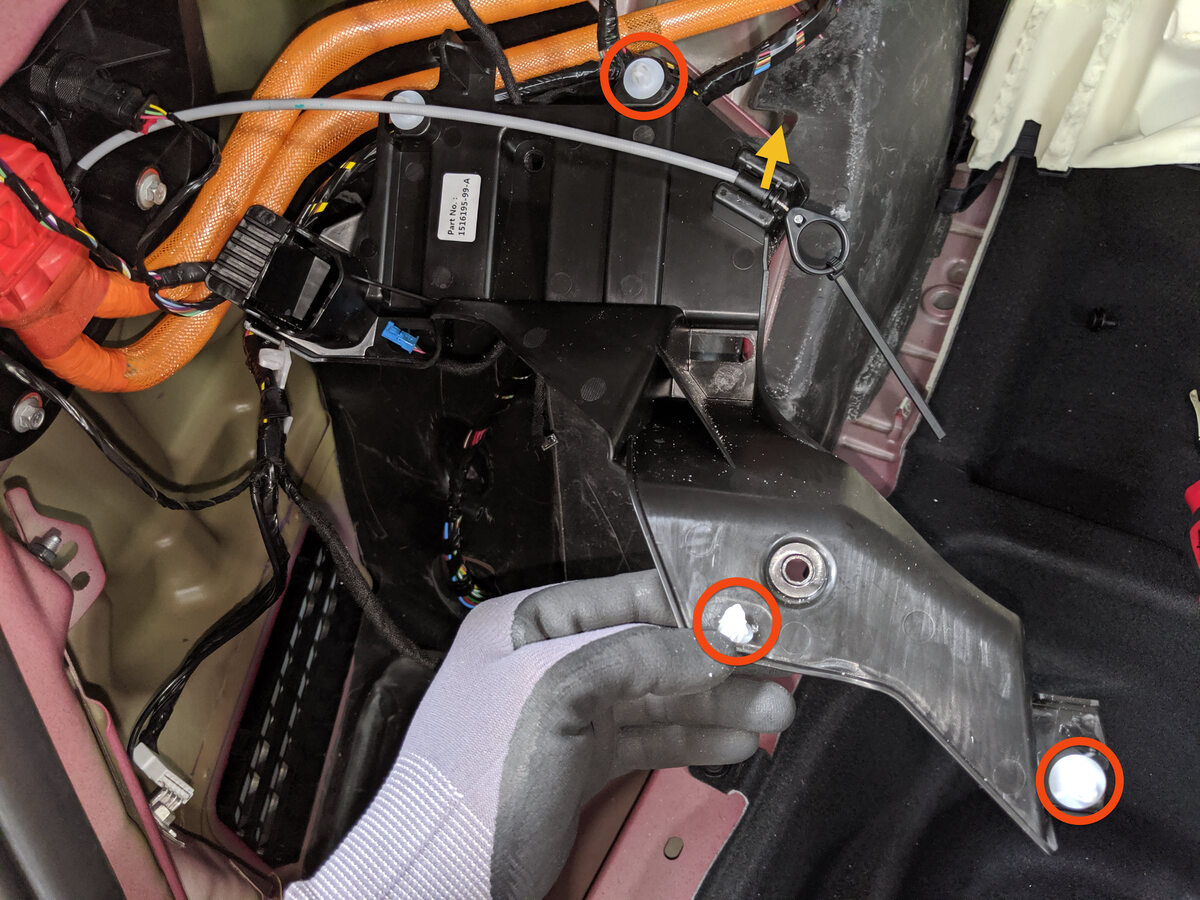

29. Remove LH C-pillar bracket.
    注

    3x clips, 1x manual release cable, 1x harness clip

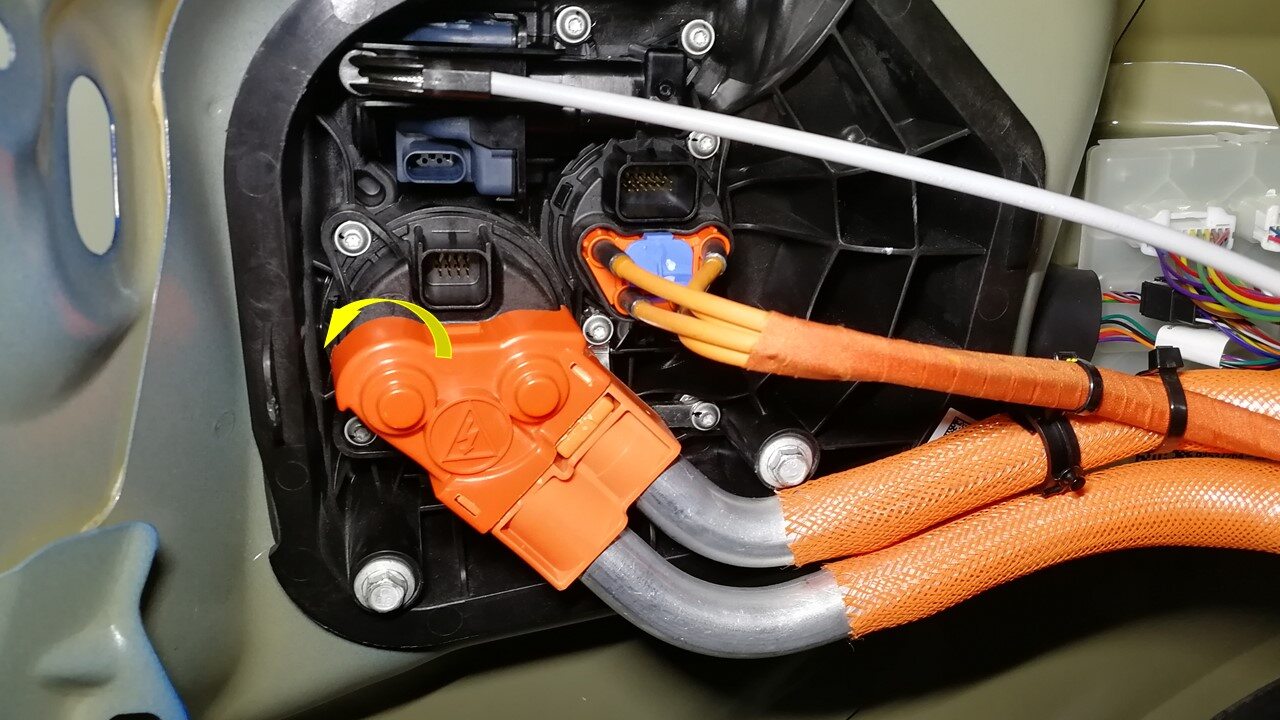

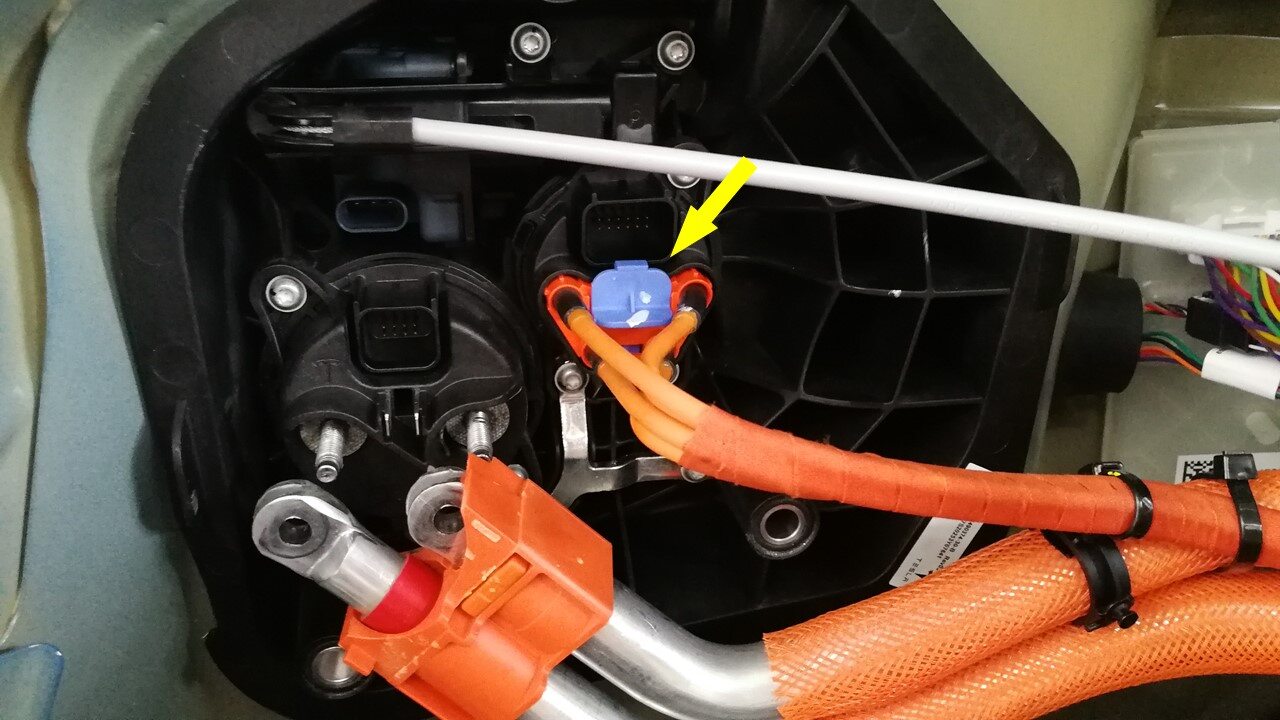

30. Release connectors from chargeport assembly.
    注

    3x connectors, Fully remove white locking tab before disconnecting. Pull red locking tab to release lock, pull again to release from connector.



31. Remove charge port safety cap.
    注

    2x tabs

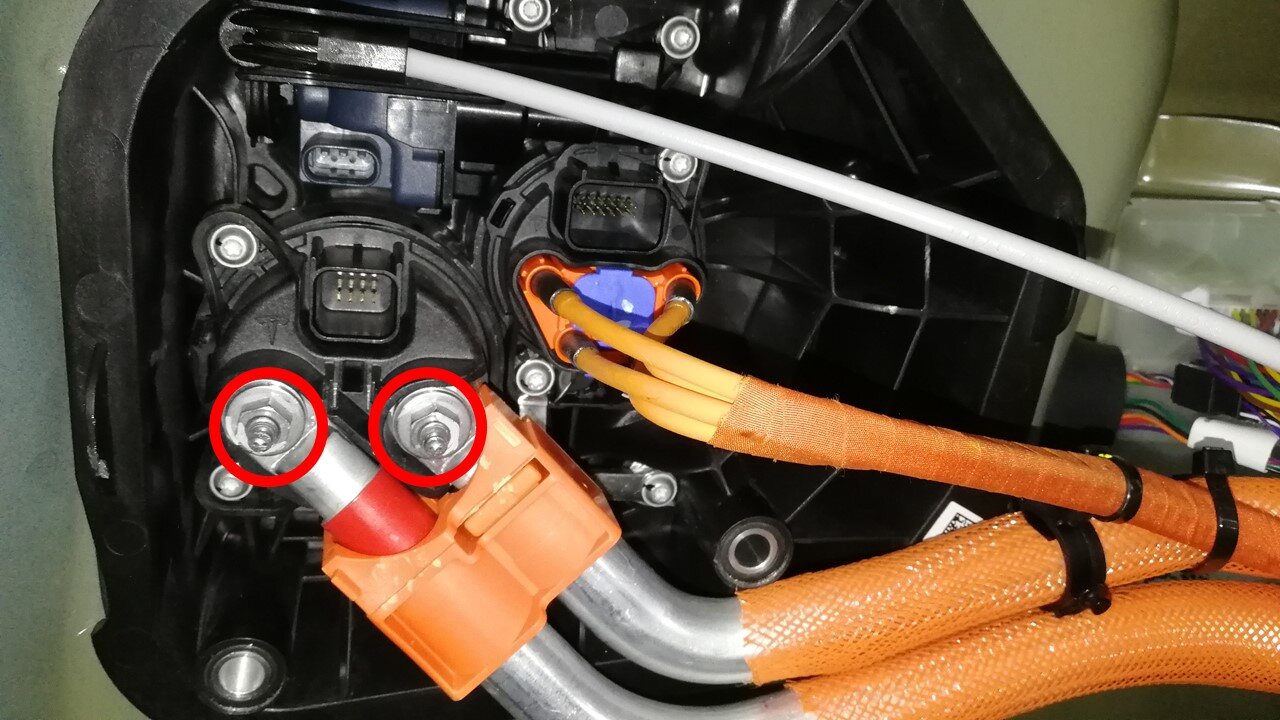

32. Remove fasteners securing charge port busbar to charge port and remove busbar leads from studs.
    注

    2x nuts, 10mm, 9 Nm, Nuts have captured washers.



33. Release AC 3 phase connector from chargeport assembly.
    注

    1x connector, Release locking tab upward.

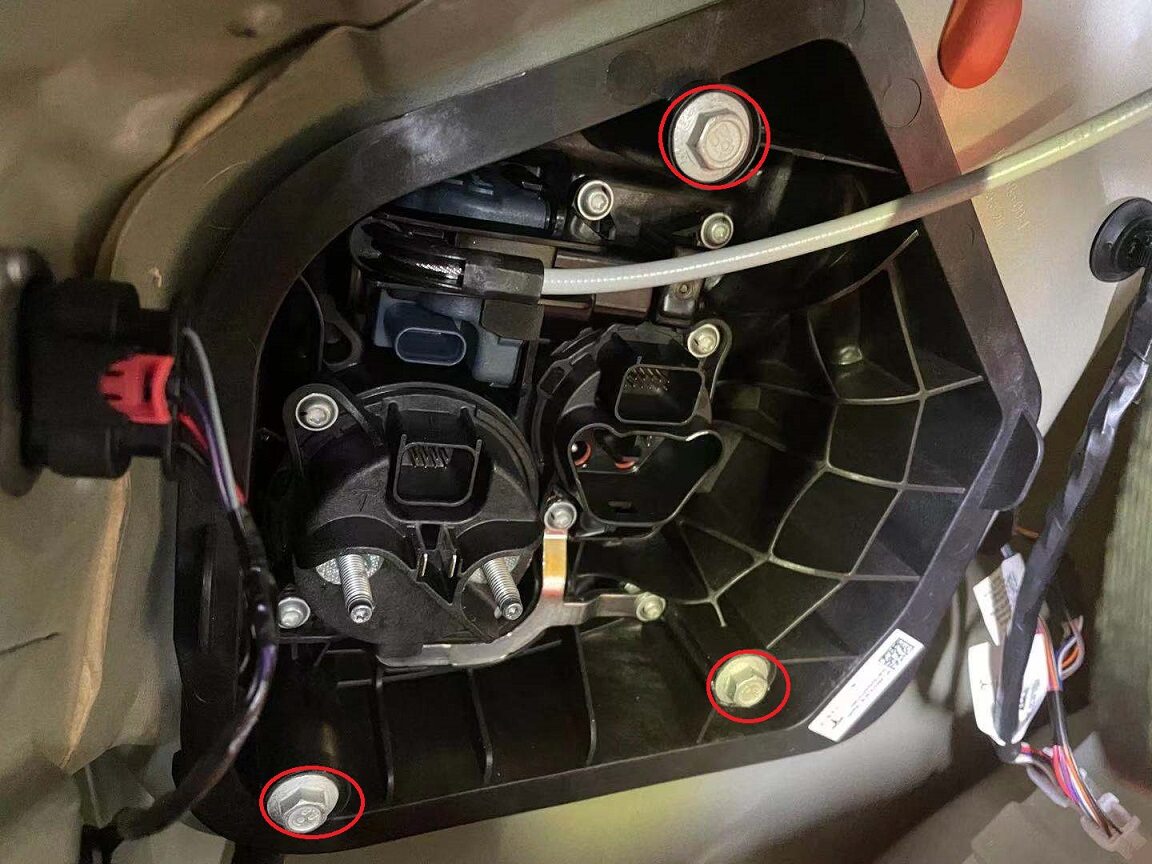

34. Remove charge port assembly.
    注

    3x bolts, 10mm, 9 Nm

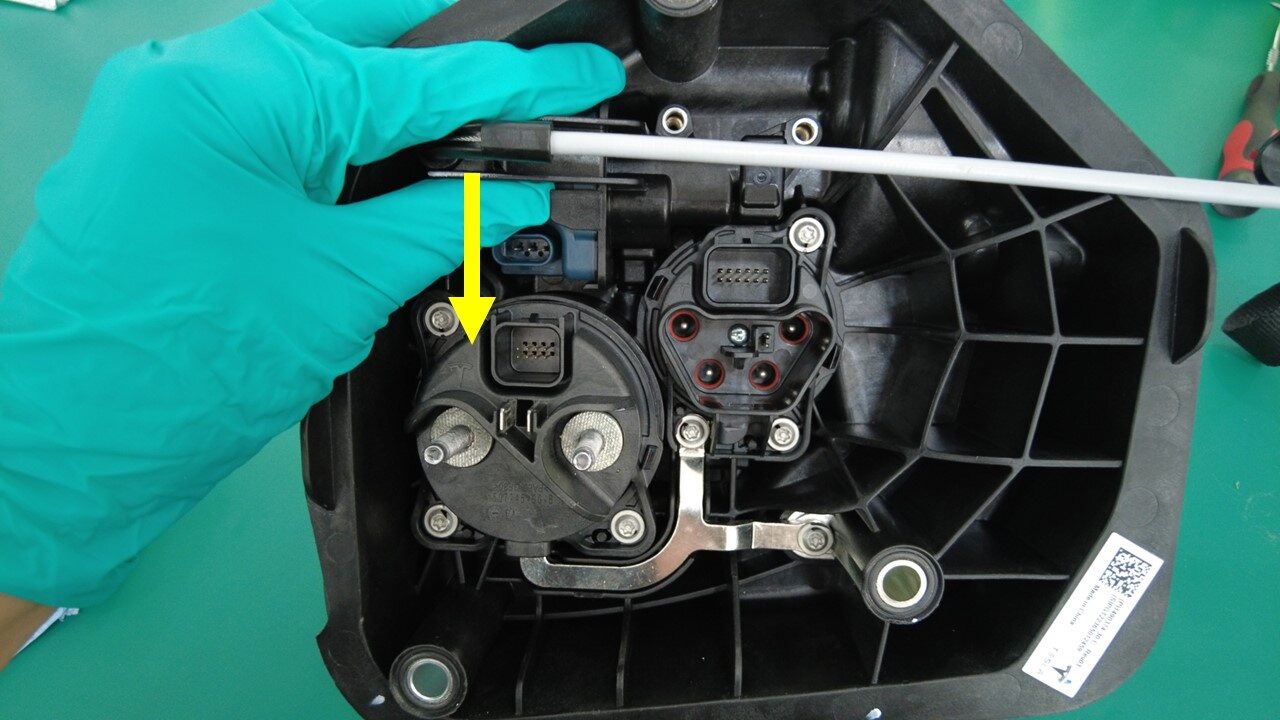

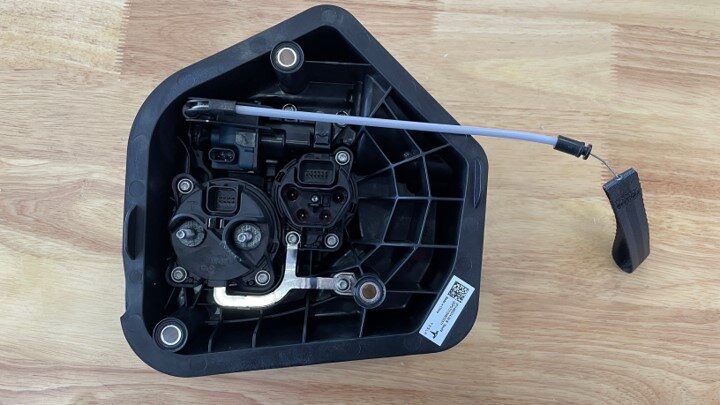

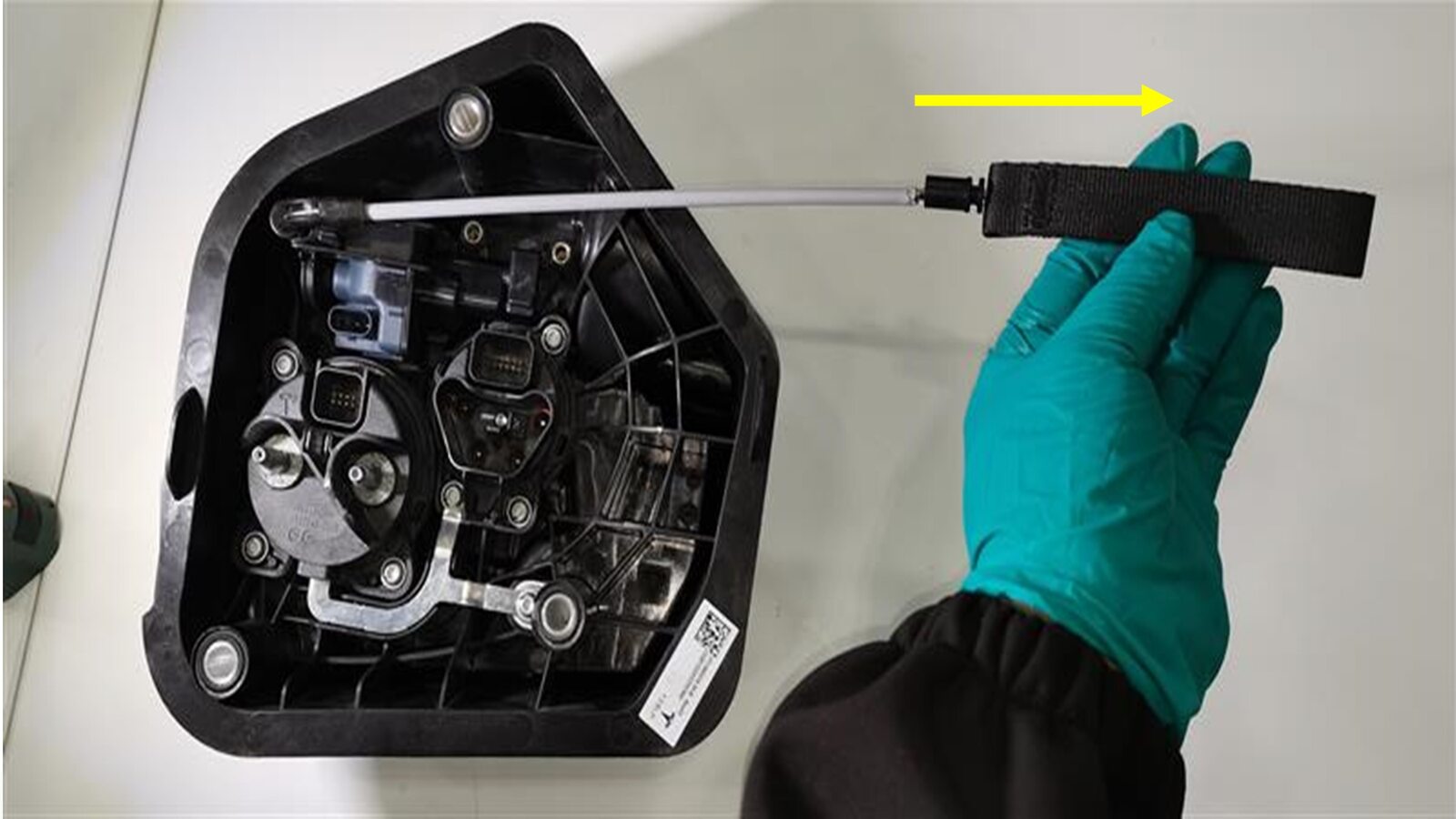

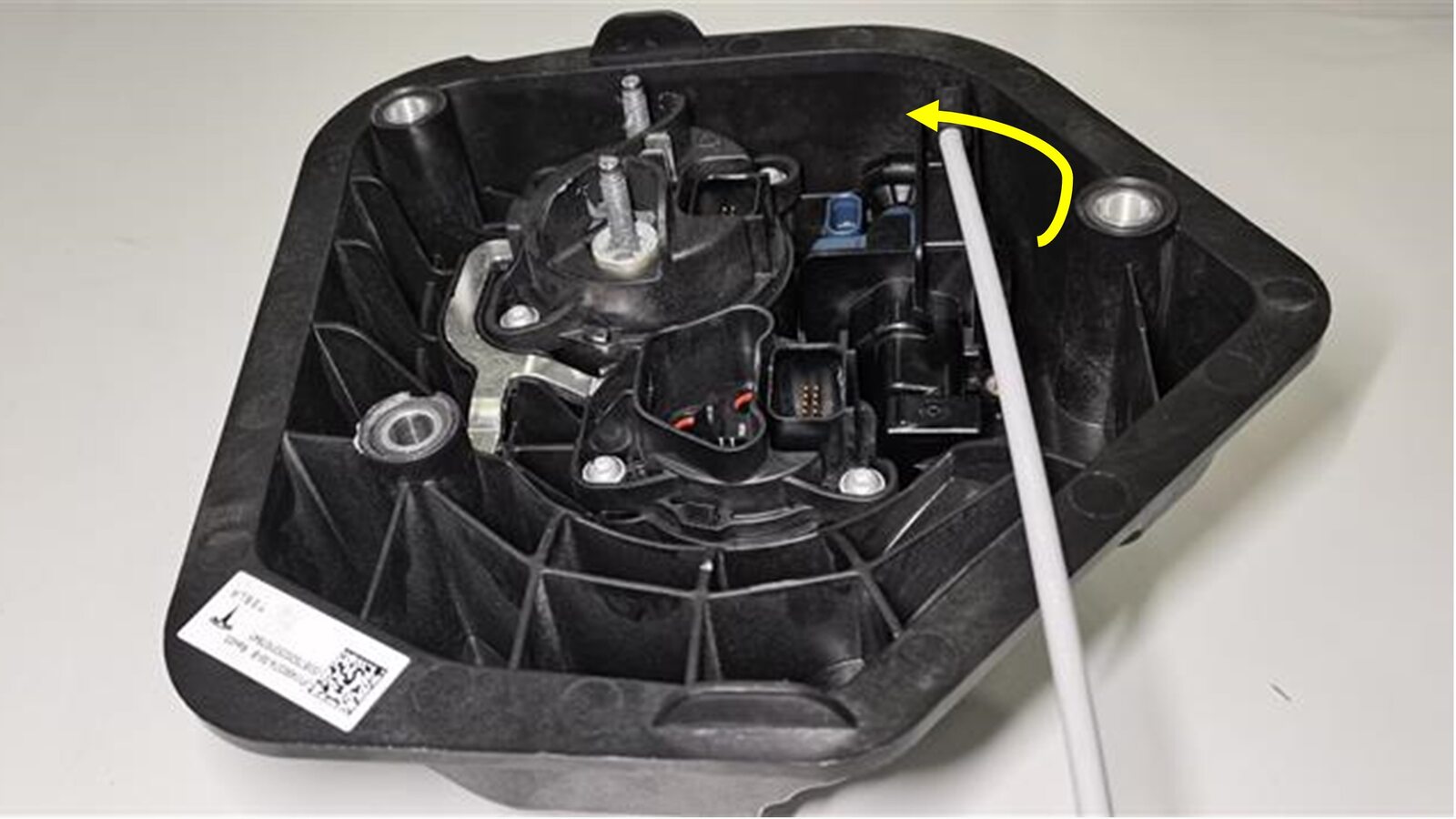

35. Pull and hold the manual release cable to release the actuator.

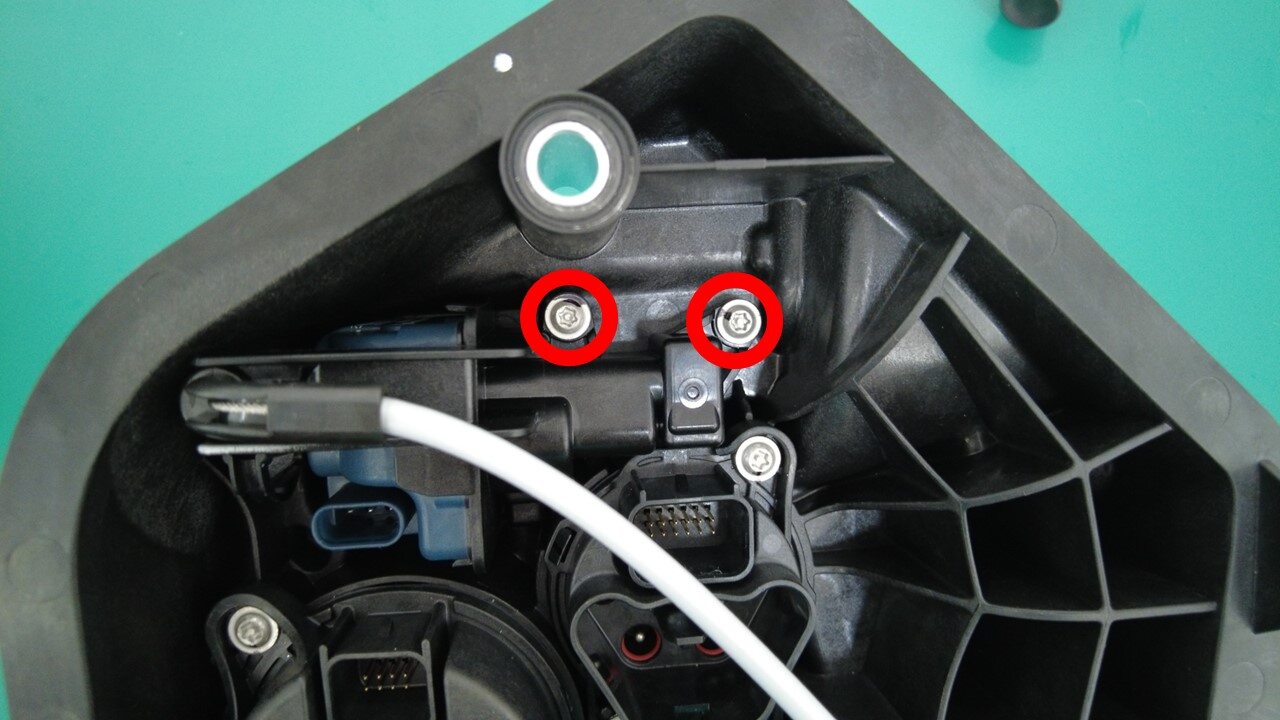

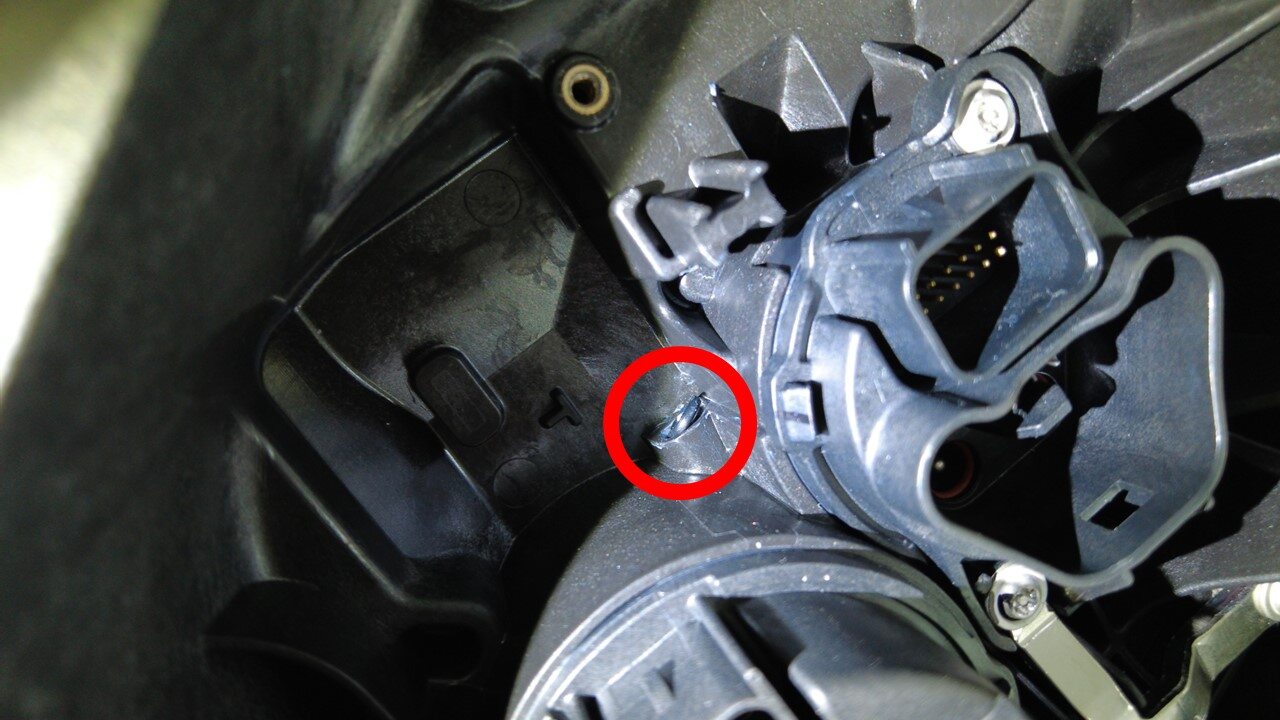

36. Remove actuator screws from charge port assembly.
    注

    2x screws, T20, 3.3 Nm, Newer vehicle is equipped with T20 tamper proo

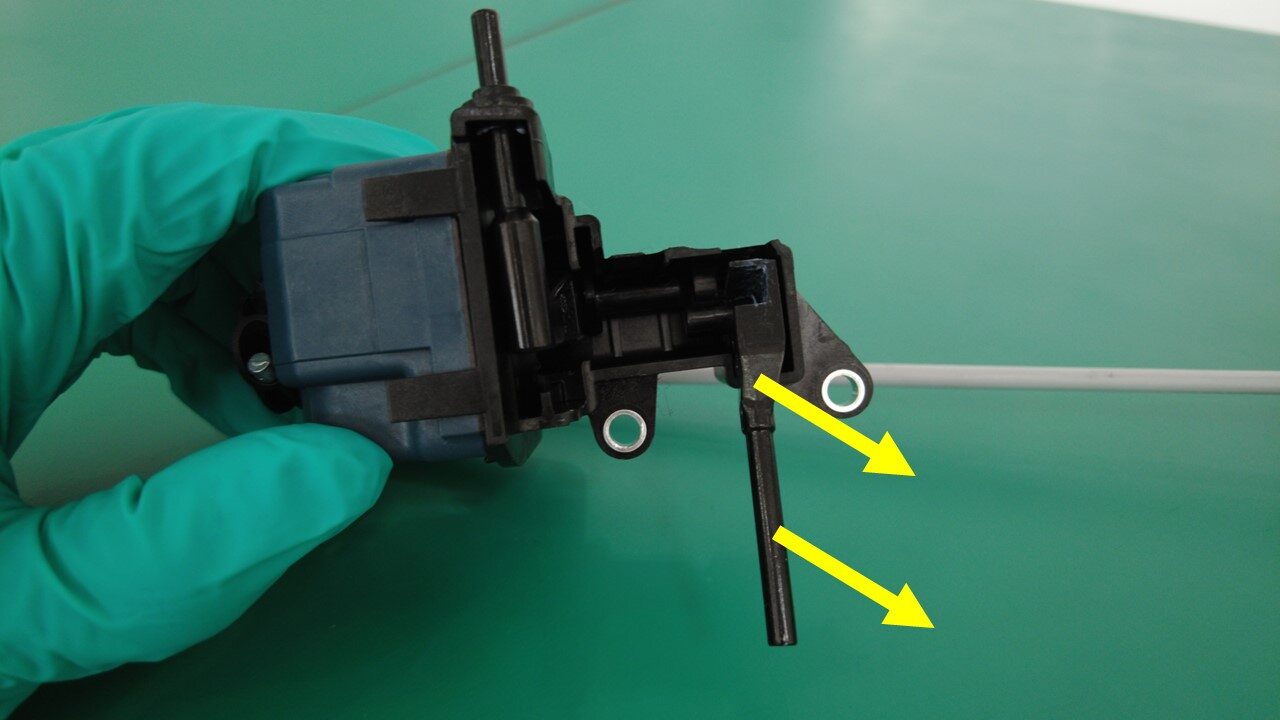

37. Remove actuator from charge port assembly.
    注

    Turn over 30 degrees and take out the actuator.

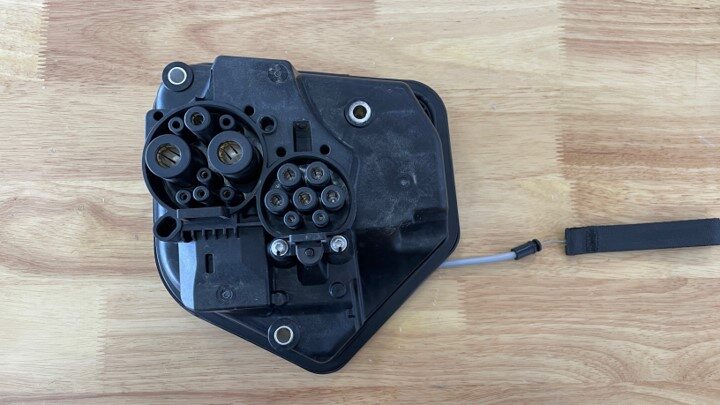

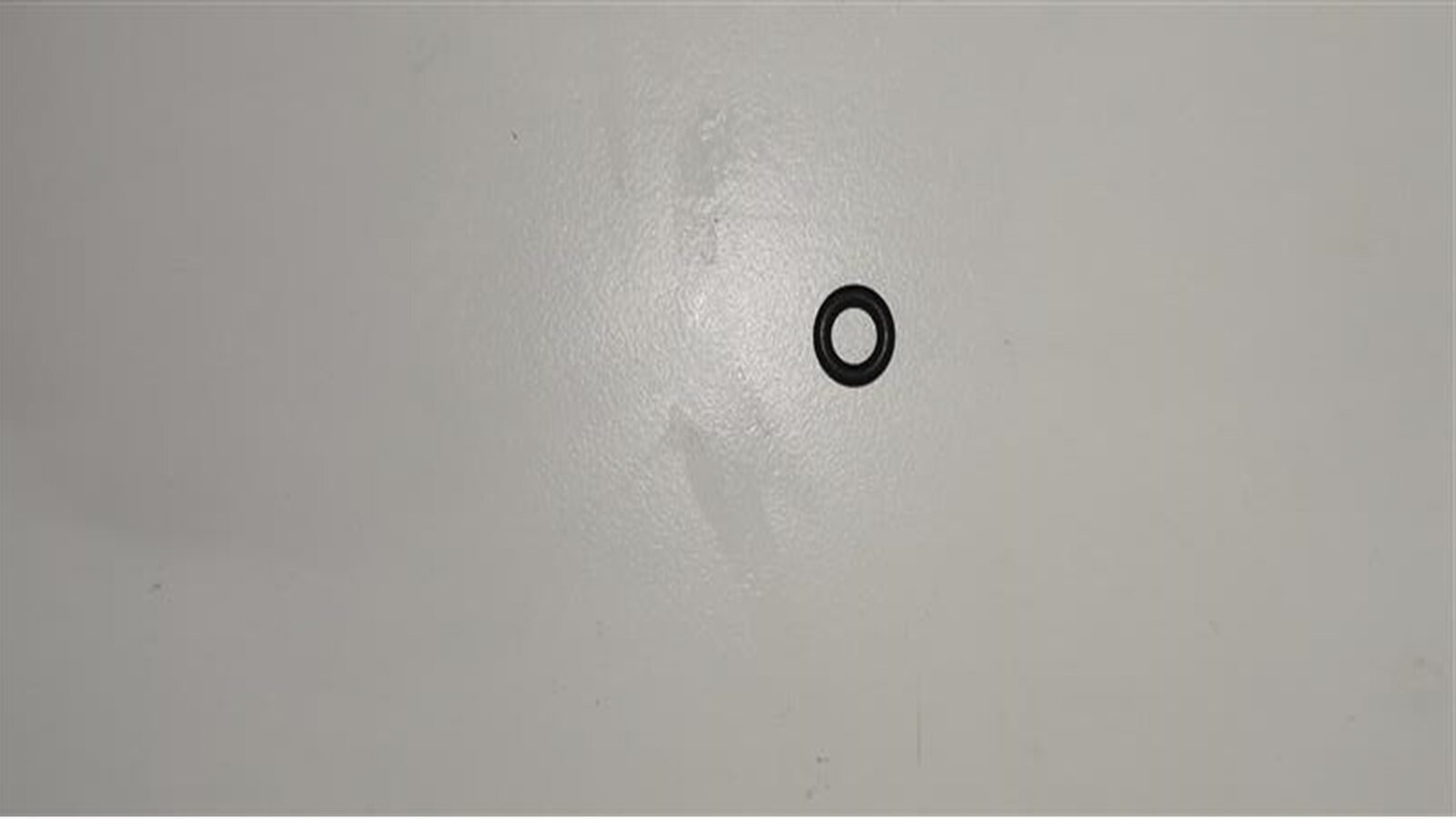

38. Remove DC charge port latch stick o-ring from charge port assembly.
    注

    1x o-ring, Discard after removal

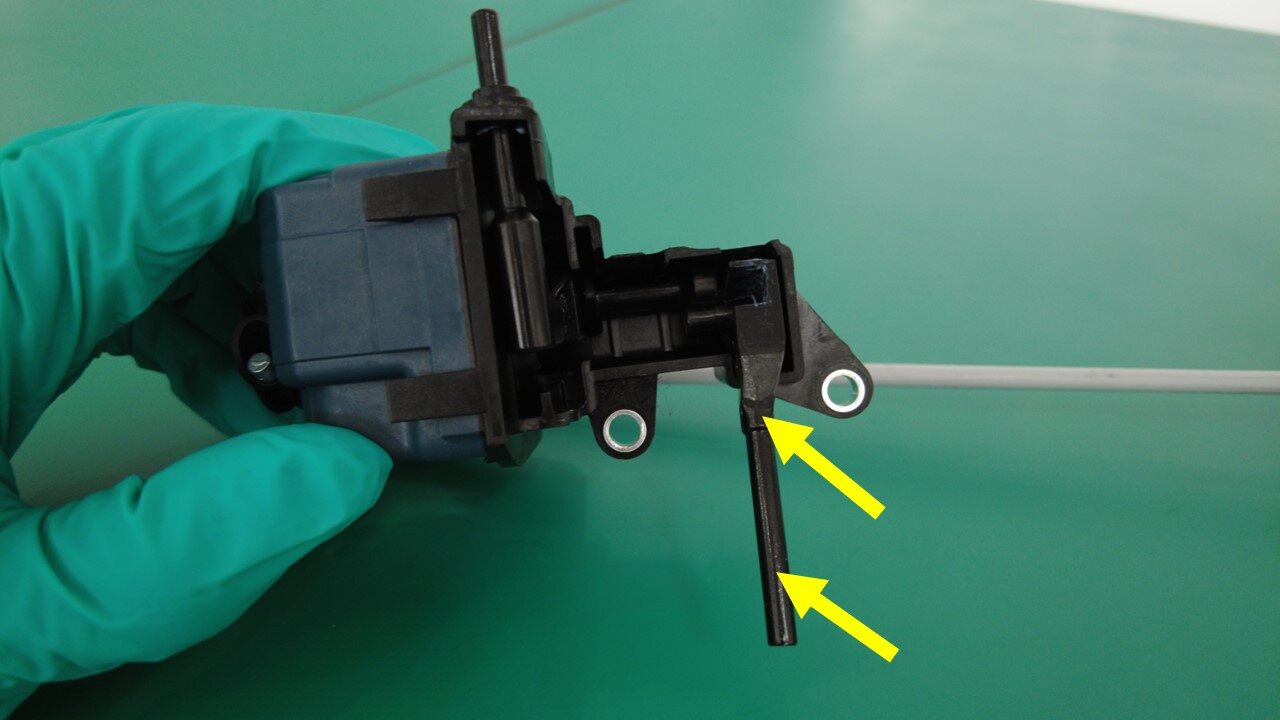

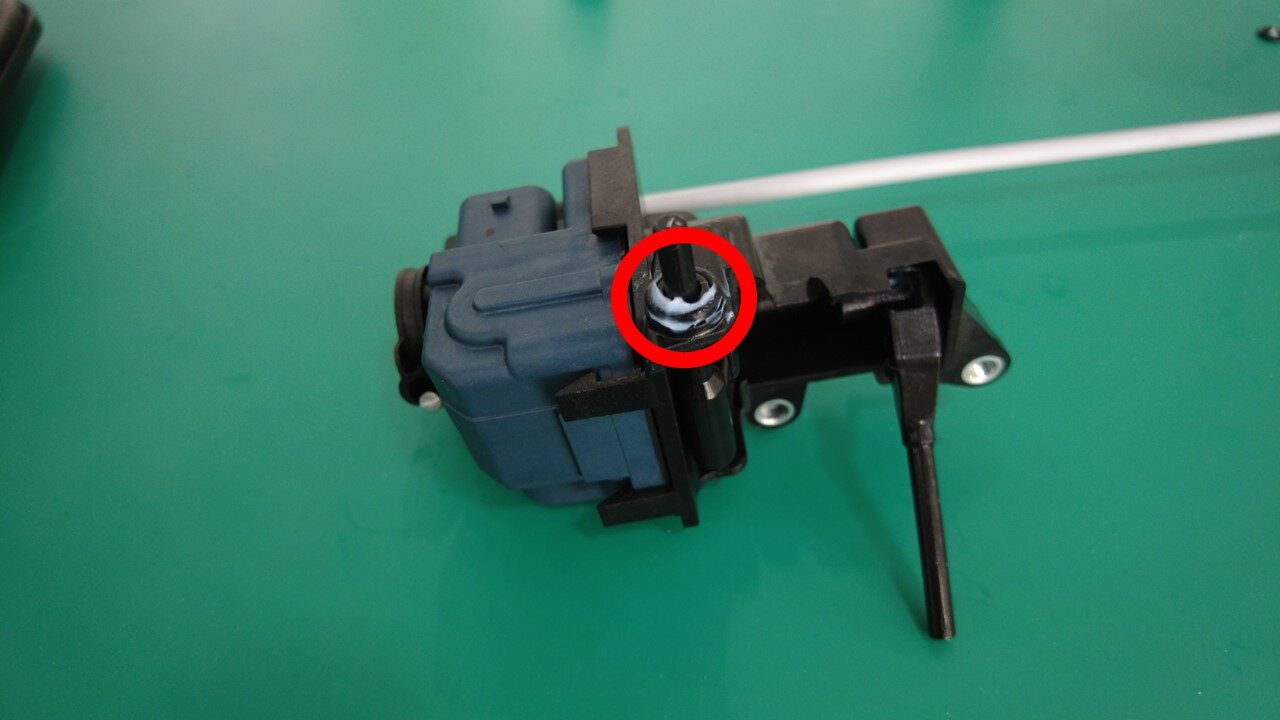

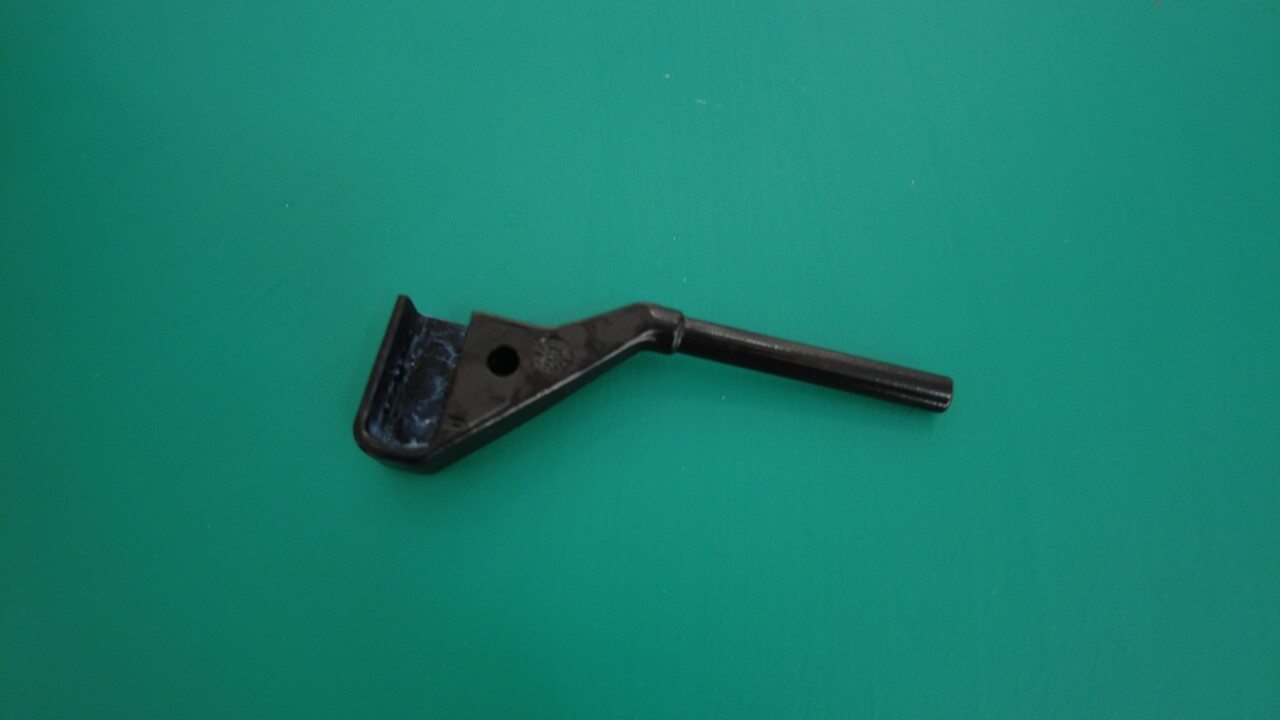

39. Remove AC charge port latch stick from actuator.
    注

    Rotate to release





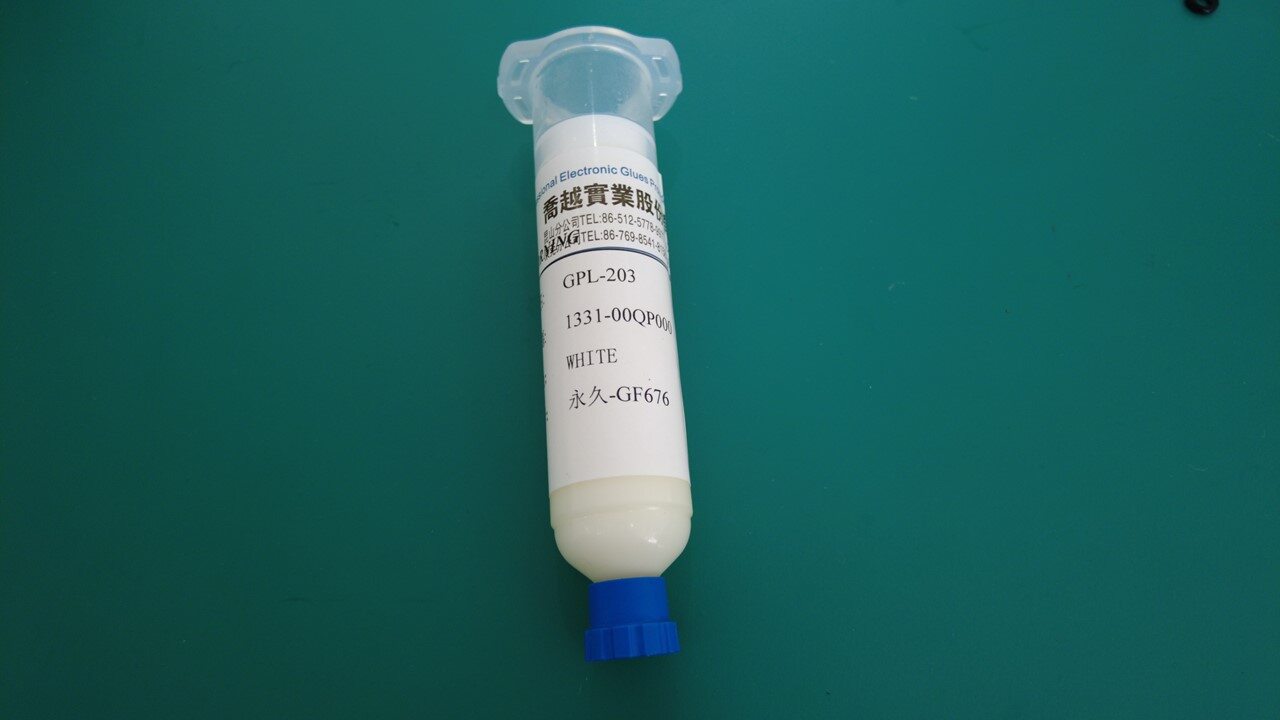

40. Lubricate AC latch stick and o-ring.
    注

    1x o-ring, Apply efficient amount of lubricant to latch stick and o-ring.







41. Install AC latch stick to actuator.
    注

    Rotate to install



42. Install DC latch stick o-ring to charge port assembly.
    注

    Do not damage o-ring



43. Position actuator to charge port assembly.
    注

    Gently push actuator, Make sure there is no gap between actuator and charge port.





44. Install screws securing actuator to charge port assembly.
    注

    2x screws, T20, 3.3 Nm, Newer vehicle is equipped with T20 tamper proo



45. Install charge port assembly.
    注

    3x bolts, 10mm, 9 Nm







46. Install AC 3 phase connector to charge port assembly.
    注

    1x connector, Slide downward to engage



47. Inspect HV insulating gloves.
    注

    确保高压绝缘手套未过期。有关某个地区的手套有效期信息，请参阅TN-15-92-003。
48. Put on HV insulating gloves and leather over gloves.
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used.

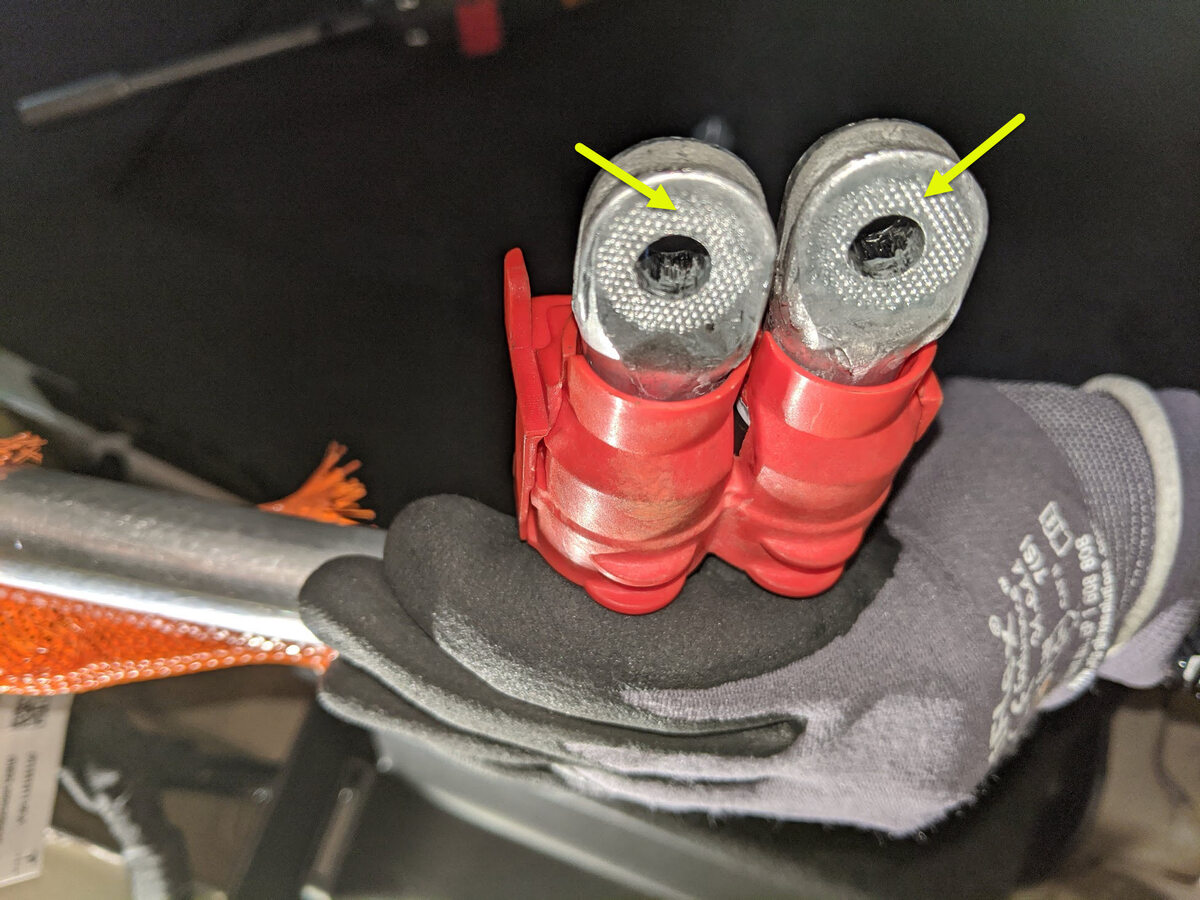

49. Clean charge port busbar contact surface of residual Penetrox
    注

    1x connector, Allow 1 minute dry time



50. Apply Penetrox to backside of busbar leads.
    注

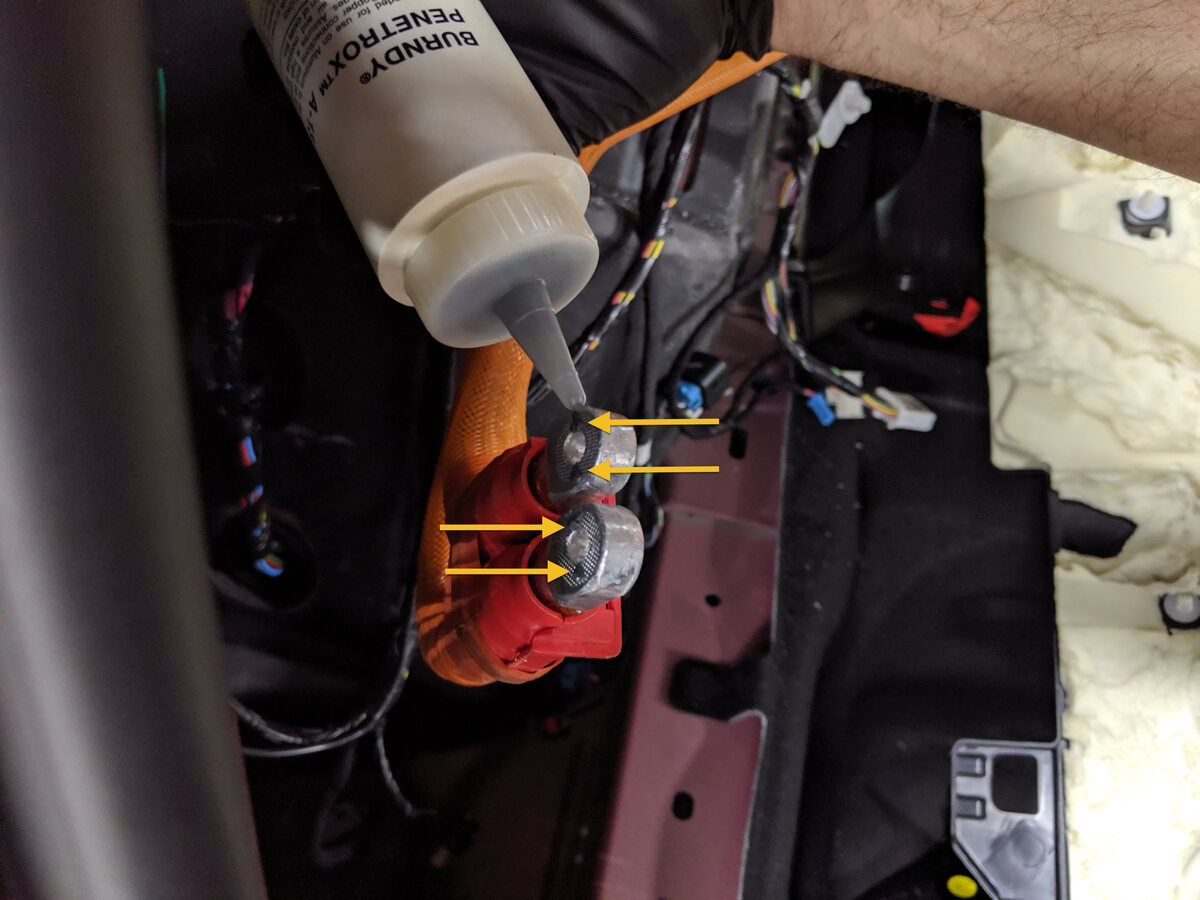

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered



51. Install charge port busbar leads to charge port assembly.
    注

    2x nuts, 10mm, 9 Nm, Nuts have captured washers, If excessive force is required to seat busbars, they may have been bent. Inspect for damage and replace if necessary.



52. Perform Hioki resistance test at each HV joint from HV busbar lead to charge port stud.
    注

    2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.270 mΩ (270 μΩ).If the resistance is greater than 0.270 mΩ (270 μΩ), there is too much resistance in the High Voltage joint. Remove the fastener, clean areas with isopropyl alcohol, install fastener back and test again.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step.



53. Remove HV insulating gloves.



54. Install charge port safety cap.
    注

    2x tabs



55. Install logic connectors to charge port assembly.
    注

    3x connectors, 1x red locking tab, 2x white locking tab



56. Install LH C-pillar bracket.
    注

    3x clips, 1x manual release cable, 1x harness clip





57. Install LH upper C-pillar trim.
    注

    6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim.









58. Install LH trunk side trim.
    注

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ, by vehicle build location











59. Install LH trunk side trim.
    注

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ, by vehicle build location











60. Install LH trunk pocket bracket.
    注

    1x push clip, 5x alignment tabs





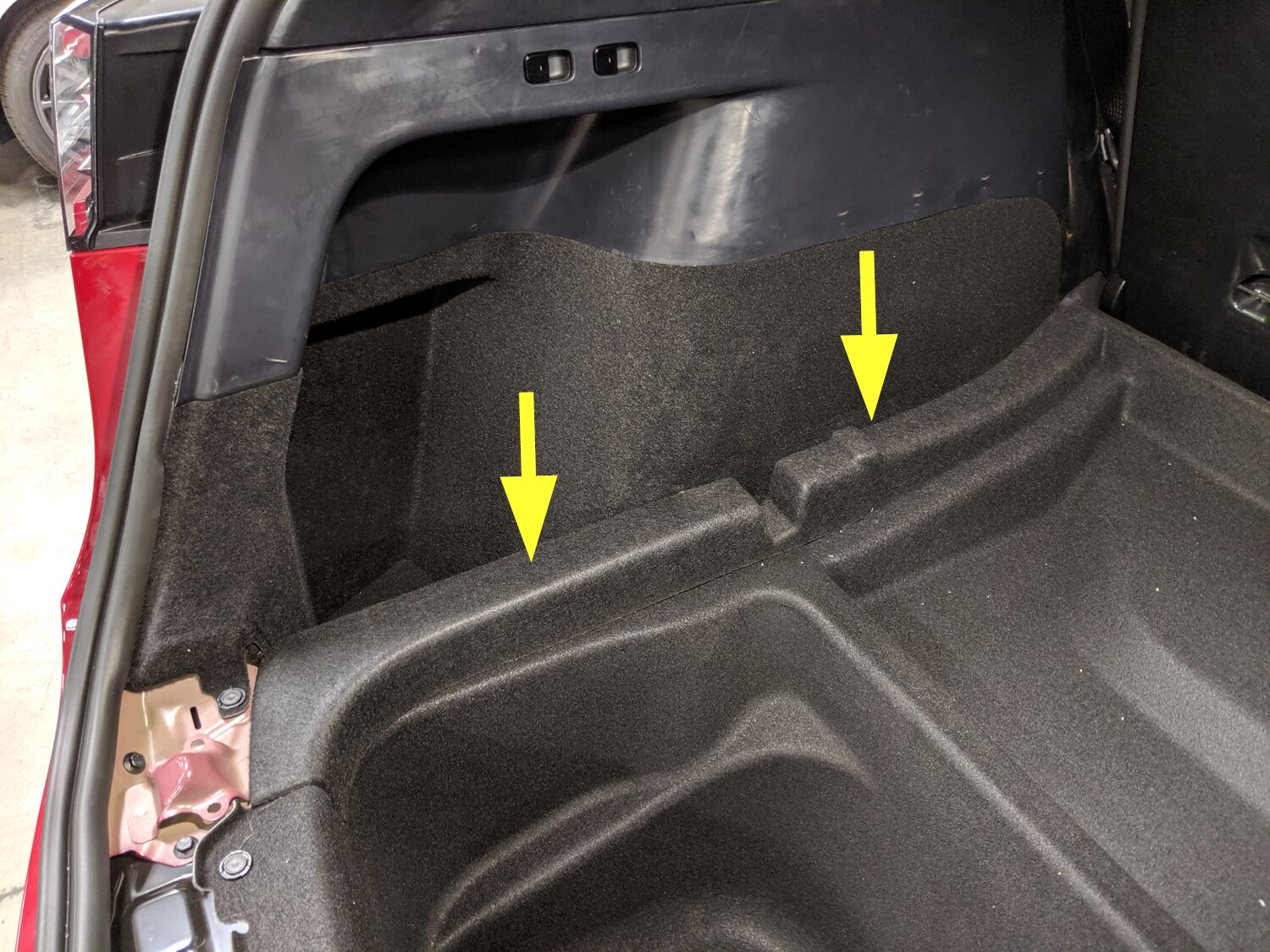

61. Install LH load floor bracket.
    注

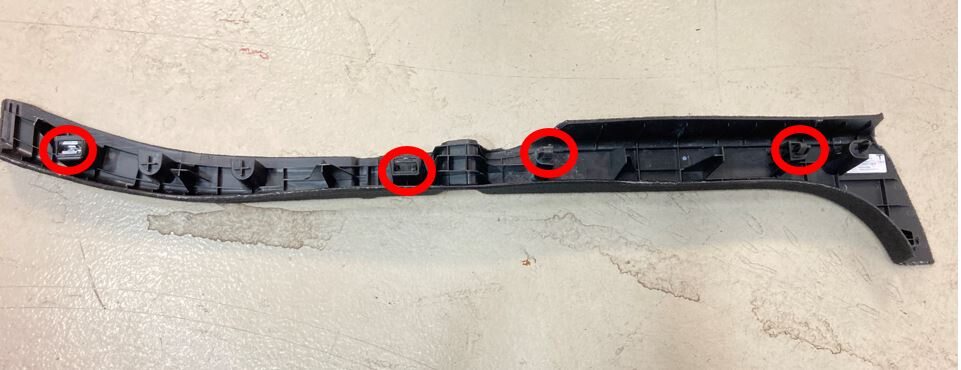

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





62. Install trunk sill trim.
    注

    4x clips, Seat seal around edge of trim









63. Install front load floor.



64. Install rear load floor.



65. Install LH Lower C-Pillar trim.
    注

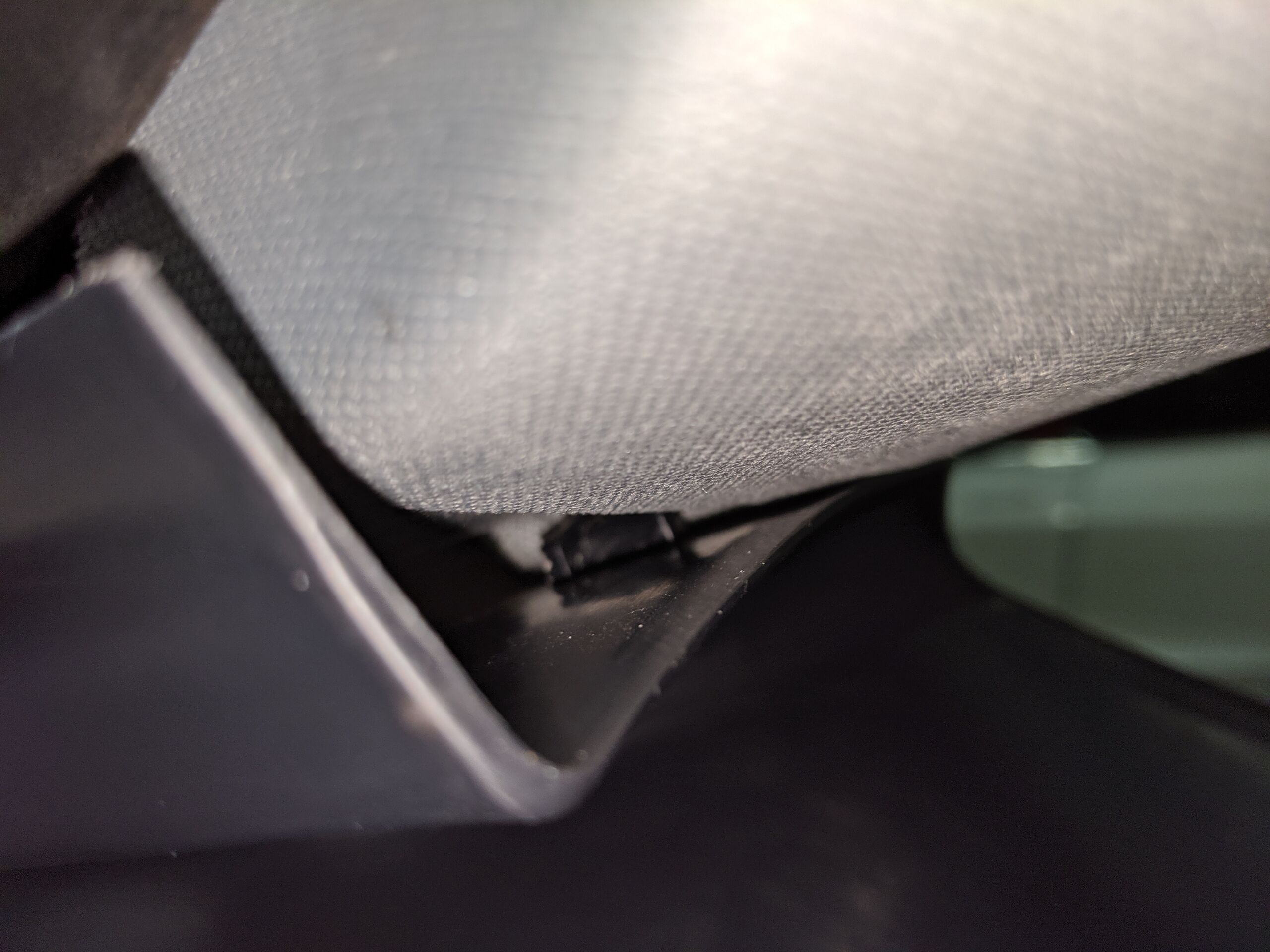

    5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of LH Lower C-Pillar trim into trunk side trim and work your way forward securing clips, trim part may slightly differ, by vehicle build location, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





66. Reseat LH rear door seal.
    注

    Seat pillar and sill trim tabs underneath seal



67. Install 2nd row seat cushion.
    注

    1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test







68. Connect the First Responder Loop and LV battery connector.





69. Install HEPA filter assembly.
    注

    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Rework requires new bolts









70. Install the rear apron.





71. Close liftgate.





72. Move the RH front seat to its original position.
73. Move LH front seat to original position.



74. Verify operation of charging system.
    注

    Confirm that AC and DC charging are ok.



75. Close the hood.



76. Raise all four windows.



77. Close all four doors.
    注

    If LV is powered up, Unlatch rear doors before closing.
