电机 - 座椅滑轨 - 副驾位座椅（拆卸和更换）

校正代码 13013202 0.42 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2024-10-15: Updated post-installation routines.
  • 2023-12-08: Re-write the whole procedure according to the latest validation.
表 1. 扭矩规格： 电机 - 座椅滑轨 - 副驾位座椅（拆卸和更换）
描述 扭矩值 推荐工具 重复使用/更换 备注
副驾位座椅紧固件（4 个）
33.5 Nm (24.7 lbs-ft)
  • 梅花 Plus T45 套筒
  • 无绳棘轮/冲击钻
  • 回旋头棘轮/回旋头扭矩扳手
更换 螺栓涂有螺纹胶
将升降电机总成固定到右后连杆的螺栓
18 Nm (13.3 lbs-ft)
  • T45 短梅花批头
  • 棘轮/扭矩扳手
  • 3 英寸加长件
  • 回旋头棘轮/回旋头扭矩扳手
  • 无绳棘轮/冲击钻
更换 螺栓涂有螺纹胶
将右侧滑轨总成固定到右前座垫总成的螺栓（2 个）
23 Nm (17.0 lbs-ft)
  • T50 短梅花批头
  • 3 英寸加长件
  • 回旋头棘轮/回旋头扭矩扳手
  • 无绳棘轮/冲击钻
重复使用 螺栓涂有螺纹胶
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
座椅底座的边缘很锋利，可能会造成人身伤害。将座椅从车辆上拆下时，以及在座椅底座上或其附近执行相关操作时，请佩戴防割手套。

拆卸

  1. Open all doors and lower all windows.
  2. Remove the RH instrument panel end cap. See 端盖 - 仪表板 - LH（拆卸和更换）.
  3. Remove the RH middle A-pillar trim. See 饰板 - A 柱 - 中部 - LH（拆卸和更换）.

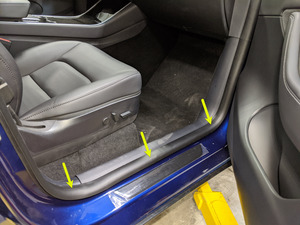

  4. Release the bottom half of the RH front door seal.
  5. Remove the RH lower A-pillar trim. See 饰板 - A 柱 - 下 - LH（拆卸和更换）.

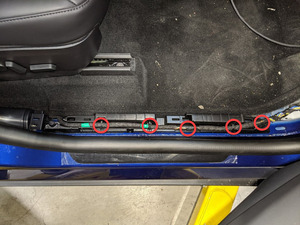

  6. Use a clip prytool to release the RH front seat harness from the lower A-pillar 12V bracket clips (x5).

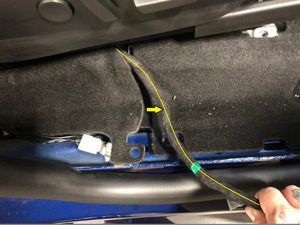

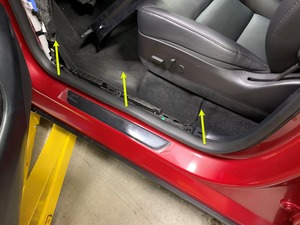

  7. Pull the RH front seat harness from under the RH front cabin carpet.

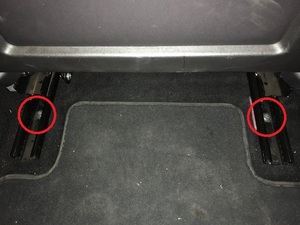

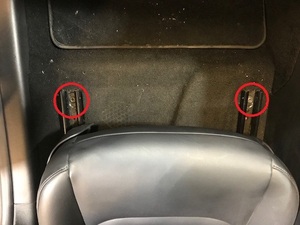

  8. Move the RH front seat forward, and then remove and discard the RH front seat rear fasteners (x2).
    提示： 推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 无绳棘轮/冲击钻
    • 回旋头棘轮/回旋头扭矩扳手
  9. Raise the RH front seat cushion to maximum height for access to the HV battery bolts at the RH front footwell and below the RH front seat.
  10. Move the RH front seat backward, and then remove and discard the RH front seat front fasteners (x2).
    提示： 推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 无绳棘轮/冲击钻
    • 回旋头棘轮/回旋头扭矩扳手
  11. Tilt the seat backward to gain access to the underside of the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    注
    Take care when moving the seat. Ensure the carpet is not damaged.

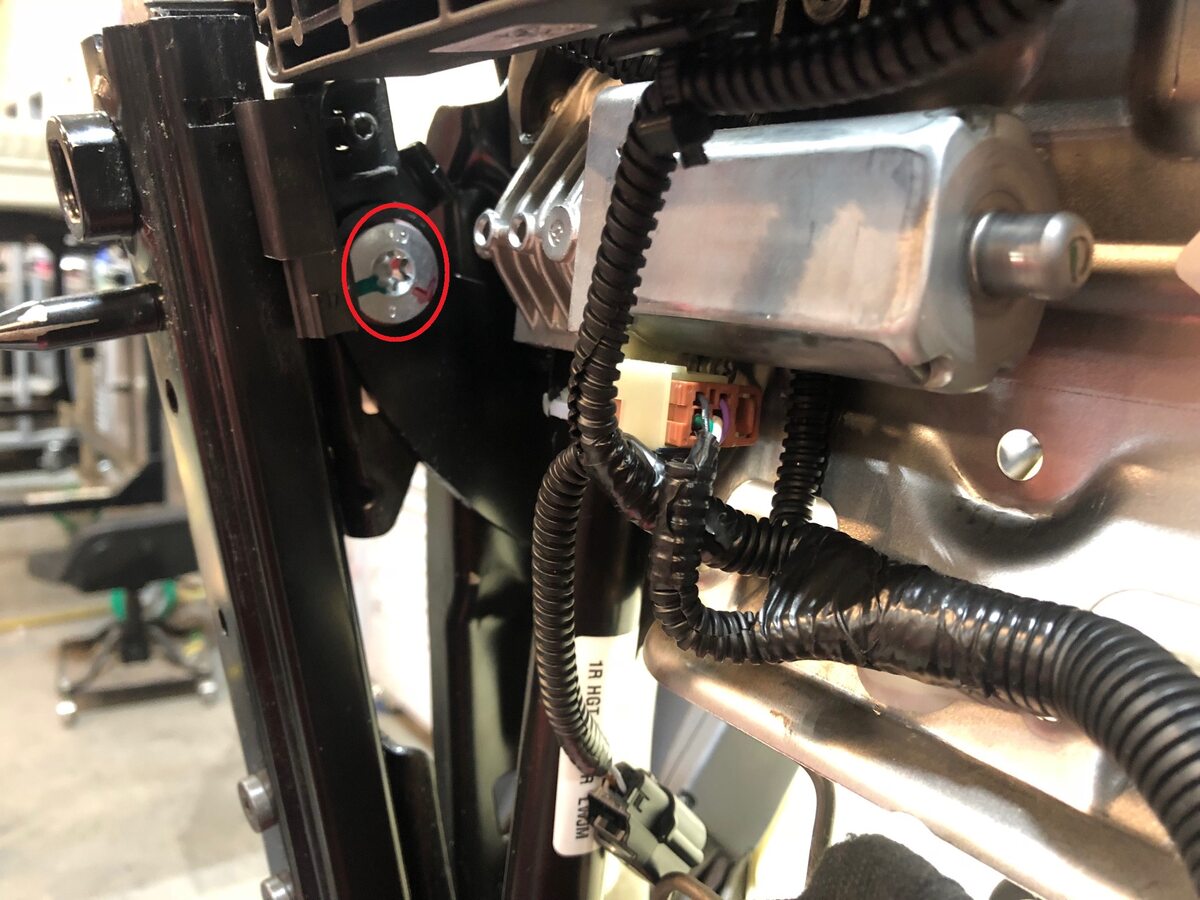

  12. Remove and discard the bolt that attaches the lift motor assembly to the rear RH link.
    提示： 推荐使用以下工具：
    • T45 短梅花批头
    • 棘轮/扭矩扳手
    • 3 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
    • 无绳棘轮/冲击钻

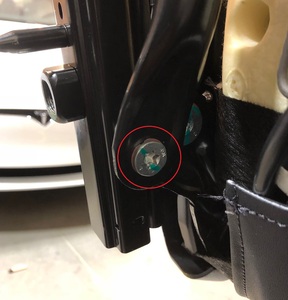

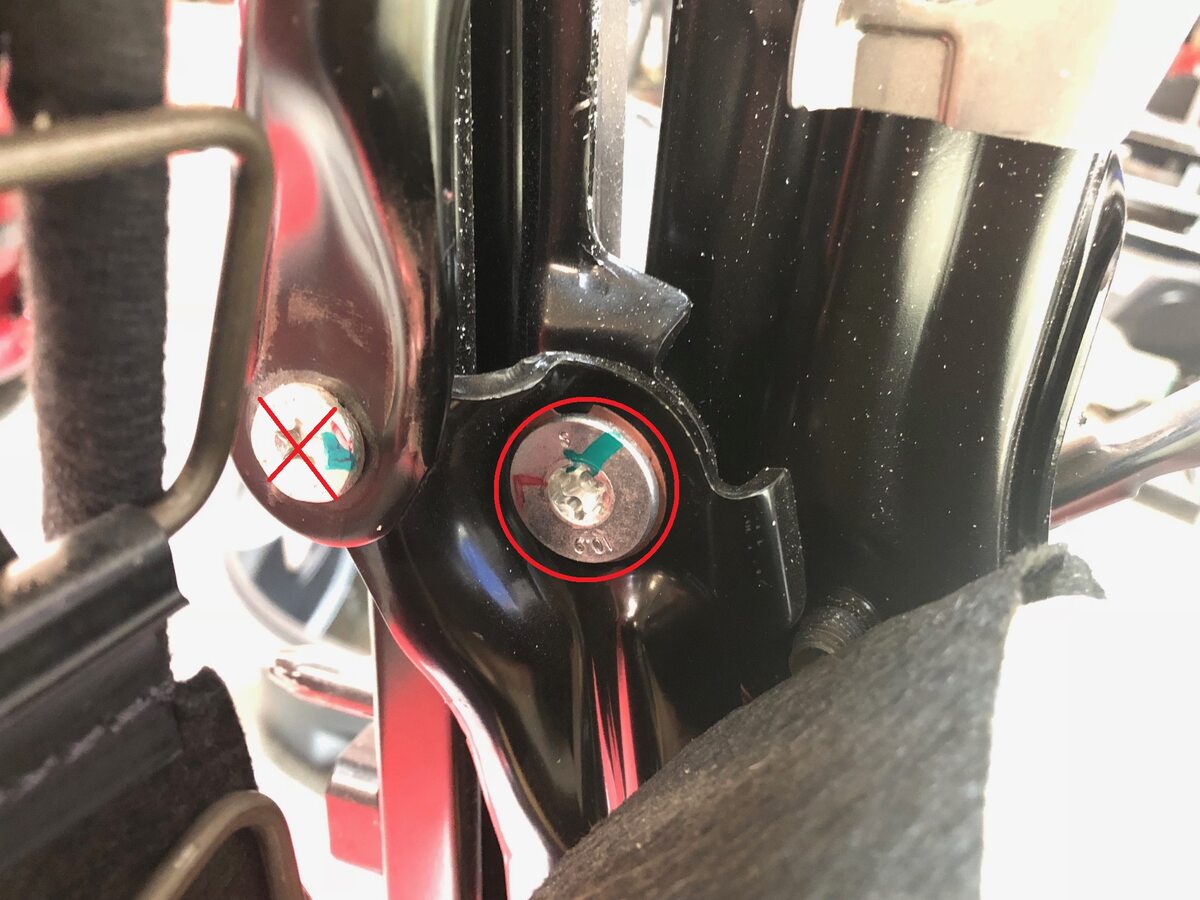

  13. With assistance, remove the bolts (x2) that attach the RH side track assembly to the RH front seat cushion assembly.
    提示： 推荐使用以下工具：
    • T50 短梅花批头
    • 3 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
    • 无绳棘轮/冲击钻

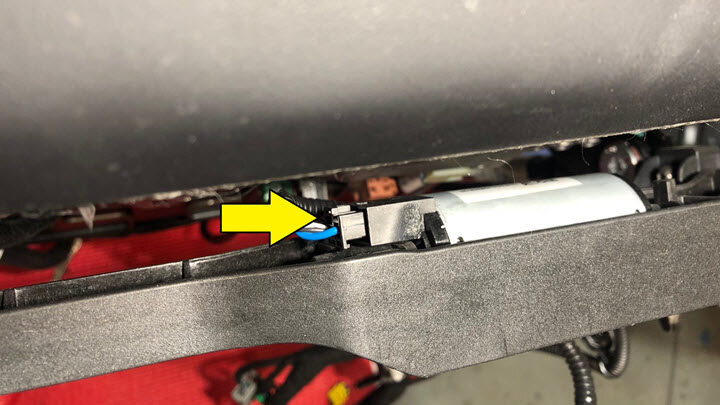

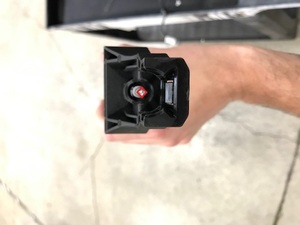

  14. Disconnect the front passenger seat track motor electrical connector.

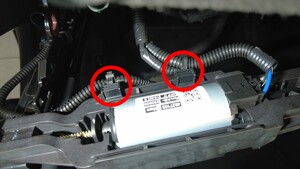

  15. Use a clip prytool to remove the harness clips (x2) from the RH front seat track motor.

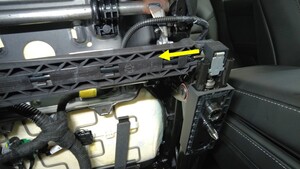

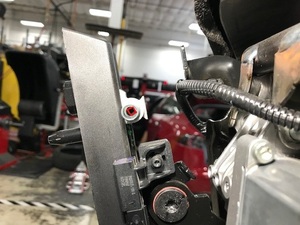

  16. Release the front passenger seat outer track from the track bridge assembly.
    Informational PurposesAn informational icon, calling your attention
    注

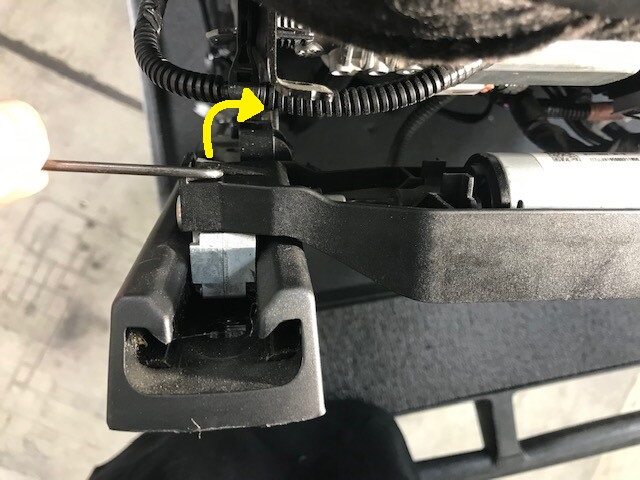

    Pry up on the bridge tack motor tab, and then slide the outer track away to release it.

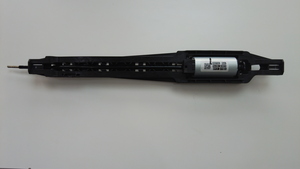

  17. Release the RH front seat track bridge assembly from the inner seat track.
    Informational PurposesAn informational icon, calling your attention
    注
    Pry up on the bridge tack motor tab, and then slide the seat track bridge assembly away to release it.

安装

  1. Install the RH front seat outer track onto the track bridge assembly.
    Informational PurposesAn informational icon, calling your attention
    注
    The track motor cable is keyed square and must be aligned with the inner track. Turn the cable by hand to align as needed. Slide the track motor bridge into the inboard track till it is fully and securely seated.
  2. Install the track motor bridge to the inner track.
    Informational PurposesAn informational icon, calling your attention
    注
    The track motor cable is keyed square and must be aligned with the inboard track. Turn the cable by hand to align as needed. Slide the track motor bridge into the inboard track till it is fully and securely seated.
  3. Connect the track motor electrical connector.
  4. Install the harness clips (x2) to the RH front seat track motor.
  5. With assistance, install the bolts (x2) that attach the RH side track assembly to the RH front seat cushion assembly.
    23 Nm (17.0 lbs-ft)
    提示： 推荐使用以下工具：
    • T50 短梅花批头
    • 3 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
    • 无绳棘轮/冲击钻
  6. Install a new bolt that attaches the lift motor assembly to the rear RH link.
    18 Nm (13.3 lbs-ft)
    提示： 推荐使用以下工具：
    • T45 短梅花批头
    • 棘轮/扭矩扳手
    • 3 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
    • 无绳棘轮/冲击钻
  7. Reposition the RH front seat onto the RH front seat risers.
    Informational PurposesAn informational icon, calling your attention
    注
    Take care when moving the seat. Ensure the carpet is not damaged.
  8. Secure the RH front seat harness under the RH front cabin carpet.
  9. Install the RH front seat harness to the lower A-pillar 12V bracket clips (x5).
  10. Move the RH front seat forward, and then install new RH front seat rear fasteners (x2).
    33.5 Nm (24.7 lbs-ft)
    提示： 推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 无绳棘轮/冲击钻
    • 回旋头棘轮/回旋头扭矩扳手
  11. Move the RH front seat backward, and then install new RH front seat front fasteners (x2).
    33.5 Nm (24.7 lbs-ft)
    提示： 推荐使用以下工具：
    • 梅花 Plus T45 套筒
    • 无绳棘轮/冲击钻
    • 回旋头棘轮/回旋头扭矩扳手
  12. Install the RH lower A-pillar trim. See 饰板 - A 柱 - 下 - LH（拆卸和更换）.
  13. Install the RH middle A-pillar trim. See 饰板 - A 柱 - 中部 - LH（拆卸和更换）.
  14. Install the RH instrument panel end cap. See 端盖 - 仪表板 - LH（拆卸和更换）.
  15. Install the RH front door seal along the lower A-pillar trim.
  16. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3（连接和断开）.
  17. For NA vehicles only: On the laptop, select the Actions tab, then search for "OCS". Run the PROC_OCS1P_SELF-CALIBRATIONSearch for routine in ToolboxOCS1P delete Sandwich and calibrate routineSafety & Restraints / Seats - OCS1P Self Capacitance Calibration routine.
    Informational PurposesAn informational icon, calling your attention
    注
    Verify the seat is clear from any tooling or objects prior to calibration.
  18. On the laptop, select the Actions tab, then search for "Seat calibration". Run the PROC_VCRIGHT_SEAT-CALIBRATESearch for routine in ToolboxRight Seat Calibration routine.
  19. Disconnect Toolbox and remove the laptop from the vehicle.
  20. Disable Service Mode. See 维护模式.
  21. Move the RH front seat to original position.
  22. Raise all windows and close all doors.
