校正代码 13011212 1.02注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Check Firmware version
   注

   Firmware package installed must be 2023.2.11 or above for configuration routine to populate, If below target package, proceed with OTA update
2. Remove the front passenger seat assembly. See 座椅总成 - 第一排 - LH（拆卸和更换）.
3. Remove screw securing outer side cover to seat.
   注

   1x screw, T20, 4 Nm, Ensure the front of the seat is high enough to access the T20 screw.



4. Release outer side cover clip from seat, but do not remove
   注

   1x clip, Do not fully remove, possible damage to the trim/switch pack/harness



5. Disconnect seat switch connector
   注

   1x connector



6. Slide outer cover rearward to release clip from frame and lift up over pretensioner to remove
   注

   1x clip



7. Disconnect the RH front seat belt pretensioner.
   注

   1x connector



8. Remove RH lap pretensioner from seat track
   注

   1x patch bolt, T50, 40 Nm, Bolt is patched and held in place with metal clip





9. Remove RH front seat RH sideshield carrier
   注

   2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame







10. Release seat belt pretensioner harness clips
    注

    3x clips, Use 90 pick to release harness clips from seat track rail







11. Remove RH front seat LH sideshield carrier
    注

    2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame





12. Remove clips securing seat switch harness to seat cushion frame
    注

    2x fir tree clips



13. Remove inner side shield from seat
    注

    3x clips, Release side clip from seat bottom frame, then pull up on rear of trim to remove





14. Disconnect RH front seat belt buckle
    注

    1x connector



15. Release RH front seat belt buckle harness clip
    注

    1x fir tree clip



16. Remove the clips securing RH front seat belt buckle connector harness to the seat cushion frame
    注

    2x fir tree clips



17. Release harness clip from RH front seat bottom frame
    注

    1x clip



18. Remove RH front seat buckle from seat track
    注

    1x patch bolt, T50, 40 Nm





19. Rotate the seat to gain access to the underside of the seat
    注

    Protect seat cushion from damage



20. Unhook the straps for the lower section of the seat back and move the seat back flap away from the underside of the seat
    注

    2x clips



21. Remove seat cushion retaining clips from the seat suspension
    注

    2x clips



22. Remove the front retaining clip from the seat cushion frame securing the front of the seat trim to the frame
    注

    1x clip strip, May need to start with a hook tool, Pull the clip away from the frame to release







23. Remove the inboard retaining clip from the seat cushion frame securing the side of the seat trim to the frame
    注

    1x clip strip, May need to start with a hook tool, Pull the clip away from the frame to release





24. Remove the outboard retaining clip from the seat cushion frame securing the side of the seat trim to the frame
    注

    1x clip strip, May need to start with a hook tool, Pull the clip away from the frame to release







25. Disconnect the tilt motor connector
    注

    1x connector



26. Remove the harness retaining clip under the tilt motor
    注

    1x retaining clip



27. Disconnect the seat occupied sensor
    注

    1x connector



28. Disconnect seat cushion heat pad from module
    注

    1x connector



29. Disconnect the CAN communication pass through connector from the OCS control module
    注

    1x connector



30. Remove OCS control module from seat bottom frame
    注

    2x tabs







31. Disconnect seat cushion heat pad from seat back heat pad connector
    注

    1x connector



32. Remove seat cushion connector from seat cushion suspension
    注

    Slide upward to release from trim



33. Disconnect the seat back heater connector
    注

    1x connector



34. Disconnect the seat back heater harness connector from seat cushion suspension
    注

    1x connector



35. Disconnect the seat cushion heat pad
    注

    1x connector



36. Remove seat cushion heat pad from seat cushion suspension
    注

    1x connector, 1x clip, Slide connector forward to release from seat bottom







37. Remove clip securing the harness to the under side of the seat, next to the seat heater connectors
    注

    1x retaining clip



38. Disconnect the seat track position sensor connector
    注

    1x connector



39. Disconnect the lift motor connector
    注

    1x connector





40. Disconnect LH front seat track motor connector
    注

    1x connector



41. Remove the clip securing the track motor harness to the track motor housing
    注

    1x edge clip



42. Remove the clip securing the harness to the seat cushion frame under the lift motor
    注

    1x retaining clip



43. Remove the retaining clip under the main seat harness junction
    注

    1x retaining clip



44. Move harness away from seat frame



45. Return seat to upright position



46. Install the outboard headrest release tool
    注

    Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity









47. Install the inboard headrest release tool
    注

    Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity







48. Remove the headrest from seat
    注

    2x locking clips, Remove by pulling straight up, out of the seat



49. Remove the inboard headrest release tool
    注

    Rotate the release tool out of position, Do not pull straight up or out



50. Remove the outboard headrest release tool
    注

    Rotate the release tool out of position, Do not pull straight up or out



51. Remove seat back from RH front seat
    注

    6x clips, Start at the top of the seat and pull the shell away from the frame, When the side clips are free, pull the bottom and carefully roll the bottom tabs out of the slots, If pulled straight out the clips on the seat back can break off





52. Remove LH front seat back assembly from seat cushion frame
    注

    4x bolts, T47P, 43 Nm, Recommend assistance, Discard bolts after removal







53. Remove RH front seat cushion assembly from seat frame





54. Remove LH front seat cushion suspension from power seat cushion frame
    注

    4x tabs, Raise portion seated on rear cushion tube, Then pull assembly away from tabs to release









55. Install LH front seat cushion suspension from power seat cushion frame
    注

    4x tabs, Position suspension along metal tabs, Then seat rear portion on rear cushion tube





56. Position RH front seat cushion assembly onto cushion frame





57. Install LH front seat back assembly onto seat cushion frame
    注

    4x bolts, T47P, 43 Nm, Recommend assistance, Install new patch bolts





58. Install the seat back shell base assembly to seat back frame
    注

    6x clips, Install the lower clips first and rotate the shell up into place, Light pressure may need to be applied to the shell to ensure it's fully seated, The headrest posts will engage the seat back when installed









59. Install RH front seat headrest
    注

    2x locking clips, Ensure the headrest is fully seated, An audible click will be heard when installing the headrest, Ensure the headrest is seated by tugging up on the headrest



60. Flip seat over to gain access to the bottom of the seat
    注

    Protect the seat back to prevent damage



61. Install the retaining clip under the main seat harness junction
    注

    1x retaining clip



62. Install the clip securing the harness to the seat cushion frame under the lift motor
    注

    1x retaining clip



63. Route harness towards pretensioner



64. Install the clip securing the track motor harness to the track motor housing
    注

    1x edge clip



65. Connect RH front seat track motor connector
    注

    1x connector



66. Connect the lift motor connector
    注

    1x connector



67. Connect the seat track position sensor connector
    注

    1x connector



68. Install the clip securing the harness to the under side of the seat, next to the seat heater connectors
    注

    1x retaining clip



69. Connect the heat pad connector
    注

    1x connector



70. Connect the heat pad connector
    注

    1x connector



71. Install the seat back heater harness connector to the seat bottom
    注

    1x connector



72. Connect the seat back heater connector
    注

    1x connector



73. Install seat cushion heating pad connector onto cushion suspension
    注

    1x connector



74. Connect seat cushion heating pad to seat back heating pad
    注

    1x connector



75. Install OCS control module onto seat bottom frame
    注

    2x tabs







76. Connect the SRS harness connector to the OCS control module
    注

    1x connector



77. Connect seat cushion heating pad to module
    注

    1x connector



78. Install the seat occupied sensor onto the seat frame
    注

    1x clip



79. Connect the seat occupied sensor and install the clip onto the seat bottom
    注

    1x connector, 1x retaining clip, Ensure harness is not routed between cushion and frame to avoid friction



80. Install the harness retaining clip under the tilt motor
    注

    1x retaining clip



81. Connect the tilt motor connector
    注

    1x connector



82. Install the outboard seat trim retaining clip onto the seat frame
    注

    1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame







83. Install the inboard seat trim retaining clip onto the seat frame
    注

    1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame







84. Install the front seat trim retaining clip onto the seat frame
    注

    1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame







85. Install the seat cushion retaining clips onto the seat suspension
    注

    2x clips, The seat cushion and trim may need to be pulled tight for the hooks to achieve correct placement on the seat suspension



86. Hook the strap clips for the seat back shell onto the seat suspension
    注

    2x clips, Ensure the straps are tight for proper fit and installation



87. Rotate the seat to normal upright position



88. Install the clips securing RH front seat belt buckle connector harness to the seat cushion frame
    注

    2x fir tree clips



89. Install clip securing RH front seat belt buckle harness connector to the seat cushion frame
    注

    1x fir tree clip



90. Install LH sideshield carrier onto RH front seat
    注

    2x clips, 2x tabs, Slide forward onto seat frame aligning clips and tabs



91. Install the bolt securing the RH front seat buckle to seat track
    注

    1x patch bolt, T50, 40 Nm, Buckle comes with bolt and metal clip



92. Adjust RH front seat buckle harness clip along inner seat rail and verify harness is extended as far forward as possible to eliminate slack on the back side of the clip
    注

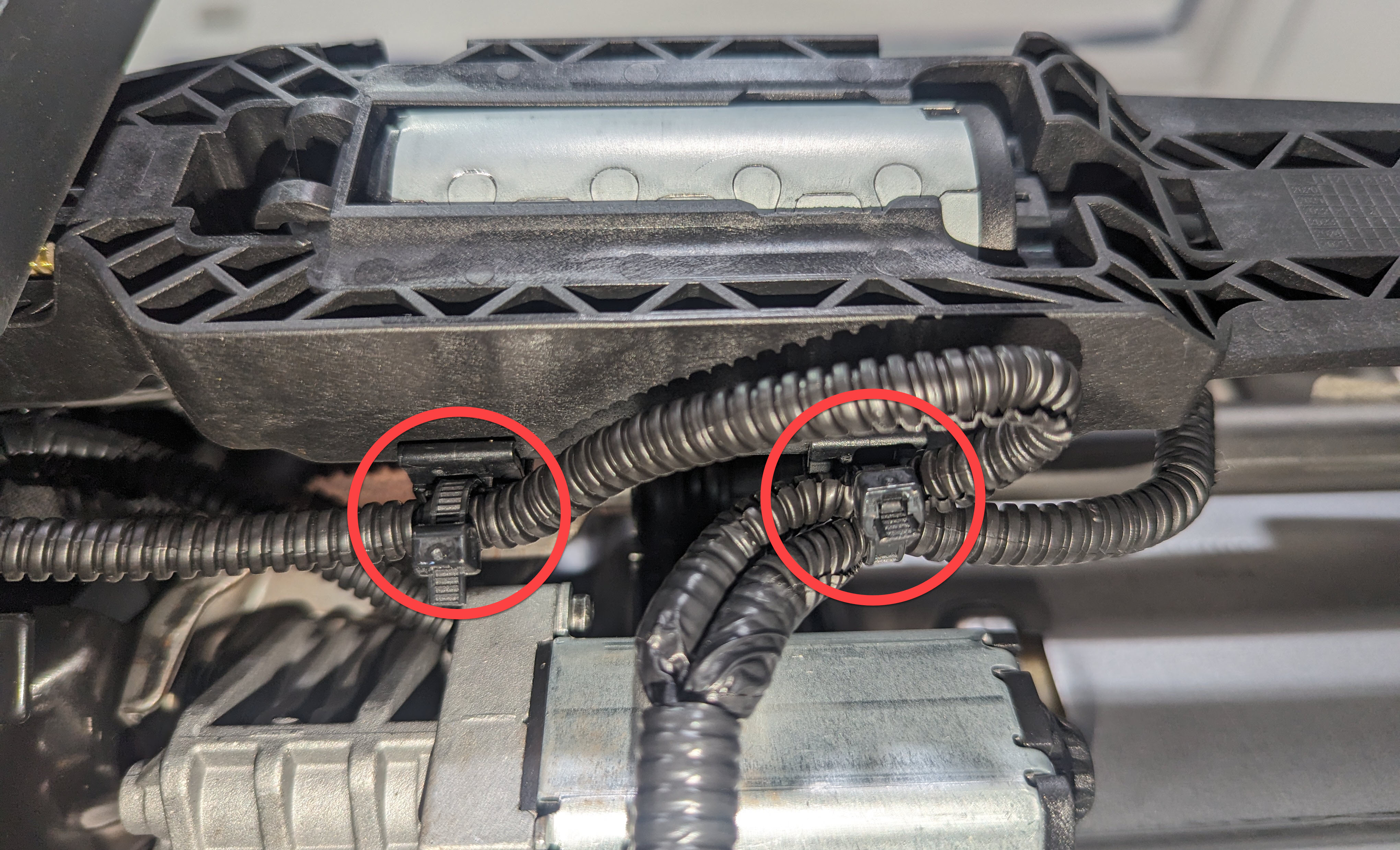

    1x clip, Avoid straining harness, If harness is routed as shown in 2nd photo rework is needed



93. Connect RH front seat belt buckle
    注

    1x connector



94. Install inner side shield cover onto RH front seat
    注

    3x clips, Slide the trim onto the seat from the opening for the buckle, then slide forward into position





95. Install clips securing seat switch harness to seat cushion frame
    注

    2x fir tree clips



96. Install RH front seat LH sideshield carrier
    注

    2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame





97. Install seat belt pretensioner harness clips
    注

    3x clips, Position seat belt pretensioner harness clips to seat track rail and press down on each clip to secure





98. Install RH front seat RH sideshield carrier
    注

    2x clips, 2x tabs, Slide forward onto seat frame aligning clips and tabs



99. Install RH lap pretensioner from seat track
    注

    1x patch bolt, T50, 40 Nm, Bolt is patched and held in place with metal clip





100. Disconnect RH front seat belt pretensioner
     注

     1x connector, Pull both of the orange tabs down to release the connector



101. Slide outer cover forward to engage clip into the frame and lift up over pretensioner to install
     注

     1x clip



102. Connect seat switch connector
     注

     1x connector



103. Install outer side cover clip to seat frame
     注

     1x clip



104. Install screw securing outer side cover to seat
     注

     1x screw, T20, 4 Nm



105. Install the front passenger seat assembly. See 座椅总成 - 第一排 - LH（拆卸和更换）.

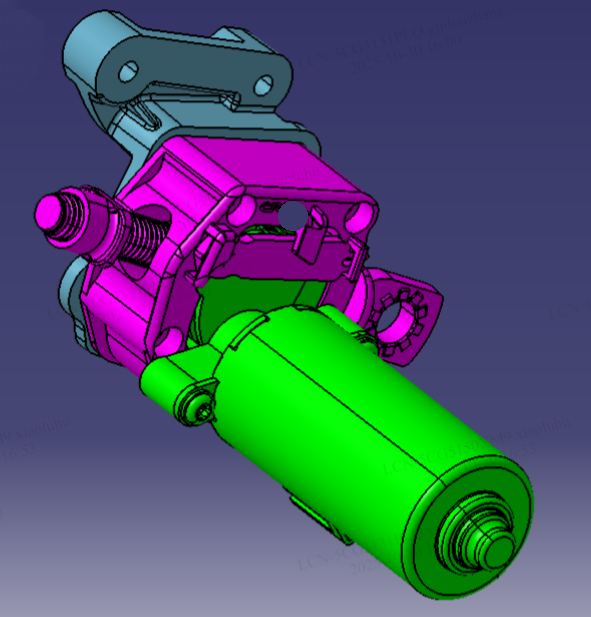

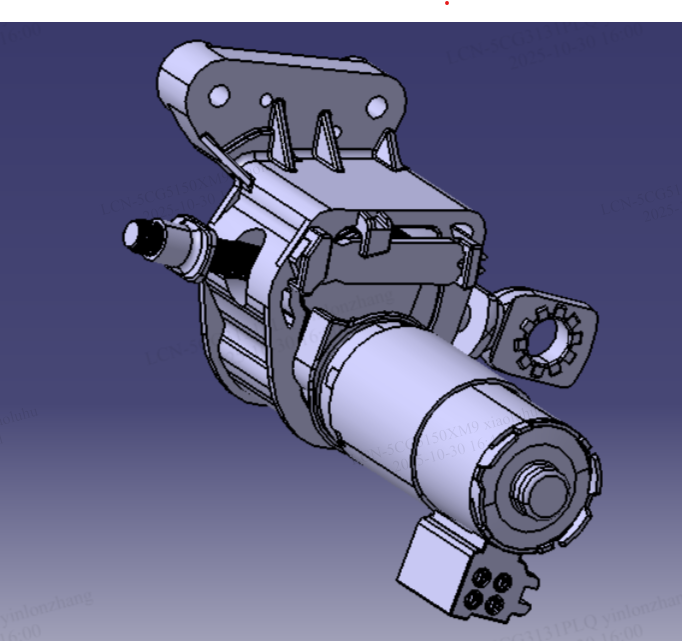

106. 2024 年 6 月之后生产的车辆的前排座椅总成和座椅座垫框架总成带有一个新设计的 Tesla “小型倾斜”电机，更换这些总成零件（或小型倾斜电机）时，可能需要进行配置变更。如需更新配置，请浏览表中给出的配置信息，然后执行以下子步骤。

     1. 进入Infotainment Dashboard中的Vehicle Configuration部分。请参阅网关配置（显示和变更）。
     2. 根据表中给出的倾斜电机总览信息更新cfg_frontSeattype。
107. Connect to vehicle using Toolbox 3.0
     注

     Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle, https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)If RJ45 ethernet diagnostic connector present connect directly from laptop using an RJ45 Ethernet cable
108. Unlock Gateway
     注

     After vehicle has been put into "Service Mode", place keycard on center console to turn on drive rails, hold down the brake pedal, while holding down break pedal simultaneously hold the turn signal stalk fully up for at least 10 seconds, "GTW UNLOCKING" should pop up on the UI next to the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the UI next to the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information
109. Select ‘Actions’ and search for ‘OCS’
110. Select ‘PROC_OCS1P_SELF-CALIBRATIONvia Toolbox: (link)via Service Mode Plus: Safety & Restraints ➜ Seats ➜ OCS1P Self Capacitance Calibration’, click ‘Run’, and allow routine to complete
     注

     Select ‘X’ at top right of window to close once complete, Routine is specific to NA region vehicles
111. Select ‘Actions’ and search for ‘Seat calibration’
112. Select ‘PROC_VCRIGHT_SEAT-CALIBRATEvia Toolbox: (link)’, click ‘Run’, and allow routine to complete
     注

     Select ‘X’ at top right of window to close once complete
113. Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
114. Raise all windows
115. Close all four doors
     注

     Unlatch rear doors before closing
