校正代码 16307202 1.92 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Open all four doors
2. Lower all four windows
3. Place vehicle in service mode with touchscreen
   注

   Hold Tesla T icon at top of center display for four seconds and then type "service" into dialog box
4. Remove the ancillary bay cover. See 盖板 - 高压电池仓（结构化电池组）（拆卸和更换）.
5. 拆下烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
6. Disconnect fast charge contactor
   注

   1x connector, Push on both side of connector to release tabs and pull upward



7. Remove bolt securing AC filter harness to negative DC inlet busbar
   注

   1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal



8. Remove bolt securing AC filter harness positive DC inlet busbar
   注

   1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal



9. Release AC filter harness from tray
   注

   2x clips

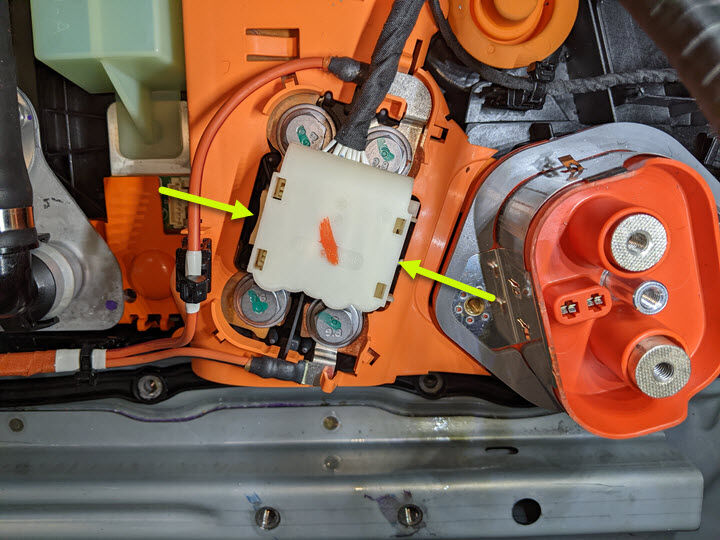

10. Remove FC contactor cover
    注

    3x securing tabs

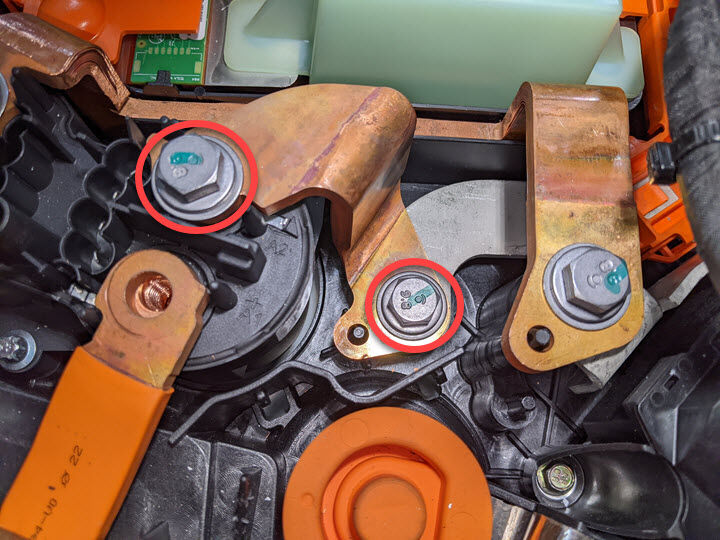

11. Remove bolts securing FC positive outlet jumper
    注

    2x bolts, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal

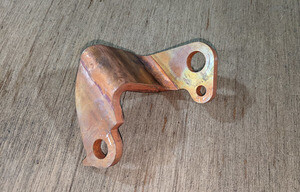

12. Remove FC positive outlet jumper from ancillary bay





13. Position FC positive outlet jumper onto ancillary bay





14. Install bolts securing FC positive outlet jumper
    注

    2x bolts, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Discard after removal



15. Perform Hioki measurement at the joint from FC positive outlet jumper busbar to DC positive link busbar
    注

    1 HV joint, 60µΩ or less



16. Install FC contactor cover
    注

    3x securing tabs





17. Install bolt securing AC filter harness positive DC inlet busbar
    注

    1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Install new bolt



18. Install bolt securing AC filter harness to negative DC inlet busbar
    注

    1x bolt, 13mm, 15 Nm, Minus 180 degrees, 5 Nm + 60 degrees, Install new bolt



19. Perform Hioki impedance measurement at joint from AC filter harness to positive DC inlet busbar
    注

    1x HV joint, 150µΩ or less



20. Perform Hioki impedance measurement at joint from AC filter harness to negative DC inlet busbar
    注

    1x HV joint, 150µΩ or less



21. Secure AC filter harness onto tray
    注

    2x clips



22. Connect fast charge contactor
    注

    1x connector, Push on both side of connector to release tabs and pull upward



23. 测量烟火电池隔离开关安装点间的电压，然后安装烟火电池隔离开关。请参阅烟火电池断接开关（结构化电池组）（拆卸和安装）。
24. Install the ancillary bay cover. See 盖板 - 高压电池仓（结构化电池组）（拆卸和更换）.
25. Exit Service Mode through UI
    注

    Controls > Service Mode > Exit Service Mode
26. Raise all four windows
27. Close all four doors
    注

    If 12V is powered up, Unlatch rear doors before closing
